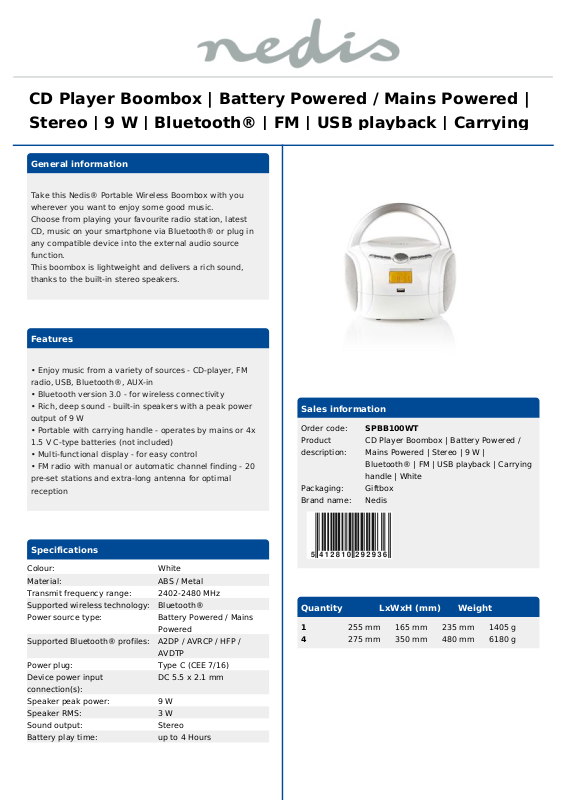

Nedis SPBB100WT Datasheet

CD Player Boombox | Battery Powered / Mains Powered |
Stereo | 9 W | Bluetooth® | FM | USB playback | Carrying

General information

Take this Nedis® Portable Wireless Boombox with you
wherever you want to enjoy some good music.
Choose from playing your favourite radio station, latest
CD, music on your smartphone via Bluetooth® or plug in
any compatible device into the external audio source
function.
This boombox is lightweight and delivers a rich sound,
thanks to the built-in stereo speakers.

Features

• Enjoy music from a variety of sources - CD-player, FM
radio, USB, Bluetooth®, AUX-in

• Bluetooth version 3.0 - for wireless connectivity

• Rich, deep sound - built-in speakers with a peak power
output of 9 W

• Portable with carrying handle - operates by mains or 4x

1.5 V C-type batteries (not included)

• Multi-functional display - for easy control

• FM radio with manual or automatic channel finding - 20
pre-set stations and extra-long antenna for optimal
reception

Sales information

Order code: SPBB100WT
Product
description:

Packaging: Giftbox
Brand name: Nedis

CD Player Boombox | Battery Powered /
Mains Powered | Stereo | 9 W |
Bluetooth® | FM | USB playback | Carrying
handle | White

Specifications

Colour: White
Material: ABS / Metal
Transmit frequency range: 2402-2480 MHz
Supported wireless technology: Bluetooth®
Power source type: Battery Powered / Mains

Powered

Supported Bluetooth® profiles: A2DP / AVRCP / HFP /

AVDTP
Power plug: Type C (CEE 7/16)
Device power input
connection(s):
Speaker peak power: 9 W
Speaker RMS: 3 W
Sound output: Stereo
Battery play time: up to 4 Hours

DC 5.5 x 2.1 mm

Quantity LxWxH (mm) Weight

1 255 mm 165 mm 235 mm 1405 g
4 275 mm 350 mm 480 mm 6180 g

Connection input: 1x 3.5 mm / 1x USB
Speaker channels: 2.0
Carrying handle: Yes
Tuning type: Digital
Supported radio band: FM
Media playback: Radio / AUX / USB / CD
FM frequency range: 87.5-108 MHz
Antenna type: External
USB charging: Yes
Power adapter cable length: 1.80 m
Bluetooth® version: 3.0
FM preset stations: 20 pcs
Driver size: 76 mm
Power consumption in operating
mode:
Weight: 1450 g
Required batteries (not
included):
Frequency response: 60 Hz - 20 kHz
Height: 115.0 mm
Power consumption in standby
mode:
CD player: Yes
USB playback: Yes
Maximum transmit antenna
gain:
Depth: 200.0 mm
Width: 230.0 mm
Screen: Amber Screen
Screen size: 0-1.8 "
Input voltage: 100 - 240 VAC 50/60 Hz
Input current: 1.3 A
Maximum transmit power: 1.47 dBi

6 W

4x C

0.2 W

3.3 dBi

Package contents

Boombox
Power adapter
Quick start guide
