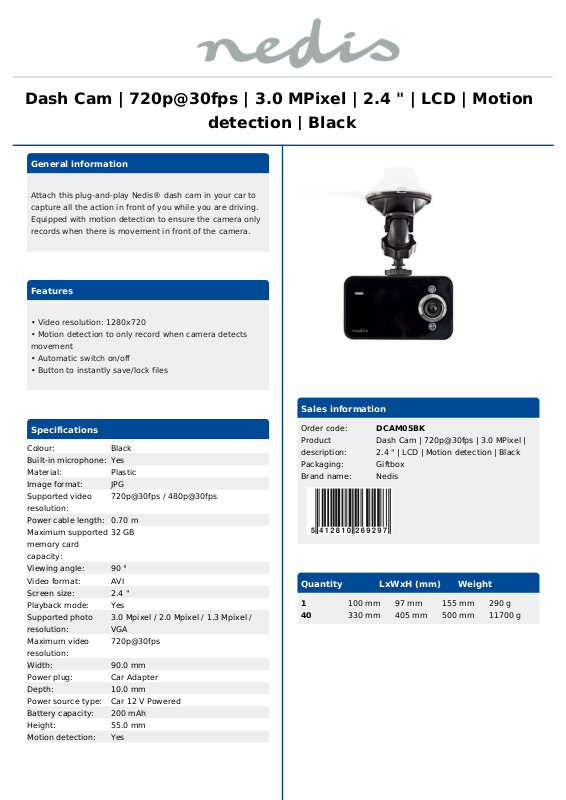

Nedis DCAM05BK Datasheet

Dash Cam | 720p@30fps | 3.0 MPixel | 2.4 " | LCD | Motion

detection | Black

General information

Attach this plug-and-play Nedis® dash cam in your car to
capture all the action in front of you while you are driving.
Equipped with motion detection to ensure the camera only
records when there is movement in front of the camera.

Features

• Video resolution: 1280x720

• Motion detection to only record when camera detects
movement

• Automatic switch on/off

• Button to instantly save/lock files

Sales information

Specifications

Colour: Black
Built-in microphone: Yes
Material: Plastic
Image format: JPG
Supported video
resolution:
Power cable length: 0.70 m
Maximum supported
memory card
capacity:
Viewing angle: 90 °
Video format: AVI
Screen size: 2.4 "
Playback mode: Yes
Supported photo
resolution:
Maximum video
resolution:
Width: 90.0 mm
Power plug: Car Adapter
Depth: 10.0 mm
Power source type: Car 12 V Powered
Battery capacity: 200 mAh
Height: 55.0 mm
Motion detection: Yes

720p@30fps / 480p@30fps

32 GB

3.0 Mpixel / 2.0 Mpixel / 1.3 Mpixel /
VGA
720p@30fps

Order code: DCAM05BK
Product
description:
Packaging: Giftbox
Brand name: Nedis

Dash Cam | 720p@30fps | 3.0 MPixel |

2.4 " | LCD | Motion detection | Black

Quantity LxWxH (mm) Weight

1 100 mm 97 mm 155 mm 290 g
40 330 mm 405 mm 500 mm 11700 g

Maximum battery
time:
Weight: 182.0 g
Screen: LCD
Camera type: Dashboard Camera
Image sensor: 1,0 MPixel
Maximum photo
resolution:
Recording time: 3 min
Battery type: Li-ion
Type of mount: Windscreen Mount
Connection output: 1x Mini USB
Product language: Czech / Danish / Dutch / English /

Device power input
connection(s):
Type of external
memory slot:
Input voltage: 5,0 VDC
Input current: 1.0 A

13 min

3.0 MPixel

Finnish / French / German / Hungarian /
Italian / Norwegian / Polish /
Portuguese / Romanian / Russian /
Slovak / Spanish / Swedish / Turkish
Mini USB

Micro SD Card

Package contents

Camera
Car charger
Camera mount
Manual
