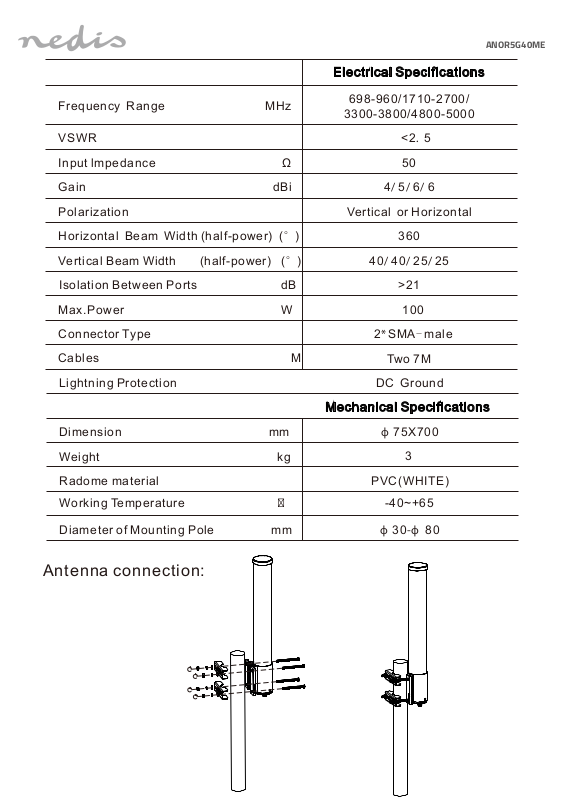

Electrical Specifications
ANOR5G40ME
Frequency Range MHz
VSWR
Input lmpedance Ω
Gain dBi
Polarization
Horizontal Beam Width (half-power) (°)
Vertical Beam Width (half-power) (°)
Isolation Between Ports dB
Max.Power W
Connector Type
Cables M
698-960/1710-2700/
3300-3800/4800-5000
<2. 5
50
4/ 5/ 6/ 6
Vertical or Horizontal
360
40/ 40/ 25/ 25
>21
10
0
2* SMA-male
Two 7M
Lightning Protection
DC Ground
Mechanical Specifications
Dimension mm
Weight kg
Radome material PVC(WHITE)
Working Temperature -40~+65
Diameter of Mounting Pole mm ф 30-ф 80
ф 75X700
3
Antenna connection:
