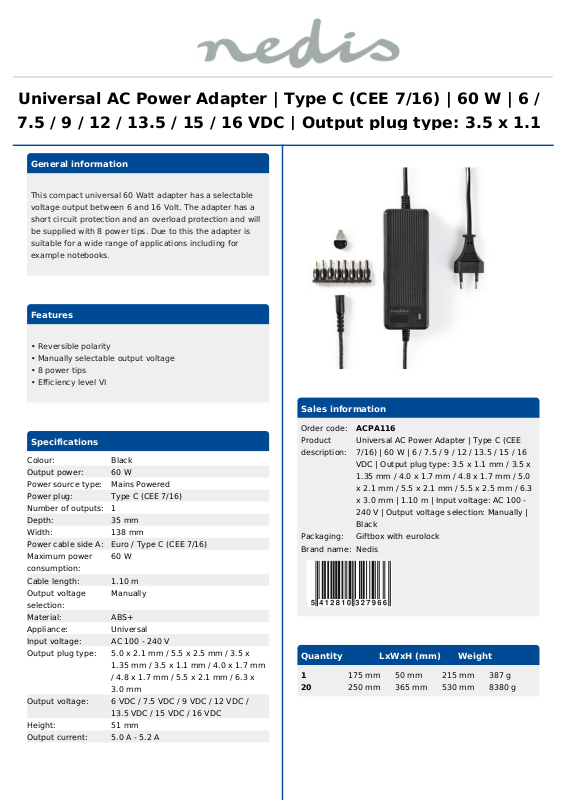

Nedis ACPA116 Datasheet
Universal AC Power Adapter | Type C (CEE 7/16) | 60 W | 6 /
7.5 / 9 / 12 / 13.5 / 15 / 16 VDC | Output plug type: 3.5 x 1.1
General information
This compact universal 60 Watt adapter has a selectable
voltage output between 6 and 16 Volt. The adapter has a
short circuit protection and an overload protection and will
be supplied with 8 power tips. Due to this the adapter is
suitable for a wide range of applications including for
example notebooks.
Features
• Reversible polarity
• Manually selectable output voltage
• 8 power tips
• Efficiency level VI
Specifications
Colour: Black
Output power: 60 W
Power source type: Mains Powered
Power plug: Type C (CEE 7/16)
Number of outputs: 1
Depth: 35 mm
Width: 138 mm
Power cable side A: Euro / Type C (CEE 7/16)
Maximum power
consumption:
Cable length: 1.10 m
Output voltage
selection:
Material: ABS+
Appliance: Universal
Input voltage: AC 100 - 240 V
Output plug type: 5.0 x 2.1 mm / 5.5 x 2.5 mm / 3.5 x
Output voltage: 6 VDC / 7.5 VDC / 9 VDC / 12 VDC /
Height: 51 mm
Output current: 5.0 A - 5.2 A
60 W
Manually
1.35 mm / 3.5 x 1.1 mm / 4.0 x 1.7 mm
/ 4.8 x 1.7 mm / 5.5 x 2.1 mm / 6.3 x
3.0 mm
13.5 VDC / 15 VDC / 16 VDC
Sales information
Order code: ACPA116
Product
description:
Packaging: Giftbox with eurolock
Brand name: Nedis
Universal AC Power Adapter | Type C (CEE
7/16) | 60 W | 6 / 7.5 / 9 / 12 / 13.5 / 15 / 16
VDC | Output plug type: 3.5 x 1.1 mm / 3.5 x
1.35 mm / 4.0 x 1.7 mm / 4.8 x 1.7 mm / 5.0
x 2.1 mm / 5.5 x 2.1 mm / 5.5 x 2.5 mm / 6.3
x 3.0 mm | 1.10 m | Input voltage: AC 100 240 V | Output voltage selection: Manually |
Black
Quantity LxWxH (mm) Weight
1 175 mm 50 mm 215 mm 387 g
20 250 mm 365 mm 530 mm 8380 g
Power adapter cable
length:
Weight: 279 g
1.10 m
Package contents
Power supply
8x power tip
Manual
