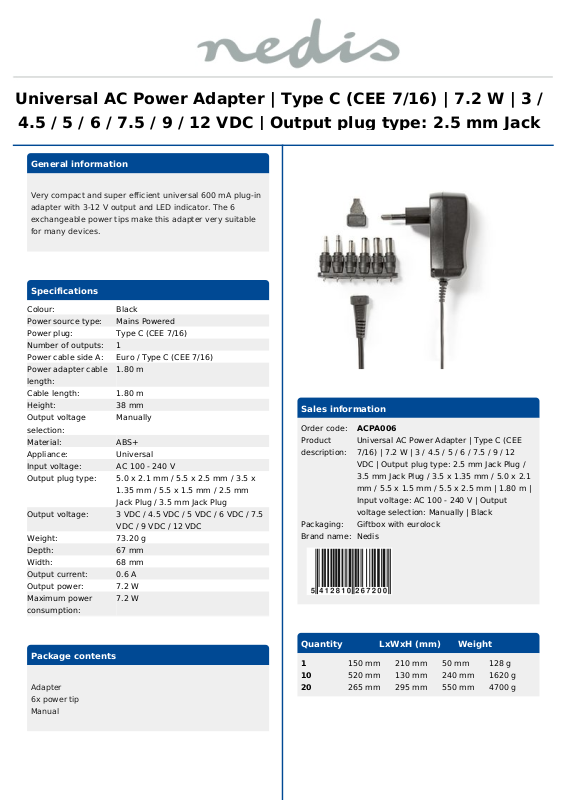

Nedis ACPA006 Datasheet

Universal AC Power Adapter | Type C (CEE 7/16) | 7.2 W | 3 /

4.5 / 5 / 6 / 7.5 / 9 / 12 VDC | Output plug type: 2.5 mm Jack

General information

Very compact and super efficient universal 600 mA plug-in
adapter with 3-12 V output and LED indicator. The 6
exchangeable power tips make this adapter very suitable
for many devices.

Specifications

Colour: Black
Power source type: Mains Powered
Power plug: Type C (CEE 7/16)
Number of outputs: 1
Power cable side A: Euro / Type C (CEE 7/16)
Power adapter cable
length:
Cable length: 1.80 m
Height: 38 mm
Output voltage
selection:
Material: ABS+
Appliance: Universal
Input voltage: AC 100 - 240 V
Output plug type: 5.0 x 2.1 mm / 5.5 x 2.5 mm / 3.5 x

Output voltage: 3 VDC / 4.5 VDC / 5 VDC / 6 VDC / 7.5

Weight: 73.20 g
Depth: 67 mm
Width: 68 mm
Output current: 0.6 A
Output power: 7.2 W
Maximum power
consumption:

1.80 m

Manually

1.35 mm / 5.5 x 1.5 mm / 2.5 mm
Jack Plug / 3.5 mm Jack Plug

VDC / 9 VDC / 12 VDC

7.2 W

Sales information

Order code: ACPA006
Product
description:

Packaging: Giftbox with eurolock
Brand name: Nedis

Universal AC Power Adapter | Type C (CEE
7/16) | 7.2 W | 3 / 4.5 / 5 / 6 / 7.5 / 9 / 12
VDC | Output plug type: 2.5 mm Jack Plug /

3.5 mm Jack Plug / 3.5 x 1.35 mm / 5.0 x 2.1
mm / 5.5 x 1.5 mm / 5.5 x 2.5 mm | 1.80 m |
Input voltage: AC 100 - 240 V | Output
voltage selection: Manually | Black

Quantity LxWxH (mm) Weight

Package contents

Adapter
6x power tip
Manual

1 150 mm 210 mm 50 mm 128 g
10 520 mm 130 mm 240 mm 1620 g
20 265 mm 295 mm 550 mm 4700 g
