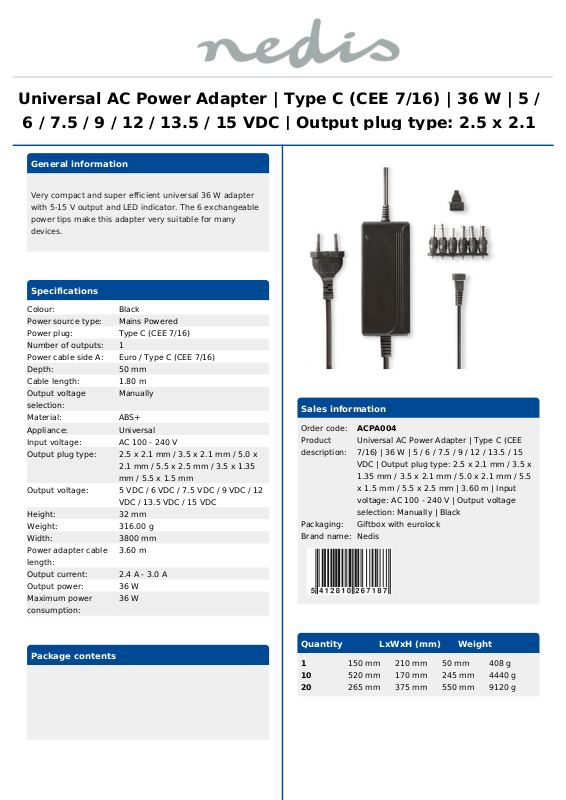

Nedis ACPA004 Datasheet

Universal AC Power Adapter | Type C (CEE 7/16) | 36 W | 5 /

6 / 7.5 / 9 / 12 / 13.5 / 15 VDC | Output plug type: 2.5 x 2.1

General information

Very compact and super efficient universal 36 W adapter
with 5-15 V output and LED indicator. The 6 exchangeable
power tips make this adapter very suitable for many
devices.

Specifications

Colour: Black
Power source type: Mains Powered
Power plug: Type C (CEE 7/16)
Number of outputs: 1
Power cable side A: Euro / Type C (CEE 7/16)
Depth: 50 mm
Cable length: 1.80 m
Output voltage
selection:
Material: ABS+
Appliance: Universal
Input voltage: AC 100 - 240 V
Output plug type: 2.5 x 2.1 mm / 3.5 x 2.1 mm / 5.0 x

Output voltage: 5 VDC / 6 VDC / 7.5 VDC / 9 VDC / 12

Height: 32 mm
Weight: 316.00 g
Width: 3800 mm
Power adapter cable
length:
Output current: 2.4 A - 3.0 A
Output power: 36 W
Maximum power
consumption:

Manually

2.1 mm / 5.5 x 2.5 mm / 3.5 x 1.35
mm / 5.5 x 1.5 mm

VDC / 13.5 VDC / 15 VDC

3.60 m

36 W

Sales information

Order code: ACPA004
Product
description:

Packaging: Giftbox with eurolock
Brand name: Nedis

Universal AC Power Adapter | Type C (CEE
7/16) | 36 W | 5 / 6 / 7.5 / 9 / 12 / 13.5 / 15
VDC | Output plug type: 2.5 x 2.1 mm / 3.5 x

1.35 mm / 3.5 x 2.1 mm / 5.0 x 2.1 mm / 5.5
x 1.5 mm / 5.5 x 2.5 mm | 3.60 m | Input
voltage: AC 100 - 240 V | Output voltage
selection: Manually | Black

Quantity LxWxH (mm) Weight

Package contents

1 150 mm 210 mm 50 mm 408 g
10 520 mm 170 mm 245 mm 4440 g
20 265 mm 375 mm 550 mm 9120 g

Adapter
6x power tip
AC power cable
Manual
