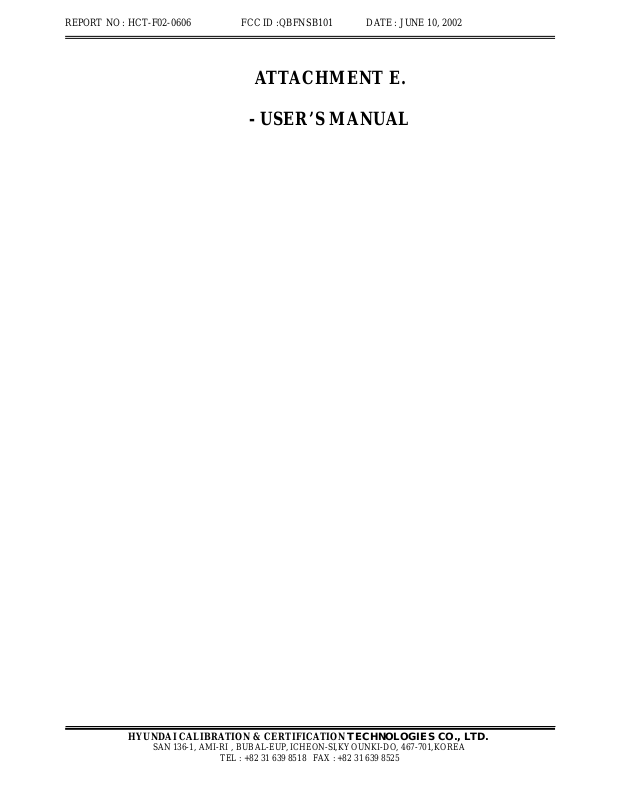

REPORT NO : HCT-F02-0606 FCC ID :QBFNSB101 DATE : JUNE 10, 2002
ATTACHMENT E.
- USER’S MANUAL
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA
TEL : +82 31 639 8518 FAX : +82 31 639 8525
REPORT NO : HCT-F02-0606 FCC ID :QBFNSB101 DATE : JUNE 10, 2002
Federal Communications Commission Requirements
Warning : Changes or modifications not expressly approved by the part y res pons ible for compliance
with the FCC’S rules could void the user's authority to operate the equipment.
Because of the limited space on the model NSB-101 Stereo FM Transmitter case, the notice of
Compliance with FCC Rules is printed here
1
SoundBird Manual
Transmitter
∪ You can enjoy the perfect quality sound using the radio with FM 88.3 MHz without receiver∪
Receiver
Nective Co., Ltd
1. Connect No.2 of Tra nsmitter to the audio outlet (Earphone, Headphone, AUX) of Audio I nstruments (MP3,
Computer, Audio apparatus)
FCC ID : QBFNSB101
2. Certify Transmitter Power On with No.4 Lamp
3. Plug the Antenna in No.3
THIS DEVICE COMPLIES WITH PARTS 15 OF FCC RULES
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS
(1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE,
1. Plug Earphone or Speaker in No.5 of Receiver, then Power on with No.6 switch
AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE
2. Adjust the Volume with No.7
RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
UNDESIRED OPERATION.
SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA
TEL : +82 31 639 8518 FAX : +82 31 639 8525
REPORT NO : HCT-F02-0606 FCC ID :QBFNSB101 DATE : JUNE 10, 2002
How to recharge
1. Connect the Adapter to No.8 of the Recharge Cable (Adapter: 6~9V 300mA, center+)
2. Plug No.9 in No.1 of Transmitter
3. Plug No.10 in No.5 of Receiver
Connecting to Antenna
The antenna of ‘SOUNDBIRD’ adopts ‘Jack Type’ (putting it into the s Ant jack). You can put it in and pull
it out as shown in the picture. Antenna is separated on your purchasing.
!
! Since the antenna in the box set is specially manufactured, no other products can be
!!
substituted. Other products may exceed FCC rules and cause the malfunction.
2
The Annotation:
1. You must charge your module battery because the purchase module does not have full battery power.
2. When you want to power off, turn off No.6 switch of Receiver first.
3. You’d be tter to adjust the Volume of the main a udio instruments beca use each instrume nts has the different
volume position(computer 40~50%, MP3Player 70~80%).
4. You must plug out the cable being connected No.2 of Transmitter after using because the power of Transmitter
power is automatically working whenever you plug in.
5. The attention point in recharging:
a. Need time to full recharge (from blank to full): 10 hr.
b. Confirm Power off position of Transmitter and Receiver
