Federal Communications Commission Requirements
Warning : Changes or modifications not expressly approved by the part y res pons ible for compliance
with the FCC’S rules could v oid the user's autho rit y to ope ra te
the equipme nt.
Because of the limited space on the model NSB-002 Stereo FM Receiver case, the notice of
Nective Co., Ltd
Compliance with FCC Rules is printed here
FCC ID : QBFNSB-002
THIS DEVICE COMPLIES WITH PARTS 15 OF FCC RULES
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS
THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE,
AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE
RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE
UNDESIRED OPERATION
.
NOTE : This equipment has been tested and found to comply with the limits for a Class B
Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment gene rates, use s and can radiate r adio freque ncy energy and, if not installed and
used in accordance with the instruction, may cause harmful interference to radio
communication. However, there is no guarantee that interference will not occur in a particular
installation. If this equip ment dose cause har mful interference to radio or television reception.
Which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures :
-
Reorient or relocate the receiving antenna.
-
Increase the separation between the equipment and receiver
-
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help
SoundBird Manual
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA
TEL : +82 31 639 8518 FAX : +82 31 639 8525
REPORT NO : HCT-F02-0406 FCC ID :QBFNSB001 DATE : APRIL 12, 2002
Transmitter

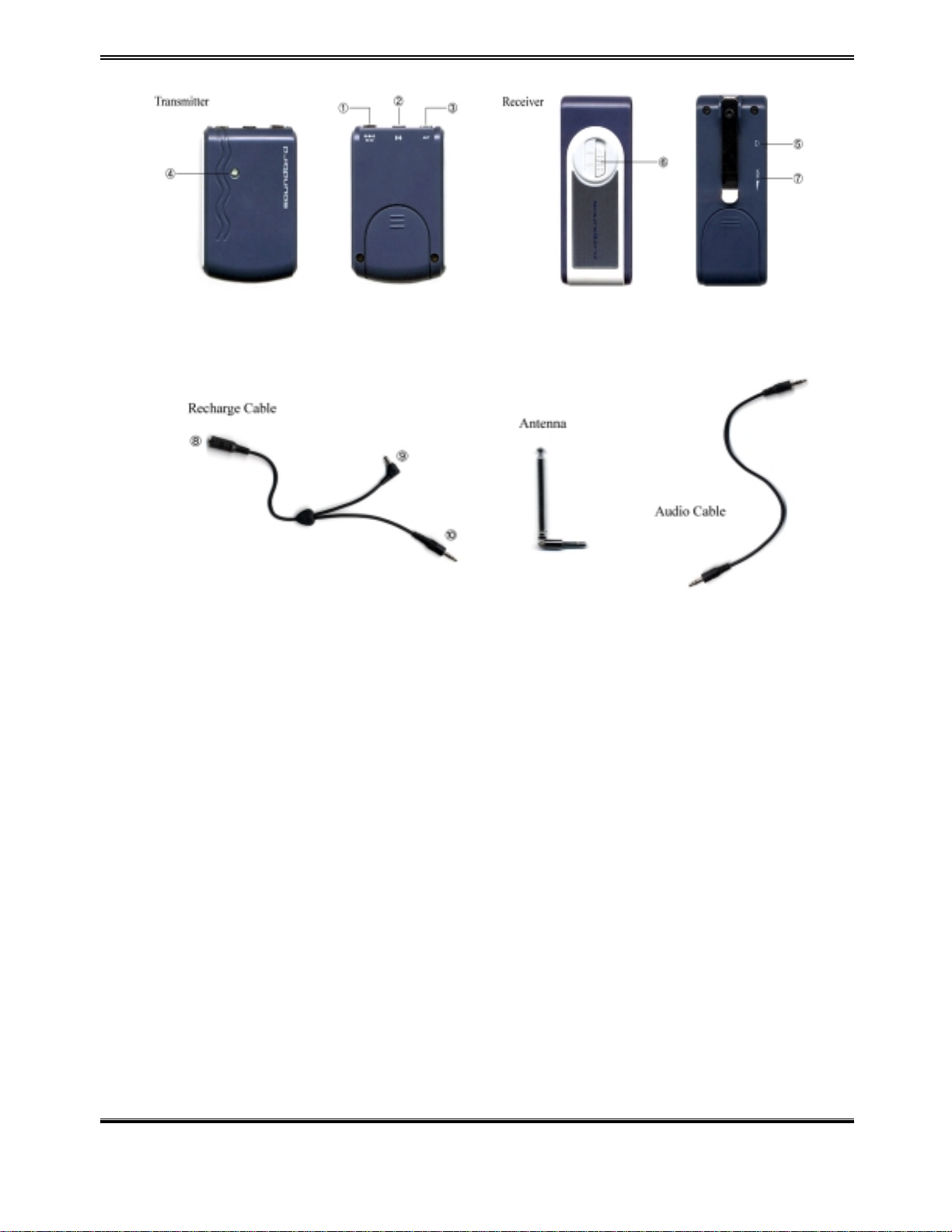

1. Connect No.2 of Transmitter to the audio outlet (Earphone, Headphone, AUX) of A udio I nstruments (MP3,
Computer, Audio apparatus)
2. Certify Transmitter Power On with No.4 Lamp
3. Plug the Antenna in No.3
∪ You can enjoy the perfect quality sound using the radio with FM 88.3 MHz without receiver∪
Receiver
1. Plug Earphone or Speaker in No.5 of Receiver, then Power on with No.6 switch
2. Adjust the Volume with No.7
How to recharge
1. Connect the Adapter to No.8 of the Recharge Cable (Adapter: 6~9V 300mA, center+)
2. Plug No.9 in No.1 of Transmitter
3. Plug No.10 in No.5 of Receiver
Connecting to Antenna
The antenna of ‘SOUNDBIRD’ adopts ‘Jack Type’ (putting it into the s Ant jack). You can put it in and pull
it out as shown in the picture. Antenna is separated on your purchasing.
* Si nc e the ant e nna i n the bo x s e t is spe c ia lly ma n ufa c t ur e d, no othe r pro d uct s ca n be su bst i t uted. O t he r
products may exceed FCC rules and cause the malfunction.
The Annotation:
1. You must charge your module battery because the purchase module does not have full battery power.
2. When you want to power off, turn off No.6 switch of Receiver first.
3. You’d be tter to adjust the Volume of the main a udio instruments beca use each instrume nts has the different
volume position(computer 40~50%, MP3Player 70~80%).
4. You must plug out the cable being connected No.2 of Transmitter after using because the power of Transmitter
power is automatically working whenever you plug in.
5. The attention point in recharging:
a. Need time to full recharge (from blank to full): 10 hr.
b. Confirm Power off position of Transmitter and Receiver
