Page 1

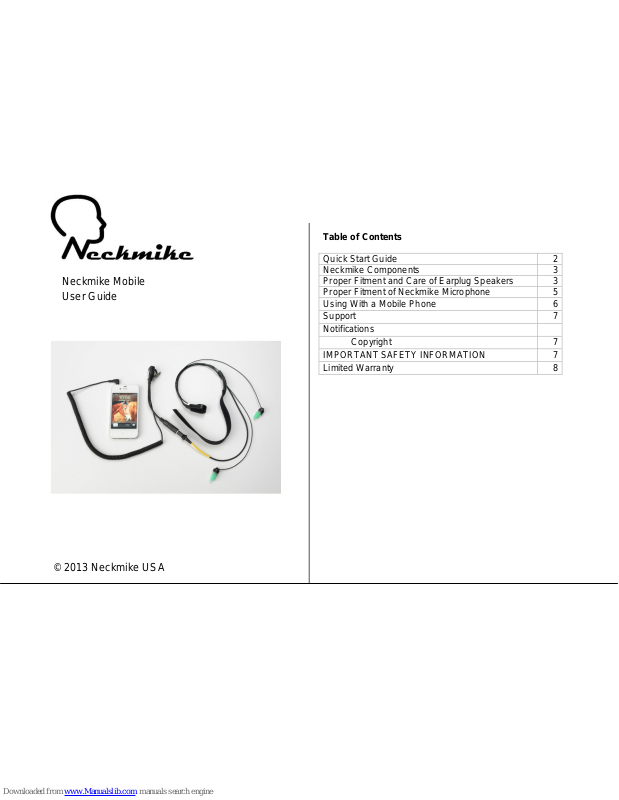

Table of Contents

Quick Start Guide

Neckmike Components

Proper Fitment and Care of Earplug Speakers

Proper Fitment of Neckmike Microphone

Using With a Mobile Phone

Support

Notifications

IMPORTANT SAFETY INFORMATION

Limited Warranty

Neckmike Mobile User Guide

Page 2

Neckmike Mobile User Guide v1.3

Page 2

Quick Start Guide

Fitting the Neckmike headset  Place the Neckmike around your neck, with the microphone

cabinet 1-2” (3-5cm) to the side of your voice box. It should be placed relatively high on the neck, otherwise your voice may sound muffled.

 Install the earplugs by reaching over head and gently pull up and

back on outer ear to the straighten ear canal. With opposite hand, grasp the earplug stem and insert with a circular motion to form an airtight seal. Lightly wetting the earplugs or ear canal will enable easier insertion into the ear and will provide a better acoustic seal. When fitted correctly, it should be as quiet as when you put your fingers in your ears. Multiple earplug sizes are included so you can find the one that offers the best fit and the most hearing protection.

 Connect the Neckmike via the extension cable to your smartphone.

Connecting your Smartphone  You must use the correct cable (iPhone or OMTP style) which

corresponds to your smartphone model. If the cable is incorrect or poorly connected, the sound in the earbud speakers may be faint or poor quality when listening to music and/or the microphone may not function when in an active call.

 The functions of the inline push-to-answer button may vary

according to your phone model. In general, this button is used to answer or end an active phone call. On some phone models, this button may be used to play and pause music when not in an active call, and to activate the phone’s voice dialing function.

Thank you for choosing the Neckmike Mobile

communication system!

Neckmike enables communication while providing

hearing protection in high noise environments with a

unique and patented headset design. Please follow

the instructions in this User Guide to get the best

results from your Neckmike.

--Proper fitment is essential to achieve good results--

Save this manual for future reference.

Page 3

Neckmike Mobile User Guide v1.3

Page 3

Neckmike Components

The Neckmike is comprised of several components, which are referenced in this User Guide (Image 1).

Proper Fitment and Care of Earplug Speakers

The Neckmike silicone earplugs are designed to provide comfortable hearing protection, while enabling you to hear voice communication, music, navigation instructions, etc. via the built-in speakers. Proper fitment is essential for blocking out unwanted outside sounds and enabling you to hear the relevant audio (intercom, music, etc.) enabled by Neckmike.

Neckmike comes with multiple sizes of earplugs, to fit different diameter and depth of ear canals. The small size is black, medium size is green and large size is blue (Image 2). Additional earplugs with different sizes and shapes may be included. You should experiment to find the earplug that best fits your ear canal. When fitted correctly, outside noises should sound muted, similar to putting your fingers in your ears.

The silicone earplugs are attached to the stereo micro-speakers by gently pushing them into place (Image 3).

Image 2

Image 1

High-fidelity

speakers with

silicone

earplugs

Flexible

Neck band

Microphone

Cabinet

Small

Medium

Large

Hook & loop

retention strap

3.5mm

connector

Page 4

Neckmike Mobile User Guide v1.3

Page 4

Install the earplugs by reaching over head with the opposite hand and gently pulling up and back on outer ear to straighten the ear canal. With opposite hand, grasp the earplug and insert with a circular or wiggling motion to form an airtight seal. For the best seal, rub a few drops of water onto the earplugs prior to insertion (make sure to avoid the center speaker hole of the earplug) or put some water droplets on your finger to wet your ear canal prior to insertion. Lightly wetting the earplugs or ear canal will enable easier insertion into the ear and will provide a much better acoustic seal.

The earplug should remain securely in place when there's a good seal. If you've inserted the earplug as far as is comfortable, but cannot achieve a good seal, try a larger size earplug.

If your ear canals are shallow and / or you are having trouble achieving a good seal, then the green or blue earplugs may be modified by removing the smallest flange at the end in order to improve the fit. This can be done with sharp scissors or razor blade (Image 4).

If you wear a helmet with Neckmike, you should also shorten the earplugs on the end which affixes to the micro-speakers, so that the earplugs are not easily knocked out of position while putting on your helmet and do not protrude uncomfortably inside the helmet (Image

5).

Earplugs may be washed with soap and water as needed.

Cut at

molded

edge for

use with a

helmet.

Gently press fit the

silicone earplug onto

the micro-speakers

Image 3

Image 4

Image 5

Page 5

Neckmike Mobile User Guide v1.3

Page 5

Earplugs should be removed from the micro-speakers prior to cleaning and should be completely dry prior to reattaching to the micro-speakers. Otherwise, the micro-speakers may be damaged by the water.

In some regions or states, the use of headphones or helmet audio is restricted or prohibited. Familiarize yourself with all laws and regulations that apply to your region before using Neckmike and remember that compliance with all laws and regulations is your responsibility.

The AMA maintains a helpful resource of motorcycle laws by state:

http://www.americanmotorcyclist.com/Rights/State-Laws.aspx

Permanent hearing loss may occur if headphones are used at a high volume. Use caution and common sense with the headphone

volume level for voice communication and music. Hearing experts suggest that you limit the amount of time you use

headphones at high volume, and avoid turning up the volume to further block out noisy surroundings. Your ear can adapt to a higher volume of sound over time, which may sound normal but can be damaging to your hearing. Set your volume to a safe level before that happens. If you experience ringing in your ears, reduce the volume or discontinue use of your audio device.

Proper Fitment of the Neckmike Microphone

Neckmike is designed for all-day comfort and the neck band is flexible to accommodate different neck sizes. The microphone cabinet should have full contact against the skin for the best microphone performance. Note that a beard or whiskers in the area of the microphone may be heard as a scratching noise in the background.

The microphone cabinet is held in place by the built-in tension of the neck band. For active use, you should use the included hook and loop retention strap to hold the Neckmike securely in place. Once comfortably fitted, the extra strap material (if any) should be trimmed with scissors.

Using both hands, gently bend the neck band into a 2-3” (6-7cm) diameter prior to wearing. This will help to ensure proper tension in the band (Image 6). This should be done each time you wear the Neckmike.

NOTICE

WARNING

Image 6

NOTICE

Page 6

Neckmike Mobile User Guide v1.3

Page 6

Place the Neckmike around your neck, with the microphone cabinet flush against the skin, approximately 1-2” (3-5cm) to the side of your voice box. It should be placed relatively high on the neck; otherwise your voice may sound muffled (Image 7).

If your voice is higher pitched, you may want to move the microphone cabinet further away from the voice box for best results. Experiment with the location of the microphone cabinet while using the intercom to see what position is best for you.

It is not necessary to shout when using Neckmike in a noisy environment; just speak clearly. The Neckmike microphone is designed to give your voice the best possible quality, even when the surrounding noise is strong.

Using with a Mobile Phone

The Neckmike headsets uses a heavy duty coiled cable to connect you’re your smartphone (Image 8).

You must use the correct cable (iPhone or OMTP style) which corresponds to your smartphone model. If the cable is incorrect or poorly connected, the sound in the earbud speakers may be faint or poor quality when listening to music and/or the microphone may not function when in an active call.

The functions of the inline push-to-answer (PTA) button may vary according to your phone model. In general, this button is used to answer or end an active phone call. When you receive a call, a short press of the PTA button will answer the call. When you are finished with the call, a short press of the PTA button will terminate the call.

Image 7

HELPFUL HINT

Image 8

Push-to-Answer

(PTA) Button

Page 7

Neckmike Mobile User Guide v1.3

Page 7

On some phone models, this button may be used to play and pause music when not in an active call, and to activate the phone’s voice dialing function. You should experiment with a short press versus long press of the PTA button to see what functions your phone model supports, or check your mobile phone owner’s manual for more information.

Always ensure the cable is firmly connected between the mobile phone and the Neckmike headset for proper function.

Support

For additional information please visit our website at

www.neckmike.us

You can also reach us at: [email protected]

Notifications

IMPORTANT SAFETY INFORMATION

Neckmike USA (the “Company”) notifies you that your complete and undivided attention is required when using the Neckmike Mobile series communication system (the “Product”). Failure to avoid potentially hazardous situations could result in serious injury or even death. The Company encourages you to take all necessary

precautions and remain alert to your surroundings including traffic, weather, road conditions and terrain. It is best to pull over and stop in a safe and legal manner away from traffic prior to activating or deactivating the Product or initiating or receiving any calls. Do not perform any Bluetooth pairing while riding.

The User Guide is intended to cover technical capabilities of the Product and should not be interpreted as encouraging the operation of the Product in any manner that is unsafe or prohibited by law. Always exercise due caution when using this Product and obey all relevant traffic laws.

Do not become distracted by the Product while operating any vehicle. Do not operate the Product if it is unsafe to do so.

In some regions or states, the use of headphones or helmet audio is restricted or prohibited. Familiarize yourself with all laws and regulations that apply to your region before using the Product and remember that compliance with all laws and regulations is the user’s responsibility. Use the Product while operating your vehicle only where and how permitted by the applicable law.

The AMA maintains a helpful resource of motorcycle laws by state:

http://www.americanmotorcyclist.com/Rights/State-Laws.aspx

Use care when installing the Product so that the Product is secure.

Page 8

Neckmike Mobile User Guide v1.3

Page 8

Limited Warranty

This Neckmike product is warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Neckmike USA will, at its sole discretion, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any shipping cost. This warranty does not apply to: (i) cosmetic damage, (ii) consumable parts such as batteries, unless product damage has occurred due to a defect in materials or workmanship; (iii) damage caused by accident, abuse, misuse, water, flood, fire, or other acts of nature or external causes; (iv) damage caused by service performed by anyone who is not an authorized service provider of Neckmike USA; or (v)damage to a product that has been modified or altered without the written permission of Neckmike USA.

In addition, Neckmike USA reserves the right to refuse warranty claims against products or services that are obtained and/or used in violation of the laws of any country.

THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES EXPRESS, IMPLIED, OR STATUTORY, INCLUDING ANY LIABILITY ARISING UNDER ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, STATUTORY OR OTHERWISE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE OR REGION. IN NO EVENT SHALL NECKMIKE USA BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, INCLUDING, WITHOUT LIMITATION, DAMAGES TO PROPERTY, TRAFFIC FINES OR CITATIONS, WHETHER RESULTING FROM THE USE, MISUSE OR INABILITY TO USE THE PRODUCT OR FROM DEFECTS IN THE PRODUCT. SOME STATES DO NOT ALLOW THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

Neckmike USA retains the exclusive right to repair or replace (with a new or remanufactured replacement product) the device or offer a full refund of the purchase price at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.

To obtain warranty service, contact Neckmike USA for shipping instructions and a return authorization number. You must securely package the unit and include a copy of the original sales receipt, which is required as the proof of purchase for warranty repairs.

Page 9

Neckmike Mobile User Guide v1.3

Page 9

Neckmike USA

18460 S. Ridgeview Road

Olathe, KS 66062

USA

www.neckmike.us
