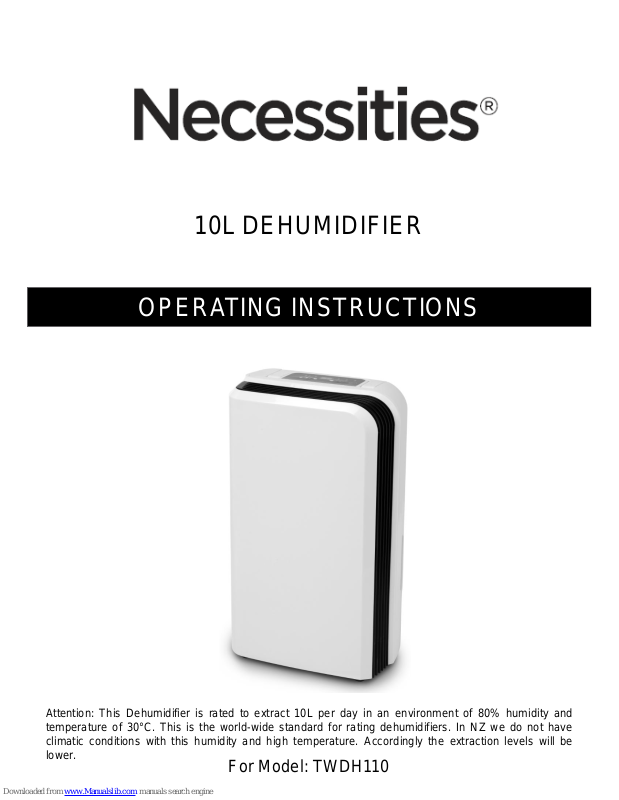

Page 1
For Model: TWDH110
10L DEHUMIDIFIER
OPERATING INSTRUCTIONS
Attention: This Dehumidifier is rated to extract 10L per day in an environment of 80% humidity and
temperature of 30°C. This is the world-wide standard for rating dehumidifiers. In NZ we do not have
climatic conditions with this humidity and high temperature. Accordingly the extraction levels will be
lower.
Page 2
WARNINGS AND SAFEGUARDS
YOUR SAFETY IS IMPORTANT TO US. PLEASE ENSURE YOU TAKE NOTE OF
THE INSTRUCTIONS AND WARNINGS OUTLINED IN THIS MANUAL.
1. WARNING you must not cover this appliance.
Covering this appliance presents fire risk.
2. Use only the voltage specified on the rating label of
the appliance.
3. Keep all objects at least 1 metre from the front,
sides and rear of the appliance.
4. This appliance is intended for household use only
and not for commercialor industrial use.
5. Indoor use only.
6. Do not use abrasive cleaning products on this
appliance. Clean with a damp cloth (not wet) rinsed
in hot soapy water only. Always remove plug from
the mains supply before cleaning.
7. The common cause of overheating is deposits of
dust or fluff in the appliance. Ensure these deposits
are removed regularly by unplugging the appliance
and vacuum cleaning the air vents and grills.
8. Always unplug appliance when not in use.
9. When the appliance has been unpacked, check it
for transport damage and ensure all parts have
been delivered. If parts are missing or the appliance
has been damaged, contact the Necessities
Customer Services Team.
10. If your appliance does not work, or is not working
properly, contact the place of purchase or the
NecessitiesCustomer Services Team.
11. Do not connect the appliance to mains supply until
completely assembledand adjusted.
12. Ensure hands are dry before handling the plug or
main unit.
13. Do not locate the appliance directly below any
power socket outlet.
14. Ensure appliance is on a flat, stable, heat-resistant
surface.
15. Do not operate with cord set coiled up as a heat
build up is likely, which could be sufficient to
become a hazard.
16. Carry out regular checks of the supply cord to
ensure no damage is evident.
17. Do not operate this appliance with a damaged cord,
plug or after the appliance malfunctions or has been
dropped or damaged in any manner. Return to a
qualified electrical person for examination, electrical
service or repair.
18. Do not remove plug from power socket by pulling
cord; always grip plug.
19. Do not twist, kink or wrap the cord around the
appliance, as this may cause the insulation to
weaken and split. Always ensure that all cord has
been removed from any cord storage area and is
unrolledbefore use.
20. It is recommended that this appliance is plugged
directly into the wall socket. The use of power
boards is not recommended as many power boards
are not designed to supply power to high wattage
appliances.
21. A correctly specified, undamaged extension cord
may be used with this appliance provided it is used
in a safe manner.
22. Use this appliance only as described in this manual.
Any other use is not recommended by the
manufacturer and may cause fire, electric shock or
injury.
23. Do not remove plug from power socket until the
appliancehas been switched off.
24. Do not place cord under carpet or cover with rugs
or furniture. Arrange the cord so it cannot be
tripped over.
25. Do not place appliance on bedding.
26. Switch off and use handle providedwhen moving.
27. Do not place appliance close to radiant heat
source.
28. Never use the applianceto dry clothes.
29. Do not insert or allow foreign objects to enter any
ventilation or exhaust opening, as this may cause
an electric shock, fire or damage to the appliance.
30. Do not sit on the appliance.
31. Do not operate in areas where petrol, paint or other
flammable liquids are used or stored.
32. This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities or lack of experience and
knowledge, unless they are supervised or have
been given instruction concerning the use of the
applianceby a person responsiblefor their safety.
33. Children should be supervised to ensure that they
do not play with the appliance.
34. Do not use this appliance in the immediate
surrounds of a bath, a shower, or a swimming pool
or other liquids. The appliance must not be
immersed in any liquids.
35. There are no user serviceable parts installed in the
unit.
36. Do not place the unit in wardrobes or other
enclosed spaces as this may cause fire hazards.
37. This unit is not supposed to be used in or around
locations where foodstuffs, works of art or delicate
articles of science, etc are stored.
Page 3
COMPONENTS
1. Front Panel
2. Air Outlet
3. Handle
4. Control Panel
5. Inlet Grill & Air Filter
6. Back Panel
7. Water Tank
8. Power supply cord
Page 4
CONTROL PANEL
LED INDICATOR LIGHTS
1.WATER FULL
2.POWER
3.SETTING
4.TIMER
5.LOW FAN SPEED
6.HIGH FAN SPEED
DIGITAL DISPLAY
The indicator features 4 functions:
Indicates the room humidity level – in normal operating mode
Indicates the humidity that you have selected - when setting the humidity
Indicates the hours - when programming the time for the unit to turn on and off
Displays power setting - when the environment humidity is lower than 35%, it will show “LO”,
when the environment humidity is higher than 95%, it will show “HI”.
PUSH BUTTONS
A. Power Button
B. Adjustable Humidity Button
C. Timer Button
D. Fan Speed Button
Page 5
OPERATING INSTRUCTIONS
Always choose a safe location for the Dehumidifier, keeping in mind the safety precautions outlined.
Ensure all packaging has been removed from the unit before use. This appliance requires no installation, it
should be used solely as a portable appliance. Leave the appliance to stand for one hour after transport or
after the unit has been on its side, before connecting it to the mains supply to let the refrigerant settle.
1. The Power indicator light will illuminate when the unit is plugged in, regardless of whether the unit is
operating or not.
2. Press Power button once to start operation. Press it again to stop operation.
3. Press Setting button to set the desired humidity level in the room, humidity can be set from 40% to 80%
in 5% increments.
Note: When environment humidity is lower than the selected humidity by 2%, the compressor will stop and
the fan will stop working 3 minutes later. When environment humidity is equal to or higher than the
selected humidity by 2%, the compressor will restart (once the 3-minute compressor protection time has
elapsed).
WARNING: Keep all objects at least 1 metre from the front, sides and rear of the appliance.
WARNING: In order to avoid overheating or risk of fire, do not cover the appliance.
WARNING: Never leave this appliance unattended when in use.
WARNING: Do not use this appliance with a programmer, remote-control system, separate
timer or any other device that switches the appliance on automatically.
Note: When the appliance is turned on for the first time, it may release a slight odour. This
odour is a normal occurrence caused by the initial starting of the unit and should not occur
again.
TIMER
Press Timer button to set the timer.
Use the Timer button to program the time when the unit automatically turns itself on and off. Press the
button, it will be circulate from 00 to 24 in 1 hour increments.
The programmed time will be cancelled if the dehumidifier is switched to manual. The programmed time
remains unchanged if the machine stops working due to the water tank being full or during defrosting. If
you want to cancel the timer programming, press the button and adjust the time to 00.
FAN SPEED
Press Speed button to set the desired fan speed. It can be adjusted between high speed and low speed.
WHEN THE WATER CONTAINER IS FULL
A beep signal will sound 15 times and the tank full indicator light will illuminate.
The compressor will stop automatically. This will also stop the dehumidification process.
Empty the water container and replace it in the correct position. The Dehumidifier will continue
dehumidifying when the compressor automatically restarts after approximately three minutes.
Note: Do not remove the float from the water tank. The water full sensor will no longer be able to detect the
water level correctly without the float and water may leak from the water tank.
When replacing the drainage tank, press the tank firmly into place with both hands. If the tank is not
positioned properly, the “TANK FULL” sensor will be activated, and the dehumidifier will not operate.
This Dehumidifier is designed to provide an optimum performance. It is not recommended to operate in
ambient temperature exceeding 35°C or lower than 5°C.
Ensure all external windows and doors are closed before turning on the unit.
Page 6
PERMANENT WATER DRAINAGE
It is possible to connect a drainage tube (not supplied) to the unit for permanent water drainage.
If this option is desired, you will need to purchase a suitable tube from your local hardware retailer.
(Necessities does not hold tubes as spare parts).
Connect the drainage hose to the drain spout. Ensure that the end of the hose is lower than the drain
opening, otherwise the w ater will not drain and flooding may occur.
Also ensure the water tank is in position (in the unit) otherwise the continuous drainage will not
operate.
Place the end of the drainage hose in a drainage outlet.
When you no longer wish to use the permanent water drainage, disconnect the drainage tube from the
device.
CLEANING AND MAINTENANCE
Unplug the Dehumidifier from the mains supply before cleaning.
Ensure that the Dehumidifier has been allowed to cool down completely before cleaning.
Use a damp cloth (not wet) to wipe the exterior of the Dehumidifier to remove dust and dirt.
Use a vacuum cleaner to remove dust and fluff from around the grills.
Never use solutions such as benzene, thinners or polishing agents.
Ensure the Dehumidifier is dry before plugging back into the mains supply.
Do not attempt to dismantle the Dehumidifier. There are no user serviceable parts. For service or
repair, contact an authorised electrical service technician.
THE AIR FILTER
Unplug the Dehumidifier from the mains supply.
Remove the filter. Clean the filter with a vacuum or with water. Dry the filter.
Ensure the filter is completely dry before placing back in the unit.
Never use the Dehumidifier without the air filter.
STORAGE
To store the unit, remove the plug from the socket and empty the water container. Allow the container
and the Dehumidifier to dry completely. Clean the air filter. Store the device in a dust-free location,
preferably covered with a sheet of plastic.
IMPORTANT! NEVER COVER THIS DEHUMIDIFIER!
PROOF OF PURCHASE
To receive warranty retain receipt as proof of purchase.
TECHNICAL SPECIFICATIONS
Model: TWDH110
Supply: 220-240VAC 50Hz
Wattage: 245W
Unit Capacity: 10.0L/day max (30°C/80%RH)
Tank Capacity: 2L
Refrigerant: R134a/145g
SUPPORT AND TECHNICAL ADVICE
North Shore City, Auckland, New Zealand
Monday – Friday 8am-5pm
Phone: 0800 232 633
Page 7
TROUBLE SHOOTING
Problem Cause Solution
The Dehumidifier will not turn
on
The power is not connected
Insert plug into mains power
supply and turn unit on
The Dehumidifier is not
extracting water
The water tank is full
Remove the water tank and
empty water
The water tank is not in its
correct position
Remove water tank and
replace it in its correct
position
The air filter is clogged
Clean the air filter as per
instructions in user manual
The temperature or relative
humidity in the room is too
low
It is normal for the
Dehumidifier not to operate in
low humidity or low
temperatures
The Dehumidifier operates,
but reduces the relative
humidity in the room by small
amounts
The room which the
Dehumidifier is operating in is
too large
Recommend using a
Dehumidifier with a larger
capacity
There are too many sources
of humidity
Recommend using a
Dehumidifier with a larger
capacity
The room has too much
ventilation
Reduce the number of
ventilation sources (i.e. close
windows, doors, etc.
Page 8
Your Necessities product has been inspected and tested and is guaranteed subject
to the following for a period of one year from the date of purchase against defects
in workmanship and materials. During this period, such defects will be rectified by
repair or replacement of the product purchased. Your product contains no user
serviceable components and this warranty becomes invalid if in our opinion the
product has been misused, abused, incorrectly installed, tampered with, connected
to an electrical supply not corresponding with the name plate specification, or
subjected to power surges. The warranty does not include any labour or other
associated expense that may be involved in removal or installation of the product.
Normal wear and tear is expressly excluded.
If your Necessities product fails to operate satisfactorily, please return it to the
retailer from whom it was purchased. To obtain a repair or replacement product
under this warranty, you will need to produce satisfactory evidence of date of
purchase. The completed warranty and purchase receipt must be presented with
the product. The warranty should be filled out at the time of purchase. It is in your
interest to make sure this is done.
If the product is to be replaced (cannot be repaired) then that replacement will be
of the same or similar product or accessory excluding packaging, instruction card
etc. Where a replacement product is supplied, this shall be guaranteed for the
balance of the original warranty period.
Any model that is no longer available will be replaced by a model of a value and
with such features as we consider appropriate in the circumstances. Necessities
Ltd is not responsible for freight forwarding charges, losses or damage in transit.
If service is required after the warranty period has expired, the product should be
returned to a qualified electrical technician. Service outside of the warranty period
will be at your cost.
Consumers Guarantee Act (1993).
In accordance with the above act consumers are advised that: The manufacturer
does not undertake that repair facilities and parts are necessarily available for this
product.
If any of the provisions of the foregoing are contrary to any relevant legislation,
then that provision shall be deemed to be excluded from the warranty and the rest
of the provisions will continue to apply.
ONE YEAR WARRANTY
IMPORTANT: PLEASE RETAIN THIS WARRANTY CARD
NAME:
ADDRESS:
PURCHASED FROM:
SUBURB:
DATE OF PURCHASE:
NAME OF PRODUCT:
MODEL No:
Loading...
