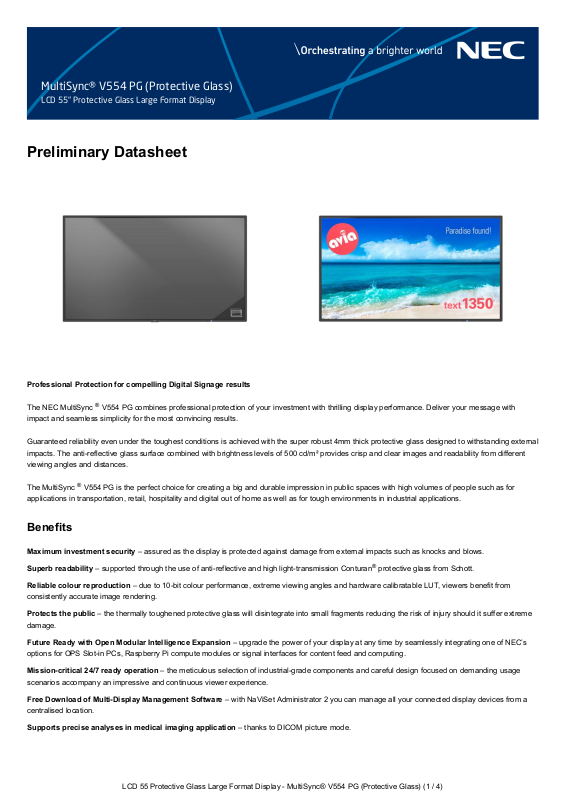

Preliminary Datasheet

MultiSync® V554 PG (Protective Glass)

LCD 55" Protective Glass Large Format Display

Professional Protection for compelling Digital Signage results

The NEC MultiSync®V554 PG combines professional protection of your investment with thrilling display performance. Deliver your message with
impact and seamless simplicity for the most convincing results.

Guaranteed reliability even under the toughest conditions is achieved with the super robust 4mm thick protective glass designed to withstanding external
impacts. The anti-reflective glass surface combined with brightness levels of 500 cd/m² provides crisp and clear images and readability from different
viewing angles and distances.

The MultiSync®V554 PG is the perfect choice for creating a big and durable impression in public spaces with high volumes of people such as for
applications in transportation, retail, hospitality and digital out of home as well as for tough environments in industrial applications.

Benefits

Maximum investment security – assured as the display is protected against damage from external impacts such as knocks and blows.

Superb readability – supported through the use of anti-reflective and high light-transmission Conturan®protective glass from Schott.

Reliable colour reproduction – due to 10-bit colour performance, extreme viewing angles and hardware calibratable LUT, viewers benefit from

consistently accurate image rendering.

Protects the public – the thermally toughened protective glass will disintegrate into small fragments reducing the risk of injury should it suffer extreme
damage.

Future Ready with Open Modular Intelligence Expansion – upgrade the power of your display at any time by seamlessly integrating one of NEC’s
options for OPS Slot-in PCs, Raspberry Pi compute modules or signal interfaces for content feed and computing.

Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage
scenarios accompany an impressive and continuous viewer experience.

Free Download of Multi-Display Management Software – with NaViSet Administrator 2 you can manage all your connected display devices from a
centralised location.

Supports precise analyses in medical imaging application – thanks to DICOM picture mode.

LCD 55 Protective Glass Large Format Display - MultiSync® V554 PG (Protective Glass) (1 / 4)

Product Information

Product Name MultiSync®V554 PG (Protective Glass)

Product Group LCD 55" Protective Glass Large Format Display

Order Code 60004339

Display

Panel Technology S-IPS with Edge LED backlights

Active Screen Area (W x H) [mm] 1,209.6 x 680.4

Screen Size [inch/cm] 55 / 138.8

Brightness [cd/m²] 500, 350 Eco (shipment setting)

Contrast Ratio (typ.) 1200:1

Viewing Angle [°] 178 / 178 (at contrat ratio > 10:1)

Glass Type Security Glass with anti-reflextion coating

Reflection Rate [%] < 1

Thickness [mm] 4

Colour Depth [bn] 1.073 (10bit)

Light Transmission [%] 97

Response Time (typ.) [ms] 8 (grey-to-grey)

Haze Level [%] Pro (44)

Supported Orientation Landscape, Portrait, Face Up, Face Down

Synchronisation Rate

Horizontal Frequency [kHz] 31.5 - 91.1 (analog and digital)

Vertical Frequency [Hz] 24 - 85

Resolution

Native Resolution 1920 x 1080

Supported Resolutions 4096 x 2160; 3840 x 2160; 1920 x 2160; 1920 x 1200; 1920 x 1080; 1680 x 1050; 1600 x 1200; 1440 x 900;

1400 x 1050; 1366 x 768; 1360 x 768; 1280 x 1024; 1280 x 960; 1280 x 800; 1280 x 720; 1024 x 768; 800 x
600; 640 x 480

Connectivity

Input Video Analogue 1 x VGA

Input Video Digital 1 x DVI-D (with HDCP); 2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)

Input Audio Analogue 2 x 3,5 mm jack

Input Audio Digital 2 x DisplayPort; 2 x HDMI

Input Control 1 x LAN 100Mbit; 1 x Remote Control (3.5 mm jack); 1 x RS232

Input Data 1 x microSD (MediaPlayer); 1 x USB 2.0 (MediaPlayer); 1 x USB 2.0 (Service); 1 x USB Type-B (Upstream);

2 x USB 2.0 (Compute Module, 1 x 5V/2A powered)

Output Video Digital 1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC)

Output Audio Analogue 1 x 3,5 mm jack

Output Control 1 x LAN 100Mbit

Open Modular Intelligence

OPS Slot Slot Technology: Open pluggable specification (NEC / Intel OPS standard)

OPS Max. Current / Power
Consumption [A / W]

Compute Module Slot Slot Technology: Compute Module Slot (NEC proprietary standard)

LCD 55 Protective Glass Large Format Display - MultiSync® V554 PG (Protective Glass) (2 / 4)

10 / 61
