NEC V Series
Large Screen LED-backlit LCD 32" | 42" | 46" | 55" | 65" | 80"
Available with embedded
Windows PC or Jelly Bean
4.2.2 Digital Signage Player!
Commercial-Grade LCD Displays for the Cost-Conscious
Commercial-Grade
Promote extended use with a
high-performance design
• LED backlighting delivers both
environmental and economic benefits
• Temperature sensors and fans protect
the panel from damage
• High definition, high brightness and
contrast ratio deliver superior visual
quality
• Internal 10W speakers and built-in
handles enable a simplified installation
Adaptable
• Unrivaled flexibility enables seamless
integration of accessories
• Expanded connectivity with built-in
expansion slot for maximum versatility
• Protective-glass and touch-panel ready
design provide opportunities for module
security and interactivity
• Landscape and portrait orientations
allow for flexible content placement to
maximize audience awareness
Connected
• Extensive control and diagnostic
communication provide the highest
level of remote management
• Comprehensive input panel connects to
latest peripherals
• RS-232 and ethernet connectivity
allow individual and group-addressable
control, including email diagnostics
• DDC/CI standard allows for PC control
of the display
• Custom input detect for content
protection
www.necdisplay.com
Page 2
Maximum Adaptability with the NEC Option Slot
Future-proof your display with the NEC option slot. This slot provides connectivity for Open Pluggable Specication (OPS)-compliant devices,
creating a seamless integration across a variety of accessories.
• No external connections required – DVI video, stereo audio, RS-232 control and power are all passed internally from the display to the
OPS device
• Simple integration and maintenance results in easier and less expensive installations and operation
• -PC bundles available where the OPS slot is occupied by AMD Dual Core fusion based OPS-PCAF-WS PC
• -DRD bundles available where the OPS slot is occupied by Jelly Bean 4.2.2 based OPS-DRD Digital Signage Player
Corporate Applications
Everything you need to communicate with coworkers and visitors. NEC V Series displays offer an integral part of corporate communications.
Displaying information is easy and dynamic, and lobby messaging can be easily adapted to match the needs of the business.
• Automatic input detect allows built-in system redundancy to reassure content will always be displayed
• Protect your display from damaging heat with integrated temperature sensors and fans
• High-denition panels with up to 500 cd/m
2
brightness and 5000:1 contrast ratio enable superior images sure to capture customer attention
Page 3
Retail Applications
Maximize messaging and connect on a new level with in-store customers. Whether its promoting the latest sale, pointing shoppers in the right direction or
communicating the latest price information, the NEC V Series effectively delivers your message without breaking the bank.
• Landscape and portrait orientations enable design exibility for seamless in-store installation
• High brightness and contrast ratio deliver stunning imagery
• Built-in text ticker can display valuable information across a user-dened portion of the screen
Maximum Efciency with LED Backlighting*
Not all backlights are created equal. Loaded with
state-of-the-art innovation, select NEC V Series
displays incorporate LED backlights that deliver an
array of benets.
• Reduced power consumption leads to a
reduced total cost of ownership
• Solid state LED backlights increase durability
• Lighter, thinner products increase installation
options, and decrease installation and
shipping costs
Page 4

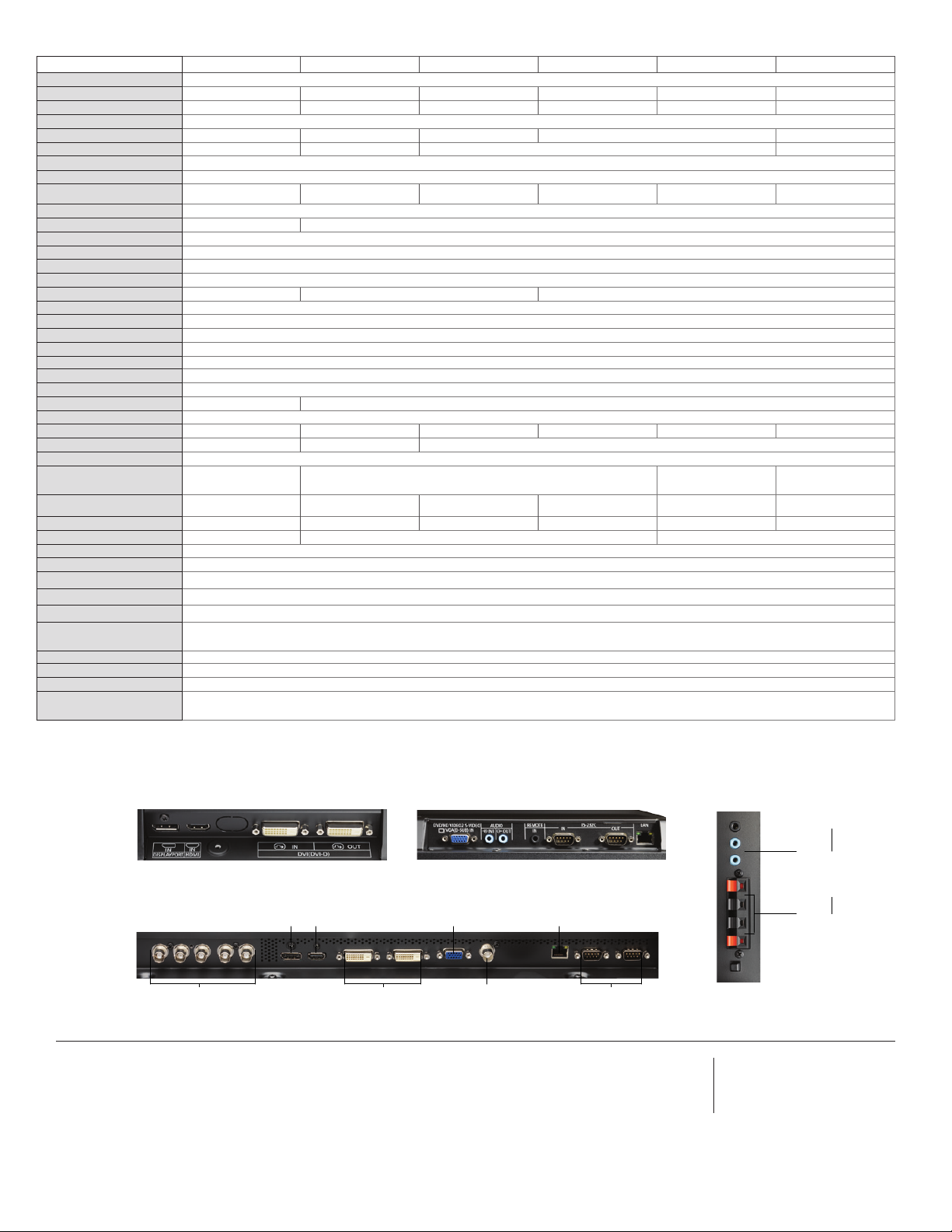

Specications for V323/V423/V463/V552/V652/V801
MODEL V323-2 V423 V463 V552 V652 V801
LCD MODULE
Panel Technology
Viewable Image Size
Native Resolution
Brightness (Typical/Max)
Contrast Ratio (Typical)
Viewing Angle
Aspect Ratio
Active Screen Area (W x H) 27.5 x 15.5 in. / 698.4 x
Orientation
Displayable Colors
CONNECTIVITY
PC/Mac Signal Compatibility
Input Terminals
Digital
Analog
Audio
External Control
Output Terminals
Digital
Analog
Audio
External Control
Speakers
POWER CONSUMPTiON
On (Typical)
ECO Mode Standby
PHYSICAL SPECIFICATIONS
Bezel Width (L/R, T/B) 0.9in. /0.9 in., 0.9 in./0.9
Net Dimensions
(without stand; WxHxD)
Net Weight (without stand)
VESA Hole Configuration
ENVIRONMENTAL CONDITIONS
Operating Temperature
Operating Humidity
Operating Altitude
LIMITED WARRANTY
ADDITIONAL FEATURES Advanced thermal capabilities; Advanced cooling system; TileMatrix (10x10); TileComp; Separate group/Monitor ID function; Ethernet Control and Communication; RS-232 Control and Communication; Carbon
SHIPS WITH
OPTIONAL ACCESSORIES
Single Board Computers
Other Speakers (SP-RM2 for V423; SP-RM1 for V463, V552, V652 & V801) SP-TF1 (Thin rear or side mounted speaker for V463, V552, V652 and V801); Stand (ST-322 for V323-2, V423 & V463; ST-4620 for V552;
* Warranty restrictions apply. Contact your representative for details.
** For non -AVT, -PC, -DRD displays only.
S-IPS S-IPS A-MVA A-MVA SPVA UV
32” 42” 46” 55” 65” 80”
2
320 cd/m
1300:1 1300:1 4000:1 5000:1
392.9mm
More than 16.7 million More than 1 billion
VGA 15-pin D-sub VGA 15-pin D-sub (shared S-Video, Video, Component), BNC Composite VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD, S-Video or Video), BNC Composite
Integrated (8W Integrated (10W x 2)
in. ; 24.0mm/24.0mm,
24.0mm/24.0mm
29.5 x 17.5 x 2.4 in. / 750.0 x
445.5 x 60.8mm
20.9lbs / 9.5kg 37 lbs. / 16.8 kg 41.7 lbs. / 18.9 kg 58 lbs. / 26.3 kg 114.4 lbs. / 52 kg 132.3 lbs / 60 kg
200 x 200mm (4-hole) 300 x 300mm (4-hole) 400 x 400mm (4-hole)
footprint meter; Plug and Play (DDC/CI, DDC2B); Scheduler (w/ real-time clock); Screen saver function; POP; Side-by-Side; Kensington lock; Handles (for V552/V652 /V801); Touch- and protective screen-ready;
ST-651 for V652; ST-801 for V801); Internal HD-SDI Card (SB-01HC); Internal 3G-SDI Card (SB-04HC); Digital IP Tuner (SB-03TM); Wall Mount Kit (WMK-3257); OPS-DRD (ARM based Digital Signage Media Player)
2
/ 450 cd/m
48W 88W 76W 100W 185W 230W
<1W <0.5W <2W
Variable picture modes; Advanced video settings (Noise Reduction, Adaptive Contrast); Input labeling; Backlight adjust; Aspect ratio control; Built-in speakers; OPS-Compliant slot
320 cd/m2 / 450 cd/m
36.6 x 20.6 in. / 930.2 x
523.3mm
38.3 x 22.3 x 2.7 in. /
972.5 x 565.4 x 68.3mm
2
350 cd/m2 / 500 cd/m
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
40.1x 22.5in. /1018.1 x
572.7mm
Stereo Mini-Jack, HDMI Audio, DisplayPort Audio
Stereo Mini-Jack, External Speaker Jack (2)
0.7 in./0.7 in., 0.7 in./0.7 in. ; 18.3mm/18.3mm, 18.3mm/18.3mm
41.7 x 24.1 x 2.6in. /
1058.2 x 612.8 x 65.1mm
3 years parts and labor, including backlight*
Power cord; 1.8m DVI-D cable; Wireless remote control; Batteries; CD-ROM (user manual)
External Single Board Computer (TNETPC-AF-WH); All NEC OPS computers**
WMK-3255S (Thin wall mount for V323-2, V423, V463 and V552)
1920 x 1080
2
16:9
47.6 x 26.8 in. / 1209.6 x
Landscape/Portrait
Yes
DisplayPort, HDMI, DVI-D
RS-232C, Ethernet (RJ45), IR Remote
DVI-D
N/A
RS-232C
41-104°F / 5-40°C
20 - 80%
9843 ft. / 3000m
680.4mm
49.2 x 28.4 x 2.5 in. /
1249.7 x 720.5 x 63mm
320 cd/m2 / 450 cd/m
56.2 x 31.6 in. / 1428.5 x
2.1 in./2.1 in., 2 in./2.1
in. ; 53.5mm/53.5mm,
60.6 x 35.8 x 3.5 in. /
1540.4 x 909.2 x 88.3mm
2
803.5mm
50.5mm/50.5mm
1.2 in./1.2 in., 1.2in./1.2in. ;
29.7mm/29.7mm, 29.7mm
72.3 x 41.8 x 3.4 in. / 1836.2 x
2
A
320 cd/m2 / 460 cd/m
69.7 x 39.2 in. / 1771.2 x
996.3mm
/29.7mm
1061.3 x 86.9mm
2
V423/V463/V552/V652/V801
DISPLAYPORT IN
5 BNC IN (RGBHV, DVD/HD,
S-VIDEO OR VIDEO)
(V552/V652/V801 ONLY)
TileMatrix and TileComp are trademarks of NEC Display Solutions. All other brand or product names are
trademarks or registered trademarks of their respective holders. Product specications subject to change.
©2015 NEC Display Solutions of America, Inc. All rights reserved.
Cat.No. 25.NEC.80.GL.UN.134 Rev. 4.01.15
HDMI IN VGA D-SUB IN
DVI-D IN/OUT RS-232 IN/OUT
V323-2V323-2
BNC COMPOSITE
VIDEO IN
LAN PORT
V423/V463/V552/V652/V801
AUDIO MINI-JACK
IN/OUT
External Speaker
