NEC Display Solutions of America, Inc.
V551 Installation Guide
55” LCD Display Rev 1.0
Contents:
Product Description and Notes Page 1
Tilt Angle and Rotation
Ventilation Requirements
Display Dimensions
Front, Top, Right Side, Left Side, Bottom Page 3
Rear
Optional Table Top Stand Dimensions
Optional Speaker Dimensions
Display with Optional Wall Mount Kit
Input Panels
Control Codes Page 8
Product Description:
Type: LCD Display
Resolution: 1920 x 1080 Dimensions without stand: 51.9” (W) x 30.5” (H) x 4.7” (D)
Aspect Ratio: 16:9 Dimensions with stand: 51.9”(W) x 32.1”(H) x 15.7”(D)
FCC: Class B Weight without stand: 83.8 lbs / 38.0 kg
Power Consumption: 260 W (typ) Weight with stand: 88.7 lbs / 40.2kg
BTU’s: 887.16 BTU/hour
NOTES:
This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not
intended to be a step-by step procedure for installation.
Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.
4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally
to fill the screen using the menus (see “Aspect Modes” in menus and user manual).
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary ±5%.
Tilt Angle and Rotation:
Below is the maximum angle the monitor can be tilted. Note that the monitor can only be tilted in either landsc ape or portrait
orientation.
www.necdisplay.com V551 Page 1 of 8
Page 1
Page 2
Page 4
Page 5
Page 6
Page 7
Page 8
NEC Display Solutions of America, Inc.
V551 Installation Guide
55” LCD Display Rev 1.0
Ventilation Recommendation (all models):
Dimensions below are minimum recommended for proper ventilation.
NOTE:
The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be
covered, other means of ventilation will need to be incorporated into the design. Contact NEC for design revie w and
recommendations.
www.necdisplay.com V551 Page 2 of 8
NEC Display Solutions of America, Inc.
V551 Installation Guide
55” LCD Display Rev 1.0
Display dimensions:
www.necdisplay.com V551 Page 3 of 8
NEC Display Solutions of America, Inc.
V551 Installation Guide
55” LCD Display Rev 1.0
Display dimensions (cont.):
www.necdisplay.com V551 Page 4 of 8
NEC Display Solutions of America, Inc.
V551 Installation Guide
55” LCD Display Rev 1.0
Table Top Stand Dimensions (ST-5220):
www.necdisplay.com V551 Page 5 of 8
NEC Display Solutions of America, Inc.
V551 Installation Guide
55” LCD Display Rev 1.0
Optional Speaker Dimensions including holder (SP-RM1):
www.necdisplay.com V551 Page 6 of 8
NEC Display Solutions of America, Inc.
V551 Installation Guide
55” LCD Display Rev 1.0
Dimensions with Optional Wall Mount Kit (WMK-3257):
www.necdisplay.com V551 Page 7 of 8
NEC Display Solutions of America, Inc.
V551 Installation Guide
55” LCD Display Rev 1.0

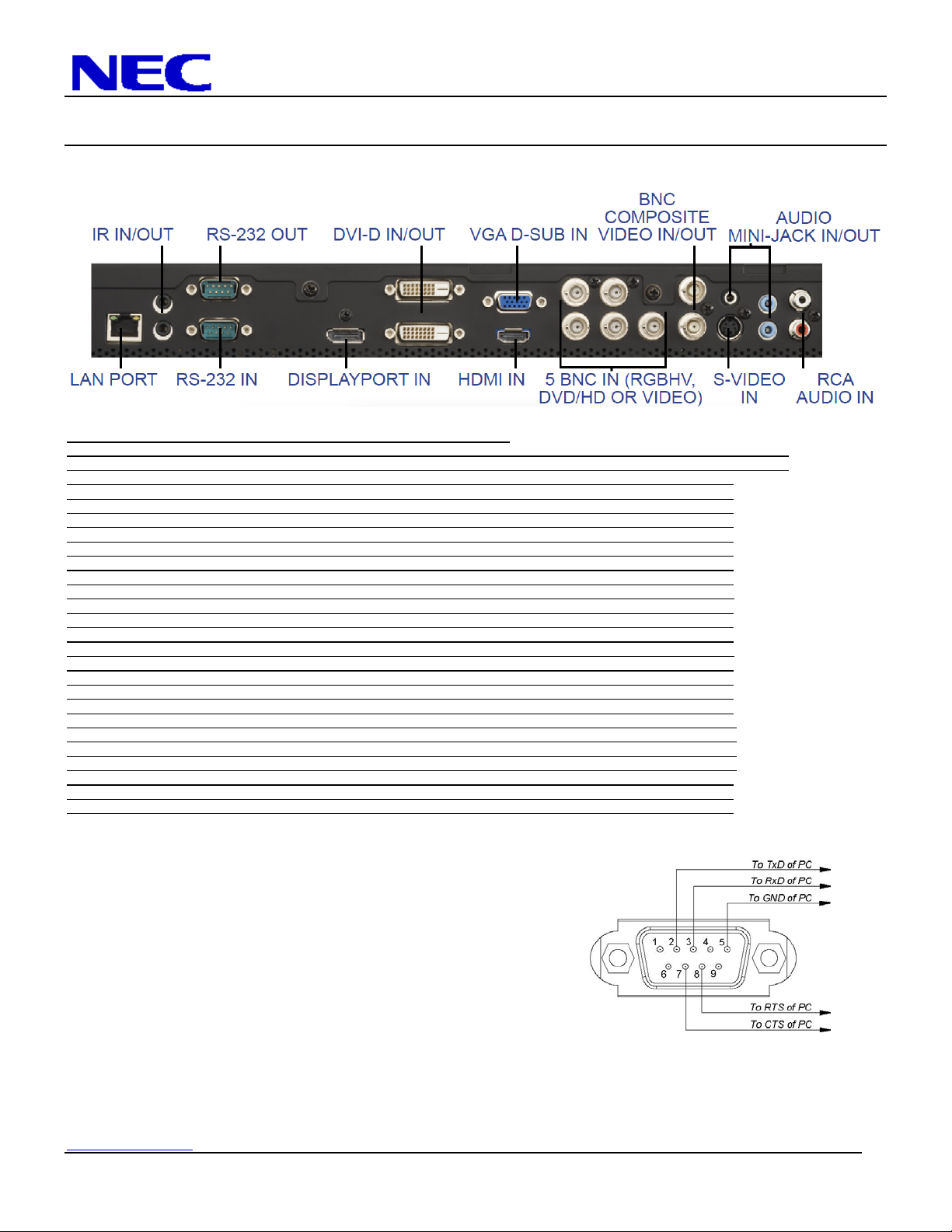

Input Panel:
Control Codes:
Function Code Data
POWER ON 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 31 03 73 0D
OFF 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 34 03 76 0D
INPUT SWITCH VGA (15pin HD) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 31 03 73 0D
DisplayPort 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 46 03 04 0D
RGBHV 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 32 03 70 0D
DVI 01 30 41 30 4 5 30 41 02 30 30 36 30 30 30 30 33 03 71 0D
HDMI__________ 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 34 03 76 0D
VIDEO (Composite) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 35 03 77 0D
DVD/HD 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 43 03 01 0D
S-Video 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 37 03 75 0D
TV (Analog) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 39 03 7B 0D
TV (Digital) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 41 03 03 0D
Option 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 44 03 06 0D
AUDIO MUTE ON 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 31 03 09 0D
OFF 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 32 03 0A 0D
PICTURE MODE sRGB 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 31 03 07 0D
HIBRIGHT 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 33 03 05 0D
STANDARD 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 34 03 02 0D
CINEMA 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 35 03 03 0D
SCREEN MODE: NORMAL 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 31 03 70 0D
FULL 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 32 03 73 0D
WIDE 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 33 03 72 0D
ZOOM 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 34 03 75 0D
AUTO SETUP EXECUTE 01 30 41 30 45 30 41 02 30 30 31 45 30 30 30 31 03 01 0D
FILM MODE OFF 01 30 41 30 45 30 41 02 30 30 30 32 30 30 30 31 03 77 0D
AUTO 01 30 41 30 45 30 41 02 30 30 30 32 30 30 30 32 03 74 0D
NOTE: Contact your NEC rep for codes not listed.
NOTE: Use a cross/reverse/null modem cable.
Cable Connection
Communication Protocol:
Interface: RS-232C Parity: None
Communication: Asynchronous Stop Bit: 1 bit
Baud Rate: 9600 bps Communication Code: He x
Data Length: 8 bits PC Control Connector (D-Sub 9Pin)
NOTE:
If so desired, jumper “Request to send” and “Clear to Send” together on both ends of the cable to simplify cable connection. These
connections are not required. The only connections required are pins 2 (RxD), 3 (TxD) and 5 (GND).
www.necdisplay.com V551 Page 8 of 8
