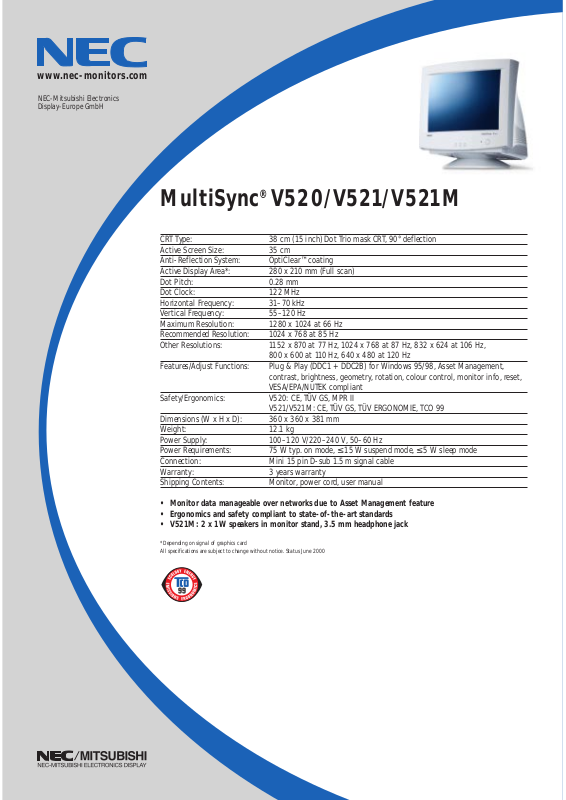

MultiSync®V520/V521/V521M

www.nec-monitors.com

NEC-Mitsubishi Electronics
Display-Europe GmbH

CRT Type: 38 cm (15 inch) Dot Trio mask CRT, 90° deflection
Active Screen Size: 35 cm
Anti-Reflection System: OptiClear™ coating
Active Display Area*: 280 x 210 mm (Full scan)
Dot Pitch: 0.28 mm
Dot Clock: 122 MHz
Horizontal Frequency: 31–70 kHz
Vertical Frequency: 55–120 Hz
Maximum Resolution: 1280 x 1024 at 66 Hz
Recommended Resolution: 1024 x 768 at 85 Hz
Other Resolutions: 1152 x 870 at 77 Hz, 1024 x 768 at 87 Hz, 832 x 624 at 106 Hz,

800 x 600 at 110 Hz, 640 x 480 at 120 Hz

Features/Adjust Functions: Plug & Play (DDC1 + DDC2B) for Windows 95/98, Asset Management,

contrast, brightness, geometry, rotation, colour control, monitor info, reset,
VESA/EPA/NUTEK compliant

Safety/Ergonomics: V520: CE, TÜV GS, MPR II

V521/V521M: CE, TÜV GS, TÜV ERGONOMIE, TCO 99
Dimensions (W x H x D): 360 x 360 x 381 mm
Weight: 12.1 kg
Power Supply: 100–120 V/220–240 V, 50–60 Hz
Power Requirements: 75 W typ. on mode, ≤ 15 W suspend mode, ≤ 5 W sleep mode
Connection: Mini 15 pin D-sub 1.5 m signal cable
Warranty: 3 years warranty
Shipping Contents: Monitor, power cord, user manual

• Monitor data manageable over networks due to Asset Management feature

• Ergonomics and safety compliant to state-of-the-art standards

• V521M: 2 x 1W speakers in monitor stand, 3.5 mm headphone jack

* Depending on signal of graphics card
All specifications are subject to change without notice. StatusJune 2000
