USER’S MANUAL

3-1

PlasmaSync Plasma Monitor

User’s Manual

NEC Solutions

Introduction

Introduction to the PlasmaSync 42MP3,42MP4 Plasma Monitor

NEC’s PlasmaSync™ is a seamless blend of cutting-edge visual technology and sophisticated design. At 42-inches, with a 16:9 aspect ratio, the PlasmaSync 42MP3, 42MP4 certainly makes a big impression. However, at a mere 3.5 inches/89 mm thin, the monitor’s sleek techno-art lines blend in well with your environment. PlasmaSync’s crisp, vivid image quality will transform data from any graphic medium from PCs to DVD players- into art. And weighing only 61.8 lbs/

28.5 kg (42MP3), 65 lbs/ 29.5 kg (42MP4) it actually can be hung almost anywhere. NEC has made sure that a host of multimedia resources can be easily connected and displayed as brilliantly as intended on the PlasmaSync™ monitor.

The features you’ll enjoy include:

• 42-inch screen

• 16:9 aspect ratio

• Capsulated Color Filter (CCF) and black matrix

• The enhanced display in red uses a two-stage filtering system where Accucrimson™ is combined with our special CCF .

• 3.5 inch / 89 mm thin

• 42MP3: 61.8 lbs/ 28.5 kg light, 42MP4: 65 lbs/ 29.5 kg light

• High-resolution screen; 42MP3: 853480 pixels, 42MP4: 1024768 pixels

• 160-degrees of off-axis viewing, horizontally and vertically .

• Flicker - and warp - free display provides excellent image geometry even in screen corners

• Not affected by magnetic fields, no color drift or edge distortion.

• VGA, SVGA, XGA, SXGA, UXGA computer signal compatibility

• NTSC, PAL, SECAM, composite and S-Video signal compatibility

• 480P, 1080I, 720P and HDTV signal compatibility

• PCs, VCRs, Laser Disc and DVD player source compatibility

• AccuBlend scan conversion automatically converts SVGA, XGA, SXGA and UXGA signals to the panel’s native resolution (42MP4: VGA, SVGA, SXGA, UXGA)

• Advanced Mass Area Sampling Progressive Scan method is employed.

• RGB input (3*), Video input (3*), DVD/HD input (2*), Audio input (3), External Control input (1)

• AccuColor control system provides user selectable onscreen color temperature settings

• New Drive Technology

• Component video input terminal for DVD, 15.75kHz (Y,

B, CR )

• Digital broadcasting source compatibility

• OSM menu-driven on screen control system that makes image adjustments a snap

• Seven languages (English, German, French, Italian, Spanish, Swedish, and Japanese)

* You can select RGB source, Component source or Video

source for the 5BNC terminal. When selecting an RGB input, the source is switched to the RGB input (3); when selecting a component input, the source is switched to the DVD/HD input (2); when selecting a Video source, the source is switched to the Video input (3).

Contents of the Package

 Plasma monitor  Power cord  RGB cable (Mini D-Sub 15-pin to Mini D-Sub 15-pin

connector)

 Remote control with two AAA Batteries  User’s manual  Remote cable  Safety metal fittings*  Screws for safety metal fitting*  Ferrite core (small2, large2), band

* These are fittings for fastening the unit to a wall to prevent tipping

due to external shock when using the stand (option). Fasten the safety fittings to the holes in the back of the monitor using the safety fitting mount screws.

Options

• Wall mount unit

• Ceiling mount unit

• Tilt mount unit

• Stand

• Attachable speakers

• Pole unit

• Horizontal pole mount unit

Important Information

Precautions

Please read this manual carefully before using your plasma monitor and keep the manual handy for future reference.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS, UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

WARNING

Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Warnings and Safety Precaution

This plasma monitor is designed and manufactured to provide long, trouble-free service. No maintenance other than cleaning is required. Use a soft dry cloth to clean the panel. Never use solvents such as alcohol or thinner to clean the panel surface. The plasma display panel consists of fine picture elements (cells) with more than 99.99 percent active cells. There may be some cells that do not produce light or remain lit. For operating safety and to avoid damage to the unit, read carefully and observe the following instructions. To avoid shock and fire hazards:

1. Provide adequate space for ventilation to avoid internal heat build-up. Do not cover rear vents or install the unit in a closed cabinet or shelves. The unit is equipped with cooling fans (42XGA only). If you install the unit in an enclosure, make sure there is adequate space at the top of the unit to allow hot air to rise and escape. If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location, and wait for 60 minutes to cool the monitor. If the problem persists, contact your dealer for service.

2. Do not use this unit polarized plug with extension cords or outlets unless the prongs can be completely inserted.

3. Do not expose the unit to water or moisture.

4. Avoid damage to the power cord, and do not attempt to modify the power cord.

5. Unplug the power cord during electrical storms or if the unit will not be used over a long period.

6. Do not open the cabinet which has potentially dangerous high voltage components inside. If the unit is damaged in this way the warranty will be void. Moreover, there is a serious risk of electric shock.

7. Do not attempt to service or repair the unit. This is not liable for any bodily harm or damage caused if unqualified persons attempt service or open the back cover. Refer all service to authorized Service Centers.

NOTE: When you connect a computer to this monitor, attach the supplied ferrite cores. If you do not do this, this monitor will not comform to mandatory FCC standards. Attaching the ferrite cores: Set the ferrite cores on both ends of the DVI cable (not supplied), and both ends of the power cable (supplied). Close the lid tightly until the clamps click. Use the band to fasten the ferrite core (supplied) to the DVI cable.

DVI cable (not supplied)

band

core (small)

Power cable (supplied)

core (large)

band

Connector

core (small)

core (large)

To avoid damage and prolong operating life:

1. Use only with 120V 50/60Hz AC power supply. Continued operation at line voltages greater than 120 V olts AC will shorten the life of the unit, and might even cause a fire hazard.

2. Handle the unit carefully when installing it and do not drop.

3. Set the unit away from heat, excessive dust, and direct sunlight.

4. Protect the inside of the unit from liquids and small metal objects. In case of accident, unplug the power cord and have it serviced by an authorized Service Center.

5. Do not hit or scratch the panel surface as this causes flaws on the surface of the screen.

6. For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.

7. As is the case with any phosphor-based display (like a CRT monitor, for example) light output will gradually decrease over the life of a Plasma Display Panel.

Recommendations to avoid or minimize phosphor burn-in

Like all phosphor-based display devices and all other gas plasma displays, plasma monitors can be susceptible to phosphor burn under certain circumstances. Certain operating conditions, such as the continuous display of a static image over a prolonged period of time, can result in phosphor burn if proper precautions are not taken. T o protect your investment in this plasma monitor, please adhere to the following guidelines and recommendations for minimizing the occurrence of image burn:

* Always enable and use your computer’s screen saver

function during use with a computer input source. * Display a moving image whenever possible. * Change the position of the menu display from time to time. * Always power down the monitor when you are finished

using it.

If the plasma monitor is in long term use or continuous operation take the following measures to reduce the likelihood of phosphor burn:

* Lower the Brightness and Contrast levels as much as

possible without impairing image readability . * Display an image with many colors and color gradations

(i.e. photographic or photo-realistic images). * Create image content with minimal contrast between light

and dark areas, for example white characters on black

backgrounds. Use complementary or pastel color whenever

possible. * Avoid displaying images with few colors and distinct,

sharply defined borders between colors.

* Burn-in is not covered by the warranty.

Contact your dealer for other recommended procedures that will best suit your particular application needs.

Recommandations importantes

Précautions

Veuillez lire avec attention ce manuel avant d’utiliser le moniteur à plasma et le conserver accessible pour s’y référer ultérieurement.

ATTENTION

RISQUE D’ELECTROCUTION

NE P AS OUVRIR

MISE EN GARDE:AFIN DE REDUIRE LES RISQUES D’ELECTRO-

CUTION, NE PAS DEPOSER LE COUVERCLE, IL N’Y A AUCUNE PIECE UTILISABLE A L’INTERIEUR DE CET APPAREIL. NE CONFIER LES TRAVAUX D’ENTRETIEN QU’A UN PERSONNEL QUALIFIE.

Ce symbole a pour but de prévenir l’utilisateur de la présence d’une tension dangereuse, non isolée se trouvant à l’intérieur de l’appareil. Elle est d’une intensité suf fisante pour constituer un risque d’électrocution. Eviter le contact avec les pièces à l’intérieur de cet appareil.

Ce symbole a pour but de prévenir l’utilisateur de la présence d’importantes instructions concernant l’entretien et le fonctionnement de cet appareil. Par conséquent, elles doivent être lues attentivement afin d’éviter des problèmes.

A VERTISSEMENT

AFIN DE REDUIRE LES RISQUES D’INCENDIE OU D’ELECTROCUTION, NE P AS EXPOSER CET APP AREIL A LA PLUIE OU A L’HUMIDITE. AUSSI, NE P AS UTILISER LA FICHE POLARISEE AVEC UN PROLONGATEUR OU UNE AUTRE PRISE DE COURANT SAUF SI CES LAMES PEUVENT ETRE INSEREES A FOND. NE PAS OUVRIR LE COFFRET , DES COMPOSANTS HAUTE TENSION SE TROUVENT A L’INTERIEUR. LAISSER A UN PERSONNEL QUALIFIE LE SOIN DE REPARER CET

APP AREIL.

DOC avis de conformation

Cet appareil numérigue de la classe A respecte toutes les exigences du Réglement sur le Matériel Brouilleur du Canada.

Mises en garde et précautions de sécurité

Ce moniteur à plasma a été conçu et fabriqué pour une utilisation fiable et durable. Il ne nécessite aucun entretien en dehors du nettoyage. Utiliser un chiffon doux et sec pour nettoyer la surface de l’écran. Ne jamais utiliser de solvant comme de l’alcool ou du diluant. Le panneau à affichage plasma est constitué de fines particules d’images (cellules) dont plus de 99,99%sont actives. Certaines d’entre elles ne produisent pas de lumière ou restent allumées. Pour des raisons de sécurité et pour éviter d’endommager l’appareil, lire attentivement les instructions suivantes. Pour éviter les risques d’éléctrocution et d’incendie:

1. Laisser suffisament d’espace autour de l’appareil pour

la ventilation et éviter toute augmentation excessive de la température interne. Ne pas couvrir les évents ou l’installer dans un endroit trop exigu. L’appareil est équipé de ventilateurs de refroidissement (uniquement wide-VGA). Si vous installez l’appareil dans un espace clos, assurezvous qu’il y ait suffisamment d’espace au dessus pour permettre à l’air chaud de s’élever et de s’évacuer. Si la température du moniteur devient excessive, la protection contre les surchauffes entrera en action et coupera l’alimentation. Dans ce cas, éteindre l’appareil et débrancher le câble d’alimentation. Si la température de la pièce dans laquelle se trouve le moniteur est particulièrement élevée, déplacer celui-ci dans un endroit plus frais et attendre environ 60 minutes qu’il refroidisse. Si le problème persiste, prendre contact avec votre revendeur.

2. Ne pas raccorder la prise d’alimentation polarisée de ce

périphérique à une rallonge ou une prise murale si les fiches ne peuvent pas être complètement insérées.

3. Ne pas exposer à L ’eau ou à l’humidité.

4. Eviter d’endommager le cordon d’alimentation, et ne pas

modifier le cordon d’alimentation.

5. Débrancher le câble d’alimentation électrique pendant les

orages ou les longues périodes d’inactivité.

6. Ne pas ouvrir le coffret. Des composants de haute

tension se trouvent à l’intérieur. Si l’appareil est endommagé de cette manière, la garantie devient caduque. De plus, il y a risque d’électrocution.

7. Ne pas essayer d’intervenir ou de réparer l’appareil. Ceci

n’est en aucune manière responsable des blessures corporelles ou dégâts matériels pouvant survenir si une personne non qualifiée tente une réparation en ouvrant le boîtier arrière. S’adresser aux services après-vente autorisés.

REMARQUE: Lorsque vous branchez un micro-ordinateur sur ce moniteur, fixez les noyaux en ferrites fournis. Si vous ne le faîtes, le moniteur ne sera pas en conformité avec les exigences des standards FCC. Fixation des noyaux en ferrite. Monter les tores en ferrite aux deux extrêmités du câble DVI (non fourni) et aux deux extrêmités du câble d’alimentation électrique (fourni). Fermez doucement le couvercle jusqu’à ce que les crans se clipsent. Fixer le tore en ferrite (fourni) au câble DVI à l’aide d’un collier.

Pour éviter les risques de brûlage du luminophore, le s mesures suivantes sont recommandées:

Comme tous les périphériques d’affichage à base luminophore et tous les autres affichages gaz plasma, les moniteurs plasma peuvent être sujets au brûlage du luminophore dans certaines circonstances. Certaines conditions d’utilisation, telles que l’affichage continu d’une image statique pour une durée prolongée, peuvent causer le brûlage du luminophore si aucune précaution n’est prise. Pour protéger votre investissement dans ce moniteur à plasma, veuillez suivre les directives et les conseils suivantes pour minimiser l’occurence le marquage de l’écran:

Câble DVI (non fourni)

Collier Collier

noyau (petit)

Câble d'alimentation électrique (fourni)

noyau (large)

noyau (petit)

noyau (large)

Connecteur

Pour éviter des dommages et prolonger la durée de service de l’appareil:

1. N’utiliser qu’une source d’alimentation de 120 V 50/ 60 Hz CA. Le fait d’utiliser l’appareil en continu à des tensions de ligne supérieures à 120 Volts CA réduit sa durée de vie et risque de provoquer un incendie.

2. Manipuler l’appareil avec soin pendant son déplacement et ne pas le faire tomber.

3. Eloigner l’appareil des endroits chauds, très poussiéreux et exposés en plein soleil.

4. Eviter que des liquides et des petits objets métalliques pénètrent à l’intérieur de l’appareil. En cas d’incident de ce genre, débrancher le câble d’alimentation électrique et confier le moniteur à un service après-vente agréé.

5. Ne pas frapper ou rayer la surface de la écran plasma, car des défauts risquent de se produire sur la surface de la écran plasma.

6. Pour un montage et une installation correcte, il est fortement recommandé de faire appel à un revendeur agréé et qualifié.

7. Comme c’est le cas pour tout affichage à base de phosphore (comme un moniteur CRT, par exemple), la puissance de lumière baisse graduellement au cours de la vie du Panneau d’Affichage à Plasma.

• Assurez-vous de mettre en marche et d’utliser l’économisateur d’écran chaque fois que c’est possible lorsque vous l’utilisez avec une source d’entrée d’ordinateur.

• Affichez une image en mouvement aussi souvent que possible.

• Changer la position de l’affichage de menu de temps à autre.

• Coupez toujours l’alimentation lorsque vous avez terminé

d’utiliser la moniteur.

Si le moniteur est en usage continu ou longue durée, prenez les mesures suivantes afin d’éviter l’occurence le brûlage du luminophore:

• Abaissez le niveau de l’image (contraste, luminosité) autant que possible, sans faire perdre la lisibilité de l’image.

• Affichez une image avec de nombreuses couleurs et graduations de couleur (par ex. des images photographiques ou photo-réalistes).

• Créez un contenu d’image avec un contraste minimal entre les zones sombres et les zones claires, par exemple, des caractères blancs sur un fond noir. Utilisez des couleurs complémentaires ou pastels le plus souvent possible.

•Évitez d’afficher des images avec peu de couleurs et des limites nettes et clairement définies entre les couleurs.

* Le brûlage de l’écran n’est pas couvert par la garantie.

Contactez un revendeur agréé ou un revendeur de marque pour d'autres procédures qui conviendront le mieux à vos besoins particuliers.

Contents

How to Attach Options to the Plasma Monitor .... 1

Part Names and Function .................................. 2

Front View............................................................... 2

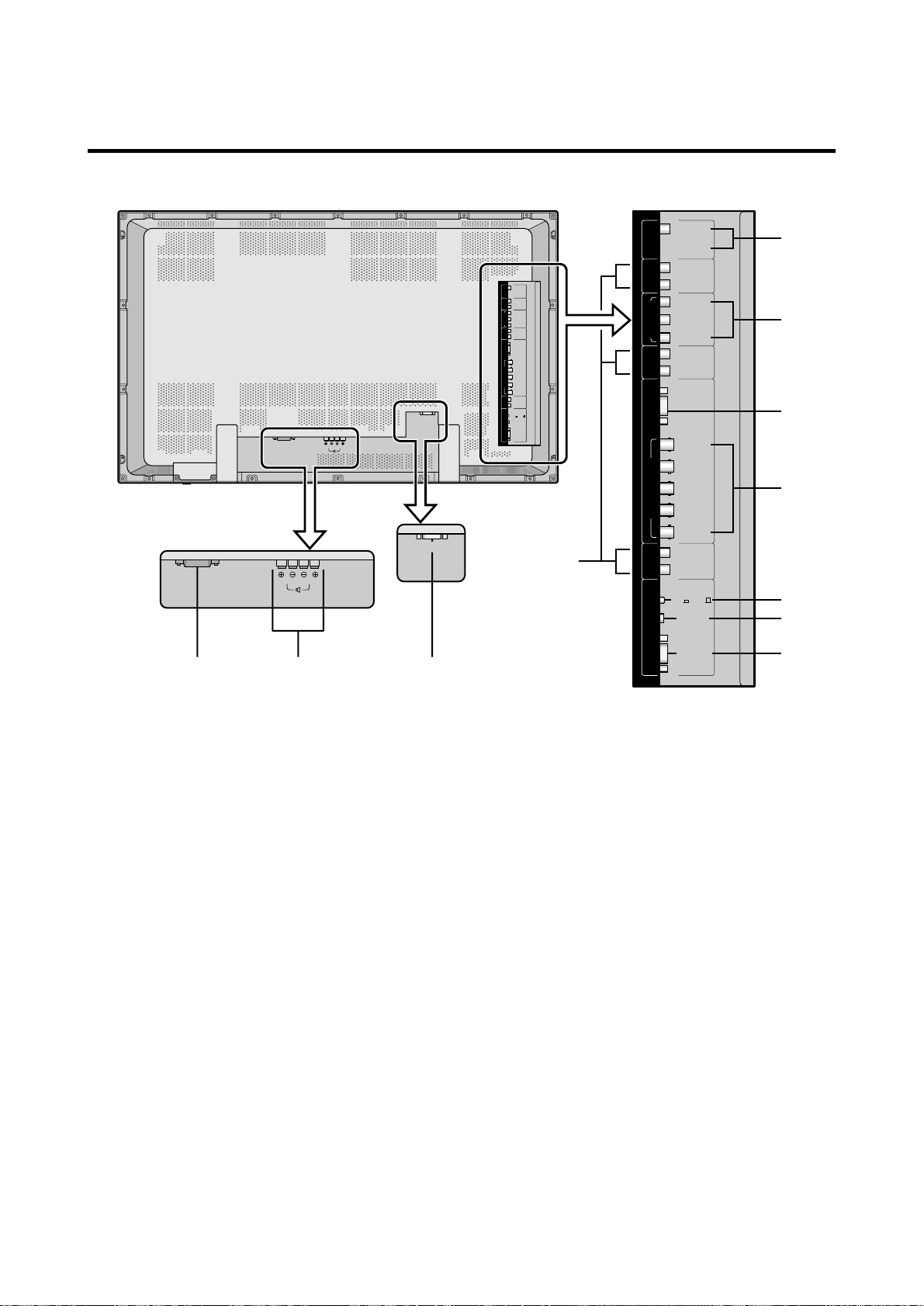

Rear View / Terminal Board ...................................... 3

Remote Control ........................................................ 4

Battery Installation and Replacement .......................... 5

Using the wired remote control mode ......................... 6

Operating Range ..................................................... 6

Handling the remote control ...................................... 6

Installation ...................................................... 7

Connecting Your PC or Macintosh Computer ............... 8

Connections with Equipment that has a Digital Interface ...

Connecting Your Document Camera ........................... 8

Connecting Your VCR or Laser Disc Player.................. 8

Connecting Your DVD Player ..................................... 8

Attachable Speaker Connections ................................ 9

Pin Assignments and Signal Levels

for 15 pin RGB (Analog) ......................................... 10

Pin Configuration and Signal

of the RGB 3 IN Connector (DVI Connector) .............. 10

Basic Operations ............................................. 11

POWER ................................................................ 11

To turn the unit ON and OFF: .................................... 11

VOLUME .............................................................. 11

To adjust the sound volume:...................................... 11

MUTE ................................................................... 11

To cancel the sound:.................................................. 11

DISPLAY ................................................................ 11

To check the settings:................................................. 11

DIGITAL ZOOM ..................................................... 11

OFF TIMER ........................................................... 12

To set the of f timer:................................................... 12

To check the remaining time: ..................................... 12

To cancel the off timer ............................................... 12

OSM Controls ................................................. 15

Menu Operations ................................................... 15

Picture Settings Menu ............................................. 17

Adjusting the picture ................................................. 17

Setting the picture mode according to the

brightness of the room ............................................... 18

Setting the color temperature .................................... 19

Adjusting the color to the desired quality ................... 20

Reducing noise in the picture ..................................... 21

Sound Settings Menu .............................................. 22

Adjusting the treble, bass and left/right balance ........ 22

Screen Settings Menu ............................................. 23

Adjusting the Position, Size, Fine Picture,

Picture Adj ................................................................ 23

Function Settings Menu .......................................... 24

Setting the on-screen menu ....................................... 24

Adjusting the position of the menu display ................ 25

Setting the power management for computer images .....

POWER/ST ANDBY indicator ................................... 27

Setting the gray level for the sides of the screen ......... 28

Setting the picture to suit the movie ........................... 28

Setting RGB3 ADJ..................................................... 29

Reducing burn-in of the screen .................................. 29

Setting the time for “INVERSE”................................ 30

Setting the time for “SCREEN WIPER” .................... 31

Resetting to the default values.................................... 32

Options Settings Menu ............................................ 33

Setting the allocation of the audio connectors ........... 33

Setting the BNC connectors ...................................... 34

Setting a computer image to the correct RGB

select screen ............................................................. 34

Setting high definition images to the suitable

screen size............................................................... 35

Information Menu ................................................. 36

Checking the frequencies, polarities of input signals,

and resolution ........................................................... 36

Setting the language for the menus............................. 36

Setting the video signal format.................................. 37

WIDE Operations ............................................. 13

Watching with a wide screen (manual) .................... 13

When watching videos or digital video discs............. 13

When watching high definition video source ............. 13

Watching computer images with a wide screen ......... 14

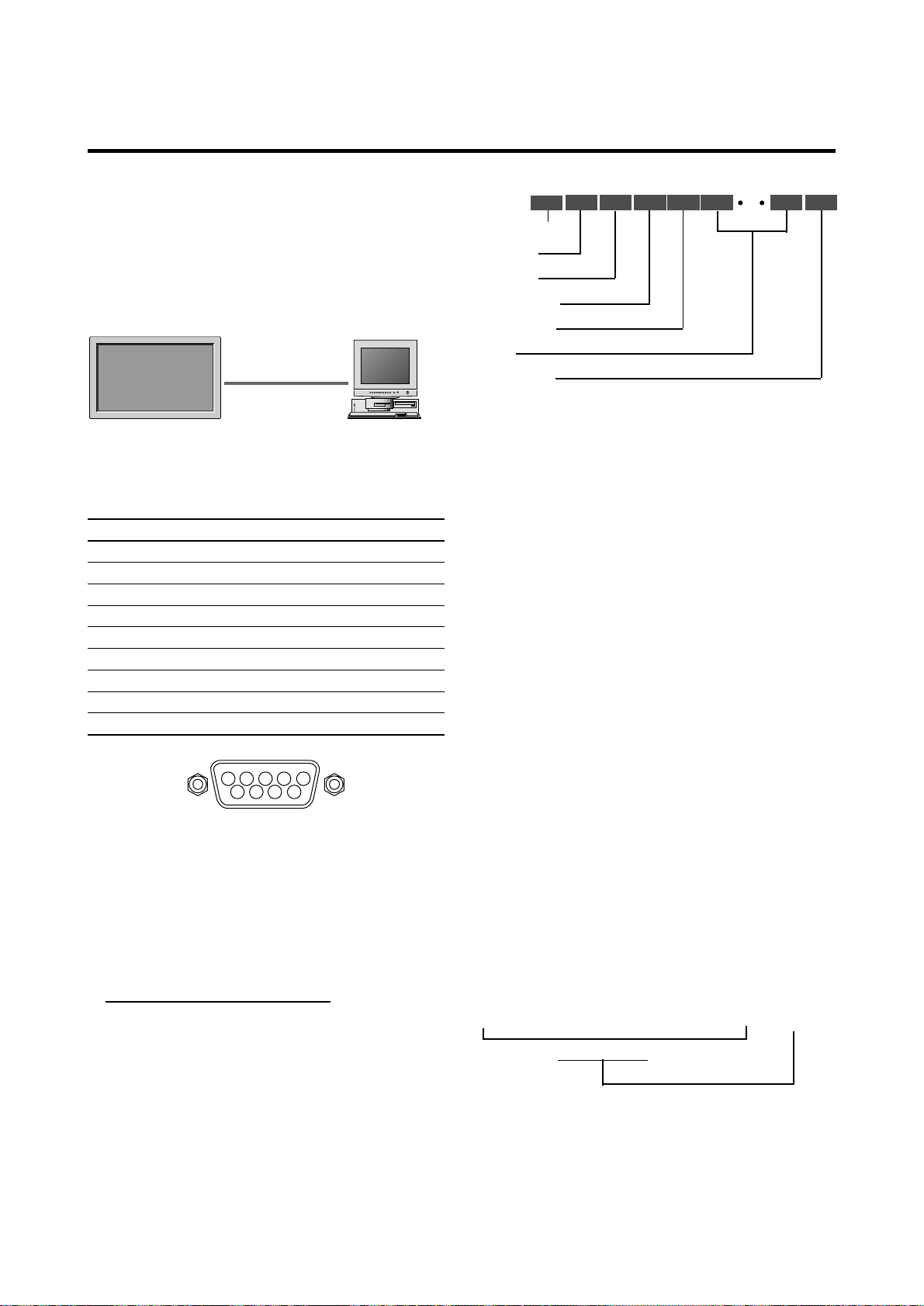

External Control ............................................. 38

Table of Signals Supported .............................. 51

Supported resolution .............................................. 51

Troubleshooting ............................................. 53

Specifications ................................................. 54

How to Attach Options to the Plasma Monitor

Drawing B

Y ou can attach your optional mounts or stand to the plasma monitor in one of the following two ways:

* While it is upright. (See Drawing A) * As it is laid down with the screen face down (See Drawing

B). Lay the protective sheet, which was wrapped around the monitor when it was packaged, beneath the screen surface so as not to scratch the screen face.

• This device cannot be installed on its own. Be sure to use a stand or original mounting unit. (Wall mount unit, Stand, etc.)

* See the inside of a cover.

• For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.

Failure to follow correct mounting procedures could result in damage to the equipment or injury to the installer.

Product warranty does not cover damage caused by improper installation.

* Use only Listed Cart or Stand, or mounting

kit or stand provided by manufacturer.

Drawing A

Ventilation Requirements for enclosure mounting

To allow heat to disperse, leave space between surrounding objects as shown on the diagram below when installing.

31mm (1.22")

Wall

1110

(43.7")

31mm (1.22")

(2")

(29.5")

748

(2") 50

Wall

50mm (2")

Part Names and Function

Front View

INPUT SELECT

PROCEED

VOLUME

DOWN UP LEFT/

RIGHT/+/EXIT

POWER/STANDBY

PROCEED

VOLUME

DOWN UP LEFT

/-RIGHT

q Power

Turns the monitor’s power on and off.

w Remote sensor window

Receives the signals from the remote control.

e POWER/STANDBY indicator

When the power is on ............................. Lights green.

When the power is in the standby mode ... Lights red.

r INPUT SELECT / EXIT

Switches the input, in the following order. The available inputs depend on the setting of “BNC SELECT”. RGB:

COMP.:

VIDEO:

→ VIDEO1 → VIDEO2 → HD/DVD/DTV RGB/PC3 ← RGB/PC2 ← RGB/PC1←

→ VIDEO1 → VIDEO2 → HD1/DVD1/DTV1 RGB/PC3 ← RGB/PC1 ← HD2/DVD2/DTV2 ←

→ VIDEO1 → VIDEO2 → VIDEO3 RGB/PC3 ← RGB/PC1 ← HD/DVD/DTV←

INPUT SELECT

/+/

EXIT

POWER/STANDBY

t LEFT/– and RIGHT/+

Enlarges or reduces the image. Functions as the



CURSOR (

/ ) buttons in the On-Screen Menu

(OSM) mode.

y VOLUME DOWN and UP

Adjusts the volume. Functions as the CURSOR (▲/ ▼) buttons in the On-Screen Menu (OSM) mode.

u PROCEED

Sets the On-Screen Menu (OSM) mode and displays the main menu.

Functions as the EXIT buttons in the On-Screen Menu (OSM) mode.

Rear View/ Terminal Board

AUDIO 2 DVD1/HD1AUDIO 3 AUDIO 1RGB2/DVD2/HD2

RGB 3

(

)

Digital RGB

SPEAKERS MUST

HAVE MORE THAN

RIGHT LEFT

AC IN

RIGHT LEFT

IMPEDANCE 6 OHM

SPEAKERS MUST

HAVE MORE THAN

7WATT RATING

IMPEDANCE 6 OHM

7WATT RATING

RGB 3

(

Digital RGB

)

AB C

VIDEO 1

VIDEO 2

)

L ( MONO

AUDIO 2 DVD1/ HD1AUDIO 3 AUDIO 1RGB2/ DVD2/HD2

CB/P

CR/P

L ( MONO

RGB 1

R/CR/P

G/Y /VIDEO 3

B/CB/P

L ( MONO

CONTROL LOCK

ON /OFF

REMOTE CONTROL

EXTERNAL CONTROL

)

VIDEO 1

VIDEO 2

)

L ( MONO

CB/P

CR/P

)

L ( MONO

RGB 1

R/CR/P

G/Y /VIDEO 3

B/CB/P

)

L ( MONO

CONTROL LOCK

ON /OFF

REMOTE CONTROL

EXTERNAL CONTROL

A AC IN

Connect the included power cord here.

B EXT SPEAKER L and R

Connect speakers here. Maintain the correct polarity.

C RGB3

(DVI 29pin)

Inputs a digital RGB signal (TMDS).

D VIDEO1, 2

Connect VCR’s, DVD’s or Laser Discs, etc. here.

E AUDIO1, AUDIO2, AUDIO3

These are audio input terminals. The input is selectable. Set which video image to allot them to on the menu screen.

F DVD1 / HD1

Connect DVD’s, High Definition or Laser Discs, etc. here.

G RGB1

Inputs the analog RGB signal of personal computer, etc.

H RGB2/ DVD2/ HD2

RGB2: Inputs the analog RGB signal and the

syncronization signal.

DVD2/ HD2: Connect DVD ’s, High Definition or

Laser Discs, etc. here.

VIDEO3: Connect VCR’s, DVD’s or Laser

Discs, etc. here.

I CONTROL LOCK

When “CONTROL LOCK” is set “ON”, the buttons on the set’s control panel do not function.

J REMOTE CONTROL

Connect the supplied remote cable here.

K EXTERNAL CONTROL

This terminal is used when power ON/OFF, input selection and AUDIO MUTE and other controls are operated externally (by external control). See also page 38 for external control.

Remote Control

w RGB/PC

Press this button to select RGB/PC as the source. The available sources depend on the setting of “BNC SELECT”. RGB:

→ RGB/PC1 → RGB/PC2 → RGB/PC3

COMP. or VIDEO:

→ RGB/PC1 → RGB/PC3

RGB/PC can also be selected using the INPUT SELECT button on the monitor.

e DVD / HD

Press this button to select DVD/HD as the source. The available sources depend on the setting of “BNC SELECT”. RGB or VIDEO:

COMP.:

HD/DVD/DTV

→ HD1/DVD1/DTV1 → HD2/DVD2/DTV2

DVD/HD can also be selected using the INPUT SELECT button on the monitor.

r VIDEO

Press this button to select VIDEO as the source. The available sources depend on the setting of “BNC SELECT”. VIDEO:

RGB or COMP.:

→ VIDEO1 → VIDEO2 → VIDEO3

→ VIDEO1 → VIDEO2

q POWER ON/OFF

Switches Power ON/OFF. (This does not operate when POWER/STANDBY indicator of the main unit is off.)

VIDEO can also be selected using the INPUT SELECT button on the monitor.

t PROCEED

Press this button to access the OSM controls. Press this button during the display of the main menu to go to the sub menu.

y CURSOR (▲ / ▼ /



/ )

Use these buttons to select items or settings and to adjust settings or switch the display patterns.

u EXIT

Press this button to exit the OSM controls in the main menu. Press this button during the display of the sub menu to return to the main menu.

i POINTER

Press this button to display the pointer.

o ZOOM (+ /–)

Enlarges or reduces the image.

!0 VOLUME (+ /–)

Adjusts the sound volume.

!1 MUTE

Mutes the sound.

!2 WIDE

The type of broadcast is detected automatically, and the recommended wide screen is set.

Battery Installation and Replacement

Insert the 2 “AAA” batteries, making sure to set them in with the proper polarity.

!3 DISPLAY

Displays the source settings on the screen.

!4 OFF TIMER

Activates the off timer for the unit.

!5 Remote control signal transmitter

Transmits the remote control signals.

!6 Remote Jack

Insert the plug of the supplied remote cable here when using the supplied remote control in the wired condition.

1.Press and open the cover.

2.Align the batteries according to the (+) and (–) indication inside the case.

3.Replace the cover.

Using the wired remote control mode

Connect the supplied remote cable to the remote control’s remote jack and the “REMOTE CONTROL” terminal on the monitor. When the cable is connected, the mode automatically switches to wired remote control. When the wired remote control mode is used, the remote control can be operated even if no batteries are loaded.

(

Digital RGB

VIDEO 1

VIDEO 2

)

L ( MONO

CB/PB

CR/PR

)

L ( MONO

AUDIO 2 DVD1 /HD1AUDIO 3 AUDIO 1RGB2/DVD2/ HD2

RGB 1

R/CR/PR

G/Y /VIDEO 3

B/CB/PB

)

L ( MONO

CONTROL LOCK

RGB 3

)

ON/ OFF

REMOTE CONTROL

EXTERNAL CONTROL

CONTROL LOCK

ON/ OFF

REMOTE CONTROL

EXTERNAL CONTROL

Remote Control Cable

Operating Range

* Use the remote control within a distance of about 7 m/

23ft. from the front of the monitor’s remote control sensor and at horizontal and vertical angles of up to approximately 30°.

* The remote control operation may not function if the

monitor’s remote control sensor is exposed to direct sunlight or strong artificial light, or if there is an obstacle between the sensor and the remote control.

INPUT SELECT

VOLUME

PROCEED

DOWN UP LEFT/

RIGHT/+/EXIT

POWER/STANDBY

Approx.

7m/23ft

To Remote Jack

Handling the remote control

• Do not drop or mishandle the remote control.

• Do not get the remote control wet. If the remote control

gets wet, wipe it dry immediately.

• Avoid heat and humidity.

• When not using the remote control for a long period,

remove the batteries.

• Do not use new and old batteries together, or use dif ferent types together.

• Do not take apart the batteries, heat them, or throw them into a fire.

• When using the remote control in the wireless condition, be sure to unplug the remote cable from the REMOTE CONTROL terminal on the monitor.

Installation

VCR or Laser Disc Player

RGB 3

(

Digital RGB

VIDEO 1

VIDEO 2

)

L ( MONO

CB/ PB

CR/ PR

)

L ( MONO

AUDIO 2 DVD1 /HD1AUDIO 3 AUDIO 1RGB2/ DVD2/HD2

RGB 1

R/CR/PR

G/Y /VIDEO 3

B/CB/PB

)

L ( MONO

CONTROL LOCK

)

ON/ OFF

REMOTE CONTROL

EXTERNAL CONTROL

To video inputs on the plasma monitor

Signal cable (supplied) To Mini D-Sub 15 pin connector on the plasma monitor

Document Camera

IBM VGA or

Compatibles

Macintosh or Compatibles

(Desk top type)

Monitor adapter for Macintosh

DVD Player

Personal computer with a digital RGB output

Connecting Your PC or Macintosh Computer

Connecting your PC or Macintosh computer to your plasma monitor will enable you to display your computer’s screen image for an impressive presentation. The plasma monitor supports the signals described on page 51. T o connect a PC, Macintosh or compatible graphics adapter, simply:

1. Turn off the power to your plasma monitor and computer .

2. If your PC does not support SXGA/XGA/SVGA/VGA you will need to install an SXGA/XGA/SVGA/VGA graphics board. Consult your computer’s owner’s manual for your SXGA/XGA/SVGA/VGA configuration. If you need to install a new board, see the manual that comes with your new graphics board for installation instructions.

3. This plasma monitor provides signal compatibility up to VESA 16001200 (UXGA). However, it is not recommended to use this resolution due to image readability on the monitor’s native pixel resolution panel (42Wide VGA: 853480, 42XGA: 1024768).

Connecting Your Document Camera

You can connect your plasma monitor to a document camera. To do so, simply:

1. Turn off the power to your plasma monitor and document camera.

2. Use a standard video cable to connect your document camera to the Video input on your plasma monitor.

3. Turn on the plasma monitor and the document camera.

Note:

for more information about your camera’s video output requir ements.

Refer to your document camera owner’ s manual

Connecting Your VCR or Laser Disc Player

Use common RCA cables (not provided) to connect your VCR or laser disc player to your plasma monitor. T o make these connections, simply:

4. Use the signal cable that’s supplied to connect your PC or Macintosh computer to the plasma monitor. For Macintosh, use the monitor adapter to connect to your computer’s video port.

5. Turn on the plasma monitor and the computer.

6. If the plasma monitor goes blank after a period of inactivity, it may be caused by a screen saver installed on the computer you’ve connected to the plasma monitor .

When using a Macintosh with the plasma monitor, the following four display standards are supported using the Macintosh adapter :

13" fixed mode 16" fixed mode 19" fixed mode

21" fixed mode The 13" fixed mode is recommended for your 42Wide VGA, and the 19" fixed mode is recommended for your 42XGA.

Connections with Equipment that has a Digital Interface

Connections can be made with equipment that is equipped with a digital interface compliant with the DVI (Digital Visual Interface) standard. * Use a DVI 29-pin signal cable and the ferrite cores

(supplied) when making connections to the RGB3 IN (DVI) connector of the main unit. Note that the RGB3 IN(DVI) terminal does not support analog RGB input source.

Note:

1. Input TMDS signals conforming to DVI standards. The TMDS input corresponds to 1 link.

2. To maintain display quality, use a cable with a quality

prescribed by DVI standar ds that is within 5 meters in length.

1. Turn off the power to your plasma monitor and VCR or laser disc player.

2. Connect one end of your RCA cable to the video output connector on the back of your VCR or laser disc player, connect the other end to the V ideo input on your plasma monitor. Use standard RCA audio patch cords to connect the audio from your VCR or laser disc player to your plasma monitor (if your VCR or laser disc player has this capability). Be careful to keep your right and left channel connections correct for stereo sound.

3. Turn on the plasma monitor and the VCR or laser disc player.

Note:

manual for more information about your equipment’s video output requir ements.

Refer to your VCR or laser disc player owner’s

Connecting Your DVD Player

You can connect your plasma monitor to a DVD player. To do so, simply:

1. Turn off the power to your plasma monitor and DVD player.

2. Use a standard video cable to connect your DVD player to the Y, Cb, and Cr inputs on your plasma monitor. Or use the DVD-player’s S-Video output. Use a standard S-Video cable to connect to the S-Video input on the plasma monitor.

3. Turn on the plasma monitor and the DVD player.

Attachable Speaker Connections

AC IN

RIGHT LEFT

SPEAKERS MUST

HAVE MORE THAN

RIGHT LEFT

7WATT RATING

IMPEDANCE 6 OHM

(

Digital RGB

VIDEO 1

VIDEO 2

)

L ( MONO

CB/P

CR/P

)

L ( MONO

AUDIO 2 DVD1/HD1AUDIO 3 AUDIO 1RGB2/DVD2/ HD2

RGB 1

R/CR/P

G/Y /VIDEO 3

B/CB/P

)

L ( MONO

CONTROL LOCK

RGB 3

)

ON /OFF

REMOTE CONTROL

EXTERNAL CONTROL

Attachable speakers (option) may be connected to the plasma monitor to reproduce sound from VIDEO, DVD or RGB signal sources.

Attachable speakers may be connected directly to the SPEAKERS terminals or indirectly by connecting a stereo system amplifier to the audio outputs.

CAUTION:

Unplug the plasma monitor and all connected components before connecting external speakers. Use only speakers with 6-ohm impedance and a power input rating of 7 watts or more.

To connect attachable speakers directly to the plasma monitor:

1. Strip the ends of the speaker wires.

2. Press up the tabs below the SPEAKERS terminals, insert the speaker wire and release the tab to secure the speaker wire connection:

[a] Connect the right speaker (located at right side

of the monitor when viewed from the front) positive (+) wire to RIGHT +.

[b] Connect the right speaker negative (–) wire to

RIGHT –.

[c] Connect the left speaker negative (–) wire to

LEFT–.

[d] Connect the left speaker positive (+) wire to

LEFT+.

Pin Assignments and Signal Levels for 15 pin RGB (Analog)

5 4 3 2 1

10 9 8 7 6

15 14 13 12 11

Pin No.

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

Red Green or sync-on-green Blue No connection Ground Red ground Green ground Blue ground No connection Sync signal ground No connection Bi-directional DATA (SDA) Horizontal sync or Composite sync Vertical sync Data clock

Signal (Analog)

Pin Configuration and Signal of the RGB 3 IN Connector (DVI Connector)

The unit is equipped with a type of connector commonly used for both analog and digital. (Functionally, this cannot be used for an analog input.) (TMDS can be used for one link only.)

RGB 3

8 25 26

27 28

Pin No.

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

Signal (Digital)

T.M.D.S Data 2 T.M.D.S Data 2 + T.M.D.S Data 2 Shield No connection No connection DDC Clock DDC Data No connection T.M.D.S Data 1 T.M.D.S Data 1 + T.M.D.S Data 1 Shield No connection No connection +5V Power Ground Hot Plug Detect T.M.D.S Data 0 T.M.D.S Data 0 + T.M.D.S Data 0 Shield No connection No connection T .M.D.S Clock Shield T .M.D.S Clock + T.M.D.S Clock No connection No connection No connection No connection No connection

Basic Operations

POWER

To turn the unit ON and OFF:

1. Plug the power cord into an active AC power outlet.

2. Press the POWER ON button (on the remote control) to turn on the unit.

The monitor’s POWER/ST ANDBY indicator will light up (green) when the unit is on.

3. Press the POWER OFF button (on the remote control or the unit) to turn off the unit.

The monitor’s POWER/ST ANDBY indicator turns red and the standby mode is set (only when turning off the unit with the remote control).

VOLUME

To adjust the sound volume:

1. Press and hold the VOLUME button (on the remote control or the unit) to increase sound output to the desired level.

2. Press and hold the VOLUME control or the unit) to decrease to the desired level.

button (on the remote

DIGITAL ZOOM

Digital zoom specifies the picture position and enlarges the picture.

1. Press the POINTER button to display the pointer. (

To change the size of the picture:

Press the ZOOM+ button and enlarge the picture. The pointer will change to resemble a magnifying glass. ( A press of the ZOOM- button will reduce the picture and return it to its original size.

To change the picture position:

Select the position with the ▲▼

2. Press the POINTER button to delete the pointer.

)

 

buttons.

)

MUTE

To cancel the sound:

Press the MUTE button on the remote control to cancel the sound; press again to restore.

DISPLAY

To check the settings:

1. The screen changes each time the DISPLAY button is pressed.

2. If the button is not pressed for approximately three seconds, the indication will disappear.

OFF TIMER

To set the off timer:

The off timer can be set to turn the power off after 30, 60, 90 or 120 minutes.

To cancel the off timer:

1. Press the OFF TIMER button twice in a row.

2. The off timer is canceled.

1. Press the OFF TIMER button to start the timer at 30 minutes.

2. Press the OFF TIMER button to the desired time.

3. The timer starts when the menu turns off.

→ 30 → 60 → 90 → 120 → 0

OFF TIMER 30

To check the remaining time:

1. Once the off timer has been set, press the OFF TIMER button once.

2. The remaining time is displayed, then turns off after a few seconds.

OFF TIMER 0

Note:

After the power is turned off with the off timer ... A slight current is still supplied to the monitor. When you are leaving the r oom or do not plan to use the system for a long period of time, turn off the power of the monitor.

3. When five minutes remain the remaining time appears until it reaches zero.

OFF TIMER 28

WIDE Operations

Watching with a wide screen

With this function, you can select one of four screen sizes.

When watching videos or digital video discs

1. Press the WIDE button on the remote control.

2. Within 3 seconds ... Press the WIDE button again. The screen size switches as follows:

→ ZOOM → NORMAL → FULL → ST ADIUM

ZOOM size screen

The picture is expanded in the horizontal and vertical direction, maintaining the original proportions. * Use this for theater size (wide) movies, etc.

(manual)

ST ADIUM size screen

The picture is expanded in the horizontal and vertical directions at different ratios. * Use this for watching normal video programs (4:3) with a

wide screen.

When watching high definition video source

1. Press the WIDE button on the remote control.

FULL size screen (16 : 9)

NORMAL size screen (4:3)

The normal size screen is displayed. * The picture has the same size as video pictures with a

4 : 3 aspect ratio.

FULL size screen

The image is expanded in the horizontal direction. * Images compressed in the horizontal direction (“squeezed

images”) are expanded in the horizontal direction and displayed on the entire screen. (Normal images are expanded in the horizontal direction.)

The full size screen is displayed. * The picture has the same size as video pictures (16 : 9).

Watching computer images with a wide screen

Switch to the wide screen mode to expand the 4 : 3 image to fill the entire screen.

1.Press the WIDE button on the remote control.

2.Within 3 seconds ...

Press the WIDE button again. The screen size switches as follows:

→ NORMAL → FULL

NORMAL size screen (4:3 or SXGA 5:4)

The picture has the same size as the normal computer image.

FULL size screen

Information

 Supported resolution

See page 51 for details on the display output of the various VESA signal standards supported by the monitor.

 When 852 (848) dot  480 line wide VGA* signals with a vertical frequency of 60 Hz and horizontal frequency of 31.7 (31.0) kHz are input

Select an appropriate setting for RGB SELECT mode referring to the“Table of Signals Supported” on page

51. * “ IBM PC/AT” and “VGA” are registered trademarks

of IBM, Inc. of the United States.

The image is expanded in the horizontal direction.

When wide signals are input.

FULL size screen

OSM(On Screen Menu) Controls

Menu Operations

The OSM window is displayed with respect to the screen as shown on the diagram.

* Depending on the screen’s mode, the OSM may be

displayed differently. In the explanation, the OSM section is shown close up.

MAIN MENU PICTURE SOUND SCREEN FUNCTION OPTIONS INFORMATION

SEL. OK EXIT

EXITPROCEED

The following describes how to use the menus and the selected items.

1. Press the PROCEED button on the remote control to display the MAIN MENU.

MAIN MENU PICTURE SOUND SCREEN FUNCTION OPTIONS INFORMATION

5. The adjustment or the setting which you stored is remained. The change is stored until you change it again.

6. Repeat steps 2 – 5 to adjust an additional item, or press the EXIT button on the remote control to return to the main menu.

Note:

The main menu disappears by pressing the EXIT

button.

SEL. OK EXIT

EXITPROCEED

2. Press the cursor buttons ▲ ▼ on the remote control to

highlight the menu you wish to enter.

3. Press the PROCEED button on the remote control to select a submenu or item.

PICTURE CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP . NR

SEL. ADJ. RETURN

: MEMORY : 2 : OFF

EXIT

4. Adjust the level or change the setting of the selected item by using the cursor buttons

 

on the remote

control.

Main menu Sub menu Functions Default Reset

PICTURE CONTRAST Adjusts the contrast. Center Yes

BRIGHTNESS Adjusts the brightness. Center Yes SHARPNESS Adjusts the sharpness. Center/1 Yes COLOR Adjusts the color. Center Yes TINT Adjusts the tint. Center Yes PICTURE MODE Sets the picture mode according to the VIDEO environment and MEMORY Yes

image software. COLOR TEMP Adjusts the color temperature and white balance. 2 Yes NR Reduces noise visible in image. OFF Yes

Main menu Sub menu Functions Default Reset

SOUND BASS Sets the bass. Center Yes

TREBLE Sets the treble. Center Yes BALANCE Sets the left/right balance. Center Yes

Main menu Sub menu Functions Default Reset

SCREEN V-POSITION Adjusts the vertical position. Center Yes

H-POSITION Adjusts the horizontal position. Center Yes V-HEIGHT Adjusts the vertical size. Min Yes H-WIDTH Adjusts the horizontal size. Min Yes

AUTO PICTURE Turn this on to have the monitor automatically adjust “FINE PICTURE” OFF*

and “PICTURE ADJ”.

FINE PICTURE Adjusts for flickering on the computer image. Min* PICTURE ADJ. Adjusts for striped patterns on the computer image. Center*

Yes

Main menu Sub menu Functions Default Reset

FUNCTION OSM

Turns the on-screen menu (screen mode, etc.) off (when set to “OFF”).

ON Yes

When set to “ON”, the on-screen menu is displayed. OSM ADJ. Adjusts the vertical and horizontal positions of the menu display. 1 Yes POWER MGT Sets the monitor for use as an energy-saving display when used with a OFF Yes

computer. GRAY LEVEL In case of 4 : 3, sets the luminance of both sides. 3 Yes CINEMA MODE Sets the picture to suit the movie. ON Yes RGB3 ADJ. Adjusts the picture when the picture input from the RGB3 input 1 Yes

terminal is distorted. LONG LIFE Sets the picture to reduce burn-in of the display. *

Yes

RESET Resets all the settings (PICTURE, SOUND, SCREEN, FUNCTION, ——

etc.) to the factory default values.

Main menu Sub menu Functions Default Reset

OPTIONS AUDIO INPUT Sets the allocation of the audio connectors. *

Yes BNC SELECT Sets the BNC connectors. RGB Yes RGB SELECT Sets the appropriate mode for the computer image. AUTO Yes

RGB (VGA signals), VIDEO (Moving picture), WIDE (WIDE VGA) DTV.

HD SELECT

Sets the digital broadcasting (1080A,1080B) or the High Vision (1035I).

1080B No

Main menu Sub menu Functions Default Reset

INFORMATION FREQUENCY Used to check the frequency and synchronizing polarities of the signal ——

currently being inputted.

LANGUAGE Sets the language of the menus (Japanese, English, German, French, English No

Swedish, Italian or Spanish).

COLOR SYSTEM Sets the VIDEO format (AUTO1, AUTO2, PAL, PAL-M, PAL-N, PAL60, AUTO1 No

SECAM, 4.43 NTSC or 3.58 NTSC).

*1 RGB/PC only. *2 PLE: AUTO ORBITER: OFF INVERSE: OFF SCREEN WIPER: OFF *3 AUDIO1: VIDEO1 AUDIO2: HD/DVD1 AUDIO3: RGB1

Picture Settings Menu

Adjusting the picture

The contrast, brightness, sharpness, color and tint can be adjusted as desired.

4. Once the adjustment is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once

more.

Example: Adjusting the contrast

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the PROCEED button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “CONTRAST”.

PICTURE CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP . NR

SEL. ADJ. RETURN

: MEMORY : 2 : OFF

EXIT

3. Use the  and  buttons to adjust the contrast.

Note:

If “CAN NOT ADJUST” appears ... When trying to enter the PICTURE submenu, make sure PICTURE MODE is set to MEMORY.

Information

 Picture adjustment screen

CONTRAST ....Changes the picture’s contrast.

BRIGHTNESS. Changes the picture’s brightness. SHARPNESS .. Changes the picture’s sharpness.

Adjusts picture detail of VIDEO display.

COLOR ...........Changes the color density.

TINT ................Changes the picture’s tint. Adjust for

natural colored skin, background, etc.

 Adjusting the computer image

Only the contrast and brightness can be adjusted when a computer signal is connected.

 Restoring the factory default settings

Select “RESET” under the “PICTURE MODE” settings.

CONTRAST

* If neither the  or  button is pressed within 5 seconds,

the current setting is set and the previous screen reappears.

Setting the picture mode according to the brightness of the room

There are four picture modes that can be used effectively according to the environment in which you are viewing the display.

Example: Setting the “THEATER” mode

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the PROCEED button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “PICTURE MODE”.

PICTURE CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP . NR

SEL. ADJ. RETURN

: MEMORY : 2 : OFF

EXIT

4. Once the adjustment is completed ... Press the EXIT button to return to the main menu. To

delete the main menu, press the EXIT button once more.

Information

 T ypes of picture modes

MEMORY ........The last picture adjustments are stored

here.

THEA TER ........Set this mode when watching video in

a dark room. This mode provides darker, finer pictures, like the screen in movie theaters. CONTRAST = 80% for RESET mode BRIGHTNESS = 95% for RESET mode

NORMAL .........Set this mode when watching video in

a bright room. This mode provides dynamic pictures with distinct differences between light and dark sections. CONTRAST = 96% for RESET mode

RESET ............Use this to reset the picture to the

factory default settings.

3. To set to “THEATER” ... Use the The mode switches as follows when the



and  buttons to select “THEATER”.



and

buttons are pressed:

→ MEMORY ↔ THEATER ↔ NORMAL ↔ RESET ←

PICTURE MODE

THEATER:

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.



Setting the color temperature

Use this procedure to set color tone produced by the plasma display.

Example: Setting “1”

4. Once the setting is completed... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once

more.

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the PROCEED button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “COLOR TEMP.”.

PICTURE CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP . NR

SEL. ADJ. RETURN

: MEMORY : 2 : OFF

EXIT

3. Use the  and  buttons to select “1”. The mode switches as follows when the



and



buttons are pressed:

→ 1 ↔ 2 ↔ 3 ↔ PRO ←

Information

 Setting the color temperature

1 ......................High (bluer)

2......................... Middle (Standard)

3 ......................Low (redder)

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

* See page 20 to set “PRO”.

COLOR TEMP .

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.

Adjusting the color to the desired quality

Use this procedure to adjust the white balance for bright pictures and dark pictures to achieve the desired color quality.

Example: Adjusting the “WHITE BALANCE”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then press the PROCEED button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “COLOR TEMP.”.

PICTURE CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP . NR

SEL. ADJ. RETURN

: MEMORY : 2 : OFF

EXIT

4. Press the PROCEED button. The “WHITE BALANCE” screen appears.

5. Use the ▲ and ▼ buttons to select “RED-GAIN”.

WHITE BALANC

GAIN RED GREEN BLUE BIAS RED GREEN BLUE

SEL. ADJ. RETURN

EXIT

6. Adjust the white balance using the  and  buttons.

RED

* If neither the  or  button is pressed within 5 seconds,

the current setting is set and the previous screen reappears.

3. Use the  and  buttons to select “PRO”. The mode switches as follows when the



and



buttons are pressed:

→ 1 ↔ 2 ↔ 3 ↔ PRO ←

PRO:COLOR TEMP .

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.

7. Once the adjustment is completed... Press the EXIT button several times to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 Adjusting the white balance

RGB-GAIN.......White balance adjustment for signal

level

RGB-BIAS.......White balance adjustment for black

level

 Restoring the factory default settings Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

Reducing noise in the picture

Use these settings if the picture has noise due to poor reception or when playing video tapes on which the picture quality is poor.

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Example: Setting “NR-3”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the PROCEED button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “NR”.

PICTURE CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP . NR

SEL. ADJ. RETURN

: MEMORY : 2 : OFF

EXIT

3. Use the  and  buttons to select “NR-3”. The mode switches as follows when the



and



buttons are pressed:

→ OFF ↔ NR-1 ↔ NR-2 ↔ NR-3 ←

Information

 NR

* “NR” stands for Noise Reduction. * This function reduces noise in the picture.

 T ypes of noise reduction

There are three types of noise reduction. Each has a different level of noise reduction. The effect becomes stronger as the number increases (in the order NR-1 → NR-2 → NR-3).

OFF ...............Turns the noise reduction function off.

NR-3

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.

Sound Settings Menu

Adjusting the treble, bass and left/right balance

The treble, bass and left/right balance can be adjusted to suit your tastes.

Example: Adjusting the bass

To continue adjusting the sound ...

Repeat from step 2.

4. Once the adjustment is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Note :

If “CAN NOT ADJUST” appears...

Set “AUDIO INPUT” on the OPTION menu correctly.

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “SOUND”, then

press the PROCEED button. The “SOUND” screen appears.

2. To adjust the bass ...

Use the ▲ and ▼ buttons to select “BASS”.

SOUND

BASS TREBLE BALANCE

SEL. ADJ. RETURN

EXIT

3. Adjust the bass using the  and  buttons.

SOUND

BASS TREBLE BALANCE

Information

 Sound settings menu

BASS ..............Controls the level of low frequency

sound.

TREBLE ..........Controls the level of high frequency

sound.

BALANCE .......Controls the balance of the left and

right channels.

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

SEL. ADJ. RETURN

EXIT

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.

Screen Settings Menu

Adjusting the Position, Size, Fine Picture, Picture Adj

The position of the image can be adjusted and flickering of the image can be corrected.

Example: Adjusting the vertical position in the normal mode

3. Adjust using the  and  buttons.

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “SCREEN”, then

press the PROCEED button. The “SCREEN” menu appears.

Default settings (when RGB/PC is selected)

SCREEN

MODE V–POSITION H–POSITION V–HEIGHT H–WIDTH AUTO PICTURE FINE PICTURE PICTURE ADJ.

SEL. ADJ. RETURN

: NORMAL

: OFF

EXIT

* The settings on the SCREEN menu are not preset at the

factory.

To select a mode ...

Use the The mode switches as follows when the



and  buttons to select a mode.



and



buttons are pressed:

→ NORMAL ↔ FULL ←

* The mode can also be switched by pressing the “WIDE”

button on the remote control.

2. To adjust the vertical position ...

Use the ▲ and ▼ buttons to select “V-POSITION”.

V–POSITION

* If neither the  or  button is pressed within 5 seconds,

the current setting is set and the previous screen reappears.

To continue making other computer image adjustments ...

Repeat from step 2.

4. Once all adjustments are completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 When “AUTO PICTURE” is “OFF”

SCREEN

MODE V–POSITION H–POSITION V–HEIGHT H–WIDTH AUTO PICTURE FINE PICTURE PICTURE ADJ.

SEL. ADJ. RETURN

: FULL

: OFF

EXIT

When Auto Picture is off, the Fine Picture and the Picture ADJ. items are displayed so that you can adjust them.

SCREEN

MODE V–POSITION H–POSITION V–HEIGHT H–WIDTH AUTO PICTURE FINE PICTURE PICTURE ADJ.

SEL. ADJ. RETURN

: NORMAL

: OFF

EXIT

Information

 Adjusting the Auto Picture

ON...................The Picture ADJ and Fine Picture

adjustments are made automatically.

OFF .................The Picture ADJ and Fine Picture

adjustments are made manually.

 Adjusting the position of the image

V-POSITION ...Adjusts the vertical position of the

image.

H-POSITION ... Adjusts the horizontal position of the

image.

V-HEIGHT.......Adjusts the vertical size of the image.

(Except for STADIUM mode)

H-WIDTH .........Adjusts the horizontal size of the

image. (Except for ST ADIUM mode)

FINE PICTURE

PICTURE ADJ*....

*.. Adjusts for flickering.

Adjusts for striped patterns on the image.

* The Picture ADJ and Fine Picture features are available

only when the “Auto Picture” is off.

* The AUTO PICTURE, FINE PICTURE and PICTURE

ADJ. are not available for VIDEO and HD/ DVD source.

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults except for Auto Picture.

Function Settings Menu

Setting the on-screen menu

When using the monitor for presentations, etc., the monitor can be set so that the input source, screen mode, etc., do not appear.

Example: Turning the on-screen menu mode of f

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then press the PROCEED button. The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “OSM”.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

3. To turn the on-screen menu mode off ... Use the



and  buttons to select “OFF”. The mode switches as follows each time the button is pressed:

ON ↔ OFF

: ON : 1 : OFF : 3 : ON : 1

EXIT





FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

: OFF : 1 : OFF : 3 : ON : 1

EXIT

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 OSM modes

ON...................The on-screen menu appears.

OFF .................The on-screen menu does not appear.

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

Adjusting the position of the menu display

Use these operations to adjust the position of the menus that appear on the screen.

Example: Adjusting the position of the menu display

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”,

then press the PROCEED button. The “FUNCTION” menu appears.

2. Use the ▲ and ▼ buttons to select “OSM ADJ.”

3. To adjust the position... Adjust using the

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN



and  buttons.

FUNCTION

: ON : 2 : OFF : 3 : ON : 1

EXIT

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ.

: ON : 1 : OFF : 3 : ON

: 1 LONG LIFE RESET

SEL. ADJ. RETURN

FUNCTION

: ON

OSM

: 1

OSM ADJ.

: OFF

POWER MGT

: 3

GRAY LEVEL

: ON

CINEMA MODE

: 1

RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

EXIT

FUNCTION

: ON

OSM

: 2

OSM ADJ.

: OFF

POWER MGT

: 3

GRAY LEVEL

: ON

CINEMA MODE

: 1

RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

EXIT

4. Once all adjustments are completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 Adjusting the position of the menu display

The position can be set

123

between 1 and 6.

456

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

Setting the power management for computer images

This energy-saving (power management) function automatically reduces the monitor’s power consumption if no operation is performed for a certain amount of time.

Example: Turning the power management function on

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then

press the PROCEED button. The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “POWER MGT”.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

: ON : 1 : OFF : 3 : ON : 1

EXIT

3. To turn the power management function on ... Use the The mode switches as follows each time the



and  buttons to select “ON”.





button is pressed:

ON ↔ OFF

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

: ON : 1 : ON : 3 : ON : 1

EXIT

Information

 Power management function

* The power management function automatically reduces

the monitor’s power consumption if the computer’s keyboard or mouse is not operated for a certain amount of time. This function can be used when using the monitor with a computer conforming to the VESA DPMS format.

* If the computer’s power is not turned on or if the

computer and selector tuner are not properly connected, the system is set to the off state.

* For instructions on using the computer’s power

management function, refer to the computer’s operating instructions.

 Power management settings

ON...................In this mode the power management

function is turned on.

OFF .................In this mode the power management

function is turned off.

 Power management function and POWER/ STANDBY indicator

The POWER/ST ANDBY indicator indicates the status of the power management function. See page 27 for indicator status and description.

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

POWER/ST ANDBY indicator

Power management

mode

Standby

Suspend

Off

POWER/STANDBY

indicator

Green

Orange

Red

Power management

operating status

Not activated.

Activated.

Horizontal and vertical synchronizing signals are present from the computer.

No horizontal synchronizing signals are sent from the computer.

No vertical synchronizing signals are sent from the computer.

No horizontal and vertical synchronizing signals are sent from the computer.

Description

Turning the picture back on

Picture already on.

Operate the keyboard or mouse. The picture reappears immediately.

Operate the keyboard or mouse. The picture reappears, but more time is required than from the standby mode.

Operate the keyboard or mouse. The picture reappears, but more time is required than from the standby mode or suspend mode.

Setting the gray level for the sides of the screen

Use this procedure to set the gray level for the parts on the screen on which nothing is displayed when the screen is set to the 4:3 size.

Example: Adjusting the “GRAY LEVEL”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

Setting the picture to suit the movie

The film image is automatically discriminated and projected in an image mode suited to the picture. [NTSC, PAL, PAL60, 480I (60Hz), 525I (60Hz), 576I (50Hz), 625I (50Hz), 1035I (60Hz), 1080I (60Hz) only]

Example: Setting the “CINEMA MODE” to “OFF”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then press the PROCEED button.

The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “GRAY LEVEL”.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

: ON : 1 : OFF : 3 : ON : 1

EXIT

3. To adjust the “GRAY LEVEL”... Use the



and  buttons to adjust the GRAY LEVEL.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

: ON : 1 : OFF : 9 : ON : 1

EXIT

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 GRAY LEVEL

This adjusts the brightness of the black (the gray level) for the sides of the screen. The standard is 0 (black). The level can be adjusted from 0 to 15. The factory setting is 3 (dark gray).

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then

press the PROCEED button. The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “CINEMA MODE”.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

: ON : 1 : OFF : 3 : ON : 1

EXIT

3. To set the CINEMA MODE to “OFF” ... Use the The mode switches as follows each time the



and  buttons to select “OFF”.



button is pressed:

→ ON ↔ OFF ←

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

: ON : 1 : OFF : 3 : OFF : 1

EXIT

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 CINEMA MODE

ON...................Automatic discrimination of the

image and projection in cinema mode.

OFF...................Cinema mode does not function.

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.



Setting RGB3 ADJ.

When the picture input from the RGB3 input terminal is distorted, select the most appropriate setting from among “1”, “2”, and “3”.

Reducing burn-in of the screen

The brightness of the screen, the position of the picture, positive/negative mode and screen wiper are adjusted to reduce burn-in of the screen.

Example: Setting “2”

Press the PROCEED button on the remote control to display MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”,

then press the PROCEED button. The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “RGB3 ADJ.”.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

: ON : 1 : OFF : 3 : ON : 1

EXIT

3. To select “2”... Use the The mode switches as follows each time the

 and  buttons to select “2”.

 or 

buton is pressed:

→ 1 ↔ 2 ↔ 3 ←

Example: Setting “PLE” to “LOCK”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then proceed as follows.

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then

press the PROCEED button. The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “LONG LIFE”, then

press the PROCEED button.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL.

PROCEED

: ON : 1 : OFF : 3 : ON : 1

EXIT

RETURN

The “LONG LIFE” screen appears.

3. Use the ▲ and ▼ buttons to select “PLE”.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

: ON : 1 : OFF : 3 : ON : 2

EXIT

4. Once the setting is completed... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 When you adjust the RGB3 ADJ.

The position of the menu display will change. In such a case, be sure to adjust the position.

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

LONG LIFE

PLE ORBITER INVERSE SCREEN WIPER

SEL. ADJ. RETURN

: AUTO : OFF : OFF : OFF

EXIT

4. Use the  and  buttons to select “LOCK”. The mode switches as follows each time the button is pressed:

AUTO ↔ LOCK

LONG LIFE

PLE ORBITER INVERSE SCREEN WIPER

SEL. ADJ. RETURN

: LOCK : OFF : OFF : OFF

EXIT





5. Once the setting is completed... Press the EXIT button to return to the FUNCTION menu. To exit the main menu, press the EXIT button twice.

Information

 PLE

AUTO ..............The brightness of the screen is

adjusted automatically to suit the picture quality.

LOCK ..............The brightness level is set to

minimum.

 ORBITER

OFF .................Orbiter mode does not function.

ON...................The picture moves around the screen

intermittently.

 INVERSE

OFF .................Inverse mode does not function.

ON..................... The picture is displayed alternately

between positive image and negative image. You can set the time by pressing the PROCEED button while “ON” is set.

WT .................. The entire screen turns white.

You can set the time by pressing the PROCEED button while “ON” is set.

Setting the time for “INVERSE”

Set the “INVERSE” or “WHITE” display time and the “WAITING TIME”.

Example: Setting so that the INVERSE mode starts in 30 minutes and proceeds for one and a half hours.

Perform Steps 1-2 on Page 29, then

3. Use the ▲ and ▼ buttons to select “INVERSE”, then

use the



and  buttons to select “ON”.

LONG LIFE

PLE ORBITER INVERSE SCREEN WIPER

SEL.

PROCEED

: AUTO : OFF : ON : OFF

EXIT

RETURN

4. Press the PROCEED button. The “INVERSE/WT” screen appears.

INVERSE/WT

WORKING TIME

: ON

 SCREEN WIPER

OFF .................Screen wiper mode does not function.

ON...................Repeatedly moves the white vertical

bar from the left end of the screen to the right end at a constant speed. You can set the time by pressing the PROCEED button while “ON” is set.

 Restoring the factory default settings

Select “RESET” from the function menu. Note that this also restores other settings to the factory defaults.

* Only the PLE and ORBITER can be adjusted when a

RGB signal is connected.

SEL. ADJ. RETURN

EXIT

5. Adjust the time using the  and  buttons and the ▲ and ▼ buttons.





The mode switches as follows each time the

button is pressed.

INVERSE/WT

WORKING TIME

WAITING TIME

SEL. ADJ. RETURN

: 1H : 30M : 0H : 30M

EXIT

The 1st line of the “WORKING TIME”: →

ON or 0H ↔ 1H ↔ 2H ↔ 3H ↔ ... ↔ 12H ←

* The “WORKING TIME” (minutes) and “WAITING

TIME” cannot be set when the “WORKING TIME” is “ON”.

The 2nd line of the “WORKING TIME”:

0M ↔ 3M ↔ 6M ↔ 9M ↔ ... ↔ 57M ←

→

The 1st line of the “WAITING TIME”: →

0H ↔1H ↔ 2H ↔ 3H ↔ ... ↔ 12H ←

The 2nd line of the “WAITING TIME”: →

0M ↔ 3M ↔ 6M ↔ 9M ↔ ... ↔ 57M ←

Setting the time for “SCREEN WIPER”

Set the “SCREEN WIPER” operation time, “WAITING TIME”, and “SPEED”.

Example: Setting so that the SCREEN WIPER mode starts in 30 minutes and proceeds for one and a half hours.

Perform Steps 1-2 on Page 29, then:

6. Once the setting is completed... Press the EXIT button several times to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 Setting the time

WORKING TIME

Set the length of time the “INVERSE/WT” mode lasts. When the WORKING TIME is set to “ON”, the “INVERSE/WT” mode stays in the on state.

WAITING TIME

Set the length of time until the “INVERSE/WT” mode starts. * The “WORKING TIME” and “W AITING TIME” can

be set for up to 12 hours and 45 minutes in units of 3 minutes.

 To select “ON” for the “WORKING TIME”...

Set the hours of the WORKING TIME to 0H and the minutes to 0M. “ON” will be displayed.

3. Use the ▲ and ▼ buttons to select “SCREEN WIPER”,



then use the

and  buttons to select “ON”.

LONG LIFE

PLE ORBITER INVERSE SCREEN WIPER

SEL.

PROCEED

: AUTO : OFF : OFF : ON

EXIT

RETURN

4. Press the PROCEED button. The “SCREEN WIPER” screen appears.

SCREEN WIPER

WORKING TIME

SPEED

: ON

: 1

SEL. ADJ. RETURN

EXIT

5. Adjust the time and speed using the  and  buttons and the ▲ and ▼ buttons.





The mode switches as follows each time the

and

button is pressed.

SCREEN WIPER

WORKING TIME

WAITING TIME

SPEED

SEL. ADJ. RETURN

: 1H : 30M : 0H : 30M : 1

EXIT

The 1st line of the “WORKING TIME”:

ON or 0H ↔ 1H ↔ 2H ↔ 3H ↔ ... ↔ 12H ←

→

* The “WORKING TIME” (minutes) and “WAITING

TIME” cannot be set when the “WORKING TIME” is “ON”.

The 2nd line of the “WORKING TIME”: →

0M ↔ 3M ↔ 6M ↔ 9M ↔ ... ↔ 57M←

The 1st line of the “WAITING TIME”: →

0H ↔1H ↔ 2H ↔ 3H ↔ ... ↔ 12H←

The 2nd line of the “WAITING TIME”: →

0M ↔ 3M ↔ 6M ↔ 9M ↔ ... ↔ 57M←

“SPEED”:

→

1↔ 2 ↔ 3 ↔ 4 ↔ 5←

Resetting to the default values

Use these operations to restore all the picture adjustments, audio settings, to the factory default values. Refer to page 16 for items to be reset.

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then press the PROCEED button. The “FUNCTION” screen appears.

6. Once the setting is completed... Press the EXIT button several times to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 Setting the time

WORKING TIME

Set the length of time the “SCREEN WIPER” mode lasts. When the WORKING TIME is set to “ON”, the “SCREEN WIPER” mode stays in the state.

WAITING TIME

Set the length of time until the “SCREEN WIPER” mode starts.

SPEED

Set the moving speed for the “SCREEN WIPER”. The speed decreases as the number increases.

* The “WORKING TIME” and “W AITING TIME” can

be set for up to 12 hours and 45 minutes in units of 3 minutes.

 To select “ON” for “WORKING TIME”...

Set the hours of the “WORKING TIME” to 0H and the minutes to 0M. “ON” will be displayed.

2. Use the ▲ and ▼ buttons to select “RESET”, then press

the PROCEED button.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL.

PROCEED

: ON : 1 : OFF : 3 : ON : 1

EXIT

RETURN

The “RESET” screen appears.

3. Use the ▲ and ▼ buttons to select “RESET”, then press

the PROCEED button.

RESET

RESET RETURN

RETURN

EXIT

PROCEED

RESET

SETTING NOW

When the “SETTING NOW” screen disappears, the screen will be restored to the previous “RESET” mode, then all the settings are restored to the default values.

4. Once the setting is completed ... Press the EXIT button. To delete the main menu, press the EXIT button once more.

Options Settings Menu

Information

Setting the allocation of the audio connectors

Setting the AUDIO 1, 2, and 3 connectors to the desired input.

Example: Setting “AUDIO 1” to “VIDEO 2”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTIONS”, then

press the PROCEED button. The “OPTIONS” screen appears.

2. Use the ▲ and ▼ buttons to select “AUDIO 1”.

OPTIONS

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT

SEL. ADJ. RETURN

: VIDEO1 : HD/DVD1 : RGB1 : RGB : AUTO : 1080B

EXIT

 AUDIO INPUT

A single audio input cannot be selected as the audio channel for more than one input terminal.

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

3. To set the AUDIO1 to “VIDEO2”... Use the The mode switches as follows each time the



and  buttons to select “VIDEO2”.



button is pressed: The available sources depend on the setting of “BNC SELECT”.

RGB:

COMP.:

VIDEO:

→ VIDEO1 ↔ VIDEO2 ↔ HD/DVD/DTV←

→RGB/PC3 ↔RGB/PC2 ↔RGB/PC1 ←

→ VIDEO1 ↔ VIDEO2 ↔ HD1/DVD1/DTV1←

→RGB/PC3 ↔RGB/PC1 ↔HD2/DVD2/DTV2 ←

→ VIDEO1 ↔ VIDEO2 ↔ VIDEO3←

→RGB/PC3 ↔RGB/PC1 ↔HD/DVD/DTV ←

OPTIONS

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT

SEL. ADJ. RETURN

: VIDEO2 : HD/DVD1 : RGB1 : RGB : AUTO : 1080B

EXIT



4. Once the setting is completed... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Setting the BNC connectors

Select whether to set the input of the 5 BNC connectors to RGB, component and video.

Example: Set the BNC SELECT mode to “COMP.”

Setting a computer image to the correct RGB select screen

With the computer image, select the RGB Select mode for a moving image such as (video) mode, wide mode or digital broadcast.

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTIONS”, then press the PROCEED button. The “OPTIONS” screen appears.

2. Use the ▲ and ▼ buttons to select “BNC SELECT”.

OPTIONS

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT

SEL. ADJ. RETURN

: VIDEO1 : HD/DVD1 : RGB1 : RGB : AUTO : 1080B

EXIT

3. To set the BNC SELECT mode to “COMP.”...



Use the The mode switches as follows each time the

and  buttons to select “COMP.”.





button is pressed:

→ RGB ↔ COMP. ↔ VIDEO ←

OPTIONS

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT

SEL. ADJ. RETURN

: VIDEO1 : HD/DVD1 : RGB1 : COMP. : AUTO : 1080B

EXIT

4. Once the setting is completed... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 BNC SELECT

RGB ................ Use the 5BNC terminal for RGB

input.

COMP..............Use the 3BNC terminal for component

input.

VIDEO.............Use the G/Y/VIDEO 3 terminal for

video input.

Example: Setting the “RGB SELECT” mode to “MOTION ”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTIONS”, then

press the PROCEED button. The “OPTIONS” screen appears.

2. Use the ▲ and ▼ buttons to select “RGB SELECT”.

OPTIONS

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT

SEL. ADJ. RETURN

: VIDEO1 : HD/DVD1 : RGB1 : RGB : AUTO : 1080B

EXIT

3. To set the RGB select mode to “MOTION” ...



Use the The mode switches as follows each time the

and  buttons to select “MOTION”.





button is pressed:

→ AUTO ↔ STILL ↔ MOTION ↔ WIDE1 ↔ WIDE2 ↔ DTV ←

OPTIONS

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT

SEL. ADJ. RETURN

: VIDEO1 : HD/DVD1 : RGB1 : RGB : MOTION : 1080B

EXIT

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

Information

 RGB SELECT modes

One of these 6 modes must be selected in order to display the following signals correctly.

AUTO ..............Select the suitable mode for the

specifications of input signals as listed in the table “Computer input signals supported by this system” on page 51.

STILL ..............To display VESA standard signals.

(Use this mode for a still image from a computer.)

MOTION..........The video signal (from a scan

converter) will be converted to RGB signals to make the picture more easily viewable. (Use this mode for a motion image from a computer.)

WIDE1.............When an 852 dot 480 line signal

with a horizontal frequency of

31.7kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE1.

WIDE2.............When an 848 dot 480 line signal

with a horizontal frequency of 31.0 kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE2.

DTV.................Set this mode when watching digital

broadcasting (480P).

See page 51 for the details of the above settings.

Setting high definition images to the suitable screen size

Use this procedure to set whether the number of vertical lines of the input high definition image is 1035 or 1080.

Example: Setting the “1080B” mode to “1035I”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTIONS”, then press the PROCEED button. The “OPTIONS” screen appears.

2. Use the ▲ and ▼ buttons to select “HD SELECT”.

OPTIONS

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT

SEL. ADJ. RETURN

: VIDEO1 : HD/DVD1 : RGB1 : RGB : AUTO : 1080B

EXIT

3. To set the HD SELECT mode to “1035I” ... Use the The mode switches as follows each time the



and  buttons to select “1035I”.





button is pressed:

→1080B ↔ 1035I ↔ 1080A ←

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

OPTIONS

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT

SEL. ADJ. RETURN

: VIDEO1 : HD/DVD1 : RGB1 : RGB : AUTO : 1035I

EXIT

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 HD SELECT modes

These 3 modes are not displayed in correct image automatically.

1080B ...............Standard digital broadcasts

1035I ...............Japanese “High V ision” signal format

1080A ...............Special Digital broadcasts (for

example : DTC100)

Information Menu

Checking the frequencies, polarities of input signals, and resolution

Use this function to check the frequencies and polarities of the signals currently being input from a computer, etc.

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “INFORMATION”,

then press the PROCEED button. The “INFORMATION” screen appears.

2. Use the ▲ and ▼ buttons to select “FREQUENCY”,

then press the PROCEED button.

INFORMATION

FREQUENCY LANGUAGE COLOR SYSTEM

Setting the language for the menus

The menu display can be set to one of seven languages: Japanese, English, German, French, Swedish, Italian or Spanish.

Example: Setting the menu display to “DEUTSCH”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “INFORMATION”, then press the PROCEED button. The “INFORMATION” screen appears.

2. Use the ▲ and ▼ buttons to select “LANGUAGE”, then press the PROCEED button.

INFORMATION

FREQUENCY LANGUAGE COLOR SYSTEM

SEL.

PROCEED

EXIT

RETURN

3. The frequency is displayed.

FREQUENCY

H. FREQ V. FREQ

H. POL V. POL

MODE RESOLUTION

: 37.5KHZ : 75.0HZ

: NEG. : NEG.

: 8 : 640480

RETURN

EXIT

* Press the EXIT button to return to the previous screen.

4. Once you have checked the frequency ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

SEL.

PROCEED

EXIT

RETURN

The “LANGUAGE” screen appears.

3. To select “ DEUTSCH ” ... Use the The mode switches as follows when the



and  buttons to select “ DEUTSCH ”.



and

buttons are pressed:

→ ENGLISH ↔ DEUTSCH ↔ FRANÇAIS ← →

↔ SVENSKA ↔ ITALIANO ↔ ESPAÑOL ←

LANGUAGE

: DEUTSCH

ADJ.

PROCEED

EXIT

RETURN

4. Press the PROCEED button. The display language is switched to Deutsch.

5. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.



Information

 Language settings

ENGLISH ........English

DEUTSCH.......German

FRANÇAIS...... French

ESPAÑOL ....... Spanish

ITALIANO ........ Italian

SVENSKA .......Swedish

..............Japanese

Setting the video signal format

Use these operations to set the color systems of composite video signals or Y/C input signals.

Example: Setting the color system to “3.58 NTSC”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

The color system is set to “3.58 NTSC”.

Information

1. Use the ▲ and ▼ buttons to select “INFORMATION”,

then press the PROCEED button. The “INFORMATION” screen appears.

2. Use the ▲ and ▼ buttons to select “COLOR SYSTEM”,

then press the PROCEED button.

INFORMATION

FREQUENCY LANGUAGE COLOR SYSTEM

SEL.

PROCEED

EXIT

RETURN

The “COLOR SYSTEM” screen appears.

COLOR SYSTEM

: AUTO1

 Video signal formats

Different countries use different formats for video signals. Set to the color system used in your current country.

AUTO1/2 ......... The color systems are automatically

identified and the format is set accordingly.

AUTO1: 3.58NTSC, 4.43NTSC, P AL, SECAM,

PAL60

AUTO2: PAL-M, PAL-N, 3.58NTSC

PAL..................This is the standard format used

mainly in the United Kingdom and Germany.

SECAM.............This is the standard format used

mainly in France and Russia.

4.43 NTSC,

PAL60.............. This format is used for videos in

countries using PAL and SECAM video signals.

3.58 NTSC ......This is the standard format used

mainly in the United States and Japan.

PAL-M .............This is the standard format used

mainly in Brazil.

PAL-N ..............This is the standard format used

mainly in Argentina.

RETURN

ADJ.

EXIT

3. To select “3.58 NTSC” ... Use the



and  buttons to select “3.58 NTSC”. The mode switches as follows when the buttons are pressed:

→ AUTO1 ↔ AUTO2 ↔ 3.58NTSC ↔ 4.43NTSC ← → SECAM ↔ PAL-M ↔ PAL-N ↔ PAL60 ↔ PAL ←

COLOR SYSTEM

: 3.58NTSC

RETURN

ADJ.

EXIT



and



External Control

Application

These specifications cover the communications control of the plasma monitor by external equipment.

Connections

Connections are made as described below.

plasma monitor

1) Connector on the plasma monitor side: EXTERNAL CONTROL connector.

Type of connector: D-Sub 9-pin male

No. Pin Name 1 No Connection 2 RXD (Receive data) 3 TXD (T ransmit data) 4 DTR (DTE side ready) 5 GND 6 DSR (DCE side ready) 7 RTS (Ready to send) 8 CTS (Clear to send) 9 No Connection

External equipment e.g., Personal computer

Communication Format

8 bit 8 bit 8 bit 8 bit 8 bit 8 bit 8 bit

8 bit

Command 1 Unit ID 1 Unit ID 2 Command 2 Data length Data Check sum

Command 1

Command 1, along with command 2, is a number used to distinguish each command. In the case of ACK, when the lower order 4 bits is FH (as in 3FH and 7FH), this indicates that the commands and data of the supported equipment have been received. When the lower order 4 bits is BH (as in 3BH and 7BH), this indicates that unsupported commands and data have been received.

Unit ID 1 and Unit ID 2

Unit ID 1 and unit ID 2 are numbers used to identify the equipment that is to be connected. 60H is used for the plasma monitor and 80H is used for external control equipment such as a personal computer.

1) Unit ID 1: Indicates the equipment sending the signal

2) Unit ID 2: Indicates the equipment receiving the signal

2) Connector on the external equipment side: Serial port (RS-232C) connector. See the specifications of the equipment that is to be connected for the type of connector and the pin assignment.

3) Wiring

Use a crossed (reverse) cable.

Wire the cable so that each pair of data lines cross between the two devices. These data line pairs are RXD (Receive data) and TXD (Transmit data), DTR (DTE side ready) and DSR (DCE side ready), and RTS (Ready to send) and CTS (Clear to send).

Communication Parameters

(1) Communication system Asynchronous (2) Interface RS-232C (3) Baud rate 9600 bps (4) Data length 8 bits (5) Parity Odd (6) Stop bit 1 bit (7) Communication code Hex

Command 2

Command 2, along with command 1, is a number used to distinguish each command.

Check Sum (CKS), Error Processing, and ACK

1) The check sum described below and RS-232C odd parity are used together for a check of the received data. The check sum is the lower order 8 bits of one frame of sent or received data comprising the sum total of Command 1, Unit ID 1 and 2, Command 2, Data Length, and Data.

Check Sum Example

DFH 80H 60H 47H 01H 01H 08H Command 1 Unit ID 1 Unit ID 2 Command 2 Data Length Data Check Sum

Total 208H

2) Error Processing

• When the communication interval is vacant for more than 4 ms, thereafter a received Command 1 will be recognized. If, at this time, meaningful data cannot be recognized, that data will not be recognized (as valid data).

• An ACK will not be returned unless the receive data error, the check sum error , and the receive data are all

taken in.

▲

Command Reference List

CMD1 CMD2 LEN

01. Power ON 9FH 4EH 00H

02. Power OFF 9FH 4FH 00H

03. Input Switch Change DFH 47H 01H

04. VOLUME Gain Data DFH 7FH 03H

05. AUDIO Mute On 9FH 3EH 00H

06. AUDIO Mute Off 9FH 3FH 00H

07. CONTRAST Gain Data DFH 7FH 03H

08. BRIGHT Gain Data DFH 7FH 03H

09. SHARPNESS Gain Data DFH 7FH 03H

10. Color Gain Data DFH 7FH 03H

11. TINT Gain Data DFH 7FH 03H

12. PICTURE MODE Select DFH 0AH 01H

13. COLOR TEMP SELECT DFH 00H 01H

14. RED Gain Data DFH 7FH 04H

15. GREEN Gain Data DFH 7FH 04H

16. BLUE Gain Data DFH 7FH 04H

17. NR MODE Set DFH C0H 01H

18. BASS Gain Data DFH 7FH 03H

19. TREBLE Gain Data DFH 7FH 03H

20. BALANCE Gain Data DFH 7FH 03H

21. SCREEN MODE Select DFH 51H 01H

22. V. POSITION Gain Data DFH 7FH 03H

23. H. POSITION Gain Data DFH 7FH 03H

24. V-HEIGHT Gain Data DFH 7FH 03H

25. H-WIDTH Gain Data DFH 7FH 03H

26. AUTO PICTURE Select DFH 7FH 03H

27. PHASE Gain Data DFH 7FH 03H

28. CLOCK Gain Data DFH 7FH 03H

29. OSM Select DFH 58H 01H

30. OSM ADJ. Gain Data DFH 1AH 02H

31. POWER MGT Select DFH 1AH 02H

32. GRAY LEVEL Set DFH C6H 01H

33. CINEMA MODE Set DFH C1H 01H

34. RGB3 ADJ. Select DFH 1AH 02H

35. LONG LIFE Set DFH 6BH 03H

36. INVERSE Set DFH C7H 03H

37. SCREEN WIPER Set DFH C8H 04H

38. RESET 1FH 54H 00H

39. Audio Select Set DFH 70H 02H

40. BNC SELECT DFH 8CH 01H

41. RGB Select DFH 8BH 01H

42. HD Select DFH 8AH 01H

43. LANGUAGE Select DFH 5BH 01H

44. COLOR SYSTEM Select DFH 5CH 01H

45. FREQUENCY Request 1FH 26H 00H

46. Input MODE Request 1FH 41H 00H

47. VIDEO ADJ Request 1FH 45H 00H

48. Audio Select Request 1FH 6FH 00H

49. Failure Mode Request 1FH 3FH 00H

50. MODEL NAME Request 1FH 17H 00H

01. Power ON

Function

The external control equipment switches on the power of the plasma monitor.

Transmission Data

9FH 80H 60H 4EH 00H CKS

ACK

The plasma monitor returns the following ACK when the power is switched on.

3FH 60H 80H 4EH 00H CKS

NOTE: Do not set the Power ON or Power OFF command continuously.

02. Power OFF

Function

The external control equipment switches off the power of the plasma monitor.

Transmission Data

9FH 80H 60H 4FH 00H CKS

ACK

The plasma monitor returns the following ACK when the power is switched off.

3FH 60H 80H 4FH 00H CKS

NOTE: Do not set the Power ON or Power OFF command continuously.

03. Input Switch Change

Function

The external control equipment switches the input of the plasma monitor.

Transmission Data

DFH 80H 60H 47H 01H DATA00 CKS

DATA00: Input Select 01H: Video1

02H: Video2

03H: Video3

05H: HD (HD1 or DTV or DTV1)

06H: HD2 (DTV2)

07H: RGB1/PC1

08H: RGB2/PC2

0CH: RGB3/PC3

ACK

The plasma monitor returns the following ACK when the input is switched.

3FH 60H 80H 47H 00H CKS

04. VOLUME Gain Data

Function

The external control equipment changes the VOLUME gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER SOUND Gain Flag 05H

DATA01: VOLUME Gain Flag 01H

DATA02: VOLUME Gain 00H: Step 0

ACK

7FH 60H 80H 7FH 02H

DATA00: USER SOUND Gain Flag 05H DATA01: VOLUME Gain Flag 01H

DATA00 DATA01 DATA02 CKS

0AH: Step 10 (Default)

2AH: Step 42

DATA00 DATA01

CKS

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: CONTRAST Gain Flag 07H

DATA00 DATA01

CKS

08. BRIGHT Gain Data

Function

The external control equipment changes the BRIGHT gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 01H DATA01: BRIGHT Gain Flag 08H DATA02: BRIGHT Gain E0H: -32

DATA00 DATA01 DATA02

FFH: -01 00H: 0 01H: +01

CKS

05. AUDIO Mute On

Function

The external control equipment switches on AUDIO Mute of the plasma monitor.

Transmission Data

9FH 80H 60H 3EH 00H CKS

ACK

3FH 60H 80H 3EH 00H CKS

06. AUDIO Mute Off

Function

The external control equipment switches off AUDIO Mute of the plasma monitor.

Transmission Data

9FH 80H 60H 3FH 00H CKS

ACK

3FH 60H 80H 3FH 00H CKS

07. CONTRAST Gain Data

Function

The external control equipment changes the CONTRAST gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 01H DATA01: CONTRAST Gain Flag 07H DATA02: CONTRAST Gain CCH : -52

DATA00 DATA01 DATA02

FFH: -01 00H: 0 01H: +01

CKS

20H: +32

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: BRIGHT Gain Flag 08H

DATA00 DATA01

CKS

09. SHARPNESS Gain Data

Function

The external control equipment changes the SHARPNESS gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 01H DATA01: SHARPNESS Gain Flag 06H DATA02: SHARPNESS Gain F0H: -16

Only when a RGB signal is connected DATA02: SHARPNESS Gain 01H: 1

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: SHARPNESS Gain Flag 06H

DATA00 DATA01 DATA02

FFH: -01 00H: 0 01H: +01

10H:+16

02H: 2 03H: 3 04H: 4

DATA00 DATA01

CKS

14H: +20

10. COLOR Gain Data

Function

The external control equipment changes the COLOR gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 01H DATA01: COLOR Gain Flag 04H DATA02: COLOR Gain E0H: -32 * COLOR Gain is from -22 (EAH) to

+22 (16H) only during video. FFH: -01

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: COLOR Gain Flag 04H

DATA00 DATA01 DATA02

00H: 0 01H: +01

20H: +32

DATA00 DATA01

CKS

13. COLOR TEMP SELECT

Function

The external control equipment changes the COLOR TEMP of the plasma monitor.

Transmission Data

DFH 80H 60H 00H 01H

DATA00: 00H: 1

01H: 2 02H: 3 03H: PRO

ACK

7FH 60H 80H 00H 01H

DATA00: 00H: 1

01H: 2 02H: 3 03H: PRO

NOTE: Set so that at the selection of 1, 2, or 3 of COLOR TEMP change of the following R/G/B GAIN data cannot be accepted.

DATA00

CKS

11.TINT Gain Data

Function

The external control equipment changes the TINT gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 01H DATA01: TINT Gain Flag 05H DATA02: TINT Gain E0H: -32 * TINT Gain is from -22 (EAH) to

+22 (16H) only during video. FFH: -01

DATA00 DATA01 DATA02

00H: 0 01H: +01

20H: +32

CKS

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: TINT Gain Flag 05H

DATA00 DATA01 CKS

12. PICTURE MODE Select

Function

The external control equipment sets the picture mode of the plasma monitor.

Transmission Data

DFH 80H 60H 0AH 01H

DATA00: 01H: MEMORY

02H: THEATER 03H: NORMAL 04H: RESET

ACK

7FH 60H 80H 0AH 01H

DATA00: 01H: MEMORY

02H: THEATER 03H: NORMAL 04H: RESET

DATA00

CKS

14. RED Gain Data

Function

The external control equipment changes the RED Gain Data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 04H DATA00 to DATA03 CKS

DATA00: USER PICTURE Gain Flag 01H DATA01: RED Gain Flag 01H DATA02: RED Gain 1 (Bias) D8H: -40

FFH: -1 00H: 0

IEH: +30

DATA03: RED Gain 2 (Drive) D8H: -40

FFH: -1 00H: 0

IEH: +30

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: RED Gain Flag 01H

DATA00 DATA01

CKS

15. GREEN Gain Data

Function

The external control equipment changes the GREEN Gain Data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 04H DATA00 to DATA03 CKS

DATA00: USER PICTURE Gain Flag 01H DATA01: GREEN Gain Flag 02H DATA02: GREEN Gain 1 (Bias) D8H: -40

FFH: -1 00H: 0

IEH: +30

DATA03: GREEN Gain2 (Drive) D8H: -40

FFH: -1 00H: 0

IEH: +30

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: GREEN Gain Flag 02H

DATA00 DATA01

CKS

16. BLUE Gain Data

Function

The external control equipment changes the BLUE Gain Data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 04H DATA00 to DATA03 CKS

DATA00: USER PICTURE Gain Flag 01H DATA01: BLUE Gain Flag 03H DATA02: BLUE Gain1(Bias) D8H:-40

FFH:-1 00H: 0

17. NR MODE Set

Function

The external control equipment sets the NR (Noise Reduction) mode of the plasma monitor.

Transmission Data

DFH 80H 60H C0H 01H

DATA00: 01H: NR OFF

02H: NR-1 03H: NR-2 04H: NR-3

DATA00

CKS

ACK

7FH 60H 80H C0H 01H

DATA00: 01H: NR OFF

02H: NR-1 03H: NR-2 04H: NR-3

DATA00

CKS

18. BASS Gain Data

Function

The external control equipment changes the BASS gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 05H DATA01: BASS Gain Flag 03H DATA02: BASS Gain F3H: -13

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 05H DATA01: BASS Gain Flag 03H

DATA00 DATA01 DATA02

FFH: -01 00H: 0 01H: +01

0DH: +13

DATA00 DATA01

CKS

IEH: +30

DATA03: BLUE Gain2(Drive) D8H: -40

FFH:-1 00H: 0

IEH:+30

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: BLUE Gain Flag 03H

DATA00 DATA01

CKS

19. TREBLE Gain Data

Function

The external control equipment changes the TREBLE gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 05H DATA01: TREBLE Gain Flag 04H DATA02: TREBLE Gain F3H: -13

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 05H

DATA01: TREBLE Gain Flag 04H

DATA00 DATA01 DATA02

FFH: -01 00H: 0 01H: +01

0DH: +13

DATA00 DATA01

CKS

20. BALANCE Gain Data

Function

The external control equipment changes the BALANCE gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 05H DATA01: BALANCE Gain Flag 02H DATA02: BALANCE Gain EAH: -22

DATA00 DATA01 DATA02

CKS

23. H. POSITION Gain Data

Function

The external control equipment changes the H. POSITION gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 03H DATA01: H. POSITION Gain Flag 02H DATA02: H. POSITION Gain 80H: -128

DATA00 DATA01 DATA02

CKS

FFH: -01 00H: 0 01H: +01

16H: +22

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 05H DATA01: BALANCE Gain Flag 02H

DATA00 DATA01

CKS

21. SCREEN MODE Select

Function

The external control equipment switches the screen mode of the plasma monitor.

Transmission Data

DFH 80H 60H 51H 01H

DATA00: 02H: STADIUM

03H: ZOOM 04H: NORMAL 05H: FULL

ACK

7FH 60H 80H 51H 01H

DATA00: 02H: STADIUM

03H: ZOOM 04H: NORMAL 05H: FULL

DATA00

CKS

FFH: -01 00H: 0 01H: +01

7FH: +127

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 03H DATA01: H. POSITION Gain Flag 02H

DATA00 DATA01

CKS

24. V-HEIGHT Gain Data

Function

The external control equipment changes the V-HEIGHT gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 03H DATA01: V-HEIGHT Gain Flag 07H DATA02: V-HEIGHT Gain 00H: 0

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 03H DATA01: V-HEIGHT Gain Flag 07H

DATA00 DATA01 DATA02

40H: +64

DATA00 DATA01

CKS

22. V. POSITION Gain Data

Function

The external control equipment changes the V. POSITION gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 03H DATA01: V. POSITION Gain Flag 01H DATA02: V. POSITION Gain C0H: -64

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 03H DATA01: V. POSITION Gain Flag 01H

DATA00 DATA01 DATA02

FFH: -01 00H: 0 01H: +01

40H: +64

DATA00 DATA01

CKS

25. H-WIDTH Gain Data

Function

The external control equipment changes the H-WIDTH gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 03H DATA01: H-WIDTH Gain Flag 08H DATA02: H-WIDTH Gain 00H: 0

DATA00 DATA01 DATA02

40H: +64

CKS

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 03H DATA01: H-WIDTH Gain Flag 08H

DATA00 DATA01

CKS

26. AUTO PICTURE Select

Function

The external control equipment switches on or off the AUTO PICTURE of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 03H DATA01: AUTO PICTURE Select Flag 09H DATA02: 00H: ON

01H: OFF

DATA00 DATA01 DATA02

CKS

ACK

7FH 60H 80H 7FH 03H

DATA00: USER PICTURE Gain Flag 03H DATA01: AUTO PICTURE Select Flag 09H DATA02: 00H: ON

01H: OFF

DATA00 DATA01 DATA02

CKS

27. PHASE Gain Data

Function

The external control equipment changes the PHASE gain data (Phase) of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 03H DATA01: PHASE Gain Flag 03H DATA02: PHASE Gain 00H: 0

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 03H DATA01: PHASE Gain Flag 03H

DATA00 DATA01 DATA02

2CH: +44

DATA00 DATA01

CKS

28. CLOCK Gain Data

Function

The external control equipment changes the CLOCK gain data (ratio of frequency division) of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 03H DATA01: CLOCK Gain Flag 04H DATA02: CLOCK Gain C0H: -64

DATA00 DATA01 DATA02

FFH: -01 00H: 0 01H: +01

40H: +64

CKS

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 03H DATA01: CLOCK Gain Flag 04H

DATA00 DATA01

CKS

29. OSM Select

Function

The external control equipment switches on or off the on-screen menu (OSM) of the plasma monitor.

Transmission Data

DFH 80H 60H 58H 01H

DATA00: 01H: On-Screen menu On

02H: On-Screen menu Off

ACK

7FH 60H 80H 58H 01H

DATA00: 01H: On-Screen menu On

02H: On-Screen menu Off

DATA00

CKS

Operation

Remote control operation

Personal computer control operation

On-Screen menu On/Off is equivalent to the OSM menu item under the FUNCTION menu.

*Operation is as described in the table below.

On-Screen Menu (OSM)

Display of items and adjustments on the menu

When screen menu is ON

Yes Yes Yes No

No No Yes No

When screen menu is OFF When screen menu is ON When screen menu is OFF

Volume display, input display, and screen size display

30. OSM ADJ. Gain Data

Function

The external control equipment sets the position of the OSM menu of the plasma monitor.

Transmission Data

DFH 80H 60H 1AH 02H

DATA00: OSM ADJ. Gain Flag 02H DATA01: 01H: 1

06H: 6

DATA00 DATA01

CKS

ACK

7FH 60H 80H 1AH 01H

DATA00: OSM ADJ. Gain Flag 02H

DATA00

CKS

31. POWER MGT Select

Function

The external control equipment switches on or off the POWER MANAGEMENT of the plasma monitor.

Transmission Data

DFH 80H 60H 1AH 02H

DATA00: POWER MGT Select 03H DATA01: 01H: ON

02H: OFF

ACK

7FH 60H 80H 1AH 02H

DATA00: POWER MGT Select 03H DATA01: 01H: ON

02H: OFF

DATA00 DATA01

CKS

33. CINEMA MODE Set

Function

The external control equipment switches on or off the CINEMA MODE of the plasma monitor.

Transmission Data

DFH 80H 60H C1H 01H

DATA00: CINEMA MODE Set 01H: ON

DATA00

CKS

02H: OFF

ACK

7FH 60H 80H C1H 01H

DATA00: CINEMA MODE Set 01H: ON

DATA00

CKS

02H: OFF

34. RGB3 ADJ. Select

Function

The external control equipment sets the RGB3 ADJUST of the plasma monitor.

Transmission Data

DFH 80H 60H 1AH 02H

DATA00: RGB3 ADJ. Select 06H DATA01: 01H: 1

02H: 2 03H: 3

ACK

7FH 60H 80H 1AH 02H

DATA00: RGB3 ADJ. Select 06H DATA01: 01H: 1

02H: 2 03H: 3

DATA00 DATA01

CKS

32. GRAY LEVEL Set

Function

The external control equipment sets the GRAY LEVEL of the plasma monitor.

Transmission Data

DFH 80H 60H C6H 01H

DATA00: GRAY LEVEL 00H: 0

ACK

7FH 60H 80H C6H 01H

DATA00: GRAY LEVEL 00H: 0

DATA00

CKS

0FH: 15

CKS

0FH: 15

35. LONG LIFE Set

Function

The external control equipment sets the PLE, ORBITER, and INVERSE (inverse of image brightness) of the plasma monitor.

Transmission Data

DFH 80H 60H 6BH 03H

DATA00: PLE 01H: AUTO

DATA01: INVERSE 01H: ON

DATA02: ORBITER (PICTURE SHIFT) 01H: ON

ACK

The plasma monitor returns the following ACK when setting the PLE, ORBITER, and INVERSE (inverse of image brightness):

3FH 60H 80H 6BH 00H CKS

DATA00 DATA01 DATA02

02H: LOCK

02H: OFF 03H: WHITE

02H: OFF

CKS

36. INVERSE Set

Function

The external control equipment sets the INVERSE (inverse of image brightness) and the WHITE of the plasma monitor.

Transmission Data

DFH 80H 60H C7H 03H

DATA00 : INVERSE/WHITE 00H: No operation

DATA01 : WORKING TIME 00H: ON

DATA02 : WAITING TIME 01H: 03M (minutes)

DATA00 DATA01 DATA02

01H: ON(INVERSE) 02H: OFF 03H: WHITE

01H: 03M (minutes) 02H: 06M (minutes)

FFH: 12H (hours) and 45M (minutes)

02H: 06M (minutes)

FFH: 12H (hours) and 45M (minutes)

CKS

ACK

3FH 60H 80H C7H 00H CKS

NOTE: The WORKING TIME and the WAITING TIME can be set in units of 3 minutes. Example: 03H=9 minutes

1EH=1 hour and 30 minutes

37. SCREEN WIPER Set

Function

The external control equipment sets the SCREEN WIPER of the plasma monitor.

Transmission Data

DFH 80H 60H C8H 04H

DATA00 : SCREEN WIPER 00H: No operation

DATA01 : WORKING TIME 00H: ON

DATA00

01H: ON 02H: OFF

01H: 03M (minutes) 02H: 06M (minutes)

DATA03

CKS

38. RESET

Function

The external control equipment resets the user adjustment of the plasma monitor.

Transmission Data

1FH 80H 60H 54H 00H CKS

ACK

3FH 60H 80H 54H 00H CKS

39. Audio Select Set

Function

The external control equipment sets combinations of audio and video inputs for the plasma monitor.

Transmission Data

DFH 80H 60H 70H 02H

DATA00: AUDIO INPUT 01H: AUDIO 1

DATA01: VISUAL INPUT 01H: Video 1

ACK

The plasma monitor returns the following ACK when the input is switched.

3FH 60H 80H 70H 00H CKS

* The plasma monitor returns “Not Available” when selecting the

video input same as the one set at one of the AUDIO 1 to 3.

Example:

The plasma monitor returns “Not Available” when selecting the VIDEO1 for AUDIO2 or VIDEO3 after VIDEO1 has been set to AUDIO1.

DATA00 DATA01

02H: AUDIO 2 03H: AUDIO 3

02H: Video 2 03H: Video 3 05H: 06H: HD2 (DTV2) 07H: RGB 1/ PC 1 08H: RGB 2/ PC 2 0CH: RGB 3/ PC 3

CKS

HD (HD1 or DTV or DTV1)

FFH: 12H (hours) and 45M (minutes)

DATA02 : WAITING TIME 01H: 03M (minutes)

02H: 06M (minutes)

FFH: 12H (hours) and 45M (minutes)

DATA03 : SPEED 01H: 1

05H: 5

ACK

3FH 60H 80H C8H 00H CKS

NOTE: The WORKING TIME and the WAITING TIME can be set in units of 3 minutes. Example: 03H=9 minutes

1EH=1 hour and 30 minutes

40. BNC SELECT

Function

The external control equipment sets the BNC SELECT of the plasma monitor.

Transmission Data

DFH 80H 60H 8CH 01H

DATA00 : BNC SELECT 01H: RGB

DATA00

CKS

02H: Component 03H: Video

ACK

The plasma monitor returns the following ACK when setting the BNC SELECT:

7FH 60H 80H 8CH 01H

DATA00 : BNC SELECT 01H: RGB

DATA00

CKS

02H: Component 03H: Video

41. RGB Select

Function

The external control equipment sets the RGB SELECT of the plasma monitor.

Transmission Data

DFH 80H 60H 8BH 01H

DATA00: 01H: AUTO

02H: STILL 03H: MOTION 04H: WIDE1 05H: WIDE2 06H: DTV

DATA00

CKS

ACK

7FH 60H 80H 8BH 01H

DATA00: 01H: AUTO

02H: STILL 03H: MOTION 04H: WIDE1 05H: WIDE2 06H: DTV

DATA00

CKS

42. HD Select

Function

The external control equipment sets the HD SELECT of the plasma monitor.

Transmission Data

DFH 80H 60H 8AH 01H

DATA00: 01H: 1035I

02H: 1080A 03H: 1080B

ACK

7FH 60H 80H 8AH 01H

DATA00: 01H: 1035I

02H: 1080A 03H: 1080B

DATA00

CKS

43. LANGUAGE Select

Function

The external control equipment sets the LANGUAGE SELECT of the plasma monitor.

Transmission Data

DFH 80H 60H 5BH 01H

DATA00: 01H: ENGLISH

02H: GERMAN 03H: FRENCH 04H: SPANISH 05H: ITALIAN 06H: SWEDISH 07H: JAPANESE

DATA00

CKS

ACK

7FH 60H 80H 5BH 01H

DATA00: 01H: ENGLISH

02H: GERMAN 03H: FRENCH 04H: SPANISH 05H: ITALIAN 06H: SWEDISH 07H: JAPANESE

DATA00

CKS

44. COLOR SYSTEM Select

Function

The external control equipment sets the COLOR SYSTEM of the plasma monitor.

Transmission Data

DFH 80H 60H 5CH 01H

DATA00: 01H: 3.58NTSC

02H: 4.43NTSC 03H: PAL 04H: SECAM 0AH: AUTO1 0BH: PAL60 0CH: AUTO2 0DH: PAL- M 0EH: PAL- N

ACK

7FH 60H 80H 5CH 01H

DATA00: 01H: 3.58NTSC

02H: 4.43NTSC 03H: PAL 04H: SECAM 0AH: AUTO1 0BH: PAL60 0CH: AUTO2 0DH: PAL- M 0EH: PAL- N

DATA00

CKS

45. FREQUENCY Request

Function

The external control equipment inquires the Horizontal frequency, Vertical frequency, Horizontal sync polarity, Vertical sync polarity, Mode, and Resolution of the plasma monitor.

Transmission Data

1FH 80H 60H 26H 00H CKS

ACK

7FH 60H 80H 26H 0BH

Horizontal frequency

DATA00: Integer part 00H: 0 (No signal: 00H)

DATA00

DATA10

CKS

RESOLUTION

DATA07: Dots (Low-order byte) 00H: 0 (No signal: 00H)

FFH: 256

DATA08: Dots (High-order byte) 00H: 257 (No signal: 00H)

FFH

DATA09: Lines (Low-order byte) 00H: 0 (No signal: 00H)

FFH: 256

DATA10: Lines (High-order byte) 00H: 257 (No signal: 00H)

FFH

FFH: 256

DATA01: One decimal place 00H: 0 (No signal: 00H)

09H: 9

Vertical frequency

DATA02: Integer part 00H: 0 (No signal: 00H)

FFH: 256

DATA03: One decimal place 00H: 0 (No signal: 00H)

09H: 9

Horizontal sync polarity

DATA04: 00H: –

01H: Positive 02H: Negative

Vertical sync polarity

DATA05: 00H: –

01H: Positive 02H: Negative

MODE

DATA06: 00H: No signal –

01H to 80H: RGB signal 81H: Video signal 3.58NTSC 82H: 4.43NTSC 83H: PAL 84H: PAL- M 85H: PAL- N 86H: PAL60 87H: SECAM 88H: B/W60 89H: B/W50 A0H: A1H: 480P A2H: 576I A3H: 576P A4H: 720P A5H: 1035I A6H: 1080I

HD/DVD/DTV signal

Identification number of PC mode

480I

46. Input MODE Request

Function

The display returns the current input information by the external control equipment’ s request.

Transmission Data

1FH 80H 60H 41H 00H CKS

ACK

7FH 60H 80H 41H 01H

DATA00: Input Select

01H: Video1 02H: Video2 03H: Video3 04H: HD (HD1 or DTV or DTV1) 05H: RGB1/PC1 06H: RGB2/PC2 0AH: DVD (DVD1) 0CH: HD2 (DTV2) 0DH: DVD2 0EH: RGB3/PC3

DATA00

CKS

47. VIDEO ADJ Request

Function

The display returns the video adjustments information by the external control equipment’s request.

Transmission Data

1FH 80H 60H 45H 00H CKS

ACK

7FH 60H 80H 45H 0CH DATA00 to DATA11 CKS

DATA00: RED Gain(Bias) D8H: -40

FFH: -1 00H: 0

DATA05: SHARPNESS Gain F0H: -16

FFH: -01 00H: 0 01H: +01

10H: +16

DATA06: CONTRAST Gain CCH: -52

FFH: -01 00H: 0 01H: +01

IEH: +30

DATA01: GREEN Gain(Bias) D8H: -40

FFH: -1 00H: 0

IEH: +30

DATA02: BLUE Gain(Bias) D8H: -40

FFH: -1 00H: 0

IEH: +30

DATA03: COLOR Gain E0H: -32

* COLOR Gain is from -22 (EAH) to FFH: -01

+22 (16H) only during video. 00H: 0

01H: +01

20H: +32

DATA04: TINT Gain E0H: -32

14H: +20

DATA07: BRIGHT Gain E0H: -32

FFH: -01 00H: 0 01H: +01

20H: +32

DATA08: RED Gain(Drive) D8H: -40

FFH: -1 00H: 0

IEH: +30

DATA09: GREEN Gain(Drive) D8H: -40

FFH: -1 00H: 0

IEH: +30

DATA10: BLUE Gain(Drive) D8H: -40

* TINT Gain is from -22 (EAH) to FFH: -01

+22 (16H) only during video. 00H: 0

01H: +01

20H: +32

FFH: -1 00H: 0

IEH: +30

DATA11: COLOR TEMP 00H: 1

01H: 2 02H: 3 03H: PRO

48. Audio Select Request

Function

The external control equipment inquires the current combinations of audio and video inputs for the plasma monitor.

Transmission Data

1FH 80H 60H 6FH 00H CKS

50. MODEL NAME Request

Function

The external control equipment inquires the product code of the plasma monitor.

Transmission Data

1FH 80H 60H 17H 00H CKS

ACK

The plasma monitor returns the following ACK:

7FH 60H 80H 6FH 03H

DATA00: AUDIO 1

01H – 0CH: VISUAL INPUT DATA

DATA01: AUDIO 2

01H – 0CH: VISUAL INPUT DATA

DATA02: AUDIO 3

01H – 0CH: VISUAL INPUT DATA

VISUAL INPUT DATA 01H: Video 1 02H: Video 2 03H: Video 3 05H: HD (HD1 or DTV or DTV 1) 06H: HD2 (DTV2) 07H: RGB 1 /PC 1 08H: RGB 2 /PC 2 0CH: RGB 3 /PC 3

DATA00 DATA01 DATA02

CKS

49. Failure Mode Request

Function

The external control equipment inquires the detection of failures of the plasma monitor.

Transmission Data

1FH 80H 60H 3FH 00H CKS

ACK

The plasma monitor returns the following ACK:

7FH 60H 80H 3FH 02H

 42Wide VGA DATA00: FAILURE MODE 1

Bit 0 : PDP MODULE

0: Abnormal

1: Normal Bit 1 : 1: fixed (backup) Bit 2 : TEMPERATURE

0: Abnormal

1: Normal Bit 3 : 1: fixed (backup) Bit 4 : TEMPERATURE

SENSOR

0: Abnormal

1: Normal Bit 5 : 1: fixed (backup) Bit 6 : 1: fixed (backup) Bit 7 : 1: fixed (backup)

DATA01: FAILURE MODE 2

Bit 0–7 : 1: fixed (backup)

DATA00 DATA01

 42XGA DATA00: FAILURE MODE 1

DATA01:FILURE MODE 2

CKS

Bit 0 : PDP MODULE

0: Abnormal

1: Normal Bit 1 : 1: fixed (backup) Bit 2 : TEMPERATURE

0: Abnormal

1: Normal Bit 3 : FAN

0: Abnormal

1: Normal Bit 4 : 1: fixed (backup) Bit 5 : 1: fixed (backup) Bit 6 : 1: fixed (backup) Bit 7 : 1: fixed (backup)

Bit 0–7 : 1: fixed (backup)

ACK

The plasma monitor returns the following ACK:

7FH 60H 80H 17H 0CH

DATA00 : 1st character of the product code DATA01 : 2nd character of the product code

DATA11 : 12th character of the product code

NOTE:

Received data (Hex) Corresponding character

00H 0 01H 1

08H 8 09H 9 10H A 11H B 12H C

28H Y 29H Z 80H - (Hyphen)

96H (Blank) If there are fewer than 12 characters in the product code, product code would be padded right with blanks.

Example: WVGA” or “42XGA”, the returned codes would be as follows.

If the product code of your plasma monitor is “42-

 42-WVGA DATA00: 04H DATA01: 02H DATA02: 80H DATA03: 26H DATA04: 25H DATA05: 16H DATA06: 10H DATA07: 96H DATA08: 96H DATA09: 96H DATA10: 96H DATA11: 96H

DATA00

 42XGA DATA00: 04H DATA01: 02H DATA02: 27H DATA03: 16H DATA04: 10H DATA05: 96H DATA06: 96H DATA07: 96H DATA08: 96H DATA09: 96H DATA10: 96H DATA11: 96H

DATA11

CKS

Table of Signals Supported

Supported resolution

• When the screen mode is NORMAL, each signal is converted to a 640 dots480 lines signal (42Wide VGA) or 768 dots768 lines signal (42XGA). (Except for *

• When the screen mode is FULL, each signal is converted to a 853 dots480 lines signal (42Wide VGA) or 1024 dots768 lines signal (42XGA). (Except for *

Computer input signals supported by this system

Model

Signal Type

*IBM PC/AT compatible computers

*Apple Macintosh*

Work Station (EWS4800)

Work Station (HP) Work Station (SUN)

Work Station (SGI) IDC-3000G

PAL625P

NTSC525P

Dots  lines

640400 640480

848480

852480*

800600

1024768

1152864 1280768 1360765 1360768 1376768

12801024

16001200

640480

832624 1024768 1152870

12801024

1152900

12801024

1024768

12801024

768576

640480

Vertical frequency (Hz)

70.1

59.9

72.8

75.0

85.0

100.4

120.4

60.0

56.3

60.3

72.2

75.0

85.1

99.8

120.0

60.0

70.1

75.0

85.0

100.6

75.0

56.2

60.0

59.9

60.0

75.0

85.0

60.0

65.0

70.0

75.0

66.7

74.6

74.9

75.1

60.0

71.2

72.0

66.0

76.0

76.1

60.0

50.0

59.9

Horizontal frequency (kHz)

31.5

37.9

37.5

43.3

51.1

61.3

31.0

31.7

35.2

37.9

48.1

46.9

53.7

63.0

75.7

48.4

56.5

60.0

68.7

80.5

67.5

45.1

47.7

48.3

64.0

80.0

91.1

75.0

81.3

87.5

93.8

35.0

49.7

60.2

68.7

64.6

75.1

78.1

61.8

71.7

81.1

49.7

63.9

31.4

31.5

2, *5

)

Sync Polarity

Horizontal

NEG NEG NEG NEG NEG NEG NEG POS NEG POS POS POS POS POS POS POS NEG NEG POS POS NEG POS POS POS POS NEG POS POS POS POS POS POS POS

Sync on G Sync on G Sync on G Sync on G

NEG NEG

– –

C Sync C Sync C Sync

– – – –

NEG NEG

Vertical

NEG NEG NEG NEG NEG NEG NEG POS NEG POS POS POS POS POS POS POS NEG NEG POS POS NEG POS POS POS POS POS POS POS POS POS POS POS POS

Sync on G Sync on G Sync on G Sync on G

NEG NEG

– –

C Sync C Sync C Sync

– – – –

NEG NEG

Presence

Horizontal

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

– – – – – – – –

YES YES

– –

– – – – – – – – – –

YES YES

Vertical

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

– – – – – – – –

YES YES

– –

– – – – – – – – – –

YES YES

Screen mode

NORMAL

(4:3)

YES*

YES* YES* YES* YES* YES* YES*

– – – –

FULL

(16:9)

2*3

3 3 3 3 3 3

YES*

YES* YES YES YES YES YES YES YES YES

YES* YES

– – – – – – – –

YES*

YES YES YES YES

YES*

YES YES

YES* YES

YES*

YES YES

YES*

YES

YES*

YES* YES*

YES*

YES YES YES YES YES YES YES

YES YES YES YES YES YES YES YES YES YES YES YES YES YES

YES YES YES YES

YES YES YES

YES

select*

3 3

4 4 4 4 4

8 8

MOTION

RGB

– –

STILL

– –

STILL

– – – – – –

WIDE2 WIDE1

STILL STILL

– – – – – – – – – –

STILL

– –

STILL

– – – –

STILL WIDE1 WIDE1 WIDE1 WIDE2

– – – – – – – – – – – – – – – – – –

WIDE1 WIDE1

– – – – – –

– – – – – – – – – –

– –

DVI

NO YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

NO YES

NO YES YES YES

NO YES

NO YES YES

*1 Only when using a graphic accelerator board that is capable of displaying 852480. *2 Display only 400 lines (42Wide VGA), 640 lines (42XGA) with the screen center of the vertical orientation located at the

center. *3 42Wide VGA: The picture is displayed in the original resolution. The picture will be compressed for other signals. *4 42XGA: The picture is displayed in the original resolution. The picture will be compressed for other signals. *5 Aspect ratio is 5:4. This signal is converted to the following signal (42Wide VGA: 600 dots480 lines, 42XGA: 720

dots768 lines). *6 Normally the RGB select mode suite for the input signals is set automatically. If the picture is not displayed properly , set the

RGB mode prepared for the input signals listed in the table above. *7 To connect the monitor to Macintosh computer, use the monitor adapter (D-Sub 15-pin) to your computer's video port. If

your computer has a mini D-Sub 15-pin connector, you may have to use the supplied RGB cable. *8 Other screen modes (ZOOM and STADIUM) are available as well.

NOTE:

• While the input signals comply with the resolution listed in the table above, you may have to adjust the position and size

of the picture or the fine picture because of errors in synchronization of your computer.

• This monitor has a resolution of 853 dots480 lines or 1024 dots768 lines. It is recommended that the input signal

be VGA, wide VGA or equivalent for 42Wide VGA, XGA or equivalent for 42XGA.

• With digital input some signals are not accepted.

• The sync may be disturbed when a nonstandard signal other than the aforementioned is input.

• If you are connecting a composite sync signal, use the HD terminal.

* “IBM PC/A T”, “VGA” and “XGA” are registered trademarks of International Business Machines, Inc. of the United States. * “Apple Macintosh” is a registered trademark of Apple Computer, Inc. of the United States.

Troubleshooting

If the picture quality is poor or there is some other problem, check the adjustments, operations, etc., before requesting service.

Symptom

Picture is disturbed. Sound is noisy. Remote control operates erroneously.

The remote control does not work.

Monitor’s power does not turn on when the remote control’s power button is pressed.

Monitor does not operate when the remote control’s buttons are pressed.

No sound or picture is produced.

Picture appears but no sound is produced.

Poor picture with VIDEO signal input.

Poor picture with RGB signal input.

Tint is poor or colors are weak. Nothing appears on screen.

Part of picture is cut off or picture is not centered.

Image is too large or too small.

Picture is unstable.

POWER/STANDBY indicator is lighted in orange or red.

POWER/STANDBY indicator is blinking in red.

POWER/STANDBY indicator is blinking in green and red, or green.

*1 Overheat protector

If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location and wait for the monitor to cool for 60 minutes. If the problem persists, contact your dealer.

*2 In the following case, power off the monitor immediately and contact your dealer or authorized Service Center.

The monitor turns off 5 seconds after powering on and then the POWER/STANDBY indicator blinks. It indicates that the power supply circuit, plasma display panel, temperature sensor, or one or more fans (42XGA) have been damaged.

• Is a connected component set directly in front or at the side of the display?

• Are the remote control’s batteries worn out?

• Is the monitor’s power cord plugged into a power outlet?

• Are all the monitor’s indicators off?

• Are the remote control’s batteries worn

out?

• Is the remote control pointed at the monitor, or is there an obstacle between the remote control and the monitor?

• Is direct sunlight or strong artificial light shining on the monitor’s remote control sensor?

• Are the remote control’s batteries worn out?

• The remote cable is plugged into the REMOTE IN terminal (Wired).

• The front panel buttons of the main unit do not function.

• Is the monitor’s power cord plugged into a power outlet?

• Is the volume set at the minimum?

• Is the mute mode set?

• Are the speakers properly connected?

• Is AUDIO INPUT set correctly?

•Improper control setting.

Local interference. Cable interconnections. Input impedance is not correct level.

• Improper control setting. Incorrect 15 PIN connector pin connections.

• Are the tint and colors properly adjusted?

• Is the computer’s power turned on?

• Is a source connected?

• Is the power management function in the

standby or off mode?

• Is the position adjustment appropriate?

• Is the screen size adjustment

appropriate?

• Is the computer’s resolution setting appropriate?

• Horizontal and / or vertical sync signal is not present when the Intelligent Power Manager control is on.

• The temperature inside the main unit has become too high and has activated the protector.

Checks

——————

Remedy

• Leave some space between the display and the connected components.

• Replace both batteries with new ones.

• Plug the monitor’s power cord into a power

outlet.

• Press the power button on the monitor to turn on the power.

• Replace both batteries with new ones.

• Point the remote control at the monitor’s

remote control sensor when pressing buttons, or remove the obstacle.

• Eliminate the light by closing curtains, pointing the light in a different direction, etc.

• Replace both batteries with new ones.

• Unplug the remote cable from the monitor.

• The front panel buttons do not function

during Control Lock.

• Plug the monitor’s power cord into a power outlet.

• Increase the volume.

•

Press the remote control’s MUTE button.

• Connect the speakers properly .

• Set AUDIO INPUT on the OPTION menu

correctly.

• Adjust picture control as needed. Try another location for the monitor . Be sure all connections are secure.

• Adjust picture controls as needed. Check pin assignments and connections.

• Adjust the tint and color (under “PICTURE”).

• Turn on the computer’s power .

• Connect source to the monitor.

• Operate the computer (move the mouse,

etc.).

• Adjust the “SCREEN” properly.

• Press the “WIDE” button on the remote

control and adjust properly.

• Set to the proper resolution.

• Check the input signal.

• Promptly switch off the power of the main

unit and wait until the internal temperature drops. See*1.

• Prompty switch off the power of the main unit. See *2.

Specifications

 42Wide VGA

Screen Size 36.3"(H)20.4"(V) inches

921(H)518(V) mm diagonal 42"

Aspect Ratio 16 : 9 Resolution 853(H)480(V) pixels Pixel Pitch 0.04"(H)0.04"(V) inches

1.08(H)1.08(V) mm

Color Reproduction 256 levels, 16,770,000 colors Signals

Synchronization Range Horizontal : 15.5 to 93.8 kHz

Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),

Input Terminals

RGB

Visual 1 (Analog) mini D-sub 15-pin1 Visual 2 (Analog) BNC (R, G, B, H/CS, V)1* Visual 3 (Digital) DVI-I 29-pin1*

Video

Visual 1 RCA-pin1 Visual 2 S-Video: DIN 4-pin1 Visual 3 BNC (G/Y/VIDEO3)1*

DVD/HD/DTV

Visual 1 RCA-pin (Y, PB[CB], PR[CR])1* Visual 2 BNC (Y, PB[CB], PR[CR])1*

Audio Stereo RCA3(selectable)

External Control D-sub 9-pin1(RS-232C) Sound output 7W+7W at 6 ohm Power Supply AC120V 50/60Hz Current Rating 3.9A (maximum) Power Consumption 280W (typical) Dimensions 41.3 (W)25.5 (H)3.5 (D) inches

Weight 61.8 lbs / 28.5 kg (without stand) Environmental Considerations

Operating Temperature 0°C to 40°C / 32°F to 104°F

Humidity 20 to 80% (no condensation)

Storage Temperature -10°C to 50°C / 14°F to 122°F

Humidity 10 to 90% (no condensation)

Front Panel User Controls Power on/off, Input source select,

Remote Control Functions

OSM Functions

(automatic : step scan) Vertical : 50.0 to 120 Hz (automatic : step scan)

P AL60, SECAM, HD*

, DVD*1 , DTV*

(Not compatible with analog input)

1, *2

1048 (W)648 (H)89(D) mm

Volume up/down, OSM control Power on/off, Input source select, OSM

control,Volume up/down, Cursor (UP, DOWN,LEFT , RIGHT), Pointer, Zoom up/ down, Off timer, Wireless/ Wired remote control

Picture (Contrast / Brightness / Sharpness/ Color / Tint / Picture mode / Color temperature/ Noise reductions), Sound (Bass / Treble/ Balance),Screen (V-Position / HPosition/ V-Height / H-Width /Auto Picture / Fine picture/ Picture adjustment), Function (OSM/ OSM adjustment/ Power management/ Gray level/ Cinema mode/ RGB3 Adjustment, Long Life (PLE, Orbiter, Inverse, White, Screen Wiper)/ Reset)/Option (Audio input/ BNC select/ RGBselect/ HD select), Information (Frequency / Language* / Color system) *English, German, French, Italian, Spanish, Swedish, Japanese

1.18"

41.3" (1048)

36.3" (921)

20.4" (518)

(30)

25.5" (648)

Units are in inch

The features and specifications may be subject to change without notice.

*1HD/DVD/DTV input signals supported on this

system

480P (60 Hz) 480I (60 Hz) 525P (60 Hz) 525I (60 Hz) 576P (50 Hz) 576I (50 Hz) 625P (50 Hz) 625I (50 Hz) 720P (60 Hz) 1035I (60 Hz) 1080I (50 Hz) 1080I (60 Hz)

*2The 5-BNC connectors are used as RGB/PC2, HD/

DVD2 and VIDEO3 input. Select one of them under “BNC SELECT”.

It doesn’t cope with copy protection.

Other Features 3D motion adaptive Scan Converter

with 2-2 (50Hz), 2-3 (60Hz) pull down Converter, Digital Zoom function (100-900% Selectable), Self Diagnosis, Anti Image Burn, Color T emperature Select, Control Lock, Power management, Plug and play (DDC1, DDC2b, RGB3: DDC2b only)

Accessories Remote control with two AAA batteries,

Remote cable, RGB cable (Mini D-Sub 15-pin to Mini D-Sub 15-pin connector), Power cord, User’s Manual, Safety metal fittings, Screw for Safety metal fittings, Ferrite cores, Bands

Regulations UL Approved (UL 60950/ CSA 60950)

DOC Canada requirements Meets FCC class A requirements

3.5"

(89)

2.32" (59)

(mm)

(89)

 42XGA

Screen Size 36.1"(H)20.4"(V) inches

918(H)518(V) mm diagonal 42"

Aspect Ratio 16 : 9 Resolution 1024(H)768(V) pixels Pixel Pitch 0.04"(H)0.04"(V) inches

0.897(H)0.675(V) mm

Color Reproduction 256 levels, 16,770,000 colors Signals

Synchronization Range Horizontal : 15.5 to 93.8 kHz

Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),

Input Terminals

RGB

Visual 1 (Analog) mini D-sub 15-pin1 Visual 2 (Analog) BNC (R, G, B, H/CS, V)1* Visual 3 (Digital) DVI-I 29-pin1*

Video

Visual 1 RCA-pin1 Visual 2 S-Video: DIN 4-pin1 Visual 3 BNC (G/Y/VIDEO3)1*

DVD/HD/DTV

Visual 1 RCA-pin (Y, PB[CB], PR[CR])1* Visual 2 BNC (Y, PB[CB], PR[CR])1*

Audio Stereo RCA3(selectable)

External Control D-sub 9-pin1(RS-232C) Sound output 7W+7W at 6 ohm Power Supply AC120V 50/60Hz Current Rating 5.0A (maximum) Power Consumption 380W (typical) Dimensions 41.3 (W)25.5 (H)3.5 (D) inches

Weight 65.0 lbs / 29.5 kg (without stand) Environmental Considerations

Operating Temperature 0°C to 40°C / 32°F to 104°F

Humidity 20 to 80% (no condensation)

Storage Temperature -10°C to 50°C / 14°F to 122°F

Humidity 10 to 90% (no condensation)

Front Panel User Controls Power on/off, Input source select,

Remote Control Functions

OSM Functions

(automatic : step scan) Vertical : 50.0 to 120.0 Hz (automatic : step scan)

P AL60, SECAM, HD*

, DVD*1 , DTV*

(Not compatible with analog input)

1, *2

1048 (W)648 (H)89(D) mm

Volume up/down, OSM control Power on/off, Input source select, OSM

control,Volume up/down, Cursor (UP, DOWN,LEFT , RIGHT), Pointer, Zoom up/ down, Off timer, Wireless/ Wired remote control

1.18"

41.3" (1048)

36.1" (918)

20.4" (518)

(30)

25.5" (648)

nitsarein in

3.5"

2.32"

(59)

The features and specifications may be subject to change without notice.

*1HD/DVD/DTV input signals supported on this

system

480P (60 Hz) 480I (60 Hz) 525P (60 Hz) 525I (60 Hz) 576P (50 Hz) 576I (50 Hz) 625P (50 Hz) 625I (50 Hz) 720P (60 Hz) 1035I (60 Hz) 1080I (50 Hz) 1080I (60 Hz)

*2The 5-BNC connectors are used as RGB/PC2, HD/

DVD2 and VIDEO3 input. Select one of them under “BNC SELECT”.

It doesn’t cope with copy protection.

Other Features 3D motion adaptive Scan Converter

Accessories Remote control with two AAA batteries,

Remote cable, RGB cable (Mini D-Sub 15-pin to Mini D-Sub 15-pin connector), Power cord, User’s Manual, Safety metal fittings, Screw for Safety metal fittings, Ferrite cores, Bands

Regulations UL Approved (UL 60950/ CSA 60950)

DOC Canada requirements Meets FCC class A requirements

Limited Warranty Plasma Monitors

NEC Solutions, Inc. (hereinafter NEC Solutions) warrants this product to be free from defects in material and workmanship under the following terms and, subject to the conditions set forth below, agrees to repair or replace (at NEC Solutions’ sole option) any part of the enclosed unit which proves defective. Replacement parts or products may be new or refurbished and will meet specifications of the original parts or products.

HOW LONG IS THE WARRANTY?

Parts and labor are warranted for (1) one year from the date of the first customer purchase.

WHO IS PROTECTED?

This warranty may be enforced only by the first purchaser.

WHA T IS COVERED AND WHAT IS NOT COVERED

Except as specified below, this warranty covers all defects in material or workmanship in this product. The following are not covered by the warranty:

1. Any product which is not distributed in the U.S.A., Canada or

Mexico by NEC Solutions or which is not purchased in the U.S.A., Canada or Mexico from an authorized NEC Solutions dealer.

2. Any product of which the serial number has been defaced,

modified or removed.

3. Damage, deterioration or malfunction resulting from:

a. Accident, misuse, abuse, neglect, fire, water, lightning or other

acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.

b. Repair or attempted repair by anyone not authorized by NEC

Solutions.

c. Any shipment of the product (claims must be presented to the

carrier). d. Removal or installation of the product. e. Any other cause which does not relate to a product defect. f. Burns or residual images upon the phosphor of the panel.

4. Cartons, carrying cases, batteries, external cabinets, magnetic tapes, or any accessories used in connection with the product.

5. Service outside of the U.S.A. and Canada.

WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR

W e will pay labor and material expenses for covered items, but we will not pay for the following:

1. Removal or installation charges.

2. Costs of initial technical adjustments (set-up), including

adjustment of user controls. These costs are the responsibility of the NEC Solutions dealer from whom the product was purchased.

HOW YOU CAN GET WARRANTY SERVICE

1. To obtain service on your product, consult the dealer from whom you purchased the product.

2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty coverage. Please also include in any mailing your name, address and a description of the problem(s).

3. For the name of the nearest NEC Solutions authorized service center, call NEC Solutions at 800-836-0655.

LIMITATIONS OF LIABILITY

Except for the obligations specifically set forth in this warranty statement, we will not be liable for any direct, indirect, special, incidental, consequential, or other types of damages, whether based on contract, tort, or any other legal theory, whether or not we have been advised of the possibility of such damages. This warranty is in lieu of all other warranties expressed or implied, including, but not limited to, the implied warranties of merchantability or fitness for a particular purpose.

EXCLUSION OF DAMAGES

NEC Solutions’ liability for any defective product is limited to the repair or replacement of the product at our option. NEC Solutions shall not be liable for:

1. Damage to other property caused by any defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss; or

2. Any other damages whether incidental, consequential or otherwise. Some states do not allow limitation on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

HOW ST A TE LA W RELATES TO THE WARRANTY

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

FOR MORE INFORMATION, TELEPHONE 800-836-0655 NEC SOLUTIONS, INC. 1250 N. Arlington Heights Road, Suite 500 Itasca, Illinois 60143-1248

Note:

All products r eturned to NEC Solutions for service MUST have prior approval. To get approval, call NEC Solutions at 800-836-0655.

3. Shipping charges.

igh

ois

1248

NEC Solutions, Inc. ngton

tasca,n

Printed on recycled paper

Printed in Japan 7S800343

PlasmaSync

MP3 (42Wide VGA)

PX-42VM3G

PlasmaSync

MP4 (42XGA)

PX-42XM1G

PlasmaSync Plasma Monitor

User's Manual

Bedienungshandbuch

Manuel de l'utilisateur

Manual del Usuario

Manuale d'uso

Bruksanvisning

User’ s Manual

Bedienungshandbuch

Manuel de l’utilisateur Manual del Usuario

Manuale d’uso Bruksanvisning

Important Information

Precautions

Please read this manual carefully before using your plasma monitor and keep the manual handy for future reference.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

WARNING

Warning

This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

Warnings and Safety Precaution

2. Do not use this unit polarized plug with extension cords or outlets unless the prongs can be completely inserted.

3. Do not expose the unit to water or moisture.

4. Avoid damage to the power cord, and do not attempt to modify the power cord.

5. Unplug the power cord during electrical storms or if the unit will not be used over a long period.

NOTE: When you connect a computer to this monitor, attach the supplied ferrite cores. If you do not do this, this monitor will not comform to mandatory CE or C-Tick standards. Attaching the ferrite cores: Set the ferrite cores on both ends of the DVI cable (not supplied), and both ends of the power cable (supplied). Close the lid tightly until the clamps click. Use the band to fasten the ferrite core (supplied) to the DVI cable.

Recommendations to avoid or minimize phosphor burn-in

DVI cable (not supplied)

band

core (small)

Power cable (supplied)

core (large)

band

Connector

core (small)

core (large)

To avoid damage and prolong operating life:

1. Use only with 100-240V 50/60Hz AC power supply. Continued operation at line voltages greater than 100240 Volts AC will shorten the life of the unit, and might even cause a fire hazard.

2. Handle the unit carefully when installing it and do not drop.

3. Set the unit away from heat, excessive dust, and direct sunlight.

4. Protect the inside of the unit from liquids and small metal objects. In case of accident, unplug the power cord and have it serviced by an authorized Service Center.

5. Do not hit or scratch the panel surface as this causes flaws on the surface of the screen.

6. For correct installation and mounting it is strongly recommended to use a trained,authorized dealer.

7. As is the case with any phosphor-based display (like a CRT monitor, for example) light output will gradually decrease over the life of a Plasma Display Panel.

* Always enable and use your computer ’s screen saver

using it.

If the plasma monitor is in long term use or continuous operation take the following measures to reduce the likelihood of phosphor burn:

* Lower the Brightness and Contrast levels as much as

possible without impairing image readability . * Display an image with many colors and color gradations

(i.e. photographic or photo-realistic images). * Create image content with minimal contrast between light

and dark areas, for example white characters on black

backgrounds. Use complementary or pastel color whenever

possible. * Avoid displaying images with few colors and distinct,

sharply defined borders between colors.

* Burn-in is not covered by the warranty.

Contact your dealer for other recommended procedures that will best suit your particular application needs.

Contents

How to Attach Options to the Plasma Monitor .. E-1

Introduction ................................................... E-2

Introduction to the Plasma Monitor .......................... E-2

The features you’ll enjoy include:............................. E-2

Contents of the Package ......................................... E-2

Options ............................................................... E-2

Part Names and Function ................................ E-3

Front View ........................................................... E-3

Rear View / Terminal Board ................................... E-4

Remote Control ..................................................... E-5

Battery Installation and Replacement ....................... E-6

Using the wired remote control mode ...................... E-7

Operating Range .................................................. E-7

Handling the remote control ................................... E-7

Installation .................................................... E-8

Connecting Your PC or Macintosh Computer ............ E-9

Connections with Equipment that has

a Digital Interface .............................................. E-9

Connecting Your Document Camera ........................ E-9

Connecting Your VCR or Laser Disc Player................ E-9

Connecting Your DVD Player .................................. E-9

Attachable Speaker Connections ............................ E-10

Pin Assignments and Signal Levels

for 15 pin RGB (Analog) .......................................E-11

Pin Configuration and Signal

of the RGB 3 IN Connector (DVI Connector) ............ E-11

Basic Operations........................................... E-12

POWER ..............................................................E-12

To turn the unit ON and OFF: ................................ E-12

VOLUME ............................................................E-12

To adjust the sound volume:................................... E-12

MUTE .................................................................E-12

To cancel the sound:............................................... E-12

DISPLAY ..............................................................E-12

To check the settings:............................................. E-12

DIGITAL ZOOM ...................................................E-12

OFF TIMER ..........................................................E-13

To set the of f timer:................................................ E-13

To check the remaining time: ................................. E-13

To cancel the of f timer ........................................... E-13

WIDE Operations........................................... E-14

Watching with a wide screen (manual) ...................E-14

When watching videos or digital video discs.......... E-14

When watching high definition video source ......... E-14

Watching computer images with a wide screen ....... E-15

OSM Controls ................................................ E-16

Menu Operations .................................................E-16

Picture Settings Menu............................................E-18

Adjusting the picture.............................................. E-18

Setting the picture mode according to the

brightness of the room ........................................... E-19

Setting the color temperature ................................. E-20

Adjusting the color to the desired quality ............... E-21

Reducing noise in the picture ................................. E-22

Sound Settings Menu ............................................E-23

Adjusting the treble, bass and left/right balance ..... E-23

Screen Settings Menu ...........................................E-24

Adjusting the Position, Size, Fine Picture,

Picture Adj ............................................................. E-24

Function Settings Menu .........................................E-25

Setting the on-screen menu .................................... E-25

Adjusting the position of the menu display ............ E-26

Setting the power management

for computer images .............................................. E-27

POWER/ST ANDBY indicator ............................... E-28

Setting the gray level for the sides of the screen ..... E-29

Setting the picture to suit the movie ....................... E-29

Setting RGB3 ADJ................................................. E-30

Reducing burn-in of the screen .............................. E-30

Setting the time for “INVERSE”............................ E-31

Setting the time for “SCREEN WIPER” ................ E-32

Resetting to the default values................................ E-33

Options Settings Menu .......................................... E-34

Setting the allocation of the audio connectors ........ E-34

Setting the BNC connectors ................................... E-35

Setting a computer image to the correct RGB

select screen ......................................................... E-35

Setting high definition images to the suitable

screen size............................................................ E-36

Information Menu ................................................ E-37

Checking the frequencies, polarities of input signals,

and resolution ........................................................ E-37

Setting the language for the menus......................... E-37

Setting the video signal format............................... E-38

External Control ...........................................E-39

Table of Signals Supported ............................ E-53

Supported resolution ............................................ E-53

Troubleshooting .......................................... E-55

Specifications ............................................... E-56

How to Attach Options to the Plasma Monitor

Y ou can attach your optional mounts or stand to the plasma monitor in one of the following two ways:

* While it is upright. (See Drawing A) * As it is laid down with the screen face down (See Drawing

B). Lay the protective sheet, which was wrapped around the monitor when it was packaged, beneath the screen surface so as not to scratch the screen face.

• This device cannot be installed on its own. Be sure to use a stand or original mounting unit. (Wall mount unit, Stand, etc.)

* See page E-2.

• For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.

Failure to follow correct mounting procedures could result in damage to the equipment or injury to the installer.

Product warranty does not cover damage caused by improper installation.

Drawing A

Drawing B

Ventilation Requirements for enclosure mounting

To allow heat to disperse, leave space between surrounding objects as shown on the diagram below when installing.

31mm (1.22")

E-1

Wall

1110

(43.7")

31mm (1.22")

(2")

(29.5")

748

(2") 50

Wall

50mm (2")

Introduction

Introduction to the Plasma Monitor

This plasma monitor is a seamless blend of cutting-edge visual technology and sophisticated design. At 42-inches, with a 16:9 aspect ratio, the plasma monitor certainly makes a big impression. However, at a mere 89 mm/3.5 inches thin, the monitor’s sleek techno-art lines blend in well with your environment. Plasma monitor’s crisp, vivid image quality will transform data from any graphic medium from PCs to DVD players- into art. And weighing only 28.5 kg/61.8 lbs (42Wide VGA), 29.5 kg/65 lbs (42XGA), it actually can be hung almost anywhere. We have made sure that a host of multimedia resources can be easily connected and displayed as brilliantly as intended on the plasma monitor.

The features you’ll enjoy include:

• 42-inch screen

• 16:9 aspect ratio

• Capsulated Color Filter (CCF) and black matrix

• The enhanced display in red uses a two-stage filtering

system where Accucrimson is combined with our special CCF.

• 89 mm / 3.5 inch thin

• 42Wide VGA: 28.5 kg/ 6 l.8 lbs light, 42XGA: 29.5 kg/

65 lbs light

• High-resolution screen; 42Wide VGA: 853480 pixels, 42XGA: 1024768 pixels

• 160-degrees of off-axis viewing, horizontally and vertically.

• Flicker - and warp - free display provides excellent image geometry even in screen corners

• Not affected by magnetic fields, no color drift or edge distortion.

• VGA, SVGA, XGA, SXGA, UXGA computer signal compatibility

• NTSC, PAL, SECAM, composite and S-Video signal compatibility

• 480P, 1080I, 720P and HDTV signal compatibility

• PCs, VCRs, Laser Disc and DVD player source

compatibility

• AccuBlend scan conversion automatically converts SVGA, XGA, SXGA and UXGA signals to the panel’s native resolution (42XGA: VGA, SVGA, SXGA, UXGA)

• Advanced Mass Area Sampling Progressive Scan method is employed.

• RGB input (3*), V ideo input (3*), DVD/HD input (2*), Audio input (3), External Control input (1)

• AccuColor control system provides user selectable onscreen color temperature settings

• New Drive Technology

• Component video input terminal for DVD, 15.75kHz

(Y, CB, CR )

• Digital broadcasting source compatibility

• OSM menu-driven on screen control system that makes

image adjustments a snap

• Seven languages (English, German, French, Italian, Spanish, Swedish, and Japanese)

* You can select RGB source, Component source or V ideo

source for the 5BNC terminal. When selecting an RGB input, the source is switched to the RGB input (3); when selecting a component input, the source is switched to the DVD/HD input (2); when selecting a V ideo source, the source is switched to the Video input (3).

Contents of the Package

 Plasma monitor  Power cord  RGB cable (Mini D-Sub 15-pin to Mini D-Sub 15-

pin connector)

 Remote control with two AAA Batteries  User’s manual  Remote cable  Safety metal fittings*  Screws for safety metal fitting*  Ferrite core (small2, large2), band

* These are fittings for fastening the unit to a wall to prevent

tipping due to external shock when using the stand (option). Fasten the safety fittings to the holes in the back of the monitor using the safety fitting mount screws.

Options

• Wall mount unit

• Ceiling mount unit

• Tilt mount unit

• Stand

• Attachable speakers

• Pole unit

• Horizontal pole mount unit

E-2

Part Names and Function

Front View

INPUT SELECT

PROCEED

VOLUME

DOWN UP LEFT/

RIGHT/+/EXIT

POWER/STANDBY

PROCEED

VOLUME

DOWN UP LEFT

/-RIGHT

q Power

Turns the monitor’s power on and off.

w Remote sensor window

Receives the signals from the remote control.

e POWER/STANDBY indicator

When the power is on ............................. Lights green.

When the power is in the standby mode ... Lights red.

r INPUT SELECT / EXIT

Switches the input, in the following order. The available inputs depend on the setting of “BNC SELECT”. RGB:

COMP.:

VIDEO: SCART:

→ VIDEO1 → VIDEO2 → HD/DVD/DTV RGB/PC3 ← RGB/PC2 ← RGB/PC1←

→ VIDEO1 → VIDEO2 → HD1/DVD1/DTV1 RGB/PC3 ← RGB/PC1 ← HD2/DVD2/DTV2 ←

→ VIDEO1 → VIDEO2 → VIDEO3 RGB/PC3 ← RGB/PC1 ← HD/DVD/DTV←

→ VIDEO1 → VIDEO2 → HD1/DVD1/DTV1 RGB/PC3 ← RGB/PC1 ← DVD2 ←

INPUT SELECT

/+/

EXIT

t LEFT/– and RIGHT/+

Enlarges or reduces the image. Functions as the CURSOR ( (OSM) mode.

y VOLUME DOWN and UP

Adjusts the volume. Functions as the CURSOR (▲/ ▼) buttons in the On-Screen Menu (OSM) mode.

u PROCEED

Sets the On-Screen Menu (OSM) mode and displays the main menu.



POWER/STANDBY

/ ) buttons in the On-Screen Menu

Functions as the EXIT buttons in the On-Screen Menu (OSM) mode.

E-3

Rear View/ Terminal Board

AUDIO 2 DVD1/HD1AUDIO 3 AUDIO 1RGB2/DVD2/HD2

RGB 3

(

)

Digital RGB

SPEAKERS MUST HAVE MORE THAN

RIGHT LEFT

SPEAKERS MUST

HAVE MORE THAN

7WATT RATING

IMPEDANCE 6 OHM

7WATT RATING

IMPEDANCE 6 OHM

RGB 3

(

Digital RGB

)

AC IN

RIGHT LEFT

AB C

VIDEO 1

VIDEO 2

)

L ( MONO

AUDIO 2 DVD1/ HD1AUDIO 3 AUDIO 1RGB2/ DVD2/HD2

CB/P

CR/P

L ( MONO

RGB 1

R/CR/P

G/Y /VIDEO 3

B/CB/P

L ( MONO

CONTROL LOCK

ON /OFF

REMOTE CONTROL

EXTERNAL CONTROL

)

VIDEO 1

VIDEO 2

)

L ( MONO

CB/P

CR/P

)

L ( MONO

RGB 1

R/CR/P

G/Y /VIDEO 3

B/CB/P

)

L ( MONO

CONTROL LOCK

ON /OFF

REMOTE CONTROL

EXTERNAL CONTROL

A AC IN

Connect the included power cord here.

B EXT SPEAKER L and R

Connect speakers here. Maintain the correct polarity.

C RGB3

(DVI 29pin)

Inputs a digital RGB signal (TMDS).

D VIDEO1, 2

Connect VCR’s, DVD’s or Laser Discs, etc. here.

E AUDIO1, AUDIO2, AUDIO3

These are audio input terminals. The input is selectable. Set which video image to allot them to on the menu screen.

F DVD1 / HD1

Connect DVD’s, High Definition or Laser Discs, etc. here.

G RGB1

Inputs the analog RGB signal of personal computer, etc.

H RGB2/ DVD2/ HD2

RGB2: Inputs the analog RGB signal, and the

syncronization signal.

DVD2/ HD2: Connect DVD ’s, High Definition or

Laser Discs, etc. here.

VIDEO3: Connect VCR’s, DVD’s or Laser

Discs, etc. here.

I CONTROL LOCK

When “CONTROL LOCK” is set “ON”, the buttons on the set’s control panel do not function.

J REMOTE CONTROL

Connect the supplied remote cable here.

K EXTERNAL CONTROL

This terminal is used when power ON/OFF, input selection and AUDIO MUTE and other controls are operated externally (by external control). See also page E-39 for external control.

E-4

Remote Control

w RGB/PC

Press this button to select RGB/PC as the source. The available sources depend on the setting of “BNC SELECT”. RGB:

→ RGB/PC1 → RGB/PC2 → RGB/PC3

COMP. or VIDEO or SCART:

→ RGB/PC1 → RGB/PC3

RGB/PC can also be selected using the INPUT SELECT button on the monitor.

e DVD / HD

Press this button to select DVD/HD as the source. The available sources depend on the setting of “BNC SELECT”. RGB or VIDEO:

COMP.:

SCART:

HD/DVD/DTV

→ HD1/DVD1/DTV1 → HD2/DVD2/DTV2

→ HD1/DVD1/DTV1 → DVD2

DVD/HD can also be selected using the INPUT SELECT button on the monitor.

r VIDEO

Press this button to select VIDEO as the source. The available sources depend on the setting of “BNC SELECT”. VIDEO:

RGB or COMP. or SCART:

→ VIDEO1 → VIDEO2 → VIDEO3

→ VIDEO1 → VIDEO2

q POWER ON/OFF

Switches Power ON/OFF. (This does not operate when POWER/STANDBY indicator of the main unit is off.)

VIDEO can also be selected using the INPUT SELECT button on the monitor.

t PROCEED

Press this button to access the OSM controls. Press this button during the display of the main menu to go to the sub menu.

y CURSOR (▲ / ▼ /



/ )

Use these buttons to select items or settings and to adjust settings or switch the display patterns.

u EXIT

Press this button to exit the OSM controls in the main menu. Press this button during the display of the sub menu to return to the main menu.

i POINTER

Press this button to display the pointer.

o ZOOM (+ /–)

Enlarges or reduces the image.

!0 VOLUME (+ /–)

Adjusts the sound volume.

E-5

!1 MUTE

Mutes the sound.

!2 WIDE

The type of broadcast is detected automatically, and the recommended wide screen is set.

!3 DISPLAY

Displays the source settings on the screen.

!4 OFF TIMER

Activates the off timer for the unit.

!5 Remote control signal transmitter

Transmits the remote control signals.

Battery Installation and Replacement

Insert the 2 “AAA” batteries, making sure to set them in with the proper polarity.

1.Press and open the cover.

!6 Remote Jack

Insert the plug of the supplied remote cable here when using the supplied remote control in the wired condition.

2.Align the batteries according to the (+) and (–) indication inside the case.

3.Replace the cover.

E-6

Using the wired remote control mode

Approx.

/t23f

(

Digital RGB

VIDEO 1

VIDEO 2

)

L ( MONO

CB/P

CR/P

)

L ( MONO

AUDIO 2 DVD1 /HD1AUDIO 3 AUDIO 1RGB2/DVD2/ HD2

RGB 1

R/CR/P

G/Y /VIDEO 3

B/CB/P

)

L ( MONO

CONTROL LOCK

RGB 3

)

ON /OFF

REMOTE CONTROL

EXTERNAL CONTROL

CONTROL LOCK

ON /OFF

REMOTE CONTROL

EXTERNAL CONTROL

Operating Range

* Use the remote control within a distance of about 7 m/

23ft. from the front of the monitor’s remote control sensor and at horizontal and vertical angles of up to approximately 30°.

* The remote control operation may not function if the

monitor’s remote control sensor is exposed to direct sunlight or strong artificial light, or if there is an obstacle between the sensor and the remote control.

INPUT SELECT

VOLUME

PROCEED

DOWN UP LEFT/

RIGHT/+/EXIT

POWER/STANDBY

ppro

Remote Contro

abl

To Remote Jack

Handling the remote control

• Do not drop or mishandle the remote control.

• Do not get the remote control wet. If the remote control

gets wet, wipe it dry immediately.

• Avoid heat and humidity.

• When not using the remote control for a long period,

remove the batteries.

• Do not use new and old batteries together, or use dif ferent types together.

• Do not take apart the batteries, heat them, or throw them into a fire.

• When using the remote control in the wireless condition, be sure to unplug the remote cable from the REMOTE CONTROL terminal on the monitor.

E-7

Installation

VCR or Laser Disc Player

RGB 3

(

Digital RGB

VIDEO 1

VIDEO 2

)

L ( MONO

CB/P

CR/P

)

L ( MONO

AUDIO 2 DVD1 /HD1AUDIO 3 AUDIO 1RGB2/ DVD2/HD2

RGB 1

R/CR/P

G/Y /VIDEO 3

B/CB/P

)

L ( MONO

CONTROL LOCK

)

ON /OFF

REMOTE CONTROL

EXTERNAL CONTROL

To video inputs on the plasma monitor

Signal cable (supplied) To Mini D-Sub 15 pin connector on the plasma monitor

Document Camera

IBM VGA or

Compatibles

Macintosh or Compatibles

(Desk top type)

Monitor adapter for Macintosh

DVD Player

• For Y/CB/Cr, connect to the DVD1 or DVD2 terminals.

Personal computer with a digital RGB output

• For RGB + composite sync., connect to the DVD2 terminals. For composite sync., connect to the HD terminals.

Note:

This plasma monitor has the capasity to display images when connected to European DVD players with a SCART output signal, which is RGB with composite sync. Your dealer can supply a special SCART cable, which will enable you to use the RGB with composite sync signal. To obtain the special cable as well as for further information, please contact your dealer. Please refer to page E-35 for selection of the correct mode in the on-screen manager.

E-8

Connecting Your PC or Macintosh Computer

Connecting your PC or Macintosh computer to your plasma monitor will enable you to display your computer’s screen image for an impressive presentation. The plasma monitor supports the signals described on page E-53. T o connect a PC, Macintosh or compatible graphics adapter, simply:

1. Turn off the power to your plasma monitor and computer .

Connecting Your Document Camera

You can connect your plasma monitor to a document camera. To do so, simply:

1. Turn off the power to your plasma monitor and document camera.

2. Use a standard video cable to connect your document camera to the Video input on your plasma monitor.

3. Turn on the plasma monitor and the document camera.

4. Use the signal cable that’s supplied to connect your PC or Macintosh computer to the plasma monitor. For Macintosh, use the monitor adapter to connect to your computer’s video port.

5. Turn on the plasma monitor and the computer.

6. If the plasma monitor goes blank after a period of inactivity, it may be caused by a screen saver installed on the computer you’ve connected to the plasma monitor .

When using a Macintosh with the plasma monitor, the following four display standards are supported using the Macintosh adapter :

13" fixed mode 16" fixed mode 19" fixed mode

21" fixed mode The 13" fixed mode is recommended for your 42Wide VGA, and the 19" fixed mode is recommended for your 42XGA.

Connections with Equipment that has a Digital Interface

Connections can be made with equipment that is equipped with a digital interface compliant with the DVI (Digital Visual Interface) standard. * Use a DVI 29-pin signal cable and the ferrite cores

(supplied) when making connections to the RGB3 IN (DVI) connector of the main unit. Note that the RGB3 IN(DVI) terminal does not support analog RGB input source.

Note:

1. Input TMDS signals conforming to DVI standards. The TMDS input corresponds to 1 link.

2. To maintain display quality, use a cable with a quality

prescribed by DVI standar ds that is within 5 meters in length.

Note:

for more information about your camera’s video output requir ements.

Refer to your document camera owner’ s manual

Connecting Your VCR or Laser Disc Player

Use common RCA cables (not provided) to connect your VCR or laser disc player to your plasma monitor. T o make these connections, simply:

1. Turn off the power to your plasma monitor and VCR or laser disc player.

3. Turn on the plasma monitor and the VCR or laser disc player.

Note:

manual for more information about your equipment’s video output requir ements.

Refer to your VCR or laser disc player owner’s

Connecting Your DVD Player

You can connect your plasma monitor to a DVD player. To do so, simply:

1. Turn off the power to your plasma monitor and DVD player.

3. Turn on the plasma monitor and the DVD player.

E-9

Attachable Speaker Connections

AC IN

RIGHT LEFT

SPEAKERS MUST

HAVE MORE THAN

RIGHT LEFT

7WATT RATING

IMPEDANCE 6 OHM

(

Digital RGB

VIDEO 1

VIDEO 2

)

L ( MONO

CB/P

CR/P

)

L ( MONO

AUDIO 2 DVD1/HD1AUDIO 3 AUDIO 1RGB2/DVD2/ HD2

RGB 1

R/CR/P

G/Y /VIDEO 3

B/CB/P

)

L ( MONO

CONTROL LOCK

RGB 3

)

ON /OFF

REMOTE CONTROL

EXTERNAL CONTROL

Attachable speakers (option) may be connected to the plasma monitor to reproduce sound from VIDEO, DVD or RGB signal sources.

Attachable speakers may be connected directly to the SPEAKERS terminals or indirectly by connecting a stereo system amplifier to the audio outputs.

CAUTION:

Unplug the plasma monitor and all connected components before connecting external speakers. Use only speakers with 6-ohm impedance and a power input rating of 7 watts or more.

To connect attachable speakers directly to the plasma monitor:

1. Strip the ends of the speaker wires.

2. Press up the tabs below the SPEAKERS terminals, insert the speaker wire and release the tab to secure the speaker wire connection:

[a] Connect the right speaker (located at right side

of the monitor when viewed from the front) positive (+) wire to RIGHT +.

[b] Connect the right speaker negative (–) wire to

RIGHT –.

[c] Connect the left speaker negative (–) wire to

LEFT–.

[d] Connect the left speaker positive (+) wire to

LEFT+.

E-10

Pin Assignments and Signal Levels for 15 pin RGB (Analog)

5 4 3 2 1

10 9 8 7 6

15 14 13 12 11

Pin No.

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

Signal (Analog)

Pin Configuration and Signal of the RGB 3 IN Connector (DVI Connector)

The unit is equipped with a type of connector commonly used for both analog and digital. (Functionally, this cannot be used for an analog input.) (TMDS can be used for one link only.)

RGB 3

8 25 26

27 28

Pin No.

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

Signal (Digital)

E-11

Basic Operations

POWER

To turn the unit ON and OFF:

1. Plug the power cord into an active AC power outlet.

2. Press the POWER ON button (on the remote control) to turn on the unit.

The monitor’s POWER/ST ANDBY indicator will light up (green) when the unit is on.

3. Press the POWER OFF button (on the remote control or the unit) to turn off the unit.

The monitor’s POWER/ST ANDBY indicator turns red and the standby mode is set (only when turning off the unit with the remote control).

VOLUME

To adjust the sound volume:

1. Press and hold the VOLUME button (on the remote control or the unit) to increase sound output to the desired level.

2. Press and hold the VOLUME control or the unit) to decrease to the desired level.

button (on the remote

DIGITAL ZOOM

Digital zoom specifies the picture position and enlarges the picture.

1. Press the POINTER button to display the pointer. (

To change the size of the picture:

Press the ZOOM+ button and enlarge the picture. The pointer will change to resemble a magnifying glass. ( A press of the ZOOM- button will reduce the picture and return it to its original size.

To change the picture position:

Select the position with the ▲▼

2. Press the POINTER button to delete the pointer.

)

 

buttons.

)

MUTE

To cancel the sound:

Press the MUTE button on the remote control to cancel the sound; press again to restore.

DISPLAY

To check the settings:

1. The screen changes each time the DISPLAY button is pressed.

2. If the button is not pressed for approximately three seconds, the indication will disappear.

E-12

OFF TIMER

To set the off timer:

The off timer can be set to turn the power off after 30, 60, 90 or 120 minutes.

To cancel the off timer:

1. Press the OFF TIMER button twice in a row.

2. The off timer is canceled.

1. Press the OFF TIMER button to start the timer at 30 minutes.

2. Press the OFF TIMER button to the desired time.

3. The timer starts when the menu turns off.

→ 30 → 60 → 90 → 120 → 0

OFF TIMER 30

To check the remaining time:

1. Once the off timer has been set, press the OFF TIMER button once.

2. The remaining time is displayed, then turns off after a few seconds.

OFF TIMER 0

Note:

3. When five minutes remain the remaining time appears until it reaches zero.

OFF TIMER 28

E-13

WIDE Operations

Watching with a wide screen

With this function, you can select one of four screen sizes.

When watching videos or digital video discs

1. Press the WIDE button on the remote control.

2. Within 3 seconds ... Press the WIDE button again. The screen size switches as follows:

→ ZOOM → NORMAL → FULL → ST ADIUM

ZOOM size screen

The picture is expanded in the horizontal and vertical direction, maintaining the original proportions. * Use this for theater size (wide) movies, etc.

(manual)

ST ADIUM size screen

The picture is expanded in the horizontal and vertical directions at different ratios. * Use this for watching normal video programs (4:3) with a

wide screen.

When watching high definition video source

1. Press the WIDE button on the remote control.

FULL size screen (16 : 9)

NORMAL size screen (4:3)

The normal size screen is displayed. * The picture has the same size as video pictures with a

4 : 3 aspect ratio.

FULL size screen

The image is expanded in the horizontal direction. * Images compressed in the horizontal direction (“squeezed

images”) are expanded in the horizontal direction and displayed on the entire screen. (Normal images are expanded in the horizontal direction.)

The full size screen is displayed. * The picture has the same size as video pictures (16 : 9).

E-14

Watching computer images with a wide screen

Switch to the wide screen mode to expand the 4 : 3 image to fill the entire screen.

1.Press the WIDE button on the remote control.

2.Within 3 seconds ...

Press the WIDE button again. The screen size switches as follows:

→ NORMAL → FULL

NORMAL size screen (4:3 or SXGA 5:4)

The picture has the same size as the normal computer image.

FULL size screen

Information

 Supported resolution

See page E-53 for details on the display output of the various VESA signal standards supported by the monitor.

 When 852 (848) dot  480 line wide VGA* signals with a vertical frequency of 60 Hz and horizontal frequency of 31.7 (31.0) kHz are input

Select an appropriate setting for RGB SELECT mode referring to the“Table of Signals Supported” on page E-53.

* “ IBM PC/AT” and “VGA” are registered trademarks

of IBM, Inc. of the United States.

The image is expanded in the horizontal direction.

When wide signals are input.

FULL size screen

E-15

OSM(On Screen Menu) Controls

Menu Operations

The OSM window is displayed with respect to the screen as shown on the diagram.

* Depending on the screen’s mode, the OSM may be

displayed differently. In the explanation, the OSM section is shown close up.

MAIN MENU PICTURE SOUND SCREEN FUNCTION OPTIONS INFORMATION

SEL. OK EXIT

EXITPROCEED

The following describes how to use the menus and the selected items.

1. Press the PROCEED button on the remote control to display the MAIN MENU.

MAIN MENU PICTURE SOUND SCREEN FUNCTION OPTIONS INFORMATION

5. The adjustment or the setting which you stored is remained. The change is stored until you change it again.

6. Repeat steps 2 – 5 to adjust an additional item, or press the EXIT button on the remote control to return to the main menu.

Note:

The main menu disappears by pressing the EXIT

button.

SEL. OK EXIT

EXITPROCEED

2. Press the cursor buttons ▲ ▼ on the remote control to

highlight the menu you wish to enter.

3. Press the PROCEED button on the remote control to select a submenu or item.

PICTURE CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP . NR

SEL. ADJ. RETURN

: MEMORY : 2 : OFF

EXIT

4. Adjust the level or change the setting of the selected item by using the cursor buttons

 

on the remote

control.

E-16

Main menu Sub menu Functions Default Reset

PICTURE CONTRAST Adjusts the contrast. Center Yes

image software. COLOR TEMP Adjusts the color temperature and white balance. 2 Yes NR Reduces noise visible in image. OFF Yes

Main menu Sub menu Functions Default Reset

SOUND BASS Sets the bass. Center Yes

TREBLE Sets the treble. Center Yes BALANCE Sets the left/right balance. Center Yes

Main menu Sub menu Functions Default Reset

SCREEN V-POSITION Adjusts the vertical position. Center Yes

H-POSITION Adjusts the horizontal position. Center Yes V-HEIGHT Adjusts the vertical size. Min Yes H-WIDTH Adjusts the horizontal size. Min Yes

AUTO PICTURE Turn this on to have the monitor automatically adjust “FINE PICTURE” OFF*

and “PICTURE ADJ”.

FINE PICTURE Adjusts for flickering on the computer image. Min* PICTURE ADJ. Adjusts for striped patterns on the computer image. Center*

Yes

Main menu Sub menu Functions Default Reset

FUNCTION OSM

Turns the on-screen menu (screen mode, etc.) off (when set to “OFF”).

ON Yes

terminal is distorted. LONG LIFE Sets the picture to reduce burn-in of the display. *

Yes

RESET Resets all the settings (PICTURE, SOUND, SCREEN, FUNCTION, — —

etc.) to the factory default values.

Main menu Sub menu Functions Default Reset

OPTIONS AUDIO INPUT Sets the allocation of the audio connectors. *

Yes BNC SELECT Sets the BNC connectors. RGB Yes RGB SELECT Sets the appropriate mode for the computer image. AUTO Yes

RGB (VGA signals), VIDEO (Moving picture), WIDE (WIDE VGA) DTV.

HD SELECT

Sets the digital broadcasting (1080A,1080B) or the High Vision (1035I).

1080B No

Main menu Sub menu Functions Default Reset

INFORMATION FREQUENCY Used to check the frequency and synchronizing polarities of the signal — —

currently being inputted.

LANGUAGE Sets the language of the menus (Japanese, English, German, French, English No

Swedish, Italian or Spanish).

COLOR SYSTEM Sets the VIDEO format (AUTO1, AUTO2, PAL, PAL-M, PAL-N, PAL60, AUTO1 No

SECAM, 4.43 NTSC or 3.58 NTSC).

*1 RGB/PC only. *2 PLE: AUTO ORBITER: OFF INVERSE: OFF SCREEN WIPER: OFF *3 AUDIO1: VIDEO1 AUDIO2: HD/DVD1 AUDIO3: RGB1

E-17

Picture Settings Menu

Adjusting the picture

The contrast, brightness, sharpness, color and tint can be adjusted as desired.

4. Once the adjustment is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once

more.

Example: Adjusting the contrast

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the PROCEED button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “CONTRAST”.

PICTURE CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP . NR

SEL. ADJ. RETURN

: MEMORY : 2 : OFF

EXIT

3. Use the  and  buttons to adjust the contrast.

Note:

If “CAN NOT ADJUST” appears ... When trying to enter the PICTURE submenu, make sure PICTURE MODE is set to MEMORY.

Information

 Picture adjustment screen

CONTRAST ....Changes the picture’s contrast.

BRIGHTNESS. Changes the picture’s brightness. SHARPNESS .. Changes the picture’s sharpness.

Adjusts picture detail of VIDEO display.

COLOR ...........Changes the color density.

TINT ................Changes the picture’s tint. Adjust for

natural colored skin, background, etc.

 Adjusting the computer image

Only the contrast and brightness can be adjusted when a computer signal is connected.

 Restoring the factory default settings

Select “RESET” under the “PICTURE MODE” settings.

CONTRAST

* If neither the  or  button is pressed within 5 seconds,

the current setting is set and the previous screen reappears.

E-18

Setting the picture mode according to the brightness of the room

There are four picture modes that can be used effectively according to the environment in which you are viewing the display.

Example: Setting the “THEATER” mode

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the PROCEED button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “PICTURE MODE”.

PICTURE CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP . NR

SEL. ADJ. RETURN

: MEMORY : 2 : OFF

EXIT

4. Once the adjustment is completed ... Press the EXIT button to return to the main menu. To

delete the main menu, press the EXIT button once more.

Information

 T ypes of picture modes

MEMORY ........The last picture adjustments are stored

here.

THEA TER ........Set this mode when watching video in

a dark room. This mode provides darker, finer pictures, like the screen in movie theaters. CONTRAST = 80% for RESET mode BRIGHTNESS = 95% for RESET mode

NORMAL .........Set this mode when watching video in

a bright room. This mode provides dynamic pictures with distinct differences between light and dark sections. CONTRAST = 96% for RESET mode

RESET ............Use this to reset the picture to the

factory default settings.

3. To set to “THEATER” ... Use the The mode switches as follows when the



and  buttons to select “THEATER”.



and

buttons are pressed:

→ MEMORY ↔ THEATER ↔ NORMAL ↔ RESET ←

PICTURE MODE

THEATER:

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.



E-19

Setting the color temperature

Use this procedure to set color tone produced by the plasma display.

Example: Setting “1”

4. Once the setting is completed... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once

more.

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the PROCEED button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “COLOR TEMP.”.

PICTURE CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP . NR

SEL. ADJ. RETURN

: MEMORY : 2 : OFF

EXIT

3. Use the  and  buttons to select “1”. The mode switches as follows when the



and



buttons are pressed:

→ 1 ↔ 2 ↔ 3 ↔ PRO ←

Information

 Setting the color temperature

1 ......................High (bluer)

2......................... Middle (Standard)

3 ......................Low (redder)

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

* See page E-21 to set “PRO”.

COLOR TEMP .

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.

E-20

Adjusting the color to the desired quality

Use this procedure to adjust the white balance for bright pictures and dark pictures to achieve the desired color quality.

Example: Adjusting the “WHITE BALANCE”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then press the PROCEED button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “COLOR TEMP.”.

PICTURE CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP . NR

SEL. ADJ. RETURN

: MEMORY : 2 : OFF

EXIT

4. Press the PROCEED button. The “WHITE BALANCE” screen appears.

5. Use the ▲ and ▼ buttons to select “RED-GAIN”.

WHITE BALANC

GAIN RED GREEN BLUE BIAS RED GREEN BLUE

SEL. ADJ. RETURN

EXIT

6. Adjust the white balance using the  and  buttons.

RED

* If neither the  or  button is pressed within 5 seconds,

the current setting is set and the previous screen reappears.

3. Use the  and  buttons to select “PRO”. The mode switches as follows when the



and



buttons are pressed:

→ 1 ↔ 2 ↔ 3 ↔ PRO ←

PRO:COLOR TEMP .

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.

7. Once the adjustment is completed... Press the EXIT button several times to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 Adjusting the white balance

RGB-GAIN.......White balance adjustment for signal

level

RGB-BIAS.......White balance adjustment for black

level

 Restoring the factory default settings Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

E-21

Reducing noise in the picture

Use these settings if the picture has noise due to poor reception or when playing video tapes on which the picture quality is poor.

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Example: Setting “NR-3”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the PROCEED button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “NR”.

PICTURE CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP . NR

SEL. ADJ. RETURN

: MEMORY : 2 : OFF

EXIT

3. Use the  and  buttons to select “NR-3”. The mode switches as follows when the



and



buttons are pressed:

→ OFF ↔ NR-1 ↔ NR-2 ↔ NR-3 ←

Information

 NR

* “NR” stands for Noise Reduction. * This function reduces noise in the picture.

 T ypes of noise reduction

There are three types of noise reduction. Each has a different level of noise reduction. The effect becomes stronger as the number increases (in the order NR-1 → NR-2 → NR-3).

OFF ...............Turns the noise reduction function off.

NR-3

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.

E-22

Sound Settings Menu

Adjusting the treble, bass and left/right balance

The treble, bass and left/right balance can be adjusted to suit your tastes.

Example: Adjusting the bass

To continue adjusting the sound ...

Repeat from step 2.

4. Once the adjustment is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Note:

If “CAN NOT ADJUST” appears...

Set “AUDIO INPUT” on the OPTION menu correctly.

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “SOUND”, then

press the PROCEED button. The “SOUND” screen appears.

2. To adjust the bass ...

Use the ▲ and ▼ buttons to select “BASS”.

SOUND

BASS TREBLE BALANCE

SEL. ADJ. RETURN

EXIT

3. Adjust the bass using the  and  buttons.

SOUND

BASS TREBLE BALANCE

Information

 Sound settings menu

BASS ..............Controls the level of low frequency

sound.

TREBLE ..........Controls the level of high frequency

sound.

BALANCE .......Controls the balance of the left and

right channels.

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

SEL. ADJ. RETURN

EXIT

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.

E-23

Screen Settings Menu

Adjusting the Position, Size, Fine Picture, Picture Adj

The position of the image can be adjusted and flickering of the image can be corrected.

Example: Adjusting the vertical position in the normal mode

3. Adjust using the  and  buttons.

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “SCREEN”, then

press the PROCEED button. The “SCREEN” menu appears.

Default settings (when RGB/PC is selected)

SCREEN

MODE V–POSITION H–POSITION V–HEIGHT H–WIDTH AUTO PICTURE FINE PICTURE PICTURE ADJ.

SEL. ADJ. RETURN

: NORMAL

: OFF

EXIT

* The settings on the SCREEN menu are not preset at the

factory.

To select a mode ...

Use the The mode switches as follows when the



and  buttons to select a mode.



and



buttons are pressed:

→ NORMAL ↔ FULL ←

* The mode can also be switched by pressing the “WIDE”

button on the remote control.

2. To adjust the vertical position ...

Use the ▲ and ▼ buttons to select “V-POSITION”.

V–POSITION

* If neither the  or  button is pressed within 5 seconds,

the current setting is set and the previous screen reappears.

To continue making other computer image adjustments ...

Repeat from step 2.

4. Once all adjustments are completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 When “AUTO PICTURE” is “OFF”

SCREEN

MODE V–POSITION H–POSITION V–HEIGHT H–WIDTH AUTO PICTURE FINE PICTURE PICTURE ADJ.

SEL. ADJ. RETURN

: FULL

: OFF

EXIT

When Auto Picture is off, the Fine Picture and the Picture ADJ items are displayed so that you can adjust them.

SCREEN

MODE V–POSITION H–POSITION V–HEIGHT H–WIDTH AUTO PICTURE FINE PICTURE PICTURE ADJ.

SEL. ADJ. RETURN

: NORMAL

: OFF

EXIT

E-24

Information

 Adjusting the Auto Picture

ON...................The Picture ADJ and Fine Picture

adjustments are made automatically.

OFF .................The Picture ADJ and Fine Picture

adjustments are made manually.

 Adjusting the position of the image

V-POSITION ...Adjusts the vertical position of the

image.

H-POSITION ... Adjusts the horizontal position of the

image.

V-HEIGHT.......Adjusts the vertical size of the image.

(Except for STADIUM mode)

H-WIDTH .........Adjusts the horizontal size of the

image. (Except for ST ADIUM mode)

FINE PICTURE

PICTURE ADJ*....

*.. Adjusts for flickering.

Adjusts for striped patterns on the image.

* The Picture ADJ and Fine Picture features are available

only when the “Auto Picture” is off.

* The AUTO PICTURE, FINE PICTURE and PICTURE

ADJ. are not available for VIDEO and HD/ DVD source.

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults except for Auto Picture.

Function Settings Menu

Setting the on-screen menu

When using the monitor for presentations, etc., the monitor can be set so that the input source, screen mode, etc., do not appear.

Example: Turning the on-screen menu mode of f

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then press the PROCEED button. The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “OSM”.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

3. To turn the on-screen menu mode off ... Use the



and  buttons to select “OFF”. The mode switches as follows each time the button is pressed:

ON ↔ OFF

: ON : 1 : OFF : 3 : ON : 1

EXIT





FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

: OFF : 1 : OFF : 3 : ON : 1

EXIT

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 OSM modes

ON...................The on-screen menu appears.

OFF .................The on-screen menu does not appear.

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

E-25

Adjusting the position of the menu display

Use these operations to adjust the position of the menus that appear on the screen.

Example: Adjusting the position of the menu display

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”,

then press the PROCEED button. The “FUNCTION” menu appears.

2. Use the ▲ and ▼ buttons to select “OSM ADJ.”

3. To adjust the position... Adjust using the

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN



and  buttons.

FUNCTION

: ON : 2 : OFF : 3 : ON : 1

EXIT

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ.

: ON : 1 : OFF : 3 : ON

: 1 LONG LIFE RESET

SEL. ADJ. RETURN

FUNCTION

: ON

OSM

: 1

OSM ADJ.

: OFF

POWER MGT

: 3

GRAY LEVEL

: ON

CINEMA MODE

: 1

RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

EXIT

FUNCTION

: ON

OSM

: 2

OSM ADJ.

: OFF

POWER MGT

: 3

GRAY LEVEL

: ON

CINEMA MODE

: 1

RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

EXIT

4. Once all adjustments are completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 Adjusting the position of the menu display

The position can be set

123

between 1 and 6.

456

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

E-26

Setting the power management for computer images

This energy-saving (power management) function automatically reduces the monitor’s power consumption if no operation is performed for a certain amount of time.

Example: Turning the power management function on

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then

press the PROCEED button. The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “POWER MGT”.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

: ON : 1 : OFF : 3 : ON : 1

EXIT

3. To turn the power management function on ... Use the The mode switches as follows each time the



and  buttons to select “ON”.





button is pressed:

ON ↔ OFF

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

: ON : 1 : ON : 3 : ON : 1

EXIT

Information

 Power management function

* The power management function automatically reduces

* If the computer’s power is not turned on or if the

computer and selector tuner are not properly connected, the system is set to the off state.

* For instructions on using the computer’s power

management function, refer to the computer’s operating instructions.

 Power management settings

ON...................In this mode the power management

function is turned on.

OFF .................In this mode the power management

function is turned off.

 Power management function and POWER/ STANDBY indicator

The POWER/ST ANDBY indicator indicates the status of the power management function. See page E-28 for indicator status and description.

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

E-27

POWER/ST ANDBY indicator

Power management

mode

Standby

Suspend

Off

POWER/STANDBY

indicator

Green

Orange

Red

Power management

operating status

Not activated.

Activated.

Horizontal and vertical synchronizing signals are present from the computer.

No horizontal synchronizing signals are sent from the computer.

No vertical synchronizing signals are sent from the computer.

No horizontal and vertical synchronizing signals are sent from the computer.

Description

Turning the picture back on

Picture already on.

Operate the keyboard or mouse. The picture reappears immediately.

Operate the keyboard or mouse. The picture reappears, but more time is required than from the standby mode.

Operate the keyboard or mouse. The picture reappears, but more time is required than from the standby mode or suspend mode.

E-28

Setting the gray level for the sides of the screen

Use this procedure to set the gray level for the parts on the screen on which nothing is displayed when the screen is set to the 4:3 size.

Example: Adjusting the “GRAY LEVEL”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

Setting the picture to suit the movie

Example: Setting the “CINEMA MODE” to “OFF”

Press the PROCEED button on the r emote control unit to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then press the PROCEED button.

The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “GRAY LEVEL”.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

: ON : 1 : OFF : 3 : ON : 1

EXIT

3. To adjust the “GRAY LEVEL”... Use the



and  buttons to adjust the GRAY LEVEL.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

: ON : 1 : OFF : 9 : ON : 1

EXIT

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 GRAY LEVEL

This adjusts the brightness of the black (the gray level) for the sides of the screen. The standard is 0 (black). The level can be adjusted from 0 to 15. The factory setting is 3 (dark gray).

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then

press the PROCEED button. The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “CINEMA MODE”.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

: ON : 1 : OFF : 3 : ON : 1

EXIT

3. To set the CINEMA MODE to “OFF” ... Use the The mode switches as follows each time the



and  buttons to select “OFF”.



button is pressed:

→ ON ↔ OFF ←

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

: ON : 1 : OFF : 3 : OFF : 1

EXIT

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 CINEMA MODE

ON...................Automatic discrimination of the

image and projection in cinema mode.

OFF...................Cinema mode does not function.

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.



E-29

Setting RGB3 ADJ.

When the picture input from the RGB3 input terminal is distorted, select the most appropriate setting from among “1”, “2”, and “3”.

Reducing burn-in of the screen

The brightness of the screen, the position of the picture, positive/negative mode and screen wiper are adjusted to reduce burn-in of the screen.

Example: Setting “2”

Press the PROCEED button on the remote control to display MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”,

then press the PROCEED button. The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “RGB3 ADJ.”.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

: ON : 1 : OFF : 3 : ON : 1

EXIT

3. To select “2”... Use the The mode switches as follows each time the

 and  buttons to select “2”.

 or 

buton is pressed:

→ 1 ↔ 2 ↔ 3 ←

Example: Setting “PLE” to “LOCK”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then proceed as follows.

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then

press the PROCEED button. The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “LONG LIFE”, then

press the PROCEED button.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL.

PROCEED

: ON : 1 : OFF : 3 : ON : 1

EXIT

RETURN

The “LONG LIFE” screen appears.

3. Use the ▲ and ▼ buttons to select “PLE”.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

: ON : 1 : OFF : 3 : ON : 2

EXIT

4. Once the setting is completed... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 When you adjust the RGB3 ADJ.

The position of the menu display will change. In such a case, be sure to adjust the position.

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

LONG LIFE

PLE ORBITER INVERSE SCREEN WIPER

SEL. ADJ. RETURN

: AUTO : OFF : OFF : OFF

EXIT

4. Use the  and  buttons to select “LOCK”. The mode switches as follows each time the button is pressed:

AUTO ↔ LOCK

LONG LIFE

PLE ORBITER INVERSE SCREEN WIPER

SEL. ADJ. RETURN

: LOCK : OFF : OFF : OFF

EXIT





E-30

Nec PLASMASYNC PX-42VM3A, PLASMASYNC PX-42MP4, PX-42XM1A, PLASMASYNC PX-42XM1A, PLASMASYNC PX-42MP3 user Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

How to Attach Options to the Plasma Monitor

Part Names and Function

Front View

Rear View/ Terminal Board

Remote Control

Battery Installation and Replacement

Using the wired remote control mode

Operating Range

Handling the remote control

Installation

Connecting Your PC or Macintosh Computer

Connecting Your Document Camera

Connecting Your VCR or Laser Disc Player

Connections with Equipment that has a Digital Interface

Connecting Your DVD Player

Attachable Speaker Connections

Pin Assignments and Signal Levels for 15 pin RGB (Analog)

Pin Configuration and Signal of the RGB 3 IN Connector (DVI Connector)

Basic Operations

POWER

To turn the unit ON and OFF:

VOLUME

To adjust the sound volume:

DIGITAL ZOOM

MUTE

To cancel the sound:

DISPLAY

To check the settings:

OFF TIMER

To set the off timer:

To cancel the off timer:

To check the remaining time:

WIDE Operations

When watching videos or digital video discs

When watching high definition video source

Watching computer images with a wide screen

Menu Operations

Picture Settings Menu

Adjusting the picture

Setting the picture mode according to the brightness of the room

Setting the color temperature

Adjusting the color to the desired quality

Reducing noise in the picture

Sound Settings Menu

Adjusting the treble, bass and left/right balance

Screen Settings Menu

Adjusting the Position, Size, Fine Picture, Picture Adj

Function Settings Menu

Setting the on-screen menu

Adjusting the position of the menu display

Setting the power management for computer images

POWER/ST ANDBY indicator

Setting the gray level for the sides of the screen

Setting the picture to suit the movie

Reducing burn-in of the screen

Resetting to the default values

Options Settings Menu

Setting the allocation of the audio connectors

Setting the BNC connectors

Setting a computer image to the correct RGB select screen

Setting high definition images to the suitable screen size

Information Menu

Checking the frequencies, polarities of input signals, and resolution

Setting the language for the menus

Setting the video signal format

External Control

Table of Signals Supported

Supported resolution

Troubleshooting

Specifications

PX-42XM1G

How to Attach Options to the Plasma Monitor

Introduction

Introduction to the Plasma Monitor

Contents of the Package

Options
