PlasmaSync Plasma Monitor
User’s Manual
NEC Technologies
Important Information
Precautions
Please read this manual carefully before using your NEC
plasma monitor and keep the manual handy for future reference.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO PREVENT FIRE OR SHOCK HAZARDS , DO NOT EXPOSE
THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE
THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD
RECEPT A CLE OR OTHER OUTLETS, UNLESS THE PRONGS
CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE
CABINET AS THERE ARE HIGH-VOLTAGE COMPONENTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to P art 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at
his own expense.
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER. NO
USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
This symbol warns the user that uninsulated
voltage within the unit may have suf f icient
magnitude to cause electric shock. Therefore, it is dangerous to make any kind of
contact with any part inside of this unit.
This symbol alerts the user that important
literature concerning the operation and
maintenance of this unit has been included.
Therefore, it should be read carefully in
order to avoid any problems.
WARNING
Warnings and Safety Precaution
The NEC plasma monitor is designed and manufactured to provide long, trouble-free service. No maintenance other than cleaning is required. Use a soft
dry cloth to clean the panel. Ne ver use solv ents such
as alcohol or thinner to clean the panel surface.
The plasma display panel consists of fine picture elements (cells). Although NEC produces the plasma display panels with more than 99.99 percent active cells ,
there may be some cells that do not produce light or
remain lit.
For operating saf ety and to av oid damage to the unit,
read carefully and observe the following instructions.
To avoid shock and fire hazards:
1. Provide adequate space for ventilation to avoid internal heat build-up. Do not cover rear vents or install in a
closed cabinet or shelves.
The unit is equipped with cooling fans. If you install
the unit in an enclosure, be sure there is adequate space
at the top of the unit to allow hot air to rise and escape.
If the monitor becomes too hot, the overheat protector
will be activated and the monitor will be turned off. If
this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is
installed is particularly hot, move the monitor to a cooler
location, and wait for the monitor to cool for 60 minutes. If the problem persists, contact your NEC dealer
for service.
2. Do not use the power cord polarized plug with extension cords or outlets unless the prongs can be completely
inserted.
3. Do not expose unit to water or moisture.
4. Av oid damage to the power cord, and do not attempt to
modify the power cord.
5. Unplug unit during electrical storms or if unit will not
be used over a long period.
6. Do not open the cabinet which has potentially dangerous high voltage components inside. If the unit is damaged in this way the warranty will be void. Moreover,
there is a serious risk of electric shock.
7. Do not attempt to service or repair the unit. NEC is not
liable for any bodily harm or damage caused if unqualified persons attempt service or open the back cover.
Refer all service to authorized NEC Service Centers.
NOTE:
When you connect a computer to this monitor, attach
the supplied ferrite cores. If you do not do this, this
monitor will not comform to mandatory FCC standards.
Attaching the ferrite cores.
Set the ferrite cores on the both ends of the DVI cable
(not supplied), and the one end of the power cable (supplied).
Close the lid tightly until the clamps click.
Use the band to secure the ferrite core (supplied).
DVI cable (not supplied)
band
core (small)
band
Connector
core (small)
Recommendations to avoid or minimize phosphor b urn-in
Like all phosphor-based display devices and all other gas
plasma displays, plasma monitors can be susceptible to
phosphor burn under certain circumstances. Certain
operating conditions, such as the continuous display of a
static image over a prolonged period of time, can result in
phosphor burn if proper precautions are not taken. To protect your investment in this NEC plasma monitor, please
adhere to the following guidelines and recommendations
for minimizing the occurrence of image burn:
* Always enable and use your computer's screen saver
function during use with a computer input source.
* Display a moving image whenever possible.
* Always power do wn the monitor when you are finished
using it.
Power cable (supplied)
core (large)
band
(Plasma Monitor side)
Set side
To avoid damage and prolong operating life:
1. Use only with 120V 50/60Hz AC power supply. Continued operation at line voltages greater than 120 Volts
AC will shorten the life of the unit, and might even
cause a fire hazard.
2. Handle the unit carefully when installing it and do not
drop.
3. Locate set away from heat, excessive dust, and direct
sunlight.
4. Protect the inside of the unit from liquids and small
metal objects. In case of accident, unplug the unit and
have it serviced by an authorized NEC Service Center .
5. Do not hit or scratch the panel surface as this causes
flaws on the surface of the screen.
6. For correct installation and mounting it is strongly recommended to use a trained,authorized NEC dealer.
7. As is the case with any phosphor-based display (like a
CRT monitor, for example) light output will gradually
decrease over the life of a Plasma Display Panel.
If the plasma monitor is in long term use or continuous
operation take the following measures to reduce the
likelihood of phosphor burn:
* Lower the Brightness and Contrast levels as much as
possible without impairing image readability.
* Display an image with many colors and color gradations
(ie. photographic or photo-realistic images).
* Create image content with minimal contrast between light
and dark areas, for example white characters on black
backgrounds. Use complementary or pastel color whenever possible.
* Avoid displaying images with few colors and distinct,
sharply defined borders between colors.
Contact NEC Technologies at 1-800-836-0655 for other
recommended procedures that will best suit your particular application needs.
Précautions
V euillez lire ce manuel a vec attention a vant d'utiliser v otre
moniteur PlasmaSync NEC et conserver ce manuel à portée
de la main pour une consultation ultérieure.
ATTENTION
RISQUE D’ELECTROCUTION
NE PAS OUVRIR
MISE EN GARDE: AFIN DE REDUIRE LES RISQUES D’ELECTRO-
CUTION, NE P AS DEPOSER LE COUVERCLE, IL N’Y
A AUCUNE PIECE UTILISABLE A L’INTERIEUR DE
CET APPAREIL. NE CONFIER LES TRAVAUX
D’ENTRETIEN QU’A UN PERSONNEL QUALIFIE.
Ce symbole a pour but de prévenir l’utilisateur de la
présence d’une tension dangereuse, non isolée se trouvant
à l’intérieur de l’appareil. Elle est d’une intensité suffisante
pour constituer un risque d’électrocution. Eviter le contact avec les pièces à l’intérieur de cet appareil.
Ce symbole a pour but de prévenir l’utilisateur de la
présence d’importantes instructions concernant l’entretien
et le fonctionnement de cet appareil. Par conséquent, elles
doivent être lues attentiv ement afin d’éviter des problèmes.
A VERTISSEMENT
AFIN DE REDUIRE LES RISQUES D’INCENDIE OU
D’ELECTROCUTION, NE PAS EXPOSER CET APPAREIL A LA
PLUIE OU A L’HUMIDITE. AUSSI, NE PAS UTILISER LA FICHE
POLARISEE AVEC UN PR OLONGA TEUR OU UNE A UTRE PRISE
DE COURANT SAUF SI CES LAMES PEUVENT ETRE INSEREES
A FOND. NE PAS OUVRIR LE COFFRET, DES COMPOSANTS
HAUTE TENSION SE TROUVENT A L’INTERIEUR. LAISSER A
UN PERSONNEL QUALIFIE LE SOIN DE REPARER CET
APPAREIL.
DOC avis de conformation
Cet appareil numérigue de la classe A respecte toutes les exigences du Réglement sur le Matériel Brouilleur du Canada.
Mises en garde et précautions de
sécurité
Le moniteur PlasmaSync NEC a été conçu et fabriqué
pour une utilisation fiable et durable. Il ne nécessite
aucun entretien en dehors du nettoyage. Utiliser un
chiffon doux et sec pour nettoy er la surface de l'écran.
Ne jamais utiliser de solvant comme l'alcool ou le
diluant. Le panneau à affichage plasma est constitué
de fines particules d'images ou pixels (cellules). Bien
que NEC produise des panneaux à affichage plasma
avec plus de 99,99 % de cellules actives, il peut y
avoir des cellules qui ne produisent pas de lumière
ou qui restent allumées.
Pour des raisons de sécurité et pour éviter
d'endommager l'appareil, lire attentivement les instructions suivantes.
Pour éviter les risques d'éléctrocution et d'incendie:
1. Laisser suffisament d'espace autour de l'appareil pour
la ventilation et éviter toute augmentation excessi ve de
la température interne. Ne pas couvrir les évents ou
l'installer dans un endroit trop exigu.
L'appareil est équipé de ventilateurs de refroidissement.
Si vous installez l'appareil dans un espace clos, assurezvous qu'il y ait suffisamment d'espace au dessus pour
permettre à l'air chaud de s'élever et de s'évacuer.
Si la température du moniteur devient excessiv e, la protection contre les surchauffes entrera en action et
coupera l'alimentation. Dans ce cas, éteindre l'appareil
et débrancher le câble d'alimentation. Si la température
de la pièce dans laquelle le moniteur est installé est
particulièrement excessive, déplacer l'appareil dans un
endroit plus frais et le laisser refroidir 60 minutes. Si le
problème persiste, prendre contact avec le revendeur
NEC pour le service après-vente.
2. Ne pas utiliser la fiche polarisée du cordon
d’alimentation avec des prolongateurs ou des prises de
courant, sauf si les lames peuvent être insérées à fond.
3. Ne pas exposer à L'eau ou à l’humidité.
4. Eviter d’endommager le cordon d’alimentation, et ne
pas modifier le cordon d’alimentation.
5. Débrancher l’appareil pendant les tempêtes ou si
l’appareil n’est pas utilisé pendant une longue période.
6. Ne pas ouvrir le coffret. Des composants de haute tension se trouvent à l’intérieur. Si l’appareil est
endommagé de cette manière, la garantie devient
caduque. De plus, il y a risque d’électrocution.
7. Ne pas essayer de réparer ou entretenir l’appareil soimême. NEC ne saura être tenu pour responsable pour
toute blessure ou dommage causé par des personnes
non qualifiées qui essayent de réparer ou d’ouvrir le
couvercle arrière. Confier toute réparation à un centre
de service agréé NEC.
REMARQUE:
Lorsque vous branchez un micro-ordinateur sur ce
moniteur, fixez les noyaux en ferrites fournis. Si vous
ne le faîtes, le moniteur ne sera pas en conformité avec
les exigences des standards FCC.
Fixation des noyaux en ferrite.
Installez les noyaux en ferrite sur chaque bout du câble
DVI (non fourni), ainsi que sur un côté du câble
d'alimentation électrique (founi).
Fermez doucement le couvercle jusqu'à ce que les crans
se clipsent.
Utiliser les colliers pour fixer la tore en ferrite (fourni)
Câble DVI (non fourni)
Collier Collier
noyau (petit)
Câble d'alimentation
électrique (fourni)
noyau (petit)
noyau (large)
Côté de l'appareil
(côté du moniteur à plasma)
Connecteur
Collier
Pour éviter des dommages et prolonger la durée de
service de l’appareil:
1. N’utiliser qu’une source d’alimentation de 120 V 50/
60 Hz CA. Le fait d’utiliser l’appareil en continu à des
tensions de ligne supérieures à 120 Volts CA réduit sa
durée de vie et risque de provoquer un incendie.
2. Manipuler l’appareil avec soin pendant son
déplacement et ne pas le faire tomber.
3. Eloigner l’appareil des endroits chauds, très poussiéreux
et exposés en plein soleil.
4. Eviter que des liquides et des petits objets métalliques
pénètrent à l’intérieur de l’appareil. En cas d’accident,
débrancher l’appareil et le confier à un centre de service agréé NEC.
5. Ne pas frapper ou rayer la surface de la écran plasma,
car des défauts risquent de se produire sur la surface de
la écran plasma.
6. Pour effectuer une installation et un montage corrects,
il est recommandé de faire appel au concessionnaire
NEC autorisé et spécialisé.
7. Comme c'est le cas pour tout affichage à base de
phosphore (comme un moniteur CRT, par exemple), la
puissance de lumière baisse graduellement au cours de
la vie du Panneau d'Affichage à Plasma.
Pour éviter le risque de combustion au phosphore, les
mesures suivantes sont recommandées :
Comme tous les appareils d'affichage à base de phosphore
et tous les autres affichages à gaz plasma, les moniteurs
Plasmasync peuvent être sujets à la combustion au
phosphore dans certaines circonsatnces. Certaines conditions d'utilisation, telles que l'affichage continu d'une image statique pour une durée prolongée, peuvent causer des
brûlures au phophore si aucune précaution n'est prise. Pour
protéger votre in vestissement dans ce moniteur PlasmaSync
NEC, veuillez suivre les directi ves et les recommandations
suivantes pour minimiser l'occurence de brûlure d'image :
• Assurez-vous de mettre en marche et d'utliser
l'économisateur d'écran chaque fois que c'est possible
lorsque vous l'utilisez avec une source d'entrée
d'ordinateur.
• Affichez une image en mouvement aussi souvent que
possible.
• Coupez toujours l'alimentation lorsque vous a vez terminé
d'utiliser la moniteur.
Si le moniteur est en usage continu ou longue durée, prenez
les mesures suivantes afin d'éviter l'occurence de
combustion au phosphore :
• Abaissez le niveau de l'image (contraste, luminosité)
autant que possible, sans faire perdre la lisibilité de
l'image.
• Affichez une image avec de nombreuses couleurs et
graduations de couleur (par ex. des images
photographiques ou photo-réalistes).
• Créez un contenu d'image avec un contraste minimal
entre les zones sombres et les zones claires, par exemple,
des caractères blancs sur un fond noir. Utilisez des
couleurs complémentaires ou pastels le plus souvent
possible.
• Évitez d'afficher des images avec peu de couleurs et des
limites nettes et clairement définies entre les couleurs.
Contactez NEC Technologies au 1-800-836-0655 pour
d'autres procédures recommandées qui conviendront le
mieux au besoin de votre appareil.
Limited Warranty Plasma Monitors
NEC T echnologies, Inc. (hereinafter NECTECH) warrants
this product to be free from defects in material and workmanship under the following terms and, subject to the conditions set forth below, agrees to repair or replace (at
NECTECH's sole option) any part of the enclosed unit
which proves defective. Replacement parts or products may
be new or refurbished and will meet specifications of the
original parts or product.
HOW LONG IS THE WARRANTY?
Parts and labor are warranted for (1) One Year from the
date of the first customer purchase.
WHO IS PROTECTED?
This warranty may be enforced only by the first purchaser .
WHA T IS CO VERED AND WHA T IS NOT CO VERED
Except as specified below, this warranty covers all defects
in material or workmanship in this product. The following
are not covered by the warranty:
1. Any product which is not distributed in the U.S.A. or
Canada and Mexico by NECTECH or which is not
purchased in the U.S.A. or Canada or Mexico from an
authorized NECTECH dealer.
2. Any product on which the serial number has been defaced, modified or removed.
3. Damage, deterioration or malfunction resulting from:
a.Accident, misuse, abuse, neglect, fire, water, light-
ning or other acts of nature, unauthorized product
modification, or failure to follow instructions supplied with the product.
b.Repair or attempted repair by anyone not authorized
by NECTECH.
c. Any shipment of the product (claims must be pre-
sented to the carrier).
d.Removal or installation of the product.
e.Any other cause which does not relate to a product
defect.
f. Burns or residual images upon the phosphor of the
panel.
4. Cartons, carrying cases, batteries, external cabinets,
magnetic tapes, or any accessories used in connection
with the product.
5. Service outside of the U.S.A. and Canada.
HOW YOU CAN GET WARRANTY SERVICE
1. To obtain service on your product, consult the dealer
from whom you purchased the product.
2. Whenever warranty service is required, the original
dated invoice (or a copy) must be presented as proof of
warranty coverage. Please also include in any mailing
your name, address and a description of the problem(s).
3. For the name of the nearest NECTECH authorized service center, call NECTECH at 800-836-0655.
LIMITATIONS OF LIABILITY
Except for the obligations specifically set forth in this warranty statement, we will not be liable for any direct, indirect, special, incidental, consequential, or other types of
damages, whether based on contract, tort, or any other legal theory, whether or not we have been advised of the
possibility of such damages.
This warranty is in lieu of all other warranties express or
implied, including, but not limited to, the implied warranties of merchantability or fitness for a particular purpose.
EXCLUSION OF DAMAGES
NECTECH' s liability for any defective product is limited
to the repair or replacement of the product at our option.
NECTECH shall not be liable for:
1. Damage to other property caused by any defects in this
product, damages based upon inconvenience, loss of
use of the product, loss of time, commercial loss; or
2. Any other damages whether incidental, consequential
or otherwise. Some states do not allow limitation on
how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.
HOW STATE LAW RELATES TO THE WARRANTY
This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
FOR MORE INFORMA TION, TELEPHONE 800-8360655
NEC TECHNOLOGIES, INC.
1250 N. Arlington Heights Road, Suite 500
Itasca, Illinois 60143-1248
WHAT WE WILL PAY FOR AND WHAT WE WILL
NOT PAY FOR
W e will pay labor and material expenses for cov ered items,
but we will not pay for the following:
1. Removal or installation charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls. These costs are the responsibility of the NECTECH dealer from whom the
product was purchased.
3. Payment of shipping charges.
Note:
MUST have prior approval. To get approval, call NEC
Technologies at 800-836-0655.
All products r eturned to NECTECH for service
Contents
How to Attach Options to the Plasma Monitor
......... 1
Introduction ..................................................... 2
Introduction to the PlasmaSync 42MP2
Plasma Monitor ....................................................... 2
The features you'll enjoy include: .............................. 2
Contents of the Package ........................................... 2
Part Names and Function ................................. 3
Front View .............................................................. 3
Rear View / Terminal Board ..................................... 4
Remote Controller .................................................... 5
Battery Installation and Replacement ......................... 6
Using the wired remote control mode ........................ 7
Operating Range .................................................... 7
Handling the remote controller ................................. 7
Installation...................................................... 8
Connecting Your PC Or Macintosh Computer ............ 9
Connections with Equipment that has a Digital Interface
Connecting Your Document Camera.......................... 9
Connecting Your VCR Or Laser Disc Player ................ 9
Connecting Your DVD Player .................................... 9
External Speaker Connections ................................ 10

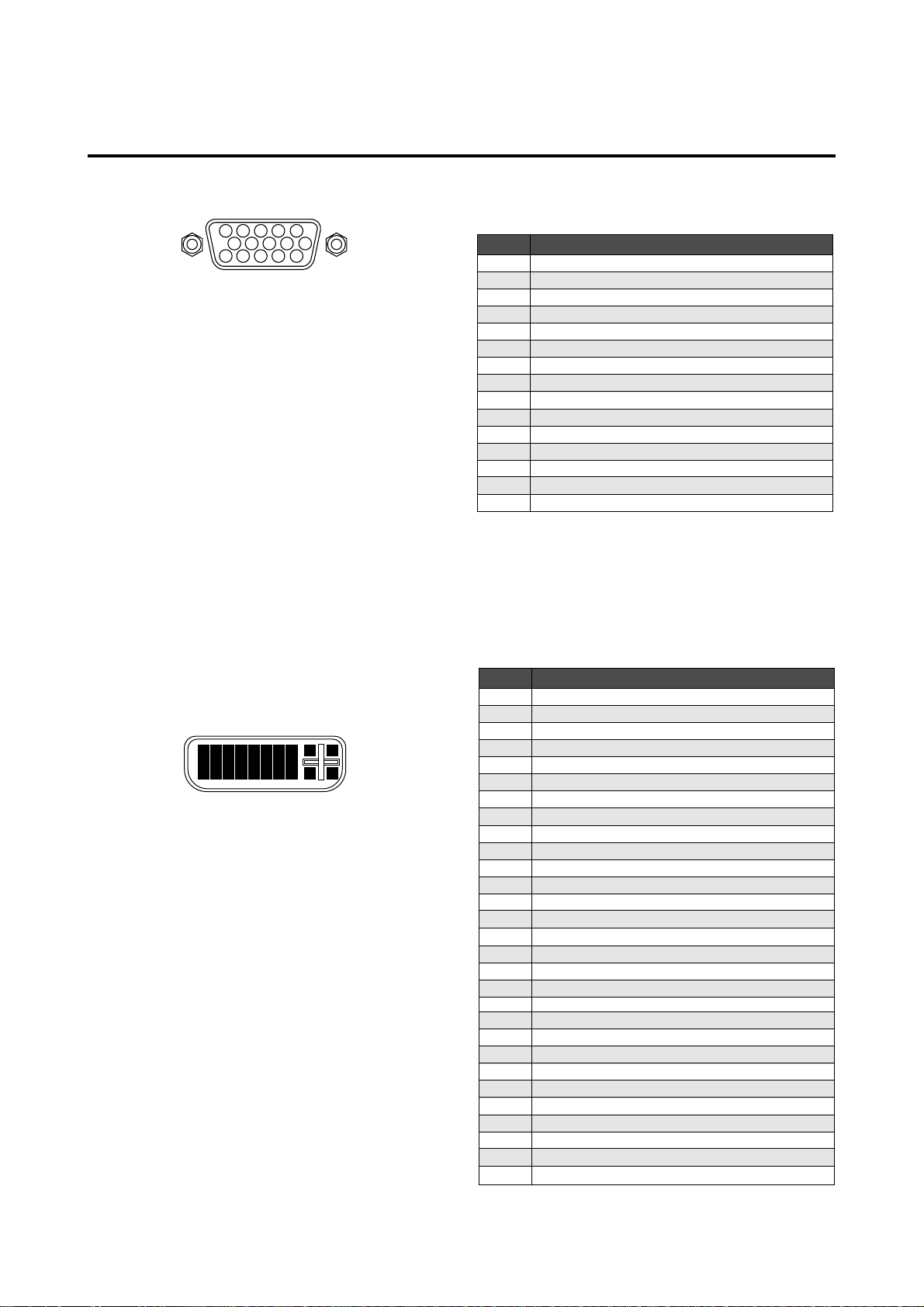

Pin Assignments and Signal Levels
for 15 pin RGB (Analog) ..................................... 11
Pin Configuration and Signal
of the RGB 3 IN Connector (DVI Connector) ......... 11
..... 9
Basic Operations ............................................ 12
POWER ................................................................ 12
To turn the unit ON and OFF: ................................... 12
VOLUME .............................................................. 12
To adjust the volume: ................................................ 12
MUTE ................................................................... 12
To cancel the sound:.................................................. 12
DISPLAY................................................................ 12
To check the settings: ................................................ 12
DIGITAL ZOOM .................................................... 12
OFF TIMER............................................................ 13
To set the off timer: ................................................... 13
To check the remaining time:.................................... 13
Canceling the off timer ............................................. 13
Sound settings menu .............................................. 23
Adjusting the treble, bass and left/right balance ....... 23

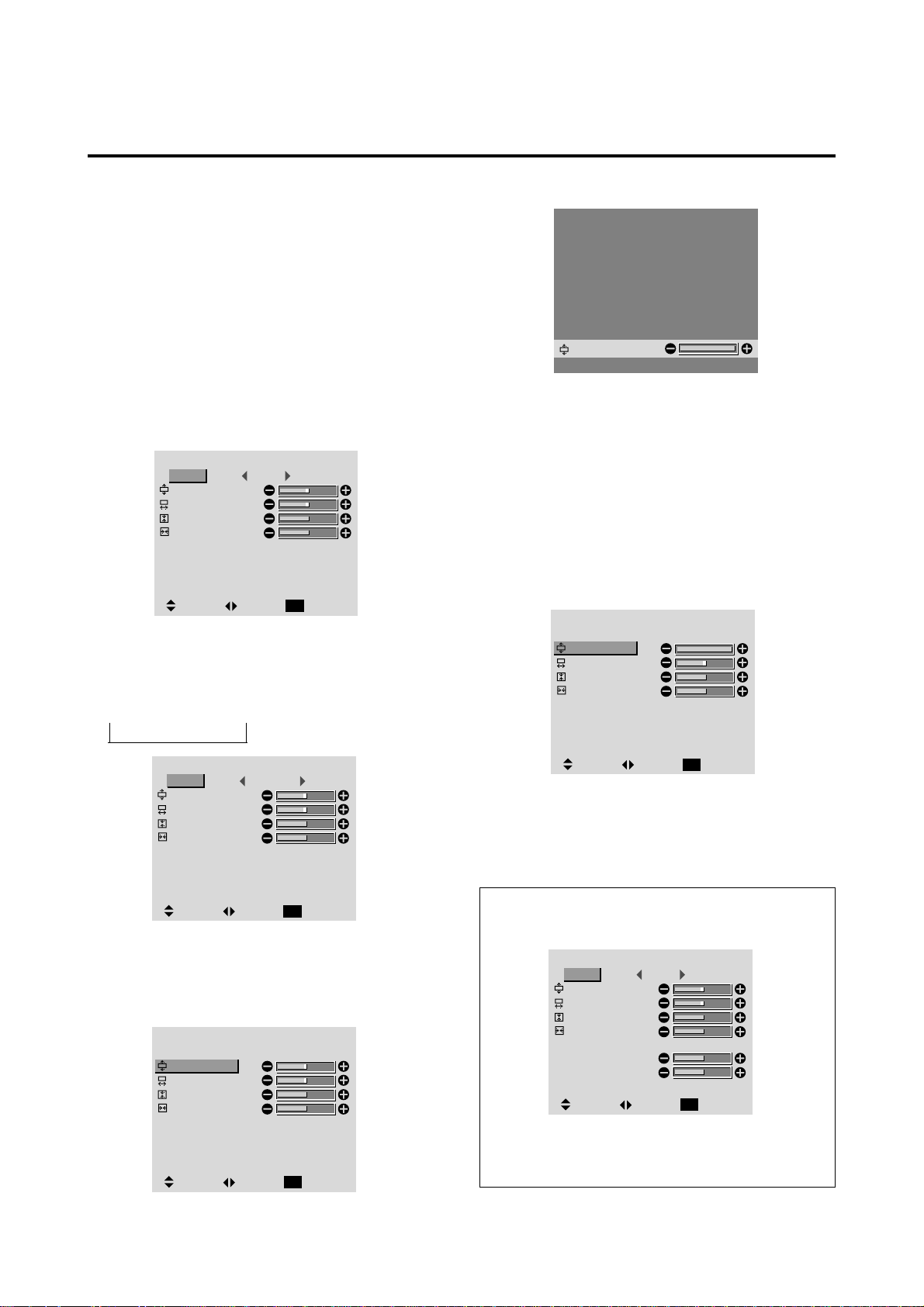

Screen Settings Menu............................................. 24
Adjusting the Position, Size, Fine Picture,
Picture Adj ................................................................ 24
Function Settings Menu .......................................... 25
Setting the on-screen display .................................... 25
Adjusting the position of the menu display .............. 26
Setting the power management for computer images
POWER/STANDBY indicator .................................. 28
Setting the gray level for the sides of the screen.......29
Setting the brightness level to the minimum.............29
Setting the picture to suit the movie ......................... 30
Resetting to the default values .................................. 30
Option setting menu .............................................. 31
Setting the allocation of the audio connectors .......... 31
Setting the BNC connectors...................................... 31
Setting a computer image to the correct RGB
select screen .............................................................. 32
Setting high definition image to the suitable
screen size ............................................................... 33
Adjusting the display position
in the RGB3 input mode ......................................... 33
Information Menu .................................................. 34
Checking the frequencies and polarities
of input signals.......................................................... 34
Setting the language for the menus ........................... 34
Setting the video signal format ................................. 35
....... 27

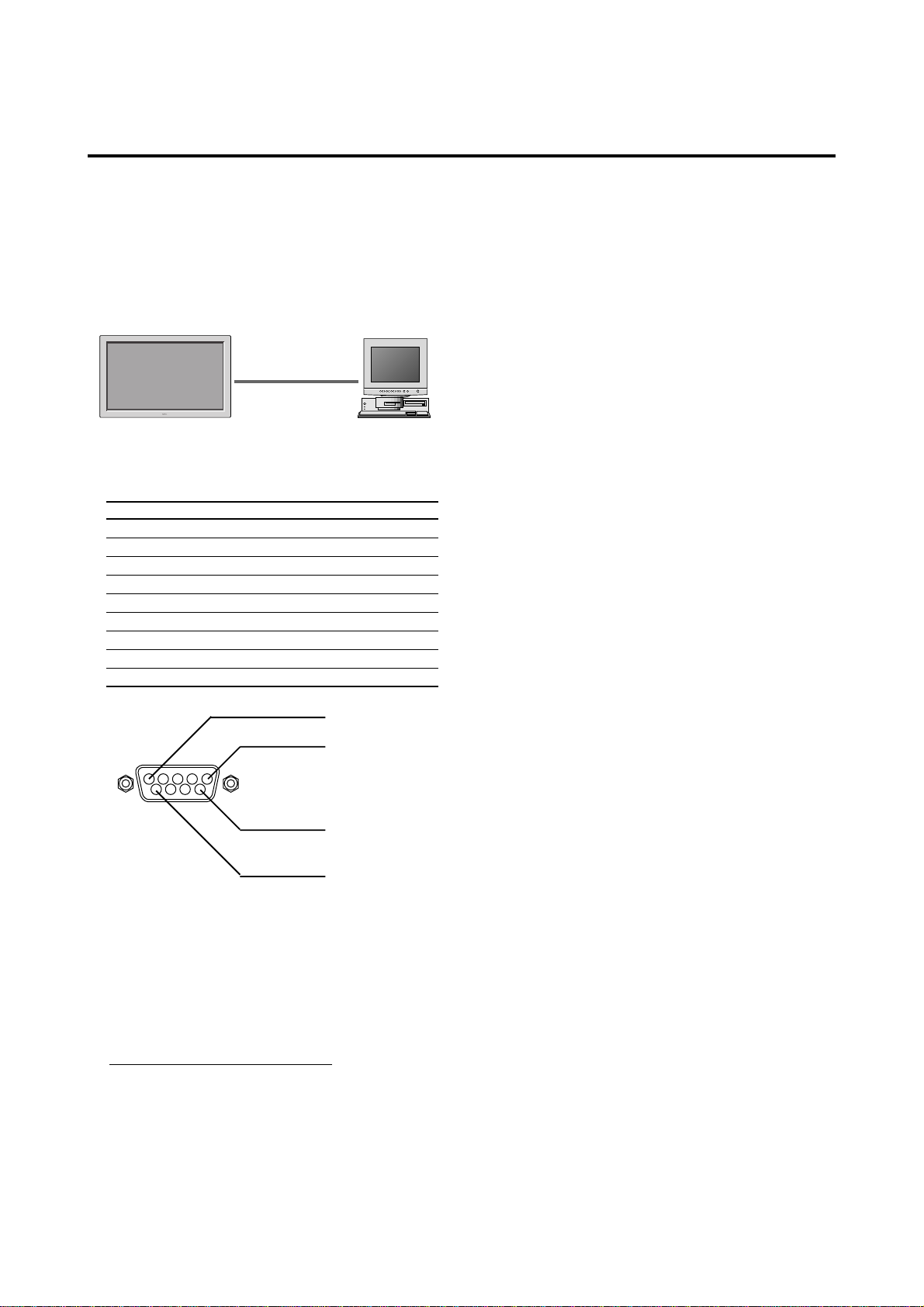

External Control ............................................ 36
Table for Signals Supported ............................ 44
Supported resolutions ............................................ 44
Troubleshooting ............................................. 45

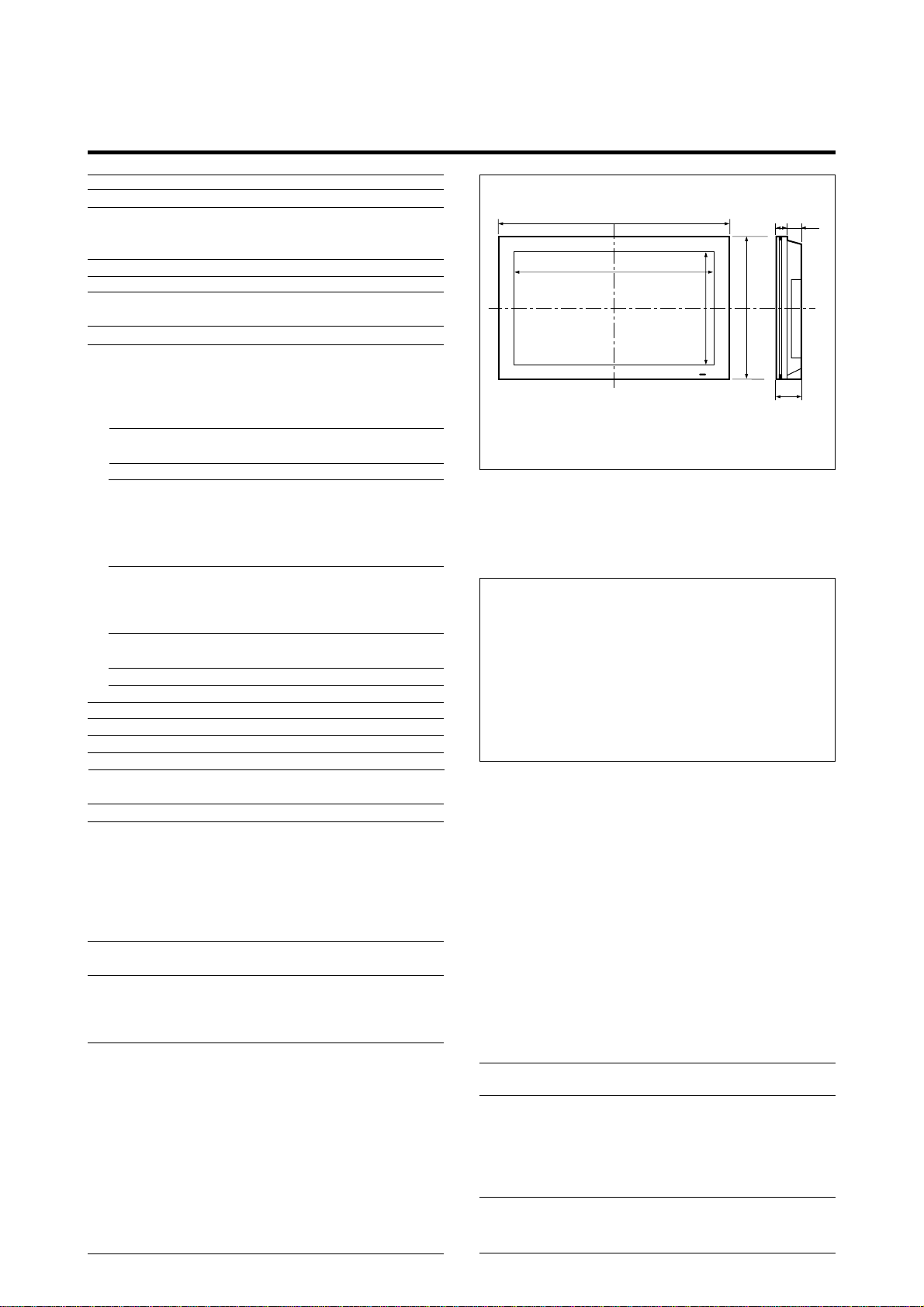

Specifications ................................................. 46

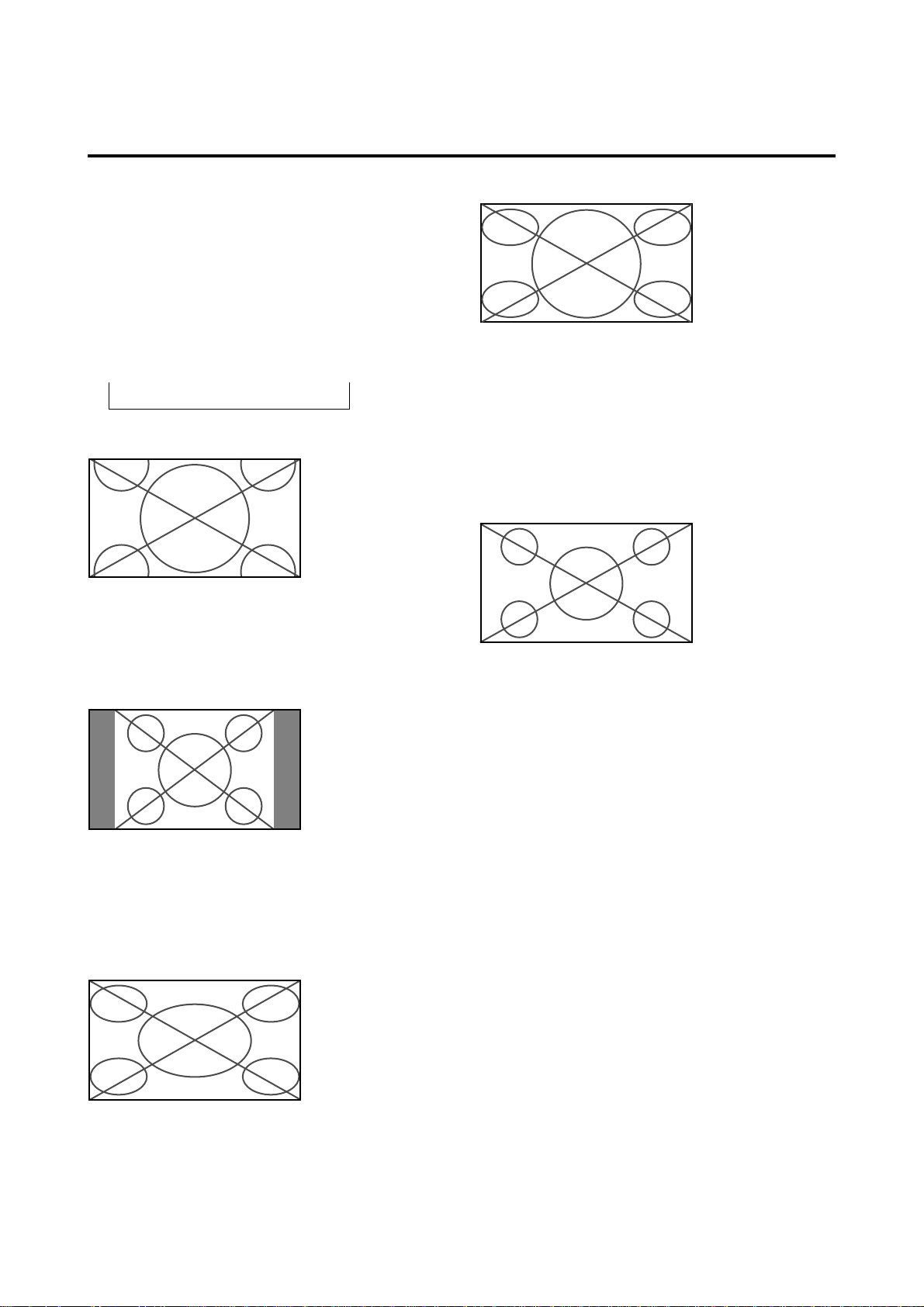

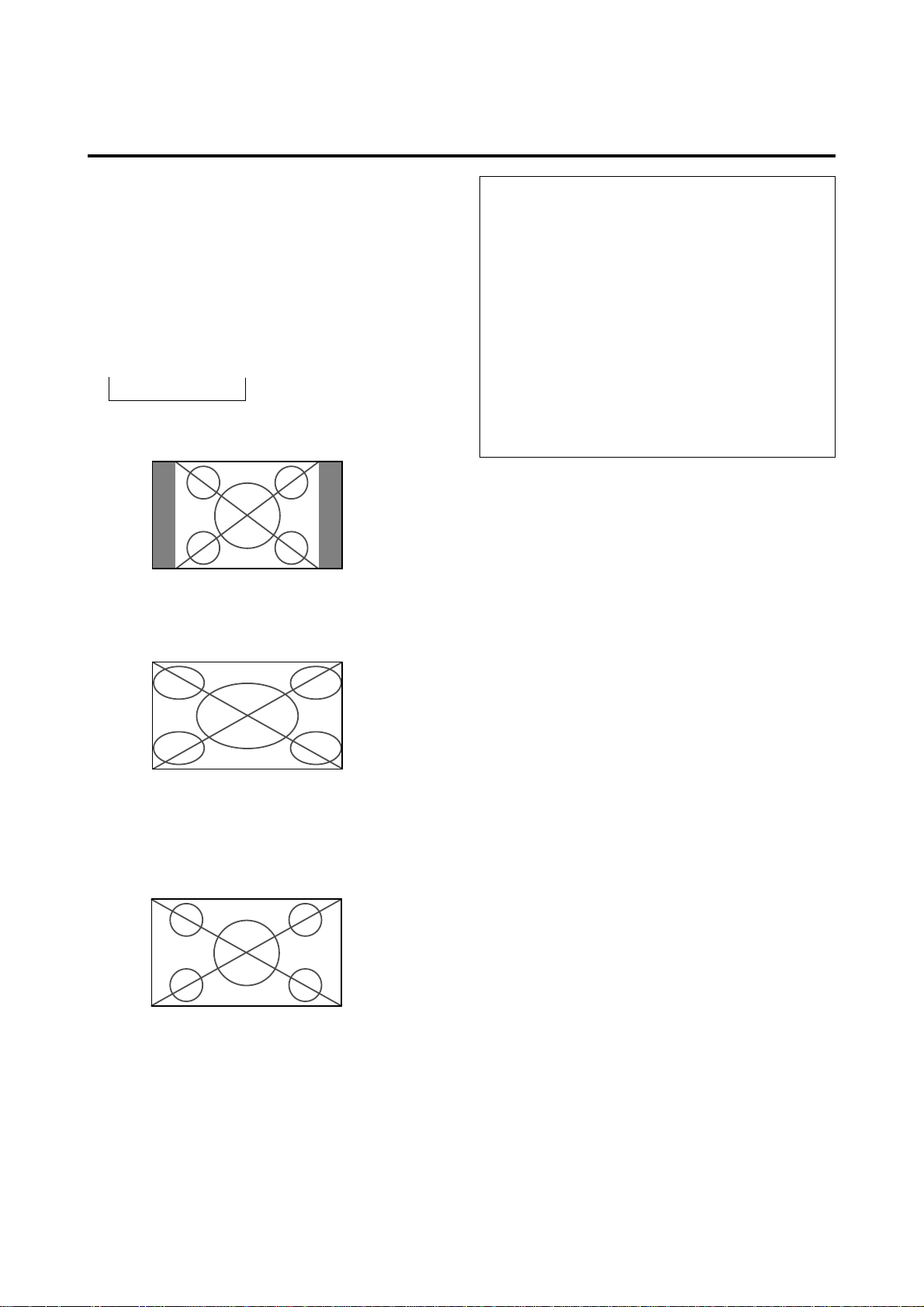

WIDE Operations ............................................ 14
Watching with a wide screen (manual).................... 14
When watching videos or high definition
laser discs .................................................................. 14
Watching computer images with a wide screen........ 15
OSM Controls ................................................. 16
Menu Operations .................................................. 16
Picture Settings Menu ............................................. 18
Adjusting the picture................................................. 18
Setting the picture mode according to the
brightness of the room .............................................. 19
Setting the color temperature .................................... 20
Adjusting the color to the desired quality ................. 21
Reducting noise in the picture .................................. 22
How to Attach Options to the Plasma Monitor
Y ou can attach your optional mounts or stand to the plasma
monitor in one of the following two ways:
* While it is upright. (See Drawing A)
* As it is laid down with the screen face down (See Dra w-
ing B). Lay the protective sheet, which was wrapped
around the monitor when it was packaged, beneath the
screen surface so as not to scratch the screen face.
• This device cannot be installed on its own.
Be sure to use a stand or original mounting
unit. (Wall mount unit, Stand, etc)
* See page 2.
• For correct installation and mounting it is
strongly recommended to use a trained,
authorized NEC dealer.
Failure to follow correct mounting procedures could result in damage to the equipment or injury to the installer.
Product warranty does not cover damage
caused by improper installation.
Drawing A
Drawing B
Ventilation Requirements for
enclosure mounting
To allow heat to disperse, leave space between
surrounding objects as shown on the diagram below when installing.
31mm (1.22")
1
Wall
1110mm (43.7")
31mm (1.22")
(2")
mm
(29.5")
mm
748
(2") 50
mm
50
Wall
Introduction
Introduction to the PlasmaSync 42MP2
Plasma Monitor
NEC's PlasmaSync™ is a seamless blend of cutting-edge
visual technology and sophisticated design. At 42-inches,
with a 16:9 aspect ratio, the PlasmaSync 42MP2 certainly
makes a big impression. However, at a mere 3.5 inches/
89mm thin, the monitor's sleek techno-art lines blend in
well with your environment. PlasmaSync's crisp, vivid image quality will transform data from any graphic medium
from PCs to DVD players- into art. And weighing only
70.6 lbs/ 32 kg, it actually can be hung almost anywhere.
NEC has made sure that a host of multimedia resources
can be easily connected and displayed as brilliantly as intended on the PlasmaSync™ monitor.
The features you'll enjoy include:
• 42-inch screen
• 16:9 aspect ratio
• Capsulated Color Filter (CCF) and black matrix
• 3.5 inch / 89 mm thin
• 70.6 lbs/ 32 kg light
• High-resolution screen: 853⳯480 pixels
• 160-degrees of off-axis viewing, horizontally and vertically.
• Flicker - and warp - free display provides excellent image geometry even in screen corners
• Not affected by magnetic fields, no color drift or edge
distortion.
• VGA, SVGA, XGA, SXGA(60Hz), computer signal
compatibility
• NTSC, PAL, SECAM, composite and S-Video signal
compatibility
• 480P, 1080I, 720P and HDTV signal compatibility
• PCs, VCRs, Laser Disc and DVD player source compatibility
• AccuBlend™ scan conversion automatically converts
VGA, SVGA and SXGA signals to the panel's native
resolution
• RGB input (3*), Video input (3), DVD/HD input (2*),
Audio input (3), External Control input (1)
• AccuColor control system provides user selectable onscreen color temperature settings
• New Drive Technology
• Component video input terminal for DVD, 15.75kHz (Y ,
CB, CR)
• NEC's OSM™ menu-driven on screen control system
that makes image adjustments a snap
• Sev en languages (English, German, French, Italian, Spanish, Swedish, and Japanese)
Contents of the Package
䡺 PlasmaSync™ 42MP2 plasma monitor
䡺 Power cord
䡺 RGB cable (Mini D-Sub 15-pin to Mini D-Sub 15-
pin connector)
䡺 Adapter for Macintosh
䡺 Remote control unit with two AAA Batteries
䡺 User's manual
䡺 Wired Remote cable
䡺 Safety metal fitting*
䡺 Screw for safety metal fitting*
䡺 Ferrite core (small⳯2, large⳯1)
* These are fittings for fastening the unit to a wall to
prevent tipping due to external shock when using the
stand (option). Fasten the safety fittings to the holes
in the back of the monitor using the safety fitting
mount screws.
Options
• Wall mount unit
• Ceiling mount unit
• Tilt mount unit
• T abletop stand
• Speakers
• Others
* You can select RGB source or Component source for
the 5BNC terminal. When selecting an RGB input, the
source is switched to the RGB input (3); when selecting
a component input, the source is switched to the DVD/
HD input (2).
2
Part Names and Function
Front View
INPUT SELECT VOLUME
PROCEED
1
VOLUME
DOWN LEFT/– RIGHT/+UP
2
3
1 PROCEED
Sets the on-screen display (OSM) mode and displays
the main menu.
2 VOLUME Down and Up
Adjust the volume. Functions as the CURSOR (▲/▼)
buttons in the On-screen display (OSM) mode.
3 LEFT/– and RIGHT/+
Enlarges or reduces the image. Functions as the
CURSOR (䊴 / 䊳) buttons in the On-screen display
(OSM) mode.
POWER/STANDBY
INPUT SELECT
/EXIT
47
POWER/STANDBY
5
6
5 POWER/STANDBY indicator
When the power is on.............................Lights green.
When the power is in the standby mode ... Lights red.
6 Power
Turns the monitor's power on and off.
7 Remote sensor window
Receives the signals from the remote control unit.
4 INPUT SELECT / EXIT
Switches the input, in the following order:
VIDEO1→→VIDEO2
RGB3←RGB2←RGB1
VIDEO3 DVD/HD
→
→
←
Functions as the EXIT buttons in the On-screen display
(OSM) mode.
3
Rear View/ Terminal Board
SPEAKERS MUST
HAVE MORE THAN
7WATT RATING
IMPEDANCE 6 OHM
LEFT
RIGHT
EXTERNAL
CONTROL
REMOTE
CONTROL
CONTROL
LOCK
ON/ OFF
AC IN
C
D
A
B
SPEAKERS MUST
HAVE MORE THAN
7WATT RATING
IMPEDANCE 6 OHM
LEFT
RIGHT
EXTERNAL
CONTROL
REMOTE
CONTROL
CONTROL
LOCK
ON/ OFF
E
AC IN
AUDIO 3 AUDIO 2 AUDIO 1 RGB2/ DVD2/ HD2
RGB 3
(Digital RGB)
RGB 3
(Digital RGB)
RGB 1
R/CR/PR
G/Y
B/CB/PB
HD
VD
L(MONO)
R
VIDEO 1
VIDEO 2
VIDEO 3
L(MONO)
R
Y
CB/CR
PB/PR
L(MONO)
R
K
RGB 1
R/PR
R/C
G/Y
B/C
B/PB
HD
VD
L(MONO)
R
VIDEO 1
VIDEO 2
VIDEO 3
L(MONO)
R
Y
C
B/PB
CR/P
R
L(MONO)
R
AUDIO 3 AUDIO 2 AUDIO 1 RGB2/ DVD2/ HD2
F
G
H
I
J
A EXT SPEAKER L and R
Connect speakers here.
B EXTERNAL CONTROL
This terminal is used when power ON/OFF, input selection and AUDIO MUTE and other controls are operated externally (by external control). See also page 36
for external control.
C REMOTE CONTROL
Connect the supplied remote cable here.
D CONTROL LOCK
When “CONTROL LOCK” is set “ON”, the b uttons on
the set's control panel do not function.
E AC IN
Connect the included power cord here.
F RGB3 (DVI 29pin)
Inputs a digital RGB signal (TMDS).
G RGB1
Inputs the analog RGB signal of personal computer, etc.
H RGB2/ DVD2/ HD2
RGB2: Inputs the analog RGB signal.
DVD2/ HD2: Connect DVD's, high def inition Laser
Discs, etc. here.
I VIDEO1, 2, 3
Connect VCR's, DVD's or LaserDiscs, etc. here.
J DVD1 / HD1
Connect DVD's high definition LaserDiscs, etc. here.
K AUDIO1, A UDIO2, A UDIO3
These are audio input terminals.
The input is selectable. Set which video image to allot
them to on the menu screen.
4
Remote Controller
E
F
1
POWER
OFF
RGB/PC DVD/HD
2
3
POSITION
/CONTROL
VIDEO
7
POINTER
8
ZOOM
VOLUME
+
0
–
A
B
MUTE
WIDE
OFF TIMER
ON
PROCEED
EXIT
+
–
DISPLAY
4
5
6
9
C
D
2 RGB/PC
Press this button to select RGB/PC as the source.
→ RGB1 → RGB2 → RGB3
RGB/PC can also be selected using the INPUT SELECT
button on the monitor. The input switches as follows
each time the button is pressed:
VIDEO1→→VIDEO2
RGB3←RGB2←RGB1
VIDEO3 DVD/HD
→
→
←
3 VIDEO
Press this button to select VIDEO as the source.
→ VIDEO1 → VIDEO2 → VIDEO3
VIDEO can also be selected using the INPUT SELECT
button on the monitor. The input switches as follows
each time the button is pressed:
VIDEO1→→VIDEO2
RGB3←RGB2←RGB1
VIDEO3 DVD/HD
→
→
←
4 DVD / HD
Press this button to select DVD/HD as the source.
DVD/HD can also be selected using the INPUT SE-
LECT button on the monitor . The input switches as follows each time the button is pressed:
VIDEO1→→VIDEO2
RGB3←RGB2←RGB1
VIDEO3 DVD/HD
→
→
←
5 PROCEED
Press this button to access the OSM controls.
Press this button during the display of the main menu to
go to the sub menu.
REMOTE CONTROLLER
RD-337
1 POWER ON/OFF
Switches power on/off.
(This does not operate when POWER/STAND BY
indicator of the main unit is off.
6 EXIT
Press this button to exit the OSM controls in the main
menu. Press this button during the display of the sub
menu to return to the main menu.
7 CURSOR (▲ / ▼ / 䊴 / 䊳)
Use these buttons to select items or settings and to adjust settings.
8 POINTER
Press this button to display the pointer.
9 VOLUME (+ /–)
Adjust the volume.
0 ZOOM (+ /–)
Enlarges or reduces the image
A MUTE
Mutes the sound.
B WIDE
The type of broadcast is detected automatically, and the
recommended wide screen mode is set.
5
C DISPLAY
Displays the source settings on the screen.
D OFF TIMER
Activates the off timer for the unit.
E Remote Jack
Insert the plug of the supplied remote cable when using
the supplied remote control unit in the wired condition.
F Remote control signal transmitter
Transmits the remote control signals.
Battery Installation and Replacement
Insert the 2 "AAA" batteries, making sure to set them in
with the proper polarity.
1.Press and open the cover.
2.Align the batteries according to the (+) and (–) indication
inside the case.
3.Replace the cover.
6
REMOTE
CONTROL
EXTERNAL
CONTROL
Using the wired remote control mode
Connect the included remote control cable to the remote
control unit's "REMOTE CONTROL" terminal.
When the cable is connected, the mode automatically
switches to wired remote control.
When the wired remote control mode is used, the remote
control unit can be operated even if no batteries are loaded.
SPEAKERS MUST
HAVE MORE THAN
7WATT RATING
IMPEDANCE 6 OHM
LEFT
RIGHT
EXTERNAL
CONTROL
REMOTE
CONTROL
CONTROL
LOCK
ON/ OFF
AC IN
Operating Range
* Use the remote controller within a distance of about 7 m
/ 23ft. from the front of the monitor's remote control sensor and at a horizontal angle of within 30°.
* The remote control operation may not function if the
monitor's remote control sensor is exposed to direct sunlight or strong artificial light, or if there is an obstacle
between the sensor and the remote control unit.
DOWN UP
VOLUME
INPUT SELECT
/EXITLEFT/– RIGHT/+
POWER/STANDBY
Remote Control Cable
To Remote Jack
CONTROL
LOCK
ON/ OFF
Approx.
7m/ 23ft
30˚ 30˚
Handling the remote controller
• Do not drop or mishandle the remote control unit.
• Do not get the remote control unit wet. If the remote
gets wet, wipe it dry immediately.
• Avoid heat and humidity.
• When not using the remote control unit for a long period, remove the batteries.
• Do not use new and old batteries together, or use different types together.
• Do not take apart the batteries, heat them, or throw them
into a fire.
• When using the remote control unit in the wireless condition, be sure to unplug the remote cable from the REMOTE CONTROL terminal on the monitor.
7
Installation
Personal computer with a
digital RGB output
Signal cable (supplied)
To Mini D-Sub 15 pin connector on the plasma monitor
RGB 3
(Digital RGB)
RGB 1
R/CR/PR
G/Y
B/C
B/PB
HD
VD
L(MONO)
R
VIDEO 1
VIDEO 2
VIDEO 3
L(MONO)
R
Y
CB/PB
DVD1/HD1
CR/PR
L(MONO)
R
AUDIO 3 AUDIO 2 AUDIO 1 RGB2/ DVD2/ HD2
To video, S-video inputs on
the plasma monitor
IBM VGA or Compatibles
Macintosh or Compatibles
(Desk top type)
Monitor adapter for
Macintosh (supplied)
VCR or Laser Disc Player
Document Camera
DVD Player
8
Connecting Your PC Or Macintosh Computer
Connecting your PC or Macintosh computer to your plasma monitor will enable you to display your computer's screen image for an
impressive presentation. The plasma monitor supports the signals
described on page 44.
To connect to a PC, Macintosh or compatible graphics adapter,
simply:
1. Turn off the power to your plasma monitor and computer.
2. If your PC does not support XGA/SVGA/VGA you will need
to install an XGA/SVGA/VGA graphics board. Consult your
computer's owner's manual for your XGA/SVGA/VGA configuration. If you need to install a new board, see the manual
that comes with your new graphics board for installation instructions.
3. The plasma monitor provides signal compatibility up to VESA
1280⳯1024@60Hz (SXGA). However, it is not recommended to use this resolution due to image readability on the
monitors 853⳯480 native pixel resolution panel.
4. Use the signal cable that's supplied to connect your PC or
Macintosh computer to the plasma monitor. For Macintosh,
use the supplied monitor adapter to connect to your computer's
video port.
5. Turn on the plasma monitor and the computer.
6. If the plasma monitor goes blank after a period of inactivity, it
may be caused by a screen saver installed on the computer
you've connected to the plasma monitor.
When using a Macintosh with the plasma monitor, the following
four display standards are supported using the included Macintosh
adapter :
13" fixed mode
16" fixed mode
19" fixed mode
21" fixed mode
The 13" fixed mode is recommended for the plasma monitor.
Connecting Your Document Camera
You can connect your plasma monitor to a document camera. To
do so, simply:
1. Turn off the power to your plasma monitor and document
2. Use a standard video cable to connect your document camera
3. Turn on the plasma monitor and the document camera.
Note:
more information about your camera's video output
requirements.
Connecting Your VCR Or Laser Disc
Player
Use common RCA cables (not provided) to connect your VCR
or laser disc player to your plasma monitor. To make these
connections, simply:
1. Turn off the power to your plasma monitor and VCR or laser
2. Connect one end of your RCA cable to the video output
3. Turn on the plasma monitor and the VCR or laser disc player .
Note:
for more information about your equipment's video output
requirements.
camera.
to the Video input on your plasma monitor.
Refer to your document camera's owner's manual for
disc player.
connector on the back of your VCR or laser disc player,
connect the other end to the Video input on your plasma
monitor. Use standard RCA audio patch cords to connect the
audio from your VCR or laser disc player to your plasma
monitor (if your VCR or laser disc player has this capability).
Be careful to keep your right and left channel connections
correct for stereo sound.
Refer to your VCR or laser disc player owner's manual
Connections with Equipment that has
a Digital Interface
Connections can be made with equipment that is equipped with
a digital interface compliant with the DVI (Digital Visual
Interface) standard.
* Use a DVI 29-pin signal cable (available separately) and the
ferrite cores (supplied) when making connections to the RGB3
IN (DVI) connector of the main unit.
Note that the RGB3 IN(DVI) terminal does not support analog
RGB input source.
Note:
1. Input TMDS signals conforming to DVI standards.
The TMDS input corresponds to 1 link.
2. To maintain display quality, use a cable with a quality
prescribed by D VI standards that is within 5 meters in length.
9
Connecting Your DVD Player
You can connect your plasma monitor to a DVD player. To do so,
simply:
1. Turn off the po wer to your plasma monitor and DVD player.
2. Use a standard video cable to connect your DVD player to
the Y, Cb, and Cr inputs on your plasma monitor.
Or use the DVD-player's S-Video output. Use a standard SVideo cable to connect to the S-Video input on the plasma
monitor.
3. Turn on the plasma monitor and the DVD player.
External Speaker Connections
SPEAKERS MUST
HAVE MORE THAN
7WATT RATING
IMPEDANCE 6 OHM
LEFT
RIGHT
EXTERNAL
CONTROL
REMOTE
CONTROL
CONTROL
LOCK
ON/ OFF
AC IN
LEFT
RIGHT
RGB 3
(Digital RGB)
RGB 1
R/CR/PR
G/Y
B/CB/PB
HD
VD
L(MONO)
R
VIDEO 1
VIDEO 2
VIDEO 3
L(MONO)
R
Y
CB/CR
PB/PR
L(MONO)
R
AUDIO 3 AUDIO 2 AUDIO 1 RGB2/ DVD2/ HD2
External speakers may be connected to the plasma monitor
to reproduce sound from VIDEO, DVD or RGB signal
sources.
External speakers may be connected directly to the SPEAKERS terminals or indirectly by connecting a stereo system
amplifier to the audio outputs.
CAUTION:
Unplug the plasma monitor and all connected components before connecting external speakers. Use only speakers with 6-ohm impedance and a
power output rating of 7 watts or more .
T o connect external speakers directly to the plasma monitor:
1. Strip the ends of the speaker wires.
2. Press down the tabs below the SPEAKERS terminals,
insert the speaker wire and release the tab to secure the
speaker wire connection:
[a] Connect the right speaker (located at right side
of the monitor when viewed from the front)
positive (+) wire to RIGHT +.
[b] Connect the right speaker negative (–) wire to
RIGHT -.
[c] Connect the left speaker negative (–) wire to
LEFT–.
[d] Connect the left speaker positive wire (+) to
LEFT+.
10
Loading...
