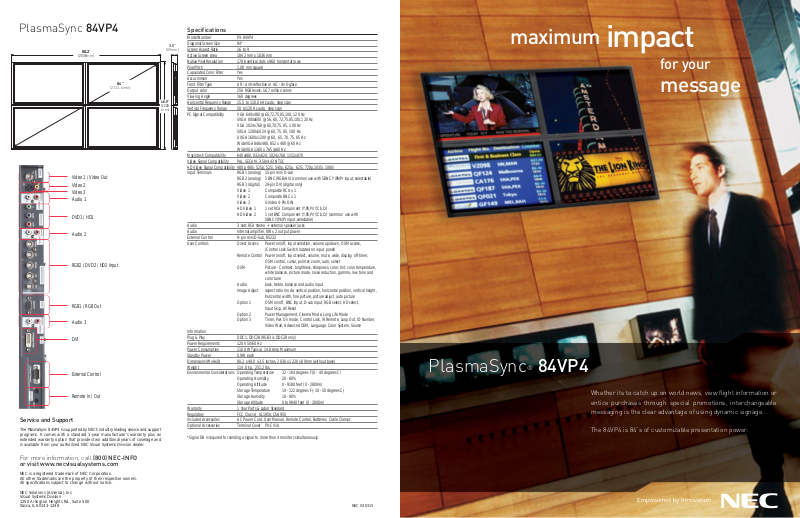

for your

maximum

message

impact

Whether its to catch up on world news, view flight information or
entice purchases through special promotions, interchangeable
messaging is the clear advantage of using dynamic signage.

The 84VP4 is 84”s of customizable presentation power.

PlasmaSync®84VP4

Add impact to your information.

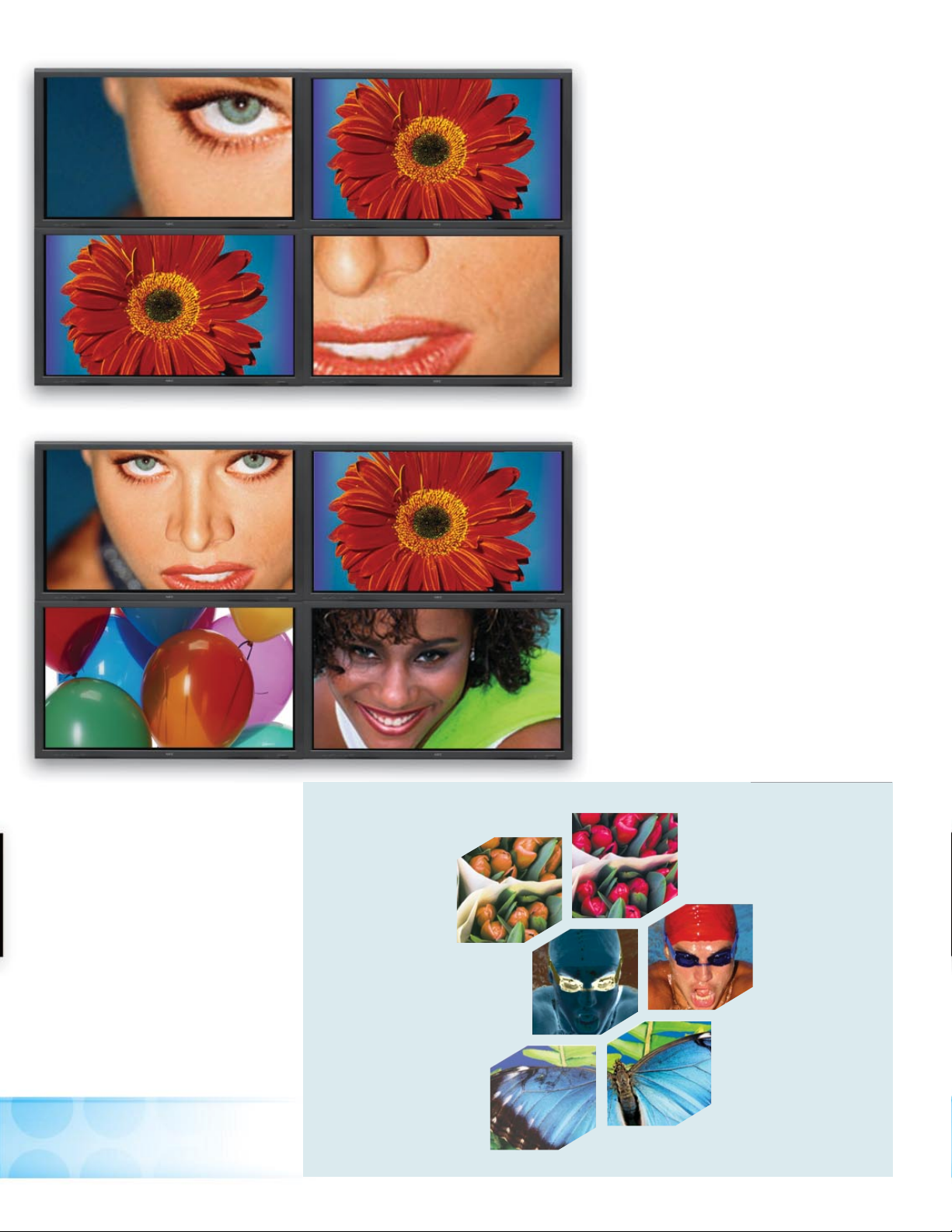

NEC has bundled four PX42VP4’s and the required

wall mount for a huge display area of nearly 3000

square inches! That is a lot of viewing power. Add

impact by running one source over the entire 84”

display to capture your audience’s attention. Or,

supply critical meeting room schedules from your

internal database, flight information from a second

source all while world and local news stories are

running. With the 84VP4’s sophisticated timer/source

programmability feature, the ability to control and

customize your presentation is endless. With broad

source compatibility from video to HD to RGB and

the signal loop-out capability, sources can easily be

looped from one monitor to the next for a

customized presentation.

The PlasmaSync 84VP4 has an outstanding image

quality of 1706x960 native resolution and a viewing

angle up to 160°. You can be sure the message is

seen and understood. An Auto ID feature allows for

easy matrix setup and the added sophisticated

video signal processing delivers super bright

images, pure reds and saturated colors. A sleek

new design with an ingenious cable management

system makes it the perfect choice for hotel

lobbies, retail environments, tradeshow exhibits

and large venue applications.

The 84VP4 is maximum impact for your messaging.

Anti-Reflective

(AR) filter (84VP4A)

Anti-Glare

(AG) filter (84VP4D)

Digital AccuDevice

20% brighter

Cable management

Programmable timer

Motion compensated

3D scan conversion

3/2 pull down

Our advanced menu system
allows for precise color and
image matching for a
uniform 84” image.

Features

Convenient and sleek

The cabinet design allows for a small form PC to be
attached solving the problem of source equipment
location.

Fanless design for quiet operation

A fanless design for silent operation no matter
what environment it is in.

Virtually self-operating

A programmable timer can be set up to virtually
operate itself by setting power on/off, changing
inputs and selecting AccuShield modes.

External control and self diagnostics

A complete set of RS232 commands allow monitor
functions to be operated remotely via serial communi­cations. In addition, operating problems can be
identified and communicated via RS232 or front
bezel LED lights through its self diagnostics
system.

AccuShield™ phosphor protection

Your screen stays protected as it maximizes the
useful life of the product with the most
comprehensive set of built in modes including
programmable Orbiter, Inverse RGB, All-White,
Pixel Refresh and Brightness Limiter.

Advanced AccuBlend™

Scan conversion provides high quality scaling for
non-native resolutions signals.

Capsulated Color Filter and AccuCrimson™

NEC ’s patented technology ensures realistic color
and it’s further enhanced by AccuCrimson
technology for the purest reds possible.

Core Technologies

Capsulated Color Filter

technology for extremely
realistic color reproduction

before

after

AccuShield
Phosphor

Protection
System
enhanced
with pixel
refresh mode

disabled

enabled

Anti-Glare Filter

diffuses direct light
sources. Image is
easy to see under
even severe lighting
conditions.

Anti-Reflective Filter

for controlled lighting
situations. Provides a
sharp and crisp image.

anti-glare

anti-reflective

PlasmaSync 84VP4

NEC 030315

For more information, call (800) NEC-INFO
or visit www.necvisualsystems.com

NEC is a registered trademark of NEC Corporation.
All other trademarks are the property of their respective owners.
All specifications subject to change without notice.

NEC Solutions (America), Inc.
Visual Systems Division
1250 Arlington Heights Rd., Suite 500
Itasca, IL 60143-1248

Specifications

Model Number PX-84VP4
Diagonal Screen Size 84"
Screen Aspect Ratio 16 to 9
Active Screen Area 1842 mm x 1036 mm
Native Pixel Resolution 1706 vertical dots x 960 horizontal rows
Pixel Pitch 1.08 mm square
Capsulated Color Filter Yes
Accucrimson Yes
Front Filter Type AR - Anti-reflective or AG - Anti-glare
Output color 256 RGB levels, 16.7 million colors
Viewing Angle 160 degrees
Horizontal Frequency Range 15.5 to 110.0 kHz auto, step scan
Vertical Frequency Range 50 to120 Hz auto, step scan
PC Signal Compatibility VGA 640x480 @ 60,72,75,85,100, 120 Hz

SVGA 800x600 @ 56, 60, 72,75,85,100,120 Hz
XGA 1024x768 @ 60,70,75, 85, 100 Hz
SXGA 1280x1024 @ 60, 75, 85, 100 Hz
UXGA 1600x1200 @ 60, 65, 70, 75, 85 Hz
WideVGA 848x480, 852 x 480 @ 60 Hz

WideXGA 1360 x 765 @60 Hz
Macintosh Compatibility 640x480, 832x624, 1024x768, 1152x870
Video Signal Compatibility PAL, SECAM, 3.58/4.43 NTSC
HD Video Signal Compatibility 480p 480i, 525p, 525i, 540p, 625p, 625i, 720p,1035i, 1080i
Input Terminals RGB 1 (analog) 15-pin mini D-sub

RGB 2 (analog) 5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr input, selectable)

RGB 3 (digital) 29-pin DVI (digital only)

Video 1 Composite RCA x 1

Video 2 Composite BNC x 1

Video 3 S-Video 4-Pin DIN

HD Video 1 1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr)

HD Video 2 1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr) (common use with

5BNC Y/Pb/Pr input,selectable)
Audio 3 sets RCA stereo + external speaker jacks
Audio Internal amplifier, 8W x 2 output power
External Control 9-pin mini D-Sub, RS232
User Controls Direct Access Power on/off, input selection, volume up/down, OSM access,

(Control Lock Switch located on input panel)

Remote Control Power on/off, input select, volume, mute, wide, display, off-timer,

OSM control, cursor, pointer, zoom, auto, select

OSM Picture - Contrast, brightness, sharpness, color, tint, color temperature,

white balance, picture mode, noise reduction, gamma, low tone and

color tune

Audio bass, treble, balance and audio input
Image Adjust aspect ratio mode, vertical position, horizontal position, vertical height,

horizontal width, fine picture, picture adjust, auto picture

Option 1 OSM on/off, BNC Input, D-sub Input, RGB select, HD select,

Input Skip, All Reset

Option 2 Power Management, Cinema Mode, Long Life Mode
Option 3 Timer, Pwr. On mode, Control Lock, IR Remote, Loop Out, ID Number,

Video Wall, Advanced OSM, Language, Color System, Source
Information
Plug & Play DDC1, DDC2B (RGB3 is DDC2B only)
Power Requirements 120V 50/60 Hz
Power Consumption 1100 W Typical, 14.8 Amp Maximum
Standby Power 0.9W each
Dimensions (WxHxD) 80.2 x 48.0 x 3.5 inches, 2036 x 1220 x 89mm (without base)
Weight 114.0 kg, 251.2 lbs.
Environmental Considerations Operating Temperature 32 - 104 degrees F (0 - 40 degrees C)

Operating Humidity 20 - 80%
Operating Altitude 0 - 9180 feet (0 - 2800m)
Storage Temperature 14 - 122 degrees F (-10 - 50 degrees C)
Storage Humidity 10 - 90%

Storage Altitude 0 to 9840 feet (0 - 3000m)
Warranty 1 Year Parts & Labor Standard
Regulatory FCC Class A, UL1950, CSA950
Included Accessories AC Power Cord, User Manual, Remote Control, Batteries, Cable Clamps
Optional Accessories Terminal Cover PX-CV1U

*Signal DA is required for sending a signal to more than 4 monitors simultaneously.

Service and Support

The PlasmaSync 84VP4 is supported by NEC’s industry leading service and support
programs. It comes with a standard 1-year manufacturer’s warranty plus an
extended warranty option that provides two additional years of coverage and
is available from your authorized NEC Visual Systems Division dealer.

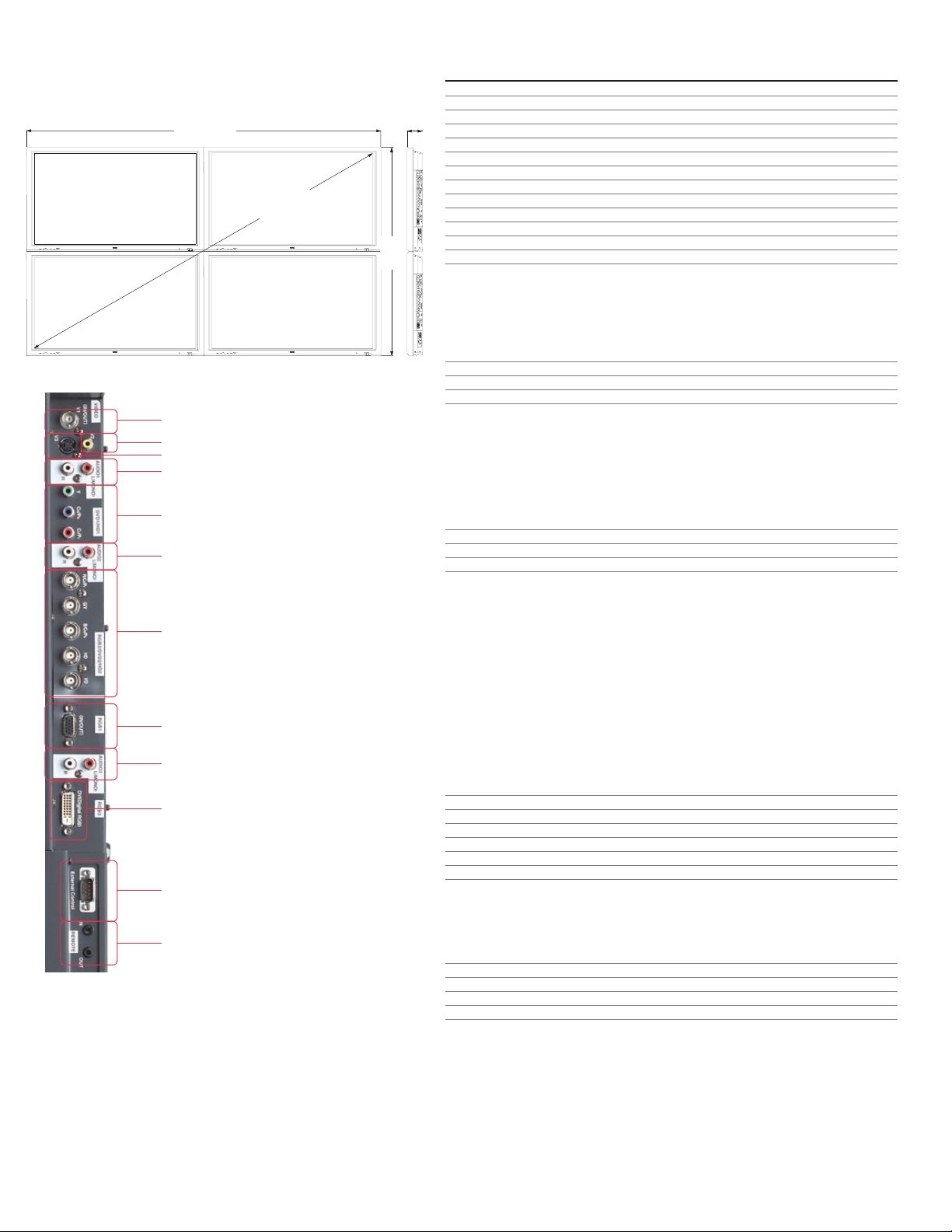

Video 1 / Video Out

Audio 1

RGB2 / DVD2 / HD2 Input

RGB1 / RGB Out

DVI

Audio 3

Video 2
Video 3

DVD1 / HD1

Audio 2

External Control

Remote In / Out

80.2

”

(

2036

mm)

48.0

”

(

1220

mm)

3.5”

(89mm)

84”

(2133.6mm)
