PlasmaSync
®
61MP1
Exclusive
technologies
display
Superior resolution and image quality
The PlasmaSync 61MP1 delivers the outstanding image
quality you expect from NEC. It starts with a 1365 x
768 native panel resolution that meets the industry
standard for true 16:9 Wide XGA computer graphics to
provide superior high-resolution capability. The 61MP1
includes NEC Capsulated Color Filter technology that
provides extremely realistic and saturated colors as well
as enhanced contrast. Advanced AccuBlend scan
conversion provides precise display of computer-based
information from non-native resolutions. A motioncompensated 3D scan converter delivers smooth, lifelike
display of video sources and an improved 3-2 pull down
converter provides excellent display of video content
originally recorded in 24 frame/second film.
Additionally, a combination of exclusive new
technologies have been incorporated that enhance the
sharpness, clarity and color reproduction of the panel.
Advanced Mass Area Sampling widens the sampling
area horizontally and vertically to straighten diagonal
lines and reproduce curved lines more smoothly for a
clear and precise image. For computer sources, a scan
converter with an Optimum Conversion process for
signals up to UXGA is included. NEC has the latest
video processing circuitry which uses a new algorithm
to reduce false color contours plus a 10-bit conversion
process for more precise reproduction of shades of
black delivers dark scenes with details that are sharp
and distinct.
for precise
Page 3
NEC sets a new benchmark for large screen size and outstanding
image quality with the PlasmaSync 61MP1, the first plasma
monitor to break the 60” barrier. No matter how you look at it,
the PlasmaSync 61MP1 makes a big impression and at 61 inches
it stands out as an industry first for large-sized plasma monitors.
It’s 61” screen delivers a huge display area of nearly 1600 square
inches – nearly 50% more than a 50” screen.
And its images are as beautiful as they are big. As part of the
NEC Multimedia Presentation Series of plasma monitors, the
61MP1 is optimized to provide superior image quality for
professional multimedia applications. With enhancements such
as Capsulated Color Filter technology and sophisticated new
signal processing, scan conversion and sampling technologies
built-in, the 61MP1 delivers vivid colors and sharp detail for
images that are absolutely stunning.
The PlasmaSync 61MP1 is designed specifically for professional
multimedia and business communication use.
• Conference room presentation
• Boardroom AV systems
• Videoconferencing
• Training
• Broadcast post-production/editing/playback
With superior high-resolution support the 61MP1 is also ideal for:
• Control rooms
• Network operation centers
• CAD design/visualization/presentation
• Rental & staging
size,
Ultimate
impact
Ultimate
Page 4
presentation tools
The PlasmaSync 61MP1 includes unique capabilities that enhance its
effectiveness as tool for professional presentation purposes. With a Split
Screen Display capability, Digital Zoom and generating only 22 decibels of fan
noise for undetectably silent operation, the 61MP1 helps you communicate
your message like no other plasma monitor can.
Broad Signal and Source Compatibility
Being optimized for multimedia means that the 61MP1 can connect to
and display signals from virtually any input source – whether it’s
computer, conventional video or HDTV. With eight separate inputs it
can accommodate virtually any source equipment that you would want
to connect.
Split Screen Display
The PlasmaSync 61MP1 Split Screen allows simultaneous display of
multiple input sources. More than a simple picture-in-picture, split
screen lets you position computer and video images in different
configurations around the screen to support videoconferencing,
workgroup collaboration and host of other multi-tasking uses. Split
Screen also gives you a solution for displaying 1024x768 XGA
computer sources by allowing you to display them in their standard 4:3
aspect ratio.
Digital Zoom
With its Digital Zoom the 61MP1 allows you to select a portion of the
screen and magnify it up to nine times to highlight information or
emphasize a point. This is a presentation tool you won’t find on any
other plasma monitor.

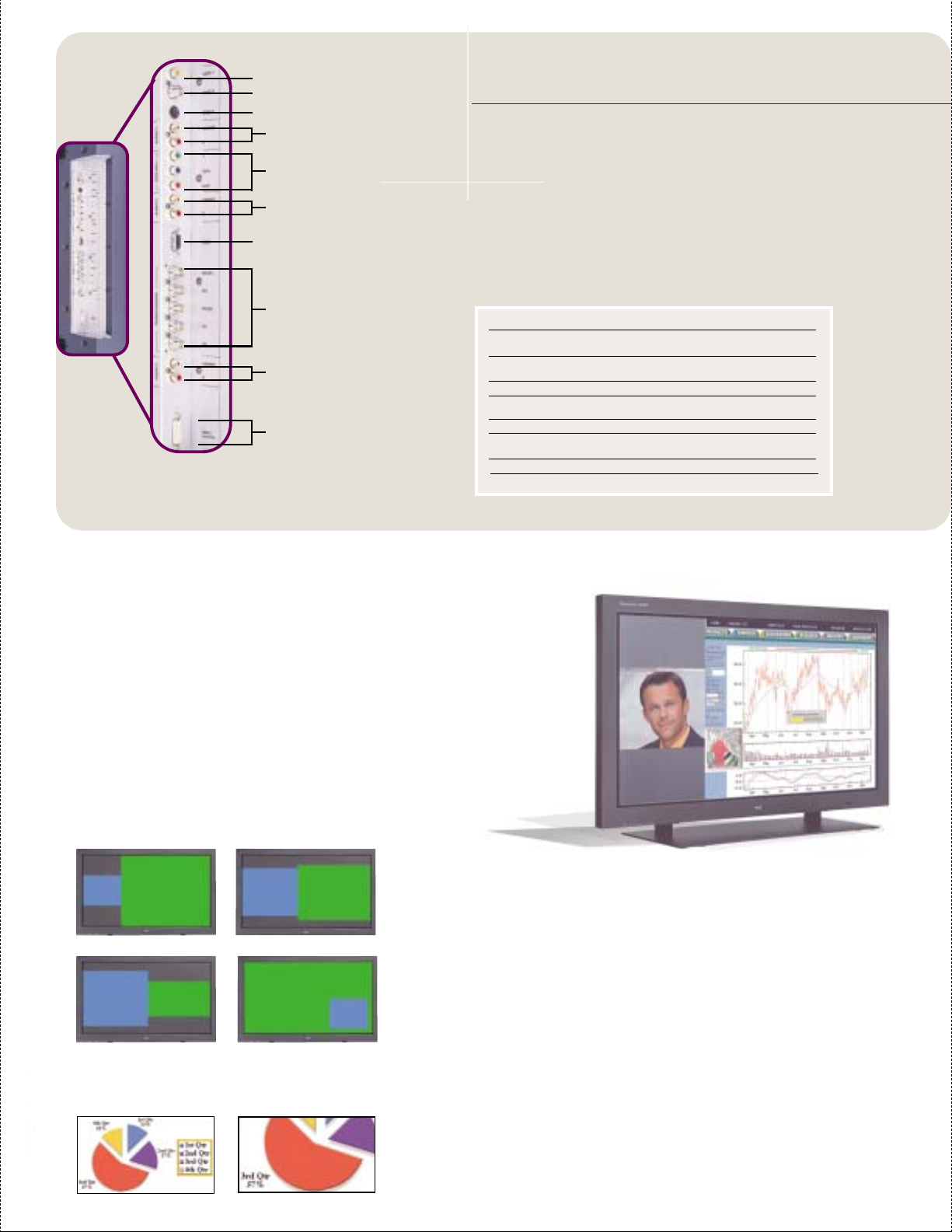

Comprehensive input panel includes connections for up to 8 different
sources including a 29-pin DVI digital input connector and three
assignable audio inputs. RS232, control lock and remote control jack are
located on a separate connector panel on the bottom of the cabinet.
SOURCE INPUT OPTIONS SIGNAL STANDARD
RGB 15-pin mini D-Sub VGA – UXGA Computer,
Component Video
RGB 5 BNC (RGB/HV) VGA-XVGA Computer,
Component Video, HDTV
Digital RGB 29-pin DVI-D VGA – UXGA Computer
Composite Video RCA BNC NTSC (3.58, 4.43), PAL,
PAL60, SECAM
S-Video 4-pin DIN SVHS
DTV/HDTV 3X RCA BNC 480i, 480p, 540p, 625i,
625p, 720p, 1035i, 1080i
Audio 3X Stereo RCA Assignable via OSM
Control 9-pin RS232C
With Digital Zoom you can select a portion of the screen image
and enlarge it up to 9 times with the touch of a button on the
remote control.
NEC has unique Split Screen capability which allows simultaneous
display of a computer and video sources. Choose from up to 8
different configurations with a simple touch of a button on the
remote control.
VIDEO PC VIDEO PC
VIDEO PC
VIDEO
PC
Ultimate
Video1, Composite RCA
Video3, S-Video
Video2, Composite BNC
Audio1
Audio3
Audio2
RGB2 & DVD/HD2,
5BNC (RBG/HV)
RGB1, 15-pin
DVD/HD1, Component
RCAx3 (Y, Pb, Pr)
RGB3, 29-pin
DVI Digital
Page 5
Wired/wireless hand-held
remote control provides
access to all monitor functions
via an intuitive on-screen menu
system.
AccuShield™Phosphor Protection System
NEC exclusive AccuShield Phosphor Protection System provides three operating
modes that can help prevent phosphor burn or minimize its perceptible effects
if it does. When used in conjunction with simple operating guidelines,
AccuShield’s PLE Brightness Limiter, Image Orbiter and Inverse RGB Mode can
extend the usable life of the monitor.
Powerful Stereo Audio
The PlasmaSync 61MP1 includes powerful audio capabilities with an internal 7Watt stereo amplifier and optional external speakers. External speaker
terminals and three assignable audio inputs give you the flexibility to connect to
available room sound systems and source audio if you need more power than
the internal amplifier provides.
Flexible Mounting Configurations
The PlasmaSync 61MP1 can be mounted in either horizontal or vertical
orientation for maximum flexibility in displaying your messages.
Superior Service and Support
The PlasmaSync 61MP1 is supported by NEC Technologies industry-leading service
and support programs. It comes with a standard 1-year manufacturer’s warranty
plus an extended warranty option that provides two additional years of
coverage and is available from your authorized NEC Visual Systems dealer.
Inverse Mode inverts red, green and
blue color values to precisely even
wear on phosphor and remove the
perceptible effects of image
retention.
LONG LIFE
ORBITER
INVERSE
AUTO
OFF
OFF
PLE
SEL ADJ. RETURNEXIT
:
:
:
Choose Your Screen Size
The NEC PlasmaSync MP Series offers three screen sizes for a
range of multimedia application uses. From the utility of the 42”
screen to, superior 50” performance to the ultimate size of the
61MP1, NEC offers a solution with outstanding progressive scan
image quality , br oad signal and source compatibility and powerful
multimedia capabilities. Only NEC offers this range of screen size
options in a series of plasma monitors designed specifically for
professional multimedia applications.
Optional external speakers can be attached to the
monitor to provide a seamless audio option for
wall-mounted installations.
Comprehensive Control Options
The PlasmaSync 61MP1 offers a full set of control
options. A comprehensive on-screen menu
system provides complete control of all monitor
functions and is accessible from a handheld
remote or convenient front-bezel controls. Onscreen menus are easy to navigate and intuitive
to use. Plus, if you wish to set-up and operate
the 61MP1 from a PC or a remote location,
complete RS232 control is available for each
monitor function.
Page 6

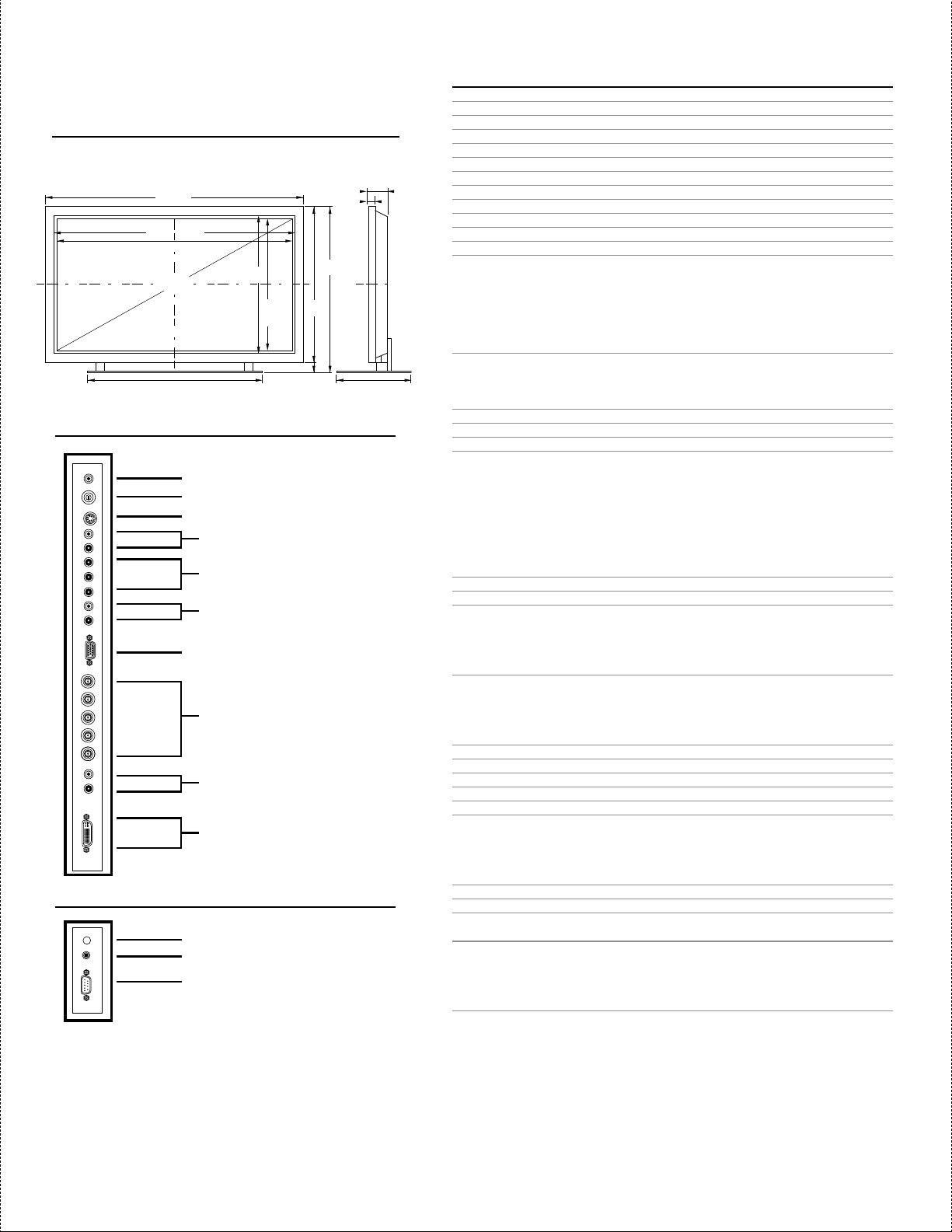

Specifications
Model Number PX-61XM1A
Diagonal Screen Size 61"
Screen Aspect Ratio 16 to 9
Active Screen Area 1351 x 760 mm
Native Pixel Resolution 1365 vertical dots x 768 horizontal rows
Pixel Pitch .99 mm square
Contrast Ratio (set) 700 to 1
Capsulated Color Filter Yes
Output color 256 RGB levels, 16.7 million colors
Viewing Angle 160 degrees
Horizontal Frequency Range 15.5 to 93.8 kHz auto, step scan
Vertical Frequency Range 50 to120 Hz auto, step scan
PC Signal Compatibility VGA 640x480 @ 60,72,75,85,100, 120 Hz
SVGA 800x600 @ 56, 60, 72,75,85,100,120 Hz
XGA 1024x768 @ 60,70,75, 85, 100 Hz
SXGA 1280x1024 @ 60, 75, 85 Hz
UXGA 1600x1200 @ 60, 65, 70, 75 Hz
WideVGA 848x480, 852 x 480 @ 60Hz
WideXGA 1360 x 768 @60Hz
Workstation Compatibility EWS4800 1280x1024
HP 1280x1024
Sun 1152x900, 1280x1024
SGI 1024x768, 1280x1024
Macintosh Compatibility 640x480, 832x624, 1024x768, 1152x870
Video Signal Compatibility NTSC, PAL, SECAM, 3.58/4.43 NTSC
HD Video Signal Compatibility 480p 480i, 525p, 525i, 540p, 625p, 625i, 720p,1035i, 1080i
Input Terminals RGB 1 (analog) 15-pin mini D-sub
RGB 2 (analog) 5 BNC (RGB/HV)
RGB 3 (digital) 29-pin DVI (digital only)
Video 1 Composite RCA x 1
Video 2 Composite BNC x 1
Video 3 S-Video 4-Pin DIN
HD Video 1 1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr)
HD Video 2 1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr)
Audio 3 sets RCA stereo + external speaker jacks
Audio Internal amplifier, 7W x 2 output power
External Control 9-pin mini D-Sub, RS232
User Controls Direct Access Power on/off, input selection, OSM access,
(Control Lock Switch located on input panel)
Remote Control Power on/off, input select, volume, mute, wide, display,
off-timer, OSM control, cursor, pointer, zoom, split screen,
auto, select
OSM Contrast, brightness, sharpness, color, tint, color temperature, picture mode,
noise reduction, bass, treble, balance, vertical position, horizontal position,
fine picture, picture adjust, auto picture, power management, RGB select,
BNC select, HD select, OSM adjustment, gray level, PLE, reset, frequency,
language, color system
Plug & Play DDC1, DDC2B (RGB3 is DDC2B only)
Power Requirements 120V 50/60 Hz
Power Consumption 660 W Typical, 6.9 Amp Maximum
Dimensions (WxHxD) - without base 1480 x 890 x 119mm, 58.3 x 35 x 4.7 inches
Weight 61 kg, 134.5 lbs. (without tabletop stand)
Environmental Considerations Operating Temperature 32 - 95 degrees F
Operating Humidity 20 - 80%
Altitude 0 to 2800m, 0 to 9180 ft.
Storage Temperature 14 - 122 degrees F
Storage Humidity 10 - 90%
Warranty 1 Year Parts & Labor Standard
Regulatory FCC Class A, UL1950, CSA950
Included Accessories AC Power Cord, User Manual, Remote Control,
Remote Control Cable, 15-pin RGB Cable, Batteries
Optional Accessories Tabletop Stand PX-61XM1U-ST
Attachable Speakers PX-61XM1U-S1
61" Fixed Wall Mount 61FWMK
61" Tilt Wall Mount 61TWMK
61" Ceiling Mount 61CMK
Specifications subject to change without notice.
NEC 020219 10K
For more information, call (800) NEC-INFO
or visit www.necvisualsystems.com
NEC is a registered trademark of NEC Corporation.
All other trademarks are the property of their respective owners.
All specifications subject to change without notice.
NEC Solutions (America), Inc.
Visual Systems Division
1250 Arlington Heights Rd., Suite 500
Itasca, IL 60143-1248
Video1, Composite RCA
Video3, S-Video
Video2, Composite BNC
Audio1
Audio3
Audio2
RGB2 & DVD/HD2,
5BNC (RBG/HV)
RGB1, 15-pin
DVD/HD1, Component
RCAx3 (Y, Pb, Pr)
RGB3, 29-pin
DVI Digital
Remote Control Jack
RS232
Control Lock
PlasmaSync
®
61MP1
Side Input Panel
Bottom Input Panel
58.3"
(1480mm)
53.9" (1380mm)
53.2" (1350.7mm)
screen range
61.0" (1550mm)
screen range
39.4" (1000mm) 17.0" (430mm)
30.7"
(790mm)
29.9"
(760mm)
screen
range
35.0"
(890mm)
1.8" (45mm)
37.4"
(950mm)
4.7" (119mm)
Loading...
