NEC PlasmaSync 50XM3, PlasmaSync PX-50XM3G, PlasmaSync 50XM3G, PlasmaSync 50XM3GS Model Information

PlasmaSync Plasma Monitor

PlasmaSync 50XM3

PX-50XM3G / 50XM3G/S

Model Information

Modell-Informationen

Informations modèle

Información del modelo

Informazioni sul modello

Modellinformation

3-61

CONFIDENTIAL

E-1

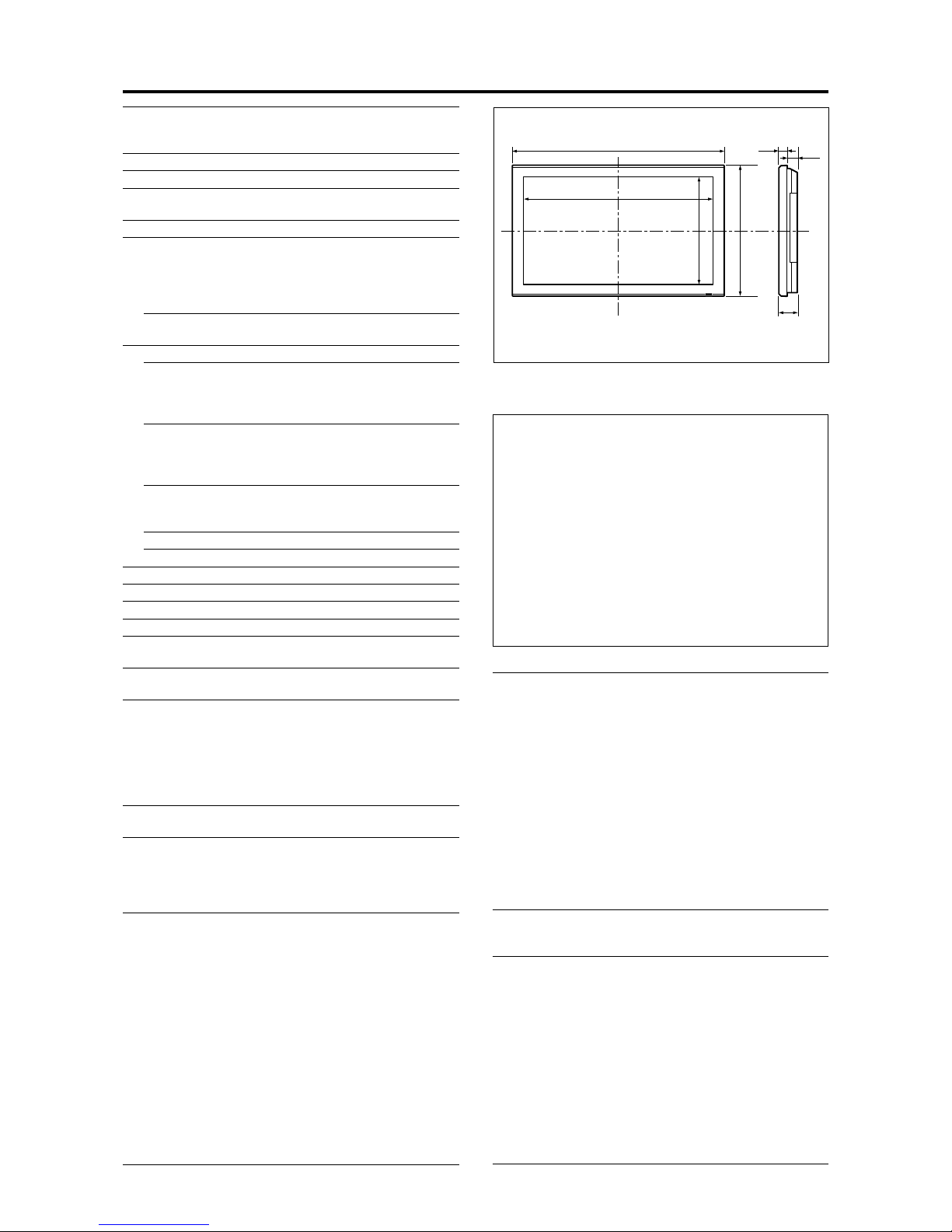

Specifications

Screen Size 1106(H)622(V) mm

43.5"(H)24.5"(V) inches
diagonal 50"

Aspect Ratio 16 : 9
Resolution 1365(H)768(V) pixels
Pixel Pitch 0.81(H)0.81(V) mm

0.032"(H)0.032"(V) inches

Color Reproduction 256 levels, 16,770,000 colors
Signals

Synchronization Range Horizontal : 15.5 to 110 kHz

(automatic : step scan)
Vertical : 50.0 to 120 Hz
(automatic : step scan)

Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),

PAL60, SECAM, HD*1 , DVD*1 , DTV*1

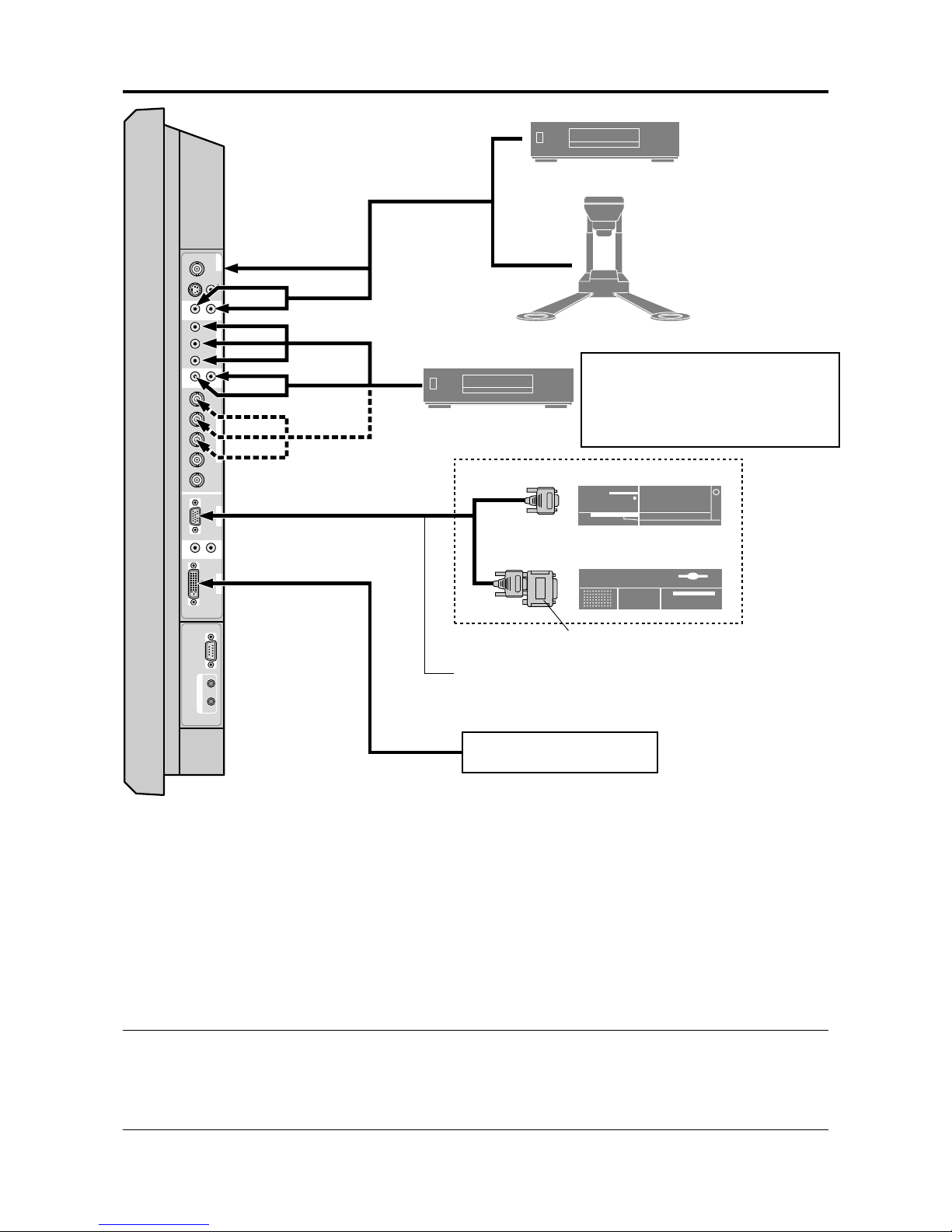

Input Terminals (VIDEO1 and RGB1 can also be used as OUTPUT terminals)

RGB

Visual 1 (Analog) mini D-sub 15-pin1
Visual 2 (Analog) BNC (R, G, B, H/CS, V)1*

2

Visual 3 (Digital) DVI-D 24-pin1*

3

Video

Visual 1 BNC1
Visual 2 RCA-pin1
Visual 3 S-Video: DIN 4-pin1

DVD/HD/DTV

Visual 1 RCA-pin (Y, PB[CB], PR[CR])1*

1

Visual 2 BNC (Y, PB[CB], PR[CR])1*

1, *2

Audio Stereo RCA3 (Selectable)

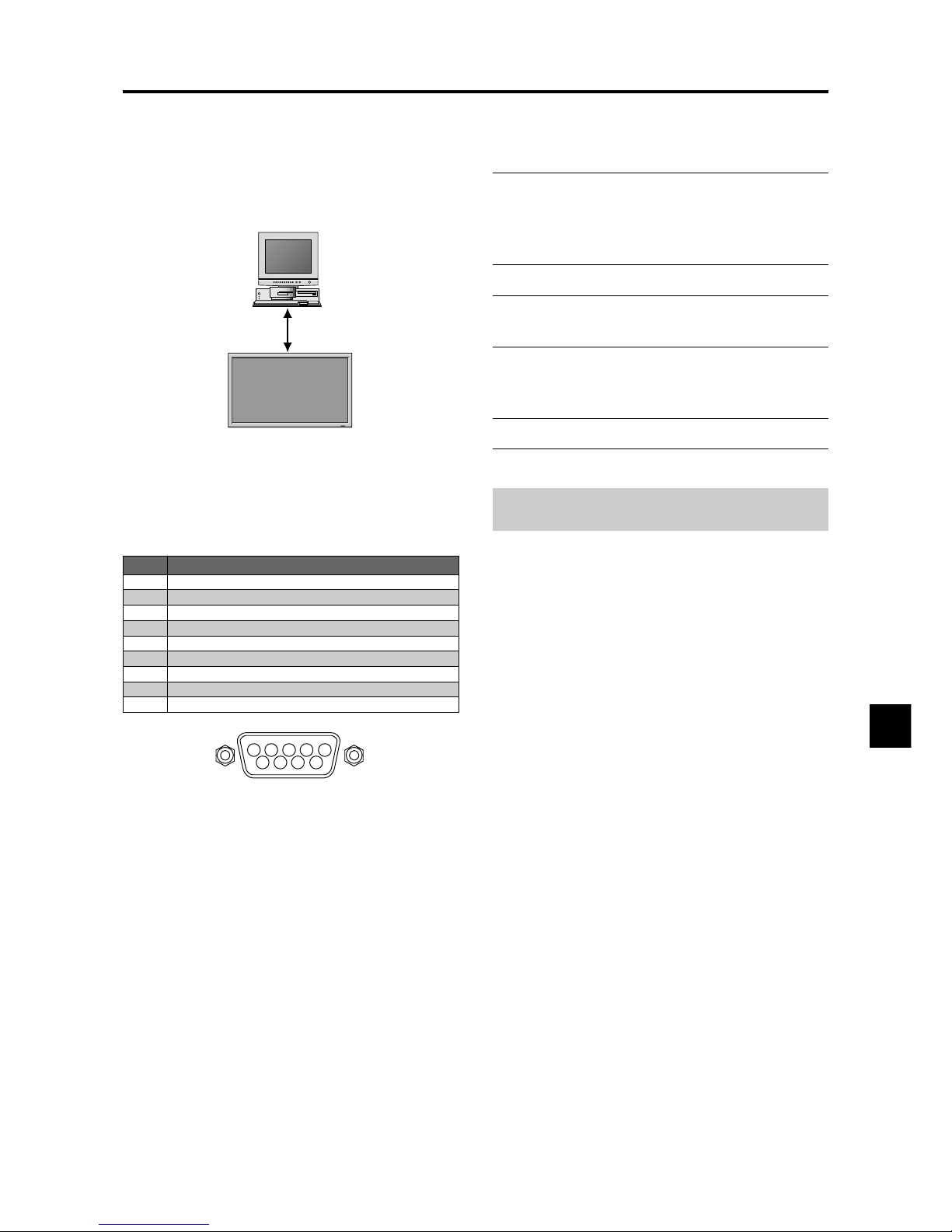

External Control D-sub 9-pin1 (RS-232C)
Sound output 9W+9W at 6 ohm
Power Supply AC100-240V 50/60Hz
Current Rating 7.6 A (maximum)
Power Consumption 480W (typical)
Dimensions 1222 (W)736 (H)96(D) mm

48.1 (W)30 (H)3.8 (D) inches

Weight

50XM3G: 43.9 kg / 96.6 lbs (without stand)
50XM3G/S: 44.5 kg / 97.9 lbs (without stand)

Environmental Considerations

Operating Temperature 0°C to 40°C / 32°F to 104°F

Humidity 20 to 80% (no condensation)
Altitude 0 to 2800 m / 0 to 9180 feet

Storage Temperature -10°C to 50°C / 14°F to 122°F

Humidity 10 to 90% (no condensation)
Altitude 0 to 3000 m / 0 to 9840 feet

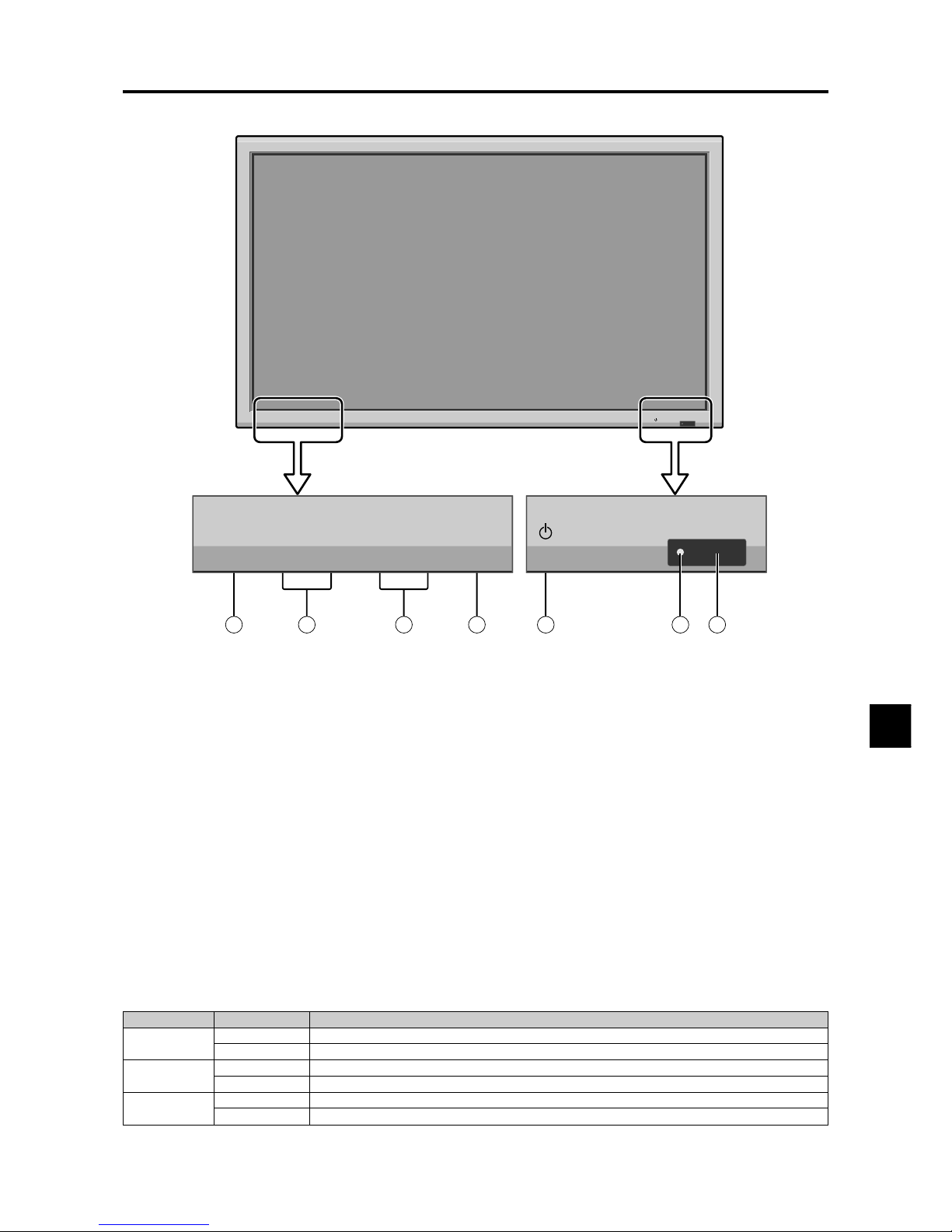

Front Panel User Controls Power on/off, Input source select,

Volume up/down/ OSM control

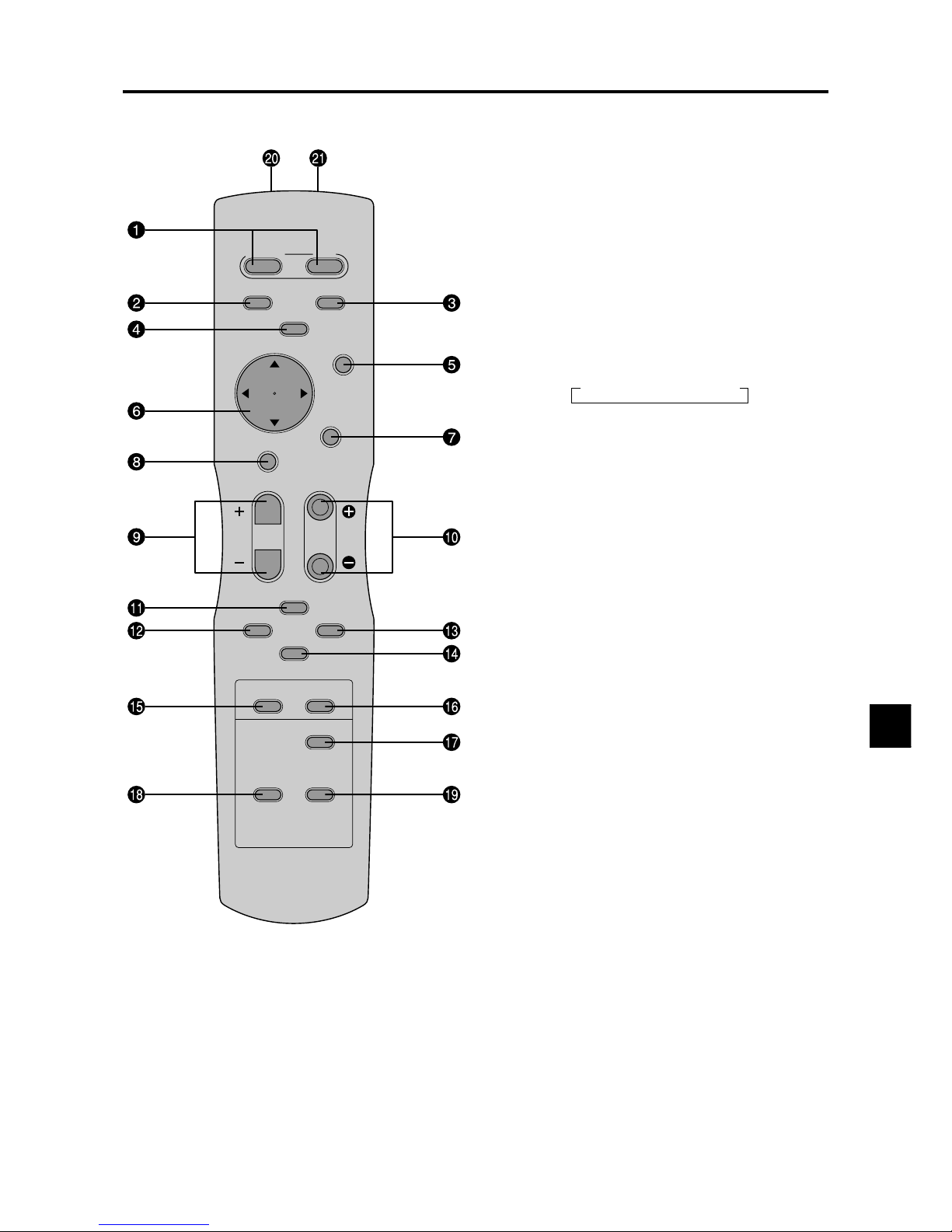

Remote Control Functions

Power on/off, Input source select, OSM
control,Volume up/down, Cursor (UP,
DOWN,LEFT, RIGHT), Pointer, Zoom up/
down, Off timer, Wireless/ Wired remote
control

OSM Functions

Picture (Contrast/Brightness/Sharpness/ Color/Tint/
Picture mode/Noise reduction/Color temperature/
White balance/Gamma/Low tone/Color tune), Audio
(Bass/Treble/Balance/Audio input), Image Adjust
(Aspect mode/V-Position /H-Position/V-Height /H­Width/Auto Picture/Fine picture/Picture adjustment),
Option1 (OSM/BNC Input/D-Sub Input/RGB Select/
HD Select/Input Skip/All Reset), Option2 (Power
management/Cinema mode/Long life [PLE, Orbiter,
Inverse, White, Screen wiper, Soft focus]/Gray level/
S1/S2/Picture size), Option3 (Timer Power on mode/
Control lock/IR Remote/Loop out/ID number/Video
wall [Divider, Position, Disp. mode, Auto ID, Image
adjust, Power on delay, PLE link, Timer]), Advanced
OSM, Language*, Color system, Source information
*English, German, French, Italian, Spanish, Swedish,

Chinese

The features and specifications may be subject to change without
notice.

*1HD/DVD/DTV input signals supported on this

system

480P (60 Hz) 480I (60 Hz)
525P (60 Hz) 525I (60 Hz)
576P (50 Hz) 576I (50 Hz)
625P (50 Hz) 625I (50 Hz)
720P (60 Hz) 1035I (60 Hz)
1080I (50 Hz) 1080I (60 Hz)

*2The 5-BNC connectors are used as RGB/PC2 and

HD/DVD2 input. Select one of them under “BNC
INPUT”.

*

3

Not compatable with HDCP.

Units are in mm

(inch)

96

(3.8")

38

(1.5")

58

(2.3")

1222 (48.1")

736 (30")

1106 (43.5")

622 (24.5")

Other Features Motion compensated 3D Scan Converter (NTSC,

PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3
pull down Converter (NTSC, 480I, 525I, 1035I,
1080I (60Hz)), 2-2 pull down Converter (PAL,
576I, 625I, NTSC, 480I, 525I), Digital Zoom
Function (100-900% Selectable), Video Wall 2×2/
3×3 multi screen, Self Diagnosis, Anti Image Burn
(PLE LOCK1~3, INVERSE, WHITE, ORBITER
(Auto1,2/Manual), SCREEN WIPER), Color
Temperature select (high/mid/mid low/low, user
has 4 memories), Control lock (Except power
SW), Auto Picture, Input Skip, Color Tune, Low
Tone (3 mode), Auto ID, Programmable Timer,
Gamma Correction (4 mode), Loop through
interface, Plug and play (DDC1, DDC2b, RGB3:
DDC2b only)

Accessories Remote control with two AAA batteries, Power

cord, Manuals, Safety metal fitting parts,
Ferrite cores, Bands, Cable clamps

Regulations

50XM3G:

Meets EMC Directive
(EN55022 Class A, EN55024, EN61000-3-2,
EN61000-3-3)
Meets Low Voltage Directive
(EN60950, SEMKO Approved)
Meets AS/NZS CISPR 22:2002 Class A

50XM3G/S:

Meets EMC Directive
(EN55022 Class B, EN55024, EN61000-3-2,
EN61000-3-3)
Meets Low Voltage Directive
(EN60950 and EN60065, SEMKO Approved)
Meets AS/NZS CISPR 22:2002 Class B

50XM3G: Bezel color is gray.
50XM3G/S: Bezel color is silver.

For the operation of your plasma monitor, refer to
“Operation Manual”.

3-62

CONFIDENTIAL

Table of Signals Supported

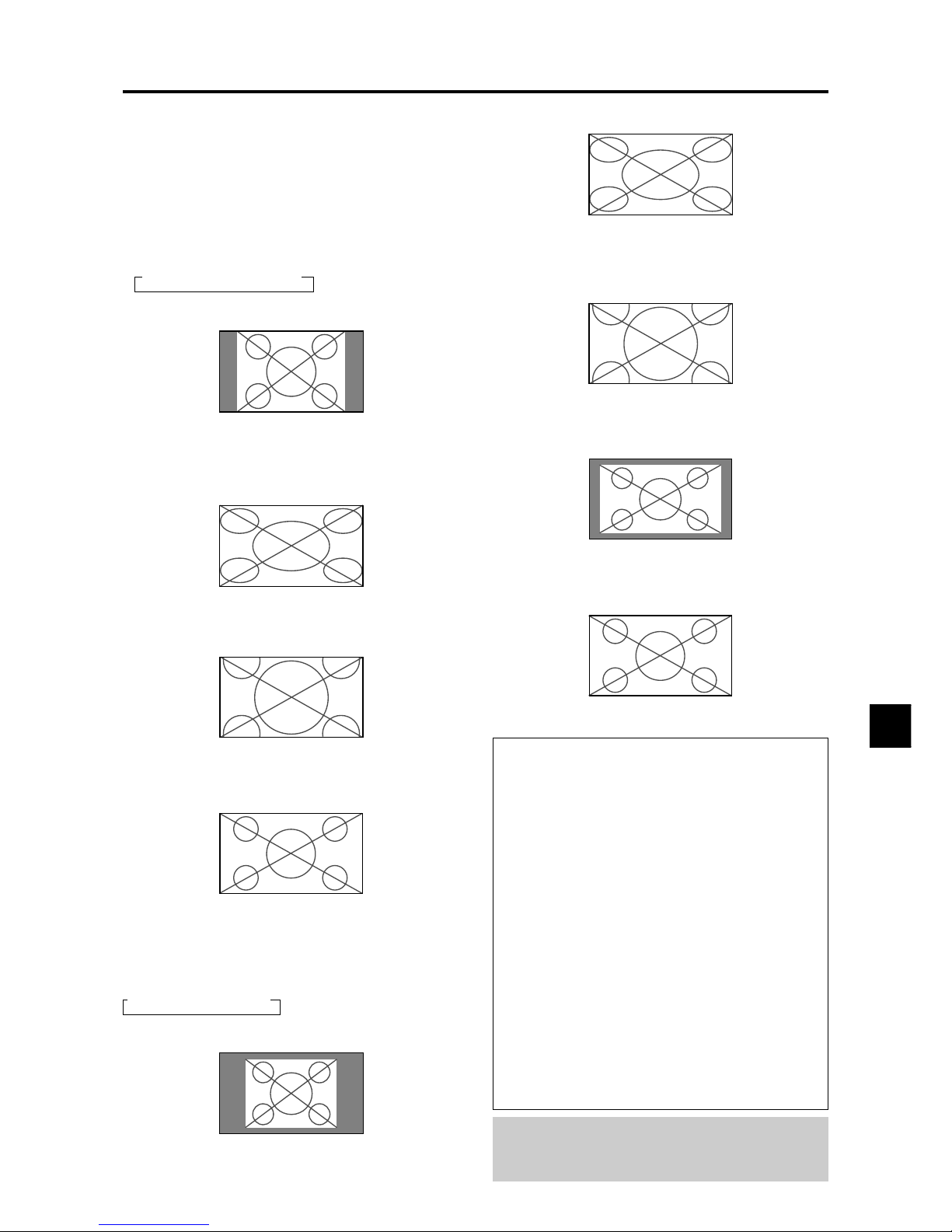

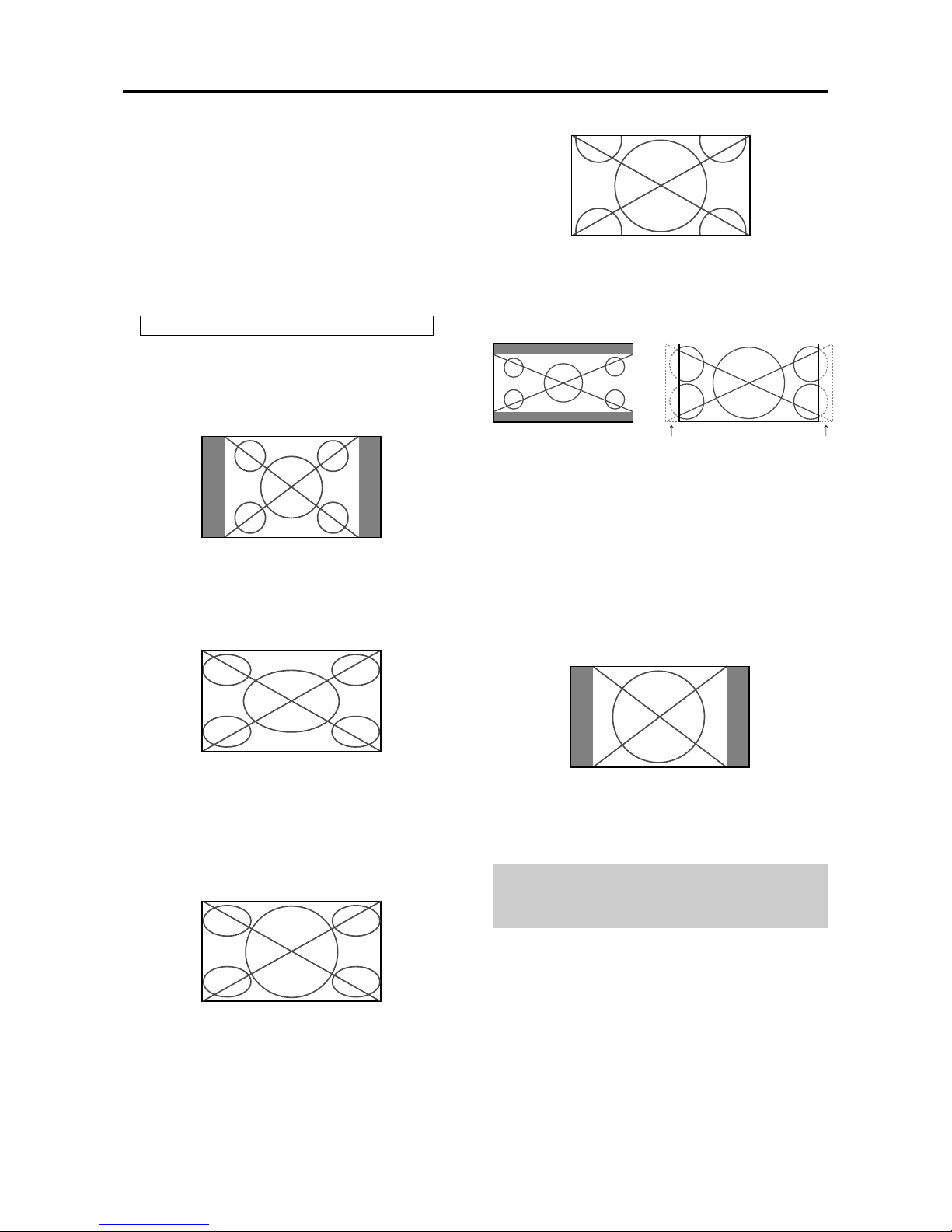

Screen mode

Supported resolution

• When the screen mode is NORMAL, each signal is converted to a 1024 dots768 lines signal. (Except for *

2, 3, 4

)

• When the screen mode is TRUE, the picture is displayed in the original resolution.

• When the screen mode is FULL, each signal is converted to a 1365 dots768 lines signal. (Except for *

3

)

Computer input signals supported by this system

Dots  lines

640400
640480

848480

852480*

1

800600

1024768

1152864

1280768

1360765
1360768
1376768

12801024

16001200

640480
832624

1024768

1152870

12801024

12801024

1152900

12801024

1024768

12801024

768576
640480

Vertical
frequency
(Hz)

70.1

59.9

72.8

75.0

85.0

100.4

120.4

60.0

60.0

56.3

60.3

72.2

75.0

85.1

99.8

120.0

60.0

70.1

75.0

85.0

100.6

75.0

56.2

59.8

60.0

60.0

59.9

60.0

75.0

85.0

100.1

60.0

65.0

70.0

75.0

85.0

66.7

74.6

74.9

75.1

60.0

71.2

72.0

66.0

76.0

76.1

60.0

60.0

50.0

59.9

Horizontal
frequency
(kHz)

31.5

31.5

37.9

37.5

43.3

51.1

61.3

31.0

31.7

35.2

37.9

48.1

46.9

53.7

63.0

75.7

48.4

56.5

60.0

68.7

80.5

67.5

45.1

48.0

47.7

47.7

48.3

64.0

80.0

91.1

108.5

75.0

81.3

87.5

93.8

106.3

35.0

49.7

60.2

68.7

64.6

75.1

78.1

61.8

71.7

81.1

49.7

63.9

31.4

31.5

NORMAL

(4:3)

YES*

2

YES
YES
YES
YES
YES
YES

– –
– –

YES
YES
YES
YES
YES
YES
YES

YES*

3

YES*

3

YES*

3

YES*

3

YES*

3

YES

– –
– –
– –
– –
– –

YES*

4

YES*

4

YES*

4

YES*

4

YES
YES
YES
YES
YES
YES
YES

YES*

3

YES

YES*

4

YES*

4

YES*

4

YES
YES

YES*

4

YES*

3

YES*

4

YES*

7

YES*

7

TRUE

YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES

– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –

YES
YES

– –
– –
– –
– –
– –
– –
– –
– –
– –
– –

– –
– –

FULL
(16:9)

YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES

YES*

3

YES*

3

YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES

YES*

7

YES*

7

RGB

select*

5

– –

STILL

– –

STILL

– –
– –
– –

WIDE2
WIDE1

STILL
STILL

– –
– –
– –
– –
– –

STILL

– –

STILL

– –
– –

STILL
WIDE1
WIDE3
WIDE1
WIDE1
WIDE2

STILL

– –
– –
– –
– –
– –
– –
– –
– –
– –
– –

WIDE1
WIDE1

– –
– –
– –
– –
– –
– –
– –
– –

– –

MOTION

Apple
Macintosh*

6 *8

Horizontal

NEG
NEG
NEG
NEG
NEG
NEG
NEG
POS
NEG
POS
POS
POS
POS
POS
POS
POS
NEG
NEG
POS
POS
NEG
POS
POS
POS
POS
POS
NEG
POS
POS
POS
POS
POS
POS
POS
POS
POS

Sync on G
Sync on G
Sync on G
Sync on G

NEG
NEG

– –

C Sync
C Sync
C Sync

– –
– –

NEG
NEG

Work Station
(EWS4800)

*

8

Work Station(HP)

*

8

Work Station
(SUN)

*

8

Work Station
(SGI)
IDC-3000G

Signal Type

IBM PC/AT*

8

compatible
computers

Vertical

NEG
NEG
NEG
NEG
NEG
NEG
NEG
POS
NEG
POS
POS
POS
POS
POS
POS
POS
NEG
NEG
POS
POS
NEG
POS
POS
NEG
POS
POS
POS
POS
POS
POS
POS
POS
POS
POS
POS
POS

Sync on G
Sync on G
Sync on G
Sync on G

NEG
NEG

– –

C Sync
C Sync
C Sync

– –
– –

NEG
NEG

Sync Polarity

Presence

Horizontal

YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES

– –
– –
– –
– –

YES
YES

– –
– –
– –
– –
– –
– –

YES
YES

Vertical

YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES

– –
– –
– –
– –

YES
YES

– –
– –
– –
– –
– –
– –

YES
YES

PAL625P

NTSC525P

Model

DVI

NO
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES

NO
YES

NO
YES

NO
YES
YES
YES

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO
YES

NO

NO

NO

NO

NO
YES
YES

NO

NO

Memory

4
5
7
8

9
41
42
19
17
11
12
13
14
15
43
44
24
25
26
27
45
51
52
80
22
22
53
29
30
40
47
54
55
56
57
58

6
16
28
39
29
48
59
60
61
30
62
29

31
32

E-2

3-63

CONFIDENTIAL

E-3

Warning (Only for 50XM3G)

Apparatus shall not be exposed to dripping or splashing and
that no objects filled with liquids, such as vases, shall be
placed on apparatus.
T o reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture.
This is a Class A product. In a domestic environment, this
product may cause radio interference in which case the user
may be required to take adequate measures.

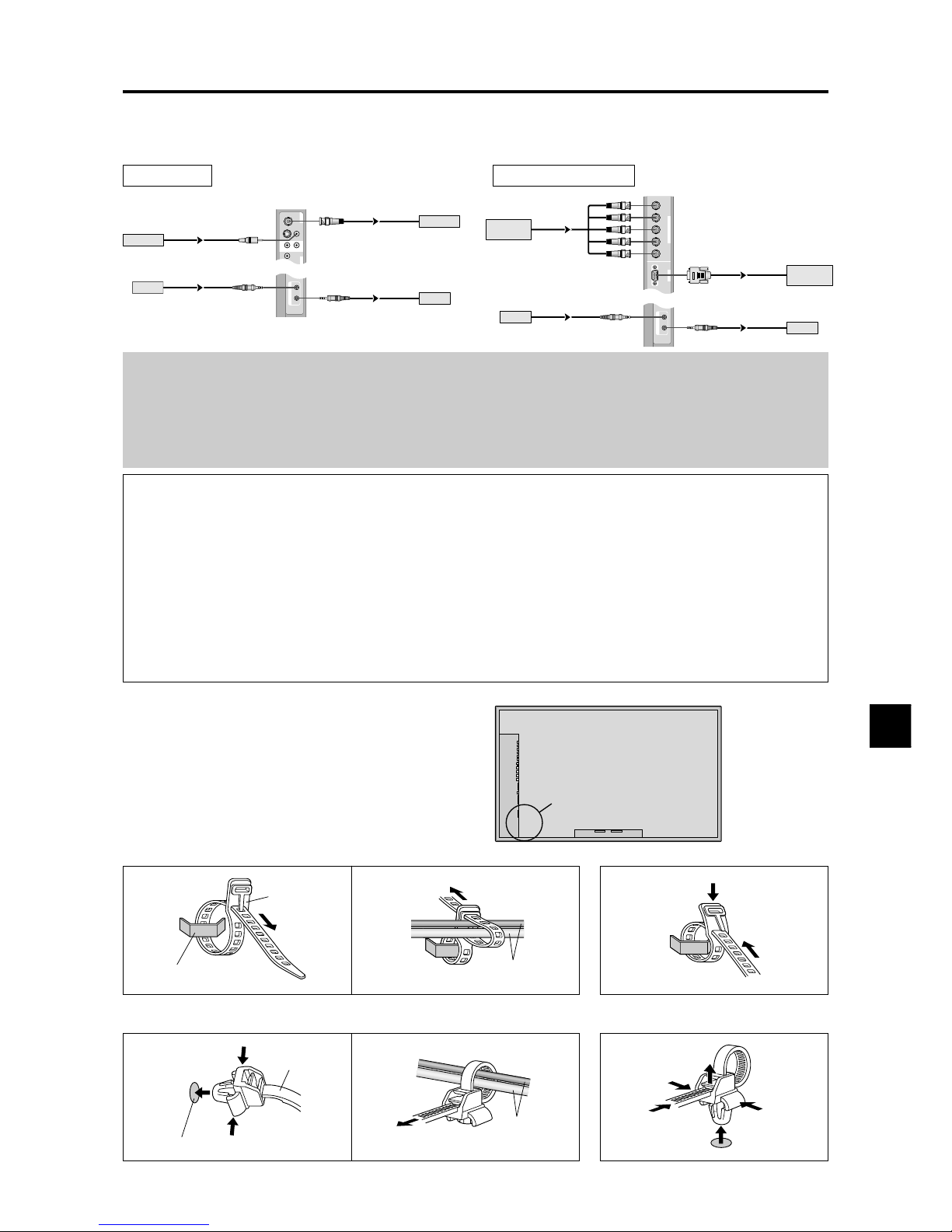

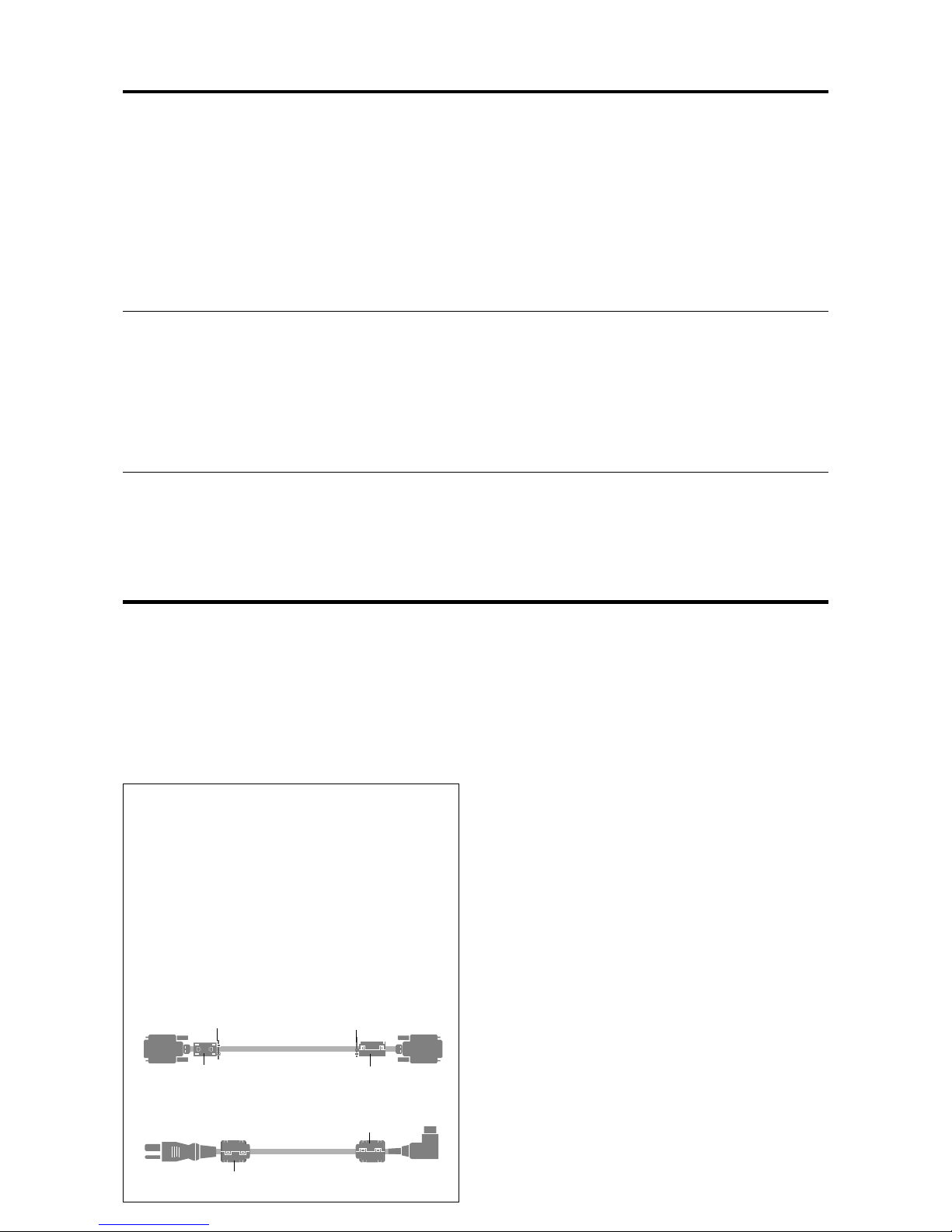

NOTE:
When you connect a computer to this monitor, use an RGB
cable including the ferrite core on both ends of the cable.
And regarding DVI and power cable, attach the supplied
ferrite cores. If you do not do this, this monitor will not
conform to mandatory CE or C-Tick standards.
Set the ferrite cores on both ends of the DVI cable (not
supplied), and both ends of the power cable (supplied).
Close the lid tightly until the clamps click.
Use the band to fasten the ferrite core (supplied) to the
DVI cable.

DVI cab le (not supplied)

core (small)

core (small)

Connector

band

band

Power cable (supplied)

core (large)

core (large)

Important Information

*1 Only when using a graphic accelerator board that is capable of displaying 852480.
*2 Display only 640 lines with the screen center of the vertical orientation located at the center.
*3 The picture is displayed in the original resolution. The picture will be compressed for other signals.
*4 Aspect ratio is 5:4. This signal is converted to a 720 dots768 lines signal.
*5 Normally the RGB select mode suite for the input signals is set automatically . If the picture is not displayed properly , set the RGB mode

prepared for the input signals listed in the table above.
*6 To connect the monitor to Macintosh computer, use the monitor adapter (D-Sub 15-pin) to your computer's video port.
*7 Other screen modes (ZOOM and ST ADIUM) are available as well.
*8 When viewing a moving picture at a vertical frequency greater than 65Hz, the picture may sometimes be unstable (jumpy). If this occurs,

please set the refresh rate of the external equipment to 60Hz.

To view 480I@60Hz (480 interlaced lines, 60Hz refresh rate) or 576I@50Hz (567 interlaced lines, 50Hz refresh rate) when sync polarity

is “Sync on Green”, set “RGB SELECT” to “MOTION”.

NOTE:

• While the input signals comply with the resolution listed in the table above, you may have to adjust the position and size of the

picture or the fine pictur e because of errors in synchronization of your computer.

• When a 1280 dots  1024 lines signal or 1600 dots  1200 lines signal is input to the monitor , the picture will be compr essed.

• This monitor has a resolution of 1365 dots



768 lines. It is recommended that the input signal should be XGA, wide XGA,

or equivalent.

• With digital input some signals are not accepted.

• The sync may be disturbed when a nonstandard signal other than the afor ementioned is input.

• If you are connecting a composite sync signal, use the HD terminal.

•“IBM PC/AT” and “XGA” are registered trademarks of International Business Machines, Inc. of the United States.

•“Apple Macintosh” is a registered trademark of Apple Computer, Inc. of the United States.

3-64

CONFIDENTIAL

PlasmaSync Plasma Monitor

Operation Manual

Betriebshandbuch

Mode d’emploi

Manual de funcionamiento

Manuale d’uso

Bruksanvisning

CONFIDENTIAL

3-65

ENGLISH

DEUTSCH

FRANÇAIS

ESPAÑOL

ITALIANO

SVENSKA

Operation Manual

For the specifications of your plasma
monitor, refer to “Model Information”.

CONFIDENTIAL

3-66

Precautions

Please read this manual carefully before using your plasma
monitor and keep the manual handy for future reference.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER. NO
USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

This symbol warns the user that uninsulated
voltage within the unit may have sufficient
magnitude to cause electric shock.
Therefore, it is dangerous to make any kind
of contact with any part inside of this unit.

This symbol alerts the user that important
literature concerning the operation and
maintenance of this unit has been included.
Therefore, it should be read carefully in
order to avoid any problems.

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE
THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE
THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD
RECEPTACLE OR OTHER OUTLETS, UNLESS THE
PRONGS CAN BE FULLY INSERTED. REFRAIN FROM
OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE
COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

Important Information

Warnings and Safety Precaution

This plasma monitor is designed and
manufactured to provide long, trouble-free service.
No maintenance other than cleaning is required.
Please see the section “Plasma monitor cleaning
procedure” on the next page.
The plasma display panel consists of fine picture
elements (cells) with more than 99.99 percent active
cells. There may be some cells that do not produce
light or remain lit.
For operating safety and to avoid damage to the unit,
read carefully and observe the following instructions.
To avoid shock and fire hazards:

1. Provide adequate space for ventilation to avoid internal
heat build-up. Do not cover rear vents or install the unit
in a closed cabinet or shelves.
If you install the unit in an enclosure, make sure there
is adequate space at the top of the unit to allow hot air
to rise and escape. If the monitor becomes too hot, the
overheat protector will be activated and the monitor will
be turned off. If this happens, turn off the power to the
monitor and unplug the power cord. If the room where
the monitor is installed is particularly hot, move the
monitor to a cooler location, and wait for 60 minutes to
cool the monitor. If the problem persists, contact your
dealer for service.

2. Do not use this unit’s polarized plug with extension cords
or outlets unless the prongs can be completely inserted.

3. Do not expose the unit to water or moisture.

4. Avoid damage to the power cord, and do not attempt to
modify the power cord.

5. Unplug the power cord during electrical storms or if
the unit will not be used over a long period.

6. Do not open the cabinet which has potentially dangerous
high voltage components inside. If the unit is damaged in
this way the warranty will be void. Moreover, there is a
serious risk of electric shock.

7. Do not attempt to service or repair the unit. The
manufacturer is not liable for any bodily harm or damage
caused if unqualified persons attempt service or open
the back cover. Refer all service to authorized Service
Centers.

CONFIDENTIAL

3-67

To avoid damage and prolong operating life:

1. Use only with 100-240V 50/60Hz AC power supply.
Continued operation at line voltages greater than 100­240 Volts AC will shorten the life of the unit, and might
even cause a fire hazard.

2. Handle the unit carefully when installing it and do not
drop.

3. Set the unit away from heat, excessive dust, and direct
sunlight.

4. Protect the inside of the unit from liquids and small
metal objects. In case of accident, unplug the power
cord and have it serviced by an authorized Service
Center.

5. Do not hit or scratch the panel surface as this causes
flaws on the surface of the screen.

6. For correct installation and mounting it is strongly
recommended to use a trained, authorized dealer.

7. As is the case with any phosphor-based display (like a
CRT monitor, for example) light output will gradually
decrease over the life of a Plasma Display Panel.

8. T o avoid sulfurization it is strongly recommended not to
place the unit in a dressing room in a public bath or hot
spring bath.

Plasma monitor cleaning procedure:

1. Use a soft dry cloth to clean the front panel and bezel
area. Never use solvents such as alcohol or thinner to
clean these surfaces.

2. Clean plasma ventilation areas with a vacuum cleaner
with a soft brush nozzle attachment.

3. To ensure proper ventilation, cleaning of the ventilation
areas must be carried out monthly. More frequent cleaning
may be necessary depending on the environment in which
the plasma monitor is installed.

Recommendations to avoid or minimize phosphor burn-in:

Like all phosphor-based display devices and all other gas
plasma displays, plasma monitors can be susceptible to
phosphor burn under certain circumstances. Certain
operating conditions, such as the continuous display of a
static image over a prolonged period of time, can result in
phosphor burn if proper precautions are not taken. T o protect
your investment in this plasma monitor, please adhere to the
following guidelines and recommendations for minimizing
the occurrence of image burn:

* Always enable and use your computer’s screen saver

function during use with a computer input source.
* Display a moving image whenever possible.
* Change the position of the menu display from time to time.
* Always power down the monitor when you are finished

using it.

If the plasma monitor is in long term use or continuous
operation take the following measures to reduce the
likelihood of phosphor burn:

* Lower the Brightness and Contrast levels as much as

possible without impairing image readability.
* Display an image with many colors and color gradations

(i.e. photographic or photo-realistic images).
* Create image content with minimal contrast between light

and dark areas, for example white characters on black

backgrounds. Use complementary or pastel color whenever

possible.
* Avoid displaying images with few colors and distinct,

sharply defined borders between colors.

* Note: Burn-in is not covered by the warranty.

Contact your dealer for other recommended procedures that
will best suit your particular application needs.

CONFIDENTIAL

3-68

How to Attach Options to the Plasma Monitor .. E-1

Ventilation Requirements for enclosure mounting ....... E-1

How to use the safety metal fittings and the screws for

safety metal fittings .............................................. E-1

Introduction ................................................... E-2

Introduction to the PlasmaSync Plasma Monitor......... E-2

The features you’ll enjoy include:............................. E-2

Contents of the Package ......................................... E-2

Options ............................................................... E-2

Part Names and Function ................................ E-3

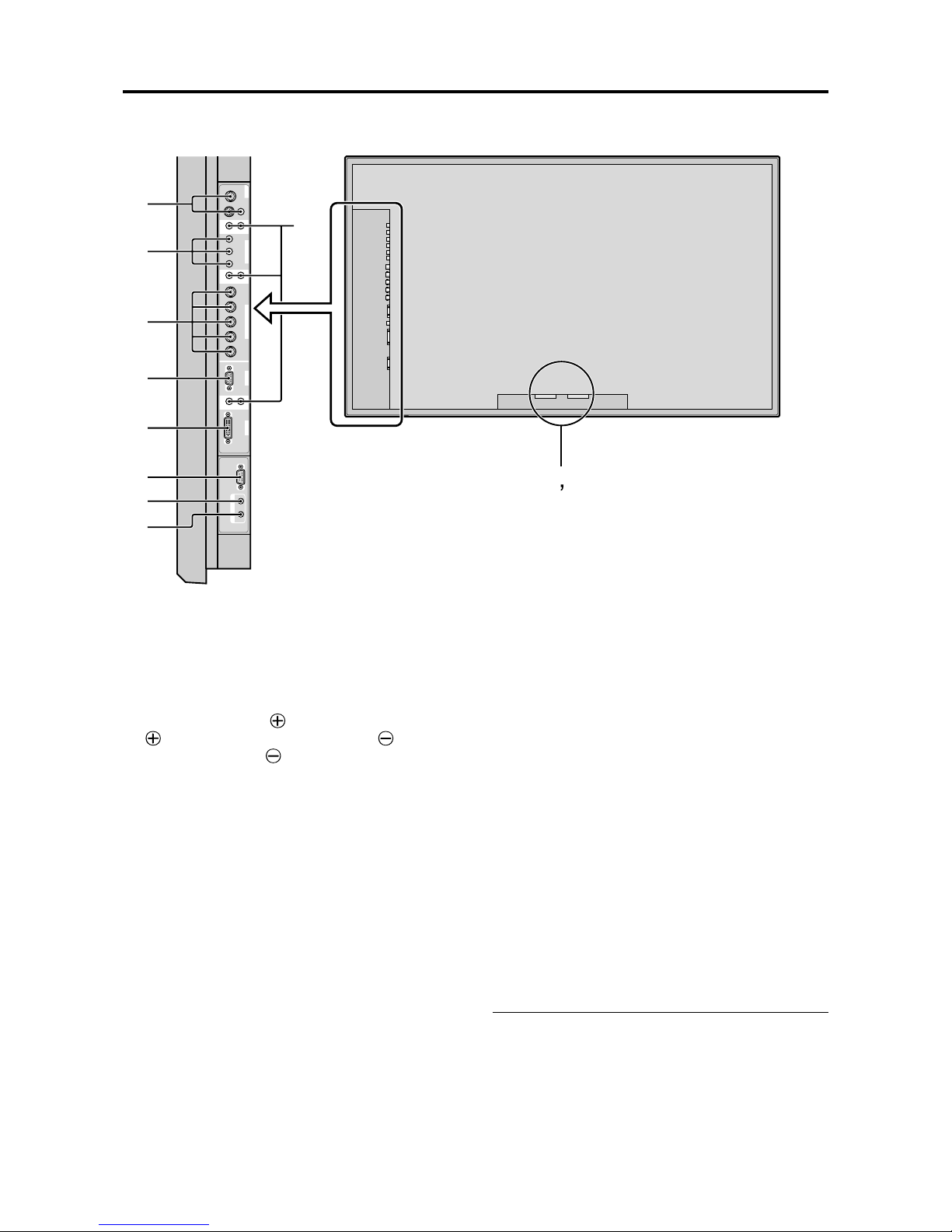

Front View ........................................................... E-3

Rear View / Terminal Board ................................... E-4

Remote Control ..................................................... E-5

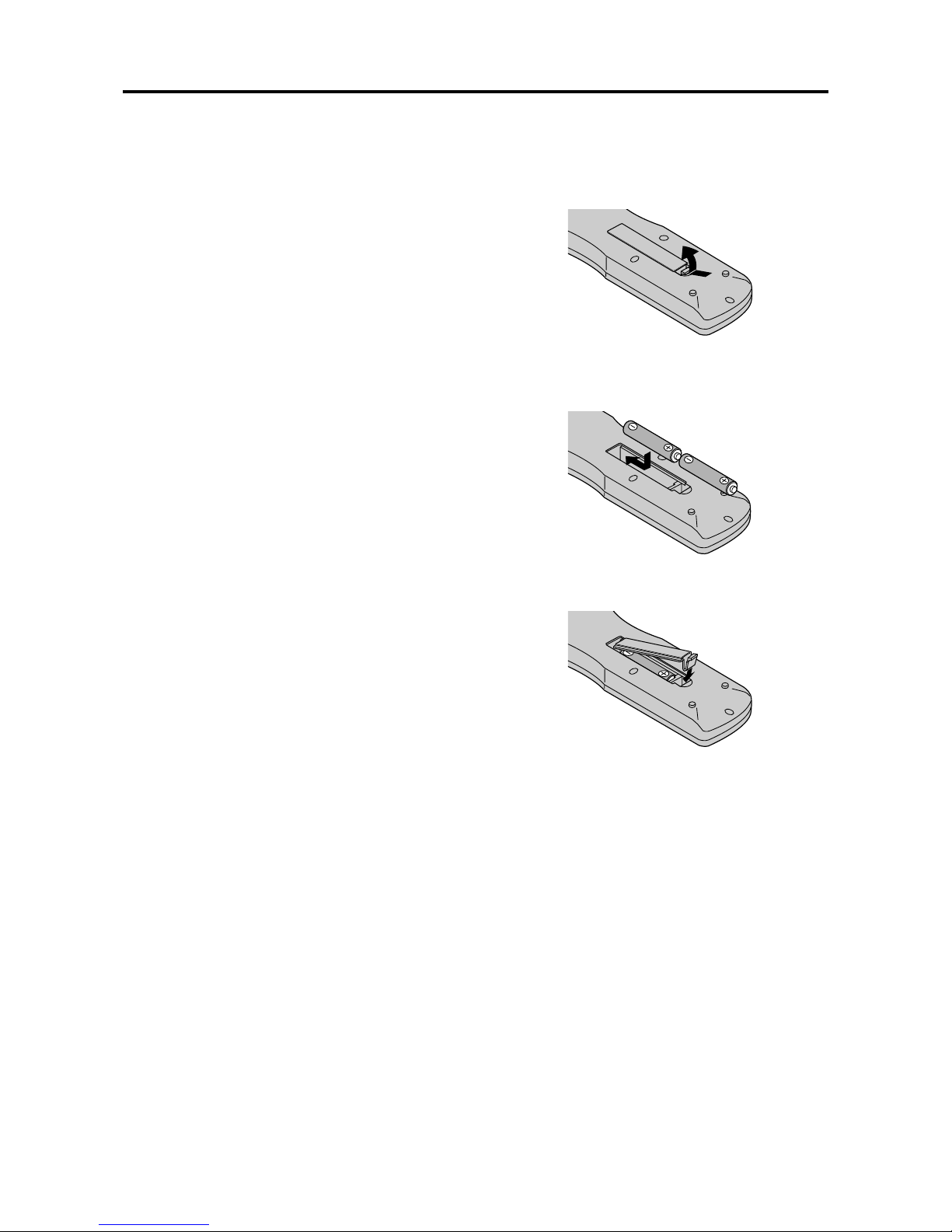

Battery Installation and Replacement ....................... E-6

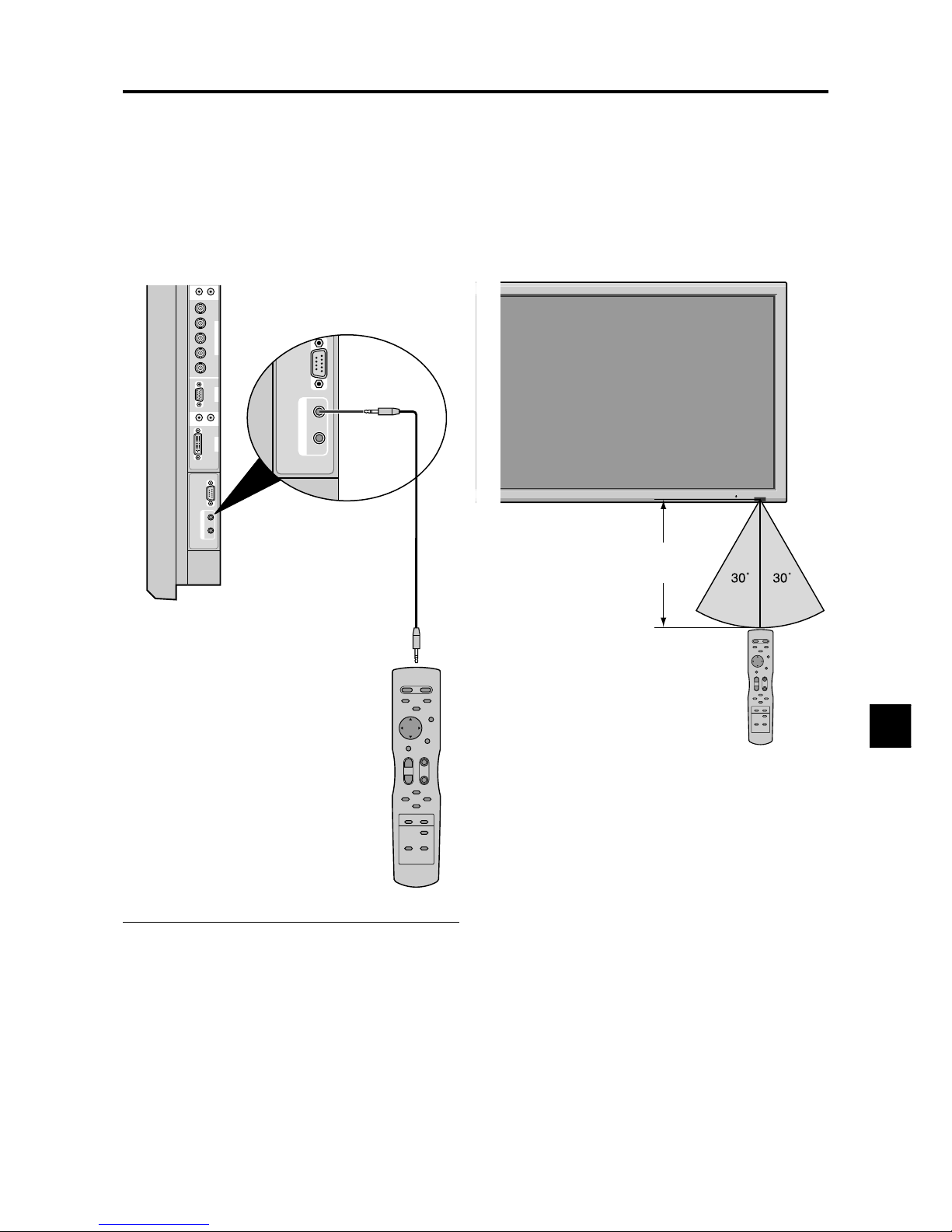

Using the wired remote control mode ...................... E-7

Operating Range ...................................................... E-7

Handling the remote control..................................... E-7

Installation .................................................... E-8

Connecting Your PC or Macintosh Computer ............ E-9

Connections with Equipment that have a Digital Interface ....

E-9

Connecting Your Document Camera ........................ E-9

Connecting Your VCR or Laser Disc Player................ E-9

Connecting Your DVD Player .................................. E-9

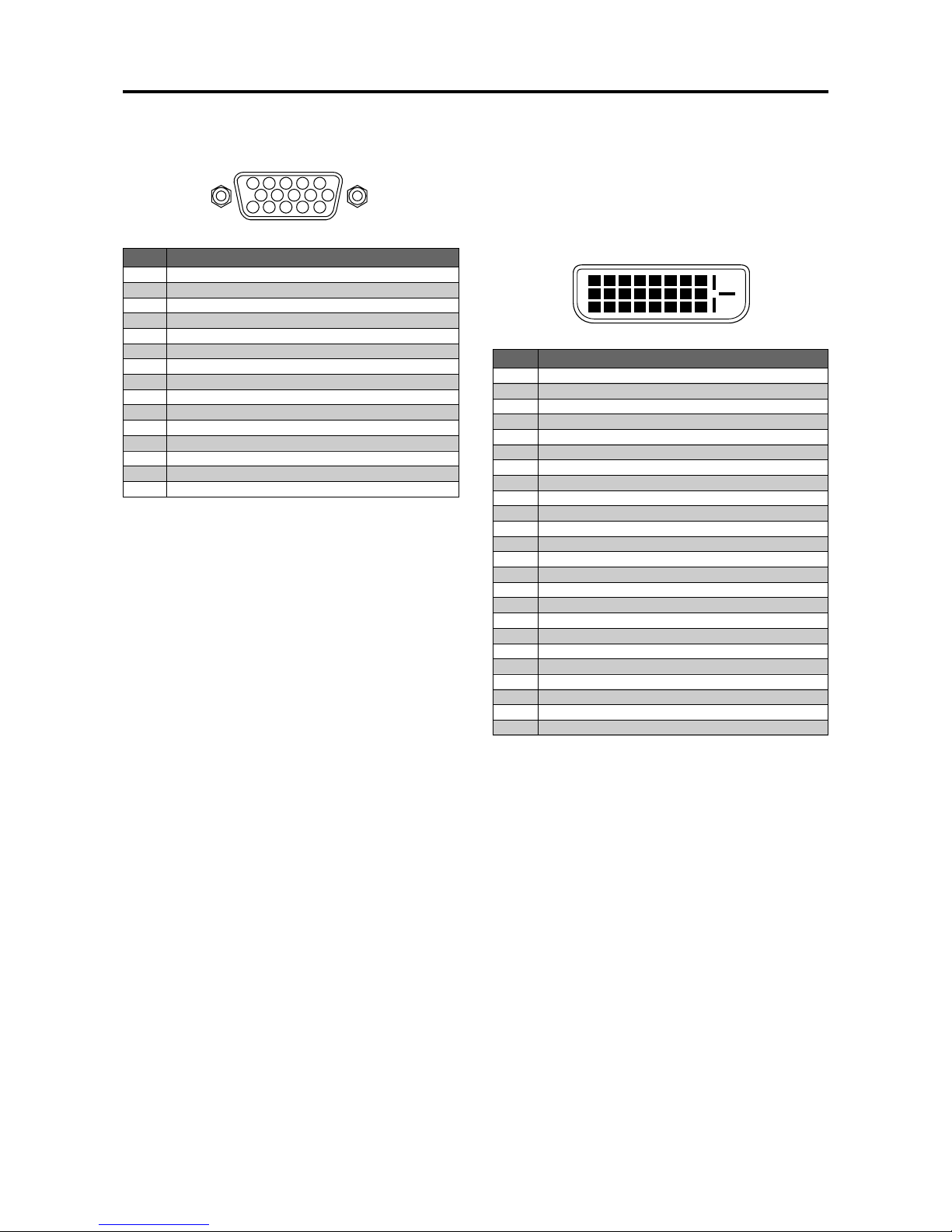

Pin Assignments and Signal Levels

for 15 pin RGB (Analog) .....................................E-10

Pin Configuration and Signal Levels

of the RGB 3 Connector (DVI Connector) ............... E-10

Creating a video wall ........................................... E-11

Cable Management..............................................E-11

Basic Operations........................................... E-12

POWER ..............................................................E-12

To turn the unit ON and OFF: ................................ E-12

VOLUME ............................................................E-12

To adjust the sound volume:.................................. E-12

MUTE .................................................................E-12

To cancel the sound:.............................................. E-12

DISPLAY ..............................................................E-12

To check the settings:............................................. E-12

DIGITAL ZOOM ...................................................E-12

AUTO ADJUST ....................................................E-12

To adjust the size or quality of the picture

automatically ....................................................... E-12

OFF TIMER ......................................................... E-13

To set the of f timer:............................................... E-13

To check the remaining time: ................................. E-13

To cancel the off timer: .......................................... E-13

WIDE Operations........................................... E-14

Wide Screen Operation (manual) ......................... E-14

When viewing videos or digital video discs .......... E-14

Wide Screen Operation with Computer Signals .......E-15

When “PICTURE SIZE” is set to “OFF” .............. E-15

OSM Controls ................................................ E-16

Menu Operations ................................................. E-16

Menu Tree ...........................................................E-17

Picture Settings Menu............................................E-19

Adjusting the picture.............................................. E-19

Setting the picture mode according to the brightness

of the room .......................................................... E-19

Reducing noise in the picture ................................. E-20

Setting the color temperature ................................. E-20

Adjusting the color to the desired level .................. E-20

Changing the gamma curve.................................... E-21

Making the low tone adjustments........................... E-21

Adjusting the colors ............................................... E-22

Audio Settings Menu ............................................ E-22

Adjusting the treble, bass and left/right balance

and audio input select........................................... E-22

Setting the allocation of the audio connectors ........ E-23

Image Adjust Settings Menu .................................. E-23

Adjusting the Position, Size, Fine Picture,

Picture Adj ........................................................... E-23

Option1 Settings Menu .........................................E-24

Setting the on-screen menu .................................... E-24

Setting the BNC connectors ................................... E-25

Setting the RGB1 connector................................... E-25

Setting a computer image to the correct RGB

select screen ......................................................... E-25

Setting high definition images to the suitable

screen size............................................................ E-26

Setting the Input Skip............................................. E-27

Resetting to the default values................................ E-27

Option2 Settings Menu .........................................E-28

Setting the power management for computer

images ................................................................. E-28

POWER/ST ANDBY indicator ............................... E-28

Setting the picture to suit the movie ....................... E-28

Reducing burn-in of the screen .............................. E-29

Setting the gray level for the sides of the screen ..... E-32

Setting the screen for S1/S2 video input................. E-33

Setting the picture size for RGB input signals ........ E-33

Option3 Settings Menu .........................................E-34

Using the timer ...................................................... E-34

Setting the power on mode.................................... E-35

Enabling/disabling the front panel controls ............ E-36

Enabling/disabling remote control wireless

transmission ......................................................... E-36

Loop Out setting .................................................... E-37

ID number setting .................................................. E-37

Video Wall setting.................................................. E-38

Advanced OSM Settings Menu ..............................E-41

Setting the menu mode .......................................... E-41

Language Settings Menu .......................................E-41

Setting the language for the menus......................... E-41

Color System Settings Menu ..................................E-42

Setting the video signal format............................... E-42

Source Information Menu ......................................E-42

Checking the frequencies, polarities of input signals,

and resolution ...................................................... E-42

External Control ...........................................E-43

Troubleshooting........................................... E-44

Contents

CONFIDENTIAL

3-69

E-1

50mm (2")

50

mm

(2") 50

mm

(2")

Wall

Wall

50mm (2")

50mm (2")

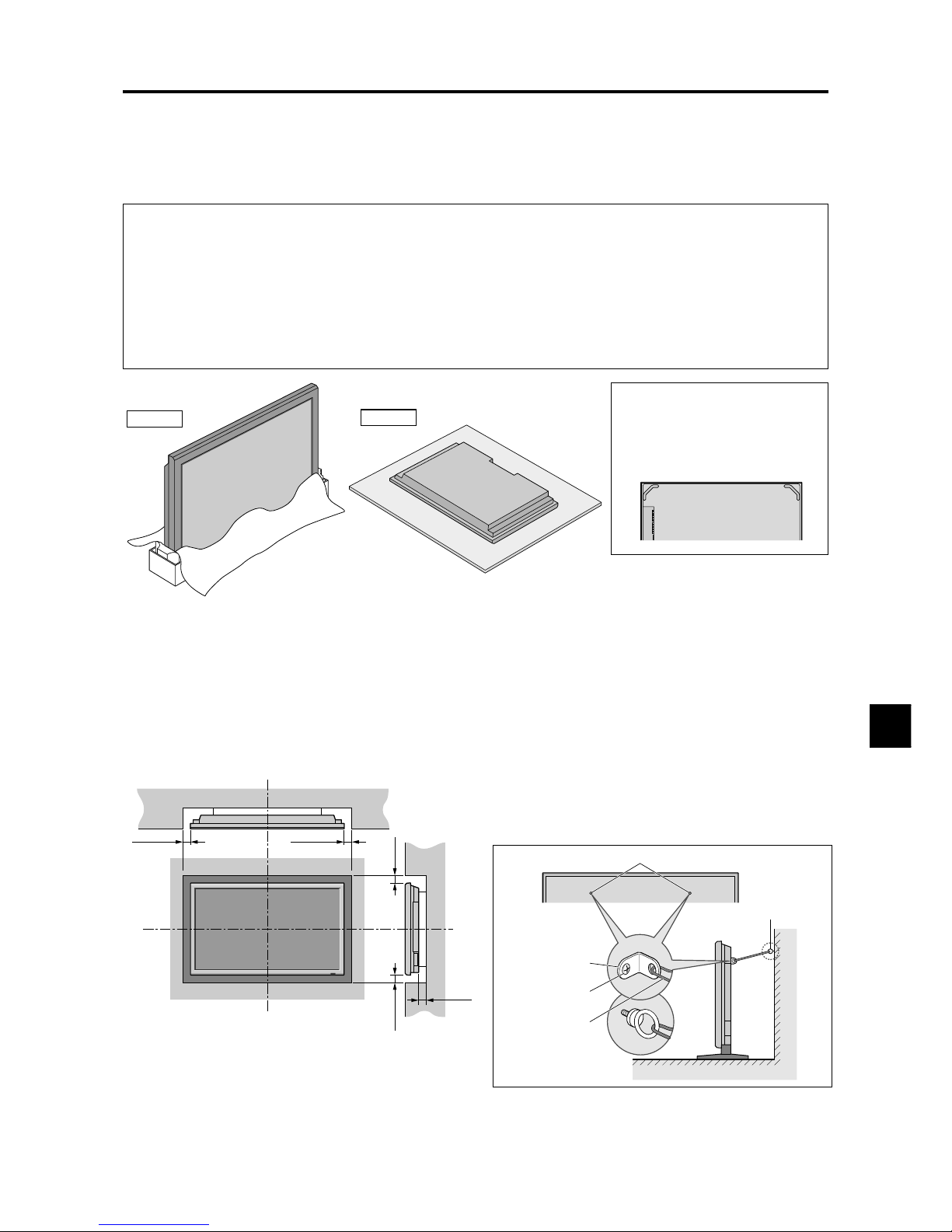

You can attach your optional mounts or stand to the plasma monitor in one of the following two ways:
* While it is upright. (See Drawing A)
* As it is laid down with the screen face down (See Drawing B). Lay the protective sheet, which was wrapped around the

monitor when it was packaged, beneath the screen surface so as not to scratch the screen face.

* Do not touch or hold the screen face when carrying the unit.

• This device cannot be installed on its own. Be sure to use a stand or original mounting unit. (Wall
mount unit, Stand, etc.)

* See page E-2.

• For correct installation and mounting it is strongly recommended to use a trained, authorized
dealer.

Failure to follow correct mounting procedures could result in damage to the equipment or injury
to the installer.

Product warranty does not cover damage caused by improper installation.

How to Attach Options to the Plasma Monitor

Drawing B

Drawing A

Some models are equipped with
handles.
When installing or carrying, use
the handles attached to the upper
back of the display.

Ventilation Requirements for
enclosure mounting

T o allow heat to disperse, leave space between surrounding
objects as shown on the diagram below when installing.

How to use the safety metal fittings
and the screws for safety metal
fittings

These are fittings for fastening the unit to a wall to prevent
tipping due to external shock when using the stand
(optional). Fasten the safety fittings to the holes in the
back of the monitor using the safety fitting mount screws.
* Safety metal fittings will differ according to the model.

Screw hole

Wall

Ta ble To p

Safty metal fittings

Screw for Safty metal

fittings

Metal chain

(Not supplied)

Screw or Hook etc.
(Not supplied)

CONFIDENTIAL

3-70

E-2

Introduction to the PlasmaSync
Plasma Monitor

This plasma monitor is a seamless blend of cutting-edge
visual technology and sophisticated design. At each inch,
with a 16:9 aspect ratio, the PlasmaSync certainly makes
a big impression. However, the monitor’s sleek techno­art lines blend in well with your environment. Plasma
monitor’s crisp, vivid image quality will transform data
from any graphic medium from PCs to DVD players- into
art. W e have made sure that a host of multimedia resources
can be easily connected and displayed as brilliantly as
intended on the plasma monitor.

The features you’ll enjoy include:

• Capsulated Color Filter (CCF) and black matrix

• The enhanced display in red uses a two-stage filtering

system where Accucrimson is combined with our special
CCF.

• Flicker - and warp - free display provides excellent
image geometry even in screen corners

• Not affected by magnetic fields, no color drift or edge
distortion.

• VGA, SVGA, XGA, SXGA, UXGA computer signal
compatibility

• NTSC, PAL, SECAM, composite and S-Video signal
compatibility

• 480P, 1080I, 720P and HDTV signal compatibility

• PCs, VCRs, Laser Disc and DVD player source

compatibility

• AccuBlend scan conversion automatically converts
VGA, SVGA, XGA, SXGA and UXGA signals to the
panel’s native resolution.

• Advanced Mass Area Sampling Progressive Scan
method is employed.

• RGB (3*), Video (3), DVD/HD (2*), Audio input (3),
External Control input (1)

• AccuColor control system provides user selectable on­screen color temperature settings

• New Drive Technology

• Component video input terminal for DVD, 15.75kHz

(Y, C

B, CR )

• Digital broadcasting source compatibility

• OSM menu-driven on screen control system that makes

image adjustments a snap

• Seven languages (English, German, French, Italian,
Spanish, Swedish, and Chinese)

* You can set the 5BNC input to be used as an RGB or

component input. When the 5BNC input is set for RGB,
there are a total of three RGB inputs; when the 5BNC input
is set for component there are a total of two DVD/HD inputs
(see page E-25).

Introduction

Contents of the Package

 Plasma monitor
 Power cord
 Remote control with two AAA Batteries
 Manuals
 Safety metal fitting parts*
 Ferrite cores, bands
 Cable clamps

* Contents will differ according to the model.
* These are fittings for fastening the unit to a wall to prevent

tipping due to external shock when using the stand
(optional). Fasten the safety fittings to the holes in the back
of the monitor using the safety fitting mount screws (see
page E-1).

Options

• Wall mount unit

• Ceiling mount unit

• Tilt mount unit

• Stand

• Attachable speakers

CONFIDENTIAL

3-71

E-3

q Power

Turns the monitor’s power on and off.

w Remote sensor window

Receives the signals from the remote control.

e POWER/STANDBY indicator

When the power is on ............................. Lights green.

When the power is in the standby mode ... Lights red.

r INPUT SELECT / EXIT

Switches the input, in the order as shown in the table
below.
The available inputs depend on the settings of “BNC
INPUT” and “D-SUB INPUT”.
Functions as the EXIT buttons in the On-Screen Menu
(OSM) mode.

Front View

Part Names and Function

MENU/ENTER

INPUT SELECT

DOWN UP LEFT/-RIGHT/+/EXIT

VOLUME

POWER/STANDBY

MENU/ENTER

INPUT SELECT

DOWN UP LEFT/-RIGHT/+/EXIT

VOLUME

POWER/STANDBY

4

5

6

7

1

3

2

t LEFT/– and RIGHT/+

Enlarges or reduces the image. Functions as the
CURSOR (



/ ) buttons in the On-Screen Menu

(OSM) mode.

y VOLUME DOWN and UP

Adjusts the volume. Functions as the CURSOR (▲/
▼) buttons in the On-Screen Menu (OSM) mode.

u MENU/ENTER

Sets the On-Screen Menu (OSM) mode and displays
the main menu.

BNC INPUT
RGB

COMP.

SCART1, 2

D-SUB INPUT
RGB
SCART3
RGB
SCART3
RGB
SCART3

Input Source
VIDEO1 → VIDEO2 → VIDEO3 → HD/DVD1 → RGB/PC1 → RGB/PC2 → RGB/PC3
VIDEO1 → VIDEO2 → VIDEO3 → HD/DVD1 → DVD3 → RGB/PC2 → RGB/PC3
VIDEO1 → VIDEO2 → VIDEO3 → HD/DVD1 → HD/DVD2 → RGB/PC1 → RGB/PC3
VIDEO1 → VIDEO2 → VIDEO3 → HD/DVD1 → HD/DVD2 → DVD3 → RGB/PC3
VIDEO1 → VIDEO2 → VIDEO3 → HD/DVD1 → DVD2 → RGB/PC1 → RGB/PC3
VIDEO1 → VIDEO2 → VIDEO3 → HD/DVD1 → DVD2 → DVD3 → RGB/PC3

CONFIDENTIAL

3-72

E-4

Rear View/ Terminal Board

A AC IN

Connect the included power cord here.

B EXT SPEAKER L and R

Connect speakers (optional) here. Maintain the correct
polarity. Connect the

(positive) speaker wire to the

EXT SPEAKER terminal and the (negative)

speaker wire to the

EXT SPEAKER terminal on
both LEFT and RIGHT channels.
Please refer to your speaker’s owner’s manual.

C VIDEO1, 2, 3 (BNC, RCA, S-Video)

Connect VCR’s, DVD’s or Video Cameras, etc. here.
VIDEO1 can be used for Input or Output (see page E-

11).

D AUDIO1, AUDIO2, AUDIO3

These are audio input terminals.
The input is selectable. Set which video image to allot
them from the audio menu screen.

E DVD1 / HD1

Connect DVD’s, High Definition or Laser Discs, etc.
here.

F RGB2/ DVD2/ HD2

RGB2: Y ou can connect an analog RGB signal

and the syncronization signal.

DVD2/ HD2: You can connect DVDs, High

Definition sources, Laser Discs, etc.
here.
This input can be set for use with an
RGB or component source. (see page
E-25)

G RGB1 (mini D-Sub 15pin)

Connect an analog RGB signal from a computer, etc.
here. This input can be used for Input or Output. (see
page E-11)

H RGB3

(DVI 24pin)

Connect a digital signal (TMDS) from a source with a
DVI output. (see page E-9)

I EXTERNAL CONTROL

This terminal is used when operating and controlling
the monitor externally (by RS-232C).

J REMOTE IN

Connect the remote cable* to the remote control’s
remote jack to obtain wired remote control.

K REMOTE OUT

Connect the remote cable* to the REMOTE IN jack of
the other display monitor to obtain wired remote
control.

* The 1/8 Stereo Mini cable must be purchased separately .

VIDEO

(

IN/OUT

)

VIDEO

1

VIDEO

2

VIDEO

3

AUDIO

1

DVD

1

/
HD

1

R

(

MONO

)

L

YCb/PbCr/Pr

RGB

2

/
DVD

2

/
HD

2

RGB

1

R/

VD

G/ B/

HD

(
IN/OUT

)

DVI

(
Digital RGB

)

AUDIO

2

R

(

MONO

)

L

AUDIO

3

R

(

MONO

)

L

Cr/Pr Y C b/Pb

RGB

3

AB

D

C

E

F

G

H

I

J

K

External Control

IN OUT

REMOTE

CONFIDENTIAL

3-73

E-5

→ VIDEO1 → VIDEO2 → VIDEO3

RGB/PC DVD/HD

VIDEO

POSITION
/ CONTROL

MENU/ENTER

POINTER

ZOOM

OFF TIMER

EXIT

VOLUME

MUTE

WIDE DISPLAY

MULTI SELECT

AUTO ADJUST

ID SELECT CLEAR

POWER

ON

STANDBY

Remote Control

q POWER ON/STANDBY

Switches the power on/standby.
(This does not operate when POWER/STANDBY
indicator of the main unit is off.)

w RGB/PC

Press this button to select RGB/PC as the source.
The available sources depend on the settings of “BNC
INPUT” and “D-SUB INPUT”. See page E-3.
RGB/PC can also be selected using the INPUT
SELECT button on the monitor.

e DVD / HD

Press this button to select DVD/HD as the source.
The available sources depend on the settings of “BNC
INPUT” and “D-SUB INPUT”. See page E-3.
DVD/HD can also be selected using the INPUT
SELECT button on the monitor.

r VIDEO

Press this button to select VIDEO as the source.

VIDEO can also be selected using the INPUT SELECT
button on the monitor.

t MENU/ENTER

Press this button to access the OSM controls.
Press this button during the display of the main menu
to go to the sub menu.

y CURSOR (▲ / ▼ /



/ )

Use these buttons to select items or settings and to
adjust settings or switch the display patterns.

u EXIT

Press this button to exit the OSM controls in the main
menu. Press this button during the display of the sub
menu to return to the previous menu.

i POINTER

Press this button to display the pointer.

o ZOOM (+ /–)

Enlarges or reduces the image.

!0 VOLUME (+ /–)

Adjusts the audio volume.

!1 MUTE

Mutes the sound.

!2 WIDE

Automatically detects the signal and sets the aspect
ratio.
Wide button is not active for all signals.

!3 DISPLAY

Displays the source settings on the screen.

!4 OFF TIMER

Activates the off timer for the unit.

!5 MULTI

Not functional for the models covered in this manual.

!6 SELECT

Not functional for the models covered in this manual.

CONFIDENTIAL

3-74

E-6

Battery Installation and Replacement

Insert the 2 “AAA” batteries, making sure to set them in
with the proper polarity.

1.Press and open the cover.

2.Align the batteries according to the (+) and (–) indication
inside the case.

3.Replace the cover.

!7 AUTO ADJUST

Press this button to adjust Fine Picture, Picture ADJ,
Position, and Contrast automatically, or to switch the
screen size to ZOOM mode automatically with the
superimposed caption displayed fully only when the
picture contains dark areas above and below the picture.

!8 ID SELECT

Set the ID number in the remote control. The remote
control can then be used only for a display with the
same ID number. When several displays are used
together they can be controlled individually.

!9 CLEAR

Clears the number set by the ID SELECT button.

@0 Remote control signal transmitter

Transmits the remote control signals.

@1 Remote Jack

Insert the plug of the remote cable (The 1/8 Stereo
Mini cable) here when using the supplied remote
control in the wired condition.

CONFIDENTIAL

3-75

E-7

POWER/STANDBY

Approx.

7m/23ft

Using the wired remote control mode

Connect the remote cable* to the remote control’s remote
jack and the “REMOTE IN” terminal on the monitor.
When the cable is connected, the mode automatically
switches to wired remote control. When the wired remote
control mode is used, the remote control can be operated
even if no batteries are loaded.

Operating Range

* Use the remote control within a distance of about 7 m/

23ft. from the front of the monitor’s remote control sensor
and at horizontal and vertical angles of up to approximately
30°.

* The remote control operation may not function if the

monitor’s remote control sensor is exposed to direct
sunlight or strong artificial light, or if there is an obstacle
between the sensor and the remote control.

Handling the remote control

• Do not drop or mishandle the remote control.

• Do not get the remote control wet. If the remote control

gets wet, wipe it dry immediately.

• A void heat and humidity.

• When not using the remote control for a long period,

remove the batteries.

• Do not use new and old batteries together, or use different
types together.

• Do not take apart the batteries, heat them, or throw them
into a fire.

• When using the remote control in the wireless condition,
be sure to unplug the remote cable from the REMOTE
IN terminal on the monitor.

RGB

2

/
DVD

2

/
HD

2

RGB

1

R/

VD

G/ B/

HD

(
IN/ OUT

)

DVI

(
Digital RGB

)

AUDIO

2

R

(

MONO

)

L

AUDIO

3

R

(

MONO

)

L

Cr/Pr Y Cb/Pb

RGB

3

External Control

IN OUT

REMOTE

External Control

IN OUT

REMOTE

Remote Control
Cable*

To Remote Jack

* The 1/8 Stereo Mini cable must be purchased separately .

CONFIDENTIAL

3-76

E-8

Installation

VIDEO

(
IN/OUT

)

VIDEO

1

VIDEO

2

VIDEO

3

AUDIO

1

DVD

1

/
HD

1

R

(
MONO

)

L

Y Cb/ Pb Cr /Pr

RGB

2

/
DVD

2

/
HD

2

RGB

1

R/

VD

G/ B/

HD

(

IN/ OUT

)

DVI

(

Digital RGB

)

AUDIO

2

R

(
MONO

)

L

AUDIO

3

R

(
MONO

)

L

Cr/Pr Y Cb/Pb

RGB

3

External Control

IN OUT

REMOTE

VCR or Laser Disc Player

Document Camera

VIDEO 1-3

DVD Player

IBM VGA or

Compatibles

To Mini D-Sub 15 pin connector on the plasma monitor

To video inputs on
the plasma monitor

Monitor adapter for
Macintosh

Macintosh or Compatibles

(Desk top type)

Personal computer with a
digital signal output

• For Y/CB/Cr, connect to the DVD1 or DVD2 terminals.

• For SCART, this unit provides three ways to connect:

· SCART1...Connect R/G/B to the DVD2 terminals and
composite sync. to the HD terminal.

· SCART2...Connect R/G/B to the DVD2 terminals and
composite sync. to the VIDEO1 terminal.

· SCART3...Connect R/G/B + composite sync. to the RGB1 terminal.

Note:

This plasma monitor has the capasity to display images when connected to European DVD players with a SCART
output signal, which is RGB with composite sync.
Your dealer can supply a special SCART cable, which will enable you to use the RGB with composite sync signal.
To obtain the special cable as well as for further information, please contact your dealer.
Please refer to page E-25 for selection of the corr ect mode in the on-screen manager.

CONFIDENTIAL

3-77

E-9

Connecting Your PC or Macintosh Computer

Connecting your PC or Macintosh computer to your plasma
monitor will enable you to display your computer’s screen
image for an impressive presentation. The plasma monitor
supports the signals described on page E-3 of Model
Information.
To connect a PC, Macintosh or compatible graphics adapter ,
simply:

1. Turn off the power to your plasma monitor and computer .

2. If your PC does not support SXGA/XGA/SVGA/VGA
you will need to install an SXGA/XGA/SVGA/VGA
graphics board. Consult your computer’s owner’s manual
for your SXGA/XGA/SVGA/VGA configuration. If you
need to install a new board, see the manual that comes
with your new graphics board for installation instructions.

3. This plasma monitor provides signal compatibility up to
VESA 16001200 (UXGA). However, it is not
recommended to use this resolution due to image
readability on the monitor’s native pixel resolution panel.

4. Use the signal cable to connect your PC or Macintosh
computer to the plasma monitor. For Macintosh, use the
monitor adapter to connect to your computer’s video port,
if necessary.

5. Turn on the plasma monitor and the computer .

6. If the plasma monitor goes blank after a period of inactivity,
it may be caused by a screen saver installed on the computer
you’ve connected to the plasma monitor .

When using a Macintosh with the plasma monitor, the
following four display standards are supported using the
Macintosh adapter :

13" fixed mode
16" fixed mode
19" fixed mode
21" fixed mode

The 19" fixed mode is recommended for your monitor.

Connections with Equipment that
have a Digital Interface

Connections can be made with equipment that is equipped
with a digital interface compliant with the DVI (Digital
Visual Interface) standard.
* Use a DVI 24-pin signal cable and the ferrite cores

(supplied) when making connections to the RGB3 (DVI)
connector of the main unit.
Note that the RGB3 (DVI) terminal does not support analog
RGB input source.

Note:

1. Input TMDS signals conforming to DVI standards.
The TMDS input corresponds to 1 link.

2. To maintain display quality, use a cable with a quality

prescribed by DVI standar ds that is within 5 meters in length.

Connecting Your Document Camera

You can connect your plasma monitor to a document
camera. To do so, simply:

1. Turn off the power to your plasma monitor and
document camera.

2. Use a standard video cable to connect your document
camera to the Video input on your plasma monitor.

3. Turn on the plasma monitor and the document camera.

Note:

Refer to your document camera owner’ s manual
for more information about your camera’s video output
requir ements.

Connecting Your VCR or Laser Disc
Player

Use common RCA cables (not provided) to connect your
VCR or laser disc player to your plasma monitor. T o make
these connections, simply:

1. Turn off the power to your plasma monitor and VCR
or laser disc player.

2. Connect one end of your RCA cable to the video output
connector on the back of your VCR or laser disc player,
connect the other end to the V ideo input on your plasma
monitor. Use standard RCA audio patch cords to
connect the audio from your VCR or laser disc player
to your plasma monitor (if your VCR or laser disc player
has this capability). Be careful to keep your right and
left channel connections correct for stereo sound.

3. Turn on the plasma monitor and the VCR or laser disc
player.

Note:

Refer to your VCR or laser disc player owner’s
manual for more information about your equipment’s video
output requir ements.

Connecting Your DVD Player

You can connect your plasma monitor to a DVD player.
To do so, simply:

1. Turn off the power to your plasma monitor and DVD
player.

2. Use a component video cable to connect your DVD
player to the Y, Cb, and Cr inputs on your plasma
monitor.
Or use the DVD-player’s S-Video output. Use a
standard S-Video cable to connect to the S-Video input
on the plasma monitor.

3. Turn on the plasma monitor and the DVD player.

CONFIDENTIAL

3-78

E-10

5 4 3 2 1

15 14 13 12 11

10 9 8 7 6

Pin Assignments and Signal Levels
for 15 pin RGB (Analog)

Pin Configuration and Signal of the
RGB 3 Connector (DVI Connector)

The unit is equipped with a type of connector commonly
used for digital.
(This cannot be used for an analog input.)
(TMDS can be used for one link only.)

Signal (Analog)

Red
Green or sync-on-green
Blue
No connection
Ground
Red ground
Green ground
Blue ground
No connection
Sync signal ground
No connection
Bi-directional DATA (SDA)
Horizontal sync or Composite sync
Vertical sync
Data clock

Pin No.

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

12345678
910111213141516

20191817 21 22 23 24

RGB 3

Pin No.

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

Signal (Digital)

T.M.D.S Data 2 ­T.M.D.S Data 2 +
T.M.D.S Data 2 Shield
No connection
No connection
DDC Clock
DDC Data
No connection
T.M.D.S Data 1 ­T.M.D.S Data 1 +
T.M.D.S Data 1 Shield
No connection
No connection
+5V Power
Ground
Hot Plug Detect
T.M.D.S Data 0 ­T.M.D.S Data 0 +
T.M.D.S Data 0 Shield
No connection
No connection
T.M.D.S Clock Shield
T.M.D.S Clock +
T.M.D.S Clock -

CONFIDENTIAL

3-79

E-11

Note:

1. The VIDEO1 and RGB1 terminals can be used for either INPUT or OUTPUT.
When LOOP OUT is ON, do not connect an OUTPUT signal fr om another unit, that will place an extraor dinary load on
the other unit and may damage it.

2. LOOP OUT can not be turned ON while signals are input to RGB1 terminal.

3. LOOP OUT can be turned ON while signals are input to RGB1 terminal if the POWER is switched ON.

Information

• T o loop signals out to another plasma display, set the LOOP OUT to ON.

• To create a video wall, set the VIDEO WALL menu items properly.

• To connect monitors, please use a 1~2m (3.3~6.6 feet) BNC cable (any commercially available cable).

• If the image quality is poor, do not use the monitor’s out terminal. Use a distribution amplifier (any commercially

available distribution amplifier) to connect the split signals to the respective monitor INPUT terminals.

• Being used as a video wall function, maximaly 4-screen is rough-standard with lower than 1024768, 60Hz
signal.

• A distribution amplifier is particularly recommended when using a 9-screen video wall.

• From the second monitor onward, connections require a BNC-RCA conversion cable or connector, a mini D-Sub

15 pin cable-BNC (5) cable or a conversion connector.

Creating a video wall

With buit-in matrix display capability, you can create a 2×2 or 3×3 video wall.

• Connect signal cables and remote cables as shown below.
Video signal RGB/DVD/HD signal

VIDEO

(
IN/OUT

)

VIDEO

1

VIDEO 2VIDEO

3

AUDIO

1

DVD

1

R

(
MONO

)

L

Y

IN OUT

REMOTE

BNC connector

RCA phono plug

OUT

VIDEO Signal

IN

IN

OUT

Remote
control

VIDEO Signal

Remote
control

RGB

2

/
DVD

2

/
HD

2

RGB

1

R/

VD

G/ B/

HD

(

IN/OUT

)

Cr/Pr Y Cb/Pb

IN OUT

REMOTE

BNC connector

RGB signal/
DVD/HD signal

IN

OUT

IN

OUT

Remote
control

RGB signal/
DVD/HD signal

Remote
control

Cable Management

Using the cable-clamps provided with the plasma display,
bundle at the back of the unit the signal and audio cables
connected to the display.
* The cable clamp will differ according to the model.

Back of the unit

mounting hooks/mounting holes

clamp

mounting hook

cables

To attach To detach

To attach To detach

clamp

mounting hole

cables

1. 2.

1. 2.

CONFIDENTIAL

3-80

E-12

Basic Operations

POWER

To turn the unit ON and OFF:

1. Plug the power cord into an active AC power outlet.

2. Press the Power button (on the unit).
The monitor’s POWER/ST ANDBY indicator turns red
and the standby mode is set.

3. Press the POWER ON button (on the remote control)
to turn on the unit.
The monitor’s POWER/ST ANDBY indicator will light
up (green) when the unit is on.

4. Press the POWER STANDBY button (on the remote
control) or the Power button (on the unit) to turn off
the unit.
The monitor’s POWER/ST ANDBY indicator turns red
and the standby mode is set (only when turning off the
unit with the remote control).

VOLUME

To adjust the sound volume:

1. Press and hold the VOLUME button (on the remote
control or the unit) to increase to the desired level.

2. Press and hold the VOLUME

button (on the remote

control or the unit) to decrease to the desired level.

MUTE

To cancel the sound:

Press the MUTE button on the remote control to cancel
the sound; press again to restore.

DISPLAY

To check the settings:

1. The screen changes each time the DISPLAY button is
pressed.

2. If the button is not pressed for approximately three
seconds, the menu turns off.

DIGITAL ZOOM

Digital zoom specifies the picture position and enlarges
the picture.

1. Press the POINTER button to display the pointer. (

)

To change the size of the picture:

Press the ZOOM+ button and enlarge the picture.
The pointer will change to resemble a magnifying
glass. (

)
A press of the ZOOM- button will reduce the picture
and return it to its original size.

To change the picture position:

Select the position with the ▲▼

 

buttons.

2. Press the POINTER button to delete the pointer.

AUTO ADJUST

To adjust the size or quality of the picture
automatically:

Press the AUTO ADJUST button.

Information

 AUTO ADJUST ON setting

When RGB (still picture) input

is selected......Fine Picture, Picture ADJ, Position,

and Contrast will be adjusted
automatically.

When RGB (motion picture),
VIDEO, or Y/Pb/Pr (component) input

is selected......The screen size switches to ZOOM

mode automatically with the
superimposed caption displayed fully
only when the picture contains dark
areas above and below the picture.

CONFIDENTIAL

3-81

E-13

OFF TIMER

To set the off timer:

The off timer can be set to turn the power off after 30, 60,
90 or 120 minutes.

1. Press the OFF TIMER button to start the timer at 30
minutes.

2. Press the OFF TIMER button to the desired time.

3. The timer starts when the menu turns off.

→ 30 → 60 → 90 → 120 → 0

OFF TIMER 30

To check the remaining time:

1. Once the off timer has been set, press the OFF TIMER
button once.

2. The remaining time is displayed, then turns off after a
few seconds.

3. When five minutes remain the remaining time appears
until it reaches zero.

OFF TIMER 28

To cancel the off timer:

1. Press the OFF TIMER button twice in a row.

2. The off timer is canceled.

OFF TIMER 0

Note:

After the power is turned off with the off timer ...
A slight current is still supplied to the monitor. When you
are leaving the r oom or do not plan to use the system for a
long period of time, turn off the power of the monitor.

CONFIDENTIAL

3-82

E-14

WIDE Operations

Wide Screen Operation

(manual)

With this function, you can select one of six screen sizes.

When viewing videos or digital video discs

1. Press the WIDE button on the remote control.

2. Within 3 seconds ...
Press the WIDE button again.
The screen size switches as follows:

→ NORMAL → FULL → STADIUM → ZOOM → 2.35:1 → 14:9

When a 720P or 1080I signal is input:

FULL ↔ 2.35:1

NORMAL size screen (4:3)

The normal size screen is displayed.
* The picture has the same size as video pictures with a

4 : 3 aspect ratio.

FULL size screen

The image is expanded in the horizontal direction.
* Images compressed in the horizontal direction (“squeezed

images”) are expanded in the horizontal direction and
displayed on the entire screen with correct linearity.
(Normal images are expanded in the horizontal direction.)

STADIUM size screen

The picture is expanded in the horizontal and vertical
directions at different ratios.
* Use this for watching normal video programs (4:3) with a

wide screen.

ZOOM size screen

The picture is expanded in the horizontal and vertical
direction, maintaining the original proportions.
* Use this for theater size (wide) movies, etc.

2.35:1 size screen

The squeezed film image is expanded to fulfill the entire
screen at a ratio of 2.35:1. Black bands do not appear at
the top and bottom but information is lost on the left and
right margins.

• This feature is available when the input signal is video,
component (480I, 480P, 576I, 576P, 720P, 1080I) or RGB
(525P or 625P signal from a scan converter).

*

If black bands appear on the top and bottom in the full size
screen, select the 2.35:1 size screen to avoid phosphor burn-in.

14:9 size screen

The image is displayed at a 14:9 aspect ratio.
* This feature is available when the input signal is video,

component (480I, 480P , 576I, 576P) or RGB (525P or 625P
signal from a scan converter).

Note:

Do not allow the displayed in 4:3 mode for an extended
period. This can cause a phosphor burn-in.

Information is lost on both sides.

Original image



CONFIDENTIAL

3-83

E-15

FULL size screen

The image is expanded in the horizontal and vertical
direction.

ZOOM size screen

When wide signals are input.

TRUE

The image is true resolution.

FULL

Information

 Supported resolution

See page E-3 of Model Information for details on the
display output of the various VESA signal standards
supported by the monitor.

 “PICTURE SIZE” setting

When the setting of “PICTURE SIZE” is OFF , the size
of RGB-input pictures will be TRUE in place of
NORMAL.

 When 852 (848) dot  480 line wide VGA*
signals with a vertical frequency of 60 Hz and
horizontal frequency of 31.7 (31.0) kHz are in­put

Select an appropriate setting for RGB SELECT mode
referring to the“Table of Signals Supported” on page
E-3 of Model Information.

* “VGA”, “SVGA” and “SXGA” are registered

trademarks of IBM, Inc. of the United States.

Note:

Do not allow the displayed in 4:3 mode for an extended
period. This can cause a phosphor burn-in.

Wide Screen Operation with
Computer Signals

Switch to the wide screen mode to expand the 4 : 3 image
to fill the entire screen.

1.Press the WIDE button on the remote control.

2.Within 3 seconds ...
Press the WIDE button again.

The screen size switches as follows:

→ NORMAL → FULL → ZOOM

NORMAL size screen (4:3 or SXGA 5:4)

The picture has the same size as the normal computer
image.

FULL size screen

The image is expanded in the horizontal direction.

ZOOM size screen

When wide signals are input.

FULL size screen

When “PICTURE SIZE” is set to “OFF”

* This cannot be set in some models. “TRUE size” will not

be displayed in such cases.

The screen size switches as follows:

→ TRUE → FULL → ZOOM

TRUE size screen (VGA, SVGA 4:3)

The image is true resolution.

CONFIDENTIAL

3-84

E-16

Menu Operations

The OSM window is displayed with respect to the
screen as shown on the diagram.

* Depending on the screen’s mode, the OSM may be

displayed differently .
In the explanation, the OSM section is shown close up.

MAIN MENU

1 / 2

MENU/ENTER

EXIT

AUDIO
IMAGE ADJUST
OPTION1

ADVANCED OSM
NEXT PAGE

: OFF

SEL.

EXIT

OK

The following describes how to use the menus and the
selected items.

1. Press the MENU/ENTER button on the remote control

to display the MAIN MENU.

MAIN MENU

1 / 2

MENU/ENTER

EXIT

AUDIO
IMAGE ADJUST
OPTION1

ADVANCED OSM
NEXT PAGE

: OFF

SEL.

EXIT

OK

MAIN MENU

2 / 2

MENU/ENTER

EXIT

PREVIOUS PAGE
LANGUAGE
COLOR SYSTEM
SOURCE INFORMATION

SEL.

EXIT

OK

2. Press the cursor buttons ▲ ▼ on the remote control to

highlight the menu you wish to enter.

3. Press the MENU/ENTER button on the remote control

to select a sub menu or item.


1 / 2

EXIT

CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
PICTURE MODE
NR
NEXT PAGE

: NORMAL
: OFF

SEL.

RETURN

ADJ.

4. Adjust the level or change the setting of the selected

item by using the cursor buttons

 

on the remote

control.

OSM(On Screen Menu) Controls

5. The adjustments or the settings that are stored in
memory.
The change is stored until you change it again.

6. Repeat steps 2 – 5 to adjust an additional item, or press
the EXIT button on the remote control to return to the
main menu.

Note:

The main menu disappears by pressing the EXIT

button.

Information

 Advanced menu mode

When “ADVANCED OSM” is set to “ON” in the main
menu (1/2), full menu items will be shown.

MAIN MENU

1 / 2

MENU/ENTER

EXIT

AUDIO
IMAGE ADJUST
OPTION1
OPTION2
OPTION3
ADVANCED OSM
NEXT PAGE

: ON

SEL.

EXIT

OK

CONFIDENTIAL

3-85

E-17

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

REFERENCE

PICTURE CONTRAST ←→ YES E-19

BRIGHTNESS ←→ YES E-19
SHARPNESS ←→ YES E-19
COLOR ←→ YES E-19
TINT ←→ YES E-19
PICTURE MODE BRIGHT/NORMAL/THEAT.1/THEAT.2/DEFAULT YES E-19
NR OFF/NR-1/NR-2/NR-3 YES E-20
COLOR TEMP LOW/MID LOW/MID/HIGH YES E-20
WHITE BALANCE GAIN RED ←→ YES E-20

GAIN GREEN ←→ YES E-20
GAIN BLUE ←→ YES E-20
BIAS RED ←→ YES E-20
BIAS GREEN ←→ YES E-20
BIAS BLUE ←→ YES E-20

RESET OFF←→ON YES E-20
GAMMA 1←→2←…→4 YES E-21
LOW TONE AUTO←→1←…→3 YES E-21
COLOR TUNE RED Y←→M YES E-22

GREEN C←→Y YES E-22

BLUE M←→C YES E-22

YELLOW G←→R YES E-22

MAGENTA R←→B YES E-22

CYAN B←→G YES E-22

RESET OFF←→ON YES E-22

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

REFERENCE

AUDIO BASS ←→ YES E-22

TREBLE ←→ YES E-22
BALANCE L←→R YES E-22
AUDIO INPUT1 VIDEO 1-3 / HD/DVD 1-2 / RGB 1-3 YES E-23
AUDIO INPUT2 VIDEO 1-3 / HD/DVD 1-2 / RGB 1-3 YES E-23
AUDIO INPUT3 VIDEO 1-3 / HD/DVD 1-2 / RGB 1-3 YES E-23

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

REFERENCE

IMAGE ADJUST ASPECT MODE NORMAL/FULL/STADIUM/ZOOM/2.35:1/14:9 — E-23

V-POSITION ←→ YES E-23
H-POSITION ←→ YES E-23
V-HEIGHT ←→ YES E-23
H-WIDTH ←→ YES E-23
AUTO PICTURE OFF←→ON*

2

NO E-23

FINE PICTURE*

1

←→*

2

YES E-23

PICTURE ADJ.*

1

←→*

2

YES E-23

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

REFERENCE

OPTION1 OSM DISPLAY OSM OFF←→ON YES E-24

OSM ADJ. 1←…→6 YES E-24

OSM ANGLE H←→V YES E-24

OSM ORBITER OFF←→ON YES E-24
BNC INPUT RGB←→COMP.←→SCART1←→SCART2 YES E-25
D-SUB INPUT RGB←→SCART3 — E-25
RGB SELECT AUTO/STILL/MOTION/WIDE1/WIDE2/DTV YES E-25
HD SELECT 1080B/1035I/1080A NO E-26
INPUT SKIP OFF←→ON YES E-27
ALL RESET OFF←→ON — E-27

:Shaded areas indicate the default value.

←→

: Press the



or  button to adjust. The default value is at the center.

:Menu items in a ruled box are available when the ADVANCED OSM is set to ON.

Menu Tree

CONFIDENTIAL

3-86

E-18

*1 Only when AUTO PICTURE is OFF
*2 RGB/PC only
*3 Cannot be set in some models.

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

REFERENCE

OPTION2 PWR. MGT. OFF←→ON YES E-28

CINEMA MODE OFF←→ON YES E-28
LONG LIFE PLE AUTO/LOCK 1/LOCK 2/LOCK 3 YES E-29

ORBITER AUTO 1 YES E-29

AUTO 2 YES E-29
MANUAL H-DOT/V-LINE/TIME YES E-29
OFF YES E-29

INVERSE OFF YES E-30

ON WORKING TIME/WAITING TIME YES E-30
WHITE YES E-30

SCREEN WIPER OFF YES E-31

ON WORKING TIME/WAITING TIME/SPEED YES E-31

SOFT FOCUS OFF/1/2/3/4 YES E-32
GRAY LEVEL 0←…→3←…→15 YES E-32
S1/S2 AUTO←→OFF YES E-33
PICTURE SIZE*

3

OFF←→ON YES E-33

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

REFERENCE

OPTION3 TIMER PRESENT TIME SUMMER TIME OFF←→ON NO E-34

DAY/HOUR/MINUTES NO E-34

PROGRAM OFF YES E-34

ON DATE/ON/OFF(HOUR, MINUTE)/INPUT/FUNCTION YES E-34

PWR. ON MODE LAST / VIDEO 1-3 / HD/DVD 1-2 / RGB 1-3 YES E-35
CONTROL LOCK OFF←→ON YES E-36
IR REMOTE OFF←→ON YES E-36
LOOP OUT OFF←→ON YES E-37
ID NUMBER ALL←→1←…→256 YES E-37
VIDEO WALL DIVIDER OFF/1/4/9 YES E-38

POSITION No.1←…→No.4/No.7←…→No.15 — E-38

DISP. MODE SPLIT←→BLANK YES E-39

AUTO ID OFF←→ON YES E-39

IMAGE ADJUST ASPECT MODE NORMAL/FULL/STADIUM/ZOOM/2.35:1/14:9 — E-39

V-POSITION ←→ YES E-39
H-POSITION ←→ YES E-39
V-HEIGHT ←→ YES E-39
H-WIDTH ←→ YES E-39
AUTO PICTURE OFF←→ON*

2

NO E-39

FINE PICTURE*

1

←→*

2

YES E-39

PICTURE ADJ.*

1

←→*

2

YES E-39

P. ON DELAY OFF←→ON YES E-40

PLE LINK OFF←→ON YES E-40

REPEAT TIMER OFF YES E-41

ON DIVIDER/SOURCE/WORK TIME YES E-41

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

REFERENCE

ADVANCED OSM OFF←→ON YES E-41
LANGUAGE ENGLISH/DEUTSCH/FRANÇAIS/ESPAÑOL/ITALIANO/SVENSKA/

NO E-41
COLOR SYSTEM AUTO/3.58NTSC/4.43 NTSC/PAL/PAL 60/PAL-N/PAL-M/SECAM NO E-42
SOURCE INFORMATION

— — E-42

CONFIDENTIAL

3-87

E-19

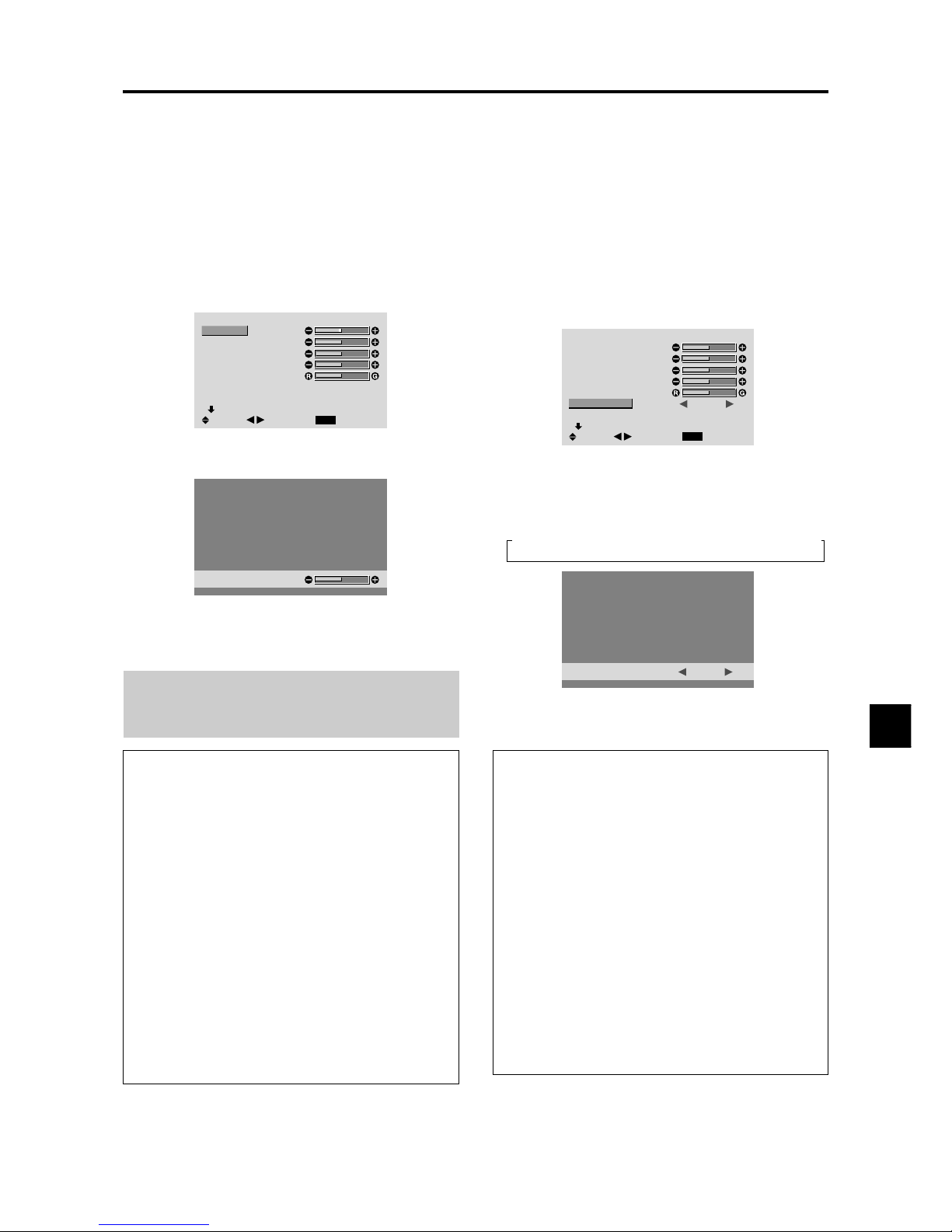

Picture Settings Menu

Adjusting the picture

The contrast, brightness, sharpness, color and tint can be
adjusted as desired.

Example: Adjusting the contrast

1. On the MAIN MENU, select “PICTURE”, then press

the MENU/ENTER button.
The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “CONTRAST”.


1 / 2

EXIT

CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
PICTURE MODE
NR
NEXT PAGE

: NORMAL
: OFF

SEL.

RETURN

ADJ.

3. Use the  and  buttons to adjust the contrast.

CONTRAST

* If neither the  or  button is pressed within 5 seconds,

the current setting is set and the previous screen
reappears.

Note:

If “CAN NOT ADJUST” appears ...
When trying to enter the PICTURE submenu, make sure
PICTURE MODE is not set to DEFAULT.

Information

 Picture adjustment screen

CONTRAST ....Changes the picture’s white level.

BRIGHTNESS

..Changes the picture’s black level.

SHARPNESS .. Changes the picture’s sharpness.

Adjusts picture detail of VIDEO
display.

COLOR ...........Changes the color density.

TINT ................Changes the picture’s tint. Adjust for

natural colored skin, background, etc.

 Adjusting the computer image

Only the contrast and brightness can be adjusted when
a computer signal is connected.

 Restoring the factory default settings

Select “DEFAULT” under the “PICTURE MODE”
settings.

Setting the picture mode according to the
brightness of the room

There are four picture modes that can be used effectively
according to the environment in which you are viewing
the display.

Example: Setting the “THEAT. 1” mode

1. On the MAIN MENU, select “PICTURE”, then press
the MENU/ENTER button.
The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “PICTURE
MODE”.


1 / 2

EXIT

CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
PICTURE MODE
NR
NEXT PAGE

: NORMAL
: OFF

SEL.

RETURN

ADJ.

3. To set to “THEAT. 1” ...
Use the



and  buttons to select “THEAT. 1”.

The mode switches as follows each time the



or



button is pressed:

→ BRIGHT ↔ NORMAL ↔ THEAT. 1 ↔ THEAT. 2 ↔ DEFAULT ←

PICTURE MODE

: THEAT. 1

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen
reappears.

Information

 Types of picture modes

THEA T. 1, 2......Set this mode when watching video in

a dark room.
This mode provides darker, finer
pictures, like the screen in movie
theaters.
For a darker image, select THEAT. 2.

NORMAL ......... Set this mode when watching video in

a bright room.
This mode provides dynamic pictures
with distinct differences between light
and dark sections.

BRIGHT...........This mode provides brighter pictures

than NORMAL.

DEFAULT.........Use this to reset the picture to the

factory default settings.

CONFIDENTIAL

3-88

E-20

Reducing noise in the picture

Use these settings if the picture has noise due to poor
reception or when playing video tapes on which the picture
quality is poor.

Example: Setting “NR-3”

1. On the MAIN MENU, select “PICTURE”, then press
the MENU/ENTER button.
The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “NR”.


1 / 2

EXIT

CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
PICTURE MODE
NR
NEXT PAGE

: NORMAL
:

OFF

SEL.

RETURN

ADJ.

3. Use the  and  buttons to select “NR-3”.
The mode switches as follows each time the



or



button is pressed:

→ OFF ↔ NR-1 ↔ NR-2 ↔ NR-3 ←

NR

: NR-3

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen
reappears.

Information

 NR

* “NR” stands for Noise Reduction.
* This function reduces noise in the picture.

 Types of noise reduction

There are three types of noise reduction. Each has a
different level of noise reduction.
The effect becomes stronger as the number increases
(in the order NR-1 → NR-2 → NR-3).

OFF ...............Turns the noise reduction function off.

Setting the color temperature

Use this procedure to set color tone produced by the plasma
display.

Example: Setting “HIGH”

1. On the MAIN MENU, select “PICTURE”, then press
the MENU/ENTER button.
The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “COLOR TEMP.”.

3. Use the



and  buttons to select “HIGH”.

The mode switches as follows each time the



or



button is pressed:

→ LOW ↔ MID LOW ↔ MID ↔ HIGH ←

* See below to set “WHITE BALANCE”.


2 / 2

EXIT

PREVIOUS PAGE
COLOR TEMP.
GAMMA
LOW TONE
COLOR TUNE

: HIGH
: 2
: AUTO

SEL.

RETURN

ADJ.

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.

Information

 Setting the color temperature

LOW................Redder

MID LOW .........Slightly redder

MID ...................Standard (slightly bluer)

HIGH ...............Bluer

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory defaults.

Adjusting the color to the desired level

Use this procedure to adjust the white balance for each
color temperature to achieve the desired color quality.

Example: Adjusting the “GAIN RED” of “HIGH” color
temperature

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

Perform Steps 1-3 of COLOR TEMP., then...

4. Press the MENU/ENTER button.
The “WHITE BALANCE” screen appears.

5. Use the ▲ and ▼ buttons to select “GAIN RED”.

WHITE BALANCE

COLOR TEMP. HIGH

EXIT

GAIN RED
GAIN GREEN
GAIN BLUE
BIAS RED
BIAS GREEN
BIAS BLUE
RESET : OFF

SEL.

RETURN

ADJ.

CONFIDENTIAL

3-89

E-21

6. Adjust the white balance using the  and  buttons.

GAIN RED

* If neither the  or  button is pressed within 5 seconds,

the current setting is set and the previous screen reappears.

Information

 Adjusting the white balance

GAIN R/G/B.....White balance adjustment for signal

level

BIAS R/G/B .....White balance adjustment for black

level

RESET ............Resets settings to the factory default

values. Use  and  buttons to select
“ON”, then press the MENU/ENTER
button.

 Restoring the factory default settings
Select “RESET” under the WHITE BALANCE menu.

Changing the Gamma Curve

This feature adjusts the brightness of the midtone areas
while keeping shadows and highlights unchanged.

Example: Setting “3”

Set “ADVANCED OSM” to “ON” in the MAIN MENU
(1/2), then perform the following operations.

1. On the MAIN MENU, select “PICTURE”, then press
the MENU/ENTER button.
The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “GAMMA”.

3. Use the



and  buttons to select “3”.

The mode switches as follows each time the



or



button is pressed:

→ 1 ↔ 2 ↔ 3 ↔ 4 ←


2 / 2

EXIT

PREVIOUS PAGE
COLOR TEMP.
GAMMA
LOW TONE
COLOR TUNE

: MID
: 3
: AUTO

SEL.

RETURN

ADJ.

Information

 GAMMA settings

The picture becomes darker as the number increases
(in the sequence of 1, 2, 3, 4).

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory defaults.

Making the Low Tone adjustments

This feature allows more detailed tone to be reproduced
especially in the dark area.

Example: Setting “2”

Set “ADVANCED OSM” to “ON” in the MAIN MENU
(1/2), then perform the following operations.

1. On the MAIN MENU, select “PICTURE”, then press
the MENU/ENTER button.
The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “LOW TONE”.

3. Use the



and  buttons to select “2”.

The mode switches as follows each time the



or



button is pressed:

→ AUTO ↔ 1 ↔ 2 ↔ 3 ←


2 / 2

EXIT

PREVIOUS PAGE
COLOR TEMP.
GAMMA
LOW TONE
COLOR TUNE

: MID
: 2
: 2

SEL.

RETURN

ADJ.

Information

 LOW TONE settings

AUTO .......Will automatically appraise the picture and

make adjustments.

1 ...............Will apply the dither method suitable for

still pictures.

2 ...............Will apply the dither method suitable for

motion pictures.

3 ...............Will apply the error diffusion method.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory defaults.

CONFIDENTIAL

3-90

E-22

Adjusting the colors

Use this procedure to adjust hue and color density for red,
green, blue, yellow, magenta and cyan.
Such adjustments will not affect the other colors.
You can accentuate the green color of trees, the blue of
the sky, etc.

Example: Adjusting the color tune for blue

Set “ADVANCED OSM” to “ON” in the MAIN MENU
(1/2), then perform the following operations.

1. On the MAIN MENU, select “PICTURE”, then press
the MENU/ENTER button.
The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “COLOR TUNE”,
then press the MENU/ENTER button.
The “COLOR TUNE” screen appears.

3. Use the ▲ and ▼ buttons to select “BLUE”.

4. Adjust using the  and  buttons.

COLOR TUNE

EXIT

RED
GREEN
BLUE
YELLOW
MAGENTA
CYAN
RESET : OFF

SEL.

RETURN

ADJ.

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen
reappears.

To continue making other adjustments...

Repeat from step 3.

Information

 COLOR TUNE settings

RED ................Makes red’s adjustment

GREEN ...........Makes green’s adjustment

BLUE...............Makes blue’s adjustment

YELLOW .........Makes yellow’s adjustment

MAGENTA ......Makes magenta’s adjustment

CYAN ..............Makes cyan’s adjustment

RESET ............Resets settings to the factory default

value. Use



and  buttons to select
“ON”, then press the MENU/ENTER
button.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

Audio Settings Menu

Adjusting the treble, bass and left/right
balance and audio input select

The treble, bass and left/right balance can be adjusted to
suit your tastes.

Example: Adjusting the bass

1. On the MAIN MENU, select “AUDIO”, then press
the MENU/ENTER button.
The “AUDIO” screen appears.

2. To adjust the bass ...
Use the ▲ and ▼ buttons to select “BASS”.

3. Adjust the bass using the



and  buttons.

AUDIO

EXIT

BASS
TREBLE
BALANCE
AUDIO INPUT1
AUDIO INPUT2
AUDIO INPUT3

: VIDEO1
: HD/DVD1
: RGB1

SEL.

RETURN

ADJ.

To continue adjusting the audio ...

Repeat from step 2.

Note :

If “CAN NOT ADJUST” appears...

Set “AUDIO INPUT” on the AUDIO menu corr ectly.

Information

 Audio settings menu

BASS ..............Controls the level of low frequency

sound.

TREBLE ..........Controls the level of high frequency

sound.

BALANCE .......Controls the balance of the left and

right channels.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

CONFIDENTIAL

3-91

E-23

Setting the allocation of the audio connectors

Setting the AUDIO 1, 2, and 3 connectors to the desired
input.

Example: Setting “AUDIO INPUT1” to “VIDEO 2”

1. On the MAIN MENU, select “AUDIO”, then press the
MENU/ENTER button.
The “AUDIO” screen appears.

2. Use the ▲ and ▼ buttons to select “AUDIO INPUT1”.

3. To set the AUDIO INPUT1 to “VIDEO2”...
Use the



and  buttons to select “VIDEO2”.

The mode switches each time the



or  button is
pressed, as shown in the table on page E-3.
The available sources depend on the settings of “BNC
INPUT” and “D-SUB INPUT”.

AUDIO

EXIT

BASS
TREBLE
BALANCE
AUDIO INPUT1
AUDIO INPUT2
AUDIO INPUT3

: VIDEO2
: HD/DVD1
: RGB1

SEL.

RETURN

ADJ.

Information

 AUDIO INPUT

A single audio input cannot be selected as the audio
channel for more than one input terminal.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

Image Adjust Settings Menu

Adjusting the Position, Size, Fine Picture, Picture Adj

The position of the image can be adjusted and flickering
of the image can be corrected.

Example: Adjusting the vertical position in the normal
mode

1. On the MAIN MENU, select “IMAGE ADJUST”, then
press the MENU/ENTER button.
The “IMAGE ADJUST” menu appears.

Default settings (when RGB/PC is selected)

IMAGE ADJUST

EXIT

ASPECT MODE
V-POSITION
H-POSITION
V-HEIGHT
H-WIDTH
AUTO PICTURE
FINE PICTURE
PICTURE ADJ.

: NORMAL

: OFF

SEL.

RETURN

ADJ.

* The settings on the IMAGE ADJUST menu are not

preset at the factory.

To select a mode ...

Use the



and  buttons to select a mode.

The mode switches as follows each time the



or



button is pressed:

NORMAL ↔ FULL

* The mode can also be switched by pressing the “WIDE”

button on the remote control.

2. To adjust the vertical position ...
Use the ▲ and ▼ buttons to select “V-POSITION”.

IMAGE ADJUST

EXIT

ASPECT MODE
V-POSITION
H-POSITION
V-HEIGHT
H-WIDTH
AUTO PICTURE
FINE PICTURE
PICTURE ADJ.

: NORMAL

: OFF

SEL.

RETURN

ADJ.

3. Adjust using the  and  buttons.

V-POSITION

* If neither the  or  button is pressed within 5 seconds,

the current setting is set and the previous screen
reappears.

To continue making other computer image
adjustments ...

Repeat from step 2.

CONFIDENTIAL

3-92

E-24

Information

 When “AUTO PICTURE” is “OFF”

IMAGE ADJUST

EXIT

ASPECT MODE
V-POSITION
H-POSITION
V-HEIGHT
H-WIDTH
AUTO PICTURE
FINE PICTURE
PICTURE ADJ.

: FULL

: OFF

SEL.

RETURN

ADJ.

When Auto Picture is off, the Fine Picture and the
Picture ADJ. items are displayed so that you can adjust
them.

 Adjusting the Auto Picture

ON...................The Picture ADJ., Fine Picture and

Position adjustments are made
automatically.
Not available for digital ZOOM.

OFF .................The Picture ADJ., Fine Picture and

Position adjustments are made
manually.

* If FINE PICTURE won’t be adjusted, set Auto Picture

to OFF and adjust manually.

 Adjusting the position of the image

V-POSITION ...Adjusts the vertical position of the

image.

H-POSITION ... Adjusts the horizontal position of the

image.

V-HEIGHT....... Adjusts the vertical size of the image.

(Except for STADIUM mode)

H-WIDTH ......... Adjusts the horizontal size of the

image. (Except for ST ADIUM mode)

FINE PICTURE

*..Adjusts for flickering.

PICTURE ADJ.* ...

Adjusts for striped patterns on the
image.

* The Picture ADJ. and Fine Picture features are available

only when the “Auto Picture” is off.

* The AUTO PICTURE, FINE PICTURE and PICTURE

ADJ. are available only for RGB signals.
But, these features are not available for moving pictures
on VIDEO, HD/DVD or RGB.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults except for Auto Picture.

Option1 Settings Menu

Setting the on-screen menu

This sets the position of the menu, the display format
(horizontal or vertical) etc.

Example: Turning the DISPLAY OSM off

1. On the MAIN MENU, select “OPTION1”, then press
the MENU/ENTER button.
The “OPTION1” menu appears.

2. Use the ▲ and ▼ buttons to select “OSM”, then press
the MENU/ENTER button.
The “OSM” menu appears.

3. Use the ▲ and ▼ buttons to select “DISPLAY OSM”.

4. To set the DISPLAY OSM to “OFF”...
Use the



and  buttons to select “OFF”.

The mode switches as follows each time the



or



button is pressed:

ON ↔ OFF

OSM

EXIT

DISPLAY OSM
OSM ADJ.
OSM ANGLE
OSM ORBITER

: OFF
: 1
: H
: OFF

SEL.

RETURN

ADJ.

Information

 DISPLAY OSM settings

ON............The on-screen menu appears.

OFF ..........The on-screen menu does not appear.

If you press the DISPLA Y button on the remote control
for more than 3 seconds the main menu will appear
and can be set (although it is not ON).

 OSM ADJUST settings

Adjusts the position of the menu when it appears on
the screen.
The position can be set between 1 to 6.

 OSM ANGLE settings

Sets the display format (landscape “H” or portrait “V”).
When the unit is installed vertically set the OSM
ANGLE at “V”.

“H”

OPTION1

1 / 3

EXIT

OSM
BNC INPUT
D-SUB INPUT
RGB SELECT
HD SELECT
INPUT SKIP
ALL RESET
NEXT PAGE

: RGB
: RGB
: AUTO
: 1080B
: OFF
: OFF

SEL.

RETURN

MENU/ENTER

OK

CONFIDENTIAL

3-93

E-25

Setting the BNC connectors

Select whether to set the input of the 5 BNC connectors to
RGB, component or SCART1,2.

Example: Set the BNC INPUT mode to “COMP.”

1. On the MAIN MENU, select “OPTION1”, then press
the MENU/ENTER button.
The “OPTION1” screen appears.

2. Use the ▲ and ▼ buttons to select “BNC INPUT”.

3. To set the BNC INPUT mode to “COMP.”...
Use the



and  buttons to select “COMP.”.

The mode switches as follows each time the



or



button is pressed:

→RGB ↔ COMP. ↔ SCART1 ↔ SCART2←

OPTION1

1 / 3

EXIT

OSM
BNC INPUT
D-SUB INPUT
RGB SELECT
HD SELECT
INPUT SKIP
ALL RESET
NEXT PAGE

: COMP.
: RGB
: AUTO
: 1080B
: OFF
: OFF

SEL.

RETURN

ADJ.

Information

 BNC INPUT Settings

RGB ............Use the 5BNC terminals for RGB input.

COMP..........

Use the 3BNC terminals for component input.

SCART1......Use the 4BNC terminals for RGB with

composite sync. See page E-8.

SCART2......Use the 3BNC terminals for RGB and the

VIDEO1 terminal for composite sync. See
page E-8.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory defaults.

Setting the RGB1 connector

Select one of the signals being transmitted to the RGB1
terminal.

Example: Set the D-SUB INPUT mode to “SCART3”

1. On the MAIN MENU, select “OPTION1”, then press
the MENU/ENTER button.
The “OPTION1” screen appears.

2. Use the ▲ and ▼ buttons to select “D-SUB INPUT”.

3. To set the D-SUB INPUT mode to “SCART3”...
Use the



and  buttons to select “SCART3”.

The mode switches as follows each time the



or



button is pressed:

RGB ↔ SCART3

OPTION1

1 / 3

EXIT

OSM
BNC INPUT
D-SUB INPUT
RGB SELECT
HD SELECT
INPUT SKIP
ALL RESET
NEXT PAGE

: RGB
: SCART3
: AUTO
: 1080B
: OFF
: OFF

SEL.

RETURN

ADJ.

Information

 D-SUB INPUT Settings

RGB ................Use the D-SUB terminal for RGB

input.

SCART3..........Use the D-SUB terminal for RGB

signal fed from SCART. See page E-8.

“V”

OPTION1

EXIT

OSM

BNC INPUT

D-SUB INPUT

RGB SELECT

HD SELECT

INPUT SKIP

ALL RESET

: RGB

: RGB

: AUTO

: 1080B

: OFF

: OFF
1024768

SEL.

RETURN

MENU/ENTER

OK

 OSM ORBITER settings

ON........ The position of the menu will be shifted by

eight dots each time OSM is displayed.

OFF...... OSM will be displayed at the same position.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults except for Auto Picture.

Setting a computer image to the correct RGB
select screen

With the computer image, select the RGB Select mode
for a moving image such as (video) mode, wide mode or
digital broadcast.

Example: Setting the “RGB SELECT” mode to
“MOTION ”

1. On the MAIN MENU, select “OPTION1”, then press
the MENU/ENTER button.
The “OPTION1” screen appears.

2. Use the ▲ and ▼ buttons to select “RGB SELECT”.

3. To set the RGB select mode to “MOTION” ...
Use the  and  buttons to select “MOTION”.
The mode switches as follows each time the



or



button is pressed:

→ AUTO ↔ STILL ↔ MOTION ↔ WIDE1 ↔ WIDE2 ↔ DTV ←

OPTION1

1 / 3

EXIT

OSM
BNC INPUT
D-SUB INPUT
RGB SELECT
HD SELECT
INPUT SKIP
ALL RESET
NEXT PAGE

: RGB
: RGB
: MOTION
: 1080B
: OFF
: OFF

SEL.

RETURN

ADJ.

CONFIDENTIAL

3-94

E-26

Setting high definition images to the suitable
screen size

Use this procedure to set whether the number of vertical
lines of the input high definition image is 1035 or 1080.

Example: Setting the “1080B” mode to “1035I”

1. On the MAIN MENU, select “OPTION1”, then press
the MENU/ENTER button.
The “OPTION1” screen appears.

2. Use the ▲ and ▼ buttons to select “HD SELECT”.

3. To set the HD SELECT mode to “1035I” ...
Use the



and  buttons to select “1035I”.

The mode switches as follows each time the



or



button is pressed:

→1080B ↔ 1035I ↔ 1080A ←

OPTION1

1 / 3

EXIT

OSM
BNC INPUT
D-SUB INPUT
RGB SELECT
HD SELECT
INPUT SKIP
ALL RESET
NEXT PAGE

: RGB
: RGB
: AUTO
: 1035

I

: OFF
: OFF

SEL.

RETURN

ADJ.

Information

 HD SELECT modes

These 3 modes are not displayed in correct image
automatically.

1080B ...............Standard digital broadcasts

1035I ............... Japanese “High V ision” signal format

1080A ...............Special Digital broadcasts (for

example : DTC100)

Information

 RGB SELECT modes

One of these 6 modes must be selected in order to
display the following signals correctly.

AUTO ..............Select the suitable mode for the

specifications of input signals as
listed in the table “Computer input
signals supported by this system” on
page E-3 of Model Information.

STILL ..............To display VESA standard signals.

(Use this mode for a still image from
a computer.)

MOTION..........The video signal (from a scan

converter) will be converted to RGB
signals to make the picture more
easily viewable. (Use this mode for a
motion image from a computer.)

WIDE1.............When an 852 dot 480 line signal

with a horizontal frequency of

31.7kHz is input, the image may be
compressed horizontally. To prevent
this, set RGB SELECT to WIDE1.

WIDE2.............When an 848 dot 480 line signal

with a horizontal frequency of 31.0
kHz is input, the image may be
compressed horizontally. To prevent
this, set RGB SELECT to WIDE2.

DTV.................Set this mode when watching digital

broadcasting (480P).

See page E-3 of Model Information for the details of
the above settings.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

CONFIDENTIAL

3-95

E-27

Setting the Input Skip

When this is ON, signals which are not present will be
skipped over and only pictures whose signals are being
transmitted will be displayed.
This setting is valid only for the INPUT SELECT button
on the unit.

Example: Set to “ON”

1. On the MAIN MENU, select “OPTION1”, then press
the MENU/ENTER button.
The “OPTION1” screen appears.

2. Use the ▲ and ▼ buttons to select “INPUT SKIP”.

3. To set the INPUT SKIP mode to “ON”...
Use the



and  buttons to select “ON”.

The mode switches as follows each time the



or



button is pressed:

OFF ↔ ON

OPTION1

1 / 3

EXIT

OSM
BNC INPUT
D-SUB INPUT
RGB SELECT
HD SELECT
INPUT SKIP
ALL RESET
NEXT PAGE

: RGB
: RGB
: AUTO
: 1080B
: ON
: OFF

SEL.

RETURN

ADJ.

Information

 INPUT SKIP settings

OFF........... Regardless of the presence of the signal,

scan and display all signals.

ON............. If no input signal is present, skip that

signal.

* “SETTING NOW” will appear during the input search.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

Resetting to the default values

Use these operations to restore all the settings (PICTURE,
AUDIO, IMAGE ADJUST, OPTION1~3, etc) to the
factory default values.

Refer to page E-17 for items to be reset.

1. On the MAIN MENU, select “OPTION1”, then press
the MENU/ENTER button.
The “OPTION1” screen appears.

2. Use the ▲ and ▼ buttons to select “ALL RESET”.

OPTION1

1 / 3

EXIT

OSM
BNC INPUT
D-SUB INPUT
RGB SELECT
HD SELECT
INPUT SKIP
ALL RESET
NEXT PAGE

: RGB
: RGB
: AUTO
: 1080B
: OFF
:

OFF

SEL.

RETURN

ADJ.

3. Use the  and  buttons to select “ON”, then press the
MENU/ENTER button.

OPTION1

1 / 3

EXIT

OSM
BNC INPUT
D-SUB INPUT
RGB SELECT
HD SELECT
INPUT SKIP
ALL RESET
NEXT PAGE

: RGB
: RGB
: AUTO
: 1080B
: OFF
:

ON

SEL.

RETURN

MENU/ENTER

OK

ALL RESET

SETTING NOW

When the “SETTING NOW” screen disappears, then
all the settings are restored to the default values.

CONFIDENTIAL

3-96

E-28

Option2 Settings Menu

Setting the power management for computer
images

This energy-saving (power management) function
automatically reduces the monitor’s power consumption
if no operation is performed for a certain amount of time.

Example:

Turning the power management function on

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION2”, then press
the MENU/ENTER button.
The “OPTION2” screen appears.

2. Use the ▲ and ▼ buttons to select “PWR. MGT.”.

3. To turn the power management function on ...
Use the



and  buttons to select “ON”.

The mode switches as follows each time the



or



button is pressed:

ON ↔ OFF

OPTION2

2 / 3

EXIT

PREVIOUS PAGE
POWER MGT.
CINEMA MODE
LONG LIFE
GRAY LEVEL
S1/S2
NEXT PAGE

: ON
: ON

: 3
: OFF

SEL.

RETURN

ADJ.

Information

 Power management function

* The power management function automatically reduces

the monitor’s power consumption if the computer’s
keyboard or mouse is not operated for a certain amount
of time. This function can be used when using the
monitor with a computer.

* If the computer’s power is not turned on or if the

computer and selector tuner are not properly connected,
the system is set to the off state.

* For instructions on using the computer’s power

management function, refer to the computer’s operating
instructions.

 Power management settings

ON........ In this mode the power management function

is turned on.

OFF ...... In this mode the power management function

is turned off.

 Power management function and POWER/
STANDBY indicator

The POWER/ST ANDBY indicator indicates the status
of the power management function. See page E-28 for
indicator status and description.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

POWER/STANDBY indicator

Power
management
mode

On

Off

Turning the picture
back on

Picture already on.

Operate the keyboard or
mouse. The picture
reappears.

POWER/
STANDBY
indicator

Green

Red

Power
management
operating status

Not activated.

Activated.

Description

Horizontal and vertical
synchronizing signals
are present from the
computer.

Horizontal and/or
vertical synchronizing
signals are not sent
from the computer.

Setting the picture to suit the movie

The film image is automatically discriminated and
projected in an image mode suited to the picture.
[NTSC, PAL, PAL60, 480I (60Hz), 525I (60Hz), 576I
(50Hz), 625I (50Hz), 1035I (60Hz), 1080I (60Hz) only]

Example: Setting the “CINEMA MODE” to “OFF”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION2”, then press
the MENU/ENTER button.
The “OPTION2” screen appears.

2. Use the ▲ and ▼ buttons to select “CINEMA MODE”.

3. To set the CINEMA MODE to “OFF” ...
Use the



and  buttons to select “OFF”.

The mode switches as follows each time the



or



button is pressed:

ON ↔ OFF

OPTION2

2 / 3

EXIT

PREVIOUS PAGE
POWER MGT.
CINEMA MODE
LONG LIFE
GRAY LEVEL
S1/S2
NEXT PAGE

: OFF
: OFF

: 3
: OFF

SEL.

RETURN

ADJ.

Information

 CINEMA MODE

ON...................Automatic discrimination of the

image and projection in cinema mode.

OFF................... Cinema mode does not function.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

CONFIDENTIAL

3-97

E-29

Reducing burn-in of the screen

The brightness of the screen, the position of the picture,
positive/negative mode and screen wiper are adjusted to
reduce burn-in of the screen.

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION2”, then press
the MENU/ENTER button.
The “OPTION2” screen appears.

2. Use the ▲ and ▼ buttons to select “LONG LIFE”, then
press the MENU/ENTER button.
The “LONG LIFE” screen appears.

LONG LIFE

EXIT

PLE
ORBITER
INVERSE
SCREEN WIPER
SOFT FOCUS

: AUTO
: OFF
: OFF
: OFF
: OFF

SEL.

RETURN

ADJ.

3. Set the LONG LIFE mode using ▲▼ and  buttons.
See page E-29 to set PLE.
See page E-29 to set ORBITER.
See page E-30 to set INVERSE.
See page E-31 to set SCREEN WIPER.
See page E-32 to set SOFT FOCUS.

Information

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

PLE (Peak Luminance Enhancement)

Use this to activate the brightness limiter.

Example: Setting “PLE” to “LOCK1”

Perform Steps 1-2 of LONG LIFE, then...

3. Use the ▲ and ▼ buttons to select “PLE”.

4. Use the



and  buttons to select “LOCK1”.

The mode switches as follows each time the



or



button is pressed:

→AUTO ↔ LOCK1 ↔ LOCK2 ↔ LOCK3←

LONG LIFE

EXIT

PLE
ORBITER
INVERSE
SCREEN WIPER
SOFT FOCUS

: LOCK1
: OFF
: OFF
: OFF
: OFF

SEL.

RETURN

ADJ.

ORBITER

Use this to set the picture shift.

Example: Setting “ORBITER” to “AUTO1”

Perform Steps 1-2 of LONG LIFE, then...

3. Use the ▲ and ▼ buttons to select “ORBITER”.

4. Use the



and  buttons to select “AUTO1”.

The mode switches as follows each time the



or



button is pressed:

→OFF ↔ AUTO1 ↔ AUTO2 ↔ MANUAL←

LONG LIFE

EXIT

PLE
ORBITER
INVERSE
SCREEN WIPER
SOFT FOCUS

: AUTO
: AUTO1
: OFF
: OFF
: OFF

SEL.

RETURN

ADJ.

Information

 ORBITER settings

OFF ..............Orbiter mode does not function.

This is the default setting when RGB is
input.

AUTO1 .........The picture moves around the screen

intermittently, making the picture
smaller. This is the default setting when
a Video or a DVD/HD/DTV singnal is
input. Set to “OFF” when these signals
are not used.

AUTO2 .........The picture moves around the screen

intermittently, making the picture
bigger.

MANUAL ......User can adjust the orbiter function

(Horizontal Dot, Vertical Line and
Time) manually.
See the following explanation.

* When a Video or a DVD/HD/DTV singnal is input, the

AUTO1 and 2 functions will affect only the moving
picture and will not make the screen smaller or bigger.

Information

 PLE settings

AUTO .............. The brightness of the screen is

adjusted automatically to suit the
picture quality.

LOCK1, 2, 3 ....Sets maximum brightness.

The brightness level decreases in the
order of LOCK 1, 2, 3. LOCK 3
provides minimum brightness.

CONFIDENTIAL

3-98

E-30

INVERSE

Use this to set the inverse mode or to display a white
screen.

Example: Setting “INVERSE” to “WHITE”

Perform Steps 1-2 of LONG LIFE, then...

3. Use the ▲ and ▼ buttons to select “INVERSE”.

4. Use the



and  buttons to select “WHITE”.

The mode switches as follows each time the



or



button is pressed:

→OFF ↔ ON ↔ WHITE←

LONG LIFE

EXIT

PLE
ORBITER
INVERSE
SCREEN WIPER
SOFT FOCUS

: AUTO
: OFF
: WHITE
: OFF
: OFF

SEL.

RETURN

ADJ.

Adjust the ORBITER function manually

Set the amount of shift and the time between movement.

Example: Setting so that the picture moves 2 dots
horizontally and 3 lines vertically every 3 minutes.

Perform Steps 1-3 of ORBITER, then...

4. Use the



and  buttons to select “MANUAL”, then
press the MENU/ENTER button.
THE “ORBITER” screen appears.

5. Adjust the items using the ▲▼



and  buttons.

The mode switches as follows each time the



or



button is pressed:

• H-DOT

→1 DOT ↔ 2 DOT ↔ ..... ↔ 19 DOT ↔ 20 DOT←

• V-LINE

→1 LINE ↔ 2 LINE ↔ ..... ↔ 19 LINE ↔ 20 LINE←

• TIME

→1 M ↔ 2 M ↔ 3 M ↔ 4 M ↔ 5 M←

ORBITER

EXIT

H-DOT

V-LINE

TIME

: 2 DOT
: 4 LINE
: 3 M

SEL.

RETURN

ADJ.

Information

 ORBITER Function settings

H-DOT..........Moves from 1 to 20 dots in the

horizontal direction.

V-LINE ..........Moves from 1 to 20 lines in the vertical

direction.

TIME ............Interval of 1~5 minutes (1 horizontal

dot or 1 vertical line per interval).

Setting the time for INVERSE/WHITE

Set a time duration.

Example: Setting to that the INVERSE mode starts
in 2 hours and proceeds for one hour and a half.

Perform Steps 1-3 of INVERSE, then...

4. Use the



and  buttons to select “ON”, then press the
MENU/ENTER button.
THE “INVERSE/WHITE” screen appears.

5. Adjust the time using the ▲▼



and  buttons.

The mode switches as follows each time the



or



button is pressed:

• WORKING TIME

→ON ↔ 00H03M ↔ 00H06M ↔ ..... ↔ 12H42M ↔ 12H45M←

• WAITING TIME

→00H03M ↔ 00H06M ↔ 00H09M ↔ ... ↔ 12H42M ↔ 12H45M←

INVERSE/WHITE

EXIT

WORKING TIME
WAITING TIME

: 01H30M
: 02H00M

SEL.

RETURN

ADJ.

Information

 Setting the time

WORKING TIME .....

Set the time duration for
“INVERSE/WHITE”.
When the WORKING TIME is set
to “ON” the mode will stay on.

WAITING TIME

......Set the standby time until the

“INVERSE/WHITE” mode starts.

* The “WAITING TIME” can not be set when the

“WORKING TIME” is ON.

* THE “WORKING TIME” and “W AITING TIME” can

be set for up to 12 hours and 45 minutes in units of 3
minutes.

* Ending a WORKING TIME function, the monitor will

be ST AND BY.

[Example]

WORKING TIME: 01H30M
WAITING TIME: 02H00M

Information

 INVERSE Settings

ON......... The picture is displayed alternately between

positive image and negative image.
Y ou can set the time by pressing the MENU/
ENTER button while “ON” is set.

OFF ....... Inverse mode does not function.

WHITE ...The entire screen turns white.

Y ou can set the time by pressing the MENU/
ENTER button while “ON” is set.

←−−−− 2 H −−−−→←−− 1.5 H −−→←−−−−

Start INVERSE/WHITE Start STAND BY

CONFIDENTIAL

3-99

E-31

SCREEN WIPER

When this is set to ON, a white vertical bar moves
repeatedly from the left and of the screen to the right end
at a constant speed.

Example: Setting “SCREEN WIPER” to “ON”

Perform Steps 1-2 of LONG LIFE, then...

3. Use the ▲ and ▼ buttons to select “SCREEN WIPER”.

4. Use the



and  buttons to select “ON”.

The mode switches as follows each time the



or



button is pressed:

OFF ↔ ON

LONG LIFE

EXIT

PLE
ORBITER
INVERSE
SCREEN WIPER
SOFT FOCUS

: AUTO
: OFF
: OFF
: ON
: OFF

SEL.

RETURN

ADJ.

Information

 SCREEN WIPER

ON......... The white vertical bar appears.

Y ou can set the time by pressing the MENU/
ENTER button while “ON” is set.

OFF ....... Screen wiper mode does not function.

Setting the time for SCREEN WIPER

Set a time duration and the speed.

Example: Setting to that the SCREEN WIPER mode
starts in 30 minutes and proceeds for one hour and
a half.

Perform Steps 1-3 of SCREEN WIPER, then...

4. Use the



and  buttons to select “ON”, then press the
MENU/ENTER button.
THE “SCREEN WIPER” screen appears.

5. Adjust the time and speed using the ▲▼



and



buttons.
The mode switches as follows each time the



or



button is pressed:

• WORKING TIME

→ON ↔ 00H03M ↔ 00H06M ↔ ..... ↔ 12H42M ↔ 12H45M←

• WAITING TIME

→00H03M ↔ 00H06M ↔ 00H09M ↔ ... ↔ 12H42M ↔ 12H45M←

• SPEED

→1 ↔ 2 ↔ 3 ↔ 4 ↔ 5←

SCREEN WIPER

EXIT

WORKING TIME
WAITING TIME
SPEED

: 01H30M
: 00H30M
: 3

SEL.

RETURN

ADJ.

Information

 Setting the time

WORKING TIME .....

Set the time duration for “SCREEN
WIPER”.
When the WORKING TIME is set
to “ON” the mode will stay on.

WAITING TIME

......Set the standby time until the

“SCREEN WIPER” mode starts.

SPEED

................Set the moving speed for the

“SCREEN WIPER”. The speed
decreases as the number increases.

* The “WAITING TIME” can not be set when the

“WORKING TIME” is ON.

* THE “WORKING TIME” and “W AITING TIME” can

be set for up to 12 hours and 45 minutes in units of 3
minutes.

 To select “ON” for the “WORKING TIME”...

Set the hours of the working time to 0H and the minutes
to 0M. “ON” will be displayed.

CONFIDENTIAL

3-100

E-32

Setting the gray level for the sides of the screen

Use this procedure to set the gray level for the parts on the
screen on which nothing is displayed when the screen is
set to the 4:3 size.

Example: Adjusting the “GRAY LEVEL”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION2”, then press
the MENU/ENTER button.
The “OPTION2” screen appears.

2. Use the ▲ and ▼ buttons to select “GRAY LEVEL”.

3. To adjust the “GRAY LEVEL”...
Use the



and  buttons to adjust the GRAY LEVEL.

OPTION2

2 / 3

EXIT

PREVIOUS PAGE
POWER MGT.
CINEMA MODE
LONG LIFE
GRAY LEVEL
S1/S2
NEXT PAGE

: OFF
: ON

: 5
: OFF

SEL.

RETURN

ADJ.

Information

 GRAY LEVEL settings

This adjusts the brightness of the black (the gray level)
for the sides of the screen.
The standard is 0 (black). The level can be adjusted
from 0 to 15. The factory setting is 3 (dark gray).

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

SOFT FOCUS

Reduces edges and softens the image.

Example: Setting “SOFT FOCUS” to “2”

Perform Steps 1-2 of LONG LIFE, then...

3. Use the ▲ and ▼ buttons to select “SOFT FOCUS”.

4. Use the



and  buttons to select “2”.

The mode switches as follows each time the



or



button is pressed:

→OFF ↔ 1 ↔ 2 ↔ 3 ↔ 4

LONG LIFE

EXIT

PLE
ORBITER
INVERSE
SCREEN WIPER
SOFT FOCUS

: AUTO
: OFF
: OFF
: OFF
: 2

SEL.

RETURN

ADJ.

Information

 SOFT FOCUS settings

OFF ............Turns the SOFT FOCUS function off.

1, 2, 3, 4 .....Activates the SOFT FOCUS setting. The

higher numbers create a softer image.
“SHARPNESS” can not be adjusted on
the “PICTURE” menu.

CONFIDENTIAL

3-101

E-33

Setting the picture size for RGB input signals

Use this procedure to switch the setting to “ON” or “OFF”.
* Cannot be set in some models.

Example: Setting the “PICTURE SIZE” mode to
“OFF”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION2”, then press
the MENU/ENTER button.
The “OPTION2” screen appears.

2. Use the ▲ and ▼ buttons to select “PICTURE SIZE”.

3. To set PICTURE SIZE mode to “OFF”...
Use the



and  buttons to select “OFF”.

The mode switches as follows each time the



or



button is pressed:

ON ↔ OFF

EXIT

SEL.

RETURN

ADJ.

OPTION2

2 / 3
PREVIOUS PAGE
POWER MGT.
CINEMA MODE
LONG LIFE
GRAY LEVEL
S1/S2
PICTURE SIZE
NEXT PAGE

: OFF
: ON

: 3
: OFF
:

OFF

Information

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

Setting the screen size for S1/S2 video input

If the S-video signal contains screen size information, the
image will be automatically adjusted to fit the screen when
this S1/S2 is set to AUTO.
This feature is available only when an S-video signal is
input via the VIDEO3 terminal.

Example: Setting the “S1/S2” to “AUTO”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION2”, then press
the MENU/ENTER button.
The “OPTION2” screen appears.

2. Use the ▲ and ▼ buttons to select “S1/S2”.

3. Use the



and  buttons to select “AUTO”.

The mode switches as follows each time the



or



button is pressed:

OFF ↔ AUTO

OPTION2

2 / 3

EXIT

PREVIOUS PAGE
POWER MGT.
CINEMA MODE
LONG LIFE
GRAY LEVEL
S1/S2
NEXT PAGE

: OFF
: ON

: 3
:

AUTO

SEL.

RETURN

ADJ.

Information

 S1/S2 settings

AUTO .....Adjusts the screen size automatically

according to the S1/S2 video signal.

OFF ....... Turns the S1/S2 function off.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

CONFIDENTIAL

3-102

E-34

Option3 Settings Menu

Using the timer

This function sets the monitor to turn ON/OFF
automatically at a set time.

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION3”, then press
the MENU/ENTER button.
The “OPTION3” screen appears.

2. Use the ▲ and ▼ buttons to select “TIMER”, then press
the MENU/ENTER button.
The “TIMER” screen appears.

TIMER

EXIT

PRESENT TIME
PROGRAM : OFF

SEL.

RETURN

MENU/ENTER

OK

3. Set the TIMER using ▲▼ and  buttons.
See page E-34 to set PRESENT TIME.
See page E-34 to set PROGRAM.

Information

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

PRESENT TIME

This sets the day of the week and present time.

Example: Setting “WEDNESDAY”, “22:05”

Perform Steps 1-2 of TIMER, then...

3. Use the ▲ and ▼ buttons to select “PRESENT TIME”,
then press the MENU/ENTER button.
The “PRESENT TIME” screen appears.

EXIT

SEL.

RETURN

PRESENT TIME

WEDNESDAY

13 : 00 : 00

RETURN
SUMMER TIME

: OFF

ADJ.

4. Use the ▲ and ▼ buttons to select the item, then adjust
using the



and  buttons.

EXIT

SEL.

RETURN

PRESENT TIME

WEDNESDAY

22 : 05 : 00

RETURN
SUMMER TIME

: OFF

ADJ.

The mode switches as follows each time the  or



button is pressed:

• SUMMER TIME

ON ↔ OFF

• Day

→SUNDAY ↔ MONDAY ↔ ..... ↔ FRIDAY ↔ SATURDAY←

• Hour/Minutes

→ 00:00 ↔ 00:01 ↔ 00:02 ↔ ..... ↔ 23:58 ↔ 23:59←

5. Once the setting is completed...

Use the ▲ and ▼ buttons to select “SET”, then press
the MENU/ENTER button.
The adjustments are stored and return to the TIMER
menu.

EXIT

SEL.

RETURN

PRESENT TIME

WEDNESDAY

22 : 05 : 00

: OFF

MENU/ENTER

OK

RETURN
SUMMER TIME

SET

Information

 PRESENT TIME settings

SUMMER TIME ...

Use to set SUMMER TIME.
ON: The present time + 1 hour.
OFF: Cancelled

Day................Set the day of the week (e.g. Sunday).

Hour ..............Set the hour in the 24-hour format

(range 00 to 23).

Minutes .........Set the minutes (range 00 to 59).

* If you press the EXIT button instead of the MENU/

ENTER button in step 5, the settings can not be mode.

PROGRAM TIMER

This sets the day and time at which the power will be
switched ON/OFF as well as the input mode.

Example: Setting so that the power will be switched
on at 8:30 A.M., Monday, displaying RGB2 source,
and switched off at 10:30 A.M.

Perform Steps 1-2 of TIMER, then...

3. Use the ▲ and ▼ buttons to select “PROGRAM”.

TIMER

EXIT

PRESENT TIME
PROGRAM : OFF

SEL.

RETURN

ADJ.

4. Use the  and  buttons to select “ON”, then press the
MENU/ENTER button.
The “PROGRAM TIMER” screen appears.

CONFIDENTIAL

3-103

E-35

• An asterisk “*” in the DATE field
An asterisk “*” means “every”. For example, “*FRI”
means every Friday and “*” means everyday.

• A hyphen “-” in the ON field or OFF field
If any hyphen remains in the ON field or OFF field, the
FUNCTION can not be set.

• A hyphen “-” in the FUNCTION field
A hyphen “-” means last mode (the mode that was last
selected at the time the power was switched off).

Setting the power on mode

This function sets the input mode at the time the power is
switched on.

Example: Setting “VIDEO2”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION3”, then press
the MENU/ENTER button.
The “OPTION3” screen appears.

2. Use the ▲ and ▼ buttons to select “PWR. ON MODE”.

3. To set the PWR. ON MODE to “VIDEO2”...
Use the



and  buttons to select “VIDEO2”.
The mode switches to LAST and any one of the sources
shown in the table on page E-3 each time the



or



button is pressed.
The available sources depend on the settings of “BNC
INPUT” and “D-SUB INPUT”.

OPTION3

3 / 3

EXIT

PREVIOUS PAGE
TIMER
PWR. ON MODE
CONTROL LOCK
IR REMOTE
LOOP OUT
ID NUMBER
VIDEO WALL

: VIDEO2
: OFF
: ON
: OFF
: ALL

SEL.

RETURN

ADJ.

Information

 PWR. ON MODE settings

LAST ................Last mode (the mode that was last

selected at the time the power was
switched off).

VIDEO1, 2, 3....VIDEO input mode.

RGB1, 2, 3 .......RGB input mode.

HD/DVD1, 2 .....HD/DVD input mode.

DVD2, 3 ...........DVD input mode.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

5. Adjust using the ▲▼



and  buttons and ZOOM /

 button.

PROGRAM TIMER

EXIT

DATE

MON

—
—
—
—
—
—

SEL.

RETURN

ADJ.ZOOM

ON

08 : 30

- - : - -

- - : - -

- - : - -

- - : - -

- - : - -

- - : - -

OFF

10 : 30

- - : - -

- - : - -

- - : - -

- - : - -

- - : - -

- - : - -

INPUT
RGB2

—
—
—
—
—
—

FUNCTION

INVERSE

—
—
—
—
—
—

The mode switches as follows each time the ZOOM
/ button is pressed:

• Date

→ — ↔ SUN ↔ MON ↔ ... ↔ SAT ↔ * ↔ *SUN ↔ *MON ↔ ... ↔ *SAT←

• ON/OFF Hour

→ 00 ↔ 01 ↔ 02 ↔ ..... ↔ 21 ↔ 22 ↔ 23←

• Minute

→ 00 ↔ 01 ↔ 02 ↔ ..... ↔ 57 ↔ 58 ↔ 59←

• INPUT

→ — ↔ LAST ↔ VIDEO1 ↔ VIDEO2 ↔ VIDEO3 ↔ HD/DVD1 ←
→ RGB3 ↔ RGB2 ↔ RGB1 ↔ HD/DVD2 ←

• FUNCTION

→ — ↔ ORBITER ↔ INVERSE ↔ WHITE ↔ WIPER←

Information

 PROGRAM TIMER settings

DATE.......................Set the day of the week (e.g.

Sunday).

ON (hour, minutes)

....Set the time at which the power

will be turned on in the 24-hour
format.

OFF (hour, minutes)

...Set the time at which the power

will be turned off in the 24-hour
format.

INPUT ..................... Set the input mode that will be

displayed when the timer is on.

FUNCTION .............Set the LONG LIFE function.

 To reset the program

Align the cursor with the DATE field that you wish to
reset, then press the CLEAR button.

 To reset the data

Align the cursor with the field (ON/OFF/INPUT/
FUNCTION) that you wish to reset, then press the
CLEAR button.

 Special characters in the PROGRAM TIMER

screen

PROGRAM TIMER

EXIT

DATE

MON

TUE
SAT
*FRI

—

SAT

*

SEL.

RETURN

ADJ.ZOOM

ON

08 : 30

- - : - ­08 : 30
08 : 30

- - : - ­08 : 30
15 : 30

OFF
10 : 30
18 : 15
12 : 15
10 : 00

- - : - ­12 : 15
16 : 00

INPUT
RGB2

—

VIDEO1

HD/DVD1

—

VIDEO1

RGB1

FUNCTION

INVERSE

—

WHITE

—
—

WHITE

—

CONFIDENTIAL

3-104

E-36

Enabling/disabling the front panel controls

This function enables/disables the front panel controls.

Example: Setting “ON”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION3”, then press
the MENU/ENTER button.
The “OPTION3” screen appears.

2. Use the ▲ and ▼ buttons to select “CONTROL
LOCK”.

3. To set the CONTROL LOCK to “ON”...
Use the



and  buttons to select “ON”, then press the
MENU/ENTER button.
The mode switches as follows each time the



or



button is pressed:

OFF ↔ ON

OPTION3

3 / 3

EXIT

PREVIOUS PAGE
TIMER
PWR. ON MODE
CONTROL LOCK
IR REMOTE
LOOP OUT
ID NUMBER
VIDEO WALL

: LAST
: ON
: ON
: OFF
: ALL

SEL.

RETURN

ADJ.

Information

 CONTROL LOCK settings

ON...... Disables the buttons on the front panel.

OFF .... Enables the buttons on the front panel.

* Even when the CONTROL LOCK is set, the POWER

switch will not be locked.

* This becomes effective when the on-screen menu goes

out.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

Enabling/disabling remote control wireless
transmission

This function enables/disables remote control wireless
transmission.

Example: Setting “OFF”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION3”, then press
the MENU/ENTER button.
The “OPTION3” screen appears.

2. Use the ▲ and ▼ buttons to select “IR REMOTE”.

3. To set the IR REMOTE to “OFF”...
Use the



and  buttons to select “OFF”, then press
the MENU/ENTER button.
The mode switches as follows each time the



or



button is pressed:

OFF ↔ ON

OPTION3

3 / 3

EXIT

PREVIOUS PAGE

TIMER

PWR. ON MODE

CONTROL LOCK

IR REMOTE

LOOP OUT

ID NUMBER

VIDEO WALL

: LAST
: OFF
: OFF
: OFF
: ALL

SEL.

RETURN

ADJ.

Information

 IR REMOTE settings

ON...... Enables remote control wireless transmission.

OFF .... Disables remote control wireless transmission.

Set “OFF” to avoid unwanted control from
other remote controls.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

CONFIDENTIAL

3-105

E-37

ID number setting

When using more than one of these displays, this function
sets ID numbers so that operation of the remote control
does not cause multiple monitors to operate at the same
time.

Example: Setting “2”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION3”, then press
the MENU/ENTER button.
The “OPTION3” screen appears.

2. Use the ▲ and ▼ buttons to select “ID NUMBER”.

To set the ID number for the remote control

Example: Setting “2”

1. Press the ID SELECT button on the remote control.
The “ID SELECT” screen appears.

2. Use the ▲ and ▼ buttons to select “ID NUMBER”.

3. To set the ID NUMBER to “2”...
Use the



and  buttons to select “2”.

The mode switches as follows each time the



or



button is pressed:

→ALL ↔ 1 ↔ 2 ↔ ..... ↔ 255 ↔ 256←

ID SELECT

POSITION : 1

EXIT

: 2

RETURN

ADJ.

ID NUMBER

* T o reset back to ALL

Press the CLEAR button

4. Once the setting is completed...
Press the EXIT button to delete the ID SELECT screen.

Loop Out setting

When this feature is set to ON, the received signal will be
looped out.

Example: Setting “ON”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION3”, then press
the MENU/ENTER button.
The “OPTION3” screen appears.

2. Use the ▲ and ▼ buttons to select “LOOP OUT”.

3. To set the LOOP OUT to “ON”...
Use the



and  buttons to select “ON”.

The mode switches as follows each time the



or



button is pressed:

OFF ↔ ON

OPTION3

3 / 3

EXIT

PREVIOUS PAGE
TIMER
PWR. ON MODE
CONTROL LOCK
IR REMOTE
LOOP OUT
ID NUMBER
VIDEO WALL

: LAST
: OFF
: ON
: ON
: ALL

SEL.

RETURN

ADJ.

Information

 LOOP OUT settings

ON...... The received signal will be looped out via PC1

terminal or VIDEO1 terminal.

OFF .... The received signal will not loop out.

* Even if LOOP OUT is ON, signals won’t be sent out if

POWER is being turned off.

 To connect another display...

See page E-11.

 If the RGB/PC1 signal is present at the time
the power switched on...

The RGB/PC1 input will be displayed regardless of the
setting of LOOP OUT.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

3. To set the ID NUMBER to “2”...
Use the



and  buttons to select “2”.

The mode switches as follows each time the



or



button is pressed:

→ALL ↔ 1 ↔ 2 ↔ ..... ↔ 255 ↔ 256←

OPTION3

3 / 3

EXIT

PREVIOUS PAGE
TIMER
PWR. ON MODE
CONTROL LOCK
IR REMOTE
LOOP OUT
ID NUMBER
VIDEO WALL

: LAST
: OFF
: ON
: OFF
: 2

SEL.

RETURN

ADJ.

* T o reset back to ALL

Press the CLEAR button

Information

 ID NUMBER settings

ALL...........ID NUMBER will not be set.

1 to 256 ....ID NUMBER will be set.

 When the ID NUMBER have been set

You can also set ID NUMBER for each remote control to
operate the plasma display individually. T o do so, see below .

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

CONFIDENTIAL

3-106

E-38

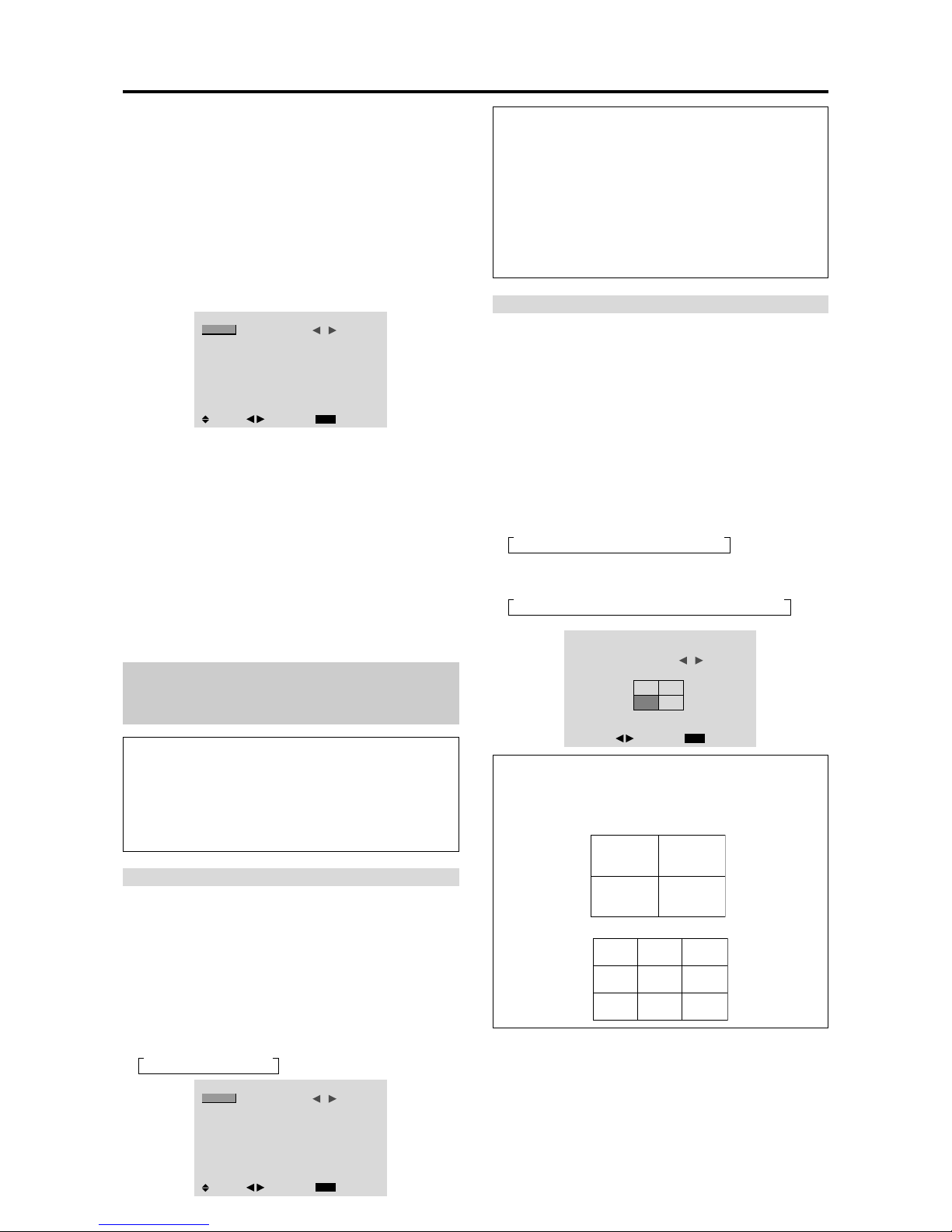

Video Wall setting

Use this feature to configure a 2×2 or 3×3 video wall.

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION3”, then press
the MENU/ENTER button.
The “OPTION3” screen appears.

2. Use the ▲ and ▼ buttons to select “VIDEO WALL”,
then press the MENU/ENTER button.
The “VIDEO WALL” screen appears.

VIDEO WALL

EXIT

DIVIDER
POSITION
DISP. MODE
AUTO ID
IMAGE ADJUST
P. ON DELAY
PLE LINK
REPEAT TIMER

: 1

: SPLIT
: OFF

: OFF
: OFF
: OFF

SEL.

RETURN

ADJ.

3. Set the VIDEO WALL using ▲▼  and  buttons.
See page E-38 to set DIVIDER.
See page E-38 to set POSITION.
See page E-39 to set DISP. MODE.
See page E-39 to set AUTO ID.
See page E-39 to set IMAGE ADJUST.
See page E-40 to set P. ON DELAY.
See page E-40 to set PLE LINK.
See page E-41 to set REPEAT TIMER.

4. Once the setting is completed...
Press the EXIT button to return to the OPTION3 menu.

Note:

A contingency method of shutting off the electric
power should be used in cases of emergency during video
wall setup.

Information

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

DIVIDER

Set the 2×2 or 3×3 video wall.

Example: Setting “4”

Perform Steps 1-2 of VIDEO WALL, then...

3. Use the ▲ and ▼ buttons to select “DIVIDER”.

4. Use the



and  buttons to select “4”.

The mode switches as follows each time the



or



button is pressed:

→ OFF ↔ 1 ↔ 4 ↔ 9 ←

VIDEO WALL

EXIT

DIVIDER
POSITION
DISP. MODE
AUTO ID
IMAGE ADJUST
P. ON DELAY
PLE LINK
REPEAT TIMER

: 4

: SPLIT
: OFF

: OFF
: OFF
: OFF

SEL.

RETURN

ADJ.

Information

 DIVIDER settings

OFF, 1 .......1 Screen (Matrix display function does not

work)

4 ................4 Screens (2×2 video wall)

9 ................9 Screens (3×3 video wall)

* When you select “4” or “9”, set the VIDEO WALL

POSITION.

VIDEO WALL POSITION

Set the position of each display.

Example: Setting “4”

Perform Steps 1-2 of VIDEO WALL, then...

3. Use the ▲ and ▼ buttons to select “POSITION”, then

press the MENU/ENTER button.
The “VIDEO WALL POSITION” screen appears.

4. Use the



and  buttons to select “NO. 4”.

The mode switches as follows each time the



or



button is pressed:

• 4 Screens

→ NO. 1 ↔ NO. 2 ↔ NO. 3 ↔ NO. 4 ←

• 9 Screens

→ NO. 7 ↔ NO. 8 ↔ ....... ↔ NO. 14 ↔ NO. 15 ←

VIDEO WALL POSITION

POSITION NO.

4

EXIT

RETURN

ADJ.

Information

 VIDEO WALL POSITION settings

1 Screen.....There is no need to set POSITION.

4 Screens

9 Screens

NO. 1

NO. 2

NO. 4

NO. 3

NO. 7

NO. 8

NO. 9

NO. 10

NO. 11

NO. 12

NO. 13

NO. 14

NO. 15

CONFIDENTIAL

3-107

E-39

AUTO ID

This feature automatically sets the ID numbers of multiple
displays connected to each other.

Example: Setting “ON”

Set the ID number for the No. 1 display on ID NUMBER
menu.

Perform Steps 1-2 of VIDEO WALL, then...

3. Use the ▲ and ▼ buttons to select “AUTO ID”.

4. Use the



and  buttons to select “ON”, then press the
MENU/ENTER button.
The mode switches as follows each time the



or



button is pressed:

OFF ↔ ON

AUTO ID

EXIT

AUTO ID : ON

RETURN

ADJ.

1

2

4

3

1

2

8

9

3

4

6

5

7
WIRED CABLE
CONNECTION TURN

IMAGE ADJUST

The position of the image can be adjusted and flickering
of the image can be corrected.

Example: Adjusting the vertical position

Perform Steps 1-2 of VIDEO WALL, then...

3. Use the ▲ and ▼ buttons to select “IMAGE ADJUST”,

then press the MENU/ENTER button.
The “IMAGE ADJUST” screen appears.

4. Use the ▲ and ▼ buttons to select “V-POSITION”.

IMAGE ADJUST

EXIT

ASPECT MODE
V-POSITION
H-POSITION
V-HEIGHT
H-WIDTH
AUTO PICTURE
FINE PICTURE
PICTURE ADJ.

: NORMAL

: OFF

SEL.

RETURN

ADJ.

5. Adust using the  and  buttons.

V-POSITION

* If neither the  or  button is pressed within 5 seconds,

the current setting is set and the previous screen
reappears.

Information

 IMAGE ADJUST settings

These are the same functions as the IMAGE ADJUST
menu on page E-23.

DISP. MODE

Select the screen mode from between two options
(Splitting, Blanking).

Example: Setting “BLANK”

Perform Steps 1-2 of VIDEO WALL, then...

3. Use the ▲ and ▼ buttons to select “DISP. MODE”.

4. Use the



and  buttons to select “BLANK”.

The mode switches as follows each time the



or



button is pressed:

SPLIT ↔ BLANK

VIDEO WALL

EXIT

DIVIDER
POSITION
DISP. MODE
AUTO ID
IMAGE ADJUST
P. ON DELAY
PLE LINK
REPEAT TIMER

: 1

: BLANK
: OFF

: OFF
: OFF
: OFF

SEL.

RETURN

ADJ.

Information

 DISP. MODE settings

SPLIT .........Combines enlarged screens and creates

multiple screens.

BLANK .......

Corrects misalignment of combined screen
portions and creates multiple screens

Information

 AUTO ID settings

ON...... Enables Auto ID function. In the case shown

below, display 1 will be set as ID 1, display 2
as ID2, etc.

REMOTE

IN

REMOTE
IN

REMOTE
OUT

REMOTE
OUT

REMOTE

IN

REMOTE

OUT

REMOTE

OUT

REMOTE
IN

No.1

No.2
No.3No.4

No.1

No.2
No.3No.4

No.1

No.2
No.3No.4

No.1

No.2
No.3No.4

Display 1

Display 2

Display 4

Display 3

OFF .... Disables Auto ID function.

CONFIDENTIAL

3-108

E-40

P. ON DELAY (Power on delay)

Use this function to activate power-on delay.
Turn on the AUTO ID before the following operations.

Example: Setting “ON”

Perform Steps 1-2 of VIDEO WALL, then...

3. Use the ▲ and ▼ buttons to select “P. ON DELAY”.

4. Use the



and  buttons to select “ON”.

The mode switches as follows each time the



or



button is pressed:

OFF ↔ ON

VIDEO WALL

EXIT

DIVIDER
POSITION
DISP. MODE
AUTO ID
IMAGE ADJUST
P. ON DELAY
PLE LINK
REPEAT TIMER

: 1

: SPLIT
: OFF

: ON
: OFF
: OFF

SEL.

RETURN

ADJ.

Information

 P. ON DELAY settings

ON...... Turns on the main power of each display after

a delay time.

OFF .... Turns on the main power of all displays at the

same time.

* Once this function has been set to “ON”, POWER ON/

OFF button on the remote control does not function
except for the No.1 monitor.
By pressing the POWER ON button on the remote
control the No.1 monitor will turn on and the others
will be turned on one by one automatically.

* From the second monitor onward, neither the POWER

button on the unit nor the POWER ON button on the
remote control does function. However, by pressing and
holding the POWER ON button for more than 3 seconds,
the monitor will be turned on.

PLE LINK

Use this function to set a uniform brightness for each
display.
Turn on the AUTO ID and set the DIVIDER (at 1, 4 or 9)
before the following operations.

Example: Setting “ON”

Perform Steps 1-2 of VIDEO WALL, then...

3. Use the ▲ and ▼ buttons to select “PLE LINK”.

4. Use the



and  buttons to select “ON”, then press the
MENU/ENTER button.
The mode switches as follows each time the



or



button is pressed:

OFF ↔ ON

VIDEO WALL

EXIT

DIVIDER
POSITION
DISP. MODE
AUTO ID
IMAGE ADJUST
P. ON DELAY
PLE LINK
REPEAT TIMER

: 1

: SPLIT
: OFF

: OFF
: ON
: OFF

SEL.

RETURN

ADJ.

Information

 PLE LINK settings

ON...... Sets a uniform brightness for each screen in a

video wall.

OFF .... Sets the individual screen brightness for each

screen in a video wall.

* When this function is set “ON”, connect your plasma

displays with the remote cable (optional) in the order of
the position numbers for the 2×2 video wall. See the
drawing below.

* If there are changes in the DIVIDER or POSITION,

the PLE LINK will automatically turn OFF .

* With the 3×3 video wall, connect the final display to

the first display the same way as with 2×2 video wall.

Note:

The remote control can be operated unless the

IR REMOTE is set to “OFF”.

REMOTE

IN

REMOTE
IN

REMOTE
OUT

REMOTE
OUT

REMOTE

IN

REMOTE

OUT

REMOTE

OUT

REMOTE
IN

No.1

No.2
No.3No.4

No.1

No.2
No.3No.4

No.1

No.2
No.3No.4

No.1

No.2

No.3No.4

Display 1

Display 2

Display 4

Display 3

CONFIDENTIAL

3-109

E-41

REPEA T TIMER

Use this to set two timers. Each timer can use the
DIVIDER, SOURCE and WORK TIME.
Turn on the AUTO ID and set the DIVIDER (at 1, 4 or 9)
before the following operations.

Example:
TIMER1...VIDEO1 will be displayed for 3 minutes.

TIMER2...RGB1 will be displayed for 6 minutes in a

2×2 video wall.

Perform Steps 1-2 of VIDEO WALL, then...

3. Use the ▲ and ▼ buttons to select “REPEAT TIMER”.

VIDEO WALL

EXIT

DIVIDER
POSITION
DISP. MODE
AUTO ID
IMAGE ADJUST
P. ON DELAY
PLE LINK
REPEAT TIMER

: 1

: SPLIT
: OFF

: OFF
: OFF
: OFF

SEL.

RETURN

ADJ.

4. Use the  and  buttons to select “ON”, then press the
MENU/ENTER button.
The “REPEAT TIMER” screen appears.

5. Adust using the ▲▼



and  buttons.

The mode switches as follows each time the



or



button is pressed:

REPEAT TIMER

EXIT

1 DIVIDER
SOURCE
WORK TIME

2 DIVIDER
SOURCE
WORK TIME

: 1
: VIDEO1
: 00H03M

: 4
: RGB1
: 00H06M

SEL.

RETURN

ADJ.

• DIVIDER

→ 1 ↔ 4 ↔ 9

←

• SOURCE

The available sources depend on the setting of “BNC
INPUT” and “D-SUB INPUT”. See page E-3.

→

VIDEO1 ↔ VIDEO2 ↔ VIDEO3 ↔ HD/DVD1 ←

→ RGB3 ↔ RGB2 ↔ RGB1 ↔ HD/DVD2

←

• WORK TIME

→ 00H01M ↔ 00H02M ↔ 00H03M ↔ ..... ↔ 04H14M ↔ 04H15M ←

Information

 REPEAT TIMER settings

If you set both timers, Timer 1 and Timer 2 run
consecutively.
In the case of the V ideo wall, timer No.1 can be used to
control all the displays simultaneously.

* This becomes effective when the on-screen menu goes

out.

Advanced OSM Settings Menu

Setting the menu mode

This allows you to access full menu items.
When P. ON DELAY or PLE LINK is ON, this won’t be
turned OFF.

Example: Setting “ON”

1. On the MAIN MENU, select “ADVANCED OSM”.

MAIN MENU

1 / 2

EXIT

AUDIO
IMAGE ADJUST
OPTION1

ADVANCED OSM
NEXT PAGE

:

OFF

SEL.

EXIT

ADJ.

2. To set the ADVANCED OSM to “ON”...
Use the



and  buttons to select “ON”.

The mode switches as follows each time the



or



button is pressed:

OFF ↔ ON

MAIN MENU

1 / 2

EXIT

AUDIO
IMAGE ADJUST
OPTION1
OPTION2
OPTION3
ADVANCED OSM
NEXT PAGE

:

ON

SEL.

EXIT

ADJ.

Information

 ADVANCED OSM settings

ON...... All of the main menu items are available for

advanced users.

OFF .... Some of the main menu items are not available

(e.g. OPTION2, OPTION3).

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

Language Settings Menu

Setting the language for the menus

The menu display can be set to one of seven languages:
English, German, French, Swedish, Italian, Spanish or
Chinese.

Example: Setting the menu display to “DEUTSCH”

1. On the MAIN MENU, select “LANGUAGE”, then
press the MENU/ENTER button.
The “LANGUAGE” screen appears.

2. To select “DEUTSCH” ...
Use the



and  buttons to select “ DEUTSCH”.

The mode switches as follows each time the



or



button is pressed:

CONFIDENTIAL

3-110

E-42

→ ENGLISH ↔ DEUTSCH ↔ FRANÇAIS ←
→

↔ SVENSKA ↔ ITALIANO ↔ ESPAÑOL ←

LANGUAGE

MENU/ENTER

EXIT

LANGUAGE

: DEUTSCH

RETURN

OK

ADJ.

Information

 Language settings

ENGLISH ........English

DEUTSCH.......German

FRANÇAIS...... French

ESPAÑOL .......Spanish

ITALIANO ........ Italian

SVENSKA .......Swedish

...................Chinese

Color System Settings Menu

Setting the video signal format

Use these operations to set the color systems of composite
video signals or Y/C input signals.

Example: Setting the color system to “3.58 NTSC”

1. On the MAIN MENU, select “COLOR SYSTEM”, then
press the MENU/ENTER button.
The “COLOR SYSTEM” screen appears.

2. To select “ 3.58NTSC ” ...
Use the



and  buttons to select “ 3.58NTSC ”.

The mode switches as follows each time the



or



button is pressed:

→ AUTO ↔ 3.58NTSC ↔ 4.43NTSC ←
→ SECAM ↔ PAL-M ↔ PAL-N ↔ PAL60 ↔ PA L ←

COLOR SYSTEM

EXIT

COLOR SYSTEM

: 3.58NTSC

RETURN

ADJ.

Information

 Video signal formats

Different countries use different formats for video
signals. Set to the color system used in your current
country.

AUTO ..............The color systems are automatically

identified and the format is set
accordingly.

PAL..................This is the standard format used

mainly in the United Kingdom and
Germany.

SECAM.............This is the standard format used

mainly in France and Russia.

4.43 NTSC,

PAL60 ............. This format is used for videos in

countries using PAL and SECAM
video signals.

3.58 NTSC ......This is the standard format used

mainly in the United States and Japan.

PAL-M .............This is the standard format used

mainly in Brazil.

PAL-N..............This is the standard format used

mainly in Argentina.

Source Information Menu

Checking the frequencies, polarities of input
signals, and resolution

Use this function to check the frequencies and polarities
of the signals currently being input from a computer, etc.

1. On the SCREEN MENU, select “SOURCE
INFORMATION”, then press the MENU/ENTER
button.

2. The “SOURCE INFORMATION” is displayed.

SOURCE INFORMATION

EXIT

H. FREQ
V. FREQ

H. POLARITY
V. POLARITY

MEMORY
RESOLUTION

: 48.4KHZ
: 60.0KHZ

: NEG.
: NEG.

: 24
: 1024×768

RETURN

PC: MEMORY will be displayed.
Others: MODE will be displayed.

CONFIDENTIAL

3-111

E-43

External Control

Application

These specifications cover the communications control of
the plasma monitor by external equipment.

Connections

Connections are made as described below.

Connector on the plasma monitor side: EXTERNAL
CONTROL connector.
Use a crossed (reverse) cable.

Type of connector: D-Sub 9-pin male

1

5

9

6

2

34

7

8

Pin Name

No Connection
RXD (Receive data)
TXD (Transmit data)
DTR (DTE side ready)
GND
DSR (DCE side ready)
RTS (Ready to send)
CTS (Clear to send)
No connection

Pin No.

1
2
3
4
5
6
7
8
9

Communication Parameters

(1) Communication system Asynchronous
(2) Interface RS-232C
(3) Baud rate 9600 bps
(4) Data length 8 bits
(5) Parity Odd
(6) Stop bit 1 bit
(7) Communication code Hex

External Control Codes (Reference)

FUNCTION CODE DATA
Power ON 9FH 80H 60H 4EH 00H CDH

OFF 9FH 80H 60H 4FH 00H CEH

Input Switch Video1 (BNC) DFH 80H 60H 47H 01H 01H 08H

Video2 (RCA) DFH 80H 60H 47H 01H 02H 09H
Video3 (S-Video) DFH 80H 60H 47H 01H 03H 0AH
DVD1/HD1 (RCA) DFH 80H 60H 47H 01H 05H 0CH
DVD2/HD2 (BNC) DFH 80H 60H 47H 01H 06H 0DH
RGB1 (mini D-Sub 15-Pin) DFH 80H 60H 47H 01H 07H 0EH
RGB2 (5BNC) DFH 80H 60H 47H 01H 08H 0FH
RGB3 (DVI) DFH 80H 60H 47H 01H 0CH 13H

Audio Mute ON 9FH 80H 60H 3EH 00H BDH

OFF 9FH 80H 60H 3FH 00H BEH

Picture Mode NORMAL DFH 80H 60H OAH 01H 01H CBH

THEAT. 1 DFH 80H 60H OAH 01H 02H CCH
THEAT. 2 DFH 80H 60H OAH 01H 03H CDH
DEFAULT DFH 80H 60H OAH 01H 04H CEH

Screen Mode STADIUM DFH 80H 60H 51H 01H 02H 13H

ZOOM DFH 80H 60H 51H 01H 03H 14H
NORMAL DFH 80H 60H 51H 01H 04H 15H
FULL DFH 80H 60H 51H 01H 05H 16H
14 : 9 DFH 80H 60H 51H 01H 09H 1AH

2.35 : 1 DFH 80H 60H 51H 01H 0AH 1BH

Auto Picture ON DFH 80H 60H 7FH 03H 03H 09H 00H 4DH

OFF DFH 80H 60H 7FH 03H 03H 09H 01H 4EH

Cinema Mode ON DFH 80H 60H C1H 01H 01H 82H

OFF DFH 80H 60H C1H 01H 02H 83H

Note:

Contact your local dealer for a full list of the

External Control Codes if needed.

Display

External equipment
e.g., Personal computer

CONFIDENTIAL

3-112

E-44

Remedy

• If there are no abnormalities in the image
and sound, the noise is caused by the
cabinet reacting to changes in humidity. This
will not affect performance.

• Leave some space between the display and
the connected components.

• Replace both batteries with new ones.

• Set IR REMOTE OFF on OPTION3 menu.

• Set an ID number with the ID SELECT

button, or set the ID number to ALL.

• Plug the monitor’s power cord into a power
outlet.

• Press the power button on the monitor to
turn on the power.

• Replace both batteries with new ones.

• Set IR REMOTE OFF.

• Set an ID number with the ID SELECT

button, or set the ID number to ALL.

• Point the remote control at the monitor’s
remote control sensor when pressing
buttons, or remove the obstacle.

• Eliminate the light by closing curtains,
pointing the light in a different direction, etc.

• Replace both batteries with new ones.

• Unplug the remote cable from the monitor.

• Set the Control Lock to OFF.

• Plug the monitor’s power cord into a power

outlet.

• Increase the volume.

•

Press the remote control’s MUTE button.

• Connect the speakers properly.

• Set AUDIO INPUT on the AUDIO menu

correctly.

• Adjust picture control as needed.
Try another location for the monitor .
Be sure all connections are secure.

• Adjust picture controls as needed.
Check pin assignments and connections.

• Adjust the tint and color (under PICTURE).

• Turn on the computer’s power.

• Connect source to the monitor.

• Operate the computer (move the mouse,

etc.).

• Set LOOP OUT OFF.

• Adjust the IMAGE ADJUST properly.

• Press the WIDE button on the remote

control and adjust properly.

• Set to the proper resolution.

• Check the input signal.

• Promptly switch off the power of the main

unit and wait until the internal temperature
drops. See*1.

• Prompty switch off the power of the main
unit. See *2.

If the picture quality is poor or there is some other problem, check the adjustments, operations, etc., before requesting service.

Troubleshooting

• Maybe the sound from the cooling fans used to prevent over heating.

Symptom

Mechanical sound is heard.
The unit emits a crackling sound.

Picture is disturbed.
Sound is noisy.
Remote control operates erroneously.

The remote control does not work.

Monitor’s power does not turn on
when the remote control’s power
button is pressed.

Monitor does not operate when the
remote control’s buttons are pressed.

The front panel buttons of the main
unit do not function.

No sound or picture is produced.

Picture appears but no sound is
produced.

Poor picture with VIDEO signal input.

Poor picture with RGB signal input.

Tint is poor or colors are weak.
Nothing appears on screen.

Part of picture is cut off or picture is
not centered.

Image is too large or too small.

Picture is unstable.

POWER/STANDBY indicator is
lighted in red.

POWER/STANDBY indicator is
blinking in red.

POWER/STANDBY indicator is
blinking in green and red, or green.

Checks

• Are the image and sound normal?

• Is a connected component set directly in

front or at the side of the display?

• Are the remote control’s batteries worn
out?

• Is IR REMOTE set to ON?

• Has an ID number been set for the main

unit?

• Is the monitor’s power cord plugged into
a power outlet?

• Are all the monitor’s indicators off?

• Are the remote control’s batteries worn

out?

• Is IR REMOTE set to ON?

• Has an ID number been set for the main

unit?

• Is the remote control pointed at the
monitor, or is there an obstacle between
the remote control and the monitor?

• Is direct sunlight or strong artificial light
shining on the monitor’s remote control
sensor?

•

Are the remote control’s batteries worn out?

• The remote cable is plugged into the
REMOTE IN terminal (Wired).

• The front panel buttons do not function
during Control Lock.

• Is the monitor’s power cord plugged into
a power outlet?

• Is the volume set at the minimum?

• Is the mute mode set?

• Are the speakers properly connected?

• Is AUDIO INPUT set correctly?

• Improper control setting.

Local interference.
Cable interconnections.
Input impedance is not correct level.

• Improper control setting.
Incorrect 15 PIN connector pin
connections.

• Are the tint and colors properly adjusted?

• Is the computer’s power turned on?

• Is a source connected?

• Is the power management function in the

standby or off mode?

• Is LOOP OUT set to ON?

• Is the position adjustment appropriate?

• Is the screen size adjustment

appropriate?

• Is the computer’s resolution setting
appropriate?

• Horizontal and / or vertical sync signal is
not present when the Intelligent Power
Manager control is on.

• The temperature inside the main unit has
become too high and has activated the
protector.

——————

CONFIDENTIAL

3-113

E-45

*1 Overheat protector

If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor
and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location and wait for the monitor
to cool for 60 minutes. If the problem persists, contact your dealer.

*2 In the following case, power off the monitor immediately and contact your dealer or authorized Service Center.

The monitor turns off 5 seconds after powering on and then the POWER/STANDBY indicator blinks. It indicates that the power supply circuit, plasma
display panel, temperature sensor, or one or more fans have been damaged.

CONFIDENTIAL

3-114

PlasmaSync Plasma Monitor

PlasmaSync 50XM3

PX-50XM3GU / 50XM3GU/S

Model Information

Modell-Informationen

Informations modèle

Información del modelo

Informazioni sul modello

Modellinformation

3-115

CONFIDENTIAL

E-1

Specifications

Screen Size 1106(H)622(V) mm

43.5"(H)24.5"(V) inches
diagonal 50"

Aspect Ratio 16 : 9
Resolution 1365(H)768(V) pixels
Pixel Pitch 0.81(H)0.81(V) mm

0.032"(H)0.032"(V) inches

Color Reproduction 256 levels, 16,770,000 colors
Signals

Synchronization Range Horizontal : 15.5 to 110 kHz

(automatic : step scan)
Vertical : 50.0 to 120 Hz
(automatic : step scan)

Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),

PAL60, SECAM, HD*1 , DVD*1 , DTV*1

Input Terminals (VIDEO1 and RGB1 can also be used as OUTPUT terminals)

RGB

Visual 1 (Analog) mini D-sub 15-pin1
Visual 2 (Analog) BNC (R, G, B, H/CS, V)1*

2

Visual 3 (Digital) DVI-D 24-pin1*

3

Video

Visual 1 BNC1
Visual 2 RCA-pin1
Visual 3 S-Video: DIN 4-pin1

DVD/HD/DTV

Visual 1 RCA-pin (Y, PB[CB], PR[CR])1*

1

Visual 2 BNC (Y, PB[CB], PR[CR])1*

1, *2

Audio Stereo RCA3 (Selectable)

External Control D-sub 9-pin1 (RS-232C)
Sound output 9W+9W at 6 ohm
Power Supply AC100-240V 50/60Hz
Current Rating 7.6 A (maximum)
Power Consumption 480W (typical)
Dimensions 1222 (W)736 (H)96(D) mm

48.1 (W)30 (H)3.8 (D) inches

Weight

50XM3GU: 43.9 kg / 96.6 lbs (without stand)
50XM3GU/S: 44.5 kg / 97.9 lbs (without stand)

Environmental Considerations

Operating Temperature 0°C to 40°C / 32°F to 104°F

Humidity 20 to 80% (no condensation)
Altitude 0 to 2800 m / 0 to 9180 feet

Storage Temperature -10°C to 50°C / 14°F to 122°F

Humidity 10 to 90% (no condensation)
Altitude 0 to 3000 m / 0 to 9840 feet

Front Panel User Controls Power on/off, Input source select,

Volume up/down/ OSM control

Remote Control Functions

Power on/off, Input source select, OSM
control,Volume up/down, Cursor (UP,
DOWN,LEFT, RIGHT), Pointer, Zoom up/
down, Off timer, Wireless/ Wired remote
control

OSM Functions

Picture (Contrast/Brightness/Sharpness/ Color/Tint/
Picture mode/Noise reduction/Color temperature/
White balance/Gamma/Low tone/Color tune), Audio
(Bass/Treble/Balance/Audio input), Image Adjust
(Aspect mode/V-Position /H-Position/V-Height /H­Width/Auto Picture/Fine picture/Picture adjustment),
Option1 (OSM/BNC Input/D-Sub Input/RGB Select/
HD Select/Input Skip/All Reset), Option2 (Power
management/Cinema mode/Long life [PLE, Orbiter,
Inverse, White, Screen wiper, Soft focus]/Gray level/
S1/S2/Picture size), Option3 (Timer Power on mode/
Control lock/IR Remote/Loop out/ID number/Video
wall [Divider, Position, Disp. mode, Auto ID, Image
adjust, Power on delay, PLE link, Timer]), Advanced
OSM, Language*, Color system, Source information
*English, German, French, Italian, Spanish, Swedish,

Chinese

The features and specifications may be subject to change without
notice.

*1HD/DVD/DTV input signals supported on this

system

480P (60 Hz) 480I (60 Hz)
525P (60 Hz) 525I (60 Hz)
576P (50 Hz) 576I (50 Hz)
625P (50 Hz) 625I (50 Hz)
720P (60 Hz) 1035I (60 Hz)
1080I (50 Hz) 1080I (60 Hz)

*2The 5-BNC connectors are used as RGB/PC2 and

HD/DVD2 input. Select one of them under “BNC
INPUT”.

*

3

Not compatable with HDCP.

Units are in mm

(inch)

96

(3.8")

38

(1.5")

58

(2.3")

1222 (48.1")

736 (30")

1106 (43.5")

622 (24.5")

Other Features Motion compensated 3D Scan Converter (NTSC,

PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3
pull down Converter (NTSC, 480I, 525I, 1035I,
1080I (60Hz)), 2-2 pull down Converter (PAL,
576I, 625I, NTSC, 480I, 525I), Digital Zoom
Function (100-900% Selectable), Video Wall 2×2/
3×3 multi screen, Self Diagnosis, Anti Image Burn
(PLE LOCK1~3, INVERSE, WHITE, ORBITER
(Auto1,2/Manual), SCREEN WIPER), Color
Temperature select (high/mid/mid low/low, user
has 4 memories), Control lock (Except power
SW), Auto Picture, Input Skip, Color Tune, Low
Tone (3 mode), Auto ID, Programmable Timer,
Gamma Correction (4 mode), Loop through
interface, Plug and play (DDC1, DDC2b, RGB3:
DDC2b only)

Accessories Remote control with two AAA batteries, Power

cord, Manuals, Safety metal fitting parts,
Ferrite cores, Bands, Cable clamps

Regulations

50XM3GU:

Meets EMC Directive
(EN55022 Class A, EN55024, EN61000-3-2,
EN61000-3-3)
Meets Low Voltage Directive
(EN60950, SEMKO Approved)
Meets AS/NZS CISPR 22:2002 Class A

50XM3GU/S:

Meets EMC Directive
(EN55022 Class B, EN55024, EN61000-3-2,
EN61000-3-3)
Meets Low Voltage Directive
(EN60950 and EN60065, SEMKO Approved)
Meets AS/NZS CISPR 22:2002 Class B

50XM3GU: Bezel color is gray.
50XM3GU/S: Bezel color is silver.

For the operation of your plasma monitor, refer to
“Operation Manual”.

3-116

CONFIDENTIAL

Table of Signals Supported

Screen mode

Supported resolution

• When the screen mode is NORMAL, each signal is converted to a 1024 dots768 lines signal. (Except for *

2, 3, 4

)

• When the screen mode is TRUE, the picture is displayed in the original resolution.

• When the screen mode is FULL, each signal is converted to a 1365 dots768 lines signal. (Except for *

3

)

Computer input signals supported by this system

Dots  lines

640400
640480

848480

852480*

1

800600

1024768

1152864

1280768

1360765
1360768
1376768

12801024

16001200

640480
832624

1024768

1152870

12801024

12801024

1152900

12801024

1024768

12801024

768576
640480

Vertical
frequency
(Hz)

70.1

59.9

72.8

75.0

85.0

100.4

120.4

60.0

60.0

56.3

60.3

72.2

75.0

85.1

99.8

120.0

60.0

70.1

75.0

85.0

100.6

75.0

56.2

59.8

60.0

60.0

59.9

60.0

75.0

85.0

100.1

60.0

65.0

70.0

75.0

85.0

66.7

74.6

74.9

75.1

60.0

71.2

72.0

66.0

76.0

76.1

60.0

60.0

50.0

59.9

Horizontal
frequency
(kHz)

31.5

31.5

37.9

37.5

43.3

51.1

61.3

31.0

31.7

35.2

37.9

48.1

46.9

53.7

63.0

75.7

48.4

56.5

60.0

68.7

80.5

67.5

45.1

48.0

47.7

47.7

48.3

64.0

80.0

91.1

108.5

75.0

81.3

87.5

93.8

106.3

35.0

49.7

60.2

68.7

64.6

75.1

78.1

61.8

71.7

81.1

49.7

63.9

31.4

31.5

NORMAL

(4:3)

YES*

2

YES
YES
YES
YES
YES
YES

– –
– –

YES
YES
YES
YES
YES
YES
YES

YES*

3

YES*

3

YES*

3

YES*

3

YES*

3

YES

– –
– –
– –
– –
– –

YES*

4

YES*

4

YES*

4

YES*

4

YES
YES
YES
YES
YES
YES
YES

YES*

3

YES

YES*

4

YES*

4

YES*

4

YES
YES

YES*

4

YES*

3

YES*

4

YES*

7

YES*

7

TRUE

YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES

– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –

YES
YES

– –
– –
– –
– –
– –
– –
– –
– –
– –
– –

– –
– –

FULL
(16:9)

YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES

YES*

3

YES*

3

YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES

YES*

7

YES*

7

RGB

select*

5

– –

STILL

– –

STILL

– –
– –
– –

WIDE2
WIDE1

STILL
STILL

– –
– –
– –
– –
– –

STILL

– –

STILL

– –
– –

STILL
WIDE1
WIDE3
WIDE1
WIDE1
WIDE2

STILL

– –
– –
– –
– –
– –
– –
– –
– –
– –
– –

WIDE1
WIDE1

– –
– –
– –
– –
– –
– –
– –
– –

– –

MOTION

Apple
Macintosh*

6 *8

Horizontal

NEG
NEG
NEG
NEG
NEG
NEG
NEG
POS
NEG
POS
POS
POS
POS
POS
POS
POS
NEG
NEG
POS
POS
NEG
POS
POS
POS
POS
POS
NEG
POS
POS
POS
POS
POS
POS
POS
POS
POS

Sync on G
Sync on G
Sync on G
Sync on G

NEG
NEG

– –

C Sync
C Sync
C Sync

– –
– –

NEG
NEG

Work Station
(EWS4800)

*

8

Work Station(HP)

*

8

Work Station
(SUN)

*

8

Work Station
(SGI)
IDC-3000G

Signal Type

IBM PC/AT*

8

compatible
computers

Vertical

NEG
NEG
NEG
NEG
NEG
NEG
NEG
POS
NEG
POS
POS
POS
POS
POS
POS
POS
NEG
NEG
POS
POS
NEG
POS
POS
NEG
POS
POS
POS
POS
POS
POS
POS
POS
POS
POS
POS
POS

Sync on G
Sync on G
Sync on G
Sync on G

NEG
NEG

– –

C Sync
C Sync
C Sync

– –
– –

NEG
NEG

Sync Polarity

Presence

Horizontal

YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES

– –
– –
– –
– –

YES
YES

– –
– –
– –
– –
– –
– –

YES
YES

Vertical

YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES

– –
– –
– –
– –

YES
YES

– –
– –
– –
– –
– –
– –

YES
YES

PAL625P

NTSC525P

Model

DVI

NO
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES

NO
YES

NO
YES

NO
YES
YES
YES

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO
YES

NO

NO

NO

NO

NO
YES
YES

NO

NO

Memory

4
5
7
8

9
41
42
19
17
11
12
13
14
15
43
44
24
25
26
27
45
51
52
80
22
22
53
29
30
40
47
54
55
56
57
58

6
16
28
39
29
48
59
60
61
30
62
29

31
32

E-2

3-117

CONFIDENTIAL

E-3

Warning (Only for 50XM3GU)

Apparatus shall not be exposed to dripping or splashing and
that no objects filled with liquids, such as vases, shall be
placed on apparatus.
T o reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture.
This is a Class A product. In a domestic environment, this
product may cause radio interference in which case the user
may be required to take adequate measures.

NOTE:
When you connect a computer to this monitor, use an RGB
cable including the ferrite core on both ends of the cable.
And regarding DVI and power cable, attach the supplied
ferrite cores. If you do not do this, this monitor will not
conform to mandatory CE or C-Tick standards.
Set the ferrite cores on both ends of the DVI cable (not
supplied), and both ends of the power cable (supplied).
Close the lid tightly until the clamps click.
Use the band to fasten the ferrite core (supplied) to the
DVI cable.

DVI cab le (not supplied)

core (small)

core (small)

Connector

band

band

Power cable (supplied)

core (large)

core (large)

Important Information

*1 Only when using a graphic accelerator board that is capable of displaying 852480.
*2 Display only 640 lines with the screen center of the vertical orientation located at the center.
*3 The picture is displayed in the original resolution. The picture will be compressed for other signals.
*4 Aspect ratio is 5:4. This signal is converted to a 720 dots768 lines signal.
*5 Normally the RGB select mode suite for the input signals is set automatically. If the picture is not displayed properly, set the RGB mode

prepared for the input signals listed in the table above.
*6 To connect the monitor to Macintosh computer, use the monitor adapter (D-Sub 15-pin) to your computer's video port.
*7 Other screen modes (ZOOM and STADIUM) are available as well.
*8 When viewing a moving picture at a vertical frequency greater than 65Hz, the picture may sometimes be unstable (jumpy). If this occurs,

please set the refresh rate of the external equipment to 60Hz.

To view 480I@60Hz (480 interlaced lines, 60Hz refresh rate) or 576I@50Hz (567 interlaced lines, 50Hz refresh rate) when sync polarity

is “Sync on Green”, set “RGB SELECT” to “MOTION”.

NOTE:

• While the input signals comply with the resolution listed in the table above, you may have to adjust the position and size of the

picture or the fine pictur e because of errors in synchronization of your computer.

• When a 1280 dots  1024 lines signal or 1600 dots  1200 lines signal is input to the monitor , the picture will be compr essed.

• This monitor has a resolution of 1365 dots



768 lines. It is recommended that the input signal should be XGA, wide XGA,

or equivalent.

• With digital input some signals are not accepted.

• The sync may be disturbed when a nonstandard signal other than the afor ementioned is input.

• If you are connecting a composite sync signal, use the HD terminal.

•“IBM PC/AT” and “XGA” are registered trademarks of International Business Machines, Inc. of the United States.

•“Apple Macintosh” is a registered trademark of Apple Computer, Inc. of the United States.

3-118

CONFIDENTIAL

PlasmaSync Plasma Monitor

Operation Manual

Betriebshandbuch

Mode d’emploi

Manual de funcionamiento

Manuale d’uso

Bruksanvisning

CONFIDENTIAL

3-119

ENGLISH

DEUTSCH

FRANÇAIS

ESPAÑOL

ITALIANO

SVENSKA

Operation Manual

For the specifications of your plasma
monitor, refer to “Model Information”.

CONFIDENTIAL

3-120

Precautions

Please read this manual carefully before using your plasma
monitor and keep the manual handy for future reference.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER. NO
USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

This symbol warns the user that uninsulated
voltage within the unit may have sufficient
magnitude to cause electric shock.
Therefore, it is dangerous to make any kind
of contact with any part inside of this unit.

This symbol alerts the user that important
literature concerning the operation and
maintenance of this unit has been included.
Therefore, it should be read carefully in
order to avoid any problems.

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE
THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE
THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD
RECEPTACLE OR OTHER OUTLETS, UNLESS THE
PRONGS CAN BE FULLY INSERTED. REFRAIN FROM
OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE
COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

Important Information

Warnings and Safety Precaution

This plasma monitor is designed and
manufactured to provide long, trouble-free service.
No maintenance other than cleaning is required.
Please see the section “Plasma monitor cleaning
procedure” on the next page.
The plasma display panel consists of fine picture
elements (cells) with more than 99.99 percent active
cells. There may be some cells that do not produce
light or remain lit.
For operating safety and to avoid damage to the unit,
read carefully and observe the following instructions.
To avoid shock and fire hazards:

1. Provide adequate space for ventilation to avoid internal
heat build-up. Do not cover rear vents or install the unit
in a closed cabinet or shelves.
If you install the unit in an enclosure, make sure there
is adequate space at the top of the unit to allow hot air
to rise and escape. If the monitor becomes too hot, the
overheat protector will be activated and the monitor will
be turned off. If this happens, turn off the power to the
monitor and unplug the power cord. If the room where
the monitor is installed is particularly hot, move the
monitor to a cooler location, and wait for 60 minutes to
cool the monitor. If the problem persists, contact your
dealer for service.

2. Do not use this unit’s polarized plug with extension cords
or outlets unless the prongs can be completely inserted.

3. Do not expose the unit to water or moisture.

4. Avoid damage to the power cord, and do not attempt to
modify the power cord.

5. Unplug the power cord during electrical storms or if
the unit will not be used over a long period.

6. Do not open the cabinet which has potentially dangerous
high voltage components inside. If the unit is damaged in
this way the warranty will be void. Moreover, there is a
serious risk of electric shock.

7. Do not attempt to service or repair the unit. The
manufacturer is not liable for any bodily harm or damage
caused if unqualified persons attempt service or open
the back cover. Refer all service to authorized Service
Centers.

CONFIDENTIAL

3-121

To avoid damage and prolong operating life:

1. Use only with 100-240V 50/60Hz AC power supply.
Continued operation at line voltages greater than 100­240 Volts AC will shorten the life of the unit, and might
even cause a fire hazard.

2. Handle the unit carefully when installing it and do not
drop.

3. Set the unit away from heat, excessive dust, and direct
sunlight.

4. Protect the inside of the unit from liquids and small
metal objects. In case of accident, unplug the power
cord and have it serviced by an authorized Service
Center.

5. Do not hit or scratch the panel surface as this causes
flaws on the surface of the screen.

6. For correct installation and mounting it is strongly
recommended to use a trained, authorized dealer.

7. As is the case with any phosphor-based display (like a
CRT monitor, for example) light output will gradually
decrease over the life of a Plasma Display Panel.

8. T o avoid sulfurization it is strongly recommended not to
place the unit in a dressing room in a public bath or hot
spring bath.

Plasma monitor cleaning procedure:

1. Use a soft dry cloth to clean the front panel and bezel
area. Never use solvents such as alcohol or thinner to
clean these surfaces.

2. Clean plasma ventilation areas with a vacuum cleaner
with a soft brush nozzle attachment.

3. To ensure proper ventilation, cleaning of the ventilation
areas must be carried out monthly. More frequent cleaning
may be necessary depending on the environment in which
the plasma monitor is installed.

Recommendations to avoid or minimize phosphor burn-in:

Like all phosphor-based display devices and all other gas
plasma displays, plasma monitors can be susceptible to
phosphor burn under certain circumstances. Certain
operating conditions, such as the continuous display of a
static image over a prolonged period of time, can result in
phosphor burn if proper precautions are not taken. T o protect
your investment in this plasma monitor, please adhere to the
following guidelines and recommendations for minimizing
the occurrence of image burn:

* Always enable and use your computer’s screen saver

function during use with a computer input source.
* Display a moving image whenever possible.
* Change the position of the menu display from time to time.
* Always power down the monitor when you are finished

using it.

If the plasma monitor is in long term use or continuous
operation take the following measures to reduce the
likelihood of phosphor burn:

* Lower the Brightness and Contrast levels as much as

possible without impairing image readability.
* Display an image with many colors and color gradations

(i.e. photographic or photo-realistic images).
* Create image content with minimal contrast between light

and dark areas, for example white characters on black

backgrounds. Use complementary or pastel color whenever

possible.
* Avoid displaying images with few colors and distinct,

sharply defined borders between colors.

* Note: Burn-in is not covered by the warranty.

Contact your dealer for other recommended procedures that
will best suit your particular application needs.

CONFIDENTIAL

3-122

How to Attach Options to the Plasma Monitor .. E-1

Ventilation Requirements for enclosure mounting ....... E-1

How to use the safety metal fittings and the screws for

safety metal fittings .............................................. E-1

Introduction ................................................... E-2

Introduction to the PlasmaSync Plasma Monitor......... E-2

The features you’ll enjoy include:............................. E-2

Contents of the Package ......................................... E-2

Options ............................................................... E-2

Part Names and Function ................................ E-3

Front View ........................................................... E-3

Rear View / Terminal Board ................................... E-4

Remote Control ..................................................... E-5

Battery Installation and Replacement ....................... E-6

Using the wired remote control mode ...................... E-7

Operating Range ...................................................... E-7

Handling the remote control..................................... E-7

Installation .................................................... E-8

Connecting Your PC or Macintosh Computer ............ E-9

Connections with Equipment that have a Digital Interface ....

E-9

Connecting Your Document Camera ........................ E-9

Connecting Your VCR or Laser Disc Player................ E-9

Connecting Your DVD Player .................................. E-9

Pin Assignments and Signal Levels

for 15 pin RGB (Analog) .....................................E-10

Pin Configuration and Signal Levels

of the RGB 3 Connector (DVI Connector) ............... E-10

Creating a video wall ........................................... E-11

Cable Management..............................................E-11

Basic Operations........................................... E-12

POWER ..............................................................E-12

To turn the unit ON and OFF: ................................ E-12

VOLUME ............................................................E-12

To adjust the sound volume:.................................. E-12

MUTE .................................................................E-12

To cancel the sound:.............................................. E-12

DISPLAY ..............................................................E-12

To check the settings:............................................. E-12

DIGITAL ZOOM ...................................................E-12

AUTO ADJUST ....................................................E-12

To adjust the size or quality of the picture

automatically ....................................................... E-12

OFF TIMER ......................................................... E-13

To set the of f timer:............................................... E-13

To check the remaining time: ................................. E-13

To cancel the off timer: .......................................... E-13

WIDE Operations........................................... E-14

Wide Screen Operation (manual) ......................... E-14

When viewing videos or digital video discs .......... E-14

Wide Screen Operation with Computer Signals .......E-15

When “PICTURE SIZE” is set to “OFF” .............. E-15

OSM Controls ................................................ E-16

Menu Operations ................................................. E-16

Menu Tree ...........................................................E-17

Picture Settings Menu............................................E-19

Adjusting the picture.............................................. E-19

Setting the picture mode according to the brightness

of the room .......................................................... E-19

Reducing noise in the picture ................................. E-20

Setting the color temperature ................................. E-20

Adjusting the color to the desired level .................. E-20

Changing the gamma curve.................................... E-21

Making the low tone adjustments........................... E-21

Adjusting the colors ............................................... E-22

Audio Settings Menu ............................................ E-22

Adjusting the treble, bass and left/right balance

and audio input select........................................... E-22

Setting the allocation of the audio connectors ........ E-23

Image Adjust Settings Menu .................................. E-23

Adjusting the Position, Size, Fine Picture,

Picture Adj ........................................................... E-23

Option1 Settings Menu .........................................E-24

Setting the on-screen menu .................................... E-24

Setting the BNC connectors ................................... E-25

Setting the RGB1 connector................................... E-25

Setting a computer image to the correct RGB

select screen ......................................................... E-25

Setting high definition images to the suitable

screen size............................................................ E-26

Setting the Input Skip............................................. E-27

Resetting to the default values................................ E-27

Option2 Settings Menu .........................................E-28

Setting the power management for computer

images ................................................................. E-28

POWER/ST ANDBY indicator ............................... E-28

Setting the picture to suit the movie ....................... E-28

Reducing burn-in of the screen .............................. E-29

Setting the gray level for the sides of the screen ..... E-32

Setting the screen for S1/S2 video input................. E-33

Setting the picture size for RGB input signals ........ E-33

Option3 Settings Menu .........................................E-34

Using the timer ...................................................... E-34

Setting the power on mode.................................... E-35

Enabling/disabling the front panel controls ............ E-36

Enabling/disabling remote control wireless

transmission ......................................................... E-36

Loop Out setting .................................................... E-37

ID number setting .................................................. E-37

Video Wall setting .................................................. E-38

Advanced OSM Settings Menu ..............................E-41

Setting the menu mode .......................................... E-41

Language Settings Menu .......................................E-41

Setting the language for the menus......................... E-41

Color System Settings Menu ..................................E-42

Setting the video signal format............................... E-42

Source Information Menu ......................................E-42

Checking the frequencies, polarities of input signals,

and resolution ...................................................... E-42

External Control ...........................................E-43

Troubleshooting........................................... E-44

Contents

CONFIDENTIAL

3-123

E-1

50mm (2")

50

mm

(2") 50

mm

(2")

Wall

Wall

50mm (2")

50mm (2")

You can attach your optional mounts or stand to the plasma monitor in one of the following two ways:
* While it is upright. (See Drawing A)
* As it is laid down with the screen face down (See Drawing B). Lay the protective sheet, which was wrapped around the

monitor when it was packaged, beneath the screen surface so as not to scratch the screen face.

* Do not touch or hold the screen face when carrying the unit.

• This device cannot be installed on its own. Be sure to use a stand or original mounting unit. (Wall
mount unit, Stand, etc.)

* See page E-2.

• For correct installation and mounting it is strongly recommended to use a trained, authorized
dealer.

Failure to follow correct mounting procedures could result in damage to the equipment or injury
to the installer.

Product warranty does not cover damage caused by improper installation.

How to Attach Options to the Plasma Monitor

Drawing B

Drawing A

Some models are equipped with
handles.
When installing or carrying, use
the handles attached to the upper
back of the display.

Ventilation Requirements for
enclosure mounting

T o allow heat to disperse, leave space between surrounding
objects as shown on the diagram below when installing.

How to use the safety metal fittings
and the screws for safety metal
fittings

These are fittings for fastening the unit to a wall to prevent
tipping due to external shock when using the stand
(optional). Fasten the safety fittings to the holes in the
back of the monitor using the safety fitting mount screws.
* Safety metal fittings will differ according to the model.

Screw hole

Wall

Ta ble To p

Safty metal fittings

Screw for Safty metal

fittings

Metal chain

(Not supplied)

Screw or Hook etc.
(Not supplied)

CONFIDENTIAL

3-124

E-2

Introduction to the PlasmaSync
Plasma Monitor

This plasma monitor is a seamless blend of cutting-edge
visual technology and sophisticated design. At each inch,
with a 16:9 aspect ratio, the PlasmaSync certainly makes
a big impression. However, the monitor’s sleek techno­art lines blend in well with your environment. Plasma
monitor’s crisp, vivid image quality will transform data
from any graphic medium from PCs to DVD players- into
art. W e have made sure that a host of multimedia resources
can be easily connected and displayed as brilliantly as
intended on the plasma monitor.

The features you’ll enjoy include:

• Capsulated Color Filter (CCF) and black matrix

• The enhanced display in red uses a two-stage filtering

system where Accucrimson is combined with our special
CCF.

• Flicker - and warp - free display provides excellent
image geometry even in screen corners

• Not affected by magnetic fields, no color drift or edge
distortion.

• VGA, SVGA, XGA, SXGA, UXGA computer signal
compatibility

• NTSC, PAL, SECAM, composite and S-Video signal
compatibility

• 480P, 1080I, 720P and HDTV signal compatibility

• PCs, VCRs, Laser Disc and DVD player source

compatibility

• AccuBlend scan conversion automatically converts
VGA, SVGA, XGA, SXGA and UXGA signals to the
panel’s native resolution.

• Advanced Mass Area Sampling Progressive Scan
method is employed.

• RGB (3*), Video (3), DVD/HD (2*), Audio input (3),
External Control input (1)

• AccuColor control system provides user selectable on­screen color temperature settings

• New Drive Technology

• Component video input terminal for DVD, 15.75kHz

(Y, C

B, CR )

• Digital broadcasting source compatibility

• OSM menu-driven on screen control system that makes

image adjustments a snap

• Seven languages (English, German, French, Italian,
Spanish, Swedish, and Chinese)

* You can set the 5BNC input to be used as an RGB or

component input. When the 5BNC input is set for RGB,
there are a total of three RGB inputs; when the 5BNC input
is set for component there are a total of two DVD/HD inputs
(see page E-25).

Introduction

Contents of the Package

 Plasma monitor
 Power cord
 Remote control with two AAA Batteries
 Manuals
 Safety metal fitting parts*
 Ferrite cores, bands
 Cable clamps

* Contents will differ according to the model.
* These are fittings for fastening the unit to a wall to prevent

tipping due to external shock when using the stand
(optional). Fasten the safety fittings to the holes in the back
of the monitor using the safety fitting mount screws (see
page E-1).

Options

• Wall mount unit

• Ceiling mount unit

• Tilt mount unit

• Stand

• Attachable speakers

CONFIDENTIAL

3-125

E-3

q Power

Turns the monitor’s power on and off.

w Remote sensor window

Receives the signals from the remote control.

e POWER/STANDBY indicator

When the power is on ............................. Lights green.

When the power is in the standby mode ... Lights red.

r INPUT SELECT / EXIT

Switches the input, in the order as shown in the table
below.
The available inputs depend on the settings of “BNC
INPUT” and “D-SUB INPUT”.
Functions as the EXIT buttons in the On-Screen Menu
(OSM) mode.

Front View

Part Names and Function

MENU/ENTER

INPUT SELECT

DOWN UP LEFT/-RIGHT/+/EXIT

VOLUME

POWER/STANDBY

MENU/ENTER

INPUT SELECT

DOWN UP LEFT/-RIGHT/+/EXIT

VOLUME

POWER/STANDBY

4

5

6

7

1

3

2

t LEFT/– and RIGHT/+

Enlarges or reduces the image. Functions as the
CURSOR (



/ ) buttons in the On-Screen Menu

(OSM) mode.

y VOLUME DOWN and UP

Adjusts the volume. Functions as the CURSOR (▲/
▼) buttons in the On-Screen Menu (OSM) mode.

u MENU/ENTER

Sets the On-Screen Menu (OSM) mode and displays
the main menu.

BNC INPUT
RGB

COMP.

SCART1, 2

D-SUB INPUT
RGB
SCART3
RGB
SCART3
RGB
SCART3

Input Source
VIDEO1 → VIDEO2 → VIDEO3 → HD/DVD1 → RGB/PC1 → RGB/PC2 → RGB/PC3
VIDEO1 → VIDEO2 → VIDEO3 → HD/DVD1 → DVD3 → RGB/PC2 → RGB/PC3
VIDEO1 → VIDEO2 → VIDEO3 → HD/DVD1 → HD/DVD2 → RGB/PC1 → RGB/PC3
VIDEO1 → VIDEO2 → VIDEO3 → HD/DVD1 → HD/DVD2 → DVD3 → RGB/PC3
VIDEO1 → VIDEO2 → VIDEO3 → HD/DVD1 → DVD2 → RGB/PC1 → RGB/PC3
VIDEO1 → VIDEO2 → VIDEO3 → HD/DVD1 → DVD2 → DVD3 → RGB/PC3

CONFIDENTIAL

3-126

E-4

Rear View/ Terminal Board

A AC IN

Connect the included power cord here.

B EXT SPEAKER L and R

Connect speakers (optional) here. Maintain the correct
polarity. Connect the

(positive) speaker wire to the

EXT SPEAKER terminal and the (negative)

speaker wire to the

EXT SPEAKER terminal on
both LEFT and RIGHT channels.
Please refer to your speaker’s owner’s manual.

C VIDEO1, 2, 3 (BNC, RCA, S-Video)

Connect VCR’s, DVD’s or Video Cameras, etc. here.
VIDEO1 can be used for Input or Output (see page E-

11).

D AUDIO1, AUDIO2, AUDIO3

These are audio input terminals.
The input is selectable. Set which video image to allot
them from the audio menu screen.

E DVD1 / HD1

Connect DVD’s, High Definition or Laser Discs, etc.
here.

F RGB2/ DVD2/ HD2

RGB2: Y ou can connect an analog RGB signal

and the syncronization signal.

DVD2/ HD2: You can connect DVDs, High

Definition sources, Laser Discs, etc.
here.
This input can be set for use with an
RGB or component source. (see page
E-25)

G RGB1 (mini D-Sub 15pin)

Connect an analog RGB signal from a computer, etc.
here. This input can be used for Input or Output. (see
page E-11)

H RGB3

(DVI 24pin)

Connect a digital signal (TMDS) from a source with a
DVI output. (see page E-9)

I EXTERNAL CONTROL

This terminal is used when operating and controlling
the monitor externally (by RS-232C).

J REMOTE IN

Connect the remote cable* to the remote control’s
remote jack to obtain wired remote control.

K REMOTE OUT

Connect the remote cable* to the REMOTE IN jack of
the other display monitor to obtain wired remote
control.

* The 1/8 Stereo Mini cable must be purchased separately .

VIDEO

(

IN/OUT

)

VIDEO

1

VIDEO

2

VIDEO

3

AUDIO

1

DVD

1

/
HD

1

R

(

MONO

)

L

YCb/PbCr/Pr

RGB

2

/
DVD

2

/
HD

2

RGB

1

R/

VD

G/ B/

HD

(
IN/OUT

)

DVI

(
Digital RGB

)

AUDIO

2

R

(

MONO

)

L

AUDIO

3

R

(

MONO

)

L

Cr/Pr Y C b/Pb

RGB

3

AB

D

C

E

F

G

H

I

J

K

External Control

IN OUT

REMOTE

CONFIDENTIAL

3-127

E-5

→ VIDEO1 → VIDEO2 → VIDEO3

RGB/PC DVD/HD

VIDEO

POSITION
/ CONTROL

MENU/ENTER

POINTER

ZOOM

OFF TIMER

EXIT

VOLUME

MUTE

WIDE DISPLAY

MULTI SELECT

AUTO ADJUST

ID SELECT CLEAR

POWER

ON

STANDBY

Remote Control

q POWER ON/STANDBY

Switches the power on/standby.
(This does not operate when POWER/STANDBY
indicator of the main unit is off.)

w RGB/PC

Press this button to select RGB/PC as the source.
The available sources depend on the settings of “BNC
INPUT” and “D-SUB INPUT”. See page E-3.
RGB/PC can also be selected using the INPUT
SELECT button on the monitor.

e DVD / HD

Press this button to select DVD/HD as the source.
The available sources depend on the settings of “BNC
INPUT” and “D-SUB INPUT”. See page E-3.
DVD/HD can also be selected using the INPUT
SELECT button on the monitor.

r VIDEO

Press this button to select VIDEO as the source.

VIDEO can also be selected using the INPUT SELECT
button on the monitor.

t MENU/ENTER

Press this button to access the OSM controls.
Press this button during the display of the main menu
to go to the sub menu.

y CURSOR (▲ / ▼ /



/ )

Use these buttons to select items or settings and to
adjust settings or switch the display patterns.

u EXIT

Press this button to exit the OSM controls in the main
menu. Press this button during the display of the sub
menu to return to the previous menu.

i POINTER

Press this button to display the pointer.

o ZOOM (+ /–)

Enlarges or reduces the image.

!0 VOLUME (+ /–)

Adjusts the audio volume.

!1 MUTE

Mutes the sound.

!2 WIDE

Automatically detects the signal and sets the aspect
ratio.
Wide button is not active for all signals.

!3 DISPLAY

Displays the source settings on the screen.

!4 OFF TIMER

Activates the off timer for the unit.

!5 MULTI

Not functional for the models covered in this manual.

!6 SELECT

Not functional for the models covered in this manual.

CONFIDENTIAL

3-128

E-6

Battery Installation and Replacement

Insert the 2 “AAA” batteries, making sure to set them in
with the proper polarity.

1.Press and open the cover.

2.Align the batteries according to the (+) and (–) indication
inside the case.

3.Replace the cover.

!7 AUTO ADJUST

Press this button to adjust Fine Picture, Picture ADJ,
Position, and Contrast automatically, or to switch the
screen size to ZOOM mode automatically with the
superimposed caption displayed fully only when the
picture contains dark areas above and below the picture.

!8 ID SELECT

Set the ID number in the remote control. The remote
control can then be used only for a display with the
same ID number. When several displays are used
together they can be controlled individually.

!9 CLEAR

Clears the number set by the ID SELECT button.

@0 Remote control signal transmitter

Transmits the remote control signals.

@1 Remote Jack

Insert the plug of the remote cable (The 1/8 Stereo
Mini cable) here when using the supplied remote
control in the wired condition.

CONFIDENTIAL

3-129

E-7

POWER/STANDBY

Approx.

7m/23ft

Using the wired remote control mode

Connect the remote cable* to the remote control’s remote
jack and the “REMOTE IN” terminal on the monitor.
When the cable is connected, the mode automatically
switches to wired remote control. When the wired remote
control mode is used, the remote control can be operated
even if no batteries are loaded.

Operating Range

* Use the remote control within a distance of about 7 m/

23ft. from the front of the monitor’s remote control sensor
and at horizontal and vertical angles of up to approximately
30°.

* The remote control operation may not function if the

monitor’s remote control sensor is exposed to direct
sunlight or strong artificial light, or if there is an obstacle
between the sensor and the remote control.

Handling the remote control

• Do not drop or mishandle the remote control.

• Do not get the remote control wet. If the remote control

gets wet, wipe it dry immediately.

• A void heat and humidity.

• When not using the remote control for a long period,

remove the batteries.

• Do not use new and old batteries together, or use different
types together.

• Do not take apart the batteries, heat them, or throw them
into a fire.

• When using the remote control in the wireless condition,
be sure to unplug the remote cable from the REMOTE
IN terminal on the monitor.

RGB

2

/
DVD

2

/
HD

2

RGB

1

R/

VD

G/ B/

HD

(
IN/ OUT

)

DVI

(
Digital RGB

)

AUDIO

2

R

(

MONO

)

L

AUDIO

3

R

(

MONO

)

L

Cr/Pr Y Cb/Pb

RGB

3

External Control

IN OUT

REMOTE

External Control

IN OUT

REMOTE

Remote Control
Cable*

To Remote Jack

* The 1/8 Stereo Mini cable must be purchased separately .

CONFIDENTIAL

3-130

E-8

Installation

VIDEO

(
IN/OUT

)

VIDEO

1

VIDEO

2

VIDEO

3

AUDIO

1

DVD

1

/
HD

1

R

(
MONO

)

L

Y Cb/ Pb Cr /Pr

RGB

2

/
DVD

2

/
HD

2

RGB

1

R/

VD

G/ B/

HD

(

IN/ OUT

)

DVI

(

Digital RGB

)

AUDIO

2

R

(
MONO

)

L

AUDIO

3

R

(
MONO

)

L

Cr/Pr Y Cb/Pb

RGB

3

External Control

IN OUT

REMOTE

VCR or Laser Disc Player

Document Camera

VIDEO 1-3

DVD Player

IBM VGA or

Compatibles

To Mini D-Sub 15 pin connector on the plasma monitor

To video inputs on
the plasma monitor

Monitor adapter for
Macintosh

Macintosh or Compatibles

(Desk top type)

Personal computer with a
digital signal output

• For Y/CB/Cr, connect to the DVD1 or DVD2 terminals.

• For SCART, this unit provides three ways to connect:

· SCART1...Connect R/G/B to the DVD2 terminals and
composite sync. to the HD terminal.

· SCART2...Connect R/G/B to the DVD2 terminals and
composite sync. to the VIDEO1 terminal.

· SCART3...Connect R/G/B + composite sync. to the RGB1 terminal.

Note:

This plasma monitor has the capasity to display images when connected to European DVD players with a SCART
output signal, which is RGB with composite sync.
Your dealer can supply a special SCART cable, which will enable you to use the RGB with composite sync signal.
To obtain the special cable as well as for further information, please contact your dealer.
Please refer to page E-25 for selection of the corr ect mode in the on-screen manager.

CONFIDENTIAL

3-131

E-9

Connecting Your PC or Macintosh Computer

Connecting your PC or Macintosh computer to your plasma
monitor will enable you to display your computer’s screen
image for an impressive presentation. The plasma monitor
supports the signals described on page E-3 of Model
Information.
To connect a PC, Macintosh or compatible graphics adapter ,
simply:

1. Turn off the power to your plasma monitor and computer .

2. If your PC does not support SXGA/XGA/SVGA/VGA
you will need to install an SXGA/XGA/SVGA/VGA
graphics board. Consult your computer’s owner’s manual
for your SXGA/XGA/SVGA/VGA configuration. If you
need to install a new board, see the manual that comes
with your new graphics board for installation instructions.

3. This plasma monitor provides signal compatibility up to
VESA 16001200 (UXGA). However, it is not
recommended to use this resolution due to image
readability on the monitor’s native pixel resolution panel.

4. Use the signal cable to connect your PC or Macintosh
computer to the plasma monitor. For Macintosh, use the
monitor adapter to connect to your computer’s video port,
if necessary.

5. Turn on the plasma monitor and the computer .

6. If the plasma monitor goes blank after a period of inactivity,
it may be caused by a screen saver installed on the computer
you’ve connected to the plasma monitor .

When using a Macintosh with the plasma monitor, the
following four display standards are supported using the
Macintosh adapter :

13" fixed mode
16" fixed mode
19" fixed mode
21" fixed mode

The 19" fixed mode is recommended for your monitor.

Connections with Equipment that
have a Digital Interface

Connections can be made with equipment that is equipped
with a digital interface compliant with the DVI (Digital
Visual Interface) standard.
* Use a DVI 24-pin signal cable and the ferrite cores

(supplied) when making connections to the RGB3 (DVI)
connector of the main unit.
Note that the RGB3 (DVI) terminal does not support analog
RGB input source.

Note:

1. Input TMDS signals conforming to DVI standards.
The TMDS input corresponds to 1 link.

2. To maintain display quality, use a cable with a quality

prescribed by DVI standar ds that is within 5 meters in length.

Connecting Your Document Camera

You can connect your plasma monitor to a document
camera. To do so, simply:

1. Turn off the power to your plasma monitor and
document camera.

2. Use a standard video cable to connect your document
camera to the Video input on your plasma monitor.

3. Turn on the plasma monitor and the document camera.

Note:

Refer to your document camera owner’ s manual
for more information about your camera’s video output
requir ements.

Connecting Your VCR or Laser Disc
Player

Use common RCA cables (not provided) to connect your
VCR or laser disc player to your plasma monitor. T o make
these connections, simply:

1. Turn off the power to your plasma monitor and VCR
or laser disc player.

2. Connect one end of your RCA cable to the video output
connector on the back of your VCR or laser disc player,
connect the other end to the V ideo input on your plasma
monitor. Use standard RCA audio patch cords to
connect the audio from your VCR or laser disc player
to your plasma monitor (if your VCR or laser disc player
has this capability). Be careful to keep your right and
left channel connections correct for stereo sound.

3. Turn on the plasma monitor and the VCR or laser disc
player.

Note:

Refer to your VCR or laser disc player owner’s
manual for more information about your equipment’s video
output requir ements.

Connecting Your DVD Player

You can connect your plasma monitor to a DVD player.
To do so, simply:

1. Turn off the power to your plasma monitor and DVD
player.

2. Use a component video cable to connect your DVD
player to the Y, Cb, and Cr inputs on your plasma
monitor.
Or use the DVD-player’s S-Video output. Use a
standard S-Video cable to connect to the S-Video input
on the plasma monitor.

3. Turn on the plasma monitor and the DVD player.

CONFIDENTIAL

3-132

E-10

5 4 3 2 1

15 14 13 12 11

10 9 8 7 6

Pin Assignments and Signal Levels
for 15 pin RGB (Analog)

Pin Configuration and Signal of the
RGB 3 Connector (DVI Connector)

The unit is equipped with a type of connector commonly
used for digital.
(This cannot be used for an analog input.)
(TMDS can be used for one link only.)

Signal (Analog)

Red
Green or sync-on-green
Blue
No connection
Ground
Red ground
Green ground
Blue ground
No connection
Sync signal ground
No connection
Bi-directional DATA (SDA)
Horizontal sync or Composite sync
Vertical sync
Data clock

Pin No.

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

12345678
910111213141516

20191817 21 22 23 24

RGB 3

Pin No.

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

Signal (Digital)

T.M.D.S Data 2 ­T.M.D.S Data 2 +
T.M.D.S Data 2 Shield
No connection
No connection
DDC Clock
DDC Data
No connection
T.M.D.S Data 1 ­T.M.D.S Data 1 +
T.M.D.S Data 1 Shield
No connection
No connection
+5V Power
Ground
Hot Plug Detect
T.M.D.S Data 0 ­T.M.D.S Data 0 +
T.M.D.S Data 0 Shield
No connection
No connection
T.M.D.S Clock Shield
T.M.D.S Clock +
T.M.D.S Clock -

CONFIDENTIAL

3-133

E-11

Note:

1. The VIDEO1 and RGB1 terminals can be used for either INPUT or OUTPUT.
When LOOP OUT is ON, do not connect an OUTPUT signal fr om another unit, that will place an extraor dinary load on
the other unit and may damage it.

2. LOOP OUT can not be turned ON while signals are input to RGB1 terminal.

3. LOOP OUT can be turned ON while signals are input to RGB1 terminal if the POWER is switched ON.

Information

• T o loop signals out to another plasma display, set the LOOP OUT to ON.

• To create a video wall, set the VIDEO WALL menu items properly.

• To connect monitors, please use a 1~2m (3.3~6.6 feet) BNC cable (any commercially available cable).

• If the image quality is poor, do not use the monitor’s out terminal. Use a distribution amplifier (any commercially

available distribution amplifier) to connect the split signals to the respective monitor INPUT terminals.

• Being used as a video wall function, maximaly 4-screen is rough-standard with lower than 1024768, 60Hz
signal.

• A distribution amplifier is particularly recommended when using a 9-screen video wall.

• From the second monitor onward, connections require a BNC-RCA conversion cable or connector, a mini D-Sub

15 pin cable-BNC (5) cable or a conversion connector.

Creating a video wall

With buit-in matrix display capability, you can create a 2×2 or 3×3 video wall.

• Connect signal cables and remote cables as shown below.
Video signal RGB/DVD/HD signal

VIDEO

(
IN/OUT

)

VIDEO

1

VIDEO 2VIDEO

3

AUDIO

1

DVD

1

R

(
MONO

)

L

Y

IN OUT

REMOTE

BNC connector

RCA phono plug

OUT

VIDEO Signal

IN

IN

OUT

Remote
control

VIDEO Signal

Remote
control

RGB

2

/
DVD

2

/
HD

2

RGB

1

R/

VD

G/ B/

HD

(

IN/OUT

)

Cr/Pr Y Cb/Pb

IN OUT

REMOTE

BNC connector

RGB signal/
DVD/HD signal

IN

OUT

IN

OUT

Remote
control

RGB signal/
DVD/HD signal

Remote
control

Cable Management

Using the cable-clamps provided with the plasma display,
bundle at the back of the unit the signal and audio cables
connected to the display.
* The cable clamp will differ according to the model.

Back of the unit

mounting hooks/mounting holes

clamp

mounting hook

cables

To attach To detach

To attach To detach

clamp

mounting hole

cables

1. 2.

1. 2.

CONFIDENTIAL

3-134

E-12

Basic Operations

POWER

To turn the unit ON and OFF:

1. Plug the power cord into an active AC power outlet.

2. Press the Power button (on the unit).
The monitor’s POWER/ST ANDBY indicator turns red
and the standby mode is set.

3. Press the POWER ON button (on the remote control)
to turn on the unit.
The monitor’s POWER/ST ANDBY indicator will light
up (green) when the unit is on.

4. Press the POWER STANDBY button (on the remote
control) or the Power button (on the unit) to turn off
the unit.
The monitor’s POWER/ST ANDBY indicator turns red
and the standby mode is set (only when turning off the
unit with the remote control).

VOLUME

To adjust the sound volume:

1. Press and hold the VOLUME button (on the remote
control or the unit) to increase to the desired level.

2. Press and hold the VOLUME

button (on the remote

control or the unit) to decrease to the desired level.

MUTE

To cancel the sound:

Press the MUTE button on the remote control to cancel
the sound; press again to restore.

DISPLAY

To check the settings:

1. The screen changes each time the DISPLAY button is
pressed.

2. If the button is not pressed for approximately three
seconds, the menu turns off.

DIGITAL ZOOM

Digital zoom specifies the picture position and enlarges
the picture.

1. Press the POINTER button to display the pointer. (

)

To change the size of the picture:

Press the ZOOM+ button and enlarge the picture.
The pointer will change to resemble a magnifying
glass. (

)
A press of the ZOOM- button will reduce the picture
and return it to its original size.

To change the picture position:

Select the position with the ▲▼

 

buttons.

2. Press the POINTER button to delete the pointer.

AUTO ADJUST

To adjust the size or quality of the picture
automatically:

Press the AUTO ADJUST button.

Information

 AUTO ADJUST ON setting

When RGB (still picture) input

is selected......Fine Picture, Picture ADJ, Position,

and Contrast will be adjusted
automatically.

When RGB (motion picture),
VIDEO, or Y/Pb/Pr (component) input

is selected......The screen size switches to ZOOM

mode automatically with the
superimposed caption displayed fully
only when the picture contains dark
areas above and below the picture.

CONFIDENTIAL

3-135

E-13

OFF TIMER

To set the off timer:

The off timer can be set to turn the power off after 30, 60,
90 or 120 minutes.

1. Press the OFF TIMER button to start the timer at 30
minutes.

2. Press the OFF TIMER button to the desired time.

3. The timer starts when the menu turns off.

→ 30 → 60 → 90 → 120 → 0

OFF TIMER 30

To check the remaining time:

1. Once the off timer has been set, press the OFF TIMER
button once.

2. The remaining time is displayed, then turns off after a
few seconds.

3. When five minutes remain the remaining time appears
until it reaches zero.

OFF TIMER 28

To cancel the off timer:

1. Press the OFF TIMER button twice in a row.

2. The off timer is canceled.

OFF TIMER 0

Note:

After the power is turned off with the off timer ...
A slight current is still supplied to the monitor. When you
are leaving the r oom or do not plan to use the system for a
long period of time, turn off the power of the monitor.

CONFIDENTIAL

3-136

E-14

WIDE Operations

Wide Screen Operation

(manual)

With this function, you can select one of six screen sizes.

When viewing videos or digital video discs

1. Press the WIDE button on the remote control.

2. Within 3 seconds ...
Press the WIDE button again.
The screen size switches as follows:

→ NORMAL → FULL → STADIUM → ZOOM → 2.35:1 → 14:9

When a 720P or 1080I signal is input:

FULL ↔ 2.35:1

NORMAL size screen (4:3)

The normal size screen is displayed.
* The picture has the same size as video pictures with a

4 : 3 aspect ratio.

FULL size screen

The image is expanded in the horizontal direction.
* Images compressed in the horizontal direction (“squeezed

images”) are expanded in the horizontal direction and
displayed on the entire screen with correct linearity.
(Normal images are expanded in the horizontal direction.)

STADIUM size screen

The picture is expanded in the horizontal and vertical
directions at different ratios.
* Use this for watching normal video programs (4:3) with a

wide screen.

ZOOM size screen

The picture is expanded in the horizontal and vertical
direction, maintaining the original proportions.
* Use this for theater size (wide) movies, etc.

2.35:1 size screen

The squeezed film image is expanded to fulfill the entire
screen at a ratio of 2.35:1. Black bands do not appear at
the top and bottom but information is lost on the left and
right margins.

• This feature is available when the input signal is video,
component (480I, 480P, 576I, 576P, 720P, 1080I) or RGB
(525P or 625P signal from a scan converter).

*

If black bands appear on the top and bottom in the full size
screen, select the 2.35:1 size screen to avoid phosphor burn-in.

14:9 size screen

The image is displayed at a 14:9 aspect ratio.
* This feature is available when the input signal is video,

component (480I, 480P , 576I, 576P) or RGB (525P or 625P
signal from a scan converter).

Note:

Do not allow the displayed in 4:3 mode for an extended
period. This can cause a phosphor burn-in.

Information is lost on both sides.

Original image



CONFIDENTIAL

3-137

E-15

FULL size screen

The image is expanded in the horizontal and vertical
direction.

ZOOM size screen

When wide signals are input.

TRUE

The image is true resolution.

FULL

Information

 Supported resolution

See page E-3 of Model Information for details on the
display output of the various VESA signal standards
supported by the monitor.

 “PICTURE SIZE” setting

When the setting of “PICTURE SIZE” is OFF , the size
of RGB-input pictures will be TRUE in place of
NORMAL.

 When 852 (848) dot  480 line wide VGA*
signals with a vertical frequency of 60 Hz and
horizontal frequency of 31.7 (31.0) kHz are in­put

Select an appropriate setting for RGB SELECT mode
referring to the“Table of Signals Supported” on page
E-3 of Model Information.

* “VGA”, “SVGA” and “SXGA” are registered

trademarks of IBM, Inc. of the United States.

Note:

Do not allow the displayed in 4:3 mode for an extended
period. This can cause a phosphor burn-in.

Wide Screen Operation with
Computer Signals

Switch to the wide screen mode to expand the 4 : 3 image
to fill the entire screen.

1.Press the WIDE button on the remote control.

2.Within 3 seconds ...
Press the WIDE button again.

The screen size switches as follows:

→ NORMAL → FULL → ZOOM

NORMAL size screen (4:3 or SXGA 5:4)

The picture has the same size as the normal computer
image.

FULL size screen

The image is expanded in the horizontal direction.

ZOOM size screen

When wide signals are input.

FULL size screen

When “PICTURE SIZE” is set to “OFF”

* This cannot be set in some models. “TRUE size” will not

be displayed in such cases.

The screen size switches as follows:

→ TRUE → FULL → ZOOM

TRUE size screen (VGA, SVGA 4:3)

The image is true resolution.

CONFIDENTIAL

3-138

E-16

Menu Operations

The OSM window is displayed with respect to the
screen as shown on the diagram.

* Depending on the screen’s mode, the OSM may be

displayed differently .
In the explanation, the OSM section is shown close up.

MAIN MENU

1 / 2

MENU/ENTER

EXIT

AUDIO
IMAGE ADJUST
OPTION1

ADVANCED OSM
NEXT PAGE

: OFF

SEL.

EXIT

OK

The following describes how to use the menus and the
selected items.

1. Press the MENU/ENTER button on the remote control

to display the MAIN MENU.

MAIN MENU

1 / 2

MENU/ENTER

EXIT

AUDIO
IMAGE ADJUST
OPTION1

ADVANCED OSM
NEXT PAGE

: OFF

SEL.

EXIT

OK

MAIN MENU

2 / 2

MENU/ENTER

EXIT

PREVIOUS PAGE
LANGUAGE
COLOR SYSTEM
SOURCE INFORMATION

SEL.

EXIT

OK

2. Press the cursor buttons ▲ ▼ on the remote control to

highlight the menu you wish to enter.

3. Press the MENU/ENTER button on the remote control

to select a sub menu or item.


1 / 2

EXIT

CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
PICTURE MODE
NR
NEXT PAGE

: NORMAL
: OFF

SEL.

RETURN

ADJ.

4. Adjust the level or change the setting of the selected

item by using the cursor buttons

 

on the remote

control.

OSM(On Screen Menu) Controls

5. The adjustments or the settings that are stored in
memory.
The change is stored until you change it again.

6. Repeat steps 2 – 5 to adjust an additional item, or press
the EXIT button on the remote control to return to the
main menu.

Note:

The main menu disappears by pressing the EXIT

button.

Information

 Advanced menu mode

When “ADVANCED OSM” is set to “ON” in the main
menu (1/2), full menu items will be shown.

MAIN MENU

1 / 2

MENU/ENTER

EXIT

AUDIO
IMAGE ADJUST
OPTION1
OPTION2
OPTION3
ADVANCED OSM
NEXT PAGE

: ON

SEL.

EXIT

OK

CONFIDENTIAL

3-139

E-17

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

REFERENCE

PICTURE CONTRAST ←→ YES E-19

BRIGHTNESS ←→ YES E-19
SHARPNESS ←→ YES E-19
COLOR ←→ YES E-19
TINT ←→ YES E-19
PICTURE MODE BRIGHT/NORMAL/THEAT.1/THEAT.2/DEFAULT YES E-19
NR OFF/NR-1/NR-2/NR-3 YES E-20
COLOR TEMP LOW/MID LOW/MID/HIGH YES E-20
WHITE BALANCE GAIN RED ←→ YES E-20

GAIN GREEN ←→ YES E-20
GAIN BLUE ←→ YES E-20
BIAS RED ←→ YES E-20
BIAS GREEN ←→ YES E-20
BIAS BLUE ←→ YES E-20

RESET OFF←→ON YES E-20
GAMMA 1←→2←…→4 YES E-21
LOW TONE AUTO←→1←…→3 YES E-21
COLOR TUNE RED Y←→M YES E-22

GREEN C←→Y YES E-22

BLUE M←→C YES E-22

YELLOW G←→R YES E-22

MAGENTA R←→B YES E-22

CYAN B←→G YES E-22

RESET OFF←→ON YES E-22

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

REFERENCE

AUDIO BASS ←→ YES E-22

TREBLE ←→ YES E-22
BALANCE L←→R YES E-22
AUDIO INPUT1 VIDEO 1-3 / HD/DVD 1-2 / RGB 1-3 YES E-23
AUDIO INPUT2 VIDEO 1-3 / HD/DVD 1-2 / RGB 1-3 YES E-23
AUDIO INPUT3 VIDEO 1-3 / HD/DVD 1-2 / RGB 1-3 YES E-23

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

REFERENCE

IMAGE ADJUST ASPECT MODE NORMAL/FULL/STADIUM/ZOOM/2.35:1/14:9 — E-23

V-POSITION ←→ YES E-23
H-POSITION ←→ YES E-23
V-HEIGHT ←→ YES E-23
H-WIDTH ←→ YES E-23
AUTO PICTURE OFF←→ON*

2

NO E-23

FINE PICTURE*

1

←→*

2

YES E-23

PICTURE ADJ.*

1

←→*

2

YES E-23

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

REFERENCE

OPTION1 OSM DISPLAY OSM OFF←→ON YES E-24

OSM ADJ. 1←…→6 YES E-24

OSM ANGLE H←→V YES E-24

OSM ORBITER OFF←→ON YES E-24
BNC INPUT RGB←→COMP.←→SCART1←→SCART2 YES E-25
D-SUB INPUT RGB←→SCART3 — E-25
RGB SELECT AUTO/STILL/MOTION/WIDE1/WIDE2/DTV YES E-25
HD SELECT 1080B/1035I/1080A NO E-26
INPUT SKIP OFF←→ON YES E-27
ALL RESET OFF←→ON — E-27

:Shaded areas indicate the default value.

←→

: Press the



or  button to adjust. The default value is at the center.

:Menu items in a ruled box are available when the ADVANCED OSM is set to ON.

Menu Tree

CONFIDENTIAL

3-140

E-18

*1 Only when AUTO PICTURE is OFF
*2 RGB/PC only
*3 Cannot be set in some models.

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

REFERENCE

OPTION2 PWR. MGT. OFF←→ON YES E-28

CINEMA MODE OFF←→ON YES E-28
LONG LIFE PLE AUTO/LOCK 1/LOCK 2/LOCK 3 YES E-29

ORBITER AUTO 1 YES E-29

AUTO 2 YES E-29
MANUAL H-DOT/V-LINE/TIME YES E-29
OFF YES E-29

INVERSE OFF YES E-30

ON WORKING TIME/WAITING TIME YES E-30
WHITE YES E-30

SCREEN WIPER OFF YES E-31

ON WORKING TIME/WAITING TIME/SPEED YES E-31

SOFT FOCUS OFF/1/2/3/4 YES E-32
GRAY LEVEL 0←…→3←…→15 YES E-32
S1/S2 AUTO←→OFF YES E-33
PICTURE SIZE*

3

OFF←→ON YES E-33

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

REFERENCE

OPTION3 TIMER PRESENT TIME SUMMER TIME OFF←→ON NO E-34

DAY/HOUR/MINUTES NO E-34

PROGRAM OFF YES E-34

ON DATE/ON/OFF(HOUR, MINUTE)/INPUT/FUNCTION YES E-34

PWR. ON MODE LAST / VIDEO 1-3 / HD/DVD 1-2 / RGB 1-3 YES E-35
CONTROL LOCK OFF←→ON YES E-36
IR REMOTE OFF←→ON YES E-36
LOOP OUT OFF←→ON YES E-37
ID NUMBER ALL←→1←…→256 YES E-37
VIDEO WALL DIVIDER OFF/1/4/9 YES E-38

POSITION No.1←…→No.4/No.7←…→No.15 — E-38

DISP. MODE SPLIT←→BLANK YES E-39

AUTO ID OFF←→ON YES E-39

IMAGE ADJUST ASPECT MODE NORMAL/FULL/STADIUM/ZOOM/2.35:1/14:9 — E-39

V-POSITION ←→ YES E-39
H-POSITION ←→ YES E-39
V-HEIGHT ←→ YES E-39
H-WIDTH ←→ YES E-39
AUTO PICTURE OFF←→ON*

2

NO E-39

FINE PICTURE*

1

←→*

2

YES E-39

PICTURE ADJ.*

1

←→*

2

YES E-39

P. ON DELAY OFF←→ON YES E-40

PLE LINK OFF←→ON YES E-40

REPEAT TIMER OFF YES E-41

ON DIVIDER/SOURCE/WORK TIME YES E-41

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

REFERENCE

ADVANCED OSM OFF←→ON YES E-41
LANGUAGE ENGLISH/DEUTSCH/FRANÇAIS/ESPAÑOL/ITALIANO/SVENSKA/

NO E-41
COLOR SYSTEM AUTO/3.58NTSC/4.43 NTSC/PAL/PAL 60/PAL-N/PAL-M/SECAM NO E-42
SOURCE INFORMATION

— — E-42

CONFIDENTIAL

3-141

E-19

Picture Settings Menu

Adjusting the picture

The contrast, brightness, sharpness, color and tint can be
adjusted as desired.

Example: Adjusting the contrast

1. On the MAIN MENU, select “PICTURE”, then press

the MENU/ENTER button.
The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “CONTRAST”.


1 / 2

EXIT

CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
PICTURE MODE
NR
NEXT PAGE

: NORMAL
: OFF

SEL.

RETURN

ADJ.

3. Use the  and  buttons to adjust the contrast.

CONTRAST

* If neither the  or  button is pressed within 5 seconds,

the current setting is set and the previous screen
reappears.

Note:

If “CAN NOT ADJUST” appears ...
When trying to enter the PICTURE submenu, make sure
PICTURE MODE is not set to DEFAULT.

Information

 Picture adjustment screen

CONTRAST ....Changes the picture’s white level.

BRIGHTNESS

..Changes the picture’s black level.

SHARPNESS .. Changes the picture’s sharpness.

Adjusts picture detail of VIDEO
display.

COLOR ...........Changes the color density.

TINT ................Changes the picture’s tint. Adjust for

natural colored skin, background, etc.

 Adjusting the computer image

Only the contrast and brightness can be adjusted when
a computer signal is connected.

 Restoring the factory default settings

Select “DEFAULT” under the “PICTURE MODE”
settings.

Setting the picture mode according to the
brightness of the room

There are four picture modes that can be used effectively
according to the environment in which you are viewing
the display.

Example: Setting the “THEAT. 1” mode

1. On the MAIN MENU, select “PICTURE”, then press
the MENU/ENTER button.
The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “PICTURE
MODE”.


1 / 2

EXIT

CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
PICTURE MODE
NR
NEXT PAGE

: NORMAL
: OFF

SEL.

RETURN

ADJ.

3. To set to “THEAT. 1” ...
Use the



and  buttons to select “THEAT. 1”.

The mode switches as follows each time the



or



button is pressed:

→ BRIGHT ↔ NORMAL ↔ THEAT. 1 ↔ THEAT. 2 ↔ DEFAULT ←

PICTURE MODE

: THEAT. 1

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen
reappears.

Information

 Types of picture modes

THEA T. 1, 2......Set this mode when watching video in

a dark room.
This mode provides darker, finer
pictures, like the screen in movie
theaters.
For a darker image, select THEAT. 2.

NORMAL ......... Set this mode when watching video in

a bright room.
This mode provides dynamic pictures
with distinct differences between light
and dark sections.

BRIGHT...........This mode provides brighter pictures

than NORMAL.

DEFAULT.........Use this to reset the picture to the

factory default settings.

CONFIDENTIAL

3-142

E-20

Reducing noise in the picture

Use these settings if the picture has noise due to poor
reception or when playing video tapes on which the picture
quality is poor.

Example: Setting “NR-3”

1. On the MAIN MENU, select “PICTURE”, then press
the MENU/ENTER button.
The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “NR”.


1 / 2

EXIT

CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
PICTURE MODE
NR
NEXT PAGE

: NORMAL
:

OFF

SEL.

RETURN

ADJ.

3. Use the  and  buttons to select “NR-3”.
The mode switches as follows each time the



or



button is pressed:

→ OFF ↔ NR-1 ↔ NR-2 ↔ NR-3 ←

NR

: NR-3

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen
reappears.

Information

 NR

* “NR” stands for Noise Reduction.
* This function reduces noise in the picture.

 Types of noise reduction

There are three types of noise reduction. Each has a
different level of noise reduction.
The effect becomes stronger as the number increases
(in the order NR-1 → NR-2 → NR-3).

OFF ...............Turns the noise reduction function off.

Setting the color temperature

Use this procedure to set color tone produced by the plasma
display.

Example: Setting “HIGH”

1. On the MAIN MENU, select “PICTURE”, then press
the MENU/ENTER button.
The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “COLOR TEMP.”.

3. Use the



and  buttons to select “HIGH”.

The mode switches as follows each time the



or



button is pressed:

→ LOW ↔ MID LOW ↔ MID ↔ HIGH ←

* See below to set “WHITE BALANCE”.


2 / 2

EXIT

PREVIOUS PAGE
COLOR TEMP.
GAMMA
LOW TONE
COLOR TUNE

: HIGH
: 2
: AUTO

SEL.

RETURN

ADJ.

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.

Information

 Setting the color temperature

LOW................Redder

MID LOW .........Slightly redder

MID ...................Standard (slightly bluer)

HIGH ...............Bluer

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory defaults.

Adjusting the color to the desired level

Use this procedure to adjust the white balance for each
color temperature to achieve the desired color quality.

Example: Adjusting the “GAIN RED” of “HIGH” color
temperature

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

Perform Steps 1-3 of COLOR TEMP., then...

4. Press the MENU/ENTER button.
The “WHITE BALANCE” screen appears.

5. Use the ▲ and ▼ buttons to select “GAIN RED”.

WHITE BALANCE

COLOR TEMP. HIGH

EXIT

GAIN RED
GAIN GREEN
GAIN BLUE
BIAS RED
BIAS GREEN
BIAS BLUE
RESET : OFF

SEL.

RETURN

ADJ.

CONFIDENTIAL

3-143

E-21

6. Adjust the white balance using the  and  buttons.

GAIN RED

* If neither the  or  button is pressed within 5 seconds,

the current setting is set and the previous screen reappears.

Information

 Adjusting the white balance

GAIN R/G/B.....White balance adjustment for signal

level

BIAS R/G/B .....White balance adjustment for black

level

RESET ............Resets settings to the factory default

values. Use  and  buttons to select
“ON”, then press the MENU/ENTER
button.

 Restoring the factory default settings
Select “RESET” under the WHITE BALANCE menu.

Changing the Gamma Curve

This feature adjusts the brightness of the midtone areas
while keeping shadows and highlights unchanged.

Example: Setting “3”

Set “ADVANCED OSM” to “ON” in the MAIN MENU
(1/2), then perform the following operations.

1. On the MAIN MENU, select “PICTURE”, then press
the MENU/ENTER button.
The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “GAMMA”.

3. Use the



and  buttons to select “3”.

The mode switches as follows each time the



or



button is pressed:

→ 1 ↔ 2 ↔ 3 ↔ 4 ←


2 / 2

EXIT

PREVIOUS PAGE
COLOR TEMP.
GAMMA
LOW TONE
COLOR TUNE

: MID
: 3
: AUTO

SEL.

RETURN

ADJ.

Information

 GAMMA settings

The picture becomes darker as the number increases
(in the sequence of 1, 2, 3, 4).

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory defaults.

Making the Low Tone adjustments

This feature allows more detailed tone to be reproduced
especially in the dark area.

Example: Setting “2”

Set “ADVANCED OSM” to “ON” in the MAIN MENU
(1/2), then perform the following operations.

1. On the MAIN MENU, select “PICTURE”, then press
the MENU/ENTER button.
The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “LOW TONE”.

3. Use the



and  buttons to select “2”.

The mode switches as follows each time the



or



button is pressed:

→ AUTO ↔ 1 ↔ 2 ↔ 3 ←


2 / 2

EXIT

PREVIOUS PAGE
COLOR TEMP.
GAMMA
LOW TONE
COLOR TUNE

: MID
: 2
: 2

SEL.

RETURN

ADJ.

Information

 LOW TONE settings

AUTO .......Will automatically appraise the picture and

make adjustments.

1 ...............Will apply the dither method suitable for

still pictures.

2 ...............Will apply the dither method suitable for

motion pictures.

3 ...............Will apply the error diffusion method.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory defaults.

CONFIDENTIAL

3-144

E-22

Adjusting the colors

Use this procedure to adjust hue and color density for red,
green, blue, yellow, magenta and cyan.
Such adjustments will not affect the other colors.
You can accentuate the green color of trees, the blue of
the sky, etc.

Example: Adjusting the color tune for blue

Set “ADVANCED OSM” to “ON” in the MAIN MENU
(1/2), then perform the following operations.

1. On the MAIN MENU, select “PICTURE”, then press
the MENU/ENTER button.
The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “COLOR TUNE”,
then press the MENU/ENTER button.
The “COLOR TUNE” screen appears.

3. Use the ▲ and ▼ buttons to select “BLUE”.

4. Adjust using the  and  buttons.

COLOR TUNE

EXIT

RED
GREEN
BLUE
YELLOW
MAGENTA
CYAN
RESET : OFF

SEL.

RETURN

ADJ.

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen
reappears.

To continue making other adjustments...

Repeat from step 3.

Information

 COLOR TUNE settings

RED ................Makes red’s adjustment

GREEN ...........Makes green’s adjustment

BLUE...............Makes blue’s adjustment

YELLOW .........Makes yellow’s adjustment

MAGENTA ......Makes magenta’s adjustment

CYAN ..............Makes cyan’s adjustment

RESET ............Resets settings to the factory default

value. Use



and  buttons to select
“ON”, then press the MENU/ENTER
button.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

Audio Settings Menu

Adjusting the treble, bass and left/right
balance and audio input select

The treble, bass and left/right balance can be adjusted to
suit your tastes.

Example: Adjusting the bass

1. On the MAIN MENU, select “AUDIO”, then press
the MENU/ENTER button.
The “AUDIO” screen appears.

2. To adjust the bass ...
Use the ▲ and ▼ buttons to select “BASS”.

3. Adjust the bass using the



and  buttons.

AUDIO

EXIT

BASS
TREBLE
BALANCE
AUDIO INPUT1
AUDIO INPUT2
AUDIO INPUT3

: VIDEO1
: HD/DVD1
: RGB1

SEL.

RETURN

ADJ.

To continue adjusting the audio ...

Repeat from step 2.

Note :

If “CAN NOT ADJUST” appears...

Set “AUDIO INPUT” on the AUDIO menu corr ectly.

Information

 Audio settings menu

BASS ..............Controls the level of low frequency

sound.

TREBLE ..........Controls the level of high frequency

sound.

BALANCE .......Controls the balance of the left and

right channels.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

CONFIDENTIAL

3-145

E-23

Setting the allocation of the audio connectors

Setting the AUDIO 1, 2, and 3 connectors to the desired
input.

Example: Setting “AUDIO INPUT1” to “VIDEO 2”

1. On the MAIN MENU, select “AUDIO”, then press the
MENU/ENTER button.
The “AUDIO” screen appears.

2. Use the ▲ and ▼ buttons to select “AUDIO INPUT1”.

3. To set the AUDIO INPUT1 to “VIDEO2”...
Use the



and  buttons to select “VIDEO2”.

The mode switches each time the



or  button is
pressed, as shown in the table on page E-3.
The available sources depend on the settings of “BNC
INPUT” and “D-SUB INPUT”.

AUDIO

EXIT

BASS
TREBLE
BALANCE
AUDIO INPUT1
AUDIO INPUT2
AUDIO INPUT3

: VIDEO2
: HD/DVD1
: RGB1

SEL.

RETURN

ADJ.

Information

 AUDIO INPUT

A single audio input cannot be selected as the audio
channel for more than one input terminal.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

Image Adjust Settings Menu

Adjusting the Position, Size, Fine Picture, Picture Adj

The position of the image can be adjusted and flickering
of the image can be corrected.

Example: Adjusting the vertical position in the normal
mode

1. On the MAIN MENU, select “IMAGE ADJUST”, then
press the MENU/ENTER button.
The “IMAGE ADJUST” menu appears.

Default settings (when RGB/PC is selected)

IMAGE ADJUST

EXIT

ASPECT MODE
V-POSITION
H-POSITION
V-HEIGHT
H-WIDTH
AUTO PICTURE
FINE PICTURE
PICTURE ADJ.

: NORMAL

: OFF

SEL.

RETURN

ADJ.

* The settings on the IMAGE ADJUST menu are not

preset at the factory.

To select a mode ...

Use the



and  buttons to select a mode.

The mode switches as follows each time the



or



button is pressed:

NORMAL ↔ FULL

* The mode can also be switched by pressing the “WIDE”

button on the remote control.

2. To adjust the vertical position ...
Use the ▲ and ▼ buttons to select “V-POSITION”.

IMAGE ADJUST

EXIT

ASPECT MODE
V-POSITION
H-POSITION
V-HEIGHT
H-WIDTH
AUTO PICTURE
FINE PICTURE
PICTURE ADJ.

: NORMAL

: OFF

SEL.

RETURN

ADJ.

3. Adjust using the  and  buttons.

V-POSITION

* If neither the  or  button is pressed within 5 seconds,

the current setting is set and the previous screen
reappears.

To continue making other computer image
adjustments ...

Repeat from step 2.

CONFIDENTIAL

3-146

E-24

Information

 When “AUTO PICTURE” is “OFF”

IMAGE ADJUST

EXIT

ASPECT MODE
V-POSITION
H-POSITION
V-HEIGHT
H-WIDTH
AUTO PICTURE
FINE PICTURE
PICTURE ADJ.

: FULL

: OFF

SEL.

RETURN

ADJ.

When Auto Picture is off, the Fine Picture and the
Picture ADJ. items are displayed so that you can adjust
them.

 Adjusting the Auto Picture

ON...................The Picture ADJ., Fine Picture and

Position adjustments are made
automatically.
Not available for digital ZOOM.

OFF .................The Picture ADJ., Fine Picture and

Position adjustments are made
manually.

* If FINE PICTURE won’t be adjusted, set Auto Picture

to OFF and adjust manually.

 Adjusting the position of the image

V-POSITION ...Adjusts the vertical position of the

image.

H-POSITION ... Adjusts the horizontal position of the

image.

V-HEIGHT....... Adjusts the vertical size of the image.

(Except for STADIUM mode)

H-WIDTH ......... Adjusts the horizontal size of the

image. (Except for ST ADIUM mode)

FINE PICTURE

*..Adjusts for flickering.

PICTURE ADJ.* ...

Adjusts for striped patterns on the
image.

* The Picture ADJ. and Fine Picture features are available

only when the “Auto Picture” is off.

* The AUTO PICTURE, FINE PICTURE and PICTURE

ADJ. are available only for RGB signals.
But, these features are not available for moving pictures
on VIDEO, HD/DVD or RGB.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults except for Auto Picture.

Option1 Settings Menu

Setting the on-screen menu

This sets the position of the menu, the display format
(horizontal or vertical) etc.

Example: Turning the DISPLAY OSM off

1. On the MAIN MENU, select “OPTION1”, then press
the MENU/ENTER button.
The “OPTION1” menu appears.

2. Use the ▲ and ▼ buttons to select “OSM”, then press
the MENU/ENTER button.
The “OSM” menu appears.

3. Use the ▲ and ▼ buttons to select “DISPLAY OSM”.

4. To set the DISPLAY OSM to “OFF”...
Use the



and  buttons to select “OFF”.

The mode switches as follows each time the



or



button is pressed:

ON ↔ OFF

OSM

EXIT

DISPLAY OSM
OSM ADJ.
OSM ANGLE
OSM ORBITER

: OFF
: 1
: H
: OFF

SEL.

RETURN

ADJ.

Information

 DISPLAY OSM settings

ON............The on-screen menu appears.

OFF ..........The on-screen menu does not appear.

If you press the DISPLA Y button on the remote control
for more than 3 seconds the main menu will appear
and can be set (although it is not ON).

 OSM ADJUST settings

Adjusts the position of the menu when it appears on
the screen.
The position can be set between 1 to 6.

 OSM ANGLE settings

Sets the display format (landscape “H” or portrait “V”).
When the unit is installed vertically set the OSM
ANGLE at “V”.

“H”

OPTION1

1 / 3

EXIT

OSM
BNC INPUT
D-SUB INPUT
RGB SELECT
HD SELECT
INPUT SKIP
ALL RESET
NEXT PAGE

: RGB
: RGB
: AUTO
: 1080B
: OFF
: OFF

SEL.

RETURN

MENU/ENTER

OK

CONFIDENTIAL

3-147

E-25

Setting the BNC connectors

Select whether to set the input of the 5 BNC connectors to
RGB, component or SCART1,2.

Example: Set the BNC INPUT mode to “COMP.”

1. On the MAIN MENU, select “OPTION1”, then press
the MENU/ENTER button.
The “OPTION1” screen appears.

2. Use the ▲ and ▼ buttons to select “BNC INPUT”.

3. To set the BNC INPUT mode to “COMP.”...
Use the



and  buttons to select “COMP.”.

The mode switches as follows each time the



or



button is pressed:

→RGB ↔ COMP. ↔ SCART1 ↔ SCART2←

OPTION1

1 / 3

EXIT

OSM
BNC INPUT
D-SUB INPUT
RGB SELECT
HD SELECT
INPUT SKIP
ALL RESET
NEXT PAGE

: COMP.
: RGB
: AUTO
: 1080B
: OFF
: OFF

SEL.

RETURN

ADJ.

Information

 BNC INPUT Settings

RGB ............Use the 5BNC terminals for RGB input.

COMP..........

Use the 3BNC terminals for component input.

SCART1......Use the 4BNC terminals for RGB with

composite sync. See page E-8.

SCART2......Use the 3BNC terminals for RGB and the

VIDEO1 terminal for composite sync. See
page E-8.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory defaults.

Setting the RGB1 connector

Select one of the signals being transmitted to the RGB1
terminal.

Example: Set the D-SUB INPUT mode to “SCART3”

1. On the MAIN MENU, select “OPTION1”, then press
the MENU/ENTER button.
The “OPTION1” screen appears.

2. Use the ▲ and ▼ buttons to select “D-SUB INPUT”.

3. To set the D-SUB INPUT mode to “SCART3”...
Use the



and  buttons to select “SCART3”.

The mode switches as follows each time the



or



button is pressed:

RGB ↔ SCART3

OPTION1

1 / 3

EXIT

OSM
BNC INPUT
D-SUB INPUT
RGB SELECT
HD SELECT
INPUT SKIP
ALL RESET
NEXT PAGE

: RGB
: SCART3
: AUTO
: 1080B
: OFF
: OFF

SEL.

RETURN

ADJ.

Information

 D-SUB INPUT Settings

RGB ................Use the D-SUB terminal for RGB

input.

SCART3..........Use the D-SUB terminal for RGB

signal fed from SCART. See page E-8.

“V”

OPTION1

EXIT

OSM

BNC INPUT

D-SUB INPUT

RGB SELECT

HD SELECT

INPUT SKIP

ALL RESET

: RGB

: RGB

: AUTO

: 1080B

: OFF

: OFF
1024768

SEL.

RETURN

MENU/ENTER

OK

 OSM ORBITER settings

ON........ The position of the menu will be shifted by

eight dots each time OSM is displayed.

OFF...... OSM will be displayed at the same position.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults except for Auto Picture.

Setting a computer image to the correct RGB
select screen

With the computer image, select the RGB Select mode
for a moving image such as (video) mode, wide mode or
digital broadcast.

Example: Setting the “RGB SELECT” mode to
“MOTION ”

1. On the MAIN MENU, select “OPTION1”, then press
the MENU/ENTER button.
The “OPTION1” screen appears.

2. Use the ▲ and ▼ buttons to select “RGB SELECT”.

3. To set the RGB select mode to “MOTION” ...
Use the  and  buttons to select “MOTION”.
The mode switches as follows each time the



or



button is pressed:

→ AUTO ↔ STILL ↔ MOTION ↔ WIDE1 ↔ WIDE2 ↔ DTV ←

OPTION1

1 / 3

EXIT

OSM
BNC INPUT
D-SUB INPUT
RGB SELECT
HD SELECT
INPUT SKIP
ALL RESET
NEXT PAGE

: RGB
: RGB
: MOTION
: 1080B
: OFF
: OFF

SEL.

RETURN

ADJ.

CONFIDENTIAL

3-148

E-26

Setting high definition images to the suitable
screen size

Use this procedure to set whether the number of vertical
lines of the input high definition image is 1035 or 1080.

Example: Setting the “1080B” mode to “1035I”

1. On the MAIN MENU, select “OPTION1”, then press
the MENU/ENTER button.
The “OPTION1” screen appears.

2. Use the ▲ and ▼ buttons to select “HD SELECT”.

3. To set the HD SELECT mode to “1035I” ...
Use the



and  buttons to select “1035I”.

The mode switches as follows each time the



or



button is pressed:

→1080B ↔ 1035I ↔ 1080A ←

OPTION1

1 / 3

EXIT

OSM
BNC INPUT
D-SUB INPUT
RGB SELECT
HD SELECT
INPUT SKIP
ALL RESET
NEXT PAGE

: RGB
: RGB
: AUTO
: 1035

I

: OFF
: OFF

SEL.

RETURN

ADJ.

Information

 HD SELECT modes

These 3 modes are not displayed in correct image
automatically.

1080B ...............Standard digital broadcasts

1035I ............... Japanese “High V ision” signal format

1080A ...............Special Digital broadcasts (for

example : DTC100)

Information

 RGB SELECT modes

One of these 6 modes must be selected in order to
display the following signals correctly.

AUTO ..............Select the suitable mode for the

specifications of input signals as
listed in the table “Computer input
signals supported by this system” on
page E-3 of Model Information.

STILL ..............To display VESA standard signals.

(Use this mode for a still image from
a computer.)

MOTION..........The video signal (from a scan

converter) will be converted to RGB
signals to make the picture more
easily viewable. (Use this mode for a
motion image from a computer.)

WIDE1.............When an 852 dot 480 line signal

with a horizontal frequency of

31.7kHz is input, the image may be
compressed horizontally. To prevent
this, set RGB SELECT to WIDE1.

WIDE2.............When an 848 dot 480 line signal

with a horizontal frequency of 31.0
kHz is input, the image may be
compressed horizontally. To prevent
this, set RGB SELECT to WIDE2.

DTV.................Set this mode when watching digital

broadcasting (480P).

See page E-3 of Model Information for the details of
the above settings.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

CONFIDENTIAL

3-149

E-27

Setting the Input Skip

When this is ON, signals which are not present will be
skipped over and only pictures whose signals are being
transmitted will be displayed.
This setting is valid only for the INPUT SELECT button
on the unit.

Example: Set to “ON”

1. On the MAIN MENU, select “OPTION1”, then press
the MENU/ENTER button.
The “OPTION1” screen appears.

2. Use the ▲ and ▼ buttons to select “INPUT SKIP”.

3. To set the INPUT SKIP mode to “ON”...
Use the



and  buttons to select “ON”.

The mode switches as follows each time the



or



button is pressed:

OFF ↔ ON

OPTION1

1 / 3

EXIT

OSM
BNC INPUT
D-SUB INPUT
RGB SELECT
HD SELECT
INPUT SKIP
ALL RESET
NEXT PAGE

: RGB
: RGB
: AUTO
: 1080B
: ON
: OFF

SEL.

RETURN

ADJ.

Information

 INPUT SKIP settings

OFF........... Regardless of the presence of the signal,

scan and display all signals.

ON............. If no input signal is present, skip that

signal.

* “SETTING NOW” will appear during the input search.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

Resetting to the default values

Use these operations to restore all the settings (PICTURE,
AUDIO, IMAGE ADJUST, OPTION1~3, etc) to the
factory default values.

Refer to page E-17 for items to be reset.

1. On the MAIN MENU, select “OPTION1”, then press
the MENU/ENTER button.
The “OPTION1” screen appears.

2. Use the ▲ and ▼ buttons to select “ALL RESET”.

OPTION1

1 / 3

EXIT

OSM
BNC INPUT
D-SUB INPUT
RGB SELECT
HD SELECT
INPUT SKIP
ALL RESET
NEXT PAGE

: RGB
: RGB
: AUTO
: 1080B
: OFF
:

OFF

SEL.

RETURN

ADJ.

3. Use the  and  buttons to select “ON”, then press the
MENU/ENTER button.

OPTION1

1 / 3

EXIT

OSM
BNC INPUT
D-SUB INPUT
RGB SELECT
HD SELECT
INPUT SKIP
ALL RESET
NEXT PAGE

: RGB
: RGB
: AUTO
: 1080B
: OFF
:

ON

SEL.

RETURN

MENU/ENTER

OK

ALL RESET

SETTING NOW

When the “SETTING NOW” screen disappears, then
all the settings are restored to the default values.

CONFIDENTIAL

3-150

E-28

Option2 Settings Menu

Setting the power management for computer
images

This energy-saving (power management) function
automatically reduces the monitor’s power consumption
if no operation is performed for a certain amount of time.

Example:

Turning the power management function on

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION2”, then press
the MENU/ENTER button.
The “OPTION2” screen appears.

2. Use the ▲ and ▼ buttons to select “PWR. MGT.”.

3. To turn the power management function on ...
Use the



and  buttons to select “ON”.

The mode switches as follows each time the



or



button is pressed:

ON ↔ OFF

OPTION2

2 / 3

EXIT

PREVIOUS PAGE
POWER MGT.
CINEMA MODE
LONG LIFE
GRAY LEVEL
S1/S2
NEXT PAGE

: ON
: ON

: 3
: OFF

SEL.

RETURN

ADJ.

Information

 Power management function

* The power management function automatically reduces

the monitor’s power consumption if the computer’s
keyboard or mouse is not operated for a certain amount
of time. This function can be used when using the
monitor with a computer.

* If the computer’s power is not turned on or if the

computer and selector tuner are not properly connected,
the system is set to the off state.

* For instructions on using the computer’s power

management function, refer to the computer’s operating
instructions.

 Power management settings

ON........ In this mode the power management function

is turned on.

OFF ...... In this mode the power management function

is turned off.

 Power management function and POWER/
STANDBY indicator

The POWER/ST ANDBY indicator indicates the status
of the power management function. See page E-28 for
indicator status and description.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

POWER/STANDBY indicator

Power
management
mode

On

Off

Turning the picture
back on

Picture already on.

Operate the keyboard or
mouse. The picture
reappears.

POWER/
STANDBY
indicator

Green

Red

Power
management
operating status

Not activated.

Activated.

Description

Horizontal and vertical
synchronizing signals
are present from the
computer.

Horizontal and/or
vertical synchronizing
signals are not sent
from the computer.

Setting the picture to suit the movie

The film image is automatically discriminated and
projected in an image mode suited to the picture.
[NTSC, PAL, PAL60, 480I (60Hz), 525I (60Hz), 576I
(50Hz), 625I (50Hz), 1035I (60Hz), 1080I (60Hz) only]

Example: Setting the “CINEMA MODE” to “OFF”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION2”, then press
the MENU/ENTER button.
The “OPTION2” screen appears.

2. Use the ▲ and ▼ buttons to select “CINEMA MODE”.

3. To set the CINEMA MODE to “OFF” ...
Use the



and  buttons to select “OFF”.

The mode switches as follows each time the



or



button is pressed:

ON ↔ OFF

OPTION2

2 / 3

EXIT

PREVIOUS PAGE
POWER MGT.
CINEMA MODE
LONG LIFE
GRAY LEVEL
S1/S2
NEXT PAGE

: OFF
: OFF

: 3
: OFF

SEL.

RETURN

ADJ.

Information

 CINEMA MODE

ON...................Automatic discrimination of the

image and projection in cinema mode.

OFF................... Cinema mode does not function.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

CONFIDENTIAL

3-151

E-29

Reducing burn-in of the screen

The brightness of the screen, the position of the picture,
positive/negative mode and screen wiper are adjusted to
reduce burn-in of the screen.

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION2”, then press
the MENU/ENTER button.
The “OPTION2” screen appears.

2. Use the ▲ and ▼ buttons to select “LONG LIFE”, then
press the MENU/ENTER button.
The “LONG LIFE” screen appears.

LONG LIFE

EXIT

PLE
ORBITER
INVERSE
SCREEN WIPER
SOFT FOCUS

: AUTO
: OFF
: OFF
: OFF
: OFF

SEL.

RETURN

ADJ.

3. Set the LONG LIFE mode using ▲▼ and  buttons.
See page E-29 to set PLE.
See page E-29 to set ORBITER.
See page E-30 to set INVERSE.
See page E-31 to set SCREEN WIPER.
See page E-32 to set SOFT FOCUS.

Information

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

PLE (Peak Luminance Enhancement)

Use this to activate the brightness limiter.

Example: Setting “PLE” to “LOCK1”

Perform Steps 1-2 of LONG LIFE, then...

3. Use the ▲ and ▼ buttons to select “PLE”.

4. Use the



and  buttons to select “LOCK1”.

The mode switches as follows each time the



or



button is pressed:

→AUTO ↔ LOCK1 ↔ LOCK2 ↔ LOCK3←

LONG LIFE

EXIT

PLE
ORBITER
INVERSE
SCREEN WIPER
SOFT FOCUS

: LOCK1
: OFF
: OFF
: OFF
: OFF

SEL.

RETURN

ADJ.

ORBITER

Use this to set the picture shift.

Example: Setting “ORBITER” to “AUTO1”

Perform Steps 1-2 of LONG LIFE, then...

3. Use the ▲ and ▼ buttons to select “ORBITER”.

4. Use the



and  buttons to select “AUTO1”.

The mode switches as follows each time the



or



button is pressed:

→OFF ↔ AUTO1 ↔ AUTO2 ↔ MANUAL←

LONG LIFE

EXIT

PLE
ORBITER
INVERSE
SCREEN WIPER
SOFT FOCUS

: AUTO
: AUTO1
: OFF
: OFF
: OFF

SEL.

RETURN

ADJ.

Information

 ORBITER settings

OFF ..............Orbiter mode does not function.

This is the default setting when RGB is
input.

AUTO1 .........The picture moves around the screen

intermittently, making the picture
smaller. This is the default setting when
a Video or a DVD/HD/DTV singnal is
input. Set to “OFF” when these signals
are not used.

AUTO2 .........The picture moves around the screen

intermittently, making the picture
bigger.

MANUAL ......User can adjust the orbiter function

(Horizontal Dot, Vertical Line and
Time) manually.
See the following explanation.

* When a Video or a DVD/HD/DTV singnal is input, the

AUTO1 and 2 functions will affect only the moving
picture and will not make the screen smaller or bigger.

Information

 PLE settings

AUTO .............. The brightness of the screen is

adjusted automatically to suit the
picture quality.

LOCK1, 2, 3 ....Sets maximum brightness.

The brightness level decreases in the
order of LOCK 1, 2, 3. LOCK 3
provides minimum brightness.

CONFIDENTIAL

3-152

E-30

INVERSE

Use this to set the inverse mode or to display a white
screen.

Example: Setting “INVERSE” to “WHITE”

Perform Steps 1-2 of LONG LIFE, then...

3. Use the ▲ and ▼ buttons to select “INVERSE”.

4. Use the



and  buttons to select “WHITE”.

The mode switches as follows each time the



or



button is pressed:

→OFF ↔ ON ↔ WHITE←

LONG LIFE

EXIT

PLE
ORBITER
INVERSE
SCREEN WIPER
SOFT FOCUS

: AUTO
: OFF
: WHITE
: OFF
: OFF

SEL.

RETURN

ADJ.

Adjust the ORBITER function manually

Set the amount of shift and the time between movement.

Example: Setting so that the picture moves 2 dots
horizontally and 3 lines vertically every 3 minutes.

Perform Steps 1-3 of ORBITER, then...

4. Use the



and  buttons to select “MANUAL”, then
press the MENU/ENTER button.
THE “ORBITER” screen appears.

5. Adjust the items using the ▲▼



and  buttons.

The mode switches as follows each time the



or



button is pressed:

• H-DOT

→1 DOT ↔ 2 DOT ↔ ..... ↔ 19 DOT ↔ 20 DOT←

• V-LINE

→1 LINE ↔ 2 LINE ↔ ..... ↔ 19 LINE ↔ 20 LINE←

• TIME

→1 M ↔ 2 M ↔ 3 M ↔ 4 M ↔ 5 M←

ORBITER

EXIT

H-DOT

V-LINE

TIME

: 2 DOT
: 4 LINE
: 3 M

SEL.

RETURN

ADJ.

Information

 ORBITER Function settings

H-DOT..........Moves from 1 to 20 dots in the

horizontal direction.

V-LINE ..........Moves from 1 to 20 lines in the vertical

direction.

TIME ............Interval of 1~5 minutes (1 horizontal

dot or 1 vertical line per interval).

Setting the time for INVERSE/WHITE

Set a time duration.

Example: Setting to that the INVERSE mode starts
in 2 hours and proceeds for one hour and a half.

Perform Steps 1-3 of INVERSE, then...

4. Use the



and  buttons to select “ON”, then press the
MENU/ENTER button.
THE “INVERSE/WHITE” screen appears.

5. Adjust the time using the ▲▼



and  buttons.

The mode switches as follows each time the



or



button is pressed:

• WORKING TIME

→ON ↔ 00H03M ↔ 00H06M ↔ ..... ↔ 12H42M ↔ 12H45M←

• WAITING TIME

→00H03M ↔ 00H06M ↔ 00H09M ↔ ... ↔ 12H42M ↔ 12H45M←

INVERSE/WHITE

EXIT

WORKING TIME
WAITING TIME

: 01H30M
: 02H00M

SEL.

RETURN

ADJ.

Information

 Setting the time

WORKING TIME .....

Set the time duration for
“INVERSE/WHITE”.
When the WORKING TIME is set
to “ON” the mode will stay on.

WAITING TIME

......Set the standby time until the

“INVERSE/WHITE” mode starts.

* The “WAITING TIME” can not be set when the

“WORKING TIME” is ON.

* THE “WORKING TIME” and “W AITING TIME” can

be set for up to 12 hours and 45 minutes in units of 3
minutes.

* Ending a WORKING TIME function, the monitor will

be ST AND BY.

[Example]

WORKING TIME: 01H30M
WAITING TIME: 02H00M

Information

 INVERSE Settings

ON......... The picture is displayed alternately between

positive image and negative image.

Y ou can set the time by pressing the MENU/

ENTER button while “ON” is set.

OFF ....... Inverse mode does not function.

WHITE ...The entire screen turns white.

Y ou can set the time by pressing the MENU/

ENTER button while “ON” is set.

←−−−− 2 H −−−−→←−− 1.5 H −−→←−−−−

Start INVERSE/WHITE Start STAND BY

CONFIDENTIAL

3-153

E-31

SCREEN WIPER

When this is set to ON, a white vertical bar moves
repeatedly from the left and of the screen to the right end
at a constant speed.

Example: Setting “SCREEN WIPER” to “ON”

Perform Steps 1-2 of LONG LIFE, then...

3. Use the ▲ and ▼ buttons to select “SCREEN WIPER”.

4. Use the



and  buttons to select “ON”.

The mode switches as follows each time the



or



button is pressed:

OFF ↔ ON

LONG LIFE

EXIT

PLE
ORBITER
INVERSE
SCREEN WIPER
SOFT FOCUS

: AUTO
: OFF
: OFF
: ON
: OFF

SEL.

RETURN

ADJ.

Information

 SCREEN WIPER

ON......... The white vertical bar appears.

Y ou can set the time by pressing the MENU/
ENTER button while “ON” is set.

OFF ....... Screen wiper mode does not function.

Setting the time for SCREEN WIPER

Set a time duration and the speed.

Example: Setting to that the SCREEN WIPER mode
starts in 30 minutes and proceeds for one hour and
a half.

Perform Steps 1-3 of SCREEN WIPER, then...

4. Use the



and  buttons to select “ON”, then press the
MENU/ENTER button.
THE “SCREEN WIPER” screen appears.

5. Adjust the time and speed using the ▲▼



and



buttons.
The mode switches as follows each time the



or



button is pressed:

• WORKING TIME

→ON ↔ 00H03M ↔ 00H06M ↔ ..... ↔ 12H42M ↔ 12H45M←

• WAITING TIME

→00H03M ↔ 00H06M ↔ 00H09M ↔ ... ↔ 12H42M ↔ 12H45M←

• SPEED

→1 ↔ 2 ↔ 3 ↔ 4 ↔ 5←

SCREEN WIPER

EXIT

WORKING TIME
WAITING TIME
SPEED

: 01H30M
: 00H30M
: 3

SEL.

RETURN

ADJ.

Information

 Setting the time

WORKING TIME .....

Set the time duration for “SCREEN
WIPER”.
When the WORKING TIME is set
to “ON” the mode will stay on.

WAITING TIME

......Set the standby time until the

“SCREEN WIPER” mode starts.

SPEED

................Set the moving speed for the

“SCREEN WIPER”. The speed
decreases as the number increases.

* The “WAITING TIME” can not be set when the

“WORKING TIME” is ON.

* THE “WORKING TIME” and “W AITING TIME” can

be set for up to 12 hours and 45 minutes in units of 3
minutes.

 To select “ON” for the “WORKING TIME”...

Set the hours of the working time to 0H and the minutes
to 0M. “ON” will be displayed.

CONFIDENTIAL

3-154

E-32

Setting the gray level for the sides of the screen

Use this procedure to set the gray level for the parts on the
screen on which nothing is displayed when the screen is
set to the 4:3 size.

Example: Adjusting the “GRAY LEVEL”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION2”, then press
the MENU/ENTER button.
The “OPTION2” screen appears.

2. Use the ▲ and ▼ buttons to select “GRAY LEVEL”.

3. To adjust the “GRAY LEVEL”...
Use the



and  buttons to adjust the GRAY LEVEL.

OPTION2

2 / 3

EXIT

PREVIOUS PAGE
POWER MGT.
CINEMA MODE
LONG LIFE
GRAY LEVEL
S1/S2
NEXT PAGE

: OFF
: ON

: 5
: OFF

SEL.

RETURN

ADJ.

Information

 GRAY LEVEL settings

This adjusts the brightness of the black (the gray level)
for the sides of the screen.
The standard is 0 (black). The level can be adjusted
from 0 to 15. The factory setting is 3 (dark gray).

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

SOFT FOCUS

Reduces edges and softens the image.

Example: Setting “SOFT FOCUS” to “2”

Perform Steps 1-2 of LONG LIFE, then...

3. Use the ▲ and ▼ buttons to select “SOFT FOCUS”.

4. Use the



and  buttons to select “2”.

The mode switches as follows each time the



or



button is pressed:

→OFF ↔ 1 ↔ 2 ↔ 3 ↔ 4

LONG LIFE

EXIT

PLE
ORBITER
INVERSE
SCREEN WIPER
SOFT FOCUS

: AUTO
: OFF
: OFF
: OFF
: 2

SEL.

RETURN

ADJ.

Information

 SOFT FOCUS settings

OFF ............Turns the SOFT FOCUS function off.

1, 2, 3, 4 .....Activates the SOFT FOCUS setting. The

higher numbers create a softer image.
“SHARPNESS” can not be adjusted on
the “PICTURE” menu.

CONFIDENTIAL

3-155

E-33

Setting the picture size for RGB input signals

Use this procedure to switch the setting to “ON” or “OFF”.
* Cannot be set in some models.

Example: Setting the “PICTURE SIZE” mode to
“OFF”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION2”, then press
the MENU/ENTER button.
The “OPTION2” screen appears.

2. Use the ▲ and ▼ buttons to select “PICTURE SIZE”.

3. To set PICTURE SIZE mode to “OFF”...
Use the



and  buttons to select “OFF”.

The mode switches as follows each time the



or



button is pressed:

ON ↔ OFF

EXIT

SEL.

RETURN

ADJ.

OPTION2

2 / 3
PREVIOUS PAGE
POWER MGT.
CINEMA MODE
LONG LIFE
GRAY LEVEL
S1/S2
PICTURE SIZE
NEXT PAGE

: OFF
: ON

: 3
: OFF
:

OFF

Information

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

Setting the screen size for S1/S2 video input

If the S-video signal contains screen size information, the
image will be automatically adjusted to fit the screen when
this S1/S2 is set to AUTO.
This feature is available only when an S-video signal is
input via the VIDEO3 terminal.

Example: Setting the “S1/S2” to “AUTO”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION2”, then press
the MENU/ENTER button.
The “OPTION2” screen appears.

2. Use the ▲ and ▼ buttons to select “S1/S2”.

3. Use the



and  buttons to select “AUTO”.

The mode switches as follows each time the



or



button is pressed:

OFF ↔ AUTO

OPTION2

2 / 3

EXIT

PREVIOUS PAGE
POWER MGT.
CINEMA MODE
LONG LIFE
GRAY LEVEL
S1/S2
NEXT PAGE

: OFF
: ON

: 3
:

AUTO

SEL.

RETURN

ADJ.

Information

 S1/S2 settings

AUTO .....Adjusts the screen size automatically

according to the S1/S2 video signal.

OFF ....... Turns the S1/S2 function off.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

CONFIDENTIAL

3-156

E-34

Option3 Settings Menu

Using the timer

This function sets the monitor to turn ON/OFF
automatically at a set time.

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION3”, then press
the MENU/ENTER button.
The “OPTION3” screen appears.

2. Use the ▲ and ▼ buttons to select “TIMER”, then press
the MENU/ENTER button.
The “TIMER” screen appears.

TIMER

EXIT

PRESENT TIME
PROGRAM : OFF

SEL.

RETURN

MENU/ENTER

OK

3. Set the TIMER using ▲▼ and  buttons.
See page E-34 to set PRESENT TIME.
See page E-34 to set PROGRAM.

Information

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

PRESENT TIME

This sets the day of the week and present time.

Example: Setting “WEDNESDAY”, “22:05”

Perform Steps 1-2 of TIMER, then...

3. Use the ▲ and ▼ buttons to select “PRESENT TIME”,
then press the MENU/ENTER button.
The “PRESENT TIME” screen appears.

EXIT

SEL.

RETURN

PRESENT TIME

WEDNESDAY

13 : 00 : 00

RETURN
SUMMER TIME

: OFF

ADJ.

4. Use the ▲ and ▼ buttons to select the item, then adjust
using the



and  buttons.

EXIT

SEL.

RETURN

PRESENT TIME

WEDNESDAY

22 : 05 : 00

RETURN
SUMMER TIME

: OFF

ADJ.

The mode switches as follows each time the  or



button is pressed:

• SUMMER TIME

ON ↔ OFF

• Day

→SUNDAY ↔ MONDAY ↔ ..... ↔ FRIDAY ↔ SATURDAY←

• Hour/Minutes

→ 00:00 ↔ 00:01 ↔ 00:02 ↔ ..... ↔ 23:58 ↔ 23:59←

5. Once the setting is completed...

Use the ▲ and ▼ buttons to select “SET”, then press
the MENU/ENTER button.
The adjustments are stored and return to the TIMER
menu.

EXIT

SEL.

RETURN

PRESENT TIME

WEDNESDAY

22 : 05 : 00

: OFF

MENU/ENTER

OK

RETURN
SUMMER TIME

SET

Information

 PRESENT TIME settings

SUMMER TIME ...

Use to set SUMMER TIME.
ON: The present time + 1 hour.
OFF: Cancelled

Day................Set the day of the week (e.g. Sunday).

Hour ..............Set the hour in the 24-hour format

(range 00 to 23).

Minutes .........Set the minutes (range 00 to 59).

* If you press the EXIT button instead of the MENU/

ENTER button in step 5, the settings can not be mode.

PROGRAM TIMER

This sets the day and time at which the power will be
switched ON/OFF as well as the input mode.

Example: Setting so that the power will be switched
on at 8:30 A.M., Monday, displaying RGB2 source,
and switched off at 10:30 A.M.

Perform Steps 1-2 of TIMER, then...

3. Use the ▲ and ▼ buttons to select “PROGRAM”.

TIMER

EXIT

PRESENT TIME
PROGRAM : OFF

SEL.

RETURN

ADJ.

4. Use the  and  buttons to select “ON”, then press the
MENU/ENTER button.
The “PROGRAM TIMER” screen appears.

CONFIDENTIAL

3-157

E-35

• An asterisk “*” in the DATE field
An asterisk “*” means “every”. For example, “*FRI”
means every Friday and “*” means everyday.

• A hyphen “-” in the ON field or OFF field
If any hyphen remains in the ON field or OFF field, the
FUNCTION can not be set.

• A hyphen “-” in the FUNCTION field
A hyphen “-” means last mode (the mode that was last
selected at the time the power was switched off).

Setting the power on mode

This function sets the input mode at the time the power is
switched on.

Example: Setting “VIDEO2”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION3”, then press
the MENU/ENTER button.
The “OPTION3” screen appears.

2. Use the ▲ and ▼ buttons to select “PWR. ON MODE”.

3. To set the PWR. ON MODE to “VIDEO2”...
Use the



and  buttons to select “VIDEO2”.
The mode switches to LAST and any one of the sources
shown in the table on page E-3 each time the



or



button is pressed.
The available sources depend on the settings of “BNC
INPUT” and “D-SUB INPUT”.

OPTION3

3 / 3

EXIT

PREVIOUS PAGE
TIMER
PWR. ON MODE
CONTROL LOCK
IR REMOTE
LOOP OUT
ID NUMBER
VIDEO WALL

: VIDEO2
: OFF
: ON
: OFF
: ALL

SEL.

RETURN

ADJ.

Information

 PWR. ON MODE settings

LAST ................Last mode (the mode that was last

selected at the time the power was
switched off).

VIDEO1, 2, 3....VIDEO input mode.

RGB1, 2, 3 .......RGB input mode.

HD/DVD1, 2 .....HD/DVD input mode.

DVD2, 3 ...........DVD input mode.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

5. Adjust using the ▲▼



and  buttons and ZOOM /

 button.

PROGRAM TIMER

EXIT

DATE

MON

—
—
—
—
—
—

SEL.

RETURN

ADJ.ZOOM

ON

08 : 30

- - : - -

- - : - -

- - : - -

- - : - -

- - : - -

- - : - -

OFF

10 : 30

- - : - -

- - : - -

- - : - -

- - : - -

- - : - -

- - : - -

INPUT
RGB2

—
—
—
—
—
—

FUNCTION

INVERSE

—
—
—
—
—
—

The mode switches as follows each time the ZOOM
/ button is pressed:

• Date

→ — ↔ SUN ↔ MON ↔ ... ↔ SAT ↔ * ↔ *SUN ↔ *MON ↔ ... ↔ *SAT←

• ON/OFF Hour

→ 00 ↔ 01 ↔ 02 ↔ ..... ↔ 21 ↔ 22 ↔ 23←

• Minute

→ 00 ↔ 01 ↔ 02 ↔ ..... ↔ 57 ↔ 58 ↔ 59←

• INPUT

→ — ↔ LAST ↔ VIDEO1 ↔ VIDEO2 ↔ VIDEO3 ↔ HD/DVD1 ←
→ RGB3 ↔ RGB2 ↔ RGB1 ↔ HD/DVD2 ←

• FUNCTION

→ — ↔ ORBITER ↔ INVERSE ↔ WHITE ↔ WIPER←

Information

 PROGRAM TIMER settings

DATE.......................Set the day of the week (e.g.

Sunday).

ON (hour, minutes)

....Set the time at which the power

will be turned on in the 24-hour
format.

OFF (hour, minutes)

...Set the time at which the power

will be turned off in the 24-hour
format.

INPUT ..................... Set the input mode that will be

displayed when the timer is on.

FUNCTION .............Set the LONG LIFE function.

 To reset the program

Align the cursor with the DATE field that you wish to
reset, then press the CLEAR button.

 To reset the data

Align the cursor with the field (ON/OFF/INPUT/
FUNCTION) that you wish to reset, then press the
CLEAR button.

 Special characters in the PROGRAM TIMER

screen

PROGRAM TIMER

EXIT

DATE

MON

TUE
SAT
*FRI

—

SAT

*

SEL.

RETURN

ADJ.ZOOM

ON

08 : 30

- - : - ­08 : 30
08 : 30

- - : - ­08 : 30
15 : 30

OFF
10 : 30
18 : 15
12 : 15
10 : 00

- - : - ­12 : 15
16 : 00

INPUT
RGB2

—

VIDEO1

HD/DVD1

—

VIDEO1

RGB1

FUNCTION

INVERSE

—

WHITE

—
—

WHITE

—

CONFIDENTIAL

3-158

E-36

Enabling/disabling the front panel controls

This function enables/disables the front panel controls.

Example: Setting “ON”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION3”, then press
the MENU/ENTER button.
The “OPTION3” screen appears.

2. Use the ▲ and ▼ buttons to select “CONTROL
LOCK”.

3. To set the CONTROL LOCK to “ON”...
Use the



and  buttons to select “ON”, then press the
MENU/ENTER button.
The mode switches as follows each time the



or



button is pressed:

OFF ↔ ON

OPTION3

3 / 3

EXIT

PREVIOUS PAGE
TIMER
PWR. ON MODE
CONTROL LOCK
IR REMOTE
LOOP OUT
ID NUMBER
VIDEO WALL

: LAST
: ON
: ON
: OFF
: ALL

SEL.

RETURN

ADJ.

Information

 CONTROL LOCK settings

ON...... Disables the buttons on the front panel.

OFF .... Enables the buttons on the front panel.

* Even when the CONTROL LOCK is set, the POWER

switch will not be locked.

* This becomes effective when the on-screen menu goes

out.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

Enabling/disabling remote control wireless
transmission

This function enables/disables remote control wireless
transmission.

Example: Setting “OFF”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION3”, then press
the MENU/ENTER button.
The “OPTION3” screen appears.

2. Use the ▲ and ▼ buttons to select “IR REMOTE”.

3. To set the IR REMOTE to “OFF”...
Use the



and  buttons to select “OFF”, then press
the MENU/ENTER button.
The mode switches as follows each time the



or



button is pressed:

OFF ↔ ON

OPTION3

3 / 3

EXIT

PREVIOUS PAGE

TIMER

PWR. ON MODE

CONTROL LOCK

IR REMOTE

LOOP OUT

ID NUMBER

VIDEO WALL

: LAST
: OFF
: OFF
: OFF
: ALL

SEL.

RETURN

ADJ.

Information

 IR REMOTE settings

ON...... Enables remote control wireless transmission.

OFF .... Disables remote control wireless transmission.

Set “OFF” to avoid unwanted control from
other remote controls.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

CONFIDENTIAL

3-159

E-37

ID number setting

When using more than one of these displays, this function
sets ID numbers so that operation of the remote control
does not cause multiple monitors to operate at the same
time.

Example: Setting “2”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION3”, then press
the MENU/ENTER button.
The “OPTION3” screen appears.

2. Use the ▲ and ▼ buttons to select “ID NUMBER”.

To set the ID number for the remote control

Example: Setting “2”

1. Press the ID SELECT button on the remote control.
The “ID SELECT” screen appears.

2. Use the ▲ and ▼ buttons to select “ID NUMBER”.

3. To set the ID NUMBER to “2”...
Use the



and  buttons to select “2”.

The mode switches as follows each time the



or



button is pressed:

→ALL ↔ 1 ↔ 2 ↔ ..... ↔ 255 ↔ 256←

ID SELECT

POSITION : 1

EXIT

: 2

RETURN

ADJ.

ID NUMBER

* T o reset back to ALL

Press the CLEAR button

4. Once the setting is completed...
Press the EXIT button to delete the ID SELECT screen.

Loop Out setting

When this feature is set to ON, the received signal will be
looped out.

Example: Setting “ON”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

1. On the MAIN MENU, select “OPTION3”, then press
the MENU/ENTER button.
The “OPTION3” screen appears.

2. Use the ▲ and ▼ buttons to select “LOOP OUT”.

3. To set the LOOP OUT to “ON”...
Use the



and  buttons to select “ON”.

The mode switches as follows each time the



or



button is pressed:

OFF ↔ ON

OPTION3

3 / 3

EXIT

PREVIOUS PAGE
TIMER
PWR. ON MODE
CONTROL LOCK
IR REMOTE
LOOP OUT
ID NUMBER
VIDEO WALL

: LAST
: OFF
: ON
: ON
: ALL

SEL.

RETURN

ADJ.

Information

 LOOP OUT settings

ON...... The received signal will be looped out via PC1

terminal or VIDEO1 terminal.

OFF .... The received signal will not loop out.

* Even if LOOP OUT is ON, signals won’t be sent out if

POWER is being turned off.

 To connect another display...

See page E-11.

 If the RGB/PC1 signal is present at the time
the power switched on...

The RGB/PC1 input will be displayed regardless of the
setting of LOOP OUT.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

3. To set the ID NUMBER to “2”...
Use the



and  buttons to select “2”.

The mode switches as follows each time the



or



button is pressed:

→ALL ↔ 1 ↔ 2 ↔ ..... ↔ 255 ↔ 256←

OPTION3

3 / 3

EXIT

PREVIOUS PAGE
TIMER
PWR. ON MODE
CONTROL LOCK
IR REMOTE
LOOP OUT
ID NUMBER
VIDEO WALL

: LAST
: OFF
: ON
: OFF
: 2

SEL.

RETURN

ADJ.

* T o reset back to ALL

Press the CLEAR button

Information

 ID NUMBER settings

ALL...........ID NUMBER will not be set.

1 to 256 ....ID NUMBER will be set.

 When the ID NUMBER have been set

You can also set ID NUMBER for each remote control to
operate the plasma display individually. T o do so, see below .

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note
that this also restores other settings to the factory
defaults.

CONFIDENTIAL

3-160
