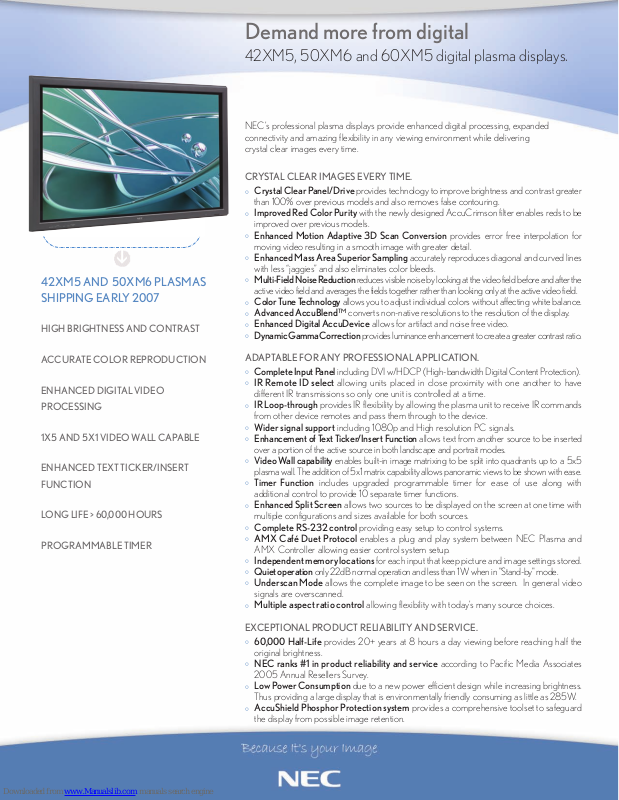

Page 1
42XM5 AND 50XM6 PLASMAS
SHIPPING EARLY 2007
HIGH BRIGHTNESS AND CONTRAST
Demand more from digital
42XM5, 50XM6 and 60XM5 digital plasma displays.
NEC’s professional plasma displays provide enhanced digital processing, expanded
connectivity and amazing flexibility in any viewing environment while delivering
crystal clear images every time.
CRYSTAL CLEAR IMAGES EVERY TIME.
Crystal Clear Panel/Drive provides technology to improve brightness and contrast greater
°
than 100% over previous models and also removes false contouring.
Improved Red Color Purity with the newly designed AccuCrimson filter enables reds to be
°
improved over previous models.
Enhanced Motion Adaptive 3D Scan Conversion provides error free interpolation for
°
moving video resulting in a smooth image with greater detail.
Enhanced Mass Area Superior Sampling accurately reproduces diagonal and curved lines
°
with less “jaggies” and also eliminates color bleeds.
Multi-Field Noise Reduction reduces visible noise by looking at the video field before and after the
°
active video field and averages the fields together rather than looking only at the active video field.
Color Tune Technology allows you to adjust individual colors without affecting white balance.
°
Advanced AccuBlend™ converts non-native resolutions to the resolution of the display.
°
Enhanced Digital AccuDevice allows for artifact and noise free video.
°
Dynamic Gamma Correction provides luminance enhancement to create a greater contrast ratio.
°
ACCURATE COLOR REPRODUCTION
ENHANCED DIGITAL VIDEO
PROCESSING
1X5 AND 5X1 VIDEO WALL CAPABLE
ENHANCED TEXT TICKER/INSERT
FUNCTION
LONG LIFE > 60,000 HOURS
PROGRAMMABLE TIMER
ADAPTABLE FOR ANY PROFESSIONAL APPLICATION.
Complete Input Panel including DVI w/HDCP (High-bandwidth Digital Content Protection).
°
IR Remote ID select allowing units placed in close proximity with one another to have
°
different IR transmissions so only one unit is controlled at a time.
IR Loop-through provides IR flexibility by allowing the plasma unit to receive IR commands
°
from other device remotes and pass them through to the device.
Wider signal support including 1080p and High resolution PC signals.
°
Enhancement of Text Ticker/Insert Function allows text from another source to be inserted
°
over a portion of the active source in both landscape and portrait modes.
Video Wall capability enables built-in image matrixing to be split into quadrants up to a 5x5
°
plasma wall. The addition of 5x1 matrix capability allowspanoramic views to be shown with ease.
Timer Function includes upgraded programmable timer for ease of use along with
°
additional control to provide 10 separate timer functions.
Enhanced Split Screen allows two sources to be displayed on the screen at one time with
°
multiple configur
Complete RS-232 control providing easy setup to control systems.
°
AMX Café Duet Protocol enables a plug and play system between NEC Plasma and
°
AMX Contr
Independent memory locations for each input that keep picture and image settings stored.
°
Quiet operation only 22dB normal operation and less than 1W when in "Stand-by" mode.
°
Underscan Mode allows the complete image to be seen on the screen. In general video
°
signals are overscanned.
Multiple aspect ratio control allowing flexibility with today’s many source choices.
°
EXCEPTIONAL PRODUCT RELIABILITY AND SERVICE.
000 Half-Life
60,
°
original brightness.
NEC ranks #1 in product reliability and service according to Pacific Media Associates
°
2005 Annual R
Low Power Consumption due to a new power efficient design while increasing brightness.
°
°
o
Thus pr
AccuShield Phosphor Protection system provides a comprehensive toolset to safeguard
the display from possible image retention.
ations and sizes av
oller allo
viding a large display that is environmentally friendly consuming as little as 285W.
wing easier contr
vides 20+ year
pro
esellers Survey.
ailable for both sources.
ystem setup.
ol s
s at 8 hour
s a day viewing before reaching half the
Page 2
composite video
CR, security camera,
V
ocument camera
d
S-Video
VCR, document camera,
D, satellite/c
DV
omponent
c
ame system, DVD,
g
atellite/cable
s
able
RGBHV/component
DVD, PC, satellite/cable
satellite/cable, PC
5 pin D-Sub
1
PC
DVI-D
UNIQUE FEATURES
Advanced AccuBlend Ensures detailed images when non-native resolution
Phosphor Protection 7 modes - A comprehensive set of built-in modes
Enhanced Mass Area Superior Eliminates jagged lines, removes color separation
Sampling (Enhanced MASS) and improves detail for crystal clear images.
Crystal Clear Panel/Drive Provides technology to improve brightness and contrast
Advanced AccuCrimson™ Produces vivid accurate colors by eliminating unwanted
Filter Technology internal neon light emission
Color Tune Technology Adjust individual colors without affecting white balance.
Closed Captioning Yes
Matrix Capability 2X2, 3X3, 4X4, 5x5, 1X5, 5X1
Underscan Mode Allows the complete image to be seen on the screen.
AMX Café Duet Protocol Plug and Play system between NEC Plasma and AMX
Dynamic Gamma Correction Provides luminance enhancement to create a greater
Improved Red Color Purity
Luminance Management Provides Auto detection of static images and lowers the
Timer Function Programmable timer for virtual self-running operation. The
Video Wall Capability Built in image matrixing allows the video to be split into
Enhancement of Allows text from another source to be inserted over a portion of
Text Ticker/Insert Function the active source in both landscape and portrait modes.
*60,000 hour panel life is an approximate time for the display panel to reach half of
it's original brightness. The panel life is based on motion video as the input sour
and all display settings at factory default. This time may vary if the source varies and
monitor settings are not at factory default. The time given does not imply any
warranty beyond the products standard warranty.
For more information, call 1.800.NEC.INFO
or visit www.necvisualsystems.com
NEC is a registered trademark of NEC Corporation.
All other trademarks are the property of their respective owners.
All specifications subject to change without notice.
NEC Corporation of America
Visual Systems Division
1250 Arlington Heights Rd., Suite 400
Itasca, IL 60143-1248
sources are connected to the plasmas.
protects your screen from image retention.
greater than 100% over previous models and also removes
false contouring.
Controller allowing easier control system setup
contrast ratio.
With the newly designed AccuCrimson filter, Reds are
improved over previous models.
brightness to prevent image retention.
Programmable timer has been upgraded for ease of use along
with additional contr
quadrants up to a 5x5 plasma wall. Now with the addition of
5x1 matrix capability, panoramic views can be shown with ease.
ovide 10 separate timer functions.
ol to pr
ce
Demand more from digital
42XM5, 50XM6 and 60XM5 digital plasma displays.
LASMA MODULE
P
creen Size (Diagonal) PX-42XM5A 42"
S
Screen Aspect Ratio 16 to 9
ctive Screen Area (WxH)
A
ative Resolution
N
Pixel Pitch
olor Processing 1.07 billion colors, 1024 levels
C
Viewing Angle 160º
ilter Type Anti-reflective
F
SIGNAL COMPATIBILITY/CONNECTIVITY
can Rate Horizontal: 15.5 to 110.0 kHz auto, step scan
S
upported Video Standards PAL, SECAM, 3.58/4.43 NTSC, ATSC
S
D/HD Video Signal 480i, 480p, 525i, 525p, 540p, 625i, 625p, 720p, 1035i, 1080i,1080p
S
Compatibility
C Signal Compatibility VGA, SVGA, XGA, SXGA, UXGA, WideVGA (848x480, 852x480), WideXGA (1360x768)
P
acintosh Compatibility Yes
M
Input/Output Terminals
Audio Internal amplifier 42XM5: 8W x 2 output power; 50XM6/60XM5: 9W x 2 output power
External Control RS232, IR (IR loopthrough)
RGB Loop-out Yes
Video Loop-out Yes
ELECTRICAL
Power Requirements 120-240V 50/60 Hz
Power Consumption 42XM5: 285W Typical 50XM6: 340W Typical; 60XM5: 440W Typical
Standby Power 42XM5: 0.9W; 50XM6/60XM5: 0.75W
MECHANICAL
Dimensions (WxHxD) 42XM5 40.2 x 24.0 x 3.9 in, 1022 x 610 x 98mm
Net Weight
Regulations FCC Class B, UL60950, CSA-E 60950, Argentine UL, NOM
Fan Noise 22dBA
ENVIRONMENTAL
Operating Temperature 32 - 104 degrees F (0 - 40 degrees C)
Operating Humidity
Operating Altitude 0 to 8000 feet (0-2438m)
emperature 14 - 122 degrees F (-10 - 50 degrees C)
Storage T
Storage Humidity 10 - 90%
Storage Altitude 0 to 9510 feet (0-2900m)
WARRANTY
1 Year Parts & Labor/1 year plasma module
IN THE BOX
AC Power Cord, User Manual, Remote Control, Batteries, Cable Clamps
ACCESSORIES
Order Code Description
4250WMK Fixed/Tilt wall mount for 42" and 50" models
61WMK Fixed/Tilt Wall mount for 60" model
PX-ST3U Tabletop Stand for 42" and 50" models
PX-61ST1U
CMK Ceiling Mount Kit for 42" and 50" models
FWMKPC
TWMKPC
CMKPC Ceiling mount that accommodates 3rd party slim line PC (42" and 50" models only)
PX-42SP3U Attachable Speakers for 42" model
PX-50SP3U Attachable Speakers for 50" model
PX-60SP3U Attachable Speakers for 60" model
PX-CV2U
PX-PL1U Stand Plug
61CMK-1
X-50M6A 50"
P
X-60XM5A 60"
P
2XM5
4
0XM6
5
60XM5 51.9 x 29.2 in, 1319 X 742 mm
2XM5
4
0XM6/60XM5WXGA 1365 x 768
5
42XM5 .900/.671 mm
50XM6 .81 mm square
0XM5
6
Vertical:
RGB 1 (analog) 15-pin mini D-sub (common use with RGB out, selectable)
RGB 2 (analog) 5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr input, selectable)
RGB 3 (digital) 24-pin DVI-D HDCP (EIA/CEA-861-A) compatible
Video 1 Composite BNC x 1 (common use with Video out, selectable)
Video 2 C
Video 3 S-Video 4-Pin DIN
H
ideo 1 1
D V
H
ideo 2 1
D V
Audio 3 sets RCA stereo + external speaker jacks
50XM6 48.1 x 29.0 x 3.9 in, 1222 x 736 x 99mm
60XM5 57.9 x 34.7 x 4.8 in, 1470 x 880 x 122mm
42XM5 66.1 lbs., 30.0 kg
50XM6 91.5 lbs., 41.5 kg
60XM5 135.6 lbs., 61.5 kg
20 - 80%
abletop Stand for 60" model
T
Fixed wall mount that accommodates 3r
Tilt wall mount that accommodates 3rd party slim line PC (42" and 50" models only)
Input Terminal Cover
Ceiling Mount Kit for 60" models.
6.3 x 20.3 in, 922 x 515 mm
3
3.5 x 24.4 in, 1104 X 621 mm
4
GA 1024 x 768
X
97 mm square
.
42XM5: 50 to120 Hz auto, step scan
50XM6/60XM5: 51 to120 Hz auto, step scan
omposite RCA x 2
set RCA Component (Y
set BNC Component (Y,Pb,Pr/Y,Cb,Cr)
(
common use with 5BNC Y/Pb/Pr input, selectable)
,Pb,Pr/Y,
Cb,Cr)
ty slim line PC (42" and 50" models only)
d par
NEC 120615
