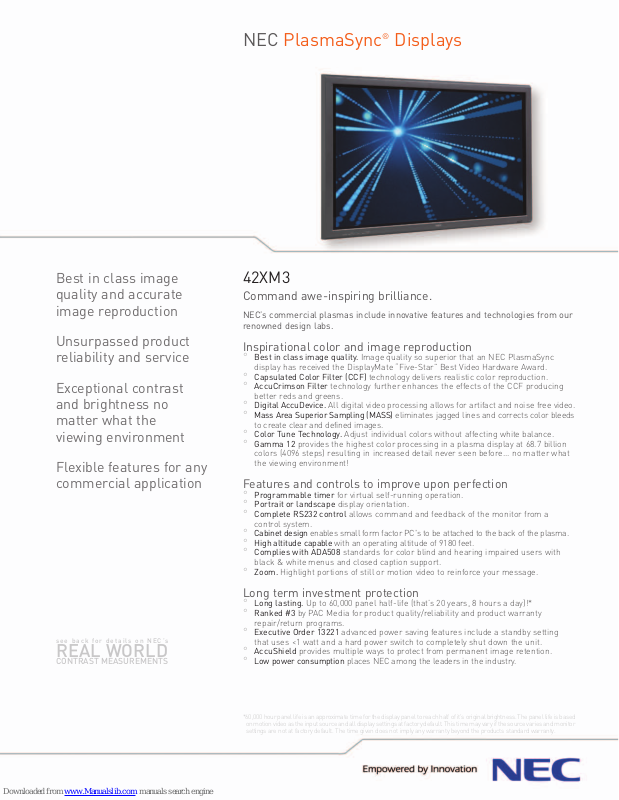

NEC PlasmaSync®Displays
Best in class image
quality and accurate
image reproduction
Unsurpassed product
reliability and service
Exceptional contrast
and brightness no
matter what the
viewing environment
Flexible features for any
commercial application
42XM3
Command awe-inspiring brilliance.
NEC’s commercial plasmas include innovative features and technologies from our
renowned design labs.
Inspirational color and image reproduction
° Best in class image quality. Image quality so superior that an NEC PlasmaSync
display has received the DisplayMate “Five-Star” Best Video Hardware Award.
° Capsulated Color Filter (CCF) technology delivers realistic color reproduction.
° AccuCrimson Filter technology further enhances the effects of the CCF producing
better reds and greens.
° Digital AccuDevice. All digital video processing allows for artifact and noise free video.
° Mass Area Superior Sampling (MASS) eliminates jagged lines and corrects color bleeds
to create clear and defined images.
° Color Tune Technology. Adjust individual colors without affecting white balance.
° Gamma 12 provides the highest color processing in a plasma display at 68.7 billion
colors (4096 steps) resulting in increased detail never seen before... no matter what
the viewing environment!
Features and controls to improve upon perfection
ogrammable timerfor virtual self-running operation.
° Pr
° Portrait or landscape display orientation.
° Complete RS232 control allows command and feedback of the monitor from a
control system.
° Cabinet design enables small form factor PC's to be attached to the back of the plasma.
° High altitude c
° Complies with ADA508 standards for color blind and hearing impaired users with
black & white menus and closed caption support.
° Zoom. Highlight portions of still or motion video to reinforce your message.
apabl
e
with an oper
ating altitude of 9180 f
eet.
see back for details on NEC’s
REAL WORLD
CONTRAST MEASUREMENTS
Long term investment protection
° Long lasting. Up to 60,000 panel half-life (that’s 20 years, 8 hours a day)!*
° Rank
° Ex
ed #3
repair/return programs.
that uses <1 watt and a har
ecutiv
e Or
C Media f
A
by P
der 13221
adv
oduct quality/r
or pr
ed po
anc
er swit
w
d po
eliability and pr
er saving f
w
eatures include a standby setting
ch to completely shut down the unit.
oduct warr
° AccuShield provides multiple ways to protect from permanent image retention.
w power consumption
° Lo
*60,000 hour panel life is an approximate time for the display panel to reach half of it's original brightness. The panel life is based
on motion video as the input source and all display settings at factory default. This time may vary if the source varies and monitor
settings are not at factory default. The time given does not imply any warranty beyond the products standard warranty.
es NEC among the leaders in the industry.
plac
anty
Page 2

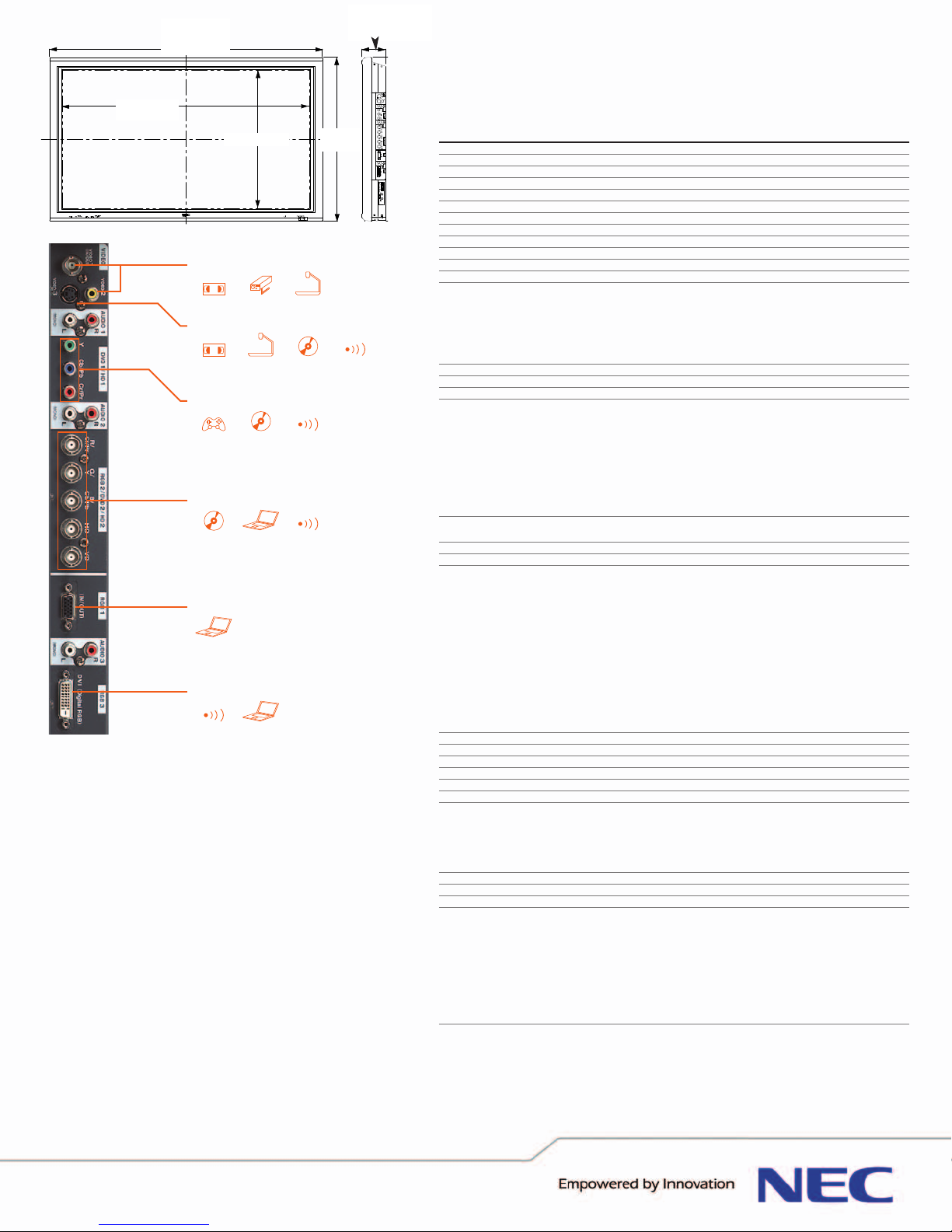

40.1” (1018mm)
36.3” (921mm)
3.5” (89mm)
NEC PlasmaSync®Displays
42XM3
document
c
amera
cable
24.0”
(610mm)
sat
cable
ellite/
20.4” (518mm)
omposite
c
video
°
VCR security
camera
S-Video
°
VCR DVD
document
c
amera
component
°
game
system
DVD satellite/
RGBHV/
component
°
e/
ellit
D
VD
sat
PC
c
able
15 pin
D-Sub
°
PC
DVI-D
°
satellite/
able
c
PC
Contrast measurements for the real world.
To date, the plasma display market has not followed a consistent standard to
determine contrast ratio with most measurements taken in unrealistically dark
viewing conditions.
NEC takes pride in its contrast measurements, which reflect true-to-life viewing
conditions typically found in environments that would incorporate a plasma display,
such as an office, school, airport, shopping mall or home. By providing plasma
displays that are optimized for “real world” conditions, users are assured more
accurate image depth and detail that is real and not washed out.
NEC is setting the s
is validated by the PlasmaSync 61XM2’s Five-Star DisplayMate Best Video Hardware
Award. According to Dr. Raymond Soneira, President of DisplayMate Technologies,
“The NEC 61XM2 Plasma monitor delivered impressive image and picture quality for
both computer and video applications. Performance in both the laboratory tests and
viewing tests was outstanding. The colors were bright, saturated and an excellent
match to our professional studio reference monitor.”
d for high contrast in real world applications. This standard
andar
t
Service and Support
The PlasmaSync 42XM3 is supported by NEC’s industry leading service and
support pr
an extended warranty option that provides two additional years of coverage and is
available from your authorized NEC Visual Systems Division dealer.
ams. It comes with a standard 1-year manufacturer’s warranty plus
ogr
For more information, call 1.800.NEC.INFO
or visit www.necvisualsystems.com
egistered trademark of NEC Corporation.
NEC is a r
All other trademarks are the property of their respective owners.
All specifications subject to change without notice.
NEC Solutions (America), Inc.
Visual Sys
1250 Arlington Heights Rd., Suite 400
Itasca, IL 60143-1248
ems Division
t
Specifications
Model Number
Scr
een Aspect Ratio 16 to 9
Active Scr
een Area 36.3" x 20.4", 921 mm x 518 mm
Native Pixel Resolution 1024 x 768
Pixel Pitch 0.897 mm x 0.675 mm
Capsulated Color Filter Yes
Accucrimson Yes
Front Filter Type AR - Anti-reflective
Color Processing 68.7 billion colors (4096 steps)
V
iewing Angle 160 degrees
Horizontal Fr
equency Range 15.5 to 110.0 kHz auto, step scan
V
ertical Frequency Range 50 to120 Hz auto, step scan
PC Signal Compatibility
Macintosh Compatibility 640x480, 832x624, 1024x768, 1152x870
Video Signal Compatibility PAL, SECAM, 3.58/4.43 NTSC
HD Video Signal Compatibility 480p 480i, 525p, 525i, 540p, 625p, 625i, 720p,1035i, 1080i
Input Terminals RGB 1 (analog) 15-pin mini D-sub (common use with RGB out, selectable)
Output terminals
Audio Internal amplifier, 8W x 2 output power
External Contr
User Controls Direct Access Power on/off, input selection, volume up/down, OSM access, (Control Lock Switch
Plug & Play
Power Requirements 120V 50/60 Hz
Power Consumption 300W Typical, 5.2 Amp Maximum
Standby Power
Dimensions (WxHxD) 40.1" x 20.4" x 3.5", 1018 x 610 x 89mm (without base)
Weight 65.0 lbs., 29.5 kg (without tabletop stand)
Envir
W
Regulatory FCC Class A, UL1950, CSA950
Included Accessories AC Power Cord, User Manual, Remote Control, Batteries, Cable Clamps
Optional Accessories
ol 9-pin mini D-Sub, RS232
onmental Considerations
ranty
ar
PX-42XM3A, Diagonal Screen Size 42"
VGA 640x480 @ 60,72,75,85,100, 120 Hz
SVGA 800x600 @ 56, 60, 72,75,85,100,120 Hz
XGA 1024x768 @ 60,70,75, 85, 100 Hz
SXGA 1280x1024 @ 60, 75, 85, 100 Hz
UXGA 1600x1200 @ 60, 65, 70, 75, 85 Hz
WideVGA 848x480, 852 x 480 @ 60 Hz
WideXGA 1360 x 765 @60 Hz, 1280 x 768 @ 60Hz
RGB 2 (analog)
RGB 3 (digital)
V
ideo 1 Composite BNC x 1 (common use with Video out, selectable)
V
ideo 2 Composite RCA x 1
V
ideo 3 S-Video 4-Pin DIN
HD Video 1 1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr)
HD V
ideo 2 1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr) (common use with
Audio 3 sets RCA stereo + external speaker jacks
5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr input, selectable)
24-pin DVI-D HDCP (EIA/CEA-861-A) compatible
5BNC Y/Pb/Pr input,selectable)
RGB (analog) 15 PIN mini D-sub (common use with RGB1, selectable)
Video Composite BNC (common use with Video1, selectable)
Remote Control Power on/off, input select, volume, mute, wide, display, off-timer, OSM control,
OSM
DDC1, DDC2B (RGB3 is DDC2B only)
0.80W
Operating T
Operating Humidity 20 - 80%
Operating Altitude 0 - 9180 feet (0 - 2800m)
Storage T
Storage Humidity 10 - 90%
Storage Altitude 0 to 9840 feet (0 - 3000m)
1 Year Parts & Labor Standard
abletop Stand
T
Fixed Wall Mount FWMK
Tilt Wall Mount TWMK
Ceiling Mount
Fixed Wall Mount for PC FWMKPC
Tilt Wall Mount for PC TWMKPC
Ceiling Mount for PC
Attachable Speakers PX-42SP1U
Input Terminal Cover PX-CV2U
Stand Plug
located on input panel)
cursor, pointer, zoom, auto, select
Picture - Contrast, brightness, sharpness, color, tint, color temperature, white balance,
picture mode, noise reduction, gamma, low tone and color tune
Audio - bass, treble, balance and audio input
Image Adjust - aspect ratio mode, vertical position, horizontal position, vertical
height, horizontal width, fine picture, picture adjust, auto picture
Option 1 - OSM on/off, BNC Input, D-sub Input, RGB select, HD select, Input Skip, All Reset
Option 2 - Pwr. Mgmt., Cinema Mode, Long Life Mode, Closed Captioning, DVI Setup
Option 3 - Timer, Pwr. On mode, Control Lock, IR Remote, Loop Out, ID Number, Video
Wall Advanced OSM, Language, Color System, Source Information
e 32 - 104 degrees F (0 - 40 degrees C)
emperatur
emperatur
e
14 - 122 degr
ees F (-10 - 50 degrees C)
PX-ST1U
CMK
CMKPC
PX-PL1U
