PlasmaSync®42XM2, PlasmaSync 50XM3

and PlasmaSync 61XM2

state of

is more than a

mind

clarity

Strong contrast and

brightness performance

Capsulated Color Filter™

AccuCrimson Filter

MASS AccuDevice

Advanced video signal

processing

Advanced AccuBlend™

AccuShield™ Phospher

Protection

achieving absolute

front glass substrate

display electrode

phosphor

grid barrier rib

rear glass substrate

looking within.

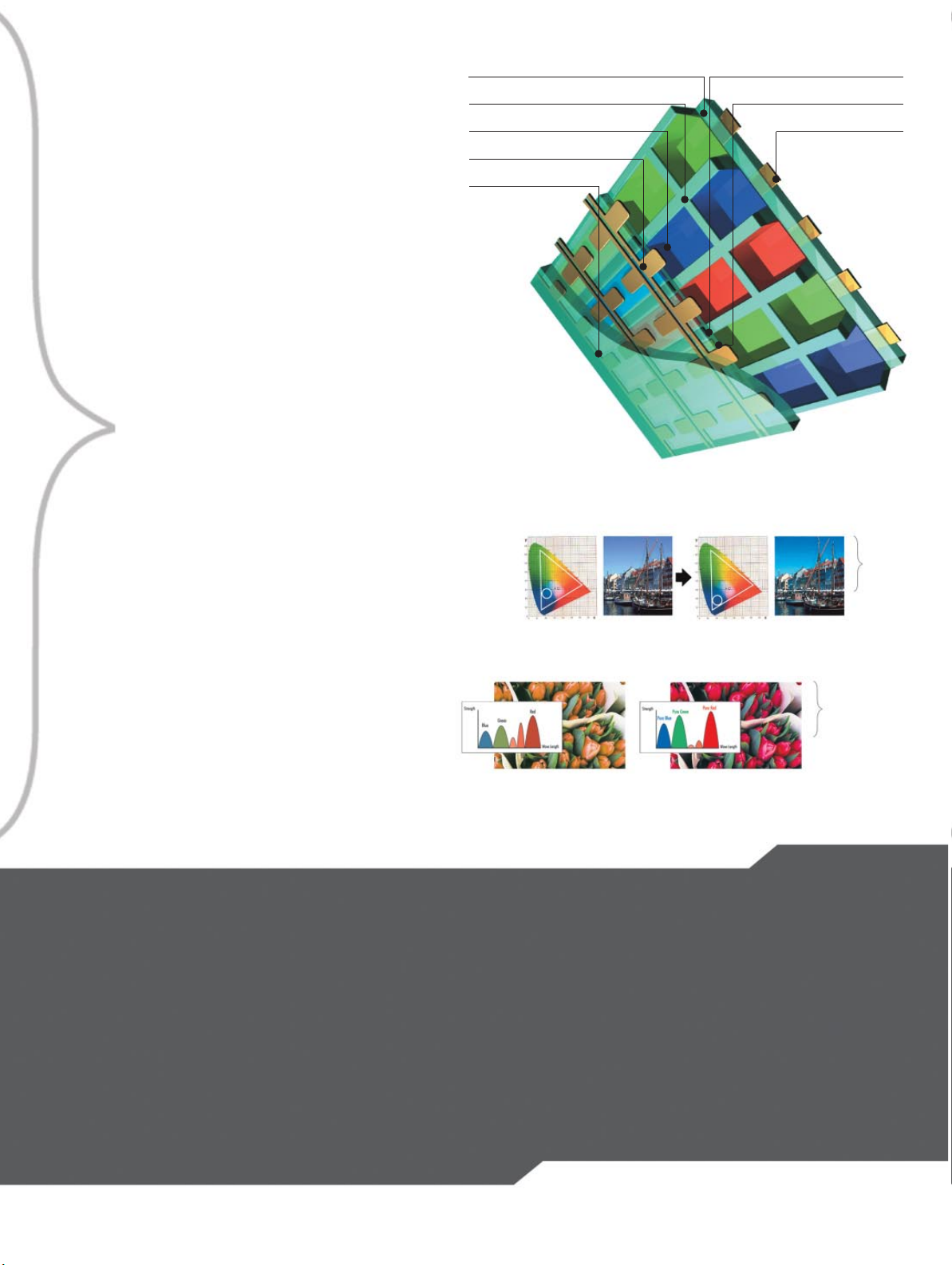

Unique Cell Structure. Deep within the PlasmaSync 42XM2,
50XM3 and 61XM2 there is a unique cell structure. Color is
created by voltage being applied to electrodes above and below
the cells which are coated in red, green or blue phosphors.
The emission of light that is discharged from these cells
increases the luminance but decreases the power
consumption. The results are vivid colors and unimaginable
clarity.

achieving absolute clarity.

NEC’s advanced plasma panel technology produces stunning images in
a Wide XGA native panel resolution of 1365x768 (1024x768 42XM2). Our
exclusive Capsulated Color Filter Technology provides extremely
realistic and saturated colors as well as enhanced contrast. Color
realism is enhanced by AccuCrimson, a filter technology that produces
the purest shade of red possible in a plasma display.

The PlasmaSync XGA models deliver superb image quality
from any source. NEC’s Advanced AccuBlend scan
conversion provides precise interpolation of computer-based
information from VGA to UXGA in both 16:9 and 4:3 aspect
ratios. This enables the monitor to display clear, readable
images even in non-native resolutions. In addition, motion­compensated 3D scan conversion provides smooth, lifelike
display of video sources and a 3-2 pull down converter
enhances the appearance of content originally produced in 24 frame/second film.

Go even further to achieve ultimate color using our Color Tune Technology. It is now possible to adjust
individual colors without affecting the white balance. Fine tune the blues in skies or the greens in the trees.

black stripe

CCF

data electrode

NEC followed the path to perfection in developing

its plasma professional grade monitors. The idea

that your visuals can be displayed anywhere and

at any time is the center of our

technology. You and your audience

will truly experience perfection.

the idea.

Capsulated
Color Filter

AccuCrimson

enlightening your business needs.

While you understand your business and how your ideas need to be perfectly reproduced,
you depend on the experts to bring your presentations to light. Enlightenment means
knowing that the best way to display these ideas is to trust a company that understands
your needs. NEC’s commitment to absolute quality, reproduction and service is
unsurpassed. The PlasmaSync Multimedia monitors offer outstanding picture quality,
high resolution support, computer, video and HDTV source compatibility for conference
room presentations, broadcast production, home theater entertainment and other
multimedia applications.

a smooth path.

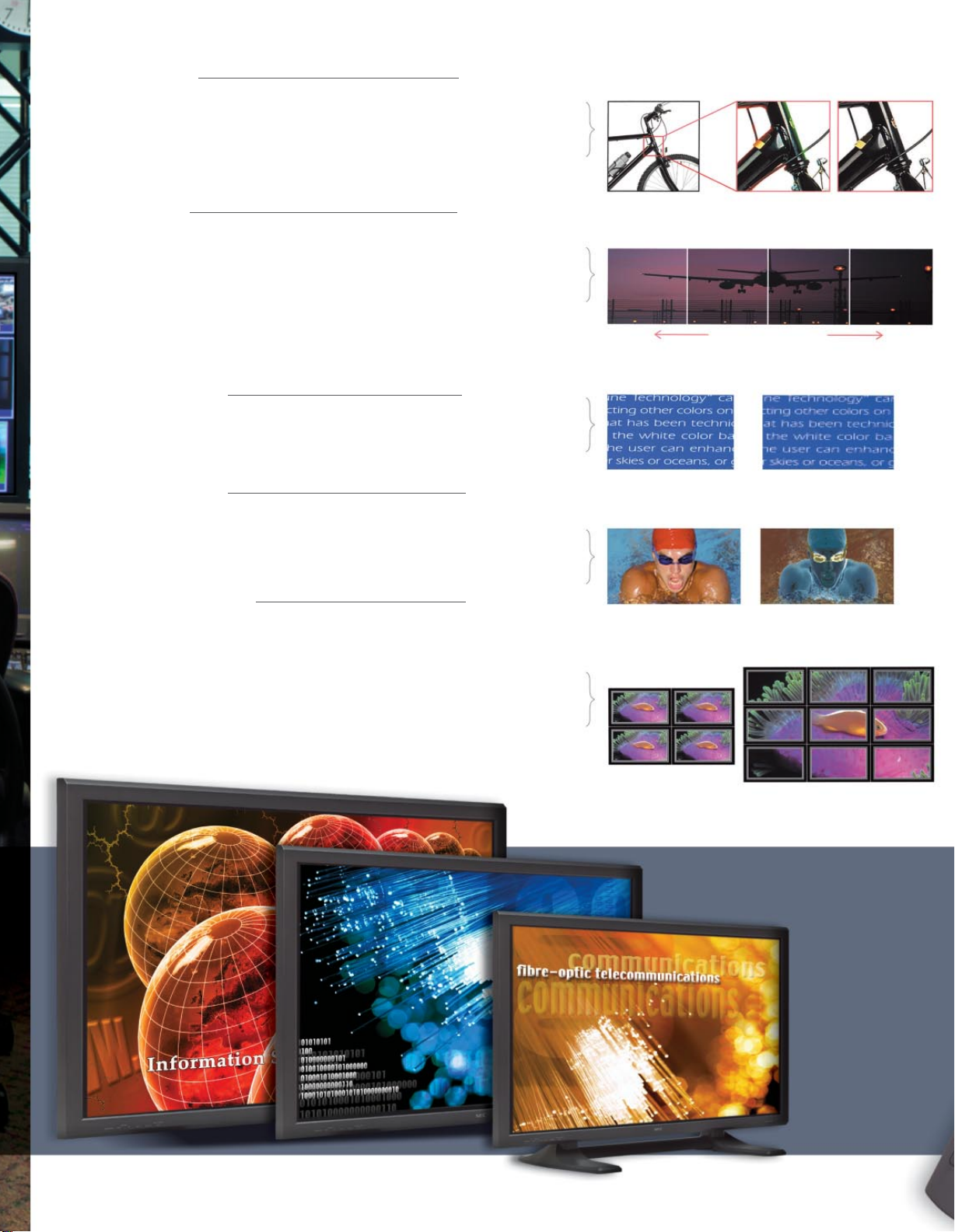

Mass Area Sampling (MASS) delivers high quality images and allows

smooth reproduction for clear, precise color. MASS also eliminates
jagged lines and corrects color bleeds to create clear and defined
images. Finally, proper scaling is selected for the input signal
resolution resulting in the most accurate image reproduction possible.

a fine balance.

Control even the darkest of images using the Gamma-12 feature. With
over 4,000 shades of gray you can manage the picture’s brightness and
enhance the image’s overall quality.

Color Temperature controls the tone of the whites in the image. Four
preset modes are available which select a specific color temperature.
If finer adjustments are needed simply switch into the professional
mode for more advanced tuning.

convert your image.

The new Scan Converter changes input signals in accordance with the
resolution of the display. This makes a dramatic difference resulting in
even the smallest of characters being perfectly legible.

shielding to protect.

With AccuShield your screen stays protected from image retention with the
most comprehensive set of built-in modes including programmable
Orbiter, Inverse RGB, All-White, Pixel Refresh, Brightness Limiter and Soft
Focus.

advanced configuration.

NEC has built in many professional grade functions such as the
Advanced Timer that can carry out various operations at designated
times. Operations include powering on/off, input selection and
activating long life modes. These features enable the monitor to
virtually operate itself.

Built in image matrixing is possible in two configurations resulting in
a 2x2 or 3x3 video wall. Internal processing allows the video to be split
into quadrants eliminating the need for external matrix equipment.

AccuShield

Phospher

Protection

2x2 or 3x3

monitor

configurations

MASS

Mass Area

Superior

Sampling

selectable

gamma

settings

PlasmaSync 61XM2 PlasmaSync 50XM3 PlasmaSync 42XM2

scan

converter

original normal MASS

brighter

with scan conversion without scan conversion

AccuShield enhanced with pixel refresh mode

details of a dark scene darker

Our advanced

menu system

allows for precise

color and image

matching for a

consistent image.

making your connection.

Connect to multiple sources from video to HD to RGB. Signal loop-out
capability allows a source to easily be looped from one monitor to the next
allowing you to connect 4 displays without the use of an external DA*.

zoom in.

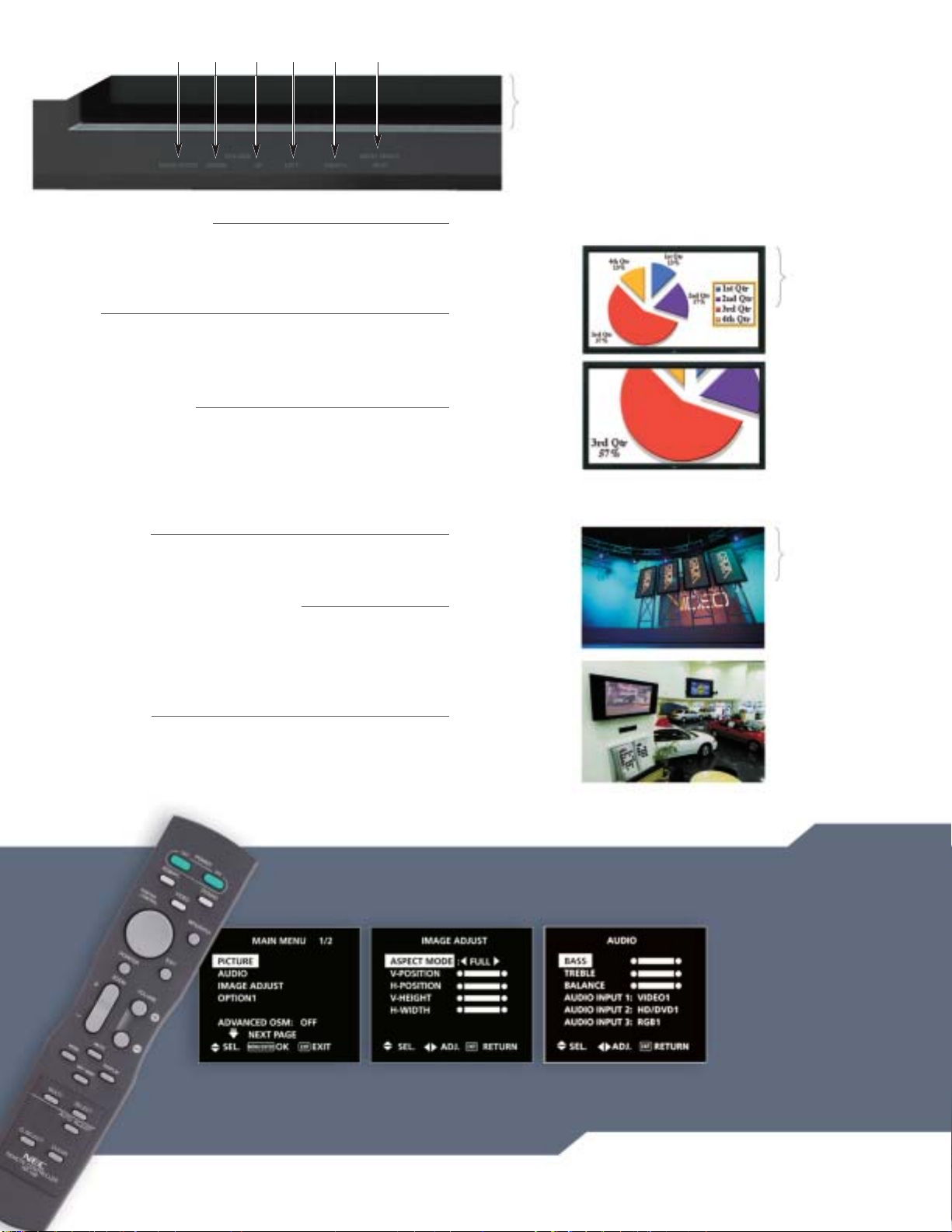

Digital Zoom allows you to select any portion of the screen and magnify it to

emphasize a point or highlight information. Zoom in up to 300% with push
button ease from the remote control to make your point!

convenient and sleek.

With a new cabinet design we have minimized the bezel size to make sure that
the focus is on the image and not the frame around the image.

The new cabinet design also allows for a small form PC to be attached solving
the problem of source equipment location.

quiet operation.

Engineered with silence as a priority these units produce a noise level of only
22dB, these XGA models perform quietly in any environment.

external control and self diagnostics.

A complete set of RS232 commands allow monitor functions to be operated
remotely via serial communications. In addition, operating problems can be
identified and communicated via RS232 or front bezel LED lights through its self
diagnostics system.

suite your style.

Depending on your needs, you can display in either portrait or landscape
orientation.

portrait and
landscape
monitor
positioning

Position the
cursor
anywhere on
the screen and
magnify it up
to 3 times in
64 steps for
smooth
transitions

menu
enter

volume

down/
cursor

down

volume

up/

cursor

up

cursor

left

cursor

right

input

select

All monitor
functions are
controlled
either from the
remote or front
bezel.

*Signal DA is required for sending a signal to more than 4 monitors simultaneously.

PlasmaSync 42XM2, PlasmaSync 50XM3

and PlasmaSync 61XM2

NEC 080320

For more information, call (800) NEC-INFO
or visit www.necvisualsystems.com

NEC is a registered trademark of NEC Corporation.
All other trademarks are the property of their respective owners.
All specifications subject to change without notice.

NEC Solutions (America), Inc.
Visual Systems Division
1250 Arlington Heights Rd., Suite 500
Itasca, IL 60143-1248

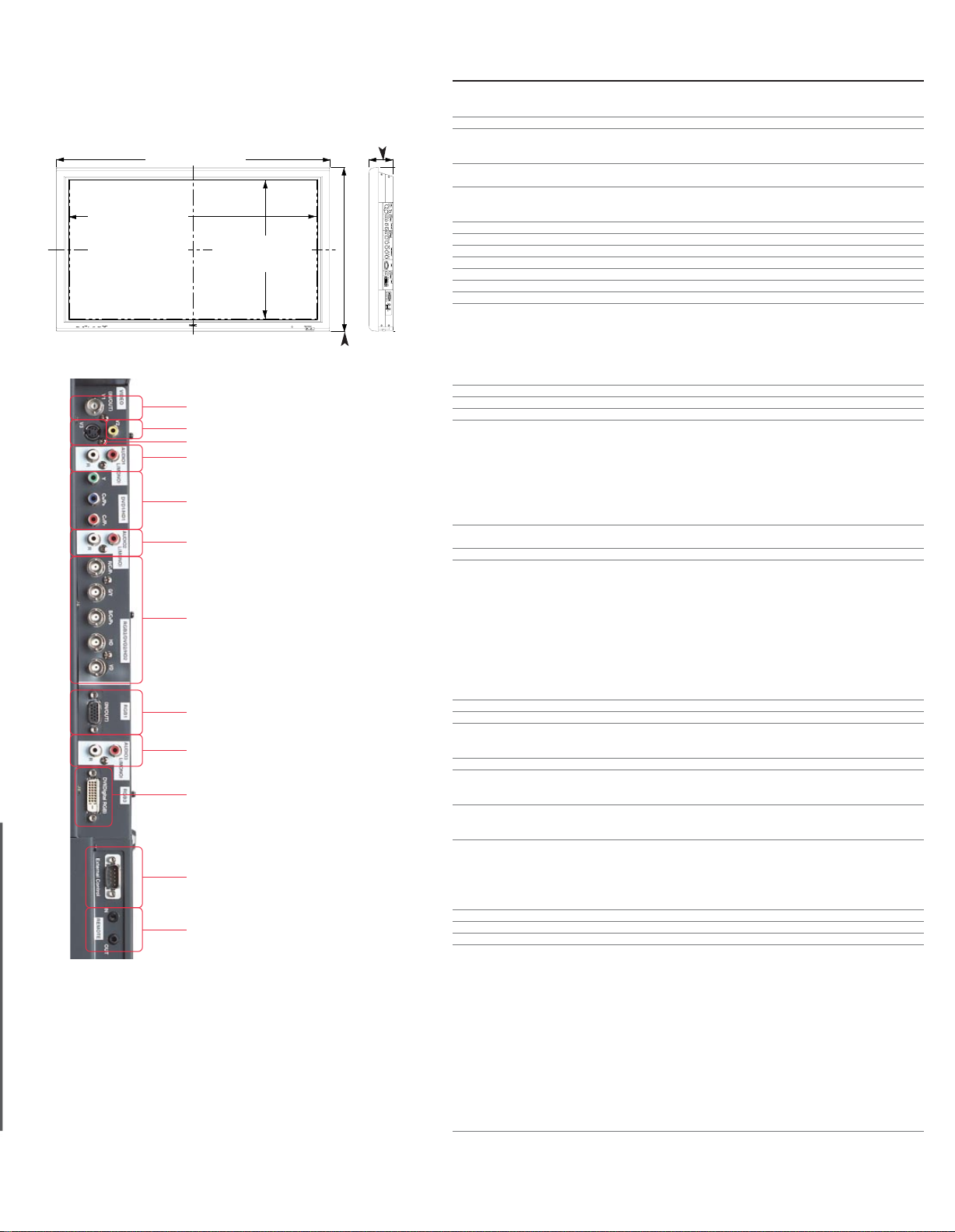

Specifications

Model Number PX-61XM2A Diagonal Screen Size 61"

PX-50XM3A Diagonal Screen Size 50”

PX-42XM2A Diagonal Screen Size 42"
Screen Aspect Ratio 16 to 9
Active Screen Area 61XM2 53.2 in x 29.9 in1351 mm x 760 mm

50XM3 43.5 in x 24.5 in, 1106 mm x 622 mm

42XM2 36.3 in x 20.4 in, 921mm x 518 mm
Native Pixel Resolution 61XM2/50XM3 1365 x 768

42XM2 1024 x 768
Pixel Pitch 61XM2 0.99mm x 0.99mm

50XM3 0.81mm x 0.81mm

42XM2 0.897mm x 0.675mm
Capsulated Color Filter Yes
Accucrimson Yes
Front Filter Type AR - Anti reflection
Color Processing (4096 steps) 68.7 billion colors
Viewing Angle 160 degrees
Horizontal Frequency Range 15.5 to 110.0 kHz auto, step scan
Vertical Frequency Range 50 to120 Hz auto, step scan
PC Signal Compatibility VGA 640x480 @ 60,72,75,85,100, 120 Hz

SVGA 800x600 @ 56, 60, 72,75,85,100,120 Hz

XGA 1024x768 @ 60,70,75, 85, 100 Hz

SXGA 1280x1024 @ 60, 75, 85, 100 Hz

UXGA 1600x1200 @ 60, 65, 70, 75, 85 Hz

WideVGA 848x480, 852 x 480 @ 60 Hz

WideXGA 1360 x 765 @60 Hz, 1280 x 768 @ 60Hz
Macintosh Compatibility 640x480, 832x624, 1024x768, 1152x870
Video Signal Compatibility PAL, SECAM, 3.58/4.43 NTSC
HD Video Signal Compatibility 480p 480i, 525p, 525i, 540p, 625p, 625i, 720p,1035i, 1080i
Input Terminals RGB 1 (analog) 15-pin mini D-sub (common use with RGB out, selectable)

RGB 2 (analog) 5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr input, selectable)

RGB 3 (digital) 25-pin DVI (digital only)

Video 1 Composite BNC x 1 (common use with Video out, selectable)

Video 2 Composite RCA x 1

Video 3 S-Video 4-Pin DIN

HD Video 1 1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr)

HD Video 2 1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr) (common use with

5BNC Y/Pb/Pr input,selectable)

Audio 61XM2/50XM3 Internal amplifier, 9W x 2 output power

42XM2 Internal amplifier, 8W x 2 output power
External Control 9-pin mini D-Sub, RS232
User Controls Direct Access Power on/off, input selection, volume up/down, OSM access

Remote Control Power on/off, input select, volume, mute, wide, display, off-timer, OSM

control, cursor, pointer, zoom, auto, select

OSM Picture - Contrast, brightness, sharpness, color, tint, color temperature, white

balance, picture mode, noise reduction, gamma, low tone and color tune
Audio - bass, treble, balance and audio input
Image Adjust - aspect ratio mode, vertical position, horizontal position,

vertical height, horizontal width, fine picture, picture adjust, auto picture
Option 1 OSM on/off, BNC Input, D-sub Input, RGB select, HD select, Input Skip, All Reset
Option 2 Pwr. Management, Cinema Mode, Long Life Mode, Gray Level
Option 3 Timer, Pwr. On mode, Control Lock, IR Remote, Loop Out, ID Number Video Wall

Advanced OSM, Language, Color System, Source Information

Plug & Play DDC1, DDC2B (RGB3 is DDC2B only)
Power Requirements 120V 50/60 Hz
Power Consumption 61XM2 540W Typical, 6.7 Amp Maximum

50XM3 480W Typical, 6.4 Amp Maximum
42XM2 350W Typical, 4.6 Amp Maximum

Standby Power 0.9W
Dimensions (WxHxD) 61XM2 1470 x 880 x 119 mm, 57.9 x 34.6 x 4.7 inches
without base 50XM3 1222 x 736 x 96mm, 48.1 x 29.0 x 3.8 inches

42XM2 1018 x 610 x 89mm, 40.1 x 24.0 x 3.5 inches

Weight 61XM2 61.0 kg, 134.2 lbs. (without tabletop stand)

50XM3 43.8 kg, 96.4 lbs. (without tabletop stand)
42XM2 29.5 kg, 65.0 lbs. (without tabletop stand)

Environmental Considerations Operating Temperature 32 - 104 degrees F (0 - 40 degrees C)

Operating Humidity 20 - 80%
Operating Altitude 0 - 9180 feet (0 - 2800m)
Storage Temperature 14 - 122 degrees F (-10 - 50 degrees C)
Storage Humidity 10 - 90%
Storage Altitude 0 to 9840 feet (0 - 3000m)

Warranty 1 Year Parts & Labor Standard
Regulatory FCC Class A, UL1950, CSA950
Included Accessories AC Power Cord, User Manual, Remote Control, Batteries, Cable Clamps
Optional Accessories 61” Tabletop Stand PX-61ST1U

61” Attachable Speakers PX-61SP1U
61” Fixed Wall Mount 61FWMK
61” Tilt Wall Mount 61TWMK
61” Ceiling Mount 61CMK
50” and 42” Tabletop Stand PX-ST1U
50” Attachable Speakers PX-50SP1U
50” and 42” Fixed Wall Mount FWMK
50” and 42” Tilt Wall Mount TWMK
50” and 42” Ceiling Mount CMK
50” and 42” Fixed Wall Mount for PC FWMKPC
50” and 42” Tilt Wall Mount for PC TWMKPC
50” and 42” Ceiling Mount for PC CMKPC
42” Attachable Speakers PX-42SP1U
Input Terminal Cover PX-CV1U
42” Stand Plug PX-PL1U

Service and Support

The PlasmaSync series is supported by NEC’s industry leading service and support
programs. It comes with a standard 1-year manufacturer’s warranty plus an
extended warranty option that provides two additional years of coverage and
is available from your authorized NEC Visual Systems Division dealer.

Video 1 / Video Out

Audio 1

RGB2 / DVD2 / HD2 Input

RGB1 / RGB Out

DVI

Audio 3

Video 2
Video 3

DVD1 / HD1

Audio 2

External Control

Remote In / Out

42XM2 36.3” (921mm)
50XM3 43.5” (1106mm)
61XM2 53.2” (1351mm)

42XM2 20.4” (518mm)
50XM3 24.5” (622mm)
61XM2 29.9” (760mm)

42XM2 24.0” (610mm)
50XM3 29.0” (736mm)
61XM2 34.6” (880mm)

42XM2 3.5” (89mm)
50XM3 3.8” (96mm)
61XM2 4.7” (119mm)

42XM2 40.1” (1018mm)
50XM3 48.1” (1222mm)
61XM2 57.9” (1470mm)
