1. OUTLINE
1.1 STRUCTURE AND PRINCIPLE
Color LCD module NL8060BC31-47D is composed of the amorphous silicon thin film transistor
liquid crystal display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film
Transistor) array and a backlight.
The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the
TFT array glass substrate and a color-filter glass substrate.
Color (Red, Green, Blue) data signals from a host system (e.g. signal generator, etc.) are modulated
into best form for active matrix system by a signal processing board, and sent to the driver LSIs which
drive the individual TFT arrays.
The TFT array as an electro-optical switch regulates the amount of transmitted light from the
backlight assembly, when it is controlled by data signals. Color images are created by regulating the
amount of transmitted light through the TFT array of red, green and blue dots.
www.panelook.com
NL8060BC31-47D
1.2 APPLICATION
x For industrial use
1.3 FEATURES
x Long life LED backlight type
x High luminance
x High contrast
x Wide viewing angle
x Wide temperature range
x LVDS interface
x Reversible-scan direction
x Selectable 8bit or 6bit digital signals for data of RGB
x Replaceable lamp holder for backlight
x Compliance with the European RoHS directive (2002/95/EC)
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4
www.panelook.com
Page 5
Global LCD Panel Exchange Center
2. GENERAL SPECIFICATIONS
www.panelook.com
NL8060BC31-47D
Display area
Diagonal size of display
Drive system
Display color
Pixel
Pixel arrangement
Dot pitch
Pixel pitch
Module size
Weight
Contrast ratio
Viewing angle
Designed viewing direction
246.0 (H) u 184.5 (V) mm
31cm (12.1 inches)
a-Si TFT active matrix
16,777,216 colors (At 8-bit input, FRC terminal= High)
262,144 colors (At 6-bit input, FRC terminal= Low or Open)
800 (H) u 600 (V) pixels
RGB (Red dot, Green dot, Blue dot) vertical stripe
0.1025 (H) u 0.3075 (V) mm
0.3075 (H) u 0.3075 (V) mm
280.0 (W) u 210.0 (H) u 9.1 (D) mm (typ.)
580 g (typ.)
900:1 (typ.)
t
At the contrast ratio
x Horizontal: Right side 80q (typ.), Left side 80q (typ.)
x Vertical: Up side 80q (typ.), Down side 80q (typ.)
At DPS= Low or Open: Normal scan
x Viewing direction without image reversal: Up side (12 o'clock)
x Viewing direction with contrast peak: Down side (6 o'clock)
x Viewing angle with optimum grayscale (Jล 2.2): Normal axis
10:1
(perpendicular)
Polarizer surface
Polarizer pencil-hardness
Color gamut
Response time
Luminance
Signal system
Power supply voltage
Backlight
Power consumption
Antiglare
3H (min.) [by JIS K5400]
At LCD panel center
40% (typ.) [against NTSC color space]
Ton+Toff (10%
18 ms (typ.)
At IL= 50mA/One circuit
450 cd/m
LVDS 1port
(Receiver: THC63LVDF84B, THine Electronics Inc. or equivalent)
[8bit/6bit digital signals for data of RGB colors, Dot clock (CLK),
Data enable (DE)]
LCD panel signal processing board: 3.3V
LED backlight type:
Replaceable part
x Lamp holder set: Type No. 121LHS29
Recommended LED Driver board (Option)
x LED driver board :Type No. 121PW02F
At IL=50mA/One circuit, Checkered flag pattern
4.9 W (typ.)
mo
2
(typ.)
90%)
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5
www.panelook.com
Page 6
Global LCD Panel Exchange Center

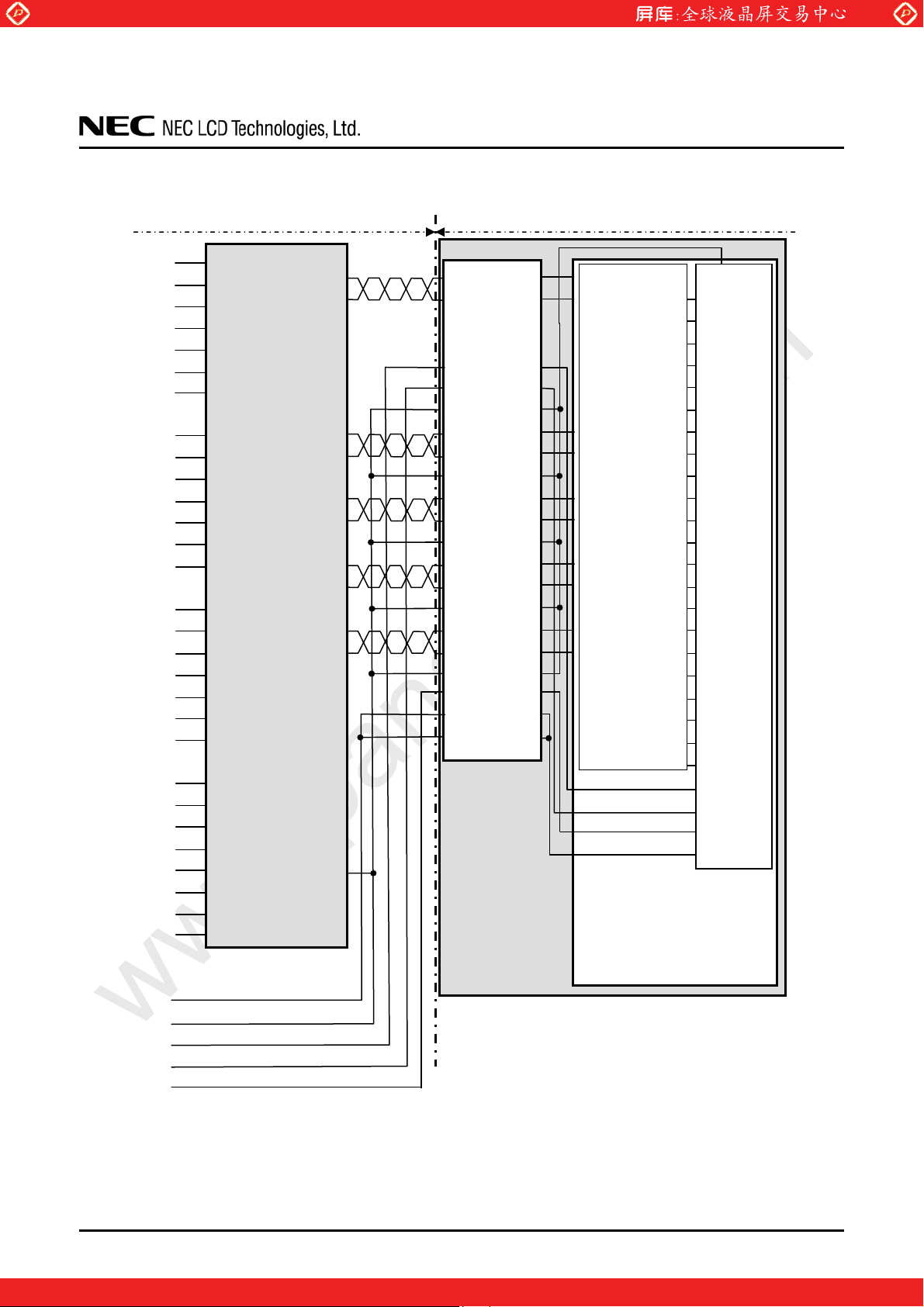

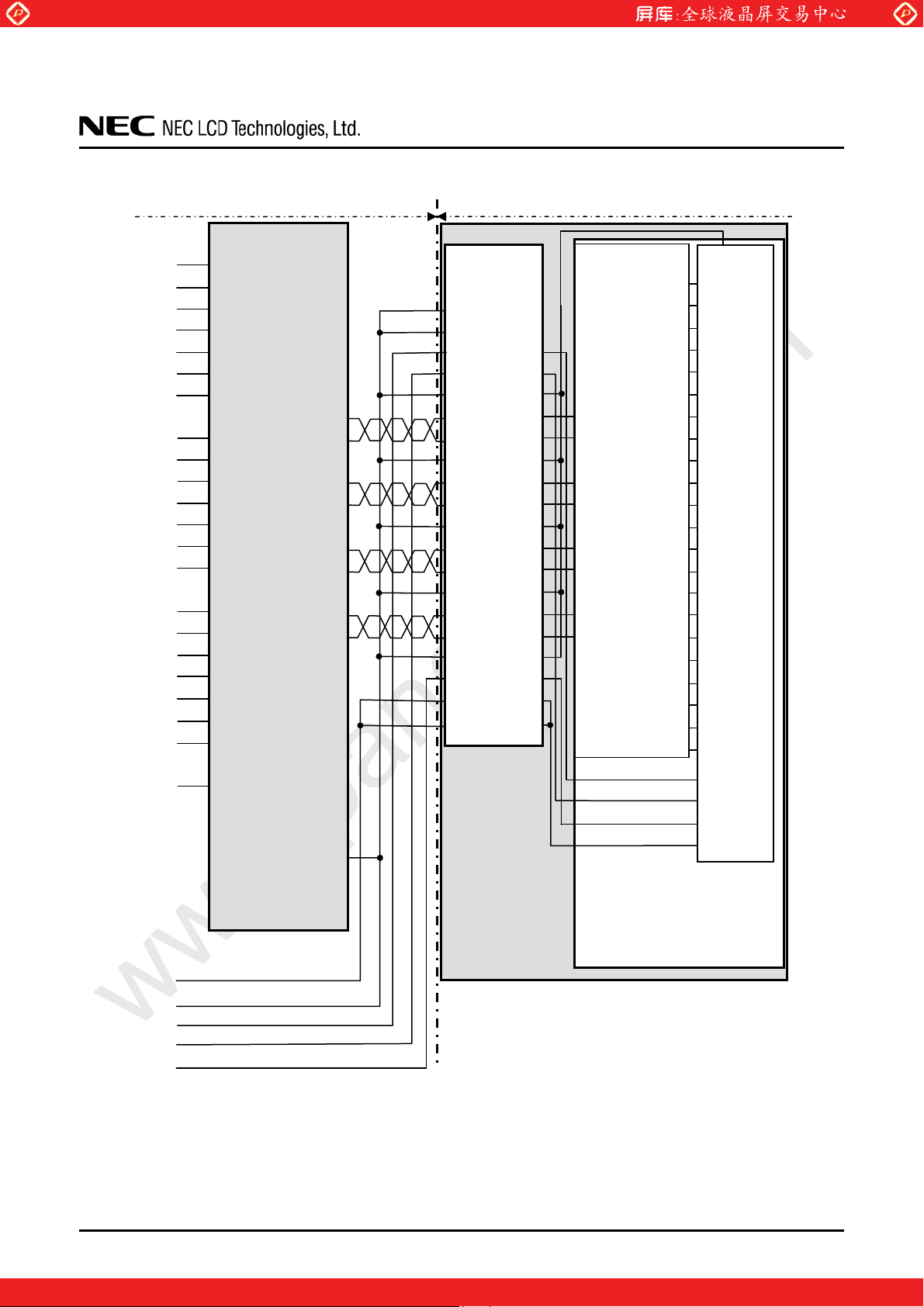

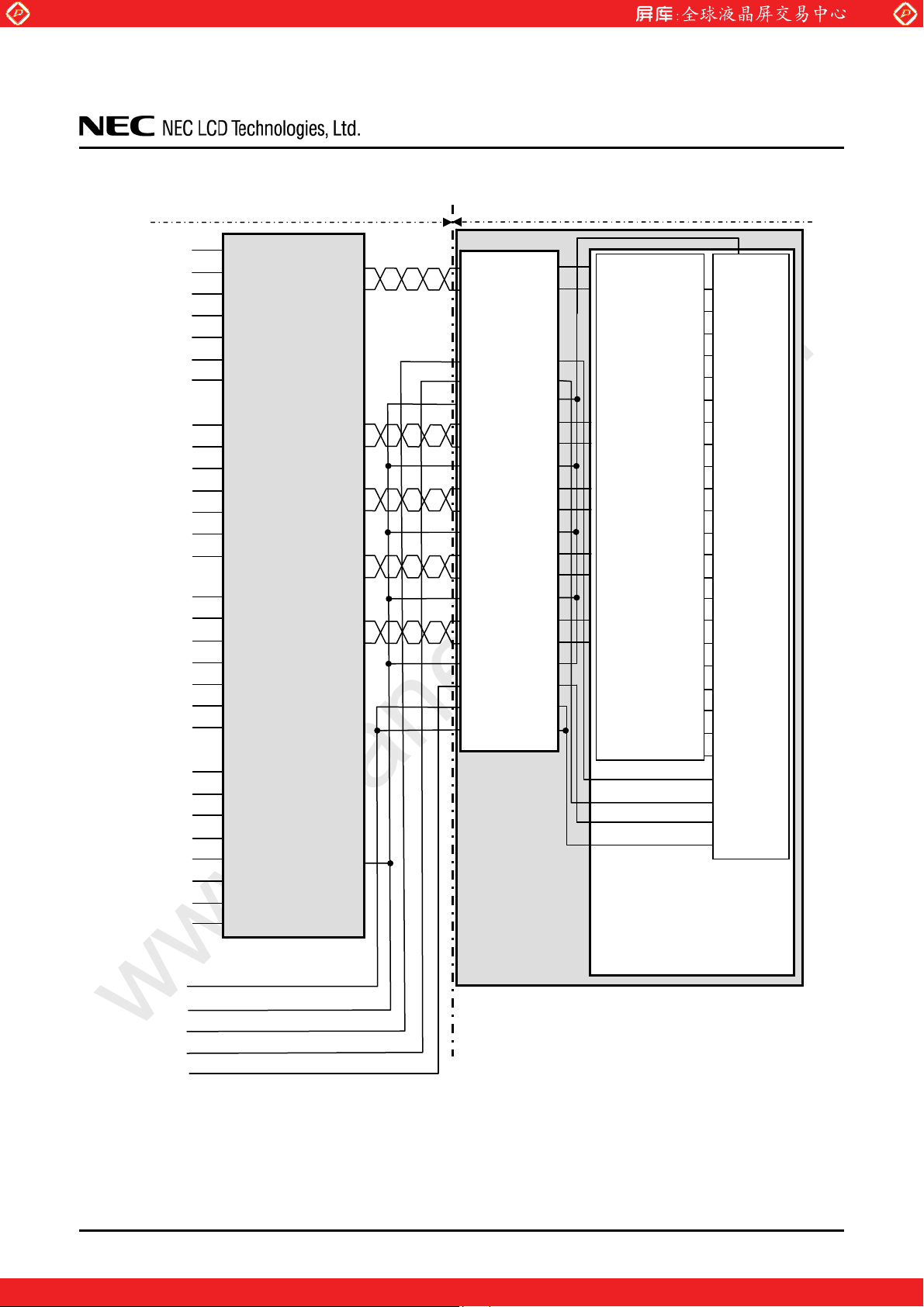

3. BLOCK DIAGRAM
www.panelook.com
NL8060BC31-47D
Host
D0+
D0D1+
D1D2+
D2D3+
D3CLK+
CLK-
LCD module (Product)
100:
100:
100:
100:
Controller with receiver for LVDS
100:
V-driver
H-driver
2,400 lines
LCD panel
H: 800 × 3 (R, G, B)
V: 600
600 lines
MSL
DPS
FRC
GND
50k:
50k:
47k:
Power supply
for gradation
Note1
Note2
VCC
Fuse
DC/DC
converter
LCD panel signal processing board
FG
Note1
Note2
Anode1-3
Cathode1-3
3
3
Backlight Note3
Note1: Relations between GND (Signal ground) and FG (Frame ground) in the LCD module are as
follows.
GND - FG Connected
Note2: GND and FG must be connected to customer equipment’s ground, and it is recommended that
these grounds are connected together in customer equipment.
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
6
www.panelook.com
Page 7
Global LCD Panel Exchange Center
Note3: Backlight in detail
Anode 1
Cathode 1
Anode 2
Cathode 2
Anode 3
www.panelook.com
NL8060BC31-47D
Backlight
Cathode 3
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7
www.panelook.com
Page 8
Global LCD Panel Exchange Center
4. DETAILED SPECIFICATIONS
4.1 MECHANICAL SPECIFICATIONS
Parameter Specification Unit
www.panelook.com
NL8060BC31-47D
Module size
Display area
Weight 580 (typ.), 600 (max.) g
280.0 r 0.5 (W) u 210.0 r 0.5 (H) u9.1 r 0.5 (D)
Note1: See "8. OUTLINE DRAWINGS".
4.2 ABSOLUTE MAXIMUM RATINGS
Parameter Symbol Rating Unit Remarks
Power supply
voltage
Input voltage for
signals
Backlight Forward current IL 70 mA per one circuit
Operating temperature
LCD panel signal processing board VCC -0.3 to +4.0 V
Display signals
Note1
Function signals
Note2
Storage temperature Tst -30 to +80
Front surface TopF -30 to +80
Rear surface TopR -30 to +80
246.0 (H) u 184.5 (V)
VD
VF
-0.3 to VCC+0.3
and
-0.3 to +4.0
d 95
Note1 mm
Note1 mm
V
qC
qC
qC
%
-
-
Note3
Note4
Ta d 40qC
d 85
Relative humidity
Note5
Absolute humidity
Note5
RH
AH
d 55
d 36
d 24
d 70
Note6
Note1: D0+/-, D1+/-, D2+/-, D3+/-, CLK+/Note2: DPS, FRC, MSL
Note3: Measured at LCD panel surface (including self-heat)
Note4: Measured at LCD module's rear shield surface (including self-heat)
Note5: No condensation
Note6: Water amount at Ta= 80°C and RH= 24%
%
%
%
%
g/m
40qC <Tad 50qC
50qC <Tad 60qC
60qC <Tad 70qC
70qC <Tad 80qC
3
-
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8
www.panelook.com
Page 9
Global LCD Panel Exchange Center
4.3 ELECTRICAL CHARACTERISTICS
4.3.1 LCD panel signal processing board
Parameter Symbol min. typ. max. Unit Remarks
Power supply voltage VCC 3.0 3.3 3.6 V -
Power supply current ICC -
Permissible ripple voltage VRP - - 100 mVp-p for VCC
www.panelook.com
380
Note1
550
Note2
NL8060BC31-47D
(Ta = 25qC)
mA at VCC = 3.3V
Differential input
threshold voltage
Terminating resistance RT - 100 -
Input voltage for
DPS, FRC and MSL signals
Input current for
FRC and MSL signals
High VTH - - +100 mV
Low VTL -100 - - mV
High VFH 0.7VCC - VCC V
Low VFL 0 - 0.3VCC V
High IFH - - 300
Low IFL -300 - -
Note1: Checkered flag pattern [by EIAJ ED-2522]
Note2: Pattern for maximum current
Note3: Common mode voltage for LVDS receiver
:
PA
PA
at VCM=1.2V
Note3
-
CMOS level
-
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9
www.panelook.com
Page 10
Global LCD Panel Exchange Center
4.3.2 Backlight
Parameter Symbol min. typ. max. Unit Remarks
Forward current IL - 50.0 55.0 mA -
Forward Voltage VL
Note1: Please drive with constant current.
Note2: The
Luminance uniformity may be changed depending on the current variation between 3 circuits.
It is recommended that the current value difference between each circuit is less than 5%.
www.panelook.com
21.2 24.0 27.2
19.28 - -
- - 29.84
- - 30.56
NL8060BC31-47D
(Ta=25qC, Note1, Note2)
Ta= +25qC
at IL= 50mA
/One circuit
Ta= +80qC
at IL= 50mA
V
/One circuit
Ta= -30qC
at IL= 50mA
/One circuit
Ta= -30qC
at IL= 55mA
/One circuit
4.3.3 Power supply voltage ripple
This product works, even if the ripple voltage levels are beyond the permissible values as following
the table, but there might be noise on the display image.
Power supply voltage
VCC 3.3V
Ripple voltage Note1
(Measure at input terminal of power supply)
d 100
Note1: The permissible ripple voltage includes spike noise.
4.3.4 Fuse
Parameter
Type Supplier
VCC FCC16202AB
Fuse
KAMAYA ELECTRIC
CO., LTD.
Rating Fusing current Remarks
2.0A
32V
4.0A Note1
Note1: The power supply capacity should be more than the fusing current. If it is less than the fusing
current, the fuse may not blow in a short time, and then nasty smell, smoke and so on may
occur.
Unit
mVp-p
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
10
www.panelook.com
Page 11
Global LCD Panel Exchange Center

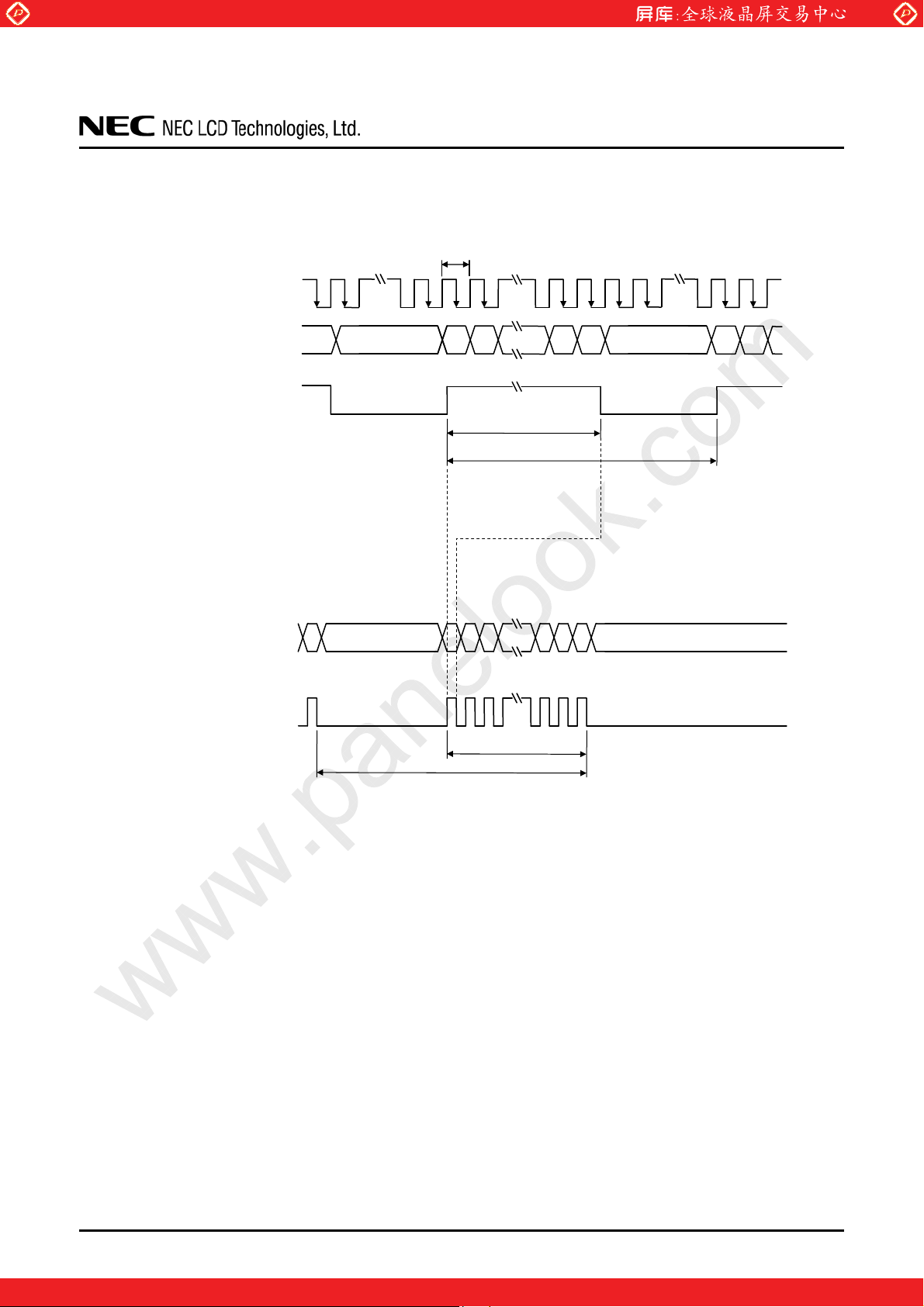

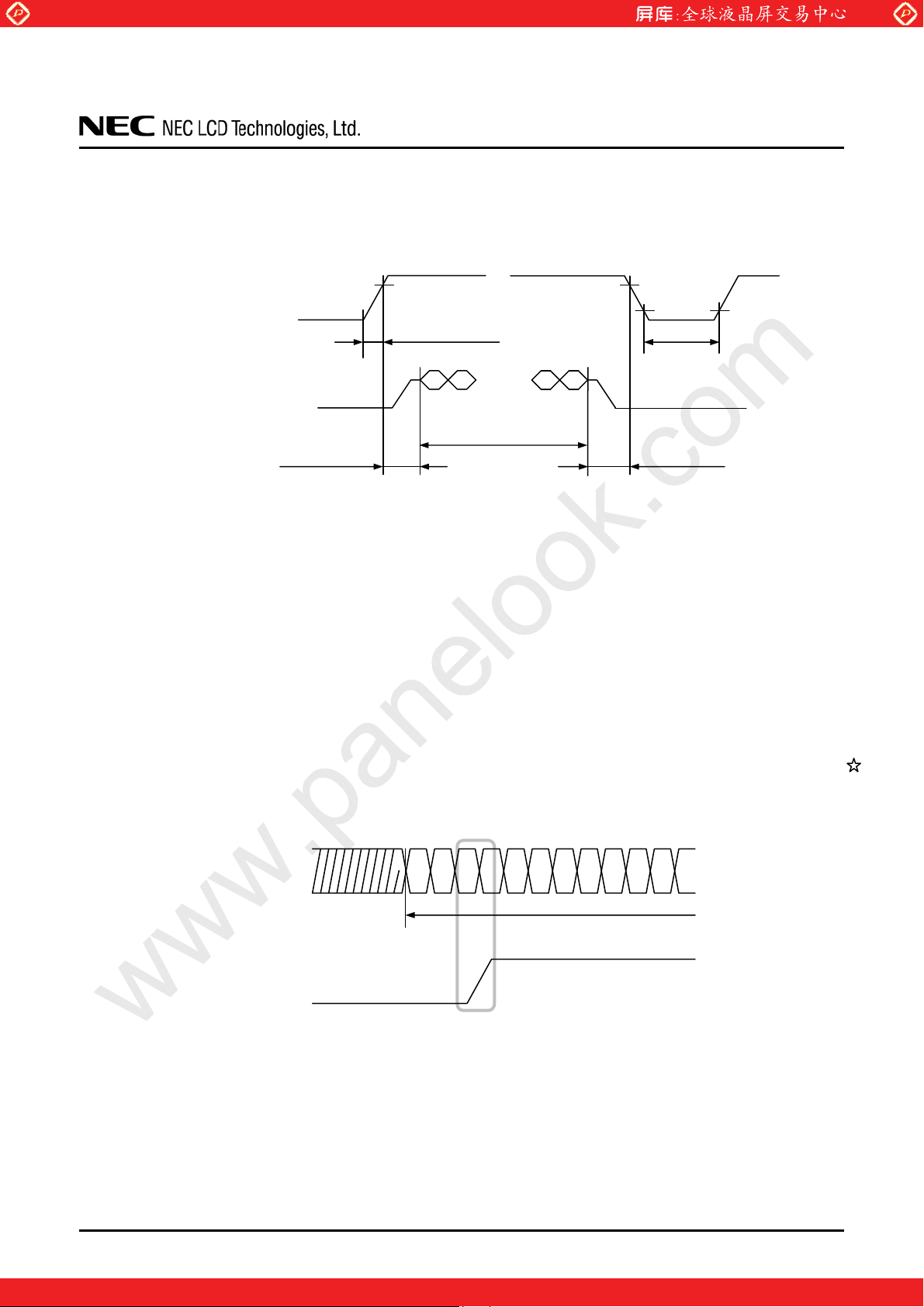

4.4 POWER SUPPLY VOLTAGE SEQUENCE
4.4.1 LCD panel signal processing board
www.panelook.com
NL8060BC31-47D
OFF
Toff t 50ms
ON
0.3V
VCC
Note1
ON
3.0V
0V
10Ps d Tr < 50ms
Display signals*
Function signals
Note2
0V
0ms < t < 35ms
VALID period
0ms < t < 35ms
* These signals should be measured at the terminal of 100: resistance.
Note1: In terms of voltage variation (voltage drop) while VCC rising edge is below 3.0V, a protection
circuit may work, and then this product may not work.
Note2: Display signals (D0+/-, D1+/-, D2+/-, D3+/- and CLK+/-) and function signals (DPS, FRC
and MSL) must be Low or High-impedance, exclude the VALID period (See above sequence
diagram), in order to avoid that internal circuits is damaged.
If some of display and function signals of this product are cut while this product is working,
even if the signal input to it once again, it might not work normally. If customer stops the
display and function signals, they should be cut VCC.
4.4.2 LED Driver board (Option)
Note2
Display signals,
Function signals
Note1
VALID period
LED backlight: ON
Note1: These are the display and function signals for LCD panel signal processing board.
Note2: The backlight should be turned on within the valid period of display and function signals, in
order to avoid unstable data display.
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
11
www.panelook.com
Page 12
Global LCD Panel Exchange Center
4.5 CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS
4.5.1 LCD panel signal processing board
CN1 socket (LCD module side): FI-SE20P-HFE (Japan Aviation Electronics Industry Limited (JAE))
Adaptable plug: FI-S20S (Japan Aviation Electronics Industry Limited (JAE))
Pin
No.
1
2
Symbol Signal
A D3+ Pixel data R0-R1,G0-G1,B0-B1 R6-R7,G6-G7,B6-B7 -
B GND Ground - Ground Note4
A D3- Pixel data R0-R1,G0-G1,B0-B1 R6-R7,G6-G7,B6-B7 -
B GND Ground - Ground Note4
3 DPS
4 FRC
5 GND Ground Ground Note4
Selection
of scan direction
Selection of the
number of colors
www.panelook.com
Input data signal: 8bit
MAP A MAP B
High : Reverse scan
Low or Open : Normal scan
High
NL8060BC31-47D
Input data
signal: 6bit
Low or Open
Remarks
Note1,
Note3
Note1,
Note3
Note2
Note1
Note5
6 CLK+
Pixel clock Pixel clock Note3
7 CLK-
8 GND Ground Ground Note4
9 D2+
Pixel data B4-B7,DE B2-B5,DE Note3
10 D2-
11 GND Ground Ground Note4
12 D1+
Pixel data G3-G7,B2-B3 G1-G5,B0-B1 Note3
13 D1-
14 GND Ground Ground Note4
15 D0+
Pixel data R2-R7,G2 R0-R5,G0 Note3
16 D0-
17 GND Ground Ground Note4
18 MSL
19 VCC
20 VCC
Selection of
LVDS input map
Power supply Power supply Note4
Low High Low Note5
Note1: See "4.6 DISPLAY COLORS AND INPUT DATA SIGNALS".
Note2: See "4.8 SCANNING DIRECTIONS".
Note3: Twist pair wires with 100: (Characteristic impedance) should be used between LCD panel
signal processing board and LVDS transmitter.
Note4: All GND and VCC terminals should be used without any non-connected lines.
Note5: See "4.5.4 Connection between receiver and transmitter for LVDS".
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
12
www.panelook.com
Page 13
Global LCD Panel Exchange Center
4.5.2 Backlight
CN2 plug (LCD module side): SM08B-SRSS-TB (J.S.T. Mfg. Co., Ltd.)
Adaptable socket: SHR-8V-S, SHR-8V-S-B (J.S.T. Mfg. Co., Ltd.)
Pin No. Symbol Signal Remarks
1 A1 Anode1 -
2 K1 Cathode1 -
3 A2 Anode2 -
4 K2 Cathode2 -
5 A3 Anode3 -
6 K3 Cathode3 -
7 N.C. - Keep this pin Open.
8 N.C. - Keep this pin Open.
www.panelook.com
NL8060BC31-47D

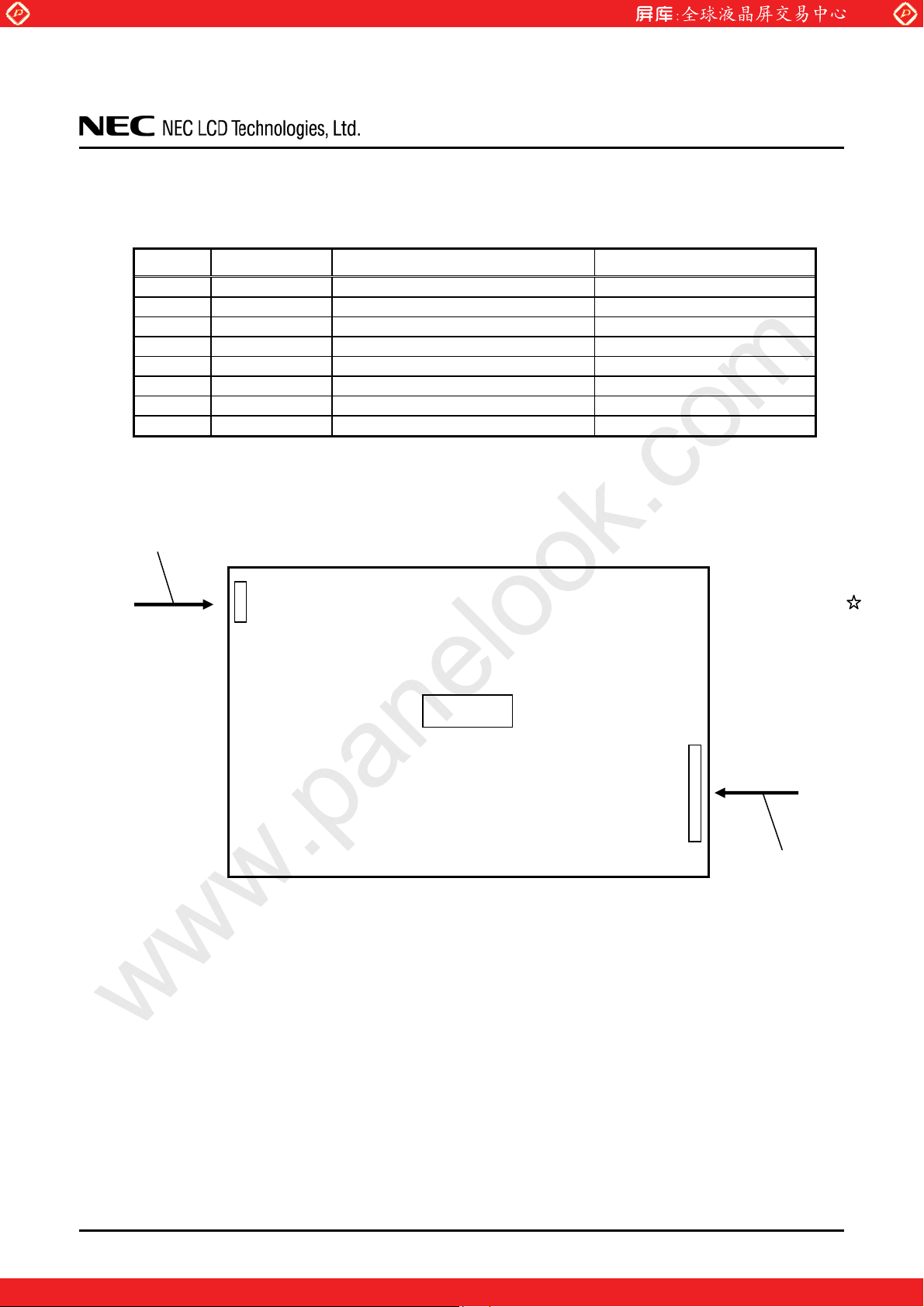

4.5.3 Positions of plugs and a socket
Insert direction
1
CN2
8
Rear side
1
CN1
20
Insert direction
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13
www.panelook.com
Page 14
Global LCD Panel Exchange Center
)
4.5.4 Connection between receiver and transmitter for LVDS
(1) Input data signal: 8bit, MAP A
Host
Note2
R2
R3
R4
R5
R6
R7
G2
G3
G4
G5
G6
G7
B2
B3
B4
B5
B6
B7
Note4
Note4
DE
R0
R1
G0
G1
B0
B1
Note4
CLK
VCC
GND
DPS
FRC
MSL
TA0
TA1
TA2
TA3
TA4
TA5
TA6
TB0
TB1
TB2
TB3
TB4
TB5
TB6
TC0
TC1
TC2
TC3
TC4
TC5
TC6
TD0
TD1
TD2
TD3
TD4
TD5
TD6
CLK IN
LVDS transmitter
THC63LVDM83R or equivalent
TCLK+
TCLK-
Note1
Note1: Recommended transmitter THC63LVDM83R (THine Electronics Inc.) or equivalent
Note2: LSB (Least Significant Bit) - R0, G0, B0 MSB (Most Significant Bit) - R7, G7, B7
Note3: Twist pair wires with 100: (Characteristic impedance) should be used between LCD panel
signal processing board and LVDS transmitter.
Note4: Input signals to TC4, TC5 and TD6 are not used inside the product, but do not keep TC4, TC5
and TD6 open to avoid noise problem.
TD+
TD-
TC+
TC-
TB+
TB-
TA+
TA-
GND
www.panelook.com
Note3
1A
D3+
2A
10
11
12
13
14
15
16
17
18
19
20
D3-
3
DPS
4
FRC
5
GND
6
CLK+
7
CLK-
8
GND
9
D2+
D2-
GND
D1+
D1-
GND
D0+
D0-
GND
MSL
VCC
VCC
CN1
LCD panel signal processing board
NL8060BC31-47D
LCD module (Product
RD+
RD-
RCLK+
RCLK-
RC+
RC-
RB+
RB-
RA+
RA-
Receiver for LVDS
Equivalent of
THC63LVDF84B
LCD controller
GND
Signal
processor
DPS
FRC
MSL
VCC
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
14
www.panelook.com
Page 15
Global LCD Panel Exchange Center
(2) Input data signal: 8bit, MAP B
Host
Note2
R0
R1
R2
R3
R4
R5
G0
G1
G2
G3
G4
G5
B0
B1
B2
B3
B4
B5
Note4
Note4
DE
R6
R7
G6
G7
B6
B7
Note4
CLK
VCC
GND
DPS
FRC
MSL
TA0
TA1
TA2
TA3
TA4
TA5
TA6
TB0
TB1
TB2
TB3
TB4
TB5
TB6
TC0
TC1
TC2
TC3
TC4
TC5
TC6
TD0
TD1
TD2
TD3
TD4
TD5
TD6
CLK IN
LVDS transmitter
THC63LVDM83R or equivalent
Note1
Note1: Recommended transmitter THC63LVDM83R (THine Electronics Inc.) or equivalent
Note2: LSB (Least Significant Bit) - R0, G0, B0 MSB (Most Significant Bit) - R7, G7, B7
Note3: Twist pair wires with 100: (Characteristic impedance) should be used between LCD panel
signal processing board and LVDS transmitter.
Note4: Input signals to TC4, TC5 and TD6 are not used inside the product, but do not keep TC4, TC5
and TD6 open to avoid noise problem.
TD+
TD-
TCLK+
TCLK-
TC+
TC-
TB+
TB-
TA+
TA-
GND
www.panelook.com
Note3
1A
D3+
2A
10
11
12
13
14
15
16
17
18
19
20
D3-
3
DPS
4
FRC
5
GND
6
CLK+
7
CLK-
8
GND
9
D2+
D2-
GND
D1+
D1-
GND
D0+
D0-
GND
MSL
VCC
VCC
CN1
NL8060BC31-47D
LCD module (Product)
RD+
RD-
RCLK+
RCLK-
RC+
RC-
RB+
RB-
RA+
RA-
Receiver for LVDS
Equivalent of
THC63LVDF84B
LCD controller
LCD panel signal processing board
GND
Signal
processor
DPS
FRC
MSL
VCC
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
15
www.panelook.com
Page 16
Global LCD Panel Exchange Center
(3) Input data signal: 6bit
Host
Note2
R0
R1
R2
R3
R4
R5
G0
G1
G2
G3
G4
G5
B0
B1
B2
B3
B4
B5
Note4
Note4
DE
CLK
TA0
TA1
TA2
TA3
TA4
TA5
TA6
TCLK+
TB0
TB1
TB2
TB3
TB4
TB5
TB6
TC0
TC1
TC2
TC3
TC4
TC5
TC6
CLK IN
TCLK-
TC+
TC-
TB+
TB-
TA+
TA-
GND
www.panelook.com
Note3
GND
1B
GND
2B
DPS
3
FRC
4
GND
5
CLK+
6
CLK-
7
GND
8
D2+
9
D2-
10
GND
11
D1+
12
D1-
13
GND
14
D0+
15
D0-
16
GND
17
MSL
18
VCC
19
VCC
20
CN1
NL8060BC31-47D
LCD module (Product)
RCLK+
RCLK-
RC+
RC-
RB+
RB-
RA+
RA-
Receiver for LVDS
Equivalent of
THC63LVDF84B
GND
Signal
processor
DPS
FRC
MSL
VCC
LVDS transmitter
THC63LVDM83R or equivalent
VCC
GND
DPS
FRC
MSL
Note1
LCD panel signal processing board
LCD controller
Note1: Recommended transmitter THC63LVDM83R (THine Electronics Inc.) or equivalent
Note2: LSB (Least Significant Bit) – R0, G0, B0 MSB (Most Significant Bit) – R5, G5, B5
Note3: Twist pair wires with 100: (Characteristic impedance) should be used between LCD panel
signal processing board and LVDS transmitter.
Note4: Input signals to TC4 and TC5 are not used inside the product, but do not keep TC4 and TC5
open to avoid noise problem.
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
16
www.panelook.com
Page 17
Global LCD Panel Exchange Center

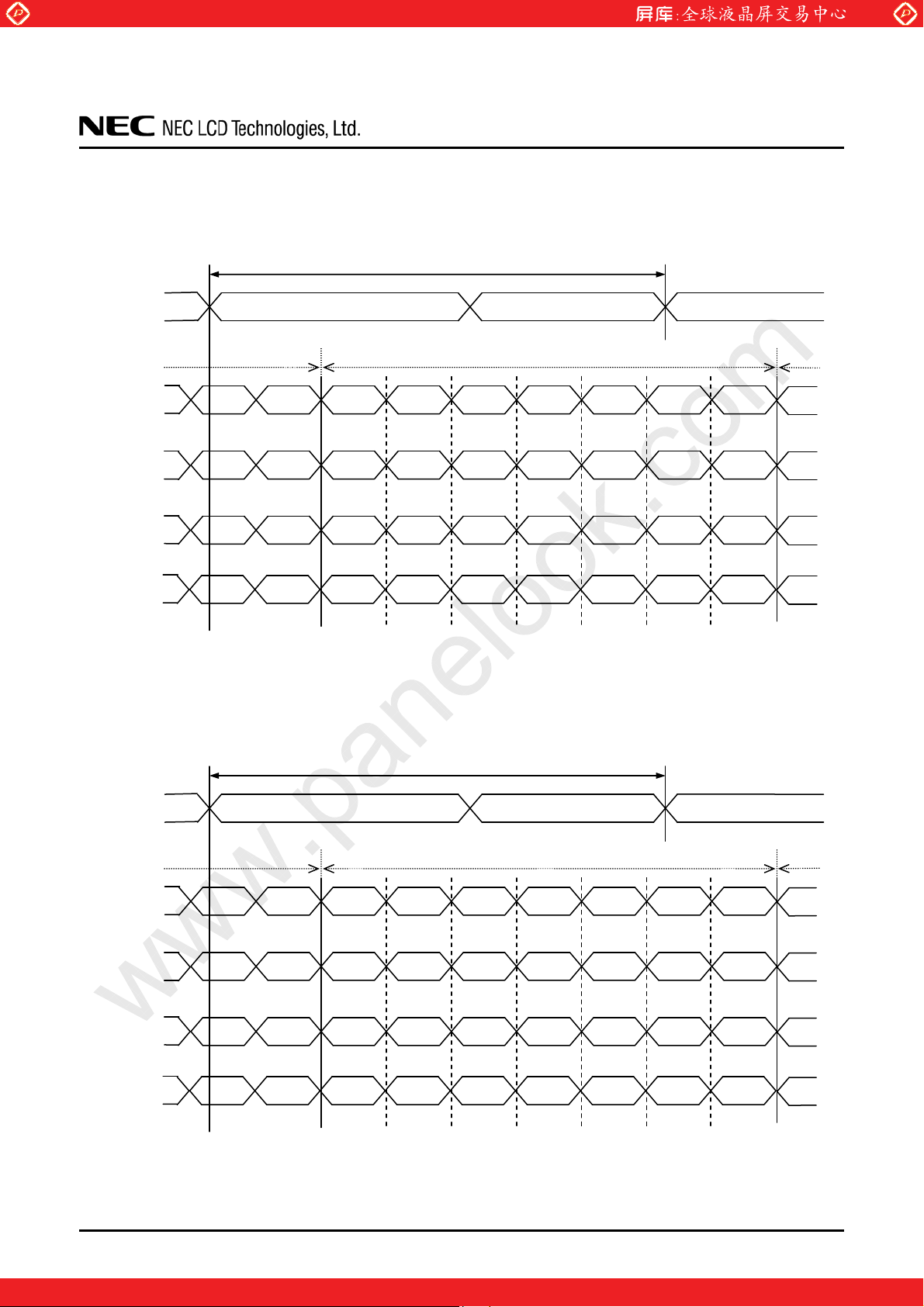

4.5.5 Input data mapping
(1) Input data signal: 8bit, MAP A
CLK+/-
www.panelook.com
NL8060BC31-47D
tc
1CLK
D0+/-
D1+/-
D2+/-
D3+/-
DE
(2) Input data signal: 8bit, MAP B
CLK+/-
-
B1
R2R3R4R5R6R7G2
B2B3
tc
G7
-
B0
G5G6
B5B6B7
R1G0G1
G3G4
B4
R0
1CLK
D0+/-
D1+/-
D2+/-
D3+/-
B0B1
DE
DATA SHEET DOD-PP-0924 (1st edition)
-
B7
G5
-
B6
G3G4
B3B4B5
R7G6G7
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
R0R1R2R3R4R5G0
G1G2
B2
R6
17
www.panelook.com
Page 18
Global LCD Panel Exchange Center
(3) Input data signal: 6bit
CLK+/-
www.panelook.com
NL8060BC31-47D
tc
1CLK
D0+/-
D1+/-
D2+/-
DE
B0B1
-
G5
-
G3G4
B3B4B5
R0R1R2R3R4R5G0
G1G2
B2
4.6 DISPLAY COLORS AND INPUT DATA SIGNALS
4.6.1 Combinations between input data signals, FRC signal and MSL signal
This product can display in equivalent to 16,777,216 colors in 256 gray scales and 262,144 colors in
64 gray scales by combination between input data signals, FRC signal and MSL signal. See following
table.
Combination
Input data
signals
8 bit Map A D3+/- High Low 16,777,216 Note1
Input data
mapping
CN1-
Pin No.1 and 2
FRC terminal MSL terminal
Display
colors
Remarks
ཱ
ི
8 bit Map B D3+/- High High 16,777,216 Note1
6 bit - GND Low or open Low 262,144 Note2
Note1: See "4.6.2 16,777,216 colors".
Note2: See "4.6.3 262,144 colors".
DATA SHEET DOD-PP-0924 (1st edition)
18
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
4.6.2 16,777,216 colors
This product can display equivalent of 16,777,216 colors in 256 gray scales by combination and ཱ.
(See "4.6.1 Combinations between input data signals, FRC signal and MSL signal ".)
Also the relation between display colors and input data signals is as the following table.
www.panelook.com
NL8060BC31-47D
Display colors
Black
Blue
Red
Magenta
Green
Basic Colors
Red gray scale
Green gray scale
Blue gray scale
Cyan
Yellow
White
Black
dark
n
p
bright
Red
Black
dark
n
p
bright
Green
Black
dark
n
p
bright
Blue
Data signal (0: Low level, 1: High level)
R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0
00000000
00000000
11111111
11111111
00000000
00000000
11111111
11111111
00000000
00000001
00000010
:
:
11111101
11111110
11111111
00000000
00000000
00000000
:
:
00000000
00000000
00000000
00000000
00000000
00000000
:
:
00000000
00000000
00000000
00000000
00000000
00000000
00000000
11111111
11111111
11111111
11111111
00000000
00000000
00000000
:
:
00000000
00000000
00000000
00000000
00000001
00000010
:
:
11111101
11111110
11111111
00000000
00000000
00000000
:
:
00000000
00000000
00000000
00000000
11111111
00000000
11111111
00000000
11111111
00000000
11111111
00000000
00000000
00000000
:
:
00000000
00000000
00000000
00000000
00000000
00000000
:
:
00000000
00000000
00000000
00000000
00000001
00000010
:
:
11111101
11111110
11111111
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
19
www.panelook.com
Page 20
Global LCD Panel Exchange Center
4.6.3 262,144 colors
This product can display equivalent of 262,144 colors in 64 gray scales by combination ི.
(See "4.6.1 Combinations between input data signals, FRC signal and MSL signal ".)
Also the relation between display colors and input data signals is as the following table.
www.panelook.com
NL8060BC31-47D
Display colors
Black
Blue
Red
Magenta
Green
Basic colors
Cyan
Yellow
White
Black
dark
bright
Red gray scale
Red
Black
dark
bright
Green gray scale
Green
Black
dark
bright
Blue gray scale
Blue
Data signal (0: Low level, 1: High level)
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
000000
000000
111111
111111
000000
000000
111111
111111
000000
000001
000010
n
p
111101
111110
111111
000000
000000
000000
n
p
000000
000000
000000
000000
000000
000000
n
p
000000
000000
000000
:
:
:
:
:
:
000000
000000
000000
000000
111111
111111
111111
111111
000000
000000
000000
:
:
000000
000000
000000
000000
000001
000010
:
:
111101
111110
111111
000000
000000
000000
:
:
000000
000000
000000
000000
111111
000000
111111
000000
111111
000000
111111
000000
000000
000000
000000
000000
000000
000000
000000
000000
000000
000000
000000
000000
000001
000010
111101
111110
111111
:
:
:
:
:
:
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
20
www.panelook.com
Page 21
Global LCD Panel Exchange Center
4.7 DISPLAY POSITIONS
The following table is the coordinates per pixel (See "4.8 SCANNING DIRECTIONS".).
C (0, 0)
RGB
C( 0, 0) C( 1, 0)෬෬෬ C( X, 0) ෬෬෬ C(798, 0) C(799, 0)
C( 0, 1) C( 1, 1) ෬෬෬ C( X, 1) ෬෬෬ C(798, 1) C(799, 1)
෬
෬
෬
C( 0, Y) C( 1, Y) ෬෬෬ C( X, Y) ෬෬෬ C(798, Y) C(799, Y)
෬
෬
෬
C( 0, 598) C( 1, 598) ෬෬෬ C( X, 598) ෬෬෬ C(798, 598) C(799, 598)
C( 0, 599) C( 1, 599) ෬෬෬ C( X, 599) ෬෬෬ C(798, 599) C(799, 599)
෬
෬
෬
෬
෬
෬
www.panelook.com
෬
෬෬෬
෬
෬
෬෬෬
෬
෬
෬
෬
෬
෬
෬
෬
෬෬෬
෬
෬
෬෬෬
෬
NL8060BC31-47D
෬
෬
෬
෬
෬
෬
෬
෬෬෬
෬
෬
෬
෬

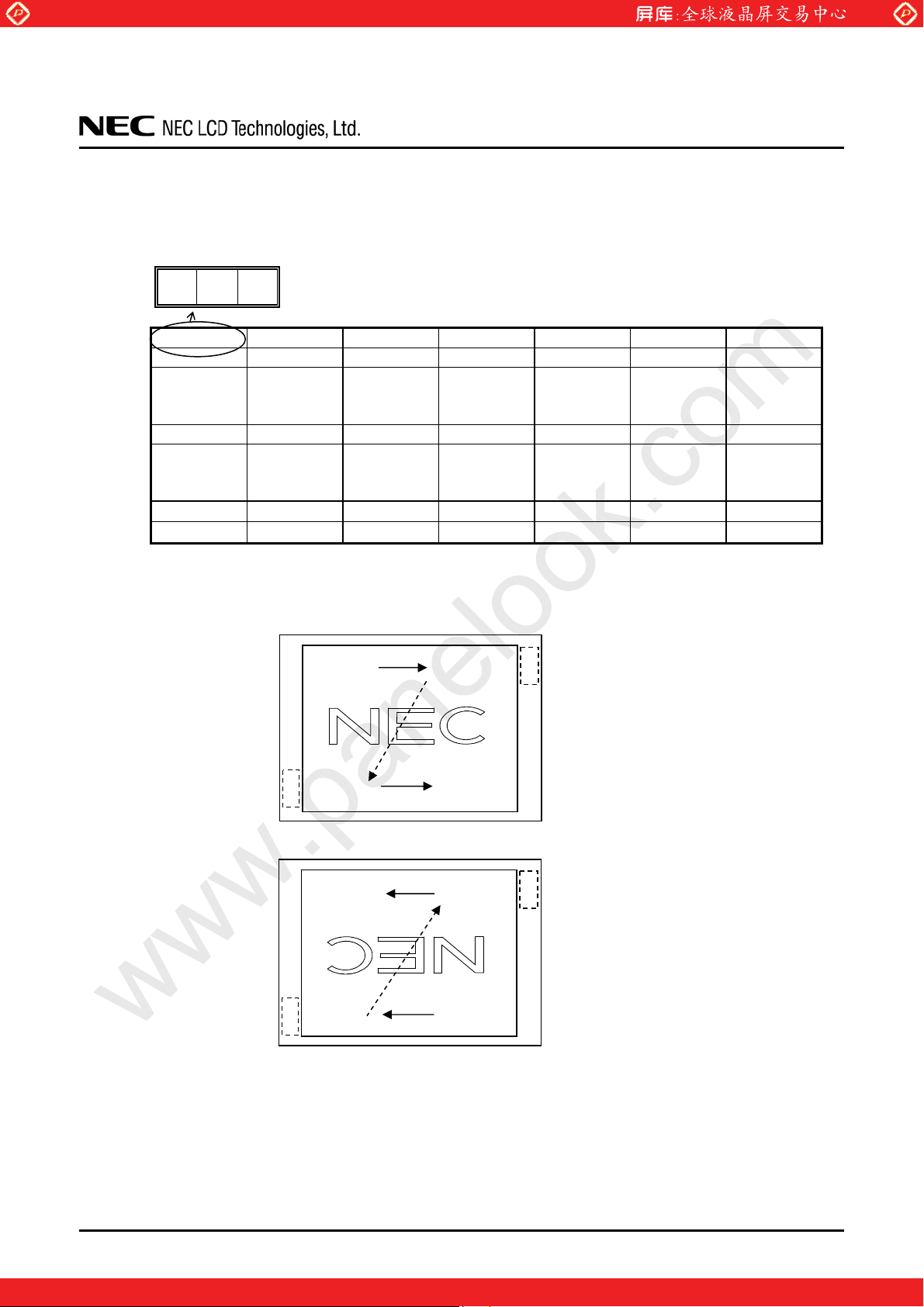

4.8 SCANNING DIRECTIONS
The following figures are seen from a front view. Also the arrow shows the direction of scan.
C (0, 0)
D (0, 0)
C (799, 0)
D (799, 0)
CN2
Note1
C (0, 599)
D (0, 599)
CN1
C (799, 599)
D (799, 599)
Figure1. Normal scan (DPS: Low or Open)
C (0, 0)
D (799, 599)
C (799, 0)
D (0, 599)
CN2
Note1
C (0, 599)
D (799, 0)
CN1
C (799, 599)
D (0, 0)
Figure2. Reverse scan (DPS: High)
Note1: Meaning of C (X, Y) and D (X, Y)
C (X, Y): The coordinates of the display position (See "4.7 DISPLAY POSITIONS".)
D (X, Y): The data number of input signal for LCD panel signal processing board
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
21
www.panelook.com
Page 22
Global LCD Panel Exchange Center

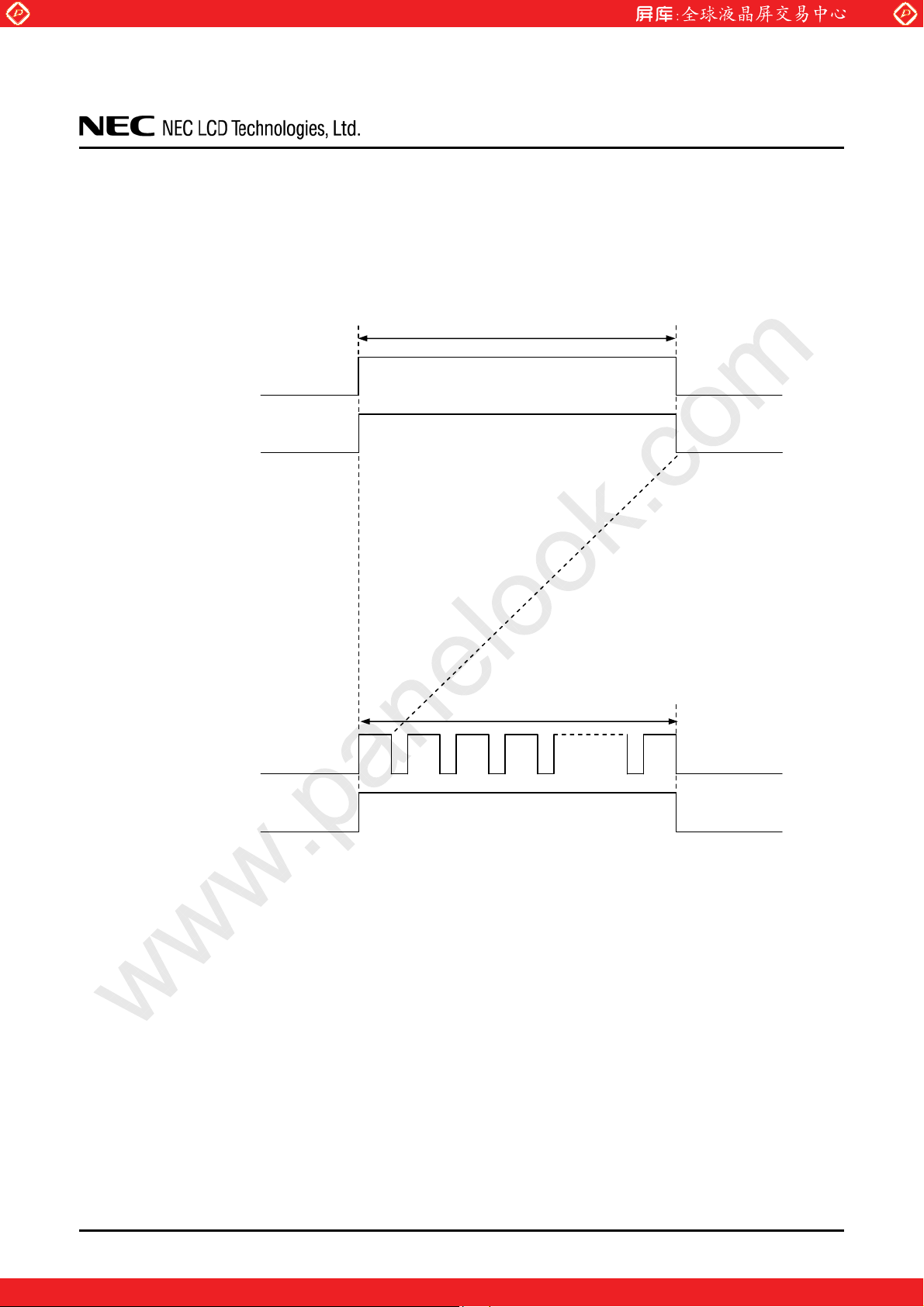

4.9 INPUT SIGNAL TIMINGS
4.9.1 Outline of input signal timings
x Horizontal signal
Note1
DE (Data enable)
Display period
www.panelook.com
NL8060BC31-47D
Horizontal display period (thd)
x Vertical signal
Note1
Vertical display period (tvd)
DE (Data enable)
Display period
1
2
34
Note1: This diagram indicates virtual signal for set up to timing.
Note2: See "4.9.3 Input signal timing chart" for numeration of pulse.
600
Note2
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
22
www.panelook.com
Page 23
Global LCD Panel Exchange Center
4.9.2 Timing characteristics
Parameter Symbol min. typ. max. Unit Remarks
Frequency 1/tc 34.0 38.362 42.0 MHz 26.067ns (typ.)
CLK
DATA
DE
CLK-DATA
Horizontal
Vertical
(One frame)
CLK-DE
Duty - -
Rise time, Fall time -
Rise time, Fall time -
Rise time, Fall time -
Note1: Definition of parameters is as follows.
tc = 1CLK, th = 1H
Note2: See the data sheet of LVDS transmitter.
Note3: Vertical cycle (tv) should be specified in integral multiple of Horizontal cycle (th).
www.panelook.com
NL8060BC31-47D
(Note1, Note2, Note3)
-
Setup time - ns
Hold time - ns
Cycle th
Display period thd 800 CLK
Cycle tv
Display period tvd 600 H
Setup time - ns
Hold time - ns
24.0 26.693 30.1
- 1,024 - CLK
16.1 16.683 17.2 ms
- 625 - H
-
-
ns
ns
Ps
ns
-
-
37.463kHz (typ.)
59.94Hz (typ.)
-
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
23
www.panelook.com
Page 24
Global LCD Panel Exchange Center

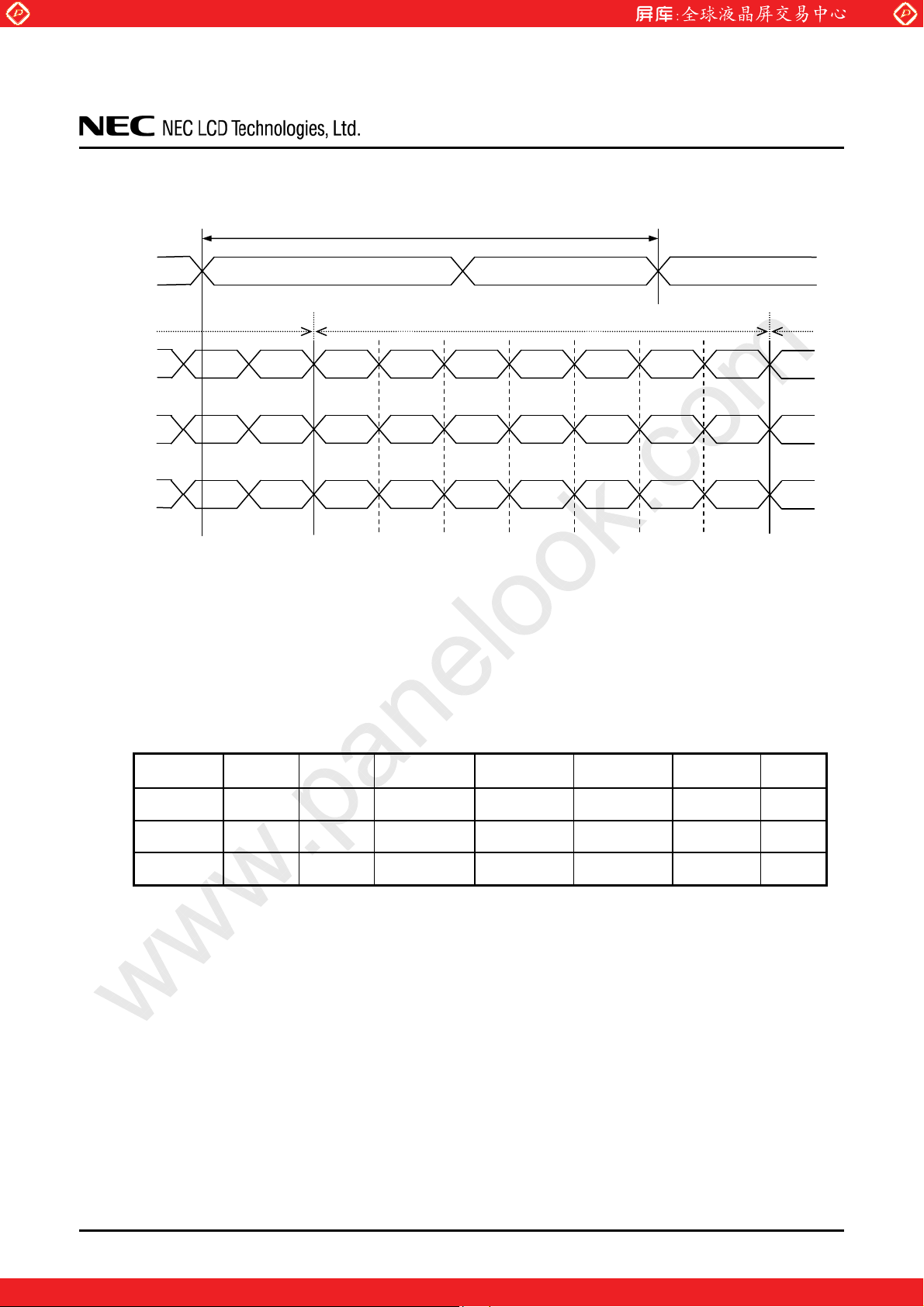

4.9.3 Input signal timing chart
Horizontal timing
CLK
DATA
(R0-R7) (R0-R5)
(G0-G7) or (G0-G5)
(B0-B7) (B0-B5)
DE
www.panelook.com
tc
INVALID
1 2 799 800
NL8060BC31-47D
INVALID
thd
th
Vertical timing
DATA
(R0-R7) (R0-R5)
(G0-G7) or (G0-G5)
(B0-B7) (B0-B5)
DE
INVALID
INVALID
1 2 599 600
tvd
tv
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
24
www.panelook.com
Page 25
Global LCD Panel Exchange Center

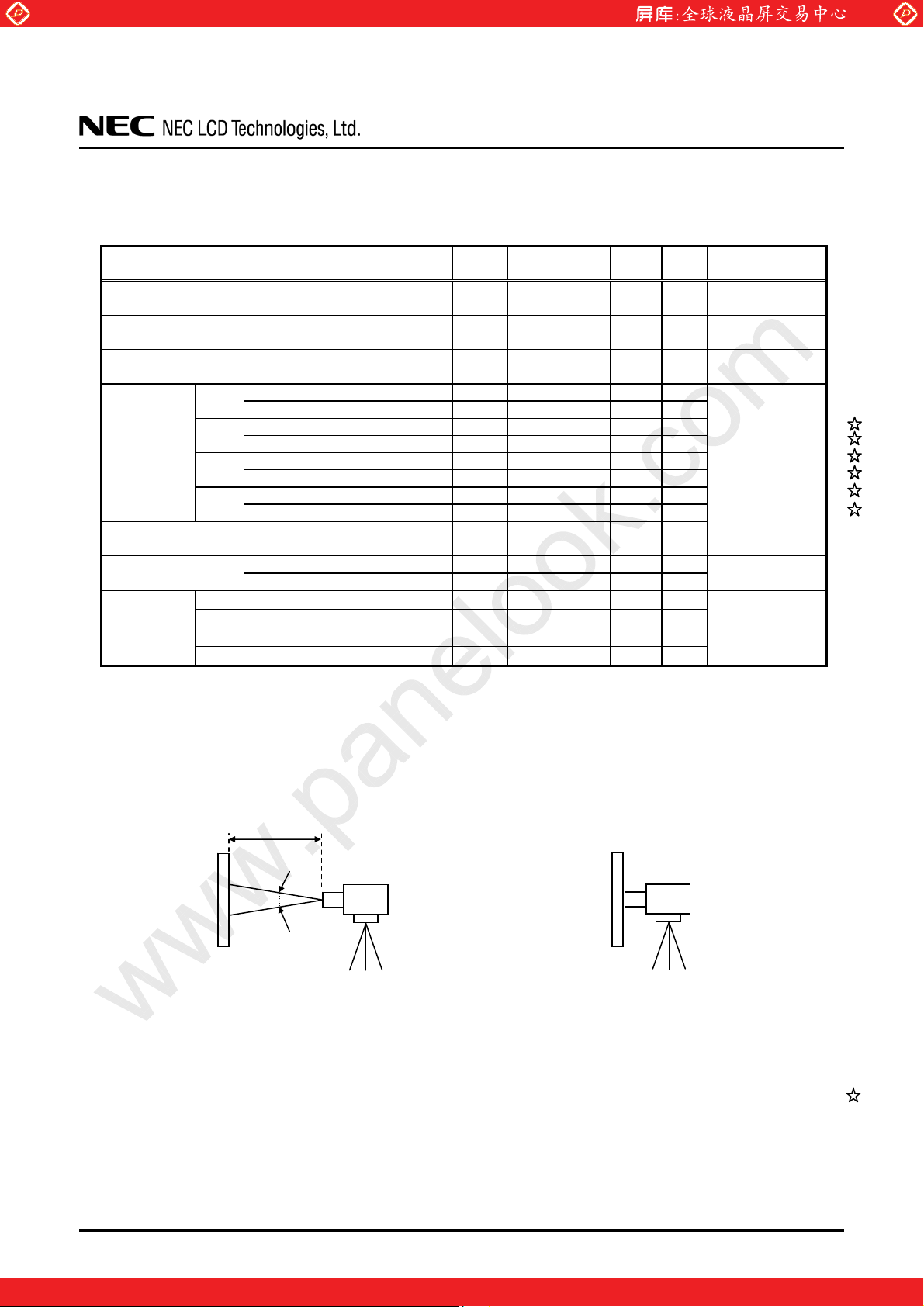

4.10 OPTICS
4.10.1 Optical characteristics
Parameter Condition Symbol min. typ. max. Unit
Luminance
Contrast ratio
Luminance uniformity
White
Red
Chromaticity
Green
Blue
Color gamut
Response time
Right
Viewing angle
Left
Down
TR= 0q, TL= 0q,TU= 0q, TD= 0q
White/Black at center
TR= 0q, TL= 0q,TU= 0q, TD= 0q
TR= 0q, TL= 0q,TU= 0q, TD= 0q
TR= 0q, TL= 0q,TU= 0q, TD= 0q
at center, against NTSC color space
TU= 0q, TD= 0q, CRt 10 TR
TU= 0q, TD= 0q, CRt 10 TL
Up
TR= 0q, TL= 0q, CRt 10 TU
TR= 0q, TL= 0q, CRt 10 TD
Note1: These are initial characteristics.
Note2: Measurement conditions are as follows.
Ta = 25qC, VCC = 3.3V, IL = 50mA
1/37.463kHz, Vertical cycle = 1/59.94Hz, DPS= Low or Open: Normal scan
www.panelook.com
NL8060BC31-47D
White at center
White
x coordinate Wx 0.263 0.313 0.363 -
y coordinate Wy 0.279 0.329 0.379 -
x coordinate Rx - 0.570 - -
y coordinate Ry - 0.350 - -
x coordinate Gx - 0.350 - -
y coordinate Gy - 0.540 - -
x coordinate Bx - 0.155 - -
y coordinate By - 0.135 - -
White to Black Ton - 3 6 ms
Black to White Toff - 15 19 ms
L 300 450 - cd/m2BM-5A -
CR 500 900 - - BM-5A Note3
LU - 1.25 1.4 - BM-5A Note4
C3540-%
70 80 70 80 70 80 70 80 -
/One circuit, Display mode: SVGA, Horizontal cycle =
(Note1, Note2)
Measuring
instrument
SR-3 Note5
BM-5A
q
q
Contrast
q
q
EZ
Remarks
Note6
Note7
Note8
Optical characteristics are measured at luminance saturation after 20minutes from working
the product, in the dark room. Also measurement methods are as follows.
50cm
Photodetector (BM-5A or SR-3) Photodetector (EZ Contrast)
1q
LCD module
(Product)
LCD module
(Product)
Note3: See "4.10.2 Definition of contrast ratio".
Note4: See "4.10.3 Definition of luminance uniformity".
Note5: These coordinates are found on CIE 1931 chromaticity diagram.
Note6: Product surface temperature: TopF = 28qC
Note7: See "4.10.4 Definition of response times".
Note8: See "4.10.5 Definition of viewing angles".
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
25
www.panelook.com
Page 26
Global LCD Panel Exchange Center
N

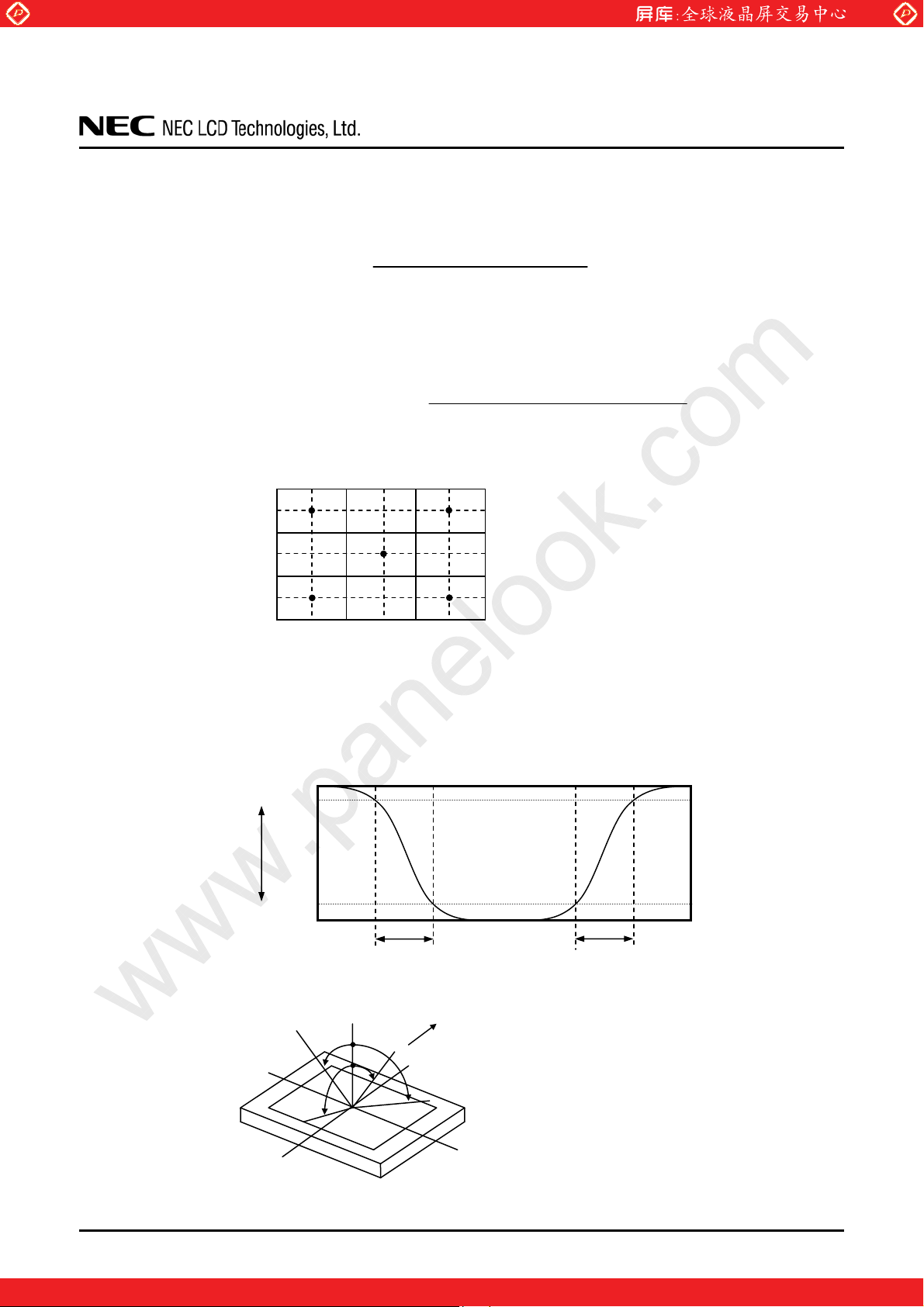

4.10.2 Definition of contrast ratio
The contrast ratio is calculated by using the following formula.
www.panelook.com
NL8060BC31-47D
Contrast ratio (CR) =
Luminance of white screen
Luminance of black screen
4.10.3 Definition of luminance uniformity
The luminance uniformity is calculated by using following formula.
Luminance uniformity (LU) =
Maximum luminance from
Minimum luminance from
to ུ
to ུ
The luminance is measured at near the 5 points shown below.
100
300
500
133
ཱི
400
667
ཱ
ི
ུ
4.10.4 Definition of response times
Response time is measured, the luminance changes from "white" to "black", or "black" to "white"
on the same screen point, by photo-detector. Ton is the time it takes the luminance change from
90% down to 10%. Also Toff is the time it takes the luminance change from 10% up to 90% (See
the following diagram.).
100%
White
Luminance
Black
90%
10%
0%
4.10.5 Definition of viewing angles
ormal axis (Perpendicular)
TL
Left
TD
Lower
TU
Ton
Toff
12 o’clock
Upper
TR
Right
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
26
www.panelook.com
Page 27
Global LCD Panel Exchange Center
5. ESTIMATED LUMINANCE LIFETIME
The luminance lifetime is the time from initial luminance to half-luminance.
This lifetime is the estimated value, and is not guarantee value.
25qC (Ambient temperature of the product)
LED
elementary substance
Continuous operation, IL=50mA/One circuit
Continuous operation, IL=50mA/One circuit
Note1: Life time expectancy is mean time to half-luminance.
Note2: Estimated luminance lifetime is not the value for LCD module but the value for LED
elementary substance.
Note3: By ambient temperature, the lifetime changes particularly. Especially, in case the product
works under high temperature environment, the lifetime becomes short.
www.panelook.com
Condition
80qC (Surface temperature at screen)
NL8060BC31-47D
Estimated luminance lifetim
(Life time expectancy)
Note1, Note2, Note3
70,000
60,000
Unit
h
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
27
www.panelook.com
Page 28
Global LCD Panel Exchange Center
6. RELIABILITY TESTS
Test item Condition Judgment Note1
www.panelook.com
NL8060BC31-47D
High temperature and humidity
(Operation)
High temperature
(Operation)
Heat cycle
(Operation)
Thermal shock
(Non operation)
ESD
(Operation)
Dust
(Operation)
Vibration
(Non operation)
Mechanical shock
(Non operation)
60 r 2qC, RH= 90%, 240hours
ཱ Display data is black.
80 r 3qC, 240hours
ཱ Display data is black.
-30 r 3qC}1hour
80 r 3qC}1hour
ཱ 50cycles, 4 hours/cycle
ི Display data is black.
-30 r 3qC}30minutes
80 r 3qC}30minutes
ཱ 100cycles, 1hour/cycle
ི Temperature transition time is within
5 minutes.
150pF, 150:, r10kV
ཱ 9 places on a panel surface Note2
ི 10 times each places at 1 sec interval
Sample dust: No. 15 (by JIS-Z8901))
ཱ 15 seconds stir
ི 8 times repeat at 1 hour interval
5 to 100Hz, 19.6m/s
ཱ 1 minute/cycle
ི X, Y, Z directions
ཱི 120 times each directions
539m/ s
ཱ rX, rY, rZ directions
ི 5 times each directions
2
, 11ms
2
No display malfunctions
No display malfunctions
No physical damages
Note1: Display and appearance are checked under environmental conditions equivalent to the
inspection conditions of defect criteria.
Note2: See the following figure for discharge points.
{{
{
{
DATA SHEET DOD-PP-0924 (1st edition)
{
{
{
{
{
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
28
www.panelook.com
Page 29
Global LCD Panel Exchange Center
!
I
7. PRECAUTIONS
7.1 MEANING OF CAUTION SIGNS
The following caution signs have very important meaning. Be sure to read "7.2 CAUTIONS" and
"7.3 ATTENTIONS", after understanding these contents!
This sign has the meaning that customer will be injured by personnel or the product will
sustain a damage, if customer has wrong operations.
This sign has the meaning that customer will be injured by personnel, if customer has
wrong operations.
7.2 CAUTIONS
www.panelook.com
NL8060BC31-47D
Do not shock and press the LCD panel and the backlight! There is a danger of breaking,
because they are made of glass. (Shock: Equal to or no greater than 539m/s
or no greater than 11ms, Pressure: Equal to or no greater than 19.6 N (
7.3 ATTENTIONS
7.3.1 Handling of the product
Take hold of both ends without touching the circuit board when the product (LCD module) is
picked up from inner packing box to avoid broken down or misadjustment, because of stress to
mounting parts on the circuit board.
ཱ When the product is put on the table temporarily, display surface must be placed downward.
ི When handling the product, take the measures of electrostatic discharge with such as earth band,
ionic shower and so on, because the product may be damaged by electrostatic.
ཱི The torque for product mounting screws must never exceed 0.294Nm. Higher torque might result
in distortion of the bezel.
ུ The product must be installed using mounting holes without undue stress such as bends or twist
(See outline drawings). And do not add undue stress to any portion (such as bezel flat area). Bends
or twist described above and undue stress to any portion may cause display mura.
ཱུ Do not press or rub on the sensitive product surface. When cleaning the product surface, wipe it
with a soft dry cloth.
ྲྀ Do not push nor pull the interface connectors while the product is working.
ཷ When handling the product, use of an original protection sheet on the product surface (polarizer) is
recommended for protection of product surface. Adhesive type protection sheet may change color
or characteristics of the polarizer.
ླྀ Usually liquid crystals don't leak through the breakage of glasses because of the surface tension of
thin layer and the construction of LCD panel. But, if you contact with liquid crystal for the worst,
please wash it out with soap.
!
2
and equal to
16mm jig))
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
29
www.panelook.com
Page 30
Global LCD Panel Exchange Center
7.3.2 Environment
Do not operate or store in high temperature, high humidity, dewdrop atmosphere or corrosive
gases. Keep the product in packing box with antistatic pouch in room temperature to avoid dusts
and sunlight, when storing the product.
ཱ In order to prevent dew condensation occurring by temperature difference, the product packing
box should be opened after enough time being left under the environment of an unpacking room.
Evaluate the leaving time sufficiently because a situation of dew condensation occurring is
changed by the environmental temperature and humidity. (Recommended leaving time: 6 hours or
more with packing state)
ི Do not operate in high magnetic field. Circuit boards may be broken down by it.
ཱི This product is not designed as radiation hardened.
7.3.3 Characteristics
The following items are neither defects nor failures.
www.panelook.com
NL8060BC31-47D
Characteristics of the LCD (such as response time, luminance, color uniformity and so on) may be
changed depending on ambient temperature. If the product is stored under condition of low
temperature for a long time, it may cause display mura. In this case, the product should be
operated after enough time being left under condition of operating temperature.
ཱ Display mura, flicker, vertical seam or small spot may be observed depending on display patterns.
ི Do not display the fixed pattern for a long time because it may cause image sticking. Use a screen
saver, if the fixed pattern is displayed on the screen.
ཱི The display color may be changed depending on viewing angle because of the use of condenser
sheet in the backlight.
ུ Optical characteristics may be changed depending on input signal timings.
7.3.4 Other
All GND and VCC terminals should be used without any non-connected lines.
ཱ Do not disassemble a product or adjust variable resistors.
ི See "REPLACEMENT MANUAL FOR LAMP HOLDER SET", when replacing lamp holder set.
ཱི Pack the product with original shipping package, in order to avoid any damages during
transportation, when returning the product to NEC for repair and so on.
ུ The information of China RoHS directive six hazardous substances or elements in this product is
as follows.
China RoHS directive six l hazardous substances or elements
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
Chromium
(Cr VI)
Polybrominated
Biphenys
(PBB)
Polybrominated
Biphenyl Ethers
(PBDE)
ᅜഊ ഊ ഊ ഊ ഊ
Note1: ഊ This indicates that the poisonous or harmful material in all the homogeneous materials for
this part is equal or below the limitation level of SJ/T11363-2006 standard regulation.
ᅜThis indicates that the poisonous or harmful material in all the homogeneous materials for
this part is above the limitation level of SJ/T11363-2006 standard regulation.
DATA SHEET DOD-PP-0924 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
30
www.panelook.com
Page 31
Global LCD Panel Exchange Center
NL8060BC31-47D
www.panelook.com
31
Unit: mm
Note1: The values in parentheses are for reference.
Note2: The torque for product mounting screws must never exceed 0.294Nm.
Note3: Mounting hole portions (4 pieces)
DATA SHEET DOD-PP-0924 (1st edition)

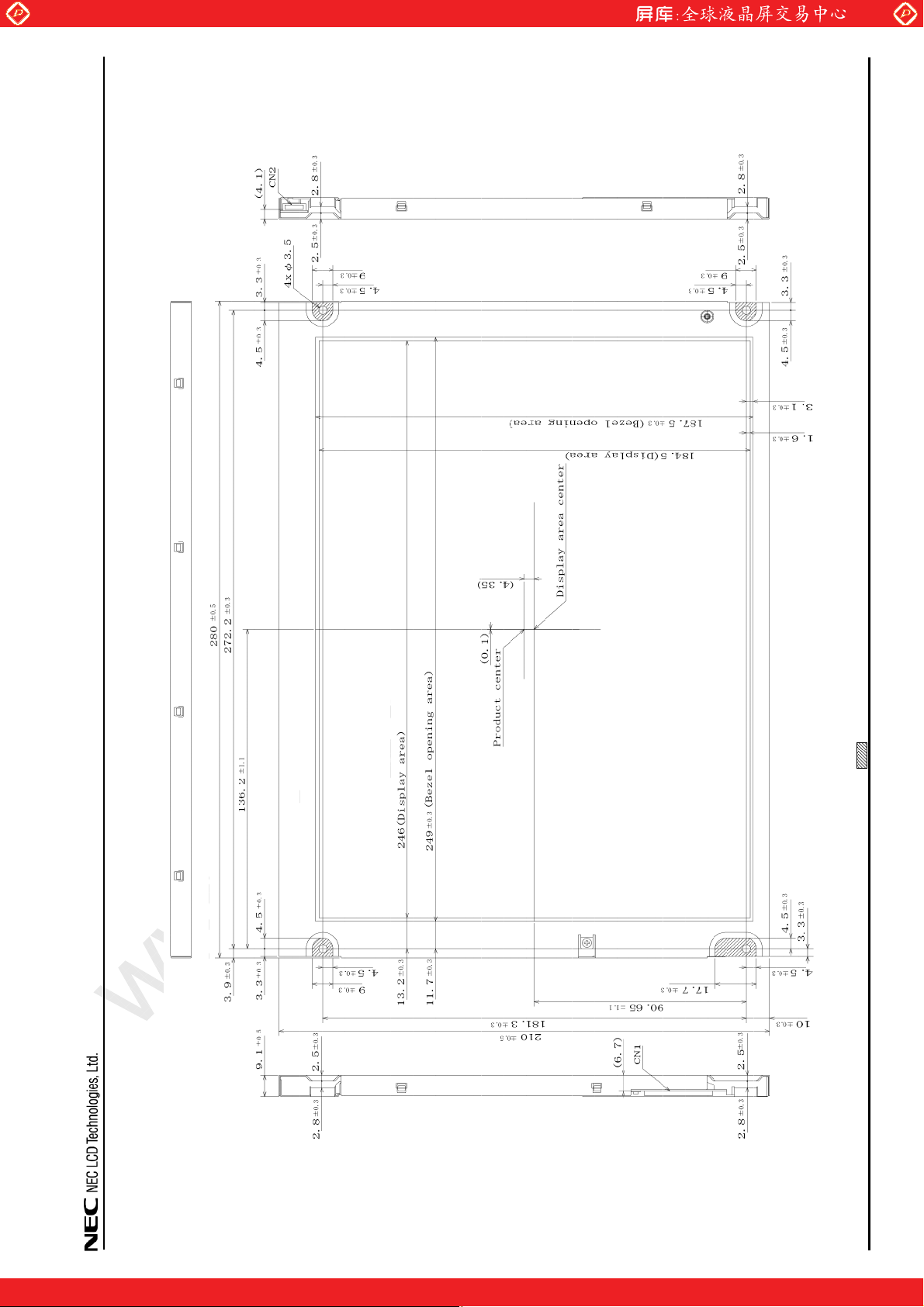

8.1 FRONT VIEW
8. OUTLINE DRAWINGS
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 32
Global LCD Panel Exchange Center
NL8060BC31-47D
www.panelook.com
32
Unit: mm
Note1: The values in parentheses are for reference.
Note2: The torque for product mounting screws must never exceed 0.294Nm.
Note3: Mounting hole portions (4 pieces)
DATA SHEET DOD-PP-0924 (1st edition)

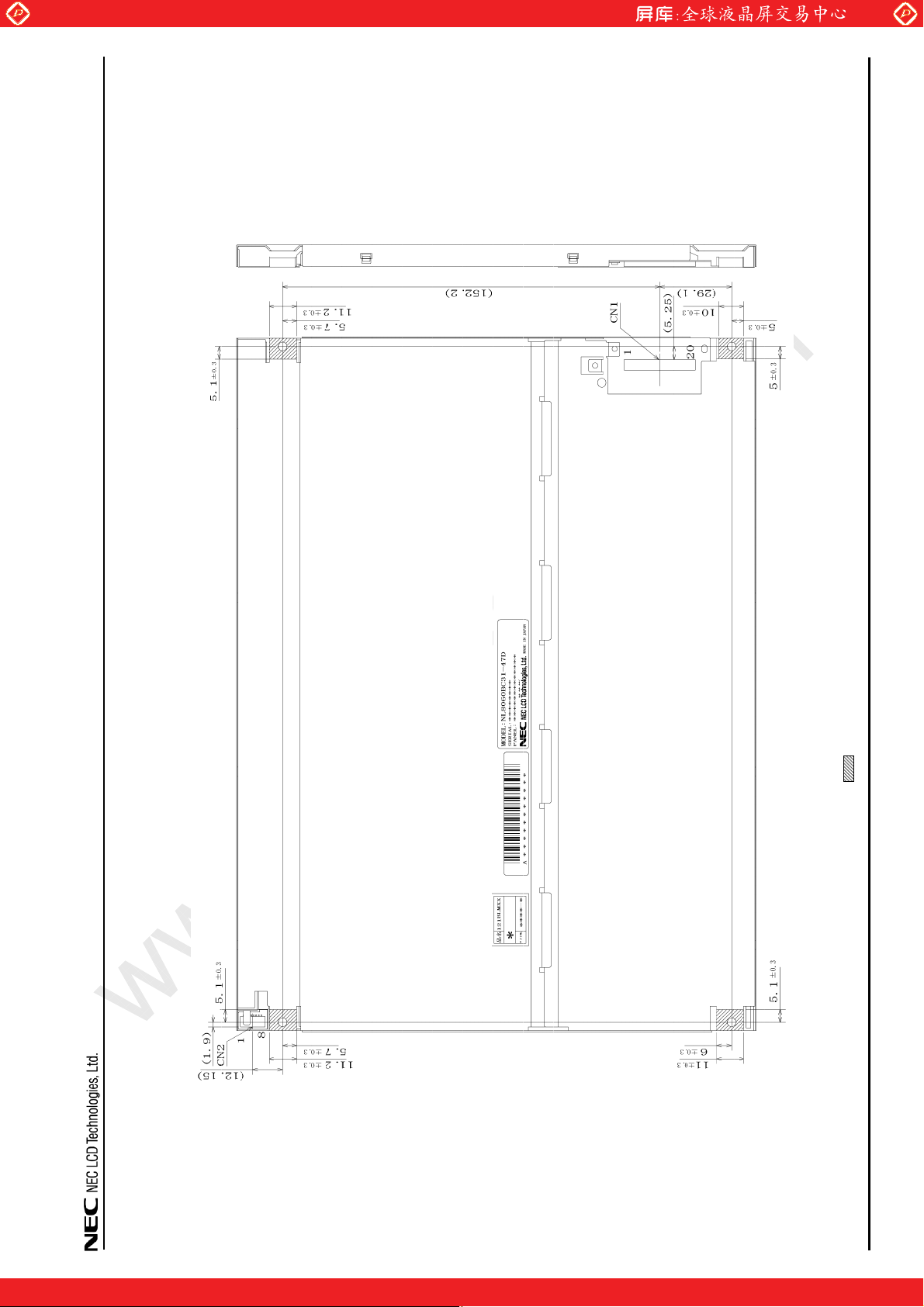

8.2 REAR VIEW
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
