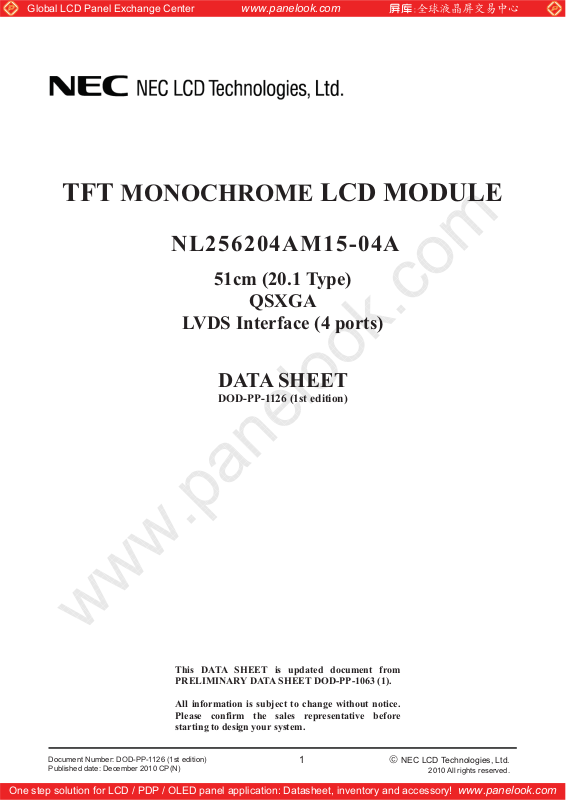

NEC NL256204AM15-04A Specification

Global LCD Panel Exchange Center

TFT MONOCHROME LCD MODULE

NL256204AM15-04A

www.panelook.com

51cm (20.1 Type)

QSXGA

LVDS Interface (4 ports)

DATA SHEET

DOD-PP-1126 (1st edition)

This DATA SHEET is updated document from
PRELIMINARY DATA SHEET DOD-PP-1063 (1).

All information is subject to change without notice.
Please confirm the sales representative before
starting to design your system.

Document Number: DOD-PP-1126 (1st edition)
Published date: December 2010 CP(N)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

1

¤ NEC LCD Technologies, Ltd.

2010 All rights reserved.

www.panelook.com

Global LCD Panel Exchange Center

The Copyright to this document belongs to NEC LCD Technologies, Ltd. (hereinafter called "NEC").

No part of this document will be used, reproduced or copied without prior written consent of NEC.

NEC does and will not assume any liability for infringement of patents, copyrights or other intellectual
property rights of any third party arising out of or in connection with application of the products
described herein except for that directly attributable to mechanisms and workmanship thereof. No license,
express or implied, is granted under any patent, copyright or other intellectual property right of NEC.

Some electronic parts/components would fail or malfunction at a certain rate. In spite of every effort to
enhance reliability of products by NEC, the possibility of failures and malfunction might not be avoided
entirely. To prevent the risks of damage to death, human bodily injury or other property arising out
thereof or in connection therewith, each customer is required to take sufficient measures in its safety
designs and plans including, but not limited to, redundant system, fire-containment and anti-failure.

www.panelook.com

NL256204AM15-04A

INTRODUCTION

The products are classified into three quality grades: "Standard", "Special", and "Specific" of the
highest grade of a quality assurance program at the choice of a customer. Each quality grade is designed
for applications described below. Any customer who intends to use a product for application other than
that of Standard quality grade is required to contact an NEC sales representative in advance.

The Standard quality grade applies to the products developed, designed and manufactured in
accordance with the NEC standard quality assurance program, which are designed for such application as
any failure or malfunction of the products (sets) or parts/components incorporated therein a customer uses
are, directly or indirectly, free of any damage to death, human bodily injury or other property, like general
electronic devices.

Examples: Computers, office automation equipment, communications equipment, test and measurement

equipment, audio and visual equipment, home electronic appliances, machine tools, personal
electronic equipment, industrial robots, etc.

The Special quality grade applies to the products developed, designed and manufactured in accordance
with an NEC quality assurance program stricter than the standard one, which are designed for such
application as any failure or malfunction of the products (sets) or parts/components incorporated therein a
customer uses might directly cause any damage to death, human bodily injury or other property, or such
application under more severe condition than that defined in the Standard quality grade without such
direct damage.

Examples: Control systems for transportation equipment (automobiles, trains, ships, etc.), traffic control

systems, anti-disaster systems, anti-crime systems, medical equipment not specifically
designed for life support, safety equipment, etc.

The Specific quality grade applies to the products developed, designed and manufactured in accordance
with the standards or quality assurance program designated by a customer who requires an extremely
higher level of reliability and quality for such products.

Examples: Military systems, aircraft control equipment, aerospace equipment, nuclear reactor control

systems, medical equipment/devices/systems for life support, etc.

The quality grade of this product is the "Standard" unless otherwise specified in this document.

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

2

www.panelook.com

Global LCD Panel Exchange Center

INTRODUCTION ..........................................................................................................................................2

1. OUTLINE....................................................................................................................................................5

1.1 STRUCTURE AND PRINCIPLE...........................................................................................................5

1.2 APPLICATION.......................................................................................................................................5

1.3 FEATURES.............................................................................................................................................5

2. GENERAL SPECIFICATIONS ................................................................................................................6

3. BLOCK DIAGRAM ................................................................................................................................... 7

4. DETAILED SPECIFICATIONS ............................................................................................................... 8

4.1 MECHANICAL SPECIFICATIONS......................................................................................................8

4.2 ABSOLUTE MAXIMUM RATINGS ....................................................................................................8

4.3 ELECTRICAL CHARACTERISTICS................................................................................................... 9

4.3.1 LCD panel signal processing board ...............................................................................................9

4.3.2 Inverter......................................................................................................................................... 10

4.3.3 Inverter current wave ...................................................................................................................10

4.3.4 Power supply voltage ripple......................................................................................................... 11

4.3.5 Fuse.............................................................................................................................................. 11

4.4 POWER SUPPLY VOLTAGE SEQUENCE ........................................................................................12

4.4.1 LCD panel signal processing board .............................................................................................12

4.4.2 Inverter......................................................................................................................................... 12

4.5 CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS.........................................................13

4.5.1 LCD panel signal processing board .............................................................................................13

4.5.2 Inverter......................................................................................................................................... 15

4.5.3 Positions of socket .......................................................................................................................16

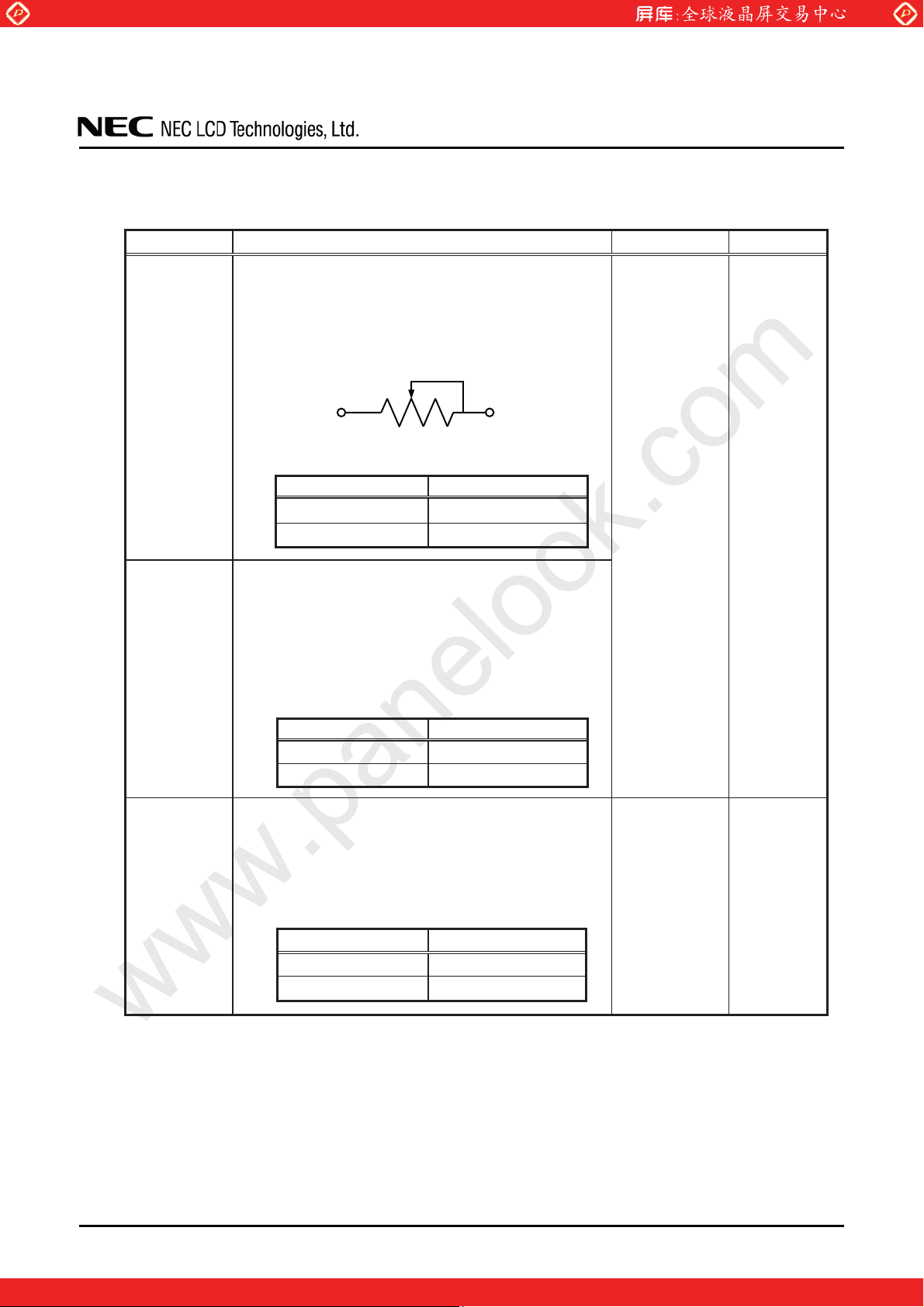

4.6 LUMINANCE CONTROL...................................................................................................................17

4.6.1 Luminance control methods.........................................................................................................17

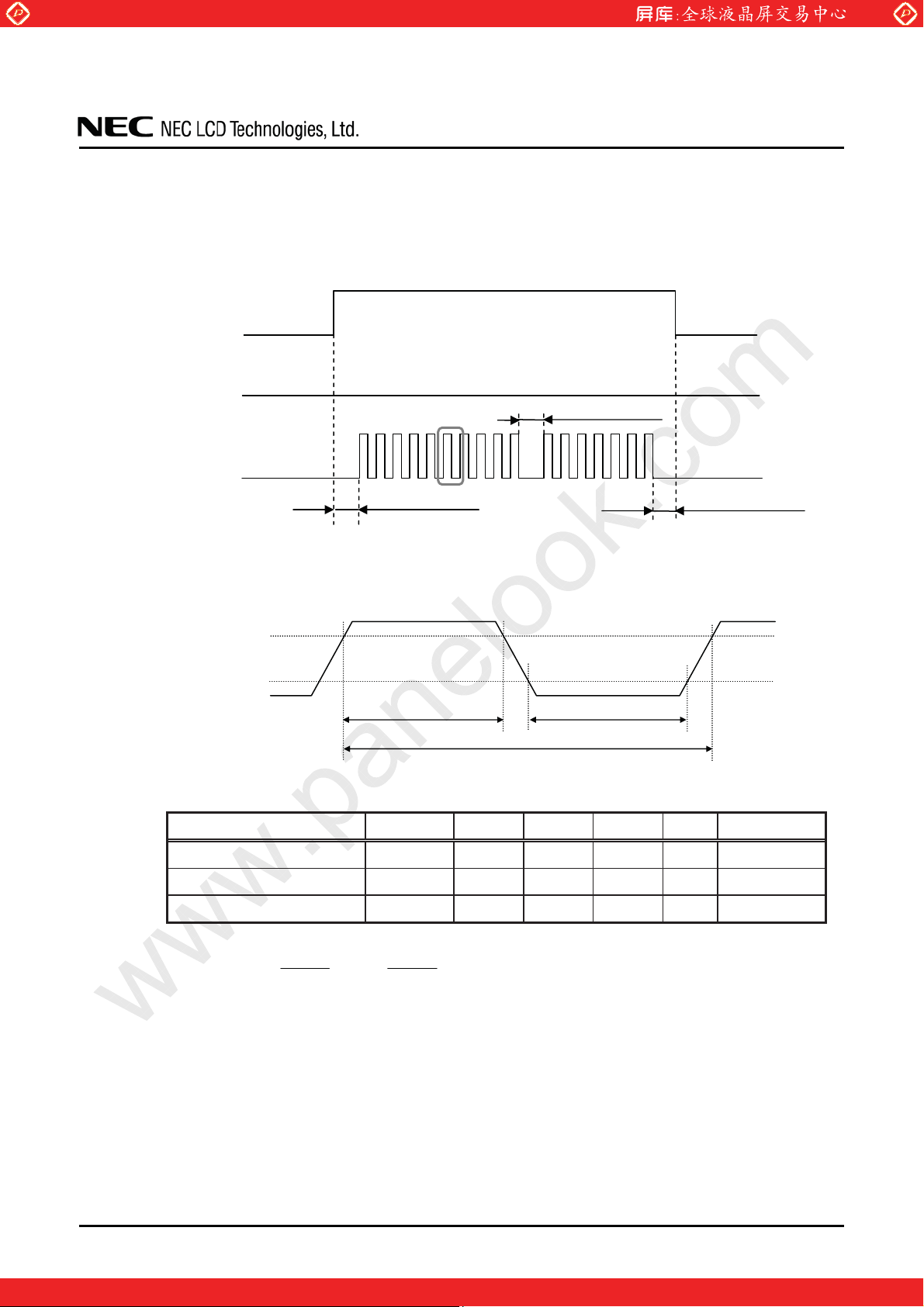

4.6.2 Detail of BRTP timing .................................................................................................................18

4.7 METHOD OF CONNECTION FOR LVDS TRANSMITTER............................................................19

4.8 DISPLAY GRAY SCALE AND INPUT DATA SIGNALS..................................................................21

4.9 INPUT

4.9.1 Timing characteristics..................................................................................................................22

4.9.2 Input signal timing chart ..............................................................................................................22

4.10 LVDS DATA TRANSMISSION MODE ............................................................................................ 23

4.11 DISPLAY POSITIONS.......................................................................................................................24

4.12 PIXEL ARRANGNMENT .................................................................................................................25

4.13 TEN-bit LOOK UP TABLE FOR GAMMA ADJUSTMENT............................................................26

4.14 LUT SERIAL COMMUNICATION TIMINGS .................................................................................29

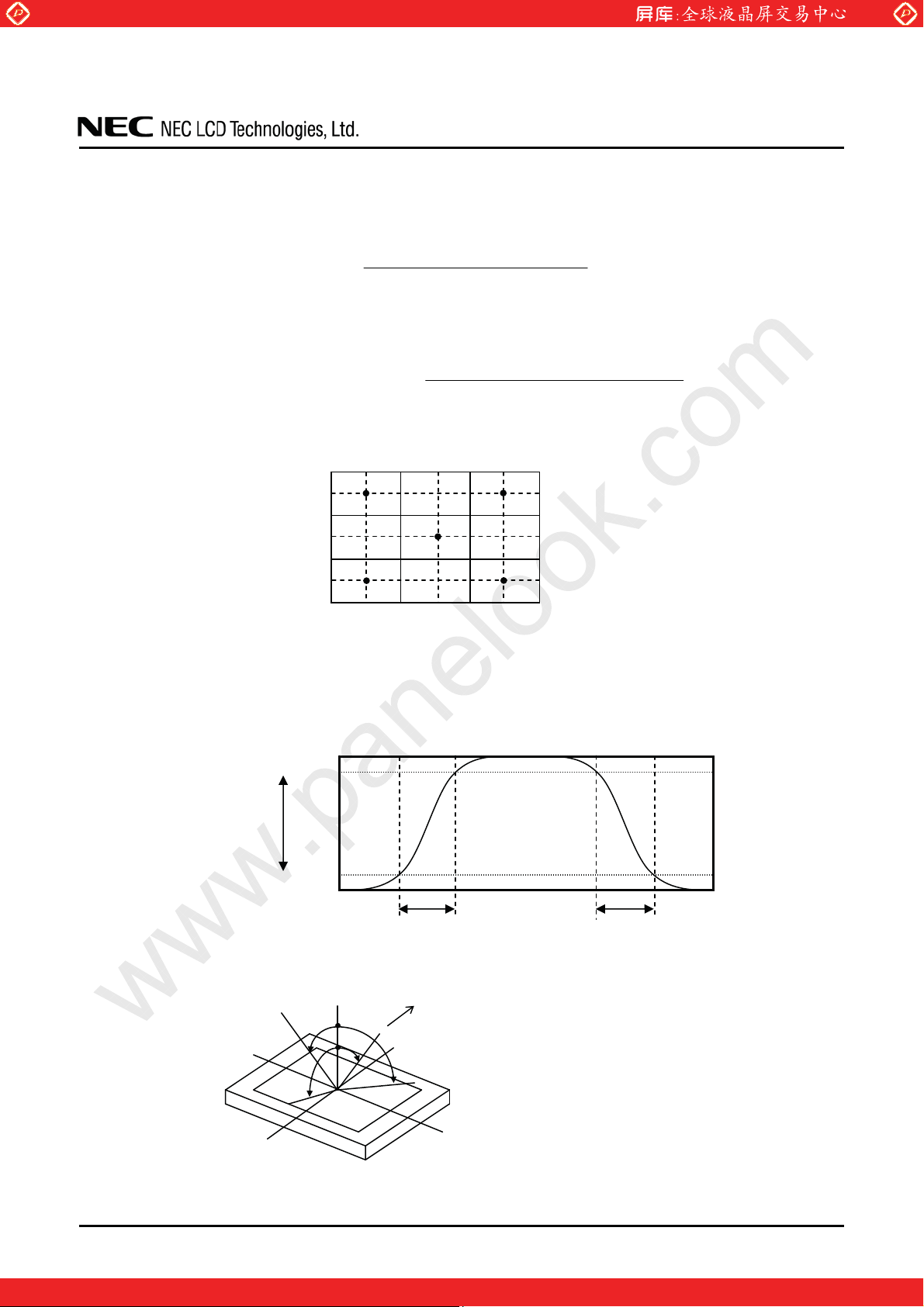

4.15 OPTICS...............................................................................................................................................31

4.15.1 Optical characteristics................................................................................................................31

4.15.2 Definition of contrast ratio......................................................................................................... 32

4.15.3 Definition of luminance uniformity...........................................................................................32

4.15.4 Definition of response times ......................................................................................................32

4.15.5 Definition of viewing angles......................................................................................................32

SIGNAL TIMINGS..................................................................................................................22

www.panelook.com

NL256204AM15-04A

CONTENTS

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

3

www.panelook.com

Global LCD Panel Exchange Center

5. ESTIMATED LUMINANCE LIFETIME..............................................................................................33

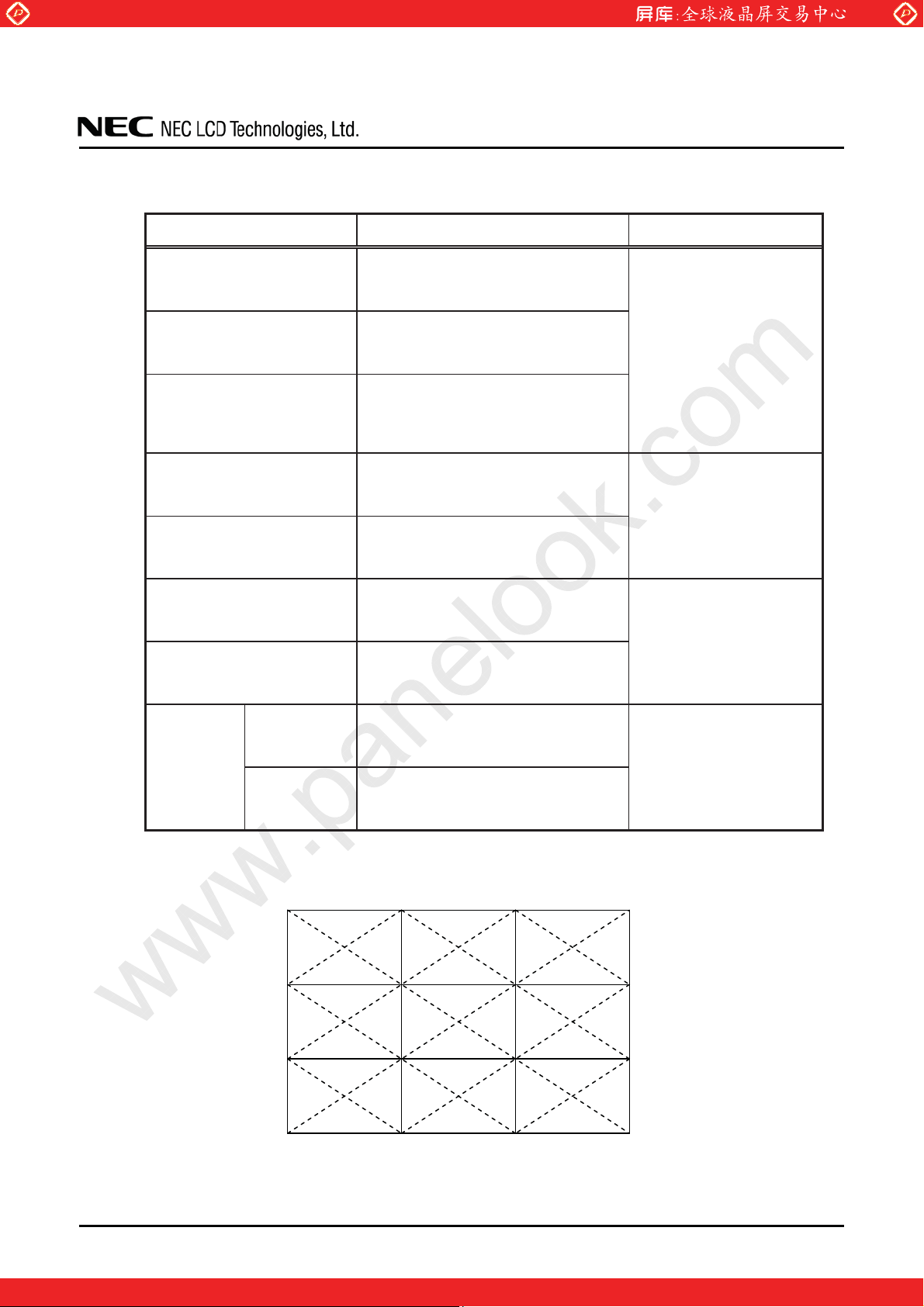

6. RELIABILITY TESTS............................................................................................................................. 34

7. PRECAUTIONS .......................................................................................................................................35

7.1 MEANING OF CAUTION SIGNS ......................................................................................................35

7.2 CAUTIONS ..........................................................................................................................................35

7.3 ATTENTIONS ......................................................................................................................................35

7.3.1 Handling of the product ............................................................................................................... 35

7.3.2 Environment.................................................................................................................................36

7.3.3 Characteristics..............................................................................................................................37

7.3.4 Others........................................................................................................................................... 37

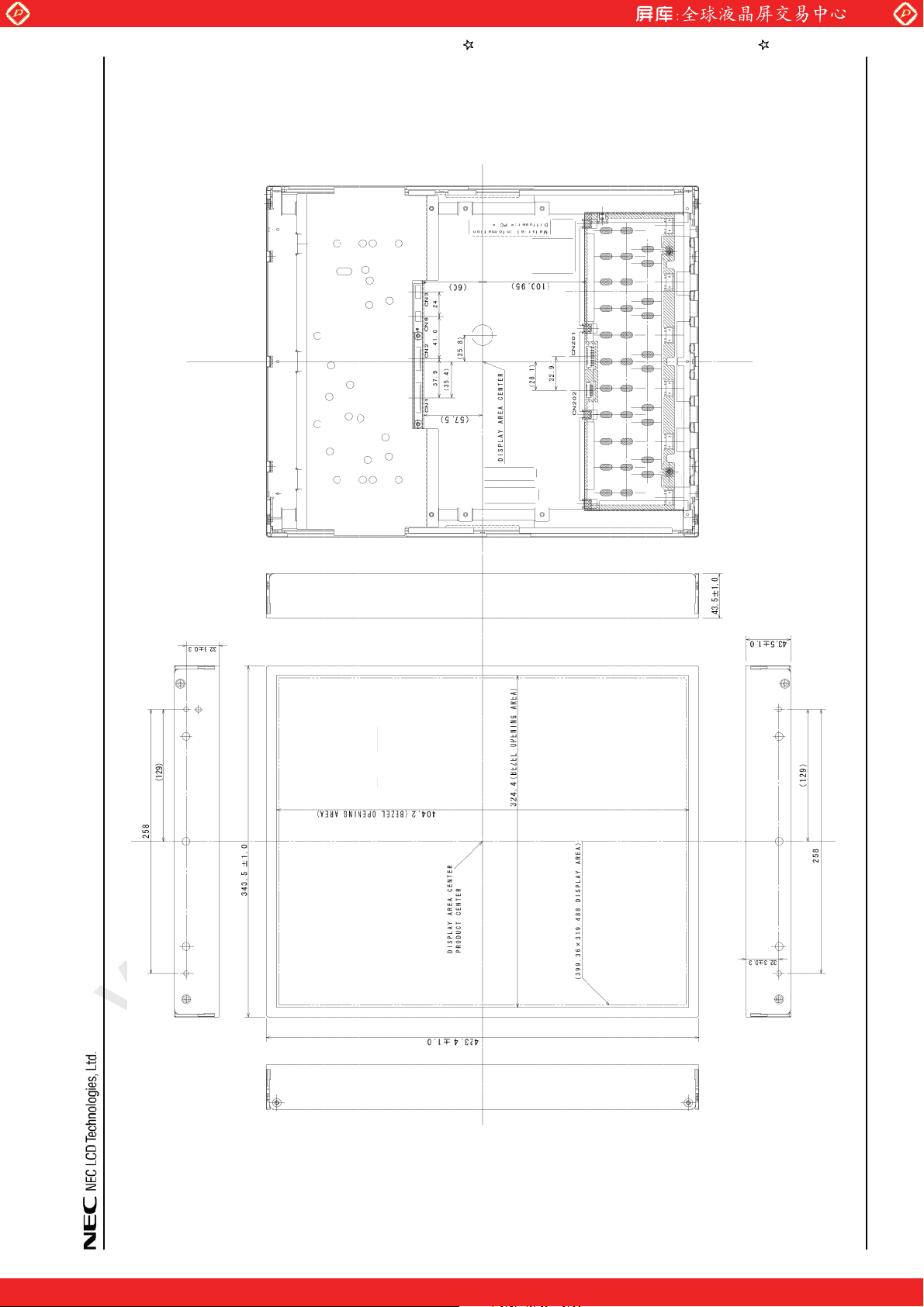

8. OUTLINE DRAWINGS ........................................................................................................................... 38

www.panelook.com

NL256204AM15-04A

CONTENTS

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

4

www.panelook.com

Global LCD Panel Exchange Center

1. OUTLINE

1.1 STRUCTURE AND PRINCIPLE

Monochrome LCD module NL256204AM15-04A is composed of the amorphous silicon thin film
transistor liquid crystal display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT
(Thin Film Transistor) array and a backlight.

The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the TFT
array glass substrate and a monochrome-filter glass substrate.

Grayscale data signals from a host system (e.g. signal generator, etc.) are modulated into best form for
active matrix system by a signal processing board, and sent to the driver LSIs which drive the individual
TFT arrays.

The TFT array as an electro-optical switch regulates the amount of transmitted light from the backlight
assembly, when it is controlled by data signals. Monochrome images are created by regulating the
amount of transmitted light through the TFT array.

www.panelook.com

NL256204AM15-04A

1.2 APPLICATION

x Monochrome monitor system

1.3 FEATURES

x Ultra-wide viewing angle (Adoption of Ultra-Advanced Super Fine TFT (UA-SFT))

x High luminance

x High contrast

x Low reflection

x High resolution

x 256 gray scales per 1 sub-pixel

x LVDS interface

x Adjustable gamma characteristics by using built-in 10-bit LUT (look up table)

x Selectable LVDS data input map

x Selectable LVDS data transmission mode

x Small foot print

x Incorporated direct type backlight with an inverter

x Replaceable backlight unit and inverter

x Compliance with the European RoHS directive (2002/95/EC)

(From product which was produced after April. 1, 2006)

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

5

www.panelook.com

Global LCD Panel Exchange Center

2. GENERAL SPECIFICATIONS

www.panelook.com

NL256204AM15-04A

Display area

Diagonal size of display

Drive system

Display gray scale

Pixel

Pixel arrangement

Sub-pixel pitch

Pixel pitch

Module size

Weig ht

Contrast ratio

Viewing angle

Designed viewing direction

Polarizer surface

399.36 (H) u 319.488 (V) mm

51cm (20.1 inches)

a-Si TFT active matrix

256 gray scales per 1 sub-pixel (8-bit) (766 gray scales per 1 pixel)
2,560 (H) u 2,048 (V) pixels (1 pixel consists of 3 sub pixels (LCR))

LCR Vertical stripe

0.052 (H) u 0.156 (V) mm

0.156 (H) u 0.156 (V) mm

423.4 (W) u 343.5 (H) u 43.5 (D) mm (typ.)

2,300 g (typ.)

900:1 (typ.)

t

At the contrast ratio

10:1

x Horizontal: Right side 88q (typ.), Left side 88q (typ.)
x Vertical: Up side 88q (typ.), Down side 88q (typ.)

Viewing angle with optimum grayscale (Jล DICOM): normal axis

(perpendicular)

Antiglare

Note1

Polarizer pencil-hardness

Response time

Luminance

2H (min.) [by JIS K5600]

Ton + Toff (10%

mo

90%)

30 ms (typ.)

At the maximum luminance

850 cd/m

2

(typ.)

White chromaticity Wx, Wy = (0.280, 0.304) (typ.)

Signal system

Power supply voltage

4 ports LVDS interface
[LCR 8-bit signals, Data enable signal (DE), Dot clock (CLK)]

LCD panel signal processing board: 12.0V
Inverter: 12.0V

Direct light type: 12 cold cathode fluorescent lamps with an inverter

Backlight

Replaceable parts

x Backlight unit: Type No.: 201LHS08
x Inverter: Type No.: 201PW121

Power consumption

Note1: When the product luminance is 850cd/m

At checkered flag pattern, the maximum luminance

49.2 W (typ.)

2

, the gamma characteristic is designed to Jล DICOM.

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

6

www.panelook.com

Global LCD Panel Exchange Center

N

N

N

3. BLOCK DIAGRAM

Host LCD module (product)

DA0+/­DA1+/­DA2+/­CKA+/­DA3+/-

DB0+/­DB1+/­DB2+/­CKB+/­DB3+/-

DC0+/­DC1+/­DC2+/­CKC+/­DC3+/-

LVDS receiver

Controller

www.panelook.com

2,048 lines

V-driver

NL256204AM15-04A

H-driver

7,680 lines

TFT LCD panel

H: 2,560 u 3 (L, C, R)

V: 2,048

V-driver

DD0+/­DD1+/­DD2+/­CKD+/­DD3+/-

MOD>0:1@
BSEL>0:1@
CSR, CSL
SCLK
SDAT

VDD

GND

ote1, Note2

FG

ote1, Note2

VDDB
BRTC
BRTH
BRTI
BRTP
PWSEL
GNDB

ote1, Note2

Fuse

Fuse

LVDS receiver

Converter

DC/DC

H-driver

Backlight (Direct light type)

Power
supply for
drivers

Inverter

Note1: Relations between GND (Signal ground), FG (Frame ground) and GNDB (Inverter ground) in the

LCD module are as follows.

GND - FG Connected
GND - GNDB Not connected
FG - GNDB Not connected

Note2: GND, FG and GNDB must be connected to customer equipment’s ground, and it is recommended that

these grounds be connected together in customer equipment.

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

7

www.panelook.com

Global LCD Panel Exchange Center

4. DETAILED SPECIFICATIONS

4.1 MECHANICAL SPECIFICATIONS

Parameter Specification Unit

www.panelook.com

NL256204AM15-04A

Module size

Display area

Weight

423.4 r 1.0 (W) u 343.5 r 1.0 (H) u 43.5 r 1.0 (D)

Note1: See "7. OUTLINE DRAWINGS".

4.2 ABSOLUTE MAXIMUM RATINGS

Parameter Symbol Rating Unit Remarks

LCD panel signal

Power supply voltage

LCD panel signal

processing board

Input voltage

for signals

Inverter

processing board

Display signals

Function signal 1

Function signal 2

PWSEL signal VPSL -0.3 to +5.5 V

399.36 (H) u 319.488 (V)

2,300 (typ.), 2,600 (max.)

VDD -0.3 to +15.0 V

Inverter VDDB -0.3 to +15.0 V

Note1

Note2

Note3

BRTI signal VBI -0.3 to +1.5 V

BRTP signal VBP -0.3 to +5.5 V

BRTC signal VBC -0.3 to +5.5 V

VD -0.3 to +3.6

VF1

-0.3 to +3.9

VF2

V

Note1 mm

Note1 mm

g

Ta = 25qC

Ta = 25qC

VDD=12.0V

Ta = 25qC

VDDB = 12.0V

Storage temperature Tst -20 to +60

Operating temperature

Relative humidity

Absolute humidity

Note6

Note6

Front surface TopF 0 to +55

Rear surface TopR 0 to +55

d 95

RH

AH

d 85

d 70

d 73

Note7

qC

qC

qC

%

%

%

g/m

3

-

Note4

Note5

Ta d 40qC

40 < Ta d 50qC

50 < Ta d 55qC

Ta > 55qC

Note1: DA0+/-, DA1+/-, DA2+/-, DA3+/-, CKA+/-, DB0+/-, DB1+/-, DB2+/-, DB3+/-, CKB+/-, DC0+/-,

DC1+/-, DC2+/-, DC3+/-, CKC+/-, DD0+/-, DD1+/-, DD2+/-, DD3+/-, CKD+/­Note2: MOD0, MOD1, BSEL0, BSEL1
Note3: CSR, CSL, SCLK, SDAT
Note4: Measured at center of LCD panel surface (including self-heat)
Note5: Measured at center of LCD module's rear shield surface (including self-heat)
Note6: No condensation
Note7: Water amount at Ta = 55°C and RH = 70%

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

8

www.panelook.com

Global LCD Panel Exchange Center

4.3 ELECTRICAL CHARACTERISTICS

4.3.1 LCD panel signal processing board

Parameter Symbol min. typ. max. Unit Remarks

Power supply voltage VDD 10.8 12.0 13.2 V -

Power supply current IDD -

Differential input threshold
voltage for Display signals

Input voltage swing VI 0 - 2.4 V Note4

www.panelook.com

NL256204AM15-04A

900

Note1

High VTH - - +100 mV

Low VTL -100 - - mV

1,800

Note2

mA

(Ta = 25qC)

at VDD = 12.0V,

Mode 0 is selected.

at VCM= 1.2V

Note3, Note4

Terminating resistance RT - 100 -

Input voltage for
Function signal 1

Input current for
Function signal 1

Input voltage for
Function signal 2

High VFH1 Keep this pin open. -

Low VFL1 0 - 0.8 V

Low IFL1 -10 - 10

High V+ - - 2.3 V

Low V- 0.5 - - V

Hysteresis VH 0.4 - - V

:

PA

-

Note5

Note6

Note1: Checkered flag pattern [by EIAJ ED-2522]
Note2: Pattern for maximum current
Note3: Common mode voltage for LVDS receiver
Note4: DA0+/-, DA1+/-, DA2+/-, DA3+/-, CKA+/-, DB0+/-, DB1+/-, DB2+/-, DB3+/-, CKB+/-, DC0+/-,

DC1+/-, DC2+/-, DC3+/-, CKC+/-, DD0+/-, DD1+/-, DD2+/-, DD3+/-, CKD+/-.
Note5: MOD0, MOD1, BSEL0, BSEL1
Note6: CSR, CSL, SCLK, SDAT

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

9

www.panelook.com

Global LCD Panel Exchange Center

4.3.2 Inverter

Parameter Symbol min. typ. max. Unit Remarks

Power supply voltage VDDB 11.4 12.0 12.6 V -

Power supply current IDDB - 3,200 4,000

BRTI signal VBI 0 - 1.0 V

BRTP signal

Input voltage

for signals

Input current

for signals

BRTC signal

PWSEL signal

BRTI signal IBI -130 - -

BRTP signal

BRTC signal

PWSEL signal

www.panelook.com

NL256204AM15-04A

m$

High VBPH 2.0 - 5.25 V

Low VBPL 0 - 0.8 V

High VBCH 2.0 - 5.25 V

Low VBCL 0 - 0.8 V

High VPSLH 2.0 - 5.25 V

Low VPSLL 0 - 0.8 V

P$

High IBPH - - 3.5 mA

Low IBPL -1.6 - - mA

High IBCH - - 440

Low IBCL -610 - -

High IPSLH - - 440

Low IPSLL -610 - -

P$
P$
P$
P$

(Ta = 25qC)

VDDB = 12.0V,
At the maximum
luminance

-

4.3.3 Inverter current wave

3,200 (mA) typ.

0 (A)

Duty

Luminance control frequency

Maximum luminance control: 100%
Minimum luminance control: 20%
Luminance control frequency: 285Hz (typ.)

Note1: Luminance control frequency indicate the input pulse frequency, when select the external pulse

control. See "4.6.2 Detail of BRTP timing".

Note2: The power supply lines (VDDB and GNDB) have large ripple voltage (See "4.3.4 Power

supply voltage ripple".) during luminance control. There is the possibility that the ripple
voltage produces acoustic noise and signal wave noise in audio circuit and so on. Put a
capacitor (5,000 to 6,000PF) between the power supply lines (VDDB and GNDB) to reduce the
noise, if the noise occurred in the circuit.

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

10

www.panelook.com

Global LCD Panel Exchange Center

4.3.4 Power supply voltage ripple

This product works if the ripple voltage levels are over the permissible values as the following table,

but there might be noise on the display image.

www.panelook.com

NL256204AM15-04A

Power supply voltage

VDD 12.0 V

VDDB 12.0 V

Note1: The permissible ripple voltage includes spike noise.

Example of the power supply connection

a) Separate the power supply b) Put in the filter

Power

Power

VDD

VDDB

4.3.5 Fuse

Parameter

VDD

VDDB 0453007 Littelfuse Inc.

Type Supplier

FHC20 502AD

Note1: The power supply’s rated current must be more than the fusing current. If it is less than the

fusing current, the fuse may not blow in a short time, and then nasty smell, smoke and so on
may occur.

(Measure at input terminal of power supply)

Fuse

KAMAYA ELECTRIC

Co., Ltd.

Ripple voltage Note1

d 100

d 200

Power

Rating Fusing current Remarks

5A

24V

7A

125V

Filter

Filter

Unit

mVp-p

mVp-p

VDD

VDDB

12.5A,

5s max.

Note1

14A,

5s max.

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

11

www.panelook.com

Global LCD Panel Exchange Center

4.4 POWER SUPPLY VOLTAGE SEQUENCE

4.4.1 LCD panel signal processing board

www.panelook.com

NL256204AM15-04A

VDD
Note1

0V

VDD ON

10.8V

9.6V

VDD dip < 20ms

5ms < Tr < 80ms

VDD OFF

10.8V

VDD ON

10.8V

Tof f > 50ms

LVDS Signals *1,*2
Note2

0V

CSR, CSL, SCLK, SDAT
Note2

0V

10ms < t < 480ms

t > 10ms

tt480ms

tt 685ms

VALID period

Note3

VALID period

0ms < t < 35ms

Display on screen

*1: DA0+/-, DA1+/-, DA2+/-, DA3+/-, CKA+/-, DB0+/-, DB1+/-, DB2+/-, DB3+/-, CKB+/-,

DC0+/-, DC1+/-, DC2+/-, DC3+/-, CKC+/-, DD0+/-, DD1+/-, DD2+/-, DD3+/-, CKD+/-

*2: LVDS signals should be measured at the terminal of 100: resistance.

Note1: If there is a voltage variation (voltage drop) at the rising edge of VDD below 10.8V, there is a

possibility that a product does not work due to a protection circuit.

Note2: LVDS signals and CSR, CSL, SCLK, SDAT must be set to Low or High-impedance, except the

VALID period (See above sequence diagram), in order to avoid the circuitry damage .
If some of signals are cut while this product is working, even if the signal input to it once again,
it might not work normally. If a customer stops the display and function signals, VDD also must
be shut down.

Note3: At the beginning of the serial communication mode, take 480ms or more after the LVDS signal

input.

4.4.2 Inverter

Voltage

12.0V

trd800ms

BRTC

VDDB

11.4V

0V

0ms<t

Time

0ms<t

Note1: The backlight should be turned on within the valid period of LVDS signals, in order to avoid

unstable data display.
Note2: If tr is more than 800ms, the backlight will be turned off by a protection circuit for inverter.
Note3: When VDDB is 0V or BRTC is Low, PWSEL must be set to Low or Open.

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

12

www.panelook.com

Global LCD Panel Exchange Center

4.5 CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS

4.5.1 LCD panel signal processing board

CN1 socket (LCD module side): FI-WE41P-HFE (Japan Aviation Electronics Industry Limited (JAE))
Adaptable plug: FI-W41S (Japan Aviation Electronics Industry Limited (JAE))

Pin No. Symbol Signal Remarks

1 GND Signal ground Note1
2 CSR Chip selection R
3 CSL Chip selection L
4 SCLK Serial Clock
5 SDAT Serial Data

6 MOD0

Selection of LVDS Data Transmission Mode
(Pull-up 25k:)

7 MOD1

8 BSEL0

Selection of LVDS data input map
(Pull-up 25k:)

9 BSEL1

10 RSVD Reserved Keep this pin Open.
11 GND Signal ground Note1
12 DB3+
13 DB3­14 GND Signal ground Note1
15 CKB+
16 CKB­17 GND Signal ground Note1
18 DB2+
19 DB2­20 GND Signal ground Note1
21 DB1+
22 DB1­23 GND Signal ground Note1
24 DB0+
25 DB0­26 GND Signal ground Note1
27 DA3+
28 DA3­29 GND Signal ground Note1
30 CKA+
31 CKA­32 GND Signal ground Note1
33 DA2+
34 DA2­35 GND Signal ground Note1
36 DA1+
37 DA1­38 GND Signal ground Note1
39 DA0+
40 DA0­41 GND Signal ground Note1

Pixel data B3 LVDS differential data input Note2

Pixel clock B LVDS differential clock input Note2

Pixel data B2 LVDS differential data input Note2

Pixel data B1 LVDS differential data input Note2

Pixel data B0 LVDS differential data input Note2

Pixel data A3 LVDS differential data input Note2

Pixel clock A LVDS differential clock input Note2

Pixel data A2 LVDS differential data input Note2

Pixel data A1 LVDS differential data input Note2

Pixel data A0 LVDS differential data input Note2

www.panelook.com

NL256204AM15-04A

LUT communication control signal
See "4.13 TEN-bit LOOK UP TABLE FOR
GAMMA ADJUSTMENT".

See "4.10 LVDS DATA TRANSMISSION MODE".

MOD0 MOD1 Mode

Open Open 0
Open Low 1

Low Open Reserved

Low Low 0
See "4.7 METHOD OF CONNECTION FOR
LVDS TRANSMITTER".

BSEL0 BSEL1 Mode

Open Open A
Open Low B

Low Open C

Low Low A

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

13

www.panelook.com

Global LCD Panel Exchange Center

Note1: All GND terminals should be used without any non-connected lines.
Note2: Twist pair wires with 100: (Characteristic impedance) should be used between LCD panel signal

processing board and LVDS transmitter.

CN2 socket (LCD module side): FI-WE31P-HFE (Japan Aviation Electronics Industry Limited (JAE))
Adaptable plug: FI-W31S (Japan Aviation Electronics Industry Limited (JAE))

Pin No. Symbol Signal Remarks

1 GND Signal ground Note1
2 DD3+
3 DD3­4 GND Signal ground Note1
5 CKD+
6 CKD­7 GND Signal ground Note1
8 DD2+

9 DD2­10 GND Signal ground Note1
11 DD1+
12 DD1­13 GND Signal ground Note1
14 DD0+
15 DD0­16 GND Signal ground Note1
17 DC3+
18 DC3­19 GND Signal ground Note1
20 CKC+
21 CKC­22 GND Signal ground Note1
23 DC2+
24 DC2­25 GND Signal ground Note1
26 DC1+
27 DC1­28 GND Signal ground Note1
29 DC0+
30 DC0­31 GND Signal ground Note1

Pixel data D3 LVDS differential data input Note2

Pixel clock D LVDS differential clock input Note2

Pixel data D2 LVDS differential data input Note2

Pixel data D1 LVDS differential data input Note2

Pixel data D0 LVDS differential data input Note2

Pixel data C3 LVDS differential data input Note2

Pixel clock C LVDS differential clock input Note2

Pixel data C2 LVDS differential data input Note2

Pixel data C1 LVDS differential data input Note2

Pixel data C0 LVDS differential data input Note2

Note1: All GND terminals should be used without any non-connected lines.
Note2: Twist pair wires with 100: (Characteristic impedance) should be used between LCD panel signal

processing board and LVDS transmitter.

www.panelook.com

NL256204AM15-04A

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

14

www.panelook.com

Global LCD Panel Exchange Center

CN3 socket (LCD module side): IL-Z-8PL-SMTYE (Japan Aviation Electronics Industry Limited (JAE))
Adaptable plug: IL-Z-8S-S125C (Japan Aviation Electronics Industry Limited (JAE))

Pin No. Symbol Function Description

1 VDD
2 VDD
3 VDD
4 VDD
5 GND
6 GND
7 GND
8 GND

Power supply Note1

Signal ground Note1

Note1: All VDD and GND terminals should be used without any non-connected lines.

www.panelook.com

NL256204AM15-04A

4.5.2 Inverter

CN201 socket (LCD module side): DF3Z-8P-2H (2) (HIROSE ELECTRIC Co., Ltd.)
Adaptable plug: DF3-8S-2C (HIROSE ELECTRIC Co., Ltd.)

Pin No. Symbol Function Description

1 GNDB
2 GNDB
3 GNDB
4 GNDB
5 VDDB
6 VDDB
7 VDDB
8 VDDB

Inverter ground Note1

Power supply Note1

Note1: All VDDB and GNDB terminals should be used without any non-connected lines.

CN202 socket (LCD module side): IL-Z-9PL-SMTYE (Japan Aviation Electronics Industry Limited (JAE))
Adaptable plug: IL-Z-9S-S125C3 (Japan Aviation Electronics Industry Limited (JAE))

Pin No. Symbol Function Description

1 GNDB
2 GNDB
3 N.C. - Keep this pin Open.

4 BRTC

5 BRTH
6 BRTI
7 BRTP BRTP signal
8 GNDB Inverter ground Note1

9 PWSEL Selection of luminance control signal method

Inverter ground Note1

Backlight ON/OFF control signal

Luminance control terminal

High or Open: Backlight ON
Low: Backlight OFF

See "4.6 LUMINANCE CONTROL".

See "4.6 LUMINANCE CONTROL ".
Note2

Note1: All GNDB terminals should be used without any non-connected lines.
Note2: When VDDB is 0V or BRTC is Low, PWSEL must be set to Low or Open.

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

15

www.panelook.com

Global LCD Panel Exchange Center

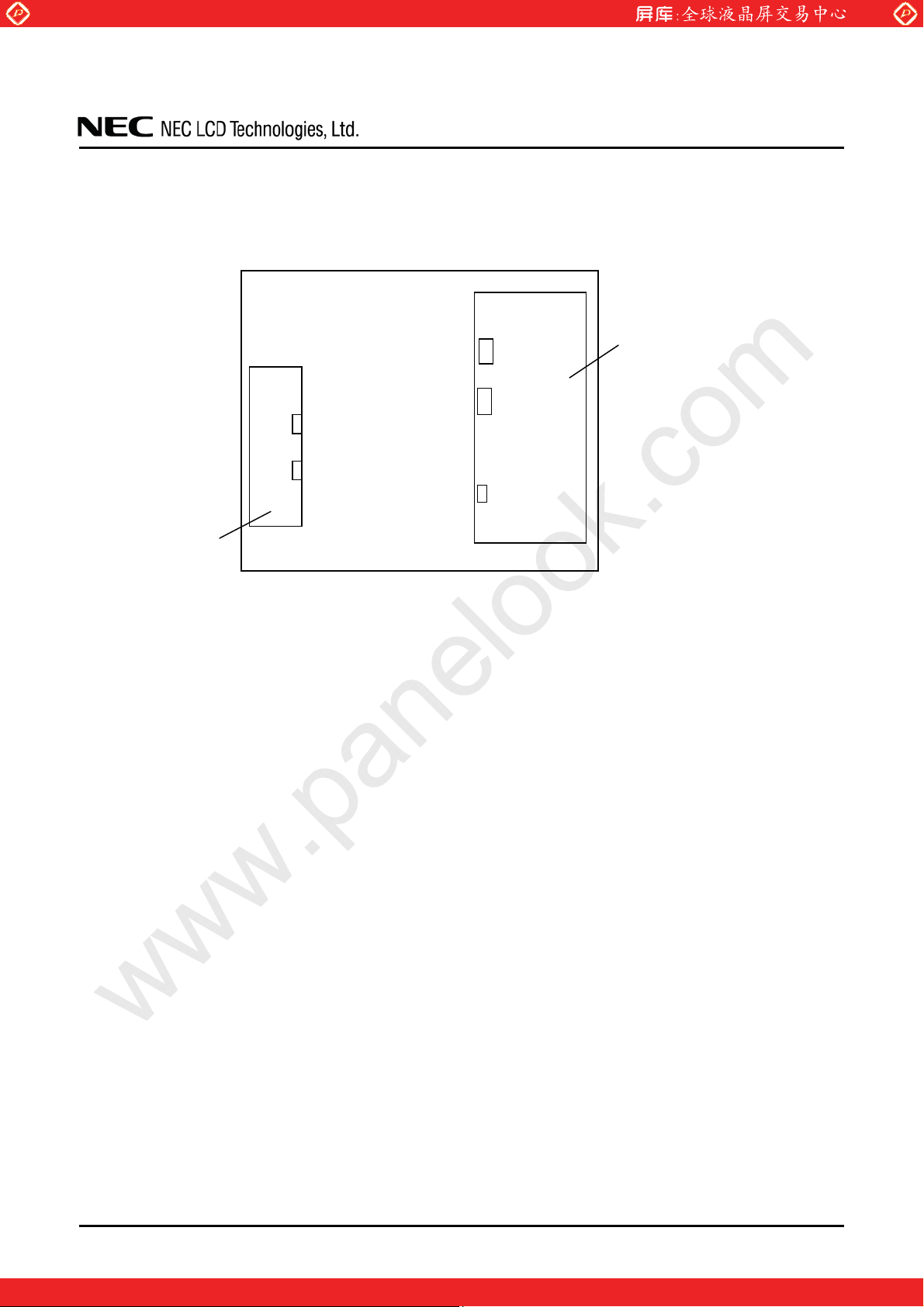

4.5.3 Positions of socket

www.panelook.com

NL256204AM15-04A

Rear side

Inverter

Insert directiono

1
CN202
9
m Insert direction
10
CN201
1

Insert directiono

41
CN1
1

31
CN2
1

8
CN3
1

LCD panel signal processing board

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

16

www.panelook.com

Global LCD Panel Exchange Center

4.6 LUMINANCE CONTROL

4.6.1 Luminance control methods

Method Adjustment and luminance ratio PWSEL terminal BRTP terminal

x Adjustment

The variable resistor (R) for luminance control should be 10k:
r5%, 1/10W. Minimum point of the resistance is the minimum
luminance and maximum point of the resistance is the maximum
luminance.
The resistor (R) must be connected between BRTH-BRTI

Variable resistor
control

terminals.

www.panelook.com

NL256204AM15-04A

Note1

Voltage control

Note1

Pulse width
modulation

Note1
Note2

BRTH

x Luminance ratio Note3

Resistance Luminance ratio

0 :

10 k:

x Adjustment

Voltage control method works, when BRTH terminal is 0V and
VBI voltage is input between BRTI-BRTH terminals. This
control method can carry out continuation adjustment of
luminance.
Luminance is the maximum when BRTI terminal is Open.

x Luminance ratio Note3

BRTI Voltage (VBI) Luminance ratio

0V 30% (Min. Luminance)

1.0V 100% (Max. Luminance)

x Adjustment

Pulse width modulation (PWM) method works, when PWSEL
terminal is Low and PWM signal (BRTP signal) is input into
BRTP terminal. The luminance is controlled by duty ratio of
BRTP signal.

x Luminance ratio Note3

Duty ratio Note4 Luminance ratio

0.2 20% (Min. Luminance)

1.0 100% (Max. Luminance)

R

BRTI

30% (Min. Luminance)

100% (Max. Luminance)

High or Open

Low BRTP signal

Open

Note1: In case of the variable resistor control method and the voltage control method, noises may appear

on the display image depending on the input signals timing for LCD panel signal processing
board.

Use PWM method, if interference noises appear on the display image!

Note2: The inverter will stop working, if the Low period of BRTP signal is more than 50ms while BRTC

signal is High or Open. Then the backlight will not turn on anymore, even if BRTP signal is input

again. This is not out of order. The inverter will start to work when power is supplied again.
Note3: These data are the target values.
Note4: See "4.6.2 Detail of BRTP timing".

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

17

www.panelook.com

Global LCD Panel Exchange Center

4.6.2 Detail of BRTP timing

(1) Timing diagrams

x Outline chart

BRTC

PWSEL (Low)

www.panelook.com

A

d tPWL d 50ms

0ms

NL256204AM15-04A

BRTP

0ms d tPWL d 50ms

x Detail of A part

VBPH

BRTP

VBPL

(2) Each parameter

Parameter Symbol min. typ. max. Unit Remarks

Luminance control frequency FL 185 - 325 Hz Note1, Note2

Duty ratio DL 0.2 - 1.0 - Note1, Note3

Low period tPWL 0 - 50 ms Note4

Note1: Definition of parameters is as follows.

1

FL =

tPW

DL =

tPWH

tPWH

tPW

0ms d tPWL d 50ms

tPWL

tPW

Note2: See the following formula for luminance control frequency.

Luminance control frequency = 1/tv u (n+0.25) [or (n + 0.75)]

n = 1, 2, 3 · · · · · ·
tv: Vertical cycle (See "4.9.1 Timing characteristics".)

The interference noise of luminance control frequency and input signal frequency for
LCD panel signal processing board may appear on a display. Set up luminance control
frequency so that the interference noise does not appear!

Note3: See "4.6.1 Luminance control methods".
Note4: If tPWL is more than 50ms, the backlight will be turned off by a protection circuit for

inverter. The inverter will start to work when power is supplied again.

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

18

www.panelook.com

Global LCD Panel Exchange Center

4.7 METHOD OF CONNECTION FOR LVDS TRANSMITTER

LVDS data input map is selectable by BSEL0 and BSEL1 terminal.

Bit mapping Transmitter Pin Assignment

BSEL[1:0] Note1, Note2 Dual type LVDS TX CN1

Pixel data

A

Pixel data

B

[H:H],

[L:L]

Mode A Mode B Mode C

LA2 LA7 LA0 TA0 R12 R10

LA3 LA6 LA1 TA1 R13 R11 Note3

LA4 LA5 LA2 TA2 R14 R12 ATA-

LA5 LA4 LA3 TA3 R15 R13 ATA+

LA6 LA3 LA4 TA4 R16 R14

LA7 LA2 LA5 TA5 R17 R15

CA2 CA7 CA0 TA6 G12 G10

CA3 CA6 CA1 TB0 G13 G11

CA4 CA5 CA2 TB1 G14 G12

CA5 CA4 CA3 TB2 G15 G13 ATB- o37 DA1-

CA6 CA3 CA4 TB3 G16 G14 ATB+ o36 DA1+

CA7 CA2 CA5 TB4 G17 G15
RA2 RA7 RA0 TB5 B12 B10

RA3 RA6 RA1 TB6 B13 B11

RA4 RA5 RA2 TC0 B14 B12

RA5 RA4 RA3 TC1 B15 B13

RA6 RA3 RA4 TC2 B16 B14 ATC- o34 DA2-

RA7 RA2 RA5 TC3 B17 B15 ATC+ o33 DA2+

Hsync Hsync Hsync TC4 HSYNC HSYNC

Vsync Vsync Vsync TC5 VSYNC VSYNC

LA0 LA1 LA6 TD0 R10 R16

LA1 LA0 LA7 TD1 R11 R17

CA0 CA1 CA6 TD2 G10 G16 ATD-

CA1 CA0 CA7 TD3 G11 G17 ATD+ o27 DA3+

RA0 RA1 RA6 TD4 B10 B16
RA1 RA0 RA7 TD5 B11 B17

N.C. N.C. N.C. TD6 - -

CLK CLK CLK CLK CLK CLK

LB2 LB7 LB0 TA0 R22 R20

LB3 LB6 LB1 TA1 R23 R21

LB4 LB5 LB2 TA2 R24 R22 BTA-

LB5 LB4 LB3 TA3 R25 R23 BTA+

LB6 LB3 LB4 TA4 R26 R24

LB7 LB2 LB5 TA5 R27 R25

CB2 CB7 CB0 TA6 G22 G20

CB3 CB6 CB1 TB0 G23 G21

CB4 CB5 CB2 TB1 G24 G22

CB5 CB4 CB3 TB2 G25 G23 BTB-

CB6 CB3 CB4 TB3 G26 G24 BTB+

CB7 CB2 CB5 TB4 G27 G25
RB2 RB7 RB0 TB5 B22 B20

RB3 RB6 RB1 TB6 B23 B21

RB4 RB5 RB2 TC0 B24 B22

RB5 RB4 RB3 TC1 B25 B23

RB6 RB3 RB4 TC2 B26 B24 BTC-

RB7 RB2 RB5 TC3 B27 B25 BTC+

Hsync Hsync Hsync TC4 HSYNC HSYNC

Vsync Vsync Vsync TC5 VSYNC VSYNC

LB0 LB1 LB6 TD0 R20 R26

LB1 LB0 LB7 TD1 R21 R27

CB0 CB1 CB6 TD2 G20 G26 BTD-

CB1 CB0 CB7 TD3 G21 G27 BTD+

RB0 RB1 RB6 TD4 B20 B26

RB1 RB0 RB7 TD5 B21 B27

N.C. N.C. N.C. TD6 - -

CLK CLK CLK CLK CLK CLK

[H:L] [L:H]

DE DE DE TC6 DE DE

DE DE DE TC6 DE DE

www.panelook.com

Single type

LVDS Tx

THine

THC63LVD823

NS

DS90C387

NL256204AM15-04A

Output

Connector

ATC L K -

ATC L K +

BTCLK­BTCLK+

Pin No. Signal name

40 DA0-

o

39 DA0+

o

28 DA3-

o

31 CKA-

o

30 CKA+

o

25 DB0-

o

24 DB0+

o

22 DB1-

o

21 DB1+

o

19 DB2-

o

18 DB2+

o

13 DB3-

o

12 DB3+

o

16 CKB-

o

15 CKB+

o

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

19

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

NL256204AM15-04A

Pixel data

C

Pixel data

D

BSEL[1:0] Note1, Note2 Dual type LVDS TX CN2

[H:H],

[L:L]

Mode A Mode B Mode C

LC2 LC7 LC0 TA0 R12 R10

LC3 LC6 LC1 TA1 R13 R11 Note3

LC4 LC5 LC2 TA2 R14 R12 CTA-

LC5 LC4 LC3 TA3 R15 R13 CTA+

LC6 LC3 LC4 TA4 R16 R14

LC7 LC2 LC5 TA5 R17 R15

CC2 CC7 CC0 TA6 G12 G10

CC3 CC6 CC1 TB0 G13 G11

CC4 CC5 CC2 TB1 G14 G12

CC5 CC4 CC3 TB2 G15 G13 CTB- o27 DC1-

CC6 CC3 CC4 TB3 G16 G14 CTB+ o26 DC1+

CC7 CC2 CC5 TB4 G17 G15

RC2 RC7 RC0 TB5 B12 B10

RC3 RC6 RC1 TB6 B13 B11

RC4 RC5 RC2 TC0 B14 B12

RC5 RC4 RC3 TC1 B15 B13

RC6 RC3 RC4 TC2 B16 B14 CTC- o24 DC2-

RC7 RC2 RC5 TC3 B17 B15 CTC+ o23 DC2+

Hsync Hsync Hsync TC4 HSYNC HSYNC

Vsync Vsync Vsync TC5 VSYNC VSYNC

LC0 LC1 LC6 TD0 R10 R16

LC1 LC0 LC7 TD1 R11 R17

CC0 CC1 CC6 TD2 G10 G16 CTD- o18 DC3-

CC1 CC0 CC7 TD3 G11 G17 CTD+ o17 DC3+

RC0 RC1 RC6 TD4 B10 B16

RC1 RC0 RC7 TD5 B11 B17

N.C. N.C. N.C. TD6 - -

CLK CLK CLK CLK CLK CLK

LD2 LD7 LD0 TA0 R22 R20

LD3 LD6 LD1 TA1 R23 R21

LD4 LD5 LD2 TA2 R24 R22 DTA-

LD5 LD4 LD3 TA3 R25 R23 DTA+

LD6 LD3 LD4 TA4 R26 R24

LD7 LD2 LD5 TA5 R27 R25

CD2 CD7 CD0 TA6 G22 G20

CD3 CD6 CD1 TB0 G23 G21

CD4 CD5 CD2 TB1 G24 G22

CD5 CD4 CD3 TB2 G25 G23 DTB- o12 DD1-

CD6 CD3 CD4 TB3 G26 G24 DTB+ o11 DD1+

CD7 CD2 CD5 TB4 G27 G25

RD2 RD7 RD0 TB5 B22 B20

RD3 RD6 RD1 TB6 B23 B21

RD4 RD5 RD2 TC0 B24 B22

RD5 RD4 RD3 TC1 B25 B23

RD6 RD3 RD4 TC2 B26 B24 DTC-

RD7 RD2 RD5 TC3 B27 B25 DTC+

Hsync Hsync Hsync TC4 HSYNC HSYNC

Vsync Vsync Vsync TC5 VSYNC VSYNC

LD0 LD1 LD6 TD0 R20 R26

LD1 LD0 LD7 TD1 R21 R27

CD0 CD1 CD6 TD2 G20 G26 DTD-

CD1 CD0 CD7 TD3 G21 G27 DTD+

RD0 RD1 RD6 TD4 B20 B26

RD1 RD0 RD7 TD5 B21 B27

N.C. N.C. N.C. TD6 - -

CLK CLK CLK CLK CLK CLK

[H:L] [L:H]

DE DE DE TC6 DE DE

DE DE DE TC6 DE DE

Single type

LVDS Tx

THine

THC63LVD823

NS

DS90C387

Output

Connector

CTCLK­CTCLK+

DTCLK­DTCLK+

Pin No. Signal name

o

30 DC0-

o

29 DC0+

o

21 CKC-

o

20 CKC+

o

15 DD0-

o

14 DD0+

o
o

o
o

o
o

9 DD2-

8 DD2+

3 DD3-

2 DD3+

6 CKD-

5 CKD+

Note1: High must be Open.
Note2: Do not change the setting of BSEL0 and BSEL1 during VDD ON period.
Note3: Twist pair wires with 100: (Characteristic impedance) should be used between LCD panel

signal processing board and LVDS transmitter.

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

20

www.panelook.com

Global LCD Panel Exchange Center

4.8 DISPLAY GRAY SCALE AND INPUT DATA SIGNALS

This product can display 256 gray scales in each LCR sub-pixel and 766 gray scales per 1 pixel. Also the
relation between display gray scale and input data signals is as follows.

LA7 LA6 LA5 LA4 LA3 LA2 LA1 LA0 CA7 CA6 CA5 CA4 CA3 CA2 CA1 CA0 RA7 RA6 RA5 RA4 RA3 RA2 RA1 RA0

Display gray scale

LB7 LB6 LB5 LB4 LB3 LB2 LB1 LB0 CB7 CB6 CB5 CB4 CB3 CB2 CB1 CB0 RB7 RB6 RB5 RB4 RB3 RB2 RB1 RB0

LC7 LC6 LC5 LC4 LC3 LC2 LC1 LC0 CC7 CC6 CC5 CC4 CC3 CC2 CC1 CC0 RC7 RC6 RC5 RC4 RC3 RC2 RC1 RC0

LD7 LD6 LD5 LD4 LD3 LD2 LD1 LD0 CD7 CD6 CD5 CD4 CD3 CD2 CD1 CD0 RD7 RD6 RD5 RD4 RD3 RD2 RD1 RD0

Black

0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 1

Left sub-pixel gray scale

dark

bright

White

Black

0 0 0 0 0 0 1 0

n
p

:

:
1 1 1 1 1 1 0 1
1 1 1 1 1 1 1 0
1 1 1 1 1 1 1 1
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0

dark

bright

0 0 0 0 0 0 0 0

n
p

:

:
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0

Center sub-pixel gray scale

White

Black

0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0

dark

bright

0 0 0 0 0 0 0 0

n
p

:

:
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0

Right sub-pixel gray scale

White

0 0 0 0 0 0 0 0

www.panelook.com

Data signal (0: Low level, 1: High level)

0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0

:

:
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 1
0 0 0 0 0 0 1 0

:

:
1 1 1 1 1 1 0 1
1 1 1 1 1 1 1 0
1 1 1 1 1 1 1 1
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0

:

:
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0

NL256204AM15-04A

0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0

:

:
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0

:

:
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 1
0 0 0 0 0 0 1 0

:

:
1 1 1 1 1 1 0 1
1 1 1 1 1 1 1 0
1 1 1 1 1 1 1 1

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

21

www.panelook.com

Global LCD Panel Exchange Center

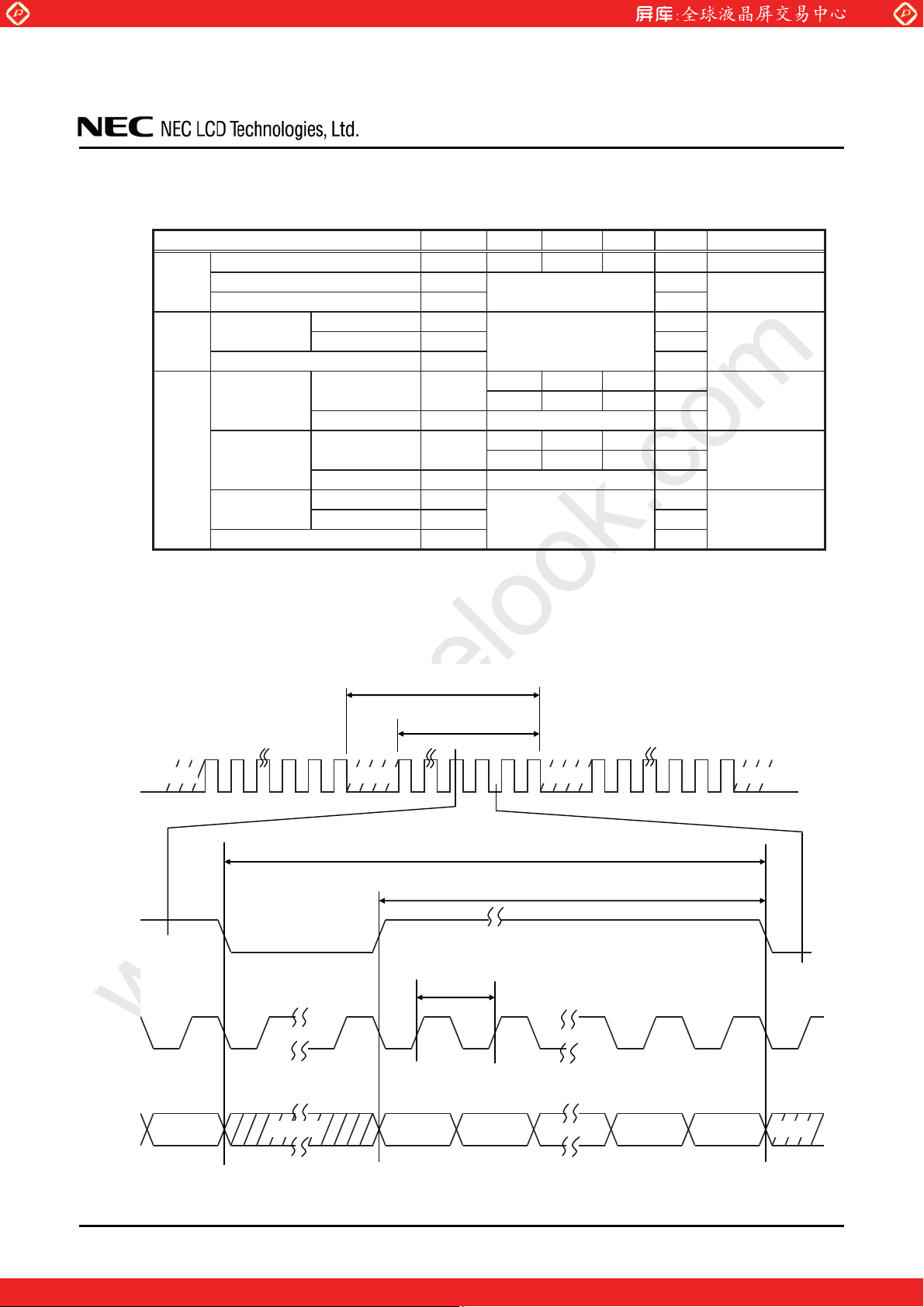

4.9 INPUT SIGNAL TIMINGS

4.9.1 Timing characteristics

Parameter Symbol min. typ. max. Unit Remarks

Frequency 1/tc 80.0 83.26 85.0 MHz 12.01 ns (typ.)

CLK

DATA

DE

CLK-DATA

Horizontal

Vertical

(One frame)

CLK-DE

Duty - -

Rise time, Fall time -

Rise time, Fall time -

Rise time, Fall time -

Note1: Definition of parameters is as follows.

tc = 1CLK, th = 1H

Note2: See the data sheet of LVDS transmitter.

www.panelook.com

NL256204AM15-04A

-

Setup time - ns

Hold time - ns

Cycle th

Display period thd 640 CLK

Cycle tv

Display period tvd 2,048 H

Setup time - ns

Hold time - ns

7.72 8.071 -

660 672 690 CLK

- 16.667 - ms

2,053 2,064 - H

-

-

ns

ns
Ps

ns

Note2

Note2

123.9 kHz (typ.)
Note1

60.0 Hz (typ.)
Note1

Note2

4.9.2 Input signal timing chart

DE

DE

CLK

DATA (A) to (D)

Invalid Invalid Invalid Invalid

tv

tvd = 2,048H (fixed)

th

thd = 640CLK (fixed)

tc

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

InvalidInvalid

22

www.panelook.com

Global LCD Panel Exchange Center

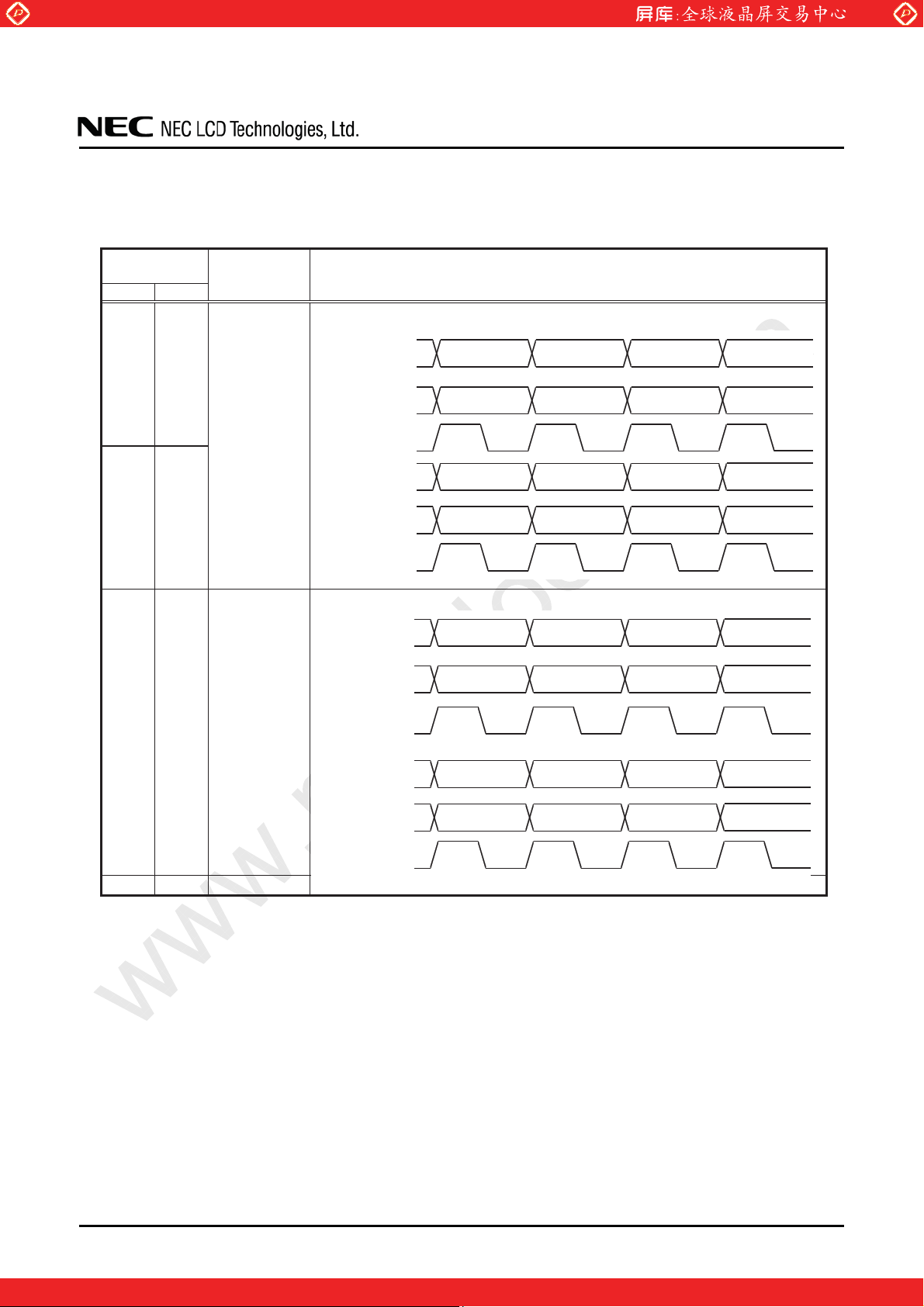

4.10 LVDS DATA TRANSMISSION MODE

Transmission mode of LVDS data is selectable by MOD0 and MOD1 terminal.

www.panelook.com

NL256204AM15-04A

MOD>1:0@

Note1

10

Open Open

Low Low

Open Low

Mode name Data transmission chart

Mode 0

L/R

transmission

mode

Mode 1

Pixel Data A

Pixel Data B

Pixel Data C

Pixel Data D

Pixel Data A

Pixel Data B

LA
CA
RA

LB
CB
RB

CLK1

LC
CC
RC
LD
CD
RD

CLK2

LA
CA
RA

LB
CB
RB

CLK1

DO(7:0) D2(7:0) D4(7:0)

D1(7:0) D3(7:0) D5(7:0)

D1280(7:0) D1282(7:0) D1284(7:0)

D1281(7:0) D1283(7:0) D1285(7:0)

DO(7:0) D1(7:0) D2(7:0)

D640(7:0) D641(7:0) D642(7:0)

4 divided

transmission

mode

Pixel Data C

Pixel Data D

LC
CC
RC
LD
CD
RD

CLK2

D1280(7:0) D1281(7:0) D1282(7:0)

D1920(7:0) D1921(7:0) D1922(7:0)

Low Open Reserved

-

Note1: High must be Open.

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

23

www.panelook.com

Global LCD Panel Exchange Center

4.11 DISPLAY POSITIONS

(1) Mode0: MOD0= Open, MOD1= Open / MOD0= Low, MOD1= Low

D (0, 0) D (1, 0) D (1280, 0) D (1281, 0)

www.panelook.com

NL256204AM15-04A

LA CA RA LB CB RB LC CC RC LD CD

0, 0 1, 0

0, 1 1, 1

x
x
x

0, 2046 1, 2046

0, 2047 1, 2047

x
x
x

xxx
xxx

x
x
x

xxx
xxx

1278, 0 1279, 0 1280, 0 1281, 0

1278, 1 1279, 1 1280, 1 1281, 1

x
x
x

1278, 2046 1279, 2046 1280, 2046 1281, 2046

1278, 2047 1279, 2047 1280, 2047 1281, 2047

x
x
x

x
x
x

x
x
x

xxx
xxx

xxx
xxx

(2) Mode1: MOD0= Open, MOD1= Low

D (0, 0) D (640, 0) D (1280, 0) D (1920, 0)

LA CA RA LB CB RB LC CC RC LD CD

RD

2558, 0

2558, 1 2559, 1

x
x
x

x
x
x

2558, 2046 2559, 2046

2558, 2047 2559, 2047

2559, 0

x
x
x

RD

0, 0

0, 1

x
x
x

0, 2046

0, 2047

639, 0 640, 0

xxx

639, 1 640, 1

xxx

x
x
x

xxx
xxx

x
x
x

639, 2046 640, 2046

639, 2047 640, 2047

1279, 0 1280, 0

xxx

1279, 1 1280, 1

xxx

x
x
x

x
x
x

xxx
xxx

DATA SHEET DOD-PP-1126 (1st edition)

x
x
x

1279, 2046 1280, 2046

1279, 2047 1280, 2047

x
x
x

xxx
xxx

xxx
xxx

1919, 0 1920, 0

1919, 1 1920, 1

x
x
x

x
x
x

1919, 2046 1920, 2046

1919, 2047 1920, 2047

2559, 0

xxx

2559, 1

xxx

x
x
x

x
x
x

xxx
xxx

x
x
x

2559, 2046

2559, 2047

24

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

4.12 PIXEL ARRANGNMENT

0 1 2,559

www.panelook.com

NL256204AM15-04A

0 LCR LCR

••• •

2,047 L C R L C R • • • • • • • L C R

• • • • • • • • • • • •

• • • • • • •
LCR

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

25

www.panelook.com

Global LCD Panel Exchange Center

4.13 TEN-bit LOOK UP TABLE FOR GAMMA ADJUSTMENT

Adjustment of gamma characteristics for each 8-bit LCR data is possible by using built-in 10-bit LUT

(look up table) for Gamma characteristics.

The LUT is set with the serial data. The combination of the control command determines

Random/Sequential Address WRITE and Individual/Simultaneous LCR setting.

The serial data is composed as Table1.

Table1: Serial data Composition

DATA DATA name Function Remarks

D31 CMD5 Control Command
D30 CMD4 Control Command
D29 CMD3 Control Command
D28 CMD2 Control Command
D27 CMD1 Control Command
D26 CMD0 Control Command
D25 ADD9 LUT Address (MSB)
D24 ADD8 LUT Address
D23 ADD7 LUT Address
D22 ADD6 LUT Address
D21 ADD5 LUT Address
D20 ADD4 LUT Address
D19 ADD3 LUT Address
D18 ADD2 LUT Address
D17 ADD1 LUT Address
D16 ADD0 LUT Address (LSB)
D15 DATA15 LUT Data (MSB)
D14 DATA14 LUT Data
D13 DATA13 LUT Data
D12 DATA12 LUT Data
D11 DATA11 LUT Data
D10 DATA10 LUT Data
D9 DATA9 LUT Data
D8 DATA8 LUT Data
D7 DATA7 LUT Data
D6 DATA6 LUT Data
D5 DATA5 LUT Data
D4 DATA4 LUT Data
D3 DATA3 LUT Data
D2 DATA2 LUT Data
D1 DATA1 LUT Data
D0 DATA0 LUT Data (LSB)

www.panelook.com

NL256204AM15-04A

See Table2 and 3.

See Table4.

See Table5.

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

26

www.panelook.com

Global LCD Panel Exchange Center

Table2: Command table (CMD5 to CMD0: 6-bit)

DATA name Parameter Remarks

CMD5 Must be set to "1". ­CMD4 Must be set to "1". -

Selection of Random/Sequential Address

CMD3

CMD2 Must be set to "1". -

CMD1

CMD0 Must be set to "0". -

WRITE
"1": Random Address WRITE
"0": Sequential Address WRITE

Selection of Individual/Simultaneous LCR
setting
"1": Individual LCR setting
"0": Simultaneous LCR setting

www.panelook.com

NL256204AM15-04A

-

"1": Select the Sub-pixel by using ADD9 and

ADD8. (See Table4.)

"0": ADD9 and ADD8 are invalid.

Table3: Command table (CMD5 to CMD0: 6-bit)

CMD5 CMD4 CMD3 CMD2 CMD1 CMD0 Function

1 1 1 1 1 0 Random Address WRITE, Individual LCR setting
1 1 1 1 0 0 Random Address WRITE, Simultaneous LCR setting
1 1 0 1 1 0 Sequential Address WRITE, Individual LCR setting
1 1 0 1 0 0 Sequential Address WRITE, Simultaneous LCR setting

*Other combinations are prohibited, and may cause function error.

Table4: Address table (ADD9 to ADD0: 10-bit)

DATA name Parameter Remarks

Sub-pixel Selection

ADD9

ADD8

ADD7
ADD6
ADD5
ADD4
ADD3
ADD2
ADD1
ADD0

ADD>9:8@=

0:0 Left Sub-pixel
0:1 Center Sub-pixel
1:0 Right Sub-pixel
1:1 ON/OFF selection of Gamma

Correction

LUT Address
256 address = 00h - FFh

When "ADD>9:8@=1:1", ON/OFF of Gamma
correction can select according to the GMA>2:0@.
(See Table6 and Table7.)

When "ADD>9:8@ = 1:1",
ADD>7:0@ must be set to 00h.

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

27

www.panelook.com

Global LCD Panel Exchange Center

Table5: Data table (DATA15 to DATA0: 16-bit)

DATA DATA name Parameter Remarks

DATA15 Dummy
DATA14 Dummy
DATA13 Dummy
DATA12 Dummy
DATA11 Dummy
DATA10 Dummy
DATA9 DATA9
DATA8 DATA8
DATA7 DATA7
DATA6 DATA6
DATA5 DATA5
DATA4 DATA4
DATA3 DATA3
DATA2 DATA2
DATA1 DATA1
DATA0 DATA0

www.panelook.com

Dummy Data
Must be set to "0".

>MSB@

10-bit LUT Data
000h - 3FFh

>LSB@

NL256204AM15-04A

-

-

Table6: Gamma correction table (DATA15 to DATA0: 16-bit)

DATA DATA name Parameter Remarks

DATA15 Dummy
DATA14 Dummy
DATA13 Dummy
DATA12 Dummy
DATA11 Dummy
DATA10 Dummy
DATA9 Dummy
DATA8 Dummy
DATA7 Dummy
DATA6 Dummy
DATA5 Dummy
DATA4 Dummy
DATA3 Dummy
DATA2 GAM2
DATA1 GAM1
DATA0 GAM0

Dummy Data
Must be set to "0".

>MSB@
GMA Data
>LSB@

-

See Table7.

Table7: Control code GAM>2:0@

GMA2 GMA1 GMA0 Function

0 0 0 No correction (Initial setting)
0 0 1 Correction according to the LUT Data. Note1

*Other combinations are prohibited, and may cause function error.

Note1: Initial setting of the LUT is undefined data. The LUT should be enabled by setting of the GMA after

writing the LUT data in all the 256 addresses, in order to avoid undefined data display.
Note2: Transfer the data every power-on, because the LUT data isn't stored in the LCD module.
Note3: As writing and reading the LUT data, a noise may appear on the display image. In order to prevent

the noise appearing on the display, following measures should be performed.

(1) The LUT data should be rewritten during invalid period of pixel data (See "4.9 INPUT

SIGNAL TIMINGS".).

(2) The LUT data should be rewritten when the Gamma Correction is OFF (GMA>2:0@ = 000).

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

28

www.panelook.com

Global LCD Panel Exchange Center

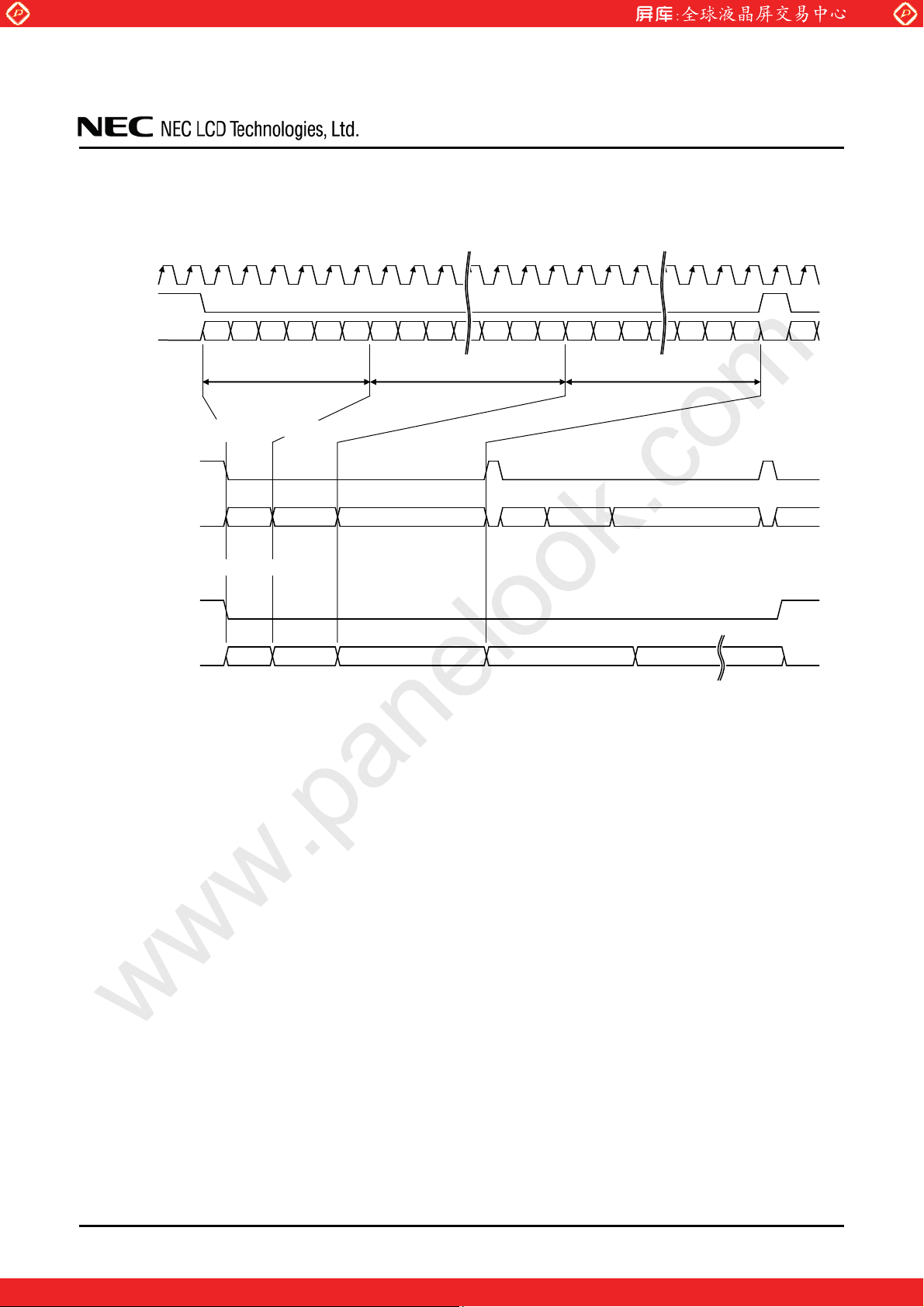

4.14 LUT SERIAL COMMUNICATION TIMINGS

(1) Timing chart

SCLK

CSR, CSL

D31 D30 D29 D28 D27 D26 D25 D24 D23 D18 D17 D16 D15 D14 D13 D2 D1 D0

SDAT

Invalid

www.panelook.com

NL256204AM15-04A

Invalid

D31

Random Address WRITE timing chart

CSR, CSL

CMD ADD DATA CMD ADD DATA

SDAT

Invalid

Sequential Address WRITE timing chart

CSR, CSL

SDAT

Invalid

CMD ADD DATA DATA

ADD[9:0]

DATA[15:0] CMD[5:0]

InvalidInvalid

DATA

Invalid

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

29

www.panelook.com

Global LCD Panel Exchange Center

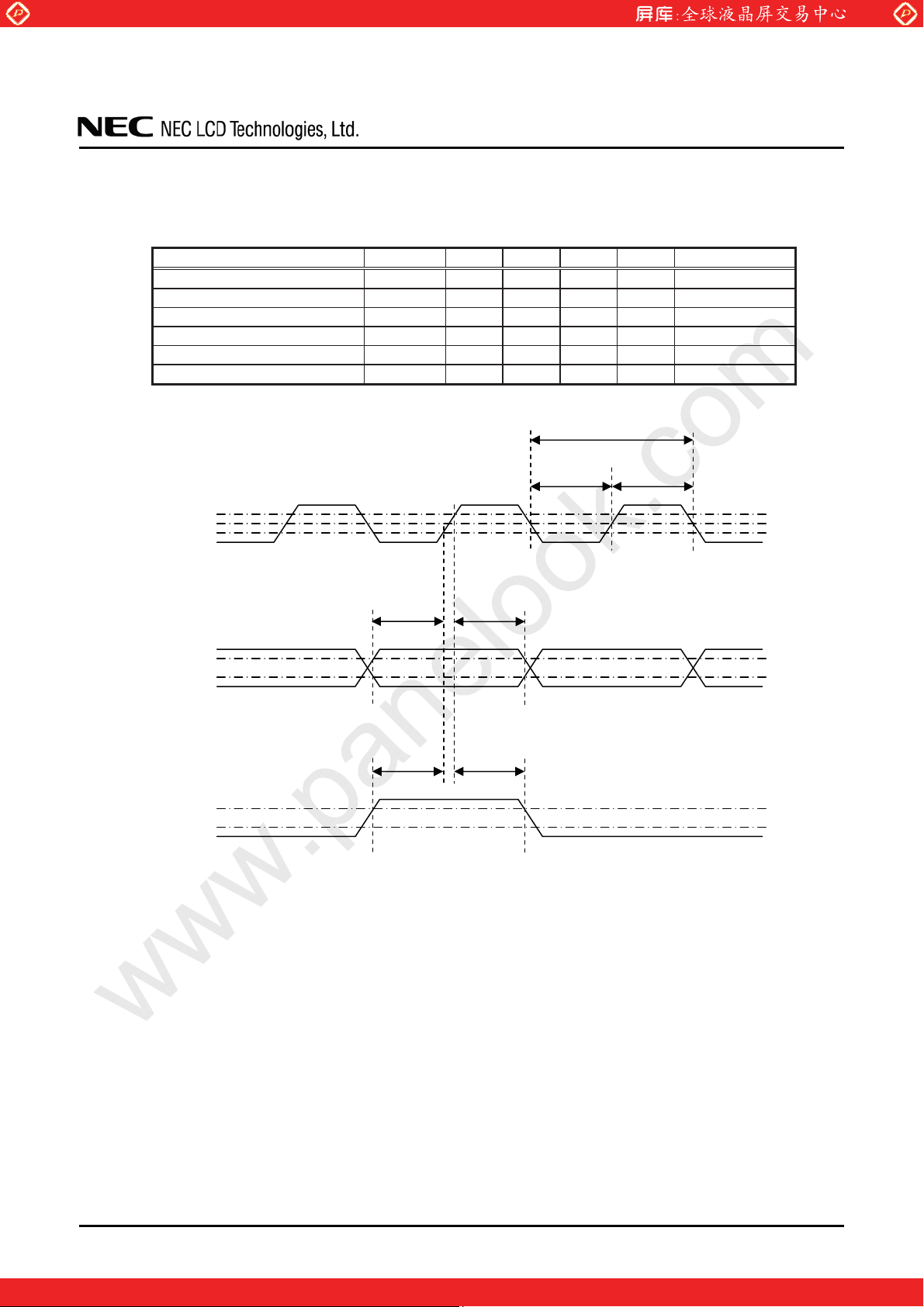

(2) Timing specifications

Parameter Symbol min. typ. max. Unit Remarks

SCLK Frequency 1/Tsck - - 5 MHz ­SCLK Pulse Twsck 50 - - ns ­SDAT-SCLK Setup Time Tds 50 - - ns ­SDAT-SCLK Hold Time Tdh 50 - - ns ­CSR/CSL-SCLK Setup Time Tcs 50 - - ns ­CSR/CSL-SCLK Hold Time Tch 50 - - ns -

www.panelook.com

NL256204AM15-04A

Tsck

Twsck Tws ck

V+

SCLK

Tds Tdh

SDAT

Tcs

CSR,
CSL

Note1: During the serial communication mode, the display noise may appear because of rewriting the

data. To avoid this, rewrite the LUT data when the pixel data is invalid or the Gamma
Correction is OFF (GMA>2:0@ = 000). The external noise may cause the data change, refresh
the data regularly according to need.

Tch

50%
V-

V+
V-

V+
V-

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

30

www.panelook.com

Global LCD Panel Exchange Center

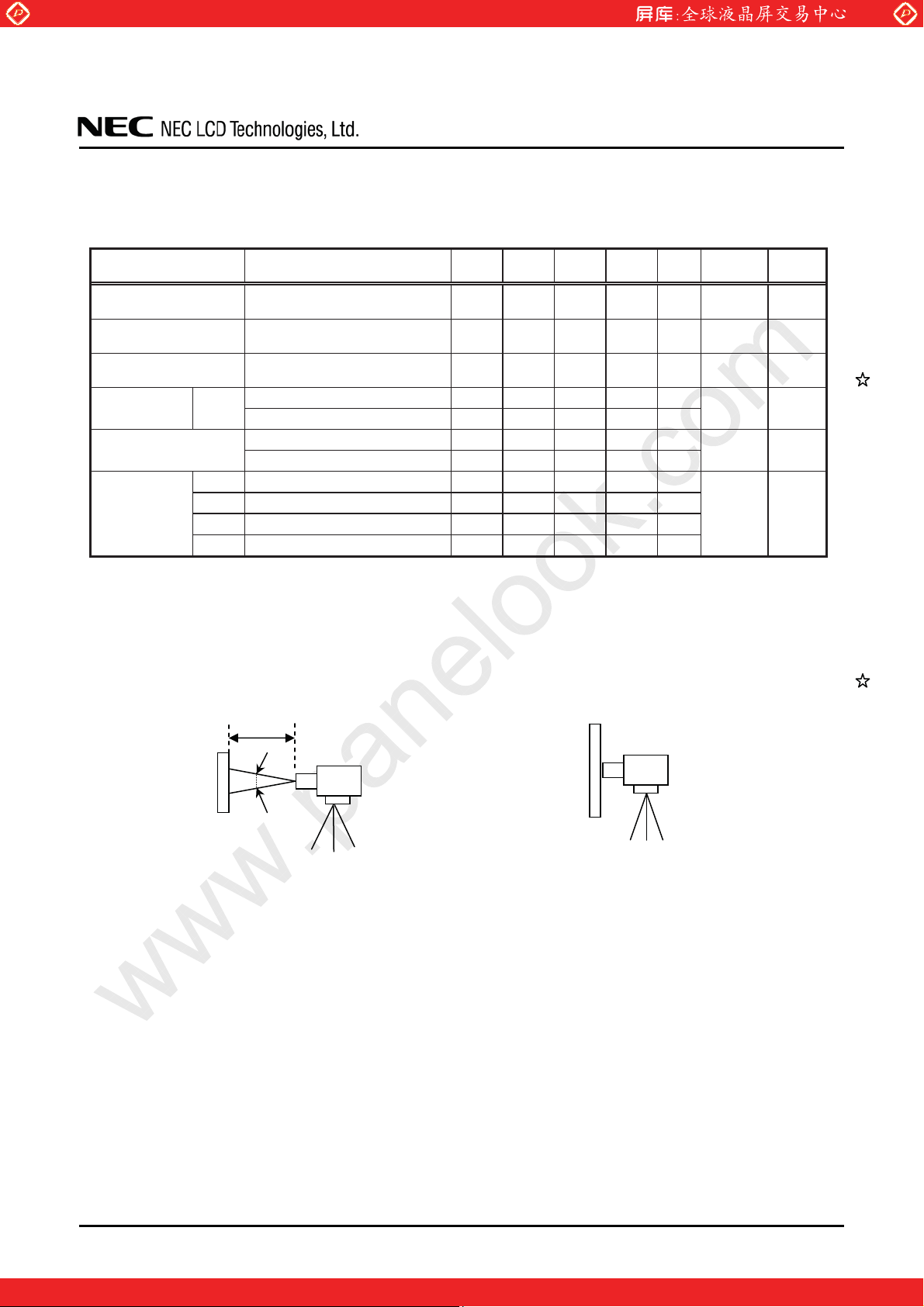

4.15 OPTICS

4.15.1 Optical characteristics

Parameter Condition Symbol min. typ. max. Unit

Luminance

Contrast ratio

Luminance uniformity

Chromaticity White

Response time

Right

Viewing angle

Left

Up

Down

TR= 0q, TL= 0q,TU= 0q, TD= 0q

TR= 0q, TL= 0q,TU= 0q, TD= 0q

TR= 0q, TL= 0q,TU= 0q, TD= 0q

White at center

White/Black at center

TU = 0q, TD = 0q, CR t 10 TR
TU = 0q, TD = 0q, CR t 10 TL

TR = 0q, TL = 0q, CR t 10 TU
TR = 0q, TL = 0q, CR t 10 TD

www.panelook.com

NL256204AM15-04A

L 650 850 - cd/m

CR 600 900 - -

White

x coordinate Wx 0.250 0.280 0.310 -

y coordinate Wy 0.274 0.304 0.334 -

Black to White Ton - 15 25 ms

White to Black Toff - 15 25 ms

LU - 1.1 1.3 -

70 88 -

70 88 -

70 88 -

70 88 -

2

q
q
q
q

Measuring
instrument

BM-5A or

BM-5A or

BM-5A or

BM-5A

Contrast

(Note1, Note2)

Remarks

SR-3

SR-3

SR-3

SR-3 Note5

EZ

-

Note3

Note4

Note6
Note7

Note8

Note1: These are initial characteristics.
Note2: Measurement conditions are as follows.

Ta=25qC, VDD=12V, VDDB=12V, Luminance control = maximum, Display mode: QSXGA,
Horizontal cycle=1/123.9 kHz, Vertical cycle = 1/60.0 Hz

Optical characteristics are measured at luminance saturation 20minutes after the product works
in the dark room. Also measurement methods are as follows.

50cm

Photodetector (BM-5A or SR-3)

LCD module

(Product)

1q

LCD module

(Product)

Note3: See "4.15.2 Definition of contrast ratio".
Note4: See "4.15.3 Definition of luminance uniformity".
Note5: These coordinates are found on CIE 1931 chromaticity diagram.
Note6: Product surface temperature: TopF=36qC
Note7: See "4.15.4 Definition of response times".
Note8: See "4.15.5 Definition of viewing angles".

Photodetector (EZ Contrast)

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

31

www.panelook.com

Global LCD Panel Exchange Center

཰

ུ

཰

ུ

ི

ཱི

ུ

཰

ཱ

N

4.15.2 Definition of contrast ratio

The contrast ratio is calculated by using the following formula.

Contrast ratio (CR) =

4.15.3 Definition of luminance uniformity

The luminance uniformity is calculated by using following formula.

Luminance uniformity (LU) =

The luminance is measured at near the 5 points shown below.

www.panelook.com

Luminance of white screen
Luminance of black screen

Maximum luminance from
Minimum luminance from

NL256204AM15-04A

to

to

2,132

341

1,023

1,706

427

1,279

4.15.4 Definition of response times

Response time is measured at the time when the luminance changes from "black" to "white", or
"white" to "black" on the same screen point, by photo-detector. Ton is the time when the luminance
changes from 10% up to 90%. Also Toff is the time when it takes the luminance changes from 90%
down to 10% (See the following diagram.).

100%

White

Luminance

Black

90%

10%

0%

Ton

Tof f

4.15.5 Definition of viewing angles

ormal axis (Perpendicular)

12 o’clock

TL

Left

TU

Upper

TR

TD

Lower

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Right

32

www.panelook.com

Global LCD Panel Exchange Center

5. ESTIMATED LUMINANCE LIFETIME

The luminance lifetime is the time from initial luminance to half-luminance.

This lifetime is the estimated value, and is not guarantee value.

www.panelook.com

NL256204AM15-04A

Module

Cold cathode

fluorescent lamp

Condition

25qC (Ambient temperature of the product)

Maximum luminance, Continuous operation

55qC (Surface temperature at screen center)

Maximum luminance, Continuous operation

25qC (Ambient temperature of the lamp)

Continuous operation, IBL=3.2mArms

Luminance lifetime (MTTF)

Note1, Note2

45,000 h

30,000 h

50,000 h

Unit

Note1: MTTF is mean time to half-luminance.
Note2: In case the product works under low temperature environment, the lifetime becomes short.

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

33

www.panelook.com

Global LCD Panel Exchange Center

6. RELIABILITY TESTS

Test item Condition Judgment Note1

www.panelook.com

NL256204AM15-04A

High temperature and humidity

(Operation)

Heat cycle

(Operation)

Thermal shock

(Non operation)

Vibration

(Non operation)

Mechanical shock

(Non operation)

ESD

(Operation)

Dust

(Operation)

Non-operation

Low pressure

Operation

཰ 60 r 2qC, RH = 60%, 240hours
ཱ Display data is white.

཰ 0 r 3qC}1hour

55 r 3qC}1hour

ཱ 50cycles, 4hours/cycle
ི Display data is white.
཰ -20 r 3qC}30minutes

60 r 3qC}30minutes

ཱ 100cycles, 1hour/cycle
ི Temperature transition time is within 5

minutes.

཰ 5 to 100Hz, 11.76m/s
ཱ 1 minute/cycle
ི X, Y, Z directions
ཱི 10 times each directions

཰ 294m/ s
ཱ X, Y, Z directions
ི 3 times each directions

཰ 150pF, 150:, r10kV
ཱ 9 places on a panel surface Note2
ི 10 times each places at 1 sec interval

཰ Sample dust: No.15 (by JIS-Z8901)
ཱ 15 seconds stir
ི 8 times repeat at 1 hour interval

཰ 15 kPa (Equivalent to altitude 13,600m)
ཱ -20qCr3qC}24 hours
ི +60qCr3qC}24 hours

཰ 53.3 kPa (Equivalent to altitude 4,850m)
ཱ 0qCr3qC}24 hours
ི +55qCr3qC}24 hours

2

, 11ms

2

No display malfunctions

No display malfunctions
No physical damages

No display malfunctions

No display malfunctions

Note1: Display and appearance are checked under environmental conditions equivalent to the

inspection conditions of defect criteria.

Note2: See the following figure for discharge points

ഊ

ഊഊ

ഊഊ

DATA SHEET DOD-PP-1126 (1st edition)

ഊഊ

ഊ

ഊ

34

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center






I

7. PRECAUTIONS

7.1 MEANING OF CAUTION SIGNS

The following caution signs have very important meaning. Be sure to read "7.2 CAUTIONS" and

"7.3 ATTENTIONS"!

This sign has the meaning that a customer will be injured or the product will sustain

damage if the customer practices wrong operations.

!

This sign has the meaning that a customer will get an electrical shock, if the customer

practices wrong operations.

This sign has the meaning that a customer will be injured if the customer practices

wrong operations.

www.panelook.com

NL256204AM15-04A

7.2 CAUTIONS

Do not touch the working backlight. There is a danger of an electric shock.

Do not touch the working backlight. There is a danger of burn injury.
Do not shock and press the LCD panel and the backlight! There is a danger of breaking,

because they are made of glass. (Shock: Equal to or no greater than 294m/s
to or no greater than 11ms, Pressure: Equal to or no greater than 19.6N (

7.3 ATTENTIONS

7.3.1 Handling of the product

཰ Take hold of both ends without touching the circuit board when the product (LCD module) is picked

up from inner packing box to avoid broken down or misadjustment, because of stress to mounting
parts on the circuit board.

ཱ Do not hook nor pull cables such as lamp cable, and so on, in order to avoid any damage.
ིWhen the product is put on the table temporarily, display surface must be placed downward.
ཱི When handling the product, take the measures of electrostatic discharge with such as earth band,

ionic shower and so on, because the product may be damaged by electrostatic.

ུ The torque for product mounting screws must never exceed 0.45 Nm. Higher torque might result in

distortion of the bezel.

!

2

and equal

16mm jig))

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

35

www.panelook.com

Global LCD Panel Exchange Center



ཱུ When the product is installed, use the mounting holes. The product is very sensitive to a stress (such

as bend or twist). A stress added by installation to any portion cause display mura. Do not add a
stress to any portion (such as bezel flat area).

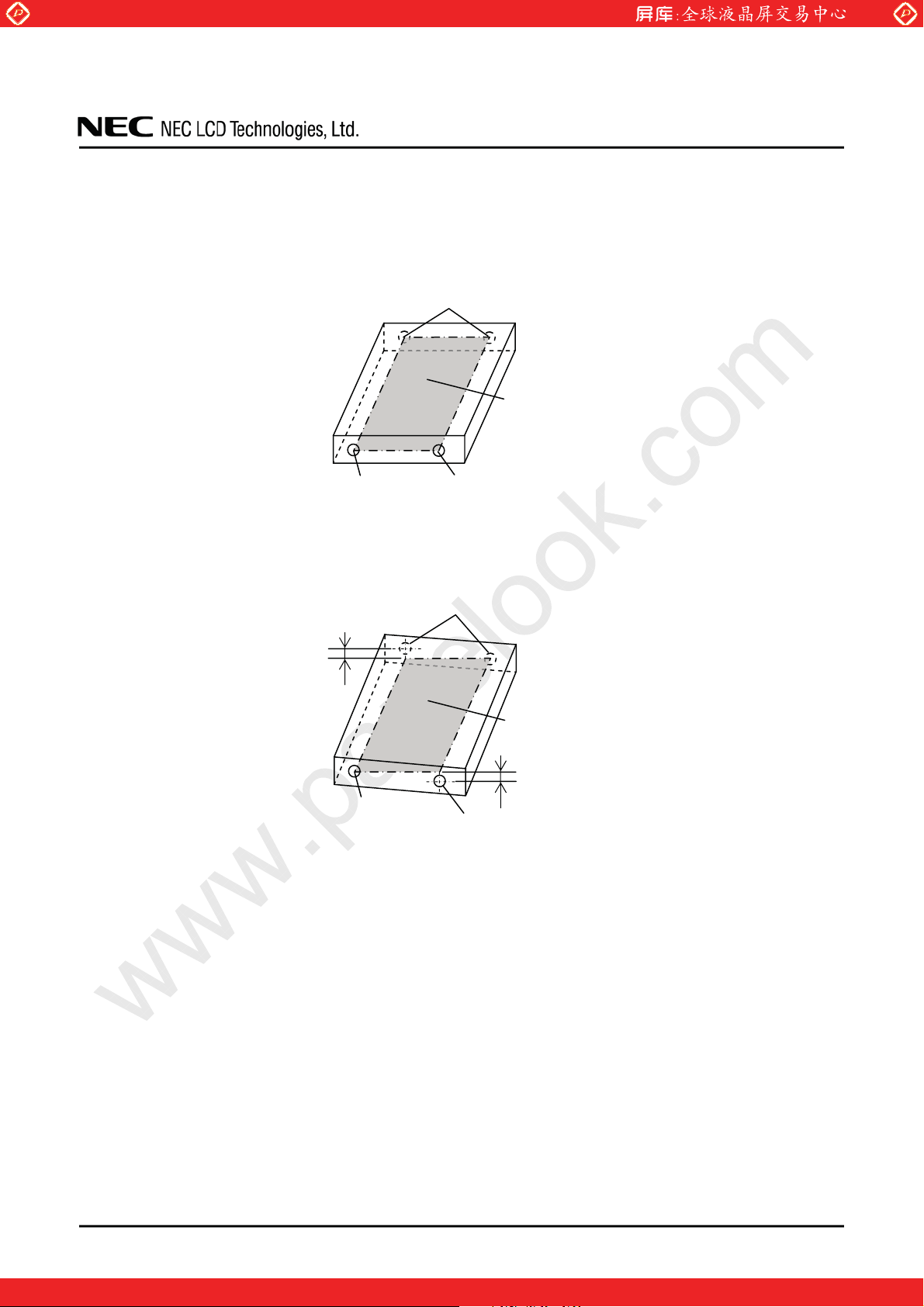

Recommended installing method: An ideal plane that is defined by datum point and mounting holes
is to be the same plane within r0.3 mm.






Product










(In case of twisting such as below figure)

Total amount of displacement must never exceed 0.5mm.









0.5mm (max.)





Product







ྲྀ Do not press or rub on the sensitive product surface. When cleaning the product surface, wipe it with

a soft dry cloth.

ཷ Do not push nor pull the interface connectors while the product is working.
ླྀ When handling the product, use of an original protection sheet on the product surface (polarizer) is

recommended for protection of product surface. Adhesive type protection sheet may change color or
characteristics of the polarizer.

ཹUsually liquid crystals don't leak through the breakage of glasses because of the surface tension of

thin layer and the construction of LCD panel. But, if you contact with liquid crystal by any chance,
please wash it away with soap and water.

Datum point

Datum point

www.panelook.com

NL256204AM15-04A

Mounting hole

An ideal plane defined by datum
point and mounting holes

Mounting hole

Mounting hole

An ideal plane defined by datum
point and mounting holes

0.5mm (max.)

Mounting hole

7.3.2 Environment

཰ Do not operate or store in high temperature, high humidity, dewdrop atmosphere or corrosive gases.

Keep the product in packing box with antistatic pouch in room temperature to avoid dusts and
sunlight, when storing the product.

ཱ In order to prevent dew condensation occurred by temperature difference, the product packing box

must be opened after enough time being left under the environment of an unpacking room. Evaluate
the storage time sufficiently because dew condensation is affected by the environmental temperature
and humidity. (Recommended leaving time: 6 hours or more with the original packing state after a
customer receives the package)

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

36

www.panelook.com

Global LCD Panel Exchange Center

ི Do not operate in high magnetic field. If not, circuit boards may be broken. Do not operate in high magnetic field. If not, circuit boards may be broken.
ཱི This product is not designed as radiation hardened. ཱི This product is not designed as radiation hardened.

7.3.3 Characteristics 7.3.3 Characteristics

The following items are neither defects nor failures.The following items are neither defects nor failures.

཰ Response time, luminance and color may be changed by ambient temperature. ཰ Response time, luminance and color may be changed by ambient temperature.
ཱ Display mura, flickering, vertical streams or tiny spots may be observed depending on display

ཱ Display mura, flickering, vertical streams or tiny spots may be observed depending on display

patterns.

patterns.

ི Optical characteristics (e.g. luminance, display uniformity, etc.) gradually is going to change

ི Optical characteristics (e.g. luminance, display uniformity, etc.) gradually is going to change

depending on operating time, and especially low temperature, because the LCD has cold cathode

depending on operating time, and especially low temperature, because the LCD has cold cathode
fluorescent lamps.

fluorescent lamps.

ཱི Do not display the fixed pattern for a long time because it may cause image sticking. Use a screen

ཱི Do not display the fixed pattern for a long time because it may cause image sticking. Use a screen

saver, if the fixed pattern is displayed on the screen.

saver, if the fixed pattern is displayed on the screen.

ུ The display color may be changed depending on viewing angle because of the use of condenser sheet

ུ The display color may be changed depending on viewing angle because of the use of condenser sheet

in the backlight.

in the backlight.

ཱུ Optical characteristics may be changed depending on input signal timings. ཱུ Optical characteristics may be changed depending on input signal timings.
ྲྀ The interference noise between input signal frequency for this product's signal processing board and

ྲྀ The interference noise between input signal frequency for this product's signal processing board and

luminance control frequency of the inverter may appear on a display. Set up luminance control

luminance control frequency of the inverter may appear on a display. Set up luminance control
frequency of the inverter so that the interference noise does not appear.

frequency of the inverter so that the interference noise does not appear.

ཷAfter the product is stored under condition of low temperature or dark place for a long time, the cold

ཷAfter the product is stored under condition of low temperature or dark place for a long time, the cold

cathode fluorescent lamp may not be turned on under the same condition because of the general

cathode fluorescent lamp may not be turned on under the same condition because of the general
characteristic of cold cathode fluorescent lamp. In addition, when Luminance control ratio is low in

characteristic of cold cathode fluorescent la
pulse width modulation method inverter, the lamp may not be turned on. In this case, power should

pulse width modulation method inverter, the lamp may not be turned on. In this case, power should
be supplied again.

be supplied again.

7.3.4 Others 7.3.4 Others

཰ All GND and VCC terminals should be used without any non-connected lines. ཰ All GND and VCC terminals should be used without any non-connected lines.
ཱ Do not disassemble a product or adjust variable resistors. ཱ Do not disassemble a product or adjust variable resistors.
ི See "REPLACEMENT MANUAL FOR BACKLIGHT UNIT", when replacing backlight lamps. ི See "REPLACEMENT MANUAL FOR BACKLIGHT UNIT", when replacing backlight lamps.
ཱི Pack the product with the original shipping package, in order to avoid any damages during

ཱི Pack the product with the original shipping package, in order to avoid any damages during

transportation, when returning the product to NEC for repairing and so on.

transportation, when returning the product to NEC for repairing and so on.

ུ The LCD module by itself or integrated into end product should be packed and transported with

ུ The LCD module by itself or integrated into end product should be packed and transported with

display in the vertical position. Otherwise the display characteristics may be degraded.

display in the vertical position. Otherwise the display characteristics may be degraded.

ཱུ The information of China RoHS directive six hazardous substances or elements in this product is as

ཱུ The information of China RoHS directive six hazardous substances or elements in this product is as

follows.

follows.

China RoHS directive six hazardous substances or elements China RoHS directive six hazardous substances or elements

Lead

(Pb)

Mercury

(Hg)

ᅜᅜഊഊഊഊ

Note1: ഊ : This indicates that the poisonous or harmful material in all the homogeneous materials

for this part is equal or below the limitation level of SJ/T11363-2006 standard
regulation.

ᅜ : This indicates that the poisonous or harmful material in all the homogeneous

materials for this part is above the limitation level of SJ/T11363-2006 standard
regulation.

www.panelook.com

mp. In addition, when Luminance control ratio is low in

Cadmium

(Cd)

Hexavalent

Chromium

(Cr VI)

NL256204AM15-04A

Polybrominated

Biphenys

(PBB)

Polybrominated
Biphenyl Ethers

(PBDE)

DATA SHEET DOD-PP-1126 (1st edition)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

37

www.panelook.com

Global LCD Panel Exchange Center

NL256204AM15-04A

www.panelook.com

38

Unit: mm

0 mm < d  18mm: ±0.2mm.

18 mm < d  50mm: ±0.3mm.

Note1: The dimensions in parenthesis are for reference.

Note2: Not shown tolerances of the dimensions

(d: dimension)

50 mm < d  120mm: ±0.4mm.

120 mm < d  250mm: ±0.5mm.

250 mm < d : ±0.6mm.

DATA SHEET DOD-PP-1126 (1st edition)

8. OUTLINE DRAWINGS

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
