NL160120BC27-14
54cm (21.3 Type)
UXGA
LVDS Interface (2 ports)
DATA SHEET
DOD-PD-1400 (2nd edition)
This DATA SHEET is updated document from
DOD-PD-1335(1).
All information is subject to change without notice.
Please confirm the sales representative before
starting to design your system.
Document Number: DOD-PD-1400 (2nd edition)
Published date: March 2006 CP(N)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1
¤ NEC LCD Technologies, Ltd.
2006 All rights reserved.
www.panelook.com
Page 2
Global LCD Panel Exchange Center
The Copyright to this document belongs to NEC LCD Technologies, Ltd. (hereinafter called "NEC").
No part of this document will be used, reproduced or copied without prior written consent of NEC.
NEC does and will not assume any liability for infringement of patents, copyrights or other intellectual
property rights of any third party arising out of or in connection with application of the products
described herein except for that directly attributable to mechanisms and workmanship thereof. No license,
express or implied, is granted under any patent, copyright or other intellectual property right of NEC.
Some electronic parts/components would fail or malfunction at a certain rate. In spite of every effort to
enhance reliability of products by NEC, the possibility of failures and malfunction might not be avoided
entirely. To prevent the risks of damage to death, human bodily injury or other property arising out
thereof or in connection therewith, each customer is required to take sufficient measures in its safety
designs and plans including, but not limited to, redundant system, fire-containment and anti-failure.
www.panelook.com
NL160120BC27-14
INTRODUCTION
The products are classified into three quality grades: "Standard", "Special", and "Specific" of the
highest grade of a quality assurance program at the choice of a customer. Each quality grade is designed
for applications described below. Any customer who intends to use a product for application other than
that of Standard quality grade is required to contact an NEC sales representative in advance.
The Standard quality grade applies to the products developed, designed and manufactured in
accordance with the NEC standard quality assurance program, which are designed for such application as
any failure or malfunction of the products (sets) or parts/components incorporated therein a customer uses
are, directly or indirectly, free of any damage to death, human bodily injury or other property, like general
electronic devices.
Examples: Computers, office automation equipment, communications equipment, test and measurement
equipment, audio and visual equipment, home electronic appliances, machine tools, personal
electronic equipment, industrial robots, etc.
The Special quality grade applies to the products developed, designed and manufactured in accordance
with an NEC quality assurance program stricter than the standard one, which are designed for such
application as any failure or malfunction of the products (sets) or parts/components incorporated therein a
customer uses might directly cause any damage to death, human bodily injury or other property, or such
application under more severe condition than that defined in the Standard quality grade without such
direct damage.
Examples: Control systems for transportation equipment (automobiles, trains, ships, etc.), traffic control
systems, anti-disaster systems, anti-crime systems, medical equipment not specifically
designed for life support, safety equipment, etc.
The Specific quality grade applies to the products developed, designed and manufactured in accordance
with the standards or quality assurance program designated by a customer who requires an extremely
higher level of reliability and quality for such products.
Examples: Military systems, aircraft control equipment, aerospace equipment, nuclear reactor control
systems, medical equipment/devices/systems for life support, etc.
The quality grade of this product is the
"Standard" unless otherwise specified in this document.
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2
www.panelook.com
Page 3
Global LCD Panel Exchange Center
INTRODUCTION ..........................................................................................................................................2
1. OUTLINE....................................................................................................................................................4
1.1 STRUCTURE AND PRINCIPLE...........................................................................................................4
1.2 APPLICATION.......................................................................................................................................4
1.3 FEATURES............................................................................................................................................. 4
2. GENERAL SPECIFICATIONS ................................................................................................................5
3. BLOCK DIAGRAM ................................................................................................................................... 6
4. DETAILED SPECIFICATIONS ...............................................................................................................7
4.1 MECHANICAL SPECIFICATIONS......................................................................................................7
4.2 ABSOLUTE MAXIMUM RATINGS ....................................................................................................7
4.3 ELECTRICAL CHARACTERISTICS................................................................................................... 8
4.3.1 LCD panel signal processing board ............................................................................................... 8
4.3.2 Backlight lamp...............................................................................................................................9
4.3.3 Power supply voltage ripple.........................................................................................................10
4.3.4 Fuse.............................................................................................................................................. 10
4.4 POWER SUPPLY VOLTAGE SEQUENCE ........................................................................................ 11
4.5 CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS.........................................................12
4.5.1 LCD panel signal processing board ............................................................................................. 12
4.5.2 Backlight lamp.............................................................................................................................14
4.5.3 Positions of plug and socket ........................................................................................................15
4.6 LVDS DATA INPUT MAP ................................................................................................................... 16
4.6.1 Mode A ........................................................................................................................................16
4.6.2 Mode B ........................................................................................................................................17
4.6.3 Mode C ........................................................................................................................................18
4.7 DISPLAY COLORS AND INPUT DATA SIGNALS ..........................................................................19
4.8 INPUT SIGNAL TIMINGS..................................................................................................................20
4.8.1 Timing characteristics..................................................................................................................20
4.8.2 Input signal timing chart ..............................................................................................................20
4.9 DISPLAY POSITIONS..........................................................................................................
4.10 TEN-bit
4.11 LUT SERIAL COMMUNICATION TIMINGS .................................................................................25
4.11.1 Timing Chart ..............................................................................................................................25
4.11.2 Timing specifications .................................................................................................................26
4.12 OPTICS...............................................................................................................................................27
4.12.1 Optical characteristics................................................................................................................27
4.12.2 Definition of contrast ratio......................................................................................................... 28
4.12.3 Definition of luminance uniformity...........................................................................................28
4.12.4 Definition of response times ...................................................................................................... 28
4.12.5 Definition of viewing angles......................................................................................................28
5. RELIABILITY TESTS.............................................................................................................................29
6. PRECAUTIONS .......................................................................................................................................30
6.1 MEANING OF CAUTION SIGNS ...................................................................................................... 30
6.2 CAUTIONS ..........................................................................................................................................30
6.3 ATTENTIONS ......................................................................................................................................30
6.3.1 Handling of the product ............................................................................................................... 30
6.3.2 Environment.................................................................................................................................31
6.3.3 Characteristics..............................................................................................................................32
6.3.4 Other ............................................................................................................................................32
7. OUTLINE DRAWINGS ........................................................................................................................... 33
7.1 FRONT VIEW......................................................................................................................................33
7.2 REAR VIEW ........................................................................................................................................34
LOOK UP TABLE FOR GAMMA ADJUSTMENT............................................................22
www.panelook.com
NL160120BC27-14
CONTENTS
...............21
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3
www.panelook.com
Page 4
Global LCD Panel Exchange Center
1. OUTLINE
1.1 STRUCTURE AND PRINCIPLE
Color LCD module NL160120BC27-14 module is composed of the amorphous silicon thin film
transistor liquid crystal display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT
(Thin Film Transistor) array and a backlight.
The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the TFT
array glass substrate and a color-filter glass substrate.
Color (Red, Green, Blue) data signals from a host system (e.g. signal generator, etc.) are modulated into
best form for active matrix system by a signal processing board, and sent to the driver LSIs which drive
the individual TFT arrays.
The TFT array as an electro-optical switch regulates the amount of transmitted light from the backlight
assembly, when it is controlled by data signals. Color images are created by regulating the amount of
transmitted light through the TFT array of red, green and blue dots.
www.panelook.com
NL160120BC27-14
1.2 APPLICATION
x Monitor for PC
1.3 FEATURES
x Ultra-wide viewing angle (Adoption of Super-Advanced Super Fine TFT (SA-SFT))
x Wide color gamut
x High resolution
x LVDS interface
x Adjustable gamma characteristics by using built-in 10-bit LUT (look up table)
x Selectable LVDS data input map
x Small foot print
x Incorporated edge light type backlight (without inverter)
x Acquisition product for UL60950-1/CSA C22.2 No.60950-1-03 (File number: E170632)
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4
www.panelook.com
Page 5
Global LCD Panel Exchange Center
2. GENERAL SPECIFICATIONS
www.panelook.com
NL160120BC27-14
Display area
Diagonal size of display
Drive system
Display color
Pixel
Pixel arrangement
Dot pitch
Pixel pitch
Module size
Weig ht
Contrast ratio
Viewing angle
Designed viewing direction
Polarizer surface
432.0 (H) u 324.0 (V) mm
54cm (21.3 inches)
a-Si TFT active matrix
16,777,216 colors
1,600 (H) u 1,200 (V) pixels
RGB (Red dot, Green dot, Blue dot) vertical stripe
0.090 (H) u 0.270 (V) mm
0.270 (H) u 0.270 (V) mm
457.0 (W) u 350.0 (H) u 25.0 (D) mm (typ.)
3,750g (typ.)
550:1 (typ.)
At the contrast ratio t 10:1
x Horizontal: Right side 85q (typ.), Left side 85q (typ.)
x Vertical: Up side 85q (typ.), Down side 85q (typ.)
Viewing angle with optimum grayscale (J=2.2): Normal axis
(Perpendicular)
Antiglare
Polarizer pencil-hardness
Color gamut
Response time
Luminance
Signal system
Power supply voltage
Backlight
Power consumption
2H (min.) [by JIS K5400]
At LCD panel center
72% (typ.) [against NTSC color space]
Ton+Toff (10%
20ms (typ.)
At IBL= 6.0mArms / lamp
250cd/m
2 ports LVDS interface (THC63LVD824 THine Electronics, Inc. or
equivalent)
>RGB 8-bit signals, Data enable signal (DE), Dot clock (CLK)@
LCD panel signal processing board: 12.0V
Edge light type: 6 cold cathode fluorescent lamps (without inverter)
At IBL= 6.0mArms / lamp, Checkered flag pattern
30.7W (typ., Power dissipation of the inverter is not included.)
2
(typ.)
mo
90%)
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5
www.panelook.com
Page 6
Global LCD Panel Exchange Center
3. BLOCK DIAGRAM
I/F LCD module (product)
www.panelook.com
NL160120BC27-14
DA0+
DA0-
DA1+
DA1-
DA2+
DA2-
CKA+
CKADA3+
DA3-
DB0+
DB0-
DB1+
DB1-
DB2+
DB2-
CKB+
CKB-
DB3+
DB3-
TxSEL0
TxSEL1
CS
SDATO
SDATI
SCLK
100:
100:
100:
100:
100:
100:
100:
100:
100:
100:
THC63LVD824 (THine Electronics, Inc.) or equivalent
Controller
V-driver
H-driver
4,800 lines
TFT LCD panel
1,200 lines
H: 1,600 u 3 (R, G, B)
V: 1,200
Backlight
(Edge light type)
Fuse
VDD
FG
GND
Note1, Note2
VBLH1/2/3
VBLH4/5/6
VBLC1/2/3
VBLC4/5/6
Note1
DC/DC
Converter
Power supply
for gradation
Note1: Relations between GND (Signal ground), FG (Frame ground) and VBLC (Lamp low voltage terminal)
in the LCD module are as follows.
GND - FG Connected
GND - VBLC Not connected
FG - VBLC Not connected
Note2: GND and FG must be connected to customer equipment's ground, and it is recommended that GND, FG
and customer inverter ground are connected together in customer equipment.
DATA SHEET DOD-PD-1400 (2nd edition)
6
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
4. DETAILED SPECIFICATIONS
4.1 MECHANICAL SPECIFICATIONS
Parameter Specification Unit
www.panelook.com
NL160120BC27-14
Module size
Display area
Weight 3,750 (typ.), 4,000 (max.) g
457.0 r 0.5 (W) u 350.0 r 0.5 (H) u 25.0 r 0.5 (D)
432.0 (H) u 324.0 (V)
Note1, Note2 mm
Note1 mm
Note1: Excluding warpage of the signal processing board cover and the connection board cover
Note2: See "7. OUTLINE DRAWINGS".
4.2 ABSOLUTE MAXIMUM RATINGS
Parameter Symbol Rating Unit Remarks
Power supply
voltage
Operating temperature
LCD panel signal processing board VDD -0.3 to +14.0 V
Lamp voltage VBLH 3,000 Vrms
Input signal voltage
Note1
Storage temperature Tst -20 to +60
Front surface TopF 0 to +55
Rear surface TopR 0 to +65
Vi -0.3 to +2.8 V VDD= 12.0V
qC
qC
qC
ყ
-
-
Note2
Note3
%
%
%
g/m
m
m
Ta d 40qC
40qC < Ta d 50qC
50qC < Ta d 55qC
3
Ta > 55qC
0qC d Ta d 55qC
-20qC d Ta d 60qC
Relative humidity
Note4
Absolute humidity
Note4
Operating altitude -
Storage altitude -
RH
AH
d 95
d 85
d 70
d 73
Note5
d 4,850
d 13,600
Note1: DA0+/-, DA1+/-, DA2+/-, DA3+/-, CKA+/-, DB0+/-, DB1+/-, DB2+/-, DB3+/-, CKB+/-
CS, SDATI, SCLK, TxSEL0, TxSEL1
Note2: Measured at center of LCD panel surface (including self-heat)
Note3: Measured at center of LCD module's rear shield surface (including self-heat)
Note4: No condensation
Note5: Water amount at Ta= 55°C and RH= 70%
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7
www.panelook.com
Page 8
Global LCD Panel Exchange Center
4.3 ELECTRICAL CHARACTERISTICS
4.3.1 LCD panel signal processing board
Parameter Symbol min. typ. max. Unit Remarks
Supply voltage VDD 10.8 12.0 13.2 V -
www.panelook.com
NL160120BC27-14
(Ta= 25qC)
Supply current IDD -
Ripple voltage VRP - - 100 mVp-p for VDD
Differential input Threshold
voltage
Input voltage swing VI 0 - 2.4 V Note4
Terminating resistance RT - 100 - : -
Control signal input threshold
voltage
Control signal input current Low IIL -10 - 10 PA
Serial communication signal
input threshold voltage
High VTH - - +100 mV
Low VTL -100 - - mV
High VIH
Low VIL 0 - 0.5 V
High V+ - 1.4 1.9 V
Low V- 0.4 0.7 - V
Hysteresis VH 0.3 - - V
310
Note1
Keep this pin open.
700
Note2
mA at VDD= 12.0V
at VCM= 1.2V
Note3, Note4
-
Note5
Note6
High VOH 1.9 - - V
Output signal threshold voltage
Low VOL - - 0.4 V
High IOH -4 - - mA
Output signal current
Low IOL - - 4 mA
Note1: Checkered flag pattern (by EIAJ ED-2522)
Note2: Pattern for maximum current
Note3: Common mode voltage for LVDS driver
Note4: DA0+/-, DA1+/-, DA2+/-, DA3+/-, CKA+/-, DB0+/-, DB1+/-, DB2+/-, DB3+/-, CKB+/Note5: T
SEL0, TXSEL1
X
Note6: CS, SDATI, SCLK
Note7: SDATO
DATA SHEET DOD-PD-1400 (2nd edition)
Note7
8
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
4.3.2 Backlight lamp
Parameter Symbol min. typ. max. Unit Remarks
Lamp current IBL 3.0 6.0 7.0 mArms
Lamp voltage VBLH - 750 - Vrms Note2, Note3
Lamp starting voltage VS
Lamp oscillation frequency FO 50 56 60 kHz Note5
Note1: This product consists of 6 backlight lamps, and these specifications are for each lamp.
Note2: The lamp voltage cycle between lamps should be kept on a same phase. "VS" and "VBLH" are
the voltage value between low voltage side (Cold) and high voltage side (Hot).
www.panelook.com
1,220 - - Vrms
1,460 - - Vrms
NL160120BC27-14
(Ta= 25qC, Note1)
at IBL= 6.0mArms:
L= 250cd/m
Note2, Note3, Note4
Note2, Note3, Note4
Note3
Ta= 25qC
Ta= 0qC
2
(typ.)
Note3: The asymmetric ratio of working waveform for lamps (Lamp voltage peak ratio, Lamp current
peak ratio and waveform space ratio) should be less than 5 % (See the following figure.). If the
waveform is asymmetric, DC (Direct current) element apply into the lamp. In this case, a lamp
lifetime may be shortened, because a distribution of a lamp enclosure substance inclines toward
one side between low voltage terminal (Cold terminal) and high voltage terminal (Hot terminal).
When designing the inverter, evaluate asymmetric of lamp working waveform sufficiently.
Pa
Pb
Sa
0
Sb
_Pa - Pb_
Pb
_Sa - Sb_
Sb
u 100 d 5 %
u 100 d 5 %
Pa: Supply voltage/current peak for positive, Pb: Supply voltage/current peak for negative
Sa: Waveform space for positive part, Sb: Waveform space for negative part
Note4: The inverter should be designed so that the lamp starting voltage can be maintained for more
than 1 second. Otherwise the lamp may not be turned on.
Note5: In case "FO" is not the recommended value, beat noise may display on the screen, because of
interference between "FO" and "1/th". Recommended value of "FO" is as following.
FO=
1
4
1
th
u
(2n-1)
u
th: Horizontal cycle period (See "4.8.1 Timing characteristics".)
n: Natural number (1, 2, 3 )
Note6: Method of lamp cable installation may invite fluctuation of lamp current and voltage or
asymmetric of lamp working waveform. When designing method of lamp cable installation,
evaluate the fluctuation of lamp current, voltage and working waveform sufficiently.
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9
www.panelook.com
Page 10
Global LCD Panel Exchange Center
4.3.3 Power supply voltage ripple
This product works, even if the ripple voltage levels are beyond the permissible values as following
the table, but there might be noise on the display image.
www.panelook.com
NL160120BC27-14
Note1: The permissible ripple voltage includes spike noise.
4.3.4 Fuse
Note1: The power supply capacity should be more than the fusing current. If it is less than the
Power supply voltage
VDD 12.0V
Parameter
VDD
Type Supplier
FCC16132AB
Fuse
KAMAYA ELECTRIC
Co., Ltd.
Ripple voltage Note1
(Measure at input terminal of power supply)
d 100
Rating Fusing current Remarks
1.25A
32V
2.5A,
5 seconds
maximum
fusing current, the fuse may not blow in a short time, and then nasty smell, smoke and so
on may occur.
Unit
mVp-p
Note1
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
10
www.panelook.com
Page 11
Global LCD Panel Exchange Center
4.4 POWER SUPPLY VOLTAGE SEQUENCE
www.panelook.com
NL160120BC27-14
VDD
Note1
0V
10.8V
ON OFF
10.8V
9.6V
VDD dip < 20ms
0.1ms < Tr < 80ms
ON
10.8V
Toff > 200ms
LVDS Signals *1,*2
Note2
0V
CS, SDATI, SCLK
Note2
*1: DA0+/-, DA1+/-, DA2+/-, DA3+/-, CKA+/-, DB0+/-, DB1+/-, DB2+/-, DB3+/-, CKB+/*2: LVDS signals should be measured at the terminal of 100: resistance.
0V
10ms < t < 35ms
10ms < t < 35ms
VALID period
tt 20ms Note3
VALID period
0ms < t < 35ms
Note1: In terms of voltage variation (voltage drop) while VDD rising edge is below 10.8V, a protection
circuit may work, and then this product may not work.
Note2: LVDS signals and CS, SDATI, SCLK must be Low or High-impedance, exclude the VALID
period (See above sequence diagram), in order to avoid that internal circuits is damaged.
If some of signals are cut while this product is working, even if the signal input to it once again,
it might not work normally. VDD should be cut when the display and function signals are
stopped.
Note3: At the beginning of the serial communication mode, take 20ms or more after the LVDS signal
input. When writing and reading the LUT data, see “4.10 TEN-bit LOOK UP TABLE FOR
GAMMA ADJUSTMENT”.
Note4: The backlight should be turned on within the valid period of LVDS signals, in order to avoid
unstable data display.
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
11
www.panelook.com
Page 12
Global LCD Panel Exchange Center
4.5 CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS
4.5.1 LCD panel signal processing board
(1) CN1
Socket (LCD module side): DF19G-30P-1H (56) (Hirose Electric Co., Ltd. (HRS))
Adaptable plug: DF19-30S-1C (Hirose Electric Co., Ltd. (HRS))
Pin No. Symbol Signal Remarks
1 DA0-
2 DA0+
3 DA1-
4 DA1+
5 DA2-
6 DA2+
7 GND Ground Signal ground Note2
8 CKA-
9 CKA+
10 DA3-
11 DA3+
12 DB0-
13 DB0+
14 GND Ground Signal ground Note2
15 DB1-
16 DB1+
17 GND Ground Signal ground Note2
18 DB2-
19 DB2+
20 CKB-
21 CKB+
22 DB3-
23 DB3+
24 GND Ground Signal ground Note2
www.panelook.com
NL160120BC27-14
Pixel data A0 Odd pixel data Input (LVDS differential signal) Note1
Pixel data A1 Odd pixel data Input (LVDS differential signal) Note1
Pixel data A2 Odd pixel data Input (LVDS differential signal) Note1
Pixel clock Odd pixel clock Input (LVDS differential signal) Note1
Pixel data A3 Odd pixel data Input (LVDS differential signal) Note1
Pixel data B0 Even pixel data Input (LVDS differential signal) Note1
Pixel data B1 Even pixel data Input (LVDS differential signal) Note1
Pixel data B2 Even pixel data Input (LVDS differential signal) Note1
Pixel clock Even pixel clock Input (LVDS differential signal) Note1
Pixel data B3 Even pixel data Input (LVDS differential signal) Note1
25 TxSEL0
Selection of LVDS
data input map
26 TxSEL1
27 GND Ground Signal ground Note2
28 VDD
29 VDD
30 VDD
Power supply 12V Note2
Note3, Note4
TxSEL1 TxSEL0 Mode
Open Open A
Open Low B
Low Open C
Low Low A
Note1: Twist pair wires with 100: (Characteristic impedance) should be used between LCD panel
signal processing board and LVDS transmitter.
Note2: All GND and VDD terminals should be used without any non-connected lines.
Note3: This terminal is pulled-up in the product. (Pull-up resistance: 50k:)
Note4: See "4.6 LVDS DATA INPUT MAP".
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
12
www.panelook.com
Page 13
Global LCD Panel Exchange Center
(2) CN3
Socket (LCD module side): SM10B-SRSS-TB(LF)(SN) (J.S.T. Mfg Co., Ltd.)
Adaptable plug: SHR-10V-S, SHR-10V-S-B or 10SR-3S (J.S.T. Mfg Co., Ltd.)
Pin No. Symbol Signal Remarks
1 RSVD
2 RSVD
3 RSVD
4 GND Ground Signal ground Note1
5 CS Chip selection For LUT communication control Note2
6 SDATO Serial data output For LUT output signal
7 SDATI Serial data input For LUT communication control Note3
8 SCLK Serial clock For LUT communication control Note3
9 GND Ground Signal ground Note1
10 RSVD Reserved Keep this pin open.
Note1: All GND terminals should be used without any non-connected lines.
Note2: This terminal is pulled-up in the product. (Pull-up resistance: 50k:)
Note3: These terminals are pulled-down in the product. (Pull-down resistance: 50k:)
www.panelook.com
NL160120BC27-14
Reserved Keep these pins open.
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13
www.panelook.com
Page 14
Global LCD Panel Exchange Center
4.5.2 Backlight lamp
Attention: VBLH and VBLC must be connected correctly. Wrong connections will cause electric
shock and also break down of the product.
CN201 plug (LCD module side): BHSR-02VS-1 (J.S.T. Mfg Co., Ltd.)
Adaptable socket: SM02B-BHSS-1-TB(LF)(SN)
Pin No. Symbol Function Remarks
1 VBLH1 Upper side lamp, High voltage (Hot) Cable color: Pink
2 VBLC1 Upper side lamp, Low voltage (Cold) Cable color: Gray
CN202 plug (LCD module side): BHSR-02VS-1 (J.S.T. Mfg Co., Ltd.)
Adaptable socket: SM02B-BHSS-1-TB(LF)(SN)
Pin No. Symbol Function Remarks
1 VBLH2 Upper side lamp, High voltage (Hot) Cable color: White
2 VBLC2 Upper side lamp, Low voltage (Cold) Cable color: Gray
www.panelook.com
NL160120BC27-14
SM02B-BHSS-1-TB (J.S.T. Mfg Co., Ltd.)
SM02B-BHSS-1-TB (J.S.T. Mfg Co., Ltd.)
CN203 plug (LCD module side): BHSR-02VS-1 (J.S.T. Mfg Co., Ltd.)
Adaptable socket: SM02B-BHSS-1-TB(LF)(SN)
SM02B-BHSS-1-TB (J.S.T. Mfg Co., Ltd.)
Pin No. Symbol Function Remarks
1 VBLH3 Upper side lamp, High voltage (Hot) Cable color: Red
2 VBLC3 Upper side lamp, Low voltage (Cold) Cable color: Gray
CN204 plug (LCD module side): BHSR-02VS-1 (J.S.T. Mfg Co., Ltd.)
Adaptable socket: SM02B-BHSS-1-TB(LF)(SN)
SM02B-BHSS-1-TB (J.S.T. Mfg Co., Ltd.)
Pin No. Symbol Function Remarks
1 VBLH4 Lower side lamp, High voltage (Hot) Cable color: Pink
2 VBLC4 Lower side lamp, Low voltage (Cold) Cable color: Gray
CN205 plug (LCD module side): BHSR-02VS-1 (J.S.T. Mfg Co., Ltd.)
Adaptable socket: SM02B-BHSS-1-TB(LF)(SN)
SM02B-BHSS-1-TB (J.S.T. Mfg Co., Ltd.)
Pin No. Symbol Function Remarks
1 VBLH5 Lower side lamp, High voltage (Hot) Cable color: White
2 VBLC5 Lower side lamp, Low voltage (Cold) Cable color: Gray
CN206 plug (LCD module side): BHSR-02VS-1 (J.S.T. Mfg Co., Ltd.)
Adaptable socket: SM02B-BHSS-1-TB(LF)(SN)
SM02B-BHSS-1-TB (J.S.T. Mfg Co., Ltd.)
Pin No. Symbol Function Remarks
1 VBLH6 Lower side lamp, High voltage (Hot) Cable color: Red
2 VBLC6 Lower side lamp, Low voltage (Cold) Cable color: Gray
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
14
www.panelook.com
Page 15
Global LCD Panel Exchange Center
4.5.3 Positions of plug and socket
CN201
CN202
CN203
1
2
1
2
1
2
www.panelook.com
Rear side
CN1
1 30
NL160120BC27-14
CN3
1 10
Insert direction
CN204
CN205
CN206
1
2
1
2
1
2
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
15
www.panelook.com
Page 16
Global LCD Panel Exchange Center
y
K
d
K
N
4.6 LVDS DATA INPUT MAP
4.6.1 Mode A
Input data Note1
Note3 RSVD
Odd pixel data and control signal
Note3 RSVD
Note3 RSVD
Even pixel data
Note3 RSVD
Note3 RSVD
Note3 RSVD
Note3 RSVD
RA2
RA3
RA4
RA5
RA6
RA7
GA2
GA3
GA4
GA5
GA6
GA7
BA2
BA3
BA4
BA5
BA6
BA7
DE
RA0
RA1
GA0
GA1
BA0
BA1
CL
RB2
RB3
RB4
RB5
RB6
RB7
GB2
GB3
GB4
GB5
GB6
GB7
BB2
BB3
BB4
BB5
BB6
BB7
RB0
RB1
GB0
GB1
BB0
BB1
CL
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
www.panelook.com
NL160120BC27-14
Transmitter
Pin THC63LVDF83A Pin
51 TA0 53 R12 Pin S
52 TA1 54 R13 TA154 TA2 57 R14 TA1+
55 TA3 58 R15
56 TA4 59 R16 TB1-
3 TA5 60 R17 TB1+
4TA6 63G12
6TB0 64G13 TC1-
7 TB1 65 G14 TC1+
11 TB2 66 G15 7 GND
12 TB3 67 G16 TCLK114 TB4 68 G17 TCLK1+
15 TB5 73 B12
19 TB6 74 B13 TD120 TC0 1st 75 B14 TD1+
22 TC1 76 B15
23 TC2 77 B16
24 TC3 78 B17
27 TC4 7 RSVD
28 TC5 8 RSVD
30 TC6 9 DE
50 TD0 51 R10
2TD1 52R11
8 TD2 61 G10
10 TD3 62 G11
16 TD4 69 B10
18 TD5 70 B11
25 TD6 31 CLKIN 10 CLK
51 TA0 81 R22
52 TA1 82 R23 TA254 TA2 83 R24 TA2+
55 TA3 84 R25 14 GND
56 TA4 85 R26 TB2-
3 TA5 86 R27 TB2+
4 TA6 91 G22 17 GND
6TB0 92G23 TC2-
7 TB1 93 G24 TC2+
11 TB2 94 G25
12 TB3 95 G26 TCLK214 TB4 96 G27 TCLK2+
15 TB5 99 B22
19 TB6 100 B23 TD220 TC0 2n
22 TC1 2 B25 24 GND
23 TC2 5 B26 25 TxSEL0
24 TC3 6 B27 26 TxSEL1
27 TC4 - 27 GND
28 TC5 - 28 VDD
30 TC6 - 29 VDD
50 TD0 79 R20 30 VDD
2TD1 80R21
8 TD2 89 G20
10 TD3 90 G21
16 TD4 97 B20
18 TD5 98 B21
25 TD6 31 CLKIN -
1 B24 TD2+
THC63LVD823 CN1
ote2
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
1DA02DA0+
3DA14DA1+
5DA26DA2+
8 CKA9 CKA+
10 DA311 DA3+
12 DB013 DB0+
15 DB116 DB1+
18 DB219 DB2+
20 CKB21 CKB+
22 DB323 DB3+
mbol
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
16
www.panelook.com
Page 17
Global LCD Panel Exchange Center
y
K
K
N
4.6.2 Mode B
Input data Note1 CN1
RA7
RA6
RA5
RA4
RA3
RA2
GA7
GA6
GA5
GA4
GA3
GA2
BA7
BA6
BA5
BA4
BA3
BA2
Note3 RSVD
Odd pixel data and control signal
Note3 RSVD
DE
RA1
RA0
GA1
GA0
BA1
BA0
Note3 RSVD
CL
RB7
RB6
RB5
RB4
RB3
RB2
GB7
GB6
GB5
GB4
GB3
GB2
BB7
BB6
BB5
Even pixel data
BB4
BB3
BB2
Note3 RSVD
Note3 RSVD
Note3 RSVD
RB1
RB0
GB1
GB0
BB1
BB0
Note3 RSVD
CL
www.panelook.com
Transmitter
Pin
51 TXIN0 Pin S
o
52 TXIN1 TA1-
o
54 TXIN2 TA1+
o
55 TXIN3
o
56 TXIN4 TB1-
o
3TXIN6 TB1+
o
4TXIN7
o
6TXIN8 TC1-
o
7TXIN9 TC1+
o
11 TXIN12 7 GND
o
12 TXIN13 TCLK1-
o
14 TXIN14 TCLK1+
o
15 TXIN15
o
19 TXIN18 TD1-
o
20 TXIN19 1st TD1+
o
22 TXIN20
o
23 TXIN21
o
24 TXIN22
o
27 TXIN24
o
28 TXIN25
o
30 TXIN26
o
50 TXIN27
o
2TXIN5
o
8TXIN10
o
10 TXIN11
o
16 TXIN16
o
18 TXIN17
o
25 TXIN23
o
31 CLKIN
o
51 TXIN0
o
52 TXIN1 TA2-
o
54 TXIN2 TA2+
o
55 TXIN3 14 GND
o
56 TXIN4 TB2-
o
3TXIN6 TB2+
o
4TXIN7 17GND
o
6TXIN8 TC2-
o
7TXIN9 TC2+
o
11 TXIN12
o
12 TXIN13 TCLK2-
o
14 TXIN14 TCLK2+
o
15 TXIN15
o
19 TXIN18 TD2-
o
20 TXIN19 2nd TD2+
o
22 TXIN20 24 GND
o
23 TXIN21 25 TxSEL0
o
24 TXIN22 26 TxSEL1
o
27 TXIN24 27 GND
o
28 TXIN25 28 VDD
o
30 TXIN26 29 VDD
o
50 TXIN27 30 VDD
o
2TXIN5
o
8TXIN10
o
10 TXIN11
o
16 TXIN16
o
18
o
25 TXIN23
o
31 CLKIN
o
DS90CF383, C385
ote2
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
TXIN17
NL160120BC27-14
mbol
1DA02DA0+
3DA14DA1+
5DA26DA2+
8CKA9CKA+
10 DA311 DA3+
12 DB013 DB0+
15 DB116 DB1+
18 DB219 DB2+
20 CKB21 CKB+
22 DB323 DB3+
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
17
www.panelook.com
Page 18
Global LCD Panel Exchange Center
y
K
K
N
4.6.3 Mode C
Input data Note1
RA0
RA1
RA2
RA3
RA4
RA5
GA0
GA1
GA2
GA3
GA4
GA5
BA0
BA1
BA2
BA3
BA4
BA5
Note3 RSVD
Note3 RSVD
Odd pixel data and control signal
Even pixel data
DE
RA6
RA7
GA6
GA7
BA6
BA7
Note3 RSVD
CL
RB0
RB1
RB2
RB3
RB4
RB5
GB0
GB1
GB2
GB3
GB4
GB5
BB0
BB1
BB2
BB3
BB4
BB5
Note3 RSVD
Note3 RSVD
Note3 RSVD
RB6
RB7
GB6
GB7
BB6
BB7
Note3 RSVD
CL
www.panelook.com
Transmitter
Pin
51 TXIN0 Pin S
o
52 TXIN1 TA1-
o
54 TXIN2 TA1+
o
55 TXIN3
o
56 TXIN4 TB1-
o
3TXIN6 TB1+
o
4TXIN7
o
6TXIN8 TC1-
o
7TXIN9 TC1+
o
11 TXIN12 7 GND
o
12 TXIN13 TCLK1-
o
14 TXIN14 TCLK1+
o
15 TXIN15
o
19 TXIN18 TD1-
o
20 TXIN19 1st TD1+
o
22 TXIN20
o
23 TXIN21
o
24 TXIN22
o
27 TXIN24
o
28 TXIN25
o
30 TXIN26
o
50 TXIN27
o
2TXIN5
o
8TXIN10
o
10 TXIN11
o
16 TXIN16
o
18 TXIN17
o
25 TXIN23
o
31 CLKIN
o
51 TXIN0
o
52 TXIN1 TA2-
o
54 TXIN2 TA2+
o
55 TXIN3 14 GND
o
56 TXIN4 TB2-
o
3TXIN6 TB2+
o
4TXIN7 17GND
o
6TXIN8 TC2-
o
7TXIN9 TC2+
o
11 TXIN12
o
12 TXIN13 TCLK2-
o
14 TXIN14 TCLK2+
o
15 TXIN15
o
19 TXIN18 TD2-
o
20 TXIN19 2nd TD2+
o
22 TXIN20 24 GND
o
23 TXIN21 25 TxSEL0
o
24 TXIN22 26 TxSEL1
o
27 TXIN24 27 GND
o
28 TXIN25 28 VDD
o
30 TXIN26 29 VDD
o
50 TXIN27 30 VDD
o
2TXIN5
o
8TXIN10
o
10 TXIN11
o
16 TXIN16
o
18
o
25 TXIN23
o
31 CLKIN
o
DS90CF383, C385 CN1
ote2
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
TXIN17
NL160120BC27-14
mbol
1DA02DA0+
3DA14DA1+
5DA26DA2+
8CKA9CKA+
10 DA311 DA3+
12 DB013 DB0+
15 DB116 DB1+
18 DB219 DB2+
20 CKB21 CKB+
22 DB323 DB3+
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
18
www.panelook.com
Page 19
Global LCD Panel Exchange Center
Note1: LSB (Least Significant Bit) – RA0, GA0, BA0, RB0, GB0, BB0
MSB (Most Significant Bit) – RA7, GA7, BA7, RB7, GB7, BB7
Note2: Twist pair wires with 100: (Characteristic impedance) should be used between LCD panel
signal processing board and LVDS transmitter.
Note3: Input signal RSVD is not used inside the product, but do not keep this pin open to avoid noise
problem.
4.7 DISPLAY COLORS AND INPUT DATA SIGNALS
This product can display in equivalent to 16,777,216 colors in 256 gray scales. Also the relation between
display colors and input data signals is as the following table.
Display colors
Black
Blue
Red
Magenta
Green
Basic Colors
Cyan
Yellow
White
Black
RA7 RA6 RA5 RA4 RA3 RA2 RA1 RA0 GA7 GA6 GA5 GA4 GA3 GA2 GA1 GA0 BA7 BA6 BA5 BA4 BA3 BA2 BA1 BA0
RB7 RB6 RB5 RB4 RB3 RB2 RB1 RB0 GB7 GB6 GB5 GB4 GB3 GB2 GB1 GB0 BB7 BB6 BB5 BB4 BB3 BB2 BB1 BB0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 1
dark
n
p
bright
Red gray scale
0 0 0 0 0 0 1 0
:
:
1 1 1 1 1 1 0 1
1 1 1 1 1 1 1 0
Red
Black
1 1 1 1 1 1 1 1
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
dark
n
p
bright
Green gray scale
Green
Black
0 0 0 0 0 0 0 0
:
:
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
dark
n
p
bright
Blue gray scale
0 0 0 0 0 0 0 0
:
:
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
Blue
0 0 0 0 0 0 0 0
www.panelook.com
Data signal (0: Low level, 1: High level)
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
:
:
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 1
0 0 0 0 0 0 1 0
:
:
1 1 1 1 1 1 0 1
1 1 1 1 1 1 1 0
1 1 1 1 1 1 1 1
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
:
:
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
NL160120BC27-14
0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1
0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1
0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1
0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
:
:
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
:
:
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 1
0 0 0 0 0 0 1 0
:
:
1 1 1 1 1 1 0 1
1 1 1 1 1 1 1 0
1 1 1 1 1 1 1 1
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
19
www.panelook.com
Page 20
Global LCD Panel Exchange Center
4.8 INPUT SIGNAL TIMINGS
4.8.1 Timing characteristics
Parameter Symbol min. typ. max. Unit Remarks
Frequency 1/ tc 60.0 64.5 67.0 MHz
CLK
Horizontal
Vertical
DE,
DATA
Pulse width tc 14.9 15.5 - ns
Duty - -
Rise, fall -
Cycle period th
Display period thd 800 CLK -
Cycle period
Display period tvd 1,200 H -
Setup time - ns
Hold time - ns
Rise, fall -
www.panelook.com
NL160120BC27-14
LVDS transmitter
See the data sheet of LVDS
transmitter.
13.1 13.3 19.2
848 860 1,156 CLK
1/tv 59 60 61 Hz
tv 1,206 1,250 - H
See the data sheet of LVDS
transmitter.
ns
Ps
ns
input
-
-
-
-
4.8.2 Input signal timing chart
DE
DE
CLK
DATA (A), (B)
Invalid
Invalid
Invalid
tv
tvd= 1200H (fixed)
th
thd= 800CLK (fixed)
tc
Invalid
Invalid
Invalid
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
20
www.panelook.com
Page 21
Global LCD Panel Exchange Center
4.9 DISPLAY POSITIONS
The following table is the coordinates per pixel
Odd pixel: RA= Red data Even pixel: RB= Red data
GA= Green data GB= Green data
BA= Blue data BB= Blue data
D (1, 1) D (2, 1)
RA GA BA RB GB BB
www.panelook.com
NL160120BC27-14
D( 1, 1) D( 2, 1)
D( 1, 2) D( 2, 2)
x
x
x
D( 1, Y) D( 2, Y)
x
x
x
D( 1, 1199) D( 2, 1199)
D( 1,1200) D( 2, 1200)
x
x
x
x
x
x
xxx
xxx
x
xxx
x
xxx
x
xxx
x
xxx
xxx
D( X, 1)
D( X, 2)
x
x
x
D( X, Y)
x
x
x
D( X, 1199)
D( X, 1200)
xxx
xxx
x
xxx
x
xxx
x
xxx
x
xxx
xxx
D(1599, 1) D(1600, 1)
D(1599, 2) D(1600, 2)
x
x
x
D(1599, Y) D(1600, Y)
x
x
x
D(1599, 1199) D(1600, 1199)
D(1599, 1200) D(1600, 1200)
x
xxx
x
x
x
x
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
21
www.panelook.com
Page 22
Global LCD Panel Exchange Center
4.10 TEN-bit LOOK UP TABLE FOR GAMMA ADJUSTMENT
Adjustment of gamma characteristics for each 8-bit RGB color data is possible by using built-in 10-bit LUT
(look up table) for Gamma characteristics.
The LUT is set with the serial data. The combination of the control command determines the R/W actions.:
READ, Random/Sequential Address WRITE and Individual/Simultaneous RGB setting.
The serial data is composed as Table 1.
Table1: Serial data Composition
DATA DATA name Function Remarks
D31 CMD5 Control Command
D30 CMD4 Control Command
D29 CMD3 Control Command
D28 CMD2 Control Command
D27 CMD1 Control Command
D26 CMD0 Control Command
D25 ADD9 LUT Address (MSB)
D24 ADD8 LUT Address
D23 ADD7 LUT Address
D22 ADD6 LUT Address
D21 ADD5 LUT Address
D20 ADD4 LUT Address
D19 ADD3 LUT Address
D18 ADD2 LUT Address
D17 ADD1 LUT Address
D16 ADD0 LUT Address (LSB)
D15 Dummy Dummy Data “0”
D14 Dummy Dummy Data “0”
D13 Dummy Dummy Data “0”
D12 Dummy Dummy Data “0”
D11 Dummy Dummy Data “0”
D10 Dummy Dummy Data “0”
D9 DATA9 LUT Data (MSB)
D8 DATA8 LUT Data
D7 DATA7 LUT Data
D6 DATA6 LUT Data
D5 DATA5 LUT Data
D4 DATA4 LUT Data
D3 DATA3 LUT Data
D2 DATA2 LUT Data
D1 DATA1 LUT Data
D0 DATA0 LUT Data (LSB)
www.panelook.com
NL160120BC27-14
See Table2 and 3.
See Table4.
See Table5.
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
22
www.panelook.com
Page 23
Global LCD Panel Exchange Center
Table2: Command table (CMD5 to CMD0: 6-bit)
DATA name Parameter Remarks
Selection of WRITE/READ mode
CMD5
CMD4 Must be set to "1". -
CMD3
CMD2 Must be set to "1". -
CMD1
CMD0 Must be set to "0". -
"1": WRITE mode
"0": READ mode
Selection of Random/Sequential Address
WRITE
"1": Random Address WRITE
"0": Sequential Address WRITE
Selection of Individual/Simultaneous RGB
setting
"1": Individual RGB setting
"0": Simultaneous RGB setting
www.panelook.com
NL160120BC27-14
In case of "0", must be set as follows.
CMD4: "1", CMD3: "0", CMD2: "1"
CMD1: "0", CMD0: "0"
-
"1": Select the color by using ADD9 and ADD8.
(See Table4.)
"0": ADD9 and ADD8 are invalid.
Table3: Command Combination table (CMD5 to CMD0: 6-bit)
CMD5 CMD4 CMD3 CMD2 CMD1 CMD0
1 1 1 1 1 0 Random Address WRITE, Individual RGB setting
1 1 1 1 0 0 Random Address WRITE, Simultaneous RGB setting
1 1 0 1 1 0 Sequential Address WRITE, Individual RGB setting
1 1 0 1 0 0 Sequential Address WRITE, Simultaneous RGB setting
0 1 0 1 0 0 READ mode
Mode
*Other combinations are prohibited, and may cause function error.
Table4: Address table (ADD9 to ADD0: 10-bit)
DATA name Parameter Remarks
ADD9
ADD8
ADD7
ADD6
ADD5
ADD4
ADD3
ADD2
ADD1
ADD0
Color Selection
ADD>9:8@=
0:0 Red
0:1 Green
1:0 Blue
1:1 ON/OFF selection of Gamma
Correction
LUT Address
256 address = 00h - FFh
When "ADD>9:8@=1:1", ON/OFF of
Gamma correction can select according to
the GMA>2:0@. (See Table6 and Table7.)
When ADD>9:8@ = 1:1,
ADD>7:0@ must be set to 00h.
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
23
www.panelook.com
Page 24
Global LCD Panel Exchange Center
Table5: Data table (DATA15 to DATA0: 16-bit)
DATA DATA name Parameter Remarks
DATA15 Dummy
DATA14 Dummy
DATA13 Dummy
DATA12 Dummy
DATA11 Dummy
DATA10 Dummy
DATA9 DATA9
DATA8 DATA8
DATA7 DATA7
DATA6 DATA6
DATA5 DATA5
DATA4 DATA4
DATA3 DATA3
DATA2 DATA2
DATA1 DATA1
DATA0 DATA0
www.panelook.com
Dummy Data
Must be set to "0".
>MSB@
10-bit LUT Data
000h - 3FFh
>LSB@
NL160120BC27-14
-
-
Table6: Gamma correction table (DATA15 to DATA0: 16bit)
DATA DATA name Parameter Remarks
DATA15 Dummy
DATA14 Dummy
DATA13 Dummy
DATA12 Dummy
DATA11 Dummy
DATA10 Dummy
DATA9 Dummy
DATA8 Dummy
DATA7 Dummy
DATA6 Dummy
DATA5 Dummy
DATA4 Dummy
DATA3 Dummy
DATA2 GMA2
DATA1 GMA1
DATA0 GMA0
Dummy Data
Must be set to "0".
>MSB@
GMA Data
>LSB@
-
See Table7.
Table7: Control code GMA>2:0@
GMA2 GMA1 GMA0 Function
0 0 0 No correction (Initial setting)
0 0 1 Correction according to the LUT Data. Note1
*Other combinations are prohibited, and may cause function error.
Note1: Initial setting of the LUT is undefined data. The LUT should be enabled by setting of the GMA
after writing the LUT data in all the 256 addresses, in order to avoid undefined data display.
Note2: Transfer the data every power-on, because the LUT data isn't stored in the LCD module.
Note3: As writing and reading the LUT data, a noise may appear on the display image. In order to prevent
the noise appearing on the display, following measures should be performed.
(1) The LUT data should be rewritten during invalid period of pixel data (See "4.8 INPUT
SIGNAL TIMINGS".).
(2) The LUT data should be rewritten when the Gamma Correction is OFF (GMA>2:0@= 000).
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
24
www.panelook.com
Page 25
Global LCD Panel Exchange Center
4.11 LUT SERIAL COMMUNICATION TIMINGS
4.11.1 Timing Chart

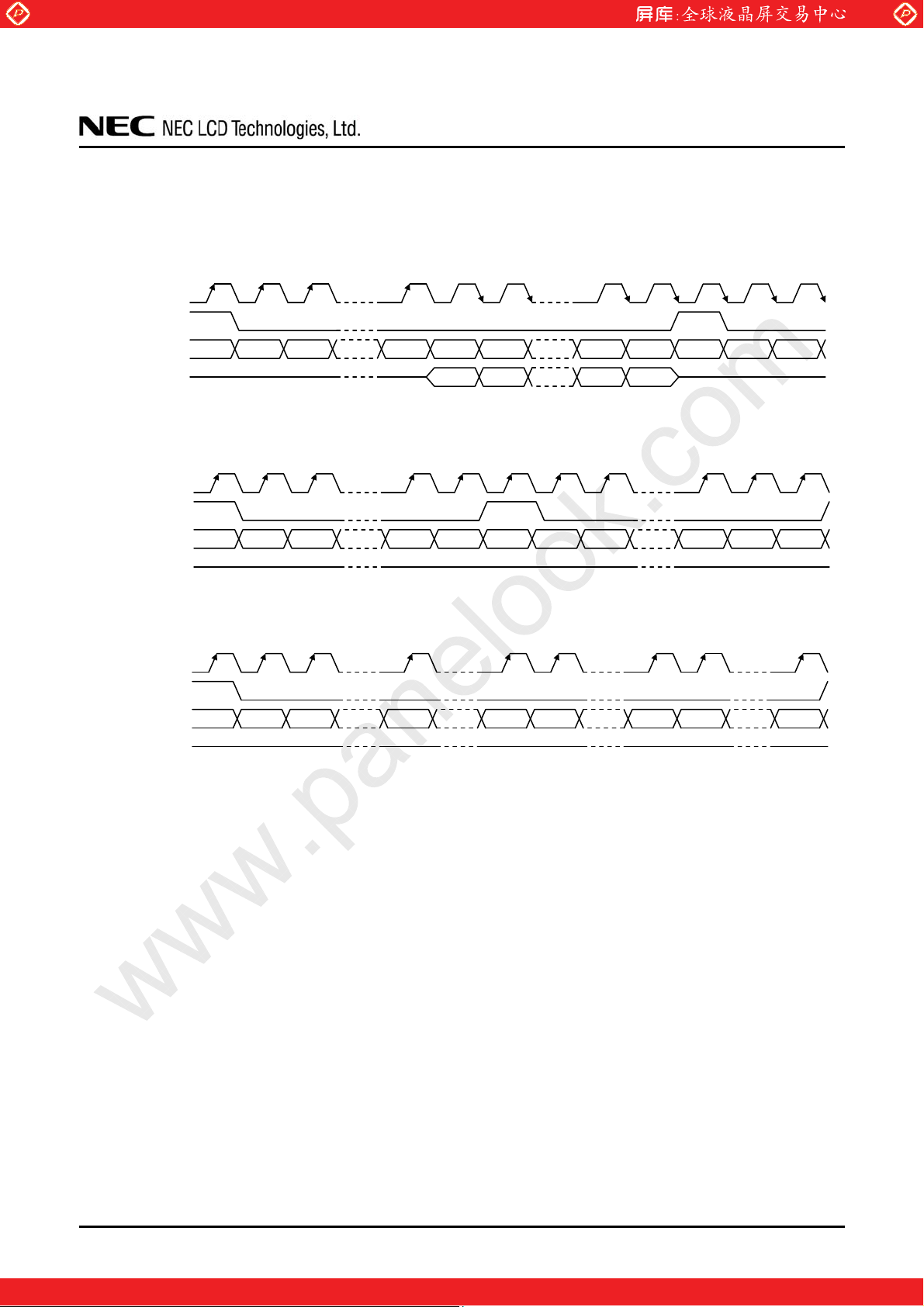

(1) READ Timing Chart
SCLK
CS
SDATAI
SDATAO
Invalid D31 D30 }} D16 N/A N/A }} N/A N/A Invalid D31 D30
Hi-Z Hi-Z
(2) Random Address WRITE Timing Chart
www.panelook.com
NL160120BC27-14
D15 D14 }} D1 D0
SCLK
CS
SDATAI
Invalid D31 D30 }} D1 D0 Invalid D31 D30 }} D2 D1 D0
SDATAO
(3) Sequential Address WRITE Timing Chart
SCLK
CS
SDATAI
Invalid D31 D30 }} D15 }} D0 D15 }} D0 D15 }} D0
SDATAO
Hi-Z
Hi-Z
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
25
www.panelook.com
Page 26
Global LCD Panel Exchange Center
4.11.2 Timing specifications
Parameter Symbol min. typ. max. Unit Remarks
SCLK Frequency 1/Tsck - - 5 MHz -
SCLK Pulse Width (WRITE) Twsck 50 - - ns -
SCLK Pulse Width (READ) Twsck 5 - - tc Note1
SDATI-SCLK Setup Time Tds 50 - - ns -
SDATI-SCLK Hold Time Tdh 50 - - ns -
CS-SCLK Setup Time Tcs 50 - - ns -
CS-SCLK Hold Time Tch 50 - - ns -
Note1: At the READ of the serial communication mode, the SCLK Pulse Width (Twsck) must be
greater than 5CLK (5 tc’s). (See "4.8.1 Timing characteristics".)
www.panelook.com
NL160120BC27-14
SCLK
SDATI
CS
Tds
Tcs
Tsck
Twsck Twsck
1.9V(V+)
1.25V
0.4V(V-)
Tdh
1.9V(V+)
0.4V(V-)
Tch
1.9V(V+)
0.4V(V-)
Note2: During the serial communication mode, the display noise may appear because of rewriting the
data. To avoid this, rewrite the LUT data when the pixel data is invalid or the Gamma
Correction is OFF (GMA>2:0@ = 000). The external noise may cause the data change, refresh
the data regularly according to need.
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
26
www.panelook.com
Page 27
Global LCD Panel Exchange Center
4.12 OPTICS
4.12.1 Optical characteristics
Parameter Condition Symbol min. typ. max. Unit
Luminance
Contrast ratio
Luminance uniformity
White
Red
Chromaticity
Green
Blue
Color gamut
Response time
Right
Viewing angle
Left
Up
Down
TR= 0q, TL= 0q,TU= 0q, TD= 0q
TR= 0q, TL= 0q,TU= 0q, TD= 0q
TR= 0q, TL= 0q,TU= 0q, TD= 0q
TR= 0q, TL= 0q,TU= 0q, TD= 0q
at center, against NTSC color space
White at center
White/Black at center
Black to White Ton - 11 20 ms
White to Black Toff - 9 20 ms
TU= 0q, TD= 0q, CRt 10 TR
TU= 0q, TD= 0q, CRt 10 TL
TR= 0q, TL= 0q, CRt 10 TU
TR= 0q, TL= 0q, CRt 10 TD
Note1: These are initial characteristics.
Note2: Measurement conditions are as follows.
qC, VDD= 12.0V, IBL= 6.0mArms/lamp, Display mode: UXGA,
Ta= 25
Horizontal cycle= 1/75.19kHz, Vertical cycle= 1/60.0Hz
Optical characteristics are measured at luminance saturation after 20 minutes from working
the product, in the dark room. Also measurement methods are as follows.
www.panelook.com
L 200 250 - cd/m
CR 400 550 - -
White
x coordinate Wx
y coordinate Wy
x coordinate Rx
y coordinate Ry
x coordinate Gx
y coordinate Gy
x coordinate Bx
y coordinate By
LU - 1.15 1.3 - BM-5A Note4
C 65 72 - %
NL160120BC27-14
0.313 -
-
0.329 -
-
0.65
-
0.33
-
0.29
-
0.61
-
0.14
-
0.079
-
70 85 -
70 85 -
70 85 -
70 85 -
- -
- -
- -
- -
- -
- -
Measuring
instrument
BM-5A
2
or SR-3
BM-5A
or SR-3
-
-
SR-3 Note5
BM-5A
q
q
BM-5A Note8
q
q
(Note1, Note2)
Remarks
-
Note3
Note6
Note7
50cm
Photodetector (BM-5A or SR-3)
LCD module
(Product)
1q
Note3: See "4.12.2 Definition of contrast ratio".
Note4: See "4.12.3 Definition of luminance uniformity".
Note5: These coordinates are found on CIE 1931 chromaticity diagram.
Note6: Product surface temperature: TopF= 35qC
Note7: See "4.12.4 Definition of response times".
Note8: See "4.12.5 Definition of viewing angles".
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
27
www.panelook.com
Page 28
Global LCD Panel Exchange Center
4.12.2 Definition of contrast ratio
The contrast ratio is calculated by using the following formula.
Contrast ratio (CR) =
4.12.3 Definition of luminance uniformity
The luminance uniformity is calculated by using following formula.
Luminance uniformity (LU) =
The luminance is measured at near the 5 points shown below.
www.panelook.com
Luminance of white screen
Luminance of black screen
Maximum luminance from
Minimum luminance from
NL160120BC27-14
to ུ
to ུ
800
1,334
ཱ
ི
ུ
200
600
1,000
267
ཱི
4.12.4 Definition of response times
Response time is measured, the luminance changes from "black" to "white", or "white" to "black" on
the same screen point, by photo-detector. Ton is the time it takes the luminance change from 10% up
to 90%. Also Toff is the time it takes the luminance change from 90% down to 10% (See the
following diagram.).
100%
White
Luminance
Black
90%
10%
0%
Ton
Tof f
4.12.5 Definition of viewing angles
Normal axis (Perpendicular)
12 o’clock
Upper
TR
Right
Left
TL
TU
TD
Lower
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
28
www.panelook.com
Page 29
Global LCD Panel Exchange Center
5. RELIABILITY TESTS
Test item Condition Judgment
www.panelook.com
NL160120BC27-14
(Note1)
High temperature and humidity
(Operation)
Heat cycle
(Operation)
Thermal shock
(Non operation)
Vibration
(Non operation)
Mechanical shock
(Non operation)
ESD
(Operation)
Dust
(Operation)
Non-operation
Low pressure
Operation
60 r 2qC, RH= 60%, 240hours
ཱ Display data is white.
0 r 3qC}1hour
55 r 3qC}1hour
ཱ 50cycles, 4hours/cycle
ི Display data is white.
-20 r 3qC}30minutes
60 r 3qC}30minutes
ཱ 100cycles, 1hour/cycle
ི Temperature transition time is within 5
minutes.
5 to 100Hz, 11.76m/s
ཱ 1 minute/cycle
ི X, Y, Z direction
ཱི 10 times each directions
2
294m/ s
ཱ X, Y, Z direction
ི 3 times each directions
150pF, 150:, r10kV
ཱ 9 places on a panel surface Note2
ི 10 times each places at 1 sec interval
Sample dust: No.15 (by JIS-Z8901)
ཱ 15 seconds stir
ི 8 times repeat at 1 hour interval
15kPa (Equivalent to altitude 13,600m)
ཱ -20qCr3qC}24 hours
ི +60qCr3qC}24 hours
53.3kPa (Equivalent to altitude 4,850m)
ཱ 0qCr3qC}24 hours
ི +55qCr3qC}24 hours
, 11ms
2
No display malfunctions
No display malfunctions
No physical damages
No display malfunctions
No display malfunctions
Note1: Display and appearance are checked under environmental conditions equivalent to the
inspection conditions of defect criteria.
Note2: See the following figure for discharge points
{
{{
{
DATA SHEET DOD-PD-1400 (2nd edition)
{
{
{
{
{
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
29
www.panelook.com
Page 30
Global LCD Panel Exchange Center
I
6. PRECAUTIONS
6.1 MEANING OF CAUTION SIGNS
The following caution signs have very important meaning. Be sure to read "6.2 CAUTIONS" and
"6.3 ATTENTIONS", after understanding these contents!
This sign has the meaning that customer will be injured by himself or the product will
!
sustain a damage, if customer has wrong operations.
This sign has the meaning that customer will get an electrical shock, if customer has
wrong operations.
This sign has the meaning that customer will be injured by himself, if customer has
wrong operations.
www.panelook.com
NL160120BC27-14
6.2 CAUTIONS
Do not touch the working backlight. There is a danger of an electric shock.
Do not touch the working backlight. There is a danger of burn injury.
Do not shock and press the LCD panel and the backlight! There is a danger of
breaking, because they are made of glass. (Shock: To be not greater 294m/s
not greater 11ms, Pressure: To be not greater 19.6N (
6.3 ATTENTIONS
6.3.1 Handling of the product
Take hold of both ends without touching the circuit board when the product (LCD module) is picked
up from inner packing box to avoid broken down or misadjustment, because of stress to mounting
parts on the circuit board.
ཱ Do not hook nor pull cables such as lamp cable, and so on, in order to avoid any damage.
ི When the product is put on the table temporarily, display surface must be placed downward.
ཱི When handling the product, take the measures of electrostatic discharge with such as earth band, ionic
shower and so on, because the product may be damaged by electrostatic.
ུ The torque for product mounting screws must never exceed 0.735Nm. Higher torque might result in
distortion of the bezel. And the length of product mounting screws must be d 5.3mm.
!
16mm jig))
2
and to be
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
30
www.panelook.com
Page 31
Global LCD Panel Exchange Center
ཱུ The product must be installed using mounting holes without undue stress such as bends or twist (See
outline drawings). And do not add undue stress to any portion (such as bezel flat area). Bends or twist
described above and undue stress to any portion may cause display mura.
Recommended installing method: Ideal plane "A" is defined by one mounting hole (datum point) and
other mounting holes. The ideal plane "A" should be the same plane within r0.3mm.
Product
Mounting hole (Datum point) Mounting hole
ྲྀ Do not press or rub on the sensitive product surface. When cleaning the product surface, use of the
cloth with ethanolic liquid such as screen cleaner for LCD is recommended.
ཷ Do not push nor pull the interface connectors while the product is working.
ླྀ If the lamp cable is attached on the metal part of the product directly, high frequency leak current to
the metal part may occur, then the brightness may decrease or the lamp may not be turned on.
ཹ When handling the product, use of an original protection sheet on the product surface (polarizer) is
recommended for protection of product surface. Adhesive type protection sheet may change color or
characteristics of the polarizer.
www.panelook.com
NL160120BC27-14
Mounting hole
Ideal plane "A"
6.3.2 Environment
Do not operate or store in high temperature, high humidity, dewdrop atmosphere or corrosive gases.
Keep the product in packing box with antistatic pouch in room temperature to avoid dusts and
sunlight, when storing the product.
ཱ In order to prevent dew condensation occurring by temperature difference, the product packing box
should be opened after enough time being left under the environment of an unpacking room. Evaluate
the leaving time sufficiently because a situation of dew condensation occurring is changed by the
environmental temperature and humidity. (Recommended leaving time: 6 hours or more with packing
state)
ི Do not operate in high magnetic field. Circuit boards may be broken down by it.
ཱི This product is not designed as radiation hardened.
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
31
www.panelook.com
Page 32
Global LCD Panel Exchange Center
6.3.3 Characteristics
The following items are neither defects nor failures.
Response time, luminance and color may be changed by ambient temperature.
ཱ Display mura, flicker, vertical seam or small spot may be observed depending on display patterns.
ི Optical characteristics (e.g. luminance, display uniformity, etc.) gradually is going to change
depending on operating time, and especially low temperature, because the LCD has cold cathode
fluorescent lamps.
ཱི Do not display the fixed pattern for a long time because it may cause image sticking. Use a screen
saver, if the fixed pattern is displayed on the screen.
ུ The display color may be changed depending on viewing angle because of the use of condenser sheet
in the backlight.
ཱུ Optical characteristics may be changed depending on input signal timings.
ྲྀ The interference noise between input signal frequency for this product's signal processing board and
luminance control frequency of the inverter may appear on a display. Set up luminance control
frequency of the inverter so that the interference noise does not appear.
www.panelook.com
NL160120BC27-14
6.3.4 Other
All GND and VDD terminals should be used without any non-connected lines.
ཱ Do not disassemble a product or adjust variable resistors
ི Pack the product with original shipping package, in order to avoid any damages during transportation,
when returning the product to NEC for repair and so on.
ཱི The LCD module by itself or integrated into end product should be packed and transported with
display in the vertical position. Otherwise the display characteristics may be degraded.
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
32
www.panelook.com
Page 33
ყ
ყ
33
NL160120BC27-14
Unit: mm
www.panelook.com
www.panelook.com
Global LCD Panel Exchange Center
DATA SHEET DOD-PD-1400 (2nd edition)
Note2: The torque for product mounting screws must never exceed 0.735Nm.
Note1: Not shown tolerances of the dimensions are r0.5mm.
Note3: The length of product mounting screws from surface of plate must be d 5.3mm.
Note4: The values in parentheses are for reference.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7.1 FRONT VIEW
7. OUTLINE DRAWINGS
Page 34
ყ
34
NL160120BC27-14
Unit: mm
www.panelook.com
www.panelook.com
Global LCD Panel Exchange Center
Note1: Not shown tolerances of the dimensions are r0.5mm.
Note2: The torque for product mounting screws must never exceed 0.735Nm.
Note3: The values in parentheses are for reference.
DATA SHEET DOD-PD-1400 (2nd edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7.2 REAR VIEW
Loading...
