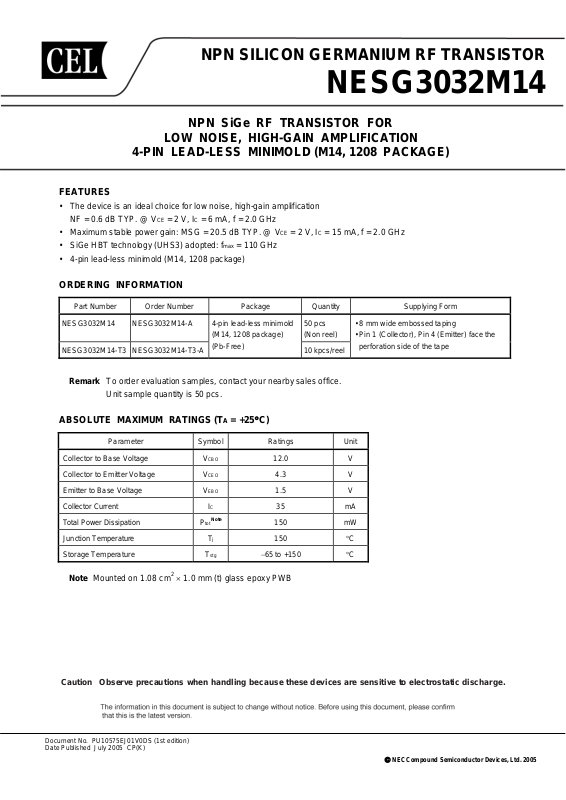

NEC nesg3032m14 Datasets

NPN SILICON GERMANIUM RF TRANSISTOR

NESG3032M14

NPN SiGe RF TRANSISTOR FOR

LOW NOISE, HIGH-GAIN AMPLIFICATION

4-PIN LEAD-LESS MINIMOLD (M14, 1208 PACKAGE)

FEATURES

• The device is an ideal choice for low noise, high-gain amplification
NF = 0.6 dB TYP. @ V

• Maximum stable power gain: MSG = 20.5 dB TYP. @ V

• SiGe HBT technology (UHS3) adopted: f

• 4-pin lead-less minimold (M14, 1208 package)

ORDERING INFORMATION

Part Number Order Number Package Quantity Supplying Form

CE = 2 V, IC = 6 mA, f = 2.0 GHz

CE = 2 V, IC = 15 mA, f = 2.0 GHz

max = 110 GHz

NESG3032M14 NESG3032M14-A 50 pcs

NESG3032M14-T3 NESG3032M14-T3-A

Remark To order evaluation samples, contact your nearby sales office.

Unit sample quantity is 50 pcs.

ABSOLUTE MAXIMUM RATINGS (TA = +25°C)

Parameter Symbol Ratings Unit
Collector to Base Voltage VCBO 12.0 V
Collector to Emitter Voltage VCEO 4.3 V
Emitter to Base Voltage VEBO 1.5 V
Collector Current IC 35 mA
Total Power Dissipation Ptot
Junction Temperature Tj 150 °C
Storage Temperature Tstg −65 to +150 °C

Note Mounted on 1.08 cm

2

× 1.0 mm (t) glass epoxy PWB

4-pin lead-less minimold
(M14, 1208 package)
(Pb-Free)

Note

150 mW

(Non reel)
10 kpcs/reel

• 8 mm wide embossed taping

• Pin 1 (Collector), Pin 4 (Emitter) face the
perforation side of the tape

Caution Observe precautions when handling because these devices are sensitive to electrostatic discharge.

Document No. PU10575EJ01V0DS (1st edition)
Date Published July 2005 CP(K)

©

NEC Compound Semiconductor Devices, Ltd. 2005

NESG3032M14

ELECTRICAL CHARACTERISTICS (TA = +25°C)

Parameter Symbol Test Conditions MIN. TYP. MAX. Unit
DC Characteristics
Collector Cut-off Current ICBO VCB = 5 V, IE = 0 mA
Emitter Cut-off Current IEBO VEB = 1 V, IC = 0 mA
DC Current Gain hFE

Note 1

VCE = 2 V, IC = 6 mA 220 300 380

− −

− −

RF Characteristics
Insertion Power Gain ⏐S21e⏐2VCE = 2 V, IC = 15 mA, f = 2.0 GHz 15.0 17.5
Noise Figure NF

Associated Gain Ga

Reverse Transfer Capacitance Cre
Maximum Stable Power Gain MSG

Note 2

Note

3

Gain 1 dB Compression Output Power PO (1 dB)

3rd Order Intermodulation Distortion
Output Intercept Point

OIP

3

CE = 2 V, IC = 6 mA, f = 2.0 GHz,
S = ZSopt, ZL = ZLopt

Z
V

CE = 2 V, IC = 6 mA, f = 2.0 GHz,
S = ZSopt, ZL = ZLopt

Z
VCB = 2 V, IE = 0 mA, f = 1 MHz

−

−

−

VCE = 2 V, IC = 15 mA, f = 2.0 GHz 17.5 20.5

V

CE = 3 V, IC (set) = 20 mA,

f = 2.0 GHz, Z
V

CE = 3 V, IC (set) = 20 mA,

f = 2.0 GHz, Z

S = ZSopt, ZL = ZLopt

S = ZSopt, ZL = ZLopt

−

−

0.60 0.85 dB

17.5

0.15 0.25 pF

12.5

24.0

V

µ

Notes 1. Pulse measurement: PW ≤ 350

s, Duty Cycle ≤ 2%

2. Collector to base capacitance when the emitter grounded

21

3. MSG =

S
S

12

hFE CLASSIFICATION

Rank FB

100 nA
100 nA

−

−

−

−

−

−

dB

dB

dB

dBm

dBm

Marking zN

hFE Value 220 to 380

S-PARAMETERS

S-parameters/Noise parameters are provided on the NEC Compound Semiconductor Devices Web site in a form

(S2P) that enables direct import to a microwave circuit simulator without keyboard input.

Click here to download S-parameters.
[RF and Microwave] → [Device Parameters]
URL http://www.ncsd.necel.com/

2

Data Sheet PU10575EJ01V0DS

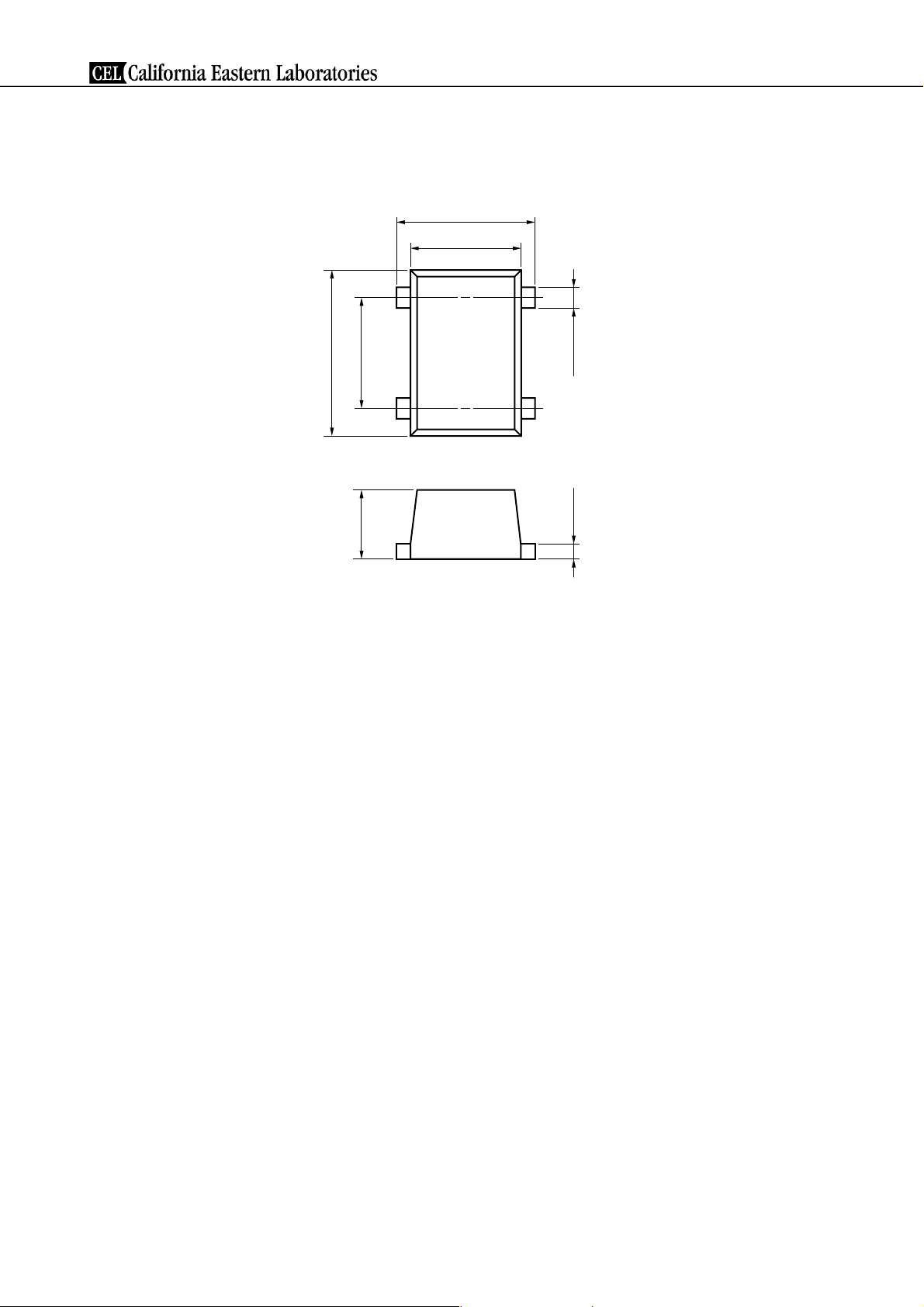

PACKAGE DIMENSIONS
4-PIN LEAD-LESS MINIMOLD (M14, 1208 PACKAGE) (UNIT: mm)

1.0±0.05

+0.07

0.8

–0.05

–0.05

+0.07

0.8

1.2

0.5±0.05

zN

43

12

0.15±0.05

–0.05

+0.1

0.11

NESG3032M14

PIN CONNECTIONS

1. Collector

2. Emitter

3. Base

4. NC (Connected with Pin 2)

Data Sheet PU10575EJ01V0DS

3
