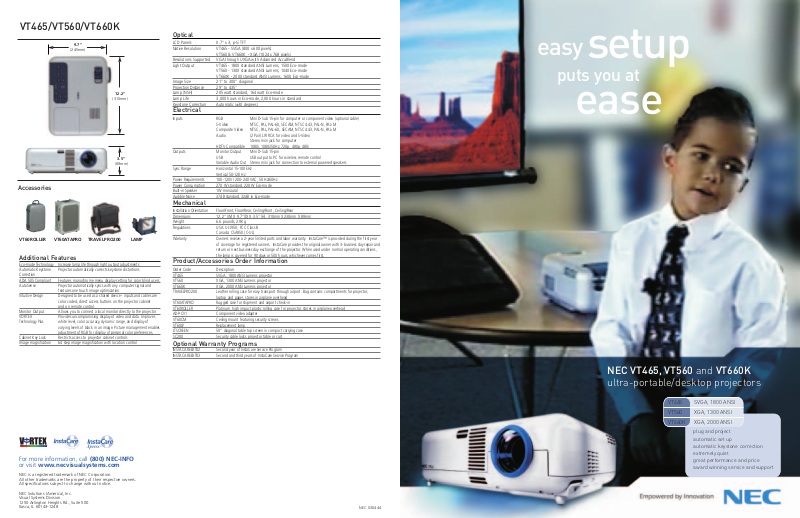

Page 1
easy
puts you at
ease
setup
NEC VT465, VT560 and VT660K
ultra-portable/desktop projectors
VT465 SVGA, 1800 ANSI
VT560 XGA, 1300 ANSI
VT660K XGA, 2000 ANSI
plug and project
automatic set up
automatic keystone correction
extremely quiet
great performance and price
award winning service and support
Page 2
quick, simple, hassle-free
No matter where your next visual display opportunity takes you, a quick
easy set up will put you instantly at ease so you’re sure to impress. The new
VT465, VT560 and VT660K ultra-portable/desktop projectors combine
simplicity with flexibility for a carefree, confident use every time.
The VT Series lets you plug in and project in seconds. Intuitive design with
direct access lets you connect and switch from a variety of sources with the
simple touch of a button. Color coded connectors make set up a breeze.
Automatic keystone correction ensures you’ll have a square image
regardless of the projector’s angle. Advanced AccuBlend™ automatically
synchronizes with virtually any type of computer so you always get a clear,
bright, perfect image. So automatic, the VT Series just about makes the
presentation for you!
While it’s simple to set up and operate, the VT is flexible enough to handle
the toughest assignments, making it ideal for education, business,
government and even home use. With its awesome video display your
images will be spectacular when viewed from a DVD, VCR, game console or
computer. This series can handle it all effortlessly. Computer resolutions
SVGA through UXGA are all supported and it’s HDTV compatible, too.
Because of its low profile and extremely quiet operation, the VT Series
ensures your display is the center of attention, not your projector. The short
throw lens lets you get the projector out of the way by moving it to the front
of the room. And NEC’s unique 64-step image magnification allows you to
zoom in on information located anywhere on your screen to emphasize key
points so you can keep your audience with you every step of the way.
While big on features, the VT Series is extremely small on price. As a matter
of fact, they are among the most affordable in the industry.
From the lens to the connector panel, our environmentally friendly
projectors are precision crafted for performance, quality and long-term
reliability. The new VT Series projectors are covered by a 3-year limited
parts and labor warranty. Should a need arise, rest assured that NEC will
be there with award winning service and support including InstaCare
InstaCareXpressSM, and TravelCareSM.
VT465–SVGA, 1800 ANSI
VT560–XGA, 1300 ANSI
VT660K–XGA, 2000 ANSI
plug in and project
automatic set up
automatic keystone correction
intuitive design
extremely quiet
great performance and price
lightweight for travel
wireless remote with mouse control
carrying case
®
,
variable audio
output (VAO)
enables remote
control of powered
external speaker
volume
actual color not shown
short
focal lens
Page 3
intuitive design
The color coded input panel simplifies source
connections. Direct access keys on the projector
control panel and remote control make source
changes as easy as touching button.
greater connectivity
means more flexibility
With best-in-class connectivity, the VT Series is as
flexible as you are. You can use a variety of inputs
including DVD, VCR, computer, game console and
more, they are also HDTV compatible. Some options
include:
• Composite video with matching L/R audio input
• S-Video with matching L/R audio input
• RGB with audio input
• Variable audio output
• RGB Output
• USB output enables wireless mouse
control of computer
automatic keystone correction
Automatic keystone correction ensures an instantly
square image is projected even when the projector is
set up at a steep offset angle to the screen.
quick connections
auto keystone correction
automatically adjusts to square the image right before your eyes.
special features
ECO-MODE
JQA-EM1665
JQA-1729
short focal lens
The short focal lens allows you to place the projector closer to the screen at the head of the table
for a perfect image. This gives you the flexibility to present in large or small environments.
one-touch source selections
Just one simple touch will connect you to the source you need. Color coded connectors for added
ease of set up.
variable audio output
The VT series features audio inputs for each source. This allows the projector to be used as a
switcher and enables the user to control external speaker volume with the projector remote
control. Color coded connectors to simplify.
x
serving special needs and the environment.
Using a projector should be an enjoyable experience. Responding to the latest government
requirements, the VT Series is ADA508 compliant. This allows users to select the display color of
the menu settings. In addition, Eco-Mode increases lamp life up to 50% so you can conserve
resources and save money.
whisper quiet operation and long life lamp.
The VT Series features extremely low fan noise at 32dB in Eco-Mode, making them among
the quietest models available.
environmentally friendly and conserves energy.
We take our responsibility to the environment very seriously, especially since our products are used
worldwide. We continually look for ways to improve the efficiency of our projectors with features like
EcoMode that reduces overall projector power consumption and help conserve energy . In addition
our projector factories are certified to meet the ISO environmental quality standard (ISO 14001) and
are ISO9001 and ISO9002 certified.
“Mr. Robinson”
NEC Idol Contest
Winner. Video
submitted by
Newport Coast
Elementary
School.
one-touch
source
selection
buttons
Page 4
VT465/VT560/VT660K
9.7”
(245mm)
12.2”
(310mm)
3.5”
(89mm)
Accessories
VT60ROLLER VT60ATAPRO TRAVELPRO200
Additional Features
Eco-mode Technology Increase lamp life through light output adjustments
Automatic Keystone Projector automatically corrects keystone distortions
Correction
ADA 505 Compliant Features monochrome menu display setting for color blind users
AutoSense Projector automatically syncs with any computer signal and
Intuitive Design Designed to be used as a shared device - inputs and cables are
Monitor Output Allows you to connect a local monitor directly to the projector
VORTEX Provides uncompromising display of video and data. Improves
Technology Plus white level, color accuracy, dynamic range, and display of
Cabinet Key Lock Restricts access to projector cabinet controls
Image magnification 64 step image magnification with location control
features one touch image optimization
color coded, direct access buttons on the projector cabinet
and on remote control.
varying levels of black in an image. Picture management enables
adjustment of RGB for display of personal color preferences.
LAMP
Optical
LCD Panels 0.7" x 3, p-Si TFT
Native Resolution VT465 - SVGA (800 x 600 pixels)
VT560 & VT660K - XGA (1024 x 768 pixels)
Resolutions Supported VGA through UXGA with Advanced AccuBlend
Light Output VT465 - 1800 standard ANSI Lumens, 1500 Eco-mode
VT560 - 1300 standard ANSI Lumens, 1040 Eco-mode
VT660K - 2000 standard ANSI Lumens, 1600 Eco-mode
Image Size 21" to 300" diagonal
Projection Distance 29" to 435"
Lamp (NSH) 205 watt standard, 164 watt Eco-mode
Lamp Life 3,000 hours in Eco-mode, 2,000 hours in standard
Keystone Correction Automatic (±30 degrees)
Electrical
Inputs RGB Mini D-Sub 15-pin for computer or component video (optional cable)
S-Video NTSC, PAL, PAL-60, SECAM, NTSC 4.43, PAL-N, PAL-M
Composite Video NTSC, PAL, PAL-60, SECAM, NTSC 4.43, PAL-N, PAL-M
Audio (2 Pair) L/R RCA for video and S-Video
Stereo mini jack for computer
HDTV Compatible 1080i, 1080i/50Hz, 720p, 480p, 480i
Outputs Monitor Output Mini D-Sub 15-pin
USB USB output to PC for wireless remote control
Variable Audio Out Stereo mini jack for connection to external powered speakers
Sync Range Horizontal 15-100 kHz
Vertical 50-120 Hz
Power Requirements 100-120V / 200-240 VAC, 50 Hz/60Hz
Power Consumption 270 W standard, 220 W Eco-mode
Built-in Speaker 1W monaural
Audible Noise 37dB standard, 32dB in Eco-mode
Mechanical
Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions 12.2" (W) X 9.7"(D) X 3.5" (H), 310mm X 230mm X 89mm
Weight 6.6 pounds, 2.9Kg
Regulations USA: UL1950, FCC Class B
Canada: CSA950 (C-UL)
Warranty Owners receive a 2-year limited parts and labor warranty. InstaCare™ is provided during the first year
of coverage for registered owners. InstaCare provides the original owner with 3-business day repair and
return or next business day exchange of the projector. When used under normal operating conditions,
the lamp is covered for 90 days or 500 hours, whichever comes first.
Product/Accessories Order Information
Order Code Description
VT465 SVGA, 1800 ANSI Lumens projector
VT560 XGA, 1300 ANSI Lumens projector
VT660K XGA, 2000 ANSI Lumens projector
TRAVELPRO200 Leather rolling case for easy transport through airport. Bag contains compartments for projector,
laptop and paper, stores in airplane overhead
VT60ATAPRO Rugged case for shipment and airport check-in
VT60ROLLER Platinum, high impact plastic rolling case for projector, stores in airplane overhead
ADP-CV1 Component video adapter
VT60CM Ceiling mount featuring security screws
VT60LP Replacement lamp
LTSCREEN 50" diagonal table top screen in compact carrying case
SC200 Security cable locks projector table or cart
Warranty Options
VLMPL-01 1 year limited parts and labor extension
VLMIC-01 2nd year InstaCare coverage
VLMIC-02 3rd year extended warranty plus 2nd and 3rd year InstaCare coverage
VLMTC-02 For duration of the standard warranty (2 years), loaner or repair services are available in EU countries,
Japan, and Australia (for U.S. and Canadian residents traveling abroad).
For more information, call (800) NEC-INFO
or visit www.necvisualsystems.com
NEC is a registered trademark of NEC Corporation.
All other trademarks are the property of their respective owners.
All specifications subject to change without notice.
NEC Solutions (America), Inc.
Visual Systems Division
1250 Arlington Heights Rd., Suite 400
Itasca, IL 60143-1248
NEC 030444
