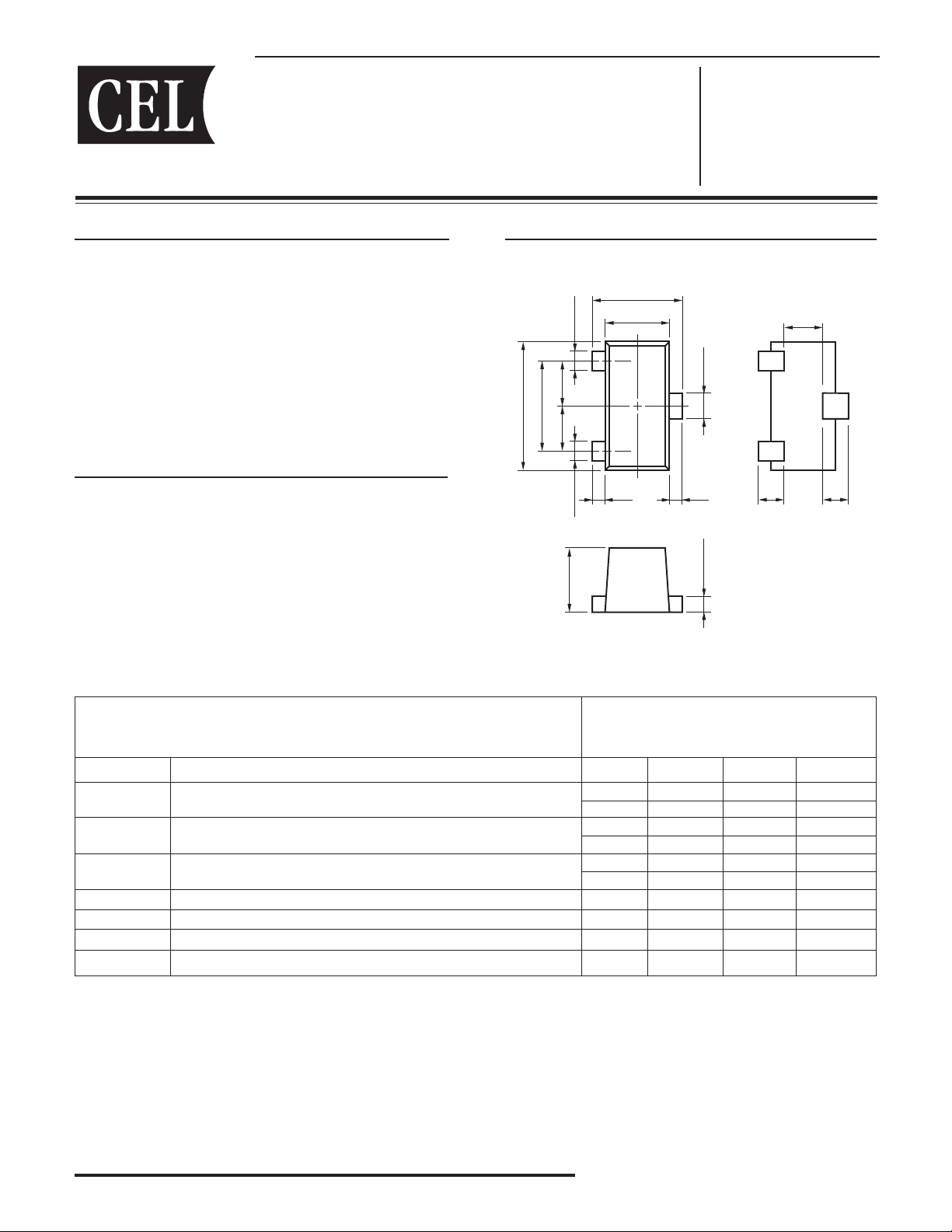

NEC's NPN SILICON TRANSISTOR

1. Emitter

2. Base

3. Collector

PIN CONNECTIONS

0.125

+0.1

ñ0.05

0.5±0.05

0.1

0.2

+0.1

ñ0.05

0.35

0.7

0.35

0.15

+0.1

ñ0.05

0.15

+0.1

ñ0.05

1.0

+0.1

ñ0.05

0.5

+0.1 ñ0.05

0.7±0.05

0.3

0.2 0.2

(Bottom View)

NE687M13

FEATURES

• NEW MINIATURE M13 PACKAGE:

– Small transistor outline – 1.0 X 0.5 X 0.5 mm – Low profile / 0.50 mm package height – Flat lead style for better RF performance

• HIGH GAIN BANDWIDTH PRODUCT:

T = 14 GHz

• LOW NOISE FIGURE:

NF = 1.4 dB at 2 GHz

DESCRIPTION

NEC's NE687M13 transistor is designed for low noise, high gain, and low cost requirements. This high f for very low voltage/low current designs for portable wireless communications and cellular radio applications. NEC's new low profile/flat lead style "M13" package is ideal for today's portable wireless applications.

T part is well suited

OUTLINE DIMENSIONS

PACKAGE OUTLINE M13

(Units in mm)

ELECTRICAL CHARACTERISTICS (TA = 25°C)

PART NUMBER NE687M13

EIAJ1 REGISTERED NUMBER 2SC5618

PACKAGE OUTLINE M13

SYMBOLS PARAMETERS AND CONDITIONS UNITS MIN TYP MAX

fT Gain Bandwidth at VCE = 2 V, IC = 20 mA, f = 2 GHz GHz 9.0 14.0

NF Noise Figure at VCE = 2 V, IC = 3 mA, f = 2 GHz, Zs = Zopt dB 1.4 2.0

|S21E|

hFE Forward Current Gain at VCE = 2 V, IC = 20 mA,

Notes:

1. Electronic Industrial Association of Japan.

2. Pulsed measurement, pulse width ≤ 350 µs, duty cycle ≤ 2 %.

3. Capacitance is measured with emitter and case connected to the guard terminal of the bridge.

ICBO Collector Cutoff Current at VCB = 5 V, IE = 0 µA 0.1

IEBO Emitter Cutoff Current at VEB = 1 V, IC = 0 µA 0.1

CRE Feedback Capacitance at VCB = 2 V, IE = 0, f = 1 MHz,

VCE = 1 V, IC = 10 mA, f = 2 GHz GHz 7.0 12.0

VCE = 1 V, IC = 3 mA, f = 2 GHz, Zs = Zopt dB 1.5 2.0

Insertion Power Gain at VCE = 2 V, IC = 20 mA, f = 2 GHz dB 8.5 10.0 VCE = 1 V, IC = 10 mA, f = 2 GHz dB 6.0 9.0

Note 2

Note 3

70 130

pF 0.4 0.8

California Eastern Laboratories

Page 2

NE687M13

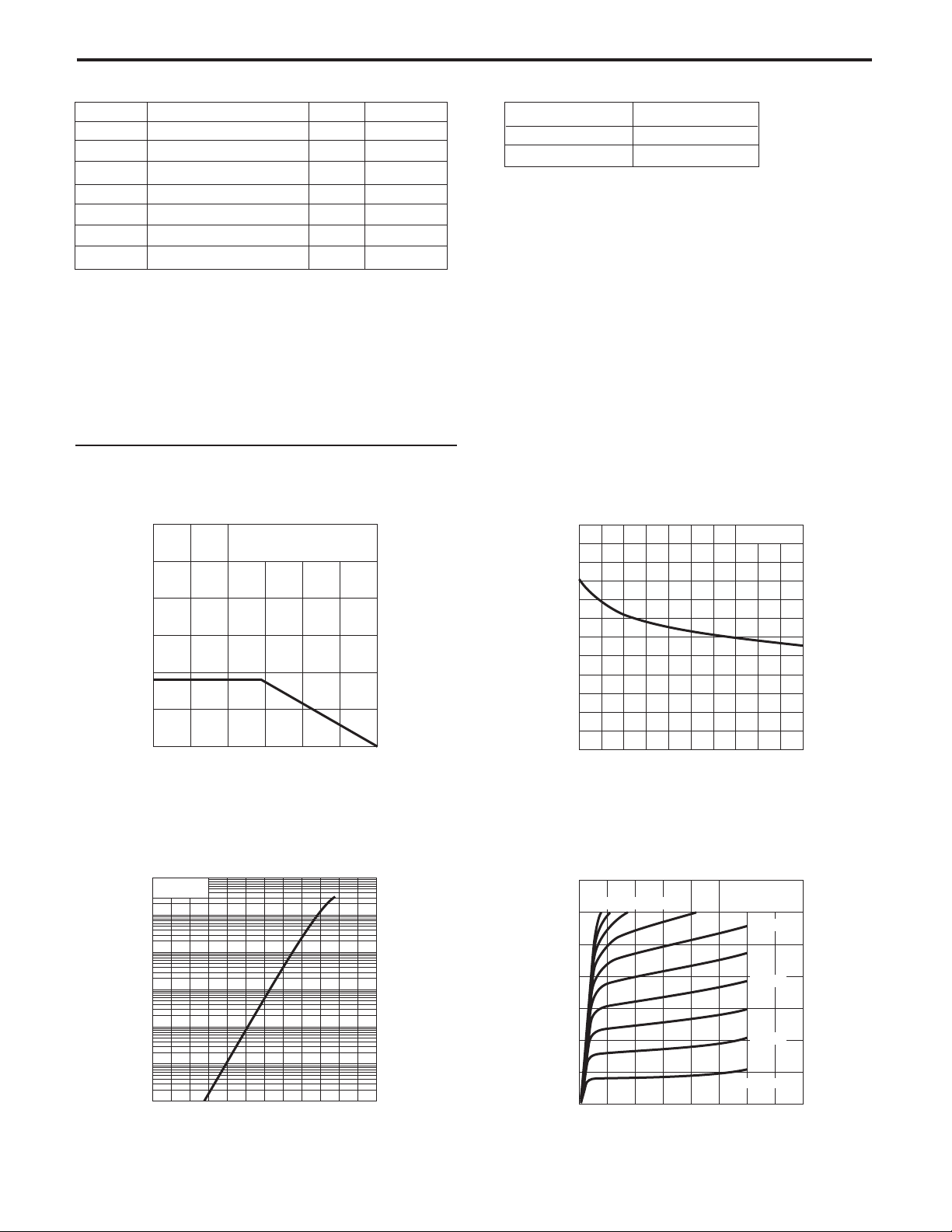

ABSOLUTE MAXIMUM RATINGS

(TA = 25°C)

SYMBOLS PARAMETERS UNITS RATINGS

VCBO Collector to Base Voltage V 5.0

CEO Collector to Emitter Voltage V 3.0

EBO Emitter to Base Voltage V 2.0

C Collector Current mA 30

T Total Power Dissipation

mW 90

TJ Junction Temperature °C 150

TSTG Storage Temperature °C -65 to +150

Notes:

1. Operation in excess of any one of these parameters may result in permanent damage.

2. With device mounted on 1.08 cm2 X 1.2 mm glass epoxy board.

TYPICAL PERFORMANCE CURVES (TA = 25°C)

TOTAL POWER DISSIPATION vs.

300

250

(mW)

tot

200

AMBIENT TEMPERATURE

Mounted on Glass Epoxy PCB

(1.08 cm

× 1.0 mm (t) )

ORDERING INFORMATION

PART NUMBER QUANTITY

NE687M13-A

NE687M13-T3-A

REVERSE TRANSFR CAPACITANCE vs.

COLLECTOR TO BASE VOLTAGE

0.6

(pF)

0.5

0.4

f = 1 MHz

150

100

Total Power Dissipation, P

25 50 75 100 125 150

Ambient Temperature, TA (°C)

COLLECTOR CURRENT vs.

BASE TO EMITTER VOLTAGE

100

VCE = 2 V

(mA)

0.1

0.01

Collector Current, I

0.001

0.0001

Base to Emmiter Voltage, VBE (V)

0.70.5 0.60.4 0.8 0.9

1.0

0.3

0.2

0.1

Reverse Transfer Capacitance, C

012345

Collector to Base Voltage, VCB (V)

COLLECTOR CURRENT vs.

COLLECTOR TO EMITTER VOLTAGE

IB : 50 A step

300 A

200 A

100 A

(mA)

400 A

500 A

Collector Current, I

012

IB = 50 A

Collector to Emmiter Voltage, VCE (V)

Page 3

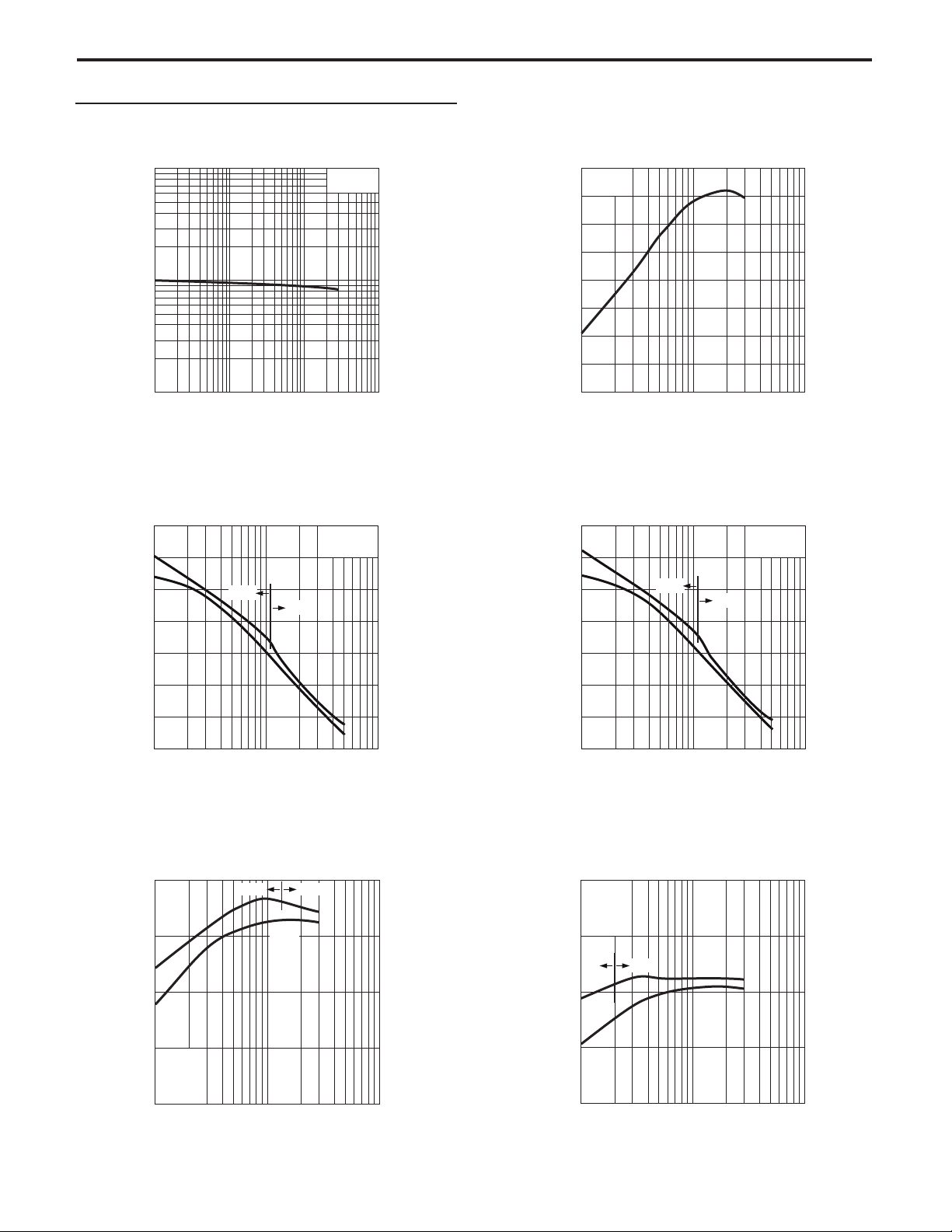

TYPICAL PERFORMANCE CURVES (TA = 25°C)

NE687M13

1000

100

DC Current Gain, H

(dB)

21e

DC CURRENT GAIN

vs. COLLECTOR CURRENT

VCE = 2 V

1100.1 100

Collector Current, IC (mA)

INSERTION POWER GAIN,

MAG, MSG vs. FREQUENCY

VCE = 1 V I

= 10 mA

MSG

MAG

GAIN BANDWIDTH PRODUCT

vs. COLLECTOR CURRENT

VCE = 2 V f = 2 GHz

(GHz)

Gain Bandwidth Product, f

Collector Current, IC (mA)

INSERTION POWER GAIN,

MAG, MSG vs. FREQUENCY

(dB)

21e

101 100

MSG

MAG

VCE = 2 V I

= 10 mA

Maximum Stable Gain, MSG(dB)

Insertion Power Gain, |S

Maximum Available Gain, MAG(dB)

0.1 1 10

Frequency, f (GHz)

INSERTION POWER GAIN, MAG, MSG

vs. COLLECTOR CURRENT

(dB)

21e

VCE = 2 V

Maximum Stable Gain, MSG(dB)

Insertion Power Gain, |S

f = 1 GHz

Maximum Available Gain, MAG(dB)

1 10 100

MSG

21e

Maximum Stable Gain, MSG(dB)

Insertion Power Gain, |S

Maximum Available Gain, MAG(dB)

0.1 1 10

21e

Frequency, f (GHz)

INSERTION POWER GAIN, MAG, MSG

vs. COLLECTOR CURRENT

MAG

21e

VCE = 2 V

(dB)

21e

Insertion Power Gain, |S

f = 2 GHz

MSG

Maximum Stable Gain, MSG(dB)

Maximum Available Gain, MAG(dB)

1 10 100

MAG

21e

Collector Current, IC (mA)

Page 4

NE687M13

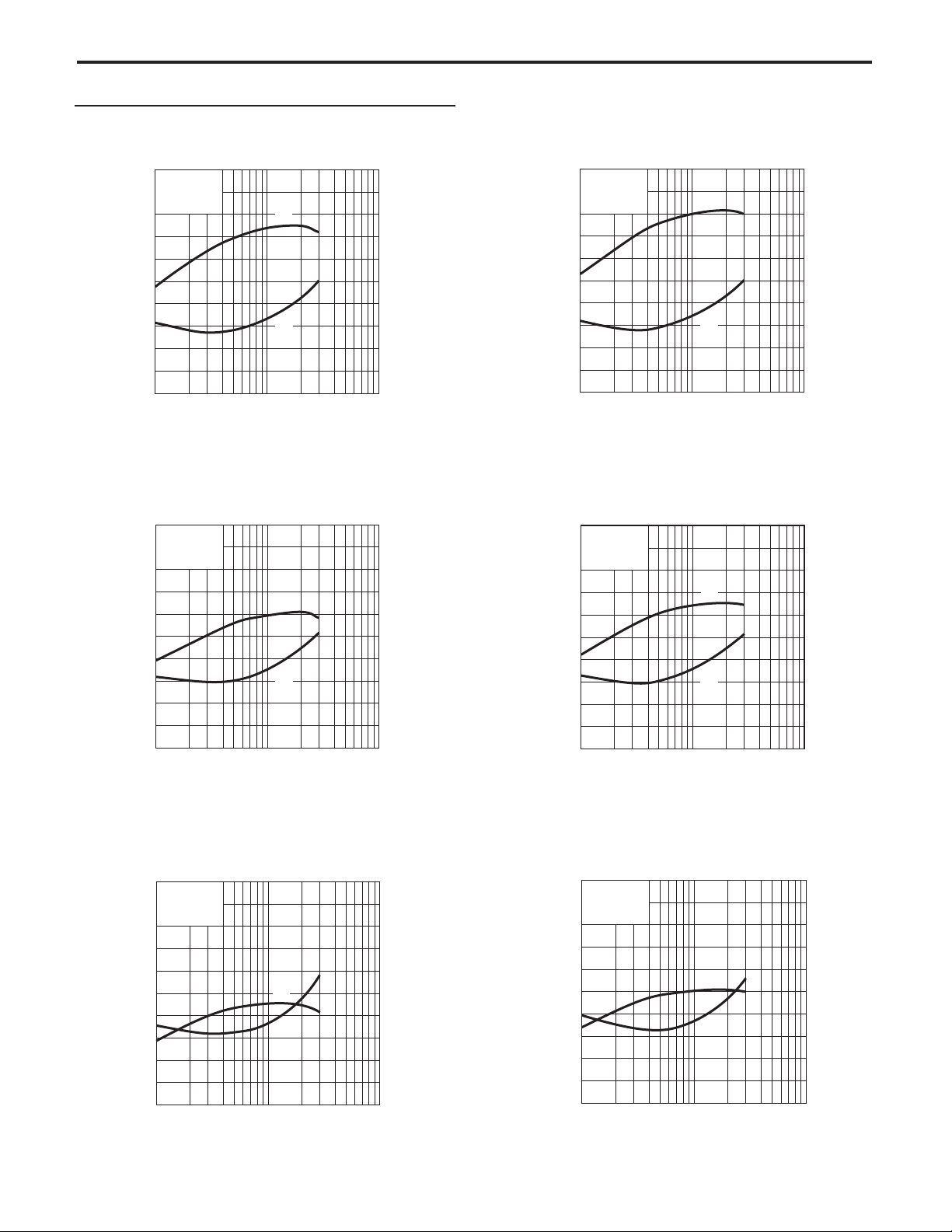

TYPICAL PERFORMANCE CURVES (TA = 25°C)

NOISE FIGURE, ASSOCIATED GAIN

vs. COLLECTOR CURRENT

VCE = 1 V f = 1 GHz

Noise Figure, NF (dB)

1 10 100

Collector Current, IC (mA)

NOISE FIGURE, ASSOCIATED GAIN

vs. COLLECTOR CURRENT

VCE = 1 V f = 1.5 GHz

(dB)

Associated Gain, G

(dB)

NOISE FIGURE, ASSOCIATED GAIN

vs. COLLECTOR CURRENT

CE = 2 V

f = 1 GHz

Noise Figure, NF (dB)

1 10 100

Collector Current, IC (mA)

NOISE FIGURE, ASSOCIATED GAIN

vs. COLLECTOR CURRENT

VCE = 2 V f = 1.5 GHz

(dB)

Associated Gain, G

(dB)

Noise Figure, NF (dB)

1 10 100

Collector Current, I

NOISE FIGURE, ASSOCIATED GAIN

vs. COLLECTOR CURRENT

VCE = 1 V f = 2 GHz

Noise Figure, NF (dB)

1 10 100

C (mA)

Associated Gain, G

(dB)

Associated Gain, G

Noise Figure, NF (dB)

1 10 100

Collector Current, IC (mA)

NOISE FIGURE, ASSOCIATED GAIN

vs. COLLECTOR CURRENT

VCE = 2 V f = 2 GHz

Noise Figure, NF (dB)

1 10 100

Associated Gain, G

(dB)

Associated Gain, G

Collector Current, IC (mA)

Page 5

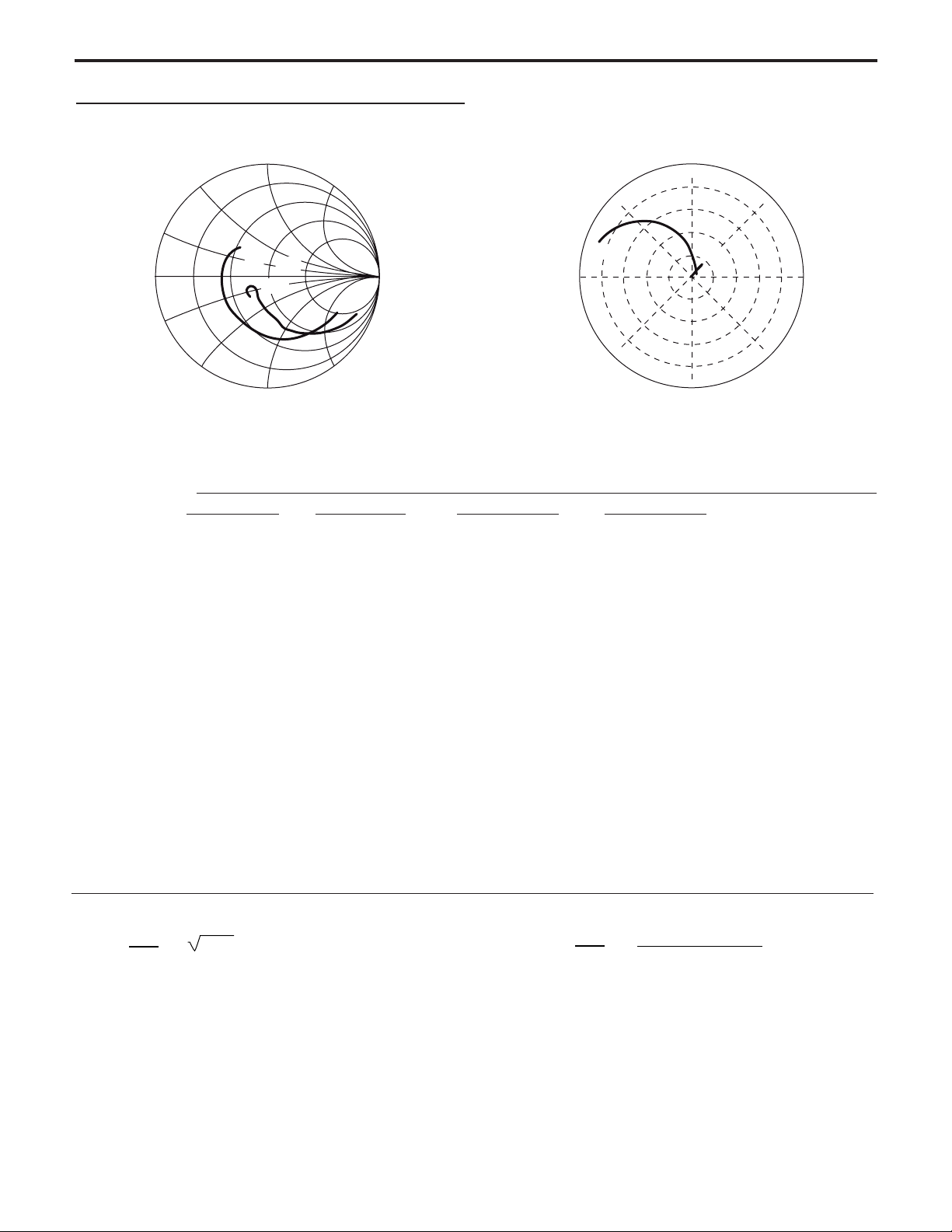

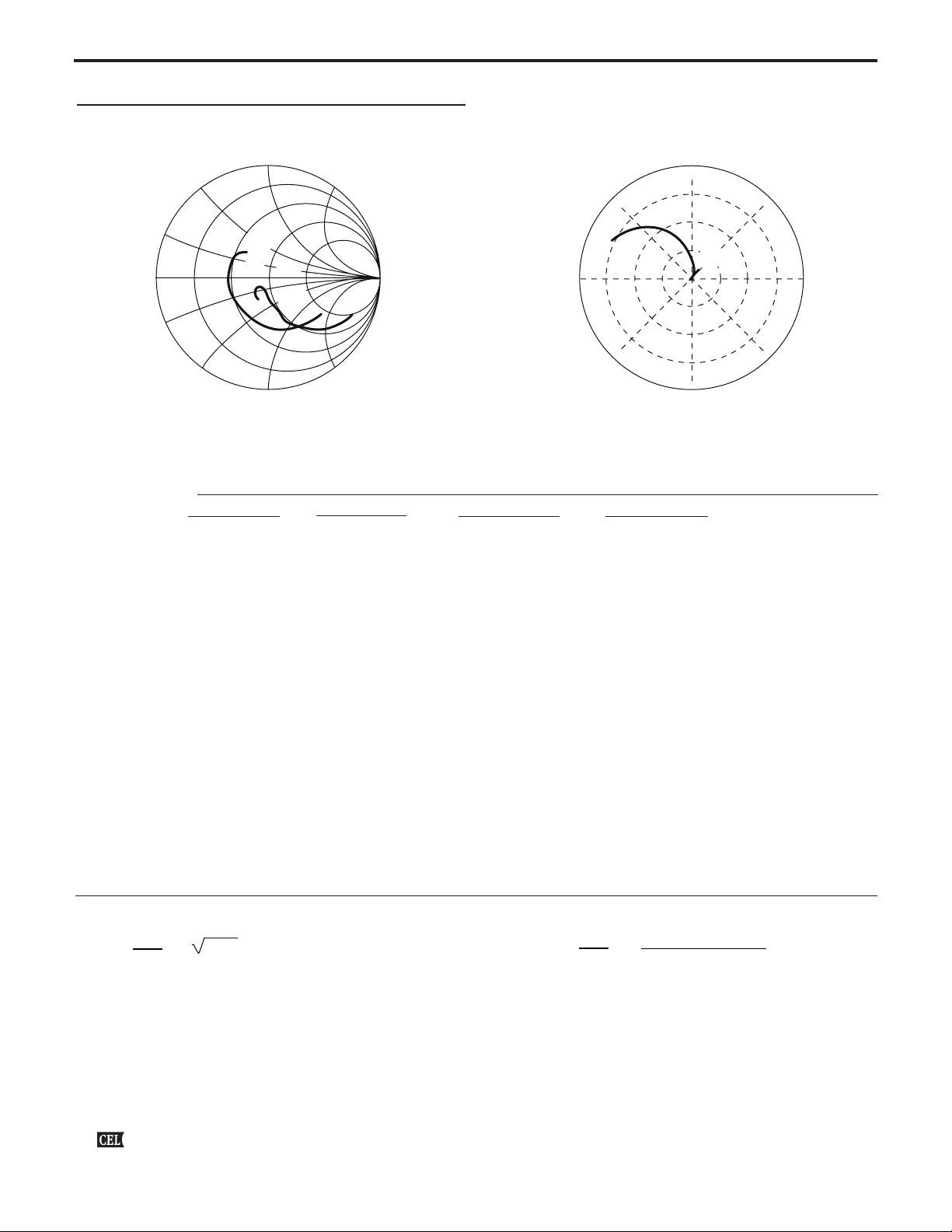

TYPICAL SCATTERING PARAMETERS

NE687M13

j10

j25

S11

j50

S22

100

j100

+135º

S21

+180º

+90º

S12

+45º

20 25

-j10

-45º

-j25

-j50

-j100

Coordinates in Ohms

Frequency in GHz

VCE = 1 V, IC = 10 mA

-135º

-90º

NE687M13 VCE = 1 V, IC = 10 mA

Frequency S11 S21 S12 S22 K MAG

GHz MAG ANG MAG ANG MAG ANG MAG ANG (dB)

0.100 0.71 -28.83 21.86 158.87 0.02 76.89 0.86 -22.59 0.19 29.94

0.200 0.64 -56.70 19.01 141.86 0.04 64.05 0.75 -40.78 0.28 27.02

0.300 0.57 -77.87 16.05 129.44 0.05 57.48 0.63 -54.59 0.37 25.16

0.400 0.53 -94.58 13.57 120.29 0.06 54.28 0.54 -64.96 0.46 23.79

0.500 0.49 -107.39 11.62 113.50 0.06 52.33 0.47 -72.99 0.54 22.68

0.600 0.45 -120.85 9.91 108.06 0.07 51.39 0.37 -78.86 0.68 21.71

0.700 0.44 -129.42 8.73 103.77 0.07 51.70 0.33 -85.54 0.74 20.83

0.800 0.44 -135.99 7.80 100.31 0.08 52.15 0.30 -90.17 0.79 20.04

0.900 0.43 -141.83 7.02 97.30 0.08 52.52 0.28 -94.31 0.83 19.34

1.000 0.43 -146.64 6.38 94.61 0.09 53.11 0.26 -99.34 0.88 18.67

1.200 0.42 -153.87 5.40 90.05 0.10 54.26 0.23 -106.29 0.94 17.49

1.400 0.42 -160.59 4.69 86.18 0.11 55.29 0.21 -113.29 0.99 16.45

1.600 0.42 -165.22 4.14 82.82 0.12 56.05 0.19 -118.74 1.03 14.43

1.800 0.42 -169.18 3.71 79.73 0.13 56.51 0.18 -123.68 1.06 13.15

2.000 0.41 -172.49 3.37 76.86 0.14 56.83 0.17 -128.17 1.08 12.13

2.500 0.40 179.29 2.76 70.23 0.16 56.91 0.16 -136.91 1.12 10.14

3.000 0.40 171.08 2.35 64.05 0.19 55.87 0.17 -143.47 1.14 8.61

3.500 0.39 161.33 2.05 58.49 0.21 54.71 0.18 -147.06 1.16 7.38

4.000 0.40 152.78 1.83 53.56 0.24 53.37 0.20 -147.25 1.16 6.41

4.500 0.39 146.02 1.66 49.23 0.26 52.04 0.22 -144.73 1.16 5.60

5.000 0.38 141.59 1.53 45.35 0.29 50.81 0.23 -140.61 1.15 4.94

5.500 0.36 138.25 1.44 41.63 0.31 49.38 0.23 -135.48 1.14 4.40

6.000 0.34 134.43 1.36 37.72 0.34 47.54 0.23 -133.06 1.13 3.90

+0º+0º

Note:

1. Gain Calculations:

MAG =

(

K ±

K - 1

MAG = Maximum Available Gain MSG = Maximum Stable Gain

When K ≤ 1, MAG is undefined and MSG values are used.

MSG =

, K =

1 + | ∆ | - |S

2 |S

12 S21

| - |S22|

∆ = S

11 S22

- S21 S

Page 6

NE687M13

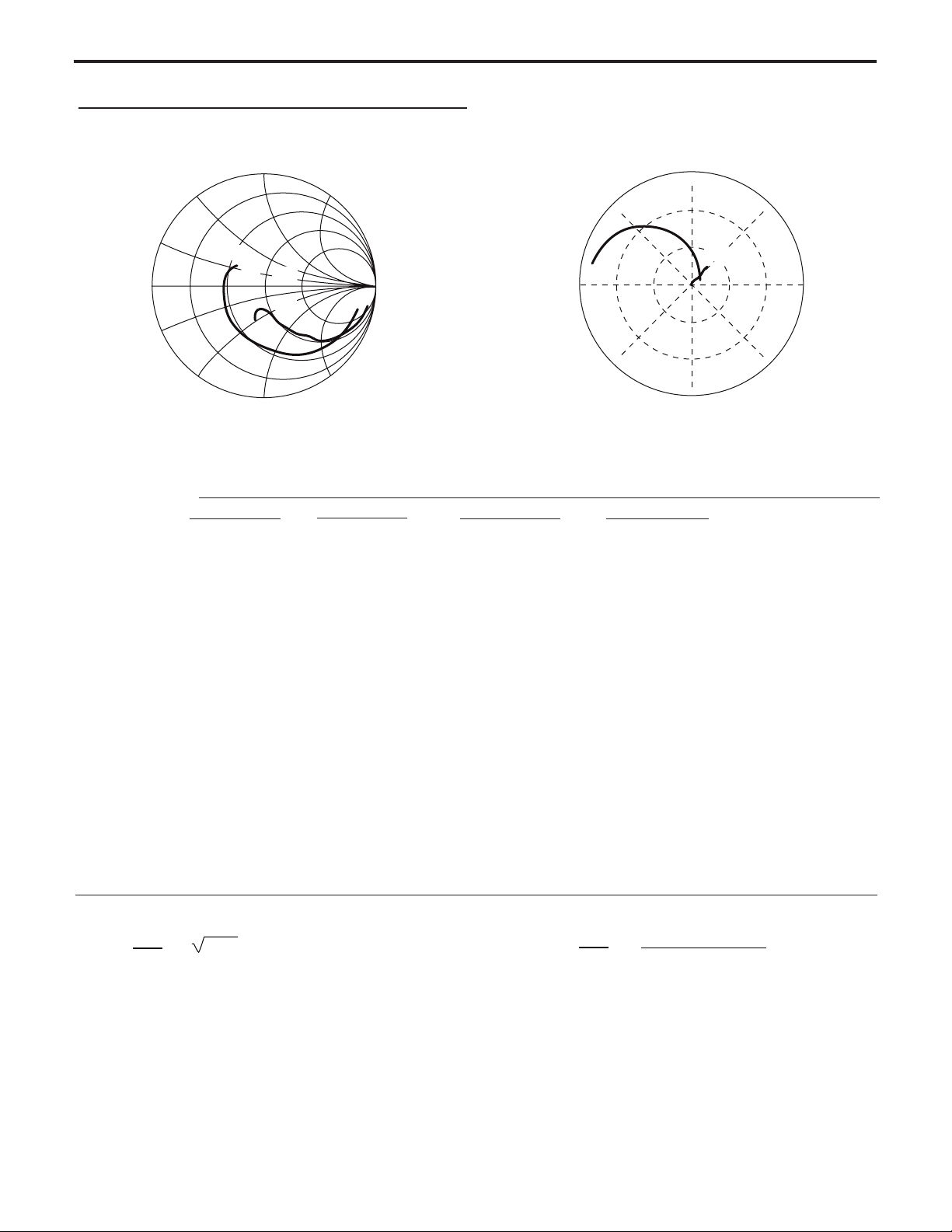

TYPICAL SCATTERING PARAMETERS

j25

j50

j100

+135º

+90º

+45º

j10

S11

100

+180º

S21

S12

S22

-j10

-45º

-j25

-j50

-j100

Coordinates in Ohms

Frequency in GHz

CE = 2 V, IC = 5 mA

-135º

-90º

NE687M13 VCE = 2 V, IC = 5 mA

Frequency S11 S21 S12 S22 K MAG

GHz MAG ANG MAG ANG MAG ANG MAG ANG (dB)

0.100 0.86 -14.28 13.53 167.49 0.02 80.25 0.94 -11.88 0.14 28.47

0.200 0.81 -31.85 12.83 155.13 0.04 71.73 0.89 -22.74 0.17 25.34

0.300 0.76 -46.05 11.91 144.78 0.05 65.56 0.82 -32.21 0.22 23.61

0.400 0.70 -59.23 10.91 135.97 0.06 60.40 0.75 -39.96 0.28 22.37

0.500 0.65 -70.68 9.95 128.54 0.07 56.24 0.68 -46.33 0.34 21.38

0.600 0.58 -82.92 8.87 121.33 0.08 52.47 0.58 -49.51 0.47 20.54

0.700 0.54 -91.97 8.07 116.01 0.08 50.58 0.53 -54.17 0.52 19.81

0.800 0.52 -99.97 7.39 111.61 0.09 49.44 0.48 -57.43 0.57 19.16

0.900 0.49 -107.10 6.76 107.73 0.09 48.55 0.44 -59.80 0.62 18.56

1.000 0.48 -113.24 6.24 104.20 0.10 47.85 0.41 -63.07 0.66 18.02

1.200 0.45 -123.52 5.38 98.29 0.11 47.62 0.36 -66.56 0.75 17.05

1.400 0.43 -132.69 4.72 93.40 0.11 47.64 0.32 -70.62 0.82 16.19

1.600 0.41 -139.56 4.20 89.17 0.12 48.14 0.29 -73.13 0.88 15.41

1.800 0.40 -145.30 3.78 85.45 0.13 48.60 0.27 -75.54 0.94 14.70

2.000 0.39 -150.12 3.45 82.00 0.14 49.16 0.25 -77.78 0.98 14.05

2.500 0.37 -161.26 2.84 74.35 0.16 50.11 0.22 -83.87 1.07 11.05

3.000 0.36 -171.52 2.42 67.39 0.18 50.31 0.21 -91.33 1.12 9.30

3.500 0.35 176.69 2.12 61.12 0.20 50.27 0.22 -98.64 1.15 7.96

4.000 0.34 166.32 1.88 55.53 0.22 49.84 0.23 -104.18 1.17 6.92

4.500 0.34 158.42 1.70 50.63 0.23 49.50 0.26 -106.91 1.18 6.08

5.000 0.34 153.42 1.56 46.37 0.25 49.25 0.28 -106.70 1.17 5.40

5.500 0.32 150.03 1.46 42.49 0.27 48.86 0.30 -104.89 1.16 4.85

6.000 0.30 146.33 1.38 38.57 0.30 48.07 0.31 -104.37 1.15 4.35

+0º+0º

Note:

1. Gain Calculations:

MAG =

(

K ±

K - 1

MAG = Maximum Available Gain MSG = Maximum Stable Gain

When K ≤ 1, MAG is undefined and MSG values are used.

MSG =

, K =

1 + | ∆ | - |S

2 |S

12 S21

| - |S22|

∆ = S

11 S22

- S21 S

Page 7

TYPICAL SCATTERING PARAMETERS

NE687M13

j25

j50

j100

+135º

+90º

+45º

j10

S11

100

+180º

S21

S12

20 30

S22

-j10

-45º

-j25

-j50

-j100

Coordinates in Ohms

Frequency in GHz

VCE = 2 V, IC = 20 mA

-135º

-90º

NE687M13 VCE = 2 V, IC = 20 mA

Frequency S11 S21 S12 S22 K MAG

GHz MAG ANG MAG ANG MAG ANG MAG ANG (dB)

0.100 0.57 -36.15 31.49 154.52 0.01 71.95 0.81 -25.05 0.34 33.26

0.200 0.50 -67.88 25.71 135.92 0.03 66.14 0.67 -43.58 0.42 29.76

0.300 0.45 -90.13 20.68 123.67 0.03 60.45 0.54 -56.22 0.54 27.77

0.400 0.42 -106.56 16.96 115.24 0.04 59.44 0.46 -64.85 0.64 26.19

0.500 0.40 -118.50 14.25 109.26 0.05 59.55 0.39 -71.22 0.71 24.88

0.600 0.37 -131.65 12.07 104.60 0.05 60.02 0.30 -75.54 0.84 23.77

0.700 0.37 -139.21 10.55 100.88 0.06 60.94 0.26 -81.03 0.89 22.75

0.800 0.37 -144.73 9.37 97.86 0.06 61.83 0.24 -84.22 0.92 21.84

0.900 0.37 -149.66 8.41 95.24 0.07 62.31 0.21 -87.05 0.95 21.02

1.000 0.36 -153.80 7.62 92.90 0.07 62.97 0.20 -91.25 0.98 20.26

1.200 0.37 -159.66 6.43 88.88 0.08 63.94 0.17 -96.57 1.02 18.15

1.400 0.37 -165.38 5.56 85.48 0.09 64.61 0.15 -102.15 1.05 16.47

1.600 0.37 -169.31 4.90 82.45 0.10 64.72 0.14 -106.18 1.07 15.17

1.800 0.37 -172.61 4.39 79.67 0.11 64.87 0.13 -109.91 1.08 14.10

2.000 0.36 -175.37 3.98 77.07 0.13 64.81 0.12 -113.45 1.09 13.16

2.500 0.36 177.29 3.24 70.97 0.15 63.80 0.11 -121.12 1.11 11.27

3.000 0.35 169.69 2.75 65.26 0.18 62.10 0.12 -128.22 1.12 9.76

3.500 0.35 160.03 2.39 60.01 0.21 60.09 0.14 -133.08 1.12 8.53

4.000 0.36 151.53 2.12 55.28 0.23 58.20 0.16 -134.34 1.12 7.54

4.500 0.36 144.75 1.92 51.05 0.25 56.51 0.18 -132.06 1.12 6.71

5.000 0.35 140.37 1.76 47.24 0.28 54.88 0.20 -127.09 1.11 6.03

5.500 0.33 137.20 1.65 43.56 0.30 53.20 0.21 -120.86 1.10 5.48

6.000 0.31 133.76 1.55 39.78 0.33 51.20 0.21 -117.44 1.09 4.95

+0º+0º

Note:

1. Gain Calculations:

MAG =

21|

(K ±

12|

K - 1 ).

When K ≤ 1, MAG is undefined and MSG values are used.

MSG =

, K =

12|

21|

1 + | ∆ | - |S

2 |S12 S21|

11| - |S22|

∆ = S

11 S22 - S21 S12

MAG = Maximum Available Gain MSG = Maximum Stable Gain

Life Support Applications These NEC products are not intended for use in life support devices, appliances, or systems where the malfunction of these products can reasonably be expected to result in personal injury. The customers of CEL using or selling these products for use in such applications do so at their own risk and agree to fully indemnify CEL for all damages resulting from such improper use or sale.

CALIFORNIA EASTERN LABORATORIES • Headquarters • 4590 Patrick Henry Drive • Santa Clara, CA 95054-1817 • (408) 988-3500 • Telex 34-6393 • FAX (408) 988-0279

DATA SUBJECT TO CHANGE WITHOUT NOTICE

EXCLUSIVE NORTH AMERICAN AGENT FOR NEC RF, MICROWAVE & OPTOELECTRONIC SEMICONDUCTORS

Internet: http://WWW.CEL.COM

06/13/2002

Page 8

4590 Patrick Henry Drive

(

Santa Clara, CA 95054-1817 Telephone: (408) 919-2500 Facsimile:

408) 988-0279

Subject: Compliance with EU Directives

CEL certifies, to its knowledge, that semiconductor and laser products detailed below are compliant with the requirements of European Union (EU) Directive 2002/95/EC Restriction on Use of Hazardous Substances in electrical and electronic equipment (RoHS) and the requirements of EU Directive 2003/11/EC Restriction on Penta and Octa BDE.

CEL Pb-free products have the same base part number with a suffix added. The suffix –A indicates that the device is Pb-free. The –AZ suffix is used to designate devices containing Pb which are exempted from the requirement of RoHS directive (*). In all cases the devices have Pb-free terminals. All devices with these suffixes meet the requirements of the RoHS directive.

This status is based on CEL’s understanding of the EU Directives and knowledge of the materials that go into its products as of the date of disclosure of this information.

Restricted Substance

per RoHS

Lead (Pb) < 1000 PPM

Concentration Limit per RoHS

(values are not yet fixed)

Concentration contained

in CEL devices

-A -AZ

Not Detected (*)

Mercury < 1000 PPM Not Detected

Cadmium < 100 PPM Not Detected

Hexavalent Chromium < 1000 PPM Not Detected

PBB < 1000 PPM Not Detected

PBDE < 1000 PPM Not Detected

If you should have any additional questions regarding our devices and compliance to environmental standards, please do not hesitate to contact your local representative.

Important Information and Disclaimer: Information provided by CEL on its website or in other communications concerting the substance content of its products represents knowledge and belief as of the date that it is provided. CEL bases its knowledge and belief on information provided by third parties and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. CEL has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals. CEL and CEL suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release. In no event shall CEL’s liability arising out of such information exceed the total purchase price of the CEL part(s) at issue sold by CEL to customer on an annual basis. See CEL Terms and Conditions for additional clarification of warranties and liability.
