Page 1
NEC Express Server
Express5800 Series
10.021.02-101.01
April 2012, First Edition
© NEC Corporation 2012
Express5800/R120d-2M
EXP292
User’s Guide
Model Number: N8100-1793F
Chapter 1 General Description
Chapter 2 Preparations
Chapter 3 Setup
Chapter 4 Appendix
Page 2
Documents Provided with This Product
Express5800/R120d-2M User’s Guide
2
Documents Provided with This Product
Documents for this product are provided as accompanying booklets ( ) and as electronic manuals (
PDF
) stored
within EXPRESSBUILDER DVD (
).
Precautions for Use
Describes points of caution to ensure the safe use of this server.
Read these cautions before using this server.
Getting Started
Describes how to use this server, from unpacking to operations.
Refer to this guide as you begin for an overview of this server.
PDF
User’s Guide
Chapter 1: General Description Overviews, names, and functions of the server’s parts
Chapter 2: Preparations Installation of additional
options, connection of peripheral devices,
and ideal location for this server
Chapter 3: Setting Up Your Server System BIOS configurations and summary of EXPRESSBUILDER
Chapter 4: Appendix Specifications and other information
PDF
Installation Guide (Windows)
Chapter 1: Installing Windows Installation of Windows and drivers,
and important information for
installation
Chapter 2: Installing the Bundled
Software
Installation of bundled software, such as NEC
ESMPRO and
Universal RAID Utility
PDF
Maintenance Guide
Chapter 1: Maintenance Server maintenance and troubleshooting
Chapter 2: Convenient Features Useful features and the detail of system BIOS
settings, RAID
Configuration Utility, and EXPRESSBUILDER
Chapter 3: Appendix Error messages and Windows Event Logs
PDF
Other documents
Provides the detail of NEC ESMPRO, Universal RAID Utility, and the other features.
EXPRESSBUILDER
Page 3
Contents
Express5800/R120d-2M User’s Guide
3
Contents
Documents Provided with This Product ................................................................................................................. 2
Contents ................................................................................................................................................................ 3
Notations Used in This Document ......................................................................................................................... 6
Notations used in the text .............................................................................................................................. 6
Optical disk drives ......................................................................................................................................... 6
Hard disk drives ............................................................................................................................................ 6
Removable media ......................................................................................................................................... 6
Abbreviations of Operating Systems (Windows) ........................................................................................... 7
Trademarks ........................................................................................................................................................... 8
Regulatory Notices ................................................................................................................................................ 9
Warnings and Additions to This Document .......................................................................................................... 10
Latest editions ............................................................................................................................................. 10
Precautions for Use (Be Sure to Read) ............................................................................................................... 11
Safety precautions ...................................................................................................................................... 11
Symbols used in this document and on warning labels ............................................................................... 12
Safety notes ................................................................................................................................................ 13
General 13
Rack installation ............................................................................................................................... 14
Power supply and power cord use ................................................................................................... 15
Installation, relocation, storage, and connection .............................................................................. 16
Cleaning and working with internal devices ..................................................................................... 17
During operation .............................................................................................................................. 18
Warning labels ............................................................................................................................................ 19
External view ................................................................................................................................... 19
Handling precautions (for proper operations) .............................................................................................. 20
General Description ............................................................................................................................................. 22
1.
Introduction ................................................................................................................................................. 23
2.
Accessories ................................................................................................................................................. 24
3.
Standard Features....................................................................................................................................... 25
3.1
Management Features ..................................................................................................................... 28
3.2
Firmware and Software Version Management ................................................................................. 29
4.
Names and Functions of Parts .................................................................................................................... 30
4.1
Front View ........................................................................................................................................ 30
4.2
Front View (without Front Bezel) ...................................................................................................... 31
4.3
Rear View ........................................................................................................................................ 32
4.4
External View ................................................................................................................................... 33
4.5
Internal View .................................................................................................................................... 34
4.6

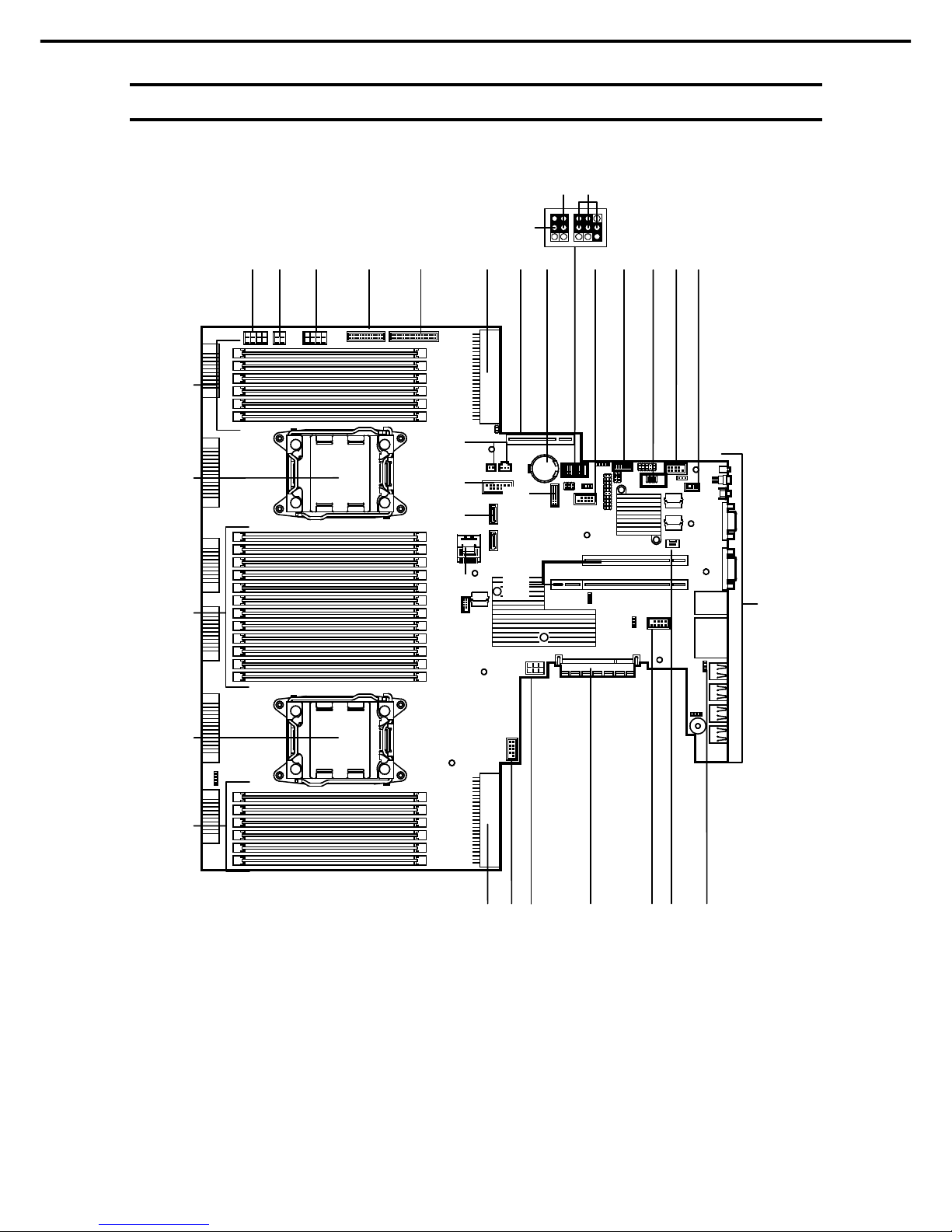

Motherboard .................................................................................................................................... 35
4.7
Status Indicators .............................................................................................................................. 37
4.7.1 POWER LED ( ) .......................................................................................................... 37
4.7.2 STATUS LED ( ) ............................................................................................................. 38
4.7.3 LINK/ACT LED ( 1, 2, 3, 4) ........................................................................... 39
4.7.4 DISK Access LED ( ) .................................................................................................... 39
4.7.5 Optical Disk Access LED ................................................................................................... 39
4.7.6 UID LED (ID)...................................................................................................................... 39
Page 4
Contents
Express5800/R120d-2M User’s Guide
4
4.7.7 LED on a hard disk drive ................................................................................................... 40
4.7.8 LEDs for LAN connectors .................................................................................................. 41
4.7.9 AC POWER LED on Power Unit ........................................................................................ 42
Preparations ........................................................................................................................................................ 43
1.
Installing Internal Optional Devices ............................................................................................................. 44
1.1
Safety Precautions ........................................................................................................................... 44
1.2
Anti-static Measures ........................................................................................................................ 45
1.3
Overview of Installation and Removal .............................................................................................. 46
1.4
Confirming Servers (UID Switch) ..................................................................................................... 48
1.5
Removing Front Bezel ..................................................................................................................... 49
1.6
Removing Top Cover ....................................................................................................................... 50
1.7
Removing PCI Riser Card................................................................................................................ 51
1.8
Removing Support Bar .................................................................................................................... 52
1.9
Removing Air Duct ........................................................................................................................... 53
1.10
Internal Flash Memory (N8115-07) .................................................................................................. 54
1.10.1 Installation.......................................................................................................................... 54
1.10.2 Removal ............................................................................................................................ 54
1.11
TPM Kit ............................................................................................................................................ 55
1.11.1 Installation.......................................................................................................................... 55
1.12
Processor......................................................................................................................................... 56
1.12.1 Installation.......................................................................................................................... 56
1.12.2 Replacement / Removal .................................................................................................... 60
1.13
DIMM ............................................................................................................................................... 61
1.13.1 Maximum supported memory size ..................................................................................... 61
1.13.2 Memory Clock .................................................................................................................... 62
1.13.3 Memory RAS Feature ........................................................................................................ 64
1.13.4 DIMM installation order ...................................................................................................... 65
1.13.5 Installation.......................................................................................................................... 66
1.13.6 Replacement / Removal .................................................................................................... 67
1.13.7 Using Memory RAS Feature .............................................................................................. 68
1.14
Battery for RAID Controller .............................................................................................................. 76
1.14.1 Handling precautions ......................................................................................................... 76
1.14.2 Installing Battery ................................................................................................................ 76
1.14.3 Removal ............................................................................................................................ 77
1.15
LAN Riser Card ................................................................................................................................ 78
1.15.1 Installation.......................................................................................................................... 78
1.15.2 Removal ............................................................................................................................ 79
1.16
Redundant Fan Unit ......................................................................................................................... 80
1.16.1 Installation.......................................................................................................................... 81
1.16.2 Replacement / Removal .................................................................................................... 82
1.17
PCI Card .......................................................................................................................................... 83
1.17.1 Notes ................................................................................................................................. 83
1.17.2 Supported boards and available slots ................................................................................ 84
1.17.3 Installation.......................................................................................................................... 91
1.17.4 Removal ............................................................................................................................ 92
1.17.5 Installing RAID Controller................................................................................................... 93
1.18
Additional HDD Cage ....................................................................................................................... 95
1.18.1 Installation.......................................................................................................................... 95
1.18.2 Removal ............................................................................................................................ 97
1.19
Optical Disk Drive ............................................................................................................................ 98
1.19.1 Installation.......................................................................................................................... 98
1.19.2 Removal ............................................................................................................................ 99
1.20
Use of Internal hard disk drives in the RAID System ..................................................................... 100
1.20.1 Connecting cables ........................................................................................................... 101
1.20.2 Notes on Building RAID System ...................................................................................... 103
1.21
Installing Air Duct ........................................................................................................................... 104
1.22
Installing Support Bar..................................................................................................................... 104
1.23
Installing PCI Riser Card ................................................................................................................ 104
1.24
Installing Top Cover ....................................................................................................................... 104
1.25
Hard Disk Drive .............................................................................................................................. 105
1.25.1 Installation........................................................................................................................ 105
1.25.2 Removal .......................................................................................................................... 107
1.25.3 Replacing a hard disk drive in the RAID System ............................................................. 107
Page 5
Contents
Express5800/R120d-2M User’s Guide
5
1.26
Power Supply Unit ......................................................................................................................... 108
1.26.1 Cold Redundant Feature ................................................................................................. 108
1.26.2 Installation........................................................................................................................ 109
1.26.3 Replacing a Failing Power Supply Unit ............................................................................ 110
1.27
Installing the Front Bezel ............................................................................................................... 111
2.
Installation and Connection ....................................................................................................................... 112
2.1
Installation ...................................................................................................................................... 11 2
2.1.1 Installing Rack ................................................................................................................. 11 2
2.1.2 Installing the server to the rack or removing it from the rack............................................ 114
2.2
Connection ..................................................................................................................................... 120
2.2.1 Connecting to a uninterruptible power supply (UPS) ....................................................... 122
Setup ................................................................................................................................................................. 123
1.
Turning on the Server ............................................................................................................................... 124
1.1
POST ............................................................................................................................................. 125
1.1.1 POST sequence .............................................................................................................. 125
1.1.2 POST error messages ..................................................................................................... 126
2.
System BIOS Setup .................................................................................................................................. 127
2.1
Overview ........................................................................................................................................ 127
2.2
Starting and Exiting SETUP Utility ................................................................................................. 127
2.2.1 Starting SETUP ................................................................................................................ 127
2.2.2 Exiting SETUP ................................................................................................................. 127
2.3
Description on On-Screen Items and Key Usage .......................................................................... 128
2.4
Cases that Require Configuration .................................................................................................. 130
3.
EXPRESSSCOPE ENGINE 3 ................................................................................................................... 132
3.1
Overview ........................................................................................................................................ 132
3.2
EXPRESSSCOPE ENGINE 3 Network configuration .................................................................... 132
4.
EXPRESSBUILDER .................................................................................................................................. 134
4.1
Features of EXPRESSBUILDER ................................................................................................... 134
4.2
Starting EXPRESSBUILDER ......................................................................................................... 134
5.
Installing Software Components ................................................................................................................ 135
6.
Turning Off the Server ............................................................................................................................... 136
Appendix ........................................................................................................................................................... 137
1.
Specifications ............................................................................................................................................ 138
2.
Interrupt Lines ........................................................................................................................................... 140
Page 6
Notations Used in This Document
Express5800/R120d-2M User’s Guide
6
Notations Used in This Document
Notations used in the text
In addition to safety-related symbols urging caution, 3 other types of notations are used in this document. These
notations have the following meanings.
Important
Indicates critical items that must be followed when handling the server or operating software. If
the procedures described are not followed,
server failure, data loss, and other serious
malfunctions could occur.
Note
Indicates items that must be confirmed when handling the server or operating software.
Tips
Indicates information that is helpful to keep in mind when using this server.
Optical disk drives
This server is equipped with one of the following drives, depending on the order at the time of purchase. These
drives are referred to as optical disk drives in this document.
• DVD-ROM drive
• DVD Super MULTI drive
Hard disk drives
Unless otherwise stated, hard disk drives (HDD) described in this document refer to both of the following.
• Hard disk drives (HDD)
• Solid state drive (SSD)
Removable media
Unless otherwise stated, removable media described in this document refer to both of the following.
• USB memory
• Flash FDD
Page 7
Notations Used in This Document
Express5800/R120d-2M User’s Guide
7
Abbreviations of Operating Systems (Windows)
Windows Operating Systems are referred to as follows.
Refer to Chapter 1 (1.2 Supported Windows OS) in Installation Guide (Windows) for detailed information.
Notations in this document
Official names of Windows
Windows Server 2008 R2
Windows Server 2008 R2 Standard
Windows Server 2008 R2 Enterprise
Windows Server 2008 *1
Windows Server 2008 Standard
Windows Server 2008 Enterprise
Windows Server 2003 R2 x64 Edition
Windows Server 2003 R2 Standard x64 Edition
Windows Server 2003 R2 Enterprise x64 Edition
Windows Server 2003 R2 *2
Windows Server 2003 R2 Standard
Windows Server 2003 R2 Enterprise
Windows Server 2003 *2
Windows Server 2003 Standard
Windows Server 2003 Enterprise
Windows 7
Windows 7 Professional 64-bit(x64) Edition
Windows 7 Professional 32-bit(x86) Edition
Windows Vista
Windows Vista Business 64-bit(x64) Edition
Windows Vista Business 32-bit(x86) Edition
Windows XP
Windows XP Professional x64 Edition
Windows XP Professional
Windows PE
*3
Windows Preinstallation Environment
*1: Includes 64-bit and 32-bit Editions unless otherwise stated.
The following appears on EXPRESSBUILDER.
• Windows Server 2008 64-bit Edition: Windows Server 2008 x64
• Windows Server 2008 32-bit Edition: Windows Server 2008 x86
*2: Unless otherwise stated, Windows Server 2003 R2 and Windows Server 2003 are collectively referred to as
Windows Server 2003.
*3: Used as an installation platform only.
Page 8
Trademarks
Express5800/R120d-2M User’s Guide
8
Trademarks
EXPRESSSCOPE is a registered trademark of NEC Corporation.
Microsoft, Windows, Windows Server, Windows Vista, and MS-DOS are registered trademarks or trademarks of Microsoft Corporation
in the United States and other countries. Intel, Pentium, and Xeon are registered trademarks of Intel Corporation of the United States.
AT is a registered trademark of International Business Machines Corporation of the United States and other countries. Adaptec, its
logo, and SCSI Select are registered trademarks or trademarks of Adaptec, Inc. of the United States. LSI and the LSI logo design are
trademarks or registered trademarks of LSI Corporation. Adobe, the Adobe logo, and Acrobat are trademarks of Adobe Systems
Incorporated. DLT and DLTtape are trademarks of Quantum Corporation of the United States. PCI Express is a trademark of
Peripheral Component Interconnect Special Interest Group. Linux is a trademark or registered trademark of Linus Torvalds in Japan
and other countries. Red Hat® and Red Hat Enterprise Linux are trademarks or registered trademarks of Red Hat, Inc. in the United
States and other countries.
All other product, brand, or trade names used in this publication are the trademarks or registered trademarks of their respective
trademark owners.
Page 9
Regulatory Notices
Express5800/R120d-2M User’s Guide
9
Regulatory Notices
FCC Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.
Industry Canada Class A Emission Compliance Statement
This Class A digital apparatus complies with Canadian ICES-003.
Avis de conformité à la réglementation d'Industrie Canada
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
CE / Australia and New Zealand Statement
This is a Class A product. In domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures (EN55022).
BSMI Statement
Turkish RoHS information relevant for Turkish market
EEE Yönetmeliğine Uygundur.
Disposing of your used product
In the European Union
EU-wide legislation as implemented in each Member State requires that used electrical and
electronic products carrying the mark (left) must be disposed of separately from normal household
waste. This includes Information and Communication Technology (ICT) equipment or electrical
accessories, such as cables or DVDs.
When disposing of used products, you should comply with applicable legislation or agreements
you may have. The mark on the electrical and electronic products only applies to the current
European Union Member States.
Outside the European Union
If you wish to dispose of used electrical and electronic products outside the European Union,
please contact your local authority and ask for the correct method of disposal.
Page 10
Warnings and Additions to This Document
Express5800/R120d-2M User’s Guide
10
Warnings and Additions to This Document
1. Unauthorized reproduction of the contents of this document, in part or in its entirety, is
prohibited.
2. The contents of this document may change without prior notice.
3. Do not make copies or alter the document content without permission from NEC Corporation.
4. Every effort has been made to ensure the completeness of this document. However, if you
have any concerns, or discover errors or omissions, please contact your retailer.
5. Regardless of these 4 items, NEC Corporation does not take responsibility for effects resulting
from operations.
6. The sample values used in this document are not the actual values.
Keep this document nearby so that you may refer to it as necessary.
Latest editions
This document was created based on the information available at the time of its creation. The screen images,
messages and procedures may differ from the actual screens, messages and procedures.
Substitute as
appropriate when content has been modified.
The most recent version of User’s Guide, as well as other related documents, is also available for download
from the following website.
http://www.nec.com/
Page 11
Precautions for Use (Be Sure to Read)
Express5800/R120d-2M User’s Guide
11
Precautions for Use (Be Sure to Read)
The following provides information required to use your server safely and properly. For details of names in this
section, refer to Names and Functions of Parts in this document.
Safety precautions
Follow the instructions in this document for the safe use of NEC Express server.
This User’s Guide describes hazardous parts of the server, possible hazards, and how to avoid them. Server
components with possible danger are indicated with a warning label placed on or around them (or, in some
cases, by printing the warnings on the server).
In User’s Guide or on warning labels, WARNING or CAUTION is used to indicate a degree of danger. These
terms are defined as follows:
WARNING
Indicates there is a risk of death or serious personal injury
CAUTION
Indicates there is a risk of burns, other personal injury, or property damage
Precautions and notices against hazards are presented with one of the following three symbols. The individual
symbols are defined as follows:
Attention
This symbol indicates the presence of a hazard if
the instruction is ignored.
An image in the symbol illustrates the hazard type.
Prohibited
Action
This symbol indicates prohibited actions. An image
in the symbol illustrates a particular prohibited
action.
Mandatory
Action
This symbol indicates mandatory a
ctions. An
image in the symbol illustrates a mandatory action
to avoid a particular hazard.
(Electric shock risk)
(Do not disassemble)
(Example)
(Example)
(Example)
(Disconnect a plug)
Page 12
Precautions for Use (Be Sure to Read)
Express5800/R120d-2M User’s Guide
12
(A label example used in this User’s Guide)
Symbols used in this document and on warning labels
Attentions
Indicates the presence of electric shock
hazards.
Indicates the prese
nce of mechanical
parts that can result in bodily injury.
Indicates the presence of a hot surface
or component. Touching this surface
could result in bodily injury.
Indicates
the presence of mechanical
parts that can result in pinching or other
bodily injury.
Indicates there is a risk of explosion.
Indicates the presence of laser beam
that cause blindness.
Indicates there is a risk of fire or fumes.
Indicates a general notice or warning
that cannot be specifically identified.
Prohibited Actions
Do not disassemble, repair, or modify
the server. Otherwise, an electric shock
or fire may be caused.
Do not touch the server with wet hand.
Otherwise, an electric shock may be
caused.
Do not touch the component specified
by this symbol. Othe
rwise, an electric
shock or burn may be caused.
Do not use the server in the place where
water or liquid may pour. Otherwise, an
electric shock or fire may be caused.
Do not place the server near the fire.
Otherwise, a fire may be caused.
Indicates
a general prohibited action
that cannot be specifically identified.
Mandatory Actions
Unplug the power cord of the server.
Otherwise, an electric shock or fire may
be caused.
Indicates a mandatory action that
cannot be specifically identified. Make
sure to follow the instruction.
Make
sure equipment is properly
grounded. Otherwise, an electric shock
or fire may be caused.
WARNING
Use only the specified outlet
Use a grounded outlet with the
specified voltage. Use of an improper power source
may cause a fire or a power leak.
Symbol to draw
attention
Description of a warning
Term indicating a degree of danger
Page 13
Precautions for Use (Be Sure to Read)
Express5800/R120d-2M User’s Guide
13
Safety notes
This section provides notes on using the server safely. Read this section carefully to ensure proper and safe use
of the server. For symbols, refer to Safety precautions.
General
WARNING
Do not use the server for services where human life may be at stake or high reliability is required.
This server is not intended for use in medical, nuclear, aerospace, mass transit or other applications
where
human life may be at stake or high reliability is required, nor is it
intended for use in controlling such
applications. We disclaim liability for any personal injury and property damages caused by such use of this
server.
Do not use the server if any smoke, odor, or noise is present.
If smoke, odor, or noise is present, immediately turn off the server and disconnect the power plug from the
outlet, then contact the store where you purchased the product or
your maintenance service company.
Using the server in such conditions may cause a fire.
Do not insert needles or metal objects.
Do not insert needles or metal objects into ventilation holes in the server or openings in the optical disk
drive. Doing so may cause an electric shock.
Use a rack that conforms to the designated standard
This server can be mounted onto a 19-inch rack that conforms to EIA standards. Do not mount the server
onto any rack that does not conform to EIA standards. Doing so may cause a server malfunction, personal
injury, or damage to peripheral devices.
For more information about racks that can be used with the
server, consult with your maintenance service company.
Use the server only under the specified environment
Do not install the server rack in any environment that is not suitable for installation.
Installation in an unsuitable environment is harmful for the server and other systems installed in the rack
and may cause fire or personal injury due to the rack falling.
For a detailed explanation on installation
environments or seismic reinforcement, consult with the instruction manual supplied with the rack or your
maintenance service company.
CAUTION
Keep water or foreign matter away from the server.
Do not let any liquid such as water or foreign materials including pins or paper clips enter the server.
Failure to follow this warning may cause an electric shock, a fire, or failure of the server. When such thing
s
accidentally enter the server, immediately turn off the power and disconnect the power plug from the
outlet. Do not disassemble the server, and contact the store where you purchased the product
or your
maintenance service company.
Page 14
Precautions for Use (Be Sure to Read)
Express5800/R120d-2M User’s Guide
14
Rack installation
CAUTION
Do not attempt to carry or install the server alone
More than two people are required to carry or install the rack. Otherwise, the rack may fall, resulting in
personal injury or damage to peripheral devices. In partic
ular, tall racks such as a 44U rack become
unstable unless steadied with a stabilizer. Make sure that two or more people hold the rack to carry or
install the rack.
Do not install with the load weight distributed unevenly
To avoid unevenly distributing the load of the rack and server, install a stabilizer or connect multiple racks
to distribute the weight. Otherwise, the rack may fall, resulting in personal injury.
Do not install components alone, and check the door hinge pins of the rack
Two or more people are required to install the rack components such as the door or rails. When installing
the door, make sure that both upper and lower hinge pins are held in place. Incomplete attachment m ay
cause components to fall off as well as personal injury.
Do not extend any device from the rack that is not stabilized
When extending a device from the rack, make sure that the rack is stable (by using a stabilizer or seismic
reinforcement). Otherwise, the rack may fall, resulting in personal injury.
Do not extend more than one device out of the rack
Extending multiple devices from the rack may cause the rack to fall, resulting in personal injury. Extend
only one device at one time.
Do not exceed the rated capacity of the power supply when connecting devices
To prevent burn injuries, fire, and damage to the server, make sure the load on the branch circuit that
supplies power to the rack will not exceed the rated load. For inquiries regarding the installation or wiring of
the power supply system, consult with the company that performed the installation or wiring, or the power
company that services your area.
Page 15
Precautions for Use (Be Sure to Read)
Express5800/R120d-2M User’s Guide
15
Power supply and power cord use
WARNING
Do not hold the power plug with a wet hand.
Do not disconnect/connect the plug while your hands are wet. Failure to follow this warning may cause an
electric shock.
Do not connect the ground wire to a gas pipe.
Never connect the ground wire to a gas pipe. Failure to follow this warning may cause a gas explosion.
CAUTION
Plug in to a proper power source.
Use a grounded outlet with the specified voltage. Use of an outlet with a voltage other than that specified
causes fire and electrical leakage. Do not install the server in any environment that requires an extension
cord.
Connecting to a cord that does not conform to the power supply specs of the server causes
overheating, resulting in fire.
If you want to use an AC cord set with a ground wire of class 0I, be sure to connect the ground wire before
inserting the power plug into the outlet. Before disconnecting the ground wire, be sure to disconnect the
power plug from the output.
Do not connect many cords into a single outlet by using extension cords.
The electric current exceeding the rated flow overheats the outlet, which may cause a fire.
Insert the power plug into the outlet as far as it goes.
Heat generation resulting from a halfway inserted power plug (imperfect contact) may cause a fire. Heat
will also be generated if condensation is formed on dusty blades of the halfway inserted plug, increasing
the possibility of fire.
Do not use any unauthorized interface cable.
Use only the interface cables provided with the server. Electric curren
t that exceeds the amount allowed
could cause fire.
Also, observe the following precautions to prevent electrical shock or fire caused by a
damaged power cord.
• Do not stretch the cord harness
• Do not bend the power cord.
• Do not twist the power cord
• Do not step on the power cord.
• Uncoil the power cord before use
• Do not secure the power cord with staples or
equivalents
• Do not pinch the power cord
• Keep chemicals away from the power cord
• Do not place any object on the power cord
• Do not alter, modify, or repair the power cord
• Do not use a damaged power cord (replace the
damaged power cord with a power cord of the
same standard. For information on replacing the
power cord, contact the store where you
purchased the product or a maintenance service
company)
Page 16
Precautions for Use (Be Sure to Read)
Express5800/R120d-2M User’s Guide
16
CAUTION
Do not use the attached power cord for any other devices or usage.
The power cord that comes with your server is designed aiming to connect with this server and to use with
the server, and its safety has been tested.
Do not use the attached power cord for any other purpose.
Doing so may cause a fire or an electric shock.
Do not pull out a cable by gripping the cable part.
Pull a cable straight out by gripping the connector part. Pulling a cable by gripping
the cable part or
applying extra pressure to the connector part may damage the cable part, which may cause a fire or
electric shock.
Installation, relocation, storage, and connection
CAUTION
Do not attempt to lift the server by yourself
Some servers weigh up to 31 kg depending on the server components. Carrying the server by yourself
may damage your back. At least two people should securely hold the server from the bottom when
carrying it. Do not attempt to lift the server while the front bezel attached.
Doing so causes the front bezel
to fall off the server, resulting in personal injury.
Do not install the server in any place other than specified.
Do not install the server in the following places or any place other than specified in this User's G
uide.
Failure to follow this instruction may cause a fire.
• A dusty place
• A humid place such as near a boiler
• A place exposed to direct sunlight
•
An unstable place
Do not use the server in an environment where corrosive gas is present
Do not install the server in a
place subject to corrosive gases including sodium chloride, sulfur dioxide,
hydrogen sulfide, nitrogen dioxide, chlorine, ammonia, or ozone.
Do not install the server in an
environment that contains dust, chemicals that accelerate corrosion such as NaCl or sulfur, or conductive
materials. Failure to follow this warning may cause the wiring on the printed wiring board to short-
circuit,
leading to fire. If you have any questions, contact the store where you purchased the product or a
maintenance service company.
Do not install the server while the cover is removed
Do not install the server to a rack while the cover or other relevant items removed. Not only will the cooling
effect within the server decrease, causing the server to malfunction, but also may allow dust to enter the
server, resulting in fire or electrical shock.
Do not get your fingers caught in the rails
When mounting/removing the server onto/from the rack, be careful to avoid gettin
g your fingers caught in
the rails or cutting your fingers on the rails.
Page 17
Precautions for Use (Be Sure to Read)
Express5800/R120d-2M User’s Guide
17
CAUTION
Do not apply any weight on the server when it is extended from the rack
Do not apply force on the server when it is extended from the rack. Doing
so cause the frames to bend,
which makes it impossible to be mounted on the rack.
It also may cause the server to fall, resulting in
personal injury.
Do not attempt to connect or disconnect the interface cable while the power cord is plugged into
an outlet
Be sure to unplug the power cord from a power outlet before connecting/disconnecting any interface cable
to/from the server. If the server is off-powered but its power cord is plugged to a power source, touching a
cable or connector may cause an electric shock or a fire resulted from a short circuit.
Use only the specified interface cable.
Use only interface cables provided by NEC and locate a proper device and connector before connecting a
cable. Using an authorized cable or connecting a cable to an improper destination may cause a short
circuit, resulting in a fire.
Also, observe the following notes on using and connecting an interface cable.
• Do not use any damaged cable connector.
• Do not step on the cable.
• Do not place any object on the cable.
• Do not use the server with loose cable connections.
Do not use any damaged cable.
Cleaning and working with internal devices
WARNING
Do not disassemble, repair, or alter the server.
Never attempt to disassembl
e, repair, or alter the server on any occasion except as described in this
document. Failure to follow this warning may cause
not only malfunction of the server but also an electric
shock or fire.
Do not attempt to remove lithium, NiMH, or Li-ion batteries.
The server contains the lithium, NiMH, or Li-ion battery (some optional devices have a lithium, NiMH
, or
Li-ion battery installed). Do not remove the battery. Placing a battery
close to a fire or in the water may
cause an explosion.
When the
server does not operate appropriately due to the dead battery, contact the store you purchased
the product or your maintenance service company. Do not attempt to disassemble the server to replace or
recharge the battery by yourself.
Disconnect the power plug before cleaning the server.
Be to power off the server and disconnect the power plug from a power outlet before cleaning or
installing/removing internal optional devices. Touching any internal device of the server with its power cord
connected to a power source may cause an electric shock even of the server is off-powered.
Occasionally disconnect the power plug from the outlet and clean the plug with a dry cloth. Heat will be
generated if condensation is formed on a dusty plug, which may cause a fire.
Page 18
Precautions for Use (Be Sure to Read)
Express5800/R120d-2M User’s Guide
18
CAUTION
High temperature
Components including internal hard disk drives in the server are extremely hot j
ust after the server is
turned off. Allow the surface to cool before installing/removing.
Secure cables or cards in place
Be sure to secure the power cord, interface cables, and cards in place. Incomplete installation causes a
loose connection, resulting in smoke or fire
Electric shock
The cooling fans, hard disk drives, and power supply unit (only when two servers are installed) support hot
swapping. If replacing a component when the electrical current is being supplied, use extreme caution not
to get electric shock by touching terminal parts of the internal components.
During operation
CAUTION
Do not pull out or remove the server from the rack.
Do not pull the server out of the rack or remove it from the rack.
In addition to causing equipment to not
function properly, separating the server from the rack may result in personal injury.
Avoid contact with the server during thunderstorms.
Do not touch any part of the server including the cables when a thunderstorm is approaching. Also, do not
connect or disconnect any devices. There may be a risk of electric shock from lightning strike.
Keep animals away from the server.
Keep animals such as pets away from the server. Pet hair or other waste enters the server, which may
cause a fire or electric shock.
Do not leave the optical disk drive tray open.
Dust may get in the server when the tray is open, which may result in a malfunction. In addition, bumping
the open tray could cause personal injury.
Do not remove the server from the rack while it is operating.
Do not pull out or remove the server from the rack while the server is running.
In addition to causing
equipment to not function properly, separating the server from the rack may result in personal injury.
Do not place any object on top of servers.
Separating the server from
the rack may result in personal injury and damage to nearby personal
belongings.
Do not get yourself caught in the fan
Keep your hands and hair away from the cooling fan at the rear of the server during operation.
Failure to
observe this warning may cause your hands or hair to catch in the fan, resulting in personal injury.
Page 19
Precautions for Use (Be Sure to Read)
Express5800/R120d-2M User’s Guide
19
Warning labels
Warning label are attached on or near the components with potential hazards (This label is either attached or
printed on the component.) to draw attention from users to potential hazards involved in handling the server. (Do
not remove or black out this label and keep it clean). If no label is attached or printed on the server, or if there is
a label coming off or stained, contact your sales representative .
External view
Page 20
Precautions for Use (Be Sure to Read)
Express5800/R120d-2M User’s Guide
20
Handling precautions (for proper operations)
Be sure to observe the following precautions for the proper functioning of the server. Ignoring the precautions
may cause server malfunction or failure.
• Do not use any cell phone or PHS and switch off them near the server. Electric waves from such
devices can cause server to malfunction.
• Install the server in an appropriate place. For details about the installation location, refer to Chapter
2 Preparations (2. Installation and Connection).
• Before connecting/removing cables to/from peripheral devices, make sure that the server is off and
unplug the power cord, if they are non plug-and-play devices.
• Connect the provided power cord to a 100/200 VAC outlet.
• Make sure that the access LED on the server is off before turning off the power or ejecting an optical
disk.
• Wait for at least 30 seconds before turning on the server after turning off the server.
• If any Uninterruptible Power Supply unit is connected, set it to wait for at least 30 seconds before
turning on the server after power off.
• Do not press the POWER switch to turn on the server before the POWER LED (amber) is unlit.
• Turn off the server and unplug the power cord before moving it.
• Regularly clean the server to prevent various types of failure. (Refer to Chapter 1 Maintenance (2.
Daily Maintenance) in "Maintenance Guide" for details about cleaning.)
• Momentary voltage drop may occur due to lightning strike. To prevent this, use of UPS is
recommended.
• We do not guarantee that any copy-protected CD that does not conform to standards will play on the
server’s optical disk drive.
• In the following cases, check and adjust the system clock before operation.
− After transportation
− After storage
− After the server is used following a period of disuse, in which storage conditions did not conform to those
that guarantee server operations (temperature: see the table below; humidity: 20% to 80%).
N code
N8101-
545F 546F 547F 548F 549F 550F 551F 552F
Operation guarantee
temperature
10 to 40°C
10 to
35°C
10 to 40°C
10 to
35°C
• Check the system clock approximately once per month. Use of a time server (NTP server) is
recommended if high accuracy timing is required by the system.
• In order to get the server and internal devices to work properly, we recommend you store the server
at room temperature.
Observe the storage conditions (Temperature:
−10°C to 55°C, Humidity: 20% to 80%, No
condensation of moisture) to store the server.
• Do not power off or reset the server, nor disconnect the power cord before POST completes.
• If this server, internal optional devices, and media set for the backup devices (tape cartridges) are
moved from a cold place to a warm place in a short time, condensation will occur and cause
malfunctions and failures when these are used in such state. To protect important stored data and
property, make sure to wait for a sufficient period to use the server and components in the operating
environment.
Reference: Time effective at avoiding condensation in winter (more than 10°C differences between the
room temperature and atmospheric temperature)
Disk devices: Approximately 2 to 3 hours Tape media: Approximately 1 day
• For optional devices, we recommend you use our NEC products. Even if they are successfully
installed or connected, installation of unsupported devices can cause the server to malfunction or
even failure. You will be charged to repair failure or damage caused by use of such products even
within warranty period.
Page 21
Precautions for Use (Be Sure to Read)
Express5800/R120d-2M User’s Guide
21
Using a computer extensively may affect different parts of your body. Here are tips you should follow while working on
a computer to minimize strain on your body.
Keep proper posture
The basic body position for using a computer is sitting straight with
your hands on the keyboard parallel with the floor, and your eyes
directed slightly downward toward the monitor. With the proper
posture described above, no unnecessary strain is applied on any
part of your body
, in other words when your muscles are most
relaxed.
Working on the computer with bad posture such as hunching over or
being too close to the monitor could cause fatigue or deteriorated
eyesight.
Adjust the angle of your display
Most display units are designed for adjustment of the horizontal and
vertical angles. This adjustment is important to prevent the screen
from reflecting bright lights and to make the display contents easy to
see. Working without adjusting the display to a comfortable angle
makes it difficult for you to maintain a proper posture and you will
get tired easily. Adjust the viewing angle before use.
Adjust the brightness and contrast of the display
Display screens have functions to control brightness and contrast.
The most suitable brightness/contrast depends on age, individuals,
and environment, so adjust it to suit your preferences. A too bright
or too dark display is bad for your eyes.
Adjust the angle of keyboard
Some keyboards are ergonomically designed, which allow the angle
to be adjusted. Adjusting the angle of the
keyboard is effective to
reduce tension on your shoulders, arms, and fingers.
Clean your equipment
Keeping your equipment clean is important not only for the appearance but also for functional and safety reasons. A
dusty monitor makes it difficult to see the display contents, so clean it regularly.
Take rest breaks
When you feel tired, take a break
. Light exercise is also
recommended.
Tips for your health and safety
Page 22
Express5800/R120d-2M User’s Guide
22
NEC Express5800 Series
Express5800/R120d-2M
General Description
This chapter introduces the features of this server and the name of each part.
1. Introduction
2. Accessories
Verify the condition of your server's accessories.
3. Standard Features
This section describes the server’s features and the server management.
4. Names and Functions of Parts
This section describes the name of each part contained in this server.
1
1
Page 23
1. Introduction
Express5800/R120d-2M User’s Guide
23
Chapter 1 General Description
1.
Introduction
Thank you for purchasing this NEC Express5800 Series product.
This high performance server is powered by the latest microprocessor "Intel® Xeon® processor".
NEC’s latest technology and architectures realize high-power and high-speed operation that cannot be matched
by existing servers.
The server is designed with consideration of not only reliability but also expandability, which enables you to use
it as a network server.
Read this document before using the server thoroughly to fully understand handling of Express5800 Series
Server and appreciate its functions to the maximum extent.
Page 24
2. Accessories
Express5800/R120d-2M User’s Guide
24
Chapter 1 General Description
2.
Accessories
The carton box contains various accessories which are required for setup or maintenance. Make sure you
have them all for future use.
• Slide Rails
• EXPRESSBUILDER
*1
• SAS/SATA cable (when RAID controller is unmounted)
• Getting Started
• Fixing screw for internal backup device (x4)
*1 Documents are stored in EXPRESSBUILDER. Adobe Reader is required to read the documents so make
sure you have it installed in your PC.
Make sure you have all accessories and inspect them. If an accessory is missing or damaged, contact your
sales representative.
Important
The chassis serial number plate and maintenance label is located on the
server. If the serial number does
not match the number on the warranty, you
may not be guaranteed against failure even within the warranty period.
Contact your sales representative if they do not match.
Page 25
3. Standard Features
Express5800/R120d-2M User’s Guide
25
Chapter 1 General Description
3.
Standard Features
The server has the following standard features:
High performance
• Intel® Xeon® processor
– N8101-545F: E5-2609 (2.40GHz 4 Core)
– N8101-546F: E5-2630L (2.00GHz 6 Core)
– N8101-547F: E5-2640 (2.50GHz 6 Core)
– N8101-548F: E5-2643 (3.30GHz 4 Core)
– N8101-549F: E5-2650 (2.00GHz 8 Core)
– N8101-550F: E5-2650L (1.80GHz 8 Core)
– N8101-551F: E5-2670 (2.60GHz 8 Core)
– N8101-552F: E5-2690 (2.90GHz 8 Core)
• Turbo Boost Technology feature
• Hyper Threading Technology feature *1
• High-speed memory access (DDR3L 1600 supported)*2
• High-speed disk access (SATA/SAS 6Gbps supported)
• High-speed 1000BASE-T/100BASE-TX/10BASE-T (2 ports) interface (1Gbps/100Mbps/10Mbps supported)
High reliability
• Processor throttle-ring feature
• Memory monitoring feature (error correction/error detection)
• Memory degeneracy feature (logical isolation of a failed device)
• Memory x4 SDDC feature
• Memory mirroring, memory LockStep (x8 SDDC), memory sparing features
• Memory throttle-ring feature
• Bus parity error detection
• Temperature detection
• Error detection
• Internal fan monitoring feature
• Internal voltage monitoring feature
• RAID System (Disk Array) (An option card is required.)
• Auto rebuild feature (hot swapping supported)
• BIOS password feature
• The security lock that comes with Front Bezel
• Redundant fan system
Page 26
3. Standard Features
Express5800/R120d-2M User’s Guide
26
Chapter 1 General Description
Management Utilities
• NEC ESMPRO
• ExpressUpdate
• Remote controlling feature (EXPRESSSCOPE Engine 3)
• RAID System management utility (Universal RAID Utility)
• Hard disk drive monitoring
• Power supply monitoring
Power saving and noiseless design
• Can select the best power supply unit according to system environment / load / configuration.
• Power monitoring feature
• Power control feature
• 80 PLUS
®
Platinum certified high efficiency power supply
• Fan control appropriate to environment, work load, and configuration
• Silent sound design
• Enhanced Intel SpeedStep® Technology supported
Expandability
• PCI Express 3.0 (x8 lanes): 3 slots (Full Height)
• PCI Express 3.0 (x4 lanes): 2 slots (Low profile)
• PCI Express 3.0 (x8 lanes): 1 slot (dedicated to RAID Controller)
• PCI Express 3.0 (x8 lanes): 1 slot (dedicated to LAN Riser card)
• PCI Express 3.0 (x16 lanes) or PCI-X slot can be configured with optional riser card.
• Large capacity memory of up to 768 GB *3
• Can upgrade to multi-processor system with up to two processors
• Expansion Bay (for hard disk drives): 16 slots *4
• Optical disk drive bay provided as standard
• Expansion bay for backup device provided as standard
• USB2.0 interface (Front: 2 ports, rear: 4 ports, internal: 2 ports)
• Three LAN ports (one for management LAN)
• With optional LAN riser card, two ports can be added.
Ready to use
• No cable connection is required to install a hard disk drive and additional power supply unit, and additional
redundant fan (hot swap supported).
Page 27
3. Standard Features
Express5800/R120d-2M User’s Guide
27
Chapter 1 General Description
Many built-in Features
• Redundant power supply system supported (valid when optional power supply unit is installed)
• El Torito Bootable CD-ROM (no emulation mode) format supported
• Software power-off
• Remote power-on feature
• AC-Link feature
• Remote console feature
• Power switch mask
• Connector for display unit provided on front panel
• Baseboard Management Controller (BMC) conforming to IPMI v2.0
Self-diagnosis
• Power On Self-Test (POST)
• Test and Diagnosis (T&D) utility
Easy setup
• EXPRESSBUILDER (setup utility)
• BIOS Setup utility (SETUP)
Maintenance features
• Off-line Tools
• Memory dump feature using DUMP Switch
• Feature to back up and restore BIOS/BMC settings using EXPRESSSCOPE Profile Key
*1: Unsupported on Xeon
®
processor E5-2609 embedded models.
*2: Processor core speed depends on processor type, number and type of DIMMs installed, and operating
voltage (1.35/1.5 V).
*3: In 2-CPU configuration. Up to 384 GB in 1-CPU configuration
*4: With N8151-39 2.5-inch Hot Plug Drive Cage installed. Eight slots in standard configuration.
Page 28
3. Standard Features
Express5800/R120d-2M User’s Guide
28
Chapter 1 General Description
3.1
Management Features
The hardware components of the server provide operation control/reliability features as shown below.
Additionally, NEC ESMPRO Agent, which is provided in EXPRESSBUILDER, enables you to collectively
manage the state of your systems. You can also monitor the server states from a PC to manage the network
where NEC ESMPRO Manager provided in EXPRESSBUILDER is installed.
The features available on this server are as shown in the table below.
Function Availability Description
Hardware Shows physical hardware information.
Memory bank
Shows physical memory information.
Device info
Shows information specific to the server.
CPU
Shows physical CPU information.
System
Shows logical CPU information and monitors the load factor.
Shows logical memory information and monitors the status.
I/O device
Shows information on I/O devices (serial ports, keyboard, mouse, and
video).
System
environment
Monitors temperatures, fans, voltage, power supply, and others.
Temperature
Monitors the temperature inside of the chassis.
Fan
Monitors the fans.
Voltage
Monitors the voltage inside of the chassis.
Power supply
Monitors the power supply unit.
Cover / Door × Monitors Chassis Intrusion (open/close state of chassis cover or door).
Software
Shows service, driver, and OS information.
Network
Shows network (LAN) information and monitors packets.
BIOS
Shows BIOS information.
Local polling
Monitors the values of MIB items obtained by NEC ESMPRO Agent.
Storage
Monitors controllers and storage devices including hard disk drives.
File system
Shows the file system configuration and monitors the free space.
RAID System
Monitors the following RAID Controllers:
• Optional RAID Controller (N8103-149/150/151/160)
Others*
Monitors OS stall using the Watch Dog Timer.
Performs alert processing after an OS STOP error occurs.
: Supported. : Partially supported. ×: Unsupported.
*: Not displayed on the NEC ESMPRO Manager screen.
Tips
NEC ESMPRO Manager and NEC ESMPRO Agent are supplied with the server as
standard. For how to install and use each software component, refer to the
explanation of the component.
Page 29
3. Standard Features
Express5800/R120d-2M User’s Guide
29
Chapter 1 General Description
3.2
Firmware and Software Version Management
Use of NEC ESMPRO Manager and ExpressUpdate Agent allows you to manage versions of firmware and
software as well as update them by applying update packages.
This feature automatically updates modules without stopping the system just by specifying the updating
packages from NEC ESMPRO Manager.
Page 30
4. Names and Functions of Parts
Express5800/R120d-2M User’s Guide
30
Chapter 1 General Description
4.
Names and Functions of Parts
This section describes the names of the server parts.
4.1
Front View
(1)
Front Bezel
The cover to protect the front of the server. This cover can
be locked with the provided Bezel Lock Key.
(5)
STATUS LED
This LED indicates the server status. (See page 38.)
(2) Ke y Slot
The slot for Bezel Lock Key that is used to lock Front
Bezel.
(6)
Unit ID (UID) LED
This LED turns on when UID Switch is pressed.
Commands from the software also cause it to turn on or
flash. (See page 39.)
(3) LINK/ACT LED
This LED turns on when the server is connected to the
network.
(3)-1: LAN connector 1
(3)-2: LAN connector 2
(3)-3: LAN connector 3
(3)-4: LAN connector 4
LEDs for LAN3 and LAN4 are lit when optional LAN riser
card is installed. (See page 39.)
(7)
POWER LED
This LED indicates power status of server.(See page 37.)
(4) Disk Access LED
This LED indicates status of internal hard disk drive.
(See page 39.)
(1) (2)
(3)-1
(3)-2
(3)-3
(3)-4
(4)
(5)
(6) (7)
Page 31
4. Names and Functions of Parts
Express5800/R120d-2M User’s Guide
31
Chapter 1 General Description
4.2
Front View (without Front Bezel)
(8)
DISK LED
The LED provided for each HDD.
This LED indicates hard disk drive status. (See page 40.)
(9) Hard disk drive bay
The bay where HDD are installed. The sequential numbers
indicate the corresponding slot numbers. All bays include
Dummy Trays at shipment.
(10) USB connectors (front)
These connectors are used to connect devices that
support the USB interface.
(11)
BMC RESET Switch
The switch to reset BMC of this server. Use the switch only
when there is a problem with EXPRESSSCOPE Engine 3
(BMC).
To use this switch, press it at least five seconds.
(12) RESET switch
Press this switch to reset the server.
(13) DUMP Switch (NMI)
When DUMP Switch is pressed, memory dump is
performed.
(14) Unit ID (UID) Switch/LED
The switch to turn on and off UID LED.
Pressing the switch once turns on UID LED and pressing
again turns off the LED.
Commands from the software also cause it to turn on or
flash. (See page 39.)
(15)
POWER Switch/LED
The switch to turn the server on and off.
Press once to turn
on the server. POWER LED lights when it is on. Press it
again to turn off the server. Hold down the switch for 4
seconds or longer to forcibly turn off the server.
(See page 37.)
(16) Display connector
Connect a display unit. This connector is exclusively used
with the display connector on rear panel.
(17) Pull-out Tab
A label indicating the part number and serial number of the
server is located on Pull-out Tab.
(18) 2.5-inch HDD cage bay
Bay to install an optional HDD cage N8154-39.
(19) Expansion bay (for backup device)
Bay to install optional DAT drive or AIT drive.
(20) Optical disk drive bay
Bay to install an optical disk drive.
Either of the following drive can be installed.
– DVD-ROM drive
– DVD SuperMULTI drive
(15)
See (3) to (5) on
previous page.
Page 32
4. Names and Functions of Parts
Express5800/R120d-2M User’s Guide
32
Chapter 1 General Description
4.3
Rear View
(1)
Power unit (Power supply slot 1)
The power unit supplies DC power to the server.
(2) AC Inlet
This socket is used to connect the power cord.
(3) AC POWER LED
The LED indicates power supply status.(See page 42.)
(4)
Thumb nut
Used to secure the top cover.
(5) Slot for full-height PCI card
Slot to install a full-
height PCI card. Assigned PCI slot
number is "1B, 2B, and 3C".
(6)
Slot for low-profile PCI card
Slot to install a low-
profile PCI card. Assigned PCI slot
number is "1C and 2C".
(7) Blank cover (for additional power unit)
Remove this cover to install an optional power unit.
(8)
USB connectors
These connectors are used to connect devices that
support the USB interface.
(9) LINK/ACT LED
The LED indicates the access status of LAN.
(See page
41.)
(10) LAN connectors
1000BASE-T/100BASE-TX/10BASE-
T supported network
connectors
(10)-1: LAN port connector 1
(10)-2: LAN port connector 2
If Shared BMC LAN feature is enabled in ROM Utility, LAN
connector 1 can also be used as the management LAN
port. H
owever, sharing port is not recommended from
the point of performance and security, because LAN port 1
may receive both data.
(11)
SPEED LED
The LED indicates the transfer speed of LAN ports.
(See page 41.)
(12) Management LAN connector
A LAN connector which supports 100BASE-TX/10BASE-T
.
This port cannot be used as a data transmission port.
This port is used for connecting
to EXPRESSSCOPE
Engine 3.
(13)
Serial port A (COM A) connector
This connector is used to connect device
s that support a
serial interface.
Note that it is not possible to directly
connect to a leased line.
(14)
Display connector
The connector to connect a display unit.
This connector is exclusively used with the display
connector on front panel.
(15)
DUMP Switch (NMI)
When DUMP Switch is pressed, memory dump is
performed.
(16) UID (Unit ID) Switch/LED
The switch to turn on and off UID LED.
Pressing the switch once turns on UID LED and pressing
again turns off the LED.
Commands from the software also cause it
to turn on or
flash. (See page 39.)
(17) POWER LED
This LED indicates power supply status. (See page 37.)
(18) Blank cover (for LAN riser card)
Remove this cover to install an optional LAN riser card.
Page 33
4. Names and Functions of Parts
Express5800/R120d-2M User’s Guide
33
Chapter 1 General Description
4.4
External View
(1) Top Cover (front)
(2) Release Button
(3) Top cover (rear)
Page 34
4. Names and Functions of Parts
Express5800/R120d-2M User’s Guide
34
Chapter 1 General Description
4.5
Internal View
Air duct is not shown in the figure below.
(
1) Front Panel Board
Mounted below the protective cover.
(2) Protective cover
(3) Backplane
(4) Cooling fans
-1 FAN1R
-2 FAN2R
-3 FAN3R
-4 FAN4R
-5 FAN5R (optional)
-6 FAN1F (optional)
-7 FAN2F (optional)
-8 FAN3F (optional)
-9 FAN4F (optional)
-10 FAN5F (optional)
FAN1 to FAN4 are factory installed. FAN5 is required i
n
2-
CPU configuration. FAN6 to FAN10 are required in
redundant configuration.
* 1-CPU configuration: FAN6 to FAN9
2-CPU configuration: FAN6 to FAN10
(5) Support bar
(Battery unit can be installed.)
(6) Processor (optional)
(7) DIMM (optional)
(8) Motherboard
(9) Riser card
(10) Slot dedicated to RAID Controller
Assigned PCI slot number is "1A".
(11) Power Supply Unit
(12) Expansion bay
(1)
(3)
(12)
(7) (9)
(11 )
(8)
(10)
(4)-1
(4)-2
(4)-3
(4)-4
(4)-5
(2)
(5) (6)
(4)-6
(4)-7
(4)-8
(4)-9
(4)-10
Page 35
4. Names and Functions of Parts
Express5800/R120d-2M User’s Guide
35
Chapter 1 General Description
4.6
Motherboard
(27)
(23)
(8)-1 (28)
(25) (18) (13)
(24)
(17) (16) (13) (15) (14)
(13)
(12)
(11)
(10) (9)
(26)
(8)-2 (7) (6) (5) (4) (3)
(2)
(1)-1
(2)
(1)-2
(2)
(18)
(19)
(21)
(22)
(20)
Page 36
4. Names and Functions of Parts
Express5800/R120d-2M User’s Guide
36
Chapter 1 General Description
(1) Processor (CPU) socket
-1: Processor #1 (CPU #1)
-2: Processor #2 (CPU #2)
(2) DIMM socket
(3) DC connector
(4) SATA connector (for optical disk drive)
(5) Power connector (for additional HDD cage)
(6) Front Panel connector
(7) Fan board connector
(8) Power connector
-1: Standard power unit (POW #1)
-2: Optional power unit (POW #2)
(9) LAN riser card connector
(10) Lithium battery
(11 ) Clear CM OS Jumper switch
(12) Clear Password Jumper sw itch
(13) Unused jumper switch
(14) Connector for USB memory module / USB backup
device
(15) HDD BP connector
(16) Connector for option COM
Connect an additional RS-232C connector kit N8117-01A
to use this port as a serial port B.
(17) SPI Mezzanine connector
EXPRESSSCOPE Profile Key (SPI flash memory) has
been installed, where BIOS and BMC configuration data is
stored. Relocate it when replacing motherboard to inherit
configuration data.
(18) Unused connector
(19) Front video connector
(20) TPM kit connector
(21) SATA connector (for optical disk drive)
(22) SATA connector
(23) PCI Riser Card connector
For the supported card specifications, refer to
Chapter 2
(1.17 PCI card).
(24) Connectors for external devices
(25) Internal Flash Memory connector
(26) RAID Controller connector
(27) Power connector for graphics board
(28) USB connector (front)
Page 37
4. Names and Functions of Parts
Express5800/R120d-2M User’s Guide
37
Chapter 1 General Description
4.7
Status Indicators
This section explains the indication and meanings of the server LEDs.
4.7.1
POWER LED ( )
POWER LED indicates power ON/OFF status of the server.
The following table lists POWER LED patterns and their explanation.
POWER LED pattern
Explanation
On (green) The server is normally powered on.
On (amber) BMC is being initialized.
When the power cord is connected, the LED goes on amber for 40 seconds.
The server may be powered on after the amber LED is unlit.
Do not power on the server while the LED is lit amber.
Off The server is off-powered.
The server is in halt status.
Page 38
4. Names and Functions of Parts
Express5800/R120d-2M User’s Guide
38
Chapter 1 General Description
4.7.2
STAT US LED ( )
While hardware is operating normally, STATUS LED lights green. STATUS LED is off or lights/flashes
amber if there is a hardware failure.
The following table lists STATUS LED patterns, their explanation and solution.
Tips
Once you have installed NEC ESMPRO, you can reference error logs to check the
causes of failures.
STATUS LED pattern
Explanation Solution
On (green) Normal state −
Flashing (green) Memory is in a degraded state Identify the dev
ice in degraded state by using BIOS
Setup Utility (SETUP), and replace it as soon as possible.
A correctable memory error has often occurred.
Operating while CPU error is detected.
In redundant power configuration, power is not
supplied to either of power unit.
Off The power is off. Turn on the server.
POST is in progress. Wait for a while. STATUS LED
will turn green after POST
completes.
Watchdog timer expired. Turn the power off and then turn it on.
If POST screen displays any error mess
age, take notes of
the message, and contact your sales representative.
An uncorrectable error in memory is detected.
Memory dump is being requested.
(e.g. when DUMP Switch is pressed)
Note: It remains green if the dump is caused by
software.
Wait until the memory dump is completed.
On (amber) A temperature alarm was detected.
Check the internal fan for dusts. Also check if the fan unit
is properly connected.
If the LED indication does not change, contact your
sales
representative.
A CPU error occurred. Turn the power off and then turn it on.
If POST screen displays any
error message, take notes of
the message, and contact your sales representative.
Abnormal CPU temperature is detected.
A PCI system error occurred
A PCI parity error occurred
A PCI bus error occurred.
A voltage alarm was detected. Contact your sales representative.
Fan error was detected.
Sensor error was detected.
A CPU temperature alarm was detected.
An error occurred on Intel Node Manager
(one of the features of EXPRESSSCOPE
Engine 3).
Flashing (amber) Power Supply Unit is broken. Contact your sales representative.
A fan alarm was detected.
Check if the internal fan cable is properly connected.
If the LED indication does not change, contact your sal
es
representative.
A temperature warning was detected.
Check the internal fan for dusts. Also check if the fan unit
is properly connected.
If the LED indication does not change, contact your
sales
representative.
A voltage warning was detected
Contact your sales representative.
One or more hard disk drives are broken.
Page 39
4. Names and Functions of Parts
Express5800/R120d-2M User’s Guide
39
Chapter 1 General Description
4.7.3
LINK/ACT LED ( 1, 2, 3, 4)
LINK/ACT LED on front panel indicates the status of LAN port.
LEDs
3 and 4 turns on, off, or flashes when an optional LAN riser card is installed.
The following table lists LINK/ACT LED patterns and their explanation.
LINK/ACT LED pattern
Explanation
On (green)
The server is connected with network normally.
Flashing (green)
The server is accessing network.
Off
The server is disconnected from network.
4.7.4
DISK Access LED ( )
DISK Access LED indicates the status of HDDs.
The following table lists DISK Access LED patterns, their explanation, and solution.
DISK Access LED pattern
Explanation
Solution
On (green)
Hard disk drive is being accessed.
–
On (amber)
Hard disk drive is failing.
Contact your sales representative.
Flashing green and amber
alternately.
(only when RAID system is
configured)
Rebuild is in progress. –
Off
Hard disk drive is halted.
–
4.7.5
Optical Disk Access LED
The LED for optical disk drive at the front of the server flashes when a CD or DVD is being accessed.
4.7.6
UID LED (ID)
UID LED is provided one each at the front and rear of the server. If you press UID Switch provided at the
front or rear of the server, the light turns on. If you press it again, the light turns off. It flashes when
commands from software are received. This LED is used to identify the target server among multiple servers
installed in a rack. Especially when performing maintenance from behind the server, lighting the LED will
help you to identify which server to work with.
Tips
You can turn on an LED using remote management software.
The following table lists UID LED patterns and their explanation.
UID LED pattern
Explanation
On (blue)
The UID switch is pressed.
Off
The UID switch is not pressed.
Page 40
4. Names and Functions of Parts
Express5800/R120d-2M User’s Guide
40
Chapter 1 General Description
4.7.7
LED on a hard disk drive
Each HDD is equipped with DISK LED.
The following table lists DISK LED patterns and their explanation.
DISK LED pattern
Explanation
Solution
On (green)
Hard disk drive is being accessed.
–
On (amber)
Hard disk drive is failing.
Contact your sales representative.
Flashing green and amber
alternately.
(only when RAID system
is configured)
Rebuild is in progress.
When the failed hard disk drive is replaced,
rebuild process starts automatically (auto rebuild
feature).
–
Off
Hard disk drive is halted.
–
Important Observe the following precautions whenever you use the auto rebuild feature.
• Do not turn off or reboot the server while a HDD is being rebuilt.
• Wait at least 90 seconds before installing a HDD after removing one.
• Do not replace a HDD while another HDD is being rebuilt.
DISK LED
Page 41
4. Names and Functions of Parts
Express5800/R120d-2M User’s Guide
41
Chapter 1 General Description
4.7.8
LEDs for LAN connectors
The three LAN connectors provided at the rear of the server have two LEDs each.
• LINK/ACT LED ( 1, 2, M)
This LED indicates the state of the LAN port.
The following table lists LINK/ACT LED patterns and their explanation.
LINK/ACT LED pattern
Explanation
On (green)
The server is connected with network normally.
Flashing (green)
The server is accessing network.
Off
The server is disconnected from network.
• SPEED LED ( 1, 2, M)
This LED indicates which network interface is used.
− Two onboard LANs (
1, 2) support 1000BASE-T, 100BASE-TX, and 10BASE-T.
− Management LAN (
M) supports 100BASE-TX and 10BASE-T.
The following table lists LINK/ACT LED patterns and their explanation.
SPEED LED pattern
Explanation
On (amber)
The port is operating with 1000BASE-T interface.
On (green)
The port is operating with 100BASE-TX interface.
Off
The port is operating with 10BASE-T interface.
SPEED
LED
SPEED
LED
LINK/ACT
LED
LINK/ACT
LED
LAN connector
for data
transmission
Management
LAN connector
Page 42
4. Names and Functions of Parts
Express5800/R120d-2M User’s Guide
42
Chapter 1 General Description
4.7.9
AC POWER LED on Power Unit
The power unit is equipped with AC POWER LED.
The following table lists LINK/ACT LED patterns and their explanation.
AC POWER LED pattern
Explanation
Solution
On (green)
The server is powered on.
–
Flashing (green) The power cable is connected and AC power is
supplied.
–
Cold Redundant feature is enabled.
–
On (amber) The power cable is not connected in redundant
power configuration.
Connect the power cable.
Power unit is failing. Contact your sales representative.
Flashing (amber)
Power unit is failing.
AC POWER LED
Page 43
Express5800/R120d-2M User’s Guide
43
NEC Express5800 Series
Express5800/R120d-2M
Preparations
This chapter describes preparations for using this server.
1. Installing Internal Optional Devices
You can skip this section if you did not purchase any optional devices.
2. Location and Connection
You must place the server in a suitable location and connect some cables following this section.
2
2
Page 44
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
44
Chapter 2 Preparations
1.
Installing Internal Optional Devices
This section describes the instructions for installing supported optional devices and precautions. If you did not
purchase any optional device requiring installation, you may skip this section.
Important
Use only the devices and cables specified by NEC. You will be charged to
repair damages, malfunctions, and failures caused by the use of any devices
or cables not specified for use with this server even within the warranty
period.
1.1
Safety Precautions
Be sure to observe the following precautions to install and remove optional devices properly and safely.
WARNING
Be sure to observe the following precautions to use the server safety. Failure
to observe the precautions may cause death or serious injury. For details, refer
to Safety precautions in Precautions for Use.
• Do not disassemble, repair, or modify the server.
• Do not remove the lithium battery, NiMH battery, or Li-ion battery.
• Disconnect the power plug when installing and removing devices.
CAUTION
Be sure to observe the following precautions to use the server safely
. Failure to
observe the precautions may cause burns, injury, and property damage. For
details, refer to Safety precautions in Precautions for Use.
• Do not drop
• Do not leave the server being pulled out.
• Make sure to complete installation.
• Do not install with the cover removed.
• Do not get your fingers caught.
• High temperature
• Electrical shock
Page 45
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
45
Chapter 2 Preparations
1.2
Anti-static Measures
The server contains electronic components sensitive to static electricity. Avoid failures caused by static
electricity when installing or removing any optional devices.
Wear a wrist strap (an arm belt or anti-static glove)
Wear a wrist strap on your wrist. If no wrist strap is available, touch an unpainted metal part of the chassis
before touching a component to discharge static electricity from your body.
Also discharge static electricity by periodically touching a metal surface while working on the components.
Select a suitable work space
− Work with the server on the anti-static or concrete floor.
− If you work with the server on a carpet where static electricity is likely to be generated, be sure to take
anti-static measures beforehand.
Use a work table
Place the server on an anti-static mat to work with.
Clothing
− Do not wear wool or synthetic clothes.
− Wear anti-static shoes.
− Take off any jewels (a ring, bracelet, or wrist watch) before working with the server.
Handling of components
− Keep any component in an anti-static bag until you actually install it to the server.
− Hold any component by its edge to avoid touching any terminals or parts.
− To store or carry any component, place it in an anti-static bag.
Page 46
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
46
Chapter 2 Preparations
1.3
Overview of Installation and Removal
Install/remove components by using the following procedure.
Installing/removing internal components except for hard disk drives should be done after dismounting the
server from the rack. It is recommended that more than one person removes the server from the rack.
CAUTION
Be sure to observe the following precautions to use the server safely. Failure to
observe the precautions may cause burns, injury, and property damage. For
details, refer to Safety precautions in Precautions for Use.
• Do not drop the server
• Do not leave the server pulled out of the rack
• Replace the cover after installing components
• Beware of high temperatures
• Do not get your fingers caught when installing components
1. If the server is mounted on a rack, use the UID switch to identify the target server.
Refer to Chapter 2 (1.4 Confirming Servers (UID Switch)).
2. Remove the Front Bezel, if installed.
Refer to Chapter 2 (1.5 Removing Front Bezel).
3. If the server is ON, turn it off.
Refer to Chapter 3 (6. Turning Off the Server).
4. Disconnect the power cord from the outlet and the server.
Important
After disconnecting the power cord from the server, wait for at least 30
seconds bef
ore continuing to work because the components on the
motherboard might still be operating for about 30
seconds even after the
power cord was disconnected.
5. You need to pull out the server from rack and put it on a flat rigid desk when installing or removing
the components other than the following two devices:
Refer to Chapter 2 (2.1 Installation) for details.
Hard disk drive Power supply unit
Important
Do not leave the server open on the rack.
Page 47
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
47
Chapter 2 Preparations
6. Remove Top Cover.
Refer to Chapter 2 (1.6 Removing Top Cover).
7. Remove PCI riser card.
Refer to Chapter 2 (1.7 Removing PCI Riser Card).
8. Remove the support bar.
Refer to Chapter 2 (1.8Removing Support Bar).
9. Depending on the components to be installed or removed, follow the procedure in order.
Refer to Chapter 2 (1.10 Internal Flash Memory (N8115-07)) to (1.20 Use of Internal hard disk
drives in the RAID System).
10. Install the support bar.
Refer to Chapter 2 (1.22 Installing Support Bar).
11. Install PCI riser card.
Refer to Chapter 2 (1.23 Installing PCI Riser Card).
12. Attach Top Cover.
Refer to Chapter 2 (1.21 Installing Top Cover).
13. Mount the server onto the rack.
Refer to Chapter 2 (2.1.2 Installing the server to the rack or removing it from the rack (1)
Installation).
14. Install hard disk drives.
Refer to Chapter 2 (1.25 Hard Disk Drive).
15. Install power supply units
Refer to Chapter 2 (1.26 Power Supply Unit).
16. Attach Front Bezel.
Refer to Chapter 2 (1.27 Installing the Front Bezel).
This is the end of the installation or removal procedures for internal optional devices.
Continue the setup with reference to Chapter 2 (2.2 Connection).
Page 48
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
48
Chapter 2 Preparations
1.4
Confirming Servers (UID Switch)
Using UID(Unit ID) Switch helps you to identify the target server.
When the server is working or before you turn the server off or disconnect a cable from the server, be sure to
identify the target server by using UID Switch first.
To turn UID LED on, press UID Switch. When it is pressed again, the LED will be off.
UID switch
UID switch
Page 49
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
49
Chapter 2 Preparations
1.5
Removing Front Bezel
To remove Front Bezel, follow the steps below. Remove the front bezel when pressing switches such as
POWER switch, or removing the top cover.
1. Insert the attached Bezel Lock Key into the key slot and turn the key to the front bezel side while
pressing it lightly to release the lock.
2. Hold the both ends of Front Bezel carefully to pull it toward you.
Note
Be careful not to press POWER Switch.
Unlocked Locked
Page 50
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
50
Chapter 2 Preparations
1.6
Removing Top Cover
You need to remove top cover when installing or removing the following component:
Optical disk drive, LAN riser card,
DIMM, processor,
TPM module, Internal Flash Memory,
Additional HDD cage, PCI card,
RAID Controller, Battery for RAID Controller
1. Refer to steps 1 to 5 in Chapter 2 (1.3 Overview of Installation and Removal) for preparations.
2. Slide Top Cover (front) toward the front of the server while pressing Release Button on the cover.
3. Lift off the top cover (front) from the server.
4. Loosen the thumb nut on rear panel of the server, and slide the top cover (rear) toward the rear of the
server.
5. Lift off the top cover (rear), and remove it from the server.
Page 51
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
51
Chapter 2 Preparations
1.7
Removing PCI Riser Card
You need to remove PCI riser card when installing or removing the following component or changing internal
cable connection:
LAN riser card DIMM
Processor (CPU) TPM module
Internal Flash Memory Additional HDD cage
PCI card RAID Controller
Battery for RAID Controller
1. Refer to steps 1 to 6 in Chapter 2 (1.3 Overview of Installation and Removal) for preparations.
2. Remove the two screws from PCI riser card.
3. Lift the PCI riser card, and remove it from the server.
Page 52
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
52
Chapter 2 Preparations
1.8
Removing Support Bar
You need to remove support bar when installing or removing the following component or changing internal
cable connection:
DIMM Processor (CPU)
Additional HDD cage PCI card
Battery for RAID Controller
1. Refer to steps 1 to 7 in Chapter 2 (1.3 Overview of Installation and Removal) for preparations.
2. Remove the two screws from support bar.
3. Lift the support bar, and remove it from the server.
Page 53
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
53
Chapter 2 Preparations
1.9
Removing Air Duct
You need to remove support bar when installing or removing the following component or changing internal
cable connection:
DIMM Processor (CPU)
2.5-inch additional HDD cage
1. Refer to steps 1 to 7 in Chapter 2 (1.3 Overview of Installation and Removal) for preparations.
2. Lift the air duct and remove it from the server.
Important
Before removing the air duct, put cables aside. Otherwise, cables may be damaged
if they are pulled together with air duct.
Page 54
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
54
Chapter 2 Preparations
1.10
Internal Flash Memory (N8115-07)
This section describes the procedure for installing Internal Flash Memory (optional).
1.10.1
Installation
Install Internal Flash Memory in the following procedure.
1. Refer to steps 1 to 7 in Chapter 2 (1.3 Overview of Installation and Removal) for preparations.
2. Attach Internal Flash Memory and fix it with the screw provided with Internal Flash Memory.
1.10.2
Removal
To remove Internal Flash Memory, reverse the installation procedure.
Internal Flash Memory connector
Page 55
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
55
Chapter 2 Preparations
1.11
TPM Kit
This section describes the procedure for installing optional TPM Kit.
1.11.1
Installation
Install TPM Kit in the following procedure.
Refer to steps 1 to 7 in Chapter 2 (1.3 Overview of Installation and Removal) for preparations.
Install TPM Kit and secure it by pushing the nylon rivet provided with TPM Kit.
Important
The TPM Kit once installed cannot be removed.
Connector for TP M Kit
Page 56
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
56
Chapter 2 Preparations
1.12
Processor
You can configure the multi-processor system by adding an optional processor.
Important
• You must avoid static electricity to work with the procedure below. For details,
refer to Chapter 2 (1.2 Anti-static Measures).
• Make sure to use the processor authorized by NEC. Installing a third-party
processor may cause a failure of the processor as well as the motherboard.
Repair of the server due to failures or damage resulted from installing such a
processor will be charged.
Tips
After adding the processor, Windows may record the event log to System category of
Event Viewer, but it is no problem for operation.
1.12.1
Installation
Follow steps below to install the processor.
1. Refer to steps 1 to 6 in Chapter 2 (1.3 Overview of Installation and Removal) for preparations.
2. Locate the CPU socket to which you are going to install a processor.
3. Remove the screws that secure the dummy cover, and remove it.
Note
Keep the removed dummy cover for future use.
4. Remove the protective cover from the CPU socket.
Note
Keep the removed protective cover for future use.
Page 57
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
57
Chapter 2 Preparations
5. Push down the socket lever marked with " →" once to unlatch it from the hook, then slowly
open the lever until it stops.
6. Push down the socket lever marked with "
← " once to unlatch it from the hook, then slowly
open the lever until it stops.
7. Lift the plate.
Important
• Do not touch the socket contacts.
8. Put the additional processor on the CPU socket slowly and gently.
For easy installation, hold edges of processor with your thumb and index fingers so that the notch is
aligned with the key on the CPU socket.
Notch
Pin mark
Pin mark
Key
Page 58
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
58
Chapter 2 Preparations
Important
• Be sure to hold the processor only at the edges.
• Pay attention not to touch the bottom of the processor (pin section).
Note
• Insert the processor while aligning the notch on the processor with the key on the CPU
socket.
• Bring down the processor straight without tilting or sliding it in the socket.
9. Lightly push the processor to the CPU socket, and close the plate.
10. Close the socket lever marked with "
← " to fix it.
11. Close the socket lever marked with " →" to fix it.
12. Put the heat sink on the processor and fix the heat sink with four screws.
Page 59
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
59
Chapter 2 Preparations
Temporarily tighten the four screws diagonally, then tighten them securely.
Make sure that the screw aligns with the screw hole. If not, the screw may damage the motherboard.
Note
Make sure the location to put the heat sink.
13. Make sure that the heat sink is installed on a level with the motherboard.
Note
• If the heat sink is not level, remove it, and then install it again.
The following probably causes the heat sink not to be level:
– The CPU is not positioned correctly.
– All screws are not completely tightened.
• Do not move the secured heat sink.
14. When additional processor is installed, you need install an additional fan unit provided with the
additional CPU board. Refer to Chapter 2 (1.16 Redundant Fan Unit – Additional fan unit for
additional processor (CPU).
15. Continue to install or remove internal optional devices, mount and connect the server, and turn it on.
16. Run BIOS Setup Utility (SETUP) to confirm the following settings. Refer to Chapter 2 (1. System
BIOS) in "Maintenance Guide".
Advanced → Processor Configuration → Processor Information
[CPU ID]
[L2 Cache RAM]
[L3 Cache RAM]
Page 60
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
60
Chapter 2 Preparations
1.12.2
Replacement / Removal
To remove processor (CPU), reverse the installation procedure.
After removal, perform the following steps.
1. Install the dust-proof cover to processor (CPU) socket.
2. Secure the dummy cover with four screws.
3. Remove the additional fan unit.
4. Install the fan unit cover.
Important
• Do not remove any processor unless it is failed.
• To remove the heat sink from the processor, first turn the heat sink to the left and
right lightly to make sure that the heat sink can be apart from the processor.
Removing the heat sink with it adherin
g to the processor may cause the
processor and/or CPU socket to be defected.
• Failing to install dust-proof cover and dummy cover to vacant slot after removal
of processor
may cause malfunction of the server due to insufficient cooling
effect.
5. Run BIOS Setup Utility (SETUP) to confirm the following settings. Refer to Chapter 2 (1. System
BIOS) in "Maintenance Guide".
Advanced → Processor Configuration → Processor Information
[CPU ID]
[L2 Cache RAM]
[L3 Cache RAM]
Page 61
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
61
Chapter 2 Preparations
1.13
DIMM
Install a DIMM (Dual Inline Memory Module) to a DIMM socket on the motherboard in the server. The
motherboard provides 24 sokets to install DIMMs.
Important
• You must avoid static electricity to work with the procedure below. For
details, refer to Chapter 2 (1.2 Anti-static Measures).
• Use only the specified DIMMs. Installing a DIMM from a third party may
damage not only the DIMM but the motherboard. You will be charged to
repair failures or damages caused by the use of such products even within
the warranty period.
Tips
Up to 768 GB (32 GB x 24) can be installed in 2-CPU configuration. Up to 384 GB
(32 GB x 12) can be installed in 1-CPU configuration. No DIMM is factory installed
in standard configuration.
1.13.1
Maximum supported memory size
The maximum available memory size on the server depends on the architecture and OS specs.
List of maximum memory sizes
OS
The maximum memory
size supported on each
OS
The maximum memory size supported
on the server
Windows Server 2003 R2 Standard
Windows Server 2008 Standard x86 Edition
4 GB
4 GB (If using HW-DEP feature)
* Default factory settings
About 3 GB (If not using HW-DEP feature)
Note: If you are not using the HW-DEP
feature, set Execute Disable Bit (XD
Bit) to Disable in the BIOS settings.
Windows Server 2003 R2 Standard x64 Edition
Windows Server 2008 Standard x64 Edition
Windows Server 2008 R2 Standard
32 GB
32 GB
Windows Server 2003 R2 Enterprise Edition
Windows Server 2008 Enterprise x86 Edition
64 GB
64GB
Windows Server 2003 R2 Enterprise x64 Edition
1 TB
768GB
Windows Server 2008 Enterprise x64 Edition
Windows Server 2008 R2 Enterprise
2 TB
RedHat Enterprise Linux 5 Server (x86)
16 GB
16 GB
RedHat Enterprise Linux 5 Server (EM64T)
256 GB
256 GB
Page 62
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
62
Chapter 2 Preparations
1.13.2
Memory Clock
The server supports the memory clock speed of DDR3L-1066/1333/1600MHz. However, the actual memory
clock speed depends on CPU and memory configuration. (The all of DIMMs operate at the same clock speed.)
DIMMs installed on N8101-545F
N code and product name Memory clock speed
N8102-435F 8GB DDR3-1333 UNB Memory Kit
1066 MHz
N8102-468F 4GB DDR3-1600 REG Memory Kit
N8102-469F 8GB DDR3-1600 REG Memory Kit
N8102-470F 16GB DDR3-1600 REG Memory Kit
N8102-471F 32GB DDR3-1600 REG Memory Kit
N8102-440F 64GB DDR3-1333 LR Memory Kit
N8102-472 4GB DDR3-1600 REG Memory Kit
N8102-473 8GB DDR3-1600 REG Memory Kit
N8102-474 16GB DDR3-1600 REG Memory Kit
N8102-475 32GB DDR3-1600 REG Memory Kit
N8102-476 6GB DDR3-1600 REG Memory Kit
N8102-477 12GB DDR3-1600 REG Memory Kit
N8102-499 24GB DDR3-1600 REG Memory Kit
N8102-500 48GB DDR3-1600 REG Memory Kit
DIMMs installed on N8101-546F / 547F
N code and product name Memory clock speed
Memory Voltage When set to 1.35 V When set to 1.5 V
Number of memory boards per
memory channel
Up to 2 3 Up to 2 3
N8102-435F 8GB DDR3-1333 UNB Memory Kit 1066 MHz –
1333 MHz
–
N8102-468F 4GB DDR3-1600 REG Memory Kit
1333 MHz
1066 MHz 1066 MHz
N8102-469F 8GB DDR3-1600 REG Memory Kit
N8102-470F 16GB DDR3-1600 REG Memory Kit
N8102-471F 32GB DDR3-1600 REG Memory Kit
N8102-440F 64GB DDR3-1333 LR Memory Kit 1066 MHz
N8102-472 4GB DDR3-1600 REG Memory Kit
1333 MHz
N8102-473 8GB DDR3-1600 REG Memory Kit
N8102-474 16GB DDR3-1600 REG Memory Kit
N8102-475 32GB DDR3-1600 REG Memory Kit
N8102-476 6GB DDR3-1600 REG Memory Kit
– –
N8102-477 12GB DDR3-1600 REG Memory Kit
N8102-499 24GB DDR3-1600 REG Memory Kit
N8102-500 48GB DDR3-1600 REG Memory Kit
Page 63
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
63
Chapter 2 Preparations
DIMMs installed on N8101-548F / 549F / 550F / 551F /552F
N code and product name Memory clock speed
Memory Voltage When set to 1.35 V When set to 1.5 V
Number of memory boards per
memory channel
Up to 2 3 Up to 2 3
N8102-435F 8GB DDR3-1333 UNB Memory Kit 1066 MHz – 1333 MHz –
N8102-468F 4GB DDR3-1600 REG Memory Kit
1333 MHz
1066 MHz
1600 MHz
1066 MHz
N8102-469F 8GB DDR3-1600 REG Memory Kit
N8102-470F 16GB DDR3-1600 REG Memory Kit
N8102-471F 32GB DDR3-1600 REG Memory Kit
N8102-440F 64GB DDR3-1333 LR Memory Kit 1066 MHz 1333 MHz
N8102-472 4GB DDR3-1600 REG Memory Kit
1333 MHz 1600 MHz
N8102-473 8GB DDR3-1600 REG Memory Kit
N8102-474 16GB DDR3-1600 REG Memory Kit
N8102-475 32GB DDR3-1600 REG Memory Kit
N8102-476 6GB DDR3-1600 REG Memory Kit
– –
N8102-477 12GB DDR3-1600 REG Memory Kit
N8102-499 24GB DDR3-1600 REG Memory Kit
N8102-500 48GB DDR3-1600 REG Memory Kit
Page 64
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
64
Chapter 2 Preparations
1.13.3
Memory RAS Feature
The server supports the following RAS features. Some restrictions (e.g., DIMM installation location) are
imposed on using the Memory Mirroring or Memory Lock Step feature. Refer to Chapter 2 (1.10.7 Using
Memory RAS Feature) for conditions appropriate to your requirements.
• Standard memory feature (x4 SDDC ECC memory)
• Memory Mirroring feature (restrictions imposed on DIMM configuration)
• Memory Lock Step feature (x8 SDDC ECC memory) (restrictions imposed on DIMM configuration)
• Memory Sparing feature
Supported RAS features depend on additiional memory board.
See the table below for RAS features supported by additiional memory board.
List of features supported by additiional memory board
N code
Product name
Standard
feature
(x4 SDDC)
Memory
Mirroring
feature
Memory
LockStep
feature
(x8 SDDC)
Memory
Sparing
feature
N8102-435F 8GB DDR3-1333 UNB Memory Kit
× × ×
N8102-468F 4GB DDR3-1600 REG Memory Kit
× × ×
N8102-469F 8GB DDR3-1600 REG Memory Kit
× × ×
N8102-470F 16GB DDR3-1600 REG Memory Kit
× × ×
N8102-471F 32GB DDR3-1600 REG Memory Kit
× × ×
N8102-440F 64GB DDR3-1333 LR Memory Kit
× × ×
N8102-472 4GB DDR3-1600 REG Memory Kit
×
×
N8102-473 8GB DDR3-1600 REG Memory Kit
×
×
N8102-474 16GB DDR3-1600 REG Memory Kit
×
×
N8102-475 32GB DDR3-1600 REG Memory Kit
×
×
N8102-476 6GB DDR3-1600 REG Memory Kit
× × ×
N8102-477 12GB DDR3-1600 REG Memory Kit
× × ×
N8102-499 24GB DDR3-1600 REG Memory Kit
× × ×
N8102-500 48GB DDR3-1600 REG Memory Kit
× × ×
: Supported, ×: Not supported
Page 65
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
65
Chapter 2 Preparations
1.13.4
DIMM installation order
Note
• DIMM installation order in 1-CPU configuration differs from that in 2-CPU
configuration.
• If CPU2 is not installed, CPU2_DIMM1 to CPU2_DIMM12 are disabled.
• Refer to List of features supported by additiional memory board before using
memory RAS feature.
In 1-CPU configuration, install a pair of two DIMMs starting from the smallest slot number.
In 2-CPU configuration, alternately install a pair of two DIMMs starting from the smallest slot number of each
CPU.
Installation order depends on combination of DIMMs to be installed. See the table below to find allowable
combination of DIMMs, and install DIMMs starting from the largest capacity and from the smallest slot number.
N code
N8102-
435F 468F 469F 470F 471F 440F 472 473 474 475 476 477 499 500
N8102-435F
× × × × × × × × × × × × ×
N8102-468F
×
× × × × × × × × ×
N8102-469F
×
× × × × × × × × ×
N8102-470F
×
× × × × × × × × ×
N8102-471F
×
× × × × × × × × ×
N8102-440F
× × × × ×
× × × × × × × ×
N8102-472
× × × × × ×
× × × ×
N8102-473
× × × × × ×
× × × ×
N8102-474
× × × × × ×
× × × ×
N8102-475
× × × × × ×
× × × ×
N8102-476
× × × × × × × × × ×
N8102-477
× × × × × × × × × ×
N8102-499
× × × × × × × × × ×
N8102-500
× × × × × × × × × ×
: Allowed to be install together. ×: Not allowed to be install together.
1CPU構成
搭載順序
2CPU構成
搭載順序
2
4
6
2
4
6
5
3
1
5
3
1
3
7
11
3
7
11
9
5
1
9
5
1
4
8
12
4
8
12
10
6
2
10
6
2
CPU1_DIMM 3
CPU1_DIMM 7
CPU1_DIMM 11
CPU1_DIMM 4
CPU1_DIMM 8
CPU1_DIMM 12
CPU1_DIMM 10
CPU1_DIMM 6
CPU1_DIMM 2
CPU1_DIMM 9
CPU1_DIMM 5
CPU1_DIMM 1
CPU2_DIMM 3
CPU2_DIMM 7
CPU2_DIMM 11
CPU2_DIMM 4
CPU2_DIMM 8
CPU2_DIMM 12
CPU2_DIMM 10
CPU2_DIMM 6
CPU2_DIMM 2
CPU2_DIMM 9
CPU2_DIMM 5
CPU2_DIMM 1
1CPU
configuration
2CPU
configuration
Page 66
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
66
Chapter 2 Preparations
1.13.5
Installation
Install a DIMM by using the following procedure.
1. Refer to steps 1 to 6 in Chapter 2 (1.3 Overview of Installation and Removal) for preparations.
2. Open levers on left and right sides of DIMM slot, and remove the dummy cover.
Note
Keep the removed dummy cover for future use.
3. Push the DIMM straight into the socket.
When a DIMM is inserted into the
socket, the lever automatically closes.
Important
• Make sure the orientation of the DIMM. The DIMM has a notch, preventing
being incorrectly inserted.
• Do not apply too much pressure
when you push a DIMM into the socket.
Doing so can damage the socket or terminal part.
4. Continue to install or remove internal optional devices, mount and connect the server, and turn it on.
5. Confirm that no error messages are displayed in POST screen.
If any error messages are displayed, refer to Chapter 3 (1. POST Error Message) in "Maintenance
Guide".
6. Run BIOS Setup Utility and select Memory Configuration and then Memory Information from the
Advanced menu. Make sure the capacity of added DIMM is displayed properly.
Refer to Chapter 2 (1. System BIOS) in "Maintenance Guide".
7. Select Memory Configuration from the Advanced menu, and then specify Yes for Memory Retest.
After that, select Save Changes and Exit to reboot.
8. Set the size of Paging File to the recommended value (Total memory size x 1.5) or more.
If using a Windows OS, refer to Chapter 1 (7.1 Specifying Memory Dump Settings (Debug
Information)) in "Installation Guide (Windows)".
For other OS, follow the manual of the OS.
Key slot
Key
Key slot
Page 67
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
67
Chapter 2 Preparations
1.13.6
Replacement / Removal
To remove DIMM, reverse the installation procedure.
Be sure to install dummy cover to the slots from where DIMMs are removed.
Important
Failing to install dummy cover to vacant slot may cause malfunction of the
server due to insufficient cooling effect.
Note
When removing a defective DIMM, check error messages displayed at POST or
NEC ESMPRO and check the DIMM socket where the defective DIMM is installed.
Take the steps below after replacing or removing DIMMs.
1. Confirm that no error messages are displayed on POST. If any error message is displayed, refer to
Chapter 3 (1. Post Error Message) in "Maintenance Guide".
2. Run BIOS Setup Utility, select Memory Configuration from the Advanced menu, and then
specify Yes for Memory Retest. After that, select Save Changes and Exit to reboot.
3. Set the size of Paging File to the recommended value (Total memory size x 1.5) or more.
If using a Windows OS, refer to Chapter 1 (7.1 Specifying Memory Dump Settings (Debug
Information)) in "Installation Guide (Windows)".
For other OS, follow the manual of the OS.
Page 68
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
68
Chapter 2 Preparations
1.13.7
Using Memory RAS Feature
This server has RAS feature including "Standard memory feature (x4 SDDC ECC memory)", "Memory
mirroring feature", "Lock Step feature (x8 SDDC ECC memory)", and Memory Sparing feature. SDDC (Single
Device Correction) allows automatic correction of memory error (multi-bit error).
Note
• Refer to List of features supported by additiional memory board in 1.13.3 Memory RAS
Feature before using memory RAS feature.
• Only the features that additiional memory board support can be used.
The memory area on the motherboard of the server is divided into four memory channels.
Memory Mirroring, Memory Lock Step, and Memory Sparing features keep memory redundancy between
memory channels by monitoring or altering memory active/inactive status, respectively.
Memory controller
Memory controller
Page 69
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
69
Chapter 2 Preparations
(1) Memory Mirroring Feature
Memory Mirroring feature writes the same data into two groups of DIMMs (mirror set) corresponding with each
other between memory channels (channels 0 and 1 or channel 2 and 3) to provide data redundancy.
Note
• Memory Mirroring feature uses channels 0 and 1 or channels 2 and 3.
• To use Memory Mirroring feature, install N8102-472/473/474/475 additional memory
board (two DIMMs of same model).
• DIMMs to be installed in mirror set must have same capacity.
Example: 2-CPU configuration
Tips
The operating system only recognizes a half of the total physical capacity.
Memory controller
Memory controller
Mirror set
#9
Mirror set
#5
Mirror set
#1
Mirror set
#11
Mirror set
#7
Mirror set
#3
Mirror set
#12
Mirror set
#8
Mirror set
#4
Mirror set
#10
Mirror set
#6
Mirror set
#2
Data 1
Data 2
Data 3
Data 4
Data 1
Data 2
Data 3
Data 4
Page 70
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
70
Chapter 2 Preparations
Memory Mirroring feature can be used under the following conditions:
• Install DIMMs in DIMM sockets configuring a mirror set.
• All the installed DIMMs should have the same capacity.
• Refer to Chapter 2 (1. System BIOS) in "Maintenance Guide", check if your server supports Memory
Mirroring feature.
Select Advanced → Memory Configuration → Memory Information, and check if Supported is
displayed in Mirroring.
• Refer to Chapter 2 (1. System BIOS) in "Maintenance Guide", run SETUP, change parameters as shown
below, save the settings, and exit from SETUP.
Advanced → Memory Configuration → Memory RAS Mode → Change to Mirroring.
• After restart, run SETUP again, and check if "Mirrored" is displayed for the following parameter.
Advanced → Memory Configuration → Memory Information → CPUx_DIMMx Status
• Installation order depends on CPU configuration. See the figure below.
Memory Mirroring cannot be configured in the following case:
• Memory Mirroring within a specific memory channel
Notes on Configuring Memory Mirroring
In Memory Mirroring configuration, [Memory RAS Mode] menu is changed from "Mirroring" to "Independent" in
the following cases:
• When you additionally install DIMMs that unable to configure Memory Mirroring
• When you remove DIMMs that takes down Memory Mirroring
1CPU 構成
搭載順序
2CPU 構成
搭載順序
2
4
6
2
4
6
5
3
1
5
3
1
3
7
11
3
7
11
9
5
1
9
5
1
4
8
12
4
8
12
10
6
2
10
6
2
CPU1_DIMM 3
CPU1_DIMM 7
CPU1_DIMM 11
CPU1_DIMM 4
CPU1_DIMM 8
CPU1_DIMM 12
CPU1_DIMM 10
CPU1_DIMM 6
CPU1_DIMM 2
CPU1_DIMM 9
CPU1_DIMM 5
CPU1_DIMM 1
CPU2_DIMM 3
CPU2_DIMM 7
CPU2_DIMM 11
CPU2_DIMM 4
CPU2_DIMM 8
CPU2_DIMM 12
CPU2_DIMM 10
CPU2_DIMM 6
CPU2_DIMM 2
CPU2_DIMM 9
CPU2_DIMM 5
CPU2_DIMM 1
1CPU
configuration
2CPU
configuration
Page 71
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
71
Chapter 2 Preparations
(2) Memory Lock Step Feature (x8 SDDC)
In Memory Lock Step feature, the DIMMs in two groups corresponding to two memory channels (channels 0
and 1, or channels 2 and 3) is multiplexed and operated in parallel to enable x8 SDDC (x8 Single Device Data
Correction). With this feature, a single device can detect and correct one to eight-bit error.
Note
• Memory LockStep feature uses channels 0 and 1 or channels 2 and 3.
• To use Memory LockStep feature, install N8102-472/473/474/475 additional mem ory
board (two DIMMs of same model).
• DIMMs to be installed in Lockstep set must have same capacity.
LockStep Set
#9
LockStep Set
#5
LockStep Set
#1
LockStep Set
#10
LockStep Set
#6
LockStep Set
#2
LockStep Set
#11
LockStep Set
#7
LockStep Set
#3
LockStep Set
#12
LockStep Set
#8
LockStep Set
#4
Memory controller
Memory controller
Page 72
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
72
Chapter 2 Preparations
Memory Lock Step feature can be used under the following conditions:
• Install DIMMs that operate in parallel in memory socket.
• All the installed DIMMs should have the same capacity.
• Refer to Chapter 2 (1. System BIOS) in "Maintenance Guide", run SETUP, change parameters as shown
below, save the settings, and exit from SETUP.
Advanced → Memory Configuration → Memory RAS Mode → Change to LockStep.
• After restart, run SETUP again, and check if "Lock Step" is displayed for the following parameter.
Advanced → Memory Configuration → Memory Information → CPUx_DIMMx Status
• Installation order depends on CPU configuration. See the figure below.
Memory Lock Step cannot be configured in the following cases:
• Memory Lock Step between memory channels of different memory controllers (CPU)
• Memory Lock Step within the same memory channel
Notes on Configuring Lock Step
In Memory Lock Step configuration, Memory RAS Mode menu is changed from "Lock Step" to "Independent"
in the following cases:
• When you additionally install DIMMs that unable to configure Memory Lock Step
• When you remove DIMMs that takes down Memory Lock Step
1CPU 構成
搭載順序
2CPU 構成
搭載順序
2
4
6
2
4
6
5
3
1
5
3
1
3
7
11
3
7
11
9
5
1
9
5
1
4
8
12
4
8
12
10
6
2
10
6
2
CPU1_DIMM 3
CPU1_DIMM 7
CPU1_DIMM 11
CPU1_DIMM 4
CPU1_DIMM 8
CPU1_DIMM 12
CPU1_DIMM 10
CPU1_DIMM 6
CPU1_DIMM 2
CPU1_DIMM 9
CPU1_DIMM 5
CPU1_DIMM 1
CPU2_DIMM 3
CPU2_DIMM 7
CPU2_DIMM 11
CPU2_DIMM 4
CPU2_DIMM 8
CPU2_DIMM 12
CPU2_DIMM 10
CPU2_DIMM 6
CPU2_DIMM 2
CPU2_DIMM 9
CPU2_DIMM 5
CPU2_DIMM 1
1CPU
configuration
2CPU
configuration
Page 73
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
73
Chapter 2 Preparations
(3) Memory Sparing Feature
Memory Sparing feature puts a memory channel 2 of a memory controller in each CPU into standby status as
spare devices. If a correctable error occurs in a DIMM in the running memory controller, the feature
automatically changes the running DIMM from the failed one to a DIMM in the standby state to continue the
processing.
Note
To use Memory Sparing feature, install N8102-476/477/499/500 additional memory board
(three DIMMs of same model).
Tips
The operating system recognizes the DIMMs as those with capacities less than the actual
physical capacities. (The recognized capacities vary depending on the number of DIMMs
and the physical capacity per DIMM.)
The following table shows configuration allowable for memory sparing and system logical memory capacity.
Number of
CPUs
Number of
DIMMs
Capacity of DIMM installed
2GB 4GB 8GB 16GB
1 3 4GB 8GB 20GB 40GB
6 8GB 16GB 40GB 80GB
9 12GB 24GB 60GB 120GB
12 16GB 32GB 80GB 160GB
2 6 8GB 16GB 40GB 80GB
12 16GB 32GB 80GB 160GB
18 24GB 48GB 120GB 240GB
24 32GB 64GB 160GB 320GB
Page 74
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
74
Chapter 2 Preparations
Memory Sparing feature can be used under the following conditions:
• DIMMs to be installed should have the same capacity.
• Refer to Chapter 2 (1. System BIOS) in "Maintenance Guide", check if your server supports Memory
Sparing feature.
Select Advanced → Memory Configuration → Memory Information, and check if Supported is
displayed in Sparing.
• Refer to Chapter 2 (1. System BIOS) in "Maintenance Guide", run SETUP, change parameters as shown
below, save the settings, and exit from SETUP.
Advanced → Memory Configuration → Memory RAS Mode → Change to Sparing.
• After restart, run SETUP again, and check if "Spared" is displayed for the following parameter.
Advanced → Memory Configuration → Memory Information → CPUx_DIMMx Status
• Installation order depends on CPU configuration. See the figure below.
Memory controller
Memory controller
Standby
Running
Standby
Running
Spare set
#1
Spare set
#3
Spare set
#5
Spare set
#7
Spare set
#2
Spare set
#4
Spare set
#6
Spare set
#8
Page 75
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
75
Chapter 2 Preparations
The following Memory Sparing cannot be configured.
• A DIMM of different capacity is installed.
Notes on Configuring Memory Sparing
In Memory Sparing configuration, Memory RAS Mode menu is changed to "Independent" in the following
cases:
• When you additionally install DIMMs that unable to configure Memory Sparing
• When you remove DIMMs that takes down Memory Sparing
1CPU 構成
搭載順序
2CPU 構成
搭載順序
3
3
3
4
4
4
2
2
2
1
1
1
5
5
5
7
7
7
3
3
3
1
1
1
6
6
6
8
8
8
4
4
4
2
2
2
CPU1_DIMM 3
CPU1_DIMM 7
CPU1_DIMM 11
CPU1_DIMM 4
CPU1_DIMM 8
CPU1_DIMM 12
CPU1_DIMM 10
CPU1_DIMM 6
CPU1_DIMM 2
CPU1_DIMM 9
CPU1_DIMM 5
CPU1_DIMM 1
CPU2_DIMM 3
CPU2_DIMM 7
CPU2_DIMM 11
CPU2_DIMM 4
CPU2_DIMM 8
CPU2_DIMM 12
CPU2_DIMM 10
CPU2_DIMM 6
CPU2_DIMM 2
CPU2_DIMM 9
CPU2_DIMM 5
CPU2_DIMM 1
1CPU
configuration
2CPU
configuration
Page 76
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
76
Chapter 2 Preparations
1.14
Battery for RAID Controller
If a RAID Controller (N8103-149/150/151/160) is installed with a battery, you can avoid data loss caused by
accidents including temporary blackout during Write Back operation. The model of the battery to be used
depends on RAID Controller.
• For N8103-149/150/151, use N8103-153
• For N8103-160, use N8103-162
1.14.1
Handling precautions
Described below are the precautions to be observed whenever using the battery. Be sure to observe the
following, otherwise property such as data or other devices might be destroyed.
• Use the battery dedicated to the RAID Controller you are using.
• The battery is a very delicate electronic device. Before installation, touch the metal frame part of the
server to discharge the static electricity from your body.
• Do not drop or bump the battery.
• For recycling and disposing of the battery, refer to the User’s Guide that comes with it.
1.14.2
Installing Battery
This section describes the procedure of installing a battery for RAID Controller (N8103-149/150/151/160).
1. Refer to steps 1 to 6 in Chapter 2 (1.3 Overview of Installation and Removal) for preparations.
2. Connect a cable that comes with
additional battery to the additional
battery.
When connecting the cable, pay
attention to the shape of connector.
3. Install the additional battery to the
support bar by using 3 screws.
The installation position of the battery
depends on installed RAID Controller.
Page 77
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
77
Chapter 2 Preparations
4. Connect the cable of additional battery
to RAID Controller.
5. Remove the two screws from server
chassis, and remove the RAID
Controller bracket.
6. Remove the two screws from RAID
Controller, and remove PCI bracket.
7. Install the RAID Controller bracket to
RAID Controller using two screws you
have removed in Step 6.
8. Install RAID Controller to the RAID
Controller connector on motherboard,
using two screws you have removed in
Step 7.
9. Connect Mini SAS cable to RAID
Controller.
1.14.3
Removal
For removing the battery for the RAID Controller, reverse the installation procedure.
Page 78
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
78
Chapter 2 Preparations
1.15
LAN Riser Card
The server supports LAN Riser Card that allows a LAN port to be added.
Install LAN Riser Card to LAN Riser Card slot on motherboard. The motherboard has one slot to install the
LAN Riser Card.
Important
You must avoid static electricity to work with the procedure below. For details, refer
to Chapter 2 (1.2 Anti-static Measures).
1.15.1
Installation
Follow steps below to install LAN Riser Card.
1. Refer to step 1 to 6 in Chapter 2 (1.3 Overview of Installation and Removal) for preparations.
2. Remove the screw from the blank cover.
3. Remove the blank cover.
Note
Keep the removed cover for future use.
4. Remove two screws from the motherboard.
Screw
Screws
Page 79
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
79
Chapter 2 Preparations
5. Align the pin terminals of LAN Riser Card with the LAN Riser Card slot, and insert the card securely.
6. Secure the bracket of LAN Riser Card with two screws you have removed in step 4.
7. Install the port cover provided with LAN Riser Card.
1.15.2
Removal
Remove LAN Riser Card in reverse order of installation steps.
Important
To maintain the cooling effect in the server, install the blank cover in the vacant
LAN Riser Card slot.
Page 80
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
80
Chapter 2 Preparations
1.16
Redundant Fan Unit
This server can work with redundant cooling fan system by adding an optional fan unit.
The fan units are hot-swappable even while the system is powered-on and running.
Adding an additional CPU requires additional fan unit to be installed.
The figure below shows the slot numbers assigned to the slots of standard cooling fans and optional cooling
fans.
*1 Slots to install additional fan unit when additional CPU board is installed
*2 Slots to install redundant fan unit
Install fan units in slots FAN 1F to 4F In 1-CPU configuration.
Install fan units in slots FAN 1F to 5F In 2-CPU configuration.
Important
If you install
additional fan unit, prepare to install it according to procedures in
Chapter 2 (1.12 Processor).
冗長用ファンスロット
(オプション)*2
増設用FAN スロット
(オプション)*1
前面側
背面側
標準実装
REAR
FRONT
Slots for redundant fan unit
(option) *1
Factory-
installed fan
units
Slots for additional fan unit
for additional CPU *1
Page 81
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
81
Chapter 2 Preparations
1.16.1
Installation
Take the steps below to install fan unit.
(1) Additional fan unit for additional processor (CPU).
1. Refer to step 1 to 6 in Chapter 2 (1.3 Overview of Installation and Removal) for preparations.
2. Remove the fan cover.
3. Locate the slot to install an additional fan (FAN 5R).
4. Insert fan unit straight into slot.
When the fan unit is inserted to the
end, it is locked with clicking sound.
Note
Keep the removed fan cover for future use.
(2) Additional for redundant configuration
1. Refer to step 1 to 6 in Chapter 2 (1.3 Overview of Installation and Removal) for preparations.
2. Locate the slots to install an additional fan.
In 1-CPU configuration: Install redundant fan units to slots FAN 1F to 4F.
In 2-CPU configuration: "Install redundant fan units to slots FAN 1F to 5F.
3. Insert fan unit straight into slot.
When the fan unit is inserted to the
end, it is locked with clicking sound.
Page 82
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
82
Chapter 2 Preparations
1.16.2
Replacement / Removal
To remove additional/redundant fan unit, reverse the installation procedure.
When replacing the fan unit, fan units are hot-swappable even while the system is powered-on and running.
You can identify the failing fan by using the management tool such as EXPRESSSCOPE Engine 3.
While the system is powered-on or running, the LED of failed fan unit is lit.
CAUTION
Be sure to observe the following precautions to use the server safely. Failure to
observe the precautions may cause burns, injury, and property damage. For
details, refer to Safety precautions in Precautions for Use.
• Pay attention to electric hazard.
Page 83
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
83
Chapter 2 Preparations
1.17
PCI Card
This server provides a riser card (2 types) and a slot for RAID controller. The riser card can connect three
Full Height PCI card, two Low Profile PCI card.
Important
You must avoid static electricity to work with the procedure below. For
details, refer to Chapter 2 (1.2 Anti-static Measures).
1.17.1
Notes
Read the following notes when installing or removing a PCI card.
• Do not touch the terminals of the riser cards and the leads of electronic components with your bare
hand. Fingerprints and dust left on them cause the server to malfunction due to a connection failure or
damage to the leads.
• Available type of PCI card depends on riser card. Make sure the card type before connecting it to riser
card.
• The server provides no connector to connect a LED connector which is supplied in RAID Controller
used to indicate disk access.
• PCI slot number "1A" is assigned to the RAID controller slot,"1B, 2B, 3C" are assigned to the riser card
for Full Height PCI cards, "1C, 2C" are assigned to the riser card for Low Profile PCI cards, and “1D” is
assigned to LAN Riser Card slot.
• The search order for PCI bus slot on boot is as follows.
Slot 1A (dedicated to RAID Controller) → Slot 1B (Full height card slot) → Slot 2B (Full height card slot)
→ Slot 1C (Low profile card slot) → Slot 2C (Low profile card slot) → Slot 3C (Full height card slot) →
Slot 1D (dedicated to LAN riser card)
• The PCI devices of the same type (including onboard PCI device) may be recognized in different order
from that described above, depending on OS or RAID Configuration Utility. Check the slot location of
PCI device by PCI bus number, device number and function number shown in the table below.
PCI device Bus number Device number Function number
Onboard NIC1
02h 0 0
Onboard NIC2
02h 0 1
RAID-dedicated slot 1A
21h 0 ×
PCI slot 1B (Full height)
25h 0 ×
PCI slot 2B (Full height)
29h 0 ×
PCI slot 2B (N8116-26)
2Ah 1 ×
PCI slot 1C (Low Profile)
2Dh 0 ×
PCI slot 2C (Low Profile)
31h 0 ×
PCI slot 3C (Full height)
84h 0 ×
LAN riser card-dedicated slot 1D
03h 0 ×
• If an additional LAN card is installed, it is hard to push the catch of the connector with your finger that is
connected to the LAN card. Disconnect the connector pushing the catch with a standard screwdriver. At
this time, be very careful for the screwdriver not to damage the LAN card.
• If a bootable device such as a PCI card or USB device is added, the boot order may change.
In BIOS Setup Utility, select Hard Drive BBS Priorities from the Boot menu, and then specify a higher
priority for the boot device.
Boot → Hard Drive BBS Priorities → Check the display
If the boot device is an HDD under an optional RAID Controller, the display is (Bus xx Dev 00) PCI
RAID Adapter. Note that the value for xx changes depending on the PCI slot where a RAID board is
installed.
• For a RAID Controller, LAN card (network boot), or Fibre Channel controller, if no hard disk drive on
which an OS is installed is connected, set the option ROM for that slot to Disabled. Refer to Chapter 2
(1. Detail of System BIOS) in "Maintenance Guide" for how to specify it.
Page 84
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
84
Chapter 2 Preparations
1.17.2
Supported boards and available slots
The following tables list supported boards and slots available for them. For details of the features of each
board, refer to the manual supplied with it.
Tips
• Different boards mounted on the same bus operate at the lower frequency.
• When the operation performance of a PCI card is higher than the PCI slot on the
server, the PCI card
operates with the performance of the PCI slot on the
server.
Page 85
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
85
Chapter 2 Preparations
(1) Standard riser cards
Product
number
Product
name
Slot number #1A #1B #2B #1C #2C
#3C
(2 CPUs
required)
#1D
Remarks
PCI standard PCIe 3.0
PCI slot
performance
X8 lane X4 lane X8 lane
Socket type
x8 socket
x16 socket
x8 socket
x16 socket
x8 socket
Transfer bandwidth
(per lane)
8 Gb/s
Slot size
Dedicated
to RAID
Controller
Full height
Low profile
Full height
Dedicated
to LAN
riser card
Available card size
220 mm
max.
312 mm
max.
220 mm max.
N8103-149
RAID Controller (512 MB,
RAID 0/1)
(Card performance: PCI
EXPRESS 2.0 (x8))
√
– – – – – –
Dedicated to connecting internal hard
disk drive.
Additional battery N8103-153 can be
mounted.
Up to one internal and two external
additional batteries can be mounted.
N8103-150 RAID Controller (512 MB,
RAID 0/1/5/6)
(Card performance: PCI
EXPRESS 2.0 (x8))
√
– – – – – –
N8103-151
RAID Controller (1 GB, RAID
0/1/5/6)
(Card performance: PCI
EXPRESS 2.0 (x8))
√
– – – – – –
Dedicated to connecting internal hard
disk drive.
Additional battery N8103-153 can be
mounted.
Up to one internal and two external
additional batteries can be mounted.
MegaRAID CacheCade N8103-156
can be mounted.
N8103-160
RAID Controller (1 GB, RAID
0/1/5/6)
(Card performance: PCI
EXPRESS 2.0 (x8)) –
√ √
–
√ √
–
Dedicated to connecting external
devices.
Up to two cards can be mounted.
Additional battery N8103-162 can be
mounted.
Up to one internal and two external
additional batteries can be mounted.
N8103-104A SAS Controller
(Card performance: PCI
EXPRESS (x8))
–
√ √ √ √ √
–
Dedicated to connecting external
devices.
Up to three cards ca n be mounted.
N8103-142
SAS Controller
(Card performance: PCI
EXPRESS 2.0 (x8))
–
√ √ √ √ √
–
N8190-153
Fibre Channel Controller (8
Gbps/Optical)
(Card performance: PCI
EXPRESS 2.0 (x8))
–
√ √
–
√ √
–
Dedicated to connecting external
Fibre Channel devices.
N8190-154
Fibre Channel Controller (2ch)
(8 Gbps/Optical)
(Card performance: PCI
EXPRESS 2.0 (x8))
–
√ √
– –
√
–
N8104-135
1000BASE-T Riser C ard (2ch)
(Card performance: PCI
EXPRESS 2.0 (x8))
– – – – – –
√
For additional LAN port.
Teaming (AFT/SFT/ALB) and
bonding with onboard LAN and
N8104-135/138/132/133 is supported.
N8104-137
10GBASE-SFP+ Riser Card
(2ch)
(Card performance: PCI
EXPRESS 3.0 (x8))
– – – – – –
√
For additional LAN port.
Prepare SFP+ module N8104-129 if
needed.
Teaming (AFT/SFT/ALB) and
bonding with additi onal
10GBASE-SFP+ board is supported.
N8104-138 1000BASE-T Adapter (1ch)
(Card performance: PCI
EXPRESS 2.0 (x1))
–
√ √ √ √ √
–
For additional LAN port.
Teaming (AFT/SFT/ALB) and
bonding with onboard LAN and
N8104-135/138/132/133 is supported.
N8104-132
1000BASE-T Adapter (2ch)
(Card performance: PCI
EXPRESS 2.0 (x1))
–
√ √ √ √* √
–
For additional LAN port.
Teaming (AFT/SFT/ALB) and
bonding with onboard LAN and
N8104-135/138/132/133 is supported.
* Cannot be mounted in #2C on
WS2003.
N8104-133 1000BASE-T Adapter (4ch)
(Card performance: PCI
EXPRESS 2.0 (x2))
–
√ √ √ √ √
–
For additional LAN port.
Teaming (AFT/SFT/ALB) and
bonding with onboard LAN and
N8104-135/138/132/133 is supported.
Page 86
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
86
Chapter 2 Preparations
Product
number
Product
name
Slot number #1A #1B #2B #1C #2C
#3C
(2 CPUs
required)
#1D
Remarks
PCI standard
PCIe 3.0
PCI slot
performance
X8 lane X4 lane X8 lane
Socket type
x8 socket
x16 socket
x8 socket
x16 socket
x8 socket
Transfer bandwidth
(per lane)
8 Gb/s
Slot size
Dedicated
to RAID
Controller
Full height
Low profile
Full height
Dedicated
to LAN
riser card
Available card size
220 mm
max.
312 mm
max.
220 mm max.
N8104-128
10GBASE Adapter (S FP+/2ch)
(Card performance: PCI
EXPRESS 2.0 (x8))
–
√ √
– –
√
–
For additional LAN port.
Prepare SFP+ module N8104-129 if
needed.
Teaming (AFT/SFT/ALB) and
bonding with additi onal
10GBASE-SFP+ board is supported.
N8104-131 10G Converged Network
Adapter (2ch)
(10Gbps/Optical)
–
√ √
– –
√
–
Teaming/bonding with LAN is not
available.
N8117-01A
Additional RS-232C connector
kit – – –
√ √ √
–
For additional serial port B
(RS-232C).
Only one card can be mounted.
√: Can be mounted, –: Cannot be mounted
*1 Data transfer rate of PCI slot = Transfer bandwidth × Number of lanes
<Example> x8 lane = 64 Gbps (one-way)
*2 Connector size. Cards exceeding the number of sockets cannot be connected.
<Example> x4 socket can connect with x1 and x4 cards, but not x8 card.
*3 Use RS-232C cable (B).
Page 87
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
87
Chapter 2 Preparations
(2) N8116-25 riser card (PCIex16) (Option)
Product
number
Product
name
Slot number #1A #1B #1C #2C
#3C
(2 CPUs
required)
#1D
Remarks
PCI standard PCIe 3.0
PCI slot
performance
X8 lane x16 lane X4 lane X8 lane
Socket type x8 socket
x16
socket
x8 socket
x16
socket
x8 socket
Transfer bandwidth
(per lane)
8 Gb/s
Slot size
Dedicated
to RAID
Controller
Full height
Low profile
Full height
Dedicated
to LAN
riser card
Available card size
312 mm
max.
220 mm max.
N8103-149
RAID Controller (512 MB,
RAID 0/1)
(Card performance: PCI
EXPRESS 2.0 (x8))
√
– – – – –
Dedicated to connecting internal hard
disk drive.
Additional battery N8103-153 can be
mounted.
Up to one internal and two external
additional batteries can be mounted.
N8103-150 RAID Controller (512 MB,
RAID 0/1/5/6)
(Card performance: PCI
EXPRESS 2.0 (x8))
√
– – – – –
N8103-151
RAID Controller (1 GB, RAID
0/1/5/6)
(Card performance: PCI
EXPRESS 2.0 (x8))
√
– – – – –
Dedicated to connecting internal hard
disk drive.
Additional battery N8103-153 can be
mounted.
Up to one internal and two external
additional batteries can be mounted.
MegaRAID CacheCade N8103-156
can be mounted.
N8103-160
RAID Controller (1 GB, RAID
0/1/5/6)
(Card performance: PCI
EXPRESS 2.0 (x8)) –
√
–
√ √
–
Dedicated to connecting external
devices.
Up to two cards can be mounted.
Additional battery N8103-162 can be
mounted.
Up to one internal and two external
additional batteries can be mounted.
N8103-104A SAS Controller
(Card performance: PCI
EXPRESS (x8))
–
√ √ √ √
–
Dedicated to connecting external
devices.
Up to three cards ca n be mounted.
N8103-142
SAS Controller
(Card performance: PCI
EXPRESS 2.0 (x8))
–
√ √ √ √
–
N8190-153
Fibre Channel Controller (8
Gbps/Optical)
(Card performance: PCI
EXPRESS 2.0 (x8))
–
√
–
√ √
–
Dedicated to connecting external
Fibre Channel devices.
N8190-154
Fibre Channel Controller (2ch)
(8 Gbps/Optical)
(Card performance: PCI
EXPRESS 2.0 (x8))
–
√
– –
√
–
N8104-135 1000BASE-T Riser Card (2ch)
(Card performance: PCI
EXPRESS 2.0 (x8))
– – – – –
√
For additional LAN port.
Teaming (AFT/SFT/ALB) and
bonding with onboard LAN and
N8104-135/138/132/133 is supported.
N8104-137
10GBASE-SFP+ Riser Card
(2ch)
(Card performance: PCI
EXPRESS 3.0 (x8))
– – – – –
√
For additional LAN port.
Prepare SFP+ module N8104-129 if
needed.
Teaming (AFT/SFT/ALB) and
bonding with additi onal
10GBASE-SFP+ board is supp orted.
N8104-138 1000BASE-T Adapter (1ch)
(Card performance: PCI
EXPRESS 2.0 (x1))
–
√ √ √ √
–
For additional LAN port.
Teaming (AFT/SFT/ALB) and
bonding with onboard LAN and
N8104-135/138/132/133 is supported.
N8104-132
1000BASE-T Adapter (2ch)
(Card performance: PCI
EXPRESS 2.0 (x1))
–
√ √ √* √
–
For additional LAN port.
Teaming (AFT/SFT/ALB) and
bonding with onboard LAN and
N8104-135/138/132/133 is supported.
* Cannot be mounted in #2C on
WS2003.
N8104-133 1000BASE-T Adapter (4ch)
(Card performance: PCI
EXPRESS 2.0 (x2))
–
√ √ √ √
–
For additional LAN port.
Teaming (AFT/SFT/ALB) and
bonding with onboard LAN and
N8104-135/138/132/133 is supported.
Page 88
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
88
Chapter 2 Preparations
Product
number
Product
name
Slot number #1A #1B #1C #2C
#3C
(2 CPUs
required)
#1D
Remarks
PCI standard
PCIe 3.0
PCI slot
performance
X8 lane x16 lane X4 lane X8 lane
Socket type x8 socket
x16
socket
x8 socket
x16
socket
x8 socket
Transfer bandwidth
(per lane)
8 Gb/s
Slot size
Dedicated
to RAID
Controller
Full height
Low profile
Full height
Dedicated
to LAN
riser card
Available card size
312 mm
max.
220 mm max.
N8104-128
10GBASE Adapter (S FP+/2ch)
(Card performance: PCI
EXPRESS 2.0 (x8))
–
√
– –
√
–
For additional LAN port.
Prepare SFP+ module N8104-129 if
needed.
Teaming (AFT/SFT/ALB) and
bonding with additi onal
10GBASE-SFP+ board is supported.
N8104-131 10G Converged Network
Adapter (2ch)
(10Gbps/Optical)
–
√
– –
√
–
Teaming/bonding with LAN is not
available.
N8117-01A
Additional RS-232C connector
kit – –
√ √ √
–
For additional serial port B
(RS-232C).
Only one card can be mounted.
√: Can be mounted, –: Cannot be mounted
*1 Data transfer rate of PCI slot = Transfer bandwidth × Number of lanes
<Example> x8 lane = 64 Gbps (one-wa y)
*2 Connector size. Cards exceeding the number of sockets cannot be connected.
<Example> x4 socket can connect with x1 and x4 cards, but not x8 card.
*3 Use RS-232C cable (B).
Page 89
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
89
Chapter 2 Preparations
(3) N8116-26 riser card (PCI-X) (Option)
Product
number
Product
name
Slot number #1A #1B #2B #1C #2C
#3C
(2 CPUs
required)
#1D
Remarks
PCI standard PCIe 3.0 PCI-X PCIe 3.0
PCI slot
performance
X8 lane
64 bit/
133 MHz
X4 lane X8 lane
Socket type x8 socket
x16
socket
3.3 V x8 socket
x16
socket
x8 socket
Transfer bandwidth
(per lane)
8 Gb/s – 8 Gb/s
Slot size
Dedicate
d to RAID
Controller
Full height Low profile
Full
height
Dedicate
d to LAN
riser card
Available card size
220 mm
max.
312 mm
max.
220 mm max.
N8103-149
RAID Controller (512 MB,
RAID 0/1)
(Card performance: PCI
EXPRESS 2.0 (x8))
√
– – – – – –
Dedicated to connecting internal
hard disk drive.
Additional battery N8103-153 can
be mounted.
Up to one internal and two external
additional batteries can be
mounted.
N8103-150 RAID Controller (512 MB,
RAID 0/1/5/6)
(Card performance: PCI
EXPRESS 2.0 (x8))
√
– – – – – –
N8103-151
RAID Controller (1 GB, RAID
0/1/5/6)
(Card performance: PCI
EXPRESS 2.0 (x8))
√
– – – – – –
Dedicated to connecting internal
hard disk drive.
Additional battery N8103-153 can
be mounted.
Up to one internal and two external
additional batteries can be
mounted.
MegaRAID CacheCade N8103-156
can be mounted.
N8103-160
RAID Controller (1 GB, RAID
0/1/5/6)
(Card performance: PCI
EXPRESS 2.0 (x8))
–
√
– –
√ √
–
Dedicated to connecting external
devices.
Up to two cards can be mounted.
Additional battery N8103-162 can
be mounted.
Up to one internal and two external
additional batteries can be
mounted.
N8103-104A SAS Controller
(Card performance: PCI
EXPRESS (x8))
–
√
–
√ √ √
–
Dedicated to connecting external
devices.
Up to three cards ca n be mounted.
N8103-142
SAS Controller
(Card performance: PCI
EXPRESS 2.0 (x8))
–
√
–
√ √ √
–
N8190-153 Fibre C hannel Controller (8
Gbps/Optical)
(Card performance: PCI
EXPRESS 2.0 (x8))
–
√
– –
√ √
–
Dedicated to connecting external
Fibre Channel devices.
N8190-154
Fibre Channel Controller (2ch)
(8 Gbps/Optical)
(Card performance: PCI
EXPRESS 2.0 (x8))
–
√
– – –
√
–
N8104-135 1000BASE-T Riser Card (2ch)
(Card performance: PCI
EXPRESS 2.0 (x8)) – – – – – –
√
For additional LAN port.
Teaming (AFT/SFT/ALB) and
bonding with onboard LAN and
N8104-135/138/132/133 is
supported.
N8104-137
10GBASE-SFP+ Riser Card
(2ch)
(Card performance: PCI
EXPRESS 3.0 (x8)) – – – – – –
√
For additional LAN port.
Prepare SFP+ module N8104-129
if needed.
Teaming (AFT/SFT/ALB) and
bonding with additi onal
10GBASE-SFP+ board is
supported.
N8104-138 1000BASE-T Adapter (1ch)
(Card performance: PCI
EXPRESS 2.0 (x1)) –
√
–
√ √ √
–
For additional LAN port.
Teaming (AFT/SFT/ALB) and
bonding with onboard LAN and
N8104-135/138/132/133 is
supported.
Page 90
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
90
Chapter 2 Preparations
Product
number
Product
name
Slot number #1A #1B #2B #1C #2C
#3C
(2 CPUs
required)
#1D
Remarks
PCI standard
PCIe 3.0
PCI-X
PCIe 3.0
PCI slot
performance
X8 lane
64 bit/
133 MHz
X4 lane X8 lane
Socket type x8 socket
x16
socket
3.3 V x8 socket
x16
socket
x8 socket
Transfer bandwidth
(per lane)
8 Gb/s – 8 Gb/s
Slot size
Dedicate
d to RAID
Controller
Full height Low profile
Full
height
Dedicate
d to LAN
riser card
Available card size
220 mm
max.
312 mm
max.
220 mm max.
N8104-132
1000BASE-T Adapter (2ch)
(Card performance: PCI
EXPRESS 2.0 (x1))
–
√
–
√ √* √
–
For additional LAN port.
Teaming (AFT/SFT/ALB) and
bonding with onboard LAN and
N8104-135/138/132/133 is
supported.
* Cannot be mounted in #2C on
WS2003.
N8104-133
1000BASE-T Adapter (4ch)
(Card performance: PCI
EXPRESS 2.0 (x2)) –
√
–
√ √ √
–
For additional LAN port.
Teaming (AFT/SFT/ALB) and
bonding with onboard LAN and
N8104-135/138/132/133 is
supported.
N8104-128 10GBASE Adapter
(SFP+/2ch)
(Card performance: PCI
EXPRESS 2.0 (x8)) –
√
– – –
√
–
For additional LAN port.
Prepare SFP+ module N8104-129
if needed.
Teaming (AFT/SFT/ALB) and
bonding with additi onal
10GBASE-SFP+ board is
supported.
N8104-131
10G Converged Network
Adapter (2ch)
(10Gbps/Optical)
–
√
– – –
√
–
Teaming/bonding with LAN is not
available.
N8117-01A Additional RS-232C connector
kit – – –
√ √ √
–
For additional serial port B
(RS-232C).
Only one card can be mounted.
√: Can be mounted, –: Cannot be mounted
*1 Data transfer rate of PCI slot = Transfer bandwidth × Number of lanes
<Example> x8 lane = 64 Gbps (one-way)
*2 Connector size. Cards exceeding the number of sockets cannot be connected.
<Example> x4 socket can connect with x1 and x4 cards, but not x8 card.
*3 Use RS-232C cable (B).
Page 91
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
91
Chapter 2 Preparations
1.17.3
Installation
Install a PCI card to the PCI riser card in the following procedure.
Important
When installing a PCI card, make sure the connector of the board fits the
connector of the riser card.
Note
• Check the board type (Low Profile or Full Height) which respective PCI riser
card supports and the type of PCI card to be installed.
• If the battery for RAID controller is installed, refer to Chapter 2 (1.11 Battery for
RAID Controller).
1. Refer to steps 1 to 6 in Chapter 2 (1.3 Overview of Installation and Removal) for preparations.
2. Remove the two screw securing the rise
card. Hold the both ends of the PCI riser
card and lift it off.
3. Confirm the installation position with the reference to the table on 1.17.2 Supported boards and
available slots.
4. Remove a screw from the PCI rise card
and remove the blank cover.
Note
Keep the removed blank cover for future use.
5. Install a PCI card to the PCI riser card.
When installing the card, position the
terminal part of the PCI card to the PCI
riser card slot and insert it.
Important
Do not touch the terminal part of riser cards or PCI cards and the signal pins
of electric parts installed on the board. Installing boards with dirt or oil can
cause malfunction.
Note
• Make sure that the head of a PCI card bracket is seated into the fixed slot of
fPCI riser card.
• Depending on type of PCI cards, the terminal part of the PCI card may be too
large to fit in the connector.
• If you have trouble installing the board, remove the board once and try again. If
you apply excessive pressure on the board, a PCI card or riser card might
break.
Page 92
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
92
Chapter 2 Preparations
6. Fix the PCI card with the screw you removed at step 4.
Tips
To connect a PCI card to the connector on motherboard with cable, connect a
cable to PCI card before installing PCI riser card.
7. Connect the PCI riser card to the
motherboard slot and fix the card with
the screw you removed at step 2.
When connecting the card, position the
terminal part of the card to the slot on the
motherboard and insert it.
8. Continue to install or remove internal optional devices, mount and connect the server, and turn it on.
9. Make sure that no error messages are displayed on POST screen.
For details on POST error messages, refer to Chapter 3 (1. POST Error Message) in "Maintenance
Guide".
10. Start the configuration utility installed on the mounted board to set up the board.
Availability or startup and operation procedure of the utility depends on board. For details, refer to the
manual that comes with the board. If a PCI card including RAID Controller and LAN adapter which
connects to any bootable device is added, the boot priority might be changed to the default
setting. In that case, configure the boot priority in Boot menu of BIOS Setup Utility. For details, refer to
Chapter 2 (1. Detail of System BIOS) in "Maintenance Guide".
1.17.4
Removal
To remove a PCI card, reverse the installation procedure.
Run SETUP and change boot order in Boot menu. Refer to Chapter 2 (1. System BIOS) in "Maintenance
Guide" for how to specify it.
If using the server while the board is removed, attach the blank cover that comes with the riser card.
Page 93
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
93
Chapter 2 Preparations
1.17.5
Installing RAID Controller
This section describes how to install an optional RAID Controller to the slot dedicated to RAID Controller.
(1) When using the optional RAID controller (N8103-149/150/151/160)
For details, refer to the manual that comes with optional RAID Controller (N8103-149/150/151/160).
Important
• You must avoid static electricity to work with the procedure below. For
details, refer to Chapter 2 (1.2 Anti-static Measures).
• Do not change the mode to hibernate during building a RAID System.
Note
• When installing an optional RAID Controller, start the BIOS Setup utility, select
PCI Configuration from the Advanced menu, and then make sure that the
parameter of PCI Slot xx ROM (xx is PCI slot number) is set to Enabled.
• When connecting a RAID Controller, set the boot priority to 8th or higher in the
Boot menu of the BIOS Setup utility. If the setting is 9th or lower, the
configuration menu for RAID Controllers cannot be launched.
Take the following procedure to install RAID Controller (N8103-149/150/151/160).
1. Refer to step 1 to 6 in Chapter 2 (1.3 Overview of Installation and Removal) for preparations.
2. Remove the four screws and
remove PCI riser card.
3. Remove the two screws from
RAID Controller, and remove PCI
bracket.
4. Remove the two screws from
server chassis, and remove RAID
Controller bracket.
5. Attach the RAID Controller bracket
to RAID Controller with two screws
you have removed in Step 4.
Ports 4-7
Ports 0-3
Page 94
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
94
Chapter 2 Preparations
6. Insert RAID Controller into the slot dedicated to RAID Controller.
7. Secure the RAID Controller bracket with two screws you have removed in Step 4.
8. Disconnect SAS/SATA cable from SATA connector on motherboard.
8-1 When four or less hard disk drives are installed:
Connect SAS/SATA cable removed in Step 9 to connector (Ports 0-3) on RAID Controller.
8-2 When five or more hard disk drives are installed:
Connect SAS/SATA cable removed in Step 9 to connector (Ports 0-3) on RAID Controller.
Connect SAS/SATA cable provided with the server to connector (Ports 4-7) on RAID
Controller.
Remove a single screw from server chassis, and remove battery tray for RAID Controller.
Connect another end of SAS/SATA cable that has been connected to connector (Ports 4-7)
on RAID Controller, to the connector on backplane.
Secure the battery tray for RAID Controller with a single screw.
9. Continue to install or remove internal optional devices, mount and connect the server, and turn it
on.
Page 95
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
95
Chapter 2 Preparations
1.18
Additional HDD Cage
This server can have additional HDD cage for installing additional hard disk drives.
1.18.1
Installation
Follow steps below to install an additional HDD cage.
1. Refer to steps 1 to 6 in Chapter 2 (1.3 Overview of Installation and Removal) for preparations.
2. Remove the six screws from protective cover, and remove the protective cover.
3. Remove the blank cover of 2.5-inch HDD cage by pulling it toward you.
4. Install the additional HDD cage.
Page 96
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
96
Chapter 2 Preparations
5. Secure the protective cover with six screws you have removed in Step 2.
6. Disconnect SAS cable from the factory-installed HDD cage.
7. Install expander board to Expansion Bay and secure it with four screws provided with 2.5-inch
HDD cage.
8. Connect the SAS cable (short) provided with 2.5-inch additional HDD cage to RAID Controller and
Expander board.
9. Connect the provided DC cable to Expander board and additional HDD cage.
Page 97
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
97
Chapter 2 Preparations
10. Connect the SAS cable (long) provided with 2.5-inch additional HDD cage to Expander Board,
factory-installed HDD cage, and additional HDD cage.
11. Connect the provided SGPIO cable to factory-installed HDD cage and additional HDD cage.
12. Install support bar, PCI riser card, and then install the top cover.
13. Attach the ID label to the front face of chassis.
Note
Keep the removed blank cover for future use.
1.18.2
Removal
To remove an additional HDD cage, reverse the installation procedure above.
Important
To maintain the cooling effect in the server, install the blank cover in the vacant
slot.
Page 98
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
98
Chapter 2 Preparations
1.19
Optical Disk Drive
This section describes the procedure for installing the optional optical disk drive.
Important Do not install any unsupported optical disk drive.
1.19.1
Installation
Install an optical disk drive in the following procedure.
1. Refer to Steps 1 to 6 in Chapter 2 (1.3 Overview of Installation and Removal) for preparations.
2. Lift the lock of optical disk
drive, and pull the tray
toward you.
3. Remove a single screw
from the tray you have
removed in Step 1, and
remove the bracket.
4. Remove the dummy cover.
Note
Keep the removed screws and dummy cover for future use.
5. Install the optical disk drive to the tray.
Page 99
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
99
Chapter 2 Preparations
6. Secure the bracket to optical disk drive
with a screw.
7. Insert the optical disk drive and secure
the drive tray.
8. Connect the optical disk drive cable.
1.19.2
Removal
To remove an optical disk drive, reverse the installation procedure above.
Page 100
1. Installing Internal Optional Devices
Express5800/R120d-2M User’s Guide
100
Chapter 2 Preparations
1.20
Use of Internal hard disk drives in the RAID System
This section describes how to use the hard disk drives installed in the HDD cage at the front of the server in the
RAID System.
Important
If you use hard disk drive
s in the RAID System or change the RAID level,
initialize the hard disk drives. If the hard disk drive
contains valuable data,
be sure to backup the hard disk drive befo
re installing the RAID Controller
and configuring the RAID System.
Note
In the RAID System, use hard disk drives that have the same specifications
(capacity, rotational speed, and standard) for each Disk Array.
Tips
Logical Drives can be created even with only one Physical Device.
If using internal hard disk drives in RAID System with an optional RAID Controller (N8103-149/150/151/160)
installed in the server, the SATA cable needs to be rewired.
Tips
When using SAS hard disk drives, RAID Controllers must be connected.
Loading...
