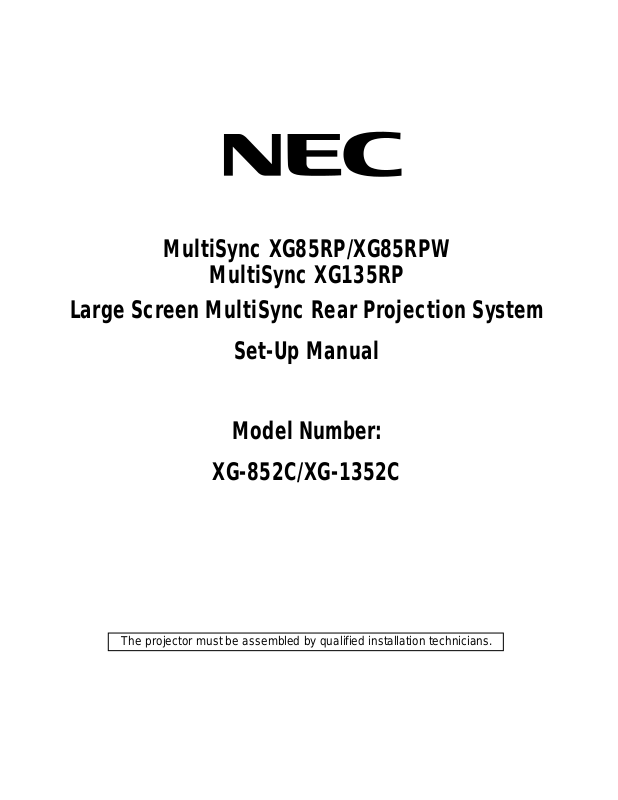

Nec MultiSync XG85RP, MultiSync XG85RPW, MultiSync XG135RP Set-Up Manual

MultiSync XG85RP/XG85RPW

MultiSync XG135RP

Large Screen MultiSync Rear Projection System

Set-Up Manual

Model Number:

XG-852C/XG-1352C

The projector must be assembled by qualified installation technicians.

12345

CONTENTS.

INSTALLATION (for qualified installation technicians) .............. 4

Assembly Instructions.................................................................4

PART NAMES AND FUNCTIONS ......................................... 8

Front Terminal Panel ...................................................................8

Rear Control Panel ......................................................................8

Optional Boards.........................................................................10

Remote Control Unit..................................................................12

Battery installation and replacement ...................................15

Remote control cautions.....................................................15

Handling remote control and batteries ................................15

Set-Up (for service personnel)

BEFORE SET-UP ......................................................... 18

Displaying the Menu and Adjustment Screens ..........................18

Storing Projector Settings (Automatic Save Feature) ................19

On ADJUST MODE ....................................................................21

Test Pattern...............................................................................22

SIGNAL ENTRY............................................................23

Signal Entry Procedures ............................................................23

Checking and Setting Various Parameters ................................35

ADJUSTMENT .............................................................44

Set-Up Procedure......................................................................44

Electrical Focus Adjustment ......................................................45

Alignment Adjustment...............................................................49

Static Convergence Adjustment ................................................55

Dynamic Convergence Adjustment............................................56

Color Temperature and White Balance Adjustment ...................66

R, G, and B Gain Adjustment.....................................................67

PASSCODE................................................................ 68

Entering Passcode.....................................................................68

Registering Passcode................................................................69

Changing Your Passcode ..........................................................71

Canceling Your Passcode..........................................................73

SETTING .................................................................. 74

Displaying the Various Setting Features ....................................74

Projection Type Selection..........................................................75

Connecting to the Switcher .......................................................77

Default Input Selection ..............................................................79

Focus Edge Mode...................................................................... 82

S-Video Mode Selection ............................................................84

Video Mode Selection................................................................86

Auto Power ON Mode Setting....................................................88

Warm-Up Mode Setting ............................................................90

Automatic Save Feature.............................................................92

Phosphor Saver Setting ............................................................94

Signal Switching Mute Mode Setting ........................................96

Direct Entry Access Setting .......................................................98

Blue Focus Tracking Setting....................................................100

Optional Terminal Baud Rate Selection ...................................101

RGB/COMPONENT Search Setting .......................................... 102

On-Screen Display Mode Setting.............................................104

On-Screen Display Color Setting .............................................106

Date, Time Display Setting ...................................................... 108

Entering Date and Time ...........................................................110

PJ Address Display Setting .....................................................112

"NEW SIGNAL" Message Display Setting .................................113

Auto Sequence Setting ............................................................114

Address Setting.......................................................................123

Projector Version Number.......................................................126

Checking and Setting the Running Time .................................127

Viewing Default Data ..............................................................128

REFERENCE ADJUSTMENT............................................ 129

REF. ADJUST menu.................................................................129

ASTIG Adjustment...................................................................130

Bright Uniformity Adjustment..................................................132

White Uniformity Adjustment ..................................................133

Rester Centering Adjustment ..................................................134

Appendix

TIMING CHARTS ........................................................ 136

Pre-set Signals........................................................................136

Input Signal Reference Chart...................................................137

Input Signal Timing .................................................................138

MESSAGE LIST.......................................................... 139

12345

INSTALLATION.

Assembly Instructions

NOTE: Tools Needed for Installation: One 7/16 open end or box end wrench. Note: Ratchet and sockets can be substituted for the

above wrenches.

STEP 1. After uncrating both upper and lower cabinets roll the Lower Cabinet into a position which allows ample working space

around the cabinet.

STEP 2. (Refer to Fig.1) Before lifting the Upper Cabinet test the weight by lifting one side slightly off the floor. With a minimum

of two people (four may be required) and with one hand firmly in Hand Grip and the other under the rear side of cabinet lift and place upon lower cabinet. (NOTE: Align plastic feet with the two round holes in top of lower cabinet.)

FIG.1

HAND GRIP

STEP 3. (Refer to Fig.2) For more structural security bolt the Upper Cabinet to the Lower Cabinet with 4 ea. 1/4 x 1 1/2 hex bolts

and washers (provided). (NOTE: Access fastening locations through Front Access Cover and Hinged Side Grills in lower cabinet see Fig. 3&7)

FIG.2

STEP 4. (Refer to Fig.3) Remove Front Access Cover by grasping at top and bottom and pulling with quick firm pressure.

• Loosen the two 1/4 Turn Wing Fasteners and extend the two Sliding Projector Mounts.

FIG.3

SLIDING PROJECTOR MOUNT

1/4 TURN WING FASTENER

FRONT ACCESS COVER

STEP 5. (Refer to Fig.4) Set projector on four 3" foam packing corners or suitable blocks and roll cabinet forward until mounting holes

on projector are in line with those of the Sliding Projector Mount.

• (Refer to Fig.5) Remove blocks so that projector rests on Sliding Projector Mount. Then bolt projector to mounts with 1/ 4 bolts and washers (provided).

• Slide projector into cabinet and re-fasten 1/4 Turn Wing Fasteners.

FIG.4

ROLL FORWARD

PROJECTOR

FIG.5

3" FOAM PACKING CORNERS

STEP 6. (Refer to Fig.6) Unlatch the two Lift & Turn latches at the rear of the Upper Cabinet and pivot the Mirror Shroud all the way

out.

• With the Mirror Shroud held at the maximum out position, re-latch the Lift & Turn latches.

FIG.6

LIFT & TURN MIRROR SHROUD LATCH.

STEP 7. (Refer to Fig.7) Attach auxiliary Electronic Equipment (optional) to the Rack Mount Rails located behind the Hinged Side

Grills.

FIG.7

ELECTRONIC EQUIPMENT (rack mounted type)

HINGED SIDE GRILL (open position)

STEP 8. (Refer to Fig.8) Attach Speakers to the inside of the Hinged Side Grills with 8-32 x 3/4 pan head machine screws.

FIG.8

SPEAKERS MOUNTED TO SIDE GRILL

HINGED SIDE GRILL (open position)

STEP 9. Plug Projector Power Cord directly into the Projector at lower rear of Projection Cabinet.

• Run system cables through cable Grommet located at the lower rear of the Projection Cabinet. Note: Computer cables can be connected directly to the front of the projector.

STEP10. (Refer to Fig.6) Replace Front Access Cover by aligning with the Slide Grills and pushing with gentle pressure until catches

engage.

FIG.6

LIFT & TURN MIRROR SHROUD LATCH.

12345

PART NAMES AND FUNCTIONS

PART NAMES AND FUNCTIONS.

Rear

Open the front access cover to access the terminal panel. To remove the front access cover, grasp at top and bottom, and pull with quick firm pressure.

Front

OFF POWER ON AC INPUT

POWER STANDBY RC READY

5 6487

Terminal Panel

I H

ACAT OUT R/Cr G/Y B/Cb H/HV V S-VIDEO VIDEO OPTION REMOTE1 REMOTE2

INPUT SELECT

INDICATOR ON/OFF INPUT SELECT ENTER

POWER

J LK

L(MONO) R L(MONO) R L(MONO) R

RGB S-VIDEO VIDEO

AUDIO INPUT

OUT IN

F G

PART NAMES AND FUNCTIONS

Rear Panel

1 Power Switch (Main power)

To turn on the main power to the projector press the switch to the ON position (I). The STANDBY and the RC READY indicator will light. In this condition you can start up the projector by pressing the POWER ON button on the remote control or the POWER button on the rear panel. Press to the OFF position (0) to turn the main power off.

NOTE: When turning off the main power,first return the projector to the standby condition by pressing the POWER OFF button on the remote control or the POWER button on the rear panel and then turn off the main POWER switch.These procedures are necssary to protect your projector and the connected equipment.

2 AC INPUT

Connect the supplied power cord here.

Front Panel

3 Remote Sensor

Receives the signal from the supplied remote control when used in the wireless mode.

4 POWER Indicator

Lights up when the projector is turned on.

5 STANDBY Indicator

Lights up when the projector’s main POWER switch is on Flashes when the projector is not connected with the Switcher correctly or when the Switcher is turned off.

6 RC READY Indicator

Lights up when the projector's main POWER switch is on. Flashes when the projector receives a signal from the remate control.

7 Two Digit Display

INDICATOR:

Displays projector error codes.(“00” in normal operation)

ON/OFF Switch:

Turns the INDICATOR on or off.

A Active Indicator (green LED)

Lights up when the INPUT A slot is selected.

R/Cr,G/Y, B/Cb, H H/V and V Input Terminals (INPUT A)

Connect R,G,B,H (Horizontal sync) and V (Vertical sync) outputs of the external equipment (such as the Switcher). If using a component with a combined sync (SYNC) output,connect it to the H/V terminal. When using

luminance and color-difference signals of HDTV and DVD, connect a Pr/Cr to the R, a Y to the G and a Pb/Cb to the B input of the projector.

C S-VIDEO Input Terminal

Connect to the S-video output of the external equipment such as a VCR with an S-video output.This terminal allows switching between S2 and S1 VIDEO input modes.

D VIDEO Input Terminal

Connect to the video output of the external equipment such as a VCR or laser disk player.

E OPTION Terminal

For system expansion such as PC-control.

F REMOTE 1 Terminal

This terminal allows external control of the projector from either the Switcher or from an external control.When the Switcher is used,connect to the REMOTE 1 terminal on the back of the Switcher.

NOTE: The ISS-6020/ISS-6020G Switcher is compatible with this projector.

G REMOTE 2 Terminal

IN: for the supplied service remote control. OUT: connect to a second projector’s IN terminal to relay the input at the IN terminal.

NOTE: The wireless control does not work when the plug of the supplied remote cable is inserted into the REMOTE 2 IN terminal.

H INPUT B

Slot for adding optional RGB or video input cards.

(INPUT A)

8 INPUT SELECT Buttons

INPUT: press to display the INPUT SELECT screen. SELECT: press to select an input by highlighting the

input terminal. ENTER: press to execute selection and to switch input.

9 POWER Button

Turns the projector on or off when the projector is in the standby condition (Main Power switch must be on and the STANDBY and the RC READY indicator lit).

0 ACAT OUT Terminal

This is a video output connector for the optional built in CCD camera. The CCD camera is needed in order to perform automatic convergence with the optional ACAT software.

I INPUT C

Slot for adding optional RGB or video input cards.

NOTE: The optional RGB INPUT and VIDEO INPUT modules can be installed in the INPUT B and INPUT C slots.

J RGB Audio Input Terminals (L/R)

Connect to the audio outputs of the external equipment such as ISS-6020/6020G.

K S-VIDEO Audio Input Terminals (L/R)

Connect to the S-video audio outputs of the external equipment such as a VCR with S-video outputs.

L VIDEO Audio Input Terminals (L/R)

Connect to the audio outputs of the external equipment such as a VCR.

PART NAMES AND FUNCTIONS

OPTIONAL Boards

VIDEO INPUT Board [XG VIDINA]

Front view

LRLR

VIDEO INPUT

1 Active Indicator (green LED) ...... Lights up when this board is selected.

2 VIDEO INPUT Terminal ............... Connects composite video output signals.

3 S-VIDEO INPUT Terminal ........... Connects S-video output signals.

4 VIDEO INPUT Terminal ............... Connects the audio outputs of the external equipment such as a VCR.

5 S-VIDEO INPUT Terminal ........... Connects the S-video audio outputs of the external equipment such as a VCR with

RGB INPUT Board [XG RGBINA]

Front view

RGB INPUT

R G B H/HV V

1 23

1 Active Indicator (green LED) ...... Lights up when this board is selected.

2 R Input Terminal.......................... Connects a Red output signal.

3 G Input Terminal ......................... Connects a Green output signal.

4 B Input Terminal.......................... Connects a Blue output signal.

5 H/HV Input Terminal.................... Connects horizontal sync or horizontal/vertical sync output signals.

6 V Input Terminal .......................... Connects a vertical sync output signal.

7 AUDIO Input Terminals............... Connects the audio outputs of the external equipment such as the ISS-6020/

VIDEO

S-VIDEO

312

S-video outputs.

456 7

6020G or a PC.

AUDIO INPUT

S-VIDEOVIDEO

AUDIO INPUT

RGB INPUT Board

Top view

8 Rotary Switch (S1001) 9 Jumper(S1002, S1003, S1004)

PART NAMES AND FUNCTIONS

The combination of the rotary switch and the jumper pins allows the projector to accept VIDEO or COMPONENT signals. Note that this board cannot accept RGB signals when board is set to VIDEO input.

Rotary switch (S1001)

Setting of Rotary switch and Jumpers

Rotary Switch(S1001)

0 1

* indicates factory preset.

SLOT FOR OPTIONAL MODULE

INPUT C slot

INPUT B slot INPUT A slot

ACAT OUT R/Cr G/Y B/Cb H/HV V S-VIDEO VIDEO OPTION REMOTE1 REMOTE2

Jumper (S1002, S1003, S1004)

No.

RGB

VIDEO

0 1 3

2, 4-9

Table for Setting Rotary Switch and Jumpers.

Input Signal

Jumpers (2, 3) Short (2, 3) Short (1, 2) Short

R terminal

VIDEO

Pr/Cr

G terminal

Y Y G

Setting of Rotary switch Mark

VIDEO OPTION RGB

VIDEO input COMPONENT input RGB input Not used

B terminal

Pb/Cb

L(MONO) R L(MONO) R L(MONO) R

RGB S-VIDEO VIDEO

AUDIO INPUT

OUT IN

Input

* No.3 is factory preset.

Board Identification

VIDEO

COMPONENT

RGB

Corresponding slot number

You can also select the input signal directly by pressing the INPUT “1” through “10” button. In this case INPUT buttons function as follows:

INPUT A slot

1 2 3 4 5

RGB VIDEO S-VIDEO

*2 *3

INPUT B slot

RGB/COMPONENT/VIDEO S-VIDEO

INPUT C slot

RGB/COMPONENT/VIDEO S-VIDEO

COMPONENT

*1 Some settings allow you to retrieve a COMPONENT signal automatically. See “RGB/COMPONENT Search Setting”. *2 When the optional RGB input board is installed and the RGB input is set, an RGB signal will be selected; when the RGB input

board is installed and the COMPONENT input is set, a COMPONENT signal will be selected; when the optional RGB input board is installed and the VIDEO input is set, a VIDEO signal will be selected. When the optional VIDEO input board is installed, a VIDEO signal will be selected.

*3 An S-VIDEO signal will be selected when :

1. the optional RGB input board is installed and the VIDEO input is set.

2. the optional VIDEO input board is installed.

PART NAMES AND FUNCTIONS

Remote control unit

OPERATE

1 ABC 2 DEF 3 GHI


4 JKL 5 MNO 6 PQR

MUTE

SOUND

7 STU 8 VWX 9 YZ /

MUTE

9 0

DISPLAY

STATIC

NORMAL ENTER

User Remote Control RC-6320

POWER

ON OFF

10 ,.

CAPTION

POWER INPUT

1 ABC 2 DEF 3 GHIOFFON

ADJUST

SOUND FUNC

SOUND MUTE

PHASETILT

ADDRESS

4 JKL 5 MNO 6 PQRTEST

7 STU 8 VWX 9 YZ/

10 ,.

CAPTION

HELP INFO

RGBPOINTSTATIC

POSITION

CURSOR

INPUT LIST

KELVINFOCUS

OFF

OPERATE

PIC FUNC

PIC MUTE

DISPLAY

ENDCTL

U VS

B D

C J

BOW

AMPLIT

LINEAR

R G H

KEYSTN

PINCUS

NORMAL

STORE

CTL ENTER END

NOTE: The full function remote control is designed for setup adjustment. Use the user remote control for normal operation.

Full Function Remote Control RC-6321

PART NAMES AND FUNCTIONS

1POWER Buttons (ON/OFF)

Press the ON button to turn the projector on when the projector is in the standby condition (STANDBY and RC READY indicators lit). Press the OFF button to return the projector to the standby condition.

2TEST Button

Press to display the “TEST PATTERN” menu from which you can select a test pattern.

3ADJUST Button

Press to display the “ADJUST” menu.

4OPERATE Button

Press to display the “OPERATE” menu.

5Backlight Switch

Turns the backlight on and off. If no button operation is made within 30 seconds with the Backlight ON, the Backlight will turn off to conserve battery life.

6PIC FUNC Button

Press to display the picture adjustment screen.

NOTE: Some function items will not be available depending on the type of video signal.

7SOUND FUNC Button

Press to display the VOLUME adjustment screen. You can adjust the volume of the ISS-6020/ISS-6020G Switcher.

8PICTURE (PIC) MUTE Button

Press to mute the picture. Press again to display the picture. You can also mute the picture by holding down CTL and pressing PICTURE MUTE buttons. To restore the picture, holding down CTL and press PICTURE MUTE again. Or simply press END.

NOTE: When the picture is muted by using CTL and PICTURE MUTE buttons, even if input is switched to another or the power is turned off using the remote POWER OFF button, the mute cannot be canceled.

9SOUND MUTE Button

Press to mute the sound. Press again to return the sound.

0DISPLAY Button

Press to turn on or off the on-screen display. Pressing with CTL eliminates the on-screen display; pressing with CTL will restore display.

NOTE: Even if the on-screen display may be turned off with pressing CTL and DISPLAY, any adjustment will still change the projector’s memory settings. This mode is available even when an input is switched to another or the power is turned off using the POWER OFF button on the remote control. On-screen display mute function can be canceled by turning off the main power.

AFOCUS Button

Press to enter the FOCUS mode.Pressing with CTL will bring you to the ASTIG adjustment screen.

BSTATIC Button

Press to enter the STATIC mode. You can adjust the static convergence.

CPOINT Button

Press to enter the POINT mode. You can adjust the point convergence.

DTILT Button

Press to enter the TILT, SKEW mode. You can adjust the tilt and the skew of the projected image.

EBOW Button

Press to enter the BOW mode. You can adjust the horizontal and the vertical bow of the projected image. Pressing with CTL will bring you to the LINE DISTORTION adjustment screen.

FAMPLIT Button

Press to enter the AMPLITUDE mode. You can adjust the horizontal width and the vertical height of the projected image.

GLINEAR Button

Press to enter the LINEARITY mode. You can adjust the horizontal and the vertical linearity of the projected image. Pressing with CTL will bring you to the LINEARITYBALANCE adjustment screen.

HKEYSTN Button

Press to enter the KEYSTONE mode. You can adjust the horizontal and the vertical keystone of the projected image. Pressing with CTL button will bring you to the KEY-BALANCE alignment screen.

PART NAMES AND FUNCTIONS

IPINCUS Button

Press to enter the PINCUSHION mode. You can adjust the horizontal and the vertical pincushion of the projected image. Pressing with the CTL button will bring you to the PIN-BALANCE alignment screen.

JPHASE Button

For service personnel only.

KINPUT Button

Selects menus and switches input signals.

LHELP Button

Press to display the explanation of the current selected function and available functions.

MINPUT LIST Button

Press to display the memory list of the recorded input signals.

NINFO Button

Press to display the various parameters and settings of the currently displayed image. Pressing with the CTL button displays some of items available in SETTING MODE.

OKELVIN Button

Press to enter the KELVIN mode. You can adjust the color temperature and, the white and the black level.

PPOSITION Button

Press to enter the position mode. You can adjust the horizontal, vertical position and horizontal, vertical blanking and image size.

QR, G, and B Buttons

Turn each CRT beam on and off separately. When using with the CTL button, you can select the CRT to be adjusted during convergence and focus adjustments. Note that the G button is only on the full function remote control.

SNORMAL Button

Returns the standard level for each signal. When pressed once, the confirmation message will be displayed. When “YES” is selected and ENTER is pressed, the data will be returned to the standard level. While holding down the CTL button, press the NORMAL button to display the “LOAD/CANCEL” menu to select either LOAD (last stored level) or CANCEL (data cancelled).

TSTORE Button

Memorizes the adjustments setting of each signal separately. When pressed once, the confirmation message “STORE?” will be displayed. When selecting “YES” and ENTER, the data will be stored in memory.

UEND Button

Ends the adjustment mode.

VENTER Button

Executes menu selection and switches to selected input.

WCTL Button

Used in conjunction with other buttons, similar to a shift key on a computer.

XRemote Control Jack

Insert the plug of the supplied remote cable here when the full function remote control is used in the wired condition.

YCAPTION Button

Press to display the CLOSED CAPTION menu.

ZADDRESS Button

Press to display the ADDRESS menu. Pressing with CTL allows you to specify the address for the remote control.

RCURSOR Buttons

Used for increasing and decreasing control levels, cursor movement and convergence adjustments.

Battery installation and replacement

PART NAMES AND FUNCTIONS

User remote control (RC-6320)

Press down on the battery compartment cover and slide

the cover in the direction of the arrow.

2 Install the two new batteries, making sure that their

polarity matches the , . diagrams inside the battery compartment. Incorrect polarity could damage the unit.

Full function remote control (RC-6321)

Press down on the battery compartment cover and slide

the cover in the direction of the arrow.

2 Install the two new batteries, making sure that their

polarity matches the , . diagrams inside the battery compartment. Incorrect polarity could damage the unit.

3 Close the battery compartment cover.3 Close the battery compartment cover.

NOTE: The remote control is powered by two alkaline 1.5V AA batteries.

Remote control cautions

Use the remote control within a distance of about 7m (23 ft.) and at 30 degrees angle left and right.

Handling remote control and batteries

• Do not drop or mishandle the remote.

• Do not get the remote wet. If the remote gets wet, wipe it dry immediately.

• Avoid heat and humidity.

• When not using the remote for a long period, remove the batteries.

• Do not use new and old batteries together, or use different types together.

• Do not take apart the batteries, heat them, or throw them into a fire.

• Avoid using the full function remote control as wireless with the backlight switch ON for an extended period of time. This can cause short battery life.

Set-Up

(for service personnel)

Set-Up

The Signal Entry chapter explains how to register a new input signal and how to set various parameters of the currently selected signal. The Adjustment chapter gives you the procedures for various adjustment such as focus, alignment, convergence. This chapter also explains the passcode. It is a convenient way to prevent any tampering of projector set-up information by unauthorized individuals. The Setting chapter gives you details on setting for various use.

CONTENTS

Before Set-Up ................................................18

Signal Entry....................................................23

Adjustment .....................................................44

Passcode .......................................................68

Setting............................................................74

Reference Adjustment .................................129

12345

BEFORE SET-UP.

Displaying the Menu and Adjustment Screens

Access of all set-up functions is done through the menu system. Depending upon button selection, your desired screen will be displayed as shown below:

ADJUST menu

NOTE: Some function items will not be used depending on the input video signal or connected peripheral equipment.

ADJUST

ADJUST menu

– ADJUST –

1 / SIGNAL ENTRY

2 / FOCUS

3 / ALIGNMENT

4 / CONVERGENCE

5 / KELVIN

6 / R,G,B GAIN

7 / PASSCODE

8 / OPTION

9 / REF. ADJUST

SIGNAL ENTRY screen FOCUS menu

– FOCUS – 1 / CENTER

2 / EDGE ALL 3 / EDGE SEPA. 4 / CORNER

ALIGNMENT menu

– ALIGNMENT – 01 / TILT, SKEW

02 / BOW 03 / AMPLITUDE 04 / LINEARITY 05 / KEY-STONE 06 / PIN-CUSHION 07 / LINEAR-BAL. 08 / KEY-BALANCE 09 / PIN-BALANCE 10 / LINE DIST. 11 / R,G,B POINT 

CONVERGENCE menu

– CONVERGENCE – 1 / TILT, SKEW 2 / BOW 3 / AMPLITUDE 4 / LINEARITY 5 / KEY-STONE 6 / PIN-CUSHION 7 / LINEAR-BAL



8 / LINE DIST. 9 / POINT 10/ PHASE

– KELVIN – 1 / COLOR TEMP. 2 / WHITE BAL.

Adjustment screen

PASSCODE menu

OPTION menu

– OPTION – 1 / SETTING MODE 2 / MENU MODE 3 / SEQUENCER 4 / PJ ADDRESS 5 / VERSION 6 / HOUR METER 7 / DEFAULT DATA

– REF. ADJUST – 1 / ASTIG 2 / BRIGHT UNIFORM. 3 / WHITE UNIFORM. 4 / RASTER CENTERING

FOCUS

Adjustment screen

CTL

Sub menu and Adjustment screen

CTL

R,B

Sub menu and Adjustment screen

KELVIN

NEW PASSCODE? input screen

PASSCODE DISABLE? menu

Sub menu / Setting screen

CTL

ADJUST

TILT

BOW

AMPLIT

LINEAR

KEYSTN

PINCUS

CTL

POINT

TILT

BOW

AMPLIT

LINEAR

KEYSTN

PINCUS

CTL

POINT

PHASE

LINEAR

KEYSTN

PINCUS

BOW

LINEAR

BOW

Storing Projector Settings (Automatic Save Feature)

You have two options to store projector settings in the memory: automatically and manually.

NOTE: Storing time is four seconds.

• The Automatic Save Feature mode has been set to DISABLE by factory. For information on setting, see “Automatic Save Feature” on page 92.

mWhen the Automatic Save Feature mode is set to “ENABLE”, projector settings will be stored in the projector’s memory automatically. Settings are stored automatically when any one of the following procedures is performed:

• The END button is pressed several times to return the adjustment screen to the source screen.

• One input is switched to another.

• The projector is turned off.

• After every 10 minutes of elapsed time.

BEFORE SET-UP

mWhen the Automatic Save Feature mode is set to “DISABLE”, projector settings can be stored in the projector’s memory manually. When you try to return the source screen by pressing END several times, the “STORE ?” menu is displayed. To manually save settings, proceed as follows:

1. Use the END button to display the “STORE” menu from the

current adjustment screen or menu.

2. Use the CURSOR or button to highlight “CURRENT”,

“NEW”, or “CANCEL” and press ENTER.

Items to select

• CURRENT ------Overwrites the currently projected signal and

saves the settings. NOTE: An unregistered signal cannot be stored under the ''CURRENT'' settings.

• NEW ------------ Starting at memory location No.51, this function

saves an unregistered signal as a new signal in memory.

• CANCEL -------- Does not save settings.

CURRENT

STORE ?

NEW CANCEL

BEFORE SET-UP

mWhen selecting “NEW”

The current settings are registered as a new signal and are saved to an unassigned line starting at memory location No.51. A registered name is automatically given. The “NEW ENTRY?” menu will be displayed.

Use the CURSOR or button to highlight “YES” or “NO” and press ENTER.

Items to select

• YES------------- Registers settings as a new signal and

saves the signal in an unassigned location starting at memory location No.51.

• NO -------------- Does not register settings.

A registered name is given as follows: VIDEO/S-VIDEO----- Video standard with a list number

e.g. NTSC51 or PAL52.

RGB --------------------- ”RGB” with a list number e.g.

RGB60.

NEW ENTRY? LIST No. ** NAME ******** YES NO

NOTE:

• If the Input list does not have any unassigned memory location starting at No. 51 then, the “NEW” item will be selectable. For signal registration see “SIGNAL ENTRY” on page 23.

• The Automatic Save Feature is available only for signals listed in the INPUT LIST.

On ADJUST MODE

The ADJUST mode contains various adjustment items for set-up. Open the ADJUST menu and select the item you wish to adjust. To display the ADJUST menu, proceed as follows:

1 Press the ADJUST button.

• The projector may ask for your passcode.

2 Enter your registered passcode.

BEFORE SET-UP

When a passcode has not been registered:

• Since no passcode is programmed at the factory, pressing the ADJUST button will open the ADJUST menu.

• See “Entering Passcode”, “Registering Passcode”, “Changing Your Passcode” and “Canceling Your Passcode” on pages 68 through 73.

When your passcode has already been registered:

• When finishing the ADJUST mode, the “RETURN USER MODE?” menu will be displayed. If you select “YES” and press ENTER to end the ADJUST mode, you will have to enter your passcode to re-enter the ADJUST mode.

• When finishing the ADJUST mode by either selecting “NO” or pressing END, you do not need to enter your passcode to re-enter the ADJUST mode. To exit the ADJUST mode temporarily during adjusting, select “NO”.

PASSCODE?

****

BEFORE SET-UP

Test Pattern

This projector will generate a selection of test signals. Ten kinds of internal test patterns can be selected from the TEST PATTERN menu. To display the TEST PATTERN menu, proceed as follows:

1 Press the TEST button on the Full function remote control.

• The “TEST PATTERN” menu will be displayed.

• When the END button is pressed, the “TEST PATTERN” menu will disappear.

2 Use the CURSOR or button to highlight the test pattern you

wish to use and press ENTER.

• The selected test pattern will be displayed.

3 To return to the source screen, press the TEST and then the END

button.

• When the TEST button is pressed, the “TEST PATTERN” menu will be displayed and when the END button is pressed, the screen will be changed to the source screen.

• The projector will return to the original source screen by pressing the END button only when no menu or no adjustment screen is displayed.

– TEST PATTERN –

CROSS-HAIR

CROSS-COARSE CROSS-FINE DOT-COARSE DOT-FINE FOCUS WINDOW-WHITE ALL WHITE WINDOW-BLACK GRAY SCALE

NOTE: If there is no test pattern, the beams have been turned off by the R, G, and B buttons on the remote control.

Adjustment test pattern

CROSS-HAIR CROSS-COARSE CROSS-FINE DOT-COARSE

DOT-FINE

WINDOW-BLACK

H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H

FOCUS WINDOW-WHITE

GRAY SCALE

ALL WHITE

12345

SIGNAL ENTRY.

On Signal Entry

The projector uses a micro-processor to automatically read and distinguish between all video signals input at the same time. These signals are then used to make optimum adjustments for focus, convergence, alignment, etc. Various parameters must be registered into the micro-processor beforehand to ensure the video signals are recognized and adjusted to optimum quality. The Signal Entry registers these video signals in the SIGNAL ENTRY list and at the same time obtains the various parameters pertaining to these signals. Always access this mode first whenever inputting video signals for the first time so that you can register the video signals before making any adjustments. If the current input signal(s) has not been registered, the “UNREGISTERED SIGNAL” message is displayed on screen.

NOTE: If you have software which changes scanning mode due to the graphic board of your PC (such as VGA), it will be necessary to register signal entry for each scanning mode. This can be done using your PC by way of stopping the software in each scanning mode and performing a signal entry operation.

Signal Entry Procedures

To make the signal entry, proceed as follows: 1 Press the ADJUST button.

• The “ADJUST” menu is displayed.

NOTE: The projector may ask you to enter your passcode. See 68 for the explanation of the PASSCODE.

2 Use the CURSOR or button to highlight the “1/SIGNAL

ENTRY” line and press ENTER.

• The “SIGNAL ENTRY” list will be displayed.

• You can also select the “SIGNAL ENTRY” list directly by pressing the INPUT “1” button.

3 Use the CURSOR or button to select the desired line and

press ENTER.

• The Signal entry menu will be displayed.

– ADJUST –

1 / SIGNAL ENTRY

2 / FOCUS 3 / ALIGNMENT 4 / CONVERGENCE 5 / KELVIN 6 / R,G,B GAIN 7 / PASSCODE 8 / OPTION 9 / REF.ADJUST

NOTE: To advance to the next page or to the previous page, hold down the CTL button then press the CURSOR or button. To directly access a page, hold down the CTL button then press any one of the INPUT buttons.

Page / total pages – sheet No.

Connect condition of the Switcher

P01/10–1 SIGNAL ENTRY

STANDALONE

01 02 03 04 05 06 07 08 09 10

NAME NTSC3.58 NTSC4.43 PAL SECAM VESA1024

OUTPUT DATA : LIST NO.✻✻

SOURCE VIDEO VIDEO VIDEO VIDEO RGB

INPUT A A A A A

§ ©

Signal name

Input terminal

P01/10–2 SIGNAL ENTRY

STANDALONE

01 02 03 04 05 06 07 08 09 10

DATE 00/00/00 00/00/00 00/00/00 00/00/00 00/00/00

OUTPUT DATA : LIST NO.✻✻

Entry dateRgistered input module

15.74kHz

48.60kHz

Horizontal Frequency

Output data for the signal currently projected.

60.00Hz

50.00Hz

60.00Hz

Vertical Frequency

SIGNAL ENTRY



INPUT TERMINAL SELECT

INPUT A

INPUT B INPUT C 

4 Use the CURSOR or button to select the item and then press

ENTER.

• The Input terminal menu will be displayed.

Items to select

• NEW ENTRY ........ Registers a new signal.

• ENTRY COPY....... Copies any registered signal entry.

• ENTRY MOVE ...... Moves any registered signal entry.

• ENTRY DELETE ... Deletes any registered signal entry from

SIGNAL ENTRY.

• DATA COPY.........Copies gain data from any one of the

registered signals.

•

CHANGE DEFAULT

.Rewrites the data stored in DEFAULT AREA.

• SOURCE EDIT...... Changes setting various parameteres of the

registered signals.

NOTE: When a vacant line is selected, the “SIGNAL ENTRY” menu has three items only: “NEW ENTRY”, “ENTRY COPY” and “ENTRY MOVE”.

m Selecting “NEW ENTRY”

When connecting a signal for the first time, you need to register it into the projector’s memory. You can copy the initial setting for the new signal from any other signal that has already been registered or use the factory preset setting. To do this, proceed as follows:

1) Use the CURSOR or button to select “NEW ENTRY”

and press ENTER.

• The “INPUT TERMINAL SELECT” menu will be display.

SIGNAL ENTRY

NEW ENTRY

ENTRY COPY ENTRY MOVE ENTRY DELETE DATA COPY CHANGE DEFAULT SOURCE EDIT

SIGNAL ENTRY

NEW ENTRY

ENTRY COPY ENTRY MOVE

SIGNAL ENTRY

NEW ENTRY

ENTRY COPY ENTRY MOVE ENTRY DELETE DATA COPY CHANGE DEFAULT SOURCE EDIT

When using the projector in stand alone application:

Use the CURSOR or button to select one of the three slots, and press ENTER.

Items to select

• INPUT A.......... Standard installed terminal

• INPUT B.......... Optional board terminal

• INPUT C.......... Optional board terminal

Use the CURSOR or button to select “VIDEO”, “RGB”, “SVIDEO”, or “COMPO.” and press ENTER.

• The “NAME INPUT” screen will be displayed.

Items to select

•VIDEO......... Selecs the VIDEO input signal of this projector

•RGB............ Selects the RGB input signal of this projector

•S-VIDEO ..... Selects the S-VIDEO input signal of this projector.

•COMPO ...... Selects the Y/Cb/Cr input signal of this projector.

• Go on to Step 2).



VIDEO

RGB



S-VIDEO

COMPO.

When using with a single Switcher ISS-6020/ISS-6020G:

Use the CURSOR or button to select the input slot number of the Switcher and press ENTER.

• Input slot numbers are from 1 through 10.

Use the CURSOR or button to select “VIDEO”, “RGB”, “S-VIDEO” or “COMPO.” and press ENTER.

• The “NAME INPUT” screen will be displayed.

Items to select

• VIDEO ---------Selects the signal from the VIDEO input

terminal of the VIDEO input board.

• RGB ----------- Selects the signal from the RGB input terminal

of the RGB input board.

• S-VIDEO ------Selects the signal from the S-VIDEO input

terminal of the VIDEO input board.

• COMPO. ------Selects the signal as COMPONENT signal from

the RGB input terminal of the RGB input board.

MASTER

SLOT–01

SLOT–02 SLOT–03 SLOT–04 SLOT–05 SLOT–06 SLOT–07 SLOT–08 SLOT–09 SLOT–10



VIDEO

RGB



S-VIDEO

COMPO.

SIGNAL ENTRY

* Go on to Step 2).

NOTE: Signal registry is not possible unless the installed input board matches the selected signal. Check the installed input board and the slot number.

SIGNAL ENTRY

When using with two or more ISS-6020/ISS-6020G switchers:

Use the CURSOR or button to select the input slot number of the master Switcher and press ENTER. Then select the slot number of the slave Switcher and press ENTER.

• The “MASTER” menu will be displayed when the slot number of the master Switcher is selected.

• The “SLAVE” menu will be displayed when the slot number of the slave Switcher is selected.

• Input slot numbers are from 1 through 10.

Use the CURSOR or button to select “VIDEO”, “RGB”, “S-VIDEO” or “COMPO.” and press ENTER.

• The “NAME INPUT” screen will be displayed.

Items to select

• VIDEO ---------- Selects the signal from the VIDEO input terminal of the VIDEO input board.

• RGB ------------ Selects the signal from the RGB input terminal of the RGB input board.

• S-VIDEO ------- Selects the signal from the S-VIDEO input terminal of the VIDEO input board.

• COMPO.--------Selects the signal as COMPONENT signal from the RGB input terminal of the RGB input board.

MASTER

SLOT–01

SLOT–02 SLOT–03 SLOT–04 SLOT–05 SLOT–06 SLOT–07 SLOT–08 SLOT–09 SLOT–10



VIDEO

RGB



S-VIDEO

COMPO.

SLAVE

SLOT–01

SLOT–02 SLOT–03 SLOT–04 SLOT–05 SLOT–06 SLOT–07 SLOT–08 SLOT–09 SLOT–10

• Go on to Step 2).

NOTE: Signal registry is not possible unless the installed input board matches the selected signal. Check the installed input board and the slot number.

2) Input the source name by selecting one character at a time with the INPUT buttons 1 through 10 and by moving the cursor with the CURSOR button. After finishing the selection of the characters, press ENTER.

• Up to eight characters can be selected.

• Eight characters are assigned to one INPUT button.

• Whenever the INPUT button is pressed, characters will be

rotated.

For example:

A → B → C → 1 → A .....

• When pressing the INPUT button while holding down the CTL

button, another group of characters will be rotated.

For example:

a → b → c → ! → a .....

• The characters corresponding to these INPUT buttons are as

follows:

When using With CTL INPUT 1 A, B, C, and 1 a, b, c, and ! INPUT 2 D, E, F, and 2 d, e, f, and “ INPUT 3 G, H, I, and 3 g, h, i, and # INPUT 4 J, K, L, and 4 j, k, l, and $ INPUT 5 M, N, O, and 5 m, n, o, and % INPUT 6 P, Q, R, and 6 p, q, r, and & INPUT 7 S, T, U, and 7 s, t, u, and ‘ INPUT 8 V, W, X, and 8 v, w, x, and ( INPUT 9 Y, Z, ?, and 9 y, z, /, and ) INPUT 10 *, ,, ., and 0 ;, :, +, and -

SIGNAL ENTRY

NAME INPUT

––––––––

• If you have made an error in the input of a character, use the

CURSOR button and enter the correct letter or number. To delete one character, move the CURSOR button to the character to be deleted and then press the NORMAL button. To delete all the entered name, hold down the CTL button then press NORMAL.

• The “INITIAL DATA SELECT” menu will be displayed.

SIGNAL ENTRY

3) Use the CURSOR or button to select an item and press

ENTER.

Items to select

• DEFAULT ............. Uses the data stored in the DEFAULT AREA

• TEMPORARY.......Uses the data which is currently displayed

•

ENTRY NUMBER

....Copies the data from the registered signal

INITIAL DATA SELECT

DEFAULT TEMPORARY

ENTRY NUMBER

• When selecting “ENTRY NUMBER”, the “DATA COPY

SELECT SOURCE” message will be displayed at the bottom of the screen. Use the CURSOR or button to select the signal you wish to copy the initial settings from and press ENTER.

• The “DATA COPY MODE” menu will be displayed.

Use the CURSOR or button to select an item and press ENTER.

Items to select

• ALL...................... Copies all the settings.

• EXCEPT H-POSI&PHASE

............................Copies the settings except H-position and

Phase adjustments data.

• The “SOURCE INFORMATION” screen will be displayed.

• Pressing END will return to the “SIGNAL ENTRY” list. Go on

to Step 5.

NOTE: You can check and change various parameters on the “SOURCE INFORMATION” menu. See page 35.

P01/10-1

0 1 NTSC3.58 VIDEO A

02 03 04 05 06 07 08 09 10

SIGNAL ENTRY

NAME PAL

VGA480 NTSC

DATA COPY SELECT SOURCE

STANDALONE

SOURCE VIDEO

RGB S-VIDEO

DATA COPY MODE

ALL

EXCEPT H-POSI & PHASE

P01/03

SOURCE INFORMATION

INPUT A

A A

NAME

INPUT TERMINAL INPUT SOURCE

 VIDEO MODE

FREQUENCY  SYNC POLARITY

∗∗∗∗∗∗∗∗

 INPUT A RGB RGB FH = KHz

FV = Hz HD(-) VD(+)  

•

∗∗∗∗∗

•

∗∗∗∗∗

m When selecting “ENTRY COPY”

You can copy one of the registered input to another selected line. To do this, proceed as follows:

1) Use the CURSOR or button to select “ENTRY COPY” and then press ENTER.

• The “ENTRY COPY SELECT SOURCE” message will be

displayed at the bottom of the screen.

2) Use the CURSOR or button to select a line you wish to copy from and then press ENTER.

• The “ENTRY COPY SELECT DESTINATION” message will

be displayed at the bottom of the screen.

3) Use the CURSOR or button to select a line you wish to copy to and press ENTER.

• When there is already a registered signal in the selected line, the

“ENTRY DATA OVERWRITE?” prompt is displayed. Use the CURSOR or button to select “YES” or “NO” and then press ENTER.

• When the “ENTRY COPY END” message is displayed, this

completes the ENTRY COPY mode.

•

The “SIGNAL ENTRY” list is displayed. Go on to Step

SIGNAL ENTRY

NEW ENTRY

ENTRY COPY

ENTRY MOVE ENTRY DELETE DATA COPY CHANGE DEFAULT SOURCE EDIT

P01/10-1

0 1 NTSC3.58 VIDEO A

02 03 04 05 06 07 08 09 10

SIGNAL ENTRY

NAME PAL

VGA480 NTSC

ENTRY COPY SELECT SOURCE

ENTRY DATA OVERWRITE?

YES NO

STANDALONE

SOURCE VIDEO

RGB S-VIDEO

INPUT A

A A

Items to select

• YES ......... Overwrites the selected signal that has already

been registered.

• NO ........... Stops overwriting.

m When selecting “ENTRY MOVE”

You can move one of the registered inputs to another selected line. To do this, proceed as follows:

1) Use the CURSOR or button to select “ENTRY MOVE” and then press ENTER.

• The “ENTRY MOVE SELECT SOURCE” message will be

displayed at the bottom of the screen.

2) Use the CURSOR or button to select a line you wish to move and then press ENTER.

• The “ENTRY MOVE SELECT DESTINATION” message

will be displayed at the bottom of the screen.

3) Use the CURSOR or button to select a line you wish to move to and press ENTER.

• When there is already a registered signal in the selected

line, the “ENTRY DATA OVERWRITE?” prompt will be

SIGNAL ENTRY

NEW ENTRY ENTRY COPY

ENTRY MOVE

ENTRY DELETE DATA COPY CHANGE DEFAULT SOURCE EDIT

P01/10-1

0 1 NTSC3.58 VIDEO A

02 03 04 05 06 07 08 09 10

SIGNAL ENTRY

NAME PAL

VGA480 NTSC

ENTRY MOVE SELECT SOURCE

STANDALONE

SOURCE

VIDEO RGB S-VIDEO

INPUT

A A A

SIGNAL ENTRY

displayed. Use the CURSOR or button to select “YES” or “NO” and then press ENTER.

• When the “ENTRY MOVE END” message will be displayed, this completes the ENTRY MOVE mode.

• The “SIGNAL ENTRY” list will be displayed. Go on to Step 5.

Items to select

• YES ......... Overwrites the selected signal that has

already been registered.

• NO ........... Stops overwriting.

ENTRY DATA OVERWRITE?

YES NO

m When selecting “ENTRY DELETE”

You can delete one of the signals in the currently selected lines. To do this, proceed as follows:

1) Use the CURSOR or button to select “ENTRY DELETE” and then press ENTER.

• The “DELETE : SELECT START LINE” message

will be displayed at the bottom of the screen.

2) Use the CURSOR or button to select the first of the lines you wish to delete and then press ENTER.

• The “DELETE : SELECT END LINE” message

will be displayed at the bottom of the screen.

3) Use the CURSOR or button to select the end of the lines you wish to delete and then press ENTER.

• The “SELECT LINE DELETE?” menu will be

displayed.

4) Use the CURSOR or button to select "YES/NO" and then press ENTER.

• The “SIGNAL ENTRY” list will be displayed. Go

on to Step 5.

Items to select

• YES ......... Deletes the selected signal that has already

been registered.

• NO ........... Stops deleting.

SIGNAL ENTRY

NEW ENTRY ENTRY COPY ENTRY MOVE

ENTRY DELETE

DATA COPY CHANGE DEFAULT SOURCE EDIT

P01/10-1

0 1 NTSC3.58 VIDEO A

02 03 04 05 06 07 08 09 10

P01/10-1

01 NTSC3.58 VIDEO A 02 03 04 05

06 07 08 09 10

SIGNAL ENTRY

NAME PAL

VGA480 NTSC

DELETE : SELECT START LINE

SIGNAL ENTRY

NAME PAL

VGA480 NTSC

PAL

DELETE : SELECT END LINE

STANDALONE

SOURCE VIDEO

RGB S-VIDEO

STANDALONE

SOURCE

VIDEO RGB S-VIDEO

S-VIDEO A

INPUT A

A A

INPUT A

A A

SELECTED LINES DELETE? START LINE : 01 END LINE : 05

YES NO

+ 112 hidden pages
