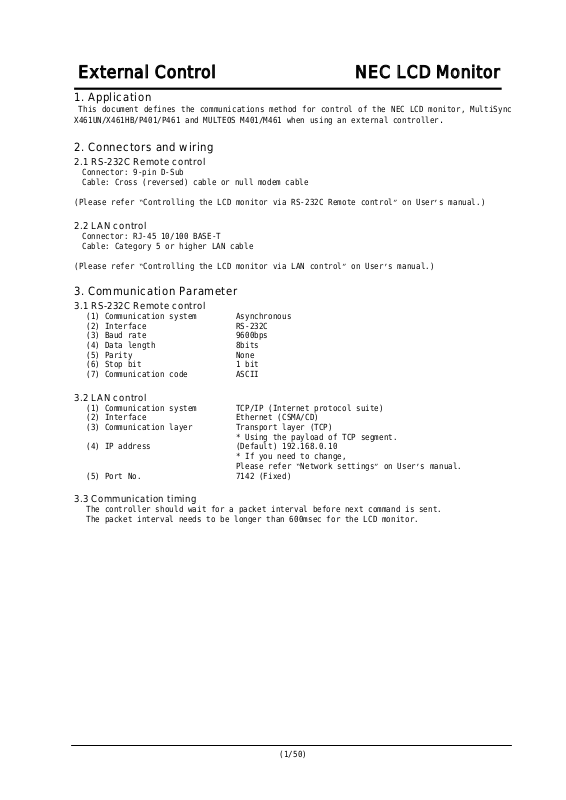

External Control NEC LCD Monitor

1. Application

This d ocument defines the communications method for control of the NEC LCD monitor, MultiSync

X461UN/X46 1HB/P401/P461 and MULTEOS M401/M461 when using an external controller

2. Connectors and wiring

2.1 RS-232C Remote control

Connector: 9-pin D-Sub

Cable: Cross (reversed) cable or null modem cable

(Please refer “Controlling the LCD monitor via RS-232C Remote control” on User’s manual.)

2.2 LAN control

Connector: RJ-45 10/100 BASE-T

Cable: Category 5 or higher LAN cable

(Please refer “Controlling the LCD monitor via LAN control” on User’s manual.)

3. Communication Parameter

3.1 RS-232C Remote control

(1) Communication system Asynchronous (2) Interface RS-232C (3) Baud rate 9600bps (4) Data length 8bits (5) Parity None (6) Stop bit 1 bit (7) Communication code ASCII

3.2 LAN control

(1) Communication system TCP/IP (Internet protocol suite) (2) Interface Ethernet (CSMA/CD) (3) Communication layer Transport layer (TCP) * Using the payload of TCP segment. (4) IP address (Default) 192.168.0.10 * If you need to change, Please refer “Network settings” on User’s manual. (5) Port No. 7142 (Fixed)

3.3 Communication timing

The controller should wait for a packet interval before next command is sent. The packet interval needs to be longer than 600msec for the LCD monitor.

(1/50)

4. Communication Format

Header

Message

Check Code

Delimiter

Header

Delimiter

Header

Message

Check Code

Delimiter

Header

Delimiter

Header

Message

Check Code

Delimiter

Header

Delimiter

Header

Message

Check Code

Delimiter

Header

Message

Check Code

Delimiter

Header

Delimiter

Header

Delimiter

Header Message Check Code Delimiter

The command packet consists of four parts, Header, Message, Check code and Delimiter.

Sequence of a typical procedure to control a monitor is as follows,

[A controller and a monitor, two-way communication composition figure]

Get Parameter

Get Parameter Reply

Message

Check Code

Set Parameter

Set Parameter Reply

Message

Check Code

Get Parameter

Get Parameter Reply

Message

Check Code

Save Current Setting Command

Save Current Setting Command Reply

Message

Check Code

Monitor Controller

The controller send s command to get a value from the monitor that you want to change.

The monitor replies a current value of the requested item.

The controller sends commands to set an adjusted value.

The monitor replies to the controller for confirmation.

The controller sends command to get a value for confirmation.

The monitor replies an adjusted value.

The controller requests to store the adjusted value to the monitor.

The mo nitor replies to the controller for confirmation.

Command

Command Reply

Message

Check Code

The control does not suitable for above fixed protocol; use the proper comm and for each control. Please refer section 5.5 and section 7 to 13.

The monitor replies a proper message defined for each control.

4.1 Header block format (fixed length)

SOH

Reserved '0'

Destination Source

Header

Message Type

1st 2nd 3rd 4th 5th 6th -7th

Message Check code Delimiter

Message Length

1stbyte) SOH: Start of Header

ASCII SOH (01h)

(2/50)

2ndbyte) Reserved: Reserved for future extensions.

Destination

On this monitor, it must be ASCII '0'(30h).

byte) Destination: Destination equipment ID. (Receiver)

Specify a commands receiver’s address.

The controller sets the “MONITOR ID” or “GROUP ID” of the monitor controlled in here. On the reply, the monitor sets ‘0’ (30h), always.

“MONITOR ID”, “GROUP ID” to “Destination Address” conversion table is as follows,

Monitor ID

Destination Address

Monitor ID

Address

Monitor ID

Address

Monitor ID

Address

1 41h(‘A’) 26 5Ah(‘Z’) 51 73h 76 8Ch 2 42h(‘B’) 27 5Bh 52 74h 77 8Dh 3 43h(‘C’) 28 5Ch 53 75h 78 8Eh 4 44h(‘D’) 29 5Dh 54 76h 79 8Fh 5 45h(‘E’) 30 5Eh 55 77h 80 90h 6 46h(‘F’) 31 5Fh 56 78h 81 91h 7 47h(‘G’) 32 60h 57 79h 82 92h 8 48h(‘H’) 33 61h 58 7Ah 83 93h 9 49h(‘I’) 34 62h 59 7Bh 84 94h 10 4Ah(‘J’) 35 63h 60 7Ch 85 95h 11 4Bh(‘K’) 36 64h 61 7Dh 86 96h 12 4Ch(‘L’) 37 65h 62 7Eh 87 97h 13 4Dh(‘M’) 38 66h 63 7Fh 88 98h 14 4Eh(‘N’) 39 67h 64 80h 89 99h 15 4Fh(‘O’) 40 68h 65 81h 90 9Ah 16 50h(‘P’) 41 69h 66 82h 91 9Bh 17 51h(‘Q’) 42 6Ah 67 83h 92 9Ch 18 52h(‘R’) 43 6Bh 68 84h 93 9Dh 19 53h(‘S’) 44 6Ch 69 85h 94 9Eh 20 54h(‘T’) 45 6Dh 70 86h 95 9Fh 21 55h(‘U’) 46 6Eh 71 87h 96 A0h 22 56h(‘V’) 47 6Fh 72 88h 97 A1h 23 57h(‘W’) 48 70h 73 89h 98 A2h 24 58h(‘X’) 49 71h 74 8Ah 99 A3h 25 59h(‘Y’) 50 72h 75 8Bh 100 A4h ALL 2Ah(‘*’)

Group ID

Destination Address

Group ID

Address

Group ID

Address

Group ID

Destination Address

A 31h(‘1’) D 34h(‘4’) G 37h(‘7’) J 3Ah(‘:’) B 32h(‘2’) E 35h(‘5’) H 38h(‘8’) C 33h(‘3’) F 36h(‘6’) I 39h(‘9’)

Ex.) If you want to control a monitor that has the "ID No." as '1', specify a destination address

'A'(41h). If you want to control all of the monitors which are connected by a daisy chain, specify

a destination address ‘

＊

’(2Ah).

byte) Source: Source equipment ID. (Sender)

Specify a sender address. The controller must be ‘0’ (30h).

On the reply, the monitor sets the own MONITOR ID in here.

(3/50)

byte) Message Type: (Case sensitive.)

Refer to section 4.2 “Message block format” for more details.

ASCII 'A' (41h): Command. ASCII 'B' (42h): Command reply.

ASCII 'C' (43h): Get current parameter from a monitor.

ASCII 'D' (44h): "Get parameter" reply.

ASCII 'E' (45h): Set parameter.

ASCII 'F' (46h): "Set parameter" reply.

-7th bytes) Message Length:

Specify the length of the message (that follows the header) from STX to ETX. This length includes STX and ETX.

The byte data must be encoded to ASCII characters. Ex.) The byte data 3Ah must be encoded to ASCII characters '3' and 'A' (33h and 41h).



The byte data 0Bh must be encoded to ASCII characters '0' and 'B' (30h and 42h).

4.2 Message block format

“Message block format” is allied to the “Message Type” in the “Header”.

Refer to the section 6 “Message format” for more detail.

）

Get currentparameter

The controller sends this message when you want to get the status of the monitor. For the status that you want to get, specify the “OP code page” and “OP code”,

refer to “Appendix A. Operation code table”.

“Message format” of the “Get current



）

Get Parameter reply

The monitor will reply with the status of the requested item specified by the controller

in the “Get parameter message”.

STX

Refer to section 5.1 “Get current parameter from a monitor.” for more details.

OP code page OP code Hi Lo Hi Lo

Header



Message

parameter” is as follows,

Check code Delimiter

ETX

“Message format” of the “Get parameter reply” is as follows,

STX



）

Set parameter

The controller sends this message to change a setting of the monitor.

Result

Lo Hi Lo Hi Lo Hi Lo MSB

Refer to section 5.2 “Get parameter reply” for more details.

OP code

page

OP code Type Max value Current Value

LSB MSB

(4/50)

ETX

LSB

Message format of the “Set parameter” is as follows,

Lo Hi Lo

Hi Lo Hi Lo Hi Lo

n+1

OP code

STX



）

Set Parameter reply

The monitor replies with this message for a confirmation of the “Set parameter message”.

Message format of the “Set parameter reply” is as follows,

STX

Result

Hi Lo



）

Command

“Command message” format depends on each command.

Usually, this “command message” is used for some non-sli der controls a nd some special o perations, such as “Save curr ent settings”, “Get timing report”, “power control”, “Schedule”, etc. Refer to

section 5. 5 “Commands message” for more details.

page

Refer to section 5.3 “Set parameter” for more details.

OP code

Refer to section 5.4 “Set parameter reply” for more details.

OP code Set Value

page

OP code

MSB

ETX

LSB

Type Max value

MSB

Requested setting

Value

LSB MSB LSB

ETX

）

Command reply

The monitor replies to a query from the controller.

“Command reply message” format depends on each command. Refer to section 5.5 “Commands message” for more details.

4.5 Check code

Check code is the Block Check Code (BCC) between the Header and the End of Message except SOH.

Header Message

27 26 25 24 23 22 21 20 SOH D0 Reserved D1 Destinatio n D2 Source D3 Type D4 Length(H) D5 Length(L) D6 STX D7 Data D8 | | | | ETX Dn Check code D

P P P P P P P P

Check code

Delimiter

= D1 XOR D2 XOR D3 XOR ,,, D

n+1

XOR: Exclusive OR

(5/50)

Following is an example of a Check code (BCC) calculation.

SOH Reserved

Destination

Address

Header Message

Source

Address

Message

type

Message length STX

OP code

page

OP code Set Value ETX

Check

code

(BCC)

Delimiter

01 30 41 30 45 30 41 02 30 30 31 30 30 30 36 34 03 77 0D

D1 D2 D3 D4 D5 D6 D7 D

D18

Check code (BCC) D

= D1 xor D2 xor D3 xor … xor D14 xor D15 xor D16

= 3 0h xor 41h xor 30h x or 45h xor 30h xor 41h

xor 02h xor 30h xor 30h xor 31h xor 30h xor 30h xor 30h xor 36h xor 34h xor 03h

= 77h

4.6 Delimiter

Header Message Check code

Delimiter

Packet delimite r code; ASCII CR(0Dh).

(6/50)

5. Message type

5.1 Get current Parameter from a monitor.

STX

OP code page Hi Lo Hi Lo

1st 2nd-3rd 4th–5th 6

OP code

ETX

Send this message when you want to get the status of a monitor.

For the status that you want to get, specify the “OP code page” the “OP code”, refer to A. Operati on code table”.

byte) STX : Start of Message

ASCII STX (02h)

nd-3rd

bytes) OP code page: Operation code page.

Specify the “OP code page” for the control which you want to get the status. Refer to “Appendix A Operation code table” for each item.

OP code page data must be encoded to ASCII characters. Ex.) The byte data 02h must be encoded to ASCII characters '0' and '2' (30h

and 32h).

OP code page 02h -> OP code page (Hi) = ASCII '0' (30h) OP code page (Lo) = ASCII '2' (32h)



“Appendix



STX

Refer to Operation code table. (Appendix A)

th–5th

bytes) OP code: Operation code

Refer to “Appendix A Operation code table” for each item. OP code data must be encoded to ASCII characters.

Ex.) The byte data 3Ah must be encoded to ASCII characters '3' and 'A' (33h and 41h). OP code 3Ah -> OP code (Hi) = ASCII '3' (33h)

OP code (Lo) = ASCII 'A' (41h) Refer to Operation code table.

byte) ETX: End of Message

ASCII ETX (03h)

5.2 "Get parameter" reply

Result OP code page OP code

Hi Lo Hi Lo Hi Lo Hi Lo MSB

2nd-3rd 4th–5th 6th –7th 8th -9

Type Max value Current Value

10th -13th 14th -17th 18th

LSB MSB

LSB

The monitor replies with a current value and the status of the requested item (operation code).

byte) STX: Start of Message

ETX

ASCII STX (02h)

nd-3rd

bytes) Result code.

(7/50)

These bytes indicate a result of the requested commands as follows,

00h: No Error. 01h: Unsupporte d operation with this moni tor or unsupported operation under current condition.

This result code from the monitor is encoded to ASCII characters. Ex.) The byte data 01h is encoded to ASCII character '0' and '1' (30h and 31h).

th–5th

bytes) OP code page: Operation code page. These bytes indicate a replying item's OP code page.

This returned value from the monitor is encoded to ASCII characters. Ex.) The byte data 02h is encoded to ASCII character '0' and '2' (30h and 32h).

Refer to the operation code table.

–7thbytes) OP code: Operation code

These bytes indicate a replying item's OP code. This returned value from the monitor is encoded to ASCII characters.

Refer to the operation code table. Ex.) The byte data 1Ah is encoded to ASCII character '1' and 'A' (31h and 41h).

-9thbytes) Type: Operation type code 00h: Set parameter

01h: Momentary Like the Auto Setup function which automatically changes the parameter.

This returned value from the monitor is encoded to ASCII characters. Ex.) The byte data 01h is encoded to ASCII character '0' and '1' (30h and 31h).

-13thbytes) Max. value: Maximum value which monitor can accept. (16bits) This returned value from the monitor is encoded to ASCII characters.

Ex.) '0','1','2' and '3' means 0123h (291)

-17thbytes) Current Value: (16bits)

This returned value from the monitor is encoded to ASCII characters. Ex.) '0','1','2' and '3' means 0123h (291)

byte) ETX: End of Message

ASCII ETX (03h)

5.3 Set parameter

STX

OP code page

OP code

Hi Lo Hi Lo MSB

Set Value

LSB

2nd-3rd 4th-5th 6th-9th 10

ETX

Send this message to change monitor’s adjustment and so on.

The controller requests a monitor to change value.

byte) STX: Start of Message

ASCII STX (02h)

nd-3rd

bytes) OP code page: Operation code page

(8/50)

This OP code page data must be encoded to ASCII characters.

Hi Lo Hi

Ex.) The byte data 02h must be encoded to ASCII '0' and '2' (30h and 32h). Refer to the Operation code table.

th-5th

bytes) OP code: Operation code This OP code data must be encoded to ASCII characters.

Ex.) OP code 1Ah -> OP code (Hi) = ASCII '1' (31h) OP code (Lo) = ASCII 'A' (41h)

Refer to the Operation code table.

th-9th

bytes) Set value

: (

16bit) This data must be encoded to ASCII characters. Ex.) 0123h -> 1

2 3

byte) ETX: End of Message

(MSB) = ASCII '0' (30h)

= ASCII '1' (31h)

= ASCII '2' (32h)

(LSB) = ASCII '3' (33h)

ASCII ETX (03h)

STX

5.4 "Set parameter" reply

Result OP code page

Lo Hi Lo Hi Lo MSB

OP code

Type Max value

LSB MSB

2nd-3rd 4th-5th 6th-7th 8th-9th 10th-13th 14th -17th 18

The Monitor echoes back the parameter and status of the requested operation code.

byte) STX: Start of Message

ASCII STX (02h)

nd-3rd

bytes) Result code

ASCII '0''0' (30h, 30h): No Error. ASCII '0''1' (30h, 31h): Unsupported operation with this monitor or unsupported operation under

current condition.

th-5th

bytes) OP code page: Echoes back the Operation code page for confirmation.

Reply data from the monitor is encoded to ASCII characters. Ex.) OP code page 02h -> OP code page = ASCII '0' and '2' (30h and 32h)

Refer to Operation code table.

th-7th

bytes) OP code: Echoes back the Operation code for confirmation.

Requested setting

Value

LSB

ETX

Reply data from the monitor is encoded to ASCII characters. Ex.) OP code 1Ah -> OP code (Hi) = ASCII '1' (31h)

OP code (Lo) = ASCII 'A' (41h) Refer to Operation code table

th-9th

bytes) Type: Operation type code

(9/50)

ASCII '0''0' (30h, 30h): Set parameter

ASCII '0''1' (30h, 31h): Momentary Like Auto Setup function, that automatically changes the parameter.

-13thbytes) Max. value: Maximum value that monitor can accept. (16bits) Reply data from the monitor is encoded to ASCII characters.

Ex.) '0''1''2''3' means 0123h (291)

-17thbytes) Requested setting Value: Echoes back the parameter for confirmation. (16bits)

Reply data from the monitor is encoded to ASCII characters. Ex.) '0''1''2''3' means 0123h (291)

byte) ETX: End of Message ASCII ETX (03h)

5.5 Commands

"Command message format" depends on each command

Some commands are shown with usage. Refer to

section 7 to 13.

5.5.1 Save Current Settings.

The controller requests for the monitor to store the adjusted value.

STX



Command code '0' 'C'

ETX

Send "OC"(30h, 43h) as Save current settings command. Complete "Save Current setting" command packet as follows;

ASCII: 01h-30h-41h-30h-41h-30h-34h-02h-30h-43h-03h-CHK-0Dh

SOH-'0'-'A'-'0'-'A'-'0'-'4'-STX-'0'-'C'-ETX-CHK- CR

The monitor replies the packet for confirmation as follows;

SOH-'0'-'0'-'A'-'B'-'0'-'6'-STX-'0'-'0'-'0'-'C'-ETX-CHK- CR

5.5.2 Get Timing Report and Timing reply.

The controller requests the monitor to report the displayed image timing.

STX

Command code '0' '7'

ETX



Send "07"(30h, 37h) as Get Timing Report command.

Complete "Get Timing Report" command packet as follows;

ASCII: 01h-30h-41h-30h-41h-30h-34h-02h-30h-37h-03h-CHK-0Dh

SOH-'0'-'A'-'0'-'A'-'0'-'4'-STX-'0'-'7'-ETX-CHK- CR

The monitor replies status as the following format;

Command SS H Freq. V Freq.

'4' 'E' Hi Lo MSB LSB MSB LSB

SS: Timing status byte

ETX



STX

Bit 7 = 1: Sync Frequency is out of range. Bit 6 = 1: Unstable count

(10/50)

Bit 5-2 Reserved (Don't care) Bit 1 1:Positive H orizontal sync polar ity. 0:Negative Horizontal sync polarity. Bit 0 1:Positive V ertical sy nc polarit y.



H Freq: Horizontal Frequency in unit 0.01kHz

V Freq: Vertical Frequency in unit 0.01Hz

Ex.) When H Freq is '1''2''A''9' (31h, 32h, 41h, 39h), it means 47.77kHz.

5.5.3 NULL Message

0:Negative Vertica l sync polarity.

STX

The NULL message returned from the monitor is used in the following cases;



01h-30h-30h-41h-42h-30h-34h-02h-42h-45h-03h-CHK-0Dh

SOH-'0'-'0'-'A'-'B'-'0'-'4'-STX-'B'-'E'-ETX-CHK- CR

Command code 'B' 'E'

A timeout error has occurred. (The default timeout is 10sec.)

The monitor receives an unsupported message type. The monitor detects a packet BCC (Block Check Code) error.

To tell the controlle r that the monitor does not have any answer to give t o the ho st ( not ready or not expec ted)

Complete "NULL Mes sage" command packet as follows;

ETX

6. Typical procedure example

The following is a sample of procedures to control the monitor, these are examples of "Get parameter",

"Set parameter" and "Save current settings".

6.1. How to change the “Brightness” setting.

Step 1. The controller requests the Monitor to reply with the current brightness setting and capability

to support this operation. (Get parameter)

Header Message Chec k code Delimiter

SOH-'0'-Mo nitor ID-'0'-'C'-'0'-'6' STX-'0'-'0 '-'1'-'0'-ETX BCC CR

Header

SOH (01h): Start Of Header '0' (30h): Reserved Monitor ID: Specify the Monitor ID from which you want to get a value.

Ex.) If Monitor ID is '1', specify 'A'. '0' (30h): Message sender is the controller. 'C' (43h): Message type is "Get parameter command". '0'-'6' (30h, 36h): Message length is 6 bytes.

Message

STX (02h): Start of Message '0'-'0' (30h, 30h): Operation code page number is 0. '1'-'0' (31h, 30h): Operation code is 10h (in the OP code page 0). ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

(11/50)

Delimiter

CR (0Dh): End of packet

Step 2. The monitor replies with current Brightness setting and capability to support this operation.

Header Message Check code

SOH-'0'-'0'-Monitor ID-'D'-'1'-'2' STX-'0'-'0'-'0'-'0'-'1'-'0'-'0'-'0'

BCC CR

-'0'-'0'-'6'-'4'-'0'-'0'-'3'-'2'-ETX

Header

SOH (01h): Start Of Header '0' (30h): Reserved '0' (30h): Message receiver is the controller.

Monitor ID: Indicate a replying Monitor ID.

Ex.) When this byte is set to 'A', the replying Monitor ID is '1'. 'D' (44h): Message Type is "Get parameter reply". '1'-'2' (31h, 32h): Message length is 18 bytes.

Message

STX (02h): Start of Message

'0'-'0' (30h, 30h): Result code. No error. '0'-'0' (30h, 30h): Operation code page number is 0. '1'-'0' (31h, 30h): Operation code is 10h (in the page 0). '0'-'0' (30h, 30h): This operation is "Set parameter" type. '0'-'0'-'6'-'4' (30h, 30h, 36h, 34h): Brightness max value is 100(0064h). '0'-'0'-'3'-'2' (30h, 30h, 33h, 32h): Current Brightness setting is 50(0032h) . ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

Step 3. The controller request the monitor to change the Brightness setting

Header Message

Check

code

SOH-'0'-Monitor ID-'0'-'E'-'0'-'A' STX-'0'-'0'-'1'-'0'-'0'-'0'-'5'-'0'-ETX BCC CR

Header

SOH (01h): Start Of Header '0' (30h): Reserved Monitor ID: Specify the Monitor ID of which you want to change a setting.

Ex.) If Monitor ID is '1', specify 'A'. '0' (30h): Message sender is the controller . 'E' (45h): Message Type is "Set parameter command". '0'-'A' (30h, 41h): Message length is 10 bytes.

Message

STX (02h): Start of Message

'0'-'0' (30h, 30h): Operation code page number is 0. '1'-'0' (31h, 30h): Operation code is 10h (in the page 0). '0'-'0'-'5'-'0' (30h, 30h, 35h, 30h): Set Brightness setting 80(0050h). ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

Step 4. The monitor replies with a message for confirmation.

Delimiter

(12/50)

Header Message Check code

SOH-'0'-'0'- Monitor ID -'F'-'1'-'2' STX-'0'-'0'-'0'-'0'-'1'-'0'—'0'-'0'-'0'

-'0'-'6'-'4'-'0'-'0'-'5'-'0'-ETX

Header

SOH (01h): Start Of Header '0' (30h): Reserved '0' (30h): Message receiver is the controller. Monitor ID: Indicate a replying Monitor ID.

Ex.) When this byte is set to 'A', the replying Monitor ID is '1'.

'F' (46h): Message Type is "Set parameter reply".

'1'-'2' (31h, 32h): Message length is 18 bytes.

Message

STX (02h): Start of Message

'0'-'0' (30h, 30h): Result code. No error. '0'-'0' (30h, 30h): Operation code page number is 0. '1'-'0' (31h, 30h): Operation code is 10h (in the page 0). '0'-'0' (30h, 30h): This operation is "Set parameter" type. '0'-'0'-'6'-'4' (30h, 30h, 36h, 34h): Brightness max value is 100(0064h). '0'-'0'-'5'-'0' (30h, 30h, 35h, 30h): Received a Brightness setting was 80(0050h) . ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet



Repeat Step 1 and Step 2, if you need to check the Brightness setting. (Recommended)

Step 5. Request the monitor to store the Brightness setting. (Save Current Settings Command)

Header Message Check code

SOH-'0'-Monitor ID-'0'-'A'-'0'-'4' STX-'0-'C'-ETX BCC CR

Header

SOH (01h): Start Of Header '0' (30h): Reserved Monitor ID: Specify the Monitor ID which you want to store the setting.

Ex.) If Monitor ID is '1', specify 'A'. '0' (30h): Message sender is the controller. 'A' (41h): Message type is "Command". '0'-'4' (30h, 34h): Message length is 4 bytes.

Message

STX (02h): Start of Message '0'-'C' (30h, 43h): Command code is 0Ch as "Save current settings". ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

Delimiter

BCC CR

Delimiter

6.2. How to read the measurement value of the built-in temperature sensors.

MultiSync X4 61UN/X461HB/P401/P461 and MULTEOS M401/M461 have three built-in temperature sensors.

The controller can monitor inside temperatures by using those sensors with external control.

The following shows the procedure for reading the temperatures from the sensors.

(13/50)

Step 1. Select a temperature sensor which you want to read.

Header Message

Check

code

Delimiter

SOH-'0'-Monitor ID-'0'-'E'-'0'-'A' STX-'0'-'2'-'7'-'8'-'0'-'0'-'0'-'1'-ETX BCC CR

Header

SOH (01h): Start of Header '0' (30h): Reserved Monitor ID: Specify the Monitor ID which you want to get a value.

Ex.) If Monitor ID is '1', specify 'A'. '0' (30h): Message sender is the controller. 'E' (45h): Message Type is "Set parameter command". '0'-'A' (30h, 41h): Message length is 10 bytes.

Message

STX (02h): Start of Message

'0'-'2' (30h, 32h): Operation code page number is 2. '7'-'8' (37h, 38h): Operation code is 78h (on page 2). '0'-'0'-'0'-'1' (30h, 30h, 30h, 31h): Select the temperature sensor #1 (01h).

00h: No meaning 01h: Sensor #1 02h: Sensor #2 03h: Sensor #3

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

Step 2. The monitor replies for confirmation.

Header Message

SOH-'0'-'0'-Monitor ID-'F'-'1'-'2' STX-'0'-'0'-'0'-'2'-'7'-'8'-'0'-'0'-'0'-'0'

Check

code

BCC CR

-'0'-'3'-'0'-'0'-'0'-'1'-ETX

Header

SOH (01h): Start of Header '0' (30h): Reserved '0' (30h): Message receiver is the controller. Monitor ID: Indicates a replying Monitor ID.

Ex.) When this byte is set to 'A', the replying Monitor ID is '1'. 'F' (46h): Message Type is "Set parameter reply". '1'-'2' (31h, 32h): Message length is 18 bytes.

Message

STX (02h): Start of Message

'0'-'0' (30h, 30h): Result code. No error. '0'-'2' (30h, 32h): Operation code page number is 2. '7'-'8' (37h, 38h): Operation code is 78h (in the page 2). '0'-'0' (30h, 30h): This operation is "Set parameter" type. '0'-'0'-'0'-'3' (30h, 30h, 30h, 33h): Number of temperature sensors are 3 (0003h). '0'-'0'-'0'-'1' (30h, 30h, 30h, 31h): temperature sensor is #1. ETX (03h): End of Message

Check code

BCC: Block Check Code Refe r to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

Step 3. The controller requests the monitor to send the temperature from the selected sensor.

Delimiter

(14/50)

Header Message Check code

SOH-'0'-Monitor ID-'0'-'C'-'0'-'6' STX-'0'-'2'-'7'-'9'-ETX BCC CR

Header

SOH (01h): Start of Header '0' (30h): Reserved Monitor ID: Specify the Monitor ID which you want to get a value.

Ex.) If Monitor ID is '1', specify 'A'. '0' (30h): Message sender is the controller. 'C' (43h): Message Type is "Get parameter". '0'-'6' (30h, 36h): Message length is 6 bytes.

Message

STX (02h): Start of Message

'0'-'2' (30h, 32h): Operation code page number is 2. '7'-'9' (37h, 39h): Operation code is 79h (in the page 2). ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

Step 4. The monitor replies a temperature of selected sensor.

Header Message Check code

SOH-'0'-'0'-Monitor ID-'D'-'1'-'2' STX-'0'-'0'-'0'-'2'-'7'-'9'-'0'-'0'

-'F'-'F'-'F'-'F'-'0'-'0'-'3'-'2'-ETX

Header

SOH (01h): Start of Header '0' (30h): Reserved '0' (30h): Message receiver is the controller. Monitor ID: Indicate a replying Monitor ID.

Ex.) When this byte is set to 'A', the replying Monitor ID is '1'. 'D' (44h): Message Type is "Get parameter reply". '1'-'2' (31h, 32h): Message length is 18 bytes.

Message

STX (02h): Start of Message

'0'-'0' (30h, 30h): Result code. No error. '0'-'2' (30h, 32h): Operation code page number is 2. '7'-'9' (37h, 39h): Operation code is 79h (in the page 2). '0'-'0' (30h, 30h): This operation is "Set parameter" type. 'F'-'F'-'F'-'F' (46h, 46h, 46h, 46h): Maximum value. '0'-'0'-'3'-'2' (30h, 30h, 33h, 32h): The temperature is 25 degrees Celsius.

Readout value is 2 's complement.

Temperature [Celsius] +125.0 0000 0000 1111 1010 00FAh

+ 25.0 0000 0000 0011 0010 0032h + 0.5 0000 0000 0000 000 1 0001h 0 0000 0000 0000 000 0 0000h

- 0.5 1111 1111 1111 1111 FFFFh

- 25.0 1111 1111 1100 111 0 FFCEh

- 55.0 1111 1111 1001 001 0 FF92h

Readout value Binary Hexadecimal

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

Delimiter

BCC CR

(15/50)

7. Power control procedure

7.1 Power status read

1) The controller requests the monitor to reply a current power status. Header Message Check code Delimiter

SOH-'0'-Monitor ID-'0'-'A'-'0'-'6' STX-'0'-'1'-'D'-'6'-ETX BCC CR

Header

SOH (01h): Start Of Header '0' (30h): Reserved Monitor ID: Specify the Monitor ID from which you want to get status.

Ex.) If Monitor ID is '1', specify 'A'. '0' (30h): Message sender is the controller. 'A' (41h): Message Type is "Command". '0'-'6' (30h, 36h): Message length is 6 bytes.

Message

STX (02h): Start of Message

'0'-'1'-'D'-'6': Get power status command. ETX (03h): End of Message

Check code

BCC: Block Check Code

Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

2) The monitor returns with the current power status.

Header Message Check code

SOH-'0'-'0'-Monitor ID-'B'-'1'-'2' STX-'0'-'2'-'0'-'0'-'D'-'6'-'0'-'0'-'0'

-'0'-'0'-'4'-'0'-'0'-'0'-'1'-ETX

Header

SOH (01h): Start Of Header '0' (30h): Reserved '0' (30h): Message receiver is the controller. Monitor ID: Indicate a replying Monitor ID.

Ex.)



When this byte is set to 'A', the replying Monitor ID is '1'. 'B' (42h): Message Type is "Command reply". '1'-'2' (31h, 32h): Message length is 18 bytes.

Message

STX(02h):Start of Message '0'-'2' (30h, 32h): Reserved data '0'-'0' (30h, 30h): Result code

00: No Error.

01: Unsupported. 'D'-'6'(44h, 36h): Display power mode code '0'-'0' (30h, 30h): Parameter type code is "Set parameter". '0'-'0'-'0'-'4' (30h, 30h, 30h, 34h): Power mode is 4 types. '0'-'0'-'0'-'1' (30h, 30h, 30h, 31h): Current power mode

0001: ON 0002: Stand-by (power save) 0003: Suspend (power save) 0004: OFF (same as IR power off)

ETX (03h): End of Message

Delimiter

BCC CR

(16/50)

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

7.2 Power control

1) The controller requests the monitor to control monitor power.

Header Message Check code

SOH-'0'-Monitor ID-'0'-'A'-'0'-'C' STX-'C'-'2'-'0'-'3'-'D'-'6'-

'0'-'0'-'0'-'1'-ETX

Header

SOH (01h): Start Of Header '0' (30h): Reserved Monitor ID: Specify the Monitor ID which you want to change a setting.

Ex.) If Monitor ID is '1', specify 'A'. '0' (30h): Message sender is the controller. 'A' (41h): Message type is "Command". '0'-'C (30h, 43h): Message length is 12 bytes.

Message

STX (02h): Start of Message 'C'-'2'-'0'-'3'-'D'-'6' (43h, 32h, 30h, 33h, 44h, 36h): power control command '0'-'0'-'0'-'1' (30h, 30h, 30h, 31h): Power mode

0001: ON 0002, 0003: Do not set. 0004: OFF (same as the power off by IR)

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

BCC CR

Delimiter

2) The monitor replies a data for confirmation.

Header Message Check ode Delimiter SOH-'0'-'0'-Monitor ID-'B'-'0'-'E'

Header

SOH (01h): Start Of Header

'0' (30h): Reserved

'0' (30h): Message receiver is the controller.

Monitor ID: Indicate a replying Monitor ID.

Ex.)



When this byte is set to 'A', the replying Monitor ID is '1'. 'B' (42h): Message type is "Command reply". 'N'-'N': Message length

Note.) The maximum data length that can be written to the moni tor at a time is 32byte s. Ex.) The b yte data 20h is encoded as ASCII characters '2' and '0' (32h and 30h).

Message

STX (02h): Start of Message '0'-'0' (30h, 30h): Result code. No error.

'C'-'2’ ,'0'-'3'-'D '-'6' (43h, 32h, 30h, 33h, 44h, 36h): power control reply command



The monitor replies same as power control command to the controller.

'0'-'0'-'0'-'1' (30h, 30h, 30h, 31h): Power mode

STX-'0'-'0'-'C'-'2'-'0'-'3'-'D'-'6''0'-'0'-'0'-'1'-ETX

0001: ON 0002, 0003: Do not set.

(17/50)

BCC CR

0004: OFF (same as the power off by IR)

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

8. Asset Data read and write

MultiSync X461UN/X461HB/P401/P461 and MULTEOS M401/M461 have the area for to store user’s asset

data of up to 64bytes.

8.1 Asset Data Read Request and reply

This command is used in order to read Asset Data.

1) The controller requests the monitor to reply with Asset data. Header Message Check code

SOH-'0'-Monitor ID-'0'-'A'-'0'-'A' STX-'C'-'0'-'0'-'B'-'0'-'0'-'2'-'0'-ETX BCC CR

Header

SOH (01h): Start Of Header '0' (30h): Reserved Monitor ID: Specify the Monitor ID from which you want to get data.

Ex.) If Monitor ID is '1', specify 'A'. '0' (30h): Message sender is the controller. 'A' (41h): Message type is "Command". '0'-'A' (30h, 41h): Message length is 10 bytes.

Message

STX (02h): Start of Message 'C'-'0'-'0'-'B' (43h, 30h, 30h, 42h): Asset read request command. '0'-'0' (30h, 30h): Offset data from top of the Asset data.

At first set 00h: Read data from the top of Asset data area.

'2'-'0' (32h, 30h): Read out data length is 32bytes.

Secondly set 20h: Read data from the 32bytes offset point in the Asset data area.

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

2) The monitor replies Asset data to the controller.

SOH-'0'-'0'-Monitor ID-'B'-N-N STX-'C'-'1'-'0'-'B'-

Header

SOH (01h): Start of Header '0' (30h): Reserved '0' (30h): Message receiver is the controller. Monitor ID: Indicate a replying Monitor ID.

Ex.) 'B' (42h): Message type is "Command reply" N-N: Message length

Ex.) The byte data 20h is encoded to ASCII characters '2' and '0' (32h and 30h).

Note.) This length includes STX and ETX.

Message

Maximum readout length is 32bytes at a time.

Header Message Check code

BCC CR

Data(0)-Data(1)---Data(N)-ETX



When this byte is set to 'A', the replying Monitor ID is '1'.

Delimiter

(18/50)

STX (02h): Start of Message 'C'-'1'-'0'-'B' (43h, 31h, 30h, 42h): Asset read reply command Data(0) – Data(N): Retuned Asset data

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

8.2 Asset Data write

This command is used in order to write Asset Data.

1) The controller requests the monitor to write Asset data. Header Message Check code

SOH-'0'-Monitor ID-'0'-'A'-N-N STX-'C'-'0'-'0'-'E'-'0'-'0'-

Data(0)-Data(1)---Data(N)-ETX

Header

SOH (01h): Start Of Header '0' (30h): Reserved Monitor ID: Specify the Monitor ID in which you want to write data.

Ex.) If Monitor ID is '1', specify 'A'. '0' (30h): Message sender is the controller. 'A' (41h): Message type is "Command". N-N: Message length

Note.) The maximum data length that can be written to the monitor at a time is 32bytes.

Ex.) The byte data 20h is encoded as ASCII characters '2' and '0' (32h and 30h).

Message

STX (02h): Start of Message 'C'-'0'-'0'-'E' (43h, 30h, 30h, 45h): Asset Data writes command '0'-'0'(30h, 30h): Offset address from top of Asset data.

00h : Write data from top of the Asset data area. Data(0) –- Data(N): Asset data. The data must be ASCII characters strings. ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

BCC CR

Delimiter

2) The monitor replies a data for confirmation. Header Message Check code

SOH-'0'-'0'-Monitor ID-'B'-N-N STX-'0'-'0'-'C'-'0'-'0'-'E'-'0'-'0'-

Data(0)-Data(1)---Data(N)-ETX

Header

SOH (01h): Start Of Header '0' (30h): Reserved '0' (30h): Message receiver is the controller. Monitor ID: Indicate a replying Monitor ID.

Ex.)



When this byte is set to 'A', the replying Monitor ID is '1'. 'B' (42h): Message type is "Command reply". N-N: Message length

Note.) The maximum data length that can be written to the monitor at a time is 32bytes. Ex.) The byte data 20h is encoded as ASCII characters '2' and '0' (34h and 30h).

Message

STX (02h): Start of Message '0'-'0': Result code. No error.

(19/50)

BCC CR

Delimiter

'C'-'0'-'0'-'E' (43h, 30h, 30h, 45h): Asset Data write command '0'-'0'(30h, 30h): Offset address from top of Asset data.

00h : Write data into from top of the Asset data area.

Data(0) –- Data(N): Asset data. The data must be ASCII characters strings.

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

9. Date & Time read and write

9.1 Date & Time Read

This command is used in order to read the setting of Date & Time.

1) The controller requests the monitor to reply with the Date & Time. Header Message Check code

SOH-'0'-Monitor ID-'0'-'A'-'0'-'6'

Header

SOH (01h): Start Of Header '0' (30h): Reserved Monitor ID: Specify the Monitor ID of which you want to get status.

Ex.) If Monitor ID is '1', specify 'A'. '0' (30h): Message sender is the controller. 'A' (41h): Message type is "Command". '0'-'6'(30h, 36h): Message length

Message

STX (02h): Start of Message 'C'-'2'-'1'-'1' (43h, 32h, 31h, 31h): Date & time read request command. ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

2) The monitor replies Date & Time to the controller. Header Message Check code

SOH-'0'-'0'-Monitor ID-'B'-'1'-'4' STX-'C'-'3'-'1'-'1'-YY-MM-DD-WW-HH-MN

Header

SOH (01h): Start of Header '0' (30h): Reserved '0' (30h): Message receiver is the controller Monitor ID: Indicate a replying Monitor ID

Ex.) 'B' (42h): Message type is "Command reply" '1'-'4'(31h, 34h): Message length

Message

STX (02h): Start of Message 'C'-'3'-'1'-'1' (43h, 33h, 31h, 31h): Date & Time read reply command 'YY'-'MM'-'DD'-'WW'-'HH'-'MN'-'DS': Date & Time data

YY: Year (offset 2000) '0'-'0'(30h, 30h): 2000 |

'6'-'3'(36h, 33h): 2099 (99 = 63h)

STX-'C'-'2'-'1'-'1'-ETX BCC CR

-DS-ETX



When this byte is set to 'A', the replying Monitor ID is '1'.

Delimiter

BCC CR

(20/50)

MM: Month

'0'-'1'(30h, 31h): January | '0'-'C'(30h, 43h): December

DD: Day

'0'-'1'(30h, 31h): 1 | '1'-'E'(31h, 45h): 30(=1Eh) '1'-'F'(31h, 46h): 31(=1Fh)

WW: weekdays

'0'-'0'(30h, 30h): Sunday '0'-'1'(30h, 31h): Monday '0'-'2'(30h, 32h): Tuesday '0'-'3'(30h, 33h): Wednesday '0'-'4'(30h, 34h): Thursday

'0'-'5'(30h, 35h): Friday '0'-'6'(30h, 36h): Saturday

HH: Hours

'0'-'0'(30h, 30h): 0 | '1'-'7'(31h, 37h): 23 (=17h)

MN: Minutes

'0'-'0'(30h, 30h): 0 | '3'-'B' (33h, 42h): 59 (=3Bh)

DS: Daylight saving (Summer time)

'0'-'0'(30h, 30h): NO '0'-'1'(30h, 31h): YES

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.



Delimiter

CR (0Dh): End of packet

9.2 Date & Time Write

This command is used in order to write the setting of the Date & Time.

1) The controller requests the monitor to write Date & Time.

Header Message Check code Delimiter

SOH-'0'-Mo nitor ID-'0'-'A'-'1'-'2' STX-'C'-'2'-'1'-'2'-YY-MM-DD-WW-HH-MN

-DS-ETX

BCC CR

Header

SOH (01h): Start Of Header '0' (30h): Reserved Monitor ID: Specify the Monitor ID of which you want to change the setting.

Ex.) If Monitor ID is '1', specify 'A'. '0' (30h): Message sender is the controller. 'A' (41h): Message type is "Command". '1'-'2'(31h, 32h): Message length

Message

STX (02h): Start of Message 'C'-'2'-'1'-'2' (43h, 32h, 31h, 32h): Date & Time write command

'YY'-'MM'-'DD'-'WW'-'HH'-'MN'-'DS': Date & Time data

YY: Year (offset 2000) '0'-'0'(30h, 30h): 2000

(21/50)

'6'-'3'(36h, 33h): 2099 (99 = 63h)

MM: Month

'0'-'1'(30h, 31h): January | '0'-'C'(30h, 43h): December

DD: Day

'0'-'1'(30h, 31h): 1 | '1'-'E'(31h, 45h): 30(=1Eh) '1'-'F'(31h, 46h): 31(=1Fh)

WW: weekdays

'0'-'0'(30h, 30h): Sunday '0'-'1'(30h, 31h): Monday '0'-'2'(30h, 32h): Tuesday '0'-'3'(30h, 33h): Wednesday '0'-'4'(30h, 34h): Thursday

'0'-'5'(30h, 35h): Friday '0'-'6'(30h, 36h): Saturday

HH: Hours

'0'-'0'(30h, 30h): 0 | '1'-'7'(31h, 37h): 23 (=17h)

MN: Minutes

'0'-'0'(30h, 30h): 0 | '3'-'B' (33h, 42h): 59 (=3Bh)

DS: Daylight saving (Summer time)

'0'-'0'(30h, 30h): NO '0'-'1'(30h, 31h): YES

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “ Check co de” for a BCC calculation.



Delimiter

CR (0Dh): End of packet

2) The monitor replies a data for confirmation. Header Message Check code

SOH-'0'-'0'-Monitor ID-'B'-'1'-'6' STX-'C'-'3'-'1'-'2'-ST-YY-MM-DD-WW-HH-MN

-DS-ETX

Header

SOH (01h): Start Of Header '0' (30h): Reserved '0' (30h): Message receiver is the controller. Monitor ID: Indicate a replying Monitor ID.

Ex.)



When this byte is set to 'A', the replying Monitor ID is '1'. 'B' (42h): Message type is "Command reply". '1'-'6'(31h, 36h): Message length

Message

STX (02h): Start of Message

'C'-'3'-'1'-'2' (43h, 33h, 31h, 32h): Date & Time write reply command ST: Date & Time Status command

'0'-'0'(30h, 30h): No error '0'-'1'(30h, 31h): Error

'YY'-'MM'-'DD'-'WW'-'HH'-'MN'-'DS': Date & Time data

YY: Year (offset 2000)

'0'-'0'(30h, 30h): 2000

Delimiter

BCC CR

(22/50)

'6'-'3'(36h, 33h): 2099 (99 = 63h)

MM: Month

'0'-'1'(30h, 31h): January | '0'-'C'(30h, 43h): December

DD: Day

'0'-'1'(30h, 31h): 1 | '1'-'E'(31h, 45h): 30(=1Eh) '1'-'F'(31h, 46h): 31(=1Fh)

WW: weekdays

'0'-'0'(30h, 30h): Sunday '0'-'1'(30h, 31h): Monday '0'-'2'(30h, 32h): Tuesday '0'-'3'(30h, 33h): Wednesday '0'-'4'(30h, 34h): Thursday

'0'-'5'(30h, 35h): Friday '0'-'6'(30h, 36h): Saturday

HH: Hours

'0'-'0'(30h, 30h): 0 | '1'-'7'(31h, 37h): 23 (=17h)

MN: Minutes

'0'-'0'(30h, 30h): 0 | '3'-'B' (33h, 42h): 59 (=3Bh)

DS: Daylight saving (Summer time)

'0'-'0'(30h, 30h): NO '0'-'1'(30h, 31h): YES

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet



10. Schedule read and write

10.1 Schedule Read

This command is used in order to read the setting of the Schedule.

1) The con troller requests the monitor to read Schedule. Header Message Check code

SOH-'0'-Monitor ID-'0'-'A'-'0'-'8' STX-'C'-'2'-'2'-'1'-PG-ETX BCC CR

Header

SOH (01h): Start Of Header '0' (30h): Reserved Monitor ID: Specify the Monitor ID of which you want to get status.

Ex.) If Monitor ID is '1', specify 'A'.

'0' (30h): Message sender is the controller. 'A' (41h): Message type is "Command". '0'-'8'(30h, 38h): Message length

Message

STX (02h): Start o f Message 'C'-'2'-'2'-'1' (43h, 32h, 32h, 31h): Schedule read request command. PG: Program No.

Delimiter

(23/50)



The data must be ASCII characters strings.

ETX (03h): End of Message

Check code

BCC: Block Check Code

Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

2) The monitor replies Schedule to the controller. Header Message Check code

SOH-'0'-'0'-Monitor ID-'B'-'2'-'6' STX-'C'-'3'-'2'-'1'-PG-ON HOUR-ON MIN-

OFF HOUR-OFF MIN-INPUT-WD-FL-P MODEEXT1-EXT2-EXT3-EXT4-EXT5-EXT6-EXT7-ETX

Header

SOH (01h): Start of Header '0' (30h): Reserved '0' (30h): Message receiver is the controller. Monitor ID: Indicate a replying Monitor ID.

Ex.)



When this byte is set to 'A', the replying Monitor ID is '1'. 'B' (42h): Message type is "Command reply". '2'-'6'(32h, 36h): Message length

Message

STX (02h): Start of Message 'C'-'3'-'2'-'1' (43h, 33h, 32h, 31h): Schedule read reply command PG-ON HOURS-ON MIN-OFF HOURS-OFF MIN-INPUT-WD-FL-P MODEEXT1-EXT2-EXT3-EXT4-EXT5-EXT6-EXT7: Schedule data

PG: Program No.

'0'-'0'(30h, 30h): Program No.1 | '0'-'6'(30h, 36h): Program No.7

ON_HOUR: Turn on time (hour)

'0'-'0'(30h, 30h): 00 | '1'-'7'(31h, 37h): 23 (=17h) '1'-'8'(31h, 38h): ON timer isn't set.

ON_MIN: Turn on time (minute)

'0'-'0'(30h, 30h): 0 | '3'-'B'(33h, 42h): 59 '3'-'C'(33h, 43h): On timer isn't set.

OFF_HOUR: Turn off time (hour)

'0'-'0'(30h, 30h): 00 | '1'-'7'(31h, 37h): 23 (=17h) '1'-'8'(31h, 38h): Off timer isn't set.

OFF_MIN: Turn off time (minute)

'0'-'0'(30h, 30h): 0 | '3'-'B'(33h, 42h): 59 (=3Bh) '3'-'C'(33h, 43h): Off timer isn’t set.

INPUT: Timer input

'0'-'0'(30h,30h): No mean (works on last memory) '0'-'1'(30h,31h): VGA '0'-'2'(30h,32h): RGB/HV '0'-'3'(30h,33h): DVI '0'-'5'(30h,35h): Video1 '0'-'6'(30h,36h): Video2 '0'-'7'(30h,37h): S-Video

Delimiter

BCC CR

(24/50)

'0'-'A'(30h,41h): TV '0'-'C'(30h,43h): DVD/HD1 '0'-'D'(30h,44h): Option '0'-'E'(30h,45h): DVD/HD2 '0'-'F'(30h,46h): Display Port '1'-'1'(31h,31h): HDMI

WD: Week setting

bit 0: Monday bit 1: Tuesday bit 2: Wednesday bit 3: Thursday bit 4: Friday bit 5: Saturday bit 6: Sunday

EX. '0'-'1'(30h, 31h): Monday '0'-'4'(30h, 34h): Wednesday '0'-'F'(30h, 46h): Monday, Tuesday, Wednesday and Thursday '7'-'F'(37h, 46h): Monday to Sunday

FL: Option

bit 0: 0:once 1:Everyday bit 1: 0:once 1:Every week bit 2: 0:Disable 1:Enable

EX. '0'-'1'(30h, 31h): Disable, Everyday '0'-'4'(30h, 34h): Enable, once

P MODE: Picture mode

'0'-'0'(30h,30h): No mean (works on last memory) '0'-'1'(30h,31h): sRGB '0'-'3'(30h,33h): Hi-Bright '0'-'4'(30h,34h): Standard '0'-'5'(30h,34h): Cinema '0'-'6'(30h,36h): ISF-Day '0'-'7'(30h,37h): ISF-Night '0'-'B'(30h,42h): Ambient-1 '0'-'C'(30h,43h): Ambient-2

EXT1: Extension1

'0'-'0'(30h,30h): (On this monitor, it is always ‘00’)

EXT2: Extension 2

'0'-'0'(30h,30h): (On this monitor, it is always ‘00’)

EXT3: Extension 3

'0'-'0'(30h,30h): (On this monitor, it is always ‘00’)

EXT4: Extension 4

'0'-'0'(30h,30h): (On this monitor, it is always ‘00’)

EXT5: Extension 5

'0'-'0'(30h,30h): (On this monitor, it is always ‘00’)

EXT6: Extension 6

'0'-'0'(30h,30h): (On this monitor, it is always ‘00’)

EXT7: Extension 7

'0'-'0'(30h,30h): (On this monitor, it is always ‘00’)

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

(25/50)

Delimiter

CR (0Dh): End of packet

***Following command also can be used for to keep backward compatibility, in order to read the setting of the Schedule.

1) The con troller requests the monitor to read Schedule. Header Message Check code

SOH-'0'-Monitor ID-'0'-'A'-'0'-'8' STX-'C'-'2'-'1'-'3'-PG-ETX BCC CR

Header

SOH (01h): Start Of Header '0' (30h): Reserved Monitor ID: Specify the Monitor ID of which you want to get status.

Ex.) If Monitor ID is '1', specify 'A'.

'0' (30h): Message sender is the controller. 'A' (41h): Message type is "Command". '0'-'8'(30h, 38h): Message length

Message

STX (02h): Start o f Message 'C'-'2'-'1'-'3' (43h, 32h, 31h, 33h): Schedule read request command. PG: Program No.



The data must be ASCII characters strings.

ETX (03h): End of Message

Check code

BCC: Block Check Code

Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

2) The monitor replies Schedule to the controller. Header Message Check code

SOH-'0'-'0'-Monitor ID-'B'-'1'-'6' STX-'C'-'3'-'1'-'3'-PG-ON HOUR-ON MIN-

OFF HOUR-OFF MIN-INPUT-WD-FL-ETX

Header

SOH (01h): Start of Header '0' (30h): Reserved '0' (30h): Message receiver is the controller. Monitor ID: Indicate a replying Monitor ID.

Ex.)



When this byte is set to 'A', the replying Monitor ID is '1'. 'B' (42h): Message type is "Command reply". '1'-'6'(31h, 36h): Message length

Message

STX (02h): Start of Message 'C'-'3'-'1'-'3' (43h, 33h, 31h, 33h): Schedule read reply command PG-ON HOURS-ON MIN-OFF HOURS-OFF MIN-INPUT-WD-FL: Schedule data

PG: Program No.

'0'-'0'(30h, 30h): Program No.1 | '0'-'6'(30h, 36h): Program No.7

ON_HOUR: Turn on time (hour)

'0'-'0'(30h, 30h): 00 | '1'-'7'(31h, 37h): 23 (=17h) '1'-'8'(31h, 38h): ON timer isn't set.

Delimiter

BCC CR

(26/50)

ON_MIN: Turn on time (minute)

'0'-'0'(30h, 30h): 0 | '3'-'B'(33h, 42h): 59 '3'-'C'(33h, 43h): On timer isn't set.

OFF_HOUR: Turn off time (hour)

'0'-'0'(30h, 30h): 00 | '1'-'7'(31h, 37h): 23 (=17h) '1'-'8'(31h, 38h): Off timer isn't set.

OFF_MIN: Turn off time (minute)

'0'-'0'(30h, 30h): 0 | '3'-'B'(33h, 42h): 59 (=3Bh) '3'-'C'(33h, 43h): Off timer isn’t set.

INPUT: Timer input

'0'-'0'(30h, 30h): DVI '0'-'1'(30h, 31h): VGA '0'-'2'(30h, 32h): RGB/HV '0'-'3'(30h, 33h): DVD/HD1 '0'-'4'(30h, 34h): VIDEO '0'-'5'(30h, 35h): S-VIDEO '0'-'7'(30h,30h): No mean (Works on last memory)

WD: Week setting

bit 0: Monday bit 1: Tuesday bit 2: Wednesday bit 3: Thursday bit 4: Friday bit 5: Saturday bit 6: Sunday

EX. '0'-'1'(30h, 31h): Monday '0'-'4'(30h, 34h): Wednesday '0'-'F'(30h, 46h): Monday, Tuesday, Wednesday and Thursday '7'-'F'(37h, 46h): Monday to Sunday

FL: Option

bit 0: 0:once 1:Everyday bit 1: 0:once 1:Every week bit 2: 0:Disable 1:Enable

EX. '0'-'1'(30h, 31h): Disable, Everyday '0'-'4'(30h, 34h): Enable, once

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

10.2 Schedule Write

This command is used in order to write the setting of the Schedule.

1) The controller requests the monitor to write Schedule.

Header Message Check code Delimiter

SOH-'0'-Mo nitor ID-'0'-'A'-'2'-'6' STX-'C'-'2'-'2'-'2'-PG-ON HOUR-ON MIN- BCC CR

(27/50)

OFF HOUR-OFF MIN-INPUT-WD-FL-P MODE- EXT1-EXT2-EXT3-EXT4-EXT5-EXT6-EXT7-ETX

Header

SOH (01h): Start Of Header '0' (30h): Reserved Monitor ID: Specify the Monitor ID of which you want to change a setting.

Ex.) If Monitor ID is '1', specify 'A'. '0' (30h): Message sender is the controller. 'A' (41h): Message type is "Command". '2'-'6'(32h, 36h): Message length.

Message

STX (02h): Start of Message 'C'-'2'-'2'-'2' (43h, 32h, 32h, 32h): Schedule writes command

PG-ON HOURS-ON MIN-OFF HOURS-OFF MIN-INPUT-WD-FL-P MODE EXT1-EXT2-EXT3-EXT4-EXT5-EXT6-EXT7: Schedule data

PG: Program No.

'0'-'0'(30h, 30h): Program No.1 | '0'-'6'(30h, 36h): Program No.7

ON_HOUR: Turn on time (hour)

'0'-'0'(30h, 30h): 00 | '1'-'7'(31h, 37h): 23 (=17h) '1'-'8'(31h, 38h): ON timer isn't set.

ON_MIN: Turn on time (minute)

'0'-'0'(30h, 30h): 0 | '3'-'B'(33h, 42h): 59 '3'-'C'(33h, 43h): On timer isn’t set.

OFF_HOUR: Turn off time (hour)

'0'-'0'(30h, 30h): 00 | '1'-'7'(31h, 37h): 23 (=17h) '1'-'8'(31h, 38h): Off timer isn't set.

OFF_MIN: Turn off time (minute)

'0'-'0'(30h, 30h): 0 | '3'-'B'(33h, 42h): 59 (=3Bh) '3'-'C'(33h, 43h): Off timer isn’t set.

INPUT: Timer input

'0'-'0'(30h,30h): No mean (works on last memory) '0'-'1'(30h,31h): VGA '0'-'2'(30h,32h): RGB/HV '0'-'3'(30h,33h): DVI '0'-'4'(30h,34h): HDMI (Set only) '0'-'5'(30h,35h): Video1 '0'-'6'(30h,36h): Video2 '0'-'7'(30h,37h): S-Video '0'-'A'(30h,41h): TV '0'-'C'(30h,43h): DVD/HD1 '0'-'D'(30h,44h): Option '0'-'E'(30h,45h): DVD/HD2 '0'-'F'(30h,46h): Display Port '1'-'1'(31h,31h): HDMI * Please select active input on your system (setting). * If you select inactive input here, the input change execution will be ignored.

WD: Week setting

bit 0: Monday bit 1: Tuesday bit 2: Wednesday bit 3: Thursday

(28/50)

bit 4: Friday bit 5: Saturday bit 6: Sunday

EX. '0'-'1'(30h, 31h): Monday '0'-'4'(30h, 34h): Wednesday '0'-'F'(30h, 46h): Monday, Tuesday, Wednesday and Thursday '7'-'F'(37h, 46h): Monday to Sunday

FL: Option

bit 0: 0:once 1:Everyday bit 1: 0:once 1:Every week bit 2: 0:Disable 1:Enable

* When bit 0 and bit 1 are '1', it behaves as Everyday.

EX. '0'-'1'(30h, 31h): Disable, Everyday '0'-'4'(30h, 34h): Enable, once

P MODE: Picture mode

'0'-'0'(30h,30h): No mean (Works on last memory) '0'-'1'(30h,31h): sRGB '0'-'3'(30h,33h): Hi-Bright '0'-'4'(30h,34h): Standard '0'-'5'(30h,34h): Cinema '0'-'6'(30h,36h): ISF-Day '0'-'7'(30h,37h): ISF-Night '0'-'B'(30h,42h): Ambient-1 '0'-'C'(30h,43h): Ambient-2 * Please select active picture mode on your system (setting). * If you select inactive picture m ode here, the input change execution will be ignored.

EXT1: Exte nsion1

'0'-'0'(30 h,30h): (On this monitor, it is always ‘00’)

EXT2: Extension 2

'0'-'0'(30h,30h): (On this monitor, it is always ‘00’)

EXT3: Extension 3

'0'-'0'(30h,30h): (On this monitor, it is always ‘00’)

EXT4: Extension 4

'0'-'0'(30h,30h): (On this monitor, it is always ‘00’)

EXT5: Extension 5

'0'-'0'(30h,30h): (On this monitor, it is always ‘00’)

EXT6: Extension 6

'0'-'0'(30h,30h): (On this monitor, it is always ‘00’)

EXT7: Extension 7

'0'-'0'(30h,30h): (On this monitor, it is always ‘00’)

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

2) The monitor replies a data for confirmation. Header Message Check code

SOH-'0'-'0'-Monitor ID-'B'-'2'-'8' STX-'C'-'3'-'2'-'2'-ST-PG-ON HOUR-ON MIN-

OFF HOUR-OFF MIN-INPUT-WD-FL-P MODE- EXT1-EXT2-EXT3-EXT4-EXT5-EXT6-EXT7-ETX

Delimiter

BCC CR

(29/50)

Header

SOH (01h): Start Of Header '0' (30h): Reserved '0' (30h): Message receiver is the controller. Monitor ID: Indicate a replying Monitor ID.

Ex.)



When this byte is set to 'A', the replying Monitor ID is '1'. 'B' (42h): Message type is "Command reply". '2'-'8'(32h, 38h): Message length

Message

STX (02h): Start of Message

'C'-'3'-'2'-'2' (43h, 33h, 32h, 32h): Schedule writes reply command ST: Schedule Status command

'0'-'0'(30h, 30h): No error

'0'-'1'(30h, 31h): Error PG-ON HOURS-ON MIN-OFF HOURS-OFF MIN-INPUT-WD-FL-P MODE EXT1-EXT2-EXT3-EXT4-EXT5-EXT6-EXT7: Schedule data

PG: Program No.

'0'-'0'(30h, 30h): Program No.1 | '0'-'6'(30h, 36h): Program No.7

ON_HOUR: Turn on time (hour)

'0'-'0'(30h, 30h): 00 | '1'-'7'(31h, 37h): 23 (=17h) '1'-'8'(31h, 38h): ON timer isn't set.

ON_MIN: Turn on time (minute)

'0'-'0'(30h, 30h): 0 | '3'-'B'(33h, 42h): 59 '3'-'C'(33h, 43h): On timer isn’t set.

OFF_HOUR: Turn off time (hour)

'0'-'0'(30h, 30h): 00 | '1'-'7'(31h, 37h): 23 (=17h) '1'-'8'(31h, 38h): Off timer isn't set.

OFF_MIN: Turn off time (minute)

'0'-'0'(30h, 30h): 0 | '3'-'B'(33h, 42h): 59 (=3Bh) '3'-'C'(33h, 43h): Off timer isn’t set.

INPUT: Timer input

'0'-'0'(30h,30h): No mean (works on last memory) '0'-'1'(30h,31h): VGA '0'-'2'(30h,32h): RGB/HV '0'-'3'(30h,33h): DVI '0'-'5'(30h,35h): Video1 '0'-'6'(30h,36h): Video2 '0'-'7'(30h,37h): S-Video '0'-'A'(30h,41h): TV '0'-'C'(30h,43h): DVD/HD1 '0'-'D'(30h,44h): Option '0'-'E'(30h,45h): DVD/HD2 '0'-'F'(30h,46h): Display Port '1'-'1'(31h,31h): HDMI

WD: Week setting

bit 0: Monday bit 1: Tuesday bit 2: Wednesday bit 3: Thursday bit 4: Friday bit 5: Saturday bit 6: Sunday

(30/50)

EX. '0'-'1'(30h, 31h): Monday '0'-'4'(30h, 34h): Wednesday '0'-'F'(30h, 46h): Monday, Tuesday, Wednesday and Thursday '7'-'F'(37h, 46h): Monday to Sunday

FL: Option

bit 0: 0:once 1:Everyday bit 1: 0:once 1:Every week bit 2: 0:Disable 1:Enable

* When bit 0 and bit 1 are '1', it behaves as Everyday.

EX. '0'-'1'(30h, 31h): Disable, Everyday '0'-'4'(30h, 34h): Enable, once

P MODE: Picture mode

EXT1: Extension1

'0'-'0'(30h,30h): (On this monitor, it is always ‘00’)

EXT2: Extension 2

'0'-'0'(30h,30h): (On this monitor, it is always ‘00’)

EXT3: Extension 3

'0'-'0'(30h,30h): (On this monitor, it is always ‘00’)

EXT4: Extension 4

'0'-'0'(30h,30h): (On this monitor, it is always ‘00’)

EXT5: Extension 5

'0'-'0'(30h,30h): (On this monitor, it is always ‘00’)

EXT6: Extension 6

'0'-'0'(30h,30h): (On this monitor, it is always ‘00’)

EXT7: Extension 7

'0'-'0'(30h,30h): (On this monitor, it is always ‘00’)

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

The controller requests the monitor to write Enable/Disable Schedule.

Header Message Check code

SOH-'0'-Monitor ID-'0'-'A'-'0'-'A' STX-'C'-'2'-'1'-'5'-PG-EN-ETX BCC CR

Header

SOH (01h): Start Of Header '0' (30h): Reserved Monitor ID: Specify the Monitor ID of which you want to change a setting.

Ex.) If Monitor ID is '1', specify 'A'. '0' (30h): Message sender is the controller. 'A' (41h): Message type is "Command". '0'-'A'(30h, 41h): Message length

Delimiter

(31/50)

Message

STX (02h): Start o f Message

'C'-'2'-'1'-'5' (43h, 32h, 31h, 35h): Enable/Disable Schedule writes command PG-EN: Enable/Disable Schedule data

PG: Program No.

'0'-'0'(30h, 30h): Program No.1 | '0'-'6'(30h, 36h): Program No.7

EN: Enable /Disable

'0'-'0'(30h, 30h): Disable '0'-'1'(30h, 31h): Enable

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

4) The monitor replies a data for confirmation. Header Message Check code

SOH-'0'-'0'-Monitor ID-'B'-'0'-'C' STX-'C'-'3'-'1'-'5'-ST-PG-EN-ETX BCC CR

Header

SOH (01h): Start Of Header '0' (30h): Reserved '0' (30h): Message receiver is the controller. Monitor ID: Indicate a replying Monitor ID.

Ex.)



When this byte is set to 'A', the replying Monitor ID is '1'. 'B' (42h): Message type is "Command reply". '0'-'C' (30h, 43h): Message length

Message

STX (02h): Start of Message

'C'-'3'-'1'-'5' (43h, 33h, 31h, 35h): Enable/Disable Schedule writes reply command ST: Enable/Disable Schedule Status command

'0'-'0'(30h, 30h): No error '0'-'1'(30h, 31h): Error

PG-EN: Enable/Disable Schedule data

PG: Program No.

'0'-'0'(30h, 30h): Program No.1 | '0'-'6'(30h, 36h): Program No.7

EN: Enable /Disable

'0'-'0'(30h, 30h): Disable '0'-'1'(30h, 31h): Enable

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

Delimiter

***Following command also can be used for to keep backward compatibility, in order to write the setting of the Schedule.

1) The controller requests the monitor to write Schedule.

Header Message Check code Delimiter

(32/50)

SOH-'0'-Monitor ID-'0'-'A'-'1'-'6' STX-'C'-'2'-'1'-'4'-PG-ON HOUR-ON MIN-

OFF HOUR-OFF MIN-INPUT-WD-FL-ETX

Header

SOH (01h): Start Of Header '0' (30h): Reserved Monitor ID: Specify the Monitor ID of which you want to change a setting.

Ex.) If Monitor ID is '1', specify 'A'. '0' (30h): Message sender is the controller. 'A' (41h): Message type is "Command". '1'-'6'(31h, 36h): Message length.

Message

STX (02h): Start of Message 'C'-'2'-'1'-'4' (43h, 32h, 31h, 34h): Schedule writes command

PG-ON HOURS-ON MIN-OFF HOURS-OFF MIN-INPUT-WD-FL: Schedule data

PG: Program No.

'0'-'0'(30h, 30h): Program No.1 | '0'-'6'(30h, 36h): Program No.7

ON_HOUR: Turn on time (hour)

'0'-'0'(30h, 30h): 00 | '1'-'7'(31h, 37h): 23 (=17h) '1'-'8'(31h, 38h): ON timer isn't set.

ON_MIN: Turn on time (minute)

'0'-'0'(30h, 30h): 0 | '3'-'B'(33h, 42h): 59 '3'-'C'(33h, 43h): On timer isn’t set.

OFF_HOUR: Turn off time (hour)

'0'-'0'(30h, 30h): 00 | '1'-'7'(31h, 37h): 23 (=17h) '1'-'8'(31h, 38h): Off timer isn't set.

OFF_MIN: Turn off time (minute)

'0'-'0'(30h, 30h): 0 | '3'-'B'(33h, 42h): 59 (=3Bh) '3'-'C'(33h, 43h): Off timer isn’t set.

INPUT: Timer input

'0'-'0'(30h, 30h): DVI '0'-'1'(30h, 31h): VGA '0'-'2'(30h, 32h): RGB/HV '0'-'3'(30h, 33h): DVD/HD1 '0'-'4'(30h, 34h): VIDEO '0'-'5'(30h, 35h): S-VIDEO '0'-'7'(30h, 37h): (Works on last memory) * Please select active input on your system (setting). * If you select inactive input here, the input change execution will be ignored.

WD: Week setting

bit 0: Monday bit 1: Tuesday bit 2: Wednesday bit 3: Thursday bit 4: Friday bit 5: Saturday bit 6: Sunday

EX. '0'-'1'(30h, 31h): Monday '0'-'4'(30h, 34h): Wednesday '0'-'F'(30h, 46h): Monday, Tuesday, Wednesday and Thursday

BCC CR

(33/50)

'7'-'F'(37h, 46h): Monday to Sunday

FL: Option

bit 0: 0:once 1:Everyday bit 1: 0:once 1:Every week bit 2: 0:Disable 1:Enable

* When bit 0 and bit 1 are '1', it behaves as Everyday.

EX. '0'-'1'(30h, 31h): Disable, Everyday '0'-'4'(30h, 34h): Enable, once

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

2) The monitor replies a data for confirmation. Header Message Check code

SOH-'0'-'0'-Monitor ID-'B'-'1'-'8' STX-'C'-'3'-'1'-'4'-ST-PG-ON HOUR-ON MIN-

OFF HOUR-OFF MIN-INPUT-WD-FL-ETX

Header

SOH (01h): Start Of Header '0' (30h): Reserved '0' (30h): Message receiver is the controller. Monitor ID: Indicate a replying Monitor ID.

Ex.)



When this byte is set to 'A', the replying Monitor ID is '1'. 'B' (42h): Message type is "Command reply". '1'-'8'(31h, 38h): Message length

Message

STX (02h): Start of Message

'C'-'3'-'1'-'4' (43h, 33h, 31h, 34h): Schedule writes reply command ST: Schedule Status command

'0'-'0'(30h, 30h): No error '0'-'1'(30h, 31h): Error

PG-ON HOURS-ON MIN-OFF HOURS-OFF MIN-INPUT-WD-FL: Schedule data

PG: Program No.

'0'-'0'(30h, 30h): Program No.1 | '0'-'6'(30h, 36h): Program No.7

ON_HOUR: Turn on time (hour)

'0'-'0'(30h, 30h): 00 | '1'-'7'(31h, 37h): 23 (=17h) '1'-'8'(31h, 38h): ON timer isn't set.

ON_MIN: Turn on time (minute)

'0'-'0'(30h, 30h): 0 | '3'-'B'(33h, 42h): 59 '3'-'C'(33h, 43h): On timer isn’t set.

OFF_HOUR: Turn off time (hour)

'0'-'0'(30h, 30h): 00 | '1'-'7'(31h, 37h): 23 (=17h) '1'-'8'(31h, 38h): Off timer isn't set.

OFF_MIN: Turn off time (minute)

'0'-'0'(30h, 30h): 0 | '3'-'B'(33h, 42h): 59 (=3Bh)

Delimiter

BCC CR

(34/50)

'3'-'C'(33h, 43h): Off timer isn’t set.

INPUT: Timer input

'0'-'0'(30h, 30h): DVI '0'-'1'(30h, 31h): VGA '0'-'2'(30h, 32h): RGB/HV '0'-'3'(30h, 33h): DVD/HD1 '0'-'4'(30h, 34h): VIDEO '0'-'5'(30h, 35h): S-VIDEO '0'-'7'(30h,30h): No mean (Works on last memory)

WD: Week setting

bit 0: Monday bit 1: Tuesday bit 2: Wednesday bit 3: Thursday bit 4: Friday bit 5: Saturday bit 6: Sunday

EX. '0'-'1'(30h, 31h): Monday '0'-'4'(30h, 34h): Wednesday '0'-'F'(30h, 46h): Monday, Tuesday, Wednesday and Thursday '7'-'F'(37h, 46h): Monday to Sunday

FL: Option

bit 0: 0:once 1:Everyday bit 1: 0:once 1:Every week bit 2: 0:Disable 1:Enable

* When bit 0 and bit 1 are '1', it behaves as Everyday.

EX. '0'-'1'(30h, 31h): Disable, Everyday '0'-'4'(30h, 34h): Enable, once

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

The controller requests the monitor to write Enable/Disable Schedule.

Header Message Check code

SOH-'0'-Monitor ID-'0'-'A'-'0'-'A' STX-'C'-'2'-'1'-'5'-PG-EN-ETX BCC CR

Header

SOH (01h): Start Of Header '0' (30h): Reserved Monitor ID: Specify the Monitor ID of which you want to change a setting.

Ex.) If Monitor ID is '1', specify 'A'. '0' (30h): Message sender is the controller. 'A' (41h): Message type is "Command". '0'-'A'(30h, 41h): Message length

Message

STX (02h): Start o f Message

'C'-'2'-'1'-'5' (43h, 32h, 31h, 35h): Enable/Disable Schedule writes command PG-EN: Enable/Disable Schedule data

PG: Program No.

'0'-'0'(30h, 30h): Program No.1 | '0'-'6'(30h, 36h): Program No.7

EN: Enable /Disable

'0'-'0'(30h, 30h): Disable

Delimiter

(35/50)

'0'-'1'(30h, 31h): Enable

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

4) The monitor replies a data for confirmation. Header Message Check code

SOH-'0'-'0'-Monitor ID-'B'-'0'-'C' STX-'C'-'3'-'1'-'5'-ST-PG-EN-ETX BCC CR

Header

SOH (01h): Start Of Header '0' (30h): Reserved '0' (30h): Message receiver is the controller. Monitor ID: Indicate a replying Monitor ID.

Ex.)



When this byte is set to 'A', the replying Monitor ID is '1'. 'B' (42h): Message type is "Command reply". '0'-'C' (30h, 43h): Message length

Message

STX (02h): Start of Message

'C'-'3'-'1'-'5' (43h, 33h, 31h, 35h): Enable/Disable Schedule writes reply command ST: Enable/Disable Schedule Status command

'0'-'0'(30h, 30h): No error '0'-'1'(30h, 31h): Error

PG-EN: Enable/Disable Schedule data

PG: Program No.

'0'-'0'(30h, 30h): Program No.1 | '0'-'6'(30h, 36h): Program No.7

EN: Enable /Disable

'0'-'0'(30h, 30h): Disable '0'-'1'(30h, 31h): Enable

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

Delimiter

11. Self diagnosis

11.1 Self-diagnosis status read

This command is used in order to read the Self-diagnosis status.

1) The con troller requests the monitor to read Self-diagnosis status. Header Message Check code Delimiter

SOH-'0'-Monitor ID-'0'-'A'-'0'-'4' STX-'B'-'1'-ETX BCC CR

Header

SOH (01h): Start of Header '0' (30h): Reserved Monitor ID: Specify the Monitor ID which you want to get status.

Ex.) If Monitor ID is '1', specify 'A'. '0' (30h): Message sender is the controller. 'A' (41h): Message type is "Command". '0'-'4'(30h, 34h): Message length

(36/50)

Message

STX (02h): Start of Message

'B'-'1' (42h, 31h): Self-diagnosis command ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

2) The monitor replies a result of the self-diagnosis. Header Message Check code

SOH-'0'-'0'-Monitor ID-'B'-N-N STX-'A'-'1'-

ST(0)-ST(1) --------ST(n)-ETX

Header

SOH (01h): Start Of Header '0' (30h): Reserved '0' (30h): Message receiver is the controller. Monitor ID: Indicate a replying Monitor ID.

Ex.)



When this byte is set to 'A', the replying Monitor ID is '1'. 'B' (42h): Message type is "Command reply". N-N: Message length

Note.) The maximum data length that can be written to the monitor at a time is 32bytes. Ex.) The byte data 20h is encoded as ASCII characters '2' and '0' (34h and 30h).

Message

STX (02h): Start of Message

'A'-'1' (41h, 31h): Application Test Report reply command ST: Result of self-tests

'0'-'0'(30h, 30h):00: Normal '7'-'0'(37h, 30h):70: Standby-power +3.3V abnormality '7'-'1'(37h, 31h):71: Standby-power +5V abnormality '7'-'2'(37h, 32h):72: Panel-power +12V abnormality '7'-'3'(37h, 33h):73: Main-power +2.5V abnormality '7'-'4'(37h, 34h):74: Main-power +1.8V abnormality '7'-'5'(37h, 35h):75: Main-power +5V abnormality '7'-'6'(37h, 36h):76: Sub-power +3.3V abnormality '7'-'7'(37h, 37h):77: Main-power +3.3V abnormality '8'-'0'(38h, 30h):80: Cooling fan-1 abnormality '8'-'1'(38h, 31h):81: Cooling fan-2 abnormality ('8'-'2'(38h, 32h):82: Cooling fan-3 abnormality) '9'-'0'(39h, 30h):90: Inverter abnormality 'A'-'0'(41h, 30h):A0: Temperature abnormality – shutdown 'A'-'1'(41h, 31h):A1: Temperature abnormality – half brightness

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

BCC CR

12. Seri al No. & Model Name Read

12.1 Serial No. Read

This command is used in order to read a serial number.

1) The con troller requests the monitor to read a serial number. Header Message Check code

SOH-'0'-Monitor ID-'0'-'A'-'0'-'6' STX-'C'-'2'-'1'-'6'-ETX BCC CR

Delimiter

(37/50)

Header

SOH (01h): Start Of Header '0' (30h): Reserved Monitor ID: Specify the Monitor ID which you want to get serial number.

Ex.) If Monitor ID is '1', specify 'A'. '0' (30h): Message sender is the controller. 'A' (41h): Message type is "Command". '0'-'6'(30h, 36h): Message length

Message

STX (02h): Start o f Message

'C'-'2'-'1'-'6' (43h, 32h, 31h, 36h): Serial No. command

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

2) The monitor replies the serial No. data to the controller. Header Message Check code

SOH-'0'-'0'-Monitor ID-'B'-N-N STX-'C'-'3'-'1'-'6'-

Data(0)-Data(1)---Data(n)-ETX

Header

SOH (01h): Start Of Header '0' (30h): Reserved '0' (30h): Message receiver is the controller. Monitor ID: Indicate a replying Monitor ID.

Ex.)



When this byte is set to 'A', the replying Monitor ID is '1'. 'B' (42h): Message type is "Command reply". N-N: Message length

Note.) The maximum data length that can be returned from the monitor at a time is

32bytes.

Ex.) The byte data 20h is encoded as ASCII characters '2' and '0' (32h and 30h).

Message

STX (02h): Start of Message

'C'-'3'-'1'-'6' (41h, 33h, 31h, 36h): Serial No. reply command Data(0)-Data(1)----Data(n):Serial Number



These data are encoded to ASCII characters strings.

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

BCC CR

Delimiter

CR (0Dh): End of packet

12.2 Model Name Read

This command is used in order to read the Model Name.

1) The con troller requests the monitor to read Model Name.

Header Message Check code

SOH-'0'-Monitor ID-'0'-'A'-'0'-'6' STX-'C'-'2'-'1'-'7'-ETX BCC CR

Header

SOH (01h): Start Of Header '0' (30h): Reserved Monitor ID: Specify the Monitor ID which you want to get Model Name.

Ex.) If Monitor ID is '1', specify 'A'. '0' (30h): Message sender is the controller. 'A' (41h): Message type is "Command".

Delimiter

(38/50)

'0'-'6'(30h, 36h): Message length

Check

Message

STX (02h): Start of Message

'C'-'2'-'1'-'7' (43h, 32h,

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.



31h,37h): Model Name command

Delimiter

CR (0Dh): End of packet

2) The monitor replies the model name data to the controller. Header Message Check code

SOH-'0'-'0'-Monitor ID-'B'-N-N STX-'C'-'3'-'1'-'7'-Data(0) -Data(1)—---

-Data(n)-ETX

Header

SOH (01h): Start Of Header '0' (30h): Reserved '0' (30h): Message receiver is the controller. Monitor ID: Indicate a replying Monitor ID.

Ex.)



When this byte is set to 'A', the replying Monitor ID is '1'. 'B' (42h): Message type is "Command reply". N-N: Message length

Note.) The maximum data length that can be returned from the monitor at a time is

32bytes.

Ex.) The byte data 20h is encoded as ASCII characters '2' and '0' (32h and 30h).

Message

STX (02h): Start of Message

'C'-'3'-'1'-'7' (43h, 33h, 31h, 37h): Model Name reply Command Data(0) -Data(1)----Data(n):Model name



These data are encoded to ASCII characters strings.

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

13. Security Lock

Delimiter

BCC CR

13.1 Security Lock Control

This command sets the condition of security lock function to "LOCK" or "UNLOCK".

If security pass codes 1st to 4th are matched with monitor resisted pass codes, then this command

is executed, and reply no error status and a new condition.

If codes aren't matched with them then setting isn't changed, and reply error status and a current

condition.

If the monitor receives this command while waiting for Pass codes inputs, then it only checks Pass

cords (and releases image muting if Pass codes are OK) and doesn't apply "EN" parameter.

1) The controller requests the monitor to set the condition of security lock. Header Message

SOH-'0'-MonitorID-'0'-'A'-'1'-'0' STX-'C'-'2'-'1'-'D'-EN-P1-P2-P3-P4-ETX BCC CR

Header

SOH (01h): Start Of Header '0' (30h): Reserved Monitor ID: Specify the Monitor ID of which you want to change a setting.

Ex.) If Monitor ID is '1', specify 'A'.

Delimiter

code

(39/50)

'0' (30h): Message sender is the controller. 'A' (41h): Message type is "Command". '1'-'0'(31h, 30h): Message length

Message

STX (02h): Start of Message 'C'-'2'-'1'-'D' (43h, 32h, 31h, 44h): Security Lock Control command EN-P1-P2-P3-P4: Lock condition control data

EN: Enable /Disable

'0'-'0'(30h, 30h): Disable '0'-'1'(30h, 31h): Enable

P1: Security Pass code 1st

'0'-'0'(30h, 30h): "0" | '0'-'9'(30h, 39h): "9"

P2: Security Pass code 2nd

'0'-'0'(30h, 30h): "0" | '0'-'9'(30h, 39h): "9"

P3: Security Pass code 3rd

'0'-'0'(30h, 30h): "0" | '0'-'9'(30h, 39h): "9"

P4: Security Pass code 4th

'0'-'0'(30h, 30h): "0" | '0'-'9'(30h, 39h): "9"

ETX (03h): End of Message

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

2) The monitor replies the result to the controller. Header Message Check code

SOH-'0'-'0'-Monitor ID-'B'-'0'-'A' STX-'C'-'3'-'1'-'D'-ST-EN-ETX BCC CR

Delimiter

Header

SOH (01h): Start of Header '0' (30h): Reserved '0' (30h): Message receiver is the controller. Monitor ID: Indicate a replying Monitor ID.

Ex.)



When this byte is set to 'A', the replying Monitor ID is '1'. 'B' (42h): Message type is "Command reply". '0'-'A'(30h, 41h): Message length

Message

STX (02h): Start of Message 'C'-'3'-'1'-'D' (43h, 33h, 31h, 44h): Security Lock Control reply command ST-EN: Lock condition result data

ST: Status

'0'-'0'(30h, 30h): No error '0'-'1'(30h, 31h): Error

EN: Enable /Disable (Current condition)

'0'-'0'(30h, 30h): Disable '0'-'1'(30h, 31h): Enable

ETX (03h): End of Message

(40/50)

Check code

BCC: Block Check Code Refer to the section 4.5 “Check code” for a BCC calculation.

Delimiter

CR (0Dh): End of packet

(41/50)

Appendix

ent by

A. Operation Code (OP cod e) Tab le

Item OP

Brightness 00h 10h 0: dark

Contrast 00h 12h 0: low

Sharpness 00h 8Ch 0: dull

Black Level 00h 92h 0: dark

Tint 00h 90h 0: p urplish

Color 02h 1Fh 0: pale

Color Temperatu re 00h 54h 0:2600K

Color control 00h R ed: 9Bh

Saturation:


Gamma Selection 02h 68h Gamma

Movie Settings

Picture mode 02h 1Ah 1: sRGB

Adaptive Contrast

Noise Reduction

Film Mode 02h 23h 1: Off

OP code Pa rameter Remarks code page

| 100(64h): brigh t

| 100(64h): high

| 82(52h): sharp

| 63(3Fh): bright

| 63(3Fh): greeni sh

| 63(3Fh): deep

| 74(4Ah):10000K

0: Yellow: 9Ch Green: 9Dh Cyan: 9Eh Blue: 9Fh Magenta: A0h

8Ah

02h 8Dh 0: None

02h 20h 0: Off

50(32h):(center )

100(64h):

0: pale

10(0Ah): deep

Table Selection

1: Native

4: Gamma=2.2

8: Gamma=2.4

7: S Gamma

5: DICOM SIM.

6: Programmable

1: Off

2: Low

3: Middle

4: High

16(10h) : High

2: Auto

3: Hi-Bright

4: Standard

5: Cinema

6: ISF-Day

7: ISF-Night

11: Ambient-1

12: Ambient-2



Gamma

100K/step

X461HB’s minimum is 4(04h):3000K

sRGB:

PC mod e only Cinema: A/V m o de only

ISF-Day: ISF-Night: Each needs adjustm ISF.

(42/50)

Item OP

Get Current

on a

code page

Ambient

Menu tree reset (Picture)

Auto Setup 00h 1Eh 1: Execute Momentary Auto Adjust N/A H Position 00h 20h 0: Left side

V Position 00h 30h 0: Bottom side

Clock 00h 0Eh 0:

Clock Phase 00h 3Eh 0:

H Resolution 02h 50h 0: Low

V Resolution 02h 51h 0: Low

Input Resolution 02h DAh 1: Auto

Ambient Brightness Low Ambient Brightness High

Illuminance

Bright Sensor Read

10h 33h 0: dark

10h 34h 0: dark

02h B4h 0:

02h B5h 0:

02h CBh 0: None

ADJUST

Zoom Mode

Base Zoom 02h CEh 3:16:9-ZOOM

Zoom 02h 6Fh

Zoom H-Expansion

Zoom V-Expansion

Zoom H-Position

02h 6Ch

02h 6Dh

02h CCh 0: Left side

OP code Parameter Remarks

| 100(64h): bright

| Max.

| 255(FFh)

2: Reset Picture category

| Max.: Right side

| Max.: Top side

| Max. :

| Max. : High

| Max.: High

2: 1024x768 3: 1280x768 4: 1360x768 5: 1366x768 6: 1400x1050 7: 1680x1050

4:14:9-ZOOM 5:Dynamic 1:Off (Real) 2:Custom

1:100

％

2:101

％



201:300 1:100 2:101

| 201:300 1:100 2:101

| 201:300

| Max.: Right side

％％ ％



％％ ％



％

Read only

Momentary

Depends display timing Depends display timing

(43/50)

Item OP

Not available

side

code page

Zoom V-Position

Aspect 02h 70h 1: Normal

Menu tree reset (Adjust)

Balance 00h 93h O: Left

Treble 00h 8Fh O: Min.

Bass 00h 91h 0: Min.

AUDIO

PIP Audio N/A Line out N/A SURROUND 02h 34h 1: Off

Audio Input 02h 2Eh 1: Audio 1(PC)

Menu tree reset (Audio)

Off Timer 02h 2Bh 0: Off

Enable Schedule 02h E5h 0: No Mean

Disable Schedule 02h E6h 0: No Mean

SCHDULE

Menu tree reset (Schedule)

Keep PIP Mode N/A PIP Mode 02h 72h 1: Off

02h CDh 0: Down side

02h CBh 0: None

PIP

OP code Parameter Remarks

| Max.: Up side

2: Full 3: Wide 4: Zoom

3: Reset Adjust category

| 50:(Center) | 100: Right

| 50:(Center) | 100: Max.

2: Low (or On) 3: High (or On)

2: Audio 2 3: Audio 3 4: HDMI 6: TV/Option 7: (Display Port)

4: Reset Audio category

1: 1 hour | 24: 24 hours

1: No.1 Enable | 7: No.7 Enable

1: No.1 Disable | 7: No.7 Disable

5: Reset Schedule category

2: PIP 3: POP (4: Still) 5: Side by (aspect) 6: Side by (Full)

Wide: A/V mode only

Momentary

on X461UN.

Momentary

1 hour/step

Momentary

(44/50)

Item OP

operation has

limitation of

Please refer

to the

code page

PIP Size 02h 71h 1: Small

PIP H Position 02h 74h 0: left

PIP V Position 02h 75h 0: top

Aspect N/A Text Ticker

PIP Input(Sub input) 02h 73h 0: No mean

Menu tree reset (PIP)

Language 00h 68h 1: English

OSD Turn Off 00h FCh 0-1: Do not set.

Mode 10h 08h 0: None

Position 10h 09h 0: Top/Left

Size 10h 0Ah 0-1: Do not set.

Blend 10h 0Bh 1: 10%

Detect 10h 0Ch 0: None

Fade In 10h 0Dh 0: None

02h CBh 0: None

OSD

OSD Position

H Position

V Position

02h 38h 0: Left

02h 39h 0: Down

OP code Parameter Remarks

2: Middle 3: Large

| 100(64h): right

| 100(64h): bottom

1: Off 2: Horizontal 3: Vertical

| 100: Bottom/Right

2: Narrow(2/24) | 8: Wide(8/24)

| 10: 100%

1: Auto 2: Off

1: On 2: Off

1: VGA 2: RGB/HV 3: DVI 4: HDMI (Set only) 5: Video1 6: Video2 7: S-Video 10: TV 12: DVD/HD1 13: Option 14: DVD/HD2 15: (Display Port) 17: HDMI

6: Reset PIP category

2: German 3: French 4: Spanish 5: Japanese 6: Italian 7: Swedish 9: Russian

2: 10s 3: 15s | 48: 240s

| MAX.: Right

| MAX.: Up

This

selection.

monitor instruction manual.

Momentary

OSD Language

5sec/step

(45/50)

Item OP

ects to a

code page

Information OSD 02h 3Dh 0:Disable

OSD Transparency 02h B8h 0: None

Menu tree reset (OSD)

Monitor ID 02h 3Eh 1-100:ID IR Control 02h 3Fh 1: Normal

Tile Matrix

H monitor 02h D0h 1

V monitor 02h D1h 1

Position 02h D2h 1: Upper left

Tile comp 02h D5h 1: Disable (Off)

Mode 02h D3h 1: Disable (Off)

02h CBh 0: None

MULTI DISPLAY

Power On Delay 02h D8h 0: Off (0sec)

Power Indicator 02h BEh 0: None

External control 10h 3Eh 0: No mean

Setting copy N/A Menu tree reset (Multi Display)

Power Save 00h E1h 0: Off

Standby Mode 02h 9Ah 0: None

Fan Control 02h 7Dh 0: None

02h CBh 0: None

DISPLAY PROTECTION

Screen Saver Gamma 02h DBh 1: normal

OP code Parameter Remarks

information OSD 3-10: OSD timer [seconds]

1: Off(Opaque) 2: TYPE1 3: TYPE2

7: Reset OSD category

2: Primary 3: Secondary 4: Lock (Off)

| 10

| MAX.: Lower right

2: Enable (On)

and display frame 2: Enable (On) 3: Disable (Off) and erase frame (Set only)

│

50:50sec

1: On 2: Off

1: RS-232C 2: LAN

8: Reset

Multi Display category

1: On

1: Standby 2: ECO Standby

1: Auto(No offset) 2: Forced ON 3: Auto(offset -2) 4: Auto(offset -4) 5: Auto(offset -6) 6: Auto(offset -8) 7: Auto(offset -10)

2:screen saving gamma

Momentary

Number of H-division

Number of V-division

Momentary

Offset aff selected sensor.

(46/50)

Item OP

Long Cable

OP code Parameter Remarks code page

Brightness 02h DCh 1:normal

2:decrease

brightness

Motion 02h DDh 0: 0s(Off)

| 90: 900s

Side Border Color 02h DFh 0: Black

| 100: White

Auto Brightness 02h 2Dh 0: Off

1: On Menu tree reset (Display Protection)

02h CBh 0: None

9: Reset

Display Protection category

Input Detect 02h 40h 0: First detect

1: Last detect

2: None

3: VIDEO detect

4: Custom detect Custom Detect

Priority1 10h 2Eh

0: No mean

1: VGA

2: RGB/HV

Priority2 10h 2Fh

3: DVI

4: HDMI (Set only)

Priority3 10h 30h

5: Video1

6: Video2

7: S-Video

Priority4

10h 31h

Priority5 10h 32h

10: TV

12: DVD/HD1

13: Option

14: DVD/HD2

15: (Display Port)

17: HDMI Input change N/A

Equalize 10h 3Dh 0: No mean

Manual

1: Off

2: On

Pole 10h 36h 0:

255(FFh):

Peak 10h 37h 0:

Advanced Option

255(FFh):

Gain 10h 38h 0:

255(FFh):

Offset 10h 39h 0:

255(FFh):

SYNC

Terminate

02h E1h 1: Hi(2.2kohm)

2: Lo(75oh m) DVI Mode 02h CF h 1: DVI-PC

2: DVI-HD Scan Conve rsion 02h 25h 1: Off(INTERLACE)

2: Enable

(IP ON/P ROGRESSIVE) SCART Mode 02 h 9Eh 0: Off

1: On Color Syst em 02h 21h 1: NTSC

2: PAL

3: SECAM

4: Auto

5: 4.43NTS C

6: PAL-60

10s/step

Momentary

(47/50)

Item OP

10: Reset Advanced

Not available

Each needs an

adjustment by

side

OP code Parameter Remarks code page

Scan Mode 02h E3h 1: Under Scan

2: Over Scan

Menu tree reset

02h CBh 0: None

(Advanced Option)

option category Menu tree reset (Factory reset) Input 00h 60h 0: No mean

02h CBh 0: None

1: Factory Reset

1: VGA

2: RGB/HV

3: DVI

4: HDMI (Set only)

5: Video1

6: Video2

7: S-Video

10: TV

12: DVD/HD1

13: Option

14: DVD/HD2

15: (Display Port)

17: HDMI Audio Input 02h 2Eh 1: Audio 1(PC)

2: Audio 2

3: Audio 3

4: HDMI

6: TV/Option

7: (Display Port) Volume UP/Down 00h 62h 0: whisper

100: loud Mute 00h 8Dh 0,2: UNMUTE

1: MUTE MTS 02h 2Ch 0: None

1: Main

2: Sub

3: Main + Sub

Sound 02h 34h 1: Off

2: Low (or On)

3: High (or On) Picture Mode 02h 1Ah 1: sRGB

3: Hi-Bright

4: Standard

5: Cinema

6: ISF-Day

7: ISF-Night

11: Ambient-1

12: Ambient-2

Momentary

This operation requires option tuner.

on X461UN.

sRGB:

PC mode only Cinema: A/V mode only

ISF-Day: ISF-Night:

Aspect 02h 70h 1: Normal

2: Full 3: Wide

4: Zoom PIP ON/OFF Still ON/OFF

02h 72h 1: Off

2: PIP

3: POP

4: Still

5:Side by

(aspect)

6: S ide by

(Full)

(48/50)

ISF. Wide: A/V mode only

Item OP

operation has

limitation of

Please refer

to the

option TV

Temperature

code page

PIP Input 02h 73h 0: No mean

Still Capture 02h 76h 0: Off

Signal Information 02h EAh 0: No Action

Auto Setup 00h 1Eh 1: Execute Momentary TV-Channel UP/DOWN 00h 8Bh 0: No Action

OP code Parameter Remarks

1: VGA

2: RGB/HV

3: DVI

4: HDMI (Set only)

5: Video1

6: Video2

7: S-Video

10: TV

12: DVD/HD1

13: Option

14: DVD/HD2

15: (Display Port)

17: HDMI

1: Capture

1: Off

(No indication)

2: On

(Indication

1: Up

2: Down

）

This

selection.

monitor instruction manual.

Momentary

This operation requires

tuner.

Select Temperature sensor 02h

Readout a temperature 02h 79h Returned value

sensor

Readout ca rbon footprint (g)

Readout ca rbon footprint

Carbon

(kg)

footprint

10h 10 h 0:

10h 11 h 0:

78h 1: Sensor #1

2: Sensor #2

3: Sensor #3

2's complement.

Refer to section 6.2

999:

65535:

Read only

(49/50)

All data are subject to change without notice.

This document provides the technical information for users. NEC Display Solutions, Ltd. reserves the right to change or modify the information contained herein without notice. NEC D isplay Solutions, Ltd. makes no warranty for the use of its products and bears no responsibility for any errors or omissions which may appear in this document.

(50/50)

NEC MultiSync X461UN-TMX4 Reference

Specifications and Main Features

Frequently Asked Questions

User Manual
