NEC MultiSync V984Q, MultiSync V754Q, MultiSync V864Q User Manual

Download

Please ﬁnd your model name in the label on the rear side of monitor.

MODEL: V754Q, V864Q, V984Q

User’s Manual

Large Format Display

MultiSync V754Q MultiSync V864Q MultiSync V984Q

Index

DECLARATION OF CONFORMITY ..................................................................................................................................English-1

Important Information ........................................................................................................................................................English-2

WARNING ..........................................................................................................................................................English-2

CAUTION ........................................................................................................................................................... English-2

Safety Precautions, Maintenance & Recommended Use .................................................................................................English-3

Safety Precautions and Maintenance ................................................................................................................English-3

Recommended Use ...........................................................................................................................................English-3

Ergonomics ........................................................................................................................................................English-3

Cleaning the LCD Panel ....................................................................................................................................English-4

Cleaning the Cabinet .........................................................................................................................................English-4

Installation .........................................................................................................................................................................English-5

Attaching Mounting Accessories ........................................................................................................................ English-7

Parts Name and Functions ................................................................................................................................................English-10

Control Panel .....................................................................................................................................................English-10

Terminal Panel ...................................................................................................................................................English-11

Wireless Remote Control ...................................................................................................................................English-13

Operating Range for the Remote Control ..........................................................................................................English-14

Setup .................................................................................................................................................................................English-15

Connections ......................................................................................................................................................................English-17

Wiring Diagram ..................................................................................................................................................English-17

Connecting a Personal Computer ...................................................................................................................... English-18

Connecting a Player or Computer with HDMI ....................................................................................................English-18

Connecting a Computer with DisplayPort ..........................................................................................................English-18

Connecting a USB device ..................................................................................................................................English-19

Basic Operation .................................................................................................................................................................English-20

Power ON and OFF Modes ...............................................................................................................................English-20

Power Indicator ..................................................................................................................................................English-21

Using Power Management .................................................................................................................................English-21

Aspect ................................................................................................................................................................English-21

Media Player ......................................................................................................................................................English-22

Displayable/playable ﬁles ...................................................................................................................................English-22

File display screen .............................................................................................................................................English-24

Slideshow display ..............................................................................................................................................English-25

Media Player settings .........................................................................................................................................English-25

NETWORK & OTHER SETTINGS .....................................................................................................................English-26

Using SHARED SD card SETTINGS ................................................................................................................. English-27

Using CONTENTS COPY .................................................................................................................................. English-28

Using Emergency contents ................................................................................................................................English-28

Information OSD ................................................................................................................................................English-28

Picture Mode ...................................................................................................................................................... English-29

OSD (On-Screen-Display) Controls ..................................................................................................................................English-32

INPUT ................................................................................................................................................................English-33

PICTURE ...........................................................................................................................................................English-33

AUDIO ................................................................................................................................................................English-35

SCHEDULE .......................................................................................................................................................English-36

MULTI INPUT ..................................................................................................................................................... English-37

OSD ...................................................................................................................................................................English-39

MULTI DISPLAY .................................................................................................................................................English-39

DISPLAY PROTECTION ....................................................................................................................................English-41

CONTROL ..........................................................................................................................................................English-41

OPTION .............................................................................................................................................................English-44

SYSTEM ............................................................................................................................................................English-45

Remote Control Functions .................................................................................................................................................English-47

Multiple Monitors Connection ............................................................................................................................................English-48

Controlling the LCD monitor via RS-232C Remote Control ..............................................................................................English-49

Controlling the LCD monitor via LAN Control .....................................................................................................................English-51

Connecting to a Network ....................................................................................................................................English-51

Network Setting by Using an HTTP Browser .....................................................................................................English-51

POINT ZOOM ....................................................................................................................................................................English-59

PROOF OF PLAY ..............................................................................................................................................................English-60

INTELLIGENT WIRELESS DATA ......................................................................................................................................English-61

MULTIPICTURE matrix .....................................................................................................................................................English-61

Video out ...........................................................................................................................................................................English-68

Features ............................................................................................................................................................................English-69

Troubleshooting .................................................................................................................................................................English-70

Speciﬁcations - V754Q ......................................................................................................................................................English-72

Speciﬁcations - V864Q ......................................................................................................................................................English-73

Speciﬁcations - V984Q ......................................................................................................................................................English-74

Manufacturer’s Recycling and Energy Information............................................................................................................English-75

[Notice] About the MPEG-4 AVC, MPEG-4 Visual license included in this product ...........................................................English-77

English-1

English

DECLARATION OF CONFORMITY

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party: NEC Display Solutions of America, Inc. Address: 500 Park Boulevard, Suite 1100 Itasca, Illinois 60143 Tel. No.: (630) 467-3000

Type of Product: Display Monitor Equipment Classiﬁcation: Class B Peripheral Model: MultiSync V754Q (V754Q)

MultiSync V864Q (V864Q) MultiSync V984Q (V984Q)

We hereby declare that the equipment specied above

conforms to the technical standards as specied in the FCC Rules.

FCC Information

1. Use the attached speciﬁed cables with this color monitor so as not to interfere with radio and television reception. (1) Please use the supplied power cord or equivalent to ensure FCC compliance. (2) Please use the supplied shielded video signal cable.

2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 • Reorientorrelocatethereceivingantenna.  • Increasetheseparationbetweentheequipmentandreceiver.  • Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.  • Consultyourdealeroranexperiencedradio/TVtechnicianforhelp.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may ﬁnd the following booklet, prepared by the Federal Communications Commission, helpful: “How to Identify and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government Printing Ofﬁce, Washington, D.C., 20402, Stock No. 004-000-00345-4.

Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation. OmniColor is a registered trademark of NEC Display Solutions Europe GmbH in the countries of EU and Switzerland. DisplayPort and DisplayPort Compliance Logo are trademarks owned by Video Electronics Standards Association in the United States and other countries. All other brands and product names are trademarks or registered trademarks of their respective owners.

The terms HDMI and HDMI High-Deﬁnition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America and other countries and areas.

microSD and microSD SDHC logos are trademarks of SD-3C, LLC. CRESTRON and CRESTRON ROOMVIEW are trademarks or registered trademarks of

Crestron

Electronics, Inc. in the United States and other countries.

GPL/LGPL Software Licenses The product includes software licensed under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), and others. For more information on each software, see “readme.pdf” inside the “about GPL&LGPL” folder on the supplied CD-ROM.

Adobe and the Adobe logo are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

English-2

Important Information

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM

WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have sufﬁcient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

CAUTION

CAUTION: Please use the power cord provided with this monitor in accordance with the table below. If a power cord is not

supplied with this equipment, please contact your supplier. For all other cases, please use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.

This equipment is designed to be used in the condition of the power cord connected to earth. If the power cord is not connected to the earth, it may cause electric shock. Please make sure the power cord is earthed properly.

Plug Type North America

European

Continental

U.K. Chinese Japanese

Plug Shape

Region

U.S.A./

Canada

Taiwan

EU (except U.K.) U.K. China Japan

Voltage

120*

110

230 230 220 100

* When operating this monitor with its AC 125-240V power supply, use a power supply cord that matches the power supply

voltage of the AC power outlet being used.

NOTE:

This product can only be serviced in the country where it was purchased.

Use the power cord which has BSMI mark at both ends when you use this monitor in Taiwan.

• TheintendedprimaryuseofthisproductisasanInformationTechnicalEquipmentinanofceordomesticenvironment.

• Theproductisintendedtobeconnectedtoacomputerandisnotintendedforthedisplayoftelevisionbroadcastsignals.

English-3

English

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE

FOLLOWING WHEN SETTING UP AND USING

THE MULTI-FUNCTION MONITOR:

• DO NOT OPEN THE MONITOR. There are no user

serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualiﬁed service personnel.

• Donotbend,crimporotherwisedamagethepowercord.

• Donotplaceanyheavyobjectsonthepowercord.

Damage to the cord may cause shock or ﬁre.

• Thepowersupplycordyouusemusthavebeen

approved by and comply with the safety standards of your country. (Type H05VV-F 3G 0.75 mm2 should be used in Europe).

• InUK,useaBS-approvedpowercordwithmolded

plug having a black (5 A) fuse installed for use with this monitor.

• Thepowercableconnectoristheprimarymeansof

detaching the system from the power supply. The monitor should be installed close to a power outlet, which is easily accessible.

• Donotspillanyliquidsintothecabinetoruseyour

monitor near water.

• Donotinsertobjectsofanykindintothecabinetslots,

as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, ﬁre or equipment failure.

• Donotplacethisproductonaslopingorunstablecart,

stand or table, as the monitor may fall, causing serious damage to the monitor.

• Donotmountthisproductupsidedownforanextended

period of time as it may cause permanent damage to the screen.

• Donotplaceanyobjectsontothemonitoranddonotuse

the monitor outdoors.

• Ifglassisbroken,handlewithcare.

• Temperature controlled fans are implemented in this

monitor. For reliable performance and long useful life of this product, it is mandatory to not cover any vents on the monitor.

• Ifmonitororglassisbroken,donotcomeincontactwith

the liquid crystal and handle with care.

• Allowadequateventilationaroundthemonitor,sothat

heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources.

• Donotputanythingontopofthemonitor.

• Handlewithcarewhentransporting.Savepackagingfor

transporting.

• Ifusingthecoolingfancontinuously,itisrecommendedto

wipe holes clean a minimum of once a month.

• To ensure the monitor’s reliability, please clean the holes

at the back side of the cabinet at least once a year to remove dirt and dust.

• WhenusingaLANcable,donotconnecttoaperipheral

device with wiring that might have excessive voltage.

• Donotusethemonitorinhightemperature,humid,dusty,

or oily areas.

• Donotusemonitorunderrapidtemperatureandhumidity

change condition and avoid cold air from air-conditioning outlet directly, as it may shorten the lifetime of the monitor or cause condensation. If condensation of water has happened, let the monitor stand unplugged until the condensation has disappeared.

Connecting to a TV*

• Cabledistributionsystemshouldbegrounded(earthed)

in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable.

• Thescreenofthecoaxialcableisintendedtobe

connected to earth in the building installation.

Under the following conditions immediately disconnect your monitor from the wall outlet and refer servicing to qualiﬁed service personnel:

• Whenthepowersupplycordorplugisdamaged.

• Ifliquidhasbeenspilled,orobjectshavefallenintothe

monitor.

• Ifthemonitorhasbeenexposedtorainorwater.

• Ifthemonitorhasbeendroppedorthecabinethasbeen

damaged.

• Ifyounoticeanystructuraldamagesuchascracksor

unnatural wobbling.

• Ifthemonitordoesnotoperatenormallybyfollowing

operating instructions.

Recommended Use

• Forthemonitor’soptimumperformance,allow20minutes

for warming up.

• Restyoureyesperiodicallybyfocusingonanobjectat

least 5 feet away. Blink often.

• Positionthemonitorata90°angletowindowsandother

light sources to minimize glare and reﬂections.

• CleantheLCDmonitorsurfacewithalint-free,non-

abrasive cloth. Avoid using any cleaning solution or glass cleaner!

• Adjustthemonitor’sbrightness,contrastandsharpness

controls to enhance readability.

• Avoidreproduction of still patterns on the monitor for long periods of time to avoid image persistence (after image effects).

• Getregulareyecheckups.

Ergonomics

To realize the maximum ergonomic beneﬁts, we recommend the following:

• UsethepresetSizeandPositioncontrolswithstandard

signals.

• UsethepresetColorSetting.

• Usenon-interlacedsignals.

• Donotuseprimarycolorblueonadarkbackground,as

it is difﬁcult to see and may produce eye fatigue due to insufﬁcient contrast.

• Suitable for entertainment purposes at controlled luminous environments, to avoid disturbing reﬂections from the screen.

Safety Precautions, Maintenance & Recommended Use

* The product you purchased may not have this feature.

English-4

Cleaning the LCD Panel

• Whentheliquidcrystalpanelisdusty,pleasegentlywipe

with a soft cloth.

• PleasedonotrubtheLCDpanelwithhardmaterial.

• PleasedonotapplypressuretotheLCDpanelsurface.

• PleasedonotuseOAcleanerasitwillcause

deterioration or discoloration on the LCD panel surface.

Cleaning the Cabinet

• Unplugthepowersupply

• Gentlywipethecabinetwithasoftcloth

• Tocleanthecabinet,dampentheclothwithaneutral

detergent and water, wipe the cabinet and follow with a dry cloth.

NOTE:

DO NOT clean with benzene thinner, alkaline

detergent, alcoholic system detergent, glass cleaner, wax, polish cleaner, soap powder, or insecticide. Rubber or vinyl should not be in contact with the cabinet for an extended period of time. These types of ﬂuids and materials can cause the paint to deteriorate, crack or peel.

English-5

English

For contents, please refer to the contents sheet.

This device cannot be used or installed without the Tabletop Stand or other mounting accessory for support. For proper installation it is strongly recommended to use a trained, NEC authorized service person. Failure to follow NEC standard mounting procedures could result in damage to the equipment or injury to the user or installer. Product warranty does not cover damage caused by improper installation. Failure to follow these recommendations could result in voiding the warranty.

Mounting

DO NOT mount the monitor yourself. Please ask your supplier. For proper installation it is strongly recommended to use a trained, qualiﬁed technician. Please inspect the location where the unit is to be mounted. Mounting on wall or ceiling is the customer’s responsibility. Not all walls or ceilings are capable of supporting the weight of the unit. Product warranty does not cover damage caused by improper installation, remodeling, or natural disasters. Failure to comply with these recommendations could result in voiding the warranty.

DO NOT block ventilated openings with mounting accessories or other accessories.

For NEC Qualiﬁed Personnel:

To ensure safe installation, use two or more brackets to mount the unit. Mount the unit to at least two points on the installation location.

Please note the following when mounting on wall or ceiling

• NECrecommendsmountinginterfacesthatcomplywith

UL1678 standard in North America.

• NECstronglyrecommends

using size M8 screws (15-17 mm + thickness of bracket and washers in length). If using screws longer than 15-17 mm, check the depth of the hole. (Recommended Fasten

Force:1125-1375N•cm).

Bracket hole should be under  10 mm.

• Priortomounting,inspecttheinstallationlocationto

ensure that it is strong enough to support the weight of the unit so that the unit will be safe from harm.

• For detailed information, refer to the instructions included with the mounting equipment.

• Makesurethatthereisnogapbetweenthemonitorand

the bracket.

• Whenusedinavideowallcongurationforalonger

time, slight expansion of the monitors may happen due to temperature changes. Due to this it is recommended that over one millimeter gap is kept between adjacent monitor edges.

• When installing, do not apply pressure to the screen or excessive force to any part of the monitor by pushing or leaning on it. This may cause the monitor to become distorted or damaged.

To prevent the LCD monitor from falling off from the wall or ceiling, NEC strongly recommends using a safety wire.

Please install LCD monitor in a spot of the wall or ceiling strong enough to support the monitor.

Prepare the LCD monitor using mounting accessories such as hook, eyebolt or mounting parts and then secure the LCD monitor with a wire. The safety wire must not be tight.

CAUTION:

Do not attempt to hang the monitor using an

installation safety wire. The monitor must be properly installed.

Please make sure the mounting accessories are strong enough to support the LCD monitor before mounting it.

CAUTION:

If you use handles for safety wire please refer to

Handles for safety wire below.

Handles for safety wire

: Factory set position. : Alternate position.

Solid line: Handle placement for safety wire in landscape

position. Dotted line: Handle placement for safety wire in portrait position.

V754Q/V864Q

V984Q

Installation

Screw

Unit

15-17 mm

Thickness of bracket and washers

under

 10 mm

No gap

Washers

Mounting Bracket

No thread

4 mm

English-6

Mounting location

• Theceilingandwallmustbestrongenoughtosupportthe

monitor and mounting accessories.

• DONOTinstallinlocationswhereadoororgatecanhit

the unit.

• DONOTinstallinareaswheretheunitwillbesubjected

to strong vibrations and dust.

• DO NOT install the monitor next to a location where the main power supply is fed into the building.

• DO NOT install the monitor in a location where people can easily grab and hang onto the unit or the mounting equipment.

• Allow for adequate ventilation or provide air conditioning around the monitor, so that heat can properly dissipate away from the monitor and from the mounting equipment.

Mounting on ceilings

• Ensurethattheceilingissturdyenoughtosupportthe

weight of the unit and the mounting equipment over time, against earthquakes, unexpected vibrations, and other external forces.

• Besuretheunitismountedtoasolidstructurewithin

the ceiling, such as a support beam. Secure the monitor using bolts, spring lock washers, washer and nut.

• DONOTmounttoareasthathavenosupportinginternal

structure. DO NOT use wood screws or anchor screws for mounting. DO NOT mount the unit to ceiling or to hanging ﬁxtures.

Maintenance

• Periodicallycheckforloosescrews,gaps,distortions,

or other problems that may occur with the mounting equipment. If a problem is detected, please refer to qualiﬁed personnel for service.

• Regularlycheckthemountinglocationforsignsof

damage or weakness that may occur over time.

Orientation

• Whenusingthemonitorintheportraitposition,itshould

be rotated clockwise so that the left side is moved to the top, right side is moved to the bottom. This will allow for proper ventilation and will extend the lifetime of the monitor. Improper ventilation may shorten the lifetime of the monitor.

LED Indicator

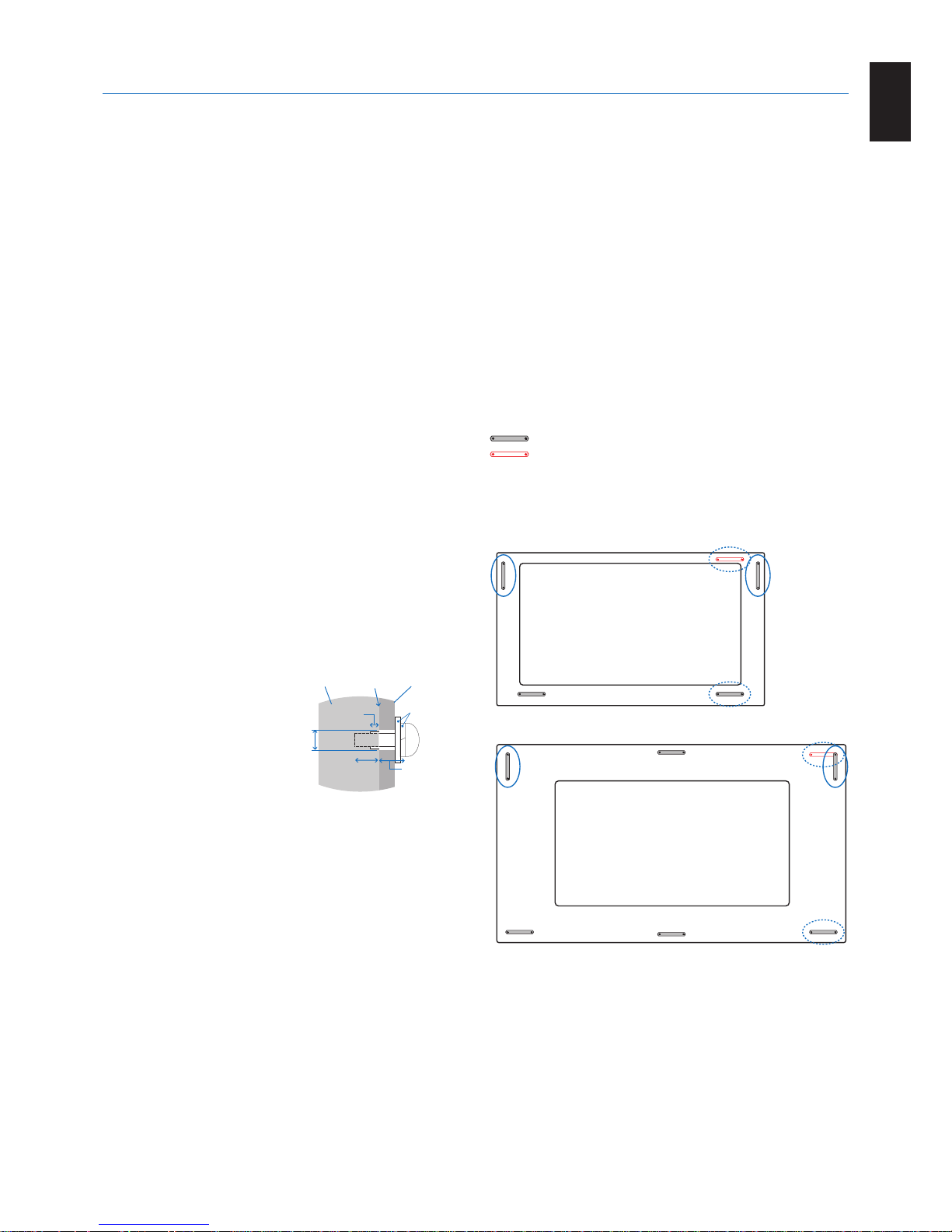

Changing handles position

: Factory set position. : Alternate position.

CAUTION:

Four or more handles are required when

transporting.

V754Q

V864Q

V984Q

Changing NEC logo ornament position

When using the monitor in the portrait position, the NEC logo ornament position can be changed.

Removing the logo ornament: unscrew the installed screw then take off the logo ornament.

Attaching the logo ornament: make sure the holes for the screws on the logo ornament and the holes for the screws on the bezel are aligned. Install the logo ornament with the screws, which are used for installing the logo ornament. (Recommended Fasten Force: 30-40N•cm).

Screw holes

CAUTION: Do not use any other screw to install the logo

ornament.

English-7

English

Attaching Mounting Accessories

The monitor is designed for use with the VESA mounting system.

1. Attach eyebolts (not included) for

mounting

This model is equipped with attachable eyebolts to aid in mounting.

• Install the eyebolt brackets with the attached screws.

• Screwtheeyeboltsintoeyeboltholesin eyebolt brackets

as shown in the picture.

• Besureeyeboltsaresecure.

• Inordertomovethemonitorintoposition,usealifting

device attached to the eyebolts.

CAUTION:

DO NOT mount the monitor using only the

eyebolts. Eyebolts are for tentative use only.

2. Attach Mounting Accessories

Be careful to avoid tipping the monitor when attaching accessories.

VESA Mounting Interface (M8)

400 mm

Mounting accessories can be attached with the monitor in the face down position. To avoid damaging the front face, place the protective sheet on the table underneath the LCD monitor. The protective sheet was wrapped around the LCD monitor in the original packaging. Make sure there is nothing on the table that can damage the monitor.

NOTE:

Prior to installation, be sure to place the monitor

on a ﬂat area with adequate space.

NOTE:

You can use 600 mm/400 mm holes for mounting.

Mounting Interface (M8)

600 mm

400 mm

3. Using an Option Board

1. Turn off the main power switch.

2. Place the monitor face down on the protective sheet. NOTE: Be sure to place the monitor on a ﬂat and adequate space.

3. Remove the attached slot cover by unscrewing the installed screws (Figure 1), sliding to right (Figure 2) and moving up (Figure 3).

Figure 1 Figure 2

Figure 3 Figure 4

4. Insert the option board into the monitor and ﬁx it with the removed screws (Figure 4).

NOTE:

Please contact your supplier for available option

boards. Do not apply excessive force to manipulate the option board before ﬁxing it with screws. Make sure that the board is inserted into the slot in the correct orientation.

CAUTION:

Ensure the option board is attached by the

removed screws. Otherwise, the option board may fall out and expose you to danger.

(RecommendedFastenForce:139-189N•cm).

English-8

4. Installing and removing the optional table top stand

CAUTION: Installing and removing the stand must be done

by four or more people.

For installation, follow the instructions included with the stand or mounting equipment. Use only those devices recommended by the manufacturer.

NOTE:

ONLY use screws which are supplied with the

optional table top stand.

When installing the LCD monitor stand, handle the unit with care to avoid pinching your ﬁngers.

Optional table top stand

Table

Protective Sheet

NOTE: Install the stand in the direction of the arrow

which is imprinted on the surface of the stand. Use the ST-801.

NOTE:

V984Q: DO NOT use this monitor on the ﬂoor with

the table top stand. Please use this monitor on a table or with a mounting accessory for support.

5. Prevent Tipping

When using the display with the optional table top stand, fasten the LCD to a wall using a cord or chain that can support the weight of the monitor in order to prevent the monitor from falling. Fasten the cord or chain to the monitor using the provided clamps and screws that are included with the optional table top stand.

Screw (M4)

Cord or chain

Clamp

Screw Holes

Screw (M4)

Cord or chain

Clamp

Screw Holes

Without eyebolt brackets

With eyebolt brackets

Before attaching the LCD monitor to the wall, make sure that the wall can support the weight of the monitor.

Be sure to remove the cord or chain from the wall before moving the LCD.

English-9

English

6. Ventilation Requirements

When mounting in an enclosed space or recessed area, leave adequate room between the monitor and the enclosure to allow heat to disperse, as shown below.

100 mm

30 mm

100 mm

Must be under 40 Degree Celsius.

Allow adequate ventilation or provide air conditioning around the monitor, so that heat can properly dissipate away from the unit and the mounting equipment; especially when you use monitors in a multiple screen conﬁguration.

NOTE: The sound quality of the internal speakers will be

different depending on the acoustics of the room.

English-10

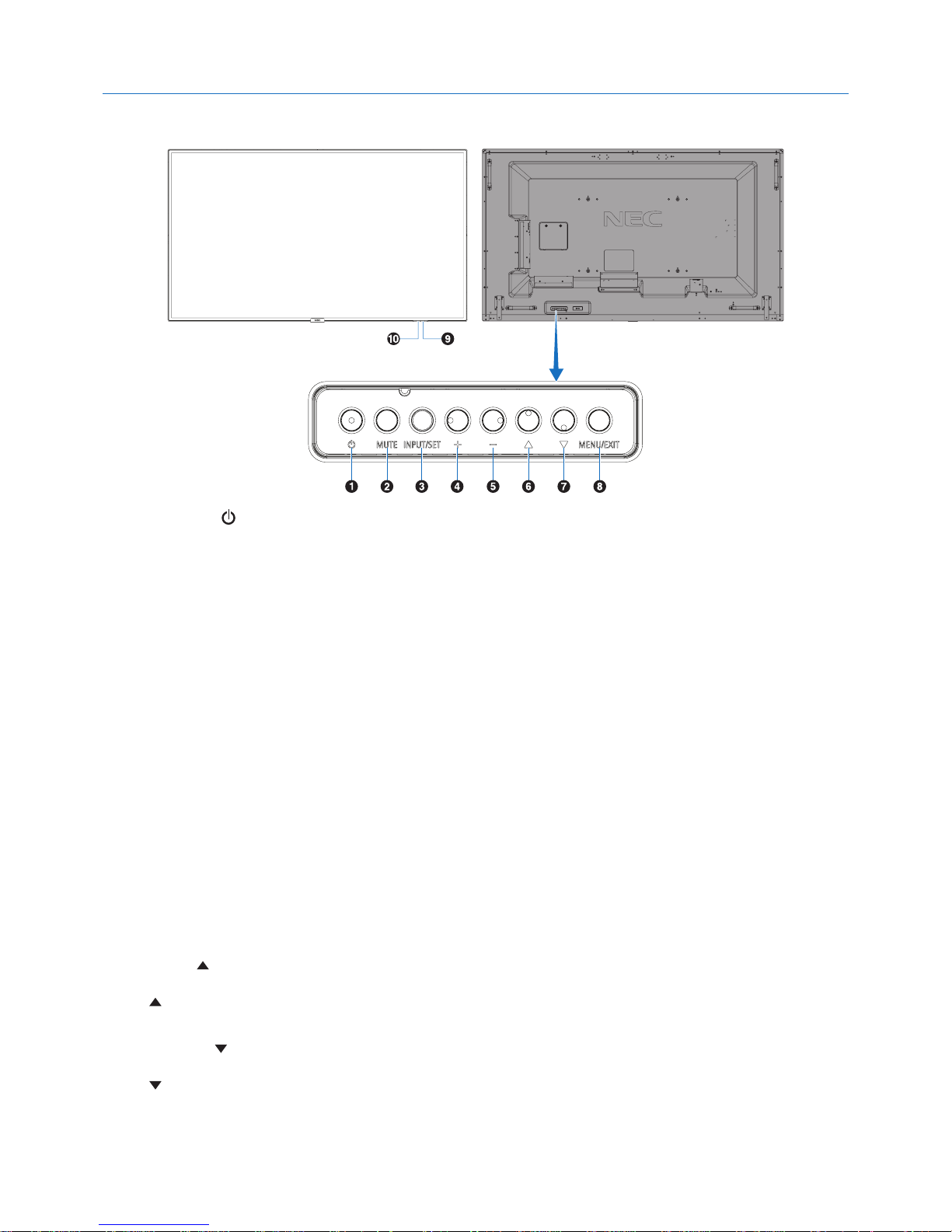

Parts Name and Functions

Control Panel

A Power Button ( )

Switches the power on/standby. See also page 20.

B Mute Button (MUTE)

Switches the audio mute on/off.

C Input/Set Button (INPUT/SET)

INPUT: Toggle switches between below inputs. [DisplayPort1], [DisplayPort2], [HDMI1], [HDMI2], [HDMI3], [MP], [OPTION*]. These are available inputs only, shown as their factory preset name. SET: When OSD (On Screen Display) is shown, this button acts as a “set button” when you make a selection. *: This function depends on which option board you are using.

D Plus Button (+)

Increases the audio output level when the OSD menu is turned off. Acts as (+) button to increase the adjustment within the OSD menu.

E Minus Button (-)

Decreases the audio output level when the OSD menu is turned off. Acts as (-) button to decrease the adjustment within the OSD menu.

F Up Button ( )

Activates the OSD menu when the OSD menu is turned off. Acts as

button to move the highlighted area up to select

adjustment items within the OSD menu.

G Down Button ( )

Activates the OSD menu when the OSD menu is turned off. Acts as

button to move the highlighted area down to select

adjustment items within the OSD menu.

H Menu/Exit Button (MENU/EXIT)

Activates the OSD menu when the OSD menu is turned off. Acts as a back button within the OSD to move to the previous OSD menu. Acts as an EXIT button to close the OSD when on the main menu.

I Remote Control Sensor and Power Indicator

Receives the signal from the remote control (when using the wireless remote control). See also page 14. Glows blue when the LCD monitor is in active mode*. Green and Amber blink alternately when the “SCHEDULE SETTINGS” function is enabled*

. When a component failure is detected within the monitor, the indicator will blink red or blink a combination of red and blue. * If “OFF” is selected in the “POWER INDICATOR” (see

page 43

), the LED will not glow when the LCD monitor is in active mode. *1 If “OFF” is selected in the “SCHEDULE INDICATOR” (see

page 43

), the LED will not blink.

NOTE: Please refer to the POWER INDICATOR (see page 43).

J Room Light Sensing Sensor

Detects the level of ambient light, allowing the monitor to make automatic adjustments to the backlight setting, resulting in a more comfortable viewing experience. Do not cover this sensor. See page 43.

English-11

English

Terminal Panel

USB Upstream

A AC IN Connector

Connects with the supplied power cord.

B Main Power Switch

On/Off switch to turn main power ON/OFF.

C Audio IN

Audio signal input from external equipment such as a computer or player.

D DisplayPort OUT

Output DisplayPort signals from DisplayPort IN1. You can connect multiple monitors by using DisplayPort daisy-chain connection. See MULTI DISPLAY (

page 39) and

Video out (page 68).

E DisplayPort IN1/IN2

DisplayPort signals input.

F HDMI IN1/IN2/IN3

Digital HDMI signals input.

G RS-232C IN (D-Sub 9 pin)

Connect RS-232C input from external equipment such as a computer in order to control RS-232C functions.

H Remote IN

Use the optional sensor unit by connecting it to your monitor. NOTE: Do not use this connector unless speciﬁed.

I microSD Card Slot

Insert a microSD memory card. To use the Media Player, please connect a microSD memory card to this port (See

page 23). To install the microSD card slot cover, please refer to “Installing microSD card slot cover” (See

page 23).

J USB Port

USB1:

Downstream port (USB Type-A). Connect USB devices. USB2:

Upstream port (USB Type-B). Connect external equipment such as a computer. To control the monitor from connected external equipment, please use this port. USB CM1 (2A): Power supply port. USB CM2: Service port. Please do not connect devices. USB MP: USB storage device port. This port is for future software upgrades. To use the Media Player, please connect USB storage device to this port (See page 19). MP is an abbreviation of Media Player.

K LAN Port 1/2 (RJ-45)

LAN connection. See

page 48 and 51.

NOTE: Please give priority for use to LAN1.

L Audio OUT

Audio signal output from the AUDIO IN, DisplayPort and HDMI to an external device (stereo receiver, ampliﬁer, etc.). NOTE: This connector is not a Headphone terminal.

M Internal/External Speaker Switch

: Internal speaker : External speaker. NOTE: Please turn off the monitor’s main power when you use the Internal/External speaker switch.

N External Speaker Terminal

Audio signal output. Red terminal is plus (+). Black terminal is minus (-). NOTE: This speaker terminal is for 15 W + 15 W (8 ohm) speaker.

O Internal Speaker

English-12

P Option Board Slot

Slot 2 type accessory is available. Please contact your supplier for detailed information. NOTE: Please contact your supplier for available option board.

Q Security Slot

Security and theft protection lock compatible with Kensington security cables/equipment. For products, visit Kensington’s website,

http://www.kensington.com/

R Rating Label S Intelligent Wireless Data Sensor

Sensor for wireless communication of monitor for information and settings.

T Option Speaker Mounting Hole

NOTE: Please contact your supplier for available optional speaker.

English-13

English

Wireless Remote Control

A POWER ON/STANDBY Button

Switches the power on/standby.

B INPUT Button

Selects the input signal. Input signal for the MEDIA PLAYER is shown as MP.

C OPTION MENU Button D KEYPAD

Press the buttons to set and change passwords, change channel and set REMOTE ID. Below buttons are used for CEC (Consumer Electronics Control) (See

page 44) and the Media Player function

(See page 22): 1 , 2 , 3 , 5 , 6 .

E ENT Button

Conﬁrm the AUTO PLAY FOLDER in Media Player.

F DISPLAY Button

Turns on/off the information OSD. See

page 28.

If you lock remote control buttons using the IR LOCK SETTINGS function, you can unlock the buttons by holding down this DISPLAY button for more than 5 seconds.

G MENU Button

Turns on/off the menu mode.

H AUTO SET UP Button (This button does not work) I EXIT Button

Returns to the previous menu within the OSD menu.

J UP/DOWN Button ( / )

Acts as

button to move the highlighted area up or down to select adjustment items within the OSD menu. When using PIP (picture in picture), moves the small screen up or down.

K MINUS/PLUS (-/+) Button

Increases or decreases the adjustment level within the OSD menu settings. When using PIP (picture in picture), moves the small screen left or right.

L SET/POINT ZOOM Button

SET: When OSD is shown, this button acts as “set button” when you make a selection. POINT ZOOM: When OSD is not shown, this button acts as “point zoom button”.

M VOLUME UP/DOWN Button (VOL +/-)

Increases or decreases the audio output level.

N CH/ZOOM UP/DOWN Button (CH/ZOOM +/-)*

Increases or decreases the POINT ZOOM level. Please refer to POINT ZOOM (See page 59).

O GUIDE Button*

P MUTE Button

Turns on/off the mute function.

Q PICTURE MODE Button

Selects the picture mode, [HIGHBRIGHT], [STANDARD], [sRGB], [CINEMA], [CUSTOM1], [CUSTOM2], [SVE-(1-5) SETTINGS]. See page 31.

HIGHBRIGHT: For moving images such as DVD. STANDARD: For images. sRGB: For text based images. CINEMA: For movies. CUSTOM1 and CUSTOM2: Custom setting. SVE-(1-5) SETTINGS: For images and movies.

R ASPECT Button

Selects the picture aspect, [FULL], [WIDE]*, [DYNAMIC]*, [1:1], [ZOOM] and [NORMAL]. See

page 21.

* HDMI1, HDMI2, HDMI3 inputs only.

S AUDIO INPUT Button

Selects the audio input source [IN], [HDMI1], [HDMI2], [HDMI3], [DisplayPort1], [DisplayPort2], [OPTION]*

, [MP].

T STILL Button

ON/OFF button: Activates/deactivates still picture mode. CAPTURE button: Captures still picture. NOTE: This function deactivates when selecting MULTI

PICTURE MODE, TEXT TICKER, SCREEN SAVER, POINT ZOOM, IMAGE FLIP except for NONE, SUPER in INPUT CHANGE, TILE MATRIX. If input signal is OPTION, this button’s actions depend on which option board you are using.

*1: This button’s action depends on which option board you are using.

English-14

Operating Range for the Remote Control

Point the top of the remote control toward the LCD monitor’s remote control sensor during button operation.

Use the remote control within a distance of about 7 m (23 ft.) from the remote control sensor, or at a horizontal and

verticalangleofwithin30°andwithinadistanceofabout

3.5 m (10 ft.).

IMAGE FLIP Button

Toggleswitchesbetween[HFLIP],[VFLIP],[180°ROTATE]

and [NONE]. See page 35.

ACTIVE PICTURE Button

Selects active picture.

MULTI PICTURE Button

ON/OFF Button: Toggle switches between ON and OFF. MODE Button: Selects a mode from PIP (picture in picture)

or PBP (picture by picture).

CHANGE Button: Swaps images between two pictures. PICTURE ASPECT Button: Selects active picture frame

aspect. NOTE: Enable to change each multi picture size by pressing SET/POINT ZOOM button during multi picture mode.

REMOTE ID Button

Activates the REMOTE ID function. See page 47.

MTS Button*

*1: This button’s action depends on which option board you are using. Refer to the option board’s user’s manual for further information.

NOTE: The buttons with no explanation do not function.

Caution: Important, the remote control

system may not function when direct sunlight or strong illumination strikes the remote control sensor, or when there is an object in the path.

Handling the remote control

• Donotexposetostrongshock.

• Donotallowwaterorotherliquidto

splash on the remote control. If the remote control gets wet, wipe it dry immediately.

• Avoidexposuretoheatandsteam.

• Excepttoinstallthebatteries,donotopentheremote

control.

English-15

English

1. Determine the installation location

CAUTION: Installing your LCD monitor must be done by a

qualiﬁed technician. Contact your supplier for more information.

CAUTION:

MOVING OR INSTALLING THE LCD MONITOR MUST BE DONE BY FOUR OR MORE PEOPLE. Failure to follow this caution may result in injury if the LCD monitor falls.

CAUTION: Do not mount or operate the monitor upside

down.

CAUTION: This LCD monitor has internal temperature

sensors and cooling fans, including a fan for the option board. If the LCD monitor becomes too hot, the cooling fans will turn on automatically. The option board’s fan is active although the temperature is lower than normal operating temperature for cooling the option board. If the LCD monitor becomes overheated while the cooling fan is running, a “Caution” warning will appear. If the “Caution” warning appears, stop using the unit and allow it to cool. Using the cooling fans will reduce the likelihood of early unit failure and may help reduce image degradation and “Image Persistance”. If the LCD monitor is used in an enclosed area or if the LCD panel is covered with a protective screen, please check the inside temperature of the monitor by using the “HEAT STATUS” control in the OSD (see

page 41). If the temperature is

higher than the normal operating temperature, please turn the cooling fan to ON within the FAN CONTROL menu within the OSD (see page 41).

IMPORTANT:

Lay the protective sheet beneath the

monitor, so as not to scratch the LCD panel. The protective sheet was wrapped around the monitor when it was packaged.

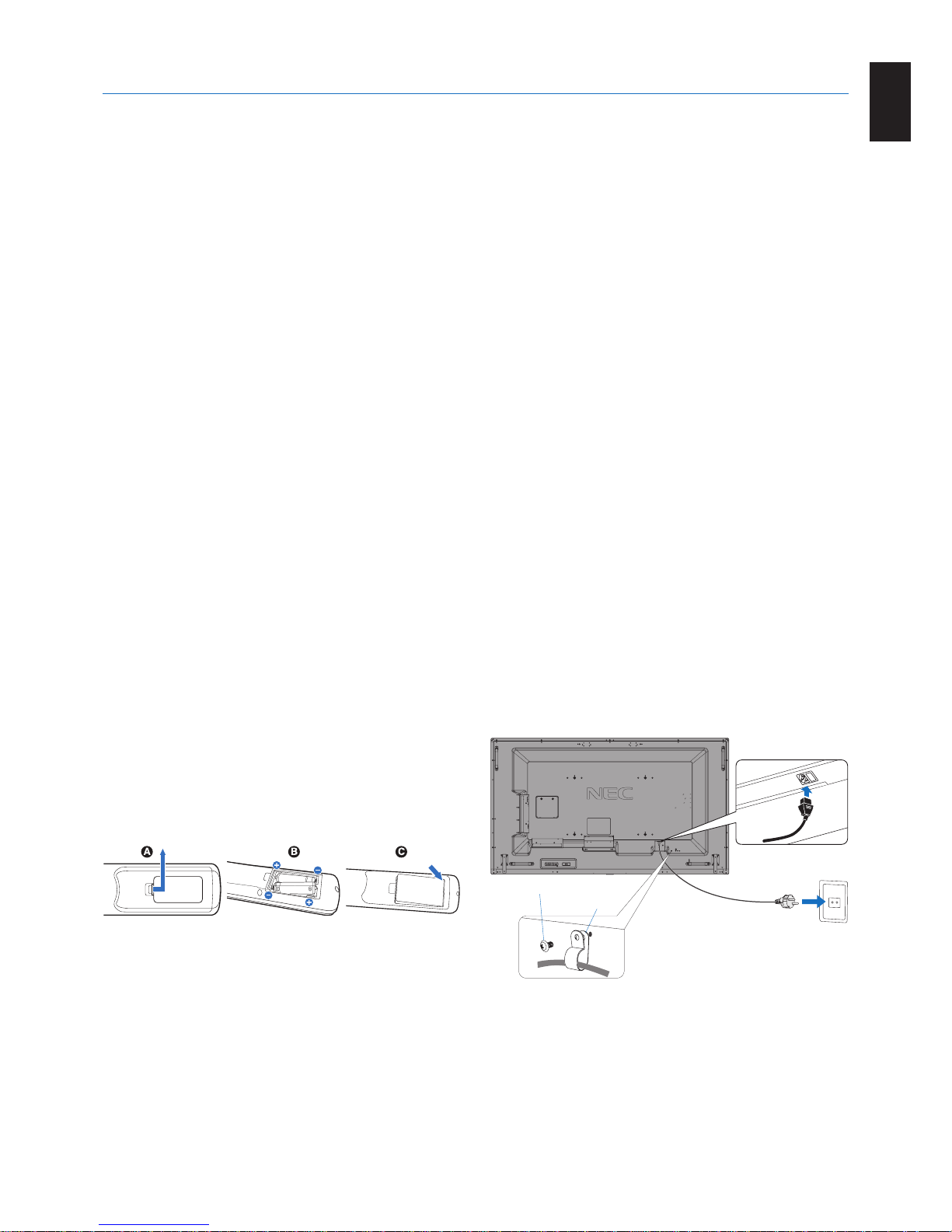

2. Install the remote control batteries

The remote control is powered by two 1.5V AAA batteries. To install or replace batteries:

A. Press and slide to open the cover. B. Align the batteries according to the (+) and (–) indications

inside the case.

C. Replace the cover. CAUTION: Incorrect usage of batteries can result in leaks or

bursting.

NEC recommends the following battery use:

• Place“AAA”sizebatteriesmatchingthe(+)and(-)signs

on each battery to the (+) and (-) signs of the battery compartment.

• Donotmixbatterybrands.

• Donotcombinenewandoldbatteries.Thiscanshorten

battery life or cause liquid leakage of batteries.

• Removedeadbatteriesimmediatelytopreventbattery

acid from leaking into the battery compartment.

• Donottouchexposedbatteryacid,itmayinjureyourskin.

NOTE: If you do not intend to use the Remote Control for

a long period of time, remove the batteries.

3. Connect external equipment (See pages 17, 18 and 19)

• Toprotecttheexternalequipment,turnoffthemainpower

before making connections.

• Refertothe user’s manual of your equipment for further information.

NOTE: Do not connect/disconnect cables when turning

on the monitor or other external equipment, as this may result in a loss of the monitor image.

4. Connect the supplied power cord

• Theequipmentshouldbeinstalledclosetoaneasily

accessible power outlet.

• FastenthepowercordtotheLCDmonitorbyattaching

the screw and clamp.

• Fullyinserttheprongsintothepoweroutletsocket. A loose connection may cause image degradation.

NOTE: Please refer to the “Safety Precautions and

Maintenance” section of this user’s manual for proper selection of an AC power cord.

(RecommendedFastenForce:139-189N•cm).

Screw

Clamp

Setup

English-16

5. Switch on the power of all the attached external equipment

When connected with a computer, switch on the power of the computer ﬁrst.

6. Operate the attached external equipment

Show the signal on the screen from the desired input source.

7. Adjust the sound

Make volume adjustments when required.

8. Adjust the image (See page 33)

Make adjustments such as backlight or contrast when required.

9. Recommended Adjustments

To reduce the risk of the “Image Persistence”, please adjust the following items based on the application being used: “SCREEN SAVER”, “SIDE BORDER COLOR” (See page 41), “DATE & TIME” (See

page 36), “SCHEDULE SETTINGS”

(See page 36). It is recommended that the “FAN CONTROL” setting (See page 41) be checked ON also.

English-17

English

Connections

NOTE: Do not connect or disconnect cables when turning on the monitor’s main power or other external equipment’s power,

as this may result in a loss of the monitor image.

NOTE: Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.

Before making connections:

* First turn off the power of all the attached equipment and make connections. * Refer to the user’s manual included with each separate piece of equipment. * We strongly recommend connecting or disconnecting a USB storage device or a microSD memory card to the monitor when

the monitor’s main power is off.

Wiring Diagram

USB1

USB2

USB CM1 (2A)

USB CM2

USB MP

Dotted lines = other signal Solid lines = video signal Dashed lines = audio signal

USB storage device

Stereo Ampliﬁer

USB port (Type-A)

USB devices

such as

USB camera or

USB memory

Devices that

require power

supply:

Ex:

MultiPresenter

Stick

USB port (Type-B)

USB cable

Computer (USB)*

AV Ampliﬁer

DVD Player

(HDMI)

DVD Player or

Computer

DVD Player (HDMI) or

Computer (HDMI)

DVD Player

(HDMI)

Ampliﬁer

Computer (DisplayPort)

Second monitor*

Computer

DVD Player Stereo Ampliﬁer

VCR player or DVD player

*: Multiple monitors that are daisy-chained have a limit to the connectable monitors. *1: The device connected to USB2 can control the device connected to USB1.

English-18

Connecting a Personal Computer

Connecting your computer to your LCD monitor will enable you to reproduce your computer’s video signal output. Some display cards may not be able to support the required resolution for proper image reproduction. Your LCD monitor shows proper image by adjusting the factory preset timing signal automatically.

Resolution

Scanning frequency HDMI DisplayPort

Horizontal Vertical MODE1 MODE2 1.1a 1.2

640 x 480 31.5 kHz 60 Hz Yes Yes Yes Yes

800 x 600 37.9 kHz 60 Hz Yes Yes Yes Yes 1024 x 768 48.4 kHz 60 Hz Yes Yes Yes Yes 1280 x 720 45.0 kHz 60 Hz Yes Yes Yes Yes 1280 x 768 47.8 kHz 60 Hz No No Yes Yes 1280 x 800 49.7 kHz 60 Hz Yes Yes Yes Yes

1280 x 1024 64 kHz 60 Hz Yes Yes Yes Yes

1360 x 768 47.7 kHz 60 Hz No No Yes Yes 1366 x 768 47.7 kHz 60 Hz No No Yes Yes

1400 x 1050 65.3 kHz 60 Hz Yes Yes Yes Yes

1440 x 900 55.9 kHz 60 Hz Yes Yes Yes Yes

1600 x 1200 75.0 kHz 60 Hz Yes Yes Yes Yes 1680 x 1050 65.3 kHz 60 Hz Yes Yes Yes Yes 1920 x 1080 67.5 kHz 60 Hz Yes Yes Yes Yes 1920 x 1200 74.6 kHz 60 Hz Yes Yes Yes Yes 1920 x 2160 133.3 kHz 60 Hz Yes Yes Yes Yes 3840 x 2160 65.7 kHz 30 Hz No No Yes*

Yes

3840 x 2160 67.5 kHz 30 Hz Yes*

Yes No No

3840 x 2160 133.3 kHz 60 Hz No Yes No Yes*

1, *2

3840 x 2160 135.0 kHz 60 Hz No Yes*

No Yes*

4096 x 2160*354.0 kHz 24 Hz Yes Yes No No 4096 x 2160*

135.0 kHz 60 Hz No Yes No No

*1: Recommended resolution. *2: Only HBR2 is set. *3: Compressed image.

Connecting a Player or Computer with HDMI

• PleaseuseanHDMIcablewiththeHDMIlogo.

• Itmaytakeamomentforthesignaltoappear.

• Somedisplaycardsordriversmaynotdisplayanimagecorrectly.

• WhenyouuseacomputerwithHDMI,pleasesetOVERSCANto“AUTO”or“OFF”(seepage 34).

• Please check display card when image is compressed with 3840 x 2160.

• To output HDMI audio, set [HDMI1], [HDMI2] or [HDMI3] at AUDIO INPUT in the OSD or choose [HDMI1], [HDMI2] or

[HDMI3] by the remote control AUDIO INPUT button.

• If the input resolution is 3840 x 2160 (60 Hz) and 4096 x 2160 (60 Hz), please set MODE2 at HDMI in TERMINAL SETTINGS (See page 38).

• If the monitor’s main power is turned on after a connected computer is turned on, sometimes images are not displayed. In this case, please turn off the computer then turn it on again.

Connecting a Computer with DisplayPort

• PleaseuseaDisplayPortcablewiththeDisplayPortcompliancelogo.

• To use the DisplayPort out connector, please refer to Video out (See page 68).

• Itmaytakeamomentforthesignaltoappear.

• WhenconnectingaDisplayPortcabletoacomponentwithasignalconversionadapter,animagemaynotappear.

• SelectDisplayPortcablesfeaturealockingfunction.Whenremovingthiscable,holddownthetopbuttontoreleasethelock.

• To output DisplayPort audio, set [DisplayPort1] or [DisplayPort2] at AUDIO INPUT in the OSD or choose [DisplayPort1] or

[DisplayPort2] by the remote control AUDIO INPUT button.

• To display individual images at each connected monitors with the DisplayPort out connector, please set DisplayPort1.2 and MST at DisplayPort in the TERMINAL SETTINGS (See

page 38).

• If the monitor’s main power is turned on after a connected computer to the monitor is turned on, sometimes images are not displayed. In

this case, please turn off the computer then turn it on again.

English-19

English

Connecting a USB device

USB1: USB downstream port (Type-A). Connect a USB compatible ﬂash memory or keyboard to Down Stream Port.

USB2: USB upstream port (Type-B). Connect to a USB compatible computer with a USB cable. A USB compatible computer connected to USB2 can control the devices connected to USB1.

USB CM1 (2A): Power supply port. Please refer to the speciﬁcations page for power supply information (see pages 72, 73 and 74).

USB CM2

: Service port.

Please do not connect devices. USB MP: USB downstream port (Type-A).

To use the Media Player function, please use this port.

• Pleasemakesuretheconnectorshapeandorientationis correctly aligned when connecting the USB device or cable.

• DependingontheuseofcomputerBIOS,OSordevice,theUSBfunctionmaynotbeworking.Inthiscase,pleasecheck

user’s manual of your computer or device, or contact your supplier for detailed information.

• BeforeturningoffthemainpowerswitchofthemonitororshuttingdownWindows

, please turn off the USB function and

remove the USB cable from the monitor. You may lose data when the computer crashes.

• ItmaytakeafewsecondsuntilthemonitorrecognizestheUSBinput.DonotdisconnecttheUSBcableordisconnect and reconnect the USB cable before the monitor recognizes the input.

• You can set power supply for USB CM1 (2A) at USB POWER in the OSD menu (see

page 44).

• When you use the USB CM1 (2A) port for power supply, please use a USB cable that supports 2A.

• Do not bind the USB cable. It may cause heat or ﬁre.

• Please refer to the USB in the OSD menu (See

page 44) for the USB setting.

NOTE:

USB CM1 (2A) and USB CM2 are not corresponding port.

Please refer to the connection (See page 17) to connect USB devices to the monitor.

English-20

Basic Operation

Power ON and OFF Modes

The LCD monitor power indicator will turn blue while powered on.

NOTE:

The Main Power switch must be in the ON position in order to power up the monitor using the remote control or the

Power button.

Main Power Switch

OFF

Power Button

Using the remote control

POWER ON button

English-21

English

Aspect

For MP

FULL ZOOM NORMAL

For DisplayPort1, DisplayPort2, OPTION*

FULL 1:1 ZOOM NORMAL

For HDMI1, HDMI2, HDMI3

FULL WIDE DYNAMIC 1:1 ZOOM NORMAL

*1: This function depends on which option board you are using.

Aspect ratio

of image

Unchanged view*

Recommended selection

for picture aspect*

4:3

NORMAL

DYNAMIC

Squeeze

FULL

Letterbox

WIDE

*3 Grey areas indicate unused portions of the screen.

NORMAL: Reproduces the aspect ratio that is sent from the source.

FULL: Fills the entire screen. WIDE: Expands a 16:9 letterbox signal to ﬁll the entire

screen. DYNAMIC: Expands a 4:3 pictures to ﬁll the entire screen

with non-linearity. Some of the outside image area will be cut off due to expansion.

1:1: Shows the image in a 1 by 1 pixel format. ZOOM

The image can be expanded beyond the active screen area. The image which is outside of the active screen area is not shown.

ZOOM

Power Indicator

LED indicator

status and

lighting pattern

Condition Recovery

Glowing blue Normal

. Turn on the monitor

by the remote control or the monitor button.

2. Send an AV signal input to the monitor.

Blinking green*

Under any of the conditions below, no input signal has been detected by the monitor during the period of time you set:

• The monitor is using an option board.

• INPUT DETECT is set to a setting except for NONE.

• USB POWER is set to ON.

• DisplayPort in the TERMINAL

MODE is set to MST.

Glowing amber No AV signal input has been

detected by the monitor during the period of time you set. (with

network signal input)

Blinking amber No AV signal input has been

detected by the monitor during the period of time you set. (no

network signal input)

Glowing red Turn off the monitor by the

remote control or the monitor button.

Turn on the monitor by the remote control or the monitor button.

*1: Time setting for AUTO POWER SAVE is available at POWER SAVE (See page 41).

NOTE: If the indicator is blinking red in a combination

of long and short, a certain failure might have occurred, please contact your supplier.

Using Power Management

This LCD monitor follows the VESA approved DPM (Display Power Management) function. The power management function is an energy saving function that automatically reduces the power consumption of the monitor when the keyboard or the mouse has not been used for a ﬁxed period. This allows your LCD monitor to enter a Power Management mode if the monitor’s POWER SAVE function is set to ENABLE, and a certain amount of time has passed since the monitor recognized “no signal input”. It will increase the life and decrease the power consumption of the monitor.

NOTE:

Depending on the computer and display card

used, this function may not operate. After the video signal was lost, the monitor automatically goes into OFF at a preset time period.

English-22

Media Player

Plays saved data, such as still and motion images, BGM (Background Music), on a USB storage device or microSD memory card connected to the monitor.

Top screen of the viewer

• Select [SETTINGS] to change the media player settings.

•

While “AUTO PLAY” has been set to SLIDESHOW in SETTINGS, the monitor starts performing “AUTO PLAY” by the

operation below:

- When connecting a USB storage device to the USB MP (Terminal Panel page 11), with the monitor already powered ON and the Media Player top screen displayed.

- When powering ON the monitor with a USB storage device already connected, and Media Player was the input source at the last power OFF.

For starting “AUTO PLAY”, the system will automatically search the folder which is set in the AUTO PLAY settings FOLDER ﬁeld, in the USB storage device and then display found still images or movies. The images and movies will be displayed in the “Sorted” order.

NOTE:

Only 1 USB storage device can be recognized by the viewer.

A window will appear when you press the control panel buttons while the Media Player is active. You can select to control either the OSD menu or the Media Player from the window that opens.

If Media Player contents are played while TILE MATRIX is active, the image play timing might have a gap within monitors. If a monitor is used in portrait position, please set OSD ROTATION to PORTRAIT. Image orientation is changed according to

what you set at OSD ROTATION. When OSD ROTATION is set to PORTRAIT, please use the motion image, which is rotated anticlockwise by

90°.

Displayable/playable ﬁles

Still Supported formats

File extension Supported

.jpg, .jpeg, .jpe Baseline, Progressive, RGB, CMYK .png Interlace, α channel

Motion image Supported formats

File extension Video codec Audio codec

.mpg, .mpeg MPEG1, MPEG2 MPEG Audio Layer3 (Abbreviation: MP3) AAC-LC (Abbreviation: AAC), LPCM .wmv H.264, WMV MP3, WMV Standard, WMA 9/10 Professional .mp4 H.264 MP3, AAC .mov H.264 MP3, AAC .ﬂv, .f4v H.264 MP3, AAC

English-23

English

BGM Supported formats

File extension Audio codec

.wav LPCM .mp3 MP3

Information

Item Conditions

Resolution JPEG 5000x5000

PNG 4000x4000 MPEG1 480@30fps MPEG2 MP@ML, MP@HL, 1080p@30fps / 1080i@60fps H.264 High proﬁle Lv.4.2, 1080p@30fps / 1080i@60fps

WMV Advanced@L3, Simple&Main Video bit date - Up to 15Mbps Audio sampling rate - Up to 48KHz Audio bit rate MP2 Up to 384Kbps

MP3 Up to 320Kbps

AAC Up to 1440Kbps

NOTE: Depending on the ﬁle, it may not play even when it satisﬁes all above mentioned conditions.

Depending on network environments, the type of USB storage device, and ﬁle bitrate, it may not play still image ﬁles. You cannot play DRM (Digital Right Management) ﬁles. The maximum resolution for a motion image is 1920 (Horizontal) x 1080 (Vertical).

Compatible microSD memory card

Format a microSD memory card in the FAT32 format or FAT16 format. Refer to the computer’s instruction user’s manual or Help ﬁle on how to format a microSD memory card.

Information

Up to 32GB microSDHC is supported.

NOTE:

It is not guaranteed to work with all microSD memory card sold commercially.

microSD with CPRM is not supported. microSD UHS-1 or UHS-2 are not supported.

• When inserting a microSD memory card, please make sure of the microSD memory card direction then insert it correctly.

•

When ejecting a microSD memory card from the microSD card slot, press the center of the microSD memory card then take

it out.

Installing microSD card slot cover

To secure your microSD memory card, we recommend you install the microSD card slot cover. Please insert the edge of the microSD card cover to the hole. (Recommended Fasten Force: 139 - 189N•cm).

microSD card cover is set.

Hole

English-24

Compatible USB memory

Format a USB memory in the FAT32 format or FAT16 format for using it in the Media Player. Refer to the computer’s instruction user’s manual or Help ﬁle on how to format a USB memory.

Please use a USB memory with this monitor in accordance with the drawing below. If the physical size of the USB device is larger than the supported sizes listed below, please use a USB extension cable.

USB memory

Extension cable

Under 7.8 mm

NOTE: Check the format if this device cannot recognize the connected USB memory.

It is not guaranteed to work with all USB memories sold commercially. Please connect the USB memory to USB MP (See page 19).

File display screen

The ﬁles can be displayed using either icons or thumbnails in the Media Player.

Icon display

RETURN Goes back one subsequent level higher.

PAGE UP Displays a list of the previous ﬁles.

PAGE DOWN Displays a list of the next ﬁles.

SETTINGS Displays the setting screen.

THUMBNAILS/ICON Switches between thumbnail display and icon display.

SORT Changes the order to display ﬁles by name (ﬁlename), type (ﬁle extension), date (date of creation), or size

(ﬁle capacity). The default sorting order is by “Name”.

EJECT Disconnects from the USB storage device or the microSD memory card inserted to the monitor. Please

select EJECT when ﬁle list is displayed.

NOTE: The maximum number of ﬁles that can be displayed in a folder including folder icons is 300.

A folder hierarchy is shown up to level 16. The icon of a ﬁle whose type cannot be determined is indicated by a “?”. Depending on the ﬁle, thumbnail cannot be displayed.

English-25

English

Slideshow display

• Select a folder that contains images or movies.

•

A slideshow can be displayed using “MANUAL” in which the images are switched by operating a button on the remote

control, or “AUTO” in which the images are switched automatically at a set interval (PLAY MODE is “AUTO”).

•

The default factory setting is “MANUAL”. To perform “AUTO”, set the “PLAY MODE” to “AUTO”.

•

The images will be displayed in the order selected under “Sort” on the ﬁle display screen.

•

When still images in high resolutions are displayed as the Slideshow, it may go back to the ﬁle display screen.

Media Player settings

Select the icon in the ﬁle list screen or top screen of the Media Player to display the conﬁguration screen of the Media Player. The following settings can be conﬁgured on the conﬁguration screen. SLIDESHOW

Menu Function

SCREEN SIZE Selects ACTUAL SIZE or BEST FIT. PLAY MODE Selects AUTO or MANUAL. INTERVAL Sets interval time. REPEAT Check the check box to repeat slideshow. AUDIO FILE Selects an audio ﬁle. BGM Check the check box to enable BGM. PLAY END SCREEN Selects

a setting for when the slideshow ﬁnishes.

BLACK SCREEN: When the slideshow ﬁnishes, a black screen is displayed. FILE LIST: When the slideshow ﬁnishes, it goes back to the ﬁle list screen. SAVE LAST SCREEN: When the slideshow ﬁnishes, the last slideshow image is kept on the screen.

AUTO PLAY Automatically displays selected folder when the monitor is turned on with MP as the selected input.

Menu Function

AUTO PLAY OFF: Automatic play mode is off.

SLIDESHOW: Automatically plays a selected ﬁle.

FOLDER Select a ﬁle by SET/POINT ZOOM button and conﬁrm by ENT button.

PRESET CONTENTS Plays selected folder when the monitor has no signal input.

Menu Function

ENABLE Check the check box to enable preset contents. FOLDER Select a ﬁle by SET/POINT ZOOM button and conﬁrm by ENT button.

Please press OK to activate above settings. If OK is not pressed, settings that you set are not activated.

English-26

NETWORK & OTHER SETTINGS

Below are the options for the Network settings and Shared Folder settings for the Media Player. To select the settings, press the remote control SET/POINT ZOOM button on the NETWORK & OTHER SETTINGS. NETWORK SETTINGS for MEDIA PLAYER

Menu Function

IP SETTING Set these settings. IP ADDRESS SUBNET MASK DEFAULT GATEWAY DNS DNS PRIMARY DNS SECONDARY

NETWORK INFORMATION for the Media Player displays what you set in the NETWORK SETTINGS for the Media Player. SHARED FOLDER

There are two settings for conﬁguring the SHARED FOLDER. Press the remote control SET/ZOOM button to open the shared settings options.

•

SHARED SD CARD SETTINGS

Folders saved in a computer on the network can be copied to the connected microSD memory card using a web browser on the connected computer.

Menu Function

ENABLE Check the checkbox to enable SHARED SD CARD SETTINGS.

USER NAME USER NAME is displayed. It is the same name as the monitor name and it is not changeable. PASSWORD Set password.

Please press OK to activate settings in the SHARED SD CARD SETTINGS. If OK is not pressed, settings that you set are not activated.

•

SHARED FOLDER SETTINGS.

Folders saved in a computer on the network can be copied to the connected microSD memory card by controlling the monitor.

Menu Function

ENABLE Check the checkbox to enable SHARED FOLDER SETTINGS.

SHARED FOLDER Set the

IP address of the network shared folder location that contains the ﬁles for copying to the microSD card. USER NAME Set USER NAME which is used when connecting the monitor to the shared folder. PASSWORD Set password.

Please press OK to activate settings in the SHARED FOLDER SETTINGS. If OK is not pressed, settings that you set are not activated. 1 to 4 shared folders can be set. When the connection to the shared folder fails, an error message is displayed and an “x” is displayed in the folder icon. Carry

out the following checks in this case.

- Is the name of the destination folder correct?

- Is the destination folder set for sharing?

- Have access rights been set in the destination folder?

- Are there any displayable ﬁles saved in the destination folder? SHIFT NO SIGNAL

This setting is for a situation when the monitor detects no signal input. If ENEBLE is ticked, the monitor goes to no signal status. The monitor detects no signal when the monitor is in the following conditions:

- After contents or images are played.

- While the monitor is displaying USB

window or SD CARD window.

Menu Function

ENABLE Check the checkbox to enable SHIFT NO SIGNAL.

INTERVAL Set the time when the monitor goes into no signal after displayed detected items.

Please press OK to activate settings in the SHIFT NO SIGNAL. If OK is not pressed, settings that you set are not activated.

English-27

English

Using SHARED SD card SETTINGS

You can copy data to the microSD memory card, such as motion or still images, from a computer connected to the same network as the monitor. Please set the NETWORK SETTINGS for the Media Player (See

page 26) ﬁrst to copy data.

NOTE:

When the monitor is copying a folder, the LED indicator blinks in red.

When the monitor is in this condition, do not eject a microSD memory card from the monitor and do not turn off the monitor’s main power. Ejecting the microSD card or turning off the monitor while copying ﬁles may corrupt the data. If you press the STANDBY button on the remote control or the POWER button on the monitor while the LED indicator is blinking in red, the monitor goes into standby after completing the folder copy. Files which you can copy are still, motion image and BGM only.

Setting procedure

1. Open the Monitor LAN control of the network connected monitor then select SD-CARD VIEWER.

Select SEARCH to display the IP ADDRESS of the currently connected monitor and all compatible monitors on the same

network.

Select the IP ADDRESS of the currently connected monitor.

Enable upload, delete and sort ﬁles that are saved in the microSD memory card connected to the monitor.

Function

SELECT UPLOAD. Press SELECT then choose the ﬁles to be copied to the microSD memory card. File upload window appears and shows the selected ﬁles. Once OK is selected, ﬁle uploading starts. NOTE: Please check the microSD memory card storage capacity before copying ﬁles.

STORAGE CAPACITY shows the connected microSD memory card capacity.

DELETE. Select ﬁles or folders. DELETE FOLDERS/FILES window appears. Once OK is selected, the selected ﬁles or folders are deleted.

CREATE. A new folder is created in the microSD memory card connected to the monitor. Insert folder name and select OK. A maximum of 255 alphanumeric characters is allowed.

English-28

RELOAD. Updates microSD memory card data.

THUMB/LIST. The ﬁles can be displayed using either icons or thumbnails. Displays description of the ﬁle or folder if you select thumb name or ﬁle name.

SORT. Select sort type. The folders saved in the microSD are sorted based on what you selected in sort type.

7. Connect to the other monitor’s SD-CARD VIEWER then open them. By running the SEARCH, as described on the previous page, this window shows all compatible monitors on the same

network as the current monitor. To open the other monitor’s web page in a new tab, right-click on its IP address. To open the other monitor’s web page in a new window, left-click on its IP address

Using CONTENTS COPY

You can copy all data saved in a USB storage device or saved in a shared folder, which is set in the connected computer or a server, to a microSD memory card.

For copying shared folder data, please set SHARED FOLDER SETTINGS (See

page 26) ﬁrst.

Select CONTENTS COPY at the top screen of the Media Player.

Select a USB storage device or a folder.

Select OK to start copying. All data saved in the folder or device is copied to the microSD memory card and the original data

saved in the microSD memory card is deleted.

NOTE:

“Out of disk space” is displayed if the microSD memory card storage capacity is not enough to copy selected folders.

When contents copy has occurred, previous data that was saved in the microSD memory card is deleted. Only devices connected to the monitor are shown. When the monitor is copying a folder, the LED indicator blinks in red. When the monitor is in this condition, do not eject the microSD memory card from the monitor and do not turn off the monitor’s main power. Ejecting the microSD card or turning off the monitor while copying ﬁles may corrupt the data. If you press the STANDBY button on the remote control or the POWER button on the monitor while the LED indicator is blinking in red, the monitor goes to standby after completing the folder copy.

Using Emergency contents

In case of emergency sends a command to the monitor, from a computer connected to the monitor, to play the emergency contents folder. Please create an EMERGENCY CONTENTS folder as a root folder in the microSD memory card that is connected to the monitor. Instructions for the EMERGENCY CONTENTS can be found on the CD included with the monitor. The ﬁle is called “External_control.pdf”.

Information OSD

The Information OSD provides information such as: Input Source, Picture Size, etc. Press the DISPLAY button on the remote to bring up the Information OSD.

DisplayPort1

AUDIO: IN

ASPECT: FULL

1920 X 1080

67.5 kHz/60 Hz

1920 X 1080

67.5 kHz/60 Hz

Input name

Audio input name

Picture aspect

Input Signal Information

Multi picture information

Communication Info

English-29

English

Picture Mode

Depending on the setting of SPECTRAVIEW ENGINE in the OSD PICTURE menu (see page 35), the selection choices for the Picture Mode are different.

SPECTRAVIEW ENGINE is set to “ON”:

Select from ﬁve different picture modes, either via the OSD menu item PICTURE MODE or using the PICTURE MODE button on the wireless remote control.

Select the Picture Mode with the wireless remote control

By pressing the Picture Mode button, the picture mode changes. SVE-1

SVE-2 SVE-3 SVE-4 SVE-5

Select or change the Picture Mode in the OSD menu item PICTURE MODE

Select a setting from SVE-1 SETTING to SVE-5 SETTING at PICTURE MODE. Select a preset item at PRESET.

Choose the Picture Mode that is most suitable for the type of content that is shown.

• Several modes are selectable (sRGB, Adobe

RGB SIM., eciRGB_v2 SIM., DCI SIM., REC-Bt709, HIGH BRIGHT, FULL,

DICOM SIM, PROGRAMMABLE).

• EachPICTUREMODEincludesLUMINANCE,WHITE,GAMMA,BLACK,RED,GREEN,BLUE,COLORVISIONEMU,

UNIFORMITY and METAMERISM settings.

PRESET Types

PRESET PURPOSE

sRGB

The standard color space used for the Internet, Windows® operating systems and digital cameras. Recommended setting for general color management.

Adobe®RGB SIM.

Provides a standard color space used in high-end graphics applications such as professional digital still cameras and imaging.

eciRGB_v2 SIM.

Provides a color space proﬁle recommended by ECI (The European Color Initiative).

DCI SIM.

Color setting for digital cinema.

REC-Bt709

Color setting for High-deﬁnition television.

HIGH BRIGHT

Highest brightness setting.

FULL

Native LCD panel color gamut. Suitable for use with color managed applications.

DICOM SIM.

Setting that conforms to the DICOM standard for the Grayscale Standard Display Function.

PROGRAMMABLE

For the Hardware Calibration by NEC Display Solutions GammaCompMD QA software (some OSD settings are disabled).

MODE PURPOSE

LUMINANCE Adjusts the overall image and screen background brightness.

Press “LEFT” or “RIGHT” to adjust.

WHITE Adjusts the white color by temperature or x, y setting. A lower color temperature will result in a reddish screen and a

higher color temperature in a bluish screen. A larger x value will result in a reddish screen, a larger y value changes the screen to greenish, and smaller x,y values will change the screen to bluish white.

WHITE RANGE

0.25

0.30

0.35

0.40

0.25 0.30 0.35 0.40 0.45 x

WHITE TEMPERATURE

15000K

3000K

6500K

5000K

0.43

0.48

English-30

GAMMA Allows you to manually select the brightness level of grayscale. There are ﬁve selections: sRGB, L STAR,

DICOM SIM. and CST. We recommend to show grayscale image data on screen. sRGB: GAMMA setting for sRGB. L STAR: GAMMA setting for the CIELAB color space Lab. DICOM SIM.: DICOM GSDF (Grayscale Standard Display Function) is typically used for medical imaging. CST: CUSTOM VALUE can be adjusted when CST is selected as the GAMMA SELECTION setting. CUSTOM VALUE: The gamma value is selected from the range from 0.5 to 4.0 in 0.1 steps.

SAMPLE OF PRESET GAMMA

100

0 64 128 192

GRAY STEP [0-255]

LUMINANCE [cd/m

]

L* sRGB

DICOM SIM.

Custom 1.8 Custom 2.2

255

BLACK Adjusts the black luminance. RED

GREEN BLUE

Adjusts the color gamut.

LCD NATIVE GAMUT GREEN MODIFIED

WHITE

GREEN

RED

BLUE

SETTING RANGE

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0.80.70.60.50.40.30.20.1

SAMPLE OF RGB GAMUT SETTING

COLOR VISION EMU Previews various typical human vision deﬁciencies and is useful for evaluating how people who have such

deﬁciencies will perceive colors. This preview is available in four modes: Types P (Protanopia), D (Deuteranopia) and T (Tritanopia) emulate color vision dichromacy, and Grayscale can be used for evaluating contrast legibility. NOTE: Depending on the vision of the user, including those with color vision deﬁciency, there will be a variation in how the screen's color is seen and experienced. A simulation is used to illustrate the view of those with a color vision deﬁciency. It is not their actual view. The simulation is a reproduction of those with a strong color vision mode of type P, type D or type T. People with a slight color vision deﬁciency will experience little to no difference compared to those with normal color vision.

UNIFORMITY This function electronically compensates the slight variations in the white uniformity level as well as deviations

in color that may occur throughout the screen area. These variations are characteristic of LCD panel technology. This function improves the color reproduction and evens out the non-uniformity in luminance of the monitor. NOTE: A higher number produces a better effect, but may also reduce the contrast ratio.

METAMERISM Compensates the visual color difference with other monitors.

If you prefer to get the color reproduction to be closer to the Picture Mode setting, set this function to OFF.

NOTE: - When the selected PICTURE MODE is different from your computer’s ICC color proﬁle, you may experience

inaccurate color reproduction.

- MultiProﬁler software, developed by NEC Display Solutions, is highly recommended to provide extended color management features such as ICC proﬁle Emulation and Printer Emulation. The latest MultiProﬁler software is available on the NEC Display Solutions website.

English-31

English

SPECTRAVIEW ENGINE is set to “OFF”:

Select from ﬁve different picture modes, either via the OSD menu item PICTURE MODE or using the PICTURE MODE button on the wireless remote control.

For DisplayPort1, DisplayPort2, OPTION*, HDMI1, HDMI2 STANDARD

sRGB CINEMA CUSTOM1 CUSTOM2 HIGHBRIGHT

For MP STANDARD

CINEMA CUSTOM1 CUSTOM2 HIGHBRIGHT

PRESET types

PRESET PURPOSE

HIGH BRIGHT

Highest brightness setting.

STANDARD

Standard setting.

sRGB

The standard color space used for the Internet, Windows

operating systems and digital cameras. Recommended

setting for general color management.

CINEMA

A setting that boosts dark tones; best suited for movies.

CUSTOM

Custom setting.

*: This function depends on which option board you are using.

English-32

OSD (On-Screen-Display) Controls

NOTE: Some functions may not be available depending on the model or optional equipment.

PICTURE: PICTURE MODE

BRIGHTNESS GAMMA COLOR CONTRAST SHARPNESS UHD UPSCALING ASPECT ADVANCED ROTATION SPECTRAVIEW ENGINE RESET

PICTURE MODE SVE-1 SETTING PRESET PROGRAMMABLE1 LUMINANCE 100 % BLACK 5 % GAMMA sRGB CUSTOM VALUE - - WHITE 6500 K WHITE (x, y) x: 0.279 y: 0.292 RED (x, y) x: 0.683 y: 0.306 GREEN (x, y) x: 0.191 y: 0.709 BLUE (x, y) x: 0.153 y: 0.044 COLOR VISION EMU OFF UNIFORMITY OFF METAMERISM ON / OFF COLOR CONTROL R - + 0 Y - + 0 G - + 0 C - + 0 B - + 0 M - + 0

Goto Adjustment

Select

Return Close

MULTI-INPUT OPTION

Input source

Main Menu Icons

Main Menu Item

Sub Menu

Key Guide

Adjustment Settings

Remote Control

Press UP or DOWN to navigate to a sub-menu.

Press SET/POINT ZOOM to select an option.

Press UP or DOWN, PLUS or MINUS to select the function or setting to be adjusted.

Press MENU or EXIT.

Press UP or DOWN to navigate to a sub-menu.

Press INPUT to select an option.

Press UP or DOWN, PLUS or MINUS button to select.

Press EXIT

Control Panel

OSD screen

English-33

English

Setting

INPUT

DisplayPort1 Select input signal. DisplayPort2 HDMI1 HDMI2 HDMI3 MP Displays images or movies saved in microSD memory card or USB storage device. Please refer to the Media

Player setting (See

page 22).

OPTION*

Select input signal.


PICTURE MODE Select picture mode:

SpectraView Engine = OFF: [HIGHBRIGHT], [STANDARD], [sRGB], [CINEMA], [CUSTOM1], [CUSTOM2]. SpectraView Engine = ON: [SVE-1 SETTINGS], [SVE-2 SETTINGS], [SVE-3 SETTINGS], [SVE-4 SETTINGS] or [SVE-5 SETTINGS]. See

page 29.

NOTE: If WHITE is set to NATIVE when the SPECTRAVIEW is ON, WHITE is not functioning. To be able to set the CUSTOM VALUE, please set CST at GAMMA.

BRIGHTNESS*

BACKLIGHT Adjusts the overall image and background brightness. Press + or - to adjust.

NOTE: When MODE1 or MODE2 is selected in ROOM LIGHT SENSING, this function cannot be changed.

BRIGHTNESS*

Adjusts the image brightness in relationship to the background. Press + or - to adjust.

GAMMA*

1, *2, *5

Select a monitor gamma correction for best picture quality. Selection depends on the desired usage.

NATIVE Gamma correction is handled by the LCD panel.

2.2 Typical monitor gamma for use with a computer.

2.4 Good for video (DVD, etc.) S GAMMA Special gamma for certain types of movies. Raises the dark parts and lowers the light parts of the image

(S-Curve).

DICOM SIM. DICOM GSDF curve simulated for LCD type. HDR-ST2084 (PQ) Gamma setting for HDR, typically for UHD disk media and streaming videos. HDR-HYBRID LOG Gamma setting for HDR, typically for UHD broadcasting. System gamma can be adjusted. PROGRAMMABLE1, 2, 3

A programmable gamma curve can be loaded using optional NEC software.

AUTO HDR SELECT

HDMI input only

GAMMA correction of HDR signal automatically changes to HDR-ST2084 (PQ) or HDR-HYBRID LOG.

COLOR*

COLOR Adjusts the color depth of the screen. Press + or - to adjust. COLOR

TEMPERATURE*

Adjusts the color temperature of the entire screen. A low color temperature will result in a reddish screen. A high color temperature will make the screen bluish. If TEMPERATURE needs further adjustment, the individual R/G/B/ levels of the white point can be adjusted. To adjust the R/G/B levels, set CUSTOM as COLOR TEMP selection. NOTE: Predeﬁned 6500k is set as picture mode, a color temperature of 6500k is predeﬁned so it cannot be changed. When PROGRAMMABLE1, PROGRAMMABLE2 or PROGRAMMABLE3 is selected in GAMMA CORRECTION, this function cannot be changed.

COLOR CONTROL Adjusts the hue of the Red, Yellow, Green, Cyan, Blue and Magenta. HUE*

MP input only

Adjusts the hue of the screen. Press + or - to adjust.

CONTRAST*

1, *2

Adjusts the image brightness in relationship to the input signal. Press + or - to adjust.

SHARPNESS*

Adjusts the crispness of the image. Press + or - to adjust.

UHD UPSCALING*

Achieves high-deﬁnition effect.

*1: If SPECTRAVIEW ENGINE is ON, this function is grayed out. *2: This function is not available when sRGB is selected at PICTURE MODE. *3: When you select OPTION for signal input, this function depends on which option board you are using. *4: This function is not available for still image by MP input. *5: When you use HDR signal, SPECTRAVIEW ENGINE should be OFF.

English-34

ASPECT Select the aspect ratio of the screen image.

NOTE: When the ASPECT is set to DYNAMIC, the image will be changed to FULL image before IMAGE FLIP, then start IMAGE FLIP. When the ASPECT is DYNAMIC or ZOOM, the image will be changed to FULL image before TILE MATRIX, and then start TILE MATRIX. After TILE MATRIX, the ASPECT will be returned to the previous ASPECT or set ASPECT during TILE MATRIX. If SCREEN SAVER is set, the ASPECT setting automatically changes to FULL from what you set. Once SCREEN SAVER is off the ASPECT setting will go back to the setting that you originally set. This function is not available when MOTION in SCREEN SAVER is active. When the ASPECT is set to DYNAMIC or ZOOM while TILE MATRIX is set to active, after releasing TILE

MATRIX, DYNAMIC or ZOOM will be active.

POINT ZOOM function has limitations, please refer to POINT ZOOM (See

page 59).

Zoom is also not available for an image with input resolution at 3840 x 2160 (60 Hz) and 4096 x 2160 (60 Hz).

NORMAL Shows the aspect ratio as it is sent from the source. FULL Fills the entire screen. WIDE Expands a 16:9 letterbox signal to ﬁll the entire screen. DYNAMIC Expands 4:3 pictures to ﬁll the entire screen with non-linearity image. Part of the outside image area will be cut

off due to expansion.

1:1 Shows the image in a 1 by 1 Pixel format. (If the input resolution is higher than the recommended resolution,

the

image will be scaled down to ﬁt the screen.)

ZOOM Expands/reduces the image.

NOTE: The areas of the expanded image that are outside of the active screen area are not shown. The reduced image may have some image degradation.

ZOOM Maintains the aspect ratio while zooming. HZOOM Horizontal zoom value. VZOOM Vertical zoom value. H POS Horizontal position. V POS Vertical position.

ADVANCED

OVER SCAN

HDMI1, HDMI2, HDMI3, MP, OPTION*1 inputs only

Some video formats may require different scanning modes in order to best display the image.

ON Image size is larger than what can be displayed. The image edge will appear cropped.

Approximately 95% of the image will be shown on the screen.

OFF Image size stays within the display area. The whole image is displayed on the screen.

NOTE: When you use a computer with HDMI out, please set “OFF”.

AUTO Image size is set automatically.

NOTE: This function is not available if input signal is MP.

DEINTERLACE

Selects the IP (Interlace to Progressive) conversion function. NOTE: IMAGE FLIP is not available. When SUPER is selected in INPUT CHANGE and displayed, this function cannot be changed.

ON Converts interlaced signals to progressive. This is the default setting. OFF Disables IP conversion. This setting is best suited for motion pictures but increases the risk of image retention.

TELECINE

HDMI1, HDMI2, HDMI3, MP inputs only

Automatically senses the sources frame rate for optimal picture quality. NOTE: Set DEINTERLACE to ON if TELECINE is AUTO.

ADAPTIVE CONTRAST*

HDMI1, HDMI2, HDMI3, MP inputs only

Sets the level of adjustment for dynamic contrast. If HIGH is set, the image is displayed clearly but it makes brightness unstable due to the wide gap of contrast variation.

*1: This function depends on which option board you are using. *2: If SPECTRAVIEW ENGINE is ON, this function is grayed out.

English-35

English

ROTATION Shows the inverse image right-left, up-down or rotation.

Press + or - to select. NOTE: This function is not available when MOTION in SCREEN SAVER is “ON”.

IMAGE FLIP NOTE: When the ASPECT is set to DYNAMIC, the image will be changed to FULL image before ROTATE starts.

When selecting IMAGE FLIP (except for NONE), the following functions are disabled

: MULTI PICTURE MODE, TEXT TICKER, STILL, POINT ZOOM and TILE MATRIX. When the input signal is interlaced, the image may be distorted.

NONE

Normal mode.

H FLIP

The image inverts right-left.

V FLIP

The image inverts up-down.

180°ROTATE

The image rotates 180 degrees.

OSD FLIP Determines the OSD display direction.

If “ON” is selected, the OSD will be inverted depending on the image status.

SPECTRAVIEW ENGINE Select “ON” to activate SPECTRAVIEW ENGINE (see

page 29).

RESET Resets all “PICTURE” settings back to factory settings except for SPECTRAVIEW ENGINE and PICTURE

MODE.

AUDIO

VOLUME Increase or decrease output volume level. BALANCE

BALANCE Select STEREO or MONO for the audio output.

If you select STEREO, adjust the L/R volume balance. Press the + button to move the stereo sound image to right. Press the - button to move the stereo sound image to left. NOTE: BALANCE is not available if MONO is set at STEREO/MONO.

SURROUND Artiﬁcial surround sound.

NOTE: LINE OUT is disabled when this function is set to “ON”.

EQUALIZER

TREBLE Accentuate or reduce the high frequency range of audio signals.

Press the + button to increase TREBLE. Press the - button to decrease TREBLE.

BASS Accentuate or reduce the low frequency sound.

Press the + button to increase BASS. Press the - button to decrease BASS.

AUDIO INPUT Selects the audio input source: [HDMI1], [HDMI2], [HDMI3], [DisplayPort1], [DisplayPort2], [IN], [MP],

[OPTION]*

MULTI PICTURE AUDIO Selects audio source.

NOTE: This function depends on MULTI PICTURE setting.

LINE OUT Selecting VARIABLE enables control of the line out level with the VOLUME button. AUDIO DELAY

AUDIO DELAY Activate a delay time to output the audio signal. The DELAY TIME can be set between 0 and 100 milliseconds.

Set to ON to activate this function.

DELAY TIME

RESET Resets all AUDIO options back to factory settings, except for VOLUME.

*1: This function depends on which option board you are using.

English-36

SCHEDULE

SCHEDULE SETTINGS Creates a working schedule for the monitor.

Press the

, +, - buttons to navigate and change the schedule settings. Press the SET/ZOOM on the remote or Input change buttons on the monitor to select settings. NOTE: Please set DAY & TIME before conﬁguring the SCHEDULE SETTINGS. When the SCHEDULE SETTINGS window is closed, any schedules that you set are saved. If schedules are set for the same time, higher SETTINGS numbers are given the priority. If OFF TIMER is ON, SCHEDULE SETTINGS is not available. When you select an invalid input signal or picture mode, it will display in red. While the SCHEDULE SETTINGS window is open, schedules are not operated. Also, see

page 46.

SETTINGS Set ON to activate the schedule. Maximum 30 schedules are set. POWER Setting for the monitor power. Please set ON or OFF for each schedule. TIME Set the schedule operation time. If there is no speciﬁc time for the schedule set [--]. INPUT Set the input signal for the schedule. To keep the input signal that is active when the schedule starts set [--].

When you set INPUT, please select ON at POWER.

PIC. MODE Set the picture mode for the schedule. To keep the picture mode that is active when the schedule starts set [--].

When you set PIC. MODE, please select ON at POWER.

Select one item from below (only one item is available). DATE Select this setting if the schedule is for one day schedule or irregular schedules. EVERY DAY Select this setting if the schedule is repeating every day. EVERY WEEK Select this setting if the schedule is repeating every week. WEEKDAY Select this setting if the schedule is on a weekday.

This item is set by the WEEKEND and the HOLIDAY settings. A day, which is not selected at WEEKEND and

HOLIDAY settings is set as a weekday. WEEKEND Select this setting if the schedule is on a weekend.

Schedule operates on the date that is set at WEEKEND SETTINGS. HOLIDAY Schedule operates on the date that is set at HOLIDAY SETTINGS.

SCHEDULE LIST List of working schedules. Displays up to 30 schedules. HOLIDAY SETTINGS

No. Creates holiday schedule for the monitor. YEAR

MONTH DAY WEEK

Set YEAR and MONTH.

Select DAY or WEEK.

DAY: Set a day.

WEEK: Set a week and the day of the week.

If you set [--] at MONTH or YEAR, every month or year of the day you select is set as a holiday. END DAY Set the end of holiday date. If you schedule beyond a year, please separate the schedule per year.

NOTE: If DAY is not set, END DAY is not available. If your holiday setting includes [--] for year or month, END

DAY is not available. SET/DELETE Sets or deletes a schedule.

WEEKEND SETTING

WEEKEND Set the day of the week.

DATE & TIME Sets the date, time, and daylight savings region. Date & time must be set in order for the “SCHEDULE” function

to operate.

NOTE: If the monitor’s main power has been turned off for two weeks, the DATE & TIME setting goes back to the

default setting and the clock function stops working. YEAR Sets the year for the real-time clock. MONTH Sets the month for the real-time clock. DAY

Sets the day for the real-time clock. TIME Sets the time for the real-time clock. CURRENT DATE TIME Shows the current date and time.

English-37

English

DAYLIGHT SAVING Sets daylight savings on or off.

NOTE: Please set the TIME & DATE setting ﬁrst if you change the DAYLIGHT SAVING setting. DAYLIGHT SAVING If ON is selected, please set daylight savings settings below. BEGIN MONTH Set daylight savings beginning date. END MONTH Set daylight savings ending date. TIME DIFFERENCE Set the time difference.

OFF TIMER Set the monitor to power off after a preset time period. A time period between 1 to 24 hours may be set.

NOTE: SCHEDULE is not available if OFF TIMER is ON.

RESET Resets the following settings within the SCHEDULE menu back to factory setting: DATE & TIME and DAYLIGHT

SAVING.

MULTI INPUT

KEEP MULTI PICTURE MODE*

Allows the monitor to remain in MULTI PICTURE and TEXT TICKER mode after powering off.

When Power is returned, MULTI PICTURE and TEXT TICKER appear without having to enter the OSD.

MULTI PICTURE MODE*

1, *3

Selects picture number and display form. MULTI PICTURE When “OFF” is selected, one picture is displayed.

When “ON” is selected, several pictures are displayed. Select PIP or PBP.

NOTE: When “ON” is selected, TEXT TICKER, TILE MATRIX, MOTION in SCREEN SAVER, IMAGE FLIP except

for NONE, SUPER in INPUT CHANGE is released. PICTURE NUMBER Selects [2 PICTURES], [3 PICTURES], [4 PICTURES].

After selected PICTURE NUMBER, select display form PIP, PBP1, PBP2, or PBP3. Depending on the setting at

PICTURE NUMBER, display form selection is changed.

PICTURE NUMBER: 2 PICTURES

PIP PBP1

A B

PICTURE NUMBER: 3 PICTURES

PIP PBP1 PBP2 PBP3

CBA

PICTURE NUMBER: 4 PICTURES

C D

A: PICTURE 1 B: PICTURE 2 C: PICTURE 3 D: PICTURE 4

ACTIVE PICTURE*

1, *2

ACTIVE When MULTI PICTURE is “OFF”, [PICTURE 1] is the Active Picture. When MULTI PICTURE is “ON”, sets Active

Picture.

NOTE: This function depends on MULTI PICTURE setting. ACTIVE FRAME The active picture is shown within a red frame.

INPUT SELECT*

1, *2, *3

Selects the Multi Picture input. Press the + button or - button to select the input.

NOTE: This function is not available when MULTI PICTURE is “OFF”.

When changing input signal for the active picture, after selecting an input press SET.

PICTURE SIZE*

1, *2, *4

Sets the Active Picture size.

Press the SET/POINT ZOOM button to adjust the picture size. Press + or CH+ to expand. Press - or CH- to reduce.

NOTE: This function is not available when MULTI PICTURE is set to 4 PICTURES PBP.

Depends on the setting at MULTI PICTURE MODE, some pictures cannot change their size.

PICTURE POSITION*

1, *2, *4

Sets the Active Picture location.

Pressing the + button moves the Active Picture to the right, and pressing the - button moves it to the left.

Pressing the

button moves the Active Picture up, and pressing the button moves it down.

ROTATE When “ON” is selected, all pictures rotate.

When “OFF” is selected, sets each picture ROTATE settings.

NOTE: When TEXT TICKER, IMAGE FLIP except for NONE, STILL is ON or SCREEN SAVER is active,

this function is not available. If ASPECT “1:1” is selected, characters and lines may be displayed in blurring,

depending on the signal resolution.

When ROTATE is ON, POINT ZOOM and IMAGE FLIP except for NONE are not available.

Each picture ROTATE settings are released when MULTI PICTURE is set to “OFF”.

When input signal is Interlace, the image may be distorted.

When HDMI of the TERMINAL SETTINGS is set to MODE2, or [3 PICTURES] or [4 PICTURES] is selected at

PICTURE NUMBER in MULTI PICTURE MODE, ROTATE is not available.

If ROTATE of MULTI PICTURE CONTROL is selected in the input signal with a high refresh rate, the image may

not be displayed smoothly. To reduce this condition please set the input signal with a low refresh rate.

PICTURE ASPECT*

1, *2, *4

Selects the Active Picture frame aspect.

To change aspect ratio of the screen image see

page 21.

*1: This function is released when selecting SUPER in INPUT CHANGE, MOTION in SCREEN SAVER, TILE MATRIX and IMAGE FLIP except for NONE. *2: When TEXT TICKER is active or multi picture is OFF, this function is not available. *3: When you select OPTION for multi picture input, this function depends on which option board you are using. *4: This function is not available if PIP is set at MULTI PICTURE MODE and then PICTURE1 is set at ACTIVE PICTURE.

English-38

TEXT TICKER*

1, *2

NOTE: When TEXT TICKER is set, MULTI PICTURE MODE and STILL are not available. TEXT TICKER is released if following menu is activated: MULTI PICTURE MODE, TILE MATRIX, SCREEN SAVER, IMAGE FLIP, SUPER in INPUT CHANGE.

When this function is active, POINT ZOOM and STILL are not available. MODE Enables Text Ticker and allows you to set Horizontal or Vertical direction. POSITION Selects the location of the Text Ticker on the screen. SIZE Determines the size of the Text Ticker in relationship to the overall screen size. DETECT Enables auto-detection of the Text Ticker. INPUT SELECT Set input signal for PICTURE1, PICTURE2.

INPUT DETECT*

Selects the method of input detection the monitor uses when more than one signal source is connected.

NOTE: When SUPER is selected within INPUT CHANGE, this function cannot be changed.

INPUT DETECT is released if HUMAN SENSOR is activated while INPUT DETECT is active. NONE The Monitor will not search for signals at the other video input ports. FIRST DETECT*

2, *3

When the current video input signal is not present, the monitor searches for a video signal from another video

input port. If a video signal is present in the other input, the monitor switches from the current video source to this

active video source automatically.

The monitor will not look for any other video signals while the current video source is present. LAST DETECT*

2, *3

When the monitor is reproducing a signal from the current video source and a new second video source is

supplied to the monitor, the monitor will automatically switch to the new video source. When the current video

input signal is not present anymore, the monitor searches for a video signal from any other video input. If a video

signal is present in the other input, the monitor switches from the current video source to this active video source

automatically. CUSTOM DETECT*

Sets the priority of input signals.

When CUSTOM DETECT is selected, the monitor searches on preset inputs only.

NOTE: Priority of an option input signal is only available in PRIORITY3, except for a slot 2 type PC option.

If you set DisplayPort1 to Priority 1 or 2 or 3, you cannot set OPTION (slot 2 type PC option (DP)) to any priority

settings. If you set OPTION (slot 2 type PC option (DP)) to Priority 1 or 2 or 3, you cannot set DisplayPort1 to any

priority settings.

INPUT CHANGE Sets input change speed. If “QUICK” is set, speed of changing input is faster but this setting may cause image

noise while switching signals.

Selecting SUPER enables high-speed switching between two preset signals.

NOTE: Depending on the option board you use, SUPER may not be available.

When “SUPER” is active, MULTI PICTURE MODE, TEXT TICKER, STILL, POINT ZOOM are not available.

TERMINAL SETTINGS

DisplayPort Selects the DisplayPort mode [1.1a] or [1.2].

DisplayPort 1.1a is selected, SST is set automatically.

DisplayPort 1.2 is selected, set SST or MST.

DisplayPort 1.2 should be selected when using Multi-Stream Transport. Multi-Stream Transport requires a

corresponding display card. Contact your supplier for limitations of this function.

NOTE: MST is not available with DisplayPort IN2 signal input. BIT RATE DisplayPort 1.1a is selected at DisplayPort, HBR is set automatically.

DisplayPort1.2 and SST are selected at DisplayPort, set HBR or HBR2.

DisplayPort1.2 and MST are selected at DisplayPort, HBR2 is set automatically. HDMI Selects MODE1 or MODE2.

MODE1: Max resolution is 4096 x 2160 (30 Hz)

MODE2: Max resolution is 4096 x 2160 (60 Hz) VIDEO LEVEL RAW: For computer settings. Show all input signals of 0-255 gray levels.

EXPAND: For audio-visual equipment settings. Expands the input signals from 16-235 gray levels to 0-255 gray

levels.

AUTO: Automatically sets input signals by adjusting connected equipment.

NOTE: This function is available only in HDMI or DisplayPort or OPTION and is selected at INPUT SIGNAL. SIGNAL FORMAT Selects the color space setting for the HDMI/DisplayPort signal. If SLOT2 CH SETTING is 2CH, this function is

grayed out.

RESET Resets MULTI INPUT options back to factory settings, except for INPUT DETECT (priority of input signals only),

INPUT CHANGE (INPUT1 and INPUT2), INPUT

SELECT, PICTURE ASPECT and BIT RATE.

*1: This function is released when selecting SUPER in INPUT CHANGE, MOTION in SCREEN SAVER, TILE MATRIX and IMAGE FLIP except for NONE. *2: When you select OPTION for multi picture input, this function depends on which option board you are using. *3: Except for MP. *4: Depending on the device, it may not be detected correctly.

English-39

English

OSD

LANGUAGE Select the language used by the OSD.

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL SVENSKA

РУССКИЙ

OSD TIME Turns off the OSD after a period of inactivity. The preset choices are 10-240 seconds. OSD POSITION Determines the location where the OSD appears on the screen.

UP DOWN RIGHT LEFT

INFORMATION OSD Selects whether the Information OSD is displayed or not. The Information OSD will appear when the input signal

or input source changes. The Information OSD will also give a warning when no signal is detected or the signal is

out of range.

An interval between 3 to 10 seconds is selectable for the Information OSD to appear. COMMUNICATION

INFO.

The MONITOR ID and IP ADDRESS will appear when the remote control Display button is pressed.

OSD TRANSPARENCY Selects the transparency of the OSD. OSD ROTATION Determines the OSD orientation between landscape and portrait.

LANDSCAPE Shows the OSD in landscape orientation. PORTRAIT Shows the OSD in portrait orientation.

KEY GUIDE Key guide is shown when the OSD menu is displayed.

NOTE: This function is not available when OSD FLIP is “ON”.

MEMO Deﬁnes a title and a message via HTTP server. See

page 56.

INPUT NAME You can create a name for the INPUT currently being used.

Max: 14 characters, including Space, A-Z, 0-9, and some symbols.

RESET Resets the following settings within the OSD menu back to factory setting:

OSD TIME, OSD POSITION, INFORMATION OSD, OSD TRANSPARENCY.

MULTI DISPLAY

AUTO TILE MATRIX SETUP

TILE MATRIX allows one image to be displayed over multiple screens (up to 100) through a distribution ampliﬁer.

Allows auto setting of TILE MATRIX by inputting the number of monitors arranged horizontally and vertically on

the primary monitor. Following settings are set automatically: MONITOR ID, TILE MATRIX, TILE MATRIX MEM,

Input Signal, VIDEO OUT SETTING, DisplayPort in TERMINAL SETTINGS.

NOTE: AUTO ID will be automatically executed. When you use this function, it is recommended that monitors be

chained by DisplayPort cable. This function is released if MOTION in SCREEN SAVER is activated.

Example of installation via LAN: H MONITORS 3

V MONITORS 3

Primary monitor

SETTING COPY In a daisy chain scenario, select the OSD menu categories that you want to copy over to the other monitors.

NOTE: When you use this function, monitors should be daisy chained by LAN cables. This function will be reset

to default when power is off. This function has a limit in the number of connected monitors, depending on type

and quality of the LAN cable you use. COPY START Select “YES” and press the SET button to start copying. ALL INPUT All input terminals settings are copied when you select this item. Default is off.

English-40

TILE MATRIX Allows one image to be expanded and displayed over multiple screens (up to 100) through a distribution

ampliﬁer.

NOTE: Low resolution is not suitable for tiling to a large number of monitors. You can operate without a

distribution ampliﬁer at a lower number of screens.

This function is released when selecting SCREEN SAVER or IMAGE FLIP except for NONE.

Dynamic and Zoom will not work when Tile Matrix is activated.

When “DYNAMIC” or “ZOOM” is selected in ASPECT while executing TILE MATRIX, the setting will be applied

after completing the TILE MATRIX.

When TILE MATRIX is active the following functions are not available: MULTI PICTURE MODE, TEXT TICKER,

STILL, POINT ZOOM. Please refer to the POINT ZOOM function for more detail (see

page 59). If Media Player contents are played while TILE MATRIX is active, the image play timing might have a gap within monitors. This function is not available when SCREEN SAVER is active. When HDMI of the TERMINAL SETTINGS is set to MODE2, TILE MATRIX is not available.

H MONITORS Number of monitors arranged horizontally. V MONITORS Number of monitors arranged vertically. POSITION Select which section of the tiled image to be displayed on the monitor. TILE COMP Turns the TILE COMP feature on. If YES is set to the TILE COMP, you can adjust a displayed image size and

position by pressing the + button or the - button on the remote control.

ENABLE Enables the Tile Matrix settings.

TILE MATRIX MEM When “INPUT” is selected, the TILE MATRIX setting is applied to each signal input.

COMMON All settings in the TILE MATRIX are saved for all signal inputs. INPUT All settings in the TILE MATRIX are saved for the selected signal input.

ID CONTROL Sets the monitor ID number from 1-100 and group ID from A-J. DETECTED MONITORS shows the number of all

monitors that are included in the daisy chain of connected LAN cables. NOTE: Do not turn off the monitors’ main power switch or put it into standby while AUTO ID/IP SETTING or AUTO ID/IP RESET is activating. The Group ID is made of multiple selections.

AUTO ID/IP SETTING When “SET” is selected, AUTO ID/IP SETTING window is shown.

Do not connect network devices between the monitors connected with LAN.

SETTING ITEM Select an item from [MONITOR ID], [IP ADDRESS] and [ID and IP].

MONITOR ID When “YES” is selected the monitor ID numbers are set automatically for all monitors. IP ADDRESS Set the ﬁrst octet to the third octet at “BASE ADDRESS”.

The fourth octet is automatically set from “1” and counting up to the number of monitors connected with LAN. “BASE ADDRESS” is shown when “IP ADDRESS” or “ID and IP” is selected at SETTING ITEM.

ID and IP Set “MONITOR ID” and “IP ADDRESS”.

BASE NUMBER Set base number within 100 for the master monitor.

The other monitors that follow in the LAN chain will be given an individual monitor ID automatically. The monitor ID given to each monitor counts up based on the base number of the master monitor. The monitor ID range is 1

to 100. Please choose a starting number that is low enough to include all connected monitors. BASE ADDRESS When “YES” is set, the monitor IP ADDRESS is set automatically for all monitors. ID/IP SETTING

START

When “YES” is set, all settings in the AUTO ID/IP SETTING are activated.

DETECTED MONITORS

This item is shown after “SETTING ITEM” is selected and “ID/IP ADDRESS START” is set to “YES”. If the detected number of monitors and the actual number of MONITOR IDs assigned are different, select “RETRY” to recount the monitors. If the shown number is correct, set “CONTINUE”.

AUTO ID/IP RESET When “RESET” is selected, AUTO ID/IP RESET window is shown.

RESET ITEM Select a setting from [MONITOR ID], [IP ADDRESS], and [ID and IP].

When the number of monitors connected with LAN is changed, please select the same item that you selected at “SETTING ITEM” in the AUTO ID/IP SETTING and then run the “AUTO ID/IP RESET”.

ID/IP RESET START When “YES” is set, the setting of selected item at RESET ITEM returns to default setting.

When the setting returns to default setting, “FINISH!!” is displayed. NOTE: After “ID/IP RESET START” is activated, the individual settings for “MONITOR ID” and “IP ADDRESS” will be reset even though the monitor’s are connected with LAN.

DETECTED MONITORS

Displays the number of detected monitors.

COMMAND TRANSFER

When “ON” is set, a command is sent to all monitors connected with LAN cables.

RESET Resets all settings within the MULTI DISPLAY menu back to the factory setting.

English-41

English

DISPLAY PROTECTION

POWER SAVE Set ENABLE or DISABLE. If you set it to ENABLE, set how long the monitor waits to go into power save mode

after signal is lost. For more details please check the Power Indicator (See

page 43). NOTE: The display card might not stop sending the digital data even though the image might have disappeared. If this occurs the monitor will not switch into power management mode. POWER SAVE is disabled when AUTO OFF or CUSTOM is selected in HUMAN SENSING*

AUTO POWER SAVE TIME SETTING

Set the time when the monitor goes into auto power save mode after signal is lost.

POWER SAVE MESSAGE When the monitor goes into power save mode, a message is displayed when ON is selected. FAN CONTROL Cooling fans will reduce the internal temperature of the monitor to protect it from overheating.

If AUTO is selected, you can adjust the start temperature of the cooling fans and the fan speed.

HEAT STATUS Shows the actual status of the fans, backlight and temperature sensors. SCREEN SAVER Use the SCREEN SAVER function to reduce the risk of Image Persistence.

NOTE: When the screen saver is activated, the image will be changed to FULL image. After the screen saver stops, the image will be reproduced again with the current ASPECT setting. The screen saver cannot be selected for 3840 x 2160 (60 Hz) nor 4096 x 2160 (60 Hz) signal input. When the SCREEN SAVER is set to active, MULTI PICTURE MODE, STILL, IMAGE FLIP (except for NONE) or TEXT TICKER, POINT ZOOM, TILE MATRIX are not available.

GAMMA*

The monitor gamma is changed and ﬁxed when “ON” is selected.

BACKLIGHT*

The brightness of the backlight is decreased when “ON” is selected. NOTE: Do not select this function when ROOM LIGHT SENSING is set to MODE1 or MODE2.

MOTION*

The screen image is slightly expanded and moves in 4 directions (UP, DOWN, RIGHT, LEFT) at user determined intervals. You can set interval time and zoom ratio.

SIDE BORDER COLOR Adjusts the color of the side borders when a 4:3 image is reproduced.

By pressing the + button on the remote control, the side borders will become brighter. By pressing the - button, the side borders will become darker. Background color of the Media Player window is also changed.

POWER ON DELAY Adjusts the delay time between being in “standby” mode and entering “power on” mode.

DELAY TIME “POWER ON DELAY” can be set between 0 and 50 seconds. LINK TO ID When “ON” is selected, the delay time is linked with the Monitor ID. It takes more time when there are a large

number of IDs.

ALERT MAIL Set ON to activate alert mail (See

page 54).

RESET Resets all settings within the DISPLAY PROTECTION menu back to factory setting except for POWER ON

DELAY.

CONTROL

NETWORK INFORMATION

Shows the current network settings.

LAN NOTE: When changing any LAN settings, you need to wait several seconds until modiﬁed LAN settings are

applied.

IP SETTING Enabling this option automatically assigns an IP address to the monitor from your DHCP server.

Disabling this option allows you to enter a ﬁxed IP address and subnet mask data obtained from your network administrator. NOTE: Consult your network administrator for the IP address when AUTO is selected for [IP SETTING].

IP ADDRESS Set your IP address for the monitor connected to the network when MANUAL is selected for [IP SETTING]. SUBNET MASK Set your subnet mask data for the monitor connected to the network when MANUAL is selected for

[IP SETTING].

DEFAULT GATEWAY Set your default gateway for the monitor connected to the network when MANUAL is selected for [IP SETTING].

NOTE: Enter [0.0.0.0] to delete the setting.

DNS Set the IP addresses of DNS servers.

AUTO: The DNS server, which is connected with the monitor, will automatically assign its IP address. MANUAL: Manually enter the IP address of the DNS server which is connected with the monitor.

DNS PRIMARY Enter the primary DNS server settings of the network connected with the monitor.

NOTE: Enter [0.0.0.0] to delete the setting.

DNS SECONDARY Enter the secondary DNS server settings of the network connected with the monitor.

NOTE: Enter [0.0.0.0] to delete the setting.

*1: If SPECTRAVIEW ENGINE is ON, this function is grayed out. *2: When you select OPTION for signal input, this function depends on which option board you are using. *3: The function is available only when connecting the optional control unit.

English-42

CHANGE PASSWORD Allows the security password to be changed.

The factory preset password is 0000.

SECURITY

PASSWORD Input security password. SECURE MODE

OFF The security password is not required when the monitor power is on. START-UP LOCK The security password is required when the monitor power is on. CONTROL LOCK The security password is required when a remote control button or a control button on the monitor is pressed. BOTH LOCK The security password is required when either the monitor is powered on, or a remote control button or a control

button on the monitor is pressed.

IR LOCK SETTINGS

Prevents the monitor from being controlled by the wireless remote control. When ACTIVATE is selected, all settings are activated. NOTE: IR LOCK SETTINGS is a function intended only for the wireless remote control buttons. This function does not lock out access to the buttons on the monitor. To return to normal operation, press the “DISPLAY” button on the remote control and hold it down for more than 5 seconds.

MODE SELECT

Selects the mode UNLOCK, ALL LOCK or CUSTOM LOCK.

UNLOCK

All buttons on the remote control are available for normal operation.

ALL LOCK

Locks all remote control buttons.

CUSTOM LOCK

Selects which buttons to be locked from POWER, VOLUME, and INPUT button. Except for CUSTOM LOCK settings, other buttons on the remote control are locked. POWER: When LOCK is selected, the POWER button is locked. VOLUME: When UNLOCK is selected, set the minimum and maximum volume between VOL.0 to VOL.100. VOLUME (+) button and VOLUME (-) buttons are only available from the minimum volume to the maximum volume you set. When LOCK is selected, VOLUME (+) button and VOLUME (-) buttons are locked. INPUT: When UNLOCK is selected, choose up to three buttons from DisplayPort1, DisplayPort2, HDMI1, HDMI2, HDMI3, MEDIA PLAYER, OPTION which you prefer to be unlocked. The unselected buttons are locked. When LOCK is selected, all INPUT buttons are locked. CHANNEL: To lock channel buttons on the remote control, select it to LOCK then press ACTIVE, channel CH/ZOOM (+) button and (-) button are locked.

KEY LOCK SETTINGS

Prevents the monitor from being controlled by the buttons on the monitor. When ACTIVATE is selected all of the settings are activated. NOTE: KEY LOCK SETTINGS is a function intended only for the buttons of the monitor. This function does not lock out access to all buttons on the remote control. To activate the control key lock function, press the UP button (

) and the DOWN button ( ) and hold down simultaneously for more than 3 seconds. To resume user mode,

press the UP button (

) and the DOWN button ( ) and hold simultaneously for more than 3 seconds.

MODE SELECT

Selects the mode UNLOCK, ALL LOCK or CUSTOM LOCK.

UNLOCK

All buttons are available for normal operations.

ALL LOCK

Locks all remote control buttons.

CUSTOM LOCK

Selects which buttons to be locked from POWER, VOLUME, and INPUT button. Except for CUSTOM LOCK settings, other buttons on the remote control are locked. POWER: When LOCK is selected, the POWER button is locked. VOLUME: When UNLOCK is selected, set the minimum and maximum volume between VOL.0 to VOL.100. The PLUS button (+) and the MINUS button (-) are only available from the minimum volume to the maximum volume you set. When LOCK is selected, the PLUS button (+) and the MINUS button (-) are locked. INPUT: When UNLOCK is selected, the INPUT/SET button is unlocked. CHANNEL: To lock channel buttons on the remote control, select it to LOCK then press ACTIVE, the UP button ( ) and the DOWN button ( ) are locked.

DDC/CI

DisplayPort2 input only

ENABLE/DISABLE: Turns ON or OFF the two-way communication and control of the monitor.

PING Conﬁrm successful connection with the network by communicating with a preset IP address.

IP ADDRESS Sets an IP ADDRESS for sending PING. EXECUTE Checks a reply can be sent to the monitor or not from the IP ADDRESS by sending PING.

IP ADDRESS RESET Resets IP ADDRESS SETTINGS back to factory settings.

English-43

English

AUTO DIMMING*

Adjusts the backlight of the LCD automatically depending on the amount of ambient light.

AUTO BRIGHTNESS

DisplayPort1, DisplayPort2, MP, OPTION*3 inputs only

Adjusts the brightness level according to the input signal. NOTE: Do not select this function when ROOM LIGHT SENSING is MODE1 or MODE2.

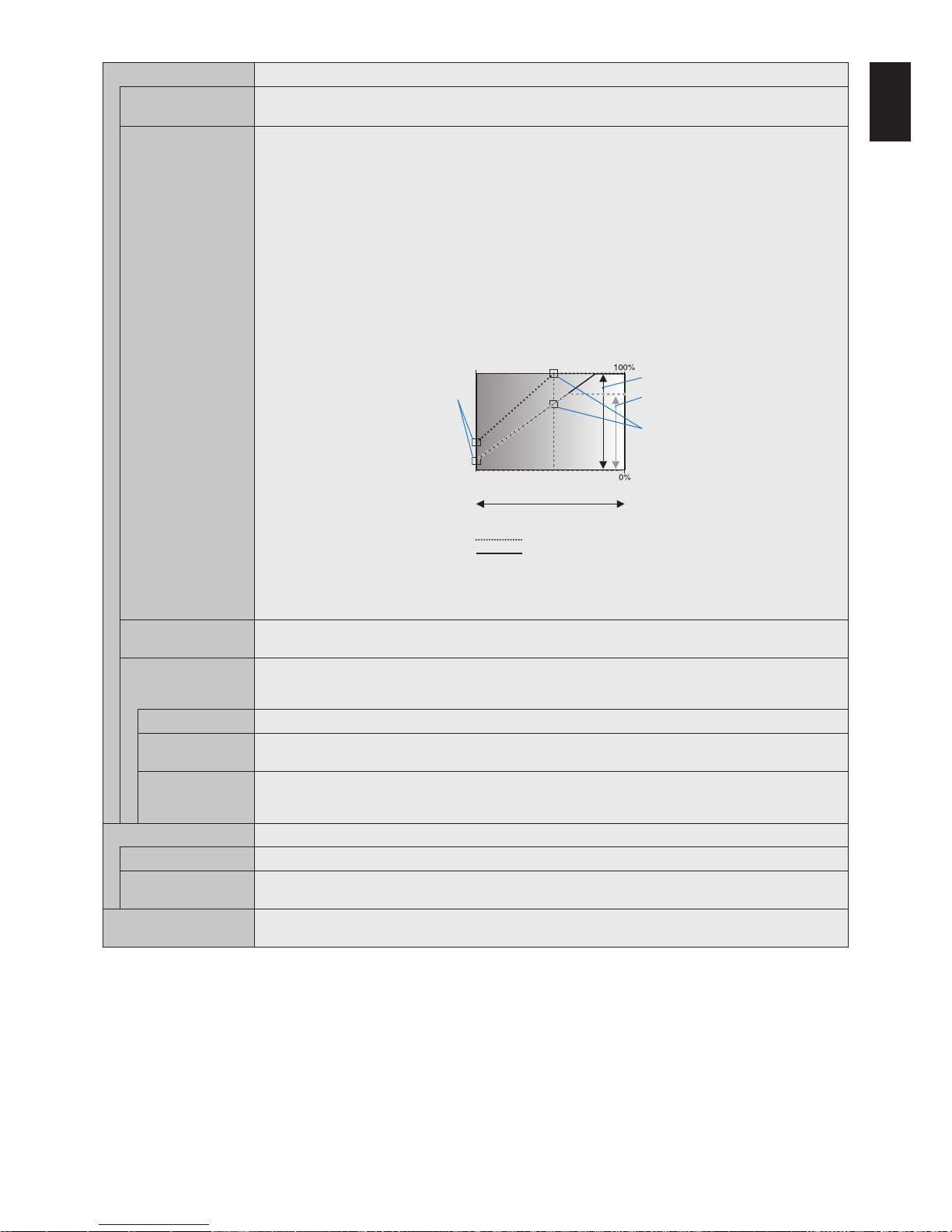

ROOM LIGHT SENSING

The backlight of the LCD screen can be set to increase or decrease depending on the amount of ambient light within the room. If the room is bright, the monitor becomes correspondingly bright. If the room is dim, then the monitor will dim accordingly. The purpose of this function is to make the viewing experience more comfortable to the eye in a variety of lighting conditions. NOTE: When ROOM LIGHT SENSING is set, BACKLIGHT, AUTO BRIGHTNESS and BACKLIGHT in SCREEN SAVER functions are disabled. Do not cover the room light sensing sensor when you use MODE1 or MODE2.

AMBIENT parameter setting ROOM LIGHT SENSING in OSD, select MODE1 or MODE2 and set MAX LIMIT, IN BRIGHT and IN DARK in each mode. MAX LIMIT: This is the max level of backlight, which you set. IN BRIGHT: This is the backlight level that the monitor will go up to when the ambient light level is highest. IN DARK: This is the level of backlight that the monitor will go down to when the ambient light level is low. When the ROOM LIGHT SENSING is enabled the Backlight level of the screen changes automatically according to the lighting conditions of the room (see ﬁgure below).

BACKLIGHT level set for the monitor to use when ambient lighting level is low.

BACKLIGHT level set for the monitor to use when ambient lighting level is high.

BACKLIGHT range

dark bright

room bright condition

Screen Backlight value by MODE2

IN DARK IN BRIGHT

Screen Backlight value by MODE1

Factory Setting

BACKLIGHT range when set to MAX LIMIT.

MAX LIMIT: BACKLIGHT level is limited to your set level. IN DARK: BACKLIGHT level set for the monitor to use when ambient lighting level is low. IN BRIGHT: BACKLIGHT level set for the monitor to use when ambient lighting level is high.

BACKLIGHT DIMMING*

Automatically adjusts each of the clusters of the backlight of the LCD independently, according to the input signal.

HUMAN SENSING*

HUMAN SENSING has three settings. NOTE: POWER SAVE is disabled when AUTO OFF or CUSTOM is selected in HUMAN SENSING. HUMAN SENSING is released if INPUT DETECT is set while HUMAN SENSING is active.

DISABLE No human sensing. AUTO OFF At the preset time, when no person is detected, BACKLIGHT and VOLUME automatically go into OFF. When a

person comes near the monitor again, the monitor will automatically return to normal mode.

CUSTOM BACKLIGHT and VOLUME automatically shift to the set value when detecting no person. When a person comes

near the monitor again, the monitor automatically returns to normal mode and reproduces the input signal selected in INPUT SELECT.

POWER INDICATOR

POWER INDICATOR Turns the LED on or off. If OFF is selected, the LED will not glow when the LCD monitor is in active mode. SCHEDULE

INDICATOR

Turns the LED on or off depending on a schedule activity which is set at “SCHEDULE SETTINGS”. If OFF is selected, the LED will not glow even if a schedule is in active mode.

INTELLI. WIRELESS DATA Select “ON” to activate INTELLIGENT WIRELESS DATA function (see

page 61). A password is required when

using the function.

*1: If SPECTRAVIEW ENGINE is ON, this function is grayed out. *2: The function is available only when connecting the optional sensor unit. *3:

When you select OPTION for signal input, this function depends on which option board you are using.

English-44

USB

TOUCH POWER

(Not available)

EXTERNAL CONTROL When ON is set, the monitor can be controlled by a device connected to USB2 port. PC SOURCE Select a device connected to USB1 which controls the monitor. If a control device is speciﬁc, select EXTERNAL

PC or OPTION. OPTION is only available when slot 2 type PC option is connected to the monitor.

USB POWER Selects a power relation of USB CM1 (2A).

Set ON to supply the power to the USB CM1 (2A). NOTE: Power consumption depends on which USB devices are connected to the monitor.

CEC* This function enables you to control the HDMI CEC compliant device connected via HDMI connector.

*: CEC is an abbreviation of Consumer Electronics Control.

CEC When ON is set, please set items below.

NOTE: If ON is selected, the below functions are activated. When the connected HDMI CEC device receives a play command, the monitor synchronously turns on then changes the input signal to HDMI. If the monitor has been turned on, when a connected HDMI CEC device receives a play command, input signal is switched to HDMI. The connected HDMI CEC devices are controlled by the wireless remote control supplied with the monitor. Depending on the connected device, the device may not work properly.

AUTO TURN OFF When the monitor goes to standby via remote control or the power button on the monitor, a connected HDMI

CEC device go to standby synchronously. NOTE: If the connected HDMI CEC device is recording, the device does not go into standby.

AUDIO RECEIVER Activates HDMI CEC audio ampliﬁer. If

YES is set, outputs the sounds of the connected HDMI CEC device from the connected HDMI CEC audio ampliﬁer. If YES is set, the internal speaker or the external speaker connected to the monitor is set to mute. NOTE: When an HDMI CEC audio ampliﬁer is connected, set to YES. Please set to NO if there is no connected HDMI CEC audio device to the monitor.

SEARCH DEVICE Searches the HDMI CEC device connected to the monitor. When search is successful, the connected HDMI CEC

device’s type and registered device name are shown. When search has been completed or failed, the SEARCH DEVICE is set to NO automatically. To retry the SEARCH DEVICE, set it to YES again. After detecting HDMI CEC devices, you can switch the device input by selecting the device.

RESET Resets all the settings within the CONTROL menu back to factory setting except for LAN, CHANGE

PASSWORD, SECURITY, PING and INTELLI. WIRELESS DATA.

OPTION

OPTION POWER Allows the monitor to supply power to an Option board slot during power save mode or standby mode.

AUTO: Power supply depends on whether or not an option board is connected. ON: Supply power to the connected option continues during power save mode or standby mode. OFF: Supply power to the connected option stops during power save mode or standby mode. NOTE: To activate Power management function with no signal input from the inserted slot 2 type option, please set OPTION POWER to AUTO or ON.

AUDIO*

Selects the sound input signal according to the slot2 type option speciﬁcations. To activate DIGITAL, select OPTION for input signal and OPTION for AUDIO INPUT. NOTE: DIGITAL is activated only when OPTION is selected for input signal and OPTION for AUDIO INPUT.

INTERNAL PC*

The function is available for a slot 2 type PC.

OFF WARNING

(Not adjustable)

AUTO OFF Monitor power is automatically OFF when the internal PC is OFF or the monitor is in power save mode.

NOTE: If you select OFF, the monitor power is not automatically ON when the internal PC is ON.

START UP PC When ON is selected, the internal PC will start. FORCE QUIT When ON is selected, a forced shutdown of the internal PC will be carried out.

Please use this function only when the operating system cannot be shut down manually.

*1: This function depends on which option board you are using. When changing the setting, turn the monitor’s main power switch off and on again.

English-45

English

SLOT2 CH SETTING Selects signal type according to the slot 2 type option speciﬁcations.

AUTO Sets the signal type automatically. 1CH Fills the screen entirely with the signal which is selected in SLOT2 CH SELECT. 2CH The DisplayPort signal is displayed on the left half of the screen, the TMDS signal is displayed on the right

half. If

the internal PC does not support either one of the signal types, the existing signal will automatically be

displayed on the full screen.

SLOT2 CH SELECT This function is available only when SLOT2 CH SETTING is 1CH.

DisplayPort Shows the DisplayPort signal from a slot 2 type PC option on the full screen. TMDS Shows the TMDS signal from a slot 2 type PC option on the full screen.

RESET Resets the AUDIO setting back to the factory setting within the OPTION menu.

SYSTEM

MONITOR INFORMATION Shows the model name, serial number and ﬁrmware version of your monitor.

CARBON SAVINGS: Display the estimated carbon saving information in kg-CO2. The carbon footprint factor in the carbon saving calculation is based on the OECD (2008 Edition). CARBON USAGE: Display the estimated carbon usage information in kg-CO2. This is the arithmetic estimation, not actual measurement value. This estimation is based without any options.

FIRMWARE Displays ﬁrmware version that is installed to the monitor. MAC ADDRESS Displays the MAC ADDRESS. FACTORY RESET All items are returned to factory shipment state.

NOTE: You can reset all items in all daisy chained monitors. Please be careful to avoid resetting all items inadvertently.

Default values can be provided on request.

English-46

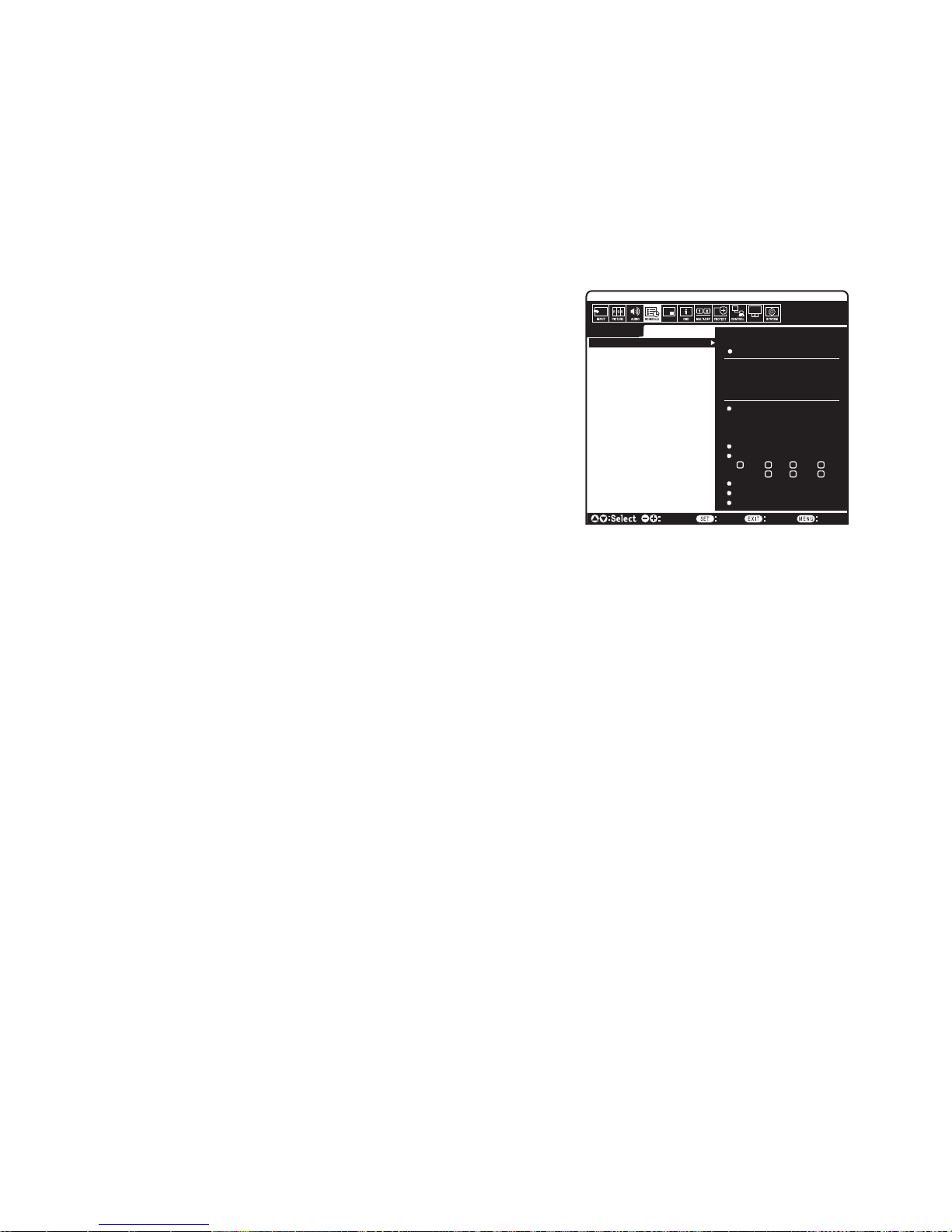

NOTE 1: CREATING A SCHEDULE

The schedule function allows the monitor to be set to power on or to be on standby at different times. Up to seven different schedules can be programmed.

To program the schedule:

1. Enter the SCHEDULE menu. Highlight SCHEDULE SETTINGS using the up and down buttons. Press the SET/POINT ZOOM or the + button to enter the Settings menu. Highlight the desired schedule number and press SET/POINT ZOOM. The box next to the number will turn yellow. The schedule can now be programmed.

Use the down button to highlight the POWER. Use the + and - buttons to set ON. To set power off schedule, set OFF.

3. Use the down button to highlight the TIME. Use the + and - buttons to set the time.

4. Use the up and down arrows to highlight INPUT. Use the + and - buttons to choose the input source. Use the up and down arrows to highlight PIC. MODE. Use the + and - buttons to choose the picture mode.

5. Use the down button to select DATE, EVERY DAY, EVERY WEEK, WEEKDAY, WEEKEND or HOLIDAY. Push the SET/POINT ZOOM button on a menu, which is suitable for the schedule. If the schedule is to be run on a speciﬁc day, choose DATE and press the SET/POINT ZOOM button. If the schedule is to be run every day, choose EVERY DAY and press the SET/POINT ZOOM button. The circle next to EVERY DAY will turn yellow. If a weekly schedule is desired, choose the days of the week using the up and down buttons and pressing SET/POINT ZOOM to select. Then highlight the EVERY WEEK option and press SET/POINT ZOOM. Please set WEEKDAY, WEEKEND, or HOLIDAY in the same manner. The WEEKDAY, WEEKEND and HOLIDAY settings are available under the SCHEDULE setting (See page 36).

6. After a schedule is programmed, the remaining schedules can then be set. Press MENU to leave the OSD or press EXIT to go back to the previous menu.

NOTE: If schedules are overlapping, the schedule with the highest number will have

priority over the schedule with the lowest number. For example, schedule #7 will have priority over schedule #1. If a selected input or picture mode is not available now, the disabled input or picture mode is shown in red.

NOTE 2: IMAGE PERSISTENCE

Please be aware that LCD Technology may experience a phenomenon known as Image Persistence. Image Persistence occurs when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided. To alleviate image persistence, turn off the monitor’s main power or set it to standby for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor’s main power should be turned off or set it to standby for one hour to erase the image. As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle, or turn off the monitor’s main power or set it to standby when not in use.

Please set “SCREEN SAVER”, “DATE &TIME” and “SCHEDULE SETTINGS” functions to further reduce the risk of Image persistence.

For long life use as a Public Display

Image Sticking of LCD Panel

When an LCD panel is operated continuously for long hours, a trace of electric charge remains near the electrode inside the LCD and a residual or “ghost” image of the previous image may be observed. (Image Persistence) Image Persistence is not permanent, but when a ﬁxed image is displayed for long period, ionic impurities inside the LCD are accumulated along the displayed image and may be permanent. (Image Sticking)

Recommendations

To prevent Image Sticking, and for longer life usage of the monitor, the following is recommended.

• Fixedimageshouldnotbereproduced for long period. Change still images after short intervals.

• Whennotinuse,pleaseturnoffthemonitorviaremotecontrol,orusethe Power Management function of the PC, or use the built-in Schedule

Functions.

• Lower environmental temperatures prolong the lifespan of the monitor. When a protective surface (glass, acrylic) is installed over the monitor’s screen surface, the monitor’s screen surface is located in an enclosure, or if the monitors are stacked, utilize the temperature sensors inside the monitor. To reduce the internal temperature, use the Cooling Fans, Screen Saver, the Power Management function of the PC and Low Brightness.

• Pleaseuse“ScreenSaverMode”ofmonitor.

SCHEDULE:

POWER: ON TIME: 04 : 03

DisplayPort1

INPUT: PIC. MODE: STANDARD

DisplayPort1

(MON) OCT.26.2015 12:37

SETTINGS:

SCHEDULE SETTINGS

SCHEDULE LIST HOLIDAY SETTINGS WEEKEND SETTINGS DATE & TIME DAYLIGHT SAVINGS OFF TIMER RESET

MONTH: DAY:

Choose Mark

Return Close

DATE

YEAR:

JAN

2016

MON TUE WED THU

SAT SUNFRI

EVERY DAY EVERY WEEK

HOLIDAY

WEEKDAY WEEKEND

MULTI-INPUT OPTION

English-47

English

REMOTE CONTROL ID FUNCTION

REMOTE CONTROL ID

The remote control can be used to control up to 100 individual MultiSync monitors using what is called the REMOTE CONTROL ID mode. The REMOTE CONTROL ID mode works in conjunction with the Monitor ID, allowing control of up to 100 individual MultiSync monitors. For example, if there are many monitors being used in the same area, a remote control in normal mode would send signals to every monitor at the same time (see Figure 1). Using the remote in REMOTE CONTROL ID mode will only operate one speciﬁc monitor within the group (see Figure 2).

TO SET REMOTE CONTROL ID

While holding down the REMOTE ID SET button on the remote control, use the KEYPAD to input the Monitor ID (1-100) of the monitor to be controlled via remote. The remote can then be used to operate the monitor having that speciﬁc Monitor ID number. When 0 is selected or when the remote control is in normal mode, all monitors will be operated.

TO SET/RESET REMOTE CONTROL MODE

ID Mode - To enter ID Mode press the REMOTE ID SET button and hold down for 2 seconds. Normal Mode - To return to Normal Mode press the REMOTE ID CLEAR button and hold down for 2 seconds.

In order for this feature to work properly, the monitor must be assigned a unique Monitor ID

number. The Monitor ID number can be assigned under the MULTI DISPLAY menu in the OSD (See page 40).

Point the remote control towards the remote sensor of the desired monitor and press the

REMOTE ID SET button. The MONITOR ID number is shown on the screen when your remote control is in ID mode.

Use the remote to control all monitors in range

1. On the remote control, press and hold down the REMOTE ID SET button while using the keypad to input the REMOTE CONTROL ID number “0”.

2. All monitors within range of the remote control will now respond to keypad press.

NOTE: When the REMOTE ID is set to “0”, pressing REMOTE ID SET will make all monitors, within range of the remote signal,

display their Monitor ID on screen. This way you can easily see what the monitor ID is if you want to control a single monitor, as described below.

Use the remote control to operate a monitor that has a speciﬁc MONITOR ID number assigned to it.

1. Set the MONITOR ID number for the monitor (See page 40). The MONITOR ID number can range from 1-100. This MONITOR ID number allows the remote control to operate this speciﬁc monitor without affecting other monitors.

2. On the remote control, press and hold down the REMOTE ID SET button while using the keypad to input the REMOTE CONTROL ID number (1-100). The REMOTE ID NUMBER should match the MONITOR ID number of the monitor to be controlled.

3. Point the remote control towards the remote sensor of the desired monitor and press the REMOTE ID SET button. The MONITOR ID number is shown in red on the monitor. If the REMOTE CONTROL ID is “0”, then all monitors in range will show their respective MONITOR ID number in red.

If the MONITOR ID number is shown in white on the monitor, the MONITOR ID number and the REMOTE CONTROL ID are not the same. NOTE: The GROUP ID cannot be speciﬁed via the remote control.

Remote Control Functions

Monitor ID:1 Monitor ID:2 Monitor ID:3

Remote does

not work

Remote does

not work

Remote works

Remote works Remote works Remote works

Figure 1

Remote in Normal mode or the REMOTE ID

is set to 0

Figure 2

Remote set up

to use REMOTE

ID:3

English-48

You can control multiple monitors by using RS-232C, REMOTE IN or LAN daisy-chain connection.

NOTE:

Multiple monitors that are daisy-chained have a limit to the connectable monitors.

Please execute AUTO ID (see page 40) before manually specifying the ID number or control by the speciﬁed ID number.

Main Monitor Sub Monitors

Connector Connector

IN OUT IN OUT

RS-232C

LAN2 LAN1 LAN2REMOTE IN

LAN1

Connection

LAN Cable

Next monitor

LAN Cable

LAN1

LAN2

LAN1

LAN2

Multiple Monitors Connection

English-49

English

This LCD monitor can be controlled by connecting a personal computer with an RS-232C (reverse type) terminal. Functions that can be controlled by a personal computer are:

• PowerONorstandby.

• Switchingbetweeninputsignals.

• SoundMuteONorOFF.

Connection

LCD Monitor + computer.

• Please turn off the monitor’s main power when connecting a computer to the monitor.

• Please turn on the connecting computer ﬁrst then turn on the monitor’s main power.

If you turn on the computer and monitor in reverse order, the com port may not work.

• When controlling the monitor connected with an RS-232C cable, please refer to the Control command diagram (See

page 57)

or see the “External_Control.pdf” ﬁle on the CD-ROM supplied with the monitor.

RS-232C Cable

Computer

RS-232C

NOTE: If your computer is equipped only with a 25-pin serial port connector, a 25-pin serial port adapter is required. Contact

your supplier for details. For the pin assignment, please see “2) RS-232C input/output” on page 50.

To control a monitor, please use the control command. Instructions for the control command can be found on the CD included with the monitor. The ﬁle is called “External_control.pdf”.

Controlling the LCD monitor via RS-232C Remote Control

English-50

1) Interface

PROTOCOL RS-232C BAUD RATE 9600 [bps] DATA LENGTH 8 [bits] PARITY NONE STOP BIT 1 [bit] FLOW CONTROL NONE

This LCD monitor uses RXD, TXD and GND lines for RS-232C control.

The reverse type cable (null modem cable) (not included) should be used for RS-232C control.

2) PIN ASSIGNMENT RS-232C input/output

D-SUB 9P (Monitor side)

Pin No Name

1 NC 2 RXD 3 TXD 4 NC 5 GND 6 NC 7 NC 8 NC 9 NC

This LCD monitor uses RXD, TXD and GND lines for RS-232C control.

English-51

English

Connecting to a Network

Using a LAN cable allows you to specify the Network Settings and the Alert Mail Settings by using an HTTP server function. To use a LAN connection you are required to assign an IP address.

Example of LAN connection:

Server

Hub

NOTE: Use a category 5 or higher LAN cable.

LAN cable

(not supplied)

Network Setting by Using an HTTP Browser

Overview

Connecting the monitor to a network allows for monitor control from a computer via the network. The IP address and subnet mask of the monitor can be set on the Network Setting screen of the web browser by using an HTTP

server. Please be sure to use “Microsoft Internet Explorer 10” or a higher version for the web browser. (This device uses “JavaScript” and “Cookies” and the browser should be set to accept these functions. The setting method will vary depending on the version of the browser. Please refer to the help ﬁles and the other information provided in your software.)

Access is gained to the HTTP server function by starting the Web browser on the computer via the network connected to the monitor and entering the following URL as described below:

Network Setting

http://<the Monitor’s IP address>/index.html

HINT

: The default IP address is assigned automatically to the monitor.

The exclusive application can be downloaded from our website.

NOTE: If the MONITOR NETWORK SETTINGS screen does not appear in the web browser, press the Ctrl+F5 keys to

refresh your web browser (or clear the cache). If the monitor appears to be slow in response to commands or clicks on buttons in the browser, or the general speed

of operation is unacceptable, this may be due to network trafﬁc or the settings on your network. Should this happen, consult your network administrator.

The monitor may not respond if the buttons shown on the browser are repeatedly pressed in rapid intervals. Should this happen, wait a moment and repeat. If you still can’t get a response, turn the monitor off and then back on.

To control a monitor please use the control command. See “Control command diagram” (page 57).

Controlling the LCD monitor via LAN Control

English-52

Preparation Before Use

Connect the monitor to the network, using a commercially available LAN cable, before attempting to use browser operations. Operation with a browser that uses a proxy server may not be possible depending on the type of proxy server and the setting

method. Although the type of proxy server will be a factor, it is possible that items that have been set will not be shown, depending on the effectiveness of the cache, and the contents set from the browser may not be reﬂected in operation. It is recommended that a proxy server is not used unless the network environment requires it.

Handling of the Address for Operation via a Browser

A host name can be used in the following cases (corresponding to the IP address of the monitor): The host name must be registered in the domain name server (DNS) by the network administrator. You can then access the network settings of the monitor via this registered host name by using a compatible browser. If the host name has been conﬁgured in the “HOSTS” ﬁle of the computer being used, you can then access the network settings of the monitor via this host name by using a compatible browser.

Example 1: When the host name of the monitor has been set to “pd.nec.co.jp”, access is gained to the network setting by

specifying http://pd.nec.co.jp/index.html for the address or the entry column of the URL.

Example 2: When the IP address of the monitor is “192.168.73.1”, access is gained to the mail alert settings by specifying

http://192.168.73.1/index.html for the address or the entry column of the URL.

Operation

Access the following address to show HOME. http://<the Monitor’s IP address>/index.html Click each link on the left column below HOME.

REMOTE CONTROL

Enable an operation to control the monitor equivalent to the keys on the remote control.

OSD menu

Enable the operation to set the following OSD menu: INPUT, PICTURE, AUDIO, SCHEDULE, MULTI INPUT, OSD, MULTI DISPLAY, DISPLAY PROTECTION, CONTROL, OPTION,

SYSTEM.

NOTE:

Function of buttons which are shown on setting pages.

[APPLY]: Save your settings. [CANCEL]: Return to the previous settings. NOTE: CANCEL is disabled after clicking APPLY. [RELOAD]: Reload the settings. [RESET]: Resets to the initial setting.

English-53

English

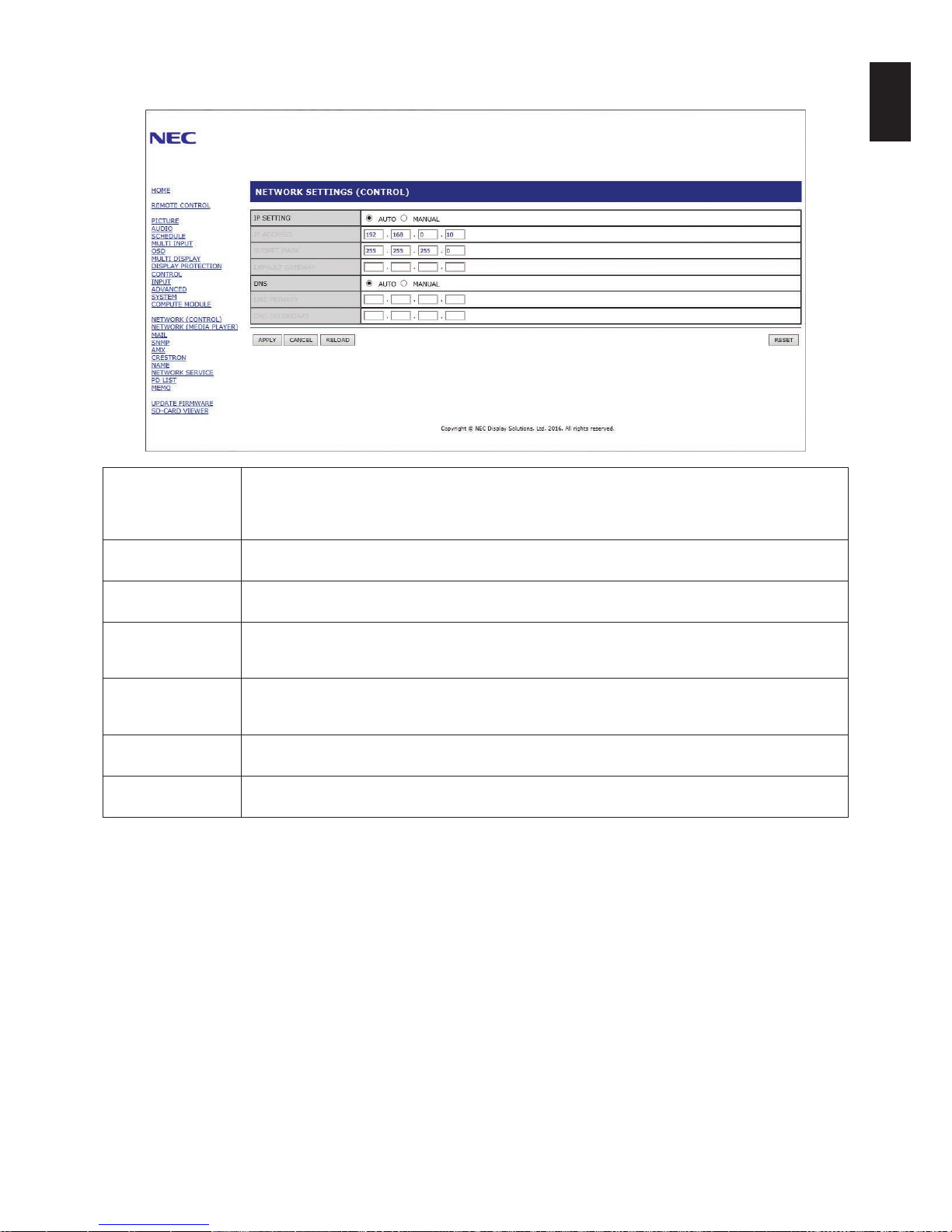

Network Setting

Click on “NETWORK” on the left column below HOME.

IP SETTING Select an option for setting the IP ADDRESS.

AUTO: Automatically assign an IP address. MANUAL: Manually set an IP address for the monitor connected to the network. NOTE: Consult your network administrator if you have any trouble.

IP ADDRESS Set your IP address for the monitor connected to the network when [MANUAL] is selected for

[IP SETTING].

SUBNET MASK Set your subnet mask data for the monitor connected to the network when [MANUAL] is selected for

[IP SETTING].

DEFAULT GATEWAY Set your default gateway for the monitor connected to the network when [MANUAL] is selected for

[IP SETTING]. NOTE: Set as [0.0.0.0] to delete the setting.

DNS Set for IP ADDRESS setting of DNS server.

AUTO: The DNS server connected to the monitor will automatically assign its IP address. MANUAL: Manually enter the IP address of the DNS server that is connected with the monitor.

PRIMARY DNS Enter the primary DNS server settings of the network connected with the monitor.

NOTE: Enter [0.0.0.0] to delete the setting.

SECONDARY DNS Enter the secondary DNS server settings of the network connected with the monitor.

NOTE: Enter [0.0.0.0] to delete the setting.

NOTE:

The following settings will be set back to the factory settings when IP ADDRESS RESET is selected at CONTROL of

the OSD: [IP SETTING]: AUTO, [IP ADDRESS]: 192.168.0.10, [SUBNET MASK]: 255.255.255.0, [DNS]: AUTO [DEFAULT GATEWAY], [PRIMARY DNS] and [SECONDARY DNS] are blank.

English-54

Mail Setting

Click on “MAIL” on the left column below HOME. This option notiﬁes your computer about an error message via e-mail when using wired LAN. An error message will be sent

when an error occurs in the monitor.

ALERT MAIL Selecting [ENABLE] will turn on the Alert Mail feature.

Selecting [DISABLE] will turn off the Alert Mail feature.

STATUS MESSAGE Selecting [ENABLE] will turn on the STATUS MESSAGE feature.

Selecting [DISABLE] will turn off the STATUS MESSAGE feature. SENDER’S ADDRESS Type in the sender’s address. Up to 60 alphanumeric and symbols characters can be used. SMTP SERVER Type in the SMTP server name to be connected with the monitor.

Up to 60 alphanumeric characters can be used. RECIPIENT’S

ADDRESS 1 TO 3

Type in your recipient’s address. Up to 60 alphanumeric and symbols characters can be used.

AUTHENTICATION METHOD

This selects the authentication method of the email transmission.

POP3 SERVER This speciﬁes the address of the POP3 server that is used in the authentication of the email. USER NAME This sets the user name for logging into the authentication server when authentication is required

for the email transmission. Up to 60 alphanumeric characters can be used. PASSWORD This sets the password for logging into the authentication server when authentication is required for

the email transmission. Up to 60 alphanumeric characters can be used. TEST MAIL Click this button to send a test email to check if your settings are correct.

NOTE: • Ifyouexecuteatest,youmaynotreceiveanAlertemail.

Should this happen, check whether the network settings are correct.

• Ifyouenteredanincorrectaddressinatest,youmaynotreceiveanAlertemail. Should this happen, check that the Recipient’s Address is correct.

HINT: For the control command diagram, please see the ﬁle “External_Control.pdf” on the CD-ROM supplied with this

monitor.

Alert error message list

Error number

* ErrorCode

Alert mail Message Explanation Measure

70h ~ 7Fh

The monitor’s power supply is not functioning normally.

Standby power abnormal Please contact your supplier.

80h ~ Fh The cooling fan has stopped. Cooling fan abnormal Please contact your supplier.

90h ~ 9Fh

The monitor’s backlight unit is not functioning normally.

Backlight abnormal Please contact your supplier.

A0h ~ AFh The monitor is overheated. Temperature abnormal Please contact your supplier.

A2h

A Sensor reached the temperature limit which was speciﬁed in the OSD.

*Condition: DISPLAY PROTECTION-FAN CONTROL-COOLING FAN = AUTO

Reconﬁrm the settings in the OSD (DISPLAY PROTECTION-FAN CONTROL) or please contact your supplier.

B0h ~ BFh

The monitor does not receive an input signal.

No signal Please check “No picture” in

“Troubleshooting”.

D0h

The remaining capacity of the error log decreased.

The Proof of Play log memory size is 1 more hour.

Please get a log by using PD external command. See page 56.

D1h

The battery for clocks is empty. The battery is empty. Please connect the monitor to the

power then recharge the battery. Please set (DATE & TIME) in OSD.

E0h ~ EFh A system error occurred in the monitor. System error. Please contact your supplier.

English-55

English

SNMP Settings

Click on “SNMP” on the left column below HOME. The SNMP protocol is used to get status information and to control a monitor directly via the network.

Version:

SNMP v1 Authenticated plaintext by community name, does not return a conﬁrmation message of the trap. SNMP v2c Authenticated plaintext by community name, returns a conﬁrmation message of the trap.

Community name:

The default setting of community name is “public”. It is read only. You can set community names for up to 3 settings.

Trap:

Sending error message to a speciﬁed address when an error occurs in the monitor.

Check Box Explanation Error code Temperature Temperature abnormal 0xA0, 0xA1, 0xA2 Fan Cooling fan abnormal 0x80, 0x81 Power Power abnormal 0x70, 0x71, 0x72, 0x78 Inverter/Backlight Inverter or backlight abnormal 0x90, 0x91 No Signal No signal 0xB0 PROOF OF PLAY Lower the log storage 0xD0 System Error System error 0xE0

AMX Settings

Click on “AMX” on the left column below HOME.

AMX BEACON To turn on or off for the detection from AMX Device Discovery when connecting to a network

supported by an AMX’s NetLinx control system.

HINT: When using a device that supports AMX Device Discovery, all AMX NetLinx control systems will recognize the device and download the appropriate Device Discovery Module from an AMX server. Selecting [ENABLE] AMX Device Discovery will detect the device. Selecting [DISABLE] AMX Device Discovery will not detect the device.

CRESTRON Settings

Click on “CRESTRON” on the left column below HOME. CRESTRON ROOMVIEW compatibility

The monitor supports CRESTRON ROOMVIEW, allowing multiple devices connected in the network to be managed and controlled from a computer or a controller. For further information visit http://www.crestron.com

ROOMVIEW ROOMVIEW for managing from the computer.

ON: Enables ROOMVIEW. OFF: Disables ROOMVIEW.

CRESTRON CONTROL

CRESTRON CONTROL for managing from the controller. ON: Enables CRESTRON CONTROL. OFF: Disables CRESTRON CONTROL.

CONTROLLER IP ADDRESS

Sets the IP address of the CRESTRON SERVER.

IP ID Sets your CRESTRON SERVER IP ID.

HINT:

The CRESTRON settings are required only for use with CRESTRON ROOMVIEW.

For further information visit http://www.crestron.com

English-56

Name Settings

Click on “NAME” on the left column below HOME.

MONITOR NAME Deﬁnes a monitor name. The name must be max. 16 characters long. The default is the model name. HOST NAME

(CONTROL)

Type in the hostname of the monitor which is connected to the network. Up to 15 alphanumeric characters can be used.

HOST NAME (MP) Type in the hostname of the network to be used in the Media Player connected to the monitor.

Up to 15 alphanumeric characters can be used.

DOMAIN NAME Type in the domain name of the network which is connected with the monitor.

Up to 60 alphanumeric characters can be used.

Network Password Settings

Click on “NETWORK PASSWORD” on the left column below HOME.

PJLink CLASS Set a class for PJLink*.

NOTE: PJLink is a network interface standard that JBMIA established. http://pjlink.jbmia.or.jp/index.html This monitor is available for class1 and class2 command.

NOTIFY FUNCTION ENABLE

Enable or disable a notiﬁcation of the monitor network condition. This function is only for class2.

NOTIFY ADDRESS Set an IP ADDRESS to which the monitor network status will be sent. This function is only for class2. PJLink PASSWORD Set a password for PJLink*. The password must be max. 32 characters long. Do not forget your

password. If you forget your password, consult your supplier. HTTP PASSWORD Set a password for the HTTP server. The password must be max. 10 characters long. HTTP PASSWORD

ENABLE

An HTTP PASSWORD is required when logging into the HTTP server.

Set the monitor name as the USER NAME when entering the password.

*What is PJLink? PJLink is a standardization of protocol used for controlling devices of different manufacturers. This standard protocol was established by Japan Business Machine and Information System Industries Association (JBMIA) in 2005. The device supports all commands of PJLink.

PD LIST Information

Click on “PD LIST” on the left column below HOME. Shows a list of monitor IDs and IP addresses of multiple monitors which are daisy-chained.

NOTE: Only the master monitor can show the list.

MEMO Settings

Click on “MEMO” on the left column below HOME. Set a title and message.

TITLE The title must be max. 24 characters long. MESSAGE A message must be max. 240 characters long. MEMO PASSWORD The default is “0000”. MEMO PASSWORD

ENABLE

A MEMO PASSWORD is required when selecting MEMO PASSWORD ENABLE.

SD-CARD VIEWER setting

Click “SD-CARD VIEWER” on the left side of HOME. Please refer to Using SHARED SD card SETTINGS (See

page 27).

External Control

Connecting external device

There are two ways to connect an external device to the monitor.

• RS-232C terminal. Connecting an external device to the RS-232C terminal of the monitor with a RS-232C cable.

• LAN port. Connecting an external device to the LAN port of the monitor with a LAN cable. For further information regarding the type of LAN cable to use, please consult your network administrator.

English-57

English

Connecting interface

RS-232C Interface

PROTOCOL RS-232C BAUD RATE 9600 [bps] DATA LENGTH 8 [bits] PARITY NONE STOP BIT 1 [bit] FLOW CONTROL NONE

LAN interface

PROTOCOL TCP PORT NUMBER 7142 COMMUNICATION SPEED AUTO setting (10/100Mbps)

Control command diagram

For other commands, please see “External_Control.pdf” ﬁle on the CD-ROM supplied with the monitor.

Function (Monitor ID = 1) Code Data

Power ON 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 31 03 73 0d Power OFF 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 34 03 76 0d

Input Source Select DisplayPort1

01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 46 03 04 0d or 01 30 41 30 45 30 41 02 31 31 30 36 30 30 30 46 03 04 0d

Input Source Select DisplayPort2

01 30 41 30 45 30 41 02 30 30 36 30 30 30 31 30 03 73 0d or 01 30 41 30 45 30 41 02 31 31 30 36 30 30 31 30 03 73 0d

Input Source Select HDMI1

01 30 41 30 45 30 41 02 30 30 36 30 30 30 31 31 03 72 0d or 01 30 41 30 45 30 41 02 31 31 30 36 30 30 31 31 03 72 0d

Input Source Select HDMI2

01 30 41 30 45 30 41 02 30 30 36 30 30 30 31 32 03 71 0d or 01 30 41 30 45 30 41 02 31 31 30 36 30 30 31 32 03 71 0d

Input Source Select HDMI3

01 30 41 30 45 30 41 02 30 30 36 30 30 30 38 32 03 78 0d or 01 30 41 30 45 30 41 02 31 31 30 36 30 30 38 32 03 78 0d

Input Source Select MP

01 30 41 30 45 30 41 02 30 30 36 30 30 30 38 37 03 7D 0d or 01 30 41 30 45 30 41 02 31 31 30 36 30 30 38 37 03 7D 0d

Input Source Select OPTION

01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 44 03 06 0d or

01 30 41 30 45 30 41 02 31 31 30 36 30 30 30 44 03 06 0d Sound Mute ON 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 31 03 09 0d Sound Mute OFF 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 32 03 0a 0d

ASCII Control command

This monitor supports control command, which is listed in the “External_Control.pdf” ﬁle on the CD-ROM supplied with the monitor, but also supports common ASCII control command, which is used for controlling the NEC monitor or projector from a connected PC. For further information please visit our website.

Parameter

Input command

Status command

Input signal name Response Parameter Response Error status

DisplayPort1 DisplayPort1 DisplayPort1 or DisplayPort error:temp Temperature abnormal DisplayPort2 DisplayPort2 DisplayPort2 error:fan Cooling fan abnormal HDMI1 hdmi1 hdmi1 or hdmi error:light Inverter or backlight abnormal HDMI2 hdmi2 hdmi2 error:system System error HDMI3 hdmi3 hdmi3 MP mp mp OPTION option option

English-58

Supporting HDMI CEC command

OSD menu

HDMI CEC command name Explanation

Setting

CEC (Consumer Electronics Control)

One Touch Play If HDMI CEC supporting devices are

turned on, the monitor connected to the devices by HDMI cable is also turned on automatically. After that, the input switches to HDMI from an input, which you selected. If the monitor is turned on when HDMI CEC devices are turned on, it changes the input from the original one to HDMI.

To set CEC menus please follow the steps below.

By using buttons select CONTROL > CEC then press SET/POINT ZOOM button on the CEC. By using + - buttons select ON then press SET/POINT ZOOM button on the ON.

Remote Control Pass Through

The monitor’s wireless remote control button operation is functioning to HDMI CEC supporting devices. For example, if turning on the monitor by wireless remote control and pressing the play button, HDMI CEC supporting devices will also be turned on and play.

Power Status Connected HDMI CEC supporting

devices obtains the monitor’s power status, such as the monitor is in standby mode or on.

System Information This function obtains the information of a

connected HDMI CEC supported device (CEC version, Physical Address). In addition, this function copes with “Change Language function”. If the language for the monitor is changed, the language for a connected HDMI CEC supported device is changed to the same language, which is selected for the monitor. For the “Change Language function”, it is necessary that the connected HDMI CEC supported device be able to cope with multi-language.

AUTO TURN

OFF

System Standby If the monitor is set to standby using the

wireless remote control supplied with the monitor, HDMI CEC supported devices also go into standby at the same time. If the monitor goes into standby while an HDMI CEC supported device is recording, the device is kept on. Please refer to the user’s manual supplied with the HDMI CEC supported device for further information.

By using buttons select AUTO TURN OFF then press SET/POINT ZOOM.

By using + - buttons select YES then press SET/POINT ZOOM button on the YES.

AUDIO RECEIVER

System Audio Control The function sends digital audio signal

through the HDMI cable. Please set an HDMI CEC audio ampliﬁer between the monitor and an HDMI CEC supported device with an HDMI cable.

The Volume button on the wireless remote control supplied with the monitor is also controlling the volume of the connected HDMI CEC audio ampliﬁer.

While this function is active, the internal speaker or external speaker connected to the monitor is set to MUTE automatically.

By using

buttons select AUDIO RECIEVER then press SET/POINT ZOOM.

By using + - buttons select YES then press SET/POINT ZOOM button on the YES.

SEARCH DEVICE

Device OSD Name Transfer This function obtains the connected

HDMI CEC supported device’s name.

By using

buttons select SEARCH DEVICE then press SET/POINT ZOOM.

By using + - buttons select YES then press SET/POINT ZOOM button on the YES.

Routing Control By selecting a device name, the HDMI

CEC supported device input switches to the input you selected. After selecting the device, wireless remote control operation is functioning for the selected device.

This CEC function supports Feature Abort. We recommend that connecting this monitor to a device supporting HDMI CEC. Please refer to Connections (See page 17) for HDMI CEC devices connection.

English-59

English

Using the “SET/POINT ZOOM” button on the remote control enlarges part of the screen image. Press the CH+/- button to zoom in or out. The image can be expanded up to 10 times.

1 Press the [SET/POINT ZOOM] button on the remote control. The icon looks like a magniﬁer. 2 Move the magniﬁer icon with the [ ] [ ] [+] [-] buttons. 3 Press the [CH+] to zoom in. Press [CH-] to zoom out. 4 Press the [SET/POINT ZOOM] to let the icon disappear. 5 Press the [EXIT] to return to the normal image size. 6 Press the [MENU] to open the OSD menu.

NOTE: • When using this function, the image may look distorted.

• Thisfunctionis not available when set to IMAGE FLIP (except for NONE), MULTI PICTURE MODE, SCREEN

SAVER, SUPER in INPUT CHANGE, TILE MATRIX and TEXT TICKER.

• WhenDYNAMIC or ZOOM is selected in ASPECT, the image will change to FULL. Then start with POINT ZOOM. After exiting POINT ZOOM, ASPECT will return to the previous ASPECT settings. When ASPECT is changed during the POINT ZOOM operation, DYNAMIC and ZOOM will be set to FULL image.

• Themagniericondoesnotmovetoanoimagearea.

• POINT ZOOM returns to the normal image size after changing the input signal or when the monitor is powered off.

• POINTZOOMwill become inactive when changing the ASPECT setting during the POINT ZOOM operation.

• When the POINT ZOOM is active, the STILL function is not available.

• POINTZOOMisnotavailablewhen MODE2 in HDMI in TERMINAL MODE and with a 3840 x 2160 (60 Hz)

DisplayPort signal.

POINT ZOOM

English-60

PROOF OF PLAY

This function allows to sending of messages for the current status of the monitor by self-diagnosis.

Check item Message

①

INPUT DisplayPort1, DisplayPort2, HDMI1, HDMI2, HDMI3, OPTION*, MP

②

Resolution ex. (H)1920, (V)1080 , (H)1360, (V)768 or No signal or Invalid signal

③

AUDIO INPUT IN, DisplayPort1, DisplayPort2, HDMI1, HDMI2, HDMI3, OPTION*, MP

④

Audio signal Audio in or No Audio in or N/A (IN, OPTION (analog)*)

⑤

Picture Image Normal Picture or No Picture

⑥

AUDIO OUT Normal Audio or No Audio

⑦

TIME (year)/(month)/(day)/(hour)/(minutes)/(second)

EXPANSION DATA

00h: Normal Proof of Play event 01h: Proof of Play event is “last power on time” 10h: MEDIA PLAYER is stop 11h: MEDIA PLAYER is start 12h: MEDIA PLAYER is pause 13h: MEDIA PLAYER error occur 20h: Contents Copy from USB 21h: Contents Copy form network folder 30h: Contents Copy Success 31h: Contents Copy Error (No media) 32h: Contents Copy Error (Connect error) 33h: Contents Copy Error (Out of disk space) 34h: Contents Copy Error (Read/Write error) 40h: Human detected (Human sensor Status) 41h: Human detect cleared (Human Sensor Status)

*: This function depends on which option board you are using.

Example:

①

HDMI1

②

1920 x 1080

③

HDMI1

④

IN1

⑤

Normal Picture

⑥

Normal Audio

⑦

2014/1/1/0h/0m/0s

10h: MEDIA PLAYER is stop

NOTE: For the Proof of Play function, please see the “External_Control.pdf” on the CD-ROM supplied with this monitor.

English-61

English

This function allows getting the monitor status via wireless communication, even while the monitor’s main power is off or is not yet installed. Even some OSD items may be set by using this feature.

NOTE:

Sensor position: See page 10 and 11.

Please contact your supplier for detailed information. Complied with ISO 15693.

Function name

Setting Copy Setting read and write function Display information Security Setting

MULTIPICTURE matrix

PICTURE NUMBER: 2 PICTURES

PIP PBP1

A B

PICTURE NUMBER: 3 PICTURES

PIP PBP1 PBP2 PBP3

CBA

PICTURE NUMBER: 4 PICTURES

C D

A: PICTURE 1 B: PICTURE 2 C: PICTURE 3 D: PICTURE 4

PICTURE NUMBER: 2 PICTURES

Picture 2

HDMI1 HDMI2 HDMI3 MP DisplayPort2 DisplayPort1 OPTION

Connector

HDMI IN1 HDMI IN2 HDMI IN3 –

DisplayPort

IN2

DisplayPort

IN1

Option board

slot (SLOT2

(DP))

Option board

slot (SLOT2

(DP+TMDS))

Option board

slot (SLOT2

(TMDS))

Connector

TERMINAL

SETTINGS*

MODE 1MODE 2MODE 1MODE 2MODE 1MODE 2MODE

– – – 2CH MODE 1

Picture 1

HDMI1 HDMI IN1

MODE 1 Yes No Yes No Yes No Yes Yes Yes Yes

[

Yes

MODE 2 No

[

No No No No No Yes Yes Yes

[

Yes

HDMI2 HDMI IN2

MODE 1 Yes No Yes No Yes No Yes Yes Yes Yes

[

Yes

MODE 2 No No No

[

No No No Yes Yes Yes

[

Yes

HDMI3 HDMI IN3

MODE 1 Yes No Yes No Yes No Yes Yes Yes Yes

[

Yes

MODE 2 No No No No No

[

No Yes Yes Yes

[

Yes

MP – MODE 1 Yes No Yes No Yes No Yes Yes Yes Yes

[

Yes

DisplayPort2 DisplayPort IN2 – Yes

[

Yes

[

Yes

[

Yes Yes Yes Yes

[

Yes

DisplayPort1 DisplayPort IN1 – Yes

[

Yes

[

Yes

[

Yes Yes Yes No No Yes

OPTION

Option board slot

(SLOT2 (DP))

– Yes

[

Yes

[

Yes

[

Yes Yes No Yes No No

Option board slot

(SLOT2 (DP+TMDS))

2CH Yes

[

Yes

[

Yes

[

Yes Yes No No

[

Option board slot (SLOT2 (TMDS))

MODE 1 Yes

[

Yes

[

Yes

[

Yes Yes Yes No No Yes

*: PBP1: Yes, PIP: No *1: SLOT2 CH SETTING for SLOT2 (DP+TMDS)

INTELLIGENT WIRELESS DATA

English-62

PICTURE NUMBER: 3 PICTURES

PIP/PBP1/PBP2 PICTURE 1: HDMI1 (MODE1)

Picture 3

HDMI1 HDMI2 HDMI3 MP DisplayPort2 DisplayPort1 OPTION

Connector

HDMI IN1 HDMI IN2 HDMI IN3 –

DisplayPort

IN2

DisplayPort

IN1

Option board

slot (SLOT2

(DP))

Option board

slot (SLOT2

(DP+TMDS))

Option board

slot (SLOT2

(TMDS))

Picture 2 Connector

TERMINAL

SETTINGS*

MODE 1MODE 2MODE 1MODE 2MODE 1MODE 2MODE

– – – 2CH MODE 1

Picture 1: HDMI1 (MODE1)

HDMI1 HDMI IN1

MODE 1 Yes No Yes No Yes No Yes Yes Yes Yes No Yes MODE 2 No No No No No No No No No No No No

HDMI2 HDMI IN2

MODE 1 Yes No Yes No No No No Yes Yes Yes No Yes MODE 2 No No No No No No No No No No No No

HDMI3 HDMI IN3

MODE 1 Yes No No No Yes No No Yes Yes Yes No Yes MODE 2 No No No

No No No No No No No No No

MP – MODE 1 Yes No No No No No Yes Yes Yes Yes No Yes DisplayPort2 DisplayPort IN2 – Yes No Yes No Yes No Yes Yes Yes Yes No Yes DisplayPort1 DisplayPort IN1 – Yes No Yes No Yes No Yes Yes Yes No No Yes

OPTION

Option board slot

(SLOT2 (DP))

– Yes No Yes No Yes No Yes Yes No Yes No No

Option board slot

(SLOT2 (DP+TMDS))

2CH No No No No No No No No No No No No

Option board slot (SLOT2 (TMDS))

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes

*1: SLOT2 CH SETTING for SLOT2 (DP+TMDS)

PIP/PBP2 PICTURE 1: HDMI1 (MODE2), HDMI2 (MODE2), HDMI3 (MODE2)

Picture 3

HDMI1 HDMI2 HDMI3 MP DisplayPort2 DisplayPort1 OPTION

Connector

HDMI IN1 HDMI IN2 HDMI IN3 –

DisplayPort

IN2

DisplayPort

IN1

Option board

slot (SLOT2

(DP))

Option board

slot (SLOT2

(DP+TMDS))

Option board

slot (SLOT2

(TMDS))

Picture 2 Connector

TERMINAL

SETTINGS*

MODE 1MODE 2MODE 1MODE 2MODE 1MODE 2MODE

– – – 2CH MODE 1

Picture 1: HDMI (MODE2)

HDMI1 HDMI IN1

MODE 1 No No No No No No No No No No No No MODE 2 No No No No No No No No No No No No

HDMI2 HDMI IN2

MODE 1 No No No No No No No No No No No No MODE 2 No No No No No No No No No No No No

HDMI3 HDMI IN3

MODE 1 No No No No No No No No No No No No MODE 2 No No No

No No No No No No No No No

MP – MODE 1 No No No No No No No No No No No No DisplayPort2 DisplayPort IN2 – No No No No No No No Yes Yes Yes No Yes DisplayPort1 DisplayPort IN1 – No No No No No No No Yes Yes No No Yes

OPTION

Option board slot

(SLOT2 (DP))

– No No No No No No No Yes No Yes No No

Option board slot

(SLOT2 (DP+TMDS))

2CH No No No No No No No No No No No No

Option board slot (SLOT2 (TMDS))

MODE 1 No No No No No No No Yes Yes No No Yes

*1: SLOT2 CH SETTING for SLOT2 (DP+TMDS)

PIP/PBP1/PBP2 PICTURE 1: HDMI2 (MODE1)

Picture 3

HDMI1 HDMI2 HDMI3 MP DisplayPort2 DisplayPort1 OPTION

Connector

HDMI IN1 HDMI IN2 HDMI IN3 –

DisplayPort

IN2

DisplayPort

IN1

Option board

slot (SLOT2

(DP))

Option board

slot (SLOT2

(DP+TMDS))

Option board

slot (SLOT2

(TMDS))

Picture 2 Connector

TERMINAL

SETTINGS*

MODE 1MODE 2MODE 1MODE 2MODE 1MODE 2MODE

– – – 2CH MODE 1

Picture 1: HDMI2 (MODE1)

HDMI1 HDMI IN1

MODE 1 Yes No Yes No No No No Yes Yes Yes No Yes MODE 2 No No No No No No No No No No No No

HDMI2 HDMI IN2

MODE 1 Yes No Yes No Yes No Yes Yes Yes Yes No Yes MODE 2 No No No No No No No No No No No No

HDMI3 HDMI IN3

MODE 1 No No Yes No Yes No No Yes Yes Yes No Yes MODE 2 No No No

No No No No No No No No No

MP – MODE 1 No No Yes No No No Yes Yes Yes Yes No Yes DisplayPort2 DisplayPort IN2 – Yes No Yes No Yes No Yes Yes Yes Yes No Yes DisplayPort1 DisplayPort IN1 – Yes No Yes No Yes No Yes Yes Yes No No Yes

OPTION

Option board slot

(SLOT2 (DP))

– Yes No Yes No Yes No Yes Yes No Yes No No

Option board slot

(SLOT2 (DP+TMDS))

2CH No No No No No No No No No No No No

Option board slot (SLOT2 (TMDS))

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes

*1: SLOT2 CH SETTING for SLOT2 (DP+TMDS)

English-63

English

PIP/PBP1/PBP2 PICTURE 1: HDMI3 (MODE1)

Picture 3

HDMI1 HDMI2 HDMI3 MP DisplayPort2 DisplayPort1 OPTION

Connector

HDMI IN1 HDMI IN2 HDMI IN3 –

DisplayPort

IN2

DisplayPort

IN1

Option board

slot (SLOT2

(DP))

Option board

slot (SLOT2

(DP+TMDS))

Option board

slot (SLOT2

(TMDS))

Picture 2 Connector

TERMINAL

SETTINGS*

MODE 1MODE 2MODE 1MODE 2MODE 1MODE 2MODE

– – – 2CH MODE 1

Picture 1: HDMI3 (MODE1)

HDMI1 HDMI IN1

MODE 1 Yes No No No Yes No No Yes Yes Yes No Yes MODE 2 No No No No No No No No No No No No

HDMI2 HDMI IN2

MODE 1 No No Yes No Yes No No Yes Yes Yes No Yes MODE 2 No No No No No No No No No No No No

HDMI3 HDMI IN3

MODE 1 Yes No Yes No Yes No Yes Yes Yes Yes No Yes MODE 2 No No No

No No No No No No No No No

MP – MODE 1 No No No No Yes No Yes Yes Yes Yes No Yes DisplayPort2 DisplayPort IN2 – Yes No Yes No Yes No Yes Yes Yes Yes No Yes DisplayPort1 DisplayPort IN1 – Yes No Yes No Yes No Yes Yes Yes No No Yes

OPTION

Option board slot

(SLOT2 (DP))

– Yes No Yes No Yes No Yes Yes No Yes No No

Option board slot

(SLOT2 (DP+TMDS))

2CH No No No No No No No No No No No No

Option board slot (SLOT2 (TMDS))

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes

*1: SLOT2 CH SETTING for SLOT2 (DP+TMDS)

PIP/PBP1/PBP2 PICTURE 1: MP

Picture 3

HDMI1 HDMI2 HDMI3 MP DisplayPort2 DisplayPort1 OPTION

Connector

HDMI IN1 HDMI IN2 HDMI IN3 –

DisplayPort

IN2

DisplayPort

IN1

Option board

slot (SLOT2

(DP))

Option board

slot (SLOT2

(DP+TMDS))

Option board

slot (SLOT2

(TMDS))

Picture 2 Connector

TERMINAL

SETTINGS*

MODE 1MODE 2MODE 1MODE 2MODE 1MODE 2MODE

– – – 2CH MODE 1

Picture 1: MP

HDMI1 HDMI IN1

MODE 1 Yes No No No No No Yes Yes Yes Yes No Yes MODE 2 No No No No No No No No No No No No

HDMI2 HDMI IN2

MODE 1 No No Yes No No No Yes Yes Yes Yes No Yes MODE 2 No No No No No No No No No No No No

HDMI3 HDMI IN3

MODE 1 No No No No Yes No Yes Yes Yes Yes No Yes MODE 2 No No No

No No No No No No No No No

MP – MODE 1 Yes No Yes No Yes No Yes Yes Yes Yes No Yes DisplayPort2 DisplayPort IN2 – Yes No Yes No Yes No Yes Yes Yes Yes No Yes DisplayPort1 DisplayPort IN1 – Yes No Yes No Yes No Yes Yes Yes No No Yes

OPTION

Option board slot

(SLOT2 (DP))

– Yes No Yes No Yes No Yes Yes No Yes No No

Option board slot

(SLOT2 (DP+TMDS))

2CH No No No No No No No No No No No No

Option board slot (SLOT2 (TMDS))

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes

*1: SLOT2 CH SETTING for SLOT2 (DP+TMDS)

PIP/PBP1/PBP2 PICTURE 1: DisplayPort2

Picture 3

HDMI1 HDMI2 HDMI3 MP DisplayPort2 DisplayPort1 OPTION

Connector

HDMI IN1 HDMI IN2 HDMI IN3 –

DisplayPort

IN2

DisplayPort

IN1

Option board

slot (SLOT2

(DP))

Option board

slot (SLOT2

(DP+TMDS))

Option board

slot (SLOT2

(TMDS))

Picture 2 Connector

TERMINAL

SETTINGS*

MODE 1MODE 2MODE 1MODE 2MODE 1MODE 2MODE

– – – 2CH MODE 1

Picture 1: DisplayPort2

HDMI1 HDMI IN1

MODE 1 Yes No Yes No Yes No Yes Yes Yes Yes No Yes MODE 2 No No No No No No No No No No No No

HDMI2 HDMI IN2

MODE 1 Yes No Yes No Yes No Yes Yes Yes Yes No Yes MODE 2 No No No No No No No No No No No No

HDMI3 HDMI IN3

MODE 1 Yes No Yes No Yes No Yes Yes Yes Yes No Yes MODE 2 No No No

No No No No No No No No No

OPTION

Option board slot

(SLOT2 (DP))

– Yes No Yes No Yes No Yes Yes No Yes No No

Option board slot

(SLOT2 (DP+TMDS))

2CH No No No No No No No No No No No No

Option board slot (SLOT2 (TMDS))

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes

*1: SLOT2 CH SETTING for SLOT2 (DP+TMDS)

English-64

PIP/PBP1/PBP2 PICTURE 1: DisplayPort1

Picture 3

HDMI1 HDMI2 HDMI3 MP DisplayPort2 DisplayPort1 OPTION

Connector

HDMI IN1 HDMI IN2 HDMI IN3 –

DisplayPort

IN2

DisplayPort

IN1

Option board

slot (SLOT2

(DP))

Option board

slot (SLOT2

(DP+TMDS))

Option board

slot (SLOT2

(TMDS))

Picture 2 Connector

TERMINAL

SETTINGS*

MODE 1MODE 2MODE 1MODE 2MODE 1MODE 2MODE

– – – 2CH MODE 1

Picture 1: DisplayPort1

HDMI1 HDMI IN1

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes MODE 2 No No No No No No No No No No No No

HDMI2 HDMI IN2

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes MODE 2 No No No No No No No No No No No No

HDMI3 HDMI IN3

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes MODE 2 No No No

No No No No No No No No No

MP – MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes DisplayPort2 DisplayPort IN2 – Yes No Yes No Yes No Yes Yes Yes No No Yes DisplayPort1 DisplayPort IN1 – Yes No Yes No Yes No Yes Yes Yes No No Yes

OPTION

Option board slot

(SLOT2 (DP))

– No No No No No No No No No No No No

Option board slot

(SLOT2 (DP+TMDS))

2CH No No No No No No No No No No No No

Option board slot (SLOT2 (TMDS))

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes

*1: SLOT2 CH SETTING for SLOT2 (DP+TMDS)

PIP/PBP1/PBP2 PICTURE 1: OPTION (DP)

Picture 3

HDMI1 HDMI2 HDMI3 MP DisplayPort2 DisplayPort1 OPTION

Connector

HDMI IN1 HDMI IN2 HDMI IN3 –

DisplayPort

IN2

DisplayPort

IN1

Option board

slot (SLOT2

(DP))

Option board

slot (SLOT2

(DP+TMDS))

Option board

slot (SLOT2

(TMDS))

Picture 2 Connector

TERMINAL

SETTINGS*

MODE 1MODE 2MODE 1MODE 2MODE 1MODE 2MODE

– – – 2CH MODE 1

Picture 1: OPTION (DP)

HDMI1 HDMI IN1

MODE 1 Yes No Yes No Yes No Yes Yes No Yes No No MODE 2 No No No No No No No No No No No No

HDMI2 HDMI IN2

MODE 1 Yes No Yes No Yes No Yes Yes No Yes No No

MODE 2 No No No No No No No No No No No No

HDMI3 HDMI IN3

MODE 1 Yes No Yes No Yes No Yes Yes No Yes No No

MODE 2 No No No

No No No No No No No No No

MP – MODE 1 Yes No Yes No Yes No Yes Yes No Yes No No DisplayPort2 DisplayPort IN2 – Yes No Yes No Yes No Yes Yes No Yes No No DisplayPort1 DisplayPort IN1 – No No No No No No No No No No No No

OPTION

Option board slot

(SLOT2 (DP))

– Yes No Yes No Yes No Yes Yes No Yes No No

Option board slot

(SLOT2 (DP+TMDS))

2CH No No No No No No No No No No No No

Option board slot (SLOT2 (TMDS))

MODE 1 No No No No No No No No No No No No

*1: SLOT2 CH SETTING for SLOT2 (DP+TMDS)

PIP/PBP2 PICTURE 1: OPTION (DP+TMDS)

Picture 3

HDMI1 HDMI2 HDMI3 MP DisplayPort2 DisplayPort1 OPTION

Connector

HDMI IN1 HDMI IN2 HDMI IN3 –

DisplayPort

IN2

DisplayPort

IN1

Option board

slot (SLOT2

(DP))

Option board

slot (SLOT2

(DP+TMDS))

Option board

slot (SLOT2

(TMDS))

Picture 2 Connector

TERMINAL

SETTINGS*

MODE 1MODE 2MODE 1MODE 2MODE 1MODE 2MODE

– – – 2CH MODE 1

Picture 1: OPTION (DP+TMDS)

HDMI1 HDMI IN1

MODE 1 Yes No Yes No Yes No Yes Yes No No No No

MODE 2 No No No No No No No No No No No No

HDMI2 HDMI IN2

MODE 1 Yes No Yes No Yes No Yes Yes No No No No

MODE 2 No No No No No No No No No No No No

HDMI3 HDMI IN3

MODE 1 Yes No Yes No Yes No Yes Yes No No No No MODE 2 No No No

No No No No No No No No No

MP – MODE 1 Yes No Yes No Yes No Yes Yes No No No No DisplayPort2 DisplayPort IN2 – Yes No Yes No Yes No Yes Yes No No No No DisplayPort1 DisplayPort IN1 – No No No No No No No No No No No No

OPTION

Option board slot

(SLOT2 (DP))

– No No No No No No No No No No No No

Option board slot

(SLOT2 (DP+TMDS))

2CH No No No No No No No No No No No No

Option board slot (SLOT2 (TMDS))

MODE 1 No No No No No No No No No No No No

*1: SLOT2 CH SETTING for SLOT2 (DP+TMDS)

English-65

English

PIP/PBP2 PICTURE 1: OPTION (TMDS)

Picture 3

HDMI1 HDMI2 HDMI3 MP DisplayPort2 DisplayPort1 OPTION

Connector

HDMI IN1 HDMI IN2 HDMI IN3 –

DisplayPort

IN2

DisplayPort

IN1

Option board

slot (SLOT2

(DP))

Option board

slot (SLOT2

(DP+TMDS))

Option board

slot (SLOT2

(TMDS))

Picture 2 Connector

TERMINAL

SETTINGS*

MODE 1MODE 2MODE 1MODE 2MODE 1MODE 2MODE

– – – 2CH MODE 1

Picture 1: OPTION (TMDS)

HDMI1 HDMI IN1

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes MODE 2 No No No No No No No No Yes No No No

HDMI2 HDMI IN2

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes MODE 2 No No No No No No No No Yes No No No

HDMI3 HDMI IN3

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes MODE 2 No No No

No No No No No Yes No No No

OPTION

Option board slot

(SLOT2 (DP))

– No No No No No No No No No No No No

Option board slot

(SLOT2 (DP+TMDS))

2CH No No No No No No No No No No No No

Option board slot (SLOT2 (TMDS))

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes

*1: SLOT2 CH SETTING for SLOT2 (DP+TMDS)

PBP1 PICTURE1: OPTION (TMDS)

Picture 3

HDMI1 HDMI2 HDMI3 MP DisplayPort2 DisplayPort1 OPTION

Connector

HDMI IN1 HDMI IN2 HDMI IN3 –

DisplayPort

IN2

DisplayPort

IN1

Option board

slot (SLOT2

(DP))

Option board

slot (SLOT2

(DP+TMDS))

Option board

slot (SLOT2

(TMDS))

Picture 2 Connector

TERMINAL

SETTINGS*

MODE 1MODE 2MODE 1MODE 2MODE 1MODE 2MODE

– – – 2CH MODE 1

Picture 1: OPTION (TMDS)

HDMI1 HDMI IN1

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes MODE 2 No No No No No No No No No No No No

HDMI2 HDMI IN2

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes MODE 2 No No No No No No No No No No No No

HDMI3 HDMI IN3

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes MODE 2 No No No

No No No No No No No No No

OPTION

Option board slot

(SLOT2 (DP))

– No No No No No No No No No No No No

Option board slot

(SLOT2 (DP+TMDS))

2CH No No No No No No No No No No No No

Option board slot (SLOT2 (TMDS))

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes

*1: SLOT2 CH SETTING for SLOT2 (DP+TMDS)

PBP3 PICTURE 1: HDMI1 (MODE1)

Picture 3

HDMI1 HDMI2 HDMI3 MP DisplayPort2 DisplayPort1 OPTION

Connector

HDMI IN1 HDMI IN2 HDMI IN3 –

DisplayPort

IN2

DisplayPort

IN1

Option board

slot (SLOT2

(DP))

Option board

slot (SLOT2

(DP+TMDS))

Option board

slot (SLOT2

(TMDS))

Picture 2 Connector

TERMINAL

SETTINGS*

MODE 1MODE 2MODE 1MODE 2MODE 1MODE 2MODE

– – – 2CH MODE 1

Picture 1: HDMI1 (MODE1)

HDMI1 HDMI IN1

MODE 1 Yes No Yes No Yes No Yes Yes Yes Yes No Yes MODE 2 No No No No No No No No No No No No

HDMI2 HDMI IN2

MODE 1 Yes No Yes No No No No Yes Yes Yes No Yes MODE 2 No No No No No No No No No No No No

HDMI3 HDMI IN3

MODE 1 Yes No No No Yes No No Yes Yes Yes No Yes MODE 2 No No No

No No No No No No No No No

OPTION

Option board slot

(SLOT2 (DP))

– Yes No Yes No Yes No Yes Yes No Yes No No

Option board slot

(SLOT2 (DP+TMDS))

2CH Yes No Yes No Yes No Yes Yes No No No No

Option board slot (SLOT2 (TMDS))

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes

*1: SLOT2 CH SETTING for SLOT2 (DP+TMDS)

English-66

PBP3 PICTURE 1: HDMI2 (MODE1)

Picture 3

HDMI1 HDMI2 HDMI3 MP DisplayPort2 DisplayPort1 OPTION

Connector

HDMI IN1 HDMI IN2 HDMI IN3 –

DisplayPort

IN2

DisplayPort

IN1

Option board

slot (SLOT2

(DP))

Option board

slot (SLOT2

(DP+TMDS))

Option board

slot (SLOT2

(TMDS))

Picture 2 Connector

TERMINAL

SETTINGS*

MODE 1MODE 2MODE 1MODE 2MODE 1MODE 2MODE

– – – 2CH MODE 1

Picture 1: HDMI2 (MODE1)

HDMI1 HDMI IN1

MODE 1 Yes No Yes No No No No Yes Yes Yes No Yes MODE 2 No No No No No No No No No No No No

HDMI2 HDMI IN2

MODE 1 Yes No Yes No Yes No Yes Yes Yes Yes No Yes MODE 2 No No No No No No No No No No No No

HDMI3 HDMI IN3

MODE 1 No No Yes No Yes No No Yes Yes Yes No Yes MODE 2 No No No

No No No No No No No No No

OPTION

Option board slot

(SLOT2 (DP))

– Yes No Yes No Yes No Yes Yes No Yes No No

Option board slot

(SLOT2 (DP+TMDS))

2CH Yes No Yes No Yes No Yes Yes No No No No

Option board slot (SLOT2 (TMDS))

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes

*1: SLOT2 CH SETTING for SLOT2 (DP+TMDS)

PBP3 PICTURE 1: HDMI3 (MODE1)

Picture 3

HDMI1 HDMI2 HDMI3 MP DisplayPort2 DisplayPort1 OPTION

Connector

HDMI IN1 HDMI IN2 HDMI IN3 –

DisplayPort

IN2

DisplayPort

IN1

Option board

slot (SLOT2

(DP))

Option board

slot (SLOT2

(DP+TMDS))

Option board

slot (SLOT2

(TMDS))

Picture 2 Connector

TERMINAL

SETTINGS*

MODE 1MODE 2MODE 1MODE 2MODE 1MODE 2MODE

– – – 2CH MODE 1

Picture 1: HDMI3 (MODE1)

HDMI1 HDMI IN1

MODE 1 Yes No No No Yes No No Yes Yes Yes No Yes MODE 2 No No No No No No No No No No No No

HDMI2 HDMI IN2

MODE 1 No No Yes No Yes No No Yes Yes Yes No Yes MODE 2 No No No No No No No No No No No No

HDMI3 HDMI IN3

MODE 1 Yes No Yes No Yes No Yes Yes Yes Yes No Yes MODE 2 No No No

No No No No No No No No No

OPTION

Option board slot

(SLOT2 (DP))

– Yes No Yes No Yes No Yes Yes No Yes No No

Option board slot

(SLOT2 (DP+TMDS))

2CH Yes No Yes No Yes No Yes Yes No No No No

Option board slot (SLOT2 (TMDS))

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes

*1: SLOT2 CH SETTING for SLOT2 (DP+TMDS)

PBP3 PICTURE 1: MP

Picture 3

HDMI1 HDMI2 HDMI3 MP DisplayPort2 DisplayPort1 OPTION

Connector

HDMI IN1 HDMI IN2 HDMI IN3 –

DisplayPort

IN2

DisplayPort

IN1

Option board

slot (SLOT2

(DP))

Option board

slot (SLOT2

(DP+TMDS))

Option board

slot (SLOT2

(TMDS))

Picture 2 Connector

TERMINAL

SETTINGS*

MODE 1MODE 2MODE 1MODE 2MODE 1MODE 2MODE

– – – 2CH MODE 1

Picture 1: MP

HDMI1 HDMI IN1

MODE 1 Yes No No No No No Yes Yes Yes Yes No Yes MODE 2 No No No No No No No No No No No No

HDMI2 HDMI IN2

MODE 1 No No Yes No No No Yes Yes Yes Yes No Yes MODE 2 No No No No No No No No No No No No

HDMI3 HDMI IN3

MODE 1 No No No No Yes No Yes Yes Yes Yes No Yes MODE 2 No No No

No No No No No No No No No

OPTION

Option board slot

(SLOT2 (DP))

– Yes No Yes No Yes No Yes Yes No Yes No No

Option board slot

(SLOT2 (DP+TMDS))

2CH Yes No Yes No Yes No Yes Yes No No No No

Option board slot (SLOT2 (TMDS))

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes

*1: SLOT2 CH SETTING for SLOT2 (DP+TMDS)

English-67

English

PBP3 PICTURE 1: DisplayPort2

Picture 3

HDMI1 HDMI2 HDMI3 MP DisplayPort2 DisplayPort1 OPTION

Connector

HDMI IN1 HDMI IN2 HDMI IN3 –

DisplayPort

IN2

DisplayPort

IN1

Option board

slot (SLOT2

(DP))

Option board

slot (SLOT2

(DP+TMDS))

Option board

slot (SLOT2

(TMDS))

Picture 2 Connector

TERMINAL

SETTINGS*

MODE 1MODE 2MODE 1MODE 2MODE 1MODE 2MODE

– – – 2CH MODE 1

Picture 1: DisplayPort2

HDMI1 HDMI IN1

MODE 1 Yes No Yes No Yes No Yes Yes Yes Yes No Yes MODE 2 No No No No No No No Yes Yes Yes No Yes

HDMI2 HDMI IN2

MODE 1 Yes No Yes No Yes No Yes Yes Yes Yes No Yes MODE 2 No No No No No No No Yes Yes Yes No Yes

HDMI3 HDMI IN3

MODE 1 Yes No Yes No Yes No Yes Yes Yes Yes No Yes MODE 2 No No No

No No No No Yes Yes Yes No Yes

OPTION

Option board slot

(SLOT2 (DP))

– Yes No Yes No Yes No Yes Yes No Yes No No

Option board slot

(SLOT2 (DP+TMDS))

2CH Yes No Yes No Yes No Yes Yes No No No No

Option board slot (SLOT2 (TMDS))

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes

*1: SLOT2 CH SETTING for SLOT2 (DP+TMDS)

PBP3 PICTURE 1: DisplayPort1

Picture 3

HDMI1 HDMI2 HDMI3 MP DisplayPort2 DisplayPort1 OPTION

Connector

HDMI IN1 HDMI IN2 HDMI IN3 –

DisplayPort

IN2

DisplayPort

IN1

Option board

slot (SLOT2

(DP))

Option board

slot (SLOT2

(DP+TMDS))

Option board

slot (SLOT2

(TMDS))

Picture 2 Connector

TERMINAL

SETTINGS*

MODE 1MODE 2MODE 1MODE 2MODE 1MODE 2MODE

– – – 2CH MODE 1

Picture 1: DisplayPort1

HDMI1 HDMI IN1

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes MODE 2 No No No No No No No Yes Yes No No Yes

HDMI2 HDMI IN2

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes MODE 2 No No No No No No No Yes Yes No No Yes

HDMI3 HDMI IN3

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes MODE 2 No No No

No No No No Yes Yes No No Yes

OPTION

Option board slot

(SLOT2 (DP))

– No No No No No No No No No No No No

Option board slot

(SLOT2 (DP+TMDS))

2CH No No No No No No No No No No No No

Option board slot (SLOT2 (TMDS))

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes

*1: SLOT2 CH SETTING for SLOT2 (DP+TMDS)

PBP3 PICTURE 1: OPTION (DP)

Picture 3

HDMI1 HDMI2 HDMI3 MP DisplayPort2 DisplayPort1 OPTION

Connector

HDMI IN1 HDMI IN2 HDMI IN3 –

DisplayPort

IN2

DisplayPort

IN1

Option board

slot (SLOT2

(DP))

Option board

slot (SLOT2

(DP+TMDS))

Option board

slot (SLOT2

(TMDS))

Picture 2 Connector

TERMINAL

SETTINGS*

MODE 1MODE 2MODE 1MODE 2MODE 1MODE 2MODE

– – – 2CH MODE 1

Picture 1: OPTION (DP)

HDMI1 HDMI IN1

MODE 1 Yes No Yes No Yes No Yes Yes No Yes No No MODE 2 No No No No No No No Yes No Yes No No

HDMI2 HDMI IN2

MODE 1 Yes No Yes No Yes No Yes Yes No Yes No No

MODE 2 No No No No No No No Yes No Yes No No

HDMI3 HDMI IN3

MODE 1 Yes No Yes No Yes No Yes Yes No Yes No No

MODE 2 No No No

No No No No Yes No Yes No No

MP – MODE 1 Yes No Yes No Yes No Yes Yes No Yes No No DisplayPort2 DisplayPort IN2 – Yes No Yes No Yes No Yes Yes No Yes No No DisplayPort1 DisplayPort IN1 – No No No No No No No No No No No No

OPTION

Option board slot

(SLOT2 (DP))

– Yes No Yes No Yes No Yes Yes No Yes No No

Option board slot

(SLOT2 (DP+TMDS))

2CH No No No No No No No No No No No No

Option board slot (SLOT2 (TMDS))

MODE 1 No No No No No No No No No No No No

*1: SLOT2 CH SETTING for SLOT2 (DP+TMDS)

English-68

PBP3 PICTURE 1: OPTION (TMDS)

Picture 3

HDMI1 HDMI2 HDMI3 MP DisplayPort2 DisplayPort1 OPTION

Connector

HDMI IN1 HDMI IN2 HDMI IN3 –

DisplayPort

IN2

DisplayPort

IN1

Option board

slot (SLOT2

(DP))

Option board

slot (SLOT2

(DP+TMDS))

Option board

slot (SLOT2

(TMDS))

Picture 2 Connector

TERMINAL

SETTINGS*

MODE 1MODE 2MODE 1MODE 2MODE 1MODE 2MODE

– – – 2CH MODE 1

Picture 1: OPTION (TMDS)

HDMI1 HDMI IN1

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes MODE 2 No No No No No No No Yes Yes No No Yes

HDMI2 HDMI IN2

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes MODE 2 No No No No No No No Yes Yes No No Yes

HDMI3 HDMI IN3

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes MODE 2 No No No

No No No No Yes Yes No No Yes

OPTION

Option board slot

(SLOT2 (DP))

– No No No No No No No No No No No No

Option board slot

(SLOT2 (DP+TMDS))

2CH No No No No No No No No No No No No

Option board slot (SLOT2 (TMDS))

MODE 1 Yes No Yes No Yes No Yes Yes Yes No No Yes

*1: SLOT2 CH SETTING for SLOT2 (DP+TMDS)

PICTURE NUMBER: 4 PICTURES

Only one input signal can be selected from within a group. One of ﬁve groups is displayed on each screen. The same group can be selected more than once.

Group A Group B Group C Group D Group E

DisplayPort1

OPTION (DP)

DisplayPort2

HDMI1 HDMI2 HDMI3

OPTION (TMDS)

NOTE: HDMI1/HDMI2/HDMI3 TERMINAL SETTINGS is MODE1 only.

OPTION (DP) and OPTION (TMDS) cannot be selected at the same time (Can be choose either one).

Video out

Main picture

DisplayPort1 DisplayPort2 HDMI1 HDMI2 HDMI3 OPTION MP

Connector

DisplayPort

IN1

DisplayPort

IN2

HDMI

IN1

HDMI

IN2

HDMI

IN3

Option board slot

(SLOT2 (DP))

Option board slot

(SLOT2 (HDMI))

DisplayPort Yes

No No No No

Yes

No No

When the monitor outputs a signal from the DisplayPort out, please select input signal DisplayPort1 or OPTION. This monitor’s signal output function supports contents, which is protected by HDCP. In this case, up to 3 monitors are connectable. When using an option, please set SLOT2 CH SETTING to 1CH then set SLOT2 CH SELECT to DisplayPort (See page 45).

NOTE: To output a signal from the DisplayPort out, some Slot2 type options are only available which have DisplayPort

signal out.

English-69

English

Reduced Footprint: Provides the ideal solution for environments with superior image quality. SPECTRAVIEW ENGINE: This system is designed for improvement the visual quality of the monitor.

Each monitor is calibrated at the factory. By making automatic adjustments during operation of the monitor hardware in real time, optimal settings are conﬁgured without any user interaction.

OmniColor: Combines Six-axis color control and the sRGB standard. Six-axis color control permits color adjustments via six axes (R, G, B, C, M and Y) rather than through the three axes (R, G and B) previously available. The sRGB standard provides the monitor with a uniform color proﬁle. This ensures that the colors displayed on the monitor are exactly the same as on the color printout (with sRGB supporting operating system and sRGB printer). This allows you to adjust the colors on your screen and customise the color accuracy of your monitor to a variety of standards.

sRGB Color Control: A color management standard which allows for color matching on computer monitors and other peripherals. The sRGB standard, which is based on a calibrated color space, allows for optimal color representation and backward compatibility with other common color standards.

OSD (On-Screen-Display) Controls: Allows you to quickly and easily adjust all elements of your screen image via easy to use on-screen menus.

Plug and Play: The Microsoft

solution with the Windows® operating system facilitates setup and installation by allowing the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically optimizing display performance.

IPM (Intelligent Power Manager) System: Provides innovative power-saving methods that allow the monitor to shift to a lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace.

FullScan Capability: Allows you to use the entire screen area in most resolutions, signiﬁcantly expanding image size. VESA Standard (FDMIv1) Mounting Interface: Allows you to mount the monitor to any VESA standard (FDMIv1) third party

mounting arm or bracket. NEC recommends using mounting equipment which complies with TÜV-GS (Germany) and/or UL1678 standard (North America).

ZOOM: Expands/reduces the image size in horizontal and vertical direction. Self-diagnosis: If an internal error should occur, a failure state will be indicated. USB hub: Allows the connection of digital cameras, scanners, keyboards and more. HDCP (High-bandwidth Digital Content Protection): HDCP is a system for preventing illegal copying of video data sent over

a digital signal. If you are unable to view material via the digital input, this does not necessarily mean that the monitor is not functioning properly. With the implementation of HDCP, there may be cases in which certain content is protected by HDCP and might not be displayed due to the decision/intention of the HDCP community (Digital Content Protection, LLC).

Option board slot: You can use an option board. Please contact your supplier for detailed information. DICOM Sim.: A DICOM gamma curve emulation which is stored inside the monitor as ﬁxed Look Up Table values. When

selecting DICOM Sim., these values are loaded into the active Look Up Table of the monitor to create a DICOM like gamma correction curve. Suitable for DICOM image viewing in clinical review. Must not be used for DICOM image viewing in diagnostics.

TILE MATRIX, TILE COMP: Shows one image over multiple screens with accuracy while compensating for bezel width.

Features

English-70

No picture

• Thesignalcableshouldbecompletelyconnectedtothe

display card/computer.

• Thedisplaycardshouldbecompletelyseatedinitsslot.

• CheckthemainPowerSwitch,itshouldbeintheON

position.

• Power Switches for the monitor and computer should be

in the ON position.

• Makesurethatasupportedresolutionhasbeenselected

on the display card or system being used. If in doubt, please refer to the user’s manual of the display controller or system to change the resolution.

• Checkthemonitorandyourdisplaycardwithrespectto

compatibility and recommended signal timings.

• Checkthesignalcableconnectorforbentorpushed-in

pins.

• Themonitorautomaticallygoesintostandby at the preset

time period after the video signal was lost. Press the power on button on the remote control or press the power button on the monitor.

• If you unplug the signal cable when starting the computer,

images may not be displayed. Turn off the monitor and the computer and then connect the signal cable and turn on the computer and the monitor.

• Check the OPTION POWER setting when you use option

board accessories.

Power Button does not respond

• UnplugthepowercordofthemonitorfromtheACoutlet

to turn off and reset the monitor.

• CheckthemainPowerSwitchonthemonitor.

Image persistence

• PleasebeawarethatLCDTechnologymayexperience

a phenomenon known as Image Persistence. Image Persistence occurs when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, the image persistence of LCD monitors is not permanent, but single still image being displayed for a long period of time should be avoided. To alleviate image persistence, put the monitor into standby via remote control or turn the monitor’s main power off for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be in standby or main power off for one hour to erase the image.

NOTE:

As with all personal display devices, NEC

DISPLAY SOLUTIONS recommends displaying moving images, using a moving screen saver, or changing still images at regular intervals whenever the screen is idle, or turning it into standby or main power off of the monitor when not in use.

The image is blinking

• If you use a signal repeater or distributor or a long cable, this may cause image roughness or blink for a moment. In

this case please connect the cable to the monitor directly without using a repeater or a distributor, or replace the cable with a higher quality cable. Using a twisted pair extender may cause image roughness depending on the environment where the monitor is in or the cable you are using. For further information please ask your supplier.

• Some HDMI cables may not show a correct image. If

input resolution is 1920 x 2160, 3840 x 2160 or 4096 x 2160, please use an HDMI cable which is approved to support 4K resolution.

The image is unstable, unfocused or swimming is apparent

• Thesignalcableshouldbecompletelyattachedtothe

computer.

• UsetheOSDImageAdjustcontrolstofocusand

adjust the display by increasing or decreasing the ﬁne adjustment. When the display mode is changed, the OSD Image Adjust settings may need to be re-adjusted.

• Checkthemonitorandyourdisplaycardwithrespectto

compatibility and recommended signal timings.

• Iftextlooksgarbled,changethevideomodetonon-

interlaced and use a 60 Hz refresh rate.

• Theimagemaybedistortedwhenturningthepoweronor

changing the settings.

LED on the monitor is not lit (no blue or red color can be seen)

• ThepowerSwitchshouldbeintheONpositionandthe

power cord should be connected.

• CheckthemainPowerSwitch,itshouldbeintheON

position.

• Makecertainthecomputerisnotinapower-savingmode

(touch the keyboard or move the mouse).

• Check in the OSD that the power indicator option is set to ON.

LED colors, except for blue, are blinking or glowing

• A certain failure might have occurred, please contact your supplier.

• If the monitor is powered off by the internal temperature being higher than the normal operating temperature, the LED will blink green or amber or red for six times. Power on the monitor again after conﬁrming the internal temperature has been reduced to normal operation temperature.

• The monitor could be in standby. Press the power on button on the remote control or press the power button on the monitor.

The image is not properly reproduced

• UsetheOSDImageAdjustcontrolstoincreaseor

decrease the coarse adjustment.

• Makesurethatasupportedresolutionhasbeenselected

on the display card or system being used. If in doubt, please refer to the user’s manual of the display card or system to change the resolution.

Troubleshooting

English-71

English

Either light vertical or horizontal stripes may appear, depending on the speciﬁc image pattern. This is not a product fault or degradation.

Selected resolution is not displayed properly

• UseOSDDisplayModetoenterInformationmenuand

conﬁrm that the appropriate resolution has been selected. If not, select corresponding option.

No Sound

• Checktoseeiftheaudiocableisproperlyconnected.

• ChecktoseeifMUTE is activated. Use the remote control

to enable or disable the Mute function.

• ChecktoseeifVOLUME is set to a minimum.

• Checktoseeifthecomputersupportsanaudiosignal

through DisplayPort. If unsure, contact your supplier.

• WhenLINEOUTisnotfunctioning,checktoseeif

SURROUND is ON.

• ChecktheInternal/Externalspeakerswitch.

• If HDMI CEC audio device is not connected, please set

“AUDIO RECEIVER” to OFF.

The Remote Control is not functioning

• Check the batteries status of the Remote Control.

• Checkifthebatteriesareinsertedcorrectly.

• CheckiftheRemoteControlispointingatthe remote

control sensor of the monitor.

• Check the status of IR LOCK SETTINGS.

• Theremotecontrolsystemmaynotfunctionwhendirect

sunlight or strong illumination strikes the remote control sensor of the monitor, or when there is an object in the path.

The SCHEDULE/OFF TIMER function is not working properly

• The“SCHEDULE”functionwillbedisabledwhenthe

“OFF TIMER” is set.

• Ifthe“OFFTIMER”functionisenabledandthepowerto

the LCD monitor is turned off when the power supply is interrupted unexpectedly, then the “OFF TIMER” will be reset.

Snowy Picture, Poor Sound in TV

• Checkantenna/cableconnection.Usenewcableif

necessary.

The USB Hub does not operate

• ChecktomakesurethattheUSBcableisproperly

connected. Refer to your USB device user’s manual.

• CheckiftheUSBupstreamportonthemonitoris

connected to the USB downstream port on the computer. Please make sure the computer is ON or USB POWER is ON.

•

Check the format if this device cannot recognize the

connected USB memory.

•

Disconnect one upstream USB cable when using

2 upstream connections.

Interference in TV

• Checkcomponentsforshielding,moveawayfrom

monitor if necessary.

USB or RS-232C or LAN control is not available

• CheckRS-232C (reverse type) or the LAN cable. A category 5 or higher LAN cable is required for connection.

• Check USB cable connected to USB2 port. Check the EXTERNAL CONTROL is set to ENABLE then PC SOURCE is set to EXTERNAL PC.

The monitor goes into standby automatically

• Please check “OFF TIMER” setting.

• Set the “CEC” function to OFF.

Media player function does not recognize the USB storage device

• Please check a USB storage device is connected to the USB MP.

MicroSD card does not work

• Check to make sure the microSD card is properly connected.

• Check the microSD memory card format.

English-72

Speciﬁcations - V754Q

Product Speciﬁcations

LCD Module

Pixel Pitch: Resolution:

Color:

Brightness:

Contrast Ratio:

Viewing Angle:

75"/189.27 cm diagonal

0.430 mm 3840 x 2160 Over 1073 million colors (depending on display card used) 500 cd/m

(Max.)@25°C

1200:1

89°(typ)@CR>10

Frequency Horizontal:

Vertical:

31.5 kHz - 91.1 kHz

24.0 - 85.0 Hz (Digital Input) Pixel Clock Digital: 25.0 MHz - 600.0 MHz (HDMI/DisplayPort) Viewable Size 1649.66 x 927.94 mm Input Signal

DisplayPort DisplayPort Connector Digital RGB DisplayPort V1.2 (HDCP 1.3)

VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920x1080 (60 Hz), 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 3840x2160 (24Hz/30Hz/60Hz (DisplayPort1.2))

HDMI HDMI Connector Digital YUV

Digital RGB

HDMI (HDCP 1.4/2.2) VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920x1080 (60 Hz), 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz, 3840x2160 (30Hz/24Hz/25Hz/60Hz (MODE2)), 4096x2160 (30Hz/24Hz/25Hz/60Hz (MODE2))*

1, *3

Output Signal

DisplayPort DisplayPort Connector Digital RGB DisplayPort V1.2 (HDCP 1.3)

AUDIO

AUDIO Input

Stereo Mini Jack Analog Audio Stereo L/R 0.5 Vrms HDMI Connector Digital Audio PCM 32, 44.1, 48 KHz (16/20/24bit) DisplayPort Connector Digital Audio PCM 32, 44.1, 48 KHz (16/20/24bit)

AUDIO Output

Stereo Mini Jack Analog Audio Stereo L/R 0.5 Vrms

Speaker Output External Speaker Jack 15 W + 15 W (8 ohm)

Internal Speaker 10 W + 10 W (Stereo)

Control RS-232C In:

LAN:

Remote IN:

9 Pin D-sub RJ-45 10 BASE-T/100 BASE-TX x 2

Stereo Mini Jack 3.5 mm Ø SD card Hub Port: microSD card. Up to 32GB microSDHC is supported. USB Hub USB1:

USB2:

USB CM1 (2A):

USB CM2:

USB MP:

USB 2.0 Downstream port

USB 2.0 Upstream port

Power supply port, 5V/2A (max.)

USB service port for maintenance

Media Player/Firmware update port Power Supply 4.0 - 1.7 A @ 100-240V AC, 50/60Hz Power Consumption Normal operation: Approx. 155 W Operational Environment Temperature*

Humidity:

Altitude:

0-40°C/32-104°F

20 - 80% (without condensation)

0 - 3000 m (Brightness may decrease with altitude) Storage Environment Temperature:

Humidity:

-20-60°C/-4-140°F

10-90%(withoutcondensation)/90%-3.5%x(Temp-40°C)regardingover40°C

Dimension*

1681.2 (W) x 959.6 (H) x 71.1 (D) mm/66.2 (W) x 37.8 (H) x 2.8 (D) inches Weight 52.6 kg (116.0 lbs) VESA compatible mounting interface 400 mm x 400 mm (M8, 4 Holes) Power Management VESA DPM Power supply for Slot 2 type OPTION 16V/4.7 A

NOTE: Technical speciﬁcations are subject to change without notice. *

: Compressed image.

: When you use option board accessories, please contact your supplier for detailed information.

: Reproduced text may look blurred.

: Measurements are of the monitor only and do not include removable parts that protrude.

English-73

English

Speciﬁcations - V864Q

Product Speciﬁcations

LCD Module

Pixel Pitch: Resolution:

Color:

Brightness:

Contrast Ratio:

Viewing Angle:

86"/217.43 cm diagonal

0.494 mm

3840 x 2160 Over 1073 million colors (depending on display card used) 500 cd/m

(Max.)@25°C

1200:1

89°(typ)@CR>10

Frequency Horizontal:

Vertical:

31.5 kHz - 91.1 kHz

24.0 - 85.0 Hz (Digital Input) Pixel Clock Digital: 25.0 MHz - 600.0 MHz (HDMI/DisplayPort) Viewable Size 1895.04 x 1065.96 mm Input Signal

DisplayPort DisplayPort Connector Digital RGB DisplayPort V1.2 (HDCP 1.3)

VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920x1080 (60 Hz), 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 3840x2160 (24Hz/30Hz/60Hz (DisplayPort1.2))

HDMI HDMI Connector Digital YUV

Digital RGB

1, *3

Output Signal

DisplayPort DisplayPort Connector Digital RGB DisplayPort V1.2 (HDCP 1.3)

AUDIO

AUDIO Input

Stereo Mini Jack Analog Audio Stereo L/R 0.5 Vrms HDMI Connector Digital Audio PCM 32, 44.1, 48 KHz (16/20/24bit) DisplayPort Connector Digital Audio PCM 32, 44.1, 48 KHz (16/20/24bit)

AUDIO Output

Stereo Mini Jack Analog Audio Stereo L/R 0.5 Vrms

Speaker Output External Speaker Jack 15 W + 15 W (8 ohm)

Internal Speaker 10 W + 10 W (Stereo)

Control RS-232C In:

LAN:

Remote IN:

9 Pin D-sub RJ-45 10 BASE-T/100 BASE-TX x 2

Stereo Mini Jack 3.5 mm Ø SD card Hub Port: microSD card. Up to 32GB microSDHC is supported. USB Hub USB1:

USB2:

USB CM1 (2A):

USB CM2:

USB MP:

USB 2.0 Downstream port

USB 2.0 Upstream port

Power supply port, 5V/2A (max.)

USB service port for maintenance

Media Player/Firmware update port Power Supply 5.0 - 2.1 A @ 100-240V AC, 50/60Hz Power Consumption Normal operation: Approx. 230 W Operational Environment Temperature*

Humidity:

Altitude:

0-40°C/32-104°F

20 - 80% (without condensation)

0 - 3000 m (Brightness may decrease with altitude) Storage Environment Temperature:

Humidity:

-20-60°C/-4-140°F

10-90%(withoutcondensation)/90%-3.5%x(Temp-40°C)regardingover40°C

Dimension*

1928.2 (W) x 1099.2 (H) x 74.3 (D) mm/75.9 (W) x 43.3 (H) x 2.9 (D) inches Weight 57.8 kg (127.4 lbs) VESA compatible mounting interface 400 mm x 400 mm (M8, 4 Holes) Power Management VESA DPM Power supply for Slot 2 type OPTION 16V/4.7 A

NOTE: Technical speciﬁcations are subject to change without notice. *

: Compressed image.

: When you use option board accessories, please contact your supplier for detailed information.

: Reproduced text may look blurred.

: Measurements are of the monitor only and do not include removable parts that protrude.

English-74

Speciﬁcations - V984Q

Product Speciﬁcations

LCD Module

Pixel Pitch: Resolution:

Color:

Brightness:

Contrast Ratio:

Viewing Angle:

98"/247.82 cm diagonal

0.562 mm

3840 x 2160 Over 1073 million colors (depending on display card used) 500 cd/m

(Max.)@25°C

1300:1

89°(typ)@CR>10

Frequency Horizontal:

Vertical:

31.5 kHz - 91.1 kHz

24.0 - 85.0 Hz (Digital Input) Pixel Clock Digital: 25.0 MHz - 600.0 MHz (HDMI/DisplayPort) Viewable Size 2158.85 x 1214.40 mm Input Signal

DisplayPort DisplayPort Connector Digital RGB DisplayPort V1.2 (HDCP 1.3)

VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920x1080 (60 Hz), 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 3840x2160 (24Hz/30Hz/60Hz (DisplayPort1.2))

HDMI HDMI Connector Digital YUV

Digital RGB

1, *3

Output Signal

DisplayPort DisplayPort Connector Digital RGB DisplayPort V1.2 (HDCP 1.3)

AUDIO

AUDIO Input

Stereo Mini Jack Analog Audio Stereo L/R 0.5 Vrms HDMI Connector Digital Audio PCM 32, 44.1, 48 KHz (16/20/24bit) DisplayPort Connector Digital Audio PCM 32, 44.1, 48 KHz (16/20/24bit)

AUDIO Output

Stereo Mini Jack Analog Audio Stereo L/R 0.5 Vrms

Speaker Output External Speaker Jack 15 W + 15 W (8 ohm)

Internal Speaker 10 W + 10 W (Stereo)

Control RS-232C In:

LAN:

Remote IN:

9 Pin D-sub RJ-45 10 BASE-T/100 BASE-TX x 2

Stereo Mini Jack 3.5 mm Ø SD card Hub Port: microSD card. Up to 32GB microSDHC is supported. USB Hub USB1:

USB2:

USB CM1 (2A):

USB CM2:

USB MP:

USB 2.0 Downstream port

USB 2.0 Upstream port

Power supply port, 5V/2A (max.)

USB service port for maintenance

Media Player/Firmware update port Power Supply 7.5 - 3.1 A @ 100-240V AC, 50/60Hz Power Consumption Normal operation: Approx. 380 W Operational Environment Temperature*

Humidity:

Altitude:

0-40°C/32-104°F

20 - 80% (without condensation)

0 - 3000 m (Brightness may decrease with altitude) Storage Environment Temperature:

Humidity:

-20-60°C/-4-140°F

10-90%(withoutcondensation)/90%-3.5%x(Temp-40°C)regardingover40°C

Dimension*

2193.8 (W) x 1248.8 (H) x 93.0 (D) mm/86.4 (W) x 49.2 (H) x 3.7 (D) inches Weight 90.0 kg (198.4 lbs) VESA compatible mounting interface 400 mm x 400 mm (M8, 4 Holes) Power Management VESA DPM Power supply for Slot 2 type OPTION 16V/4.7 A

NOTE: Technical speciﬁcations are subject to change without notice. *

: Compressed image.

: When you use option board accessories, please contact your supplier for detailed information.

: Reproduced text may look blurred.

: Measurements are of the monitor only and do not include removable parts that protrude.

English-75

English

NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally-friendly products, and always strive to help deﬁne and comply with the latest independent standards from agencies such as ISO (International Organisation for Standardization) and TCO (Swedish Trades Union).

Disposing of your old NEC product

The aim of recycling is to gain an environmental beneﬁt by means of re-use, upgrading, reconditioning or reclamation of material. Dedicated recycling sites ensure that environmentally harmful components are properly handled and securely disposed. To ensure the best recycling of our products, NEC DISPLAY SOLUTIONS offers a variety of recycling procedures and gives advice on how to handle the product in an environmentally sensitive way, once it has reached the end of its life.

All required information concerning the disposal of the product and country-speciﬁc information on recycling facilities can be found on our following websites:

https://www.nec-display-solutions.com/p/greenvision/en/greenvision.xhtml (in Europe), http://www.nec-display.com (in Japan) or http://www.necdisplay.com (in USA).

Energy Saving

This monitor features an advanced energy saving capability. When a Display Power Management signal is sent to the monitor, the Energy Saving mode is activated. The monitor enters a single Energy Saving mode.

For additional information visit:

http://www.necdisplay.com/ (in USA) http://www.nec-display-solutions.com/ (in Europe) http://www.nec-display.com/global/index.html (Global)

For ErP requirement/For ErP (Network standby) requirement: Setting: CONTROL USB USB POWER AUTO Condition: Without any option board. INPUT DETECT is set to a setting except for NONE. USB POWER is set to ON. DisplayPort is set to MST.

Power consumption: 2 W or less (Glowing amber). Time for power management function: 10 sec. (Default setting) (Except for a condition that the monitor has plural signal inputs.)

Power consumption: 0.5 W or less (Blinking amber). Time for power management function: 3 min. (Default setting) (Except for a condition that the monitor has plural signal inputs.)

Manufacturer’s Recycling and Energy Information

English-76

WEEE Mark (European Directive 2012/19/EU and amendments)

Disposing of your used product: In the European Union

EU-wide legislation as implemented in each Member State requires that used electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes monitors and electrical accessories, such as signal cables or power cords. When you dispose of such products, please follow the guidance of your local a uthority or ask the shop where you purchased the product, or if applicable, follow applicable legislation or agreement you may have. The mark on electrical and electronic products may only apply to the current European Union Member States.

Outside the European Union

If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority and ask for the correct method of disposal.

For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation.

According to EU directive 2006/66/EC, the battery can’t be disposed improperly. The battery shall be separated to collect by local service.

English-77

English

1. MPEG-4 AVC

THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

2. MPEG-4 Visual

THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM.

[Notice] About the MPEG-4 AVC,

MPEG-4 Visual license included in this product

NEC MultiSync V984Q, MultiSync V754Q, MultiSync V864Q User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
