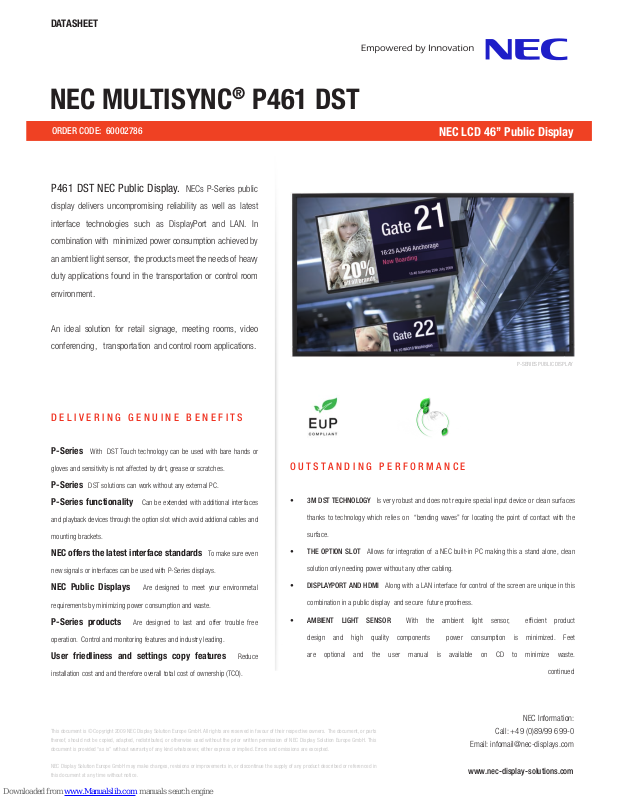

NEC MULTISYNC P461 DST Specifications

DATASHEET

NEC LCD 46’’ Public Display

ORDER CODE: 60002786

NEC MULTISYNC® P461 DST

This document is © Copyright 2009 NEC Display Solution Europe GmbH. All rights are reserved in favour of their respective owners. The document, or parts

thereof, should not be copied, adapted, redistributed, or otherwise used without the prior written permission of NEC Display Solution Europe GmbH. This

document is provided “as is” without warranty of any kind whatsoever, either express or implied. Errors and omissions are excepted.

NEC Display Solution Europe GmbH may make changes, revisions or improvements in, or discontinue the supply of any product described or referenced in

this document at any time without notice.

NEC Information:

Call: +49 (0)89/99 699-0

Email: [e-mail]

www.nec-display-solutions.com

P-SERIES PUBLIC DISPLAY

P461 DST NEC Public Display. NECs P-Series public

display delivers uncompromising reliability as well as latest

interface technologies such as DisplayPort and LAN. In

combination with minimized power consumption achieved by

an ambient light sensor, the products meet the needs of heavy

duty applications found in the transportation or control room

environment.

An ideal solution for retail signage, meeting rooms, video

conferencing, transportation and control room applications.

D E L I V E R I N G G E N U I N E B E N E F I T S

P-Series With DST Touch technology can be used with bare hands or

gloves and sensitivity is not affected by dirt, grease or scratches.

P-Series DST solutions can work without any external PC.

P-Series functionality Can be extended with additional interfaces

and playback devices through the option slot which avoid addional cables and

mounting brackets.

NEC offers the latest interface standards To make sure even

new signals or interfaces can be used with P-Series displays.

NEC Public Displays Are designed to meet your environmetal

requirements by minimizing power consumption and waste.

P-Series products Are designed to last and offer trouble free

operation. Control and monitoring features and industry leading.

User friedliness and settings copy features Reduce

installation cost and and therefore overall total cost of ownership (TCO).

O U T S T A N D I N G P E R F O R M A N C E

• 3M DST TECHNOLOGY Is very robust and does not require special input device or clean surfaces

thanks to technology which relies on “bending waves” for locating the point of contact with the

surface.

• THE OPTION SLOT Allows for integration of a NEC built-in PC making this a stand alone, clean

solution only needing power without any other cabling.

• DISPLAYPORT AND HDMI Along with a LAN interface for control of the screen are unique in this

combination in a public display and secure future proofness.

• AMBIENT LIGHT SENSOR With the ambient light sensor, efficient product

design and high quality components power consumption is minimized. Feet

are optional and the user manual is available on CD to minimize waste.

continued

Technical Sp ecific ations Multi Sync® P461 DST

DISPLAY

Panel Technology S-PVA TFT
Active Screen Area 1018.4 x 572.5 mm
Screen Size 46 inch / 117 cm
Pixel Pitch 0.461 x 0.461 mm
Brightness (typical) 500 cd/m

2

(factory setting), 700 cd/m2 peak
Contrast (typical) 4000:1
Viewing Angle 158° horizontal / 158° vertical (typ. at contrast ratio 10:1)
Response Time (typical) 8 ms (grey-to-grey)

SYNCHR ONIZATION RANGE

Horizontal 31.5 - 91.1 kHz (analog and digital)
Vertical 50 - 85 Hz

RESOLU TION

Native 1920 x 1080 at 60 Hz

Supported

1680 x 1050 1280 x 1024 800 x 600
1600 x 1200 1280 x 768 720 x 400
1440 x 1050 1024 x 768 640 x 480
1360 x 768 832 x 624

INPUTS

Video Input

Analog: 1 x S-Video; 5 x BNC, Component, Composite
(via BNC and Cinch); 1 x D-sub 15 pin;
Digital: 1 x DVI-D (with HDCP); 1 x HDMI; 1 x Display Port

Video Output

Analog: 1 x BNC composite out; 5 x BNC for RGBHV,

Component and Composite
Audio Input 2 x Cinch (RCA); 1 x Head-jack 3.5 mm
Audio Output 1 x Cinch (RCA)

REMOTE CONTR OL

Ethernet; RS-232C (9-pin D-sub) Input and Output;

D-sub 15 and DVI-D (DDC/CI); Remote Control IR

VIDEO MODES (no tuner)

480i; 480p; 576i; 576p; 2 x720p (50 and 60 Hz);

2 x 1080i (50 and 60 Hz); 2 x 1080p (50 and 60 Hz)

POWER CONSUM PTION

Typical 210 W (at 500 cd/m

2

)
Maximum 360 W (with speakers and built-in PC 100% workload)
Power Savings Mode < 1 W standby; < 0,5 W eco standby
Power Management VESA DPMS
Power Requirements 100-120 V/220-240 V; internal power supply

ENVIRO NMENTAL

Operating Temperature 5 to 35º C
Operating Humidity 20 to 80 %
Storage Humidity 10 to 90%

DIMENS IONS ( W x H x D) w/o stand (net) 1055 x 609 x 148 mm

WEIGHT

With stand (net) 42.5 kg
Without stand (net) 40.7 kg

BEZEL WIDTH top / bottom: 16.5 mm; left / right: 16.5 mm

AVAILABLE OP TIONS

Option Slot

Built-in PC; DVI daisy chain board; HD-SDI board; CAT 5

receiver; NEC Media Player
Speakers 15 W + 15 W
Wall Mount W32-70
Stand Yes

OTHERS

Savety and Ergonomics

CE; TÜV GS; C-tick; FCC Class B; UL/C-UL or CSA;

CCC; PSB; VCCI; RoHS
Plug & Play VESA DDC2B
VESA Mounting 300 x 300; M6; 4 holes

TOUCH SPECIF ICATIONS

Input Methode Finger and stylus input
Light transmission** 92% light transmission (±2%)
Substrat material Chemically-strengthened glass substrate

Surface obstructions

Touch screen operation withstands surface contaminants

such as dirt, dust and grime
Communicatoins Prototcol USB HID

Driver

MicroTouch MT7 for MicroTouch DST driver for Microsoft

®

Windows® 2000 / XP / VISTA, HID-compliant

WARRANTY 3 years warranty incl. backlight
For additional pictures and Solutions overview, Visit www.nec-display-solutions.com for details.

Energy Efficiency: Carbon footprint meter

Ambient light sensor

Ecological Materials: Optional feet

Ecological Standards: EuP Compliant

Save printing waste. All NEC Datasheets are available for download at our wesbite

www.nec-display-solutions.com

NEC MULTISYNC

®

P461 DST

INPUT OF THE P-SERIES

Main Power Switch Video1 Out

RGB/HV Out
DVD/HD2 Out
Video2 Out

RS232C Out

HDMI In

AC In S-Video In

RGB/HV In
DVD/HD2 In
Video2 In

LAN Port

VGA In

Audio Out

Display Port Audio 1/2/3 In

Remote In

DVI In

RS232C In

21

1 9

7

14

4

2 10

8

15

5

12

3 11

16

6

13

3

13

15

15

16

4

6

8

10 9 10 12

11975

P-SERIES

• OSD Information on the inside temperature through OSD and

extensive user fan control are unique and secure unpraralleled

reliability of NEC P-Series. The displays can send alarm emails

via free NEC LAN software in the unlikely event of a problem

** Test uses BYK Gardner Haze Gard Plus.
