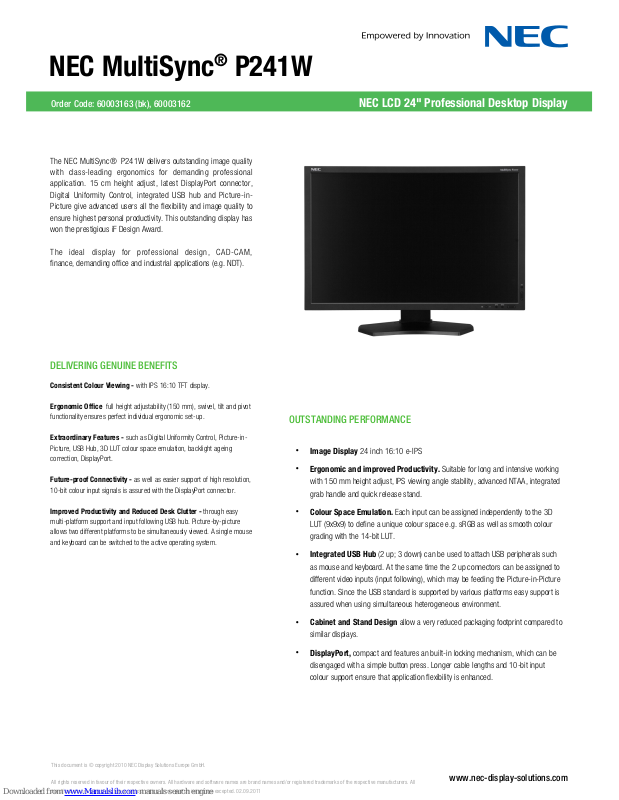

Page 1
NEC MultiSync® P241W
Order Code: 60003163 (bk), 60003162
NEC LCD 24" Professional Desktop Display
The NEC MultiSync® P241W delivers outstanding image quality
with class-leading ergonomics for demanding professional
application. 15 cm height adjust, latest DisplayPort connector,
Digital Uniformity Control, integrated USB hub and Picture-inPicture give advanced users all the flexibility and image quality to
ensure highest personal productivity.This outstanding display has
won the prestigious iF Design Award.
The ideal display for professional design, CAD-CAM,
finance,demanding office and industrial applications (e.g. NDT).
DELIVERING GENUINE BENEFITS
Consistent Colour Viewing - with IPS 16:10 TFT display.
Ergonomic Office full height adjustability (150 mm), swivel, tilt and pivot
functionality ensures perfect individual ergonomic set-up.
Extraordinary Features - such as Digital Uniformity Control, Picture-inPicture, USB Hub, 3D LUT colour space emulation, backlight ageing
correction, DisplayPort.
Future-proof Connectivity - as well as easier support of high resolution,
10-bit colour input signals is assured with the DisplayPort connector.
Improved Productivity and Reduced Desk Clutter - through easy
multi-platform support and input following USB hub. Picture-by-picture
allows two different platforms to be simultaneously viewed. A single mouse
and keyboard can be switched to the active operating system.
OUTSTANDING PERFORMANCE
Image Display 24 inch 16:10 e-IPS
•
Ergonomic and improved Productivity. Suitable for long and intensive working
with 150 mm height adjust, IPS viewing angle stability, advanced NTAA, integrated
grab handle and quick release stand.
•
Colour Space Emulation. Each input can be assigned independently to the 3D
LUT (9x9x9) to define a unique colour space e.g. sRGB as well as smooth colour
grading with the 14-bit LUT.
•
Integrated USB Hub (2 up; 3 down) can be used to attach USB peripherals such
as mouse and keyboard. At the same time the 2 up connectors can be assigned to
different video inputs (input following), which may be feeding the Picture-in-Picture
function. Since the USB standard is supported by various platforms easy support is
assured when using simultaneous heterogeneous environment.
•
Cabinet and Stand Design allow a very reduced packaging footprint compared to
similar displays.
•
DisplayPort, compact and features an built-in locking mechanism, which can be
disengaged with a simple button press. Longer cable lengths and 10-bit input
colour support ensure that application flexibility is enhanced.
•
This document is © copyright 2010 NEC Display Solutions Europe GmbH.
All rights reserved in favour of their respective owners. All hardware and software names are brand names and/or registered trademarks of the respective manufacturers. All
specifications are subject to change without notice. Errors and omissions are excepted. 02.09.2011
www.nec-display-solutions.com
Page 2
NEC MultiSync® P241W
SPECIAL CHARACTERISTICS
Advanced NTAA, Auto Black Level, Auto Brightness, Auto Contrast,
Backlight Ageing Correction, CableComp with Sync Continuity
Detection, ColorComp, DDC/CI compatible, Direct Brightness and
Contrast, EcoModes, 14 Bit Look Up Table for 14 Bit smooth Gamma
curves, NaViSet®and NaViSet®Administrator compatible,
OmniColor™: sRGB and 6-Axis-Colour-Control, Overdrive, Quick
release Stand and Handle, RapidMotion, Rapid Response Technology,
Self Diagnostics, TileComp, TileMatrix, TORO™ Design, AmbiBright
Energy Efficiency Ambient light sensor ; Auto brightness ;
Carbon savings meter ; ECOMode ;
Intelligent Power Management ; Reduced
consumption
Ecological Materials 100% recyclable packaging ; Arsenic-free
panel module ; Black model built from
recycled plastics
Ecological Standards ErP compliant ; ISO 14001 ; RoHs
compliant; WEEE
Technical Specification NEC MultiSync® P241W
DISPLAY
Panel Technology IPS TFT (CCFL backlight)
Screen Size [inch/cm] 24.1 / 61.1
Colour Gamuts (Size comparision, typ.) 75% AdobeRGB, 72% NTSC
Pixel Pitch [mm] 0.270
Brightness (typ.) [cd/m2]
360
Contrast Ratio (typ.) 1000:1
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms] 8 (grey-to-grey); 16 (8 white / black; 8 black / white)
Colours [Mio.] 16.77
SYNCHRONISATION RATE
Horizontal Frequency [kHz] 31.5 - 93.8 and 118.4 (analog); 31.5 - 91.1 and 118.4 (digital)
Vertical Frequency [Hz] 50 - 85
RESOLUTION
Optimum Resolution 1920 x 1200 at 60 Hz
Supported 1920 x 1080p; 1600 x 1200; 1280 x 1024; 1280 x 960; 1280 x 720p;
1200 x 1920; 1152 x 870; 1152 x 864; 1024 x 768; 832 x 624; 800 x
600; 720 x 576p; 720 x 480p; 720 x 400; 640 x 480; 640 x 480p
CONNECTIVITY
Digital: 2 x DVI-D; 1 x DisplayPort
Analog: 1 x D-sub 15 pin
ELECTRICAL
Power Consumption on Mode [W] 56 (Eco Mode 1); 95 (max.)
Power Savings Mode [W] 1
Power Supply 100-240 V; 1.4 A/0.5 A; integrated power supply
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +5 to +35
Operating Humidity [%] 30 to 80
ERGONOMICS
Height adjustable stand [mm] 110; 150 (Landscape mode); Pivot 90°
Screen Tilt / Swivel [°] -5 to 30; -170 to 170
MECHANICAL
Bezel Width [mm] 18.2; 18.2 (left and right); 18.2 (top and bottom)
Dimensions (W x H x D) [mm] 556.8 x 378 - 528 x 227.6 (Landscape mode); Without stand: 556.8 x
362.4 x 85
Weight [kg] 10.6; Without stand: 7.4
VESA Mounting [mm] 100 x 100 (4 points); 200 x 100 (5 points)
ADDITIONAL FEATURES
Colour Versions Silver Front Bezel; White Back Cabinet; Black Front Bezel, Black
Back Cabinet
Cable Management yes
Kensington security slot yes
Plug and Play VESA DDC/CI; EDID Standard; VESA DDC2B
Adjust Functions Advanced NTAA (Advanced Non-Touch-Auto-Adjustment); Advanced
User Menu; Auto Adjust; Black Level; Brightness; Colour
Temperature Control; Contrast; Expansion Mode; Fine Adjust
(analog); Hotkeys; Intelligent Power Management; Language Select;
Monitor Information; OmniColor™: sRGB and 6-axis-colour-control ;
On-Screen-Display (OSD) lock-out; Sharpness
Shipping Content Monitor; Power Cable; Signal Cable DisplayPort; CD-ROM; Sales
Office List; User Manual
Signal Cable: VGA - VGA; DVI-D - DVI-D
Safety and Ergonomics CE; ErP; TCO 03; TÜV Ergonomics; TÜV GS; C-tick; FCC Class B;
PCT/Gost; UL/C-UL or CSA; CCC; ISO 9241-307 (pixel failure class
I); MPR II/ MPR III; PCBC/B-mark; PSB; RoHS
Warranty 3 years warranty incl. backlight
