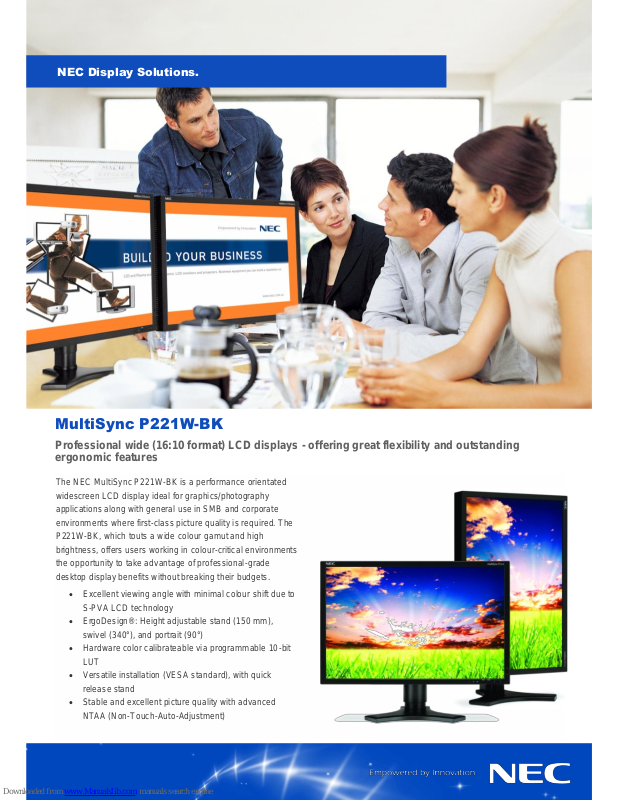

Page 1
The NEC MultiSync P221W-BK is a performance orientated
widescreen LCD display ideal for graphics/photography
applications along with general use in SMB and corporate
environments where first-class picture quality is required. The
P221W-BK, which touts a wide colour gamut and high
brightness, offers users working in colour-critical environments
the opportunity to take advantage of professional-grade
desktop display benefits without breaking their budgets.
Excellent viewing angle with minimal colour shift due to
S-PVA LCD technology
ErgoDesign®: Height adjustable stand (150 mm),
swivel (340°), and portrait (90°)
Hardware color calibrateable via programmable 10-bit
LUT
Versatile installation (VESA standard), with quick
release stand
Stable and excellent picture quality with advanced
NTAA (Non-Touch-Auto-Adjustment)
MultiSync P221W-BK
Professional wide (16:10 format) LCD displays - offering great flexibility and outstanding
ergonomic features
NEC Display Solutions.
Page 2
For more information please call
131 632
from anywhere in Australia or email
www.nec.com.au
About NEC Australia Pty Ltd. Established in 1969, NEC Australia is a leading supplier and integrator of ICT (information and communications technology) solutions to carriers, government and
businesses. NEC researches, develops and deploys advanced IT/Network communication solutions and services tailored to customer’s needs. Our product range includes IP Communications Servers,
PBX, Broadband Access Systems, Systems Integration and Hosted Application and Network Services along with a wide range of Digital Signage and Data Technology products.
NEC Australia Pty Ltd reserves the right to change product specifications, functions, or features, at any time, without notic e. Please refer to your local NEC representatives for further details. Although all efforts have been made to
ensure that the contents are correct, NEC shall not be liable for any direct, indirect, consequential or incidental damages r esulting from the use of the equipment, manual or any related materials.
The information contained herein is the property of NEC Australia Pty Ltd and shall not be reproduced without prior written approval from NEC Australia Pty Ltd.
Copyright© 2009 NEC Australia Pty Ltd. All rights reserved. NEC, NEC logo, and UNIVERGE are trademarks or registered trademar ks of NEC Corporation that may be registered in Japan and other jurisdictions.
All other
trademarks are the property of their respective owners. All rights reserved
. Printed in Australia.
Note:
This disclaimer also applies to all related documents previously published.
Specifications: NEC MultiSync
®
P221W-BK
NEC Commercial Display Solutions is a market leader in the distribution of MultiSync LCD displays, MultiSync DLP
and LCD projectors and innovative Digital Signage Solutions. NEC has a network of sales and service offices across
Panel Technology S-PVA TFT
Screen Size [inch/cm] Screen Size [inch/cm]
Pixel Pitch [mm] 0.282
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 5:1)
178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
1000:1 Contrast Ratio (typ.)
300 Brightness (typ.) [cd/m²]
6 (grey-to-grey), 16 (7 white / black; 9 black / white) Response Time (typ.) [ms]
Colours [Mil.] 16.7
Horizontal Frequency [kHz] 31.5 - 83.0
Vertical Frequency [Hz] 56.0 - 75.0
Optimum Resolution 1680 x 1050 at 60 Hz
Supported Resolutions 1440 x 900; 1400 x 1050; 1360 x 768; 1280 x 1024; 1280 x 960; 1152 x 870; 1152 x 864; 1024
x 768; 832 x 624; 800 x 600; 720 x 400; 640 x 480
Connectors Digital/ Analog: 1 x DVI-I; Analog: 1 x mini D-sub 15 pin
Plug & Play VESA DDC/CI; DDC2B/2Bi; EDID Standard
Adjust Functions Advanced NTAA (Advanced Non-Touch-Auto-Adjustment); Auto Adjust; Brightness; Colour
Temperature Control; Contrast; EcoMode; Fine Adjust (analog); Language Select; Monitor Information;
On-Screen-Display (OSD) lock-out; Power-Off Timer; Programmable 10-bit LUT; sRGB
Safety and Ergonomics CE; TCO 03; TÜV Ergonomics; TÜV GS; Energy Star; FCC Class B; PCT/Gost; UL/C-UL or CSA; CCC;
ISO 13406-2 (pixel failure class II); MPR II/ MPR III; RoHS; ECO Green IT
Power Consumption on Mode [W] 62 (typ.); 50 (Eco Mode)
Power Consumption Power-Saving Mode [W] 2
Power Supply 100-120 V/220-240 V; 0.95 A/0.4 A; integrated power supply
Ambient Temperature (operating) [°C] +5 to +35
Ambient Humidity (operating) [%] 20 to 80
VESA Mounting [mm] 100 x 100
ErgoDesign®: Height adjustable Stand [mm] 150
Screen Tilt [°] / Pivot [°] -5 to +30 / 0° (Landscape) to 90° (Portrait)
Swivel [°] 340
Dimensions (W x H x D) [mm] 506.4 x 410.0 x 247.3
Bezel Width [mm] 15.0
Cable Management yes
Kensington Lock yes
Benefits 16:10 wide format; AmbiBright; Carbon Savings Meter; NaViSet®and NaViSet®Administrator compatible; Rapid Response Technology
Audio Functions Option: MultiSync® Soundbar 90
Colour Versions Silver Front Bezel; White Back Cabinet / Black Front Bezel; Black Back Cabinet
Shipping Content Monitor; Power Cable; Signal Cable DVI-D - DVI-D; Signal Cable VGA - VGA; CD-ROM; Sales Office List; User Manual
Warranty 3 years warranty incl. backlight
