NEC MultiSync V520, MultiSync V521, MultiSync MV521, Diamond Scan 51 Service Manual

Download

MODELS MultiSync V520

MultiSync V521 MultiSync MV521 Diamond Scan 51

COLOR MONITOR (Model No. N0501 Series)

SERVICE MANUAL

Better Service

Better Reputation

Better Profit

/MITSUBISHI

NEC-MITSUBISHI ELECTRIC VISUAL SYSTEMS

PRODUCT SAFETY CAUTION

1. When parts replacement is required for servicing, always use the manufacturer’s specified replacement.

2. Comply with all caution and safety-related notes on the product display chassis and picture tube.

3. When replacing the component, always be certain that all the components are put back in the place.

4. When servicing display monitor unit, it is required that the provided lead dress is used in the high voltage circuit area.

5. It is also recommended that shatter proof goggles are worn, when removing, installing and handling the picture tube. People not equipped with the proper precautionary measures mentioned should keep the picture tube away from body while handling.

6. As for a connector, pick and extract housing with fingers properly since a disconnection and improper contacts may occur, when wires of the connector are led.

7. Use a proper screwdriver. If you use screwdriver that does not fit, you may damage the screws.

W A R N I N G

The SERVICE PERSONNEL should have the appropriate technical training knowledge and experience necessary to :



Be familiar with specialized test equipment, and



Be careful to follow all safety procedures associated with high voltage CRT circuit designs to minimize danger to themselves and their coworkers.

To avoid electrical chocks, this equipment should be used with an appropriate power cord and be connected only to a properly grounded AC outlet

This equipment utilized a micro-gap power switch. Turn off the monitor by first pushing the front panel power switch. Next, remove the power cord from the AC outlet.

To prevent fire or shock hazards, do not expose this unit to rain or moisture

This symbol warns the personnel that un-insulated voltage within the unit may have sufficient magnitude to cause electric shock.

This symbol alerts the personnel that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

CONTENTS

Page No.

PRECAUTIONS .................................................................................................................... 1

SPECIFICA TIONS ................................................................................................................ 3

PIN ADJUSTMENT TABLE................................................................................................... 4

CONTROLS .......................................................................................................................... 5

ON-SCREEN MANAGER(OSM)........................................................................................... 7

SERIAL NUMBER INFORMATION..................................................................................... 12

DISASSEMBLY................................................................................................................... 13

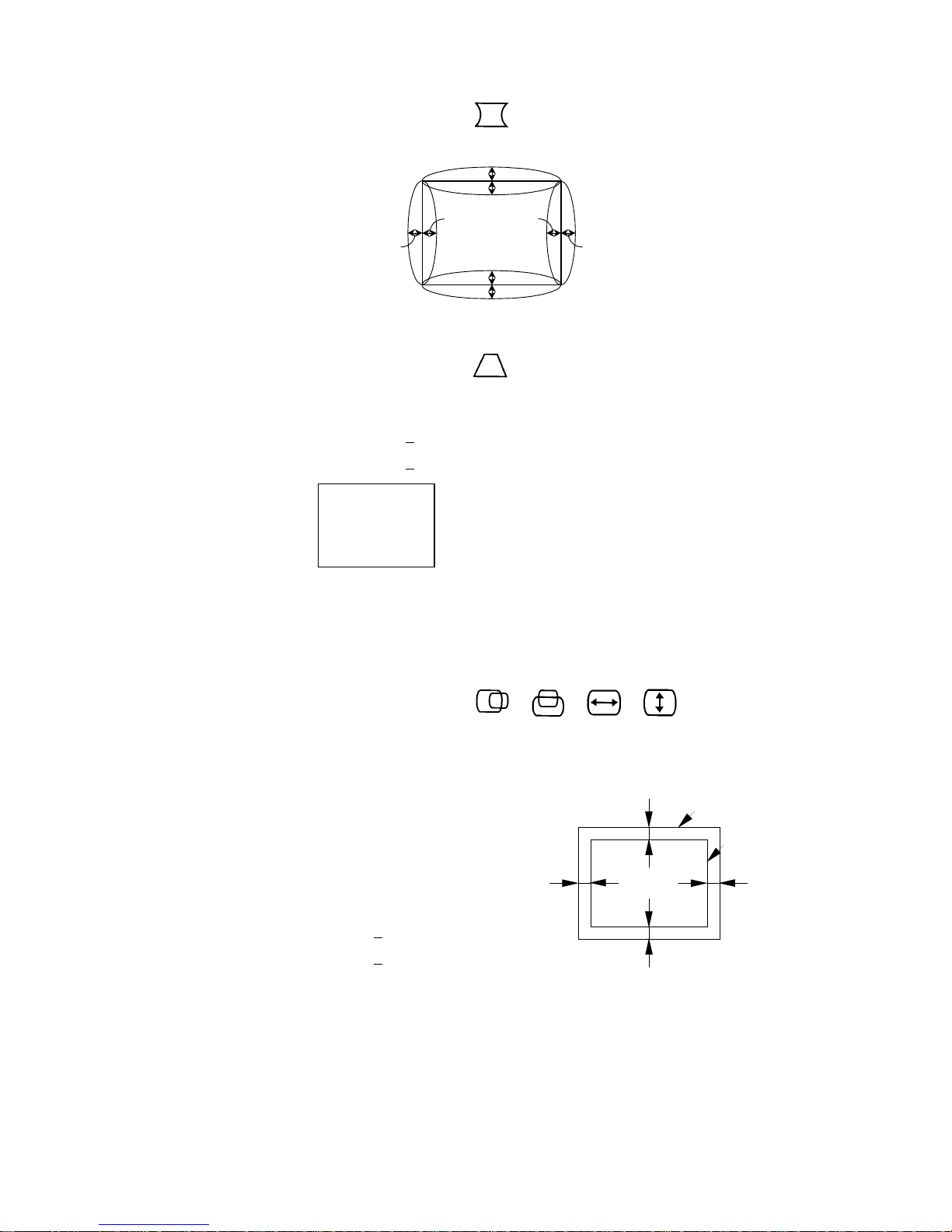

ADJUSTMENT PROCEDURES ......................................................................................... 16

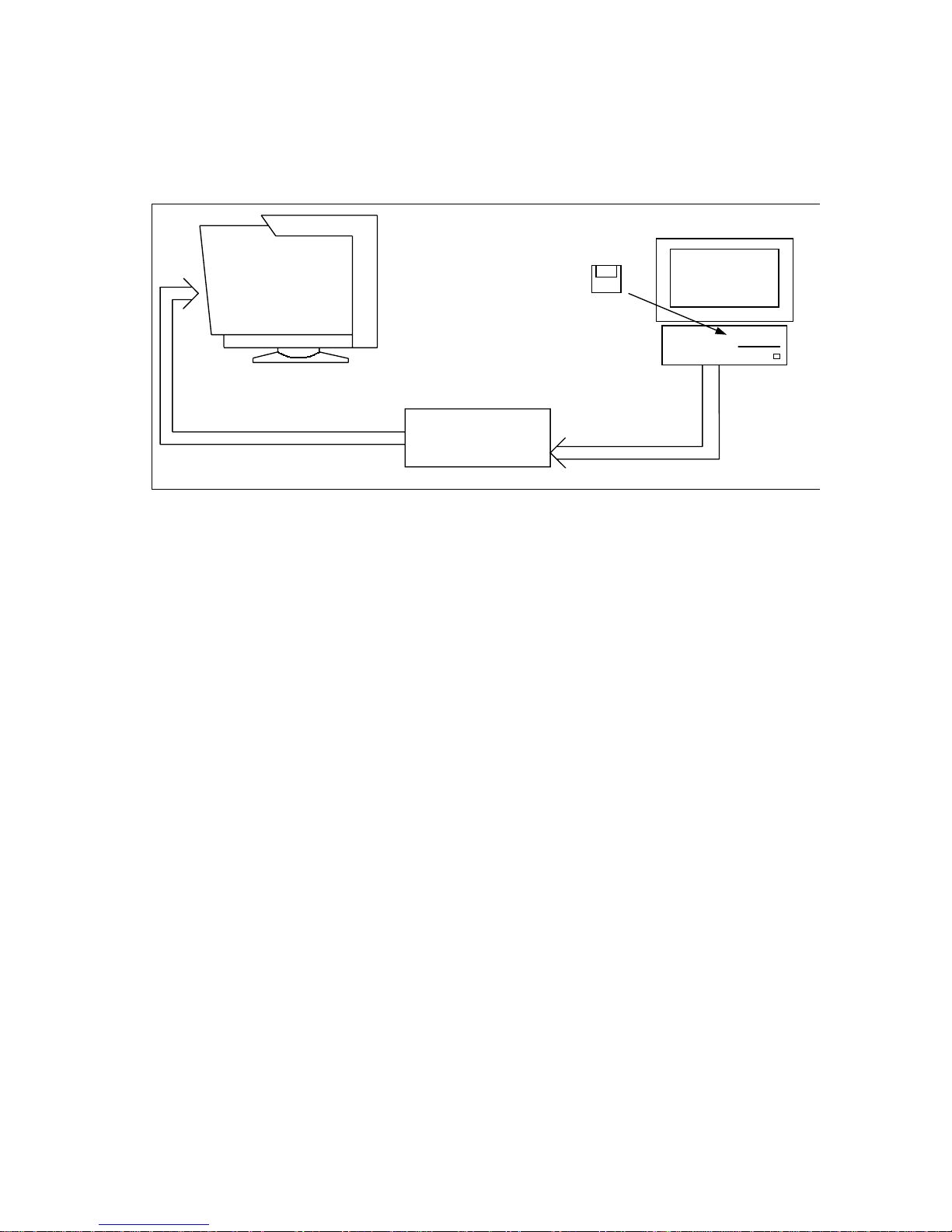

WRITE AND INSPECTION FOR PLUG AND PLAY COMMUNICATION........................... 28

TROUBLE SHOOTING....................................................................................................... 31

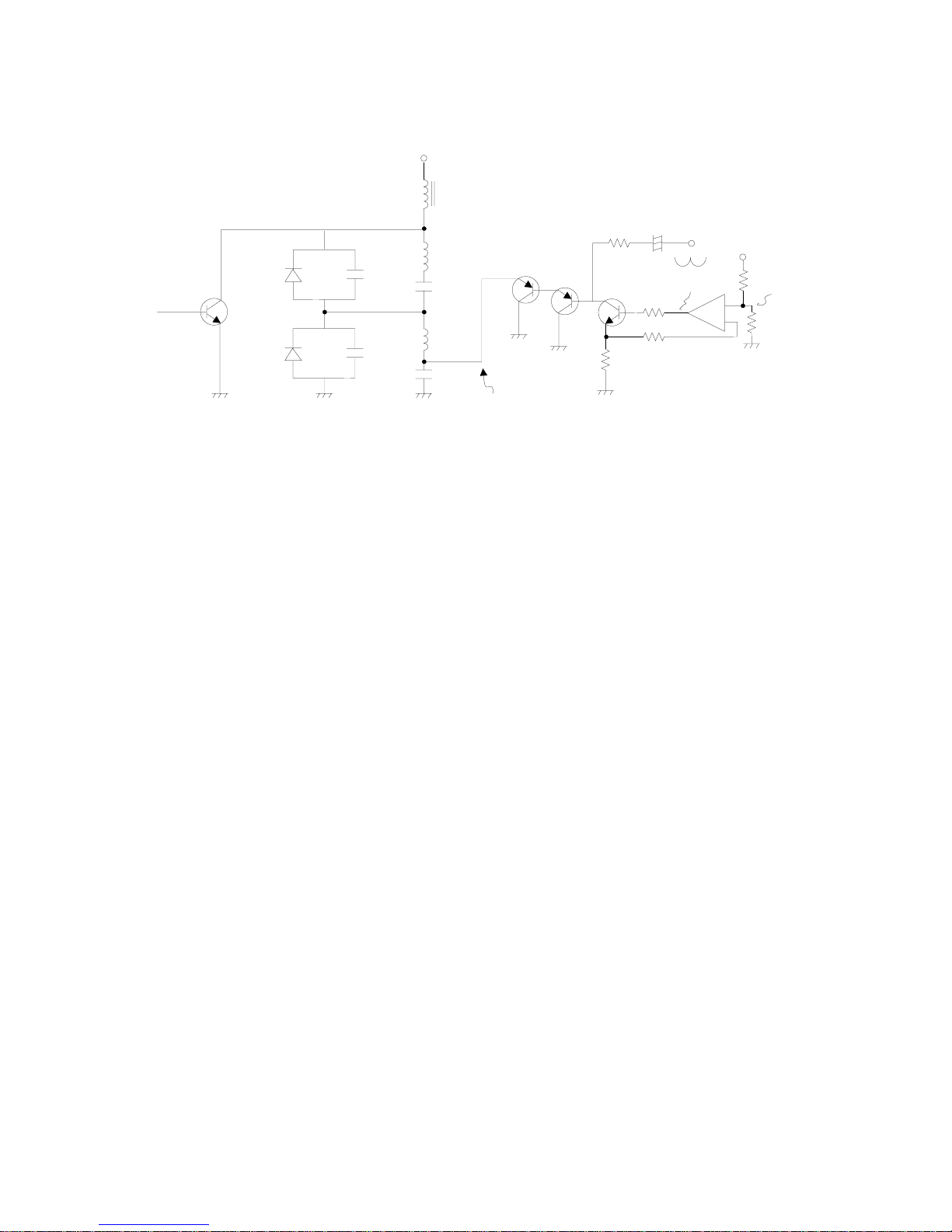

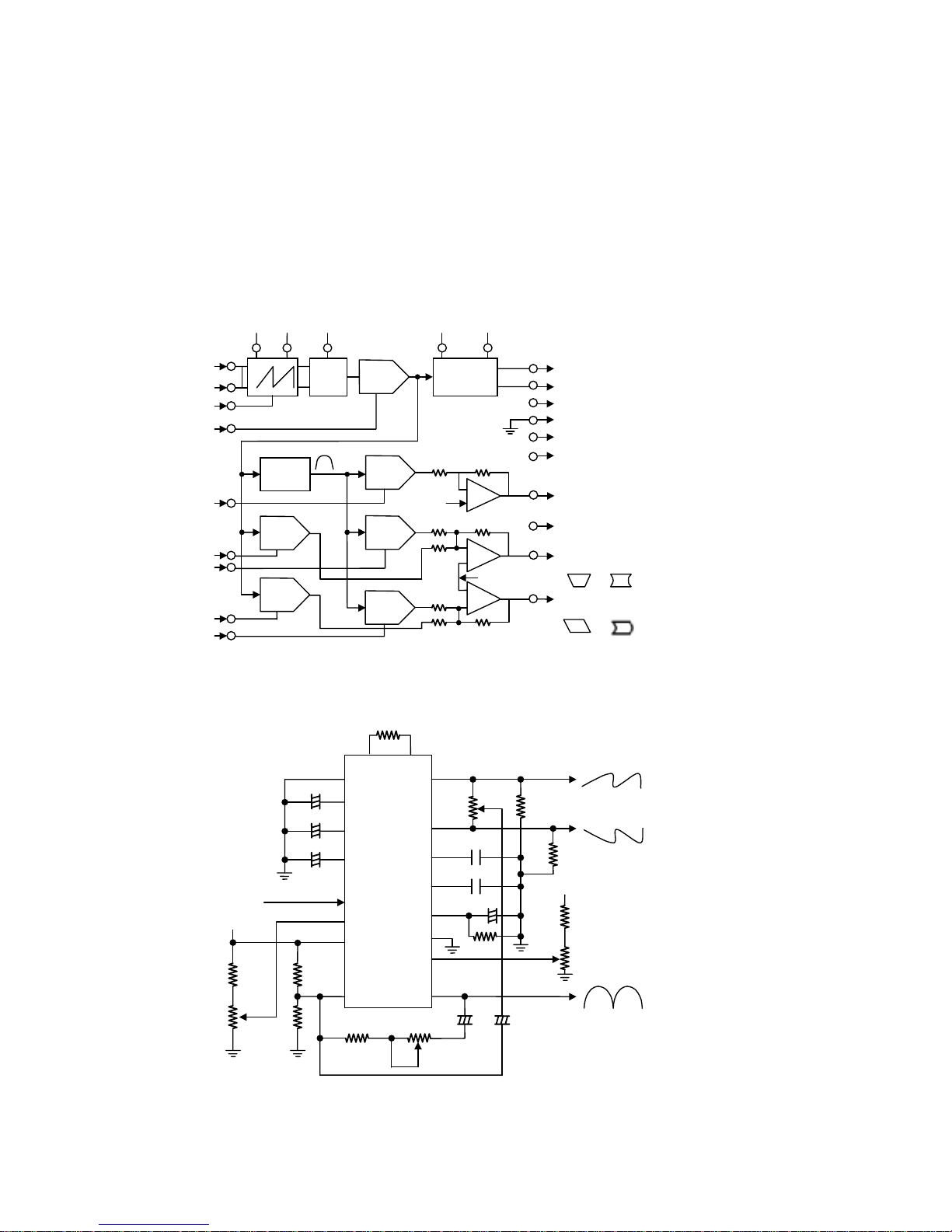

CIRCUIT DESCRIPTION.................................................................................................... 39

REPLACEMENT PARTS LIST............................................................................................ 74

1) MultiSync V520 Parts List .......................................................................................... 74

2) MultiSync V521 Different List..................................................................................... 94

3) MultiSync MV521 Different List.................................................................................. 96

4) Diamand Scan Different List ...................................................................................... 98

BLOCK DIAGRAMS............................................................................................................ 99

SCHEMATIC DIAGRAMS ................................................................................................. 100

1 Precautions

Follow these safety and servicing precautions to prevent damage and to protect against potential hazards such as electrical shock and X-rays.

1.1Safety Precautions

1-1-1 Warnings

1. For safety purpose, do not attempt to modify the circuit board, and always disconnect the AC power

before performing servicing on the monitor.

2. Operation of the monitor outside its cabinet or with the cover removed involves the risk of shock

hazard. Repair work on the monitor should only be attempted by service personnel who are thoroughly familiar with all necessary safety precautions and procedures for working on high voltage equipment.

3. Do not lift the CRT by the neck. After completely discharging the high voltage anode, handle the CRT

only when wearing shatterproof goggles. Try to keep the CRT away from the body during handling.

4. High voltage should always be kept at the rated value, no higher. Only when high voltage is excessive

are X-rays capable of penetrating the shell of the CRT. Operation at high voltages may also cause failure of the CRT or high voltage circuitry.

5. The CRT is especially constructed to limit X-ray emission to 0.5mR/HR at 300 microamperes anode

current. To ensure continued X-ray protection, replace the CRT with only the same or equivalent type as the original, and adjust the anode’s voltage to the designated maximum rating, never to exceed.

1-1-2 Safety Checks

Before returning the monitor to the user, perform the following safety checks:

1. Inspect to make certain that each lead dress is not pinched or that hardware is not lodged between the

chassis and other metal parts in the monitor.

2. Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs,

adjustment and compartment covers or shields, isolation resistor-capacitor networks, mechanical insulators, etc.

3. AC Leakage Current Check

Always perform the AC Leakage Current Check on the exposed metal parts, including metal cabinets, screwheads and control shafts, as follows: a) Plug the AC line cord directly into a rated AC outlet. Do not use an isolation transformer during the

check.

b) Use an AC voltmeter with at least 5000 ohms per volt sensitivity as follows:

Connect a 1500 ohms, 10 watt resistor paralleled by a 0.15uF AC capacitor in series with all exposed metal cabinet parts and a known earth ground, such as electrical conduct or electrical ground connected to earth ground, as shown in the Figure 1-1. Measure the AC voltage across the combination of resistor and capacitor.

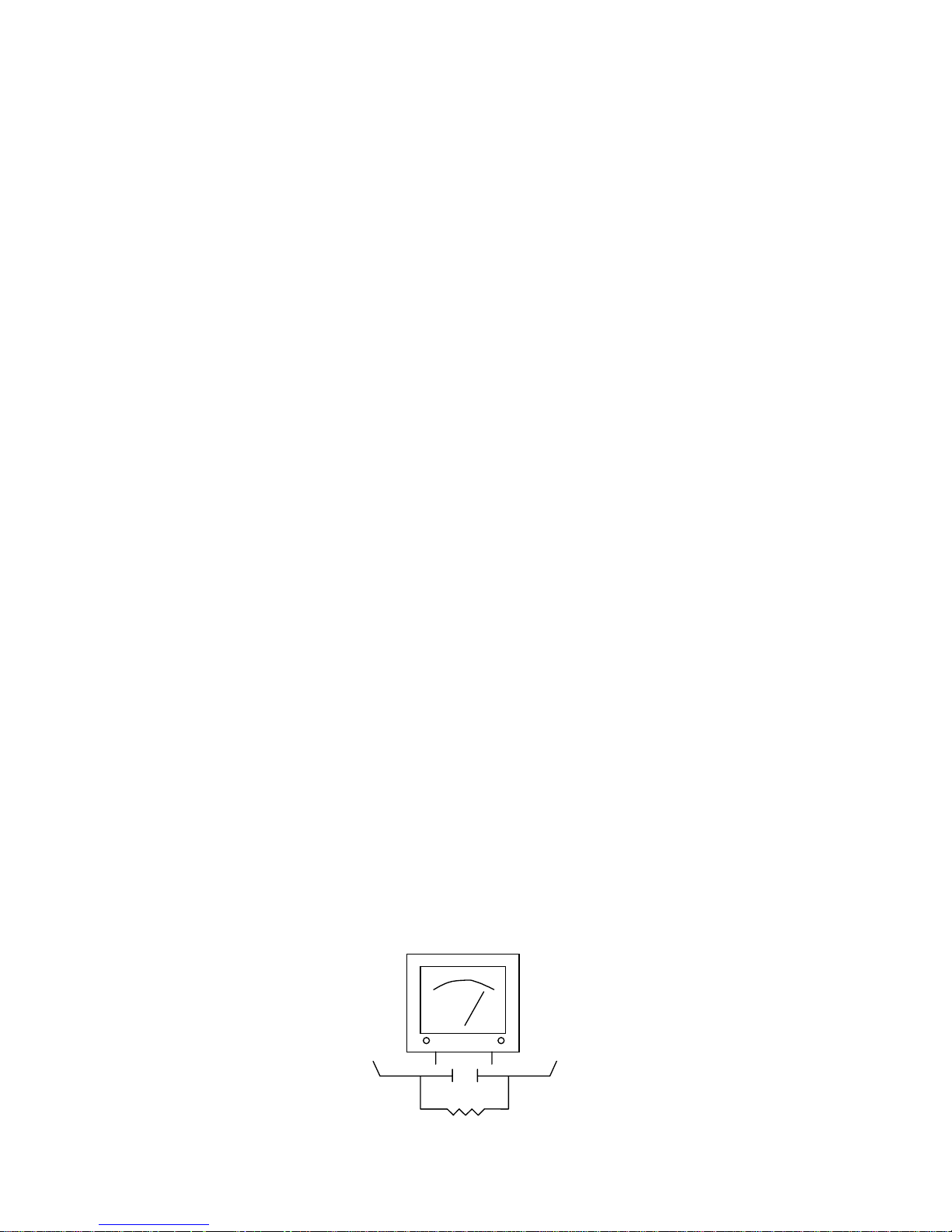

Figure 1-1. Set Up For AC Leakage Current Check

0.15ufd

1500 ohm 10 watt

To exposed metal

Cabinet part

To known

Earth ground

c) Reverse the AC plug at the AC outlet and repeat the steps for AC voltage measurements for each

exposed metal part.

d) Voltage reading must not exceed 0.3 volts RMS, equivalent to 0.2 milliampere AC. Any value ex-

ceeding this limits ill constitute a potential shock hazard and must be corrected immediately

1-1-3 Product Safety Notices

Many electrical and mechanical parts in this chassis have special safety-related characteristics which are often not evident from visual inspection. The protection afforded by them may not be obtained by replacing them with components rated for higher voltage, wattage, etc. Before replacing any of these components, consult the Recommended Spare Parts List given at the end of this manual. Any of the replacements that do not provide the same safety characteristics may result in shock, fire, X-ray emission or other hazards.

1.2Servicing Precautions

Warning: An electrolytic capacitor installed with the wrong polarity might explode.

Caution: Before performing servicing covered by this service manual, read and follow the Safety Precau-

tions section of this manual.

Note: If unforeseen conflict between the following servicing precautions and of the safety

precautions, always follow the safety precautions

1. Follow closely the servicing precautions printed on the monitor cabinet and chassis.

2. Always unplug the AC power cord from the AC power source before removing or installing any component or assembly, disconnection PCB plugs or connectors and connecting a test component in parallel with a capacitor.

3. When replacing parts or circuit boards, clamp the lead wires around the unit before soldering.

4. When replacing a high wattage resistor (>0.5W metal oxide film resistor) in the circuit board, keep the resistor about 1 cm (1/2 inch) away from the circuit board.

5. Keep wires away from the high voltage or high temperature components.

6. Keep wires in their original positions so as to minimize interference.

7. Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; always remove the instrument’s ground lead last.

SPECIFICATION

NOTE: Technical specifications are subject to change without notice.

Monitor Specifications

N0501 Monitor

Notes

Picture Tube

Diagonal:

Viewable Ima

e Size:

Radius:

38cm(15inch) 35cm(13.8inch) 1080mm

90° deflection, 0.28mm trio dot pitch, medium short persistence phosphor, multi-layered, antistatic screen coating, semi-tint screen, Invar Shadow Mask.

Input Signal Video:

nc:

ANALOG 0.7Vp-p/75 Ohms Separate sync. TTL Level Horizontal sync. Positive/ Negative Vert ical s

nc. Po s itive /N egative

Display Colors Analog input: Unlimited number of Colors Depends on display card used. Synchronization

Range

Horizontal:

Vertical:

31 kHz to 70 kHz 55 Hz to 120 Hz

Automatically Automatically

Resolutions Supported Resolution based on horizontal and vertical frequencies only

640 × 480 @ 60 to 120 Hz 800 × 600 @ 55 to 110 Hz 832 × 624 @ 55 to 106 Hz 1024

768 @ 55 to 87 Hz …… 1152 × 870 @ 55 to 77 Hz 1280 × 1024 @ 55 to 66 Hz

Some s

stems may not support all modes listed.

NEC cites recomm ended resolution at 85 Hz for optimal display performance.

Active Display Area

(

Factory Settin

Horizontal:

Vertical:

270mm 203mm

Dependent upon signal timing used, and does not include border area.

Active Display Area (Full Scan)

280mm 210mm

Dependent upon signal timing used, and does not include border area.

Power Supply AC 100 - 240V, 50 - 60Hz Current Rating 1.3A @ 100 - 240V Dimensions 360(W)

380(H)

381(D) mm Weight (Net) 12.5 kg Environmental Considerations

Operatin

Temperature:

Humidit

Altitude:

Stora

e Temperature:

Humidit

Altitude:

0° C to + 35° C 30% to 80% 0 to 3000 m

-20° C to + 60° C 10% to 90% 0 to 13700 m

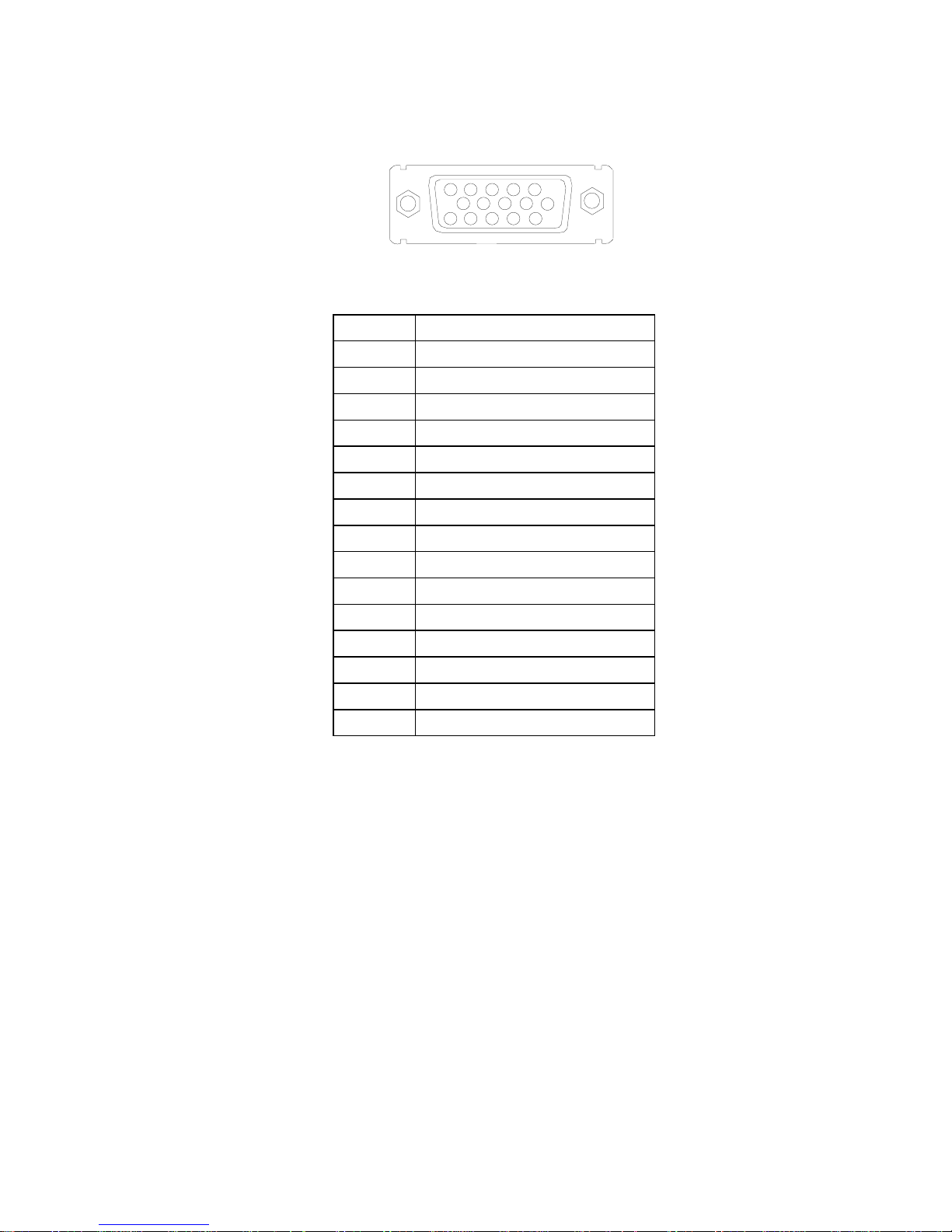

PIN ASSIGNMENT

1 2 3 4 5

6 7 8 9

11 12 13 14

PIN NO. Mini D-SUB-15P

1RED 2 GREEN 3BLUE 4 GROUND 5 GROUND 6 GROUND 7 GROUND 8 GROUND 9NO PIN

10 GROUND

11 GROUND 12 SDA 13 H.SYNC. 14 V.SYNC. 15 SCL

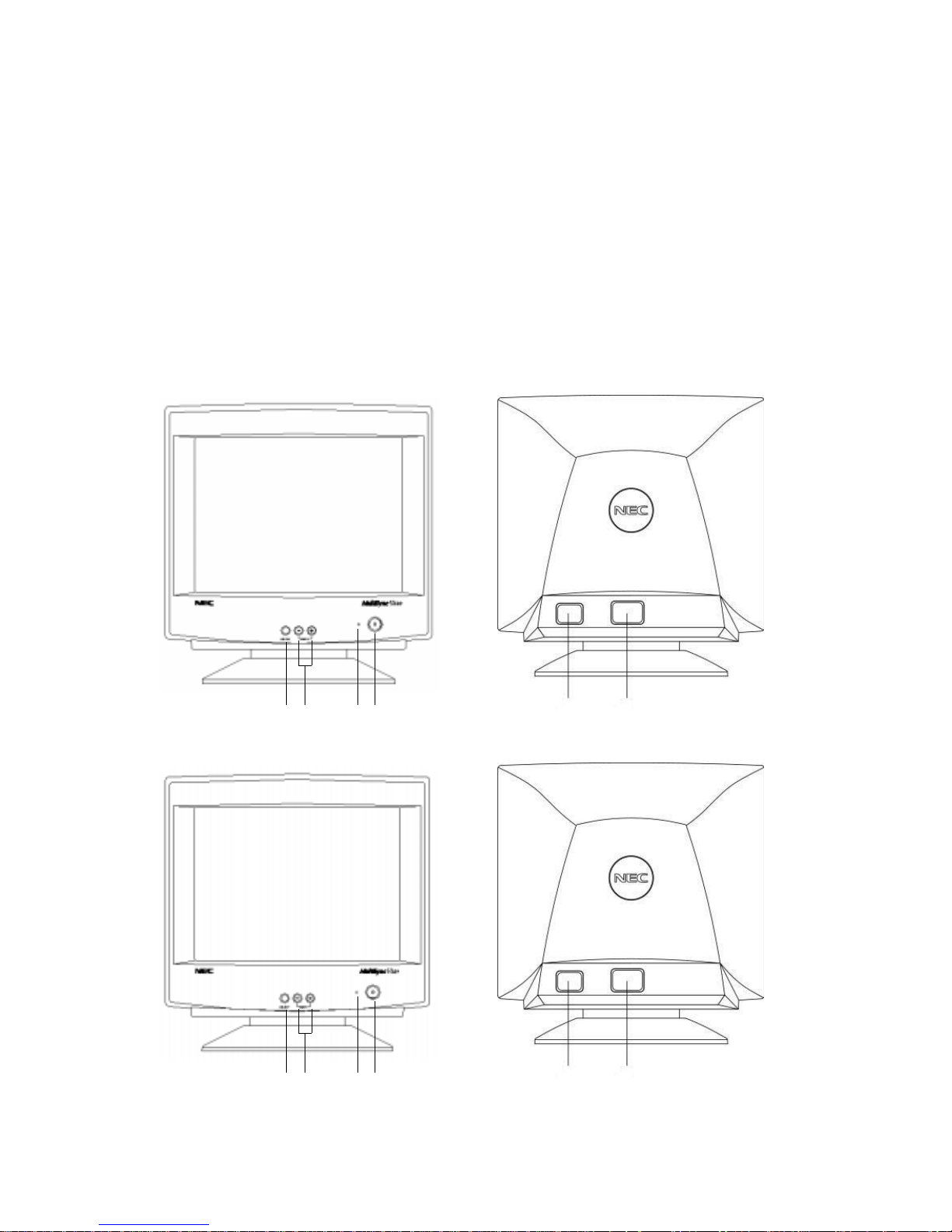

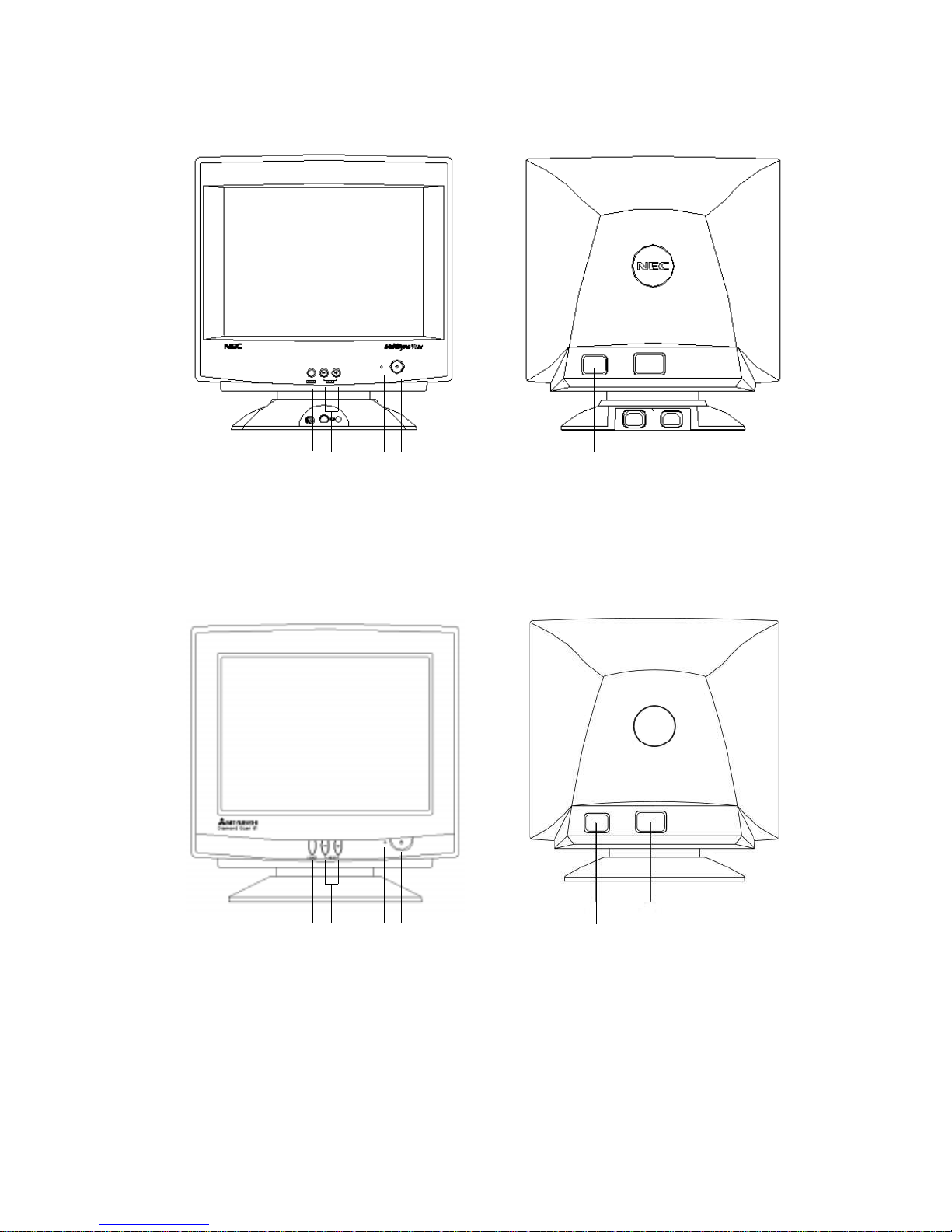

CONTROLS

 ”SELECT”: To display OSM windows, mode changes, or activate the degaussing or OSM window

color selection.

 CONTROL BUTTON (-,+): Without OSM — Adjust the contrast.

With OSM — Select icon and adjust.

 ”RESET”: Return the adjustment item to the factory setting.  Power indicator LED: The LED indicate Power management state.  POWER SWITCH: Push/push to turn the monitor on and off.  Power input: To connect with the power cord.  Signal input with the captive cable: To connect with personal computers’ analogue RGB output.

MultiSync V520

  

 

MultiSync V521



MultiSync MV521

Diamand Scan 51

  

OSD OPERATION

„P„P

„P

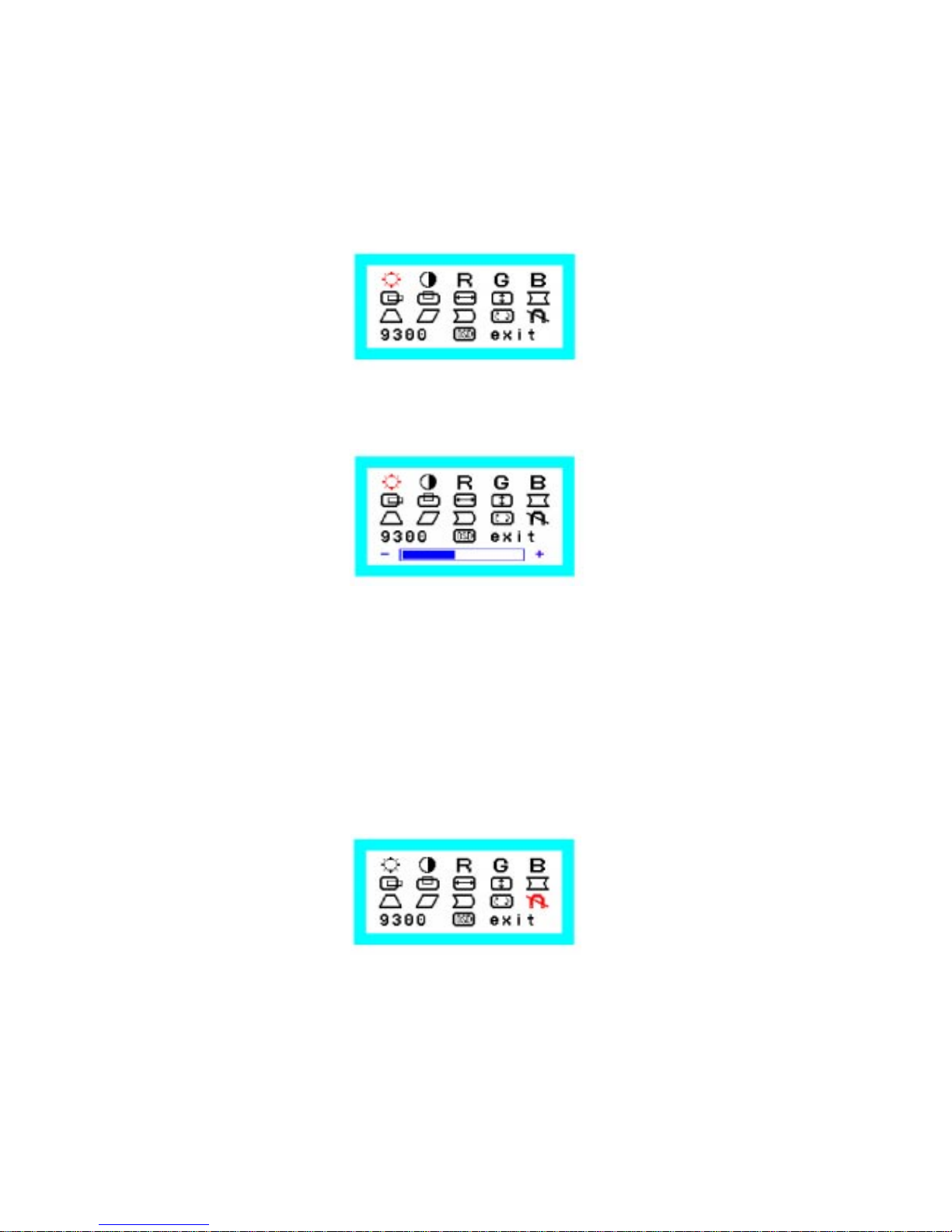

FUNCTION VALUE ADJUSTMENT If OSD off, press UP key to increase Contrast value,

press DOWN key to decrease Contr as t va lue. press SELECT key to display OSD and Brightness ico n is acti v e (Fig. 1)

Fig. 1

Press UP key or DOWN key to select icon right or left and the selected icon display red color If selected icon is DAC out, press SELECT key will display DAC value bar (fig 2)

User can press UP key or DOWN key to adjust DAC value. Press SELECT key to close DAV value bar and UP key or DOWN key to select the other icon.

„P„P

„P

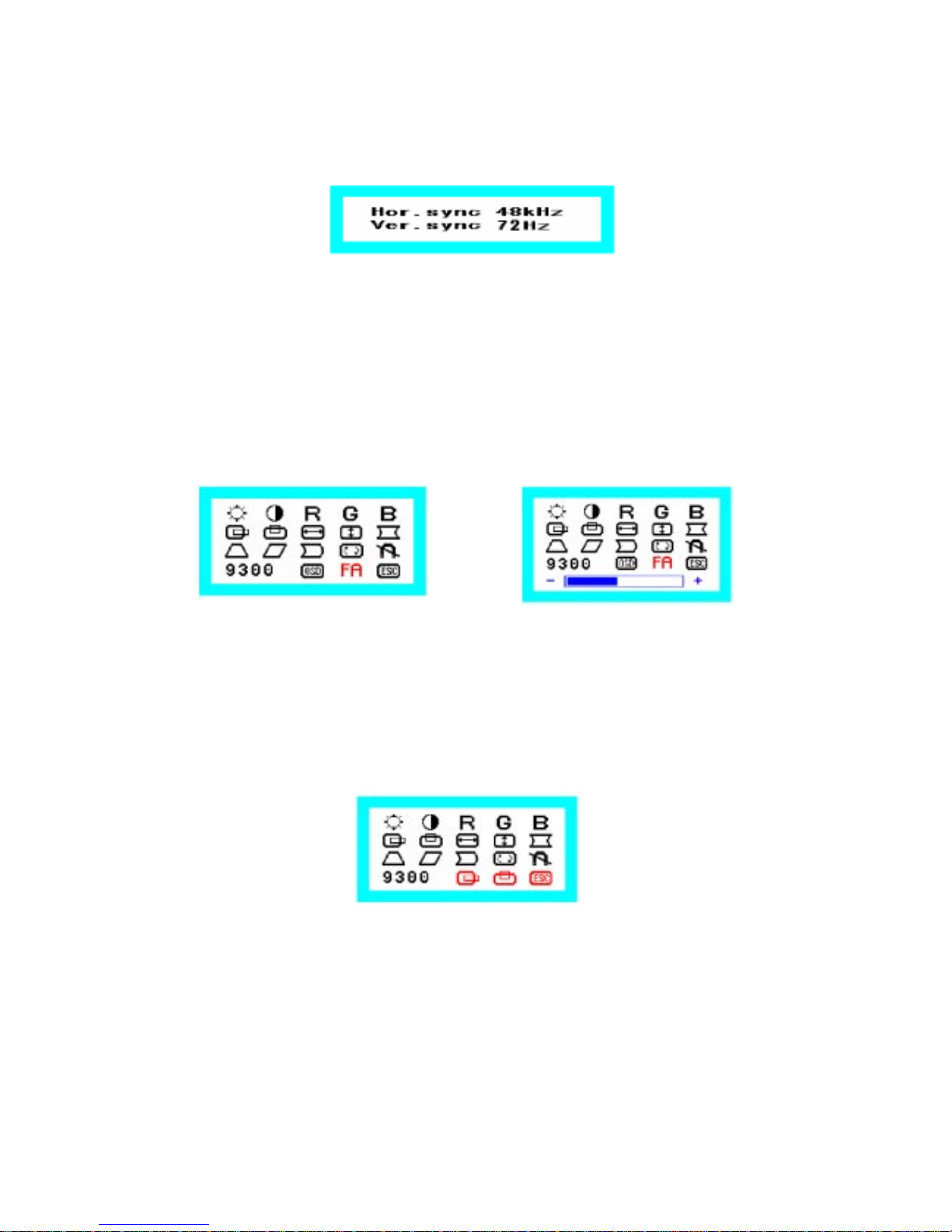

SPECIAL FUNCTION OPERATION

1. Degauss Active If selected icon is degauss i con, pres s SELECT ke y to act ivate degauss (Fig. 3).

Fig. 2

Fig. 3

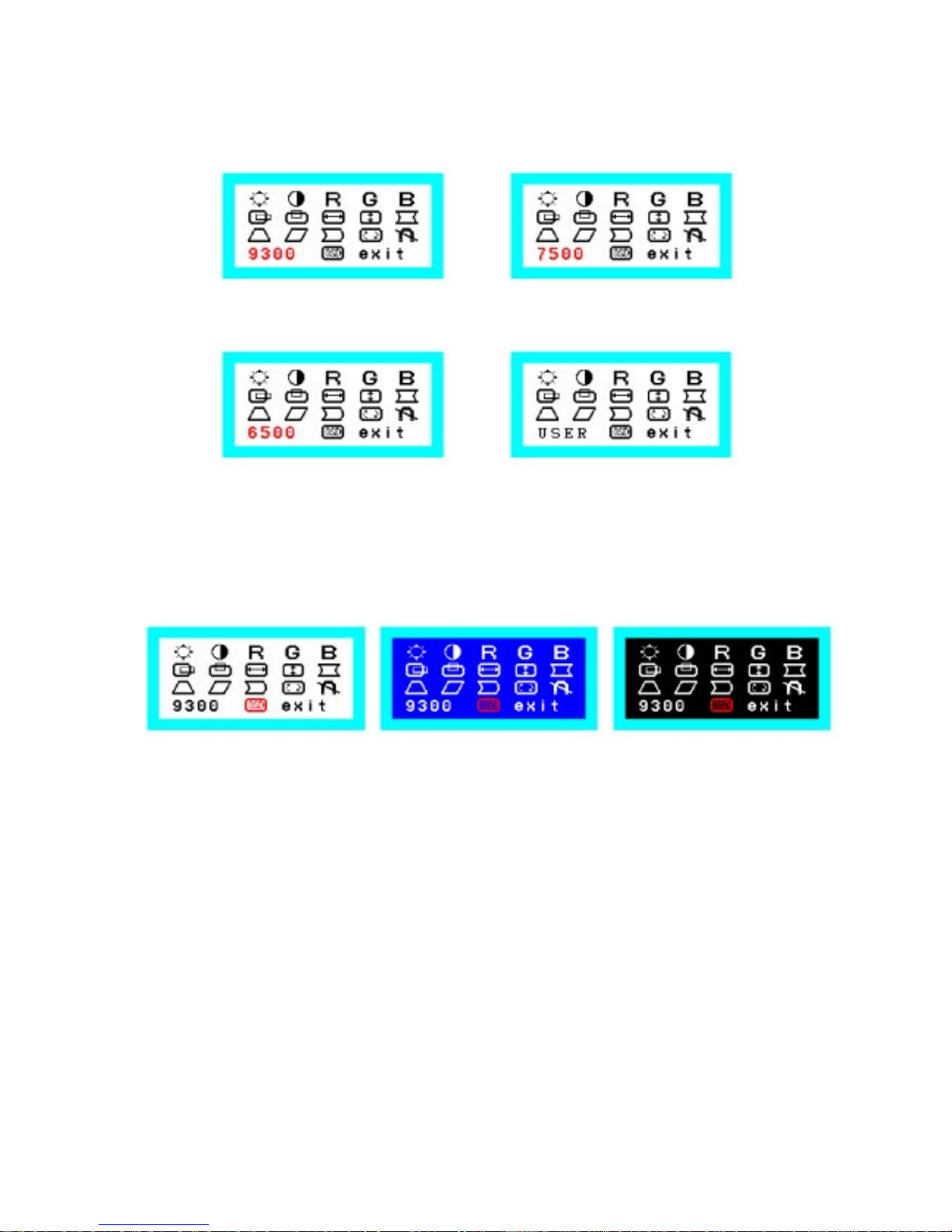

2. Color Temperature Select If selected icon is 9300/7500/6500/user color icon, press SELECT key to select Color Temperature for 9300, 7500, 6500 or user defined (Fig 4 – 7).

3. OSD Color Select If OSD icon is selected, press SELECT key to change OSD color, there are three kinds of OSD color can be selected (Fig. 8 – 10).

Background white blue black Action icon red red red Normal icon black white white Value bar blue yellow green

Fig. 4 Fig. 5

Fig. 6 Fig. 7

Fig. 8 Fig.9 Fig. 10

4. SYNC OSD Display

If EXIT icon is selected, press SELECT key to close OSD menu and then display sync information for 2 sec. This sync information will not be close until release SELECT key (Fig. 11).

5. Factory mode

Press SELECT key + UP key and power on, system enter factory mode. OSD will display “FA” to indicate in factory mode (Fig. 12 – 13).

Operation of factory mode is same as normal mode except below 2 condition: a. adjustment value is saved to user and factory area. b. R, G, B value are saved to current color temperature.

Fig. 11

6. OSD Move Mode

Press DOWN key and power on, system enter OSD move mode, user can move OSD display position in this mode.

Press SELECT key then OSD display following figure (Fig. 14) and only 3 icons OSD H-position / OSD V-position / ESC can be selected.

Fig. 12 Fig. 13

Fig. 14

Function explanation

Brightness: Adjusts the overall image and background screen brightness.

Contrast: Adjusts the image brightness in relation to the background.

(Contrast control is also effective with “-, +” button even through OSM window is not existing.)

R Red Color Control: Adjust the red contrast of the display. G Green Color Control: Adjust the green contrast of the display. B Blue Color Control: Adjust the blue contrast of the display.

Horizontal position: Moves the image horizontally left or right.

Vertical position: Moves the image vertically up or down.

Horizontal size: Increases or decreases the horizontal size of the image.

Vertical size: Increases or decreases the vertical size of the image.

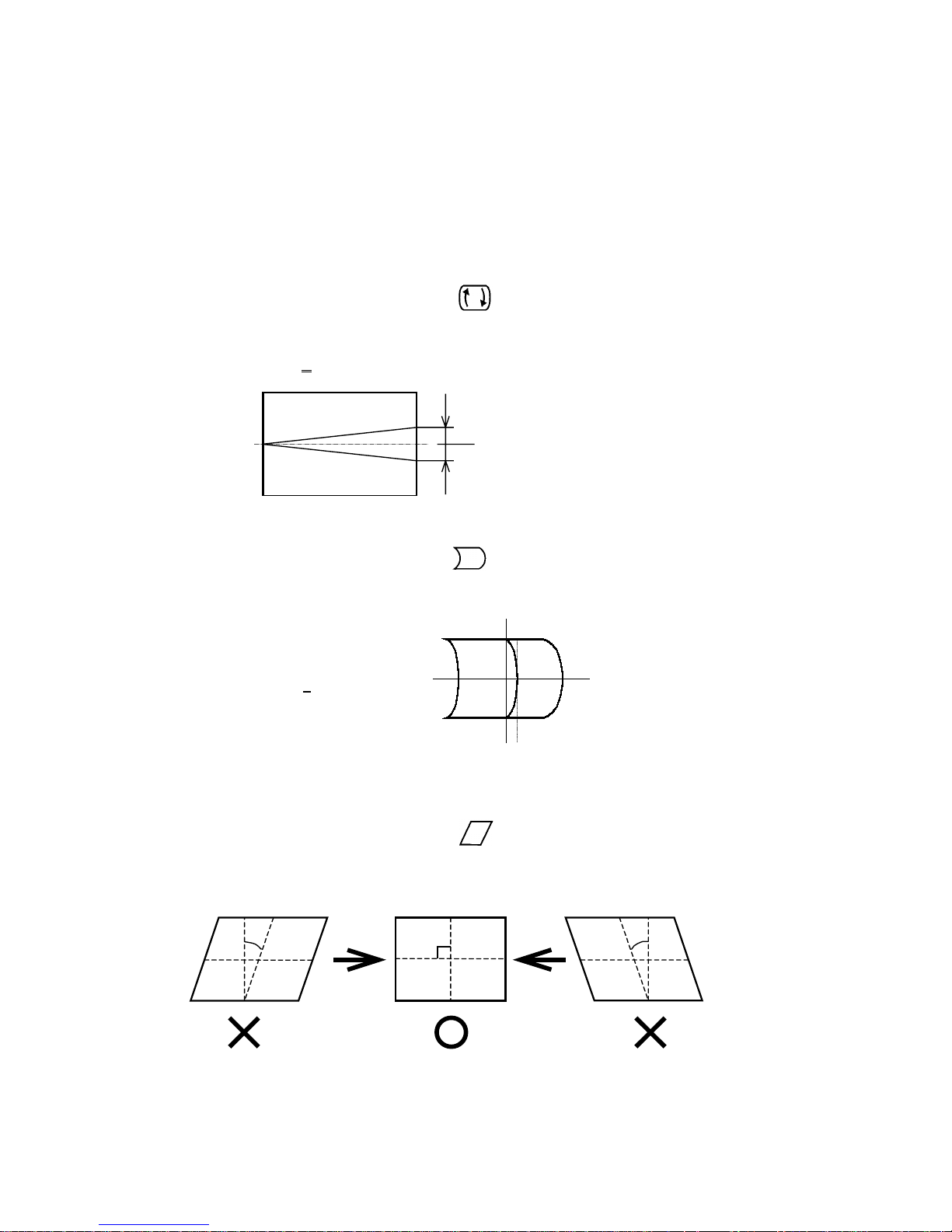

Pincushion/Barrel: Increases or decreases the curvature of the sides either

inward or outward.

Trapezoid: Increases or decreases the bottom of the screen to be the same as the top.

Parallelogram: Increases or decreases the tilt of the sides either to the left or

right.

Bow (Pincushion Balance): Increases or decreases the curvature of the sides

either left or right.

Rotation: Rotate the image.

Degauss: Select the degauss icon on “Icon select window” and push “SELECT”

button. It will eliminate the stray magnetic field and correct the scan the electron beam, and will affect the purity, focus, convergence.

Caution: Allow a minimum interval of 20 minutes to elapse between uses of the degauss function.

9300KColor Temperature: Select the Color Temperature icon on “Icon Select Window”

and push “SELECT” button. It can be switched the different color Temperature.

OSD: There are 3 background colors (Blue, Black, and white).

These can be selected by “SELECT” button after the selection of “OSD” on “Icon select window”.

exit EXIT: To exit the OSM window. Select EXIT on “Icon select

window”. Then push “SELECT” button to exit OSM window. Note: If you do not push buttons over 10 seconds in OSM condition, the window will

automatically disappear.

SERIAL NUMBER INFORMATION

Refer to the serial number information shown below.

Ex.) SERIAL NUMBER LABEL

MODEL N0501 SERIAL No. ∗∗∗∗∗∗∗∗∗

0Y1Y0000

00001 ~ on ward (Start from 00001 ~ when

month is changed.)

Manufactured Year : ( Last digit )

Manufactured Month : January to September 1 to 9 October X November Y December Z

Factory mark :

NPG CHINA “Y”

Control Code ··· E

Control Code ... A (Diamand Scan 51)

DISASSEMBLY

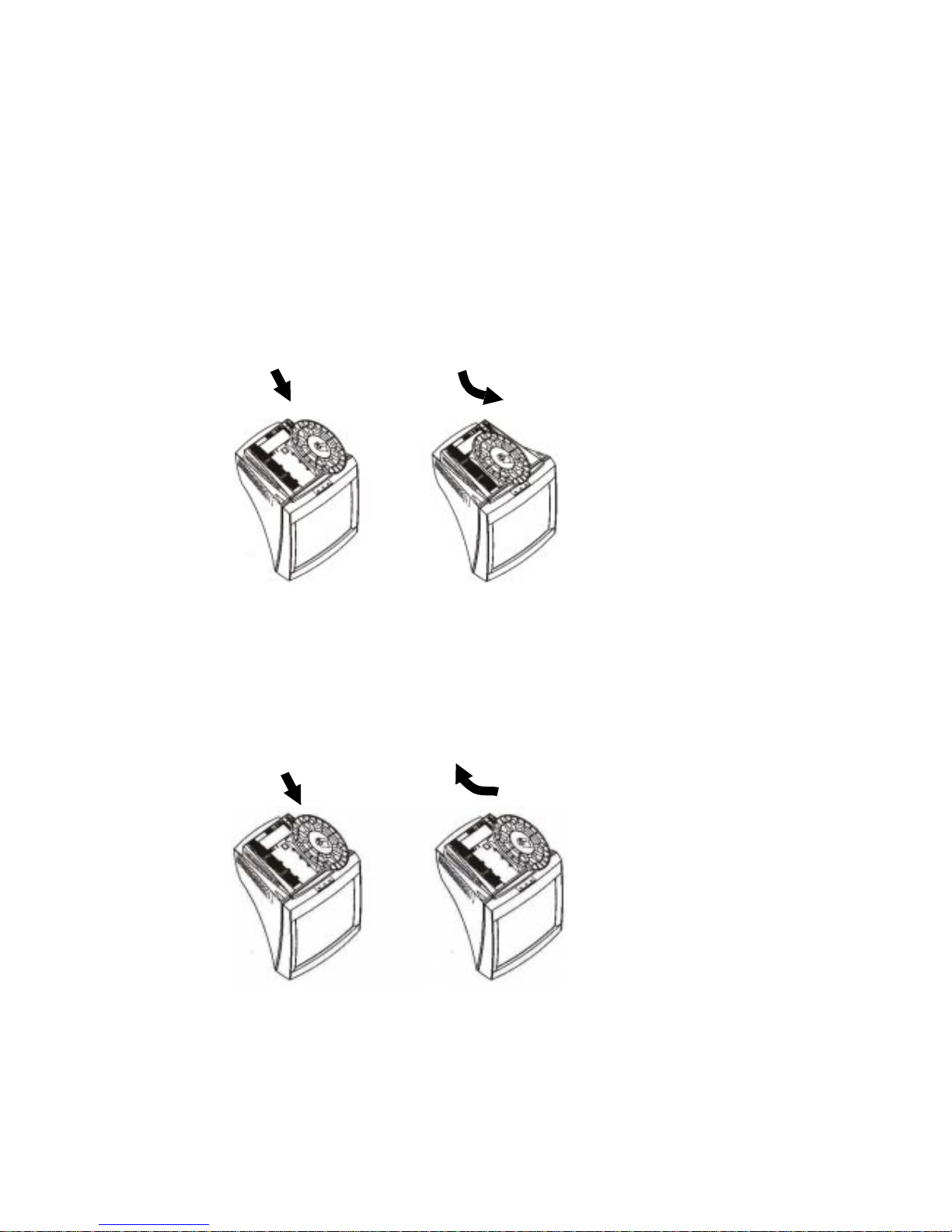

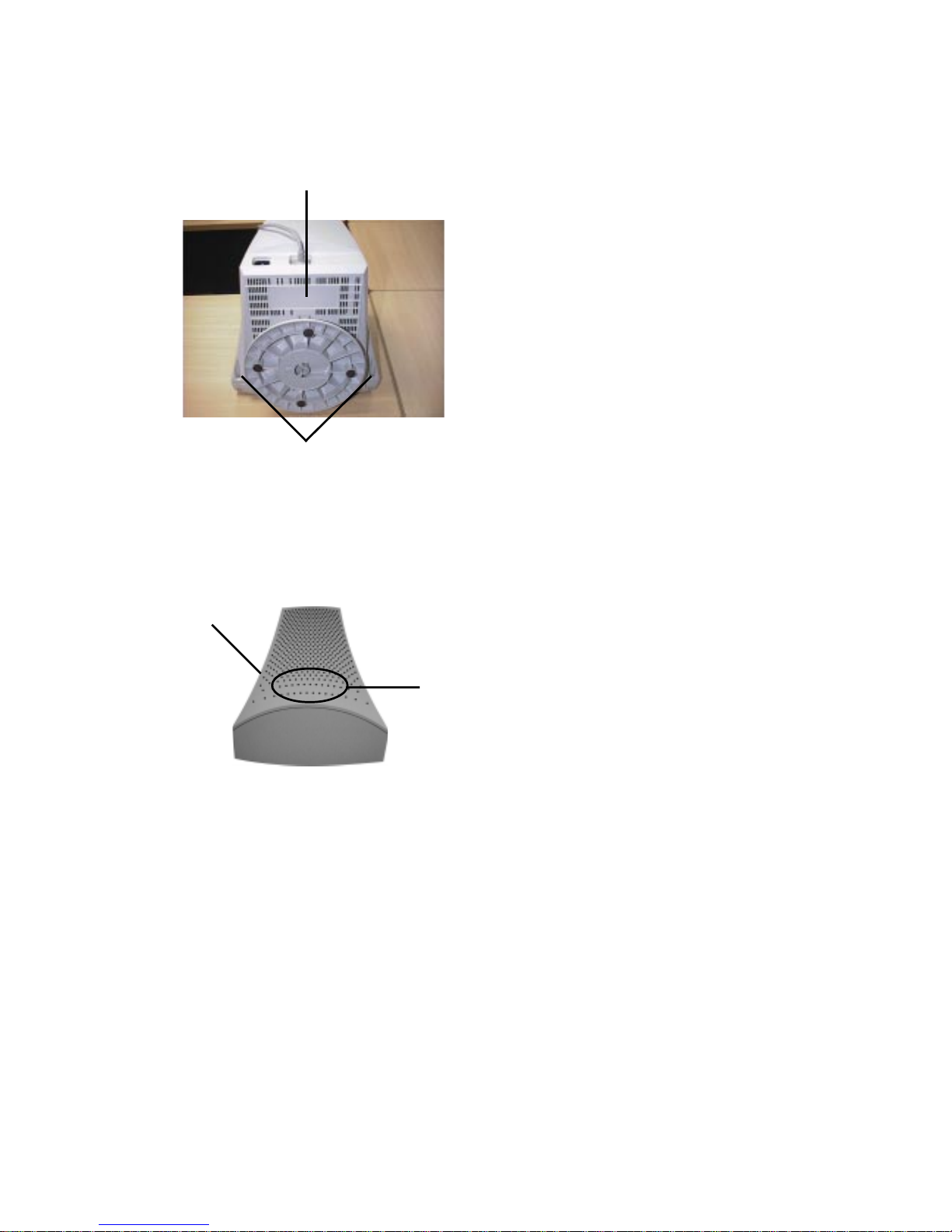

Tilt / swivel base fixing, removing

Fixing

This product consists of the MultiSync monitor and the tilt / swivel base. When fixing the tilt / swivel base to the MultiSync monitor, please follow the steps below.

• Push the six hooks of the tilt / swivel base into the six holes at the bottom of the MultiSync

monitor.

• Then slide the tilt / swivel base forward.

• Then the latch above the tilt / swivel base engages it is

Removing

Please removing the tilt / swivel base when transporting for repair.

• Push down the latch of the MultiSync monitor and pull out the tilt / swivel base.

• Slide backward the tilt / swivel base from the front of the MultiSync monitor.

• Pull out the tilt / swivel base from the holes of the MultiSync monitor.

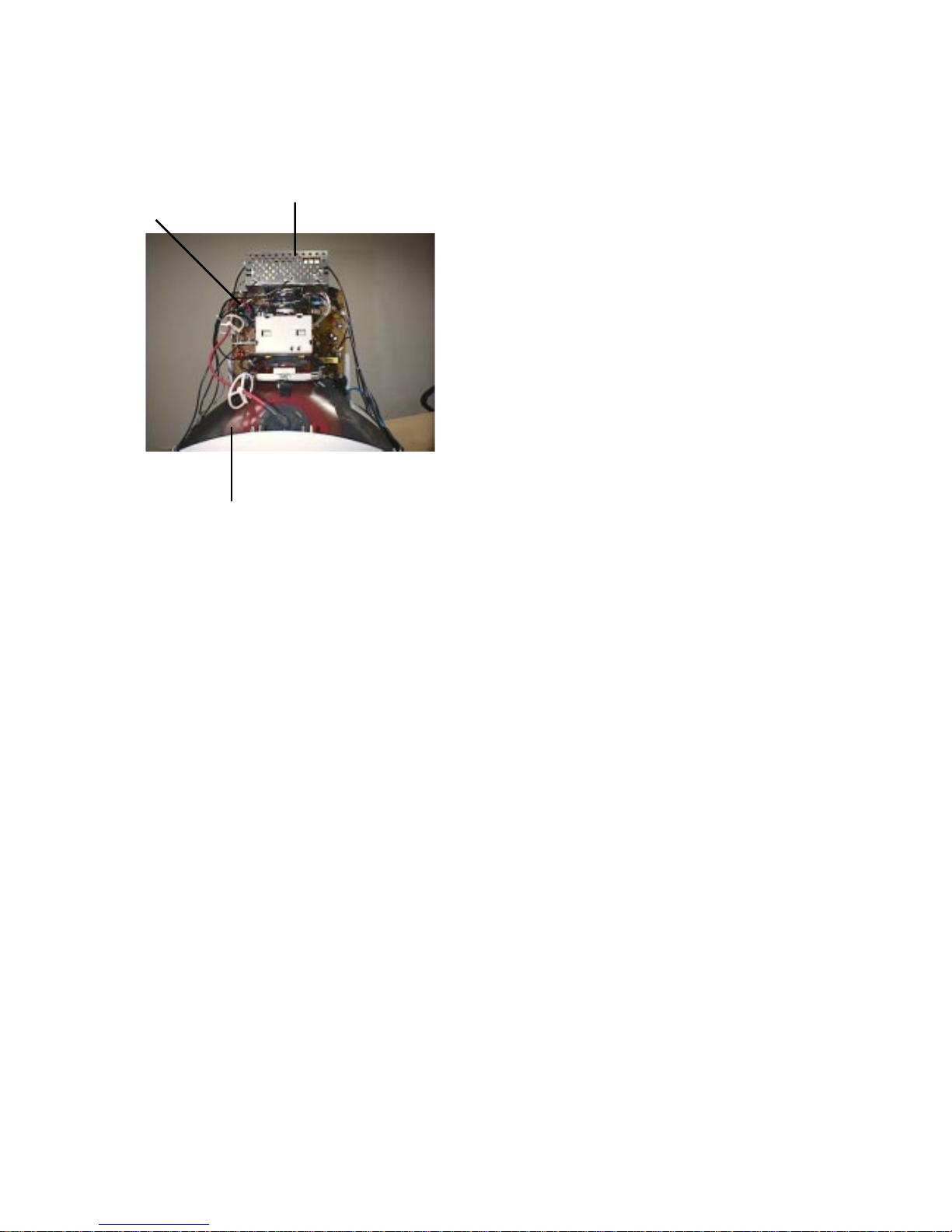

Cabinet Back

1.Turn the monitor CRT face down on a clean static free surface to prevent scratching CRT face.

2.Remove the screw “b”.

3.Raise the signal cable vicinity of a cabinet back and lightly hit part (figure 1 reference) of a top of the cabinet back and remove the cabinet back.

Cabinet Back

Screw “b”

Hitting Position

Cabinet Back

Fig. 1

MAIN BOARD and CRT BOARD

1. Unsolder the GND wire from MAIN BOARD ASSY

2. Disconnect the connector “P201”, “P202”, “S204” and “S205” from the CRT BOARD ASSY.

3. Disconnect the CRT BOARD ASSY from the CRT

4. Disconnect the connector “S301” and “P102” from the MAIN BOARD ASSY.

5. Remove the Anode Cap from the CRT.

NOTE:

Carefully discharge the CRT anode by shorting it to ground before removing Anode Cap.

6. Lift up the MAIN BOARD ASSY from the Cabinet Front ASSY.

CRT BOARD ASSY

MAIN BOARD ASSY

CRT

ADJUSTMENT SPECIFICATIONS

TABLE OF CONTENTS

Page

(1) Adjustment & Inspection Tools .......................................................................................................... 17

(2) Timing Table ...................................................................................................................................... 17

(3) Definition for Normal Condition ......................................................................................................... 17

(4) Hot Key Operation............................................................................................................................. 17

(5) B+ Adjustment ................................................................................................................................... 18

(6) X-ray Test .......................................................................................................................................... 18

(7) H. V. Adjustment ............................................................................................................................... 18

(8) H-Raster Center Adjustment ............................................................................................................. 18

(9) Mode 11 Pre-Adjustment................................................................................................................... 18

(10) White Balance Adjustment .............................................................................................................. 18

(A) Setting ............................................................................................................................................ 18

(B) Cut Off Adjustment......................................................................................................................... 19

(C) White Balance Adjustment (Factory Auto Adjustment) ................................................................. 19

(D) Maximum Brightness Adjustment .................................................................................................. 19

(11) Focus Adjustment.......................................................................................................... .................. 19

(12) Convergence Adjust ........................................................................................................................ 19

(13) Power Saving Function Inspection.................................................................................................. 20

(14) Geometry Adjustment...................................................................................................................... 20

(15) DCC 1/2B Writing and Inspection ........................................................................................... ........ 20

(16) Setting Before Shipment ................................................................................................................. 20

(17) Adjustment Magnetic Field.............................................................................................................. 20

(18) Timing Sheet ................................................................................................................................... 21

Reference

Distortion Adjustment........................................................................................................ .................... 25

Inspection of PnP communication and Writing EDID to EEPROM and inspection of

PnP communication................................................................... 28

N0501 Adjustment Specifications Ver. 1.1

2000,11,16

(1) Adjustment & Inspection Tools:

(A) Color Analyzer (B) Signal Generator CHAROMA 2135 (C) Multi Meter (D) Hi-Voltage Probe (E) Convergence Meter (F) Demagnetizer (G) Power Meter (H) Automatic Alignment System (I) DDC write & inspection system

(2) TIMING TABLE(Factory Mode –20 MODES)

MODE RESOLUTION H-SYNC EREQ. V-SYNC FREQ H . POLARITY V . POLARITY

1 VGA350 31.5KHz 70Hz + 2 VGA400 31.5kHz 70Hz - + 3 VGA480 31.5KHz 60Hz - 4MAC¢º35K 35.0KHz 66Hz - 5 800*600(56) 35.2KHz 56Hz + + 6 8514A 35.5KHz 87H z + + 7 640*480(75) 37.5KHz 75Hz - 8 EVGA400 37.8KHz 84Hz - +

9 800*600(60) 37.8KHz 60Hz + + 10 640*480 43.3KHz 85Hz - 11 800*600(75) 46.8KHz 75Hz + + 12 1024*768(60) 48.3KHz 60Hz - 13 MAC¢º49K 49.7KHz 74Hz - 14 800*600(85) 53.6KHz 85Hz + + 15 1024*768(70) 56.4KHz 70Hz - 16 1024*768(75) 60.0KHz 75Hz + + 17 640*480(120) 63.7KHz 120Hz - 18 1280*1024(60) 64.0KHz 60Hz + + 19 800*600(100) 64.0KHz 100Hz + + 20 1024*768(85) 68.6KHz 85Hz + +

(3) Definition for Normal Condition

(A) Input AC Voltage 110V/60HZ. (B) Warm up time minimum 30 minutes. (C) Crosshatch Reverse Pattern. (D) ALL VR’s Adjust Center Position. (E) Color temp 9300K (F) OSD I-CON [R], [G], [B] gain control bar center position in Factory Mode

(4) Hot Key Operation

(A) Factory Mode: SELECT Key + UP (+) Key if pressed when the power SW on. (B) OSD Position Control Mode: DOWN (-) Key if pressed when the power SW on.

(5) B+ Adjustment

(A) MODE: No. 12. (B) Pattern: Full white. (Brightness just cut off) (C) Adjust VR101 to make the cathode of D112 has 13.6V. (D) Check other power source should be 78

¡Ó¡Ó

¡Ó2V, 6.2V

¡Ó¡Ó

¡Ó0.3V, 53.5V

¡Ó¡Ó

¡Ó1.5V, -11.5

¡Ó¡Ó

¡Ó0.5V.

(6) X-RAY Test

(A) Mode: No.12 (B) Pattern: Normal Crosshatch (Brigh tn ess j ust cut off) (C) Test

1. Use Hi-Voltage probe

2. Adjust VR102 until X-RAY protector is operated, then check the protection voltage should be 29.5kV or less.

3. After X-RAY protection test, turn back the VR102 position to center.

(7) H. V. Adjustment

(A) Mode: No. 12 (B) Pattern: Full White(Bri ghtness just cut off) (C) Adjust VR102 to make the cathode of D114 has 116.0V (Toshib a, Samsu ng CRT), 115V

(LG CRT)

(D) Check the high voltage is 24.5kV

¡Ó¡Ó

¡Ó1kV.

(8) H-Raster Center Adjustment

(A) Mode: No. 18 (B) Pattern: Crosshatch Reverse (C) Adjust the Brightness Control that the background can be visible. (D) Change SW301 position to make the mostly near center background position.

(9) Mode 11 Pre-Adjustment

(A) Mode: No. 12 (B) Pattern: Crosshatch (C) Enter to Factory mode. Adjust H-phase, V-center, H-size, V-size, Pincushion, Trapezoid,

Bow, Parallelogram, and rotation to make Picture Position Center and Picture Size 270*203mm.

(10) White Balance Adjustment

(A) Setting

Enter Factory Mode, Mode: No. 12, Pattern: Full White. Warm up 30 min. Make External Degauss.

(B) Cut Off Adjustment

1. Select the color Mode 9300K

2. Cut Off Adjustment: Video Signal Off (0.vp-p), Bright Control set to Mex., Adjust the Screen VR(G2), at the Brightness 1~1.5FL. (3.4~5.1 cd/m2)

3. Adjust VR210, VR230 and VR250 to make X=283, Y=297, with readjusting G2 to keep the brightness between 1~1.5FL (3.4~5.1 cd/m2).

1.9300K (Select the color Mode 9300K)

1) 50*50mm Green block Pattern, Brightness Control set to Max, Contrast Control set

to Max, Adjust [G] gain control to Y=50FL. (171 cd/m2)

2) Change Pattern to Full White, Brightness control set to Min.

3) Adjust [R] gain control, [B] gain control to X=283, Y=297 at the contrast control is

adjusted 15FL (52cd/m2).

4) Check the color tracking shall be X=283

¡Ó¡Ó

¡Ó15, Y=297

¡Ó¡Ó

¡Ó15 between Y=5~25FT-L

(17~86cd/m2) condition.

2.7500K (Select the color Mode 7500K)

1) 50*50mm Green block Pattern, Brightness Control set to Max, Contrast Control set

to Max, Adjust [G] gain control to Y=46FL. (158 cd/m2)

2) Change Pattern to Full White, Brightness control set to Min.

3) Adjust [R] gain control, [B] gain control to X=300, Y=315 at the contrast control is

adjusted 15FL (52cd/m2).

3. 6500K (Select the color Mode 6500K)

1) 50*50mm Green block Pattern, Brightness Control set to Max, Contrast Control set

to Max, Adjust [G] gain control to Y=44FL. (151 cd/m2)

2) Change Pattern to Full White, Brightness control set to Min.

3) Adjust [R] gain control, [B] gain control to X=315, Y=325 at the contrast control is

adjusted 15FL (52cd/m2).

(D) Maximum brightness Adjustment

1. Brightness control set to Max., contrast control set to Max

2. Adjust VR306 to Y=31FL(105cd/m2)

(11) Focus Adjustment

(A) Mode: No.16 (B) Pattern: Full ‘o’ (4dots hole) Patterm, Brightness just cut off, Contrast maximum. (C) Adjust Focus VR that ‘o’ mark shall be clearly at 1/4 poit of the diagonal line.

(12) Converge nc e Adju st

(A) Mode: No. 12 (B) Pattern: Crosshatch. (C) Use the co nv e rgence meter to check wh et her the convergence is within spec.

Adjust the CPC Magnet to make the convergence within spec.

(13) Power Saving Function Inspection

(A) Mode: No. 12 (B) Pattern: Any Pattern (C) Inspection

1. It should be into power off Mode when the both horizontal sync and vertical sync are disable after 4 seconds. Check the LED color “Orange” and the power consumption must be less then 5W.

2. The picture should be recovered readable within 3 seconds when the both horizontal sync and vertical sync are enable. Check the LED color “Green”.

(14) Geometry Adjustment (Factory Auto Alignment)

(A) Enter to the Factory Mode. (B) Adjust H-size, V-size, H-phase, V-phase, Pincushion, and Trapezoid for all preset signals. (C) Adjustment data are automatically stored into the factory-preset memory after 1 sec.

Note: for the factory auto alignment, Mode No. 2,3,7,9,10,11,12,14,15,16,17,18,19,20 shall be adjusted. Other modes can be used the calculated average value.

(15) DDC 1/2B Writing and Inspection

(A) Mode: Any Mode, Pattern: Any Pattern. (B) Connect the MICON Tech. DDC Read/Write System. (C) Run NPG03A1.EXE then Press “F3” Key to write the EDID Data.

(16) Setting Before Shipment

Color Temp 9300K OSD Back Ground: Blue OSD Position: Center of the screen Contrast: Maximum Brightness: Preset (Background should be disappeared) Self test pattern: Crosshatch (Select the “P2” in the Factory Mode)

(17) Adjustment Magnetic Field

(A) For Northern Hemisphere Model

Vertical: +40uT, Horizontal: +/-0uT (Neutral)

(B) For Southern Hemisphere Model

Vertical: -40uT, Horizontal: +/-0uT (Neutral)

(18) TIMING SHEET for N0501/N0701

Preset Mode N o.

123456

Signal Nam e

VGA 350 VGA400 VGA480 M AC II 800*600 8514/A

(35 K) (56) XGA

Resolution

640*350 640*400 640*480 640*480 800*600 1024*768

Dot Clock (MHz)

25.175 28.322 25.175 30.240 36.000 44.900

fh (kHz)

31.47 31.47 31.47 35.00 35.16 35.52

fv (Hz)

70.09 70.09 59.94 66.67 56.25 86.96

Total

(

dot

)

800 800 800 864 1024 1264

(uS)

31.78 31.78 31.78 28.57 28.44 28.15

Disp (dot)

640 640 640 640 800 1024

(uS)

25.42 25.42 25.42 21.16 22.22 22.81

Front (dot)

16 16 16 64 24 8

(uS)

0.64 0.64 0.64 2.12 0.67 0.18

S yn c Pu ls e (d o t)

96 96 96 64 72 176

(uS )

3.18 3.81 3.81 2.12 2.00 3.92

Back (dot)

48 48 48 96 128 56

(uS )

1.91 1.91 1.91 3.17 3.56 1.25

Tot al

(H)

449 449 525 525 625 408.5

(m S )

14.268 14.268 16.683 15.000 17.778 11.500

Disp (H)

350 400 480 480 600 384

(m S )

11.122 12.711 15.253 13.714 17.067 10.810

Front (H)

371210310

(m S )

1.176 0.381 0.318 0.086 0.028 0.000

Sync Pulse (H)

222324

(mS)

0.064 0.064 0.064 0.086 0.057 0.113

Back (H)

60 35 33 39 22 20

(mS)

1.907 1.112 1.049 1.114 0.626 0.563

Inte rla c e

NON NON NON NON NON YES

P ola rity (H /V )

POS/NEG NEG/POS NEG/NEG NEG/NEG POS/POS PO S/POS

Com posite Sync

NEG

Com posite Video Character Font

7*9 7*9 7*9 7*9 7*9 7*9

Serration

OFF OFF OFF ON OFF OFF

EQP

OFF OFF OFF OFF OFF OFF

Rev1.0

Preset Mode N o.

789101112

Signal Nam e

640*480 EVG A400 800*600 640*480 800*600 10*7(60)

(75) (VESA) (60) (85) (75) (VESA)

Resolution

640*480 640*400 800*600 640*480 800*600 1024*768

Dot Clock (MHz)

31.500 31.5000 40.000 36.000 49.500 65.000

fh (kHz)

37.50 37.86 37.88 43.27 46.88 48.36

fv (Hz)

75.00 84.13 60.32 85.01 75.00 60.00

Total

(

dot

)

840 832 1056 832 1056 1344

(uS)

26.67 26.41 26.40 23.11 21.33 20.68

Disp (dot)

640 640 800 640 800 1024

(uS)

20.32 20.32 20.00 17.78 16.16 15.75

Front (dot)

16 24 40 56 16 24

(uS)

0.51 0.76 1.00 1.56 0.32 0.37

S yn c Pu ls e (do t)

64 40 128 56 80 136

(uS )

2.03 1.27 3.20 1.56 1.62 2.09

Back (dot)

120 128 88 80 160 160

(uS )

3.81 4.06 2.20 2.22 3.23 2.46

Tot al

(H)

500 450 628 509 625 806

(m S )

13.333 11.886 16.579 11.76 13.333 16.666

Disp (H)

480 400 600 480 600 768

(m S )

12.800 10.565 15.840 11.093 12.800 15.880

Front (H)

191113

(m S )

0.027 0.238 0.026 0.023 0.021 0.062

Sync Pulse (H)

334336

(mS)

0.080 0.079 0.106 0.069 0.064 0.124

Back (H)

16 38 23 25 21 29

(mS)

0.427 1.004 0.607 0.578 0.448 0.600

Inte rla c e

NON NON NON NON NON NON

P ola rity (H /V)

NEG/NEG N EG/POS POS/POS NEG /NEG PO S/POS NEG /NEG

Com posite Sync Com posite Video Character Font

7*9 7*9 7*9 7*9 7*9 7*9

Serration

OFF OFF OFF OFF OFF OFF

EQP

OFF OFF OFF OFF OFF OFF

Preset Mode N o.

13 14 15 16

Signal Nam e

MAC II 800*600 10*7(70) 10*7(75)

640*480

12*10(60)

(49.7K) (85) (VESA) (VESA)

(120)

(VESA)

Resolution

832*624 800*600 1024*768 1024*768

640*480

1280*1024

Dot Clock (MHz)

57.286 56.250 75.000 78.750

55.00

108.000

fh (kHz)

49.73 53.67 56.48 60.02

63.66

63.98

fv (Hz)

74.55 85.06 70.07 75.03

120.1 1

60.02

Total

(

dot

)

1152 1048 1328 1312

864

1688

(uS)

20.11 18.63 17.71 16.66

15.71

15.63

Disp (dot)

832 800 1024 1024

640

1280

(uS)

14.52 14.22 13.65 13.00

1 1.645

11.85

Front (dot)

32 32 24 16

(uS)

0.56 0.57 0.32 0.20

0.582

0.44

S yn c Pu ls e (d o t)

64 64 136 96

11 2

(uS )

1.12 1.14 1.81 1.22

1.745

1.04

Back (dot)

224 152 144 176

248

(uS )

3.91 2.70 1.92 2.23

1.745

2.30

Tot al

(H)

667 631 806 800

530

1066

(m S )

13.413 11.756 14.272 13.328

8.325

16.661

Disp (H)

624 600 768 768

480

1024

(m S )

12.548 11.179 13.599 12.795

7.540

16.005

Front (H)

1131

(m S )

0.020 0.019 0.053 0.017

0.126

0.016

Sync Pulse (H)

3363

(mS)

0.060 0.056 0.106 0.050

0.094

0.047

Back (H)

39 27 29 28

(mS)

0.784 0.503 0.513 0.466

0.566

0.594

Inte rla c e

NON NON NON NON

NON

P ola rity (H /V )

NEG/NEG POS/POS NEG/NEG POS/POS

NEG/NEG

POS/POS

Com posite Sync

NEG

Com posite Video Character Font

7*9 7*9 7*9 7*9

7*9

Serration

ON OFF OFF OFF

OFF

EQP

OFF OFF OFF OFF

OFF

Preset Mode N o.

Signal Nam e

800*600

1024*768

(100)

(85 )

Resolution

800*600

1024*768

Dot Clock (MHz)

67.50

94.5

fh (kHz)

63.92

68.677

fv (Hz)

100.03

Total

(

dot

)

1056

1376

(uS)

15.64

14.561

Disp (dot)

800

1024

(uS)

1 1.852

10.836

Front (dot)

(uS)

0.593

0.508

S yn c Pu ls e (d o t)

(uS )

1.185

1.016

Back (dot)

136

208

(uS )

2.015

2.201

Tot al

(H)

639

808

(m S )

9.997

11.765

Disp (H)

600

768

(m S )

9.386

11.183

Front (H)

(m S )

0.047

0.015

Sync Pulse (H)

(mS)

0.063

0.044

Back (H)

(mS)

0.501

0.524

Inte rla c e

NON

P ola rity (H /V )

POS/POS

Com posite Sync Com posite Video Character Font

7*9

Serration

OFF

EQP

OFF

Distortion Adjustment

Factory Mode Setting *After completion of adjustment exit the factory mode and data will be saved. Signal : All signals Cross hatch Perform the adjust for signal No. 14 in step 6-1~3. Perform the adjust for above all signal in step 6-4,5.

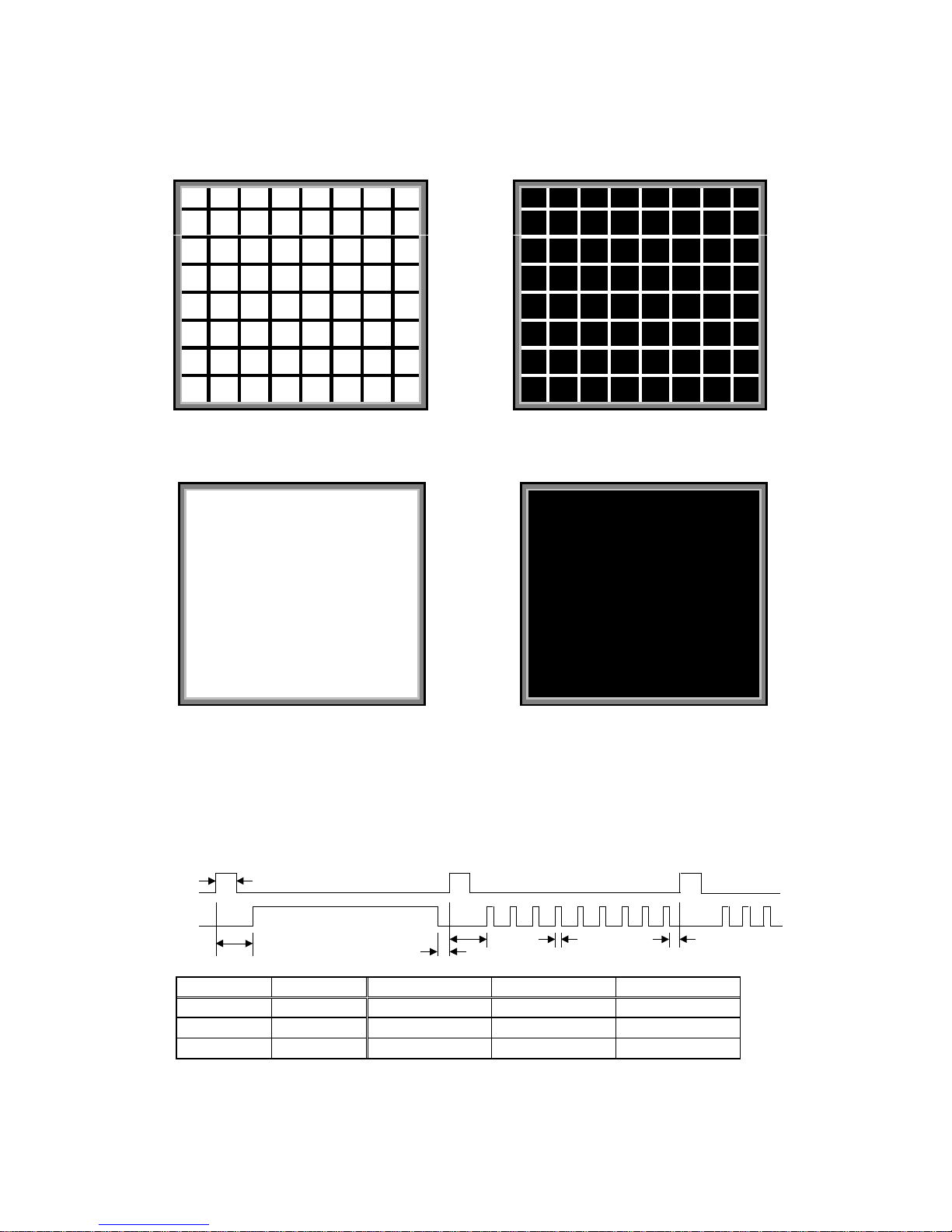

1. Picture Tilt Adjustment (1) Receive signal 14 (Cross hatch).

(2) When OSM MENU is displayed, Select the “ “ icon. (3) Make sure that the picture tilt meets the following standards.

2. Pincushion Balance Adjustment (1) When OSM MENU is displayed, Select the “ “ icon.

(2) Make sure that the Pincushion Balance meets the following standards.

X < ± 1.0mm

-X

3. Parallelogram distortion Adjustment (1) When OSM MENU is displayed, Select the “ “ icon.

(2) Adjust “+”, “-“ SW so that the vertical line and horizontal line at the screen’s center fall at right

angles. (less than 90 ± 0.5 degree)

A – B < 0.5mm

4. Side Pincushion Adjustment (1) When OSM MENU is displayed, Select the “ “ icon.

(2) Make sure that the side pincushion distortion meets the following standards.

1.5mm

1.8mm

1.5mm

1.8mm

5. Trapezoid Distortion Adjustment (1) When OSM MENU is displayed, Select the “ “ icon.

(2) Make sure that the trapezoid distortion meets the following standards.

(AB−CD) < 2mm (AC−BD) < 2mm

6. Preset Picture Size and Position Adjustment Factory Mode Setting

Signal: All Signals Cross hatch *Perform the Preset Picture Size and Position Adjustment for above all signal.

(1) When OSM MENU is displayed, Select the “ ”,” ”,” ”,” ” icon. (2) Adjust the picture size and position as listed below by “−”, “+” SW.

Picture size H : 270 ± 2mm

V : 203 ± 2mm

Picture position H : (X

TOP−XBOTTOM

) < 3mm

V : (X

LEFT

−X

RIGHT

) < 3mm

Video

XRight

BezelXTop

XLeft

XBottom

270mm

203mm

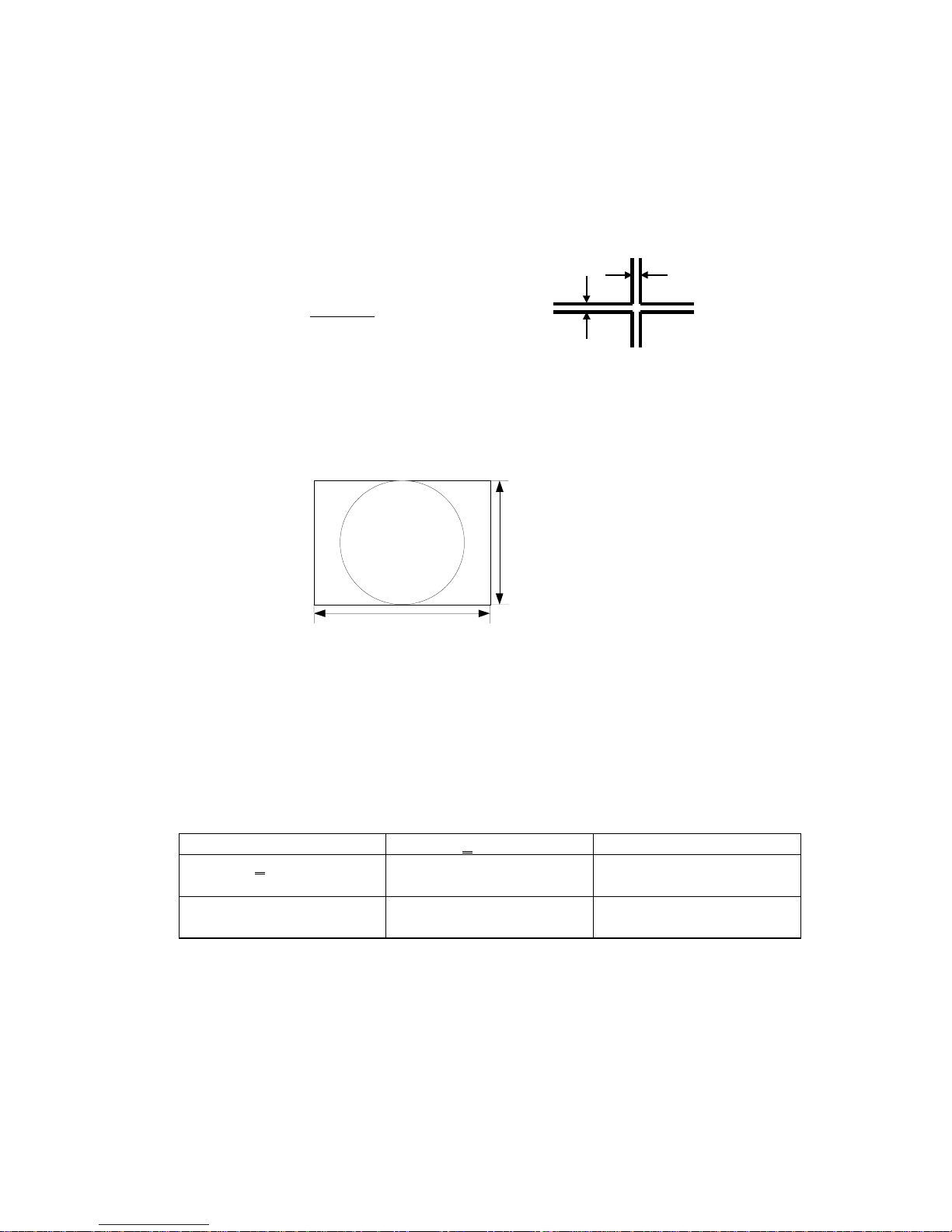

A Zone (A circle 203 mm in the center of the CRT face center)

, C

: Within 0.35 mm

CS: No rule

B Zone (Areas outside of zone A within the rectangle of 270 mm×203 mm)

Safety with the list below.

CH < 0.35 m m 0.35 mm < CH < 0.40 m m

CV < 0.35 m m OK Ca lculate CS and judge

Within 0.50 mm

→

0.35 mm < CV < 0.40 mm Calculate CS and judge Within 0.50 mm

→

Need to touch up

7. Purity (1) Receive signal 14(Cross hatch pattern). (2) The CRT face should be facing east and degauss the entire unit by external degaussing coil. (3) Make sure the single color purity.

If not, readjust CPC magnet and touch up using correction magnets.

8. Convergence

CH : Convergence error of horizontal direction CV : Convergence error of vertical direction CS : Total direction of Convergence error

(Calculate by “√CH² + CV² ”

(1) Receive signal 14(Cross hatch pattern). (2) Measure convergence error., If it is out of spec, adjust static convergence by 4-pole magnets and

6-pole magnets.

Write and Inspection for Plug and Play Communication

1. Construction of System

This system should be connected as shown below.

Monitor

Program Disk

Signal Cable

Fixture

Power Cable

Note: PC clock speed should be below 266MHz. OS is PC-DOS.

Fixture Board can be connected directly to PC without Printer Cable.

2. EDID Write and Inspection Method

1) Run specified EDID write and Inspection program on PC-DOS mode. The monitor turns into the self test mode.

2) Run the specified EDID write and inspection program under PC-DOS mode.

3) Key in the serial No. or Scan serial No. bar code.

4) Press “Return” key to write the EDID data.

5) Press “F1” key to inspect DDC1 communication.

6) Press “F2” key to inspect DDC2 communication EDID DATA Format: Please refer the 3. EDID data File.

0123456789ABCDEF

00 00 FF FF FF FF FF FF 00 38 A3 1D 25 01 01 01 01 10 18 09 01 02 0C 1C 15 78 EA B4 18 A1 55 48 99 25

20 10 48 4C FF EE 00 31 59 45 59 61 59 71 4A 81 40 30 01 01 01 01 01 01 30 2A 00 98 51 00 2A 40 30 70

40 13 00 0E CB 10 00 00 1E 00 00 00 FD 00 37 78 1F 50 46 0B 00 0A 20 20 20 20 20 20 00 00 00 FC 00 4E 60 45 43 20 56 35 32 30 0A 20 20 20 20 20 00 00 FF

70 00 39 36 30 30 30 30 31 59 41 0A 20 20 20 00 4C

3. EDID DATA FILE MultiSync V520 EDID Serial No. Format

Week of Manufacture (Month*4)

Year of Manufacture

Serial No Area 9bytes Check Sum MultiSync V521 / MV521 EDID Serial No. Format

Week of Manufacture (Month*4)

Year of Manufacture

01 2345678 9ABCDEF

00 00 FF FF FF FF FF FF 00 38 A3 C0 5D 01 01 01 01 10 24 09 01 02 0C 1C 15 78 EA B4 18 A1 55 48 99 25

20 10 48 4C FF EE 00 31 59 45 59 61 59 71 4A 81 40 30 01 01 01 01 01 01 EA 24 00 60 41 00 28 30 30 60

40 13 00 0E CB 10 00 00 1E 00 00 00 FD 00 37 78 1F 50 46 0B 00 0A 20 20 20 20 20 20 00 00 00 FC 00 4E 60 45 43 20 56 35 32 31 0A 20 20 20 20 00 00 00 FF

70 00 39 39 30 30 30 30 31 59 41 0A 20 20 20 00 17

Serial No Area 9bytes Check Sum DiamondScan 51 EDID Serial No. Format

Week of Manufacture (Month*4)

Year of Manufacture

01 2345678 9ABCDEF

00 00 FF FF FF FF FF FF 00 34 AC 30 45 01 01 01 01 10 2D 0A 01 02 0C 1C 15 78 EA B4 18 A1 55 48 99 25

20 10 48 4C FF EE 00 31 59 45 59 61 59 71 4A 81 40 30 01 01 01 01 01 01 EA 24 00 60 41 00 28 30 30 60

40 13 00 0E CB 10 00 00 1E 00 00 00 FD 00 37 78 1F 50 46 0B 00 0A 20 20 20 20 20 20 00 00 00 FC 00 44 60 69 61 6D 6F 6E 64 53 63 61 6E 35 31 00 00 00 FF

70 00 30 59 30 30 30 30 31 59 41 0A 20 20 20 00 60

Serial No Area 9bytes Check Sum

*+Set Assembly Code + 1 space + Serial No. + * SET Assembly code depends on the CRT and Destination. Serial No. Descriptions:

Y: Manufactured Year (Last digit) ex. 0 à 2000

M: Manufactured Month 1 ~ 9, X(October),

Y(Novenber), Z(December)

S: Serial No. ( 5digits) 00001 ~ onward

(restart when month is changed)

F: Factory Code: Y is NPG China Factory

R: Product Revision code: start from E

EDID Code Input Procedure ex.

1) Scan Bar code (20 digits) NB50090T _ 0Y00001YE

2) Skip 11 digits then find the Serial No. 0Y00001YE

3) Make Year hex Code from Year digit 0 à 0Ah

4) Make Week hex Code from Month digit 11*4 = 44 à 2Dh

5) Change Serial No. to ASCII code 30h 59h 30h 30h 30h 30h 31h 59h 45h

6) Apply Serial No. Information to the default EDID code.

7) Download EDID from PC to Monitor.

8) DDC1 Inspection

9) DDC2B Inspection

Bar Code Format(code39)

Digit 1 2 3 4 5 6 7 8 9101112131415161718

Format *NNNNNNNN_YMSSSSSFR*

Example *NB50090T_0Y00001YE*

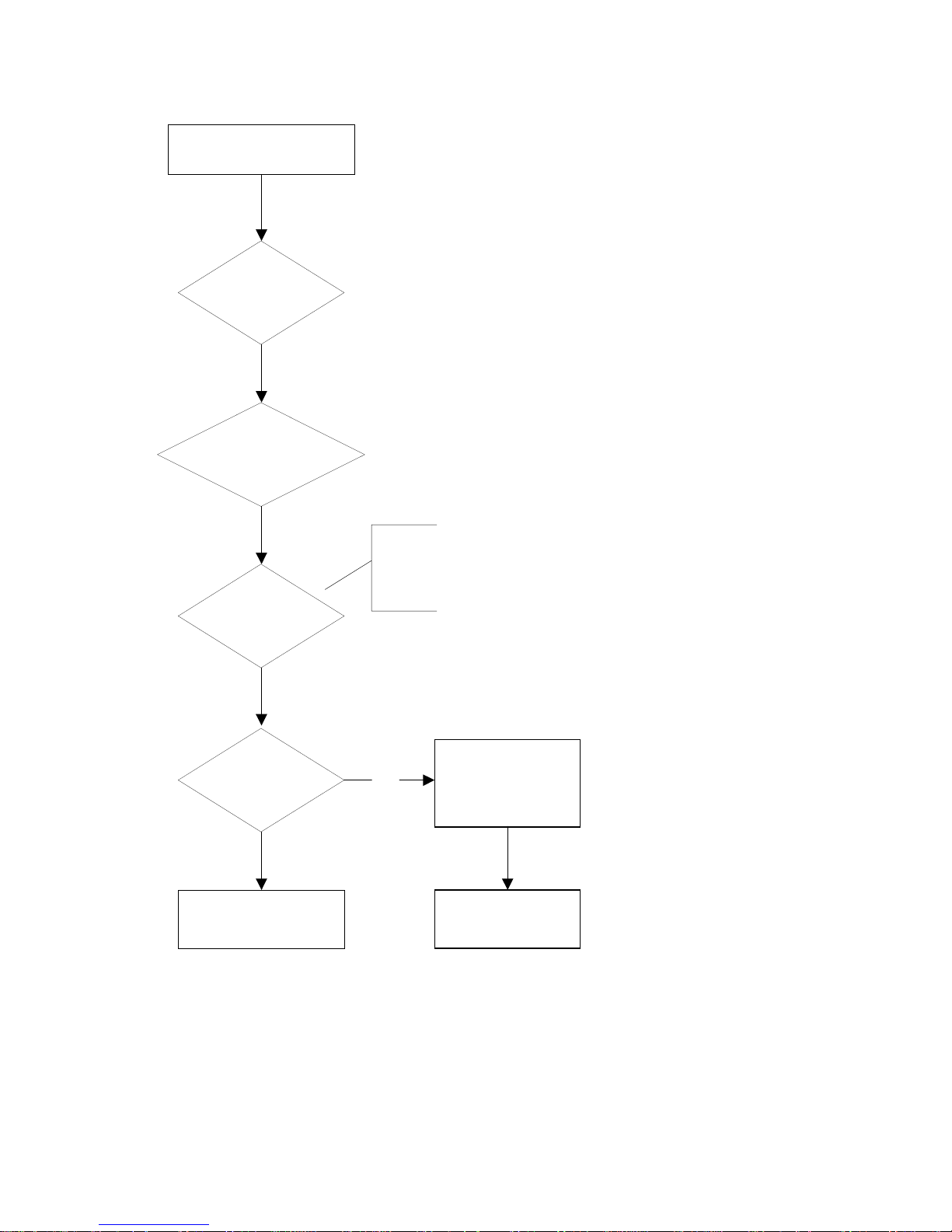

TROUBLE SHOOTING

Refer to User’s Manual trouble shooting section before using this chart.

TABLE OF CONTENTS

Page

1. NO OPERATION, POWER LED FLASH ....................................................................................... 32

2. NO OPERATION, POWER LED OFF ........................................................................................... 33

3. VIDEO NOISE, OUT OF SYNC..................................................................................................... 34

4. NO VIDEO ..................................................................................................................... ................ 35

5. NO RASTER.................................................................................................................................. 36

6. TROUBLE IN H.V SYNC ............................................................................................................... 37

7. PINCUSHION POOR..................................................................................................................... 38

1. NO OPERATION, POWER LED FLASH

1. DC P/S O/P VOLTAGE SET AT 17V,CURRENT SET AT 600MA. POSITIVE CONNECT TO C130”+”. NEGATIVE CONNECT TO U102-pin 5.

2. SCOPE SET AT 10V/DIV, 10US/DIV, PROBE CONNECT TO Q102-GATE AND U102pin 5.

POWER LED FLASH

CHECK

U102

U102 PIN6

PULSE O/P

POWER SW

TURN OFF

FAILURE

R136, ZD103

CHECK

U102 PIN 7 VCC

PIN 4 SAWTOOTH

PIN 8 5V

POWER SW

TURN OFF

MULTIMETER TEST

Q307, Q102

D110,D111,D112,D113

2. NO OPERATION, POWER LED OFF

1. DC P/S O/P VOLTAGE SET AT 17V,CUR RENT SET A T 200MA. POSITIVE CONNEC T TO C112”+”. NEGATIVE CONNECT TO C105”-“.

2. SCOPE SET AT 10V/DIV, 10US/DIV, PROBE CONNECT TO Q101-GATE AND C105”-“.

POWER SW

TURN OFF

CHECK

F101

CHECK

Q101

CHECK

U101

U101 PIN6

PULSE O/P

POWER SW

TURN ON

FAILURE

R111, ZD101

CHECK

U101 PIN 7 VCC

PIN 4 SAWTOOTH

PIN 8 5V

3. VIDEO NOISE, UNSYNCHRONOUS

CHECK HORIZONTAL

FREQUENCY C114 TO GND

CHECK

Q101 G-S FREQUENCY

SYNCRONIZE WITH H-SYNC

CHECK HORIZONTAL

FREQUENCY C132 TO GND

CHECK C132, R139,

D115, R138, R140

NORMAL OPERATION

CHECK

Q101 G-S FREQUENCY

SYNCRONIZE WITH H-SYNC

CHECK C114, R116

D109, R115, R117

YES

NONO

4. NO VIDEO

NO VIDEO

YES

CHECK

SCREEN CONTROL

CLOCKWISE

YES

CHECK

U201 PIN 5, 8, 11

SIGNAL LEVEL

YES

CHECK

U201 PIN 18, 20, 23

SIGNAL LEVEL

TROUBLE IN U201

CLAMP(PIN 15)

U201 12V VOLTAGE

YES

CHECK

U203 PIN 1, 2, 3

SIGNAL LEVEL

CHECK

CATHODE VIDEO

LEVEL

PROBLEM IN CRT

YES

TROUBLE IN U203

R220, R240, R260

TROUBLE IN U203

12V, 77V VOLTAGE

TROUBLE IN

R/G/B SIGNAL,

SIGNAL CABLE

REFER TO

“NO RASTER”

ON PAGE

5. NO RASTER

CHECK

U301 PIN 3, U402 PIN 4

H/V SYNC

NO RASTER

POWER SUPPLY

CHECK

B+

CHECK

U301 PIN 7, U402 PIN 23,24

H/V SYNC

CHECK

T301 PIN 3 VOLTAGE

68V(AT H-FREQ.

31.5KHz)

TROUBLE IN

MCU U701

TROUBLE IN

U301, U402

TROUBLE IN

U102,Q102,D114,D111,L102

OR DEFLECTION YOKE

TROUBLE IN

Q307, Q308,T302, D307,

D308

CHECK Q307

COLLECTOR ABOUT

1050Vp-p

CHECK G1

VOLTAGE ABOUT

-45~65V

TROUBLE IN

Q304, Q305, Q306, ZD303

D318, T301, C344

TROUBLE IN

G2 VOLTAGE

YES

6. TROUBLE IN H. V SYNC

TROUBLE IN

HOR. OR VER. SYNC

CHECK

CONNECTOR S702

(PIN3,4), SIGNAL

TROUBLE IN

SIGNAL CABLE

CHECK

U701(PIN 40,39)

H/V SYNC.

SIGNAL

TROUBLE IN

H/V SYNC LINE &

Q301, Q401

CHECK

U701(PIN 32,33)

H/V SYNC.

SIGNAL

CHECK

U701(PIN 5)

VOLTAGE

5V?

CHECK U301(PIN 3) U402(PIN 4)

CHECK U701(PIN 8) FREQ.4MHz

TROUBLE IN

U301, U402

TROUBLE IN

U701

TROUBLE IN U203

12V, 77V VOLT AGE

TROUBLE IN

5V LINE

YES

YES YES

YES

NO NO

NONO

7. PINCUSHION POOR

PINCUSHION

POOR

PARABOLA

WAVE

CHECK U402 PIN 9 PARABOLA

CHECK U401 PIN 4

SYNC INPUT

CHECK U701 (PIN 32)

OUTPUT

CHECK C431, R432

CHECK 12V & U402

CHECK Q314~Q316,

D308

YES

CIRCUIT DESCRIPTION

TABLE OF CONTENTS

Page

1. Power supply circuit.................................................................................................................40

2. MCU.........................................................................................................................................43

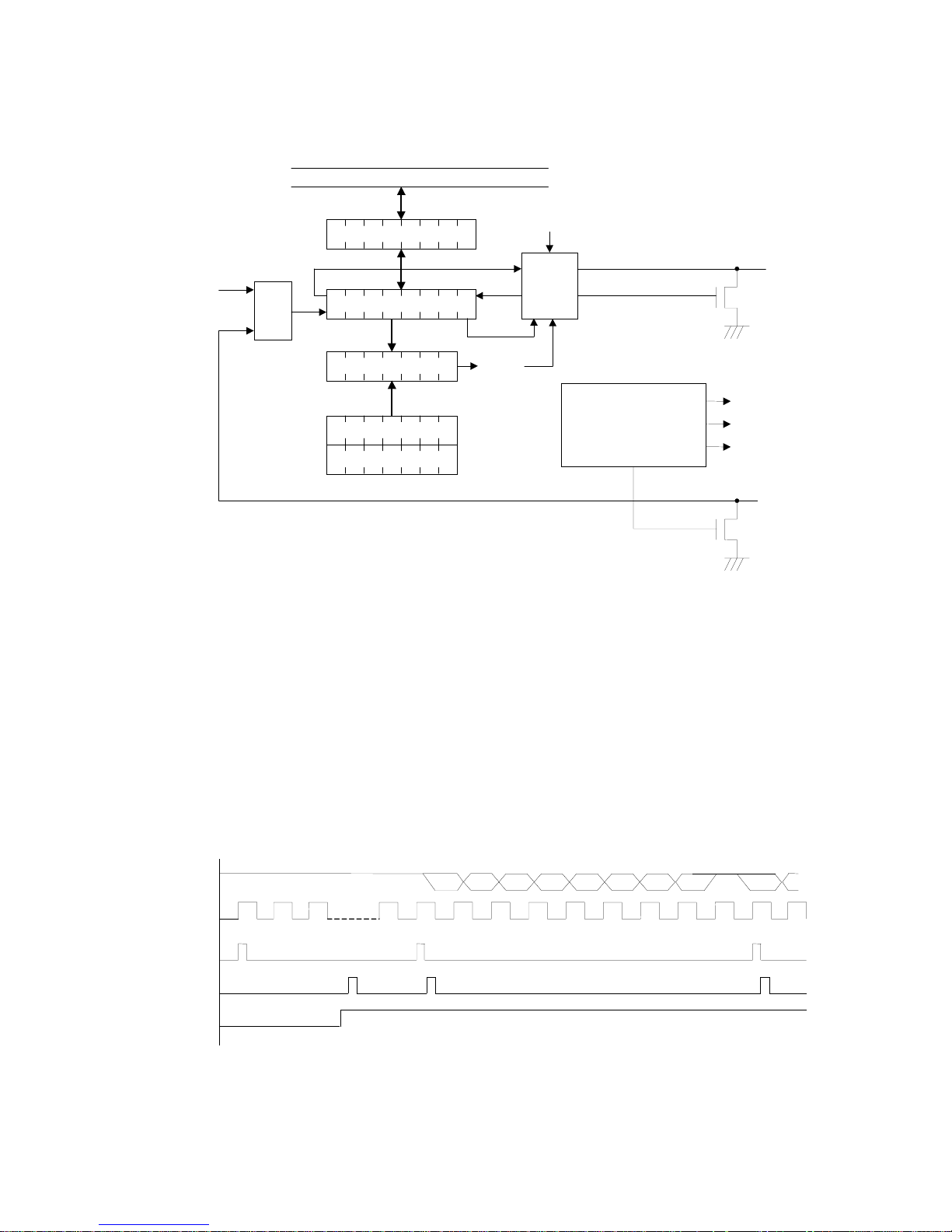

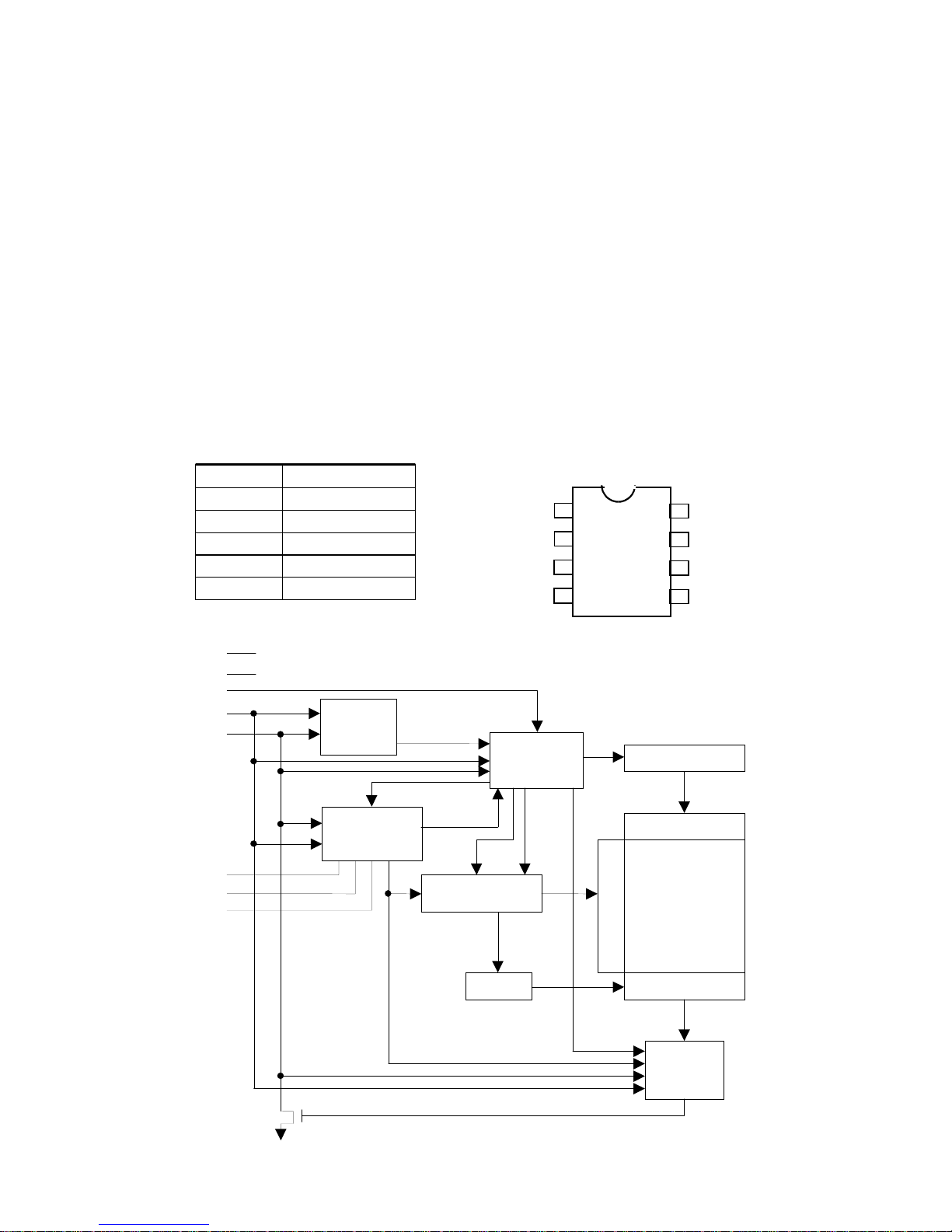

3. 2-wire serial CMOS EEPROM .................................................................................................56

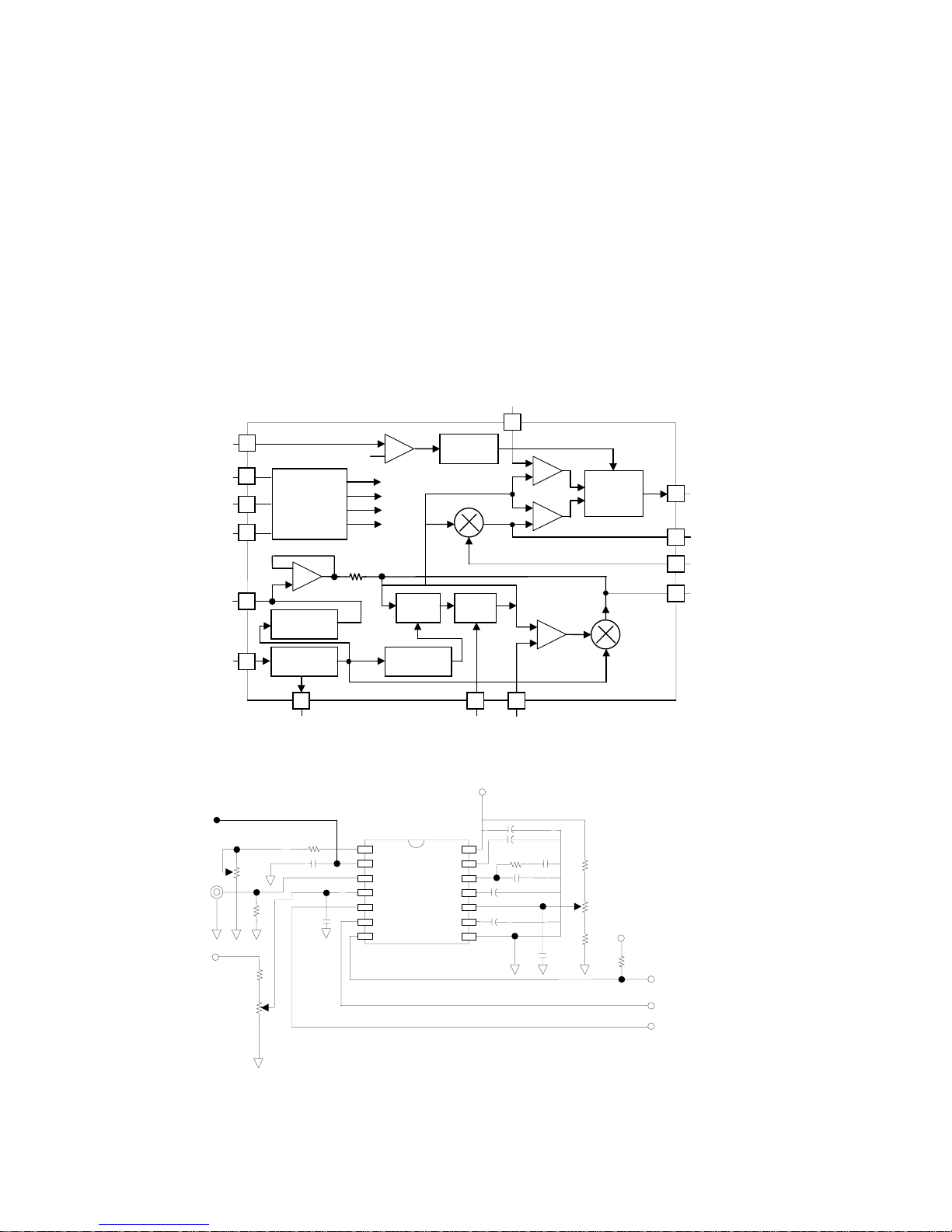

4. Horizontal deflection signal processing ...................................................................................57

5. Vertical compensation and geometrical compensation of the raster.......................................59

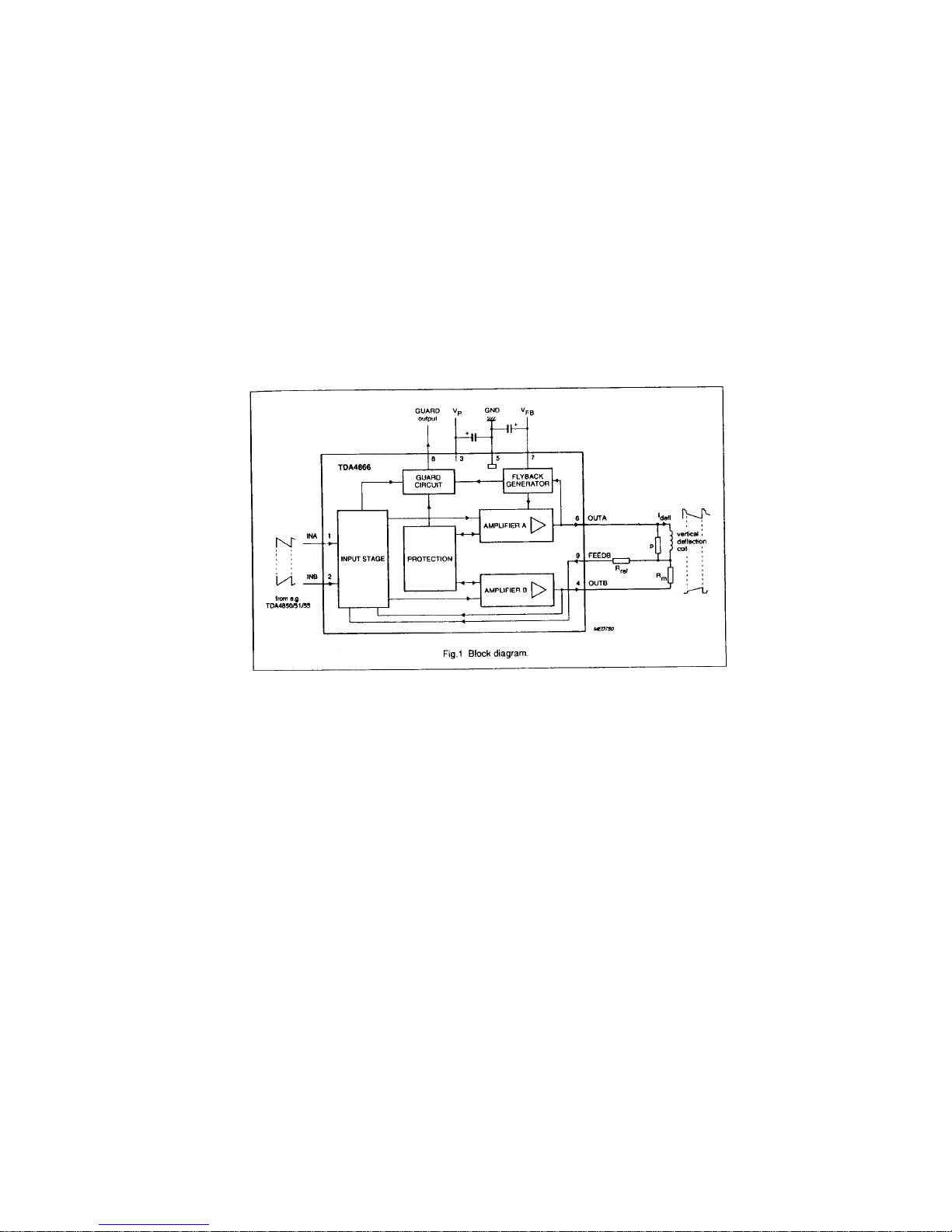

6. Full bridge current driver vertical deflection booster................................................................62

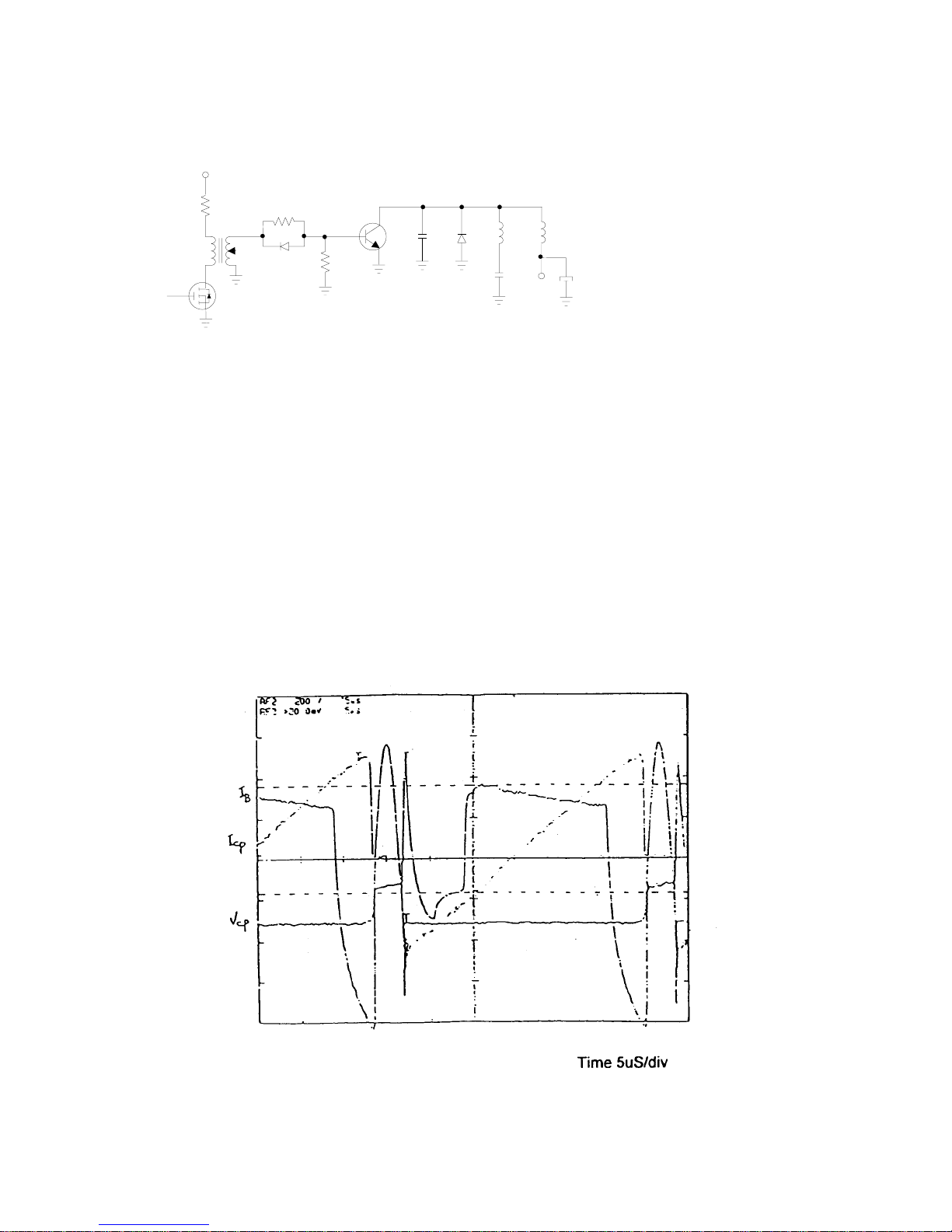

7. Horizontal drive and power supply output ...............................................................................63

8. Horizontal amplitude control ....................................................................................................64

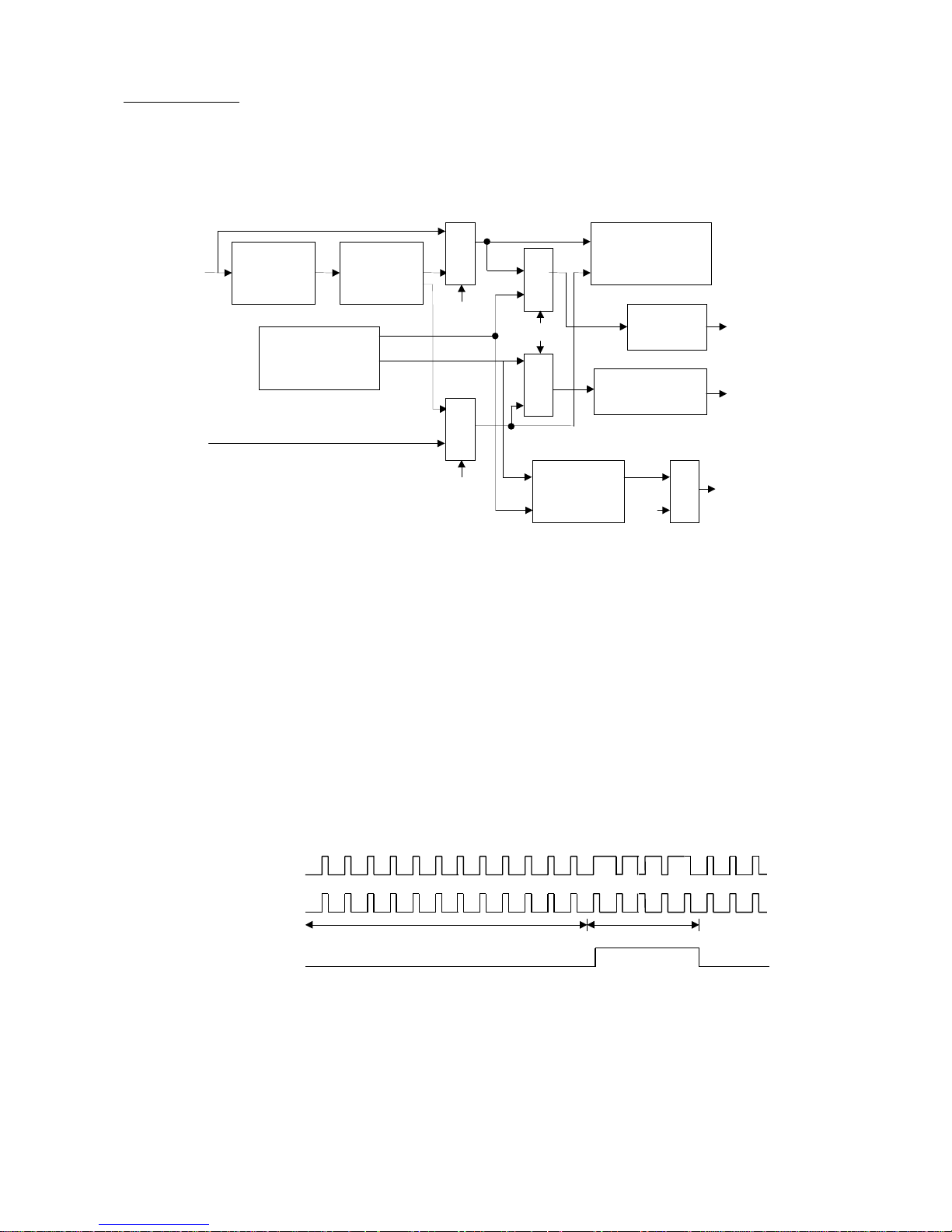

9. Fly-back line erasing unit & spot erasing unit..........................................................................65

10.Video amplifier system with on-screen display.......................................................................66

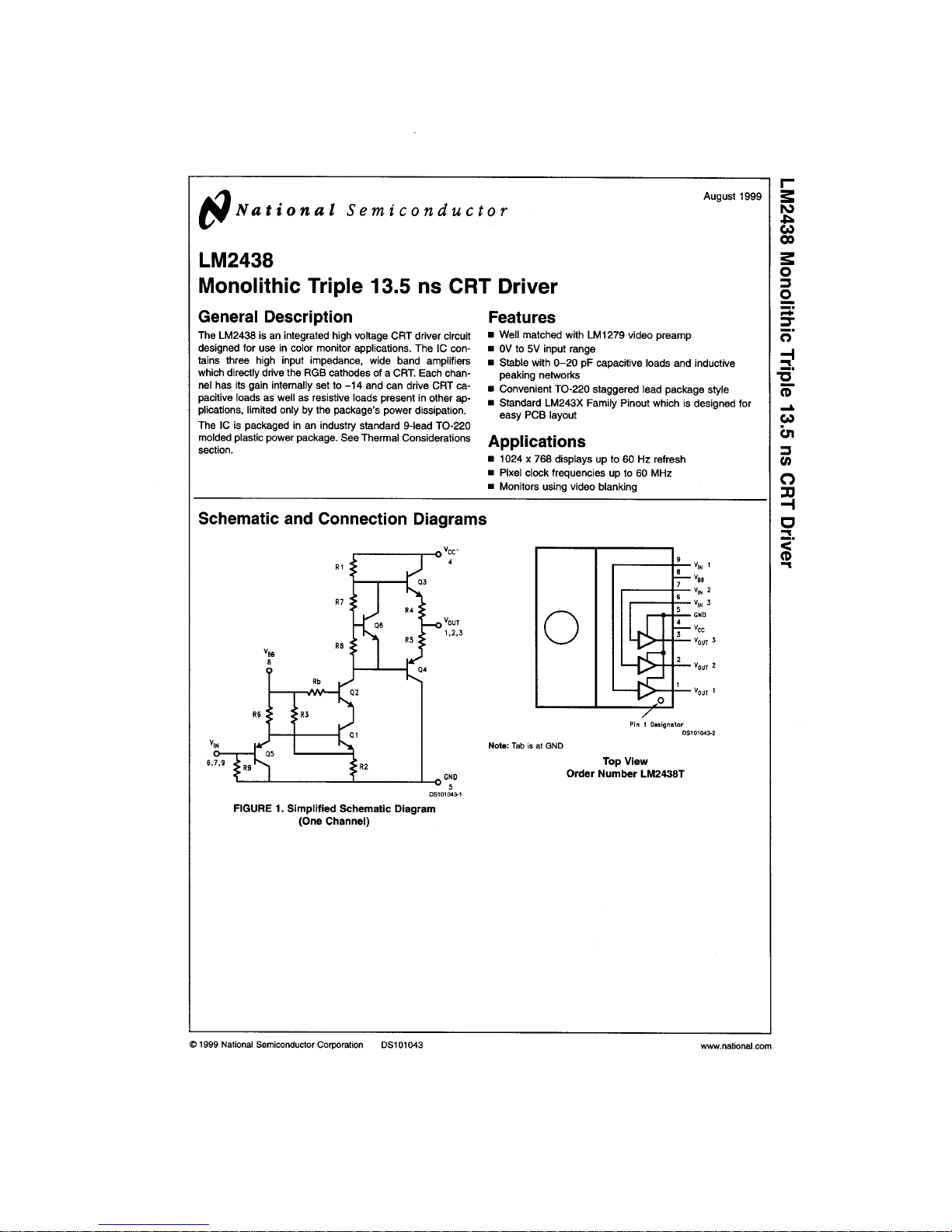

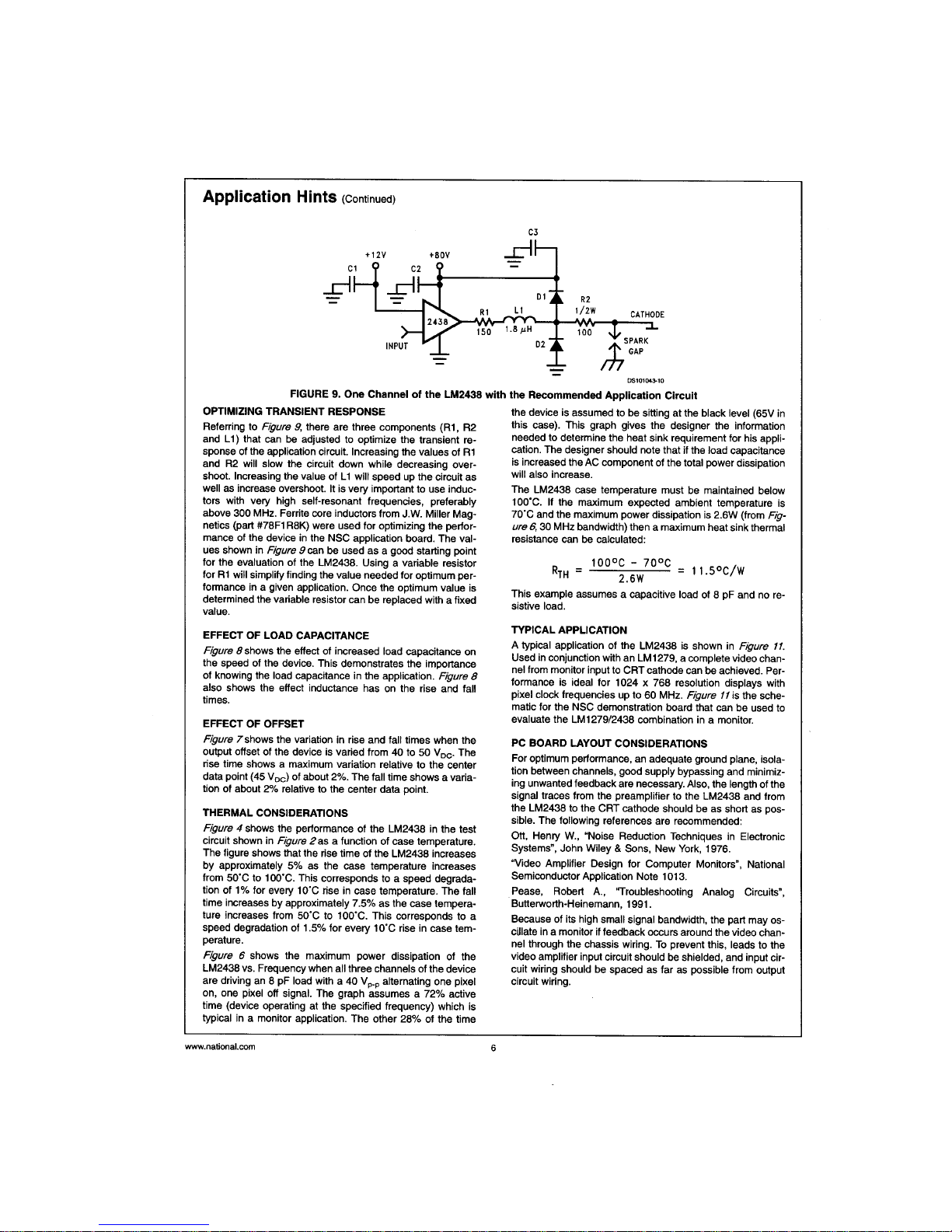

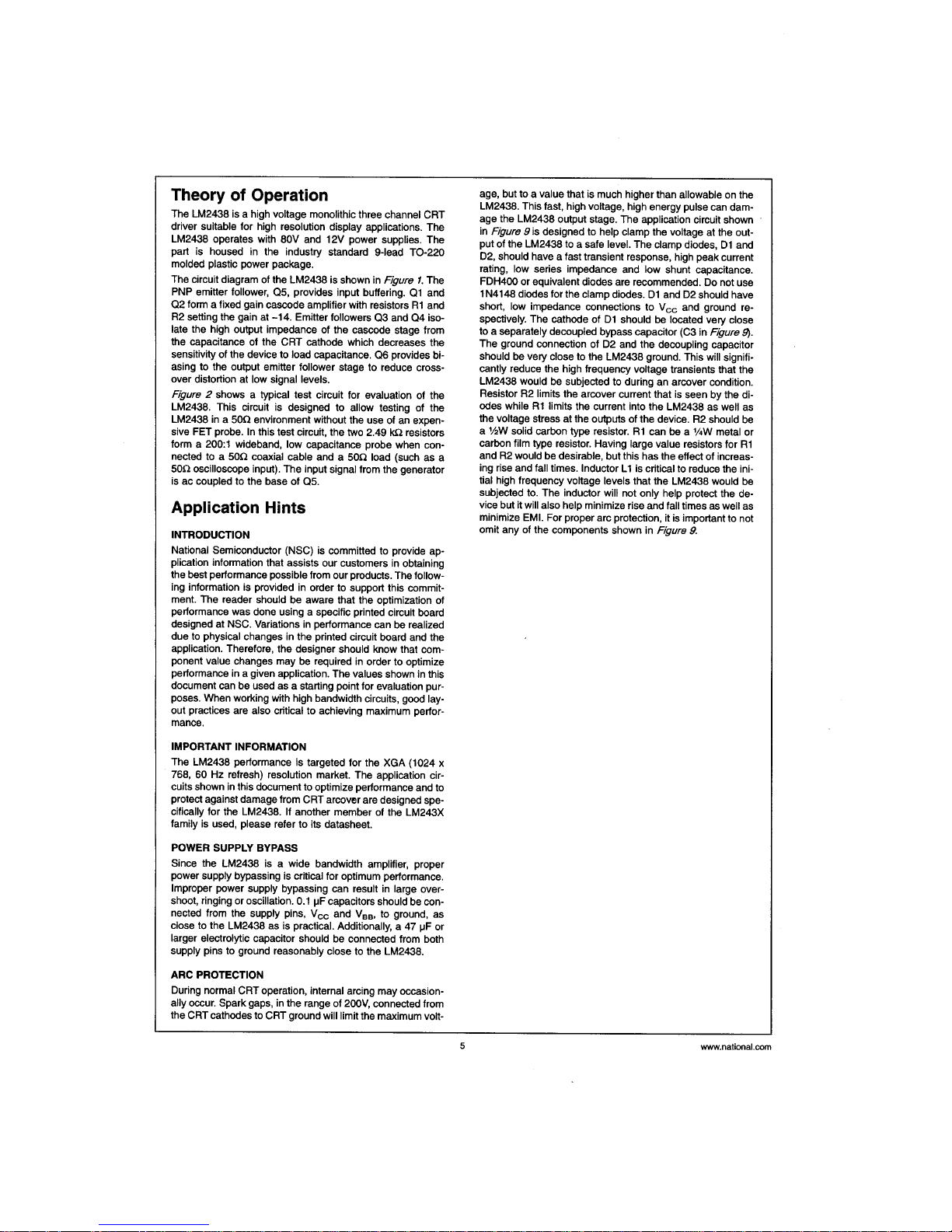

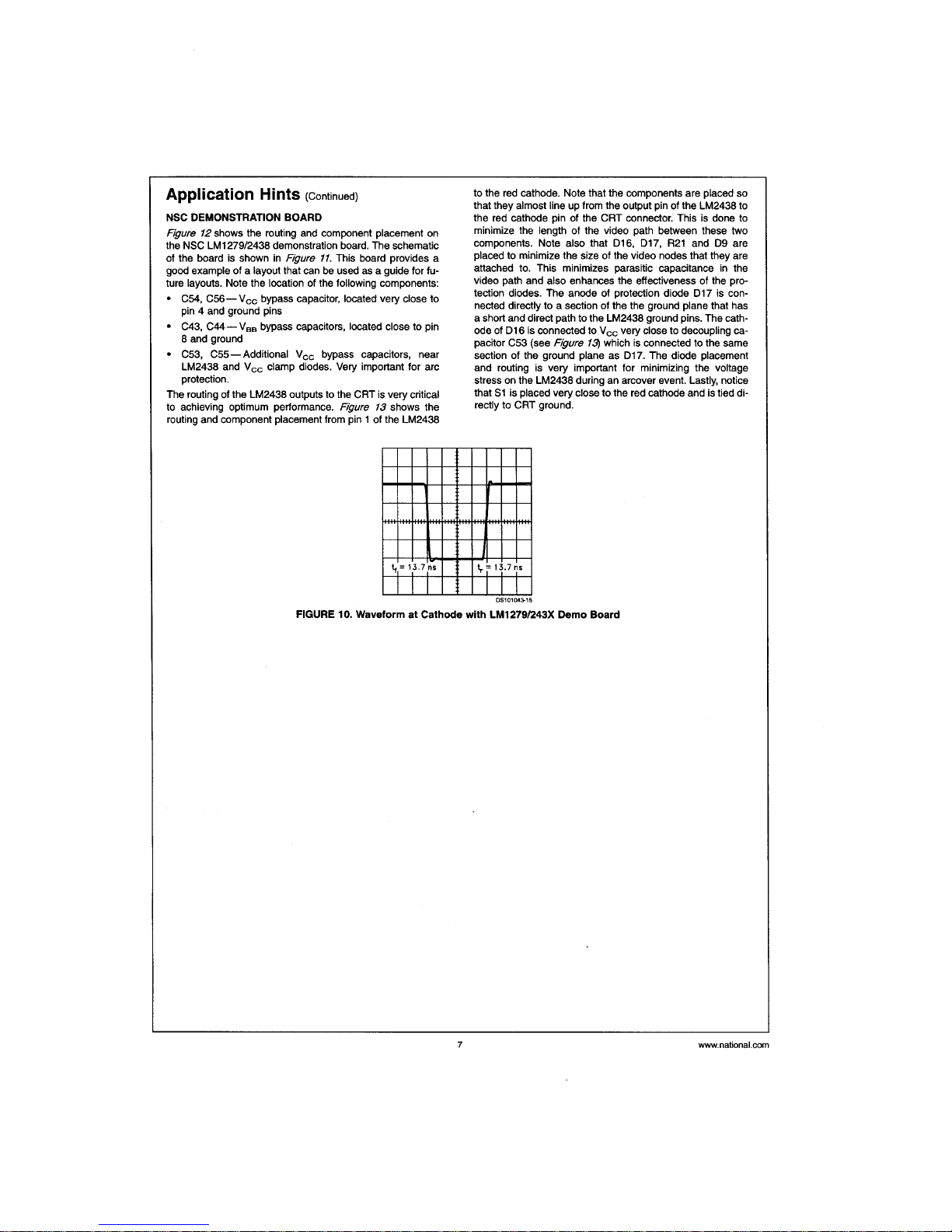

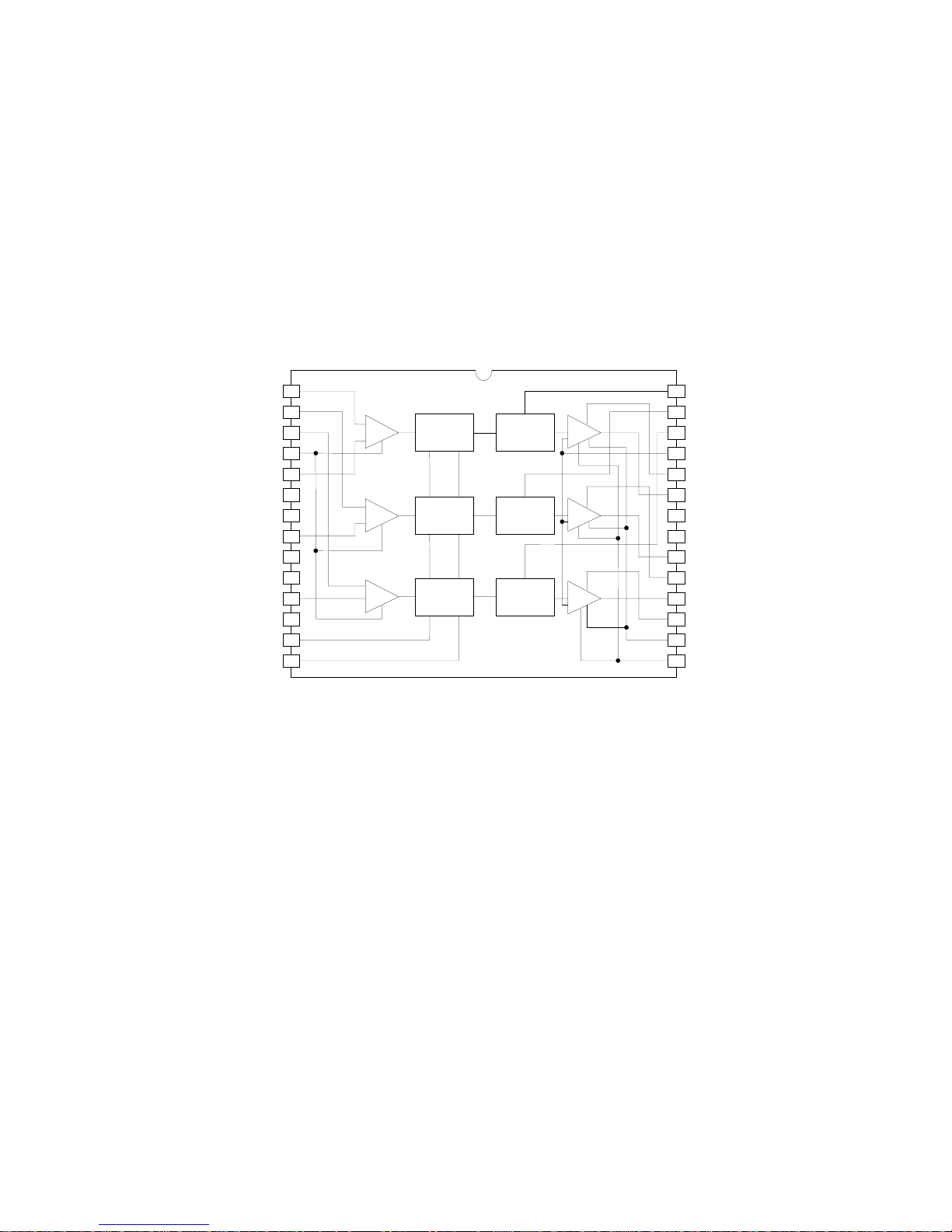

11.Monolithic triple 13.5nS CRT driver ........................................................................................68

12.On screen display ...................................................................................................................72

1. Power supply circuit

 Outline

This power supply unit adopts the switching mode technology, and is an off-line mode type unit that provided several different DC outputs. The scanning frequency is available in different values ranging from 31 kHz to 69 kHz. Moreover, it is capable to operate at an AC input voltage of 100V ~ 240V and an

AC frequency of 50-60 Hz±3Hz. The block diagram is the functional construction schematics, that shows the major functions of this power supply unit.

 EMI

The EMI circuit has a 2-stage construction, with the first stage consisting of the common mode choke unit and one X-capacitor, and the second stage consisting of the common mode choke unit and four Ycapacitors. R101 is the bleed resistor of the X-capacitor. When the power supply switch is turned OFF, this resistor carries out the emergency charging of the capacitor C101. The EMI is the circuit that prevents the monitor switching noise from being generated, there by minimizing the negative influence on the other electronic equipment.

 AC rectifier and smoothing capacitor

The AC input is rectified by means of the full-bridge rectifier, that consists of the diodes D101 to D104. The AC voltage is converted into the DC voltage by passing through the next stage, that consists of the smoothing capacitor C105. TH101 is a NTC thermistor for the power supply at the in-rush current limit.

 Degaussing circuit

The degaussing circuit consists of the PTC thermistor TH102, the degaussing coil and the relay RL101. The relay is controlled by means of the +12V control signal coming from the CPU.

 Transformer and energy

1) When the PWM controls IC KA3842A chip, a driving pulse is generated at the gate of the transistor Q101, and Q101 turns ON. The current returns from the “plus” (+) side of the energy-supplying capacitor C105 to the “minus” (-) side of the same capacitor C105, passing through the transformer Q101 D-S. During the ON cycle, the energy is stored in the transformer T101. The transistor Q101 turns OFF when the driving pulse disappears from Q101. As a result, all voltages of the dot ends of the winding flow to the positive direction and reach the fly-back rectifier. At that point of time, the diodes of the rectifier of the secondary side turn ON, a temporary energy is induced at the secondary side, and the ON cycle of the driving pulse is repeated.

2) The power supply MOS FET Q101 carries out the ON/OFF operation of the control unit, by means of U101 KA3842A. KA3842A is a PWM (pulse width modulation) IC chip, with 16 V starting voltage and 10 V cut-off voltage. The following list shows the pin layout of KA3842A pulse width modulation IC chip.

Pin 1: Feedback Pin 2: Compensation Pin 3: Current sensor Pin 4: Oscillator Pin 5: Ground (GND) Pin 6: Pulse output Pin 7: VCC Pin 8: VREF (5.1 V)

3) Overcurrent protection

R111 is a sensor resistor, and it has the function of increasing the current of this loop when the

output of the secondary side is either in the overloaded state or is insufficient.

Since the current passing through the R111 sensor resistor has voltage dropping effect, the opera-

tion of the output pulse is stopped when a voltage lower than 1 Volt is detected at the pin number 3 of the KA3842A 3chip, and the switch of the power supply MOS FET is kept in the “break” state until the VCC voltage is charged up to 16 Volts, and the operation of U101 KA3842A is resumed. When it is not clearly known whether there is voltage shortage or not, however, this circuit repeats the ON/OFF switching, and the power supply LED lights up.

4) Starting circuit

The resistor R164 and R168 and the transistor Q112 and diode D107 and resistor R165, R149 and

zener diode ZD105 are for the starting operation. When the circuit starts its operation, the power supply transformer T101 supplies the auxiliary 12 Volt power to the control IC chip U101 via pins 6 and 7 of the winding transformer T101.

5) Synchronization circuit

The synchronization signal is induced from the fly-back transformer (FBT), and carries out the

synchronization with the power supply frequency. The frequency range is from 31 kHz to 61 kHz, and the component elements of the synchronization circuit are C114, R116, D109, R115 and R117.

6) Feedback circuit

The feedback circuit loop induces the 12 V voltage through the pin 6 and the pin 7 of the power

supply transformer. That voltage is connected with the pin 3 of the IC chip U101 by passing through D108, C113 and passing next through R122, VR101, R120 and R190. This is a regular loop.

7) Snubber circuit

The snubber circuit has the function of clamping the ON/OFF spikes of the power supply MOS-FET,

and its component elements D105, C106, R106 make up a snubber that turns OFF the power supply MOS-FET.

8) Secondary rectifier and smoothing rectifier

The secondary rectifier is a harmonic rectifier consisting of D111, C124 and R128, and it works as a

snubber circuit as well. The capacitors C120 and C138 are the smoothing rectifier working on the 45 Volt DC output. There are also other DC outputs, such as 80 Volt (D110), 13.5 Volt (D112) and

6.3 Volt (D113).

 DC/DC

The DC/DC voltage is DC 45 volts, and since the set-up voltage is variable from 60 volts to 160 volts,

it is variable depending on the horizontal synchronism. The frequency band is variable from 31 kHz to 65 kHz. The voltage is fed back from the fly-back transformer (FBT). The DC/DC output voltage is used as high-voltage input of FBT T301.

1) DC/DC is a step-up circuit, and consists mainly of the choke L106, the transistor Q102, the diode D114 and U102.

2) When the PWM controls U102 IC KA3843, a driving pulse is generated at the gate of the transistor Q102, and the transistor Q102 turns ON. During the ON cycle, the energy is stored in the choke L106. The transistor Q102 turns OFF when the driving pulse disappears from the gate of the transistor Q102. As a result, the voltage at the dot terminal of the winding flows in the positive direction and goes to the fly-back rectifier. The energy stored in the choke L106 is entered in the FBT, passing through the choke L106, the diode D114 and the capacitor C129.

3) The feedback is detected by the FBT via diode D130, the capacitor C145, the resistor R145 the variable resistor VR102 and the fixed resistor R146, and is connected to the U102-2 pin. This is loop is the regular type one.

4) The frequency of the synchronization signal coming from video H-SYNC is variable from 31 kHz to 69 kHz. The circuit consists of the capacitor C132, the resistor R139, the diode D115, the resistor R138 and the resistor R140.

5) The soft start circuit consists of the resistor R178, the capacitor C164, the diode D133 and the diode D117.

2. MCU

Monitor MCU Specification

Frequency Specification

H-freq. : 29.5K – 70KHz V-freq. : 43 – 160Hz Judge polarity only when frequency is 31.5 KHz and 37.8 KHz Support composite sync detection

System Architecture

1. MCU – Weltrend WT6016, 16K bytes ROM size

2. EEPROM – 24C04 series, 4K bit, with ID code for identify initialization.

3. OSD – Myson MTV016N-12

Input

1. Sync input – 2 pins for H-sync & V-sync frequency inverted input.

2. Key input – 2 pins for A/D key input (SELECT. UP, DOWN and RECALL).

3. Burn-in ID input – 1 pins for Burn-in ID input.

4. Reset input – low pulse for reset MCU

5. Crystal input – 2 pins using 8MHz crystal.

Output – MCU digital pin

1.Degauss – Active high pulse for 2.5 sec when in degauss. MCU will activate degauss while power on.

2.CS output – 3 pins (CS2, CS1, CS0) for CS control

H-sync CS2 CS1 CS0

H-sync < 33.25KHz 0 0 0

33.25KHz<H-sync<36.50KHz 0 1 0

36.50KHz<H-sync<40.50KHz 0 1 1

40.50KHz<H-sync<45.10KHz 1 0 0

45.10KHz<H-sync<51.60KHz 1 0 1

51.60KHz<H-sync<55.10KHz 1 1 0

55.10KHz<H-sync<62.15KHz 1 1 0

62.15KHz<H-sync 1 1 1 Mode change 0 0 0

3.Power saving – 2 pins (PMUS, PMUO) for power saving control – if Hf > 70KHz or Hf < 23KHz, enter power saving mode (suspend). – enter power saving mode after 3 sec when condition met. – enter suspend mode first for 3 sec before enter off mode if off mode condition met.

Mode H-sync freq. V-sync freq. Burn-in ID PMUS PMUO

Normal Yes Yes --- 1 1 Stand By No Yes --- 0 1 Suspend Yes No --- 0 1 Off No No Low 0 0 Burn-in No No High 1 1

PS. Output H-sync 48KHz, V-sync 75Hz for Burn-in mode.

4.Mute – 2 pins for screen mute Mute1 – active low pulse for about 0.6 sec when mode change. Mute2 – active low pulse for about 1.0 sec when mode change, active with mute 1 simultaneously.

5.D/A – 14 pins (PWM output) are Brightness, Contrast, H-phase, H-size, V-center, V-size,

Pincushion, Trapezoid, Rotation, Parallel, Pin-balance, R-gain, G-gain and B-gain. – DAC value 255 means the maximum output volts except Parallel PWM. – All D/A except Rotation, Brightness, Contrast, R-gain G-gain B-gain are mode dependent

functions. – Parallel is voltage inverter function.

6.Sync output – 2 pins for H-sync and V-sync negative output, normal high.

7.DDC – 2 pins (DDC SDA/DDC SCL) for DDC1/DDC2B or auto alignment control. – In auto alignment mode, all keys and OSD are disabled.

8.SDA/SCL – 2 pins for EEPROM and OSD control.

9.WP – 1 pin, high for EEPROM write protect.

Control Panel Operation

SELECT (RESET) POWER

+–

1. Key arrangement – 3 keys for OSD control.

2. Hot key operation A. Factory Mode: SELECT Key + UP (+) Key if pressed when the power SW on. B. OSD Position Control Mode: DOWN (-) Key if pressed when the power SW on. C. Aging mode: Select key if pressed when the power SW on.

IIC interface

1. DDC1/DDC2B

– VESA DDC1/DDC2B is supported.

2. Auto alignment – I²C auto alignment protocol is supported.

Timing Table

Total 24 modes.

1. Factory mode – 20 modes

Mode Resolution H-sync. V-sync. H polarityV polarit

1 VGA 350 31.5KHz 70Hz + 2 VGA 400 31.5KHz 70Hz - + 3 VGA 480 31.5KHz 60Hz - 4 M ACII 35k 35.0KHz 66Hz * * 5 800*600(56) 35.2KHz 56Hz * * 6 8514A 35.5KHz 87Hz * * 7 640*480(75) 37.5KHz 75Hz * * 8 EVGA 400 37.8KHz 84Hz - + 9 800*600(60) 37.8KHz 60Hz * *

10 640*480(85) 43.3KHz 85Hz * *

1 1 800*600(75) 46.8KHz 75Hz * * 12 1024*768(60) 48.3KHz 60Hz * * 13 MACII 49k 49.7KHz 74Hz * * 14 800*600(85) 53.6KHz 85Hz * * 15 1024*768(70) 56.4KHz 70Hz * * 16 1024*768(75) 60.0KHz 75Hz * * 17 640*480(120) 63.7KHz 120Hz * * 18 1280*1024(60) 64.0KHz 60Hz * * 19 800*600(100) 64.0KHz 100Hz * * 20 1024*768(85) 68.6KHz 85Hz * *

‘*’ indicate do not care.

2. User mode – 4 modes – FIFO replacement is applied.

Pin Definition

Pin Na me Description I/O

1 DA2 Pin-balanc e PWM O 2 DA1 H Position PW M O 3 DA0 H size PWM O 4 Re set Low reset I 5Vdd +5V I 6 Vss Ground I 7 Osc O 8MHz Crystal out O 8 Osc I Crystal in I

9 PB5 EEPRO M/OS D SDA I/O 10 PB4 EE PRO M/OS D SC L O 11 PB3 Test Patter n O 12 PB2 CS1 O 13 PB1 CS0 O 14 PB0 PMU OFF O 15 IRQ CS2 O 16 PC7 MUTE2 O 17 PC6 Degauss out O 18 PC5 MUTE1 O 19 PC4 PMU suspend O 20 PC3 Burn-in ID I 21 PC2 EEPROM w rite protect O 22 PC1 UP/RESET key I 23 PC0 DOWN/SELECT key I 24 SDA DDC SDA I/O 25 SCL DDC SCL I 26 PA0 Ro tation PWM O 27 PA1 Contrast PWM O 28 PA2 Brightness PWM O 29 PA3 R-gain PWM O 30 PA4 G- gain PW M O 31 PA5 B gain PWM O 32 PA6 V-sync out O 33 PA7 H-syn c out O 34 DA7 V-center PWM O 35 DA 6 P a rallel PWM O 36 DA5 Trapezoid PWM O 37 DA4 Pincushion PWM O 38 DA3 V-Size PWM O 39 Hsync in H-sync input I 40 Vsync in V-sync input I

GENERAL DESCRIPTION

The WT6016 is a member of WT60XX microcontroller family. It is specially designed for digital controlled multi-sync monitor. It contains 8-bit CPU, 16K bytes ROM, 288 bytes RAM, 14 PWMs, parallel I/ O, SYNC processor, timer, one DDC interface (slave mode I²C interface with DDC1), one master/slave I²C interface, two 4-bit A/D converters and watch-dog timer.

FEATURES

* 8-bit 6502 compatible CPU, 4MHz operating frequency * 16384 bytes ROM, 288 bytes SRAM * 8MHz crystal oscillator * 14 channels 8-bit/62.5kHz PWM outputs (8 open drain outputs & 6 CMOS outputs) * Sync signal processor with H+V separation, frequency calculation, H/V polarity detection/control * Three free-running sync signal outputs for burn-in test (64kHz/62.5Hz, 48kHz/75Hz, 31kHz/60Hz) * Self-test pattern generator generates cross hatch picture * DDC interface supports VESA DDC1/DDC2B standard * Master/slave I²C interface * Watch-dog timer (0.524 second) * Maximum 25 programmable I/O pins * One 8-bit programmable timer * Two 4-bit A/D converter * One external interrupt request * Built-in low VDD voltage reset * +5V power supply

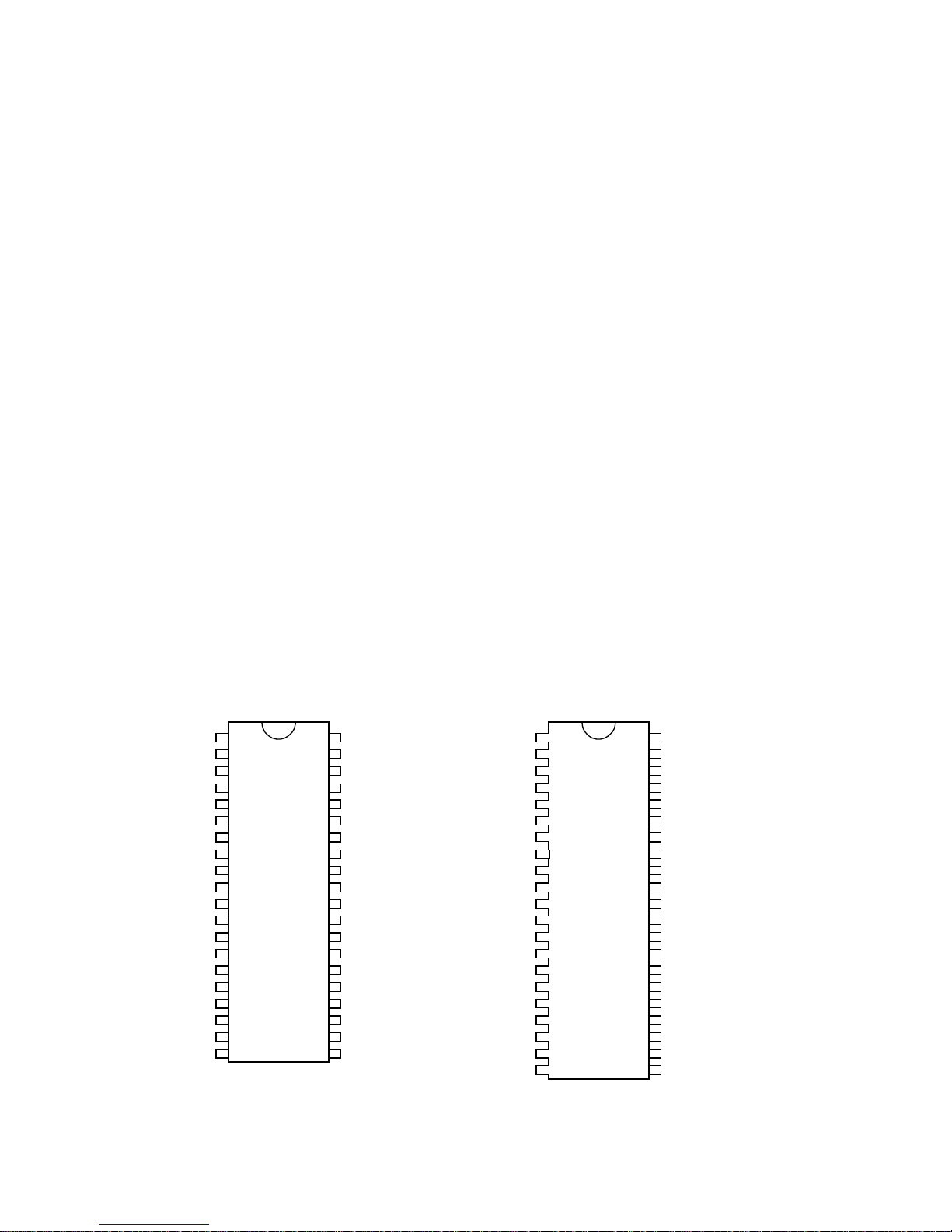

PIN ASSIGNMENT

PC1/AD1

SDA1/PD1

PA3/DA11

PA5/DA13

PA7/HSO

VSYNC HSYNC DA3 DA4 DA5 NC

DA6 DA7

PA6/VSO

PA4/DA12

PA2/DA10 DA1/DA9 PA0/DA8 SCL1/PD0

PC0/AD0

PC2

RESET

DA2 DA1 DA0

VDD

GUD

OSCO

OSCI

PB5/SDA2

PB4/SCL2

PB3/PAT

PB2 PB1 PB0

PB6/IRQ

PC7 PC6 PC5 PC4 PC3

VSYNC HSYNC DA3 DA4 DA5 DA6

DA7 PA7/HSO PA6/VSO PA5/DA13 PA4/DA12 PA3/DA11 PA2/DA10 PA1/DA9 PA0/DA8 SCL1/PD0 SDA1/PD0 PC0/AD0 PC1/AD1 PC2

DA0

PB3/PAT

RESET

DA2 DA1

VDD GUD

OSCO

OSCI

PB5/SDA2

PB4/SCL2

PB2 PB1 PB0

PB6/IRQ

PC7 PC6 PC5 PC4 PC3

40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21

1 2 3 4 5 6

7 8 9 10 11 12 13 14 15

17 18 19 20

40 Pin

WT6016

42 Pin SDIP

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22

WT6016

* I²C is a trademark of Philips Corporation. * DDC is a trademark of video Electronics Standard Association (VESA).

PIN DESCRIPTION

Pin No. 40 42

Pin Na m e I/O Desc riptio n s

11 DA2 O

D/A converter 2.

Open-drain output. External applied voltage can up to 10V.

22 DA1 O

D/A converter 1.

Open-drain output. External applied voltage can up to 10V.

33 DA0 O

D/A converter 0.

Open-drain output. External applied voltage can up to 10V.

4 4 /RESET I

Reset.

Active low. Schmitt trigger input, Internal pull high.

55 VDD

Power supply (+5V).

67 GND

Ground (0V).

78 OSCO O

Oscilla to r O u tp u t.

Connects a 8MHz crystal.

89 OSCI I

Oscilla to r Inp u t.

Connects a 8MHz crystal.

9 10 PB5/SDA2 I/O

I/O Port B 5 o r I²C d a ta p in .

This pin can be an I/O port or I²C serial data pin.

10 11 PB4/SCL2 I/O

I/O Port B 4 o r I²C d a ta p in .

This pin can be I/O port or I²C clock pin.

11 12 PB3/PAT I/O

I/O Port B 3 o r s e lf-tes t pa tte rn o u tp u t.

When as an I/O port, it is same as PB5.

When it is configured to test pattern output, a video signal is output.

12 13 PB2 I/O

I/O Port B 2 . S a m e a s P B 0 .

13 14 PB1 I/O

I/O Port B 1 . S a m e a s P B 0 .

14 15 PB0 I/O

I/O Port B 0 .

When it is an input pin, it has an internal pull-up resistor. When it is an

output pin, the source/sink current is 5mA.

15 16 PB6/IRQ I/O

I/O Port B 6 o r In te rru p t Re q u e s t.

When as interrupt request input, it has an

internal pull high resistor. When as an I/O port, it is same as PB3.

16 17 PC7 I/O

I/O Port C 7 .

When it is an input pin, it has an internal pull-up resistor. When it is an

output pin, the sink current is 10mA and the source current is 5mA.

17 18 PC6 I/O

I/O Port C 6 .

Same as PC7.

18 19 PC5 I/O

I/O Port C 5 .

Same as PC7.

19 20 PC4 I/O

I/O Port C 4 .

Same as PC7.

20 21 PC3 I/O

I/O Port C 3 .

Same as PC7.

21 22 PC2 I/O

I/O Port C 2 .

Same as PC7.

22 23 PC1/AD1 I/O

I/O Port C 1 o r A /D c o n v er te r inp u t 0 .

23 24 PC0/AD0 I/O

I/O Port C 0 o r A /D c o n v er te r inp u t 1 .

24 25 SDA 1 /P D1 I/O

DDC serial clock or I/O Port D1.

When it is a DDC interface pin, It is an open-

drain output. When as an I/O port, it is same as Port B.

25 26 SCLI/PD0 I/O

DDC serial clock or I/O Port D0.

When it is a DDC interface pin, It is an open-

drain output. When as an I/O port, it is same as Port B.

26 27 PA0/DA8 I/O

I/O Port A 0 o r D /A c o n v er te r 8.

This pin can be the output of D/A converter 8

(source /sink = 5mA) or an I/O pin (source = -100uA, sink = 5mA).

27 28 PA1/DA9 I/O

I/O Port A 1 o r D /A c o n v er te r 9.

Same as PA0/DA8.

28 29 PA2/DA10 I/O

I/O Port A 2 o r D /A c o n v er te r 10 .

Same as PA0/DA8.

29 30 PA3/DA11 I/O

I/O Port A 3 o r D /A c o n v er te r 11.

Same as PA0/DA8.

30 31 PA4/DA12 I/O

I/O Port A 4 o r D /A c o n v er te r 12 .

Same as PA0/DA8.

31 32 PA5/DA13 I/O

I/O Port A 5 o r D /A c o n v er te r 13 .

Same as PA0/DA8.

32 33 PA6/VSO I/O

I/O Port A6 / VSYNC OUT.

This pin can be the output of VSYNC or an I/O pin.

When as an I/O pin, it is same as PA0.

33 34 PA7/HSO I/O

I/O Port A 7 / H S Y N C OUT.

This pin can be the output of HSYNC or an I/O pin.

When as an I/O pin, it is same as PA0.

34 35 DA7 O

D/A converter 7.

Open-drain output. External applied voltage can up to 10V.

35 36 DA6 O

D/A converter 6.

Open-drain output. External applied voltage can up to 10V.

36 38 DA5 O

D/A converter 5.

Open-drain output. External applied voltage can up to 10V.

37 39 DA4 O

D/A converter 4.

Open-drain output. External applied voltage can up to 10V.

38 40 DA3 O

D/A converter 3.

Open-drain output. External applied voltage can up to 10V.

39 41 HSYNC I

HSYNC input.

Schmitt trigger input.

40 42 VSYNC I

VSYNC input.

Schmitt trigger input.

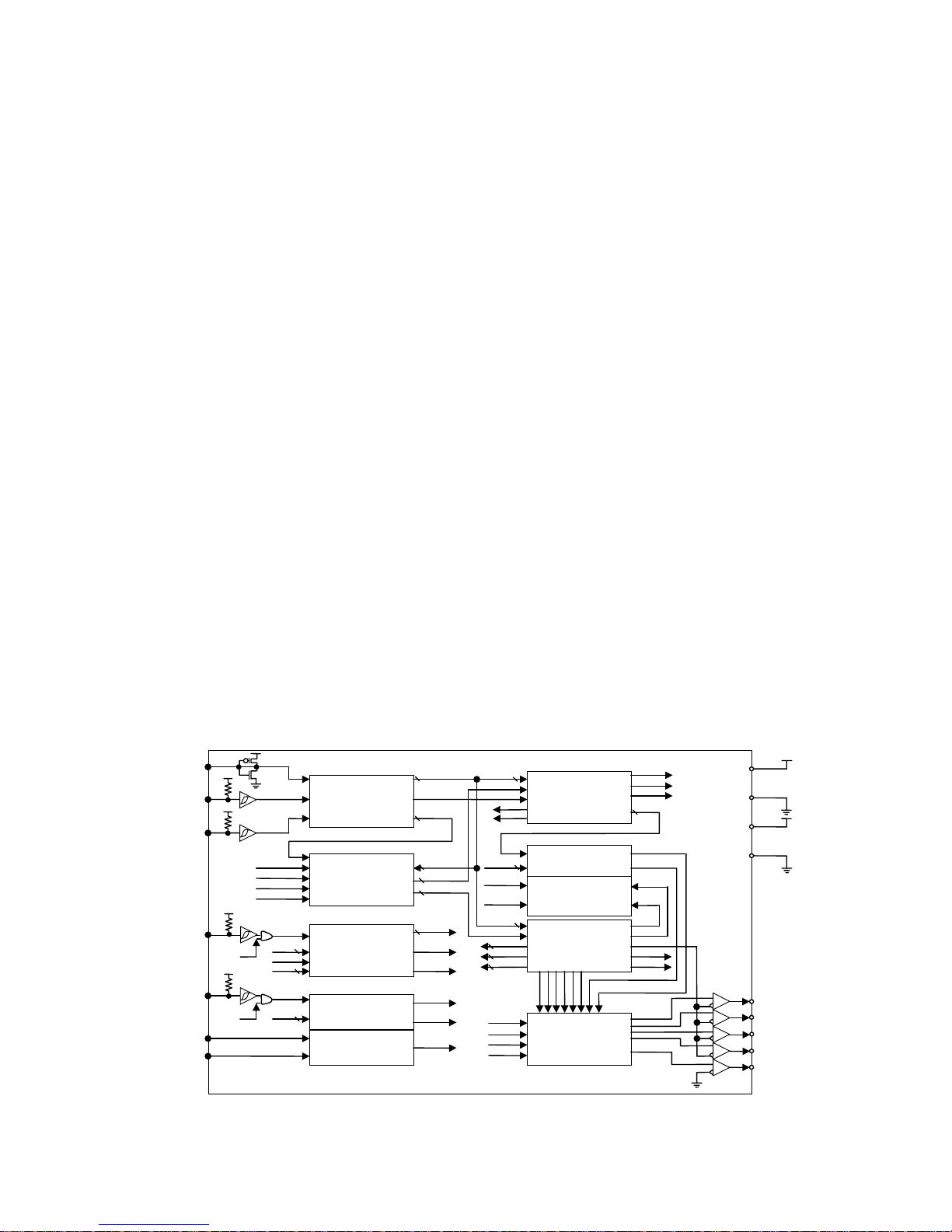

SYNC Processor

The SYNC processor can : (1) separate the composite sync signal; (2) calculate HSYNC and VSYNC frequencies; (3) detect polarities of HSYNC and VSYNC input; (4) control the output polarities of HSO and VSO pin; (5) generate free-running horizontal and vertical sync signals for burn-in test; (6) generate self-test pattern signal.

HSYNC

VSYNC

H Polarity

detect

Sync

Separator

Mux

H/V Freq. Counter

H/V SYNC

Generator

Mux

H Polarity

Control

V Polarity detect & control

SELF

TEST Pattern Generator

Mux

PB3

HSO

VSO

PB3/PAT

H+V

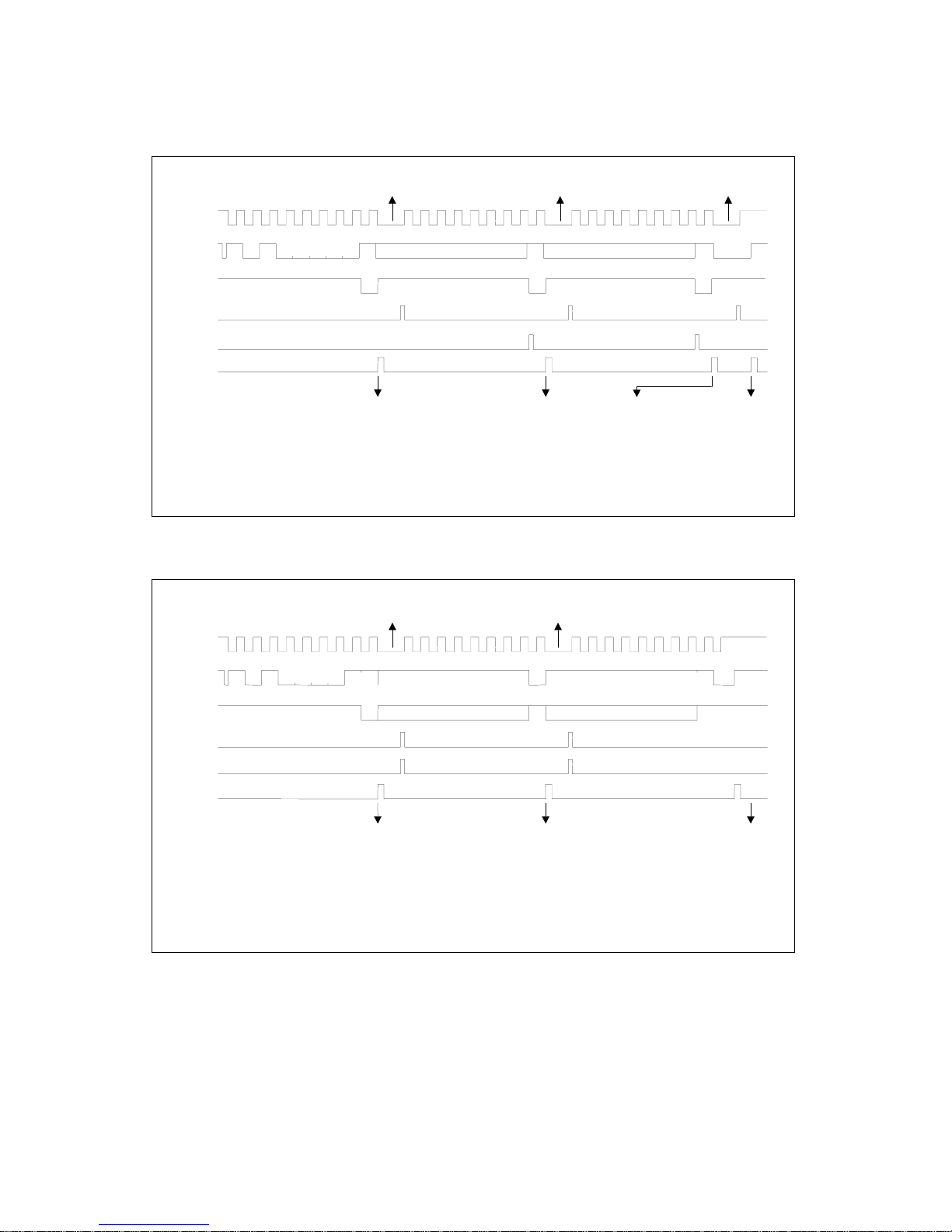

Composite Sync Signal Separation

The composite sync signal comes from HSYNC pin and is separated by the sync separator. The operations of sync separator are:

- detect the polarity and covert composite sync signal to positive polarity.

- extract Vsync Pulse width less than 8us will be filtered, but the Vsync will be widened about 8us.

- count the pulses during the separated Vsync is low and save the counter value (NH).

- bypass the composite sync pulses before the counter equals to N

- start inserting Hsync pulses after the counter equals to NH until the separated Vsync is low.

- the period of inserted Hsync is decided by the last two bypassed Hsync.

- the pulse width of the inserted Hsync is 2us.

bypass

insert HSYNC

Positive H+V Separated Hsync

Separated Vsync

To decide whether the HSYNC input is a composite sync signal or not, program should check the frequency of VSYNC first (reset H+V bit to “0”). If the VSYNC frequency is lower than 15.25Hz (OVF2=1), set H+V bit to “1” and check VSYNC frequency again. If VSYNC still has no frequency, that is power saving condition, program should reset H+V bit. If it has a valid frequency, the HSYNC input is composite signal.

Frequency Calculation

Horizontal frequency and vertical frequencies calculation are done by using one 10-bit up counter. After power is on, the SYNC processor calculates the vertical frequency first (H/V bit = ”0”). A 31.25KHz clock counts the time interval between two VSYNC pulses, then sets the FRDY bit and generates an INT1 interrupt (if IEN_S bit is “1”). The software can either use interrupt or polling the FRDY bit to read the correct vertical frequency. After reading the REG#16H, the FRDY bit is cleared to “0”, counter is reset and H/V bit is set. The SYNC processor starts to count horizontal frequency. The horizontal frequency calculation is done by counting the HSYNC pulses in 8.192 ms. Like the vertical frequency, the horizontal frequency can be read when the FRDY bit is set or INT1 occurs. After reading the REG#16H, the FRDY, INT_S and H/V bits are cleared. The SYNC processor starts to calculate the vertical frequency again, and so on.

The relationships between counter value and frequency are:

Hfreq = (counter value × 122.07) Hz Vfreq = ( 31250 / counter value) Hz

The frequency range:

Hfreq range: 122.07 Hz to 124.8 kHz; Resolution: 122.07Hz Vfreq range: 30.5 Hz to 31.25 kHz

If counter overflowed, the OVF1 bit will be set to “1”. The counter keeps on counting until it overflowed again. The OVF2 bit and FRDY bit will be set when counter overflowed twice. This is designed for finding the vertical frequency bellows 15.25Hz. The program should check REG#17H before reading REG#16H.

Polarity Detect/Control

The polarities of HSYNC and VSYNC are automatically detected and are shown in the H_POL and V_POL bits. The polarities of HSO and VSO are controlled by the HOP and VOP bits. For example, set HOP bit to ”1”, the HSO pin always outputs positive horizontal sync signal, whatever the HSYNC input’s polarity is.

Free-running Sync Signal

The self-generated sync signals are output from HSO and VSO pins if SELF bit is “1”. Three kinds of frequencies are provided: (1) Hfreq = 8MHz/125 = 64.0kHz, Vfreq = Hfreq/1024 = 62.5Hz.

(2) Hfreq = 8MHz/167 = 47.9kHz, Vfreq = Hfreq/640 = 74.9Hz. (3) Hfreq = 8MHz/257 = 31.1kHz, Vfreq = Hfreq/512 = 60.8Hz.

The output polarities are controlled by the HOP and VOP bits.

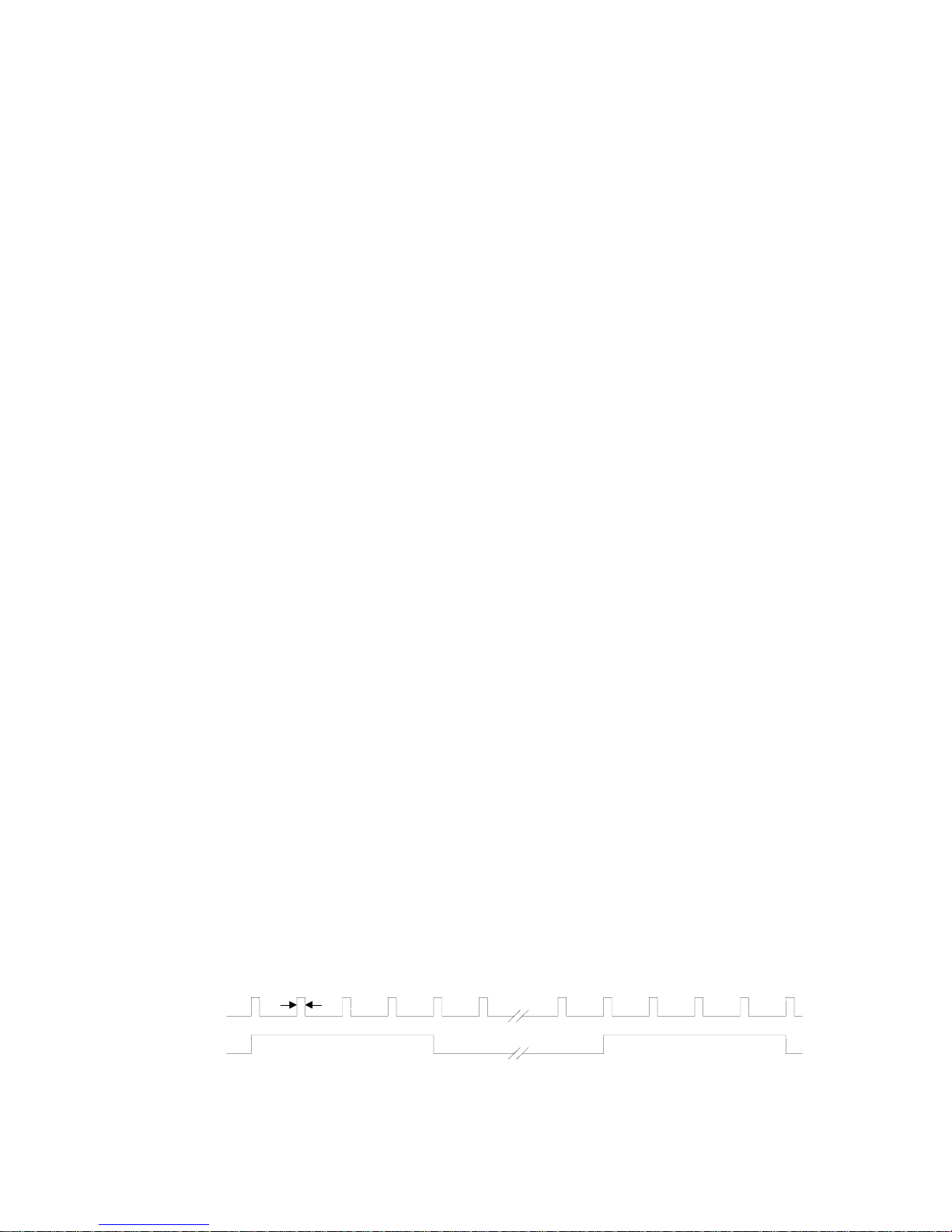

The pulse width of HSO is 2us and VSO is four HSO cycles. The timing relationship is shown in the following:

2us

HSO

VSO

Test Pattern Generation

A self-test pattern signal comes out from pin PB3/PAT. It can generate a cross hatch picture, a inverted cross hatch picture, a whit epicture or a black picture.

8 × 8 cross hatch Inverted 8 × 8 cross hatch

White Picture Black Picture

The test pattern signal is generated when SELF and ENPAT are both set to “1”. This video signal will synchronize to the free-running Hsync and Vsync, no matter which frequency is chosen. The following diagram shows the timing relationship of cross hatch picture.

HSO

PAT

HSO VSO T

31.1kHz 60.8Hz 6us 1us 62.5ns

47.9kHz 74.9Hz 5.125us 0.625us 62.5ns 64kHz 62.5Hz 3.625us 0.875us 62.5ns

DDC Interface

The DDC interface is a slave mode I²C interface with DDC1 function. It is fully compatible with VESA DDC1/2B standard. The functional block diagram is shown in the below.

Data Buffer

Shift Register

Address Compare

Address Register

0 1 0 0 0 0

MUX

ENACK

ADDR

R/W

VSYNC

MSB

Internal Data Bus

SDA

START/STOP Detect

Handshake Control

START STOP

DDC2B

SCL

After power on or reset the DDC interface, it is in DDC1 state. The shift register shilfts out data to SDA pin on the rising edge of VSYNC clock. Data format is an 8-bit byte followed by a null bit. Most significant bit (MSB) is transmitted first. Every time when the ninth bit has been transmitted, the shift register will load a data byte from data buffer (REG#18H). After loading data to the shift register, the data buffer becomes empty and generates and INT0 interrupt. So the program must write one data byte into REG#18 every nine VSYNC clocks.

Since the default values of data buffer (REG#22) and shift register are FFH, the SDA pin outputs high level if no data had been written into data buffer after power on reset. When program finished initialization and set the IEN_D bit to “1”, the INT0 will occur because the data buffer is empty. The INT0 service routine should check the DDC2B bit is “0” and then writes the first EDID data byte into data buffer. When the second INT0 occurs, the INT0 service routine writes the second EDID data byte into data buffer and so on.

IEN_D

INT0

Load data to shift register

Bit0

Bit7

SDA

Bit7

VSYNC

12 3 9

18 19

If a low level occurs on the SCL pin in DDC state, the DDC interface will switch to DDC2B state immediately and set the DDC2B bit to “1”. No interrupt will be generated. But, if there is no valid device address and it receives 128 VSYNC pulses while the SCL is high level, it will lock into DDC2B state and disregard VSYNC.

In some case, program wants to go back DDC1 state, set RDDC bit in REG#1AH and reset it again. This operation resets the DDC interface to the initial condition.

When it is in DDC2B state, the VSYNC clock is disregarded and the communication protocol follows the DDC standard. The data format on SDA pin is:

S Add re s s R/W A D7, D6 ,…, D 0 A D7, D6,…, D0 A P

S: Start condition. A falling edge occurs when SCL is high level. P: Stop condition. A rising edge occurs when SCL is high level. A: Acknowledge bit. “0” means acknowledge and “1” means non-ackonwledge. Address: 7-bit device address. R/W: Read/Write control bit, “1” is read and “0” is write. D7, D6, …, D0: data byte.

The hardware operations in DDC2B state are:

(1)START/STOP detection

When the START condition is detected, the DDC interface Is enabled and set START bit to “1’. When the STOP condition is detected, the DDC interface is disabled, set STOP bit to “1” and generate INT0 interrupt. The START bit is cleared when the following data byte received. The STOP bit is cleared after writing REG#19H.

(2)Address Recognition

It contains two device addresses in WT6018. On fixed address (‘1010000’) is for EDID reading and one programmable address (REG#19H) is for external control, such as auto alignment. If the address is equal to “1010000”, set ADDR bit to”0”. If the address is equal to the bit A6 to bit A0 (REG#19H), set ADDR bit to”1”. If the address is not equal to anyone above, the DDC interface will not response acknowledge. The ADDR bit is updated when a new device address is received.

(3)Store R/W bit and decide the direction of SDA pin

The R/W bit on the SDA pin will be stored in the RW bit.

(4)Acknowledge bit control/detection

Acknowledge bit control in receive direction: If ENACK=1 and address compare is true, response acknowledge (Acknowledge bit =”0”). If ENACK=0 or address compare is false, response non-acknowledge (Acknowledge bit =”1”).

Acknowledge bit detect in transmit direction: If the acknowledge bit is ”1”, the DDC interface will be disabled and release the SDA pin. If the acknowledge bit is ”0”, the DDC interface keeps on communicating.

(5)Data bytes transmit/receive

If the RW bit is “1”, the shift register will load data from the data buffer (REG#18H) before the data byte is transmitted and shift out data to the SDA pin before the rising edge of the SCL clock. If the RW bit is “0”, the shift register will shift in data on the rising edge of the SCL clock and the whole data byte is latched to the data buffer (REG#18H).

(6)Handshaking procedure

The handshaking is done on the byte level. The DDC interface will hold the SCL pin low after the acknowledge bit automatically. The bus master will be forced to wait until the WT6018 is ready for the next byte transfer. To release the SCL pin, write REG#19H will release clear the wait state.

(7)Interrupt INT0

The DDC interface interrupt is enabled by setting the IEN_D bit in the REG#1AH. Interrupt INT0 occurs when:

- Transmit buffer empty in DDC1 state. The INT0 occurs when the shift register load data from data buffer. Write REG#18H will clear the transmit buffer empty condition.

- Acknowledge is detected in DDC2B state. The INT0 occurs on the falling edge of the SCL clock after the acknowledge had been detected. The SCL pin will be pulled low to force the bus master to wait until the service routine write REG#19H.

- STOP condition occurs in DDC2B mode

Address R/W Initial Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

0018H R/W FFH D7 D6 D5 D4 D3 D2 D1 D0 0019H R 40H DDC2B ADDR R/W START STOP -- -- -0019H W A0H A6 A5 A4 A3 A2 A1 A0 ENACK

Bit Name Bit va lue = “1” Bit value = “0”

DDC2B DDC2B state. DDC1 state.

ADDR

Received address e

uals to the address

in REG#1 9H(W).

Received address equals to ‘1010000’

RW Received R/ W bit is ‘1’ Received R/W bit is ‘0’

START START condition is detected. No START condition is detected.

STOP STOP condition is detected. No STOP condition is detected.

ENACK Enable acknowledge. Disable acknowledge. A6, A5, … , A0 7-bit slave address D7, D6, … , D0 Data to be transm itted or received data.

Pull low SCLPull low SCLPull low SCL

Data ByteData Byte

SCL

11000000

AAA

SDA In

SDA Out

INTO

Write REG#19H to release Shift register to data buffer

DDC2B=1 ADDR=0 R/W=0 START=0 STOP=1

DDC2B=1 ADDR=0 R/W=0 START=0 STOP=0

DDC2B=1 ADDR=0 R/W=0 START=1 STOP=0

DDC2B state write timing

Pull low SCL Pull low SCL

Data Byte Data Byte

SCL

1100000

SDA In

SDA Out

INTO

Write REG#19H to release Data buffer to shift reg

DDC2B=1 ADDR=0 R/W=1 START=0 STOP=1

DDC2B=1 ADDR=0 R/W=1 START=0 STOP=0

DDC2B=1 ADDR=0 R/W=1 START=1 STOP=0

DDC2B state write timing

3. 2-wire serial CMOS E²ROPM

Outstanding Features

§ Internally Organized 512 × 8 (4K)

§ Two-wire Serial Interface

§ Bidirectional Data Transfer Protocol

§ Write Protect Pin for Hardware Data Protection

§ 16-byte Page Write Modes

§ Partial Page Writes Are Allowed

§ Self-timed Write Cycle (10 ms max)

Description

The AT24C04 provides 4096 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as words of 8 bits each. The device is available in space saving eight-pin PDIP and is accessed via a two-wire serial interface. The AT24C04 is guaranteed for 100,000 erase/write cycles and 100 year data retention.

Pin Configurations

Pin Name Function

A0 to A2 Address Inputs SDA Serial Data SCL Serial Clock Input WP Write Protect NC No Connect

8-PIN PDIP

1 2

6 7 8

Vcc WP

SCL SDA

A0 A1

GND

Block Diagram

SERIAL

CONTROL

LOGIC

START

STOP

LOGIC

H.V. PUMP/TIMING

DATA RECOVERY

E²PROM

H.V. PUMP/TIMING

X DEC

OUT

/ACK

LOGIC

DEVICE

ADDRESS

COMPARATOR

DATA WORD

ADDR/COUNTER

Y DEC

GND WP SCL SDA

OUT

R/W

LOAD

COMP

LOAD

INC

4. Horizontal deflection signal processing

LM1290:

1. Full-automatic synchronization from 22 kHz to 90 kHz. No component changeover nor external adjustment is required.

2. DC control H phase and duty cycle.

3. The resistance corresponds to the frequency programmable down to VCO.

4. X-ray input invalid.

5. H-drive invalid due to low VCC (when VCC<9.5V). The H OUT transistor is protected as a result.

6. The capacitor protects the H output transistor during the change of the scanning mode, by means of the programmable frequency ramming H VO/dt.

System Block Diagram

DISABLE

LATCH

H DRIVE

DUTY CNTL

H DRIVE

PD2 FILTER

FLYBACK PD1 FILTER/

VCO IN

PD2

PD1

VCOS/H

V DETECT

H SYNC

FCV

1.8V

VOLTAGE

REFERENCE

X-RAY

GND

FVC

FILTER

H/HV

SYNC

H/HV POLARITY

MIN

PHASE CNTL

Typical Application LM1290

POLARITY

OUTPUT

H/HV

SYNC

INPUT

DUTY

CYCLE

CONTROL

X-RAY PROTECTION

FLYBACK PULSE IN

H DRIVE OUTPUT

H PHASE CONTROL

MIN

H/HV H/HV

SYNC DUTY CYCLE

RAY

FLYBACK

H DRIVE

REF

PD1 FILTER

VCO IN

FVC

FILTER PHASE

PD2

FILTER

GND

1290

20k

0.1µF

50k

10k

1.2k

3.3k

3.9k

0.1µF

1µF

4.7nF

0.47µF

100µF 470µF

0.1µF

+ +

1. PIN 1. fmin: lower limit frequency of this setting. fmin = 5.6×108/ (Rmin*500) fmin = 29.1 kHz, Rmin = 18.7K

Ω (When the frequency is 30kHz or more)

fmin = 22.8 kHz, Rmin =24K

Ω (When the frequency is 24kHz or more)

2. PIN 2. Polarity of H/HV: C

POL = 0.1uf, Io = ±1uA , Vo = 1-e-t/RC

3. H/HV synchronous input: When there is compatibility between TTL and CMOS, the H/HV synchronous input is within the 0.35 to 1.85 V range, and the polarity is negative.

4. Power factor control: V4 = 0~4V = 70 to 30%, 10%/V V4 = (Vref*R1)/R2 = 2.17V Duty = (2.17*10%/V) + 30% = 51.7 to 56.7%

5. X-ray shutdown: Specification: 1.65 to 1.8V shutdown When B+ HV=25 kV, we have Vout = 25 V

DC, therefore, when shutdown HV = 27.5 kV, we

have Vout = 30.8 V

DC.

When R1 = 10.7K

Ω and R2=10KΩ, we have shutdown VOL = 26.8 to 28.2KV.

6. Fly-back input threshold voltage: 10 Vp-p < Vin, Vcc (12V) R484 = 24K

Ω, Vin = 11 Vp-p.

7. Horizontal drive: Low level current: Minimum 100mA Low level voltage: Maximum 0.4V

48.36KHz: Ton = 11.01 us, Toff = 9.66 us : 53.28%

8. Pin 10 H-PHASE control: Control gain = 8.89% TH/V Minimum control ROMGE =

± 22%TN

V10 = 3.8~6.8V f = 31.5 kHz, Range =

± 7.9 us

f = 64 kHz, Range =

± 3.9 us

9. Vref: Vref specification = 8.2 V

10. FVC filter: FVC = 0.052 V/kHz V11 31.5KHz to 64KHz =1.734 to 3.53V

5. Vertical compensation and geometrical compensation of the raster

LM1295:

1. Vertical scanning frequency : 50 to 100Hz.

2. DC control compensation amplitude

3. Temperature stability of the vertical amplitude : 1%.

4. Dynamic vertical deflection compensation corresponding to the secondary anode voltage drop.

5. Positive and negative compensation signals.

Block Diagram

LM1295 Application

VR4

R1 10K

Ω

U1 LM1295

22 1 3

4 2

616

10uF

100uF

10uF

Negative going V Sync

12V

R2 10K

Ω

VR1 5K

Ω

R3 150K

Ω

R4 50K

Ω

10K

Ω

VR2 200K

Ω

S Amplitude Adj.

C4 10uF

C5 10uF

VR3 5K

Ω

R7 10K

Ω

300K

Ω

4.7uF

0.47uF

0.1uF

R8 10K

Ω

R9 10K

Ω

200K

Ω

S Center Adj.

TO V Deflection Output Amp.

Rvert

Gnd V Drive

4V Cap

8V Cap

V Drive

Vref Cap

OSD Cap

21 Cap

V Sync in

ALC Cap

V Height

Gnd

Vcc

V Dyn Height

V Dyn Focus

V Dyn

Focus Cntl

V Sync in

Osc.

V Height

Auto

Level

Gain

Vertical

output

Gnd

V Dyn

Height

-(X)²

4 2 1

20 19 18 21 22

Osc Cap

ALC Cap

V Dyn

Focus

Cntl

H Trap

Cntl

E-W Pin

Cntl

H Para

Cntl

H Bow

Cntl

V Dyn.

Focus

E-W

Bow

Para

Trap

-(V)²

24 23 7 17 5 8

Rvert Rvert

+ Vertical Drive

- Vertical Drive Vcc (12V) GND 8V Cap

REF

Cap

V Dyn Focus

4V Cap

H Dyn Width

H Dyn Cntl

2f Cap

1. V-Height (Pin-2): The amplitudes of the +V and –V drive currents are controlled by means of the 0V to 4V voltage of this pin. The current can be raised by raising by raising the voltage. The control range is approximately 1.8 to

2. 4V CAP (Pin 3): 4 V CAP (capacitor), 10 uF capacitor.

3. V-Sync in: The vertical synchronization input is a negative TTL level pulse, and it has the function of locking the vertical oscillator. The pulse has a minimum width of approximately 200 nS.

4. 8V CAP (Pin 5): 8V CAP (capacitor), 100uF capacitor.

5. V-Dyn Height (Pin 6): The amplitude of the driving currents of the voltages +V and –V are controlled by means of the 3V to 4V voltage of this pin.

6. H-Dyn Height (Pin 9): This output is expressed by the sum of the vertical ramp and the parabola resulting from that ramp. The amplitude and the polarity of the ramp signal is controlled by H TRAP CNTRL (Pin 1 1), and the amplitude and polarity of the parabola is controlled by E-W PIN CNTRL (PIN 10), both in the DC-control mode.

7. E-W PIN CNTRL (Pin 10): This is the E-W direction pincushion deformation control function, and the voltage range is within the 0V4V range. When the voltage falls within the 2V-4V range, the amplitude increases, and the parabola becomes positive. On the other hand, when the voltage falls within the 2V-0V range, the parabola becomes negative.

8. TRAP CNTRL (Pin 11): This is the trapezoid control function, and the voltage is within the 0V-4V range. When the voltage falls within the 2V-4V range, the amplitude increases, and the ramp becomes positive. On the other hand, when the voltage falls within the 0V-2V range, the ramp becomes negative.

9. Parallelogram control (Pin 12): The voltage is within the 0V to 4V range. When the voltage falls within the 2V-4V range, the ramp, the ramp becomes positive. One the other hand, when the voltage falls within the 0V-2V range, the ramp becomes negative.

10.Bow shape control (Pin 13): The voltage is within the 0V-4V range. When the voltage falls within the 2V-4V range, the parabola becomes positive. On the other hand, when the voltage falls within the 0V-2V range, the parabola becomes negative.

11.Output of the parabola and bow-shaped parabola (Pin 14): The amplitude and the polarity of the ramp signal are controlled by means of the PARA CNTRL (Pin

12), and the amplitude and polarity of the parabola are controlled by the BOW CNTRL (PIN 13). In both cases, the control is carried out in the DC mode.

12.V Dyn Focus control (Pin 15): The voltage is within the 0V to 4V range. When the voltage falls within the 2V-4V range, the parabola becomes positive. On the other hand when the voltage falls within the 0V-2V range, the parabola becomes negative.

13.V Dyn Focus (Pin 16)

14.ALC Cap (Pin 18): This is the Automatic level Controller (ALC) capacitor, and the recommended value is 4.7 uF.

15.Frequency doubling capacitor: This is the vertical oscillator that locks at a frequency twice as high as the vertical synchronization frequency. Its capacitance is 0.47 uF.

16.OSC Cap (Pin 20): The value of the capacitance is 0.1 uF.

17.Rvert (Pin 21/22): The vertical resistor has the function of determining the gain of the vertical ramp current generator.

18.–V drive (Pin 23) and +V drive (PIN 24): –V is the negative portion of the vertical ramp output current of the object of the operation. The ramp current waveform is superimposed on the DC current of the approximately 315 uA.

The voltage corresponding to the output (typically 10 kΩ) is typically 6V.

6. Full bridge current driver vertical deflection booster

TDA4866

1. Fully built-in type construction, with practically no external component.

2. High-grade amplification of the linear sawtooth wave signal.

3. High-efficiency DC coupling vertical bridge circuit.

4. Powerless vertical shift

5. Deflection frequencies up to 140 Hz

6. The power consumption and fly-back time can be optimized, because the power supply voltage and the fly-back voltage can be individually adjusted.

7. Superior transition movement during the fly-back.

8. Guard circuit provided for screen protection.

Function Description

1) Differential input stage Since the differential input stage is provided with high-grade CMRR differential current input (Pins 1/

2) system, the magnetic resistance is high, and is optimum for driver units with differential signals and single–ended current signals.

2) Output stage The two output stages are current-driven type ones with opposite phases, and are operated in combination with the deflection coil that has full-bridge construction.

3) Fly-back generator During fly-back, the fly-back generator supplies the fly-back voltage to the output stage A.

4) Protection unit The output stage is provided with protection units against overheating and short-circuit of the coil (Pins 4/6).

5) Guard circuit The built-in guard circuit supplies the fly-back line erasing signal to the CRT, and the guard signal is active.

7. Horizontal drive and power supply output

Circuit Diagram

Description of the circuit:

1) R1, T1 and Q2 compose the horizontal driving circuit, and the transistor Q1 generates a horizontal output through the driving signal.

IB1 = I

CPMAX

/ Q1h

feMIN

¡Ü¡Ü

¡Ü 3I

di/dt

¡Ü¡Ü

¡Ü 3.3 A/US

2) The resistor R2 corrects the cu rr ent IB1, the resistor R3 works as a damping resis tor and l eak resistor, and the diode D2 works as a disch arg ing devi ce and pola r body. As long as the transis tor Q 1 i s O FF, the discharge is accelerated and t he storage time (Tstg) i s shortened.

3)H-OUT circuit waveform

VCC

B+

8. Horizontal amplitude control

Circuit Diagram

Description of the circuit:

1) The diodes D1 and D2 compose the bipolar modulation circuit, and have the function of controlling the currents of the oils DY(lpp) and Lm(lm) through voltage modulation carried out by utilizing VM.

B+ = Vm +Vcs Therefore, Vcs = (ly * Ly)/ts → ly = (Vcs * ts)/Ly, with B+ fixed. Such being the case, the horizontal width decreases when Vm ↑ → Vc ↓ → ly ↓ Inversely, the horizontal width decreases when Vm ↓ → Vcs ↑ → ly ↑ (B+ = (Vp*2Tr)/(π*Ts), Tr =

¡Ô¡Ô

¡ÔLyCt, Tm =

¡Ô¡Ô

¡ÔLmCm)

2) Q2, Q3, Q4 and U1 compose the control circuit of H-WIDTH. Of those devices, the transistor Q1 and Q2 compose the Darlington current am plifier, an d o n the ot her han d the tran sistor Q 4 and th e op erational amplifier U1 compose the emitter-coupl ed circuit, that stabil ize the voltage and control the current.

3) The horizontal width broadens when Va ↑ → VbI ↑ → I1 ↑ → I2 ↑ → Vm ↓ →. An inference in the opposite sense is also possi bl e.

Test points for maintenance:

1) CT = 31 to 37 kHz = 3.2 us

48 to 64 kHz = 3.0 us Cm ÷ 2.8 us

2) VACENTER: 31 to 64 kHz

¡Ü¡Ü

¡Ü 1.91 to 4.06V

VMCENTER: 31 to 64 kHz

¡Ü¡Ü

¡Ü 11.6 to 27.4V

B+

Csm

H-Width

AC PIN

9. Fly-back line erasing unit & spot erasing unit

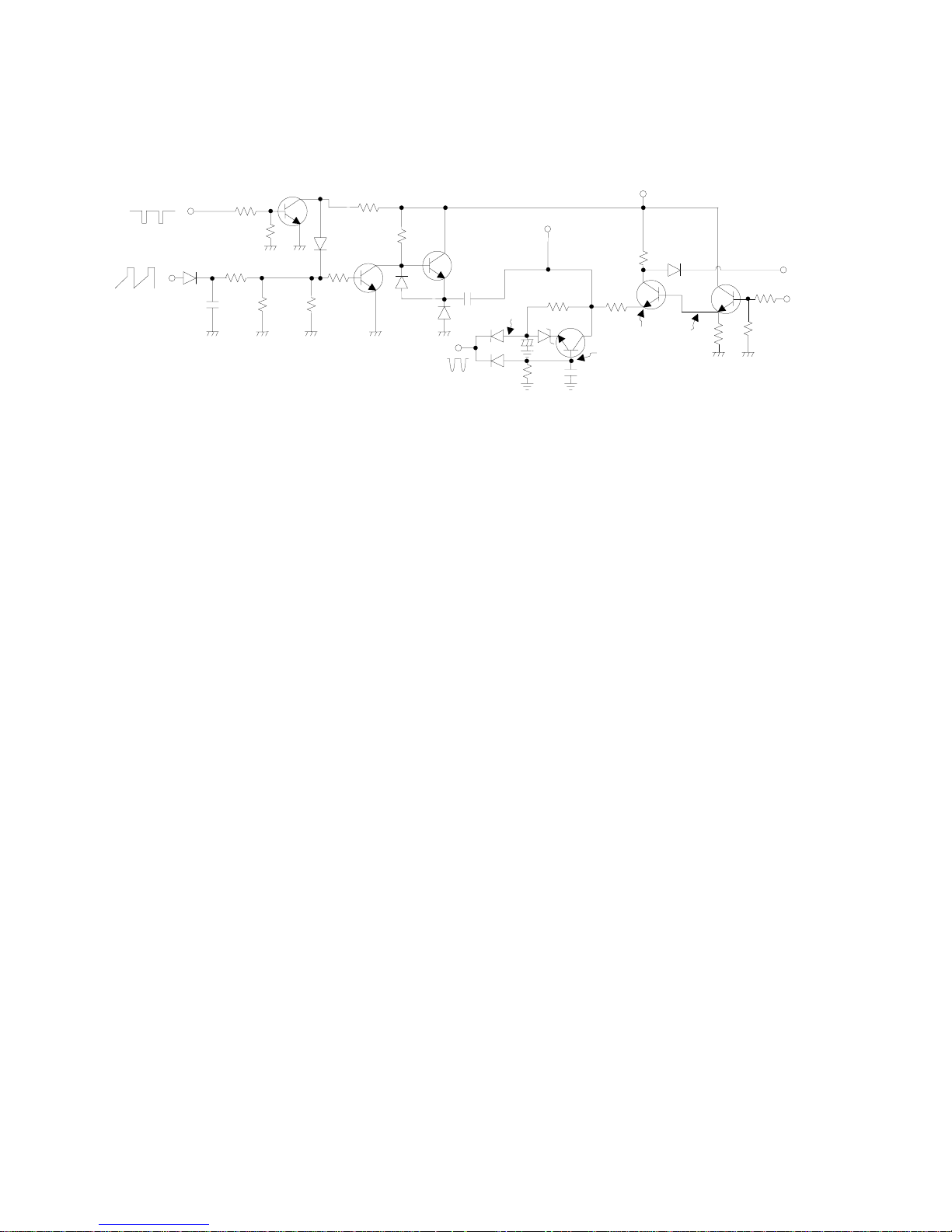

Circuit Diagram

Description of the circuit:

1) The vertical blanking circuit completes by Q1, Q2, Q3 and peripheral circuit. The vertical sync pulse applied to R3, R12 connected to Q5 base. Q5 is invert amplifier, then mixer with Q1 base together for compensate vertical retrace time of the blanking pulse.

2) The vertical amplifier output waveform through D1, C2, R1, R2 make waveform forming and

clamp. Then applied to Q1 base, the vertical blanking amplifier of the Q1, the output connected to buffer Q2, through C3 coupling to G1 control circuit. D4, D5 for over voltage protect.

3) The Q6 is spot killer protect circuit, in normal power on stage. V1 = V2 and ZD1, so Q6 off. The CRT G1 voltage is fixed at –45 ~ −67VDC with vertical blanking pulse 12Vpp VG1 = − (V × R11) / (R10 + R11), (V = V1 − V3). When power off the voltage V1 > V2, then Q6 turn on pulling VG1 to –180V to protect CRT.

4) When Mute set to lower the Q3 off G1 = −180V screen cut off no picture display, this mute circuit

makes active, at power ON/OFF and when mode change stage.

5) Q4 bias set up by MCU to control the VCE bias of Q3, then control G1 voltage output.

Test points for maintenance:

1) Check D1, R3 and Q1 collector

2) G1 voltage control range= −45 ~ −67VDC G1 off momentary voltage

¡Ü¡Ü

¡Ü−180VAC

V-SYNC

V-OUT

R2 R5

R12

R11

R10

ZD1

VCC

MUTE

BRIGHT CONTER

10. Video amplifier system with on-screen display

LM1281 (U201)

Outstanding features: * Three-channel video amplifier bandwidth 85 MHz @ -3 dB (4 Vp-p output) * OSD TTL input, bandwidth 50 MHz * High-speed video/OSD changeover * High impedance DC contrast control above the 0-4V, 40dB range * High impedance DC OSD contrast control above the 0-4V, 40dB range

BLOCK AND CONNECTION DIAGRAM

Red OSD Input

Green OSD Input

Blue OSD Input

Video/OSD Switch

Red Video In

CC1

Ground

Green Video In

CC1

Ground

Blue Video In

REF

Video Contrast

OSD Contrast

Red Drive Adjust Green Drive Adjust Blue Drive Adjust RGB Cutoff Adjust Red Clamp Cap Red Video Out V

CC2

Ground Green Video Out

Green Clamp Cap Blue Video Out

Blue Clamp Cap Blank Gate

Clamp Gate

Contrast

Attenuation

Contrast

Attenuation

Contrast

Attenuation

Drive

Attenuation

Contrast

Attenuation

Contrast

Attenuation

Top View

-A1

-A2

Description of the functions

Figure 1 shows the block diagram of LM1281, in conformity with the pin layout of the IC. Every channel accepts both the video signal and the OSD signal at the input anplifier (A1). Also the video/OSD changeover signal passes either the video signal or the OSD signal through LM1281, or is connected with the input amplifier for control purposes. The next contrast adjustment block is a drive adjustment type one. The reference level for the DC return circuit is set by means of the RGB cutoff adjustment pin (PIN 25). Attention must be paid to the fact that the blank clamp gate is active when it is stuck at the LOW state. Under ordinary circumstances, these pins are controlled by means of the standard TTL signal.

Test Circuits

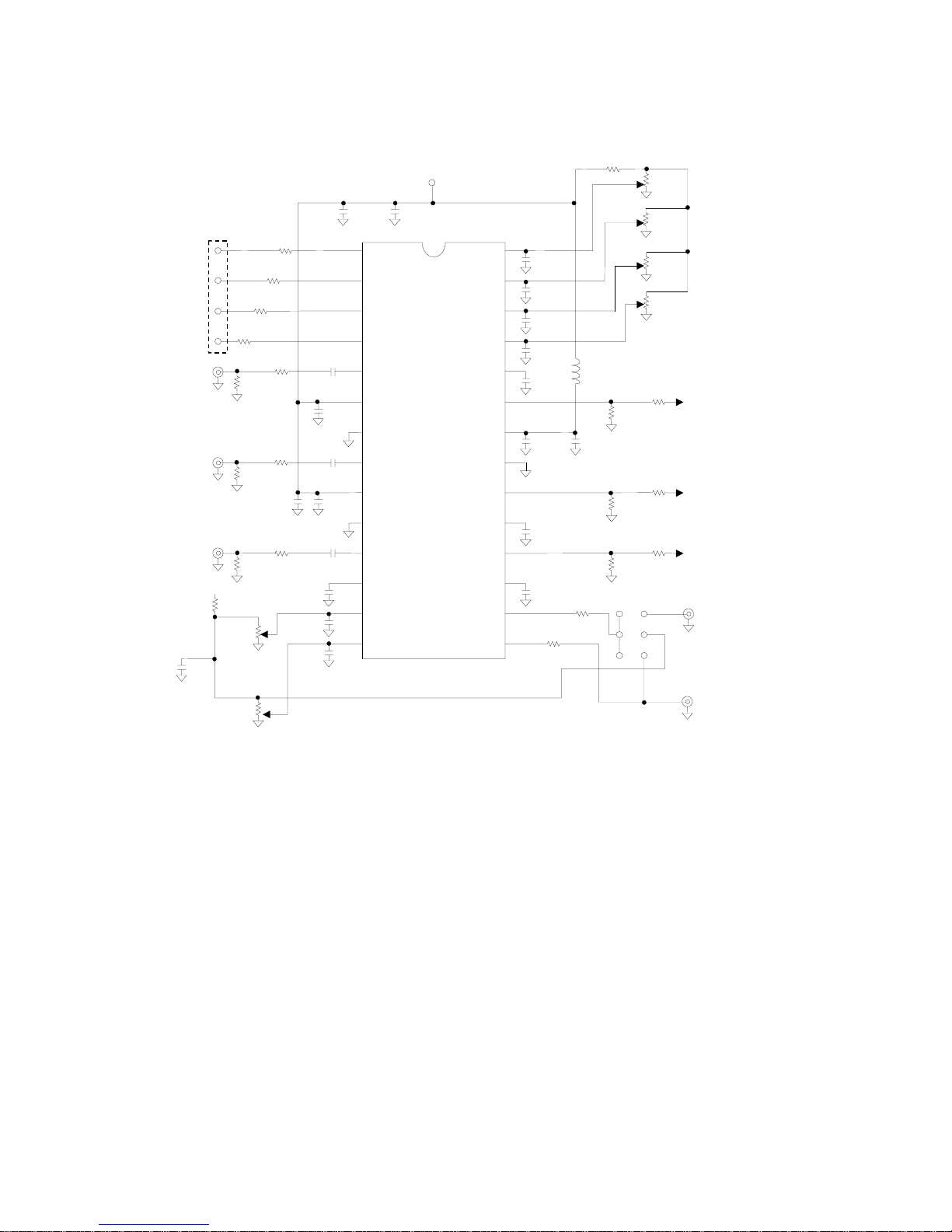

FIGURE 2 LM1281 OSD Video Preamp Demonstration Board Schematic

RED OSD INPUT

GREEN OSD INPUT

BLUE OSD INPUT

OSD INPUT SELECT

RED VIDEO IN

GREEN VIDEO IN

BLUE VIDEO IN

VIDEO CONTRAST

RED DRIVE ADJ.

GREEN DRIVE A DJ.

BLUE DRIVE ADJ.

RGB CUTOFF ADJ.

RED VIDEO OUT**

GREEN VIDEO OUT**

BLUE VIDEO OUT**

BLANK GATE

CLAMP GATE

OSD CONTRAST

POT6

100K

POT5

100K

POT4

100K

POT2

100K

POT1

100K

POT3

100K

R21 47k

R19

430

R20

2.4k

R17

2.4k

R16

2.4k

R18 430

430

R15

R17 100

R9 33

R10 50/75

R11 100k

R8 50/75

R7 33

R5 50/75

*L1 is a Ferrite Bead

**50Ω Termination to be Used at Outputs TL/H/12355-12

C12

0.1µF

C11

0.1µF

C10

0.1µF

C9 10

C6 100µF

0.1µF

C13

0.1µF

C14

0.1µF

C15

0.1µF

C16 100µF

C17

0.1µF

C18

0.1µF

C19

0.1µF

C20

0.1µF

C21

0.1µF

C1 100µF

= + 12V

LM1281

TOP VIEW

12 13

17 16

11. Monolithic triple 13.5nS CRT driver

12. On Screen Display

FEATURES

• Horizontal sync input may be up to 100 kHz.

• On-chip PLL circuitry up to 90MHz pixel rate for multi-sync operation.

• Programmable horizontal resolutions up to 1524 dots per display row.

• 538 bytes display registers to control full screen display.

• Full screen display consists of 10 (rows) by 24 (columns) characters.

• 12 × 18 dot matrix per character.

• 128 built-in characters and graphic symbols and character by character color selection.

• Maximum 8 color selectable per display row.

• Double character height and/or width control.

• Programmable positioning for display screen center.

• Bordering and shadowing effect for display.

• Programmable vertical character height (18 to 71 lines) for multi-sync operation.

• 4 programmable background windows with multi-level windowing effect.

• Software clear function for display frame buffer.

• Hsync and Vsync input polarity selectable.

• Auto detection for input edge distortion between Hsync and Vsync inputs.

• Half tone and fast blanking output.

• Software force blank function for display frame.

• Compatible with both SPI bus and I²C interface through pin selection.

• 16 pins PDIP package.

GENERAL DESCRIPTION

MTV016 is designed for use in monitor applications to display the built-in characters or symbols onto monitor screen. The display operation is by transferring data and control information in micro controller to RAM through a serial data interface. It can execute full screen display automatically and specific functions such as character bordering, shadowing, double height and width, font by font color control, frame positioning, frame size control by character height and horizontal display resolution, and windowing effect.

BLOCK DIAGRAM

SERIAL DATA

INTERFACE

ADDRESS BUS

ADMINISTRATOR

VERTICAL

DISPLAY

CONTROL

COLOR

ENCODER

WINDOWS &

FRAME

CONTROL

DISPLAY & ROW

CONTROL

REGISTERS

HORIZONTAL

DISPLAY CONTROL

PHASE LOCK LOOP

CHARACTER ROM

LUMINANCE &

BORDGER

GENERATOR

ROUT GOUT

ROUT FBKG

HTONE

VSSA

VDO

VSS

VDDA

VCO

HFLB

VFLB

SDA

SSB

SCK

VSP

HSP

CCS0 CCS1

DATA

VSP

HSP

CRADOR

CCS0

DATA

CCS1

DATA DAEN

RAEN CAEN

CWS

CHS

LPN

CWS

VCLKS

RCADDR DADDR WADDR

ARWDB

HDREN

VDREN

NRCW

LPN NROW

VDREN

VERTD

HORD

CHS

VERTD

HORD

ARWCB HDREN

VCLKX

BUNK

VCLKX

OSDENR

WRWGWB

CCS2

FBKGC

BLANK

SHADOW

BSEN

BORDER

LUMA

BUNK

55 9

3 8 7

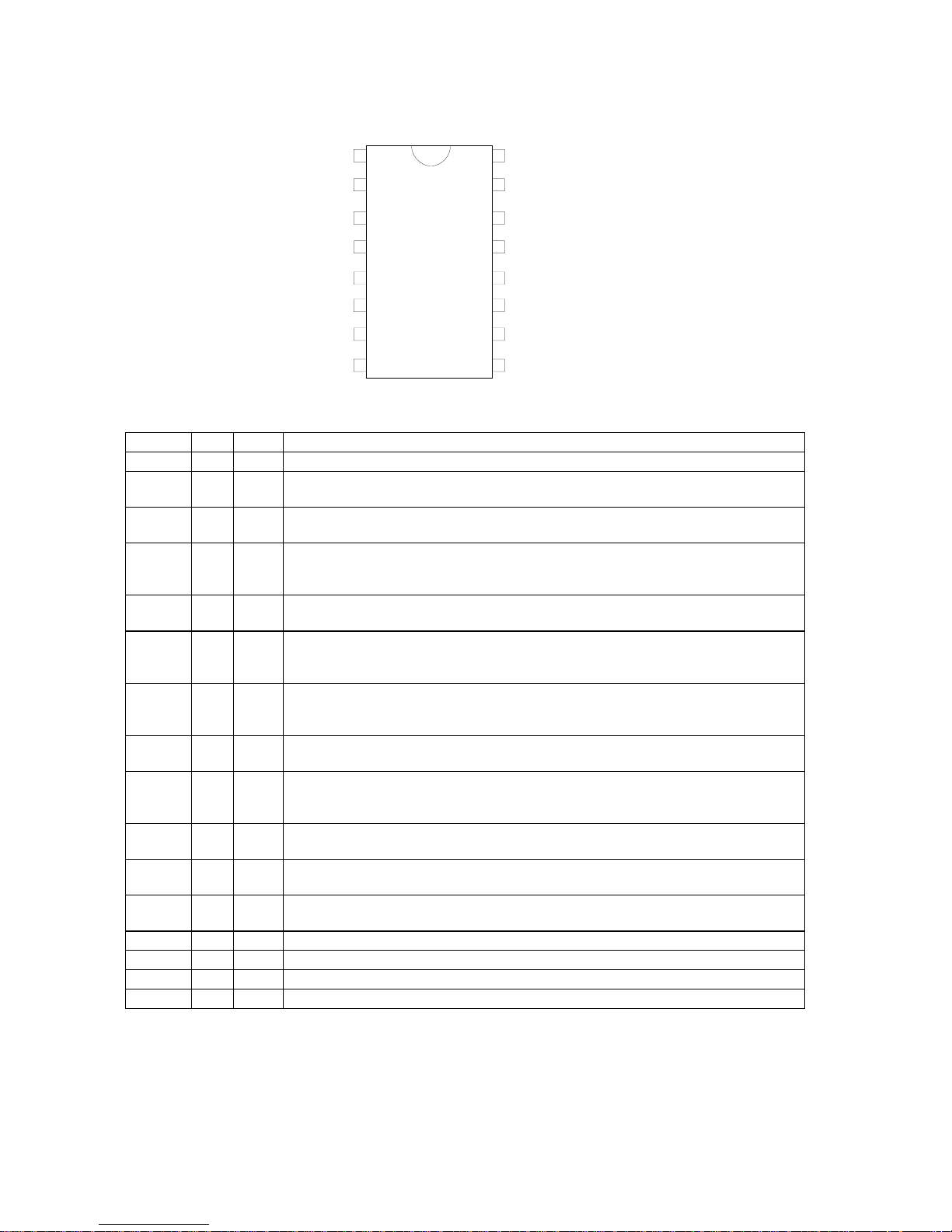

1.0 CONNECTION DIAGRAM

(16 PINS PDIP 300 MIL PACKAGE)

2.0 PIN DESCRIPTIONS

1 2

3 4

5 6

7 89

MTV016-N

VSSA

VCO

VDDA

HFLB

SSB SDA SCK

VSS ROUT

GOUT BOUT

FBKG HTONE

VFLB VDD

Name I/O Pin# Function

VSSA - 1

Analog ground.

This ground pin is used to internal analog circuitry.

VCO I/O 2

Volta

e Cont rol O scilla tor.

This pin is u se d to c on tro l the in tern a l os cilla to r

frequency by DC voltage input from external low pass filter.

RP I/O 3

Bias Resistor.

The bias resistor is used to regulate the appropriate bias

curre nt for inte rn al o sc illato r to res onate at specific dot frequency.

VDDA - 4

Analog power supply.

Positive 5 V DC supply for internal analog circuitry.

And a 0.1uF decouplin

capacitor should be connected across to VDDA and

VSSA.

HFLB I 5

Horizontal input.

This pin is used to input the horizontal synchronizing

signal. It has an internal 100 kΩ pull-up resistor.

SSB I 6

Serial interface enable.

It is used to enable the serial data interface and is

also used to select I²C or SPI bus operation. If this pin is left floatin

I²C bus

is enable. Otherwise the SPI bus is enabled.

SDA I 7

Serial data input.

The external data transfer through this pin to internal display registers and control registers. It has an internal 100 kΩ pull-u p resistor.

SCK I 8

Serial clock input.

The clock input pin is used to synchronize the data

transfer. It has an internal 100 kΩ pull-up resistor.

VDD - 9

Digital power supply.

Positive 5 V DC supply for internal digital circuitry

and a 0.1uF decouplin

capacitor should be connected across to VDD and

VSS.

VFLB I 10

Vertical input .

This pin is used to input the vertical synchronizing signal. It

has an internal pull-up resistor.

HTONE O 11

Half tone out

ut.

This pin is used to attenuate the external R

, G,

B amplifiers

gain for the transparent windowing effect.

FBKG O 12

Fast Blankin

output.

It is used to cut off the external R

, G,

B signals while

this chip is displaying characters or windows.

BOUT O 13

Blue color output.

It is a blue color video signal output.

GOUT O 14

Green color output.

It is a green color video signal output.

ROUT O 15

Red color output.

It is a red color video signal output.

VSS - 16

Digital ground.

This ground pin of internal digital circuitry.

Replacement Parts List

1) MultiSync V520 Parts List

B: Asia, C: China, R: Australia, T: Toshiba, L: LG, O: Orion

ASSY CODE PART NO DESCRIPTION LOCATION Q'TY ALT REMARK

1 CABINET FRONT ASSY 10100552 CABINET FRONT 1 2 CABINET FRONT ASSY 11300351 PUSH BUTTOM(A)-FUCTION KEY 1 3 CABINET FRONT ASSY 11300781 PUSH BUTTOM(A)-POWER KNOB 1 4 CABINET FRONT ASSY 11600121 LENS 1 5 CABINET FRONT ASSY 13000061 COIL SPRING 1 6 CRT BOARD A/I 80000561 BEAD 3.5x6x0.8/T B201 1 7 CRT BOARD A/I 80000561 BEAD 3.5x6x0.8/T B208 1 8 CRT BOARD A/I GB910358 CERAMIC Z5V(F)/T 0.01u/ 50V Z C201 1 9 CRT BOARD A/I GB910358 CERAMIC Z5V(F)/T 0.01u/ 50V Z C202 1

10 CRT BOARD A/I GB910358 CERAMIC Z5V(F)/T 0.01u/50V Z C203 1

11 CRT BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C204 1 12 CRT BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C205 1 13 CRT BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C206 1 14 CRT BOARD A/I GB910358 CERAMIC Z5V(F)/T 0.01u/50V Z C207 1 15 CRT BOARD A/I GA322725 ELECT 85oC/T 220u/16V M C209 1 16 CRT BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C210 1 17 CRT BOARD A/I GA410575 ELECT NP/T 1u/100V M C213 1 18 CRT BOARD A/I GA210575 ELECT 105oC/T 1u/100V M C214 1 19 CRT BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C230 1 20 CRT BOARD A/I GB910358 CERAMIC Z5V(F)/T 0.01u/50V Z C231 1 21 CRT BOARD A/I GA410575 ELECT NP/T 1u/100V M C233 1 22 CRT BOARD A/I GA210575 ELECT 105oC/T 1u/100V M C234 1 23 CRT BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C250 1 24 CRT BOARD A/I GA410575 ELECT NP/T 1u/100V M C253 1 25 CRT BOARD A/I GA210575 ELECT 105oC/T 1u/100V M C254 1 26 CRT BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C267 1 27 CRT BOARD A/I GB910358 CERAMIC Z5V(F)/T 0.01u/50V Z C270 1 28 CRT BOARD A/I GE210252 PLASTIC PEI/T 0.001u/50V J C271 1 29 CRT BOARD A/I GB7471F3 CERAMIC Y5P(B)/T 470P/500V K C272 1 30 CRT BOARD A/I GB7102F3 CERAMIC Y5P(B)/T 1000P/500V K C275 1 31 CRT BOARD A/I GB7102H3 CERAMIC Y5P(B)/T 1000P/1KV K C276 1 32 CRT BOARD A/I GB7102F3 CERAMIC Y5P(B)/T 1000P/500V K C278 1 33 CRT BOARD A/I GB910358 CERAMIC Z5V(F)/T 0.01u/50V Z C280 1 34 CRT BOARD A/I GB910358 CERAMIC Z5V(F)/T 0.01u/50V Z C281 1 35 CRT BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C282 1 36 CRT BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C283 1 37 CRT BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C284 1 38 CRT BOARD A/I GA347625 ELECT 85oC/T 47u/16V M C285 1 39 CRT BOARD A/I GB7102F3 CERAMIC Y5P(B)/T 1000P/500V K C287 1 40 CRT BOARD A/I GA347625 ELECT 85oC/T 47u/16V M C289 1 41 CRT BOARD A/I GB910358 CERAMIC Z5V(F)/T 0.01u/50V Z C291 1 42 CRT BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C292 1 43 CRT BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C293 1 44 CRT BOARD A/I GB910358 CERAMIC Z5V(F)/T 0.01u/50V Z C294 1 45 CRT BOARD A/I GE210352 PLASTIC PEI/T 0.01u/50V J C295 1 46 CRT BOARD A/I GE210352 PLASTIC PEI/T 0.01u/50V J C296 1 47 CRT BOARD A/I GB7102F3 CERAMIC Y5P(B)/T 1000P/500V K C297 1 48 CRT BOARD A/I GB910358 CERAMIC Z5V(F)/T 0.01u/50V Z C299 1 49 CRT BOARD A/I 72000291 PN9501 CRT BOARD(22.5D NECK)

CRT BOARD

1 50 CRT BOARD A/I EJAC0018 DIODE/T 1A 1N4937 D201 1 51 CRT BOARD A/I EJ044148 DIODE "T" 1N4148 D202 1 52 CRT BOARD A/I EJ044148 DIODE "T" 1N4148 D203 1

53 CRT BOARD A/I EJ044148 DIODE "T" 1N4148 D204 1 54 CRT BOARD A/I EJ044148 DIODE "T" 1N4148 D205 1 55 CRT BOARD A/I EJ044148 DIODE "T" 1N4148 D210 1 56 CRT BOARD A/I EJ044148 DIODE "T" 1N4148 D211 1 57 CRT BOARD A/I 80000451 DIODE/T 1/2W 1SS83 D212 1 58 CRT BOARD A/I 80000051 DIODE/T 1/2W 1SS82 D212 OR 59 CRT BOARD A/I 80001211 DIODE/T 1/2W BAV21 (PHILIPS) D212 OR 60 CRT BOARD A/I 80004711 ROHM DIODE 1SS244 D212 OR 61 CRT BOARD A/I 80000451 DIODE/T 1/2W 1SS83 D213 1 62 CRT BOARD A/I 80000051 DIODE/T 1/2W 1SS82 D213 OR 63 CRT BOARD A/I 80001211 DIODE/T 1/2W BAV21 (PHILIPS) D213 OR 64 CRT BOARD A/I 80004711 ROHM DIODE 1SS244 D213 OR 65 CRT BOARD A/I 80000451 DIODE/T 1/2W 1SS83 D214 1 66 CRT BOARD A/I 80000051 DIODE/T 1/2W 1SS82 D214 OR 67 CRT BOARD A/I 80001211 DIODE/T 1/2W BAV21 (PHILIPS) D214 OR 68 CRT BOARD A/I 80004711 ROHM DIODE 1SS244 D214 OR 69 CRT BOARD A/I EJ044148 DIODE "T" 1N4148 D230 1 70 CRT BOARD A/I EJ044148 DIODE "T" 1N4148 D231 1 71 CRT BOARD A/I 80000451 DIODE/T 1/2W 1SS83 D232 1 72 CRT BOARD A/I 80000051 DIODE/T 1/2W 1SS82 D232 OR 73 CRT BOARD A/I 80001211 DIODE/T 1/2W BAV21 (PHILIPS) D232 OR 74 CRT BOARD A/I 80004711 ROHM DIODE 1SS244 D232 OR 75 CRT BOARD A/I 80000451 DIODE/T 1/2W 1SS83 D233 1 76 CRT BOARD A/I 80000051 DIODE/T 1/2W 1SS82 D233 OR 77 CRT BOARD A/I 80001211 DIODE/T 1/2W BAV21 (PHILIPS) D233 OR 78 CRT BOARD A/I 80004711 ROHM DIODE 1SS244 D233 OR 79 CRT BOARD A/I 80000451 DIODE/T 1/2W 1SS83 D234 1 80 CRT BOARD A/I 80000051 DIODE/T 1/2W 1SS82 D234 OR 81 CRT BOARD A/I 80001211 DIODE/T 1/2W BAV21 (PHILIPS) D234 OR 82 CRT BOARD A/I 80004711 ROHM DIODE 1SS244 D234 OR 83 CRT BOARD A/I EJ044148 DIODE "T" 1N4148 D250 1 84 CRT BOARD A/I EJ044148 DIODE "T" 1N4148 D251 1 85 CRT BOARD A/I 80000451 DIODE/T 1/2W 1SS83 D252 1 86 CRT BOARD A/I 80000051 DIODE/T 1/2W 1SS82 D252 OR 87 CRT BOARD A/I 80001211 DIODE/T 1/2W BAV21 (PHILIPS) D252 OR 88 CRT BOARD A/I 80004711 ROHM DIODE 1SS244 D252 OR 89 CRT BOARD A/I 80000451 DIODE/T 1/2W 1SS83 D253 1 90 CRT BOARD A/I 80000051 DIODE/T 1/2W 1SS82 D253 OR 91 CRT BOARD A/I 80001211 DIODE/T 1/2W BAV21 (PHILIPS) D253 OR 92 CRT BOARD A/I 80004711 ROHM DIODE 1SS244 D253 OR 93 CRT BOARD A/I 80000451 DIODE/T 1/2W 1SS83 D254 1 94 CRT BOARD A/I 80000051 DIODE/T 1/2W 1SS82 D254 OR 95 CRT BOARD A/I 80001211 DIODE/T 1/2W BAV21 (PHILIPS) D254 OR 96 CRT BOARD A/I 80004711 ROHM DIODE 1SS244 D254 OR 97 CRT BOARD A/I R0319110 JUMPE R WIRE AI/T 7.5mm J1 1 98 CRT BOARD A/I R0319110 JUMPE R WIRE AI/T 15mm J10 1

99 CRT BOARD A/I R0319110 JUMPE R WIRE AI/T 7.5mm J19 1 100 CRT BOARD A/I R0319110 JUMPE R WIRE AI/T 10mm J2 1 101 CRT BOARD A/I R0319110 JUMPE R WIRE AI/T 7.5mm J20 1 102 CRT BOARD A/I R0319110 JUMPE R WIRE AI/T 10mm J22 1 103 CRT BOARD A/I R0319110 JUMPE R WIRE AI/T 7.5mm J24 1 104 CRT BOARD A/I R0319110 JUMPE R WIRE AI/T 10mm J25 1 105 CRT BOARD A/I R0319110 JUMPE R WIRE AI/T 7.5mm J26 1

106 CRT BOARD A/I R0319110 JUMPE R WIRE AI/T 15mm J27 1 107 CRT BOARD A/I R0319110 JUMPE R WIRE AI/T 7.5mm J28 1 108 CRT BOARD A/I R0319110 JUMPE R WIRE AI/T 7.5mm J29 1 109 CRT BOARD A/I R0319110 JUMPE R WIRE AI/T 7.5mm J3 1 110 CRT BOARD A/I R0319110 JUMPER WIRE AI/T 7.5mm J30 1

111 CRT BOARD A/I R0319110 JUMPE R WIRE AI/T 7.5mm J31 1 112 CRT BOARD A/I R0319110 JUMPER WIRE AI/T 7.5mm J32 1 113 CRT BOARD A/I R0319110 JUMPER WIRE AI/T 7.5mm J35 1 114 CRT BOARD A/I R0319110 JUMPER WIRE AI/T 7.5mm J37 1 115 CRT BOARD A/I R0319110 JUMPER WIRE AI/T 7.5mm J4 1 116 CRT BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 5 1 117 CRT BOARD A/I R0319110 JUMPER WIRE AI/T 7.5mm J6 1 118 CRT BOARD A/I R0319110 JUMPER WIRE AI/T 7.5mm J7 1 119 CRT BOARD A/I R0319110 JUMPER WIRE AI/T 7.5mm J8 1 120 CRT BOARD A/I R0319110 JUMPE R WIRE AI/T 7.5mm J9 1 121 CRT BOARD A/I FA040473 CARB ON 1/8W(T) 5% 47Kohm JP1 1 122 CRT BOARD A/I HB013828 PACKING COIL /T 0.82uH K(EC24) L203 1 123 CRT BOARD A/I HB013828 PACKING COIL /T 0.82uH K(EC24) L204 1 124 CRT BOARD A/I HB013828 PACKING COIL /T 0.82uH K(EC24) L205 1 125 CRT BOARD A/I HC006002 BEAD 3.5X4.7/T L206 1 126 CRT BOARD A/I EAA12133 TR NPN 2SC1213AC TO-92(T) Q201 1 127 CRT BOARD A/I FA040221 CARB ON 1/8W(T) 5% 220ohm R201 1 128 CRT BOARD A/I FA040101 CARB ON 1/8W(T) 5% 100ohm R202 1 129 CRT BOARD A/I FA040101 CARB ON 1/8W(T) 5% 100ohm R203 1 130 CRT BOARD A/I FA040472 CARB ON 1/8W(T) 5% 4.7Kohm R204 1 131 CRT BOARD A/I FA040152 CARB ON 1/8W(T) 5% 1.5Kohm R205 1 132 CRT BOARD A/I FA240103 CARB ON 1/4W(T) 5% 10Kohm R206 1 133 CRT BOARD A/I FA040101 CARB ON 1/8W(T) 5% 100ohm R208 1 134 CRT BOARD A/I FA040101 CARB ON 1/8W(T) 5% 100ohm R209 1 135 CRT BOARD A/I FB247509 ME TAL 1/4W(T) 1% 75ohm R210 1 136 CRT BOARD A/I FA040330 CARB ON 1/8W(T) 5% 33ohm R211 1 137 CRT BOARD A/I FA040101 CARB ON 1/8W(T) 5% 100ohm R212 1 138 CRT BOARD A/I FA040391 CARB ON 1/8W(T) 5% 390ohm R213 1 139 CRT BOARD A/I FA040333 CARB ON 1/8W(T) 5% 33Kohm R219 1 140 CRT BOARD A/I FA240151 CARB ON 1/4W(T) 5% 150ohm R220 1 141 CRT BOARD A/I FA040111 CARBON 1/8W(T) 5% 110ohm R221 1 142 CRT BOARD A/I FA040224 CARB ON 1/8W(T) 5% 220Kohm R223 1 143 CRT BOARD A/I FB247509 ME TAL 1/4W(T) 1% 75ohm R230 1 144 CRT BOARD A/I FA040330 CARB ON 1/8W(T) 5% 33ohm R231 1 145 CRT BOARD A/I FA040101 CARB ON 1/8W(T) 5% 100ohm R232 1 146 CRT BOARD A/I FA040391 CARB ON 1/8W(T) 5% 390ohm R233 1 147 CRT BOARD A/I FA040333 CARB ON 1/8W(T) 5% 33Kohm R239 1 148 CRT BOARD A/I FA240151 CARB ON 1/4W(T) 5% 150ohm R240 1 149 CRT BOARD A/I FA040111 CARBON 1/8W(T) 5% 110ohm R241 1 150 CRT BOARD A/I FA040224 CARB ON 1/8W(T) 5% 220Kohm R243 1 151 CRT BOARD A/I FB247509 ME TAL 1/4W(T) 1% 75ohm R250 1 152 CRT BOARD A/I FA040330 CARB ON 1/8W(T) 5% 33ohm R251 1 153 CRT BOARD A/I FA040101 CARB ON 1/8W(T) 5% 100ohm R252 1 154 CRT BOARD A/I FA040391 CARB ON 1/8W(T) 5% 390ohm R253 1 155 CRT BOARD A/I FA040333 CARB ON 1/8W(T) 5% 33Kohm R259 1 156 CRT BOARD A/I FA240151 CARB ON 1/4W(T) 5% 150ohm R260 1 157 CRT BOARD A/I FA040111 CARBON 1/8W(T) 5% 110ohm R261 1 158 CRT BOARD A/I FA040224 CARB ON 1/8W(T) 5% 220Kohm R263 1

159 CRT BOARD A/I FA040221 CARB ON 1/8W(T) 5% 220ohm R270 1 160 CRT BOARD A/I FA240223 CARB ON 1/4W(T) 5% 22Kohm R278 1 161 CRT BOARD A/I FA240223 CARB ON 1/4W(T) 5% 22Kohm R280 1 162 CRT BOARD A/I FA040472 CARB ON 1/8W(T) 5% 4.7Kohm R282 1 163 CRT BOARD A/I FA040112 CARB ON 1/8W(T) 5% 1.1Kohm R284 1 164 CRT BOARD A/I FA240334 CARB ON 1/4W(T) 5% 330Kohm R286 1 165 CRT BOARD A/I FA330101 CARB ON 1/2W(T) 5% 100ohm R287 1 166 CRT BOARD A/I FA040103 CARB ON 1/8W(T) 5% 10Kohm R288 1 167 CRT BOARD A/I FA040102 CARB ON 1/8W(T) 5% 1Kohm R289 1 168 CRT BOARD A/I FA240223 CARB ON 1/4W(T) 5% 22Kohm R290 1 169 CRT BOARD A/I FA040472 CARB ON 1/8W(T) 5% 4.7Kohm R291 1 170 CRT BOARD A/I FA240101 CARB ON 1/4W(T) 5% 100ohm R292 1 171 CRT BOARD A/I FA040103 CARB ON 1/8W(T) 5% 10Kohm R293 1 172 CRT BOARD A/I FA040562 CARB ON 1/8W(T) 5% 5.6Kohm R294 1 173 CRT BOARD A/I FA040562 CARB ON 1/8W(T) 5% 5.6Kohm R295 1 174 CRT BOARD A/I FA040105 CARB ON 1/8W(T) 5% 1Mohm R296 1 175 CRT BOARD A/I FA040473 CARB ON 1/8W(T) 5% 47Kohm VR201 1 176 CRT BOARD A/I FA040473 CARB ON 1/8W(T) 5% 47Kohm VR202 1 177 CRT BOARD INSERT GB9332H3 CERAMIC Z5V(F)/T 3300P/1KV Z C277 1 178 CRT BOARD INSERT GAB22675 ELECT 105oC/T 22u/100V M C288 1 179 CRT BOARD INSERT R0224070 SINGLE PIN 1P L=14mm 2.36mm CRT GND 1 180 CRT BOARD INSERT 80000071 CRT SOCKET 22.5mm

CRT SOCKET

1T,O 181 CRT BOARD INSERT 14000041 SCREW (P-#2CBRITS*3*8*15BF) FOR U203 1 182 CRT BOARD INSERT HB013100 PACKING COIL /T 10uH K(EC24) J23 1 183 CRT BOARD INSERT HB000008 CHOKE COIL 100uH 8X10 L201 1 184 CRT BOARD INSERT HB000008 CHOKE COIL 100uH 8X10 L202 1 185 CRT BOARD INSERT FB910229 FUSIBLE MF RES 1/4W 2.2ohm J R297 1 186 CRT BOARD INSERT R0224129 BASE PIN 6P+HOUSING P=2.5mm S201 1 187 CRT BOARD INSERT R0224127 XH-BASE PIN 4P S202 1 188 CRT BOARD INSERT R0224129 BASE PIN 6P+HOUSING P=2.5mm S204 1 189 CRT BOARD INSERT R0224130 BASE PIN 7P+HOUSING P=2.5mm S205 1 190 CRT BOARD INSERT 80000631 I C LM1281 U201 1 191 CRT BOARD INSERT 12600112 HE AT SINK (CRT ,PWB) U203 1 192 CRT BOARD INSERT 80003661 N.S VIDEO DRIVE IC LM2438 U203 1 193 CRT BOARD INSERT 80001941 OSD IC MTV016N U204 1 194 CRT BOARD INSERT FF300203

VR CARBON 6mm ¥ß 20K/B

VR210 1

195 CRT BOARD INSERT FF300203

VR CARBON 6mm ¥ß 20K/B

VR230 1

196 CRT BOARD INSERT FF300203

VR CARBON 6mm ¥ß 20K/B

VR250 1 197 MAIN BOARD A/I HC006002 BEAD 3.5X4.7/T B101 1 198 MAIN BOARD A/I 80000561 BEAD 3.5x6x0.8/T B103 1 199 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm B104 1 200 MAIN BOARD A/I HC006002 BEAD 3.5X4.7/T B105 1 201 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm B106 1 202 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm B107 1 203 MAIN BOARD A/I 80000561 BEAD 3.5x6x0.8/T B108 1 204 MAIN BOARD A/I 80000561 BEAD 3.5x6x0.8/T B109 1 205 MAIN BOARD A/I HC006002 BEAD 3.5X4.7/T B301 1 206 MAIN BOARD A/I HC006002 BEAD 3.5X4.7/T B302 1 207 MAIN BOARD A/I HC006002 BEAD 3.5X4.7/T B303 1 208 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 5mm B31A 1 209 MAIN BOARD A/I HC006002 BEAD 3.5X4.7/T B701 1 210 MAIN BOARD A/I GB8103F5 CERAMIC Z5U(E)/T 0.01u/500V M C106 1

211 MAIN BOARD A/I GA347625 ELECT 85oC/T 47u/16V M C108 1

212 MAIN BOARD A/I GA322645 ELECT 85oC/T 22u/35V M C109 1 213 MAIN BOARD A/I GB747153 CERAMIC Y5P(B)/T 470P/50V K C110 1 214 MAIN BOARD A/I GE210352 PLASTIC PEI/T 0.01u/50V J C111 1 215 MAIN BOARD A/I GB910358 CERAMIC Z5V(F)/T 0.01u/50V Z C112 1 216 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C113 1 217 MAIN BOARD A/I GF210462 MEF CAP BOX 0.1u/63V J C114 1 218 MAIN BOARD A/I GF210452 MEF CAP BOX 0.1u/50V J C114 OR 219 MAIN BOARD A/I GF233262 MEF CAP BOX 0.0033u/63V J C115 1 220 MAIN BOARD A/I GF233252 MEF CAP BOX 0.0033u/50V J C115 OR 221 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C116 1 222 MAIN BOARD A/I GAH22675

ELECT CAP 105oC/T 22u/100V M TK(

³Í¬ü

)

C119 1

223 MAIN BOARD A/I GAJ22675

ELECT CAP 105oC/T 22u/100V M PF(

ª÷¤s

)

C119 OR 224 MAIN BOARD A/I GE222352 PLASTIC PEI/T 0.022u/50V J C123 1 225 MAIN BOARD A/I GB7331H3 CERAMIC Y5P(B)/T 330P/1KV K C124 1 226 MAIN BOARD A/I GB7101H3 CERAMIC Y5P(B)/T 100P/1KV K C127 1 227 MAIN BOARD A/I GA347625 ELECT 85oC/T 47u/16V M C130 1 228 MAIN BOARD A/I GF210462 MEF CAP BOX 0.1u/63V J C131 1 229 MAIN BOARD A/I GF210452 MEF CAP BOX 0.1u/50V J C131 OR 230 MAIN BOARD A/I GE233352 PLASTIC PEI/T 0.033u/50V J C132 1 231 MAIN BOARD A/I GF233262 MEF CAP BOX 0.0033u/63V J C133 1 232 MAIN BOARD A/I GF233252 MEF CAP BOX 0.0033u/50V J C133 OR 233 MAIN BOARD A/I GB747153 CERAMIC Y5P(B)/T 470P/50V K C134 1 234 MAIN BOARD A/I GB747153 CERAMIC Y5P(B)/T 470P/50V K C135 1 235 MAIN BOARD A/I GA347725 ELECT 85oC/T 470u/16V M C136 1 236 MAIN BOARD A/I GA347625 ELECT 85oC/T 47u/16V M C137 1 237 MAIN BOARD A/I GAH47725

ELECT CAP 105oC/T 470u/16V M TK(

³Í¬ü

)

C139 1 238 MAIN BOARD A/I GAJ47725

ELECT CAP 105oC/T 470u/16V M PF(

ª÷¤s

)

C139 OR 239 MAIN BOARD A/I GE210352 PLASTIC PEI/T 0.01u/50V J C140 1 240 MAIN BOARD A/I GA310725 ELECT 85oC/T 100u/16V M C141 1 241 MAIN BOARD A/I GE210352 PLASTIC PEI/T 0.01u/50V J C142 1 242 MAIN BOARD A/I GB8103F5 CERAMIC Z5U(E)/T 0.01u/500V M C144 1 243 MAIN BOARD A/I GA310555 ELECT 85oC/T 1u/50V M C145 1 244 MAIN BOARD A/I GB910358 CERAMIC Z5V(F)/T 0.01u/50V Z C149 1 245 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C150 1 246 MAIN BOARD A/I GA347625 ELECT 85oC/T 47u/16V M C151 1 247 MAIN BOARD A/I GB7471F3 CERAMIC Y5P(B)/T 470P/500V K C152 1 248 MAIN BOARD A/I GA347555 ELECT 85oC/T 4.7u/50V M C156 1 249 MAIN BOARD A/I GE210352 PLASTIC PEI/T 0.01u/50V J C162 1 250 MAIN BOARD A/I GA347555 ELECT 85oC/T 4.7u/50V M C164 1 251 MAIN BOARD A/I GB910358 CERAMIC Z5V(F)/T 0.01u/50V Z C301 1 252 MAIN BOARD A/I GF210462 MEF CAP BOX 0.1u/63V J C302 1 253 MAIN BOARD A/I GF210452 MEF CAP BOX 0.1u/50V J C302 OR 254 MAIN BOARD A/I GB910358 CERAMIC Z5V(F)/T 0.01u/50V Z C304 1 255 MAIN BOARD A/I GA347625 ELECT 85oC/T 47u/16V M C305 1 256 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C306 1 257 MAIN BOARD A/I GE210352 PLASTIC PEI/T 0.01u/50V J C307 1 258 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C308 1 259 MAIN BOARD A/I GA347555 ELECT 85oC/T 4.7u/50V M C309 1 260 MAIN BOARD A/I GA347555 ELECT 85oC/T 4.7u/50V M C312 1 261 MAIN BOARD A/I GA347655 ELECT 85oC/T 47u/50V M C313 1 262 MAIN BOARD A/I GF210452 MEF CAP BOX 0.1u/50V J C314 1 263 MAIN BOARD A/I GF210462 MEF CAP BOX 0.1u/63V J C314 OR 264 MAIN BOARD A/I GF210252 MEF CAP BOX 0.001u/50V J C315 1

265 MAIN BOARD A/I GF210262 MEF CAP BOX 0.001u/63V J C315 OR 266 MAIN BOARD A/I GF247262 MEF CAP BOX 0.0047u/63V J C316 1 267 MAIN BOARD A/I GF247252 MEF CAP BOX 0.0047u/50V J C316 OR 268 MAIN BOARD A/I GA347455 ELECT 85oC/T 0.47u/50V M C317 1 269 MAIN BOARD A/I GA322725 ELECT 85oC/T 220u/16V M C320 1 270 MAIN BOARD A/I GF222462 MEF CAP BOX 0.22u/63V J C326 1 271 MAIN BOARD A/I GF222452 MEF CAP BOX 0.22u/50V J C326 OR 272 MAIN BOARD A/I GA310555 ELECT 85oC/T 1u/50V M C328 1 273 MAIN BOARD A/I GA347725 ELECT 85oC/T 470u/16V M C330 1 274 MAIN BOARD A/I GB7102H3 CERAMIC Y5P(B)/T 1000P/1KV K C334 1 275 MAIN BOARD A/I GA347625 ELECT 85oC/T 47u/16V M C335 1 276 MAIN BOARD A/I GA310555 ELECT 85oC/T 1u/50V M C336 1 277 MAIN BOARD A/I GA410585 ELECT NP/T 1u/250V M C339 1 278 MAIN BOARD A/I GA310555 ELECT 85oC/T 1u/50V M C340 1 279 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 5mm C341 1 280 MAIN BOARD A/I GF210462 MEF CAP BOX 0.1u/63V J C343 1 281 MAIN BOARD A/I GF210452 MEF CAP BOX 0.1u/50V J C343 OR 282 MAIN BOARD A/I GA347585 ELECT 85oC/T 4.7u/250V M C344 1 283 MAIN BOARD A/I GE222352 PLASTIC PEI/T 0.022u/50V J C348 1 284 MAIN BOARD A/I GE233352 PLASTIC PEI/T 0.033u/50V J C350 1 285 MAIN BOARD A/I GA310555 ELECT 85oC/T 1u/50V M C352 1 286 MAIN BOARD A/I GB633152 CERAMIC SL/T 330P/50V J C353 1 287 MAIN BOARD A/I GE222352 PLASTIC PEI/T 0.022u/50V J C354 1 288 MAIN BOARD A/I GE210252 PLASTIC PEI/T 0.001u/50V J C401 1 289 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C402 1 290 MAIN BOARD A/I GF222452 MEF CAP BOX 0.22u/50V J C403 1 291 MAIN BOARD A/I GF222462 MEF CAP BOX 0.22u/63V J C403 OR 292 MAIN BOARD A/I GAH47725

ELECT CAP 105oC/T 470u/16V M TK(

³Í¬ü

)

C404 1

293 MAIN BOARD A/I GAJ47725

ELECT CAP 105oC/T 470u/16V M PF(

ª÷¤s

)

C404 OR 294 MAIN BOARD A/I GE222252 PLASTIC PEI/T 0.0022u/50V J C405 1 295 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C406 1 296 MAIN BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C407 1 297 MAIN BOARD A/I GAH10825

ELECT CAP 105oC/T 1000u/16V M TK(

³Í¬ü

)

C408 1 298 MAIN BOARD A/I GAJ10825

ELECT CAP 105oC/T 1000u/16V M PF(

ª÷¤s

)

C408 OR 299 MAIN BOARD A/I GB910358 CERAMIC Z5V(F)/T 0.01u/50V Z C409 1 300 MAIN BOARD A/I GA310745 ELECT 85oC/T 100u/35V M C410 1 301 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C416 1 302 MAIN BOARD A/I GE233252 PLASTIC PEI/T 0.0033u/50V J C417 1 303 MAIN BOARD A/I GA310725 ELECT 85oC/T 100u/16V M C418 1 304 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C419 1 305 MAIN BOARD A/I GB910358 CERAMIC Z5V(F)/T 0.01u/50V Z C420 1 306 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C423 1 307 MAIN BOARD A/I GA322725 ELECT 85oC/T 220u/16V M C424 1 308 MAIN BOARD A/I GA347485 ELECT 85oC/T 0.47u/250V M C428 1 309 MAIN BOARD A/I GA422625 ELECT NP/T 22u/16V M C431 1 310 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C433 1

311 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C435 1 312 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C437 1 313 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C438 1 314 MAIN BOARD A/I GA310555 ELECT 85oC/T 1u/50V M C440 1 315 MAIN BOARD A/I GE247252 PLASTIC PEI/T 0.0047u/50V J C442 1 316 MAIN BOARD A/I GA347555 ELECT 85oC/T 4.7u/50V M C446 1 317 MAIN BOARD A/I GA347455 ELECT 85oC/T 0.47u/50V M C447 1

318 MAIN BOARD A/I GF210462 MEF CAP BOX 0.1u/63V J C448 1 319 MAIN BOARD A/I GF210452 MEF CAP BOX 0.1u/50V J C448 OR 320 MAIN BOARD A/I GA347555 ELECT 85oC/T 4.7u/50V M C450 1 321 MAIN BOARD A/I GE268252 PLASTIC PEI/T 0.0068u/50V J C601 1 322 MAIN BOARD A/I GE210352 PLASTIC PEI/T 0.01u/50V J C603 1 323 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C604 1 324 MAIN BOARD A/I GB710253 CERAMIC Y5P (B)/T 1000P/50V K C605 1 325 MAIN BOARD A/I GA310555 ELECT 85oC/T 1u/50V M C701 1 326 MAIN BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C702 1 327 MAIN BOARD A/I GA310725 ELECT 85oC/T 100u/16V M C703 1 328 MAIN BOARD A/I GA322555 ELECT 85oC/T 2.2u/50V M C704 1 329 MAIN BOARD A/I GB633052 CERAMIC SL/T 33P/50V J C705 1 330 MAIN BOARD A/I GB633052 CERAMIC SL/T 33P/50V J C706 1 331 MAIN BOARD A/I GB610152 CERAMIC SL/T 100P/50V J C707 1 332 MAIN BOARD A/I GB610152 CERAMIC SL/T 100P/50V J C708 1 333 MAIN BOARD A/I GB910358 CERAMIC Z5V(F)/T 0.01u/50V Z C724 1 334 MAIN BOARD A/I GA347625 ELECT 85oC/T 47u/16V M C725 1 335 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C726 1 336 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C727 1 337 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C728 1 338 MAIN BOARD A/I EJA20003 DIODE /T 1A BA159 D105 1 339 MAIN BOARD A/I EJAC0017 DIODE/T 1A 1N4936 D106 1 340 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D107 1 341 MAIN BOARD A/I EJAC0017 DIODE/T 1A 1N4936 D108 1 342 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D109 1 343 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D115 1 344 MAIN BOARD A/I EJA20003 DIODE/T 1A BA159 D116 1 345 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D117 1 346 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D119 1 347 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D120 1 348 MAIN BOARD A/I EJAC0018 DIODE/T 1A 1N4937 D124 1 349 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D125 1 350 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D126 1 351 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D127 1 352 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D128 1 353 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D129 1 354 MAIN BOARD A/I EJAC0017 DIODE/T 1A 1N4936 D130 1 355 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D133 1 356 MAIN BOARD A/I EJA05819 DIODE STKY/T 1A/40V 1N5819 D134 1 357 MAIN BOARD A/I EJAC0018 DIODE/T 1A 1N4937 D301 1 358 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D302 1 359 MAIN BOARD A/I EJAC0018 DIODE/T 1A 1N4937 D303 1 360 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D304 1 361 MAIN BOARD A/I EJA05819 DIODE STKY/T 1A/40V 1N5819 D305 1 362 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D306 1 363 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D310 1 364 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D311 1 365 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D313 1 366 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D314 1 367 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D315 1 368 MAIN BOARD A/I EJAC0018 DIODE/T 1A 1N4937 D318 1 369 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D320 1 370 MAIN BOARD A/I EJAC0018 DIODE/T 1A 1N4937 D321 1

371 MAIN BOARD A/I EJAC0018 DIODE/T 1A 1N4937 D322 1 372 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D323 1 373 MAIN BOARD A/I EJAC0018 DIODE/T 1A 1N4937 D324 1 374 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D325 1 375 MAIN BOARD A/I EJAC0018 DIODE/T 1A 1N4937 D328 1 376 MAIN BOARD A/I EJAC0018 DIODE/T 1A 1N4937 D329 1 377 MAIN BOARD A/I EJAC0018 DIODE/T 1A 1N4937 D330 1 378 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D331 1 379 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D401 1 380 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D402 1 381 MAIN BOARD A/I EJAC0018 DIODE/T 1A 1N4937 D403 1 382 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D601 1 383 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D602 1 384 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D604 1 385 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D605 1 386 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D60A 1 387 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm D701 1 388 MAIN BOARD A/I EJA05819 DIODE STKY/T 1A/40V 1N5819 D702 1 389 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D704 1 390 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 17.5mm J1 1 391 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J10 1 392 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J100 1 393 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 20mm J101 1 394 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J102 1 395 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 20mm J103 1 396 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 7.5mm J105 1 397 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 15mm J106 1 398 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 15mm J107 1 399 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 108 1 400 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 17.5mm J 109 1 401 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 17.5mm J110 1 402 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 15mm J111 1 403 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 7.5mm J112 1 404 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 15mm J113 1 405 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 12.5mm J114 1 406 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 10mm J115 1 407 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 7.5mm J116 1 408 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 15mm J117 1 409 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 10mm J118 1 410 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 10mm J119 1

411 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 15mm J12 1 412 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 120 1 413 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 121 1 414 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 17.5mm J 123 1 415 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J124 1 416 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J125 1 417 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 127 1 418 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 128 1 419 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 129 1 420 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J13 1 421 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 130 1 422 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 20mm J131 1 423 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 15mm J132 1

424 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 15mm J133 1 425 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 15mm J134 1 426 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 17.5mm J 135 1 427 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 17.5mm J 136 1 428 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 17.5mm J 137 1 429 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 17.5mm J 138 1 430 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 7.5mm J139 1 431 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 14 1 432 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 15 1 433 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J16 1 434 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J17 1 435 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J19 1 436 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 12.5mm J2 1 437 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J20 1 438 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 7.5mm J21 1 439 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 17.5mm J 22 1 440 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J23 1 441 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J24 1 442 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 7.5mm J27 1 443 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J28 1 444 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 7.5mm J29 1 445 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 12.5mm J3 1 446 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 17.5mm J 30 1 447 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J31 1 448 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 20mm J33 1 449 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J34 1 450 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J35 1 451 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 15mm J36 1 452 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 7.5mm J37 1 453 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 7.5mm J38 1 454 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J39 1 455 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 10mm J4 1 456 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J40 1 457 MAIN BOARD A/I HB003101 PACKING COIL /T 100uH J41 1 458 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J42 1 459 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 43 1 460 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 20mm J44 1 461 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 7.5mm J45 1 462 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J46 1 463 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J47 1 464 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J48 1 465 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 49 1 466 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 10mm J5 1 467 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 7.5mm J51 1 468 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 52 1 469 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 53 1 470 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 54 1 471 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 55 1 472 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 17.5mm J 56 1 473 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 17.5mm J 57 1 474 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J58 1 475 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 59 1 476 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 10mm J6 1

477 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 61 1 478 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 7.5mm J62 1 479 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 20mm J64 1 480 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J66 1 481 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J67 1 482 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 17.5mm J 68 1 483 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J69 1 484 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 7.5mm J7 1 485 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 17.5mm J 70 1 486 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 7.5mm J71 1 487 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 7.5mm J72 1 488 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J73 1 489 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 74 1 490 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 17.5mm J 75 1 491 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J76 1 492 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 77 1 493 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 78 1 494 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 17.5mm J 79 1 495 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 7.5mm J8 1 496 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 20mm J80 1 497 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 81 1 498 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J82 1 499 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 84 1 500 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 86 1 501 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J87 1 502 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 88 1 503 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 15mm J89 1 504 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 17.5mm J9 1 505 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 15mm J91 1 506 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 92 1 507 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J93 1 508 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J94 1 509 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J95 1 510 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm J96 1

511 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J97 1 512 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 12.5mm J 98 1 513 MAIN BOARD A/I 80000561 BEAD 3.5x6x0.8/T J99 1 514 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 12.5mm JP1 1 515 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 12.5mm JP2 1 516 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 12.5mm JP3 1 517 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 7.5mm JP4 1 518 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 7.5mm JP5 1 519 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 20mm JP6 1 520 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 5mm JP701 1 521 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 7.5mm JP8 1 522 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 7.5mm L308 1 523 MAIN BOARD A/I 72000583 N0501,N0701 MAIN BOARD(V3) MAIN PCB 1 524 MAIN BOARD A/I 80003831 IC REGULATOR TL431 817B 4P Q103 1 525 MAIN BOARD A/I EAA18157 TR NPN 2SC1815GR TO-92(T) (T.P.S.) Q105 1 526 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) (N.P.S.) Q105 OR 527 MAIN BOARD A/I EAA23281 TR NPN KSC 2328A TO-92(T) (SAMSUNG) Q106 1 528 MAIN BOARD A/I EAA22355 TR NPN 2SC2235Y TO-92(T) (TOSHIBA) Q106 OR 529 MAIN BOARD A/I EAA18157 TR NPN 2SC1815GR TO-92(T) (T.P.S.) Q107 1

530 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) (N.P.S.) Q107 OR 531 MAIN BOARD A/I EBA09281 TR PNP KSA 928A TO-92(T) (SAMSUNG) Q108 1 532 MAIN BOARD A/I EBA10205 TR PNP 2SA1020Y TO-92(T) Q108 OR 533 MAIN BOARD A/I EAA18157 TR NPN 2SC1815GR TO-92(T) (T.P.S.) Q110 1 534 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) (N.P.S.) Q110 OR 535 MAIN BOARD A/I EBA04230 TR PNP BF423 TO-92(T)(T.P.) Q112 1 536 MAIN BOARD A/I EAA18157 TR NPN 2SC1815GR TO-92(T) (T.P.S.) Q113 1 537 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) (N.P.S.) Q113 OR 538 MAIN BOARD A/I EBA10157 TR PNP 2SA1015GR TO-92(T) (T.P.S.) Q117 1 539 MAIN BOARD A/I EBA07336 TR PNP 2SA733P TO-92(T) (N.P.S.) Q117 OR 540 MAIN BOARD A/I EAA23690 TR NPN PH2369 TO-92(T) (PHILIPS) Q301 1 541 MAIN BOARD A/I EAA18157 TR NPN 2SC1815GR TO-92(T) (T.P.S.) Q302 1 542 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) (N.P.S.) Q302 OR 543 MAIN BOARD A/I EAA04220 TR NPN BF422 TO-92(T) (T ,P) Q304 1 544 MAIN BOARD A/I EBA04230 TR PNP BF423 TO-92(T)(T.P.) Q305 1 545 MAIN BOARD A/I EAA18157 TR NPN 2SC1815GR TO-92(T) (T.P.S.) Q306 1 546 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) (N.P.S.) Q306 OR 547 MAIN BOARD A/I EFA29610 TR 2SK2961 FET TOSHIBA Q308 1 548 MAIN BOARD A/I EBA10157 TR PNP 2SA1015GR TO-92(T) (T.P.S.) Q310 1 549 MAIN BOARD A/I EBA07336 TR PNP 2SA733P TO-92(T) (N.P.S.) Q310 OR 550 MAIN BOARD A/I EBA04230 TR PNP BF423 TO-92(T)(T.P.) Q315 1 551 MAIN BOARD A/I EAA06673 TR NPN 2SD667AC TO-92(T) (HITACHI) Q316 1 552 MAIN BOARD A/I EAA18157 TR NPN 2SC1815GR TO-92(T) (T.P.S.) Q320 1 553 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) (N.P.S.) Q320 OR 554 MAIN BOARD A/I EAA18157 TR NPN 2SC1815GR TO-92(T) (T.P.S.) Q323 1 555 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) (N.P.S.) Q323 OR 556 MAIN BOARD A/I EAA18157 TR NPN 2SC1815GR TO-92(T) (T.P.S.) Q324 1 557 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) (N.P.S.) Q324 OR 558 MAIN BOARD A/I EAA18157 TR NPN 2SC1815GR TO-92(T) (T.P.S.) Q401 1 559 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) (N.P.S.) Q401 OR 560 MAIN BOARD A/I EAA18157 TR NPN 2SC1815GR TO-92(T) (T.P.S.) Q402 1 561 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) (N.P.S.) Q402 OR 562 MAIN BOARD A/I EAA18157 TR NPN 2SC1815GR TO-92(T) (T.P.S.) Q601 1 563 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) (N.P.S.) Q601 OR 564 MAIN BOARD A/I EAA18157 TR NPN 2SC1815GR TO-92(T) (T.P.S.) Q603 1 565 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) (N.P.S.) Q603 OR 566 MAIN BOARD A/I EBA10157 TR PNP 2SA1015GR TO-92(T) (T.P.S.) Q604 1 567 MAIN BOARD A/I EBA07336 TR PNP 2SA733P TO-92(T) (N.P.S.) Q604 OR 568 MAIN BOARD A/I EAA18157 TR NPN 2SC1815GR TO-92(T) (T.P.S.) Q605 1 569 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) (N.P.S.) Q605 OR 570 MAIN BOARD A/I EAA18157 TR NPN 2SC1815GR TO-92(T) (T.P.S.) Q606 1 571 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) (N.P.S.) Q606 OR 572 MAIN BOARD A/I EAA18157 TR NPN 2SC1815GR TO-92(T) (T.P.S.) Q702 1 573 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) (N.P.S.) Q702 OR 574 MAIN BOARD A/I FA330684 CARBON 1/2W(T) 5% 680Kohm R101 1 575 MAIN BOARD A/I FA040331 CARBON 1/8W(T) 5% 330ohm R102 1 576 MAIN BOARD A/I FA240330 CARBON 1/4W(T) 5% 33 ohm R104 1 577 MAIN BOARD A/I FA240564 CARBON 1/4W(T) 5% 560Kohm R107 1 578 MAIN BOARD A/I FA240334 CARBON 1/4W(T) 5% 330Kohm R108 1 579 MAIN BOARD A/I FA040470 CARBON 1/8W(T) 5% 47ohm R109 1 580 MAIN BOARD A/I FA240113 CARBON 1/4W(T) 5% 11Kohm R10A 1 581 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R110 1 582 MAIN BOARD A/I FA040102 CA RBON 1/8W(T) 5% 1Kohm R112 1

583 MAIN BOARD A/I FA040752 CARBON 1/8W(T) 5% 7.5Kohm R113 1 584 MAIN BOARD A/I FA330104 CARBON 1/2W(T) 5% 100Kohm R114 1 585 MAIN BOARD A/I FA040390 CARBON 1/8W(T) 5% 39ohm R115 1 586 MAIN BOARD A/I FA240271 CARBON 1/4W(T) 5% 270ohm R116 1 587 MAIN BOARD A/I FA240390 CARBON 1/4W(T) 1% 39ohm R117 1 588 MAIN BOARD A/I FA240203 CARBON 1/4W(T) 5% 20Kohm R118 1 589 MAIN BOARD A/I FA040104 CARBON 1/8W(T) 5% 100Kohm R119 1 590 MAIN BOARD A/I FA330104 CARBON 1/2W(T) 5% 100Kohm R120 1 591 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R122 1 592 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1Kohm R123 1 593 MAIN BOARD A/I FA240681 CARBON 1/4W(T) 5% 680ohm R126 1 594 MAIN BOARD A/I FA040223 CARBON 1/8W(T) 5% 22Kohm R127 1 595 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R129 1 596 MAIN BOARD A/I FA040223 CARBON 1/8W(T) 5% 22Kohm R130 1 597 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 15mm R131 1 598 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1Kohm R132 1 599 MAIN BOARD A/I FA040330 CARBON 1/8W(T) 5% 33ohm R135 1 600 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1Kohm R137 1 601 MAIN BOARD A/I FA240750 CARBON 1/4W(T) 5% 75ohm R138 1 602 MAIN BOARD A/I FA330561 CARBON 1/2W(T) 5% 560ohm R139 1 603 MAIN BOARD A/I FA040470 CARBON 1/8W(T) 5% 47ohm R140 1 604 MAIN BOARD A/I FA040203 CARBON 1/8W(T) 5% 20Kohm R141 1 605 MAIN BOARD A/I FA040224 CARBON 1/8W(T) 5% 220Kohm R142 1 606 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1Kohm R144 1 607 MAIN BOARD A/I FA040273 CARBON 1/8W(T) 5% 27Kohm R145 1 608 MAIN BOARD A/I FA040222 CARBON 1/8W(T) 5% 2.2Kohm R146 1 609 MAIN BOARD A/I FA040202 CARBON 1/8W(T) 5% 2Kohm R147 1 610 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R148 1

611 MAIN BOARD A/I FB241051 METAL 1/4W(T) 1% 1.05Kohm R149 1 612 MAIN BOARD A/I FB246242 METAL 1/4W(T) 1% 62.4Kohm R151 1 613 MAIN BOARD A/I FA040332 CARBON 1/8W(T) 5% 3.3Kohm R152 1 614 MAIN BOARD A/I FA040562 CARBON 1/8W(T) 5% 5.6Kohm R154 1 615 MAIN BOARD A/I FA040104 CARBON 1/8W(T) 5% 100Kohm R155 1 616 MAIN BOARD A/I FA330159 CARBON 1/2W(T) 5% 1.5ohm R156 1 617 MAIN BOARD A/I R0319110 JUMPER WIRE AI/T 10mm R157 1 618 MAIN BOARD A/I FB240470 METAL 1/4W(T) 1% 47ohm R158 1 619 MAIN BOARD A/I FA040105 CARBON 1/8W(T) 5% 1Mohm R159 1 620 MAIN BOARD A/I FA040202 CARBON 1/8W(T) 5% 2Kohm R160 1 621 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R161 1 622 MAIN BOARD A/I 80000561 BEAD 3.5x6x0.8/T R162 1 623 MAIN BOARD A/I FA240122 CARBON 1/4W(T) 5% 1.2Kohm R163 1 624 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R167 1 625 MAIN BOARD A/I FA040104 CARBON 1/8W(T) 5% 100Kohm R168 1 626 MAIN BOARD A/I FB910010 METAL 1/4W(T) 5% 1ohm R169 1 627 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R173 1 628 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R177 1 629 MAIN BOARD A/I FA040473 CARBON 1/8W(T) 5% 47Kohm R178 1 630 MAIN BOARD A/I FA330102 CARBON 1/2W(T) 5% 1Kohm R182 1 631 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1Kohm R301 1 632 MAIN BOARD A/I FA040561 CARBON 1/8W(T) 5% 560ohm R303 1 633 MAIN BOARD A/I FA040225 CARBON 1/8W(T) 5% 2.2Mohm R305 1 634 MAIN BOARD A/I FA040101 CARBON 1/8W(T) 5% 100ohm R306 1 635 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R307 1

636 MAIN BOARD A/I FA330561 CARBON 1/2W(T) 5% 560ohm R308 1 637 MAIN BOARD A/I FA040224 CARBON 1/8W(T) 5% 220Kohm R30C 1 638 MAIN BOARD A/I FA040224 CARBON 1/8W(T) 5% 220Kohm R30E 1 639 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R310 1 640 MAIN BOARD A/I FB910010 METAL 1/4W(T) 5% 1ohm R313 1 641 MAIN BOARD A/I FA040565 CARBON 1/8W(T) 5% 5.6Mohm R317 1 642 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R318 1 643 MAIN BOARD A/I FA040823 CARBON 1/8W(T) 5% 82Kohm R319 1 644 MAIN BOARD A/I FA040122 CARBON 1/8W(T) 5% 1.2Kohm R322 1 645 MAIN BOARD A/I FA040393 CARBON 1/8W(T) 5% 39Kohm R325 1 646 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R326 1 647 MAIN BOARD A/I FA040104 CARBON 1/8W(T) 5% 100Kohm R327 1 648 MAIN BOARD A/I FA040473 CARBON 1/8W(T) 5% 47Kohm R328 1 649 MAIN BOARD A/I FA040822 CARBON 1/8W(T) 5% 8.2Kohm R329 1 650 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R330 1 651 MAIN BOARD A/I FA040153 CARBON 1/8W(T) 5% 15Kohm R331 1 652 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R332 1 653 MAIN BOARD A/I FA040392 CARBON 1/8W(T) 5% 3.9Kohm R336 1 654 MAIN BOARD A/I FA040333 CARBON 1/8W(T) 5% 33Kohm R337 1 655 MAIN BOARD A/I FA240243 CARBON 1/4W(T) 5% 24Kohm R338 1 656 MAIN BOARD A/I FA040224 CARBON 1/8W(T) 5% 220Kohm R339 1 657 MAIN BOARD A/I FA040104 CARBON 1/8W(T) 5% 100Kohm R340 1 658 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R343 1 659 MAIN BOARD A/I FA330102 CARBON 1/2W(T) 5% 1Kohm R344 1 660 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R345 1 661 MAIN BOARD A/I FB241301 METAL 1/4W(T) 1% 1.3Kohm R346 1 662 MAIN BOARD A/I FB242801 METAL 1/4W(T) 1% 2.8Kohm R347 1 663 MAIN BOARD A/I FA330913 CARBON 1/2W(T) 5% 91Kohm R348 1 664 MAIN BOARD A/I FA240243 CARBON 1/4W(T) 5% 24Kohm R350 1 665 MAIN BOARD A/I FB910010 METAL 1/4W(T) 5% 1ohm R351 1 666 MAIN BOARD A/I FB241022 METAL 1/4W(T) 1% 10.2Kohm R352 1 667 MAIN BOARD A/I FA040104 CARBON 1/8W(T) 5% 100Kohm R353 1 668 MAIN BOARD A/I FA040224 CARBON 1/8W(T) 5% 220Kohm R354 1 669 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1Kohm R355 1 670 MAIN BOARD A/I FA040153 CARBON 1/8W(T) 5% 15Kohm R357 1 671 MAIN BOARD A/I FA040474 CARBON 1/8W(T) 5% 470Kohm R358 1 672 MAIN BOARD A/I FA040473 CARBON 1/8W(T) 5% 47Kohm R359 1 673 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R360 1 674 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R361 1 675 MAIN BOARD A/I FA040154 CARBON 1/8W(T) 5% 150Kohm R362 1 676 MAIN BOARD A/I FA040104 CARBON 1/8W(T) 5% 100Kohm R363 1 677 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R364 1 678 MAIN BOARD A/I FB242153 METAL 1/4W(T) 1% 215Kohm R366 1 L 679 MAIN BOARD A/I FB241913 METAL 1/4W(T) 1% 191Kohm R366 1 T,O 680 MAIN BOARD A/I FB241872 METAL 1/4W(T) 1% 18.7Kohm R368 1 681 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R369 1 682 MAIN BOARD A/I FA040822 CARBON 1/8W(T) 5% 8.2Kohm R371 1 683 MAIN BOARD A/I FA040222 CARBON 1/8W(T) 5% 2.2Kohm R372 1 684 MAIN BOARD A/I FB243481 METAL 1/4W(T) 1% 3.48Kohm R373 1 685 MAIN BOARD A/I FB241002 METAL 1/4W(T) 1% 10Kohm R374 1 686 MAIN BOARD A/I FA040104 CARBON 1/8W(T) 5% 100Kohm R375 1 687 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R377 1 688 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R379 1

689 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R383 1 690 MAIN BOARD A/I FA330150 CARBON 1/2W(T) 5% 15ohm R385 1 691 MAIN BOARD A/I FB241002 METAL 1/4W(T) 1% 10Kohm R386 1 692 MAIN BOARD A/I FA040132 CARBON 1/8W(T) 5% 1.3Kohm R387 1 693 MAIN BOARD A/I FA040153 CARBON 1/8W(T) 5% 15Kohm R390 1 694 MAIN BOARD A/I FA240224 CARBON 1/4W(T) 5% 220Kohm R393 1 695 MAIN BOARD A/I FA040474 CARBON 1/8W(T) 5% 470Kohm R394 1 696 MAIN BOARD A/I FA040105 CARBON 1/8W(T) 5% 1Mohm R395 1 697 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1Kohm R401 1 698 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R402 1 699 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R403 1 700 MAIN BOARD A/I FA040224 CARBON 1/8W(T) 5% 220Kohm R404 1 701 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R405 1 702 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R406 1 703 MAIN BOARD A/I FA040473 CARBON 1/8W(T) 5% 47Kohm R407 1 704 MAIN BOARD A/I FA040471 CARBON 1/8W(T) 5% 470ohm R408 1 705 MAIN BOARD A/I FA040473 CARBON 1/8W(T) 5% 47Kohm R409 1 706 MAIN BOARD A/I FB246801 METAL 1/4W(T) 1% 6.8Kohm R410 1 707 MAIN BOARD A/I FB241002 METAL 1/4W(T) 1% 10Kohm R411 1 708 MAIN BOARD A/I FB246801 METAL 1/4W(T) 1% 6.8Kohm R412 1 709 MAIN BOARD A/I FB247682 METAL 1/4W(T) 1% 76.8Kohm R413 1 710 MAIN BOARD A/I FA330331 CARBON 1/2W(T) 5% 330ohm R414 1

711 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R416 1 712 MAIN BOARD A/I FA330159 CARBON 1/2W(T) 5% 1.5ohm R417 1 713 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R418 1 714 MAIN BOARD A/I FA040394 CARBON 1/8W(T) 5% 390Kohm R419 1 715 MAIN BOARD A/I FA040134 CARBON 1/8W(T) 5% 130K R420 1 716 MAIN BOARD A/I FA040153 CARBON 1/8W(T) 5% 15Kohm R423 1 717 MAIN BOARD A/I FA040473 CARBON 1/8W(T) 5% 47Kohm R430 1 718 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1Kohm R432 1 719 MAIN BOARD A/I FA040473 CARBON 1/8W(T) 5% 47Kohm R433 1 720 MAIN BOARD A/I FA040223 CARBON 1/8W(T) 5% 22Kohm R440 1 721 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R442 1 722 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R443 1 723 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R444 1 724 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R447 1 725 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R449 1 726 MAIN BOARD A/I FA040913 CARBON 1/8W(T) 5% 91Kohm R450 1 727 MAIN BOARD A/I FA240103 CARBON 1/4W(T) 5% 10Kohm R451 1 728 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R452 1 729 MAIN BOARD A/I FA040473 CARBON 1/8W(T) 5% 47Kohm R454 1 730 MAIN BOARD A/I FA040304 CARBON 1/8W(T) 5% 300Kohm R455 1 731 MAIN BOARD A/I FA040822 CARBON 1/8W(T) 5% 8.2Kohm R456 1 732 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R457 1 733 MAIN BOARD A/I FA040224 CARBON 1/8W(T) 5% 220Kohm R458 1 734 MAIN BOARD A/I FA040104 CARBON 1/8W(T) 5% 100Kohm R459 1 735 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R460 1 736 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R601 1 737 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R602 1 738 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1Kohm R603 1 739 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R604 1 740 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R605 1 741 MAIN BOARD A/I FA040222 CARBON 1/8W(T) 5% 2.2Kohm R608 1

742 MAIN BOARD A/I FA240222 CARBON 1/4W(T) 5% 2.2Kohm R609 1 743 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R610 1 744 MAIN BOARD A/I FA040223 CARBON 1/8W(T) 5% 22Kohm R611 1 745 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R612 1 746 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R613 1 747 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R701 1 748 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R704 1 749 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R705 1 750 MAIN BOARD A/I FA040101 CARBON 1/8W(T) 5% 100ohm R706 1 751 MAIN BOARD A/I FA040101 CARBON 1/8W(T) 5% 100ohm R707 1 752 MAIN BOARD A/I FA040331 CARBON 1/8W(T) 5% 330ohm R708 1 753 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R709 1 754 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R710 1 755 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R713 1 756 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1Kohm R714 1 757 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R715 1 758 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R716 1 759 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R717 1 760 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R718 1 761 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1Kohm R719 1 762 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R720 1 763 MAIN BOARD A/I FA040152 CARBON 1/8W(T) 5% 1.5Kohm R721 1 764 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R722 1 765 MAIN BOARD A/I FA240103 CARBON 1/4W(T) 5% 10Kohm R725 1 766 MAIN BOARD A/I FA040242 CARBON 1/8W(T) 5% 2.4Kohm R726 1 767 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R728 1 768 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R729 1 769 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R733 1 770 MAIN BOARD A/I FA040222 CARBON 1/8W(T) 5% 2.2Kohm R735 1 771 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10Kohm R736 1 772 MAIN BOARD A/I FA040104 CARBON 1/8W(T) 5% 100Kohm R737 1 773 MAIN BOARD A/I FA040471 CARBON 1/8W(T) 5% 470ohm R739 1 774 MAIN BOARD A/I FA040471 CARBON 1/8W(T) 5% 470ohm R740 1 775 MAIN BOARD A/I FA040101 CARBON 1/8W(T) 5% 100ohm R742 1 776 MAIN BOARD A/I FA040101 CARBON 1/8W(T) 5% 100ohm R743 1 777 MAIN BOARD A/I FA040101 CARBON 1/8W(T) 5% 100ohm R761 1 778 MAIN BOARD A/I FA040101 CARBON 1/8W(T) 5% 100ohm R762 1 779 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R768 1 780 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R769 1 781 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7Kohm R770 1 782 MAIN BOARD A/I FA040471 CARBON 1/8W(T) 5% 470ohm R771 1 783 MAIN BOARD A/I R0319110 J UMP E R WIRE AI/T 7.5mm VR307 1 784 MAIN BOARD A/I EKA0180B ZEN DIODE 1/2W(T) HZS 18-2 (HITACHI) ZD101 1 785 MAIN BOARD A/I EKC0180B ZEN DIODE 1/2W(T) BZX79F18 (PHILIPS) ZD101 OR 786 MAIN BOARD A/I EKA01201 ZEN DIODE 1/2W(T) HZS12A2 (HITACHI) ZD102 1 787 MAIN BOARD A/I EKC01201 ZEN DIODE 1/2W(T) BZX79F12 (PHLIPS) ZD102 OR 788 MAIN BOARD A/I EKA00507 ZEN DIODE 1/2W(T) HZS5C2 (HITACHI) ZD104 1 789 MAIN BOARD A/I EKC00507 ZEN DIODE 1/2W(T) BZX79F5V1 (PHILIPS) ZD104 OR 790 MAIN BOARD A/I EKA01201 ZEN DIODE 1/2W(T) HZS12A2 (HITACHI) ZD301 1 791 MAIN BOARD A/I EKC01201 ZEN DIODE 1/2W(T) BZX79F12 (PHLIPS) ZD301 OR 792 MAIN BOARD A/I EKA00507 ZEN DIODE 1/2W(T) HZS5C2 (HITACHI) ZD303 1 793 MAIN BOARD A/I EKC00507 ZEN DIODE 1/2W(T) BZX79F5V1 (PHILIPS) ZD303 OR 794 MAIN BOARD A/I EKA00507 ZEN DIODE 1/2W(T) HZS5C2 (HITACHI) ZD701 1

795 MAIN BOARD A/I EKC00507 ZEN DIODE 1/2W(T) BZX79F5V1 (PHILIPS) ZD701 OR 796 MAIN BOARD A/I EKA00507 ZEN DIODE 1/2W(T) HZS5C2 (HITACHI) ZD702 1 797 MAIN BOARD A/I EKC00507 ZEN DIODE 1/2W(T) BZX79F5V1 (PHILIPS) ZD702 OR 798 MAIN BOARD A/I EKA00507 ZEN DIODE 1/2W(T) HZS5C2 (HITACHI) ZD703 1 799 MAIN BOARD A/I EKC00507 ZEN DIODE 1/2W(T) BZX79F5V1 (PHILIPS) ZD703 OR 800 MAIN BOARD A/I EKA00507 ZEN DIODE 1/2W(T) HZS5C2 (HITACHI) ZD704 1 801 MAIN BOARD A/I EKC00507 ZEN DIODE 1/2W(T) BZX79F5V1 (PHILIPS) ZD704 OR 802 MAIN BOARD INSERT 14000051 SCREW (#2CBRITS*4*8*15BF)

AC SOCKET

2 803 MAIN BOARD INSERT 80000991 BEAD WBR6H-3T-R7K-B5 B102 1 804 MAIN BOARD INSERT GJ047400 SAFETY X-CAP 0.47u/275V M C101 1 805 MAIN BOARD INSERT 80010661 EPCOS B81130 X-CAP C101 OR 806 MAIN BOARD INSERT GJ047404 SAFETY X-CAP 0.47u/275V M(ISKRA) C101 OR 807 MAIN BOARD INSERT GJ047405 SAFETY X-CAP 0.47u/275V M(PHILIPS) C101 OR 808 MAIN BOARD INSERT GJ047407 SAFETY X-CAP 0.47u/275V M(OKAY A) C101 OR 809 MAIN BOARD INSERT GJ047409 SAFETY X-CAP 0.47u/250V M(PILKOR) C101 OR 810 MAIN BOARD INSERT GJ04740A SAFETY X-CAP 0.47u/275V M(EPCOS B81130)C101 OR

811 MAIN BOARD INSERT GJH102E5 SAFETY Y-CAP/S 1000P/400V M C103 1 812 MAIN BOARD INSERT GJH102E5 SAFETY Y-CAP/S 1000P/400V M C104 1 813 MAIN BOARD INSERT GKA227E5 POWER ELECT 85oC 220u/400V M C105 1 814 MAIN BOARD INSERT GAI10775

ELECT CAP 105oC/A 100u/100V M TK(

³Í¬ü

)

C120 1 815 MAIN BOARD INSERT 80011091 ELECT LOW ESR 100u/100V M 10X30(105oC) C120 OR 816 MAIN BOARD INSERT GAK10825

ELECT CAP 105oC/A 1000u/16V M PF(

ª÷¤s

)

C121 1 817 MAIN BOARD INSERT GAI10825

ELECT CAP 105oC/A 1000u/16V M TK(

³Í¬ü

)

C121 OR 818 MAIN BOARD INSERT GAA10815 E LECT 85oC/A 1000u/10V M C122 1 819 MAIN BOARD INSERT GAA22685 E LECT 85oC/A 22u/250V M C129 1 820 MAIN BOARD INSERT GAI10775

ELECT CAP 105oC/A 100u/100V M TK(

³Í¬ü

)

C138 1 821 MAIN BOARD INSERT 80011091 ELECT LOW ESR 100u/100V M 10X30(105oC) C138 OR 822 MAIN BOARD INSERT GFA33382 PLASTIC MPE/A 0.033u/250V J C143 1 823 MAIN BOARD INSERT GJH102E5 SAFETY Y-CAP/S 1000P/400V M C146 1 824 MAIN BOARD INSERT GJC222E5 S AFETY Y-CAP/D 2200P/400V M C147 1 825 MAIN BOARD INSERT GJH102E5 SAFETY Y-CAP/S 1000P/400V M C154 1 826 MAIN BOARD INSERT GB8103F5 CERAMIC Z5U(E)/T 0.01u/500V M C310 1 827 MAIN BOARD INSERT GFC392J2 PLASTIC PPS/A 3900P/2KV J C318 1 828 MAIN BOARD INSERT GED512M2 PLASTIC PPN/A 5100P/800V J C319 1 829 MAIN BOARD INSERT GAA22685 E LECT 85oC/A 22u/250V M C325 1 830 MAIN BOARD INSERT GFA15482 PLASTIC MPE/A 0.15u/250V J C329 1 831 MAIN BOARD INSERT GFD20482 P LASTIC PMM/A 0.2u/250V J (MYLAR) C332 1 832 MAIN BOARD INSERT GFB204E2 PLASTIC 378/A 0.2u/400V J(PILKOR) C332 OR 833 MAIN BOARD INSERT GFA10582 PLASTIC MPE/A 1u/250V J C333 1 834 MAIN BOARD INSERT GFA10382 PLASTIC MPE/A 0.01u/250V J C345 1 835 MAIN BOARD INSERT GFB15482 PLASTIC MPP/A 0.15u/250VJ C351 1 836 MAIN BOARD INSERT GFB43482 PLASTIC MPP/A 0.43u/250V J C355 1 837 MAIN BOARD INSERT GFB22482 PLASTIC MPP/A 0.22u/250V J C356 1 838 MAIN BOARD INSERT EJB20001 DIODE/A 3A 1N5406 D101 1 839 MAIN BOARD INSERT EJB20001 DIODE/A 3A 1N5406 D102 1 840 MAIN BOARD INSERT EJB20001 DIODE/A 3A 1N5406 D103 1 841 MAIN BOARD INSERT EJB20001 DIODE/A 3A 1N5406 D104 1 842 MAIN BOARD INSERT 80003561

DIODE 600V/1.6A RG2A SANKEN

Ås¨¤

D110 1 843 MAIN BOARD INSERT 80011241

DIODE SANKEN 3A/400V RG4

Ås¸}

(A+K)

D111 1 844 MAIN BOARD INSERT 80011251

DIODE TOSHIBA 3A/400V 3GU41

Ås¸}

(A+K)

D111 OR 845 MAIN BOARD INSERT 80003551

DIODE 200V/1.6A RG2Z SANKEN

Ås¨¤

D112 1 846 MAIN BOARD INSERT 80003551

DIODE 200V/1.6A RG2Z SANKEN

Ås¨¤

D113 1 847 MAIN BOARD INSERT 80003561

DIODE 600V/1.6A RG2A SANKEN

Ås¨¤

D114 1

848 MAIN BOARD INSERT 80003551

DIODE 200V/1.6A RG2Z SANKEN

Ås¨¤

D118 849 MAIN BOARD INSERT 14000041 SCREW (P-#2CBRITS*3*8*15BF) D307 1 850 MAIN BOARD INSERT 80001171 DIODE/A 5TUZ47C (TOSHIBA) D307 1 851 MAIN BOARD INSERT 80009541

DIODE FAGOR FUF5406

Ås¸}

(A+K)

D308 1 852 MAIN BOARD INSERT 80001131

DIODE/A 2A/600V RG4A (

Ås¨¤

)

D308 OR 853 MAIN BOARD INSERT 80009261

DIODE SANKEN RP3F

Ås¸}

(A+K)

D316 1 854 MAIN BOARD INSERT 80011471

DIODE FUJI ERD07-15L

Ås¸}

(A+K)

D316 OR 855 MAIN BOARD INSERT 80010981

DIODE TOSHIBA 3TH41

Ås¸}

(A+K)

D316 OR 856 MAIN BOARD INSERT JA000070 FUS E 2. 5A/ 250V 51S SB F101 1 857 MAIN BOARD INSERT 14000071 SCREW (PL-CPTS*3*8*15BF) FOR FBT 3 858 MAIN BOARD INSERT R0180028 FUS E HOLDE R 5X20mm FOR FUSE 2 859 MAIN BOARD INSERT 80010631 JUMPER 2.54mm

FOR SW301

860 MAIN BOARD INSERT 80000781 SINGLE PIN L=12.0 D=1.5

FOR TH101

2 861 MAIN BOARD INSERT JD010040 IC SOCKET 40P FOR U701 1 862 MAIN BOARD INSERT HA030010 EMI FILTER COIL 20.45X10.2X10

G2,G4 WIRE

1 863 MAIN BOARD INSERT 80003511 WIRE GND 70mm Y/G 1015 18A L100 1 864 MAIN BOARD INSERT 80000111 LINE FILTER ET24 10mH MIN L101 1 865 MAIN BOARD INSERT HB000015 LINE FILTER UU10.5 1mH L102 1 866 MAIN BOARD INSERT 80003681 CHOKE T50-26B 200uH L103 1 867 MAIN BOARD INSERT 80010671 N0501 DC-DC 180uH COIL L106 1 868 MAIN BOARD INSERT 80009291 H-CENTER CHOKE L301 1 869 MAIN BOARD INSERT 80005141 N9501 WIDTH COIL 185uH L303 1 870 MAIN BOARD INSERT 80010391 N0501 LINEARITY CHOKE L306 1 871 MAIN BOARD INSERT 80010381 N0501 LINEARITY COIL L307 1 872 MAIN BOARD INSERT 80000131 LED L-59GH/1GYC LED701 1 873 MAIN BOARD INSERT 18000331 WIRE CLIP (WC-13T) LW101 1 874 MAIN BOARD INSERT JD512001 AC SOCKET 3P P101 1 875 MAIN BOARD INSERT R0224301 B AS E PIN 1. 55 P=5/7.5 2P P 102 1 876 MAIN BOARD INSERT 12800032 HEAT SINK 40*12*50 B Q101 1 877 MAIN BOARD INSERT 14000041 SCREW (P-#2CBRITS*3*8*15BF) Q101 1 878 MAIN BOARD INSERT EF202500 FE T N 2SK2545 TO-220F TOSHIBA Q101 1 879 MAIN BOARD INSERT 80000901 FET N FS7KM-12 600V/7A TO-220F Q101 OR 880 MAIN BOARD INSERT 80000981 FET N 2SK2645-01/MR TO-220F Q101 OR 881 MAIN BOARD INSERT EF211180 FE T N 2SK1118 TO-220F Q101 OR 882 MAIN BOARD INSERT 12800041 HEAT SINK 23*17*25 Q102 1 883 MAIN BOARD INSERT 14000041 SCREW (P-#2CBRITS*3*8*15BF) Q102 1 884 MAIN BOARD INSERT EF206301 FE T N YTAF630 TO-220F Q102 1 885 MAIN BOARD INSERT EB307720 TRPNP KSB772 TO-126 Q104 1 886 MAIN BOARD INSERT 80000201 TR PNP 2SB1273 S/R Q104 OR 887 MAIN BOARD INSERT 80002451 TR PNP 2SB1274 S/R (SANYO) Q104 OR 888 MAIN BOARD INSERT 12600231 HEAT SINK (FBT) Q307 1 889 MAIN BOARD INSERT EA853390 TR NPN 2SC5339(hfE) TO-3P Q307 1 890 MAIN BOARD INSERT R0311D04 SCREW CTTWC M3.0X10 Q307 1 891 MAIN BOARD INSERT EF206301 FE T N YTAF630 TO-220F Q313 1 892 MAIN BOARD INSERT EB20861A TR PNP 2SB861C TO-220F Q314 1 893 MAIN BOARD INSERT R0311D04 SCREW CTTWC M3.0X10 Q314 1 894 MAIN BOARD INSERT EF206301 FE T N YTAF630 TO-220F Q322 1 895 MAIN BOARD INSERT FB470680 MOF 1W/M (A) 5% 68ohm R103 1 896 MAIN BOARD INSERT FB560338 MOF 2W/M (A) 5% 0.33ohm R105 1 897 MAIN BOARD INSERT FB570563 MOF 2W/M (B) 5% 56Kohm R106 1 898 MAIN BOARD INSERT FC110158 WOUND RES 2W(A) 5% 0.15ohm R111 1 899 MAIN BOARD INSERT FB560103 MOF 2W/M (A) 5% 10Kohm R125 1 900 MAIN BOARD INSERT FB470100 MOF 1W/M (A) 5% 10ohm R128 1

901 MAIN BOARD INSERT FB560152 MOF 2W/M (A) 5% 1.5Kohm R134 1 902 MAIN BOARD INSERT FC030338 WOUND RES 1W/M(A) 5% 0.33ohm R136 1 903 MAIN BOARD INSERT FB470623 MOF 1W/M (A) 5% 62Kohm R143 1 904 MAIN BOARD INSERT 80002031 FUSEABLE RES 1/2W(A)M 0.22 ohm R150 1 905 MAIN BOARD INSERT 80002031 FUSEABLE RES 1/2W(A)M 0.22 ohm R175 1 906 MAIN BOARD INSERT 80009841 FUSEBLE RES. 1/2W(A)M 68ohm J R304 1 907 MAIN BOARD INSERT FB710150 MOF 3W/M (A) 5% 15ohm R309 1 908 MAIN BOARD INSERT FB560139 MOF 2W/M (A) 5% 1.3ohm R311 1 909 MAIN BOARD INSERT FB470270 MOF 1W/M (A) 5% 27ohm R312 1 910 MAIN BOARD INSERT FB560102 MOF 2W/M (A) 5% 1Kohm R316 1

911 MAIN BOARD INSERT FB560201 MOF 2W/M(A) 5% 200ohm R335 1 912 MAIN BOARD INSERT FB470393 MOF 1W/M (A) 5% 39Kohm R349 1 913 MAIN BOARD INSERT FB560681 MOF 2W/M (A) 5% 680ohm R376 1 914 MAIN BOARD INSERT FB470139 MOF 1W/M (A) 5% 1.3ohm R415 1 915 MAIN BOARD INSERT FB470109 MOF 1W/M (A) 5% 1ohm R421 1 916 MAIN BOARD INSERT FB470109 MOF 1W/M (A) 5% 1ohm R422 1 917 MAIN BOARD INSERT FB470100 MOF 1W/M (A) 5% 10ohm R606 1 918 MAIN BOARD INSERT 80003751 RELAY 12V 6P GSA-SS-212DM(GOOD-SKY) RL101 1 919 MAIN BOARD INSERT 80003761 RELAY 12V 6P OSA-SS-212DM5(OEG) RL101 OR 920 MAIN BOARD INSERT 80010001 RELAY RUDH-SH-112D 400ohm (GOOD SKY) RL301 1 921 MAIN BOARD INSERT R0224308 B AS E PIN 2. 36mm P=8/10 4P S301 1 922 MAIN BOARD INSERT R0224125 B AS E PIN 2P +HOUSING P=2.5mm S701 1 923 MAIN BOARD INSERT R0224129 B AS E PIN 6P +HOUSING P=2.5mm S702 1 924 MAIN BOARD INSERT 80009971 SW POWER 30V/0.3A JPS1258(Favortron) SW101 1 925 MAIN BOARD INSERT 80010621 WAFER 2L×3P 2.54mm SW301 1 926 MAIN BOARD INSERT 80000251 TACT SW 1P 100G+-50 S W701 1 927 MAIN BOARD INSERT 80000251 TACT SW 1P 100G+-50 S W702 1 928 MAIN BOARD INSERT 80000251 TACT SW 1P 100G+-50 S W703 1 929 MAIN BOARD INSERT 80009981 POWER X'FM ERL35 500uH N0501 T101 1 B Ver. 930 MAIN BOARD INSERT 80010421 15" 70K N0501 FBT T301 1 931 MAIN BOARD INSERT 80000281 H.DRIVE X'FM 4.5mH EI-19 T302 1 932 MAIN BOARD INSERT 80009691 N0501 D.F X'FM EI-19(1:7.5) T303 1 933 MAIN BOARD INSERT 80000801 THERMISTOR NTCR SCK054 13.3mm TH101 1 934 MAIN BOARD INSERT 80005821 THERMISTOR PTCR 4.5ohm TH102 1 935 MAIN BOARD INSERT R0224074 S INGLE PIN L=11.5 D=1.0 TP1 1 936 MAIN BOARD INSERT R0224074 S INGLE PIN L=11.5 D=1.0 TP2 1 937 MAIN BOARD INSERT R0224077 B AS E PIN 1P 1.55mm TPC 1 938 MAIN BOARD INSERT DD002600 IC LINEAR KA3842A 8P U101 1 939 MAIN BOARD INSERT DD002900 IC LINEAR KA3843B 8P U102 1 940 MAIN BOARD INSERT 80000321 IC PHOTO COUBLE PS2501 4P U103 1 941 MAIN BOARD INSERT 80000321 IC PHOTO COUBLE PS2501 4P U103 OR 942 MAIN BOARD INSERT DD004600 IC LM1290 U301 1 943 MAIN BOARD INSERT 12800282 HEAT SINK 44*27*50 U401 1 944 MAIN BOARD INSERT 14000041 SCREW (P-#2CBRITS*3*8*15BF) U401 1 945 MAIN BOARD INSERT 80001041 IC TDA8172 (N.S,SGS) U401 1 946 MAIN BOARD INSERT 80000351 IC LM1295 U402 1 947 MAIN BOARD INSERT 80011501 N0701 VE MASK MCU U701 1 948 MAIN BOARD INSERT 80011491 N0701 VE MTP WT6016 V3 U701 OR 949 MAIN BOARD INSERT BE028000 IC AT24C04 (ATMEL,ST) U702 1 950 MAIN BOARD INSERT 80008701 IC KS24C041C(SAMSUNG) U702 OR 951 MAIN BOARD INSERT FF300201

VR CARBON 6mm ¥ß 200 ohm/B

VR101 1

952 MAIN BOARD INSERT FF310102

VR CARBON 6mm ª× 1K

VR102 1

953 MAIN BOARD INSERT FF300103

VR CARBON 6mm ¥ß 10K VZ067TH1

VR306 1

954 MAIN BOARD INSERT 80010021 N9701 VE WIRE ASSY

WIRE ASSY

1 955 MAIN BOARD INSERT EM08003 X'TAL 49U 8MHz X701 1 956 MAIN BOARD INSERT 18000321 EDGE SADDLE(SB-31) 1 957 MAIN BOARD INSERT 80010741 GND WIRE BLACK 180mm 18AWG 1015 4.3D 1 958 P ACKING ASSY 11000381 REVOLVING ASSY

2 nd Toolin

959 P ACKING ASSY 80002931

POWER CORD 3P 1.8M AUSTRALIA NON-SHIELD

CORD POWER

1R 960 P ACKING ASSY 80001661

POWER CORD 3P 1.8M CHINA NON- SHIELD COLOR SG 8508(CT0A6)

CORD POWER

1C 961 PACKING ASSY 13700091 BAG POLYETHYLENE (360*360)

FOR Ball&Base

1 962 PACKING ASSY 80001651 POWER CORD 3P 1.8M EUROPE

POWER CORD

1B 963 P ACKING ASSY 11000331 REVOLVING STAND ASSY(94HB) 1 964 P ACKING ASSY 13200901 CARTON BOX 520-1(B) 1 B,R 965 P ACKING ASSY 13201021 CARTON BOX 520-1(C) 1 C 966 P ACKING ASSY 13400531 POLYLON(R)CARTON 1 967 P ACKING ASSY 13400541 POLYLON(R)CARTON 1 968 PACKING ASSY 13700021 BAG POLYETHYLENE (270*370) 1 969 PACKING ASSY 13700031 BAG POLYETHYLENE (150*370) 1 970 PACKING ASSY 13700071 PE BAG (500*480*850 + WARNING) 1 971 P ACKING ASSY 15200241 LABEL (D8,CYAN) 1 R 972 P ACKING ASSY 15200251 LABEL (D8,MAGENTA) 1 C 973 P ACKING ASSY 15200331 LABLE,SERIAL BARCODE 1 974 P ACKING ASSY 15500621 OWNERS MANUAL V520/V720-1(B Ver.) 1 B,R 975 P ACKING ASSY 15500751 OWNERS MANUAL V520/V720(C Ver .)-1 1 C 976 PACKING ASSY 15700043 WARRANTY CARD (AUST) 1 R 977 PACKING ASSY 15900051 SALES OFFICE LIST 1 B,C 978

REVOLVING STAND ASSY

11000361 REVOLVING STAND(B)(ABS 94HB)

2 nd Toolin

979

REVOLVING STAND ASSY

17000451 CUSHION SHEET(14.8*14.8*T4)

FOR 2nd Base

980

REVOLVING STAND ASSY

17000291 CUSHION SHEET FOR BASE 4

981

REVOLVING STAND ASSY

11000251 REVOLVING STAND(B) 1

982

REVOLVING STAND ASSY

11000261 REVOLVING STAND(T) 1 983 SET ASSY 80009271 SIGNAL CABLE 20276 1.5M FOR N9701 VE CABLE 1 984 SET ASSY 80010851 15" LG CRT M36QBX801X04(A) CRT 1 L B,C 985 SET ASSY 80011531 15" LG CRT M36QBX801X04(A)(S) CRT 1 L R 986 SET ASSY 80005211 TOSHIBA M36LGE23X205(F1M1) CRT 1 T B,C 987 SET ASSY 80011191 15" ORION M36QCZ100XX41 CRT 1 O B,C 988 SET ASSY 80010481 15" N0501 MPRII DEGAUSSING

DEGUESSING COIL

989 SET ASSY 80011221 15" MPRII DEGAUSSING FOR ORION/LG

DEGUESSING COIL

1O,L 990 SET ASSY 14000011 SCREW (#2CBRITS*4*16*15BF) FOR BACK 2 991 SET ASSY 14300031 SCREW (PL-CPIMS*4*10*15BF)

FOR BKT-CAB

2 992 SET ASSY 18000261 ANODE CLAMPER FOR CRT 2 993 SET ASSY 14600011 SCREW SPECIAL (5*25) FOR CRT 4 994 SET ASSY 17000111 CRT PAD t=3.5 FOR CRT 4 995 SET ASSY 18000281 FIXED CABLE CLIP(GL-70A)

FOR DEGUES

2 996 SET ASSY 18000351 FIXED CABLE CLIP(GL-140A)

FOR DEGUES

2 997 SET ASSY 14000071 SCREW (PL-CPTS*3*8*15BF)

FOR FBT H.S.

1 998 SET ASSY 11700211 SUPPORT

FOR FRONT

2 999 SET ASSY 12000551 BRACKET CABLE

FOR SIGNAL

1000 SET ASSY 14000071 SCREW (PL-CPTS*3*8*15BF)

FOR SINGLE BRK

1001 SET ASSY 14000021 SCREW (#2CBRITS*4*12*15BF)

FOR SUPPORT

1002 SET ASSY 80010731 GND WIRE BLECK 160mm 18AWG 1015

GND 5,GND7

1003 SET ASSY 80010721 GND WIRE BLECK 320mm 18AWG 1015 GND 8 1 1004 SET ASSY 80010751 V521 CRT GND WIRE GND WIRE 1 1005 SET ASSY HB000018 ROTATION COIL 200TN ROTATION 1 1006 SET ASSY 17000351 CUSHION PIECE (BACK)80*60*30 SPONGE 1

1007 SET ASSY R0191207 TAPE BLACK L=75mmX3 TAPE

0.015

1008 SET ASSY 17000321 CABLE TIES(GT-100M) TIE 9 1009 SET ASSY 10100542 CABINET FRONT ASSY 1 1010 SET ASSY 10100563 CABINET BACK 1 1011 SET ASSY 12300202 PLATE SHIELDING (VIDEO) 1 1012 SET ASSY 15000881 NAME PLATE INSERTUCTION V520-1(B Ver.) 1 B, R 1013 SET ASSY 15000931 NAME PLATE INSERTUCTION V520-1(C Ver. ) 1 C 1014 SET ASSY 15200201 LABEL (EMC)(V500R) 1 R 1015 SET ASSY 15200031 LABEL (REV.) 1 1016 SET ASSY 15200471 LABLE WARNING (27.5KV/ 600uA ) 1 1017 SET ASSY 18000331 WIRE CLIP (WC-13T) 1 1018 SET ASSY 18000421 SWITCH EXPANDING COVER 1 1019 SET ASSY 15200261 LABEL (EMC)(2)(V500R) 2 R 1020 SET ASSY 18000271 SPACER SUPPORT(PS-26GD) 4

REVISED BY ECN: NN1010005 SORT BY A SSY CODE

2) MultiSync V521 Different List

B: ASIA, R: Australia, L: LG, T:Toshiba, S:Samsung

ASSY CODE PART NO DESCRIPTION LOCATION Q'TY ALT RE MARK

1 CABINET FRONT ASSY 10101111 CABINET FRONT(PC+ABS ) 1 2 CABINET FRONT ASSY 11300351 PUSH BUTTON (CONTROL A) 1 3 CABINET FRONT ASSY 11300781 PUSH BUTTON (SW) 1 4 CABINET FRONT ASSY 11600181 LENS 1 5 CABINET FRONT ASSY 13000061 COI L SP RING 1 6 PACKING ASSY 80002931

POWER CORD 3P 1.8M AUSTRALIA NON-SHIELD COLOR SG 850 8

CORD POWER

7 PACKING ASSY 80001651

POWER CORD 3P 1.8M EUROPE N-SHIELD COLOR SG8508 CORD POWER

8 PACKING ASSY 11000331 REVOLVING STAND ASSY 1

9 PACKING ASSY 13400491 POLYON(R) CARTON 1 10 PACKING ASSY 13400501 POLYON(L) CART ON 1 11 PACKING ASSY 13700021 BAG POLYETHYLENE (270*370) 1 12 PACKING ASSY 13700031 BAG POLYETHYLENE (150*370) 1 13 PACKING ASSY 13700071 PE BAG (500*480*850 + WARNING) 1 14 PACKING ASSY 13700091 BAG POLYETHYLENE (360*360) 1 15 PACKING ASSY 13201121 CARTON BOX V721(R)-1 1 R 16 PACKING ASSY 15500701 OWNERS MANUAL V721/V921(R) 1 R 17 PACKING ASSY 13201221 CARTON BOX V721(B)-1 1 B 18 PACKING ASSY 15500771 OWNERS MANUAL V521/V721/V921 1 B 19 PACKING ASSY 19700041 INSTRUCTION CD-ROM V521/V721/V921 1 B 20 PACKING ASSY 15900051 SALES OFFICE LIST 1 B 21 PACKING ASSY 15700043 WARRANTY CARD(AUST) 1 R 22 PACKING ASSY 15200261 LABEL (EMC) (2) (V500R) 2 R 23 PACKING ASSY 11000381 REVOLVING STAND ASSY OR 24 PACKING ASSY 11000382 REVOLVING STAND ASSY OR 25

REVOLVING STAND ASSY

17000291 CUSHION SHEET FOR BASE 4

REVOLVING STAND ASSY

17000451 CUSHION SHEET FOR BASE 4

REVOLVING STAND ASSY

11000251 REVOLVING STAND(B)(94HB) 1

REVOLVING STAND ASSY

11000261 REVOLVING STAND(T)(94HB) 1

REVOLVING STAND ASSY

11000262 REVOLVING STAND(T)(94HB) 1

REVOLVING STAND ASSY

11000361 REVOLVING STAND(B)(94HB) 1

REVOLVING STAND ASSY

11000362 REVOLVING STAND(B)(94HB) 1 32 SET ASSY 80009271 SIGNAL CABLE 20276 1.5M FOR N9701 VE CABLE 1 33 SET ASSY 80005581 17"LG M41LFQ803X13(LA) CRT 1 L R 34 SET ASSY 80004531 LG M41LFQ803X13(LA) CRT 1 L B 35 SET ASSY 80004551 SAMSUNG M41QAR361X101(A) CRT 1 S 36 SET ASSY 80009321 TOSHIBA M41LRT128X401(FA) CRT 1 T 37 SET ASSY 80010521 17" N0701 TCO DEGAUSSING SAMSUNG CRT

DEGUESSING COIL

1 S

38 SET ASSY 80010531 17" N0701 TCO DEGAUSSING LG CRT

DEGUESSING COIL

1 L

39 SET ASSY 80010501 17" N0701 TCO DEGAUSSING TOSHIBA CRT

DEGUESSING COIL

1 T 40 SET ASSY 14000011 SCREW (#2CBRITS*4*16*15BF) FOR BACK 2 41 SET ASSY 14000071 SCREW (PL-CPTS3*8*15BF)

FOR BKT-CAB

2 42 SET ASSY 14300031 SCREW (PL-CPIMS*4*10*15BF)

FOR BKT-CAB

2 43 SET ASSY 14000031 SCREW (#2CBRTS*3*12*15BF)

FOR BKT-PCB

2 44 SET ASSY 17000252 COPPER SHIELDING FOR CRT 1 45 SET ASSY 14600011 SCREW SPECIAL (5*25) FOR CRT 4 46 SET ASSY 17000111 CRT PAD t=3.5 FOR CRT 4 47 SET ASSY 17000261 AL TAPE 40*130mm FOR CRT 4 48 SET ASSY 18000281 FIXED CABLE CLIP(GL-70A)

FOR DEGUES

2 49 SET ASSY 18000371 FIXED CABLE CLIP(GL-115A)

FOR DEGUES

2 50 SET ASSY 11700221 SUPPORT(PC+ABS)

FOR FRONT

2 51 SET ASSY 14000021 SCREW (#2CBRITS*4*12*15BF)

FOR FRONT

4 52 SET ASSY 18000271 SPACER SUPPROT(PS-26GD) FOR M/B 4 53 SET ASSY 80000031 GND WIRE 18AWG L=130mm GND WIRE 1

54 SET ASSY 80000891 WIRE L=360mm BLACK AWG18 GND WIRE 1 55 SET ASSY 80001931 17" ROTATION COIL GND WIRE 1 56 SET ASSY 80010951 MS75 CRT GND WIRE GND WIRE 1 57 SET ASSY 72000641 TCO PCB PCB TCO 1 58 SET ASSY 80005101 WIRE 1618 24AWG 40mm BK

SHIELD WIRE

59 SET ASSY R0191207 TAPE BLAC K L=7 5 mmX3 TAPE

0.015

60 SET ASSY 80011271 WIRE 1618 24AWG 970mm GRAY(LG) TCO WIRE 1 L 61 SET ASSY 80011601 WIRE 1618 24AWG 790mm GRAY (T) TCO WIRE 1 T 62 SET ASSY 80011261 WIRE 1618 24AWG 890mm GRAY(SAMSUNG) TCO WIRE 1 S 63 SET ASSY 17000321 CABLE TIES(GT-100M) TIE 10 64 SET ASSY 15200031 LABEL (REV.) 1 65 SET ASSY 15000981 NA M E PLATE INSTRUCTION V721(R) 1 66 SET ASSY 15200471 LABEL WARNING (27.5KV/600uA) 1 67 SET ASSY 15200331 LABEL,SERIAL BARCODE 1 68 SET ASSY 15200681 LABEL TCO99 (FOR CABINET) 1 69 SET ASSY 15200201 LABEL (EMC) (V500R) 1 R 70 SET ASSY 10100924 CABINET BACK 1 71 SET ASSY 10101101 CABINET FRONT ASSY(PC+ABS) 1 72 SET ASSY 12000281 BRACKET(PCB) 1 73 SET ASSY 12000551 BRACKET(CABLE) 1 74 SET ASSY 12300202 PLATE SHIELDING (VIDEO) 1 75 SET ASSY 17000301 CUSHION PIECE (BACK) 1 76 SET ASSY 18000311 PCB SUPPORT (SS-8) 1 77 SET ASSY 18000421 SWITCH EXPANDING COVER 1 78 SET ASSY 18000261 ANODE CLAMPER(SPA-11G) 2 79 SET ASSY 18000361 HOLDER PCB FOR TCO(CBS-5C) 3

REVISED BY ECN: NN960011 SORT BY ASSY CODE

3) MultiSync MV521 Different List

ASSY CODE PART NO DESCRIPTION LOCATION Q' TY ALT REMARK

1 CABINET FRONT ASSY 10101032 CABINET FRONT(PC+ABS) 1 2 CABINET FRONT ASSY 11300351 PUSH BUTTOM(V)-FUCTION KEY 1 3 CABINET FRONT ASSY 11300781 PUSH BUTTOM(SW)-POWER KNOB 1 4 CABINET FRONT ASSY 11600121 LE NS(V) 1 5 CABINET FRONT ASSY 13000061 COI L SP RING 1 6 PACKING ASSY 13700091 BAG POLYETHYLENE (360*360)

FOR Ball&Base

7 PACKING ASSY 80001651 POWER CORD 3P 1.8M EUROPE

POWER CORD

8 PACKING ASSY 11000341 AUDIO BASE ASSY 1

9 PACKING ASSY 13200881 CARTON BOX V521-1 (B) 1 10 PACKING ASSY 13400571 POLYLON(L)CARTON 1 11 PACKING ASSY 13400581 POLYLON(R)CARTON 1 12 PACKING ASSY 13700021 BAG POLYETHYLENE (270*370) 1 13 PACKING ASSY 13700031 BAG POLYETHYLENE (150*370) 1 14 PACKING ASSY 13700071 PE BAG (500*480*850 + WARNING) 1 15 PACKING ASSY 15500661 OWNERS MANUAL V521/V921-1 (B) 1 16 PACKING ASSY 15500671 MANUAL (AUDIO BASE) 1 17 PACKING ASSY 15900051 SALES OFFICE LIST 1 18

REVOLVING STAND ASSY

17000441 CUSHION PIECE (BACK)80*60*30 FOR BASE 4

REVOLVING STAND ASSY

11000261 REVOLVING STAND(T) 1

REVOLVING STAND ASSY

11000311 REVOL V ING STAND (B) PC+ABS 1

REVOLVING STAND ASSY

11000321 COVER STAND(MA) PC+ABS 1 22 SET ASSY 80005101 WIRE 40mm 1618 BK A 1 23 SET ASSY 80009271 SIGNAL CABLE 20276 1.5M FOR N9701 VE CABLE 1 24 SET ASSY 80005181 15" TOSHIBA M36LGE128X205(F1M1) CRT 1 T 25 SET ASSY 80010851 15" LG CRT M36QBX801X04(A) CRT 1 L 26 SET ASSY 80011191 15" ORION M36QCZ100XX41 CRT 1 O 27 SET ASSY 80010491 15" N0501 TCO DEGAUSSING

DEGUESSING COIL

1T,O

28 SET ASSY 80011231 15" MPRII DEGAUSSING FOR ORION/LG

DEGUESSING COIL

1L 29 SET ASSY 14000011 SCREW (#2CBRITS*4*16*15BF) FOR BACK 2 30 SET ASSY 18000261 ANODE CLAMPER FOR CRT 2 31 SET ASSY 14600011 SCREW SPECIAL (5*25) FOR CRT 4 32 SET ASSY 17000111 CRT PAD t=3.5 FOR CRT 4 33 SET ASSY 12300202 PLATE SHIELDING (VIDEO)

FOR CRT PCB

1 34 SET ASSY 18000281 FIXED CABLE CLIP(GL-70A)

FOR DEGUES

2 35 SET ASSY 18000351 FIXED CABLE CLIP(GL-140A)

FOR DEGUES

2 36 SET ASSY 17000571 MAYLAR SHEET (CU)

FOR FBT BOTTOM

1 37 SET ASSY 14000071 SCREW (PL-CPTS*3*8*15BF)

FOR FBT HEAT SINK

1 38 SET ASSY 11700221 SUPPORT

FOR FRONT

2 39 SET ASSY 14300031 SCREW (PL-CPIMS*4*10*15BF) F OR GND 2 40 SET ASSY 80005101 WIRE 40mm 1618 BK

FOR MAYLAR SHEET

1 41 SET ASSY 12000551 BRACKET CABLE

FOR SIGNAL

1 42 SET ASSY 14000021 SCREW (#2CBRITS*4*12*15BF)

FOR SUPPORT

4 43 SET ASSY 80010731 GND WIRE BLECK 160mm 18AWG 1015

GND 5,GND7

2 44 SET ASSY 80010721 GND WIRE BLECK 320mm 18AWG 1015 GND 8 1 45 SET ASSY 80010751 V521 CRT GND WIRE GND WIRE 1 46 SET ASSY 18000361 HOLDER PCB FOR TCO (CBS-50) HOLDER 4 47 SET ASSY HB000018 ROTATION COIL 200TN ROTATION 1 48 SET ASSY 17000351 CUSHION PIECE (BACK)80*60*30 SPONGE 1 49 SET ASSY 72000671 TCO BOARD 250X52.5mm TCO PCB 1 50 SET ASSY 10100913 CABINET BACK 1 51 SET ASSY 10101022 CABINET FRONT ASSY 1 52 SET ASSY 15000861 NAME PLATE INSTRACTIO N V521-1( B) 1 53 SET ASSY 15200031 LABEL (REV.) 1

B: ASIA, R: Australia, L: LG, T: Toshiba, O: Orion

54 SET ASSY 15200331 LABLE SERIAL BARCODE(B Ver.) 1 55 SET ASSY 15200471 LABLE WARNING (27.5KV/600uA) 1 56 SET ASSY 15200681 LABEL TCO99 1 B 57 SET ASSY 15201061 LABEL SAFETY(Russia+Poland for cabinet) 1 58 SET ASSY 17000252 COPPER SHEILDING(V500PNR) 1 59 SET ASSY 18000331 WIRE CLIP (WC-13T) 1 60 SET ASSY 18000421 SWITCH EXPANDING COVER 1 61 SET ASSY 18000461 SNAP CLIP (MB-01G) 3 62 SET ASSY 17000261 AL TYPE 40*130mm 4 63 SET ASSY 18000271 SPACER SUPPORT(PS-26GD) 4

REVISED BY ECN: NN 1030001 SORT BY ASSY CODE

NEC MultiSync V520, MultiSync V521, MultiSync MV521, Diamond Scan 51 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
