NEC MultiSync MD215MG-S5 Specifications

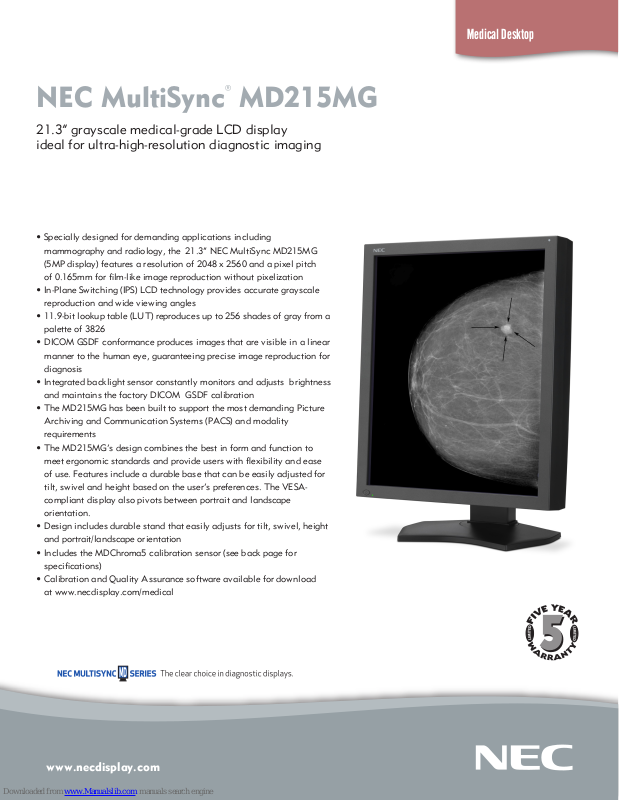

NEC MultiSync® MD215MG
21.3” grayscale medical-grade LCD display ideal for ultra-high-resolution diagnostic imaging
• Specially designed for demanding applications including mammography and radiology, the 21.3” NEC MultiSync MD215MG (5MP display) features a resolution of 2048 x 2560 and a pixel pitch of 0.165mm for lm-like image reproduction without pixelization
• In-Plane Switching (IPS) LCD technology provides accurate grayscale reproduction and wide viewing angles
• 11.9-bit lookup table (LUT) reproduces up to 256 shades of gray from a palette of 3826
• DICOM GSDF conformance produces images that are visible in a linear
manner to the human eye, guaranteeing precise image reproduction for diagnosis
• Integrated backlight sensor constantly monitors and adjusts brightness and maintains the factory DICOM GSDF calibration
• The MD215MG has been built to support the most demanding Picture Archiving and Communication Systems (PACS) and modality
requirements
• The MD215MG’s design combines the best in form and function to meet ergonomic standards and provide users with exibility and ease of use. Features include a durable base that can be easily adjusted for tilt, swivel and height based on the user’s preferences. The VESA­ compliant display also pivots between portrait and landscape
orientation.
• Design includes durable stand that easily adjusts for tilt, swivel, height and portrait/landscape orientation
• Includes the MDChroma5 calibration sensor (see back page for specications)
• Calibration and Quality Assurance software available for download at www.necdisplay.com/medical
Medical Desktop
www.necdisplay.com
Industry-leading standard limited warranty
• 5 years
• Advanced Overnight Exchange ships a replacement monitor to arrive the next business day with NEC covering the cost of shipping both ways
Model
LCD Viewable Image Size Active Screen Area Native Resolution Pixel Pitch Brightness at Native (typical) Contrast Ratio (typical) Response Time (typical) Viewing Angle (typical) (up/down/left/right) Grayscale Tone
Input Connectors
Selectable Gamma
Factory calibration
X-Ray film simulation
Power Supply Power Consumption (typical; w/o USB) Power Savings (w/o USB)
Tilt / Swivel Stand Height Adjustable Stand Pivot Enabled Stand
VESA Mounting
Dimensions (with stand; WxHxD)
Net Weight (with stand)
Regulatory Standards
Display Video Cards (preferred)
Limited Warranty*
MultiSync MD215MG-S5
21.3"
16.6 x 13.3 in. 2560 x 2048 Landscape/2048 x 2560 Portrait
0.165mm 1100 cd/m2 max / 500 cd/m2 calibrated 850:1 18ms 85°/85°/85°/85° 8-bit: 256 shades of gray from a pallete of 3826
Dual Link DVI-D
DICOM
Gamma correction according to DICOM GSDF with automatic adjustment
Clear Base
Display DC 12V, 10A; External, AC 100-240V, 50/60 Hz 2A 90W 10W
+30°, -5° / ±45°
138.5mm
Yes
100 x 100mm
18.7 x 15.9-21.3 x 9 in. /
474.5 x 403.3-541.8 x 227.6mm (Landscape)
15.4 x 19.2-23 x 9 in. /
391.2 x 487.7-584.2 x 227.6mm (Portrait)
24.5 lbs. / 11.1 kg.
UL2601/EN60601-1/EC601, FCC part 15 class B, CE/MDD, PCT, C-tick, PCBC/B Mark, PSB, EnergyStar, GEEA Energy Label, DIN 6868-57
Nvidia dual-head video card (MDN-FX380); Nvidia dual­head video card (MDN-Q2000D); AMD dual-head video card (MDA-V5800D);Matrox Xenia Pro triple-head video card (MDM-XENPRO)
5 years parts and labor, including Advanced Overnight Exchange
USB Sensor Model
Accuracy
Repeatability
Dynamic Range
MultiSync is a registered trademark of NEC Display Solutions. All other brand or product names are trademarks or registered trademarks of their respective holders. Product specications subject to change. 5/11 Ver. 1.
©2011 NEC Display Solutions of America, Inc. All rights reserved.
MDChroma5 calibration sensor
±0.006xy, ±5% Y
0.05-1000 cd/m ±0.002xy, ±2% Y
0.05-1000 cd/m
0.01-1000 cd/m2 (Standard Mode)
NEC Display Solutions
500 Park Boulevard, Suite 1100 Itasca, IL 60143 866-NEC-MORE
2
2
