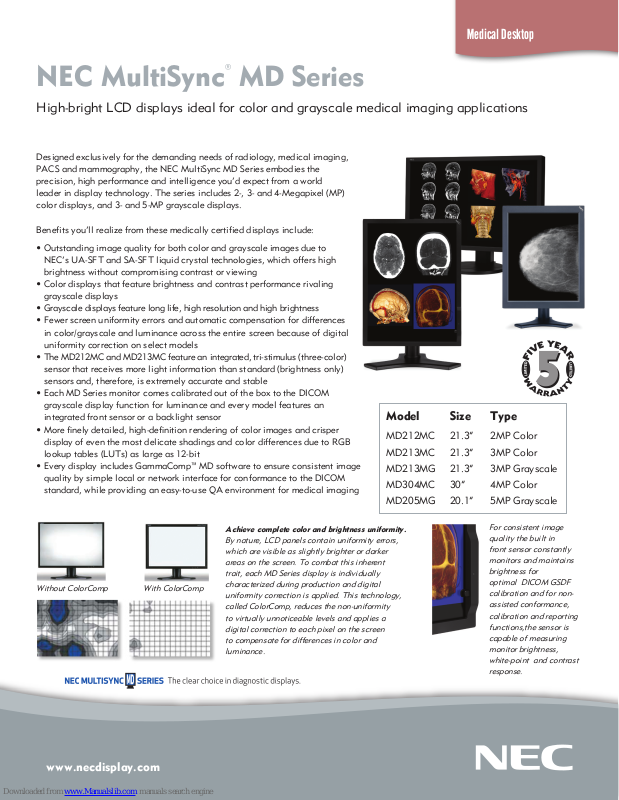

Page 1
Medical Desktop
NEC MultiSync® MD Series
High-bright LCD displays ideal for color and grayscale medical imaging applications
Designed exclusively for the demanding needs of radiology, medical imaging,
PACS and mammography, the NEC MultiSync MD Series embodies the
precision, high performance and intelligence you’d expect from a world
leader in display technology. The series includes 2-, 3- and 4-Megapixel (MP)
color displays, and 3- and 5-MP grayscale displays.
Benefits you’ll realize from these medically certified displays include:
• Outstanding image quality for both color and grayscale images due to
NEC’s UA-SFT and SA-SFT liquid crystal technologies, which offers high
brightness without compromising contrast or viewing
• Color displays that feature brightness and contrast performance rivaling
grayscale displays
• Grayscale displays feature long life, high resolution and high brightness
• Fewer screen uniformity errors and automatic compensation for differences
in color/grayscale and luminance across the entire screen because of digital
uniformity correction on select models
• The MD212MC and MD213MC feature an integrated, tri-stimulus (three-color)
sensor that receives more light information than standard (brightness only)
sensors and, therefore, is extremely accurate and stable
• Each MD Series monitor comes calibrated out of the box to the DICOM
grayscale display function for luminance and every model features an
integrated front sensor or a backlight sensor
• More nely detailed, high-denition rendering of color images and crisper
display of even the most delicate shadings and color differences due to RGB
lookup tables (LUTs) as large as 12-bit
• Every display includes GammaComp™ MD software to ensure consistent image
quality by simple local or network interface for conformance to the DICOM
standard, while providing an easy-to-use QA environment for medical imaging
Model Size Type
MD212MC 21.3” 2MP Color
MD213MC 21.3” 3MP Color
MD213MG 21.3” 3MP Grayscale
MD304MC 30” 4MP Color
MD205MG 20.1” 5MP Grayscale
With ColorCompWithout ColorComp
www.necdisplay.com
Achieve complete color and brightness uniformity.
By nature, LCD panels contain uniformity errors,
which are visible as slightly brighter or darker
areas on the screen. To combat this inherent
trait, each MD Series display is individually
characterized during production and digital
uniformity correction is applied. This technology,
called ColorComp, reduces the non-uniformity
to virtually unnoticeable levels and applies a
digital correction to each pixel on the screen
to compensate for differences in color and
luminance.
For consistent image
quality the built in
front sensor constantly
monitors and maintains
brightness for
optimal DICOM GSDF
calibration and for nonassisted conformance,
calibration and reporting
functions,the sensor is
capable of measuring
monitor brightness,
white-point and contrast
response.
Page 2
Model
Display
Viewable Size Image
Pixel Pitch
Pixels Per Inch
Brightness (typical)
Contrast Ratio (typical)
Viewing Angle (typical)
Response Time (typical)
Panel Bit Depth
Inputs
Image Stabilization
Native Resolution
Additional Features
Voltage Rating
Power Consumption (typical)
On
Power Savings Mode
Dimensions (WxHxD)
Net (with stand)
Net (without stand)
Net Weight
(with stand)
(without stand)
VESA Hole Configuration
Specifications
Environmental Conditions
Operating Temperature
Operating Humidity
Operating Altitude
Storage Temperature
Storage Humidity
Storage Altitude
Safety Standards
Limited Warranty*
MultiSync MD212MC
21.3"
0.27mm
94
400 cd/m2 calibrated /
850 cd/m2 max
1050:1
176° Vert., 176° Hor.
(88U/88D/88L/88R)
@ CR>10
Rapid Response™ 20ms
Gray-to-Gray
12-bit internal LUTs,
displays 16.7 million colors
out of 68.5 billion color
palette and 256 shades of
gray out of 4096
DVI-D, DVI-I and VGA 15-
pin D-sub
Tri-stimulus front sensor
1600 x 1200 @ 60 Hz
landscape / 1200 x 1600 @
60 Hz portrait
DICOM GSDF calibrated,
ColorComp image uniformity correction, ambient light compensation,
response time overdrive,
GammaComp MD QA
software, pivot, tilt, swivel,
height-adjustable stand (5.9
in./150mm), analog/digital
CableComp™
AC 100-120V /
AC 220-240V
100W
2W
18.4 x 17.1-23 x 12 in. /
467.8 x 434.3-584.3 x
306mm
18.4 x 14.2 x 4.4 in. /
467.8 x 361.6 x 110.7mm
23.5 lbs. / 10.7 kg
16.5 lbs. / 7.5 kg
100 x 100mm
5-35° C / 41-95° F
30-80%
3000m / 9842 ft.
-10-60° C / 14-140° F
10-85%
12,192m / 40,000 ft.
UL/C-UL, UL60601-1, Gost/
PCT, PSB, CCC, FCC Class
B/Canadian DOC, C-tick,
MPR II / MPR III, VCCI
(class 2), JIS C 61000-3-2,
static electricity guideline,
low emission guideline,
TUV-Ergonomie, US Mercury regulations, WEEE, RoHs,
SASO, Energy Star 4.0 Tier
2, JEITA VOC Guideline.
J-Moss, FDA 510k, CE-MDD
Class 1, AAPM-TG18
5 years parts and labor,
including Advanced
Overnight Exchange
* Backlight usage limited to 30,000 hours at 400 cd/m2 or less (MD304MC: 20,000 hours at 200 cd/m2 or less
MultiSync MD213MC
21.3”
0.21mm
120
400 cd/m2 calibrated /
800 cd/m2 max
750:1
176° Vert., 176° Hor.
(88U/88D/88L/88R)
@ CR>10
Rapid Response™12ms
Gray-to-Gray
12-bit internal LUTs,
displays 16.7 million colors
out of 68.5 billion color palette and up to 1024 shades
of gray out of 4096
DVI-D and DVI-I
Tri-stimulus front sensor
2048 x 1536 @ 60 Hz
landscape / 1536 x 2048 @
60 Hz portrait
DICOM GSDF calibrated,
ColorComp image uniformity correction, ambient light compensation,
response time overdrive,
GammaComp MD QA
software, pivot, tilt, swivel,
height-adjustable stand (5.9
in./150mm), analog/digital
CableComp™
AC 100-120V /
AC 220-240V
105W
2W
18. x 17.1-23 x 12 in. /
467.8 x 434.3-584.3 x
306mm
18.4 x 14.2 x 4.4 in. /
467.8 x 361.6 x 110.7mm
23.5 lbs. / 10.7 kg
16.5 lbs. / 7.5 kg
100 x 100mm
5-35° C / 41-95° F
30-80%
3000m / 9842 ft.
-10-60° C / 14-140° F
10-85%
12,192m / 40,000 ft.
UL/C-UL, UL60601-1, Gost/
PCT, PSB, CCC, FCC Class
B/Canadian DOC, C-tick,
MPR II / MPR III, VCCI
(class 2), JIS C 61000-3-2,
static electricity guideline,
low emission guideline, US
Mercury regulations, WEEE,
RoHs, SASO, Energy Star, JMoss, FDA 510k, CE-MDD,
IRAM, TUV GM, EPEAT,
AAPM-TG-18, DIN V 6868587 (Germany) CATB
5 years parts and labor,
including Advanced
Overnight Exchange
MultiSync MD213MG
21.3”
0.21mm
120
400 cd/m2 calibrated /
1450 cd/m2 max
900:1
176° Vert., 176° Hor.
(88U/88D/88L/88R)
@ CR>10
Rapid Response™ 12ms
Gray-to-Gray
12-bit internal LUTs,
displays up to 1024 shades
of gray out of 4096
DVI-D and DVI-I
Front sensor
2048 x 1536 @ 60 Hz
landscape / 1536 x 2048 @
60 Hz portrait
DICOM GSDF calibrated,
ColorComp image uniformity correction, ambient light compensation,
response time overdrive,
GammaComp MD QA
software, pivot, tilt, swivel,
height-adjustable stand (5.9
in./150mm), analog/digital
CableComp™
AC 100-120V /
AC 220-240V
100W
2W
18. x 17.1-23 x 12 in. /
467.8 x 434.3-584.3 x
306mm
18.4 x 14.2 x 4.4 in. /
467.8 x 361.6 x 110.7mm
23.5 lbs. / 10.7 kg
16.5 lbs. / 7.5 kg
100 x 100mm
5-35° C / 41-95° F
30-80%
3000m / 9842 ft.
-10-60° C / 14-140° F
10-85%
12,192m / 40,000 ft.
UL/C-UL, UL60601-1, Gost/
PCT, PSB, CCC, FCC Class
B/Canadian DOC, C-tick,
MPR II / MPR III, VCCI
(class 2), JIS C 61000-3-2,
static electricity guideline,
low emission guideline,
ISO9241-307, US Mercury
regulations, WEEE, RoHs,
SASO, Energy Star, J-Moss,
FDA 510k, CE-MDD, IRAM,
TUV GM, EPEAT, AAPMTG-18, DIN V 6868-587
(Germany) CATB
5 years parts and labor,
including Advanced
Overnight Exchange
MultiSync MD304MC
29.8”
0.251mm
101
200 cd/m2 calibrated /
350 cd/m2 max
1000:1
178° Vert., 178° Hor.
(89U/89D/89L/89R)
@ CR>10
Rapid Response™ 6ms
Gray-to-Gray
12-bit internal LUTs,
displays 16.7 million colors
out of 68.5 billion color
palette and 256 shades of
gray out of 4096
DVI-D (HDCP), DVI-I
Backlight sensor
2560 x 1600 @ 60 Hz
landscape / 1600 x 2560 @
60 Hz portrait
DICOM GSDF calibrated,
ColorComp image uniformity correction, ambient light compensation,
response time overdrive,
GammaComp MD QA
software, pivot, tilt, swivel,
height-adjustable stand (5.9
in./190mm), analog/digital
CableComp™
AC 100-120V /
AC 220-240V
143W
1.3W
27.1 x 18.8-26.3 x 13.5 in./
687.3 x 478.6-668.6 x
342.8mm
27.1 x 17.6 x 5 in./
687.3 x 446.8 x 126mm
42 lbs. / 19.2 kg
31.7 lbs. / 14.4 kg
100 x 100mm and 200 x
100mm
5-35° C / 41-95° F
30-80%
3048m / 10,000 ft.
-10-60° C / 14-140° F
10-85%
12,192m / 40,000 ft.
UL/C-UL, UL60601-1, CE,
Gost/PCT, PSB, CCC, TUV
GS, FCC Class B/Canadian
DOC, C-tick, MPR II / MPR
III, VCCI (class 2), JIS C
61000-3-2, static electricity
guideline, low emission
guideline, TUV-Ergonomie,
ISO9241-307, US Mercury
regulations, WEEE, RoHs,
SASO, Energy Star 4.0
Tier 2, GEEA, JEITA VOC
Guideline. J-Moss, Windows
XP, DEN-TORI, FDA 510k
5 years parts and labor,
including Advanced
Overnight Exchange
MultiSync MD205MG
20.1”
0.156mm
163
850 cd/m2 max /
400 cd/m2 calibrated
600:1
170° Vert., 170° Hor.
(85U/85D/85L/85R)
30ms
11.5-bit: 1024 shades of
gray from a pallet of 3061
DVI-D
Backlight sensor
2560 x 2048 Landscape /
2048 x 2560 Portrait
DICOM GSDF calibrated,
mammography approved,
GammaComp MD QA
software, Dual Link DVI-D,
pivot, tilt, swivel, height-
adjustable stand (4.7 in. /
120mm)
Internal, AC 100-240V,
50/60 Hz nominal
65W
<3W
18.7 x 18.3 x 9.7 in. /
474.3 x 465.3 x 247.3mm
(Landscape)
14.9 x 20.2 x 9.7 in. /
379.6 x 512.7 x 247.3mm
(Portrait)
25.8 lbs. / 9.8 kg
NA
100 x 100mm
10-40° C / 50-104° F
30-80%
3048m / 10,000 ft.
-10-60° C / 14-140° F
10-95%
12,192m / 40,000 ft.
UL2601/EN60601-1/EC601,
FCC part 15 class B, CE/
MDD, PCT, C-tick, PCBC/B
Mark, PSB, EnergyStar,
GEEA Energy Label, DIN
6868-57, FDA 510K for
mammography
5 years parts and labor,
including Advanced
Overnight Exchange
MultiSync is a registered trademark, and ColorComp and
GammaComp are trademarks of NEC Display Solutions. All other
brand or product names are trademarks or registered trademarks of
their respective holders. Product specications subject to change.
11/09 Ver. 1.
©2009 NEC Display Solutions of America, Inc. All rights reserved.
