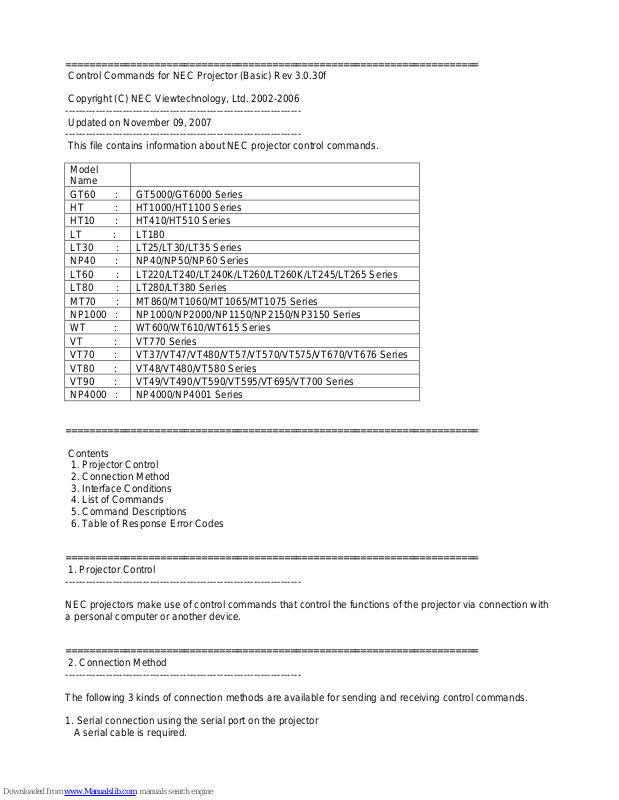

Control Commands for NEC Projector (Basic) Rev 3.0.30f
Copyright (C) NEC Viewtechnology, Ltd. 2002-2006
--------------------------------------------------------------------- Updated on November 09, 2007
--------------------------------------------------------------------- This file contains information about NEC projector control commands.
Model
Name
GT60 : GT5000/GT6000 Series
HT : HT1000/HT1100 Series
HT10 : HT410/HT510 Series
LT : LT180
LT30 : LT25/LT30/LT35 Series
NP40 : NP40/NP50/NP60 Series
LT60 : LT220/LT240/LT240K/LT260/LT260K/LT245/LT265 Series
LT80 : LT280/LT380 Series
MT70 : MT860/MT1060/MT1065/MT1075 Series
NP1000 : NP1000/NP2000/NP1150/NP2150/NP3150 Series
WT : WT600/WT610/WT615 Series
VT : VT770 Series
VT70 : VT37/VT47/VT480/VT57/VT570/VT575/VT670/VT676 Series
VT80 : VT48/VT480/VT580 Series
VT90 : VT49/VT490/VT590/VT595/VT695/VT700 Series
NP4000 : NP4000/NP4001 Series
======================================================================
Contents
1. Projector Control
2. Connection Method
3. Interface Conditions
4. List of Commands
5. Command Descriptions
6. Table of Response Error Codes
======================================================================
1. Projector Control
---------------------------------------------------------------------NEC projectors make use of control commands that control the functions of the projector via connection with
a personal computer or another device.
======================================================================
2. Connection Method
---------------------------------------------------------------------The following 3 kinds of connection methods are available for sending and receiving control commands.
1. Serial connection using the serial port on the projector
A serial cable is required.
2. USB connection using the USB port on the projector
A USB cable is required.
3. LAN connection
3-1. LAN connection using a wired LAN card
A wired LAN card and LAN cable are required.
3-2. LAN connection using a wireless LAN card
A wireless LAN card is required.
3-3.LAN connection using the LAN port on the projector
A LAN cable is required.
Status of supported connection
(1) (2) (3-1) (3-2) (3-3)
Serial
Port
USB
Port
Wired
LAN
Card
Wireless
LAN
Card
Wired
LAN
Port
GT5000/6000 Yes Yes Yes Yes Yes
HT410/510 Yes No No No No
HT1000/1100 Yes No No No No
LT180 Yes No No No No
LT25/30/35 Yes No No No No
LT220/240/260 Yes No Yes Yes No
LT240K/260K Yes Yes Yes Yes No
LT245/265/280/380 Yes No No Yes Yes
MT860/1060/1065/1075 Yes Yes Yes Yes No
NP40/50/60 Yes No No No No
NP1000/2000/1150/2150/3150 Yes No No Yes Yes
NP4000/4001 Yes No No No No
VT770 Yes No No No No
VT37/47/470/57/570/575/670/676 Yes No No No No
VT48/480/580 Yes No No No No
VT49/490/590/595/695/VT700 Yes No No No No
WT600/610/615 Yes Yes Yes Yes No
Yes: Supported
No: Not Supported
* A USB cable is supplied as standard with the MT860/1060/1065/1075.
* The GT5000/6000 does not come with a USB cable.
* Note that a connection method using the supplied USB cable is not supported for the LT220/240/260.
* The serial cable, LAN card and LAN cable are separately sold.
* The WT610 replaced the WT610 and uses the same command set.
(CAUTION)
Before making connections, be sure to invalidate the standby mode of the projector and set the "idle mod e".
The projector cannot use the control commands in the standby mode.
Setting method: Under projector [Projector Options] --> [Setup], enter a check for [Idle Mode] on Page 4.
====================================================================
3. Interface Conditions
---------------------------------------------------------------------Serial connection
---------------------------------------------------------------------The communications method conforms to the RS-232C standard.
Baud rate: 38400 bps (VT70/VT80/VT90 series: 19200bps)
Data length: 8 bits
Parity bit: No parity
Stop bits: 1 bit
Communications mode: Full duplex
The control connector is described below.
[ HT/LT/NP40/VT70/VT80/VT90/WT ]
The PC CONTROL connector is a mini DIN 8-pin connector.
1 To TxD of PC
2
3
4 To GND of PC
5
6
7 To RxD of PC
8
* 2, 3, 5, 6, and 8 are used inside the projector.
[ GT/LT80/MT/NP1000/VT (except VT70/VT80/VT90) ]
The PC CONTROL connector is a D-SUB 9-pin connector.
1
2 To TxD of PC
3 To RxD of PC
4
5 To GND of PC
6
7 To CTS of PC
8 To RTS of PC
9
USB connection
---------------------------------------------------------------------This conforms to the USB1.1 standard.
Transfer speed: All speeds (supported)
Endpoint: Control transfer Endpoint 0
Device class: HID class (Ver1.1)
USB1.1 Standard: Universal Serial Bus Specification Revision 1.1
HID : Human Interface Device
Connector Specifications
1 VBUS (Power supply)
2 D- (- Signal)
3 D+ (+ Signal)
4 GND (Ground)
* Depending on the USB host controller in the personal computer, the USB connection may fail to operate.
When using a USB hub, please use a self-powered type, not a bus-powered type. When using a USB hub,
connection to the first stage of the USB hub is recommended.
LAN connection
---------------------------------------------------------------------[ Wired LAN port ]
LAN interface
Communication speed: Auto setting (10/100Mbps)
Certified standard: IEEE802.3 (10BASE-T)
IEEE802.3u (100BASE-TX, Auto-Negotiation)
A LAN connector (8 male RJ-45 connector)
1 TD+ Transmit data (+)
2 TD- Transmit data (-)
3 RD+ Receive data (+)
4 Not used
5 Not used
6 RD- Receive data (-)
7 Not used
8 Not used
[ Wired/wireless LAN card ]
The LAN connections will differ depending on the commercial LAN card that is used.
- For information on supported LAN cards, visit:
Global: http://www.nec-pj.com/
[Port Number]
The TCP port number used is "7142".
====================================================================
4. List of Commands
--------------------------------------------------------------------- * Example for command
--------------------------------------------------------------------- Command name Example
----------------------------------------------------------------------
006. RUNNING SENSE 00H 81H 00H 00H 00H 81H
007. COMMON DATA REQUEST 00H C0H 00H 00H 00H C0H
009. ERROR STATUS REQUEST 00H 88H 00H 00H 00H 88H
015. POWER ON 02H 00H 00H 00H 00H 02H
016. POWER OFF 02H 01H 00H 00H 00H 03H
018. INPUT SW CHANGE 02H 03H 00H 00H 02H <DATA> CKS
020. PICTURE MUTE ON 02H 10H 00H 00H 00H 12H
021. PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H
022. SOUND MUTE ON 02H 12H 00H 00H 00H 14H
023. SOUND MUTE OFF 02H 13H 00H 00H 00H 15H
024. ONSCREEN MUTE ON 02H 14H 00H 00H 00H 16H
025. ONSCREEN MUTE OFF 02H 15H 00H 00H 00H 17H
030. GAIN ADJUST 03H 10H 00H 00H 05H <DATA> CKS
030-2. VOLUME ADJUST 03H 10H 00H 00H 05H 05H <DATA> CKS
030-12. IMAGE MODE ADJUST 03H 10H 00H 00H 05H <DATA> CKS
037. INFORMATION REQUEST 03H 8AH 00H 00H 00H 8DH
037-1. LAMP INFORMATION REQUEST 03H 8CH 00H 00H 00H 8FH
037-2. LAMP INFORMATION REQUEST 2 03H 94H 00H 00H 00H 97H
037-4. LAMP INFORMATION REQUEST 3 03H 96H 00H 00H 02H <DATA> CKS
050. REMOTE KEY CODE 02H 0FH 00H 00H 02H 00H 00H 13H
060. GAIN PARAMETER REQUEST 2 03H 04H 00H 00H 03H <DATA> CKS
077. MUTE CONTROL 02H 1AH 00H 00H 02H <DATA> CKS
078-1. SETTING REQUEST 00H 85H 00H 00H 01H 00H CKS
078-2. RUNNING STATUS REQUEST 00H 85H 00H 00H 01H 01H CKS
078-3. INPUT STATUS REQUEST 00H 85H 00H 00H 01H 02H CKS
078-4. MUTE STATUS REQUEST 00H 85H 00H 00H 01H 03H CKS
078-5. MODEL NAME REQUEST 00H 85H 00H 00H 01H 04H CKS
078-6. MIRROR COVER STATUS REQUEST 00H 85H 00H 00H 01H 05H CKS
079. FREEZE CONROL 01H 98H 00H 00H 01H DATA01 CKS
110. AUTO FUNCTIONS EXECUTE 03H B6H 00H 00H 01H <DATA> CKS
305-1. BASE MODEL TYPE REQUEST 00H BFH 00H 00H 01H <DATA> CKS
305-3. PROJECTOR INFORMATION REQUEST 00H BFH 00H 00H 01H <DATA> CKS
* Availability by Model
--------------------------------------------------------------------- Model No.
------------------------ 01 : LT240/LT260
02 : MT1060/MT1065/MT1075
03 : HT1000
04 : LT220
05 : MT860
06 : WT600/WT610/WT615
07 : GT5000
08 : LT240K/LT260K
E
09 : GT6000
10 : HT1100
11 : VT770
12: HT410/HT510 (HT10 Series)
13 : LT245/LT265
14 : LT280/LT380
15 : LT180
16 : VT37/VT47/VT470/VT57/VT570/VT575/VT670/VT676 (VT70 series)
17 : VT48/VT480/VT580 (VT80 Series)
18 : NP1000/NP2000/NP1150/NP2150/NP3150 (NP1000/1050 Series)
19 : LT25/LT30/LT35 (LT30 Series)
20 : NP40/NP50/NP60 (NP40 Series)
21 : VT49/VT490/VT590/VT595/VT695/VT700 (VT90 Series)
22: NP4000/NP4001 (NP4000 Series)
Meaning of Sy mbols
-------------------------------------------------------------------* Supported
! Is available depending on m ode l's version
- Not Supported
Availability by Model
Command Name 12345678910111213141516171819202122
006. RUNNING SENSE ***********-**- --* -- -*
007. COMMON DATA REQUEST ***********-**---*---*
009. ERROR STATUS REQUEST **************-- -*****
015. POWER ON **********************
016. POWER OFF **********************
018. INPUT SW CHANGE **********************
020. PICTURE MUTE ON **********************
021. PICTURE MUTE OFF **********************
022. SOUND MUTE ON * * *****************-**
023. SOUND MUTE OFF * * *****************-**
024. ONSCREEN MUTE ON **********************
025. ONSCREEN MUTE OFF **************-- -***-*
030. GAIN ADJUST ***********-***- -*- --030-2. VOLUME ADJUST
Volume ***********-**- -***-**
Bass -*--*-*-*-*--*---*--- Treble -*--*-*-*-*--*---*--- Balance -------------*---*---030-12. IMAGE MODE ADJUST
Aspect Ratio Input Signal ***********-**- --* -- -*
037. INFORMATION REQUEST **************-- -*****
037-1. LAMP INFORMATION REQUEST **********************
037-2. LAMP INFORMATION REQUEST 2***********-**---*---*
037-4. LAMP INFORMATION REQUEST 3!!!!!!*****-**---*-***
050. REMOTE KEY CODE **************-- -*****
060. GAIN PARAMETER REQUEST 2 ***********-**- --* -- -*
077. MUTE CONTROL **********************
078-1. SETTING REQUEST ***********-**---*-- -*
078-2. RUNNING STATUS REQUEST * * *********-**---*---*
078-3. INPUT STATUS REQUEST ***********-**---*---*
078-4. MUTE STATUS REQUEST ***********-**---*---*
078-5. MODEL NAME REQUEST ***********-**- --* -- -*
078-6. MIRROR COVER STATUS REQUES-----*----------------
079. FREEZE CONTROL ***********-*-------*-
110. AUTO FUNCTIO NS E XECUTE - -----------------!*--
305.1 BASE MODEL TYPE REQUEST -----------*--*-*-****
305.3 PROJECTOR INFORMATION REQU
-----------*--*-*-****
======================================================================
5. Command Descriptions
---------------------------------------------------------------------Precautions with Inscriptions:
(*1) Projector ID
It is the value when forwarding a factory.
This reflects the "Projector ID" that has been set to the projector.
(*2) Model code: "xxH" inscription
This will differ depending on the projector.
In case of MT/NP1000/1050 series 10H
In case of LT/LT80 series 20H
In case of VT series 40H
In case of GT series 50H
In case of HT series 60H
In case of WT series 70H
In case of HT10 series D0H
In case of LT180 series D0H
In case of LT30 series D0H
In case of NP40 series D0H
In case of NP4000 series 80H
(*3) Checksum: "CKS" inscription
This is the value of the lower 8 bits of the results calculated in byte units from all of the data up to the
immediately preceding data.
Example:
20H 81H 01H 60H 01H 00H 03H
+ + + + + + = CKS
(*4) Response error number
This is the value of the error number at the time of an error.
See "NAK" of "6-2. Data portion of response".
(*5) Term “RGB” and “COMPUTER”
On the HT1100, VT770, LT245/ LT265/ LT280/ LT380,
NP1000/NP2000/NP1150/NP2150/NP3150/NP4000/NP4001, LT25/ LT30/ LT35, VT48/ VT480/ VT580,
VT49/VT490/VT590/VT595/VT695/VT700 and NP40/NP50/NP60, the term "RGB connector" has been
changed to "COMPUTER".
(*6) Term “DVI” and “COMPUTER”
On the LT380, NP1000/NP2000/NP1150/NP2150/NP3150/NP4000/ NP4001 and VT595/VT695/VT700, the
term "DVI connector" has been changed to "COMPUTER".
006. RUNNING SENSE
**********************************************************************
Function:
This command acquires the operation mode of the projector.
Command:
00H 81H 00H 00H 00H 81H
Response: At the time of a success
20H 81H 01H xxH 01H DATA01 CKS
(*1) (*2) (*3)
Data Portion Contents
------------------------------------------------------------------ DATA01 Status of operation
Bit 7: Power On/Off processing
0 = No execution (Normal condition)
1 = During execution
Bit 6: Selecting signal processing
0 = No execution (Normal condition)
1 = During execution
Bit 5: Cooling processing
0 = No execution (Normal condition)
1 = During execution
Bit 4: External control mode
0 = OFF
1 = ON
Bit 3: Reserved
Bit 2: Reserved
Bit 1: Projector status
0 = Idling
1 = Power On
Bit 0: Reserved
Response: At the time of a failure
A0H 81H 01H xxH 02H DATA1H DATA02 CKS
(*1) (*2) (*4) (*3)
007. COMMON DATA REQUEST
**********************************************************************
Function:
This command acquires all of the detailed conditions of the projector.
Command:
00H C0H 00H 00H 00H C0H
Response: At the time of a success
20H C0H 01H xxH 80H DATA01 .. DATA128 CKS
(*1) (*2) (*3)
Data Portion Contents
------------------------------------------------------------------ DATA01 Projector type
See DATA70..71
08H : NP4000 Projector
DATA02 Projector ID
1 .. 64
DATA03 Reserved
DATA04 Projector status
00H: Idling
01H: Power On
DATA05 Cooling processing
00H: No execution (Normal condition)
01H: During execution
DATA06 Indication signal number (Entry list number - 1)
0 .. 199
DATA07 Type 1 of input terminal to be selected (!)
01H : 1
02H : 2
03H : 3
04H : 4
05H : 5
DATA08 Type 2 of input terminal to be selected (!)
01H : RGB (*5)
02H : VIDEO
03H : S-VIDEO
04H : COMPONENT
05H : Reserved
06H : DIGITAL (*6)
07H : VIEWER
08H : SLOT1
09H : SLOT2
DATA09 Indication signal type
* Valid only when Type 2 of input terminal is 02H or 03H
x0H : NTSC3.58
x1H : NTSC4.43
x2H : PAL
x3H : PAL60
x4H : SECAM
x5H : B/W60
x6H : B/W50
x7H : PALNM
x8H : NTSC3.58 LBX
x9H : NTSC3.58 SQZ
xDH : NTSC
xEH : PAL-M
xFH : PAL-N
* x: undefined
DATA10 .. 12 Reserved ( undefined )
DATA13 .. 20 Horizontal frequency of the indication signal(string)
("000.00" kHz + NULL(0)+ NULL(0) )
DATA21 .. 28 Vertical frequency of the indication signal(string)
("000.00" Hz + NULL(0)+ NULL(0) )
DATA29 Picture mute
00H : OFF
01H : ON
DATA30 Sound mute
00H : OFF
01H : ON
DATA31 .. 32 Reserved
DATA33 Test pattern display 1
00H : No display (Normal condition)
00H Other : Displaying (Pattern ID)
Pattern ID Pattern Name MT LT LT80 HT GT WT VT NP
02H Cross Hatch x * x * x x x x
03H Gray Bar s * * * * * * * *
04H Raster(0%) * * * * * * * *
05H Raster(25%) * * * * * * * *
06H Raster(50%) * * * * * * * *
07H Raster(100%) * * * * * * * *
08H Focus * * * * * * * *
09H Raster Blue * x * x * x * *
0AH Gray Raster 30 * * * * * * * *
17H Gray Raster 10 * * * * * * * *
18H RAMP WBRG x * x * x * x x
19H Blue Raster 60 x * x * x * x x
1DH Cross Hatch 3 * *1 * x * * * *
* : Supported
x : Not support ed
*1: Only LT240K/260K
DATA34 Test pattern display 2
FFH: No display (Normal condition)
FFH Other: Displaying
Bit 2: BLUE pattern
0 = OFF
1 = ON
Bit 1: GREEN pattern
0 = OFF
1 = ON
Bit 0: RED pattern
0 = OFF
1 = ON
DATA35 .. 50 Reserved
DATA51 .. 65 User registration name ( 14 characters + NULL )
DATA66 Forced On-screen mute
00H : OFF
01H : ON
DATA67 On-screen display
00H : No display
01H : Displaying
DATA68 Selecting signal processing
00H : No execution (Normal condition)
01H : During execution
DATA69 Status of operation
00H : Idling
04H : Power On
05H : Cooling
06H : Idling (Error occurrence)
Other than above: (nondisclosure)
Internal use of code during a state transition period
DATA70 .. 71 Projector type
DATA72 PC Card insertion
00H : Not inserted
01H : Inserted
DATA73 USB Mouse connection
00H : Not connected
01H : Connected
DATA74 Entry list type
01H : Default
02H : User
DATA75 .. 82 Reserved
DATA83 On-screen mute
00H : OFF
01H : ON
DATA84 Reserved
DATA85 Indicate Contents
00H = Picture signal displaying
01H = No signal
Data01 Data70 Data71
01H 00H 03H MT1060/MT1065
01H 01H 03H MT860
01H 02H 03H MT1075
01H 00H 06H NP1000/NP2000/NP1150/NP2150/NP3150
02H 00H 03H LT240/LT260
02H 01H 03H LT220
02H 02H 03H LT240K/LT260K
02H 00H 05H LT245/LT265
02H 00H 06H LT380
02H 01H 06H LT280
03H 00H 04H VT770
04H 00H 03H GT5000
04H 01H 03H GT6000
05H 00H 03H HT1000
05H 00H 04H HT1100
06H 00H 03H WT600/WT610/WT615
08H 00H 07H NP4000/NP4001
02H = Viewer displaying
03H = Test pattern displaying
04H = LAN displaying
DATA86 .. 128 Reserved
Response: At the time of a failure
A0H C0H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
(!)
Selected i nput terminal DATA07 DATA08
RGB or RGB1 (*5) 1 (01H) RGB (01H)
RGB2 (*5) 2 (02H) RGB ( 01H)
Video 1 (01H) VIDEO (02H)
S-Video 1 (01H) S-V IDEO (03H)
Component 1 (01H) COMPONE NT (04H)
Component 2 (02H) COMPONE NT (04H)
Component 3 (03H) COMPONE NT (04H)
DVI or DVI(DI GITAL) (*6) 1 (01H) DIGITAL (06H)
Viewer 1 (01H) VI E WE R ( 07H)
LAN 2 (02H) VI E WER ( 07H)
Slot1-1 1 (01H) SLO T1 (08H)
Slot1-2 2 (02H) SLO T1 (08H)
Slot2-1 1 (01H) SLO T2 (09H)
Slot2-2 2 (02H) SLO T2 (09H)
RGB(Video) 2 (02H) VI DE O (02H)
RGB(S-Vi deo 2 (02H) S-VIDEO ( 03H)
009. ERROR STATUS REQUEST
**********************************************************************
Function:
This command acquires the error information occurrin g with the projector.
Command:
00H 88H 00H 00H 00H 88H
Response: At the time of a success
20H 88H 01H xxH 0CH DATA01 .. DATA12 CKS
(*1) (*2) (*3)
Data Portion Contents
----------------------------- -------------------------------- -- -- - * The various bits are normal is "0" and error is "1".
* "None" is "0" fixation.
DATA01 Error Status (1)
bit0 : Lamp cover error
bit1 : Temperature error(Bimetal)
bit2 : None
bit3 : None
bit4 : Fan error
bit5 : Power error
bit6 : Lamp(or Lamp1) error
bit7 : Lamp(or Lamp1) has reached its end of life
DATA02 Error Status (2)
bit0 : Lamp(or Lamp1) has been used beyond its limit
bit1 : Formatter error
bit2 : Lamp2 error
bit3 : None
bit4 : None
bit5 : None
bit6 : None
bit7 : None
DATA03 Error Status (3)
bit0 : None
bit1 : FPGA error
bit2 : Temperature error(Sensor)
bit3 : Lamp(or Lamp1) housing error (!)
bit4 : Lamp(or Lamp1) data error (!)
bit5 : Mirror cover error
bit6 : Lamp2 has reached its end of life
bit7 : Lamp2 has been used beyond its limit
DATA03 Error Status (4)
bit0 : Lamp2 housing error
bit1 : Lamp2 data error
bit2 : High temperature due to dust pile-up
bit3 : A foreign object sensor error
bit4 : Pump error
bit5 : None
bit6 : None
bit7 : None
DATA05 .. 12 Reserved
Response: At the time of a failure
A0H 88H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
Supplement:
(!) LT/LT80/HT: "None"
015. POWER ON
**********************************************************************
Function:
This command switches on the main power of the projector.
Command:
02H 00H 00H 00H 00H 02H
Response: At the time of a success
22H 00H 01H xxH 00H CKS
(*1) (*2) (*3)
Response: At the time of a failure
A2H 00H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
Supplement:
The projector does not accept the other command during power on processing.
016. POWER OFF
**********************************************************************
Function:
This command switches off the main power of the projector.
Command:
02H 01H 00H 00H 00H 03H
Response: At the time of a success
22H 01H 01H xxH 00H CKS
(*1) (*2) (*3)
Response: At the time of a failure
A2H 01H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
Supplement:
The projector doesn't accept the other command during power off processing. (It contains a cooling period.)
018. INPUT SW CHANGE
**********************************************************************
Function:
This command switches the input terminal or the entry list.
Command:
02H 03H 00H 00H 02H DATA01 DATA02 CKS
(*3)
Data Portion Contents
----------------------------- -------------------------------- -- -- - DATA01 Switching object
00H : Entry List
01H : Input terminal
DATA02 Switching number
-------------------------------------------------------- When the switching object is the "Signal list", the signal list number is specified. (0…99)
-------------------------------------------------------- When the switching object is the "Input connector", the input connector number is specified.
Terminal
Number
01H RGB1(RGB) * * * * * * * * * * * *
02H RG B2 (! 1) * * * x * x * * x x x *
02H DVI ( ANALO G ) (!2) x x x x x * x x x x x x
06H Video * * * * * * * * * * * *
0BH S-Video * * * * * * * * * * * *
10H Component x x * * x x x * x x x * (!!)
11H Component x x x * x x x x * x x x (!!!)
12H Component x x x x x x * x x x x x (!!!!)
1AH DVI (*6) (!2) * x x * x x * x x x x * (!)
1AH DVI(DIGITAL)(*6) x x * x * * x * x x x x (!)
1FH Viewer * * * * * * * * x x x x (!!!!)
20H LAN * * * x * * x * x x x x
07H RGB(Video) x x x x * x x x x x x x
0CH RGB(S-Video) x x x x * x x x x x x x
24H SLOT1-1 x x x x * x x x x x x x
25H SLOT1-2 x x x x * x x x x x x x
29H SLOT2-1 x x x x * x x x x x x x
2AH SLOT2-2 x x x x * x x x x x x x
* : Supported
x : Not supported
(!): The MT860/LT280 does not support a DVI connector.
(!!) HT1000
(!!!) HT410/HT510/HT1100
(!!!!) VT770 support Component and Viewer
(!1) VT 470/ VT470JY/VT570/VT670/V T 575/V T 676/ VT 480/ VT580
(!2) VT 595/ VT695/VT700
Terminal
Name
MT LT LT180 HT GT WT VT NP1000/1050 HT10 LT30 NP40 NP4000
Response: At the time of a success
22H 03H 01H xxH 01H DATA01 CKS
(*1) (*2) (*3)
Data Portion Contents
----------------------------- -------------------------------- -- -- - DATA01 Results
00H : Normal
FFH : Error
Response: At the time of a failure
A2H 03H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
Command example:
* When switch to the Video connector
02H 03H 00H 00H 02H 01H 06H 0EH
020. PICTURE MUTE ON
**********************************************************************
Function:
This command blanks the picture.
Command:
02H 10H 00H 00H 00H 12H
Response: At the time of a success
22H 10H 01H xxH 00H CKS
(*1) (*2) (*3)
Response: At the time of a failure
A2H 10H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
Supplement:
* Picture mute is cancelled for the following:
Input connector switching
Video signal switching
021. PICTURE MUTE OFF
**********************************************************************
Function:
This command cancels the blank picture condition.
Command:
02H 11H 00H 00H 00H 13H
Response: At the time of a success
22H 11H 01H xxH 00H CKS
(*1) (*2) (*3)
Response: At the time of a failure
A2H 11H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
022. SOUND MUTE ON
**********************************************************************
Function:
This command mutes the sound.
Command:
02H 12H 00H 00H 00H 14H
Response: At the time of a success
22H 12H 01H xxH 00H CKS
(*1) (*2) (*3)
Response: At the time of a failure
A2H 12H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
Supplement:
* Sound mute is cancelled for the following:
Input connector switching
Video signal switching
Volume adjustment
023. SOUND MUTE OFF
**********************************************************************
Function:
This command cancels the sound muting.
Command:
02H 13H 00H 00H 00H 15H
Response: At the time of a success
22H 13H 01H xxH 00H CKS
(*1) (*2) (*3)
Response: At the time of a failure
A2H 13H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
024. ONSCREEN MUTE ON
**********************************************************************
Function:
This command blanks the on-screen display.
Command:
02H 14H 00H 00H 00H 16H
Response: At the time of a success
22H 14H 01H xxH 00H CKS
(*1) (*2) (*3)
Response: At the time of a failure
A2H 14H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
Supplement:
* Onscreen mute is cancelled for the following:
Input connector switching
Video signal switching
025. ONSCREEN MUTE OFF
**********************************************************************
Function:
This command cancels the blanking of the on-screen display.
Command:
02H 15H 00H 00H 00H 17H
Response: At the time of a success
22H 15H 01H xxH 00H CKS
(*1) (*2) (*3)
Response: At the time of a failure
A2H 15H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
[030. GAIN ADJUST]
**********************************************************************
*direct setting of volume
*volume increment/decrement
*direct setting of brightness
*brightness increment/decrement
*direct setting of color
*color increment/decrement
*direct setting of contrast
*contrast increment/decrement
*direct setting of sharpness
*sharpness increment/decrement
*direct setting of tint
*tint increment/decrement
brightness
contrast
color
tint<hue>
sharpness
Not supported "LT170","VT60 series","VT70 series","VT80 series”, “VT90 series"
Not supported "HT410/HT510","LT180/LT25/LT30/LT35"
volume
Not supported "LT170","VT60 series","VT70 series" (except "VT80 series, VT90 series")
Not supported "HT410/HT510","LT180/LT25/LT30/LT35"
Command:
03H 10H 00H 00H 05H DATA01 .. DATA05 CKS
DATA01 : 00H (Brightness)
01H (Contrast)
02H (Color)
03H (Tint<Hue>)
04H (Sharpness)
05H (Volume)
DATA02 : FFH (except "Volume")
00H ("Volume" only)
DATA03 : 00H (direct settings)
01H (increment/decrement)
DATA04 : lower data (8bit)
DATA05 : upper data (8bit)
ex.1) volume direct setting (value = 20)
DATA01 : 05H (Volume)
DATA02 : 00H ("Volume" only)
DATA03 : 00H (direct setting)
DATA04 : 14H (lower data : 20 = 0014<Hex>)
DATA05 : 00H (upper data : 20 = 0014<Hex>)
ex.2) brightness increment (value = +1)
DATA01 : 00H (Brightness)
DATA02 : FFH (except "Volume")
DATA03 : 01H (increment/decrement)
DATA04 : 01H (lower data : +1 = 0001<Hex>)
DATA05 : 00H (upper data : +1 = 0001<Hex>)
ex.3) contrast decrement (value = -1)
DATA01 : 01H (Contrast)
DATA02 : FFH (except "Volume")
DATA03 : 01H (increment/decrement)
DATA04 : FFH (lower data : -1 = FFFF<Hex>)
DATA05 : FFH (upper data : -1 = FFFF<Hex>)
030-2. VOLUME ADJUST
**********************************************************************
Function:
This command sets the volume.
Command:
03H 10H 00H 00H 05H DATA01 .. DATA05 CKS
(*3)
Data Portion Contents
----------------------------- -------------------------------- -- -- - DATA01 05H fixed
DATA02 Setting items
00H : Volume
01H : Bass
02H : Treble
03H : Balance
DATA03 Setting mode
00H : Absolute value specification
01H : Relative value specification
DATA04 Setting Value (Lower ranking 8 bits)
DATA05 Setting Value (Upper ranking 8 bits)
Response: At the time of a success
23H 10H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*3)
Data Portion Contents
----------------------------- -------------------------------- -- -- - DATA01 .. 02 Results
0000H : Normal
0000H Other : Error
Response: At the time of a failure
A3H 10H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
Command example:
* Setting Volume to "10"
03H 10H 00H 00H 05H 05H 00H 00H 0AH 00H 27H
030-12. IMAGE MODE ADJUST
**********************************************************************
Function:
This command adjusts the Image Mode.
Command:
03H 10H 00H 00H 05H DATA01 .. DATA05 CKS
(*3)
Data Portion Contents
----------------------------- -------------------------------- -- -- - DATA01 .. 02 Adjustment items
DATA01 DA TA02 Adjustment it ems
18H 00H Aspect Ratio Input ( !)
DATA03 Adjustment mode
00H : Absolute value specification
01H : Relative value specification
DATA04 Adjustment value (Lower ranking 8 bits)
DATA05 Adjustment value (Upper ranking 8 bits)
Response: At the time of a success
23H 10H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*3)
Data Portion Contents
----------------------------- -------------------------------- -- -- - DATA01 .. 02 Results
0000H : Normal
0000H Other : Error
Response: At the time of a failure
A3H 10H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
Command example:
* Setting the Aspect Ratio to Letter Box
03H 10H 00H 00H 05H 18H 00H 00H 01H 00H 31H
(!) Method of Specifying the Absolute Value of Special Adjustment Values
DATA04 DATA05
Aspect Ratio 4:3 (Window) 00H 00H
Aspect Ratio 1.25:1(5:4) 00H 00H
Aspect Ratio Letter Box 01H 00H
Aspect Ratio 1.33:1(4:3) 01H 00H
Aspect Ratio Wide Screen 02H 00H
Aspect Ratio 1.78:1(16:9) 02H 00H
Aspect Ratio Crop 03H 00H
Aspect Ratio 1.85:1 03H 00H
Aspect Ratio 4:3 Fi ll 04H 00H
Aspect Ratio 2.35:1 04H 00H
Aspect Ratio Normal 05H 00H
Aspect Ratio Full 06H 00H
Aspect Ratio Zoom 07H 00H
Aspect Ratio Cinema 08H 00H
Aspect Ratio V-Zoom 09H 00H
Aspect Ratio Stadium 0AH 00H
037. INFORMATION REQUEST
**********************************************************************
Function:
This command acquires the projector information.
Command:
03H 8AH 00H 00H 00H 8DH
Response: At the time of a success
23H 8AH 01H xxH 62H DATA01 .. DATA98 CKS
(*1) (*2) (*3)
Data Portion Contents
----------------------------- -------------------------------- -- -- - DATA01 .. 49 : Projector name (NULL termination character string)
DATA50 .. 82 : Reserved
DATA83 .. 86 : Lamp Hour Meter (second) (!)
DATA87 .. 90 : Filter Usage (second)
DATA91 .. 94 : Panel Usage (second)
DATA95 .. 98 : Projector Usage (second)
Response: At the time of a failure
A3H 8AH 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
Supplement:
(!) Lamp Hour Meter
This is the timer for normal lamp mode conversion.
Lamp Timer Acquisition Examples
DATA83 DATA84 DATA85 DATA86 : Lamp Timer
00H 00H 00H 00H : Total 0 seconds
C0H 65H 52H 00H : Total 5400000 seconds/3600 = 1500 hours
00H E4H 57H 00H : Total 5760000 seconds/3600 = 1600 hours
Calculator Procedure
1) Set calculator to HEX
2) Punch in DATA86 DATA85 DATA84 DATA83 (005265C0)
3) Change from HEX to Decimal - value will change to 5400000 seconds
* The projector's hours of use is displayed in terms of Normal mode values.
It is also displayed with truncated a number after decimal point.
037-1. LAMP INFORMATION REQUEST
**********************************************************************
Function:
This command acquires the lamp information (in terms of Normal mode (val ues) of projector.
Command:
03H 8CH 00H 00H 00H 8FH
Response: At the time of a success
23H 8CH 01H xxH 10H DATA01 .. DATA16 CKS
(*1) (*2) (*3)
Data Portion Contents
------------------------------------------------------------------ DATA01 .. 04 : Lamp Hour Meter(Normal mode) (second)
DATA05 .. 08 : Reserved
DATA09 .. 12 : Lamp Use Warning Starting Time(Normal mode) (second)
DATA13 .. 16 : Lamp Use Prohibited Time(Normal mode) (second)
Response: At the time of a failure
A3H 8CH 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
Supplement:
Example for acquiring remaining lamp time (in terms of Normal mode values)
: Lamp Hour Meter (Normal mode)
DATA01 DATA02 DATA03 DATA04
30H 2AH 00H 00H : 10800 seconds
Calculator Procedure
1) Set calculator to HEX
2) Punch in DATA04 DATA03 DATA02 DATA01 (00002A30)
3) Change from HEX to Decimal - value will change to 10800 seconds
: Starting time for lamp usage warning message (in terms of Normal mode values)
DATA09 DATA10 DATA11 DATA12
00H DDH 6DH 00H : 7200000 second
Calculator Procedure
1) Set calculator to HEX
2) Punch in DATA12 DATA11 DATA10 DATA09 (006DDD00)
3) Change from HEX to Decimal - value will change to 7200000 seconds
Lamp remaining time (in terms of Normal mode values)
= (7200000 - 10800) / 3600 = 1997 hour
037-2. LAMP INFORMATION REQUEST 2
**********************************************************************
Function:
This command acquires lamp remaining amount.
Command:
03H 94H 00H 00H 00H 97H
Response: At the time of a success
23H 94H 01H xxH 05H DATA01 .. DATA05 CKS
(*1) (*2) (*3)
Data Portion Contents
------------------------------------------------------------------ DATA01 .. 04 Reserved
DATA05 lamp remaining amount (100% to -10%)
Response: At the time of a failure
A3H 94H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
037-4. LAMP INFORMATION REQUEST 3
**********************************************************************
Function:
This command acquires the information on the projector lamp in Eco mode.
Command:
03H 96H 00H 00H 02H DATA01 DATA02 CKS
(*3)
Data Portion Contents
----------------------------- -------------------------------- -- -- - DATA01 Target
00H : Lamp1
01H : Lamp2
DATA02 item
01H : Lamp usage time (second)
04H : lamp remaining amount until lamp warning message
(100% to -10%)
08H : Remaining time until lamp warning message starts
to appear (in terms of specified values)
09H : Remaining time until lamp warning message starts
to appear (in terms of Normal mode values)
0AH : Remaining time until lamp warning message starts
to appear (in terms of Eco mode values)
10H : Remaining time until inhibition of lamp usage
(in terms of specified values)
11H : Remaining time until inhibition of lamp usage
(in terms of Normal mode values)
12H : Remaining time until inhibition of lamp usage
(in terms of Eco mode values)
Response: At the time of a success
23H 96H 01H xxH 06H DATA01 .. DATA06 CKS
(*1) (*2) (*3)
Data Portion Contents
----------------------------- -------------------------------- -- -- - DATA01 same values as DATA01 of the command
DATA02 same values as DATA02 of the command
DATA03 .. 06 Acquired information
Response: At the time of a failure
A3H 96H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
Supplement:
* In case of acquiring lamp's use of hours
03H 96H 00H 00H 02H 00H 01H 9CH
Example of acquisition
DATA03 DATA04 DATA05 DATA06: lamp's use of hours
50H 46H 00H 00H: 18000 seconds
Calculator Procedure
1) Set calculator to HEX
2) Punch in DATA06 DATA05 DATA04 DATA03 (00004650)
3) Change from HEX to Decimal - value will change to 18000 seconds
Lamp's use of hours = 18000/3600 = 5 hours
* In case of acquiring the remaining time until lamp warning message starts to appear (in terms of specified
values)
03H 96H 00H 00H 02H 00H 08H A3H
Example of acquisition
DATA03 DATA04 DATA05 DATA06: Remaining time
40H 7EH 05H 00H: 360000 seconds
Calculator Procedure
1) Set calculator to HEX
2) Punch in DATA06 DATA05 DATA04 DATA03 (00057E40)
3) Change from HEX to Decimal - value will change to 360000 seconds
Remaining time until lamp warning message starts to appear
= 360000/ 3600= 100 hours
050. REMOTE KEY CODE
**********************************************************************
Function:
This command sends remote control key codes of projector.
Command:
02H 0FH 00H 00H 02H DATA01 DATA02 CKS
(*3)
Data Portion Contents
----------------------------- -------------------------------- -- -- - DATA01 .. 02 : Remote control key code (Word type)
Key number DATA01 DATA02 Key name
---------------------------------------- --- 1 01H 00H POWER
2 02H 00H POWER ON (!!)
3 03H 00H POWER OFF (!!)
4 04H 00H SOURCE (AUTO) (!!)
5 05H 00H AUTO (!) (!!)
6 06H 00H MENU (!!) (!!!)
7 07H 00H UP (!!) (!!!)
8 08H 00H DOWN (!!) (!!!)
9 09H 00H RIGHT (!!) (!!!)
10 0AH 00H LEFT (!!) (!!!)
11 0BH 00H ENTER (!!) (!!!)
12 0CH 00H CANCEL (!!) (!!!)
13 0DH 00H HELP (!!) (!!!)
14 0EH 00H POINTER
15 0FH 00H MAGNIFY UP
16 10H 00H MAGNIFY DOWN
17 11H 00H PICTURE MUTE
18 12H 00H SOUND MUTE
19 13H 00H MUTE (!!)
20 14H 00H FOCUS UP
21 15H 00H FOCUS DOWN
22 16H 00H ZOOM UP
23 17H 00H ZOOM DOWN
30 1EH 00H STORE
31 1FH 00H MUTE ALL OFF
37 25H 00H R
38 26H 00H G
39 27H 00H B
40 28H 00H OSD MUTE
41 29H 00H PICTURE
42 2AH 00H WHITE BAL
43 2BH 00H IMAGE
44 2CH 00H TEST
45 2DH 00H UNDO
46 2EH 00H 1
47 2FH 00H 2
48 30H 00H 3
49 31H 00H 4
50 32H 00H 5
51 33H 00H 6
52 34H 00H 7
53 35H 00H 8
54 36H 00H 9
55 37H 00H 0
56 38H 00H POSITION
57 39H 00H INFO.
58 3AH 00H PIXEL
59 3BH 00H KEYSTONE
60 3CH 00H AMPLITUDE
61 3DH 00H INPUT LIST
71 47H 00H PICMUTE ON (!!)
72 48H 00H PICMUTE OFF (!!)
73 49H 00H SNDMUTE ON (!!)
74 4AH 00H SNDMUTE OFF (!!)
75 4BH 00H RGB1(*5) (!!)
76 4CH 00H RGB2(*5)
77 4DH 00H RGB3
78 4EH 00H YCBCR
79 4FH 00H VIDEO1 (!!)
80 50H 00H VIDEO2
81 51H 00H S-VIDEO1 (!!)
82 52H 00H S-VIDEO2
83 53H 00H DIGITAL1
84 54H 00H DIGITAL2
85 55H 00H PC CARD
96 60H 00H BS
132 84H 00H VOLUME UP (!!)
133 85H 00H VOLUME DOWN (!!)
134 86H 00H KEYSTONE UP (!!)
135 87H 00H KEYSTONE DOWN (!!)
136 88H 00H SLIDE UP
137 89H 00H SLIDE DOWN
138 8AH 00H FREEZE (!!)
158 9EH 00H FILE
159 9FH 00H PAGE
163 A3H 00H ASPECT (!!)
164 A4H 00H VIDEO3
165 A5H 00H VIDEO4
166 A6H 00H S-VIDEO3
167 A7H 00H S-VIDEO4
200 C8H 00H ZOOM
201 C9H 00H FOCUS
214 D6H 00H 3D REFORM
215 D7H 00H SOURCE (!!)
216 D8H 00H RGB(*5) oggle (!!)
217 D9H 00H VIDEO Toggle (!!)
218 DAH 00H 3D REFORM RESET
221 DDH 00H AUTO (SHORT)
222 DEH 00H AUTO (LONG)
223 DFH 00H PICTURE MANAGEMENT (!!)
225 E1H 00H COMPONENT (!!)
226 E2H 00H ZOOM POS UP (HT)
227 E3H 00H ZOOM POS DOWN (HT)
228 E4H 00H DVI/DVI (DIGITAL) (*6) (!!)
229 E5H 00H LAN
232 E8H 00H D ZOOM UP (WT)
233 E9H 00H D ZOOM DOWN (WT)
237 EDH 00H PSCODE(Passcode screen will be displayed at once)
238 EEH 00H LAMP MODE (!!!)
Response: At the time of a success
22H 0FH 01H xxH 01H DATA01 CKS
(*1) (*2) (*3)
Data Portion Contents
----------------------------- -------------------------------- -- -- - DATA01 Results
00H : Normal
FFH : Error
Response: At the time of a failure
A2H 0FH 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
(!) About AUTO key
The MT series model with the built-in image sensor does not support the AUTO key. Use the AUTO
(SHORT) key.
(!!) HT10 series, LT180, LT30 series, NP40 series and NP400 0 se ries
(!!!) VT60 series, VT70 series, VT80 series, and VT90 series
Command example:
* Sending the AUTO key code
02H 0FH 00H 00H 02H 05H 00H 18H
* Sending the AUTO (SHORT) key code
02H 0FH 00H 00H 02H DDH 00H F0H
----------------------------- -- -- -- -------
* cycle/toggle volume mute
* cycle/toggle picture mute
* cycle/toggle picture freeze
02H 0FH 00H 00H 02H DATA01 DATA02 CKS
Data Portion Contents
------------------------------------------------------------------- DATA01/DATA02 12H/00H : Volume mute
DATA01/DATA02 11H/00H : Picture mute
DATA01/DATA02 8AH/00H : Picture freeze
----------------------------- -- -- -- ------ * cycle aspect ratio
02H 0FH 00H 00H 02H DATA01 DATA02 CKS
Data Portion Contents
------------------------------------------------------------------- DATA01/DATA02 A3H/00H : Aspect Ratio
----------------------------- -- -- -- ------ * all menu functionality (digits 0-9, cursor movement, enter, select, return, back, clear, etc)
02H 0FH 00H 00H 02H DATA01 DATA02 CKS
060. GAIN PARAMETER REQUEST 2
**********************************************************************
Function:
This command acquires the adjustment values.
Command:
03H 04H 00H 00H 03H DATA01 .. DATA03 CKS
(*3)
Data Portion Contents
----------------------------- -------------------------------- -- -- - DATA01 .. 02 Acquirement items (!)
DATA03 00H fixed
Response: At the time of a success
23H 04H 01H xxH 0DH DATA01 .. DATA13 CKS
(*1) (*2) (*3)
Data Portion Contents
----------------------------- -------------------------------- -- -- - DATA01 Adjustment status
00H : Displaying impossible
01H : Adjustment impossible
02H : Adjustment possible
FFH : Selected gain is not available.
DATA02 Maximum adjustment value (Lower ranking 8 bits)
DATA03 Maximum adjustment value (Upper ranking 8 bits)
DATA04 Minimum adjustment value (Lower ranking 8 bits)
DATA05 Minimum adjustment value (Upper ranking 8 bits)
DATA06 Default adjustment value (Lower ranking 8 bits)
DATA07 Default adjustment value (Upper ranking 8 bits)
DATA08 Current value (Lower ranking 8 bits)
DATA09 Current value (Upper ranking 8 bits)
DATA10 .. 13 Reserved
Response: At the time of a failure
A3H 04H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
(!) Acquirem ent i tems
DATA01 DATA02 Acquirement name
00H 00H Picture / Brightness
01H 00H Picture / Cont rast
02H 00H Picture / Color
03H 00H Picture / Hue
04H 00H Picture / Sharpness
05H 00H Volume
05H 01H Sound / Bass
05H 02H Sound / Treble
06H 00H Blanking / Top
06H 01H Blanking / Bottom
06H 02H Blanking / Left
06H 03H Blanking / Right
06H 04H Blanking / On/Off
07H 00H Image / Auto Adjust
08H 00H Image / Position H
08H 01H Image / Position V
09H 00H Image / Pixel Adjust Clock
09H 01H Image / Pixel Adjust Phase
0AH 00H Image / Video Filter
0BH 00H Image / Resolution
0CH 00H Image / Amplitude H
0CH 01H Image / Amplitude V
0DH 00H Image / Input Signal Size H
0DH 01H Image / Input Signal Size V
0EH 00H Image / Output Signal Size H
0EH 01H Image / Output Signal Size V
0FH 00H Image / Out put Position H
0FH 01H Image / Out put Position V
10H 00H Image / Sync Pr otec tion Upper
10H 01H Image / Sync P r otec tion Lower
13H 00H C olor Tem perature
14H 00H White Balance / Brightness R
14H 01H White Balance / Brightness G
14H 02H White Balance / Brightness B
14H 03H W hi te Balance / Contrast R
14H 04H W hi te Balance / Contrast G
14H 05H W hi te Balance / Contrast B
15H 00H Keystone H
15H 01H Keystone V
16H 00H Video Mode Gamma
18H 00H Aspect Ratio / Input Signal
18H 01H Aspect Ratio / Display Area
19H 00H Motion Level
1AH 00H Noise Reduction / Luminance
1BH 00H Noise Reduction / Chrominance
1CH 00H Select Color Matrix
1DH 00H V-Aperture / Vertical Detail
21H 00H W/B Co mpress White
21H 01H W/ B Compress Black / Black Expansion
22H 00H Telecine
23H 00H Y/C Del a y
24H 00H Dithering
25H 00H VD Delay / Adjustment
25H 01H VD Delay / Field Invert
25H 02H V D De lay / Offset
26H 00H Motion Select
27H 00H Select Color Matrix Type
28H 00H YTR Adjustm ent / Gain
28H 01H YTR Adjustm ent / Tap
28H 02H YTR Adjustm ent / Gain2
28H 03H YTR Adjustm ent / Tap2
29H 00H CTR Adjustment / Gain
29H 01H CTR Adjustment / Tap
29H 02H CTR Adjustment / Gain2
29H 03H CTR Adjustment / Tap2
2AH 00H Sharpness Tap
2BH 00H White Correct / Position
2BH 01H White Correct / Gai n
2CH 00H Black Correct / Position
2CH 01H Black Corr e c t / Gain
2CH 02H Black Correct / Inv Gain
2DH 00H Lamp Output
2EH 00H Signal Level / Auto Control
2FH 00H Signal L evel / R/ G/B Gain R
2FH 01H Signal L evel / R/ G/B Gain G
2FH 02H Signal L evel / R/ G/B Gain B
30H 00H Signal Level / Y/Cb/Cr Gain Y
30H 01H Signal Level / Y/Cb/Cr Gain Cb
30H 02H Signal Level / Y/Cb/Cr Gain Cr
31H 00H Signal Level / Y/Pb/Pr Gain Y
31H 01H Signal Level / Y/Pb/Pr Gain Pb
31H 02H Signal Level / Y/Pb/Pr Gain Pr
33H 00H Clamp Timing
33H 01H Clamp Timing / Adjust
34H 00H Convergence / Red H
34H 01H Conver gen c e / Red V
34H 02H Convergence / Gr ee n H
34H 03H Convergence / Gr ee n V
34H 04H Convergence / Blue H
34H 05H Conver gen c e / Blue V
35H 00H Switcher Gain / R
35H 01H Switcher Gain / G
35H 02H Switcher Gain / B
36H 00H Switcher Gain / Volume
37H 00H Panel Size / H
37H 01H Panel Size / V
38H 00H Panel Position / H
38H 01H Panel Position / V
39H 00H Signal Level / Whit e Gain
3AH 00H Ref. White B al. / Brig htness R
3AH 01H Ref. White B al. / Brig htness G
3AH 02H Ref. White B al. / Brig htness B
3AH 03H Ref. White B al. / Contrast R
3AH 04H Ref. White B al. / Contrast G
3AH 05H Ref. White B al. / Contrast B
3BH 00H Overscan
3CH 00H Edge
3DH 00H Sy nc h r onize / Of f/On
3DH 01H Sy nc h r onize / Adjust
3EH 00H Input Signal Position / H
3EH 01H Input Signal Position / V
3FH 00H Signal Type
40H 00H Color Correct / On/Off
40H 01H Color Correct / G-R Gain
40H 02H Color Correct / G-B Gain
40H 03H Color Correct / B-R Gain
40H 04H Color Correct / B-G Gain
40H 05H Color Correct / R-G Gain
40H 06H Color Correct / R-B Gain
40H 07H Color Correct / U Gain
40H 08H Color Correct / V Gain
41H 00H HD Delay
42H 00H Ref. Pedestal Level / U Level
42H 01H Ref . Pedestal Level / V Level
43H 00H Stack Clock
44H 00H Sub Brightness / R
44H 01H Sub Brightness / G
44H 02H Sub Brightness / B
45H 00H Y Contrast
46H 00H Y Gamma Correction
47H 00H Setup Level
47H 01H Setup Level / Adjust
47H 02H Setup Level / Correction
48H 00H DCL
49H 00H Color Space
4AH 00H RGB Sharpness
4BH 00H F-CLK Phase
4CH 00H Color Correction / Mode
4CH 01H Color Correction / Color Tune
4CH 02H Color Correction / Yellow
4CH 03H Co lor Correction / Magenta
4CH 04H Color Correction / Cyan
4CH 05H Color Correction / White
4CH 06H Color Correction / Color Tune
4CH 07H Color Correction / Yellow
4CH 08H Color Correction / Magenta
4CH 09H Color Correction / Cyan
4CH 0AH Color Correction / White
4DH 00H Through
4EH 00H Ref. Auto White / Color Temp R
4EH 01H Ref. Auto White / Color Temp G
4EH 02H Ref. Auto White / Color Temp B
4FH 00H Position
50H 00H Screen Position
51H 00H Sweet Vision
51H 01H Sweet Vision / Split
52H 00H Sub Color / R
52H 01H Sub Color / G
52H 02H Sub Color / B
53H 00H Pictur e Management
54H 00H Color Correct ion 2 Red
54H 01H Color Correct ion 2 Green
54H 02H Color Correction 2 Blue
54H 03H Color Corr ection 2 Yellow
54H 04H Color Correct ion 2 Magenta
54H 05H Color Correct ion 2 Cyan
54H 06H Color Correction 2 Color Gain
55H 00H Color T emperature(Enable)
56H 00H White Peaking
57H 00H 3D Y/C Separation
58H 00H Deinterlace
59H 00H Base Setting
5AH 00H Cornerstone T-Left H
5AH 01H Cornerstone T-Left V
5AH 02H Cornerstone T-Right H
5AH 03H Cornerstone T-Right V
5AH 04H Cornerstone B-Right H
5AH 05H Cornerstone B-Right V
5AH 06H Cornerstone B-Left H
5AH 07H Cornerstone B-Left V
5AH 08H Cornerstone Execute
5BH 00H Contrast Enhancement
5CH 00H Variable Y/C Delay
5DH 00H Tint Correction
5EH 00H Y Gamm a
5FH 00H Ref. Color Cor. / Red
5FH 01H Ref. Color Cor. / Green
5FH 02H Ref. Color Cor. / Blue
5FH 03H Ref. Color Cor. / Yell ow
5FH 04H Ref. Color Cor. / Magenta
5FH 05H Ref. Color Cor. / Cyan
5FH 06H Ref. Color Cor. / Color Gain
60H 00H Saturation
61H 00H Pincushion / Horizontal
61H 01H Pincushion / Vert ical
61H 02H Pincushion / Balance
62H 00H Digi tal Zoom / Zoom
62H 01H Digi t al Zoom / Horizontal Position
62H 02H Digi t al Zoom / Verti c al Position
63H 00H White Bal. Dual / Brightness R
63H 01H White Bal. Dual / Brightness G
63H 02H White Bal. Dual / Brightness B
63H 03H White Bal. Dual / Contrast R
63H 04H White Bal. Dual / Contrast G
63H 05H White Bal. Dual / Contrast B
64H 00H White Bal. Lam p1 / Brightness R
64H 01H White Bal. Lam p1 / Brightness G
64H 02H White Bal. Lam p1 / Brightness B
64H 03H Whit e Bal. Lamp1 / Contr a st R
64H 04H White Bal. Lamp1 / Contrast G
64H 05H White Bal. Lamp1 / Contrast B
65H 00H White Bal. Lamp2 / Brightness R
65H 01H White Bal. Lam p2 / Brightness G
65H 02H White Bal. Lam p2 / Brightness B
65H 03H White Bal. Lamp2 / Contrast R
65H 04H White Bal. Lamp2 / Contrast G
65H 05H White Bal. Lamp2 / Contrast B
66H 00H Color Cor. Dual / Red
66H 01H Color Cor. Dual / Green
66H 02H Color Cor. Dual / Blue
66H 03H Color Cor. Dual / Yell ow
66H 04H Color Cor. Dual / Magenta
66H 05H Color Cor. Dual / Cyan
66H 06H Color Cor. Dual / Color Gain
67H 00H Color Cor. Lamp1 / Red
67H 01H Color Cor. Lamp1 / Green
67H 02H Color Cor. Lamp1 / Blue
67H 03H Color Cor. Lamp1 / Yellow
67H 04H Color Cor. Lamp1 / Magenta
67H 05H Color Cor. Lamp1 / Cyan
67H 06H Color Cor. Lamp1 / Color G a in
68H 00H Color Cor. Lamp2 / Red
68H 01H Color Cor. Lamp2 / Green
68H 02H Color Cor. Lamp2 / Blue
68H 03H Color Cor. Lamp2 / Yellow
68H 04H Color Cor. Lamp2 / Magenta
68H 05H Color Cor. Lamp2 / Cyan
68H 06H Color Cor. Lamp2 / Color G a in
90H 00H Pict ur e P r eset
91H 00H SweetVision M ode
92H 00H SweetVision Level
94H 00H Vertical Enhancer
95H 00H I/P Converter
96H 00H Lamp Mode Adjust
97H 00H Wall Color
Command example:
* In case of acquiri ng Picture Bright ness
03H 04H 00H 00H 03H 00H 00H 00H 0AH
077. MUTE CONTROL
**********************************************************************
Function:
This command controls the mute of picture, sound and on-screen.
Command:
02H 1AH 00H 00H 02H DATA01 DATA02 CKS
(*3)
Data Portion Contents
----------------------------- -------------------------------- -- -- - DATA01 Setting items
00H : Picture
01H : Sound
02H : On-Screen
DATA02 Setting Value
00H : OFF
01H : ON
Response: At the time of a success
22H 1AH 01H xxH 01H DATA01 CKS
(*1) (*2) (*3)
Data Portion Contents
----------------------------- -------------------------------- -- -- - DATA01 Results
00H : Normal
01H : Error
Response: At the time of a failure
A2H 1AH 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
Supplement:
* Sound mute is cancelled in the following cases:
Input connector switching
Video signal switching
Volume adjustment
078-1. SETTING REQUEST
**********************************************************************
Function:
This command acquires the function information of projector.
Command:
00H 85H 00H 00H 01H 00H 86H
Response: At the time of a success
20H 85H 01H xxH 20H DATA01 .. DATA32 CKS
(*1) (*2) (*3)
Data Portion Contents
----------------------------- -------------------------------- -- -- - DATA01 .. 03 Projector type
DATA01 DATA02 DATA03
01H 00H 03H MT1060/MT1065
01H 01H 03H MT860
01H 02H 03H MT1075
01H 00H 06H NP1000/NP2000/NP1150/NP2150/NP3150
02H 00H 03H LT240/LT260
02H 01H 03H LT220
02H 02H 03H LT240K/LT260K
02H 00H 05H LT245/LT265
02H 00H 06H LT380
02H 01H 06H LT280
04H 00H 03H GT5000
04H 01H 03H GT6000
05H 00H 03H HT1000
06H 00H 03H WT600/WT610/WT615
08H 00H 07H NP4000/NP4001
DATA04 Sound function
00H : Not available
01H : Available
DATA05 Calendar function
00H : No function
01H or 03H : Timer function, sleep timer function
02H : Sleep timer function
DATA06 .. 32 Reserved
Response: At the time of a failure
A0H 85H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
078-2. RUNNING STATUS REQUEST
**********************************************************************
Function:
This command acquires the status of the projector operation.
Command:
00H 85H 00H 00H 01H 01H 87H
Response: At the time of a success
20H 85H 01H xxH 10H DATA01 .. DATA16 CKS
(*1) (*2) (*3)
Data Portion Contents
----------------------------- -------------------------------- -- -- - DATA01 .. 02 Reserved
DATA03 Projector status
00H : Idling
01H : Power On
DATA04 Cooling processing
00H : No execution(Normal condition)
01H : During execution
DATA05 Power On/Off processing
00H : No execution(Normal condition)
01H : During execution
DATA06 Status of operation
00H : Idling
04H : Power On
05H : Cooling
06H : Idling(Error occurrence)
Other than above : (nondisclosure)
Internal use of code during a state transition period
DATA07 PC Card insertion
00H : Not inserted
01H : Inserted
DATA08 USB Mouse connection
00H : Not connected
01H : Connected
DATA09 .. 16 Reserved
Response: At the time of a failure
A0H 85H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
078-3. INPUT STATUS REQUEST
**********************************************************************
Function:
This command acquires the status of input signal of the projector.
Command:
00H 85H 00H 00H 01H 02H 88H
Response: At the time of a success
20H 85H 01H xxH 10H DATA01 .. DATA16 CKS
(*1) (*2) (*3)
Data Portion Contents
----------------------------- -- -- -- ------------------------------- DATA01 Selecting signal processing
00H : No execution(Normal condition)
01H : During execution
DATA02 Signal number( Entry list number - 1 )
0 .. 199
DATA03 .. 04 Selected input terminal
Termi nal name DATA03 DATA04
RGB1(RGB)(*5) 01H 01H
RGB2(*5) 02H 01H
DVI(Analog) 02H 01H
Video 01H 02H
S-Video 01H 03H
Component 02H 04H
Component 03H 04H
Component 03H 04H
DVI(*6) 01H 06H
DVI(DIGITAL)(*6) 01H 06H
Viewer 01H 07H
LAN 02H 07H
Slot1-1 01H 08H
Slot1-2 02H 08H
Slot2-1 01H 09H
Slot2-2 02H 09H
RGB(Video) 02H 02H
RGB(S-Video) 02H 03H
DATA05 Entry list type
01H : Default
02H : User
DATA06 Test pattern display
00H : No display(Normal condition)
01H : Displaying
DATA07 ..08 Reserved
DATA09 Indicate Contents
00H = Picture signal displaying
01H = No signal
02H = Viewer displaying
03H = Test pattern displaying
04H = LAN displaying
DATA10 .. 16 Reserved
Response: At the time of a failure
A0H 85H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
078-4. MUTE STATUS REQUEST
**********************************************************************
Function:
This command acquires the status of the mute of projector.
Command:
00H 85H 00H 00H 01H 03H 89H
Response: At the time of a success
20H 85H 01H xxH 10H DATA01 .. DATA16 CKS
(*1) (*2) (*3)
Data Portion Contents
----------------------------- -------------------------------- -- -- - DATA01 Picture mute
00H : OFF
01H : ON
DATA02 Sound mute
00H : OFF
01H : ON
DATA03 On-screen mute
00H : OFF
01H : ON
DATA04 Forced on-screen mute
00H : OFF
01H : ON
DATA05 On-screen display
00H : No display
01H : Displaying
DATA06 .. 16 Reserved
Response: At the time of a failure
A0H 85H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
078-5. MODEL NAME REQUEST
**********************************************************************
Function:
This command acquires the model name of the projector.
Command:
00H 85H 00H 00H 01H 04H 8AH
Response: At the time of a success
20H 85H 01H xxH 20H DATA01 .. DATA32 CKS
(*1) (*2) (*3)
Data Portion Contents
----------------------------- -------------------------------- -- -- - DATA01 .. 32 Model name (NULL termination character string)
Response: At the time of a failure
A0H 85H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
======================================================================
6. Table of Response Error Codes
DATA01 DATA02
Error types
Error
descriptio
Error contents
00H 00H Unknown command
00H 01H
The current model does not support
this func tion.
01H 00H Unval id v alues specified.
01H 01H
Specified terminal is unavailable or
cannot be selected.
01H 02H S elected language is not av ailable.
02H 00H A vai lable memory reservation error
02H 02H Operating memory
02H 03H Setting not possible
02H 04H On Forced on-screen mute mode
02H 06H
Displaying a si gnal other than PC
Viewer
02H 07H -No signal-
02H 08H
Displaying a test pattern or PC Card
files screen.
02H 09H No P C c ar d is inserted
02H 0AH Memory operation failed
02H 0CH Displayi ng the Entry List
02H 0DH Power Off inhibit ed
02H 0EH Execut ion error
02H 0FH No operation authority
03H 00H Specified gain number i s wrong
03H 01H Selected gain is not available.
03H 02H Adjustment failed
[079. FREEZE CONTROL]
**********************************************************************
Function:
This command controls the freeze.
Command:
01H 98H 00H 00H 01H DATA01 CKS
Operation types
DATA01: 00H : Reserved
01H : Freeze start
02H : Freeze cancel
Response: At the time of a success
21H 98H ID *0H 01H DATA01 CKS
Data Portion Contents
------------------------------------------------------------------ DATA01 Results
00H : Normal
01H : Error
Response: At the time of a failure
A1H 98H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
110. AUTO FUNCTIONS EXECUTE
**********************************************************************
Function:
This command executes the auto functions.
Command:
03H B6H 00H 00H 01H DATA01 CKS
(*3)
Data Portion Contents
------------------------------------------------------------------ DATA01 Execution items
Focus
00H !
01H *
!: According to projector setting
*: Execut ing
Response: At the time of a success
23H B6H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*3)
Data Portion Contents
----------------------------- -------------------------------- -- --- DATA01 Execution items (Same as DATA01 of the transmit data)
DATA02 Results
00H : Normal
01H : Error
Response: At the time of a failure
A3H B6H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
305-1. BASE MODEL TYPE REQUEST
**********************************************************************
Function:
This command acquires the projector type.
Command:
00H BFH 00H 00H 01H 00H C0H
Response: At the time of a success
20H BFH 01H xxH 10H DATA01 ... DATA16 CKS
(*1) (*2) (*3)
Data Portion Contents
----------------------------- -------------------------------- -- --- DATA01 00H fixed
DATA02 ... 03 Projector type
See DATA13...14
DATA04 ... 12 Model name (NULL termination character string)
DATA13 ... 14 Projector type
DATA15 ... 16 Reserved
Response: At the time of a failure
A0H BFH 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
305-3. PROJECTOR INFORMATION REQUEST
**********************************************************************
Function:
This command acquires basic operation states of projector.
Command:
00H BFH 00H 00H 01H 02H C2H
Response: At the time of a success
20H BFH 01H xxH 10H DATA01 ... DATA16 CKS
(*1) (*2) (*3)
Data Portion Contents
----------------------------- -------------------------------- -- --- DATA01 02H fixed
DATA02 Projector Processing Status
00H : Idle
04H : Power On
05H : Cooling
06H : Idle(Error Standby)
Other : Not Support
Other than above : (nondisclosure)
Internal use of code during a state transition period
DATA02 DATA03 DATA13 DATA14
00H 02H 00H 05H LT245/LT265
00H 02H 00H 06H LT380
00H 02H 01H 06H LT280
00H 01H 00H 06H NP1000/NP2000/NP1150/NP2150/NP3150
01H 03H 00H 06H VT80 Series
01H 03H 00H 07H VT90 Series
02H 05H 00H 05H HT410
02H 05H 00H 05H HT510
02H 02H 00H 05H LT180
02H 02H 00H 06H LT25/LT30/LT35
02H 02H 00H 07H NP40/NP50/NP60
03H 08H 00H 07H NP4000/NP4001
DATA03 Indicate Contents
00H : Picture signal displaying
01H : No Signal
02H : Viewer displaying
03H : Test Pattern displaying
04H : LAN displaying
05H : Test Pattern (User) displaying
10H : Signal selection in progress
Other : Not Support
DATA04 Select source input type 1
01H : 1
02H : 2
03H : 3
04H : 4
05H : 5
Other : Not Support
DATA05 Select source input type 2
01H : COMPUTER (RGB)
02H : VIDEO
03H : S-VIDEO
04H : COMPONENT
05H : Reserved
06H : DIGITAL
07H : VIEWER
08H : SLOT1
09H : SLOT2
0AH : SLOT3
0BH : SLOT4
0CH : DIGITAL2
0DH : SCART
10H : AUTO
FFH : Not Source Input
Other : Not Support
DATA06 Indication signal type
(Effective only when Select source input type 2 is 02H or 03H)
x0H : NTSC3.58
x1H : NTSC4.43
x2H : PAL
x3H : PAL60
x4H : SECAM
x5H : B/W60
x6H : B/W50
x7H : PALNM
x8H : NTSC3.58 LBX
x9H : NTSC3.58 SQZ
xAH : COMPONENT(60Hz)
xBH : COMPONENT(50Hz)
xCH : Un known
xDH : NTSC
xEH : PAL-M
xFH : PAL-N
FFH : Not Video Input
Other : Not Support
DATA07 Picture Mute
00H : OFF
01H : ON
DATA08 Sound Mute
00H : OFF
01H : ON
DATA09 On-screen mute
00H : OFF
01H : ON
DATA10...DATA16 Reserved
Response: At the time of a failure
A0H BFH 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2) (*4) (*3)
======================================================================
6.1. Response
---------------------------------------------------------------------* At the time of a success (ACK)
This returns ACK without adding data portion to the command that does not request data.
This returns ACK with adding data to the data portion for the command that requests data.
* At the time of a failure (NAK)
This adds a cause of not accepting the command to data portion to return it.
(Example) Power On
Command:
02H 00H FFH F0H 00H CKS
NAK:
A2H 00H 01H 20H 02H DATA01 DATA02 CKS
======================================================================
6. Data Portion of Response
----------------------------------------------------------------------
DATA01 DATA02
Error
types
00H 00H Unknown comman d
00H 01H
01H 00H Unvalid values specified.
01H 01H
01H 02H Selected language is not av ailable.
02H 00H Available memory reservation error
02H 02H Operating memory
02H 03H Set ting not possible
02H 04H On Forced on-screen mute mode
02H 07H -No signal02H 08H
02H 0AH Memory operation failed
02H 0DH Power Off inhibit ed
02H 0E H Execution error
02H 0FH No operati on authority
03H 00H Specified gain number is wrong
03H 01H Selected gain is not available.
03H 02H Adjustment failed
Error
description
Error contents
The current model does not suppor t
this function.
Specifi ed terminal is unavailable or
cannot be selected.
Displaying a test pattern or PC Card
Fills screen.
Loading...
