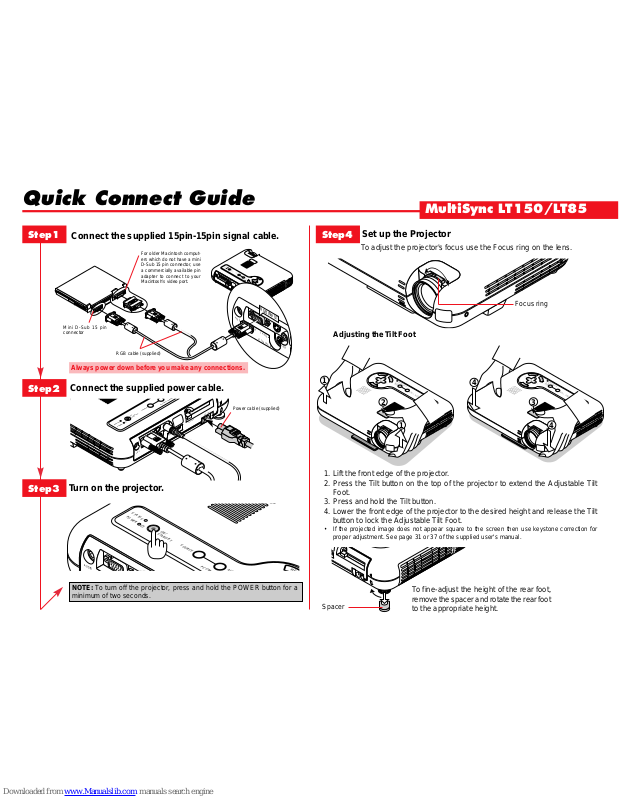

Quick Connect Guide
MultiSync LT150/LT85

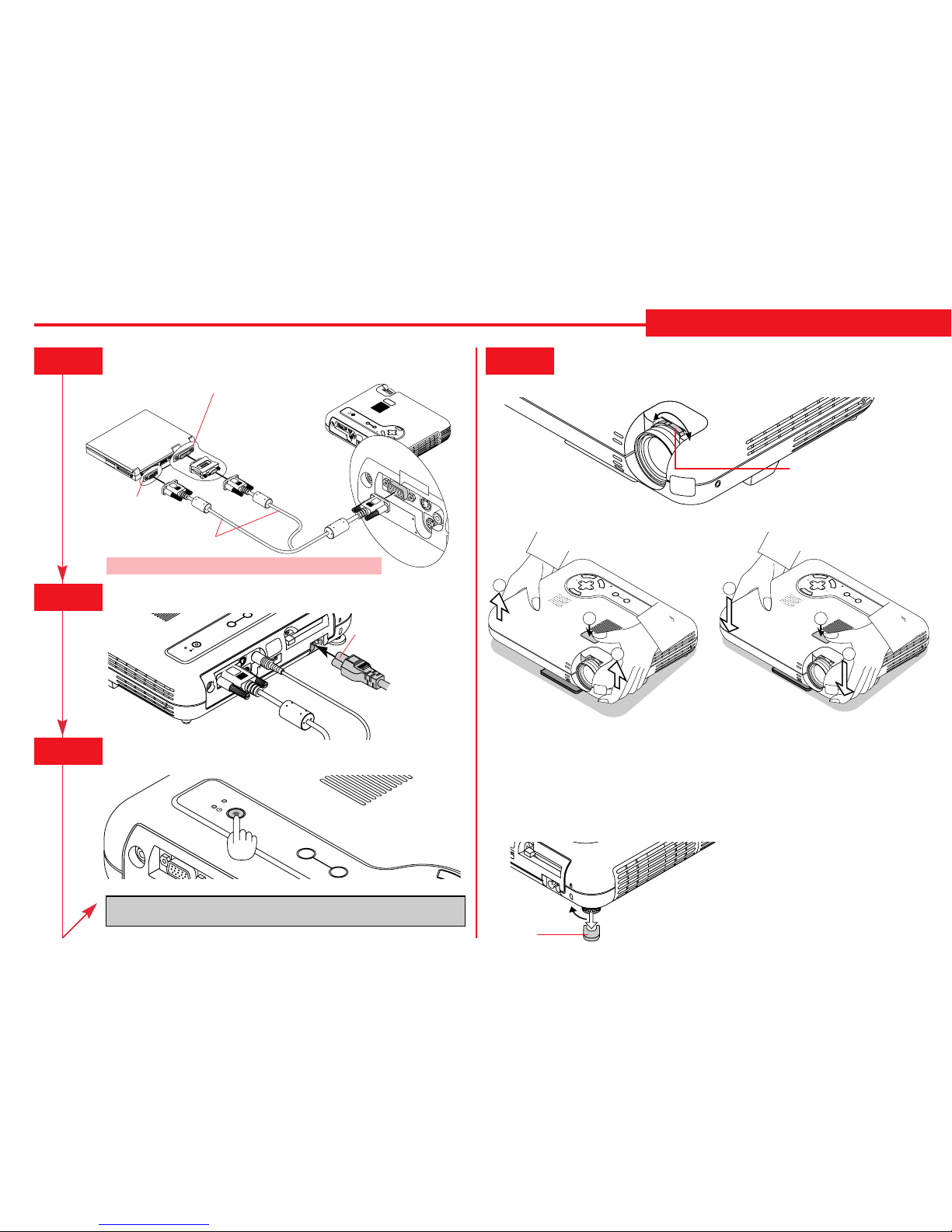

Step1
Connect the supplied 15pin-15pin signal cable.
Connect the supplied power cable.
Step2
Step3
Turn on the projector.
NOTE: To turn off the projector, press and hold the POWER button for a
minimum of two seconds.
Power cable (supplied)
Step4
Set up the Projector
Focus ring
To adjust the projector's focus use the Focus ring on the lens.
1. Lift the front edge of the projector.
2. Press the Tilt button on the top of the projector to extend the Adjustable Tilt
Foot.
3. Press and hold the Tilt button.
4. Lower the front edge of the projector to the desired height and release the Tilt
button to lock the Adjustable Tilt Foot.
• If the projected image does not appear square to the screen then use keystone correction for
proper adjustment. See page 31 or 37 of the supplied user's manual.
A
C
IN
P
C
C
A
R
D
U
S
B
V
I
D
E
O
S
-
V
I
D
E
O
R
G
B
A
U
D
I
O
P
C
C
O
N
T
R
O
L
PC CARD ACC
ESS
STATUS
POWER
ON/
STAND BY
SOURCE
Always power down before you make any connections.
AC IN
P
C
C
A
R
D
U
S
B
V
I
D
E
O
S
V
I
D
E
O
R
G
B
A
U
D
I
O
P
C
C
O
N
T
R
O
L
M
E
N
U
E
N
T
E
R
C
A
N
C
E
L
SELECT
AUTO
ADJUST
PC CARD ACCESS
STATUS
POWER
ON/
STAND BY
SOURCE
VIDEO
S-VIDEO
RGB
AUDIO
PC CONTROL
RGB INPUT
1
O
N
D
I
P
2
34
56
Mini D-Sub 15 pin
connector
RGB cable (supplied)
For older Macintosh computers which do not have a mini
D-Sub 15 pin connector, use
a commercially available pin
adapter to connect to your
Macintosh’s video port.
AUDIO
M
A
U
P
C
C
A
S
T
A
T
U
S
P
O
W
E
R
O
N
/
S
T
A
N
D
B
Y
S
O
U
R
C
E
Adjusting the Tilt Foot
M
E
N
U
E
N
T
E
R
C
A
N
C
E
L
S
E
L
E
C
T
AUTO
ADJUST
PC CARD ACCESS
STATUS
POWER
ON/STAND BY
SOURCE
4
4
3
M
E
N
U
E
N
T
E
R
C
A
N
C
E
L
S
E
L
E
C
T
AUTO
ADJUST
PC CARD ACCESS
STATUS
POWER
ON/STAND BY
SOURCE
1
1
2
To fine-adjust the height of the rear foot,
remove the spacer and rotate the rear foot
to the appropriate height.
Spacer

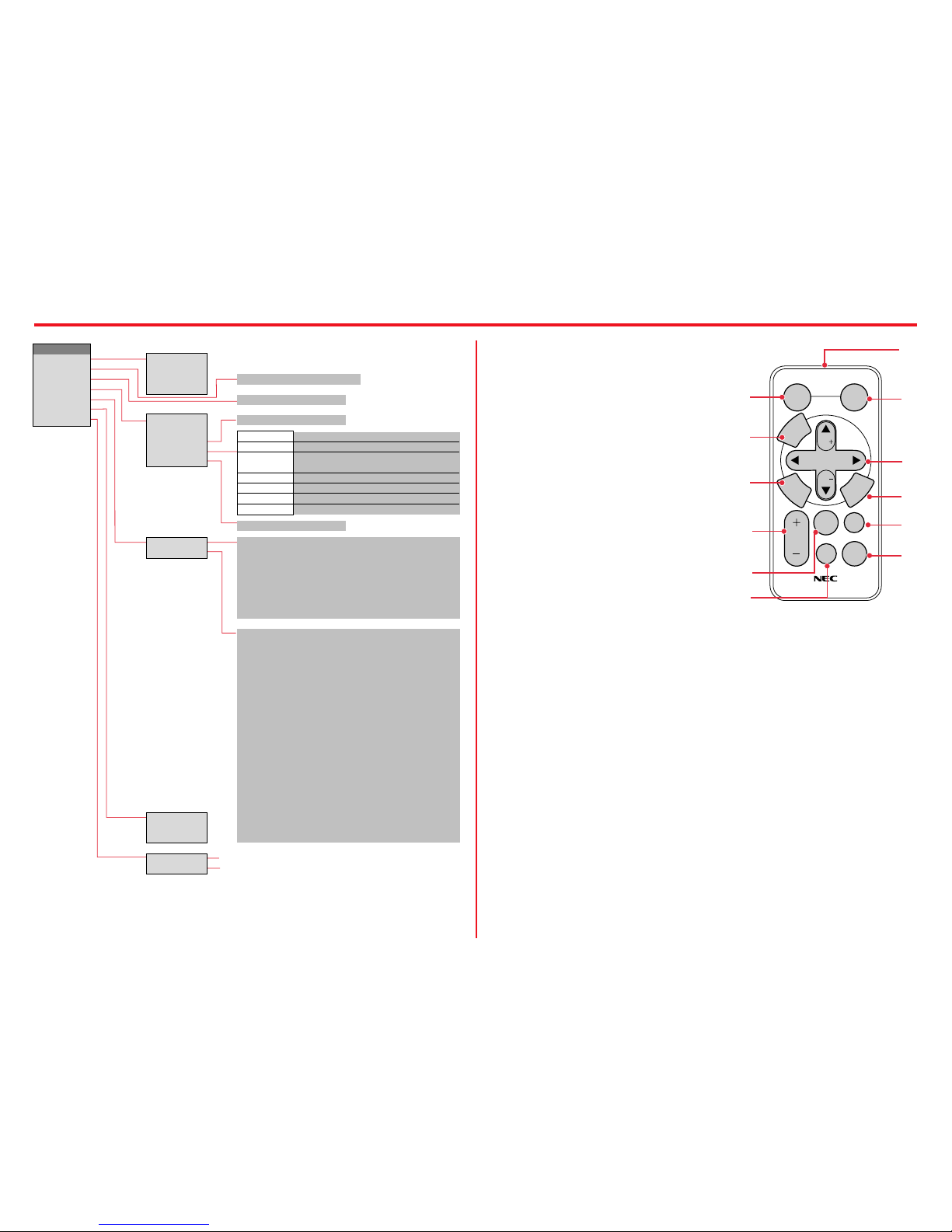

Remote Control Features
1. Infrared Transmitter
Direct the remote control toward the remote sensor on the
projector cabinet.
2 Auto Adjust Button
Adjusts the current image for optional H/V Position, Pixel settings and resolutions.
3. Select (䊴, 䊳, ▼, ▲) / Volume (+) (–) Buttons
▲▼: Use these buttons to select the menu of the item you wish to
adjust.
When no menus appear, these buttons work as a volume
control.
䊴 䊳: Use these buttons to change the level of a selected menu
item.
A press of the 䊳 button executes the selection.
䊴 䊳: When the menus or the Viewer tool bar is not displayed,
these buttons can be used to select a slide, or to move the
cursor in Folder List or Slide List.
When the pointer is displayed, these ▲▼䊴 䊳 buttons move
the pointer.
4. Cancel Button
Press this button to exit "Menus". Press this button to return
the adjustments to the last condition while you are in the adjustment or setting menu.
5. Picture Mute Button
This button turns off the image and sound. Press again to
restore the image and sound.
6. Power Button
Menu Tree
Printed in Japan
7N8P0072
Advanced Menu
Source Select RGB
Picture Video
Volume S-Video Brightness/Contrast/Color/Hue/Sharpness
Image Options PC Card Viewer
Projector Options Volume
Tools
Help Keystone Normal/Natural 1/Natural 2
Color Temperature
Gamma Correct
Aspect Ratio Normal/Zoom/Wide Zoom/Cinema
Advanced Options
Noise Reduction Off/Low/Medium/High
Factory Default
Color Matrix Select Color Matrix HDTV/SDTV
Select Color Matrix Type B-Y/R-Y,Cb/Cr,Pb/Pr
White Balance Brightness R/G/B, Contrast R/G/B
Position/Clock Horizontal/Vertical/Clock/Phase
Resolution Auto/Native
Video Filter On/Off
All Data/Current Signal
Menu Menu Mode(Advanced Menu, Basic/Custom Menu)
Setup Basic/Custom Menu Edit
Language (English/German/French/Italian/Spanish/Swedish/Japanese)
Projector Pointer (Pointer 1-8)
Source Display (On/Off)
Direct Button Volume Bar (On/Off)
Keystone Bar (On/Off)
Menu Display Time(Manual/Auto 5 sec/Auto 10 sec/Auto 30 sec)
Page 1 Orientation (Desktop Front/Ceiling Rear/Desktop Rear/Ceiling Front)
Background (Blue/Black/Logo)
Mouse Button(Right Hand/Left Hand)
Sensitivity(Fast/Medium/Slow)
Page 2 PC Card Viewer Options Show Folder List (On/Off)
(Auto Play/Manual Play)
Interval (5-300 sec)
Capture Options (High Quality/Normal/High Compression)
Page 3 Signal Select RGB (Auto/RGB/Component)
Video (Auto/NTSC3.58/NTSC4.43/PAL/PAL60/SECAM)
S-Video (Auto/NTSC3.58/NTSC4.43/PAL/PAL60/SECAM)
Page 4 Auto Adjust (RGB Only) (On/Off)
Auto Start (On/Off)
Power Management (On/Off)
Power Off Confirmation (On/Off)
Keystone Save (On/Off)
White Segment (On/Off)
Clear Lamp Hour Meter
Capture Page 5 Communication Speed(4800/9600/19200/38400)
PC Card Files Default Source Select(Last/Auto/Select)
ChalkBoard (RGB/Video/S-Video/PC Card Viewer)
Contents Contents
Information Page1
Source Name/Input Terminal/Horizontal Frequency/Vertical Frequency/Sync Polarity
Page2 Signal Type/Video Type/Sync Type/Interlace/Resolution
Page3 Aspect Ratio/Gamma Correction/Noise Reduction/Color Matrix/Matrix Type
Page4 Lamp Remaining Time/Lamp Hour Meter/Projector Usage
SELECT
Vol.
Vol.
POINTER
POWER
HELP
RD-366E
PIC.
MUTE
MAGNIFY
SOURCE
AUTO
ADJ.
M
E
N
U
E
N
T
E
R
C
A
N
C
E
L
1
2
3
4
5
7
8
9
10
11
12
6
Use this button to turn your projector on and off.
NOTE: To turn off the projector, press and hold the Power button for a minimum of two seconds.
7. Help Button
Provides information about operation and adjustment procedures, the set-up information for the current menu and
adjustment information during menu operation. This also displays information on how to use the Help menu.
8. Pointer Button
Press this button to display one of the eight pointers; press again to hide the pointer. You can move your pointer icon
to the desired area on the screen using the Select button.
9. Magnify Button
Use the (+) or (-) button to adjust the image size up to 400%.
When the pointer is displayed, the image is magnified about the pointer as its center. When the pointer is not displayed, the image is magnified about the screen center as its center.
When the image is magnified, the pointer is changed to the magnifying icon.
10. Enter Button
Use this button to enter your menu selection or accept your settings or adjustments.
11. Menu Button
Displays the menu.
12. Source Button
Press to select a video source such as RGB, Video, S-Video or PC Card Viewer.
Loading...
