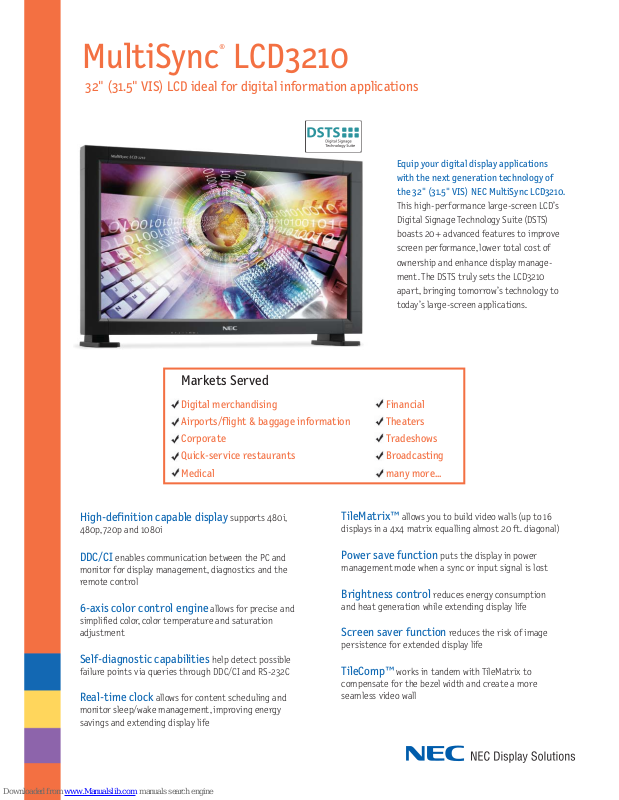

MultiSync® LCD3210
32" (31.5" VIS) LCD ideal for digital information applications
Equip your digital display applications
with the next generation technology of
the 32" (31.5" VIS) NEC MultiSync LCD3210.
This high-performance large-screen LCD’s
Digital Signage Technology Suite (DSTS)
boasts 20+ advanced features to improve
screen performance, lower total cost of
ownership and enhance display management. The DSTS truly sets the LCD3210
apart, bringing tomorrow’s technology to
today’s large-screen applications.
Markets Served
Digital merchandising
Airports/flight & baggage information
Corporate
Quick-service restaurants
Medical
High-definition capable display supports 480i,
480p, 720p and 1080i
DDC/CI enables communication between the PC and
monitor for display management, diagnostics and the
remote control
6-axis color control engine allows for precise and
simplified color, color temperature and saturation
adjustment
Self-diagnostic capabilities help detect possible
failure points via queries through DDC/CI and RS-232C
Real-time clock allows for content scheduling and
monitor sleep/wake management, improving energy
savings and extending display life
Financial
Theaters
Tradeshows
Broadcasting
many more...
TileMatrix™ allows you to build video walls (up to 16
displays in a 4x4 matrix equalling almost 20 ft. diagonal)
Power save function puts the display in power
management mode when a sync or input signal is lost
Brightness control reduces energy consumption
and heat generation while extending display life
Screen saver function reduces the risk of image
persistence for extended display life
TileComp™ works in tandem with TileMatrix to
compensate for the bezel width and create a more
seamless video wall

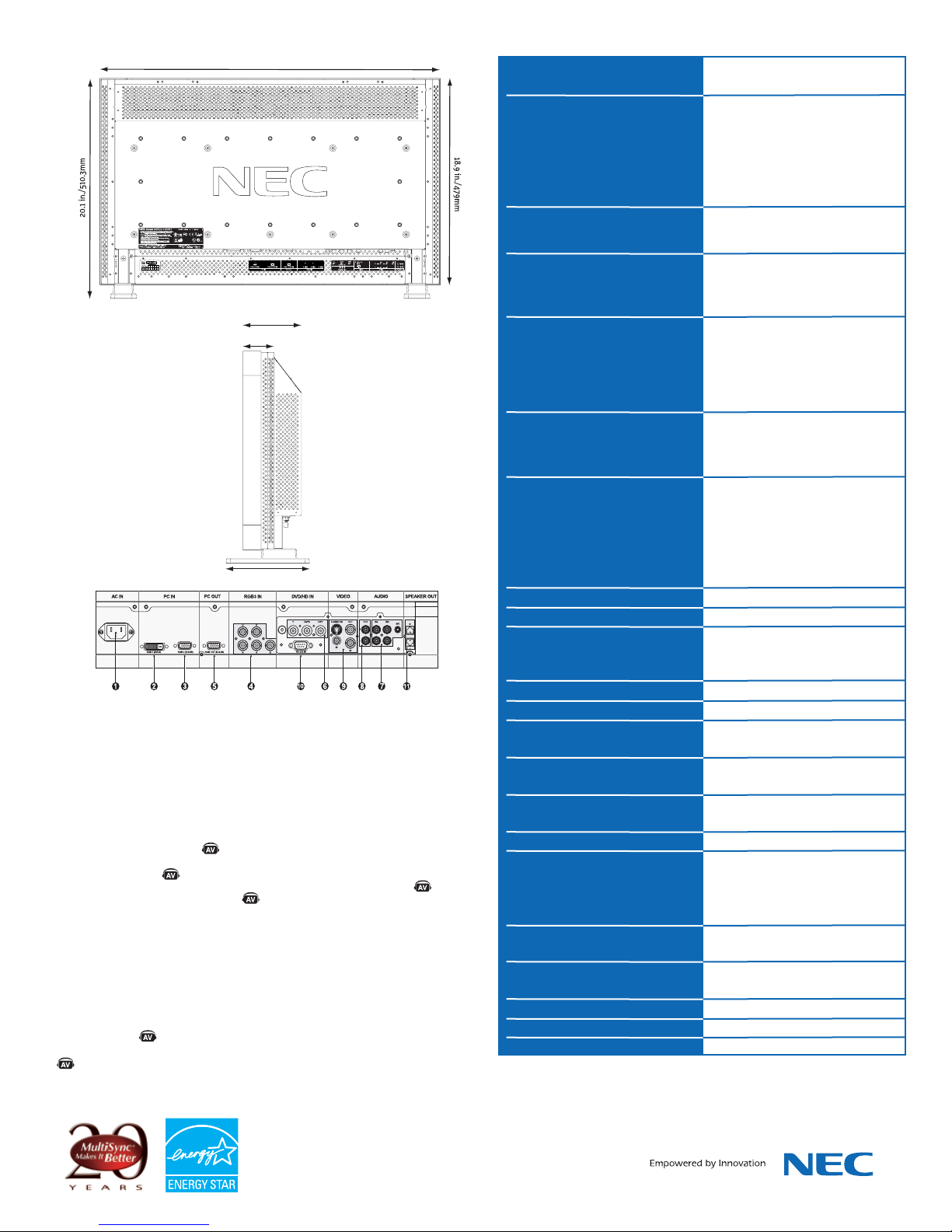

Page 2
31.1 in./789mm
5.5 in./140mm
2.94 in./74.6mm
7.9 in./200mm
1. AC IN connector Connects with the supplied power cord.
2. RGB 1 IN (DVI-D) To input digital RGB signals from a computer*
* This connector does not support analog input .
3. RGB 2 IN (mini D-Sub 15 pin) To input analog RGB signals from a personal
computer or other RGB equipment.
4. RGB 3 DVD/HD [R, G, B, H, V] (BNC) To input the analog RGB signals or signals
from other RGB equipment. A Sync-on-Green signal can be connected to the
G connector.
5. RGB OUT connector (mini D-Sub 15 pin) To output the signal from the RGB 2 or
3 IN connector.
6. DVD/HD CONNECTOR (BNC) Connecting equipment such as a DVD player, HDTV
device or laser disc player.
7. AUDIO IN 1,2,3 Input audio signal from external equipment such as a computer,
VCR or DVD player.
8. AUDIO OUT Output the audio signal from the selected AUDIO IN source.
9. VIDEO INPUT/OUTPUT CONNECTOR
VIDEO IN connector (BNC and RCA): Input a composite video signal. BNC and
RCA are not available at the same time. (Use only one input).
VIDEO OUT connector (BNC): Output the composite video signal from the
VIDEO IN source.
S-VIDEO IN connector (DIN 4 pin): Input the S-video (Y/C separate signal).
10. EXTERNAL CONTROL (mini D-Sub 9 pin) RS-232C Input signal from
control equipment such as a computer.
In connector: Input signal from control equipment such as a computer or the
output from a different MultiSync LCD3210
11. EXTERNAL SPEAKER TERMINAL Outputs the audio signal from the selected
audio source.
Denotes an AV unit function.
All AV functions are enabled when the AV unit is installed.
Model
Display
Viewable Size Image
Pixel Pitch
Pixels Per Inch
Brightness (typical)
Contrast Ratio (typical)
Viewing Angle (typical)
Response Time (typical)
Display Colors
Active Screen Area (W X H)
Screen Aspect Ratio
Synchronization Range
Horizontal
Vertical
Input Signal
Video
Sync
Input
RGB1
RGB2
RGB3
Video 1*
Component Video 1 (DVD/HD)*
Audio*
External Control
Output
RGB
Video*
Audio*
Control
Audio Amplifier*
Resolutions Supported
Native Resolution
Recommended Resolution
Additional Features
Touch-Capable
Voltage Rating
Power Consumption (typical)
On
Power Savings Mode
Dimensions (WxHxD)
Net (with stand)
Net (without stand)
Net Weight
(with stand)
(without stand)
VESA Hole Configuration Specifications
Environmental Conditions
Operating Temperature
Operating Humidity
Operating Altitude
Storage Temperature
Storage Humidity
Storage Altitude
Regulatory Approvals
Included Accessories
Optional Accessories
Limited Warranty
Technical Support
* not available on IT model
LCD3210-BK (LCD3210-BK-IT)
31.5"
0.511
50 @ native resolution
2
500 cd/m
600:1
176° Vert., 176° Hor. (88U/88D/88L/88R)@ CR>10
Rapid Response (18ms)
256 RGB Level, more than 16 million
760 x 450mm
16:9
31.5-91.1 KHz (15.625,15.734 kHz) (Analog)
31.5-91.1 KHz (Digital)
58-85 Hz Analog / 50-85 Hz Digital
ANALOG RGB 0.7 Vp-p / 75 Ohms
Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Pos itive/Ne gative)
Composite sync on green: (0.3Vp-p ne gative
0.7Vp-p positive)
DVI-D
Analog D-sub
Analog BNC
Composite RCA or S-Video
Component BNC
Audio 1 (minijack), Audio 2 and 3 Stereo (RCA)
Internal Speaker: None
RS232, DDC/CI
Daisychain RGB3
Daisychain Video1
Daisychain - Selected Audio in
RS232 for multiple monitor control
7W x 7W
720 x 400 @ 70-85 Hz
640 x 480 @ 60-85 Hz
800 x 600 @ 50-85 Hz
832 x 624 @ 74.5 Hz
1024 x 768 @ 50-85 Hz
1280 x 1024 @ 50-85 Hz
1600 x 1200 @ 60 Hz (C ompressed)
1280 x 768 @ 50-85 Hz
1360 x 768 @ 50-85 Hz
NTSC/PAL,SECAM,4.43NTSC,Pal60 HDTV,480i, 480p,
720p, 1080i
1366 x 768
1360 x 768 or 1366 x 768
Power Management, Plug and Play (DDC/CI, DDC2B),
PIP (Remote), Multi-level Zoom, FullS can, TileMatr ix,
TileComp, Screen Saver, Rapid Response, Video
Ready (no tuner), Infrared remote control included,
removeable stand included
Designed for integration
AC 100-120V / AC 220-240V @ 50/60 Hz
140W
<5W
31.1 x 20.1 x 7.9 in./789 x 510.3 x 200mm
31.1 x 18.9 x 5.5 in./789 x 479 x 140mm
37.5 lbs./17 kg
35.3 lbs./16 kg
200 x 200mm (8 hole) / 200 x 100mm (6 hole)
5-40° C/41-104° F
20-80%
4200m/13,780 ft.
-20-60° C/-4-140° F
10-90%
12,000m/39,370 ft.
UL 1950/CSA C22.2 No. 950/ TUV-GS/EN60950/
FCC-B/DOC-B/EN55022-B/EN55024/EN61000-32/EN1000-3-3/CE
AC power cord,user manual, setup sheet, wireless
remote control, batt eries, 15-pin RGB c able, CDROM, stands
External speakers
3 years parts and lab or, including backlight
24 hours/7 days
MultiSync is a registered trademark, and
TileMatrix and TileComp are trademarks of
NEC Display Solutions. Product specifications subject to change. 7/05 ver. 1.
©2005 NEC Display Solutions of America,
Inc. All rights reserved.
NEC Display Solutions
500 Park Boulevard, Suite 1100
Itasca, IL 60143
866-NEC-MORE
www.necdisplay.com
