Nec MULTISYNC LCD2110 user Manual

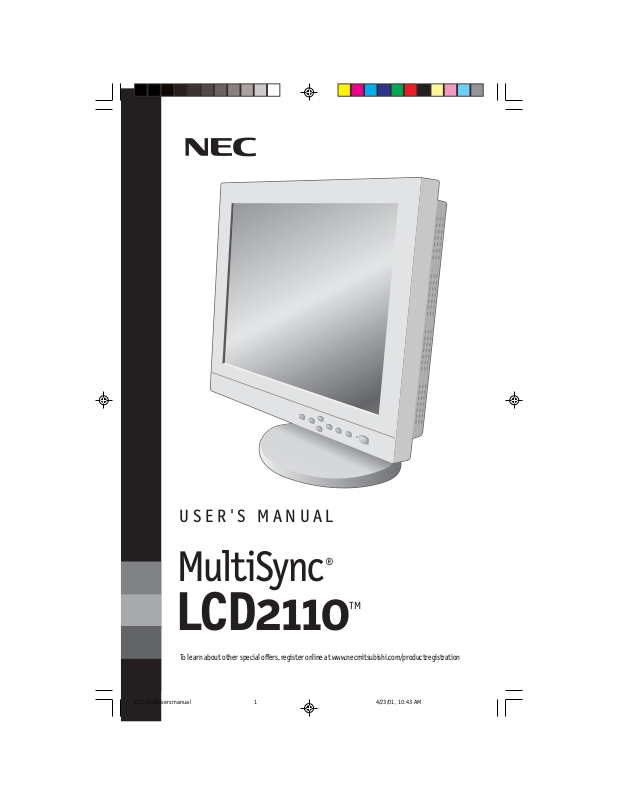

U S E R ' S M A N U A L

MultiSync®

LCD2110TM

To learn about other special offers, register online at www.necmitsubishi.com/productregistration

LCD2110usersmanual

1

4/23/01, 10:43 AM

Index
Warning..................................................................................................	1
Contents ...............................................................................................	2
Quick Start ...........................................................................................	3
Controls .................................................................................................	7
Recommended Use .............................................................................	9
Specifications .....................................................................................	11
Features ..............................................................................................	12
Troubleshooting .................................................................................	13
References ..........................................................................................	14
Limited Warranty ..............................................................................	15
TCO’99 ..................................................................................................	16
Avertissement ....................................................................................	19
Contenu ..............................................................................................	20
Mise en marche rapide .....................................................................	21
Commandes .......................................................................................	25
Usage recommandé ..........................................................................	28
Fiche technique ................................................................................	30
Fonctions .............................................................................................	31
Dépannage .........................................................................................	32
Références .........................................................................................	33
Garantie limitée ................................................................................	34
TCO’99 .................................................................................................	35
Warnung .............................................................................................	39
Lieferumfang .....................................................................................	40
Quick Start .........................................................................................	41
Bedienungselemente .......................................................................	46
Empfehlungen für die Verwendung ..............................................	49
Technische Daten ..............................................................................	51
Funktionen .........................................................................................	52
Fehlerbehebung ................................................................................	53
Verweise .............................................................................................	54
Beschränkte Gewährleistung.........................................................	55
TCO’99 .................................................................................................	56

LCD2110usersmanual

2

4/23/01, 10:43 AM

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET.DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

Canadian Department of Communications Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-

Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouiller du Canada.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to C.S.A. C22.2 No. 950.

Ce produit porte la marque ‘C-UL’ et se conforme aux règlements de sûrele Canadiens selon CAN/CSA C22.2 No. 950.

FCC Information

1.Use the attached specified cables with the LA-2141JMW color monitor so as not to interfere with radio and television reception.

(1)Please use the supplied power cord or equivalent to ensure FCC compliance.

(2)Please use the supplied shielded video signal cable, 15-pin mini D-SUB to DVI cable or DVI-D to DVI-D cable.

2.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: ”How to Identify and Resolve Radio-TV Interference Problems.“ This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.

1

LCD2110usersmanual

3

4/23/01, 10:43 AM

Contents

Your new NEC MultiSync® Monitor box* should contain the following:

• MultiSync Monitor with tilt/
swivel/pivot stand	• NEC LCD Setup Software, Pivot Software and other
MultiSync LCD2110™	helpful files
• Power Cord	• User’s Manual

•AC Adapter (A2440S01)

•15-pin VGA to BNC Cable

MultiSync LCD2110 monitor with

15-pin VGA to BNC Cable and AC Adapter

BNC Cable

Power Cord

	NEC
	Setup		LCD
Pivot			Software
and	other	Software
		helpful
				files
					U S E R ' S M A N U A L
					MultiSync®
CD Software					LCD2110TM
					To learn about other special offers, register online at www.necmitsubishi.com/productregistration

User’s Manual

* Remember to save your original box and packing material to transport or ship the monitor.

2

LCD2110usersmanual

4

4/23/01, 10:43 AM

Quick Start

To attach your MultiSync® LCD2110™ monitor to your system, follow these instructions:

1. Turn off the power to your computer.

2. For the PC: Connect the 15-pin mini D-SUB of the appropriate signal cable to the connector of the display card in your system (Figure A.1). Tighten all screws.

For the Mac: Connect the MultiSync Macintosh cable adapter to the computer (Figure B.1). Attach the 15-pin mini D-SUB end of the appropriate signal cable to the MultiSync Macintosh cable adapter (Figure B.1). Tighten all screws.

NOTE: Some Macintosh systems do not require a Mactintosh cable adapter.

NOTE: To obtain the MultiSync Macintosh cable adapter, call NEC Technologies at

[phone].

3.Remove connector cover on back of monitor (Figure C.1). Connect the BNC cables and AC adapter cable to the appropriate connectors on the back of the monitor.

If you are using the supplied video signal cable, continue to step 4.

If you are using a 15-pin mini D-SUB cable (not included), please skip to Step 5.

4.Connect the red BNC cable to the BNC connector on the monitor labeled R, the green BNC cable to the BNC connector labeled G(/Sync), the blue BNC cable to the BNC connector labeled B. If you have a fourth BNC connector (Composite Sync), connect it to the BNC connector on the monitor labeled HS/CS. If you have a fifth BNC connector (Vertical Sync), connect it to the BNC connector on the monitor labeled VS (Figure C.1). Place the 15-pin VGA to BNC Cable under Clip A (Figure D.1A). Then place the 15-pin VGA to BNC cable under Clip B (Figure D.1B).

Figure A.1

Macintosh Cable

Adapter Figure B.1 (not included)

3

LCD2110usersmanual

5

4/23/01, 10:43 AM

Quick Start –continued

5.Connect the D-SUB cable to D-SUB connector on the back of the monitor (Figure C.2).

6.Replace connector cover.

NOTE: Incorrect cable connections may result in irregular operation, damage display quality/components of LCD module and/or shorten the module’s life.

7.Connect one end of the power cord to the AC Adapter and the other end to the power outlet

(Figure E.1) (Figure G.1).

8.Turn on the monitor (Figure F.1) and the computer.

9.To complete the setup of your MultiSync LCD monitor: A. Set the resolution to 1600 x 1200 @ 60 Hz.

	NOTE: For download information on the Windows®
		95/98 INF file for your MultiSync LCD		R
		monitor,refer to the References section of		G(/SYNC)
		this User’s Manual.		B
	B. Use the following OSM™ controls:			HS/CS
				VS
	•	Auto Adjust Contrast ( AUTO	)

•Auto Adjust ( )

•Image Adjust – Fine ( )

NOTE: Manual adjustment of the H/V Position and Image Adjust H. Size/Fine controls may be required to complete setup of your MultiSync monitor. For a full description of these OSM controls, refer to the Controls section of this User’s Manual.

10.Refer to User’s Manual in the NEC LCD Setup Software CD case for installation and operation of this software.

NOTE: If you have any problems, please refer to the Troubleshooting section of this User’s Manual.

Figure C.1

Figure C.2

Figure E.1

Clip

A

Power

Button

Clip

B

Figure F.1

Figure D.1A Figure D.1B

Figure G.1

4

LCD2110usersmanual

6

4/23/01, 10:43 AM

Quick Start –continued

Raise and Lower

Monitor Screen

The monitor may be raised or lowered in either Portrait or Landscape mode. To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1).

Figure RL.1

Screen Rotation

Before rotating, the screen must be raised to the highest level to avoid knocking the screen on the desk or pinching your fingers. To raise the screen, place hands on each side of the monitor and lift up to the highest position (Figure RL.1).

To rotate screen, place hands on each side of the monitor screen and turn clockwise from Landscape to Portrait or counter-clockwise from Portrait to Landscape (Figure R.1).

To toggle the orientation of the OSM™ menu between Landscape and Portrait modes, press the RESET button while OSM menu is off.

Figure R.1

5

LCD2110usersmanual

7

4/23/01, 10:43 AM

Quick Start –continued

Tilt and Swivel

Grasp both sides of the monitor screen with your hands and adjust the tilt and swivel as desired (Figure TS.1).

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:

1. Disconnect all cables.

Figure TS.1

2.Place hands on each side of

the monitor and lift up to the highest position (Figure RL.1).

3.Place monitor face down on a non-abrasive surface. (Place the screen on a 2-inch platform so that the stand is parallel with the surface.)

(Figure S.1)

2-in

Figure S.1

4.Remove the stand cover by sliding the top/bottom pieces off the stand (Figure S.2). Remove the 4 screws connecting the monitor to the stand and lift off the stand assembly (Figure S.3). The monitor is now ready for mounting in an alternate manner.

5.Reverse this process to reattach stand.

NOTE: Use only VESA-compatible alternative mounting method.

4

3

1

2

Figure S.2 and Figure S.3

Caution: This LCD monitor is designed for use with a flexible arm, therefore it is delivered without stand. To fulfil the safety requirements the monitor must be mounted to an arm which guaranties the necessary stability under consideration of the weight of the monitor.

The LCD monitor shall only be used with an approved arm (e.g. GS mark).

6

LCD2110usersmanual

8

4/23/01, 10:43 AM

Controls

BNC/D-SUB: Allows you to change between the BNC and D-SUB signal inputs.

OSM™ (On-Screen Manager) control buttons on the front of the monitor function as follows:

To access OSM menu, press any of the control buttons (, , , ) or the PROCEED or EXIT button.

To rotate OSM between Landscape and Portrait modes, press the RESET button. NOTE: OSM menu must be closed in order to rotate.

				Main Menu	Sub-Menu
		EXIT		Exits the OSM controls.	Exits to the OSM main menu.
		CONTROL	/	Moves the highlighted	Moves the highlighted
				area up/down to select	area up/down to select
				one of the controls.	one of the controls.
		CONTROL	/	Moves the highlighted area	Moves the bar left/
				left/right to select control	right to increase or
				menus.	decrease the adjustment.
		PROCEED		Has no function	Activates Auto Adjust
					and ALL RESET functions.
		RESET		Resets the highlighted control	Resets the highlighted control
				menu to the factory setting.	to the factory setting.

NOTE: When RESET is pressed in the main and sub-menu, a warning window will appear allowing you to cancel the RESET function by pressing the EXIT button.

Brightness/Contrast Controls

BRIGHTNESS

Adjusts the overall image and background screen brightness.

CONTRAST

Adjusts the image brightness in relation to the background.

AUTO AUTO ADJUST CONTRAST

Adjusts the image displayed for non-standard video inputs.

OSM LOCK OUT

The OSM LOCK OUT control completely locks out access to all OSM control functions. When attempting to activate OSM controls while in the LOCK OUT mode, a screen will appear indicating that OSM controls are locked out.

•To enter the LOCK OUT mode, simultaneously press the PROCEED and

button. The LOCK OUT window will appear.

•To activate the LOCK OUT function, simultaneously press and hold down the PROCEED and button. The OSM window will disappear within seconds and the LOCK OUT function will be activated.

•To deactivate the LOCK OUT mode, simultaneously press the PROCEED and button.

7

LCD2110usersmanual

9

4/23/01, 10:43 AM

Controls –continued

AUTO Auto Adjust

Automatically adjusts the Image Position, H. Size and Fine settings.

Position Controls

H. POSITION

Controls Horizontal Image Position within the display area of the LCD.

V. POSITION

Controls Vertical Image Position within the display area of the LCD.

AUTO AUTO

Automatically sets the Horizontal and Vertical Image Position within the display area of the LCD.

Image Adjust Controls

H. SIZE

Adjusts the horizontal size by increasing or decreasing this setting.

FINE

Improves focus, clarity and image stability by increasing or decreasing this setting.

Automatically adjusts the H Size and Fine settings.

AccuColor´® Control System

Five color presets select the desired color setting. Each color setting is adjusted at the factory.

R,G,B: Increases or decreases Red, Green or Blue color depending upon which is selected. The change in color will appear on screen and the direction (increase or decrease) will be shown by the bars.

Tools

OSM H POS.

OSM V POS.

You can choose where you would like the OSM control window to appear on your screen. Selecting OSM Location allows you to manually adjust the position of the OSM control menu left, right, up or down.

ALL RESET

Selecting ALL RESET when BNC input is selected allows you to reset all OSM control settings for the BNC input back to the factory settings. Selecting ALL RESET when D-SUB input is selected allows you to reset all OSM control settings for the D-SUB input back to the factory settings. Individual settings can be reset by highlighting the control to be used and pressing the RESET button.

Information

Indicates the current display resolution, frequency setting and type of Sync signal the monitor is using.

NOTE: If the or button is pressed while TYPE is highlighted, then Sync Type is switched between Separate Sync and Sync On Green.

8

LCD2110usersmanual

10

4/23/01, 10:43 AM

Recommended Use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE

FOLLOWING WHEN SETTING UP AND USING

THE MULTISYNC® LCD COLOR MONITOR:

•DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.

•Do not spill any liquids into the cabinet or use your monitor near water.

•Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.

•Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.

•Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.

•The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet that is easily accessible.

•When operating the MultiSync LCD monitor with its AC220-240V worldwide power supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used. The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H05VV-F should be used except in UK)

•Use supplied AC Adapter. Do not place any objects onto the AC Adapter and do not use the AC Adapter outdoors.

•The inside of the fluorescent tube located within the LCD monitor contains mercury. Please follow the bylaws or rules of your local municipality to dispose of this tube properly.

•In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed for use with this monitor. If a power cord is not supplied with this monitor, please contact your

supplier.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet is damaged.

• If the monitor does not operate normally by following operating instructions.

• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.

• The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power

outlet which is easily accessible.

CAUTION • Use caution when carrying the monitor, as the compact stand may extend automatically.

• Handle with care when transporting. Save packaging for transporting.

9

LCD2110usersmanual

11

4/23/01, 10:43 AM

Recommended Use –continued

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR

CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE

FOLLOWING WHEN YOU POSITION THE MONITOR:

• For optimum performance, allow 20 minutes for warm-up.

• Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.

•Position your monitor no closer than 16 inches and no further away than 28 inches from your eyes. The optimal distance is 24 inches for MultiSync LCD2110™.

•Rest your eyes periodically by focusing on an object at least 20 feet away. Blink often.

•Position the monitor at a 90° angle to windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.

•If reflected light makes it hard for you to see your screen, use an anti-glare filter.

•Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner!

•Adjust the monitor’s brightness and contrast controls to enhance readability.

•Use a document holder placed close to the screen.

•Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to minimize turning your head while you are typing.

•Avoid displaying fixed patterns on the monitor for long periods of time to avoid image persistence (after-image effects).

•Get regular eye checkups.

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

•Adjust the Brightness until the bachground raster disappears

•Do not position the Contrast control to its maximum setting

•Use the preset Size and Position controls with standard signals

•Use the preset Color Setting

•Use non-interlaced signals with a vertical refresh rate between 60-76Hz

•Do not use primary color blue on a dark background, as it is difficult to see and may produce eye fatigue to insufficient contrast

For more detailed information on setting up a healthy work environment, call NEC at [phone], NEC FastFacts™ information at [phone] and request document #900108 or write the American National Standard for Human Factors Engineering of Visual Display Terminal Workstations – ANSI-HFS Standard No. 100-1988 – The Human Factors Society, Inc. P.O. Box 1369, Santa Monica, California 90406.

10

LCD2110usersmanual

12

4/23/01, 10:44 AM

Specifications

Monitor			MultiSync® LCD2110™	Notes
Specifications			Monitor
LCD Module		Diagonal:	21.3 inch	Active matrix; thin film transistor (TFT)
	Viewable Image Size:		21.3 inch	liquid crystal display (LCD); 0.27 mm dot
Native Resolution (Pixel Count):			Landscape: 1600 x 1200	pitch; XtraView™ technology; 200cd/m2 white
			Portrait: 1200 x 1600	luminence; 300:1 contrast ratio, typical
Input Signal		Video:	ANALOG 0.7 Vp-p/75 Ohms
		Sync:	Separate sync. TTL Level
			Horizontal sync. Positive/Negative
			Vertical sync. Positive/Negative
			Composite sync. (Positive/Negative) (TTL Level)
			Sync on Green video (Positve) 0.7 Vp-p and sync.
			Negative 0.3 Vp-p
Display Colors	Analog input:		16,777,216	Depends on display card and timing used.
Synchronization Range :		Horizontal:	24.0 kHz to 82 kHz	Automatically
		Vertical:	56.0 Hz to 76 Hz	Automatically
Resolutions Supported		Landscape:	720 x 400*1: VGA text
			640 x 480*1 @ 60Hz to 85Hz
			800 x 600*1 @ 56Hz to 85Hz
			832 x 624*1 @ 75Hz
			1024 x 768*1 @ 60Hz to 85Hz
			1280 x 960*1*2 @ 60Hz to 75Hz
			1280 x 1024 @ 60Hz to 75Hz	NEC-Mitsubishi Electronics Display cites
			1600 x 1200 @ 60Hz to 75Hz .................. recommended resolution at 60Hz for
		Portrait:	480 x 640*1 @ 60Hz to 85Hz	optimal display and color performance.
			600 x 800*1 @ 56Hz to 85Hz
			624 x 832*1 @ 75Hz
			768 x 1024*1 @ 60Hz to 85Hz
			960 x 1280*1*2 @ 60Hz to 75Hz
			1024 x 1280 @ 60Hz to 75Hz	NEC-Mitsubishi Electronics Display cites
			1600 x 1200 @ 60Hz to 75Hz .................. recommended resolution at 60Hz for
				optimal display and color performance.
Active Display	Landscape:	Horizontal:	399 mm/15.7 inches
Area		Vertical:	320 mm/12.6 inches
	Portrait:	Horizontal:	320 mm/12.6 inches
		Vertical:	399 mm/15.7 inches
Power Supply			AC 100 – 120 V/220 – 240 V @ 50/60 Hz
Current Rating			0.9A @ 100 – 120 V/0.5A @ 220 – 240 V
Dimensions		Landscape:	498 mm (W) x 501 mm (H) x 246 mm (D)
			19.6 inches (W) x 19.7 inches (H) x 9.6 inches (D)
		Portrait:	418 mm (W) x 541 mm (H) x 246 mm (D)
			16.5 inches (W) x 21.3 inches (H) x 9.6 inches (D)
	Height Adjustment:		80 mm/3.2 inches
Weight			14.5 kg
			32.0 lbs

Environmental Considerations
Operating Temperature:	6°C to +35°C/41°F to 95°F
Humidity:	30% to 80%
Feet:	0 to 10,000 Feet
Storage Temperature:	-10°C to +60°C/14°F to 140°F
Humidity:	10% to 85%
Feet:	0 to 45,000 Feet

NOTE: Technical specifications are subject to change without notice.

*1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear choppy or lines may appear to be bold. This is normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done. When the interpolated resolution is not an exact multiple of the native resolution, the mathematical interpolation necessary may cause some lines to appear thicker than others.

*2 The number of colors that can be displayed decreases.

11

LCD2110usersmanual

13

Features

NuCycle™ Plastic: A special silicone compound for PC resin, being extremely flame-retardant, safe and environmentally friendly.

XtraView® Wide Viewing Angle Technology: Allows the user to be able to see the monitor from any angle (170 degrees) from any orientation — Portrait or Landscape. Provides full 170° viewing angles either up, down, left or right.

Analog Advantage: Capable of displaying unlimited colors in a continuous spectrum, providing a truer representation of color. The monitor’s high contrast LCD enhances color vibrancy and improves focus with no geometric distortion.

Wider Compatibility: Because the MultiSync® LCD monitor is analog through and through, it does not require special analog to digital display or interface cards but can accept RGB input directly.

Reduced Footprint: Provides the ideal solution for environments requiring superior image quality but with size and weight limitations. The monitor’s small footprint and low weight allow it to be moved or transported easily from one location to another.

AccuColor® Control System: Allows you to adjust the colors on your screen and customize the color accuracy of your monitor to a variety of standards.

OSM™ (On-Screen Manager) Controls: Allow you to quickly and easily adjust all elements of your screen image via simple to use on-screen menus.

ErgoDesign® Features: Enhance human ergonomics to improve the working environment, protect the health of the user and save money. Examples include OSM controls for quick and easy image adjustments, tilt/swivel pivot stand for preferred angle of viewing, small footprint and compliance with MPRII guidelines for lower emissions.

Pivoting Stand: Allows users to adjust the monitor to the orientation that best fits their application, either Landscape orientation for wide documents, or portrait orientation for the ability to preview a full page on one screen at one time. The Portrait orientation is also perfect for full screen video conferencing.

Plug and Play: The Microsoft® solution with the Windows® 95/98 operating system facilitates setup and installation by allowing the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically optimizing display performance.

IPM™ (Intelligent Power Manager) System: Provides innovative power-saving methods that allow the monitor to shift to a lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace.

Multiple Frequency Technology: Automatically adjusts monitor to the display card’s scanning frequency, thus displaying the resolution required up to 1600 x 1200.

FullScan™ Capability: Allows you to use the entire screen area in most resolutions, significantly expanding image size.

VESA Standard Mounting Interface: Allows users to connect their MultiSync monitor to any VESA standard third party mounting arm or bracket. Allows for the monitor to be mounted on a wall or an arm using any third party compliant device.

BNC/D-SUB: Offers dual inputs, allowing you to connect the monitor to one system via a BNC cable and a another system via a standard D-Sub cable. You can easily switch between computers with a touch of a button on the up-front control panel.

OSM Display Screen Copyright 2000 by NEC Technologies, Inc.

12

LCD2110usersmanual

14

4/23/01, 10:44 AM

Troubleshooting

No picture

•The signal cable should be completely connected to the display card/computer.

•The display card should be completely seated in its slot.

•Power Button and computer power switch should be in the ON position.

•Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.)

•Check the monitor and your display card with respect to compatibility and recommended settings.

•Check the signal cable connector for bent or pushed-in pins.

•Check that the BNC/D-SUB button is in the correct position.

Power Button does not respond

•Unplug the power cord of the monitor from the AC outlet to turn off and reset the monitor, or simultaneously press the RESET and Power buttons.

Image persistence

•Image persistence is when a “ghost” of an image remains on the screen even after the monitor has been turned off. Unlike CRT monitors, LCD monitors’ image persistence is not permanent. To alleviate image persistence, turn the monitor off for as long as an image was displayed. If an image was on the monitor for one hour and a ”ghost” of that image remains, the monitor should be turned off for one hour to erase the image.

NOTE: As with all personal display devices, NEC Technologies recommends using a screen saver at regular intervals whenever the screen is idle.

Image is unstable, unfocused or swimming is apparent

•Signal cable should be completely attached to the computer.

•Use the OSM™ Image Adjust controls to focus and adjust display by increasing or decreasing the Fine control. When the display mode is changed, the OSM Image Adjust settings may need to be re-adjusted.

•Check the monitor and your display card with respect to compatibility and recommended signal timings.

•If your text is garbled, change the video mode to non-interlace and use 60Hz refresh rate.

LED on monitor is not lit (no green or amber color can be seen)

•Power Button should be in the ON position and power cord should be connected.

•Make certain the computer is not in a power-saving mode (touch the keyboard or mouse).

Display image has a green cast to it

•Select “TYPE” in the OSM Information menuand press theor Control button.

Display image is not sized properly

•Use the OSM Image Adjust controls to increase or decrease the H. Size.

•Check to make sure that a supported mode and signal timing has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode or refresh rate.)

13

LCD2110usersmanual

15

4/23/01, 10:44 AM

References

• BBS

[phone]

NEC-Mitsubishi Electronics Display of America Remote Bulletin Board System is an electronic service accessible with your system and a modem. Communication parameters are: 300/1200/2400/9600/14.4k/28.8k/33.6k bps, no parity, 8-data bits, 1 stop bit

• Customer Service/
Technical Support	[phone]
Fax	[phone]
• Electronic Channels:
Internet e-mail:	[e-mail]
Internet ftp site:	ftp.necmitsubishi.com
World Wide Web:	http://www.necmitsubishi.com
Product Registration:	http://www.necmitsubishi.com/productregistration
European Operations:	http://www.nec-monitors.com
Windows® 95/98/2000 INF File:	http://support.necmitsubishi.com/software.htm
	then download the file NECMSINF.ZIP
• FastFacts™ Information	[phone]
INFORMATION	DESCRIPTION	DOCUMENT #
Glossary	Definition of terms related	900203
	to functions, features and
	installation of the
	MultiSync® monitor
More Information	Names and addresses of	900204
	other groups involved in
	standards and features of
	the MultiSync monitor
Macintosh Connection	Detailed information on	153006
	connecting the MultiSync
	monitor to a Macintosh
Healthy Work Environment	Detailed information on	900108
	setting up a healthy work
	environment
• Literature & Sales Info	(800) NEC-INFO [[phone]]
• MultiSync Fulfillment	[phone]
	[For software & accessories]
• TeleSales	[phone]
	14

LCD2110usersmanual

16

4/23/01, 10:44 AM

Limited Warranty

NEC-Mitsubishi Electronics Display of America, Inc. (hereinafter “NMD-A”) warrants this Product to be free from defects in material and workmanship and, subject to the conditions set forth below, agrees to repair or replace (at NMD-A’s sole option) any part of the enclosed unit which proves defective for a period of three (3) years from the date of first consumer purchase. Spare parts are warranted for ninety (90) days. Replacement parts or unit may be new or refurbished and will meet specifications of the original parts or unit.

This warranty gives you specific legal rights and you may also have other rights, which vary from state to state. This warranty is limited to the original purchaser of the Product and is not transferable. This warranty covers only NMD-A-supplied components. Service required as a result of third party components is not covered under this warranty. In order to be covered under this warranty, the Product must have been purchased in the U.S.A. or Canada by the original purchaser. This warranty only covers Product distribution in the U.S.A. or Canada by NMD-A No warranty service is provided outside of the U.S.A. or Canada. Proof of Purchase will be required by NMD-A to substantiate date of purchase. Such proof of purchase must be an original bill of sale or receipt containing name and address of seller, purchaser, and the serial number of the product.

It shall be your obligation and expense to have the Product shipped, freight prepaid, or delivered to the authorized reseller from whom it was purchased or other facility authorized by NMD-A to render the services provided hereunder in either the original package or a similar package affording an equal degree of protection. All Products returned to NMD-A for service MUST have prior approval, which may be obtained by calling 1-800-632-4662. The Product shall not have been previously altered, repaired, or serviced by anyone other than a service facility authorized by NMD-A to render such service, the serial number of the product shall not have been altered or removed. In order to be covered by this warranty the Product shall not have been subjected to displaying of fixed images for long periods of time resulting in image persistence (afterimage effects), accident, misuse or abuse or operated contrary to the instructions contained in the User’s Manual. Any such conditions will void this warranty.

NMD-A SHALL NOT BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL, OR OTHER TYPES OF DAMAGES RESULTING FROM THE USE OF ANY NMD-A PRODUCT OTHER THAN THE LIABILITY STATED ABOVE. THESE WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU.

This Product is warranted in accordance with the terms of this limited warranty. Consumers are cautioned that Product performance is affected by system configuration, software, the application, customer data, and operator control of the system, among other factors. While NMD-A Products are considered to be compatible with many systems, specific functional implementation by the customers of the Product may vary. Therefore, suitability of a Product for a specific purpose or application must be determined by consumer and is not warranted by NMD-A.

For the name of your nearest authorized NEC-Mitsubishi Electronics Display service facility, contact NEC-Mitsubishi Electronics Display at 1-800-632-4662.

15

LCD2110usersmanual

17

4/23/01, 10:44 AM

TCO’99

MultiSync® LCD2110™

Congratulations! You have just purchased a TCO’99 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing. Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (Internal) and natural (external) environments. Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously.

What does labelling involve?

This product meets the requirements for the TCO’99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).

The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Environmental Requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride and these are related to another group of environmental toxins, PCBs, which are suspected to give rise to severe health effects, including reproductive damage in fisheating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in

16

LCD2110usersmanual

18

4/23/01, 10:44 AM

TCO’99 –continued

human blood and researchers fear that disturbances in foetus development may occur. TCO’99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound chlorine and bromine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Lead**

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning.

TCO’99 requirement permits the inclusion of lead since no replacement has yet been developed.

Cadmium**

Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses.

TCO’99 requirement states that batteries, the colourgenerating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury**

Mercury is sometimes found in batteries, relays and switches, Mercury damages the nervous system and is toxic in high doses.

TCO’99 requirement states that batteries may not contain any Mercury. It also demands that no mercury is present in any of the electrical or electronics components associated with the display unit.

CFCs (freons)

CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).

The relevant TCO’99 requirement; Neither CFCs nor HCFCs may be used during the manufacturing and assembly of the product or its packaging.

*Bio-accumulative is defined as substances which accumulate within living organisms. **Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

To obtain complete information on the environmental criteria document, order from: TCO Development Unit

SE-114 94 Stockholm SWEDEN

FAX Number: [phone] E-mail (Internet): [e-mail]

You may also obtain current information on TCO’99 approved and labelled products by visiting their website at: http://www.tco-info.com/

17

LCD2110usersmanual

19

4/23/01, 10:44 AM
