WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

symbol warns user that uninsulated voltage within the unit may have sufﬁcient magnitude to cause

Canadian Department of Communications Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1.

FCC Information

Use the attached speciﬁed cables with the 2170NX™ (L215GA), and LCD2070VX™ (L204FY) color monitors so as not to interfere with radio and television reception.

(1)

Please use the supplied power cord or equivalent to ensure FCC compliance.

(2) Please use the supplied shielded video signal cable. Please use the supplied USB

cable with ferrite cores. Use of other cables and adapters may cause interference with radio and television reception.

MultiSync® LCD2070NX™ (L204FY)

, LCD-

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may ﬁnd the following booklet, prepared by the Federal Communications Commission, helpful: ”How to Identify and Resolve Radio-TV Interference Problems.“ This booklet is available from the U.S. Government Printing Ofﬁce, Washington, D.C., 20402, Stock No. 004-000-00345-4.

Contents

User's Manual MultiSync LCD2070NX MultiSync LCD2170NX MultiSync LCD2170VX

Your new NEC MultiSync® LCD monitor box* should contain the following:

• MultiSync LCD monitor with height adjustable stand

• Power Cord

• Cable Management Cover

• Video Signal Cable (mini D-SUB 15 pin to mini D-SUB 15 pin)

• Video Signal Cable (DVI-D to DVI-D)

• USB Cable (LCD2070NX & LCD2170NX)

• User’s Manual

Power Cord

Cable Management Cover

Mini D-SUB Cable

USB Cable

(LCD2070NX &

DVI-D Cable

LCD2170NX)

User’s Manual

*Remembertosaveyouroriginalboxandpackingmaterialtotransportorshipthemonitor.

Display Setup

To attach the MultiSync® LCD monitor to your system:

1. Turn off the power to your computer.

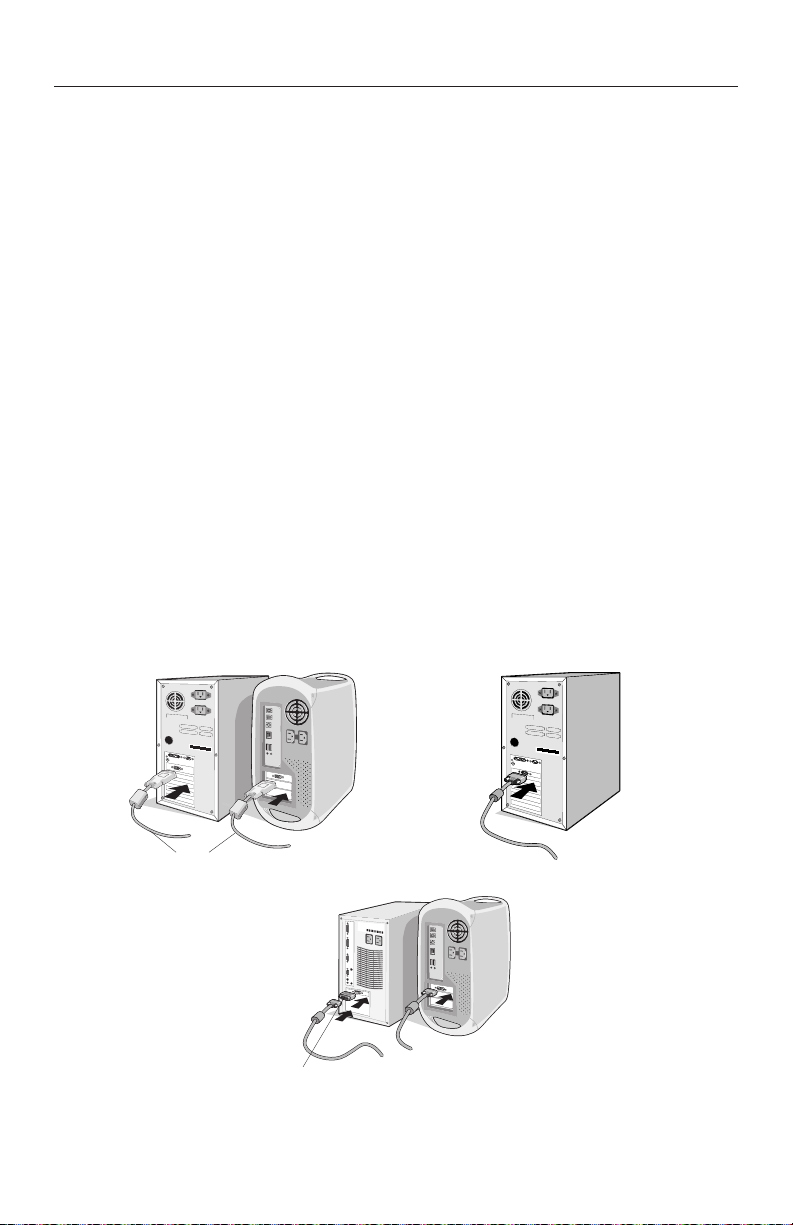

2. For the PC or MAC with DVI digital output : Connect the DVI signal cable to the connector of the display card in your system (Figure 1). Tighten all screws.

For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to the connector of the display card in your system (Figure 2). Tighten all screws.

For MAC setup: Connect the Macintosh cable adapter to the computer, then attach the 15-pin mini D-SUB signal cable to the Macintosh cable adapter (Figure 3). Tighten all screws.

NOTE: To obtain the MultiSync Macintosh cable adapter, call NEC

Display Solutions of America, Inc. at (800) 632-4662.

Figure 2Figure 1

DVI Signal Cable

Figure 3

Macintosh Cable Adapter (not included)

Note: Some Macintosh systems do not require a Macintosh Cable Adapter

Display Setup - continued

30˚ Tilt

Highest Stand Position

DVI Cable

Input1(DVI)

DC-OUT

Input2(

D-Sub)

USB

Power cord

3. Place hands on each side of the monitor to tilt the LCD panel 30degree angle and lift up to the highest position (Figure 4).

4. Connect all cables to the appropriate connectors (Figure 4).

NOTE: If connecting both DVI and D-sub cable, the DVI cable must

be connected along side the rib on the power cord side (Figure 4).

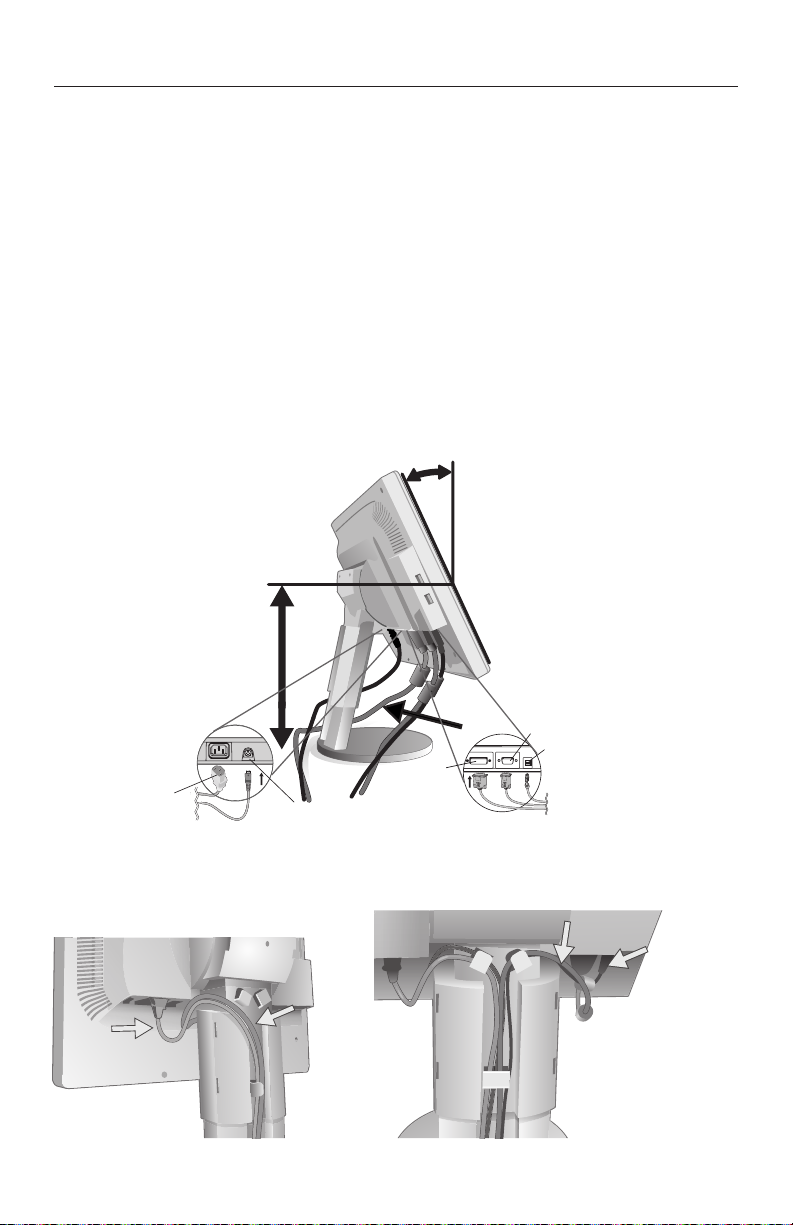

5. For successful cable management, place the cables in this order into the cable management: power cable and DVI cable (Figure 5).

6. Place DVI cable and power cable into the speciﬁc hooks indicated in (Figure 6).

Figure 4

(Pictured: LCD2070NX)

Power Cable (Bottom)

NEC optional product atttachment. Do not use this connector unless speciﬁed.

Figure 5

(Pictured: LCD2070NX)

DVI Cable (Top)

Figure 6

(Pictured: LCD2070NX)

(NX models only)

D-SUB Cable

USB Cable

(NX models only)

Display Setup - continued

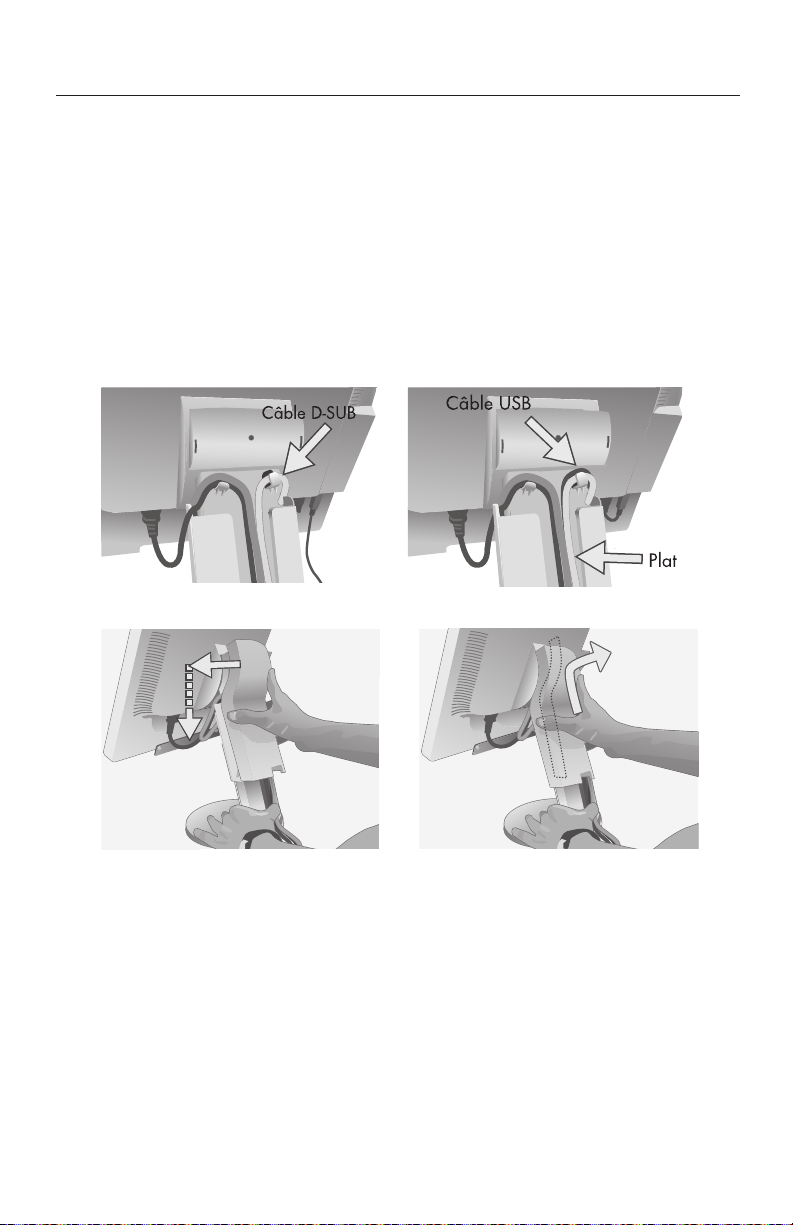

7. Place the D-Sub and the USB cable into the speciﬁc hooks indicated in (Figure 7). USB cable is used with NX models only.

8. Make sure all cables are resting ﬂat against the stand (Figure 7).

9. Hold the all cables ﬁrmly and place the cable cover onto the stand (Figure 8). To remove the cable cover, lift the cover off as shown in (Figure 9).

Figure 7

(Pictured: LCD2070NX)

(NX models only)

Figure 9Figure 8

Display Setup - continued7Display Setup - continued

10. Connect the power cord to the power outlet (Figure 10).

NOTE: If you have difﬁculty removing the cable cover, please push

the the cover up (towards the top of the monitor) in order to unhook the cover from the stand, then remove, as shown in (Figure 11). Handle with care when removing cable cover.

NOTE: If you use this monitor at AC125-240V, please refer to

Recommended Use section of this manual for proper selection of power cord.

11. The vacation switch on the back side of the monitor must be turned on (Figure 10). Turn on the monitor with the front power button and the computer.

NOTE: The vacation switch is a true on/off switch. If this switch is

on the OFF position, the monitor cannot be turned on using the front button. DO NOT switch on/off repeatedly.

Figure 11

Figure 10

Power Button

Vacation

Switch

OFF Position

ON Position

12. Analog input only: No-Touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial setup for most timings. For further adjustments, use the following OSM® controls:

• Auto Adjust Contrast • Auto Adjust

Refer to the Controls section of this User ’s Manual for a full descrip-

tion of these OSM controls.

NOTE: For download information on the Windows® 95/98/

Me/2000/XP INF ﬁle for your monitor, refer to the References section of this User’s Manual.

NOTE: If you have any problems, please refer to the Troubleshoot-

ing section of this User’s Manual.

Raise and Lower Monitor Screen

The monitor may be raised or lowered. To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1).

NOTE:

Figure RL.1

Handle with care when raising or lowering the monitor screen.

Tilt and Swivel

Grasp both sides of the monitor screen with your hands and adjust the tilt and swivel as desired (Figure TS.1)

NOTE:

Handle with care when tilting

and swiveling the monitor screen.

Figure TS.1

Mounting - LCD2070NX, LCD2070VX

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting method:

1. Place hands on each side of the monitor and lift up to the highest position. Remove the cable cover (Figure M.1).

NOTE: If you have difﬁculty removing the cable cover,

push the the cover up (towards the top of the monitor) in order to unhook the cover from the stand, then remove, as shown in (Figure). Handle with care when removing cable cover.

2. Disconnect all cables.

3. Place monitor face down on a non-abrasive surface (Figure M.2).

NOTE: Handle with care when the monitor is facing down to avoid

damaging the front buttons.

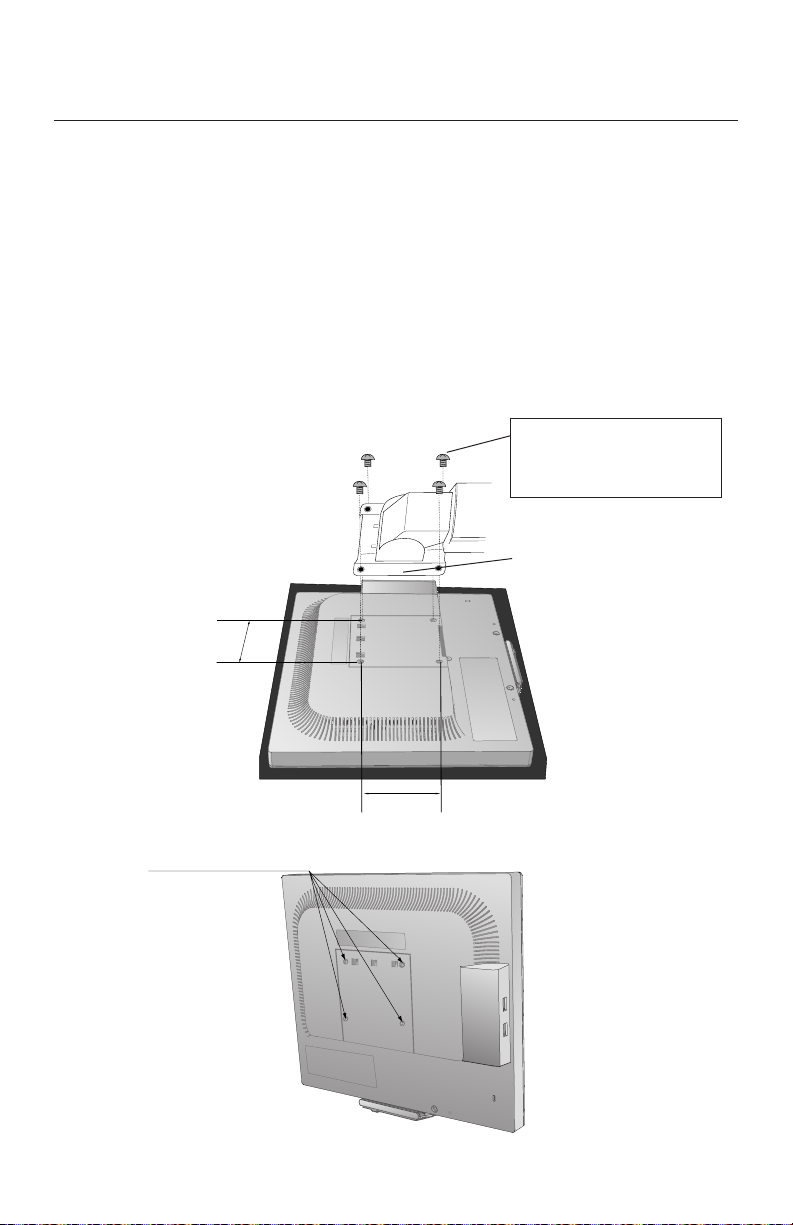

4. Remove the 2 screws connecting the stand to the monitor (Figure M.2).

5. Lift up the stand to unlatch the upper hooks and remove the stand (Figure M.3).

6. Remove the 2 screws on the top of the monitor (Figure M.4). The monitor is now ready for mounting in an alternate manner.

7. Connect the cables to the back of the monitor.

8. Reverse this process to reattach stand.

NOTE: Use only VESA-compatible alternative mounting method.

Handle with care when removing stand.

Figure M.2

Figure M.1

Figure

Figure M.3

Figure M.4

Mounting - LCD2170NX

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting method:

1. Place hands on each side of the monitor and lift up to the highest position. Remove the cable cover (Figure M.1).

NOTE: If you have difﬁculty removing the cable cover,

push the the cover up (towards the top of the monitor) in order to unhook the cover from the stand, then remove, as shown in (Figure). Handle with care when removing cable cover.

2. Disconnect all cables.

3. Place monitor face down on a non-abrasive surface (Figure M.2).

NOTE: Handle with care when the monitor is facing down to avoid

damaging the front buttons.

4. Remove the 4 screws connecting the stand to the monitor (Figure M.2).

5. Remove the stand (Figure M.3).

6. Connect the cables to the back of the monitor.

7. Reverse this process to reattach stand.

Figure

NOTE: Use only VESA-compatible alternative mounting method.

Handle with care when removing stand.

Figure M.2

Figure M.1

Figure M.3

Flexible Arm Installation - LCD2070NX, LCD2070VX

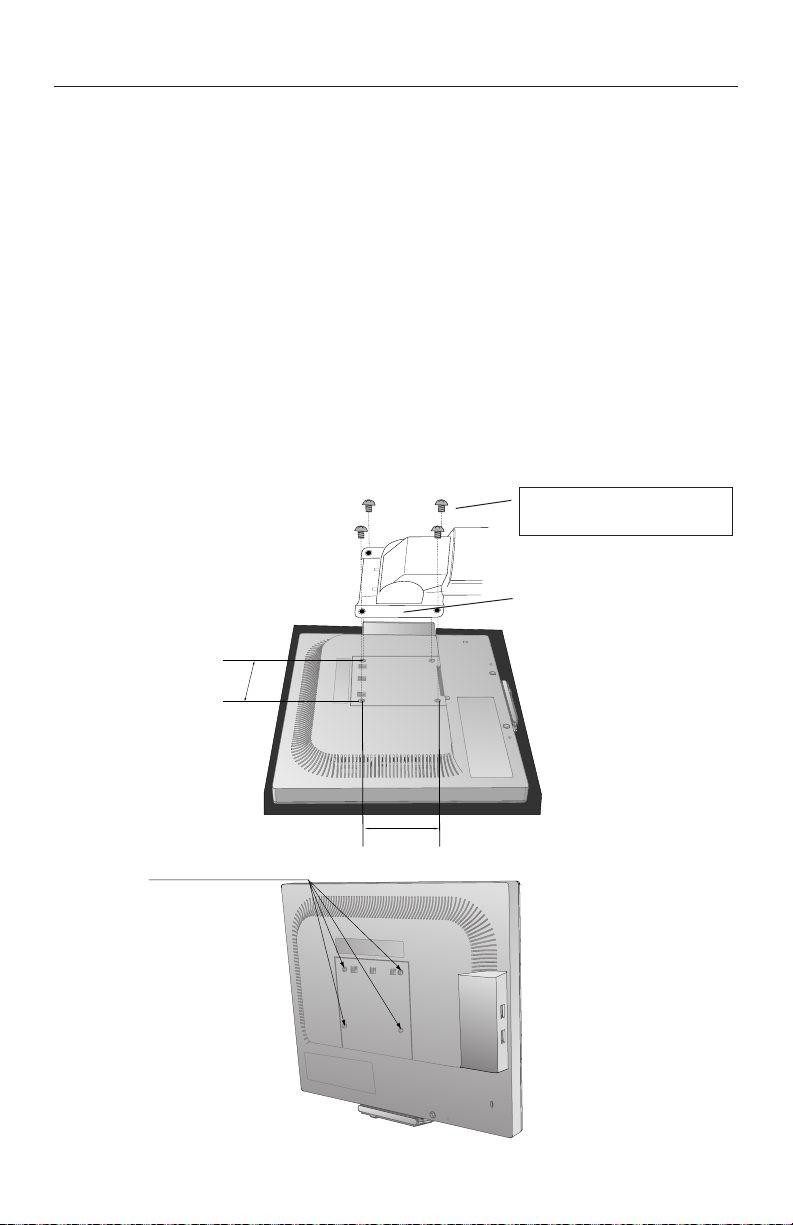

This LCD monitor is designed for use with a ﬂexible arm. To mount the monitor to a ﬂexible arm:

1. Follow the instructions on how to Remove Monitor Stand for Mounting to remove the stand.

2. Using the 4 screws from the stand removal and attach the arm to the monitor (Figure F.1).

NOTE: The LCD monitor should only be used with an approved arm

(e.g. GS mark). To meet the safety requirements, the monitor must be mounted to an arm which guaranties the necessary stability under consideration of the weight of the monitor.

NOTE: Please use the screws (4pcs) that were removed from stand when mounting flexible arm.

Figure F.1

100mm

4 Screws (4M) (Max Depth: 14 mm)

Thickness of Bracket (Arm)

2.0~3.2mm

100mm

Weight of LCD assembly: LCD2070NX: 5.7 kg MAX LCD2070VX: 5.8 kg MAX

(Pictured: LCD2070NX)

Flexible Arm Installation - LCD2170NX

This LCD monitor is designed for use with a ﬂexible arm. To mount the monitor to a ﬂexible arm:

1. Follow the instructions on how to Remove Monitor Stand for Mounting to remove the stand.

2. Use the 4 screws from the stand removal and attach the arm to the monitor (Figure F.1).

NOTE: The LCD monitor should only be used with an approved arm

(e.g. GS mark). To meet the safety requirements, the monitor must be mounted to an arm which guaranties the necessary stability under consideration of the weight of the monitor.

NOTE: Please use the screws (4pcs) that were removed from stand when mounting flexible arm.

Figure F.1

100mm

4 Screws (4M) (Max Depth: 14 mm)

100mm

Thickness of Bracket (Arm)

2.0~3.2mm

Weight of LCD assembly:

6.4

kg MAX

Controls

OSM® (On-Screen Manager) control buttons on the front of the monitor function as follows:

To access OSM menu, press any of the control buttons (MENU/EXIT, Left, Right, Down, Up). To change signal input, press the SELECT button. NOTE: OSM must be closed in order to change signal input.

Button Menu

MENU/EXIT

Left/Right

Down/Up

SELECT

RESET/DV MODE (LCD2070NX, LCD2170NX)

RESET (LCD2070VX)

NOTE: When RESET is pressed in the main and sub-menu, a warning window will appear allowing you to cancel the RESET function by pressing the MENU/EXIT button.

Exits the OSM controls. Returns to the OSM main menu.

Moves the highlighted area left/right to select control menus. Moves the bar left/right to increase or decrease the adjustment.

Moves the highlighted area down/up to select one of the controls.

Active Auto Adjust function. Enter the OSM sub menu.

Resets the highlighted control menu to the factory setting. Enter the DV MODE. (NX models only)

Brightness/Contrast Controls

BRIGHTNESS

Adjusts the overall image and background screen brightness.

CONTRAST

Adjusts the image brightness in relation to the background.

AUTO Contrast (Analog input only)

Adjusts the image displayed to optimal settings. DV MODE (LCD2070NX, LCD2170NX only) Allows you to select the suitable setting for Movie, Picture , etc.

Auto Adjust (Analog input only)

Automatically adjusts the Image Position, H. Size and Fine settings.

Controls - continued

Image Controls (Analog input only)

LEFT / RIGHT

Controls Horizontal Image Position within the display area of the LCD. DOWN / UP

Controls Vertical Image Position within the display area of the LCD. H.SIZE

Adjust this setting to increase or decrease the horizontal size. FINE

Adjust this setting to improve focus, clarity, and image stability.

AccuColor® Control Systems

AccuColor® Control Systems: Six color presets select the desired color setting (sRGB

and NATIVE color presets are standard and cannot be changed). R,G,B: Increases or decreases Red, Green or Blue color depending upon which is

selected. The change in color will appear on screen and the direction (increase or

decrease) will be shown by the bars.

NATIVE: sRGB: sRGB mode dramatically improves the color ﬁdelity in the desktop

environment by a single standard RGB color space. With this color supported

environment, the operator could easily and conﬁdently communicate color

without further color management overhead in the most common situations.

Original color presented by the LCD panel that is unadjustable.

Tools

SHARPNESS (LCD2070VX/LCD2170NX): This function allows the adjustment of

the crispness of the displayed image at any time. The image can be as distinct or

as soft as the user prefers. The amount of image adjustment is different depending

on whether EXPANSION Mode is set to OFF, FULL or ASPECT.

EXPANSION MODE (LCD2070VX/LCD2170NX): Sets the zoom method.

FULL: The image is expanded to 1600 x 1200, regardless of the resolution.

ASPECT: The image is expanded without changing the aspect ratio.

OFF: The image is not expanded.

OFF TIMER: Monitor will automatically power-down when the end user has

selected a predetermined amount of time.

HOT KEY: You can adjust the brightness and contrast directly. When this function is

set to ON, you can adjust the brightness with

up or down control while the OSM menu is off. FACTORY PRESET: Selecting Factory Preset allows you to reset all OSM control set-

tings back to the factory settings. The RESET button will need to be held down for

several seconds to take effect. Individual settings can be reset by highlighting the

control to be reset and pressing the RESET button.

left or right control

and contrast with

Controls - continued

Menu Tools

LANGUAGE: OSM® control menus are available in eight languages. OSM LEFT/RIGHT: You can choose where you would like the OSM control

image to appear horizontally on your screen. OSM DOWN/UP: You can choose where you would like the OSM control image

to appear vertically on your screen. OSM TURN OFF: The OSM control menu will stay on as long as it is in use. In the

OSM Turn Off submenu, you can select how long the monitor waits after the last

touch of a button to shut off the OSM control menu. OSM LOCK OUT: This control completely locks out access to all OSM control func-

tions except Brightness and Contrast. When attempting to activate OSM controls

while in the Lock Out mode, a screen will appear indicating the OSM controls are

locked out. To activate the OSM Lock Out function, press SELECT, then right control

button and hold down simultaneously. To deactivate the OSM Lock Out, press

SELECT, then left control button and hold down simultaneously while in the OSM

menu. RESOLUTION NOTIFIER: If this option is ON, a message will appear on the screen

after 30 seconds notifying the user that the optimal resolution is not being used.

The optimal resolution is 1600 x 1200.

Information

The Information menu indicates the current input, display resolution, horizontal

and vertical frequency, and polarity settings of the monitor. The model and serial

numbers of your monitor are also indicated. OSM® Warning: OSM Warning menus disappear with Exit button.

NO SIGNAL: This function gives a warning when there is no signal present.

After power is tuned on or when there is a change of input signal or video is

inactive, the No Signal window will appear.

RESOLUTION NOTIFIER: This function gives a warning if a resolution other

than the optimal resolution is used. After power is turned on or when there is a

change of input signal or the video signal doesn’t have proper resolution, the

Resolution Notiﬁer window will open. This function can be disabled in the Menu

Tools.

OUT OF RANGE: This function gives a recommendation of the optimized

resolution and refresh rate. After the power is turned on or there is a change of input

signal or the video signal doesn’t have proper timing, the Out Of Range menu will

appear.

• For Advanced Menu options for the LCD2170NX only see page 22.

Recommended Use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE

THE FOLLOWING WHEN SETTING UP AND USING

THE MULTISYNC® LCD COLOR MONITOR:

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or

removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualiﬁed service personnel.

• Do not spill any liquids into the cabinet or use your monitor near water.

• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage

points, which can be harmful or fatal or may cause electric shock, ﬁre or equipment failure.

• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or ﬁre.

• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall,

causing serious damage to the monitor.

• When operating the MultiSync LCD monitor with its AC 125-240V power supply, use a power

supply cord that matches the power supply voltage of the AC power outlet being used. The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H05VV-F should be used in Europe)

• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed for use

with this monitor. If a power cord is not supplied with this monitor, please contact your supplier.

• Do not place any objects onto the monitor and do not use the monitor outdoors.

• The inside of the ﬂourescent tube located within the LCD monitor contains mercury. Please follow the bylaws or rules of your municipality to dispose of the tube properly.

• Do not bend power cord.

• Do not use monitor in high temperatured, humid, dusty, or oily areas.

• Do not cover vent on monitor. Immediately unplug your monitor from the wall outlet and refer servicing to qualiﬁed service personnel under the following conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following operating instructions.

• If glass is broken, handle with care.

• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.

• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do

not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.

• The power cable connector is the primary means of detaching the system from the

CAUTION

• Handle with care when transporting. Save packaging for transporting.

power supply. The monitor should be installed close to a power outlet which is easily accessible.

Image Persistence

Please be aware that LCD Technology may experience a phenomenon known as Image Persistence. Image Persistence occurs when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided.

To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

Recommended Use - continued

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR

CAN REDUCE EYE, SHOULDER AND NECK FATIGUE.

CHECK THE FOLLOWING WHEN YOU POSITION THE MONITOR:

• For optimum performance, allow 20 minutes for warm-up.

•

Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.

•

Position your monitor no closer than 16 inches and no further away than 28 inches from your eyes. The optimal distance is 20 inches.

• Rest your eyes periodically by focusing on an object at least 20 feet away. Blink often.

• Position the monitor at a 90° angle to windows and other light sources to minimize glare and reﬂections. Adjust the monitor tilt so that ceiling lights do not reﬂect on your screen.

• If reﬂected light makes it hard for you to see your screen, use an anti-glare ﬁlter.

• Adjust the monitor’s brightness and contrast controls to enhance readability.

• Use a document holder placed close to the screen.

• Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to minimize turning your head while you are typing.

• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomics beneﬁts, we recommend the following:

•

Use the preset Size and Position controls with standard signals

•

Use the preset Color Setting

•

Use non-interlaced signals with a vertical refresh rate between 60-85Hz

•

Do not use primary color blue on a dark background, as it is difﬁcult to see and may produce eye fatigue to insufﬁcient contrast.

For more detailed information on setting up a healthy work environment, write the American National Standard for Human Factors Engineering of Visual Display Terminal Workstations – ANSI-HFS Standard No. 100-1988 – The Human Factors Society, Inc. P.O. Box 1369, Santa Monica, California

90406.

Cleaning the LCD Panel

• When the liquid crystal panel becomes dusty or dirty, please wipe gently with soft cloth.

• Please do not rub the LCD panel with hard material.

• Please do not apply pressure to the LCD surface.

• Please do not use OA cleaner. OA cleaner will cause deterioration or discolor the LCD surface.

Cleaning the Cabinet

• Unplug the power supply

• Gently wipe the cabinet with a soft cloth

• To clean the cabinet, dampen the cloth with a neutral detergent and water, wipe the cabinet

and follow with a dry cloth. NOTE: Many plastics are used on the surface of the cabinet. DO NOT clean with benzene,

thinner, alkaline detergent, alcoholic system detergent, glass cleaner, wax, polish cleaner, soap powder, or insecticide. Do not touch rubber or vinyl to the cabinet for a long time. These types of ﬂuids and fabrics can cause the paint to deteriorate, crack or peel.

Specications

Monitor Speciﬁcations

LCD Module Diagonal :

Input Signal Video :

Display Colors 16,777,216 Dependent on display card used.

Maximum Viewing Angles

Synchronization Range

Resolutions Supported

Active Display Area Horizontal :

USB Hub I/P :

Viewable Image Size :

Native Resolution

(Pixel Count) :

Left/Right :

Up/Down :

Horizontal :

Vertical :

Load Current :

MultiSync® LCD2070NX Notes

20.1 inch

1600 x1200 ANALOG 0.7 Vp-p/75 Ohms

Sync :

Separate sync. TTL Level Positive/Negative Composite sync. Positive/Negative Composite Sync on Green (0.3Vp-p negative and 0.7Vp-p positive)

88°/88° (CR>10) 88°/88° (CR>10)

31.5 kHz to 91.1 kHz

56.0 Hz to 85.0 Hz 720 x 400*1 :VGA text

640 x 480*1 @ 60 Hz to 85 Hz 800 x 600*1 @ 56 Hz to 85 Hz 832 x 624*1 @ 75 Hz 1024 x 768*1 @ 60 Hz to 85 Hz 1152 x 864*1 @ 75 Hz 1152 x 870*1 @ 75 Hz 1280 x 960 @*1 @ 75 Hz 1280 x 1024*1 @ 60 Hz to 85 H 1

600 x 1200 @ 60 Hz.........................

408 mm/16.1 inches 306 mm/12.0 inches

USB Speciﬁcation Revision 2.0

Port :

Upstream 1 Downstream 4 Maximum 0.5A per port

Active matrix; thin ﬁlm transistor (TFT) liquid crystal display (LCD); 0.255 mm dot pitch; 250cd/m2 700:1 contrast ratio, typical

Digital Input: DVI-D

Automatically Automatically

Some systems may not support all modes listed.

NEC DISPLAY SOLUTIONS cites recommended resolution at 60 Hz for optimal display performance.

white luminence;

Power Supply 100 – 240 V~ 50/60 Hz Current Rating 1.25 - 0.70 A Dimensions 442 mm (W) x 388.5-498.5 mm (H) x

Weight 8.6 kg

Environmental Considerations

*1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is

normal and necessary for all current ﬂat panel technologies when displaying non-native resolutions full screen. In ﬂat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done.

NOTE: Technical speciﬁcations are subject to change without notice.

Operating Temperature :

Storage Temperature :

Humidity :

Altitude :

Humidity :

Altitude :

220.0 mm (D)

17.4 inches (W) x 15.3-19.6 inches (H) x

8.7 inches (D)

19.0 lbs 5°C to 35°C/41°F to 95°F

30% to 80% 0 to 12,000 Feet

-10°C to 60°C/14°F to 140°F 10% to 85% 0 to 40,000 Feet

Specications

Monitor Speciﬁcations

LCD Module Diagonal :

Input Signal Video :

Display Colors 16,777,216 Dependent on display card used.

Maximum Viewing Angles

Synchronization Range

Resolutions Supported

Active Display Area Horizontal :

USB Hub I/P :

Viewable Image Size :

Native Resolution

(Pixel Count) :

Left/Right :

Up/Down :

Horizontal :

Load Current :

MultiSync® LCD2170NX Notes

21.3 inch

1600 x1200 ANALOG 0.7 Vp-p/75 Ohms

Sync :

Separate sync. TTL Level Positive/Negative Composite sync. Positive/Negative Composite Sync on Green (0.3Vp-p negative and 0.7Vp-p positive)

88°/88° (CR>10) 88°/88° (CR>10)

31.5 kHz to 91.1 kHz

Vertical :

56.0 Hz to 85.0 Hz 720 x 400*1:VGA text

640 x 480*1 @ 60 Hz to 85 Hz 800 x 600*1 @ 56 Hz to 85 Hz 832 x 624*1 @ 75 Hz 1024 x 768*1 @ 60 Hz to 85 Hz 1152 x 864*1 @ 60 Hz to 85 Hz 1152 x 870*1 @ 75 Hz 1280 x 960 @*1 @ 60 Hz to 85 Hz 1280 x 1024*1 @ 60 Hz to 85 Hz

1600 x 1200 @ 60 Hz...............................

432 mm/17.0 inches

Vertical :

324 mm/12.8 inches USB Speciﬁcation Revision 2.0

Port :

Upstream 1 Downstream 2 Maximum 0.5A per port

Active matrix; thin ﬁlm transistor (TFT) liquid crystal display (LCD); 0.270 mm dot pitch; 300cd/m2 1000:1 contrast ratio, typical

Digital Input: DVI-D

Automatically Automatically

Some systems may not support all modes listed.

NEC DISPLAY SOLUTIONS cites recommended resolution at 60 Hz for optimal display performance.

white luminence;

Power Supply 100 – 240 V~ 50/60 Hz Current Rating 1.30-0.70A Dimensions 466.0 mm (W) x 397.7-507.7 mm (H) x

Weight 9.2 kg

Environmental Considerations

*1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is

NOTE: Technical speciﬁcations are subject to change without notice.

Operating Temperature :

Humidity :

Storage Temperature :

Altitude :

Humidity :

Altitude :

220.0 mm (D)

18.3 inches (W) x 15.6-20.0 inches (H) x

8.7 inches (D)

20.3 lbs 5°C to 35°C/41°F to 95°F

30% to 80% 0 to 12,000 Feet

-10°C to 60°C/14°F to 140°F 10% to 85% 0 to 40,000 Feet

Specications

Monitor Speciﬁcations

LCD Module Diagonal :

Input Signal Video :

Display Colors 16,777,216 Dependent on display card used.

Maximum Viewing Angles

Synchronization Range

Resolutions Supported

Active Display Area Horizontal :

Power Supply 100 – 240 V~ 50/60 Hz Current Rating 1.05-0.55A Dimensions 442 mm (W) x 388.5-498.5 mm (H) x

Weight 8.6 kg

Environmental Considerations

*1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is

NOTE: Technical speciﬁcations are subject to change without notice.

Viewable Image Size :

Native Resolution

(Pixel Count) :

Left/Right :

Up/Down :

Horizontal :

Vertical :

Operating Temperature :

Humidity :

Storage Temperature :

Altitude :

Humidity :

Altitude :

MultiSync® LCD2070VX Notes

20.1 inch

1600 x1200 ANALOG 0.7 Vp-p/75 Ohms

Sync :

Separate sync. TTL Level Positive/Negative Composite sync. Positive/Negative Composite Sync on Green (0.3Vp-p negative and 0.7Vp-p positive)

80°/80° (CR>10) 80°/80° (CR>10)

31.5 kHz to 83.0 kHz

56.0 Hz to 75.0 Hz 720 x 400*1 VGA text

640 x 480*1 @ 60 Hz to 75 Hz 800 x 600*1 @ 56 Hz to 75 Hz 832 x 624*1 @ 75 Hz 1024 x 768*1 @ 60 Hz to 75 Hz 1152 x 864*1 @ 75 Hz 1152 x 870*1 @ 75 Hz 1280 x 960 @*1 @ 75 Hz 1280 x 1024*1 @ 60 Hz to 75 Hz

1600 x 1200 @ 60 Hz...............................

408 mm/16.1 inches 306 mm/12.0 inches

220.0 mm (D)

17.4 inches (W) x 15.3-19.6 inches (H) x

8.7 inches (D)

19.0 lbs 5°C to 35°C/41°F to 95°F

30% to 80% 0 to 15,000 Feet

-10°C to 60°C/14°F to 140°F 10% to 85% 0 to 40,000 Feet

Active matrix; thin ﬁlm transistor (TFT) liquid crystal display (LCD); 0.255 mm dot pitch; 290cd/m² 800:1 contrast ratio, typical

Digital Input: DVI-D

Automatically Automatically

Some systems may not support all modes listed.

NEC DISPLAY SOLUTIONS cites recommended resolution at 60 Hz for optimal display performance.

white luminence;

Features

Thin-frame design creates more desktop space for you to work and play, while the ﬂat screen’s crisp, bright images and crystal-clear text deliver a comfortable viewing experience.

No Touch Auto Adjust™ automatically adjusts your optimal image settings upon initial power-on.

AccuColor® Control System allows you to change between six color settings on your display to match your personal preference.

Redesigned OSM® controls allow you to quickly and easily adjust all elements of your screen image.

NaViSet™ software offers an expanded and intuitive graphical interface, allowing you to more easily adjust OSM® display settings via mouse and keyboard.

Height adjustable stand with tilt, swivel and cable management adds ﬂexibility to your viewing preferences.

USB 2.0 (LCD2070NX/LCD2170NX) hub adds excitement to your computing by connecting you to digital cameras, scanners and more.

ErgoDesign® Features: Enhance human ergonomics to improve the working environment, protect the health of the user and save money. Examples include OSM controls for quick and easy image adjustments, tilt base for preferred angle of vision, small footprint and compliance with MPRII and TCO guidelines for lower emissions.

Plug and Play: The Microsoft® solution with the Windows®95/98/Me/2000/XP operating system facilitates setup and installation by allowing the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically optimizing display performance.

IPM® (Intelligent Power Manager) System: Provides innovative power-saving methods that allow the monitor to shift to a lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace.

Multiple Frequency Technology: Automatically adjusts monitor to the display card’s scanning frequency, thus displaying the resolution required.

FullScan® Capability: Allows you to use the entire screen area in most resolutions, signiﬁcantly expanding image size.

VESA Standard Mounting Interface: Allows users to connect their MultiSync® monitor to any VESA standard third party mounting arm or bracket. Allows for the monitor to be mounted on a wall or an arm using any third party compliant device.

Troubleshooting

No picture

•

The signal cable should be completely connected to the display card/computer.

• The display card should be completely seated in its slot.

• Make sure the Vacation Switch is in the ON position.

• Front Power Switch and computer power switch should be in the ON position.

• Check to make sure that a supported mode has been selected on the display card or used. (Please consult display card or system manual to change graphics mode.)

• Check the monitor and your display card with respect to compatibility and recommended settings.

• Check the signal cable connector for bent or pushed-in pins.

• Check the signal input, “INPUT 1” or “INPUT 2”.

Power Button does not respond

• Unplug the power cord of the monitor from the AC outlet to turn off and reset the

monitor.

• Check the Vacation Switch on the back side of the monitor.

Image Persistence

• Please be aware that LCD Technology may experience a phenomena known as Image Persistence. Image Persistence occurs when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided. To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image. As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

Image is unstable, unfocused or swimming is apparent

• Signal cable should be completely attached to the computer.

• Use the OSM Image Adjust controls to focus and adjust display by increasing or decreasing the ﬁne total. When the display mode is changed, the OSM Image Adjust settings may need to be re-adjusted.

• Check the monitor and your display card with respect to compatibility and recommended signal timings.

•

If your text is garbled, change the video mode to non-interlace and use 60Hz refresh rate.

LED on monitor is not lit (no green or amber color can be seen)

• Power Switch should be in the ON position and power cord should be connected.

• Make sure the Vacation Switch is in the ON position.

Display image is not sized properly

• Use the OSM Image Adjust controls to increase or decrease the H.SIZE.

•

Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.)

No Video

• If no video is present on the screen, turn the Vacation Switch off and on again.

•

Make certain the computer is not in a power-saving mode (touch the keyboard or mouse).

system being

Advanced Menu - LCD2170NX only

If you need detailed information about the controls, please use the advanced menu.

To use the Advanced Menu

• Turn off your monitor.

• Turn on your monitor by pressing the “POWER” and “SELECT” buttons simultaneously for a few seconds.

• You will see the “Advanced Menu”.

To exit the Advanced Menu

• Turn off and restart you monitor in the normal manner.

Tag 1 AUTO BLACK LEVEL

(Analog Input Only)

BLACK LEVEL

(Analog Input Only)

Automatically adjusts the black level.

Manually adjusts the black level.

NEC Monitor Customer Service & Support

References

Customer Service and Technical Support: Fax: (800) 695-3044

Parts and Accessories/Macintosh Cable Adapter: (800) 632-4662

Warranty Information: www.necdisplay.com

Online Technical Support www.necdisplay.com

Sales and Product Information Sales Information Line: (888) 632-6487 Canadian Customers: (866) 771-0266, Ext#: 4037 Government Sales: (800) 284-6320 Government Sales email: gov@necdisplay.com

Electronic Channels World Wide Web: www.necdisplay.com Product Registration: www.necdisplay.com European Operations: www.nec-display-solutions.com

Drivers and Downloads www.necdisplay.com

(800) 632-4662

Limited Warranty

NEC Display Solutions of America, Inc. (hereinafter “NEC DISPLAY SOLUTIONS”) warrants this Product to be free from defects in material and workmanship and, subject to the conditions set forth below, agrees to repair or replace (at NEC DISPLAY SOLUTIONS’ sole option) any part of the enclosed unit which proves defective for a period of three (3) years from the date of ﬁrst consumer purchase. Spare parts are warranted for ninety (90) days. Replacement parts or unit may be new or refurbished and will meet speciﬁcations of the original parts or unit.

This warranty gives you speciﬁc legal rights and you may also have other rights, which vary from state to state. This warranty is limited to the original purchaser of the Product and is not transferable. This warranty covers only NEC DISPLAY SOLUTIONS-supplied components. Service required as a result of third party components is not covered under this warranty. In order to be covered under this warranty, the Product must have been purchased in the U.S.A. or Canada by the original purchaser. This warranty only covers Product distribution in the U.S.A. or Canada by NEC DISPLAY SOLUTIONS No warranty service is provided outside of the U.S.A. or Canada. Proof of Purchase will be required by NEC DISPLAY SOLUTIONS to substantiate date of purchase. Such proof of purchase must be an original bill of sale or receipt containing name and address of seller, purchaser, and the serial number of the product.

It shall be your obligation and expense to have the Product shipped, freight prepaid, or delivered to the authorized reseller from whom it was purchased or other facility authorized by NEC DISPLAY SOLUTIONS to render the services provided hereunder in either the original package or a similar package affording an equal degree of protection. All Products returned to NEC DISPLAY SOLUTIONS for service MUST have prior approval, which may be obtained by calling 1-800-632-4662. The Product shall not have been previously altered, repaired, or serviced by anyone other than a service facility authorized by NEC DISPLAY SOLUTIONS to render such service, the serial number of the product shall not have been altered or removed. In order to be covered by this warranty the Product shall not have been subjected to displaying of ﬁxed images for long periods of time resulting in image persistence (afterimage effects), accident, misuse or abuse or operated contrary to the instructions contained in the User’s Manual. Any such conditions will void this warranty.

NEC DISPLAY SOLUTIONS SHALL NOT BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL, OR OTHER TYPES OF DAMAGES RESULTING FROM THE USE OF ANY NEC DISPLAY SOLUTIONS PRODUCT OTHER THAN THE LIABILITY STATED ABOVE. THESE WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU.

This Product is warranted in accordance with the terms of this limited warranty. Consumers are cautioned that Product performance is affected by system conﬁguration, software, the application, customer data, and operator control of the system, among other factors. While NEC DISPLAY SOLUTIONS Products are considered to be compatible with many systems, speciﬁc functional implementation by the customers of the Product may vary. Therefore, suitability of a Product for a speciﬁc purpose or application must be determined by consumer and is not warranted by NEC DISPLAY SOLUTIONS.

For the name of your nearest authorized NEC DISPLAY SOLUTIONS service facility, contact NEC Display Solutions of America, Inc. at 1-800-632-4662.

TCO’03

Congratulations!

The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Some of the features of the TCO’03 Display requirements:

Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reﬂectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time – beneﬁcial both for the user and the environment

• Electrical safety

Emissions

• Electromagnetic ﬁelds

• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certiﬁed environmental management system such as EMAS or ISO 14 001

• Restrictions on:

- chlorinated and brominated ﬂame retardants and polymers

- heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in cooperation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in inﬂuencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

+ 60 hidden pages
