1

Contents

Your new NEC MultiSync® LCD monitor box* should contain the
following:

• MultiSync LCD1980SX™ monitor with tilt/swivel/pivot/adjustable stand

• Power Cord

• Video Signal Cable (15-pin mini D-SUB male to DVI-A)

• Video Signal Cable (DVI-D to DVI-D cable)

• User’s Manual

• CD-ROM

• Cable cover

Power Cord

15-pin mini D-SUB
male to DVI-A

Cable Cover

TM

®

MultiSync

LCD1980SX

User’s Manual

*Remember to save your original box and packing material to transport or ship the monitor.

CD-ROM

DVI-D to DVI-D cable

2

Quick Start

To attach the MultiSync® LCD monitor to your system, follow these instructions:

1. Turn off the power to your computer.

2. For the PC or MAC with DVI digital output: Connect the DVI signal cable to the connector of the

display card in your system (Figure A.1). Tighten all screws.
For the PC with Analog output: Connect the 15-pin mini D-SUB to DVI-A

connector of the display card in your system (Figure A.2).
For the MAC: Connect the MultiSync Macintosh cable adapter to the computer, then attach the

15-pin mini D-SUB signal cable to the MultiSync Macintosh cable adapter (Figure B.1).

NOTE: Some Macintosh systems do not require a Macintosh cable adapter.
NOTE: To obtain the MultiSync Macintosh cable adapter call NEC-Mitsubishi Electronics Display of

America, Inc. at [phone].

3. Connect the DVI signal cable to the connector on the back of the monitor. Place the video signal
cable

(Figure C.1)

NOTE: Incorrect cable connections may result in irregular operation, damage display

quality/components of LCD module and/or shorten the module’s life.
Collect cables and keep them in the stand by attaching the cable cover. The cable cover can

be attached on the front or back side of tilt stand

Please check Tilt, Rise and Lower monitor screen and screen rotation when you manage cables.

4. Connect one end of the power cord to the AC inlet on the back of the monitor and the
other end to the power outlet (Figure C.1).

NOTE: If you use this monitor at AC220-240V, please refer to Recommended Use section of this

manual for proper selection of AC power cord.

NOTE: For the MAC with digital output: before turning on the MAC, the DVI Input mode must

be set to DIGITAL in DVI SELECTION of OSM by pressing SELECT button then CONTROL
button when the DVI signal cable is connected to the DVI-I connector (Input1) of the
monitor. Otherwise the MAC may not turn on.

5. The Vacation Switch on the left side of the monitor must be turned on. Turn on the monitor with the
front power button (Figure D.1).

NOTE:

The Vacation Switch is a true on/off switch. If this switch is on the OFF position, the
monitor cannot be turned on using the front button. DO NOT switch on/off repeatedly.

6. Turn on the computer. No-touch auto adjust automatically adjusts the monitor to optimal settings
upon initial setup for most timings. For further adjustments, use the following OSM® controls:

• Auto Contrast (Analog input only) • Auto Adjust (Analog input only)
Refer to the Controls section of this User’s Manual for a full description of these OSM controls.

NOTE: For download information on the Windows® 95/98/Me/2000/XP INF file for your MultiSync

LCD1980SX monitor, refer to the References section of this User’s Manual.

NOTE: If you have any problems, please refer to the Troubleshooting section of this User’s Manual.

. Connect the VGA or DVI to Input 2.

Figure A.1

(Figure C.1, C.2).

Figure A.2

signal cable to the

Figure B.1

Macintosh

Adapter

Macintosh Cable Adapter (not included) Note: Some
Macintosh systems do not require a Macintosh Cable Adapter

3

Quick Start –continued

INPUT1 INPUT1 INPUT2INPUT2

Figure C.1

Figure C.2

NEC optional product attachment. Do not
use this connector unless specified.

Vacation
Switch

Figure D.1

Raise and Lower Monitor Screen

The monitor may be raised or lowered in either Portrait or Landscape mode.
To raise or lower screen, place hands on each side of the monitor and lift or
lower to the desired height (Figure RL.1).

NOTE: Handle with care when raising or lowering the monitor screen.

Figure RL.1

Power
Button

4

Quick Start –continued

Screen Rotation

Before rotating, the screen must be raised to the highest level to avoid knocking
the screen on the desk or pinching your fingers. To raise the screen, place hands
on each side of the monitor and lift up to the highest position (Figure RL.1).

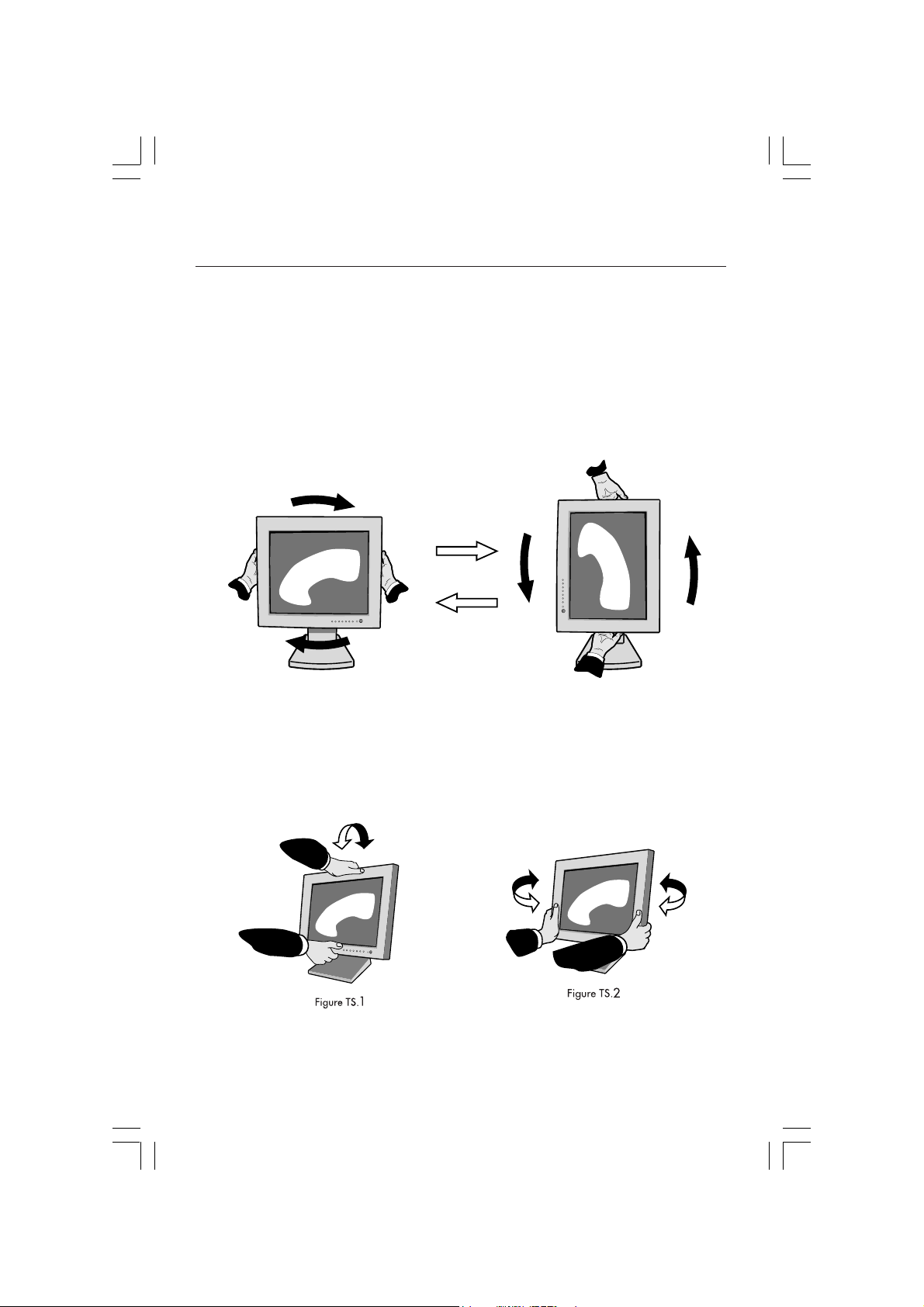

To rotate screen, place hands on each side of the monitor screen and turn
clockwise from Landscape to Portrait or counter-clockwise from Portrait to
Landscape (Figure R.1).

To toggle the orientation of the OSM menu between Landscape and Portrait
modes, refer to the “Controls” section, “OSM Rotation” function.

Figure R.1

Tilt

Grasp top and bottom sides of the monitor
screen with your hands and adjust the tilt
as desired (Figure TS.1).

NOTE: Handle with care when tilting the monitor screen.

Swivel

Grasp both sides of the monitor screen
with your hands and adjust the swivel
as desired (Figure TS.2).

5

Quick Start –continued

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:

1. Disconnect all cables.

2. Place hands on each side of the monitor and lift up to the highest position.

3.

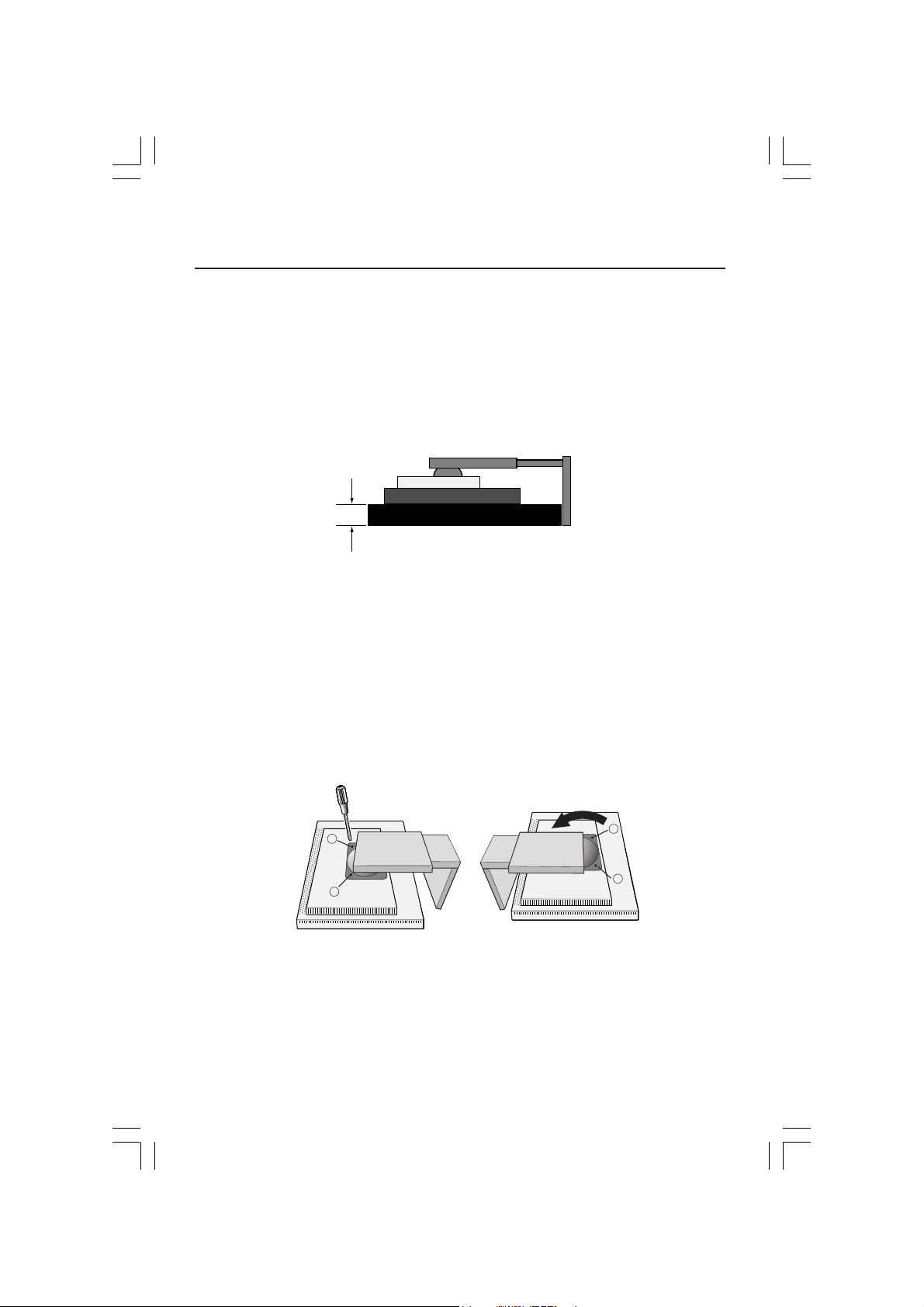

Place monitor face down on a nonabrasive surface. (Place the screen on a 33
mm platform so that the stand is parallel with the surface.) (Figure S.1)

33mm

Figure S.1

4. Remove the two top screws connecting the monitor to the stand (Figure

S.2). Turn the stand to 180˚ counterclockwise (you will hear two clicks).
Remove the screws from the bottom (Figure S.3) and lift off the stand. The
monitor is now ready for mounting in an alternate manner.

5. Reverse this process to reattach stand: tighten the two bottom screws, turn

stand 180˚ counterclockwise (you will hear two clicks), and tighten two top
screws.

NOTE: Use only VESA-compatible alternative mounting method. (100mm pitch)
NOTE: Handle with care when removing monitor stand.

2

1

Figure S.2 and Figure S.3

Caution: Use the original screws (4 pcs) when mounting to avoid damage to the monitor and stand. To

fulfill the safety requirements the monitor must be mounted to an arm which guaranties the
necessary stability under consideration of the weight of the monitor. The LCD monitor should
only be used with an approved arm

(e.g. GS mark).

6

4

3

Quick Start –continued

Long Cable Compensation Adjustment

To perform the long cable compensation adjustment, use the following steps:

Set the Auto Adjust Level (Auto SW) to “DETAIL” in the Advanced OSM

"Size" "Fine"

"Position"

SIMPLE X
FULL X
DETAIL

O: Automatic adjustment is performed.
X: Automatic adjustment is not performed.
*1: Black level, RGB sharpness, RGB delay and RGB position are adjusted using Long Cable Software (included).

O
O
O

"

Contrast"

X
O
OO

Black Level,

Long cable capability *1

Time

1.5 seconds
2 seconds
10 to 20 seconds

To enter the Advanced OSM

•Turn off your monitor.

•Turn on your monitor by pressing the “POWER” and “SELECT” buttons
simultaneously to open the Advanced OSM menu.

To exit the Advanced OSM

•Turn off and restart your monitor.

Perform “AUTO ADJUST” by using
OSM AUTO

• Use the Long Cable software
CD-ROM (included) during adjustment.

• Press SELECT to adjust.

7

Controls

OSM® (On-Screen Manager) control buttons on the front of the
monitor function as follows:

To access OSM menu, press any of the control buttons ( , , –, +).
To change signal input, press the SELECT button.

NOTE:

OSM must be closed in order to change signal input.

Menu

EXIT Exits the OSM controls.

CONTROL / Moves the highlighted area left/right to select control menus.

ADJUST
SELECT Activates the selected function and enters the OSM and OSM

RESET Resets the highlighted control menu to the factory setting.

–/+

Exits to the OSM main menu.

Moves the highlighted area up/down to select one of the controls.
Moves the bar left/right to increase or decrease the adjustment.

sub menu controls. Input selection can be made with OSM off.

NOTE: When RESET is pressed in the main and sub-menu, a warning window
allowing you to cancel the RESET function by pressing the EXIT button.

Brightness/Contrast Controls

BRIGHTNESS

Adjusts the overall image and background screen brightness.

CONTRAST

Adjusts the image brightness in relation to the background.

AUTO CONTRAST (Analog input only)

Adjusts the image displayed for non-standard video inputs.

AUTO BRIGHTNESS

This function adjusts the brightness automatically for the best BRIGHTNESS setting
based on the white display area.

Auto Adjust (Analog input only)

Automatically adjusts the Image Position and H. Size (or V.Size) settings and Fine settings.

Image Controls

LEFT / RIGHT

Controls Horizontal Image Position within the display area of the LCD.

DOWN / UP

Controls Vertical Image Position within the display area of the LCD.

H.SIZE (OSM Rotation: Landscape) or V.Size (OSM Rotation: Portrait)
(Analog input only)

Adjusts the horizontal (or vertical) size by increasing or decreasing this
setting. If the “AUTO Adjust function” does not give you a satisfactory picture
setting, further tuning can be performed manually using the “H.Size (or
V.Size)” function (dot clock). For this a Moiré test pattern could be used. This
function may alter the width of the picture.

will appear

8

Controls –continued

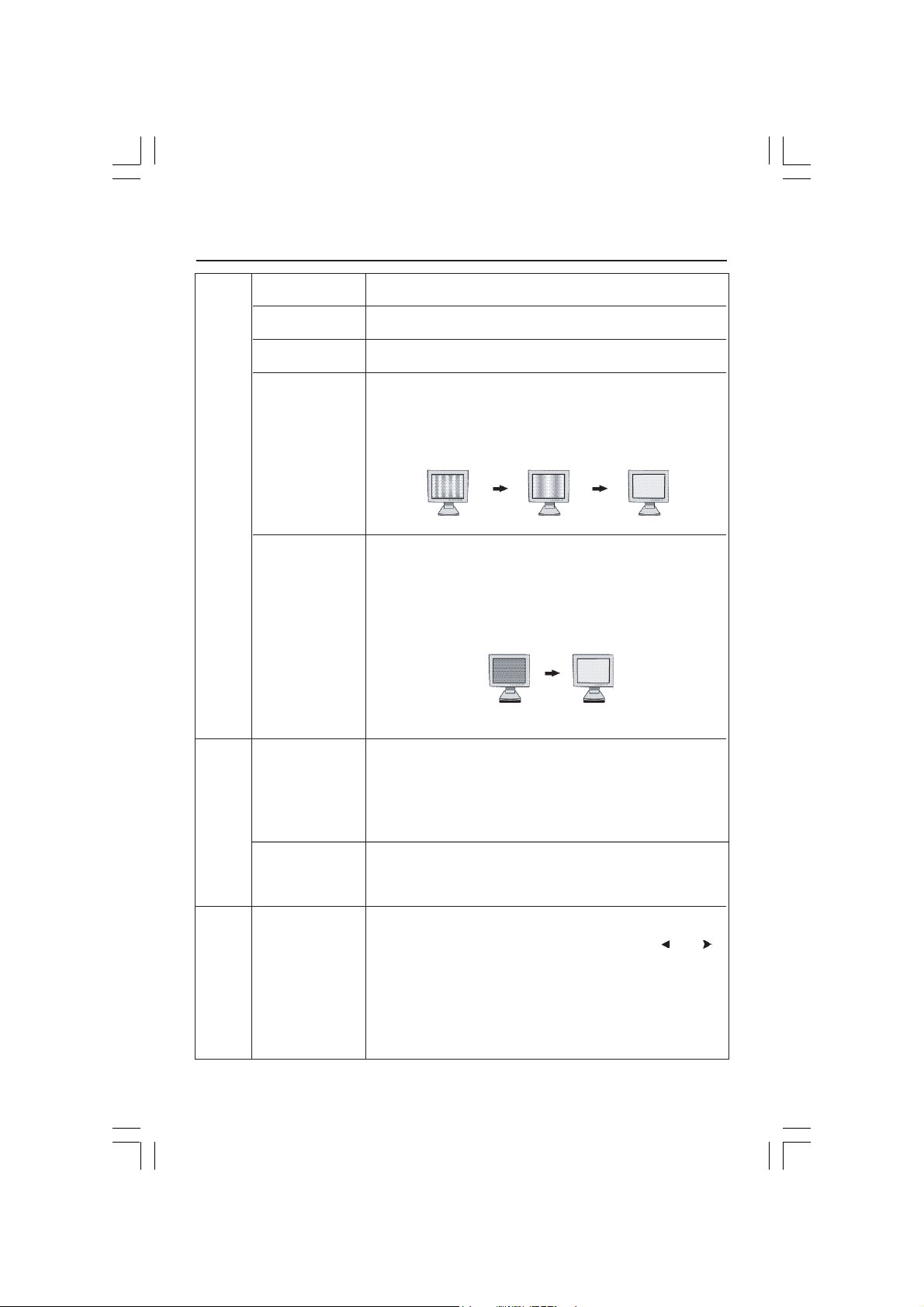

Use left/Right Menu to center the image on the screen. If the H.Size or V.Size
is wrongly calibrated, the result would look like the left drawing. The image
should be homogeneous.

Wrong

FINE

(Analog input only)

Improves focus, clarity and image stability by increasing or decreasing this setting.
If the “Auto Adjust” function is not a

be performed manually using the “Fine” function. It improves focus, clarity and
image stability by increasing or decreasing this setting.

For this a
calibrated, the result would look like the left drawing. The image should be
homogeneous.

AccuColor

Six color presets select the desired color setting (sRGB and NATIVE color
presets are standard and cannot be changed). Color temperature increases or
decreases, in each preset. R,Y,G,C,B,M,S: Increases or decreases Red, Yellow,
Green, Cyan, Blue, Magenta and Saturation depending upon which is
selected. The change in color will appear on screen and the direction (increase
or decrease) will be shown by the color bars. NATIVE:
presented by the LCD panel that is unadjustable.

Moiré test pattern could be used. If the Fine value is wrongly

Wrong

®

Control Systems

satisfactory picture setting,

Correct

Original color

Correct

fine tuning can

Tools 1

SHARPNESS: This function uses digital technology to keep a crisp image at
any timing. Sharpness is independent from other setting and can be adjusted
continuously to get a distinct or soft image.

EXPANSION MODE: Sets the zoom method.

FULL: The image is expanded to
ASPECT: The image is expanded without changing the aspect ratio.
OFF: The image is not expanded.
CUSTOM1: Zoom with center fixed. The image is expanded from the rate

of 1.0 to 3.0 times individually for horizontal (H.EXPANSION) and
vertical (V.EXPANSION) direction by 0.1 step.

1280 x 1024

9

, regardless of the resolution.

Controls –continued

CUSTOM2: Zoom with top left corner fixed. The image is expanded from
the rate of 1.0 to 3.0 times individually for horizontal (H.EXPANSION)
and vertical (V.EXPANSION) direction by 0.1 step.

VIDEO DETECT: Selects the method of video detection when more than one
computer is connected.

FIRST DETECT: The video input has to be switched to “FIRST DETECT”
mode. When the current video input signal is not present, then the monitor
searches for a video signal from the other video input port. If the video
signal is present in the other port, then the monitor switches the video
source input port to the new found video source automatically. The
monitor will not look for other video signals while the current video source
is present.

LAST DETECT:

mode.
and a new secondary source is supplied to the monitor, the monitor will
automatically switch to the new video source. When current video input
signal is not present, the monitor searches for a video signal from the
other video input port. If the video signal is present in the other port, then
the monitor switches the video source input port to the new found video
source automatically.

NONE: The Monitor will not search the other video input port unless the
monitor is turned on.

DVI SELECTION: This function selects the DVI input mode (Input 1). When the DVI
selection has been changed, you must restart your computer.

AUTO: By using the DVI-D to DVI-D cable, the DVI SELECTION is DIGITAL.

DIGITAL: DVI digital input is available.
ANALOG: DVI analog input is available.

NOTE: For the MAC with digital output: before turning on the MAC, the DVI

NOTE: Depending on the PC/Video card or video signal cable used, this

OFF TIMER:

predetermined time.

Tools 2

LANGUAGE: OSM control menus are available in seven languages.
OSM POSITION: You can choose where you would like the OSM control

image to appear on your screen. Selecting OSM Location allows you to
manually adjust the position of the OSM control menu left, right, down or up.

OSM TURN OFF: The OSM control menu will stay on as long as it is used. In
the OSM Turn Off submenu, you can select how long the monitor waits after

The video input has to be switched to the “LAST DETECT”

When the monitor is displaying a signal from the current source

By using the D-SUB to DVI-A cable, the DVI SELECTION is ANALOG.

Input mode must be set to DIGITAL in DVI SELECTION of OSM by
pressing SELECT button then CONTROL button when the DVI signal cable
is connected to the DVI-I connector (Input1) of the monitor. Otherwise the
MAC may not turn on.

function may not operate.

Monitor will automatically power-down at the end of the users

10

Controls –continued

the last touch of a
10, 20, 30, 45, 60 and 120 seconds.

OSM LOCK OUT: This control completely locks out access to all OSM control
functions except BRIGHTNESS and CONTRAST. When attempting to activate
OSM controls while in the Lock Out mode, a screen will appear indicating the
OSM controls are locked out. To activate the OSM Lock Out function, press +
key, then SELECT and hold down simultaneously. To deactivate the OSM Lock
Out, press + key, then SELECT and hold down simultaneously.

OSM ROTATION: To rotate OSM between Landscape and Portrait modes.
RESOLUTION NOTIFIER: This optimal resolution is 1280 x 1024. If ON is

selected, a message
that the resolution is not at

HOT KEY: You can adjust the brightness and contrast directly. When this
function is set to ON, you can adjust the brightness with or , contrast with
+ or - key, while the OSM menu is off.

FACTORY PRESET: Selecting Factory Preset allows you to reset most OSM
control settings back to the factory settings. Individual settings can be reset by
highlighting the control to be reset and pressing the RESET button.

button to shut off the OSM control menu. The preset choices are

will appear on the screen after 30 seconds, notifying you

1280 x 1024

.

Information

DISPLAY MODE: Provides information about the current resolution display and
technical data including the preset timing being used and the horizontal and
vertical frequencies. Increases or decreases the current resolution.

MONITOR INFO: Indicates the model and serial numbers of your monitor.

OSM Warning: OSM Warning menus disappear with Exit button.
NO SIGNAL: This function gives a warning when there is no Horizontal or
Vertical Sync. After
signal, the No Signal window will appear.
RESOLUTION NOTIFIER: This function gives a warning of use with optimized
resolution. After power is turned on or when there is a change of input signal or
the video signal doesn’t have proper resolution, the Resolution Notifier window
will open. This function can be disabled in the TOOL menu.
OUT OF RANGE: When the input signal is a non-supported timing or the
video signal doesn’t have proper timing, the Out Of Range menu will
appear.

NOTE: If “ CHANGE DVI SELECTION” is displayed, switch to DVI
SELECTION.

For advanced user menu see “Appendix”.

power is turned on or when there is a change of input

11

Recommended Use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE

FOLLOWING WHEN SETTING UP AND USING

THE MULTISYNC® LCD COLOR MONITOR:

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or

removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to
qualified service personnel.

• Do not spill any liquids into the cabinet or use your monitor near water.

• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage

points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.

• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.

• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall,

causing serious damage to the monitor.

• When operating the MultiSync LCD monitor with its AC 220-240V power supply, use a power

supply cord that matches the power supply voltage of the AC power outlet being used. The power
supply cord you use must have been approved by and comply with the safety standards of your
country. (Type H05VV-F should be used in Europe)

• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed for use

with this monitor. If a power cord is not supplied with this monitor, please contact your supplier.

• Do not place any objects onto the monitor and do not use the monitor outdoors.

• The inside of the fluorescent tube located within the LCD monitor contains mercury.

Please follow the bylaws or rules of your municipality to dispose of the tube properly.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service
personnel under the following conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following operating instructions.

• Do not bend power cord.

• Do not use monitor in high temperatured, humid, dusty, or oily areas.

• If glass is broken, handle with care.

• Do not cover vent on monitor.

• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.

• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do

• The power cable connector is the primary means of detaching the system from the

CAUTION

Image Persistence

Image persistence is when a residual or “ghost” image of a previous image remains visible on the
screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images
being displayed for a long period of time should be avoided.

To alleviate image persistence, turn off the monitor for as long as the previous image was displayed.
For example, if an image was on the monitor for one hour and a residual image remains, the monitor
should be turned off for one hour to erase the image.

NOTE: As with all personal display devices, NEC-Mitsubishi Electronics Display recommends using a
moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when

not in use.

• Handle with care when transporting. Save packaging for transporting.

not block ventilated openings or place the monitor near a radiator or other heat
sources. Do not put anything on top of monitor.

power supply. The monitor should be installed close to a power outlet which is easily accessible.

12

Recommended Use –continued

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR

CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE

FOLLOWING WHEN YOU POSITION THE MONITOR:

• For optimum performance, allow 20 minutes for

warm-up.

• Adjust the monitor height so that the top of the

screen is at or slightly below eye level. Your eyes
should look slightly downward when viewing the
middle of the screen.

•

Position your monitor no closer than 16 inches
and no further away than 28 inches from your
eyes. The optimal distance is 20 inches.

• Rest your eyes periodically by focusing on an

object at least 20 feet away. Blink often.

• Position the monitor at a 90° angle to windows and other light sources to

minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do
not reflect on your screen.

• If reflected light makes it hard for you to see your screen, use an antiglare filter.

• Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using

any cleaning solution or glass cleaner!

• Adjust the monitor’s brightness and contrast controls to enhance readability.

• Use a document holder placed close to the screen.

• Position whatever you are looking at most of the time (the screen or

reference material) directly in front of you to minimize turning your head
while you are typing.

• Avoid displaying fixed patterns on the monitor for long periods of time to avoid

image persistence (after-image effects).

• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

•

Adjust the Brightness until the background raster disappears

•

Do not position the Contrast control to its maximum setting

•

Use the preset Size and Position controls with standard signals

•

Use the preset Color Setting

•

Use non-interlaced signals with a vertical refresh rate between 60-75Hz

•

Do not use primary color blue on a dark background, as it is difficult to see and
may produce eye fatigue to insufficient contrast

For more detailed information on setting up a healthy work environment, write the
American National Standard for Human Factors Engineering of Visual Display Terminal
Workstations – ANSI-HFS Standard No. 100-1988 – The Human Factors Society, Inc.
P.O. Box 1369, Santa Monica, California 90406.

13

Specifications

Monitor MultiSync® LCD1980SX Notes
Specifications Monitor

LCD Module Diagonal: 19.0 inch Active matrix; thin film transistor (TFT) liquid

Input Signal Video: ANALOG 0.7 Vp-p/75 Ohms Digital Input: DVI

Display Colors 16,777,216 Depends on display card used.
Synchronization Horizontal: 31.0 kHz to 82.0 kHz Automatically

Range Vertical: 50.0 Hz to 85.0 Hz Automatically
Viewing Angle Left/Right:

Response Time 25ms (Typ.)
Resolutions Supported Landscape: 720 x 400*1 :VGA text

Active Display Area Landscape : Horiz. : 376 mm/14.8inches

Power Supply
Power Consumption 36W typ. (without Sound Bar option)
Current Rating 0.7A@100-120V/0.35A@220-240V (without Option Sound Bar)

Dimensions Landscape: 412.2 mm (W) x 364.8 - 494.8 mm (H) x 200.0 mm (D)

Weight 9.3 kg

Environmental Considerations

*1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is
normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each
dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done.

*2 NEC-Mitsubishi Electronics Display cites recommended reolution for optimal display performance.

NOTE: Technical specifications are subject to change without notice.

Viewable Image Size: 19.0 inch crystal display (LCD); 0.294 mm dot pitch;

Native Resolution (Pixel Count): 1280x1024

Sync: Separate sync. TTL Level

Horizontal sync. Positive/Negative
Vertical sync. Positive/Negative
Composite sync. Positive/Negative
Sync on Green (Video 0.7Vp-p and Sync Negative 0.3V p-p)

Up/Down: +85˚ (CR>10)

Portrait: 480 x 640*

Portrait : Horiz. : 301 mm/11.9 inches

Portrait: 337.0 mm (W) x 428.5 - 532.4 mm (H) x 200.0 mm (D)

Height Adjustment: 130 mm/5.1 inches (Landscape)

Operating Temperature: 5°C to 35°C/41°F to 95°F

Storage Temperature: -10°C to 60°C/14°F to 140°F

Humidity: 30% to 80%

Humidity: 10% to 85%

+85˚ (CR>10)

640 x 480*1 at 60 Hz to 85 Hz
800 x 600*1 at 56 Hz to 85 Hz
832 x 624*1 at 75 Hz
1024 x 768*1 at 60 Hz to 85 Hz
1152 x 864*1 at 75Hz
1280 x 1024

600 x 800*1 at 56 Hz to 85 Hz Some systems may not support
624 x 832*1 at 75 Hz all modes listed.
768 x 1024*1 at 60 Hz to 85 Hz
864 x 1152*1 at 75 Hz
1024 x 1280 at 60 Hz*2

Vert. : 301 mm/11.9 inches

Vert. : 376 mm/14.8 inches

100

0.8A@100-120V/0.45A@220-240V (with Option Sound Bar)

16.2 inches (W) x 14.4 - 19.5 inches (H) x 7.9 inches (D)

13.3 inches (W) x 16.9 - 21.0 inches (H) x 7.9 inches (D)

20.5 lbs

Feet: 0 to 12,000 Feet

Feet: 0 to 40,000 Feet

at 60 Hz*2

1

at 60 Hz to 85 Hz

-120/220-240V

to 75 Hz

to 75 Hz

50/60 Hz

250cd/m2 white luminance (typical); XtraView
technology; 600:1 contrast ratio (typical)

Some systems may not support
all modes listed.

™

14

Features

ambix+™ Technology: Dual input technology allowing both analog and digital inputs off
of one connector (DVI-I) as well as additional legacy analog support off of a traditional
15-pin VGA connector. Provides traditional MultiSync® technology compatibility for
analog as well as DVI-based digital compatibility for digital inputs. DVI-based digital
interfaces include DVI-D,DFP and P&D.

DVI-I: The integrated interface ratified by the Digital Display Working Group (DDWG)
that allows both digital and analog connectors off of one port. The “I” stands for integra­tion for both digital and analog, The digital portion is DVI-based.

DVI-D: The digital-only subset of DVI ratified by the Digital Display Working Group
(DDWG) for digital connections between computers and displays. As a digital-only
connector, analog support is not provided off a DVI-D connector. As a DVI-based digital
only connection, only a simple adapter is necessary for compatibility between DVI-D and
other DVI-based digital connectors such as DFP and P&D.

DFP (Digital Flat Panel): An all-digital interface for flat panel monitors which is signal
compatible with DVI. As a DVI-based digital only connection, only a simple adapter is
necessary for compatibility between DFP and other DVI-based digital connectors such as
DVI and P&D.

P&D (Plug and Display): The VESA standard for digital flat panel monitor interfaces. It is
more robust than DFP since it allows for other options off a signal connector (options like
USB, analog video and IEEE-1394-995). The VESA committee has recognized that DFP is
a subset of P&D. As a DVI-based connector (for the digital input pins), only a simple
adapter is necessary for compatibility between P&D and other DVI-based digital connec­tor such as DVI and DFP.

Pivoting Stand: Allows users to adjust the monitor to the orientation that best fits their
application, either Landscape orientation for wide documents, or portrait orientation for
the ability to preview a full page on one screen at one time. The Portrait orientation is also
perfect for full screen video conferencing.

Reduced Footprint: Provides the ideal solution for environments requiring superior image
quality but with size and weight limitations. The monitor’s small footprint and low weight
allow it to be moved or transported easily from one location to another.

AccuColor® Control Systems: Six color presets select the desired color setting (sRGB and
NATIVE color presets are standard and cannot be changed). Color temperature increases
or decreases, in each preset. R,Y,G,C,B,M,S: Increases or decreases Red, Yellow, Green,
Cyan, Blue, Magenta and Saturation depending upon which is selected. The change in
color will appear on screen and the direction (increase or decrease) will be shown by the
color bars. NATIVE:

OmniColor™ control system with sRGB color-matching uses 6-axis color data to ensure
true-to-life color reproduction for still images and real-time videos.

OSM® (On-Screen Manager) Controls: Allow you to quickly and easily adjust all elements
of your screen image via simple to use on-screen menus.

ErgoDesign® Features: Enhance human ergonomics to improve the working environment,
protect the health of the user and save money. Examples include
and easy image adjustments, tilt base for preferred angle of vision, small footprint and
compliance with MPRII and TCO guidelines for lower emissions

Original color presented by the LCD panel that is unadjustable.

OSM controls for quick

.

15
