Nec MULTISYNC FE2111SB User Guide

Index
Warning.................................................................................................. 1
Contents ............................................................................................... 2
Quick Start ........................................................................................... 3
Controls ................................................................................................ 5
Recommended Use ............................................................................. 9
Specifications..................................................................................... 12
Features .............................................................................................. 13
References .......................................................................................... 17
Limited Warranty .............................................................................. 18
TCO’95 ..................................................................................................19
TCO’99 .................................................................................................. 21
Avertissement ................................................................................... 25
Contenu .............................................................................................. 26
Mise en marche rapide .................................................................... 27
Commandes ....................................................................................... 29
Usage recommandé ........................................................................... 33
Fiche technique ................................................................................ 36
Fonctions ............................................................................................. 37
Dépannage ......................................................................................... 38
Références ......................................................................................... 40
Garantie limitée.................................................................................41
TCO’95 ................................................................................................. 42
TCO’99 ................................................................................................. 44
Warnung ............................................................................................. 48
Lieferumfang..................................................................................... 50
Quick Start ......................................................................................... 51
Bedienungselemente ....................................................................... 53
Empfehlungen für die Verwendung .............................................. 57
Te chnische Daten ............................................................................. 60
Funktionen .......................................................................................... 61
Fehlerbehebung ................................................................................ 62
Verweise ............................................................................................. 64
Beschränkte Gewährleistung......................................................... 65
TCO’95 ................................................................................................. 66
TCO’99 ................................................................................................. 68
WARNING
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK • DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This
symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause
electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.
Canadian Department of Communications Compliance Statement
DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations.
C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to
C.S.A. 22.2 #950.
FCC Information
1.
Use the attached specified cables with the C22BW7 television reception.
(1) Please use the supplied power cable or equivalent to ensure FCC compliance. (2) Shielded signal cable.
Use of other cables and adapters may cause interference with radio and television reception.
2.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult your dealer or an experienced radio/TV technician for help.
• No user serviceable parts inside. Do not attempt to modify this equipment. If modified, your authority to operate this equipment might be voided by FCC.
If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commis­sion, helpful: ”How to Identify and Resolve Radio-TV Interference Problems.“ This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.
No user serviceable parts inside. Do not attempt to modify this equipment. If modified, your authority to operate this equipment might be voided by FCC.
VCCI Statement
01
color monitor so as not to interfere with radio and
1
Contents

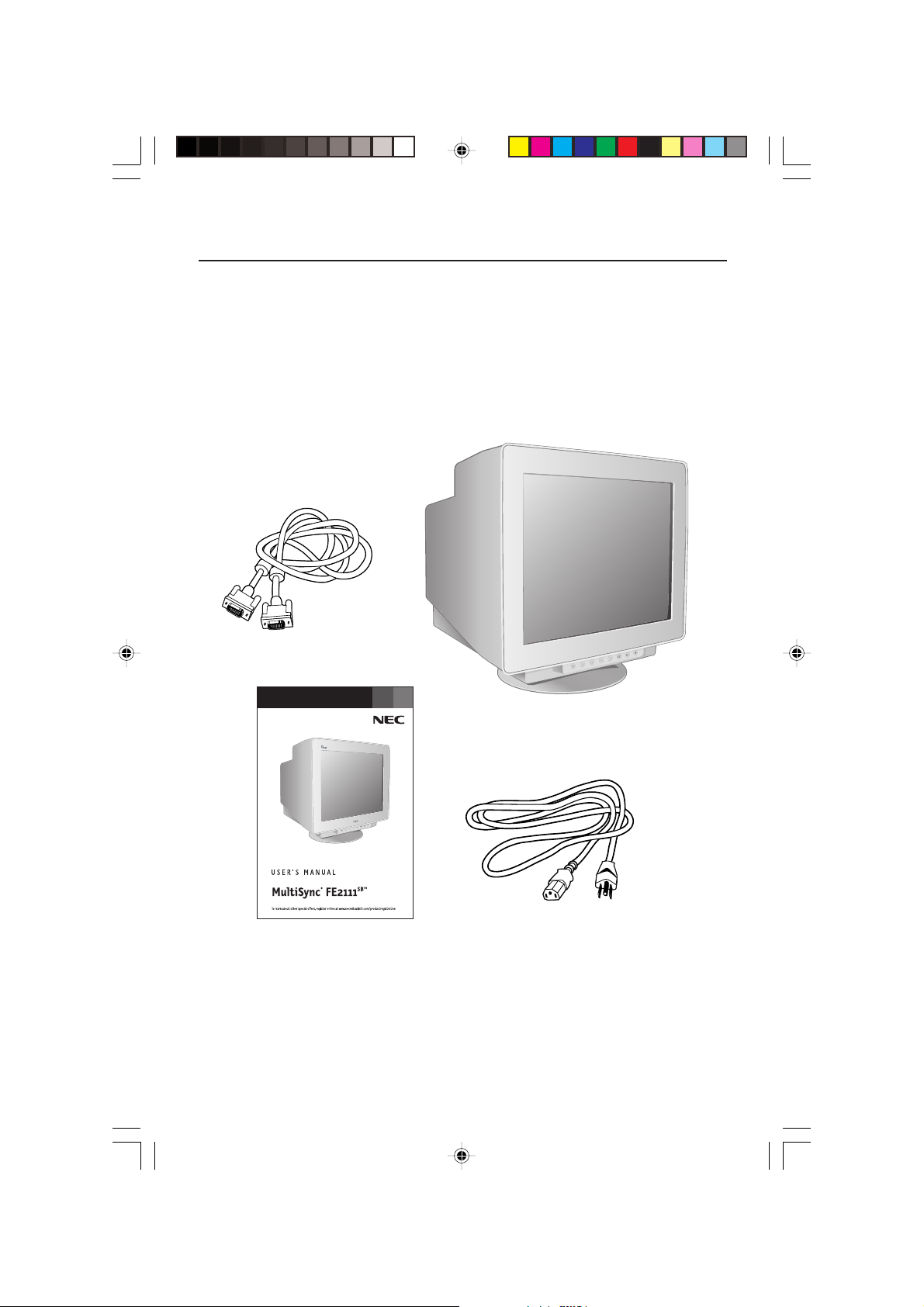

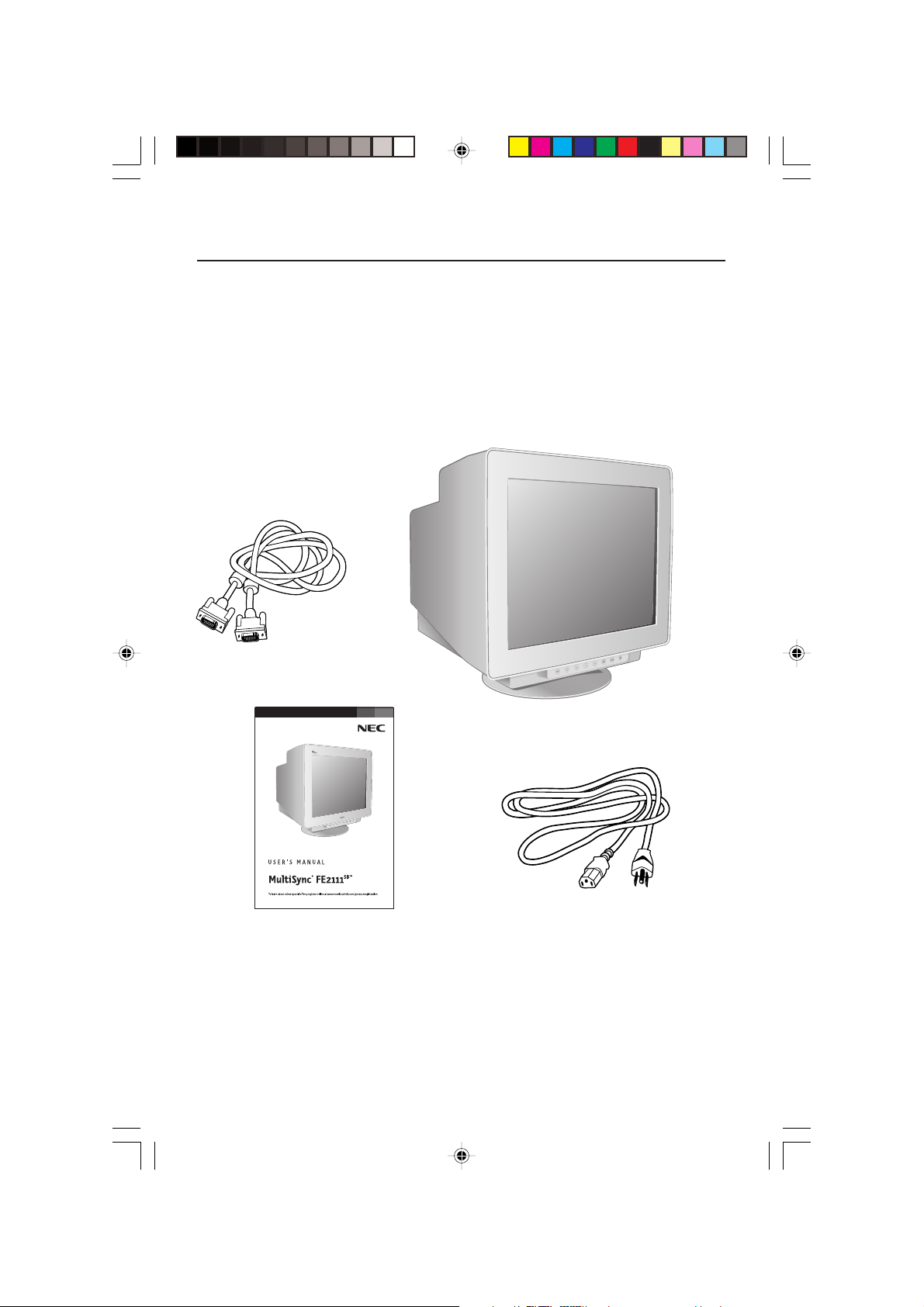

Your new NEC MultiSync® FE2111SB monitor box* should contain the following:
• MultiSync FE2111SB with tilt/swivel base
• Power Cord
• Signal Cable (D-Sub to D-Sub)
• User’s Manual
Signal Cable
Power Cord
User’s Manual
* Remember to save your original box and packing material to transport or ship the monitor.
2
Quick Start
To attach the FE monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2. If necessary, install the graphics card into your system. For more information,
refer to the graphics card installation manual.
3.
For the PC: Connect the 15-pin mini D-SUB connector of the signal cable to the connector of the display card in your system (Figure A.1). Tighten all screws.
For the Mac: Connect the MultiSync Macintosh cable adapter (not included) to the monitor connector on the Macintosh (Figure B.1). Attach the 15-pin mini D-SUB end of the signal cable to the MultiSync Macintosh cable adapter on the computer (Figure B.1). Tighten all screws.
NOTE: To obtain the MultiSync Macintosh cable adapter, call NEC-Mitsubishi
Electronics Display of America, Inc. at (800) 632-4662.
4. Connect the other end of the signal cable to the connector on the back of the
MultiSync monitor.
5. Connect one end of the power cord to the MultiSync monitor and the other
end to the power outlet (Figure C.1).
6. Turn on the monitor (Figure D.1) and the computer.
NOTE: For download information on the Windows® 98/2000/Me/XP INF file for your
MultiSync monitor, refer to the References section of this User’s Manual.
NOTE: If you have any problems, please refer to the Troubleshooting section of
this User’s Manual.

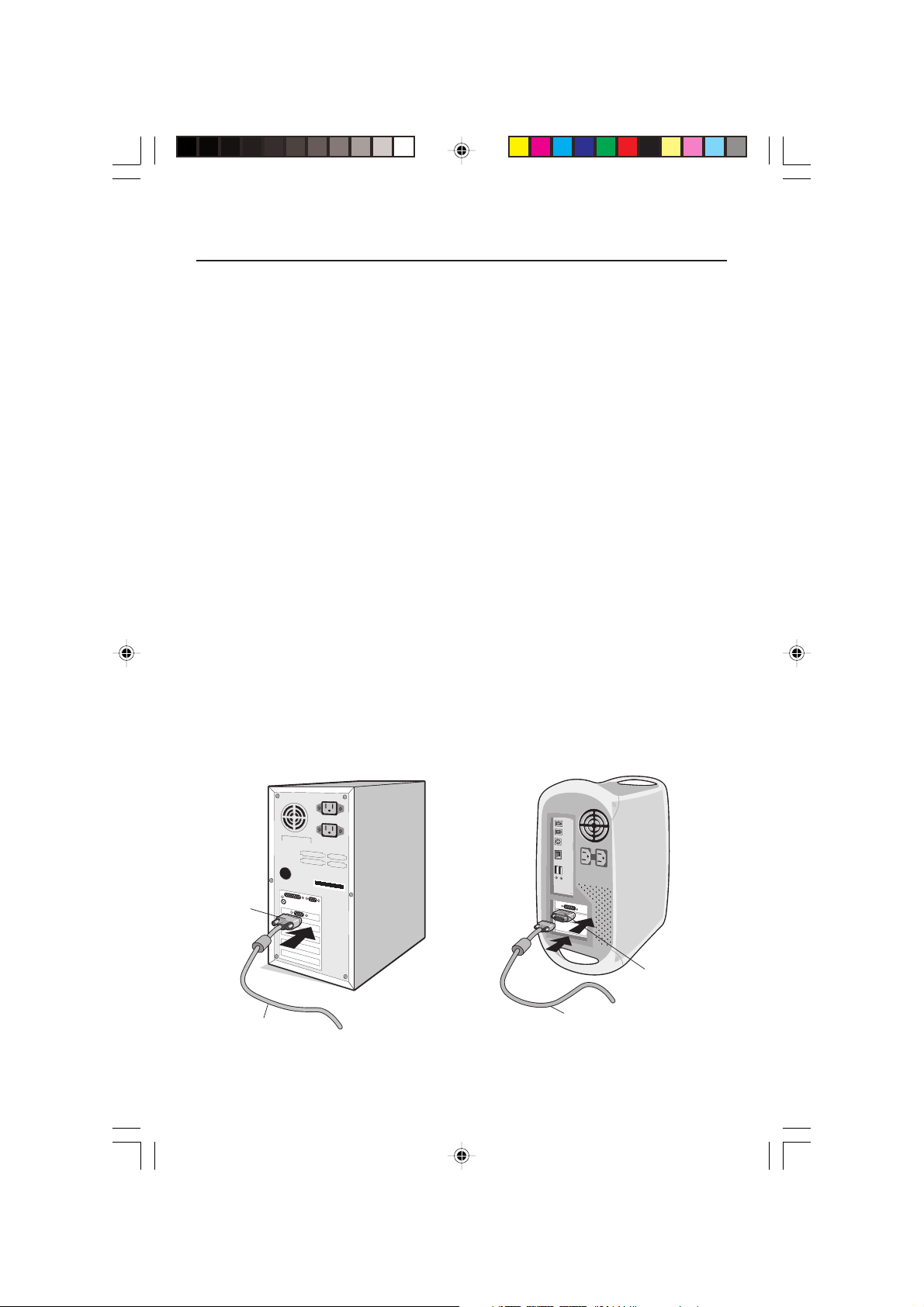

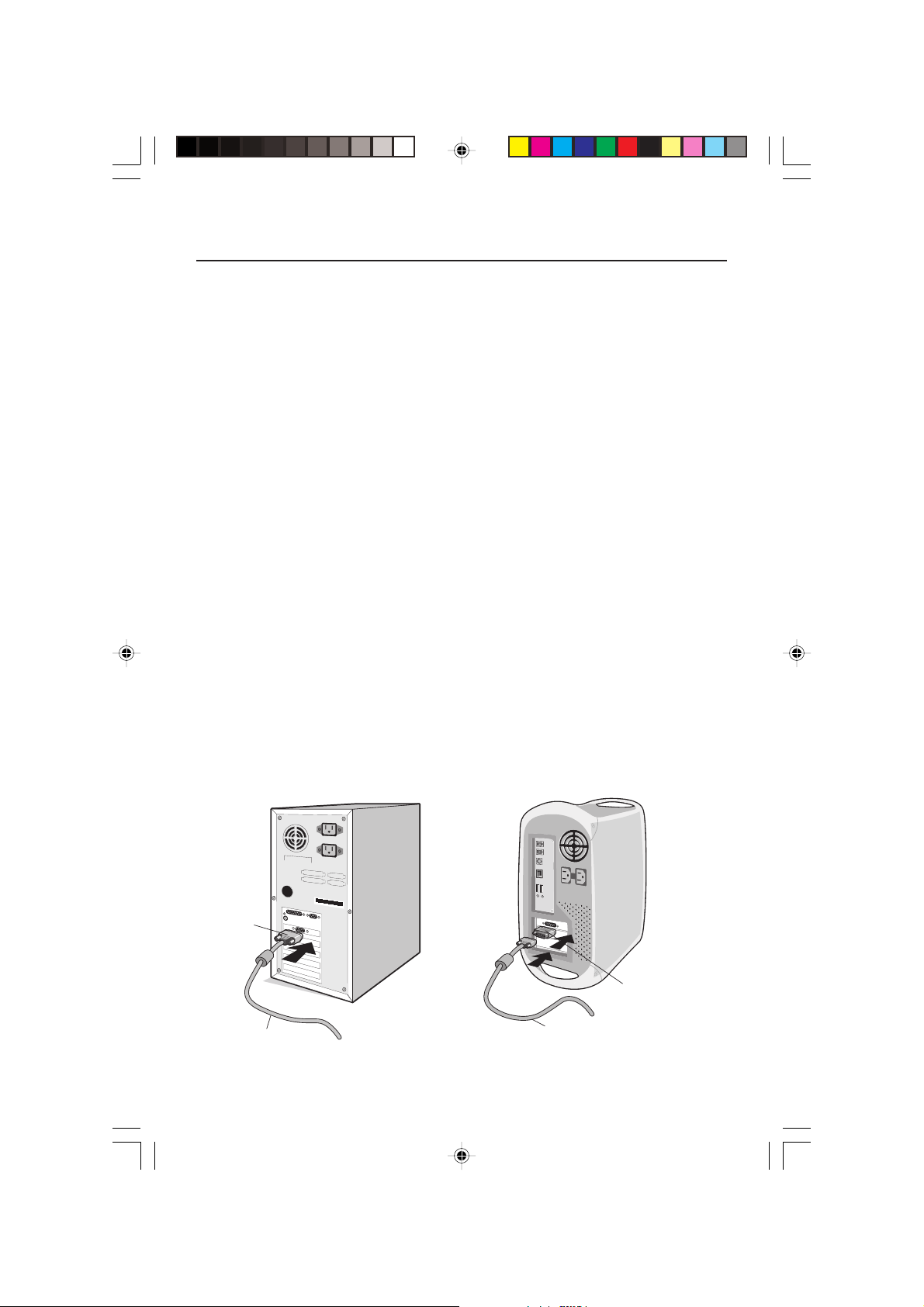

15-pin
mini
D-SUB
Capative Signal Cable
Figure A.1
Mac Adapter
(Not Included)
Capative Signal Cable
Figure B.1
3

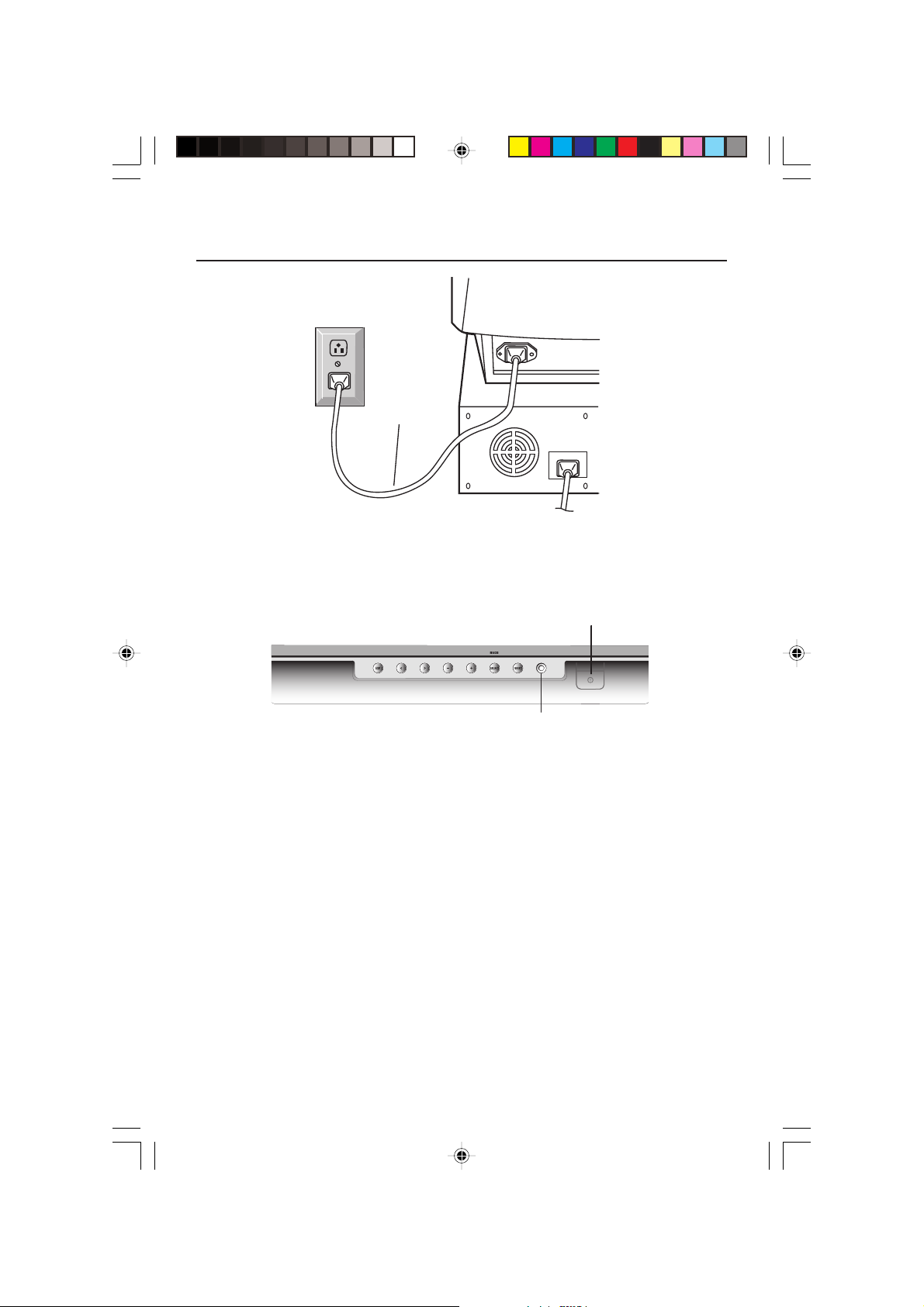

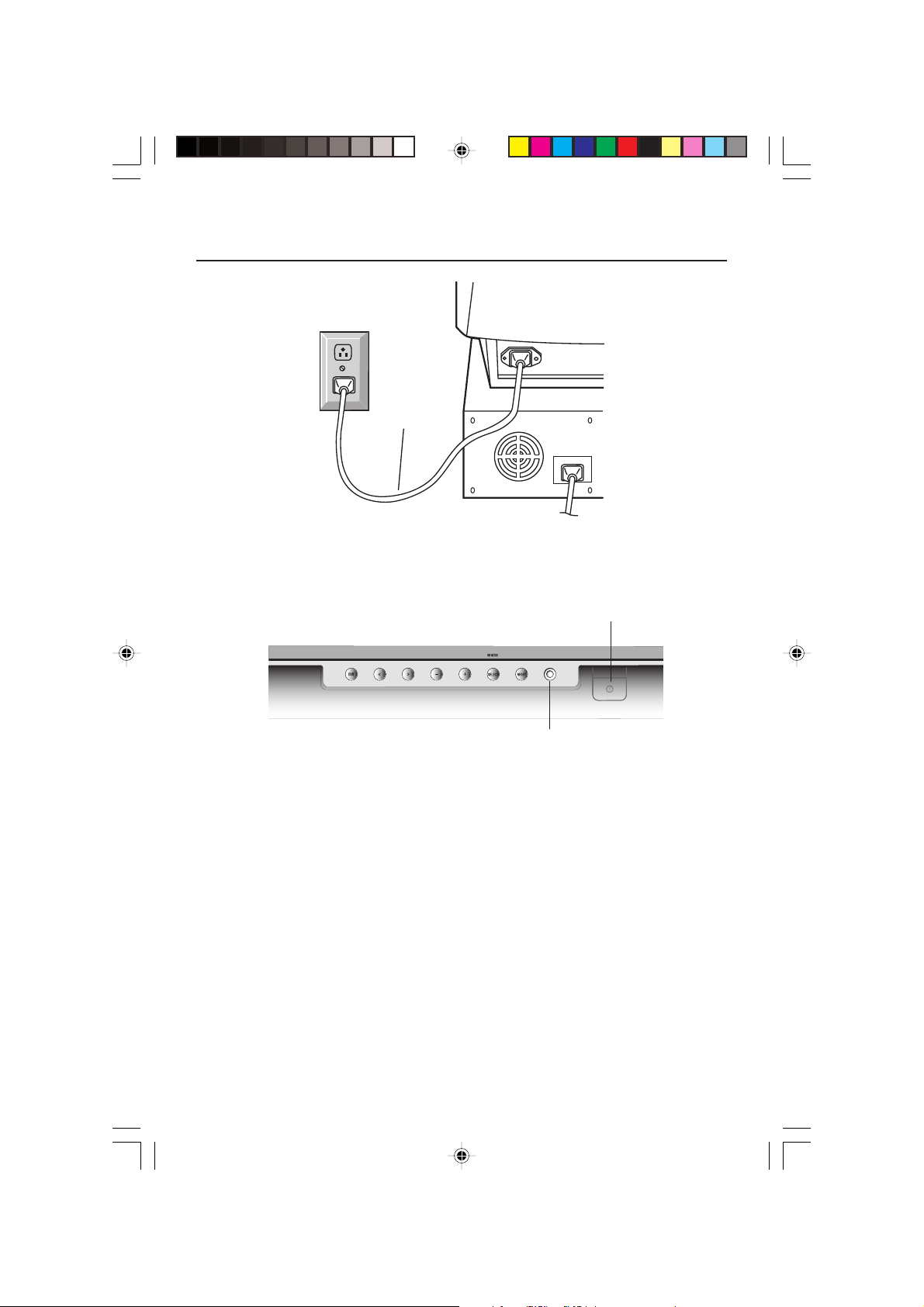

Quick Start –continued
Power
Cord
Figure C.1
Figure D.1
4
Controls
OSM™ (On-Screen Manager) control buttons on the front of the monitor function as follows:
EXIT Exits the OSM menu. Exits to the OSM controls
Main Menu Sub-Menu
main menu.
Note :
Deactivates the OSM menu and activates the OSM menu when the OSM is turned off.
CONTROL Moves the highlighted Moves the highlighted area
CONTROL Has no function Moves the bar in the – or +
-/+ direction to decrease or
SELECT/ Enters sub-menu. Has no function. SB MODE
RESET Resets all the controls within the Resets the highlighted control to
area left/right to select left/right to select one of the one of the sub-menu. controls.
Note : When the OSM menu is off, it acts as a Hot key for Brightness.
increase the adjustment.
Note : Deactivates the OSM menu and to adjust Contrast with Hot key set “ON”
When the OSM is off, it will act as the SuperBright (SB) function key. User can select between SB MODE OFF, SB MODE1, and SB MODE2. The first time this key is pressed, the current SB Mode is indicated. Within a 3 second window, if this key is selected again, the SB MODE will change to the next SB MODE. For example, the current mode is SB MODE OFF, the key is pressed twice within a 3 second time frame, the SB MODE will change to SB MODE1 and so on. The color temperature at each SB Mode is adjusted by appropriate color control except for the sRGB mode whose color setting cannot be adjusted. When the unit is turned off, it will reset to SB off mode.
highlighted menu to the factory the factory setting. setting.
Note: When RESET is pressed in the main and sub-menu, a warning window will appear allowing you to select the reset function.
Brightness/Contrast Controls
Brightness: Adjusts the overall image and background screen brightness. Contrast: Adjusts the image brightness in relation to the background.
Degauss: Eliminates the buildup of stray magnetic fields which alter the correct scan of the
electron beams and affect the purity of the screen colors, focus and convergence. When activated, your screen image will jump and waver a bit as the screen is demagnetized.
Please allow a minimum of 20 minutes to elapse between uses of the Degauss Control.
NOTE: Constant Brightness: sustains the brightness and screen color levels consistently over the
normal life of the monitor. The Constant Brightness function requires a 30 minute warm­up of the monitor before the feature is fully functional.
5
Controls –continued
Size and Position Controls
Auto Adjust: Automatically adjust the horizontal and vertical size and position settings for
the applicable timing signal.
NOTE: Auto Adjust is unavailable with no image signal or narrow size of image signal input. Left/Right: Moves the image horizontally (left or right). Down/Up: Moves the image vertically (up or down). Narrow/Wide: Decreases or increases the horizontal size of the image. Short/Tall: Decreases or increases the vertical size of the image.
Color Control/AccuColor® Control System
Color presets 1 through 5 selects the desired color setting. The bar is replaced by the color setting choice from 1, 2, 3, sRGB, 5. Each color setting is adjusted at the factory to the stated Kelvin degrees. If a setting is adjusted, the name of the setting will change from Kelvin to Custom. NOTE: sRGB does not allow you to adjust each color. Red, Green, Blue: NEC’s AccuColor Control System decreases or increases the monitor’s red, green or blue color guns depending upon which is selected. The change in color will appear on screen and the direction (decrease or increase) will be shown by the bars.
NOTE: sRGB does not allow you to control the AccuColor, Brightness and Contrast.
Geometry Controls
Geometry Controls Menu
The Geometry controls allow you to adjust the curvature or angle of the sides of your display. In/Out (pincushion): Decreases or increases the curvature of the sides either inward or outward. Left/Right (pincushion balance): Decreases or increases the curvature of the sides either to
the left or right.
Tilt (parallelogram): Decreases or increases the tilt of the sides either to the left or right. Align (trapezoidal): Decreases or increases the bottom of the screen to be the same as the top Rotat
e (raster rotation): Rotates the entire display clockwise or counterclockwise.
Corner Correction: Allows you to adjust the geometry of the corners of your display Top, Top Balance, Bottom or Bottom Balance.
.
Tools 1
Moiré Canceler: Moiré is a wavy pattern which can sometimes appear on the screen. The pattern is repetitive and superimposed as rippled images. When running certain applications, the wavy pattern is more evident than in others. To reduce moiré, adjust the level by using the –/+ CONTROL buttons.
Convergence: Aligns all three colors (R,G,B) to form a single color (white). The purpose of this control is to ensure that a white line drawn on the screen is as crisp and clear as possible
.
Use the CONVERGENCE (HOR.) control to adjust the alignment of the white lines in the left/right direction. Use the CONVERGENCE (VER.) direction.
control to adjust the alignment of the white lines in the up/down
6
Controls -continued
Linearity: This selection allows you to adjust the spacing of the area on the screen. The purpose of this control is to ensure that a one-inch circle is a true one-inch circle wherever it is on the screen. The best way to determine the vertical linearity is as follows:
• Draw equally spaced horizontal lines using a drawing application that has a ruler.
• Use the Vertical Balance control to adjust the lines near the top and bottom of your screen.
• Use the LINEARITY (VER.) control to adjust the spacing between the lines near the center and
top of your screen.
GlobalSync® Control: Eliminates picture impurities that may result from the earth’s magnetic field. While in the sub-menus, use the –/+ control buttons to fine tune the GlobalSync corrections. NOTE:NEC recommends that you perform GlobalSync correction while running
a typical application such as a spreadsheet or text document.
Tools 2
Language: OSM controls menus are available in six languages. OSM Position: You can choose where you would like the OSM controls menu to
appear on your screen. Selecting OSM Position allows you to manually adjust the OSM controls menu left, right, up or down.
OSM Turn Off: The OSM controls menu will stay on as long as it is in use. In the OSM Turn Off sub-menu, you can select how long the monitor waits after the last touch of a button for the OSM controls menu to disappear. The preset choice is in 5 seconds step between 5–120 seconds.
O
SM Lock Out: This control completely locks out access to all OSM controls
functions except Brightness and Contrast. When attempting to activate OSM controls while in the lock out mode, a screen will appear indicating that OSM controls are locked out. To activate the OSM Lock Out function, press SELECT, then press + and hold down simultaneously. To deactivate the OSM Lock Out, press
SELECT, then press + and hold down simultaneously. IPM™ System Off Mode:
NOTE:
For standard systems and graphics boards, keep the factory setting at ENABLE.
NOTE: Don’t keep the MultiSync monitor on when ‘No Signal’ is applied. This
could cause image burn in on the screen due to the ‘No Signal’ message being displayed.
EdgeLock™ Control: Operating your monitor at a nonstandard timing may cause images to appear darker than normal or have color distortion. Use of the EdgeLock control will adjust images to their normal state.
Hot Key: This selection allows you to use as brightness control and –/+ as contrast control.
Enable: The IPM System works normally and
all stages of energy savings are utilized.
Disable: The Off Mode reset
7
Controls –continued
Factory Preset: Selecting Factory Preset allows you a reset most OSM™ control settings back to the factory settings. A warning statement will appear to confirm that you do want to reset ALL settings. Individual settings can be reset by high­lighting the control to be reset and pressing the RESET button.
Information
Display Mode: Indicates the current mode and frequency setting of the monitor. Monitor Info: Indicates the model and serial numbers of your monitor.
Refresh Notifier: A message will advise you if the refresh rate of the signal being
applied to the monitor by the computer is too low. For further information, please refer to your display card or system manual.
8
Recommended Use
Safety Precautions and Maintenance
FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE
FOLLOWING WHEN SETTING UP AND USING THE MULTISYNC® FE2111SB COLOR MONITORS:
• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.
Do not spill any liquids into the cabinet or use your monitor near water.
Do not insert objects of any kind into the cabinet slots, as they may touch danger-
ous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.
Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.
Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.
Keep the monitor away from high capacity transformers, electric motors and other devices such as external speakers or fans, which may create strong magnetic fields.
Changing the direction of the monitor while it is powered on may cause image discoloration. To correct this, turn the monitor off for 20 minutes before powering it back on.
When operating the MultiSync FE2111SB with its AC 100-120/220-240V worldwide power supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used. The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H05VV-F 3G 0.7mm
In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed for use with this monitor. If a power cord is not supplied with this monitor, please contact your supplier.
Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:
When the power supply cord or plug is damaged.
If liquid has been spilled, or objects have fallen into the monitor.
If the monitor has been exposed to rain or water.
If the monitor has been dropped or the cabinet damaged.
If the monitor does not operate normally by following operating instructions.
Allow adequate ventilation around the monitor so that heat can properly
dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.
The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet which is easily accessible.
CAUTION
Handle with care when transporting. Save packaging for transporting.
2
should be used in Europe)
9
Recommended Use –continued

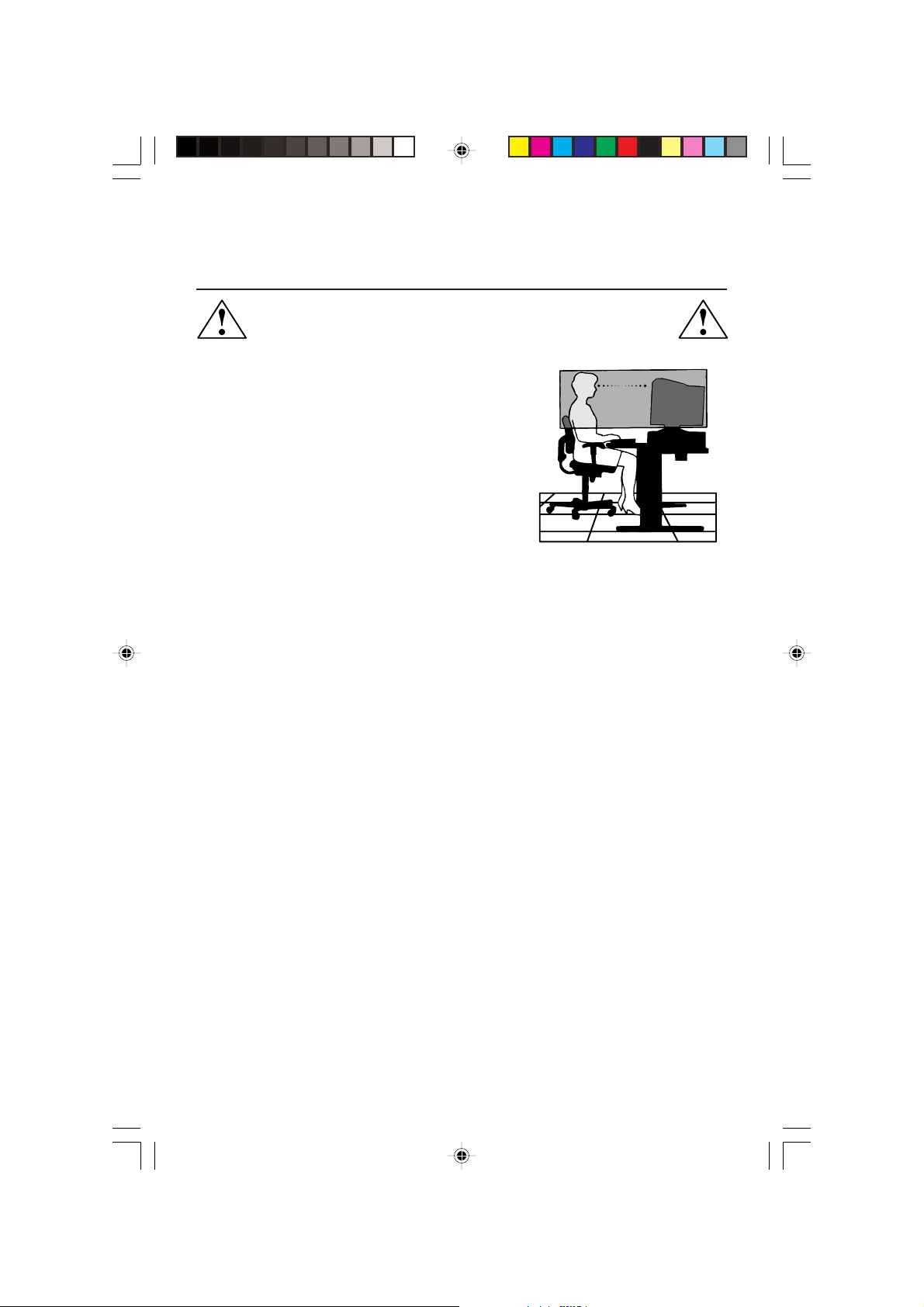

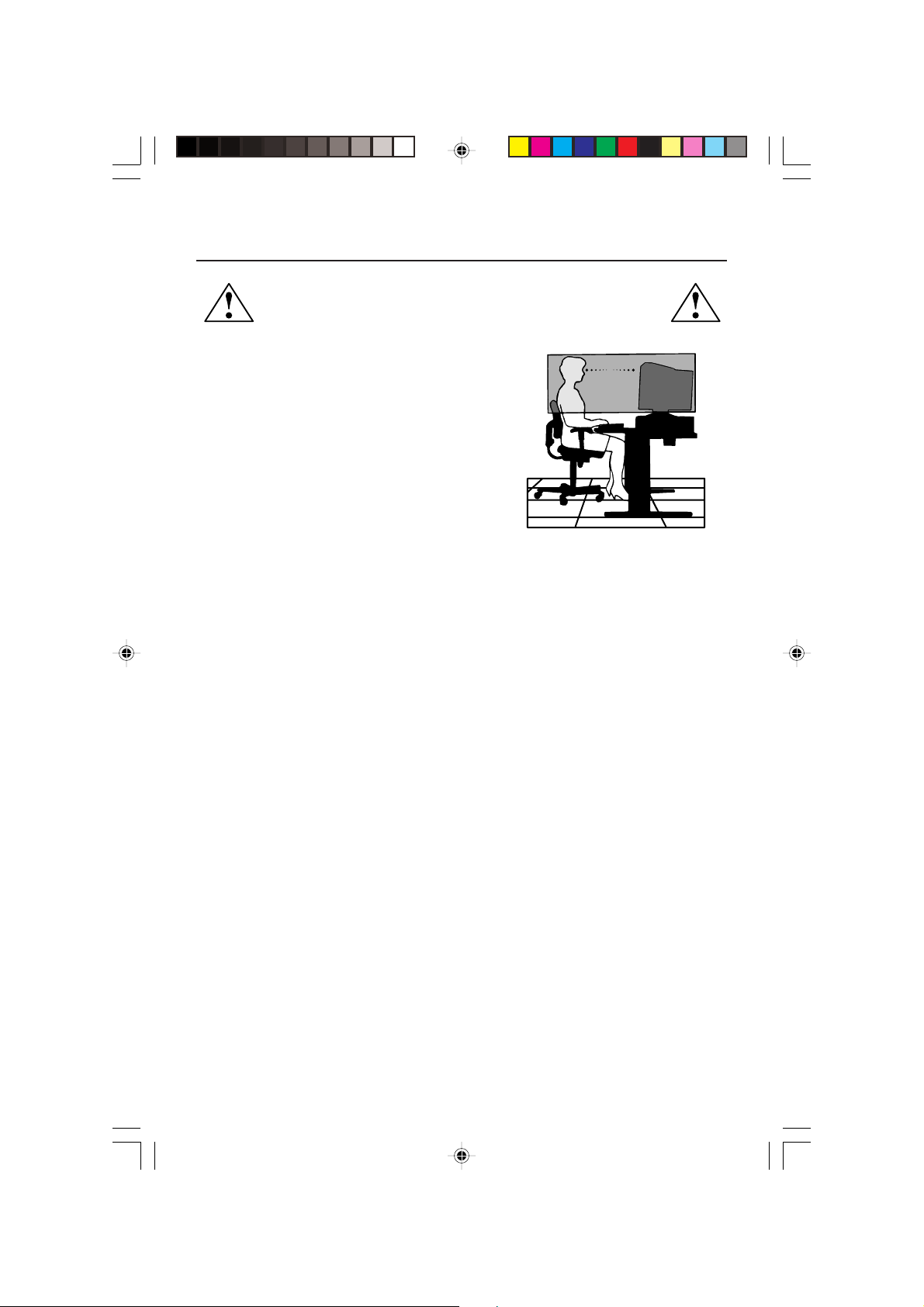

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR
CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE
FOLLOWING WHEN YOU POSITION THE MONITOR:
Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.
Position your monitor no closer than 12 inches and no further away than 28 inches from your eyes. The optimal distance is 24 inches.
Rest your eyes periodically by focusing on an object at least 20 feet away. Blink often.
Position the monitor at a 90° angle to windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.
If reflected light makes it hard for you to see your screen, use an antiglare filter.
Clean your monitor
A special coating is provided on the glass (CRT) surface of this monitor to reduce a reflection and static electricity on the glass surface.
Due to the delicate coating on the glass surface, use a lint-free, nonabrasive cloth (cotton or equivalent) and a non-alcohol, neutral, nonabrasive cleaning solution to minimize dust. If the screen requires more than a light cleaning, apply water or soften neutral detergent with much water directly to a soft cloth and use it upon wringing water, to clean the glass surface.
CAUTION: The following agents will cause damage to the CRT when cleaning the glass surface: Benzene, thinner, acid/alkaline detergent, alcohol deter­gent, detergent with abrasive powder, detergent with antistatic agent, deter­gent for cleaning.
Adjust the monitor’s brightness and contrast controls to enhance readability.
Use a document holder placed close to the screen.
Position whatever you are looking at most of the time (the screen or
reference material) directly in front of you to minimize turning your head while you are typing.
Get regular eye checkups.
Ergonomics
To realize the maximum ergonomics benefits, we recommend the following:
• Adjust the Brightness until the background raster disappears
• Do not position the Contrast control to its maximum setting
• Use the preset Size and Position controls with standard signals
10
Recommended Use –continued
• Use the preset Color Setting and Sides Left/Right controls
• Use non-interlaced signals with a vertical refresh rate between 75-160Hz
• Do not use primary color blue on a dark background, as it is difficult to see and may produce eye fatigue due to insufficient contrast
For more detailed information on setting up a healthy work environment, write the American National Standard for Human Factors Engineering of Visual Display Terminal Workstations – ANSI-HFS Standard No. 100-1988 - The Human Factors Society, Inc. P.O. Box 1369, Santa Monica, California 90406.
11
Specifications
Monitor MultiSync
®
FE2111SB
Notes
Specifications Monitor
Picture Tube Diagonal: 22 inch/55 cm 90° deflection, 0.24 mm grille pitch,
Input Signal Video: ANALOG 0.7 Vp-p/75 Ohms
Sync: Separate sync. TTL Level
Display Colors Analog input: Unlimited number of Colors Depends on display card used.
Synchronization Horizontal: 30 kHz to 115 kHz Automatically Range Vertical: 50 Hz to 160 Hz Automatically
Resolutions Supported 640 x 480 @ 50 to 160 Hz
Resolution based on vertical frequencies only
Active Display Area Horizontal: (Factory Setting) Vertical:
Active Display Area
(Full Scan)
Power Supply
Current Rating 1.25A @ 100
Dimensions
Weight 29.0 kg
Environmental Considerations
Viewable Image Size: 20 inch/508 mm medium short persistence phosphor,
horizontal and
Operating Temperature: +5°C to +35°C/+41°F to +90°F
Storage Temperature: -20°C to +60°C/-4°F to +140°F
Radius: 50000 mm aperture grille CRT, G-WARAS coating
Horizontal sync. Positive/Negative Vertical sync. Positive/Negative Composite sync. (Negative) (TTL Level)
800 x 600 @ 50 to 160 Hz 1024 x 768 @ 50 to 138 Hz 1280 x 1024 @ 50 to 105 Hz 1600 x 1200 @ 50 to 91 Hz 1800 x 1350 @ 50 to 81 Hz 1800 x 1440 @ 50 to 76 Hz 1856 x 1392 @ 50 to 79 Hz 1920 x 1440 @ 50 to 76 Hz
396 mm/15.6 inches Dependent upon signal timing used, 297 mm/11.7 inches and does not include border area.
406 mm/16.0 inches Dependent upon signal timing used,
304.6 mm/12.0 inches and does not include border area.
AC 100 – 120 V/220 - 240 V, 50/60 Hz
120 V / 0.6A @ 220-240 V
495 mm (W) x 484.5 mm (H) x 471 mm (D)
19.5 inches (W) x 19.1 inches (H) x 18.5 inches (D)
64.0 lbs
Humidity: 10% to 90%
Altitude: 0 ft (0 m) ~ 10,000 ft (3,000 m)
Humidity: 10% to 90%
Altitude: 0 ft (0 m) ~ 50,000 ft (15,000 m)
...................... NEC-Mitsubishi Electronics Display cites
Some systems may not support all modes listed.
recommended resolution a 85 Hz for optimal display performance.
NOTE: Technical specifications are subject to change without notice.
12
Features
Flat Aperture Grille CRT: Delivers an unparalleled viewing experience with a virtually on-screen is what you get on your printed output. The striped phosphor alignment of the CRT delivers superior vertical definition with improved brightness for more uniform image contrast.
OptiClear® Screen Surface: Reduces reflection and glare and increases contrast without sacrificing focus level, clarity or brightness.
Dual Dynamic Beam Focus: Provides precise, continuous focus adjustments of the electron beams resulting in optimum image quality, even to the far edges of the screen.
AccuColor® Control System: Allows you to change between five color settings on your display to match your personal preference.
OSM™ (On-Screen Manager) Controls: Allow you to quickly and easily adjust all elements of your screen image via simple to use on-screen menus.
ErgoDesign® Features: Enhance human ergonomics to improve the working environment, protect the health of the user and save money. Examples include OSM controls for quick and easy image adjustments, tilt/swivel base for pre­ferred angle of vision and compliance with MPRII guidelines for lower emissions.
Plug and Play: The Microsoft® solution with the Windows®95/98/2000/Me/XP operating system facilitates setup and installation by allowing the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically optimizing display performance.
IPM™ (Intelligent Power Manager) System: Provides innovative power-saving methods that allow the monitor to shift to a lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace.
Reduced Magnetic Field™ Technology: Reduces magnetic and alternating electric field emissions and static electricity, addressing ergonomic concerns regarding potential risks from extended computer monitor use.
Multiple Frequency Technology: Automatically adjusts monitor to the display card’s scanning frequency, thus displaying the resolution required.
FullScan™ Capability: Allows you to use the entire screen area in most resolu­tions, significantly expanding image size.
GlobalSync®/Corner Purity Control: Allows you to easily adjust impurities in the four corners of your monitor.
Convergence Control: Allows you to adjust the horizontal and vertical conver­gence to ensure that a white line drawn on the screen is as crisp and clear as possible.
Auto Adjust: Allows you to easily and quickly adjust and position for Non-preset timming. GTF Auto Adjust: Automatically adjust horizontal and vertical size and position
settings according to GTF standard with the signal timing which Auto Adjust is not available.
flat image, eliminating distortion and reducing glare so that what you see
13
Features –continued
Constant Brightness: sustains the brightness and screen color levels consistently over the normal life of the monitor. SB (Super Brightness) Mode: Provides the screen brightness suitable for the screen images displayed.
Super Bright Mode OFF: for text based images (normal use) Super Bright Mode-1 ON: for images Super bright Mode-2 ON: for moving image such as DVD movies
14
Troubleshooting
No picture
• Display card should be completely seated in its slot.
• Power Button and computer power switch should be in the ON position.
• Signal cable should be completely connected to display card/computer.
• Check connector for bent or pushed-in pins.
Image is scrolling or unstable
• Signal cable should be completely attached to the computer.
• Check pin assignments and signal timings of the monitor and your display card with respect to recommended timings and pin assignments.
• If the Macintosh cable adapter is used, check for proper connection or make sure the display card is Macintosh compatible and that the card is properly seated in the computer.
LED on monitor is not lit
• Power Switch should be in the ON position and power cord should be connected.
Picture is fuzzy or color looks blotchy
• If the picture is fuzzy, adjust the Moiré Canceler control. If the color looks blotchy, adjust the Brightness, Contrast or GlobalSync® controls, or use the EdgeLock™ control to change modes.
• Access the Degauss Control through OSM™ controls. Activate the Degauss Control. CAUTION: A minimum interval of 20 minutes should elapse before the
Deguass Control is used a second time when not switching between modes.
Picture bounces or a wavy pattern is present in the picture
• Move electrical devices that may be causing electrical interference away from the monitor.
• See inside cover of User’s Manual for FCC information.
Edges of the display image are not square
• Use the OSM Geometry and Corner Correction Controls to straighten the edges.
• If possible, position the front of the monitor facing east.
Display image is not centered, too small, or too large
• Use the OSM Size and Position Controls to adjust the image.
Thin lines appear on your screen
• Thin lines are normal for an aperture grille CRT and are not a malfunction. These are shadows from the damper wires used to stabilize the aperture grille and are most noticeable when the screen’s background is light (usually white).
(no green, orange color can be seen)
15
Troubleshooting –continued

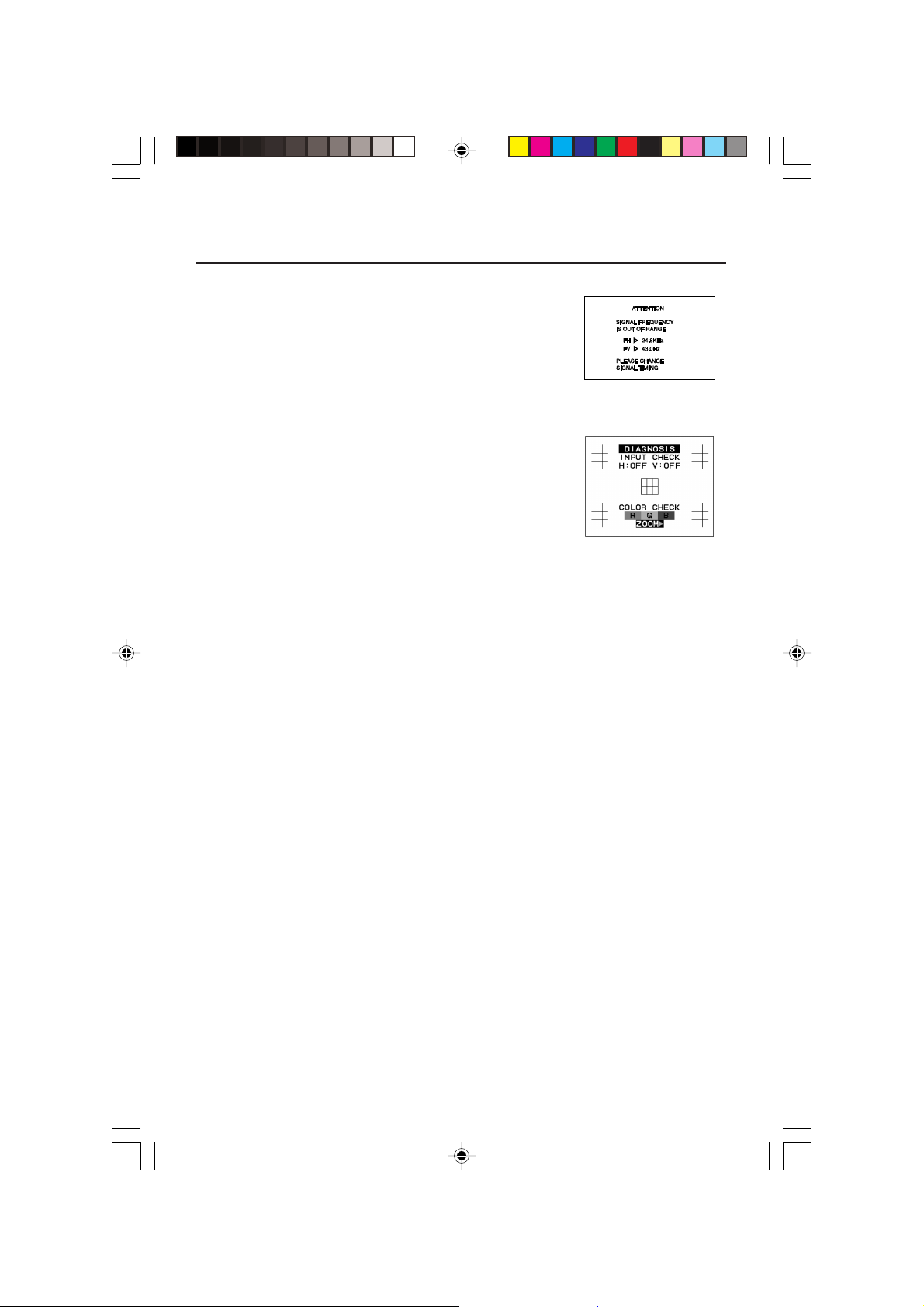

Attention message displayed
• Check the inputted signal.
NOTE:The attention message may display when power on
the MultiSync monitor. In case that the attention message disappear after in a little while, there is no problem at the inputted signal.
Self check function
• Press any control button on the front of monitor when you see a problem on the screen.
- In case that all R, G and B colors are seen in the diagnosis message, the MultiSync monitor has no problem. In case that some color is lack in the message, the MultiSync monitor has a problem. Contact NEC Customer Service.
- In case that no diagnosis message displayed with LED lit in green, power off the computer.
• Check the signal cable and computer in case that the diagnosis message
displayed.
• Contact NEC Customer Service in case that the diagnosis message still
does not display.
- In case that no diagnosis message displayed with LED lit in orange.
• Check the signal cable and computer.
• Move the mouse or press any key on the keyboard.
- In case that no diagnosis message displayed with LED lit in green and orange.
• Contact NEC Customer Service.
16
References
NEC-Mitsubishi Monitor Customer Service & Support
Customer Service and Technical Support:
Parts and Accessories/Macintosh Cable Adapter: (888) NEC-MITS [888-632-6487]
Customer Service Policies & Processes: http://www.necmitsubishi.com/
Online Technical Support Knowledge Base: http://www.necmitsubishi.com/
Customer Service & Technical Support Email: http://www.necmitsubishi.com/
Sales and Product Information
Sales Information Line: (888) NEC-MITS [888-632-6487] Canadian Customers: (866) 771-0266, Ext#: 4037
Government Sales: (800) 284-6320 Government Sales email: gov@necmitsubishi.com
(800) 632-4662
Fax: (800) 695-3044
css/ServicePolicies/ServicePolicies.htm
css/knowledgebase.cfm
css/techform.htm
Electronic Channels
World Wide Web: http://www.necmitsubishi.com Product Registration: http://www.necmitsubishi.com/
productregistration
European Operations: http://www.nec-mitsubishi.com
Windows® 95/98/Me/2000/XP INF File:
http://
www.necmitsubishi.com and select
“Downloads and Drivers”
17
Limited Warranty
NEC-Mitsubishi Electronics Display of America, Inc. (hereinafter “NMD-A”) warrants this Product to be free from defects in material and workmanship and, subject to the conditions set forth below, agrees to repair or replace (at NMD-A’s sole option) any part of the enclosed unit which proves defective for a period of three (3) years from the date of first consumer purchase. Spare parts are warranted for ninety (90) days. Replacement parts or unit may be new or refurbished and will meet specifications of the original parts or unit.
This warranty gives you specific legal rights and you may also have other rights, which vary from state to state. This warranty is limited to the original purchaser of the Product and is not transferable. This warranty covers only NMD-A-supplied components. Service required as a result of third party components is not covered under this warranty. In order to be covered under this warranty, the Product must have been purchased in the U.S.A. or Canada by the original purchaser. This warranty only covers Product distribution in the U.S.A. or Canada by NMD-A No warranty service is provided outside of the U.S.A. or Canada. Proof of Purchase will be required by NMD-A to substantiate date of purchase. Such proof of purchase must be an original bill of sale or receipt containing name and address of seller, purchaser, and the serial number of the product.
It shall be your obligation and expense to have the Product shipped, freight prepaid, or delivered to the authorized reseller from whom it was purchased or other facility authorized by NMD-A to render the services provided hereunder in either the original package or a similar package affording an equal degree of protection. All Products returned to NMD-A for service MUST have prior approval, which may be obtained by calling 1-800-632-4662. The Product shall not have been previously altered, repaired, or serviced by anyone other than a service facility authorized by NMD-A to render such service, the serial number of the product shall not have been altered or removed. In order to be covered by this warranty the Product shall not have been subjected to displaying of fixed images for long periods of time resulting in image persistence (afterimage effects), accident, misuse or abuse or operated contrary to the instructions contained in the User’s Manual. Any such conditions will void this warranty.
NMD-A SHALL NOT BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL, OR OTHER TYPES OF DAMAGES RESULTING FROM THE USE OF ANY NMD-A PRODUCT OTHER THAN THE LIABILITY STATED ABOVE. THESE WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAM­AGES SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU.
This Product is warranted in accordance with the terms of this limited warranty. Consumers are cautioned that Product performance is affected by system configuration, software, the application, customer data, and operator control of the system, among other factors. While NMD-A Products are considered to be compatible with many systems, specific functional implementation by the customers of the Product may vary. Therefore, suitability of a Product for a specific purpose or application must be determined by consumer and is not warranted by NMD-A.
For the name of your nearest authorized NEC-Mitsubishi Electronics Display service facility, contact NEC-Mitsubishi Electronics Display at 1-800-632-4662.
18
TCO’95
MultiSync® FE2111SB Black Front Model
Congratulations! You have just purchased a TCO’95 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also, to the further development of environmentally adapted electronics products.
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an established method for encourag­ing the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing. Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature.
There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (Internal) and natural (external) environments. Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously.
What does labelling involve?
This product meets the requirements for the TCO’95 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial and Technical Development in Sweden).
The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety.
The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.
Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.
TCO’95 is a co-operative project between TCO (The Swedish Confederation of Professional Employees), Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial and Technical Development in Sweden).
Environmental Requirements
Brominated flame retardants
Brominated flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. These are related to another group of environmental toxins, PCBs, which are suspected to give rise to similar harm, including
19
TCO’95 –continued
reproductive damage in fisheating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.
TCO’95 demand requires that plastic components weighing more than 25 grams must not contain organically bound chlorine and bromine.
Lead**
Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning.
TCO’95 requirement permits the inclusion of lead since no replacement has yet been developed.
Cadmium**
Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses.
TCO’95 requirement states that batteries may not contain more than 25 ppm (parts per million) of cadmium. The colourgenerating layers of display screens must not contain any cadmium.
Mercury**
Mercury is sometimes found in batteries, relays, switches, and backlight systems, Mercury damages the nervous system and is toxic in high doses.
TCO’95 requirement states that batteries may not contain more than 25 ppm (parts per million) of mercury. It also demands that no mercury is present in any of the electrical or electronics components concerned with the display unit, except the blacklight system.
CFCs (freons)
CFCs (freons) are sometimes used for washing printed circuit boards and in the manufacturing of expanded foam for packaging. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).
The relevant TCO’95 requirement; Neither CFCs nor HCFCs may be used during the manufacturing of the product or its packaging.
*Bio-accumulative is defined as substances which accumulate within living organisms. **Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.
To obtain complete information on the environmental criteria document, order from:
TCO Development Unit SE-114 94 Stockholm SWEDEN FAX Number: +46 8 782 92 07
E-mail (Internet): development@tco.se
You may also obtain current information on TCO’95 approved and labelled products by visiting their website at: http://www.tco-info.com/
20
TCO’99
MultiSync® FE2111SB Silver Front Model
Congratulations! You have just purchased a TCO’99 approved and labeled product! Your choice has provided you with a product devel­oped for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an established method for encourag­ing the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing. Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature.
There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (Internal) and natural (external) environments. Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously.
What does labelling involve?
This product meets the requirements for the TCO’99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).
The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety.
The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.
Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.
Environmental Requirements
Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride and these are
21
Loading...
+ 53 hidden pages
