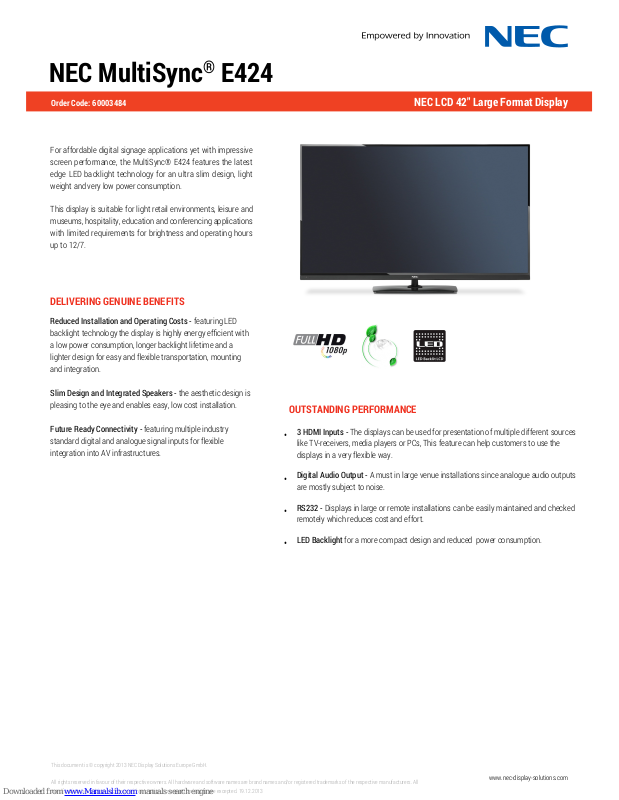

NEC MultiSync® E424
Order Code: 60003484
NEC LCD 42" Large Format Display
For affordable digital signage applications yet with impressive
screen performance, the MultiSync® E424 features the latest
edge LED backlight technology for an ultra slim design, light
weight and very low power consumption.
This display is suitable for light retail environments, leisure and
museums, hospitality, education and conferencing applications
with limited requirements for brightness and operating hours
up to 12/7.
DELIVERING GENUINE BENEFITS
Reduced Installation and Operating Costs - featuring LED
backlight technology the display is highly energy efficient with
a low power consumption, longer backlight lifetime and a
lighter design for easy and flexible transportation, mounting
and integration.
Slim Design and Integrated Speakers - the aesthetic design is
pleasing to the eye and enables easy, low cost installation.
Future Ready Connectivity - featuring multiple industry
standard digital and analogue signal inputs for flexible
integration into AV infrastructures.
OUTSTANDING PERFORMANCE
3 HDMI Inputs - The displays can be used for presentation of multiple different sources
like TV-receivers, media players or PCs, This feature can help customers to use the
displays in a very flexible way.
•
Digital Audio Output - A must in large venue installations since analogue audio outputs
are mostly subject to noise.
•
RS232 - Displays in large or remote installations can be easily maintained and checked
remotely which reduces cost and effort.
•
LED Backlight for a more compact design and reduced power consumption.
•
This document is © copyright 2013 NEC Display Solutions Europe GmbH.
All rights reserved in favour of their respective owners. All hardware and software names are brand names and/or registered trademarks of the respective manufacturers. All
specifications are subject to change without notice. Errors and omissions are excepted. 19.12.2013
www.nec-display-solutions.com
Page 2
NEC MultiSync® E424
1. RS232C Input
2. USB
3. HDMI-Input
4. SPDIF Output (Fiber Optical)
5. Component/Composite + Audio
6. PC Input/D-sub + Audio
SPECIAL CHARACTERISTICS
Audio settings with equalizer, Colour temperature mode, Energy
saving picture mode, Mac and Windows compatible, USB Viewer
for JPEG
Ecological Standards EnergyStar 6.0
Technical Specification NEC MultiSync® E424
DISPLAY
Panel Technology
S-PVA with edge LED backlights
Active Screen Area (W x H) [mm]
939 x 531
Screen Size [inch/cm]
42 / 107
Aspect Ratio
16:9
Brightness (shipping) [cd/m2]
350
Contrast Ratio (typ.)
3000:1
Viewing Angle [°]
176 horizontal / 176 vertical (typ. at contrast ratio 20:1)
Response Time (typ.) [ms]
6.5 (grey-to-grey)
Panel Refresh Rate [Hz]
60
SYNCHRONISATION RATE
Horizontal Frequency [kHz]
31 - 83 (analog and digital)
RESOLUTION
Native Resolution
1920 x 1080 at 60 Hz
Supported on digital and analogue inputs (PC)
1920 x 1080; 1366 x 786; 1280 x 800; 1280 x 720; 1024 x 768; 800 x 600; 720 x
400; 640 x 480
Supported on digital inputs (Video)
1920 x 1080i (60Hz); 1920 x 1080p (60/30/24Hz); 1280 x 720p (60Hz); 720 x 480i
(60Hz); 720 x 480p (60Hz)
CONNECTIVITY
Input Video Analogue
1 x D-sub 15 pin; Component (RCA); Composite (RCA)
Input Video Digital
3 x HDMI
Input Audio Digital
3 x HDMI
Output Audio Digital
1 x SPDIF
Remote Control
RS-232C (9-pin D-sub) Input; Remote Control IR
ELECTRICAL
Power Consumption on Mode [W]
86 (max.)
Power Savings Mode [W]
< 0.5 (ECO Standby)
Power Management
VESA DPMS
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C]
+0 to +40
Operating Humidity [%]
10 to 80
Storage Humidity [%]
5 to 85
Storage Temperature [°C]
-10 to +60
MECHANICAL
Dimensions (W x H x D) [mm]
Without stand: 957 x 573 x 63 (centre depth 37)
Weight [kg]
Without stand: 12.1
Bezel Width [mm]
32.4 (bottom); 9.9 (left, right and top)
VESA Mounting [mm]
400 x 400 (FDMI); 4 holes; M6
AVAILABLE OPTIONS
Accessories
Trolley (PDMHM-L); Wall mount (PDW S 32-55L, PDW T M L)
ADDITIONAL FEATURES
Colour Versions
Black Front Bezel, Black Back Cabinet
Safety and Ergonomics
C-tick; CE; Energy Star 6.0; FCC Class B; PSB; UL/C-UL or CSA; RoHS
Audio
Integrated Speakers (10 W + 10 W)
Shipping Content
Foot; Display; Power Cable; VGA cable; Remote Control
Warranty
3 years warranty incl. backlight
