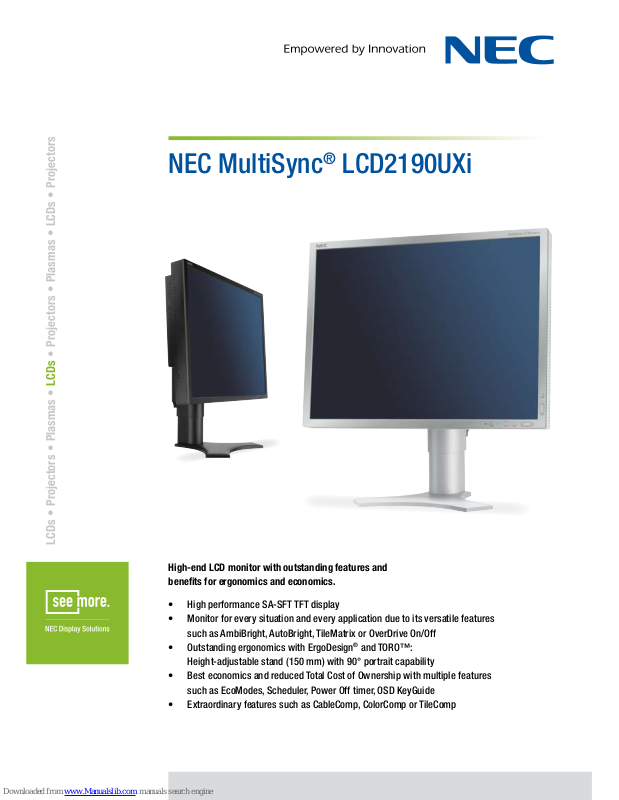

Page 1
High-end LCD monitor with outstanding features and
benefits for ergonomics and economics.
• High performance SA-SFT TFT display
• Monitor for every situation and every application due to its versatile features
such as AmbiBright, AutoBright, TileMatrix or OverDrive On/Off
• Outstanding ergonomics with ErgoDesign
®
and TORO™:
Height-adjustable stand (150 mm) with 90° portrait capability
• Best economics and reduced Total Cost of Ownership with multiple features
such as EcoModes, Scheduler, Power Off timer, OSD KeyGuide
• Extraordinary features such as CableComp, ColorComp or TileComp
LCDs
•
Projectors
•
Plasmas
•
LCDs
•
Projectors
•
Plasmas
•
LCDs
•
Projectors
NEC MultiSync
®
LCD2190UXi
Page 2
www.nec-display-solutions.com
NEC Display Solutions Europe GmbH
TECHNICAL SPECIFICATIONS
Panel Technology
Screen Size [inch/cm]
Pixel Pitch [mm]
Viewing Angle
Contrast Ratio (typ.)
Brightness (typ.) [cd/m
2
]
Response Time (typ.) [ms]
Colours [Mio.]
Horizontal Frequency [kHz]
Vertical Frequency [Hz]
Optimum Resolution
Other Resolutions
Connectors
Plug & Play
Adjust Functions
Safety and Ergonomics
Power Requirements on Mode [W]
Power Requirements Power-saving Mode [W]
Power Supply
Ambient Temperature (operating) [°C]
Ambient Humidity (operating) [%]
VESA Mounting [mm]
ErgoDesign®: Height-adjustable stand [mm]
Dimensions (W x H x D) [mm]
Screen Tilt / Swivel [°]
Bezel Width [mm]
Cable Management
Kensington Lock
Weight [kg]
Specials
Audio Functions
Colour Versions
Shipping Content
Warranty
SA-SFT (SuperAdvanced SuperFine Technology) TFT
21.3/54
0.270
178° horizontal / 178° vertical (typ. at contrast ratio 10:1)
500:1
250
10 (grey-to-grey), 20 (9 white / black; 11 black / white)
16.77
31.5 - 91.1
50.0 - 85.0
1600 x 1200 at 60 Hz
1200 x 1600; 1280 x 1024; 1280 x 960; 1152 x 870; 1152 x 864;
1024 x 768; 832 x 624; 800 x 600; 720 x 400; 640 x 480
3 (Digital: 1 x DVI-D; Digital/Analog: 1 x DVI-I; Analog: 1 x D-sub 15 pin)
VESA DDC/CI; DDC2B/2Bi; EDID Standard
Auto Adjust; Colour Temperature Control; Fine Adjust (analog); Sharpness; Brightness; Contrast;
Intelligent Power Management; Monitor Information; OmniColor™: sRGB and 6-axis-colour-control;
Black Level; Expansion Mode; On-Screen-Manager (OSM) lock-out; Advanced NTAA (Non-TouchAuto-Adjustment); Language Select; User Menu; Advanced User Menu; Hotkeys
CE; TCO´03; TÜV ergonomic approved; TÜV GS; C-tick; GEEA/Energy label;
Energy Star; FCC Class B; PCT/Gost; UL/C-UL or CSA; CCC;
ISO 13406-2 (pixel failure class II); MPR II/ MPR III; PCBC/B-mark; PSB
50 (max.)
1
100 - 120 V/220 - 240 V; 0.68 A/0.29 A; integrated power supply
5 to 35
30 to 80
100 x 100
150
464.8 x 424.8 - 574.8 x 247.3 (Landscape mode)
-5 to +30 / -170 to +170
14.9 (left and right)
yes
yes
10.9
Adjustable Power LED (colour and brightness); EcoModes; AmbiBright; AutoBright; Direct Brightness
and Contrast; Auto Black Level; Auto Brightness; Auto Contrast; ambix3™, CableComp with Sync
Continuity Detection; ColorComp; Rapid Response; RapidMotion; TileMatrix; TileComp; OmniColor™;
TORO™ Design; DDC-CI; NaviSet® and NaviSet® Administrator compatible; Real Time Clock with
Scheduler (Power-On and Power-off timer), Overdrive; Advanced NTAA (Advanced Non-TouchAuto-Adjustment); Self Diagnostics; Quick Release Stand and Handle
Option: MultiSync® Soundbar 90
Silver Front Bezel; Light Grey Back Cabinet;
Black Front Bezel, Black Back Cabinet
Monitor; Power Cable; Signal Cable DVI-A - VGA; Signal Cable DVI-D - DVI-D; CD-ROM;
Sales Office List; User Manual
3 years warranty incl. backlight
LCD2190UXi-UK-06/07
NEC MultiSync
®
LCD2190UXi
LCDs
•
Projectors
•
Plasmas
•
LCDs
•
Projectors
•
Plasmas
•
LCDs
•
Projectors
•
Plasmas
•
LCDs
•
Projectors
•
Plasmas
•
LCDs
All hardware and software names are brand names and/or registered trademarks of the respective manufacturers. All rights reserved. All specifications are subject to change without notice. June 2007
