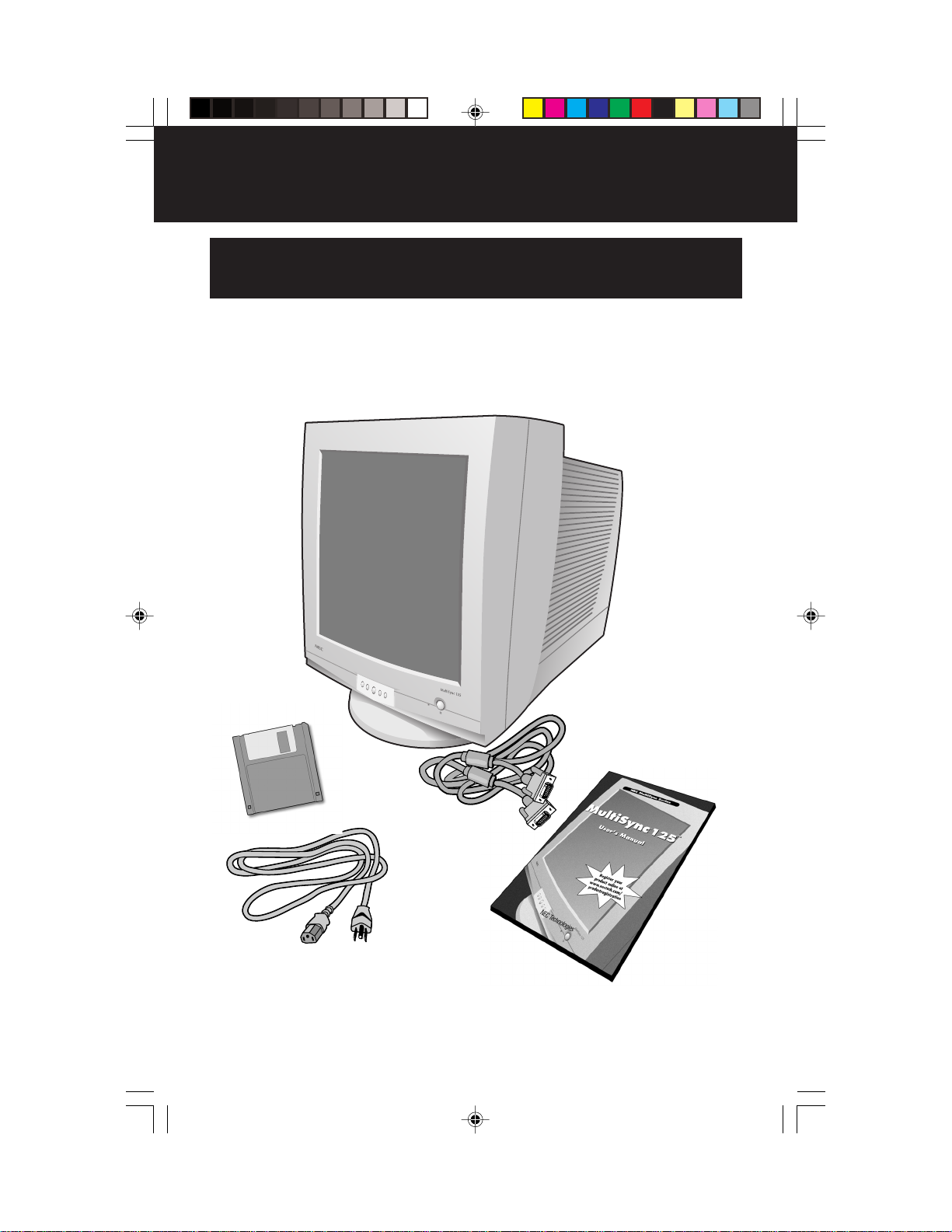

Your new NEC Technologies MultiSync® monitor box* should contain the following:

• MultiSync Monitor • Power Cord •User’s Manual MultiSync 125

™

• Video Signal Cable •Diskette

Video Signal Cable

Diskette

Power Cord

* Remember to save your original box and packing material to transport or ship

the monitor.

MS125 Manual.wpc 5/7/01, 3:34 PM4

User’s Manual

Quick Start

To attach the MultiSync® monitor to your system, follow these instructions:

1. Turn off the power to your computer.

2. If necessary, install the display card into your system. For more information,

refer to the display card manual.

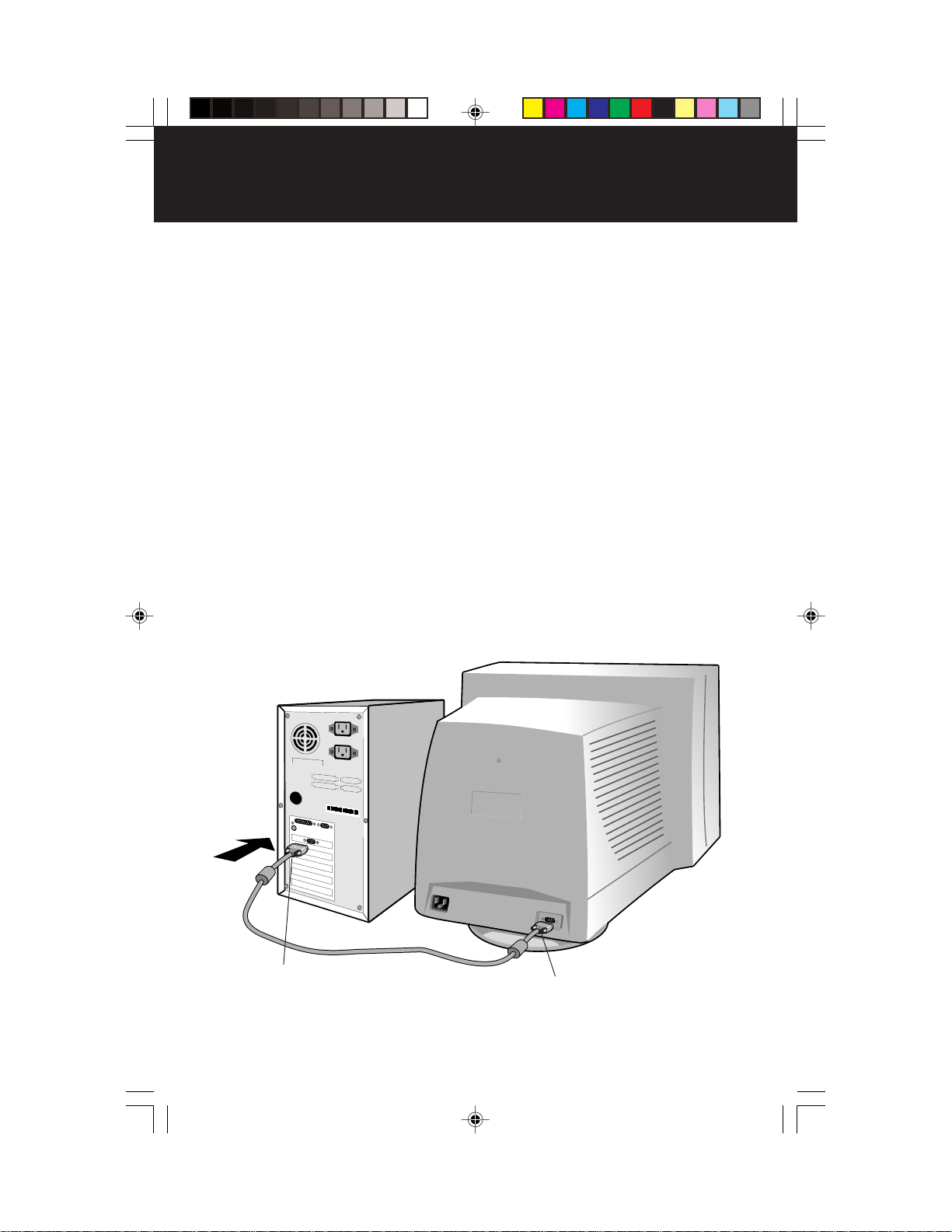

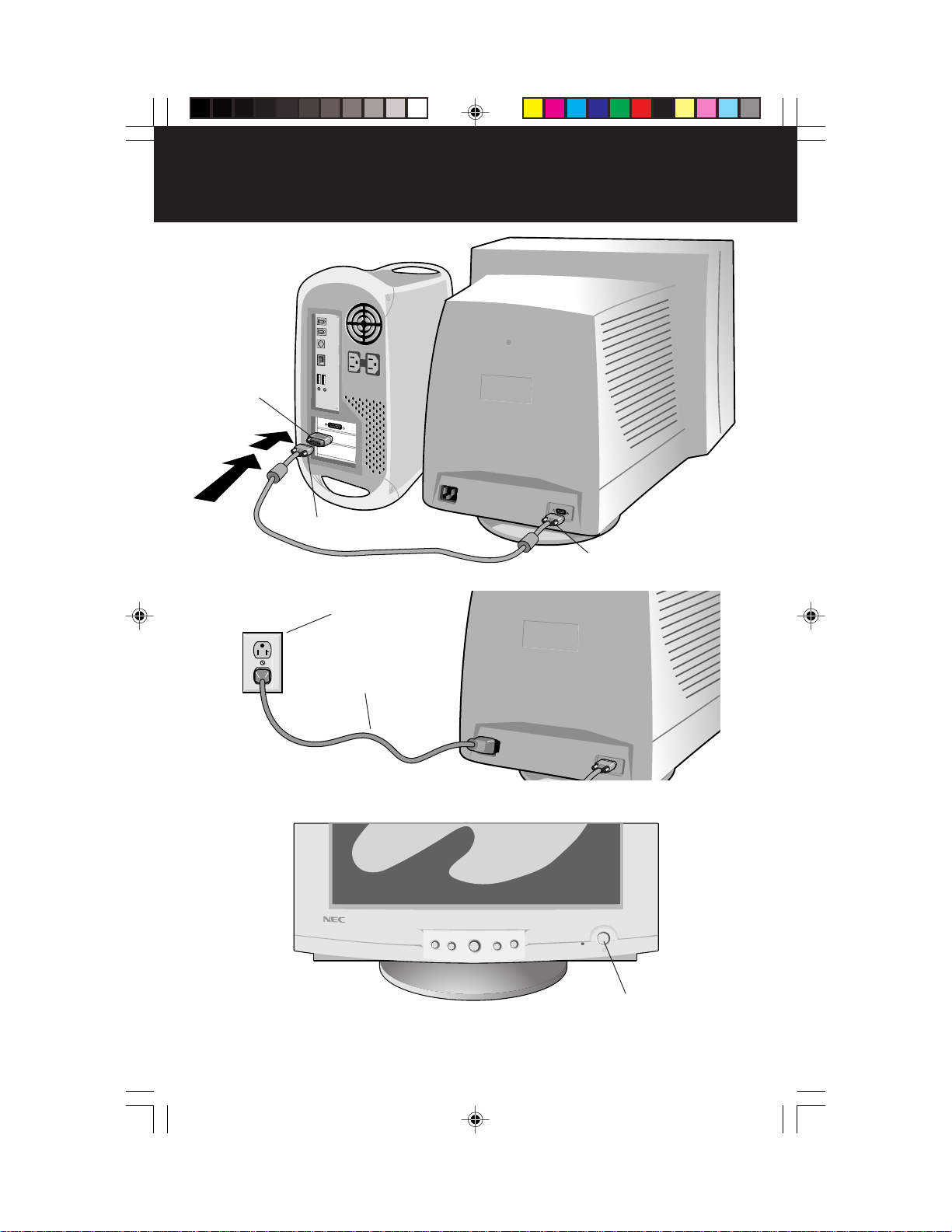

3. For the PC: Connect the one end of the 15-pin mini D-SUB of the video signal

cable to the rear of the monitor and the other end to the connector of the display card in your system (Figure A.1). Tighten all screws.

For the Mac: Connect the Macintosh cable adapter (not included) to the monitor connector on the Macintosh (Figure B.1). Attach the 15-pin mini D-SUB end of the video signal cable to the Macintosh cable adapter on the computer and the other end to the back of the monitor (Figure B.1). Tighten all screws.

NOTE: To obtain the Macintosh cable adapter, call NEC Technologies

at (800) 820-1230.

4. Connect one end of the power cord to the MultiSync monitor and the other

end to the power outlet (Figure C.1).

5. Turn on the monitor (Figure D.1) and the computer.

NOTE: On the included floppy. Select the Windows® 95/98 INF files are

included on this disk.

NOTE: If you have any problems, please refer to the Troubleshooting section of

this User’s Manual.

15-pin mini D-SUB

MS125 Manual.wpc 5/7/01, 3:34 PM5

Figure A.1

Video Signal Cable

Quick Start cont.

Mac Adapter

(Not Included)

15-pin mini D-SUB

Power Outlet

Power Cord

Figure B.1

Video Signal Cable

Figure C.1

MultiSync 125

Power Button

MS125 Manual.wpc 5/7/01, 3:34 PM6

Figure D.1

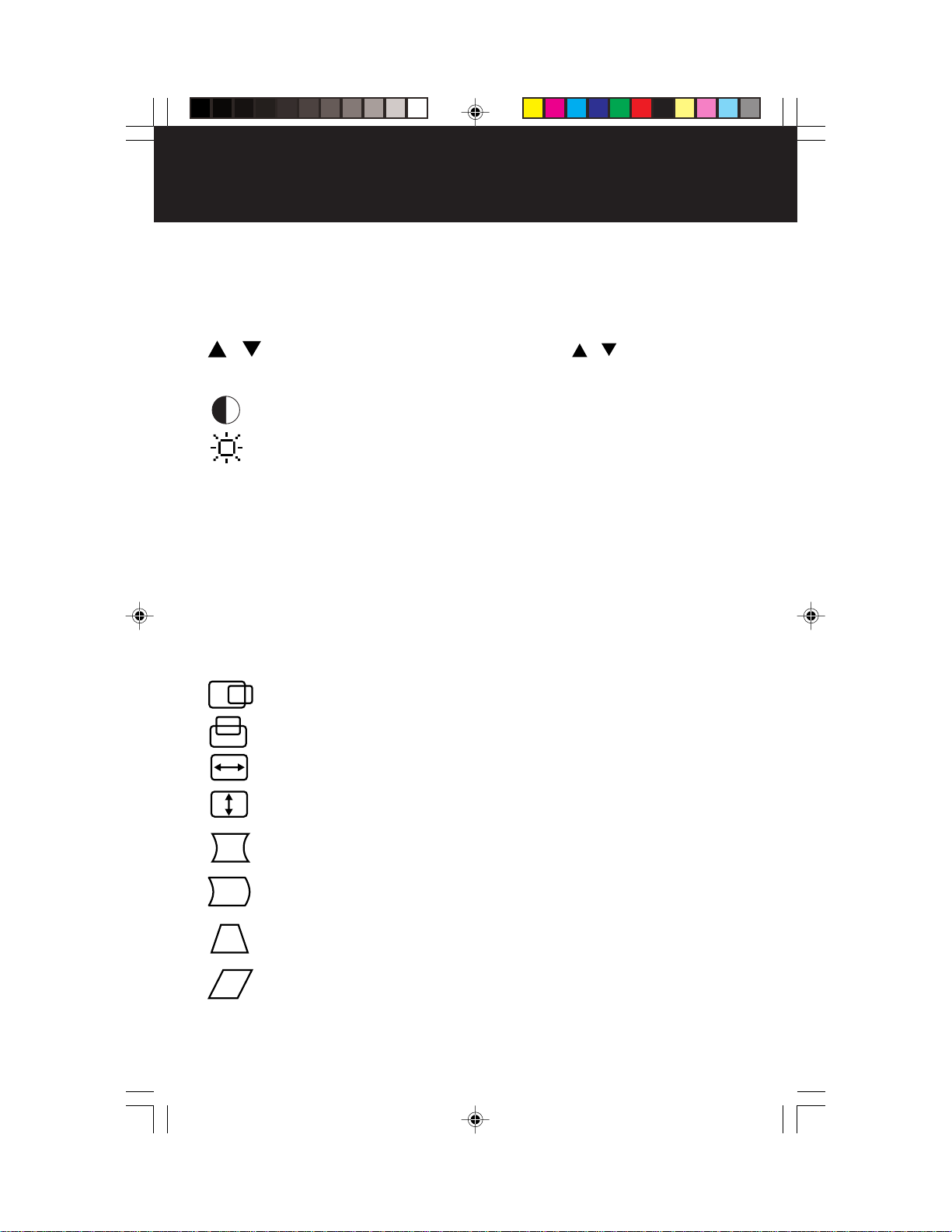

Controls

OSM™ (On-Screen Manager) control buttons on the front of the monitor function as follows:

SELECT Enters and exits the OSM menu. CONTROL –/+ Selects one of the controls and increases or decreases the

adjustment.

/ Moves the highted area / to select control.

Adjusts the overall image and background screen brightness.

Adjusts the image brightness in relation to the background.

Color Preset: Select from 9300K or 6500K color temperature.

Color Temperature: Increases or decreases the color temperature.

RED Red Color Contrast: Adjust the red contrast of the display

GREEN Green Color Contrast: Adjust the green contrast of the display.

BLUE Blue Color Contrast: Adjust the blue contrast of the display.

Moves the image horizontally (left or right).

Moves the image vertically (up or down).

Increases or decreases the horizontal size of the image.

Increases or decreases the vertical size of the image.

Increases or decreases the curvature of the sides either inward or outward.

Decreases or increases the curvature left or right.

Increases or decreases the top of the screen to be the same as the bottom.

Increases or decreases the tilt of the sides either to the left or right.

MS125 Manual.wpc 5/7/01, 3:34 PM7

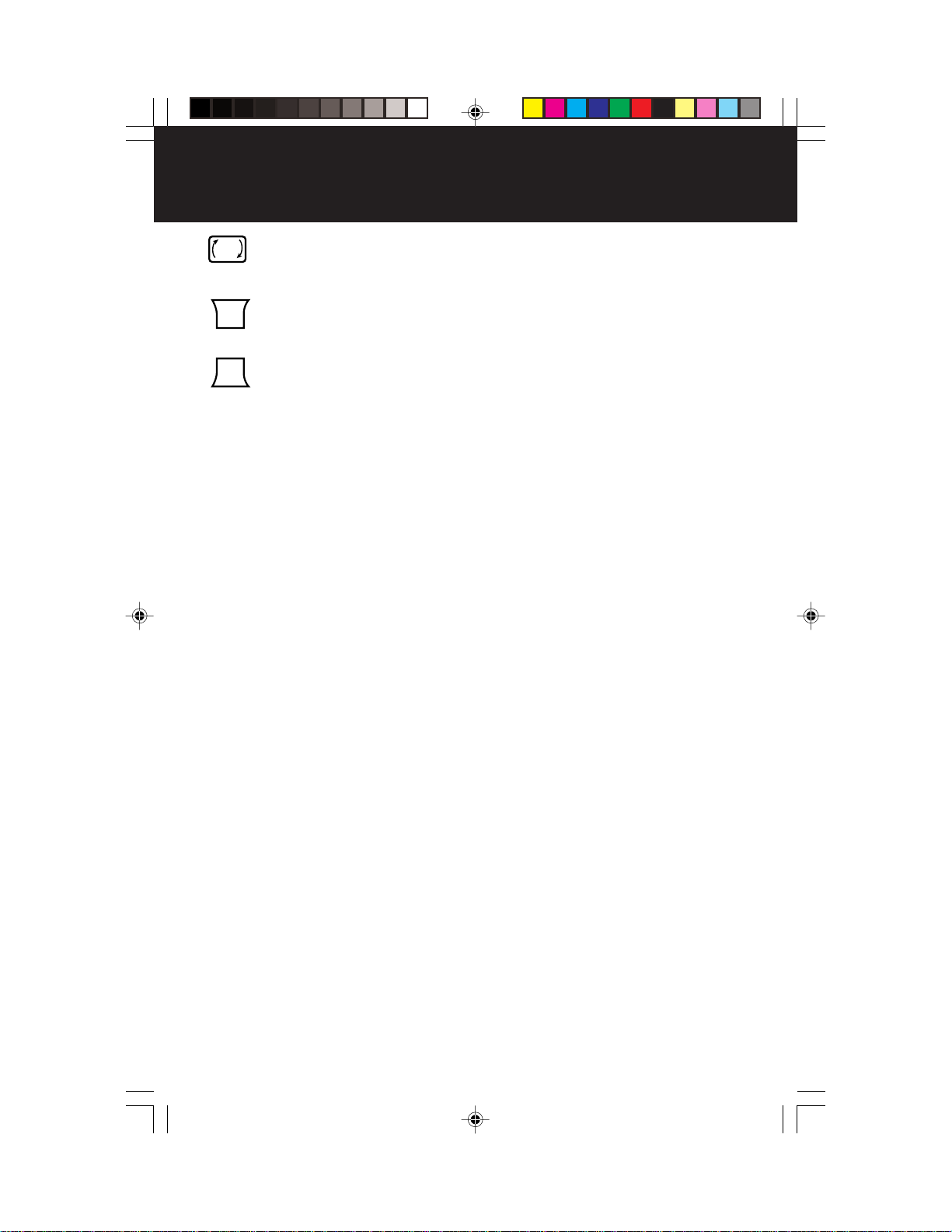

Controls cont.

Rotates the entire display clockwise or counterclockwise.

Increases or decreases the curvature of the inward or outward top corners.

Increases or decreases the curvature of the bottom corner inward or outward.

Video Level: Select from 0.7 or 1.0V to match to computers output.

Language: Adjusts language of OSM menu.

OSD Position: Adjusts Position of OSM menu.

Clamp: Adjusts image of a non-standard timing to a normal state.

Degauss: Eliminates the buildup of stray magnetic fields which alter the correct

scan of the electron beams and effect the purity of the screen colors, focus and convergence. When acivated, your screen image will jump and waver a bit as the screen is demagnetized. CAUTION: Please allow a minimum of 20 minutes to elapse between uses of

degauss control.

Recall: Resets all OSM settings to default

Horizontal/Vertical Canceler: Reduces horizontal/vertical moiré levels.

Horizontal/Vertical Convergence: Aligns all colors (R,G,B) to form a single

color (White).

MS125 Manual.wpc 5/7/01, 3:34 PM8

Recommended Use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE

FOLLOWING WHEN SETTING UP AND USING

THE MultiSync® COLOR MONITOR:

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.

• Do not spill any liquids into the cabinet or use your monitor near water.

• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous

voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.

• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.

• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.

• Keep the monitor away from high capacity transformers, electric motors and other devices such as external speakers or fans, which may create strong magnetic fields.

• If possible, position the monitor so that it is facing the east to minimize the effects of the earth’s magnetic field.

• Changing the direction of the monitor while it is powered on may cause image discoloration. To correct this, turn the monitor off for 20 minutes before powering it back on.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following operating instructions.

• Allow adequate ventilation around the monitor so that heat can

properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.

CAUTION

• The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet which is easily accessible.

• Handle with care when transporting. Save packaging for transporting.

MS125 Manual.wpc 5/7/01, 3:34 PM9

Recommended Use cont.

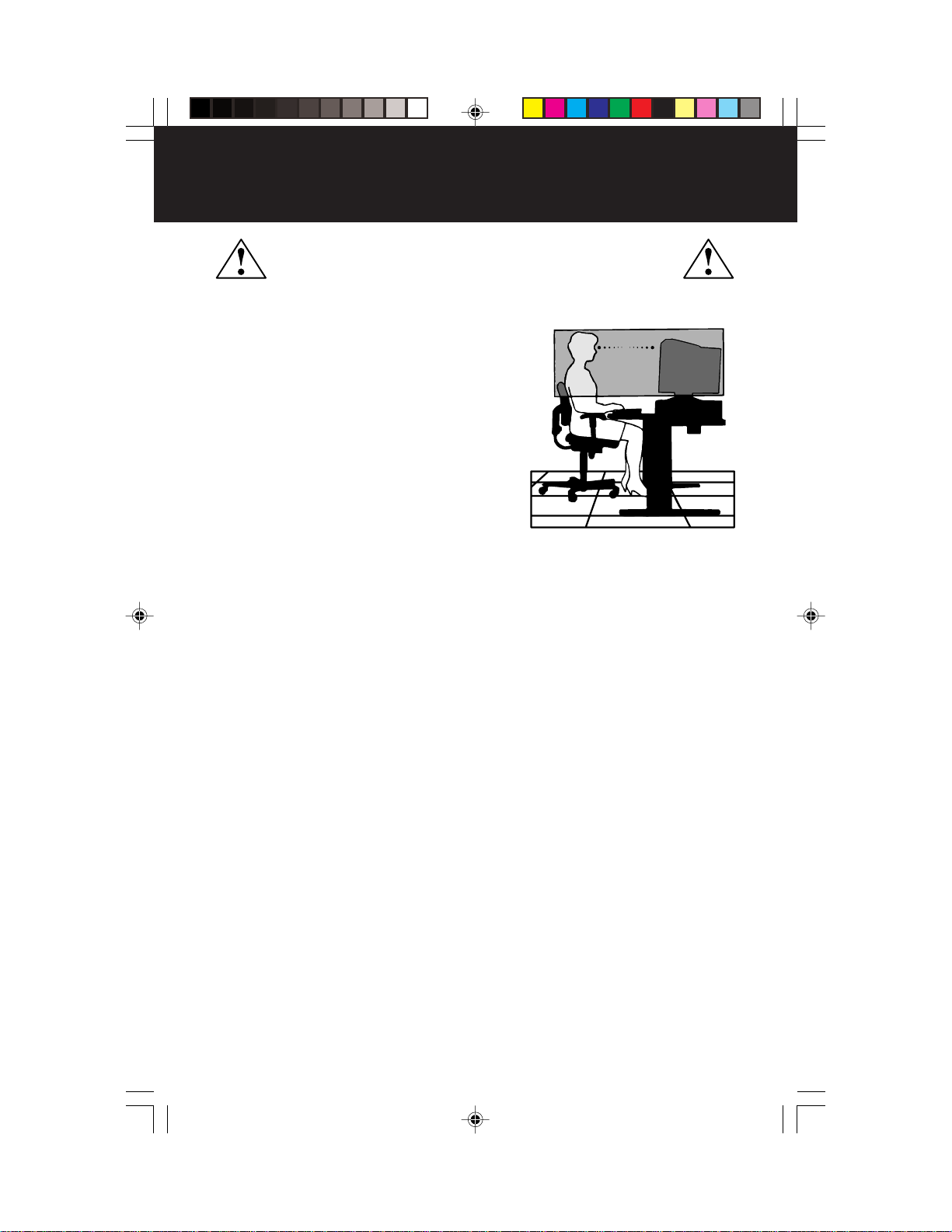

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR

CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE

FOLLOWING WHEN YOU POSITION THE MONITOR:

• Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.

• Position your monitor no closer than 12 inches and no further away than 28 inches from your eyes. The optimal distance is 18 inches.

• Rest your eyes periodically by focusing on an object at least 20 feet away. Blink often.

• Position the monitor at a 90° angle to windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.

• If reflected light makes it hard for you to see your screen, use an anti-glare filter.

• Clean your monitor regularly. Use a lint-free, non-abrasive cloth and a

non-alcohol, neutral, non-abrasive cleaning solution or glass cleaner to minimize dust.

• Adjust the monitor’s brightness and contrast controls to enhance readability.

• Use a document holder placed close to the screen.

• Position whatever you are looking at most of the time (the screen or

reference material) directly in front of you to minimize turning your head while you are typing.

• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

• Adjust the Brightness until the background raster disappears

• Do not position the Brightness control to its maximum setting

• Use the preset Size and Position controls with standard signals

• Use the preset Color Setting and Sides Left/Right controls

• Use non-interlaced signals with a vertical refresh rate between 70-85Hz for

the MultiSync® 125

• Do not use primary color blue on a dark background, as it is difficult to see and may produce eye fatigue due to insufficient contrast

For more detailed information on setting up a healthy work environment, call NEC at (800) 820-1230, NEC FastFacts™ information at (630) 467-4363 and request document #900108 or write the American National Standard for Human Factors Engineering of Visual Display Terminal Workstations – ANSI-HFS Standard No. 100-1988 – The Human Factors Society, Inc. P.O. Box 1369, Santa Monica, California 90406.

™
