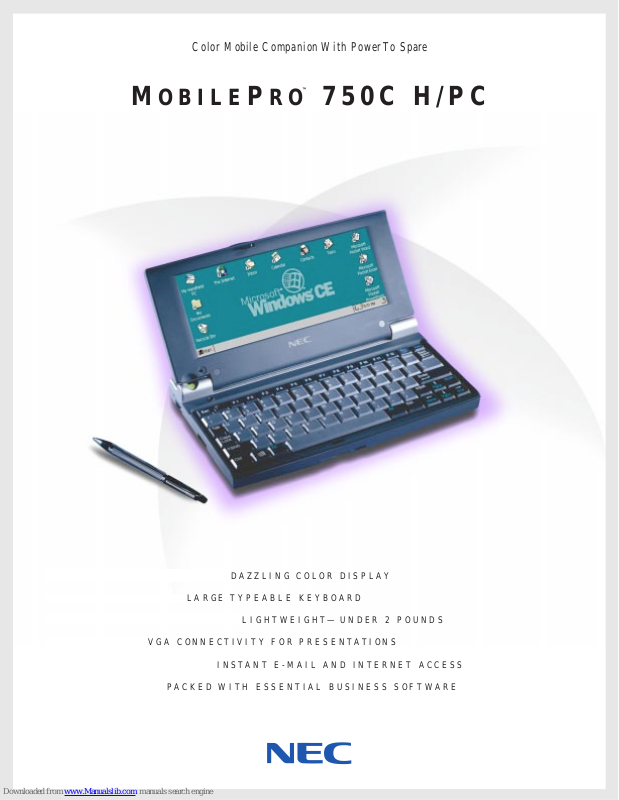

MOBILEPRO™750C H/PC
Color Mobile Companion With Power To Spare
DAZZLING COLOR DISPLAY
LARGE TYPEABLE KEYBOARD
LIGHTWEIGHT—UNDER 2 POUNDS
VGA CONNECTIVITY FOR PRESENTATIONS
INSTANT E-MAIL AND INTERNET ACCESS
PACKED WITH ESSENTIAL BUSINESS SOFTWARE
AT A GLANCE
• Brilliant, 8" diagonal, 256-color display
• Typeable 80-key keyboard
• Compact—weighs only 1.88 lb.
• 16MB RAM and 16MB ROM
• 80MHz NEC VR4111™processor
• VGA port for connecting to desktop monitors
• Built-in modem, microphone, speaker and
infrared support
• Compact Flash and PC card slots
NO-COMPROMISE MOBILE COMPUTING
Thanks to the MobilePro 750C H/PC,it’s
no longer necessary to sacrifice power for
portability.
Yes, the MobilePro 750C H/PC weighs less
than 2 pounds,making it a breeze to take
almost anywhere.But that’s only half the story.
The MobilePro 750C H/PC also delivers
Herculean power for such a diminutive device.
This compact dynamo sports a high-contrast,
8-inch-diagonal color display
with highly responsive
touchscreen capabilities for
immediate access to key
applications.In addition,it
features the largest typeable
keyboard of any Microsoft
®
Windows®CE 2.0 device,
complete with 10 programmable function keys.
C
all it the best of both worlds: a handheld computer
small enough to slip into a briefcase or handbag—
yet powerful enough to put e-mail, business applications,
contact files and other essential information at your fingertips
while you’re on the road or
attending meetings.
The NEC MobilePro 750C
H/PC is the ideal solution for busy professionals who spend
as much time away from their desks as they do behind them.
Long on performance and shor t on energy consumption, the
MobilePro 750C H/PC lets you stay productive, no matter
where your job takes you. It’s the ideal companion to your
desktop or notebook PC.
Color Mobile Companion
With Power To Spare.
Powered by the NEC 80MHz VR4111
microprocessor, the MobilePro 750C H/PC
is equipped with two expansion slots (one
for a Type II PC card and another for a
Compact Flash card) to give you access to
an array of options.
NOTHING NEW TO LEARN
Thanks to the easy-to-use Windows CE 2.0
operating system and the MobilePro 750C
H/PC’s high-resolution,color display, you’ll
experience the same
look and feel as when
you run Windows 95
on your desktop PC.
If you’re already familiar
with Windows,y ou’ll
feel confident using the
MobilePro 750C
H/PC right out of
the box.
What’s more,the MobilePro 750C H/PC
saves you time by bringing up Windows CE
immediately with the touch of a key.This
instant-on feature provides true,solid-state
computing.
STAY ORGANIZED WHILE ON THE GO
With the personal information management
(PIM) software included on the MobilePro
750C H/PC,it’s a snap to locate
phone numbers,schedule
meetings,jot
down your
tasks for
the week,
and much
more.
All changes and additions you enter on the
MobilePro 750C H/PC can be easily
synchronized with Microsoft Outlook
™
,
Microsoft Schedule+ 7.0/Exchange,Lotus
Organizer, ACT! and other popular PIM
applications.PIM functions include:
• Calendar • Inbox
• Contacts • Calculator
• Tasks • World Clock
Plus,you can use the internal microphone
and speaker system to capture your quick
thoughts or to leave yourself audible reminder
messages.Even send these recordings via
e-mail to your contacts.The MobilePro 750C
H/PC also provides a button that flashes to
remind you of appointments.
TAKE ESSENTIAL PC APPLICATIONS
WITH YOU
Just because you’re leaving your desk for a
while,you shouldn’t have to forgo your
favorite software solutions.With the
MobilePro 750C H/PC,that’s not a problem:
it comes with an extensive collection of key
business software.
Quickly create and edit notes,memos, and
reports with Microsoft Pocket Word.Review
and update budgets with Microsoft Pocket
Excel. Take along business presentations to
meetings and project them onto a desktop
monitor with Microsoft Pocket PowerPoint
®
.
Write directly on the MobilePro 750C
H/PC screen and let CalliGrapher
™
’s handwriting recognition capabilities transform
your script into text.
You also get a bonus software CD that
includes the following applications to help
you work more efficiently while away from
your desk:
• Puma
™
IntelliSync™for synchronizing
your MobilePro 750C H/PC with
PC-based PIM,contact management, and
group scheduling applications
• Symantec
™
pcANYWHERE™CE for
quick,easy access to files, applications and
information on a remote PC
• MicroBurst Virtual Courier
™
for accessing
cc:Mail
™
,MS Mail or other LAN-based
e-mail systems using the MobilePro 750C
H/PC’s built-in modem
• CIC
®
QuickNotes™Lite for collecting handwritten thoughts, ideas and drawings,and
then organizing them by date
• SPRYNET
™
for quick Internet access
• BSQUARE
™
bFAX™Professional for power-
ful faxing and communication capabilities
• JetForm
®
E-Forms To Go for streamlining
data entry tasks using electronic forms
DATA SYNCHRONIZATION MADE EASY
The MobilePro 750C H/PC ensures that its
data always matches that of your desktop or
notebook PC.Use the PC docking cable
accessory,the MobilePro 750C H/PC’s
infrared port or modem to connect with your
desktop or notebook computer.Then let
Windows CE Services 2.0 with ActiveSync
™
do the work.
This software (installed on your PC) provides
automatic,no-hands replication and synchronization of your appointments,contacts,tasks,
e-mail and other essential files.Plus, it enables
you to drag-and-drop files to move, copy and
convert them to and from your PC and the
MobilePro 750C H/PC.
MOBILE INTERNET ACCESS
Because the MobilePro 750C H/PC comes
equipped with an internal 33.6Kbps modem
and Microsoft Pocket Internet Explorer,the
world is never more than a few clicks away—
no matter where you are.Stay in touch with
business associates,family and fr iends via
e-mail,or surf the web.The MobilePro 750C
H/PC makes Internet access quick and easy.
LET THE SHOW BEGIN
When it comes to portable presentations,the
MobilePro 750C H/PC is in a league of its own.
Now you can put your best foot forward,without having to lug your PC or going through a
cumbersome setup with separate cards or
adapters required by other handheld devices.
Featuring an integrated VGA port, the
MobilePro 750C H/PC makes it convenient
to display PowerPoint presentations using a
desktop monitor.Simply drag-and-drop
presentations from your PC to the MobilePro
750C H/PC.Hook up to an external monitor
using the VGA cable—and it’s showtime!
ONLY FROM NEC
The quality and dependability you’ve come to
expect from NEC is built into every MobilePro
750C H/PC.Using NEC’s own 80MHz
V
R4111 microprocessor,the MobilePro 750C
H/PC delivers robust performance combined
with low power consumption.
LONG-LASTING POWER
The MobilePro 750C H/PC includes a
rechargeable,lithium ion battery that provides
up to 8 hours of power. The included AC
adapter lets you conserve battery power when
working at home or in your office,and automatically recharges your MobilePro 750C
H/PC to get you ready for the road again.
EXCEPTIONAL SERVICE AND SUPPORT
Should something happen to your MobilePro
750C H/PC,NEC will make sure you’re up
and running again—fast. Our MobilePro
UltraCare
SM
service provides free 24-hour
technical support plus 72-hour,door-to-door
repairs for the first year.You also receive
90 days of free software support.An optional
3-year extended warranty is also available.
Call now to order or to find your nearest reseller.
Mon-Fri 8am-8pm EST
Dept. No. MMP98
www.necnow.com
1-888-863-2669
NEC MOBILEPRO 750C H/PC TECHNICAL SPECIFICATIONS
PART NUMBER
S1424-04A03
DIMENSIONS
9.6"W x 5.4"D x 1.4"H (1.25" front,1.5" back)
WEIGHT
1.88 lb.
PROCESSOR
80MHz NECVR4111 MIPS processor (24KB cache)
MEMORY
16MB RAM (expandable to 32MB)
16MB ROM (upgradeable)
DISPLAY
8" diagonal,256-color screen at 640 x 240 resolution
Backlit touchscreen
DATA ENTRY METHODS
80-key QWERTY keyboard with 10 programmable function keys
Stylus pen (for touchscreen)
INTERFACE PORTS
Serial
VGA (for PowerPoint presentation display)
Infrared (for wireless communications)
EXPANSION SLOTS
One PCMCIA slot for Type II modem, cellular or Flash ATA card
One slot for a Compact Flash card
MICROPHONE AND SPEAKER
Internal audio microphone and speaker
AC POWER
AC adapter,100-240V, 50/60Hz
BATTERY POWER
Two-cell lithium ion battery
INCLUDED ACCESSORIES
AC Adapter
PC Docking Cable
VGA Monitor Cable
RJ-11 T elephone Cable
FACTORY-INSTALLED SOFTWARE
Windows CE 2.0 Operating System
Microsoft Pocket Word 2.0
Microsoft Pocket Excel 2.0
Microsoft Pocket PowerPoint
Microsoft Pocket Internet Explorer 2.0
Microsoft Pocket Outlook 2.0 (Calendar,Contacts,Tasks,Inbox)
ParaGraph PI CalliGrapher (for handwriting recognition)
World Clock
Calculator
Remote Networking
Terminal
Solitaire
Microsoft Windows CE Services (CD-ROM for the desktop PC, includes
ActiveSync, Ethernet components, Microsoft Expedia™Pocket Streets, and more)
BONUS SOFTWARE CD
Puma IntelliSync
Symantec pcANYWHERE CE
MicroBurst Virtual Courier
CIC QuickNotes Lite
SPRYNET
BSQUARE bFAX Professional
JetForm E-Forms To Go
OPTIONAL ACCESSORIES
AC Adapter S1424-21A
PC Docking Cable S1424-12S
VGA Monitor Cable S1424-12V
Lithium Ion Battery S1424-25A
32MB RAM Memory Card S1424-18B
3-Pak Stylus Pens S1424-17A
Carrying Case S1424-30A
MobilePro UltraCare Extended Service 904743
WARRANTY
One-year limited warranty includes MobilePro UltraCare service with 24-hour
technical support and door-to-door 72-hour repair service
MINIMUM PC SYSTEM REQUIREMENTS
Microsoft Windo ws NT®Workstation 4.0 or Windows 95
Desktop computer with a 486/33DX or higher processor (Pentium®P90
recommended)
12MB of memory for Windows NT Workstation 4.0
8MB of memory (12MB recommended) for Windows 95
Hard disk drive with 10 to 50MB of available hard disk space (actual requirements
will vary based on selection of features and current system configuration)
Available 9- or 25-pin communications port (adapter required for 25-pin
communication port)
CD-ROM drive
VGA or higher resolution graphics card (Super VGA 256-color recommended)
Keyboard
Microsoft Mouse or compatible pointing device
NEC is a registered trademark of NEC Corporation. UltraCare is a U.S. registered service mark of
NEC Technologies,Inc.All are used under license by Packard Bell NEC, Inc. MobilePro is a trademark
of Packard Bell NEC, Inc.Microsoft,Windows and the Windows logo are either registered trademarks
or trademarks of Microsoft Corporation in the United States and/or other countries. All other trademarks
and registered trademarks are the property of their respective owners.©1998 NEC Computer Systems
Division,Packard Bell NEC, Inc. Printed in U.S.A. 3/98 Information in this publication is subject to
change without notice.
