MDview Series
MDview 232
MDview 241
MDview 271
User’s Guide
Edition 8.0 - May 2013
Index
Warning, Caution ..........................................................................................................................English-1
Declaration of Conformity .............................................................................................................English-1
Intended Use in Medical Environment ..........................................................................................English-2
MDview 232/241/271 Product Features .......................................................................................English-2
Contents .......................................................................................................................................English-3
Quick Start ....................................................................................................................................English-4
Controls ........................................................................................................................................English-9
Using the PICTURE MODE function ............................................................................................English-15
Advanced OSD .............................................................................................................................English-16
General recommendations ...........................................................................................................English-24
Specifi cations - MDview 232 ........................................................................................................English-26
Specifi cations - MDview 241 ........................................................................................................English-27
Specifi cations - MDview 271 ........................................................................................................English-28
Features .......................................................................................................................................English-29
Troubleshooting ............................................................................................................................English-30
Using the Auto Brightness function ..............................................................................................English-32
TCO’03 .........................................................................................................................................English-33
TCO Displays 5 ............................................................................................................................English-34
Manufacturer’s Recycling and Energy Information .......................................................................English-35
For MDview 232:
WARNING
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT
USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE
PRONGS CAN BE FULLY INSERTED.
REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED
FROM WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT
THE POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol warns user that uninsulated voltage within the unit may have suffi cient magnitude to cause
electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this unit
has been included. Therefore, it should be read carefully in order to avoid any problems.
Caution:
When operating your MDview Series model with a 220-240V AC power source in Europe, use the power cord provided with the
monitor.
In the UK, a BS approved power cord with a moulded plug has a Black (fi ve Amps) fuse installed for use with this equipment. If a
power cord is not supplied with this equipment please contact your supplier.
For all other cases, use a power cord that matches the AC voltage of the power outlet and has been approved by and complies
with the safety standard of your particular country.
English
Declaration of Conformity
Declaration of the Manufacturer
We hereby certify that the colour monitors
L239TW (23"), L240UN (24"), L279TV (27")
are in compliance with:
Council Directive 2006/95/EC:
– EN 60950-1
Council Directive 2004/108/EC:
– EN 55022
– EN 61000-3-2
– EN 61000-3-3
– EN 55024
Council Directive 2009/125/EC:
EC No. 1275/2008
– EN 62301:2005
Windows is a registered trademark of Microsoft Corporation.
NEC is a registered trademark of NEC Corporation.
DisplayPort is trademarks of Video Electronics Standards Association.
OmniColor is a registered trademark of NEC Display Solutions Europe GmbH in the countries of EU and
Switzerland.
ErgoDesign is a registered trademark of NEC Display Solutions, Ltd. in Austria, Benelux, Denmark, France,
Germany, Italy, Norway, Spain, Sweden, U.K.
Adobe® is a registered trademark or trademark of Adobe Systems Incorporated in the U.S. and/or other countries.
All other brands and product names are trademarks or registered trademarks of their respective owners.
and marked with
NEC Display Solutions, Ltd.
4-13-23, Shibaura,
Minato-Ku
Tokyo 108-0023, Japan
English-1
Intended Use in Medical Environment
The MDview Series colour displays are intended to be used for secondary diagnostics and review of medical images by trained
physicians.
Unpacking, Installation and calibration of this display should only be done by authorized and trained personnel. Any installation
done by a non-authorized person is done under his own risk and we accept no responsibility in any device malfunctioning.
WARNING: - MDview Series Displays are not certifi ed as Medical Devices according to EU Directive 92/43/EC.
- DO NOT use a MDview 232/241/271 display in patient vicinity.
- Any use for primary diagnostics is the sole responsibility of the hospital or clinic operator only.
MDview Series Displays may be used as a component within a medical system or a PACS diagnostics workstation. Any required
re-certifi cation process to comply with the EU directive 92/42/EC for medical devices is however within the responsibility of the
system/workstation supplier.
MDview 232/241/271 Product Features
• These MDview Series models come with a factory preset DICOM like gamma correction enabled. This option provides an
essential improvement for viewing DICOM compliant medical images. However, this option cannot completely substitute a
true DICOM Part 14 GSDF curve.
• Internal programmable 14-bit LUTs allows true DICOM GSDF calibration via software and calibration instrument, complying
with the DICOM Part 14 standard.
• Improved Spatial Uniformity using Digital Uniformity Control (DUC).
• Meeting the visual requirements as “AAPM TG18 Secondary Display”.
• Meeting the visual requirements of acceptance tests and constancy tests under DIN V 6868-57 Category B.
• Quick warm-up time (MDview 241/271).
• DisplayPort, which supports 10-bit color depth.
• Accurate color reproduction.
• Picture-in-picture/picture-by-picture dual-screen mode.
• USB hub with two upstream ports.
• Small footprint design.
• Shipping content includes a Software/Utility DVD with:
• GammaCompMD QA Client calibration software.
• NEC tested and approved display controller drivers.
• MDview Series Online User’s Guide - with extended setup information for MDview 232/241/271, as PDF documents.
NOTE: To prevent any un-intentional de-adjustment of optimum settings and calibrated values, NEC Display Solutions
Europe highly recommends the activation of the “OSD LOCK OUT with no control” function within the display’s
On-Screen-Display (OSD). This operation is described on page 21 of this document.
This User’s Guide refers to the following NEC MDview Series models
- MDview 232 23” Display, 2.1 mega-pixel = 1920 x 1080 resolution (L239TW)
- MDview 241 24” Display, 2.3 mega-pixel = 1920 x 1200 resolution (L240UN)
- MDview 271 27” Display, 3.7 mega-pixel = 2560 x 1440 resolution (L279TV)
English-2
Contents
Your new NEC MDview display box* should contain the following:
• MDview display with tilt/swivel/pivot/height adjust stand
• Power Cord
• Video Signal Cable (DVI-D to DVI-D cable)*
• Video Signal Cable (Mini D-SUB 15 pin to Mini D-SUB 15 pin) (MDview 232/241 only)
• DisplayPort Cable
• USB Cable
• MDview Series Quick Reference Guide
• DVD-ROM "GammaCompMD QA"
• Screw (x 4) (to mount the monitor to a fl exible arm (page 8))
1
English
Mini D-SUB 15 pin to
Mini D-SUB 15 pin
(MDview 232/241 only)
(Type of power cord included will
depend on the where the LCD
Power Cord
monitor is to be shipped)
MDview Series
Quick Reference
Guide
MDview Series
Quick Reference Guide
USB Cable
DVI-D to DVI-D cable*
1
NOTE: This display can be equipped with optional “MultiSync Sound bar”.
Please ask your dealer or check our website http://www.nec-display-solutions.com
* Remember to save your original box and packing material to transport or ship the monitor.
1
Dual link DVI cable for MDview 271.
*
Screws
DVD-ROM
DisplayPort Cable
English-3
Quick Start
To connect the LCD monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2. For a PC or MAC with DVI digital output: Connect the DVI signal cable to the connector of the display controller in your
system (Figure A.1). Tighten all screws.
For a PC with Analog output (MDview 232/241 only): Connect a 15-pin mini D-SUB to DVI-A signal cable (not included) to
the connector of the display controller in your system (Figure A.2).
For a MAC (MDview 232/241 only): Connect a Macintosh cable adapter (not included) to the computer, then attach the
15-pin mini D-SUB signal cable to the Macintosh cable adapter (Figure A.3).
NOTE: Some Macintosh systems do not require a Macintosh cable adapter.
For a PC with DisplayPort output: Connect the DisplayPort cable to the connector of the display controller in your system
(Figure A.4).
Figure A.1
NOTE: 1. Please use a DisplayPort cable with a DisplayPort logo.
2. When removing the DisplayPort cable, hold down the top button to release the lock.
3. Height adjustment is locked by lock button. Place hand on top of the monitor to push down the screen to the lowest position.
Slide the lock button to unlock (Figure B.1).
NOTE: Handle with care when unlocking stand.
Place hands on each side of the monitor to tilt the LCD panel 30-degree angle and lift up to the highest position.
Slide the cable cover up (Figure B.2).
NOTE: Cable cover is not removable.
Figure A.2
Macintosh Cable
Adapter
(not included)
Cable cover
Figure A.3
DisplayPort cable
30° Tilt
Figure A.4
Figure B.1 Figure B.2
English-4
4. Connect all cables to the appropriate connectors (Figure C.1). When using the USB cable, connect the B type connector
to the USB upstream port on the right back side of the monitor and the A type connector to the downstream port on the
computer (Figure C.1a). If using the cord from a USB device, plug into one of the downstream ports of the monitor.
NOTE: Incorrect cable connections may result in irregular operation, damage display quality/components of the LCD module
and/or shorten the module’s life.
30° Tilt
USB downstream
A Type
A Type
English
Highest
Stand
B Type
Position
B Type
USB downstream
USB upstream1
USB upstream2
DC-OUT*
DisplayPort
DVI-1
DVI-2
D-SUB*
1
Figure C.1a
Power cord
* NEC optional product attachment.
Do not use this connector unless specifi ed.
Figure C.1
5. To keep the cables neatly organized, place them into the cable management system that is built into the stand.
Place the cables in the hooks fi rmly and evenly (Figure C.2 and Figure C.3).
6. Please check that you can still rotate, raise and lower the monitor screen when you have installed the cables.
DVI-1 Cable
USB Cable
DisplayPort
Cable
*1 MDview 232/241 only.
D-SUB Cable*
1
Power Cord
Figure C.2 Figure C.3
Power Cord
D-SUB Cable*
1
DVI-1/DVI-2 Cables
DisplayPort Cable
USB Cable
English-5
7. Slide down the cable cover (Figure D.1).
8. Connect one end of the power cord to the AC inlet on the back of the monitor and the other end to the power outlet.
NOTE: Please refer to the Caution section of this manual for proper selection of AC power cord.
Figure D.1
9. Turn on the monitor with the front power button (Figure E.1) and the computer.
10. MDview 232/241 only: No-touch auto adjust automatically adjusts the monitor to optimal settings upon initial setup for most
timings. For further adjustments, use the following OSD controls:
• Auto Contrast (Analog input only)
• Auto Adjust (Analog input only)
Refer to the Controls section of this User’s Manual for a full description of these OSD controls.
NOTE: If you have any problems, please refer to the Troubleshooting section of this User’s Manual.
Power Button
Figure E.1
Raise and Lower Monitor Screen
The monitor may be raised or lowered in either Portrait or Landscape mode.
To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1).
NOTE: Handle with care when raising or lowering the monitor screen.
Figure RL.1
English-6
Screen Rotation
Before rotating, the screen must be raised to the highest level and tilt to avoid knocking the screen on the desk or pinching your
fi ngers. Disconnect all cables.
To raise the screen, place hands on each side of the monitor and lift up to the highest position (Figure RL.1).
To rotate screen, place hands on each side of the monitor screen and turn clockwise from Landscape to Portrait or counterclockwise from Portrait to Landscape (Figure R.1).
To rotate OSD menu between landscape and portrait, refer to “Controls” section.
Figure R.1
Tilt
Grasp top and bottom sides of the monitor screen with your hands and adjust the tilt as desired (Figure TS.1).
English
Figure TS.1
NOTE: Handle with care when tilting the monitor screen.
Swivel
Grasp both sides of the monitor screen with your hands and adjust the swivel as desired (Figure TS.2).
Figure TS.2
English-7
Remove Monitor Stand for Mounting
To prepare the monitor for alternate mounting purposes:
1. Disconnect all cables.
2. Place hands on each side of the monitor and lift up to the highest position.
3. Place monitor face down on a non-abrasive surface (Figure S.1).
4. Place one hand around the base and one hand on the Quick Release Lever.
Push and hold the Quick Release Lever in the direction indicated by the arrows
(Figure S.1).
5. Lift up the stand to unhook it from the monitor (Figure S.1).
The monitor can now be mounted using an alternate method.
Reverse process to reattach stand.
NOTE: Handle with care when removing monitor stand.
Flexible Arm Installation
This LCD monitor is designed for use with a fl exible arm.
1. Follow the instructions on how Remove Monitor Stand for
Mounting to remove the stand.
2. Using the 4 screws from the stand removal and attach the arm to
the monitor (Figure F.1).
Caution: Use ONLY the screws (4 pcs) that are included or the
screws M4 size (Length: thickness of bracket and washer +
10-12 mm) when mounting to avoid damage to the monitor
and stand. To fulfi l the safety requirements the monitor
must be mounted to an arm which guaranties the
necessary stability under consideration of the weight of
the monitor. The LCD monitor should only be used with
an approved arm (e.g. GS mark).
200 mm*
2
Figure S.1
100 mm
Unit
10-12 mm
Mounting
Bracket
Washer
Screw
Thickness
of bracket
and washer
NOTE: Tighten all screws.
(recommended Fasten Force: 98 - 137N•cm)
*2 MDview 271 only.
100 mm
Weight of LCD assembly: 7.0 kg (MDview 232)
7.4 kg (MDview 241)
9.6 kg (MDview 271)
Figure F.1
English-8
Controls
OSD (On-Screen Display) control buttons on the front of the monitor
function as follows:
To access OSD menu, press the MENU button.
To change signal input, press the SELECT button.
NOTE: OSD must be closed in order to change signal input.
8
7
Landscape
1 2 3 4 5 6
1 AUTO DIMMING
SENSOR
Detects the level of ambient lighting allowing the monitor to make adjustments to various
settings resulting in a more comfortable viewing experience. Do not cover this sensor.
2 Power Turns the monitor on and off.
3 LED Indicates that the power is on.
Can be changed between blue and green in the Advanced OSD menu.
9
Portrait
English
4 INPUT/SELECT Enters the OSD Control menu. Enters OSD sub menus.
Changes the input source when not in the OSD Control menu.
Hold the button to show USB selection menu when not in the OSD Control menu*
NOTE: This USB selection setting back to the current setting by OSD menu when you change
input signal or turn off the monitor.
5 MENU/EXIT Access OSD menu. Exits the OSD sub menu. Exits OSD Control menu.
6 LEFT/RIGHT Navigates to the left or right through the OSD Control menu.
You can adjust the brightness directly, while the OSD menu is off*
7 UP/DOWN Navigates up or down through the OSD Control menu.
Show Picture Mode menu when not in the OSD Control menu*
8 RESET/PIP Resets the OSD back to factory settings in the OSD control menu.
PIP can be selected when the OSD is not showing*
3
.
1, *2
1
.
.
Hold the button to show ECO Mode menu while the OSD menu is OFF*1.
9 KEY GUIDE The Key Guide appears on screen when the OSD control menu is accessed.
The Key Guide will rotate when the OSD control menu is rotated*.
* The “LEFT/RIGHT” and “UP/DOWN” buttons functionality is interchangeable depending on the orientation
(Landscape/Portrait) of the OSD.
1
*
When HotKey function is OFF, this function is disabled.
2
*
PICTURE MODE menu.
Press the UP/DOWN button to select PICTURE MODE. In PIP or PICTURE BY PICTURE mode, picture mode can
be selected for main and sub window independently by pressing Left/Right button.
3
*
PIP mode menu.
Press the UP/DOWN button to select sub-window ON/OFF. Press the LEFT/RIGHT button to swap main window
and sub window.
1
.
Example:
MDview 241
SETTING OSD LANGUAGE
• Use the control keys (LEFT/RIGHT or UP/DOWN or MENU) to access the “LANGUAGE SELECTION” menu.
• Press the LEFT/RIGHT or UP/DOWN buttons to select the desired OSD language.
• To exit from this OSD menu, press EXIT button.
NOTE: The OSD language will stay the same until changed by the user.
English-9
Brightness/Contrast Controls
BRIGHTNESS
Adjusts the overall image and background screen brightness.
NOTE: The brightness level is adjusted using the backlight output.
The display will digitally compensate for low or high brightness levels.
If digital compensation occurs, the brightness value on the OSD will change to magenta.
NOTE: The optimal display performance will be in the range where the OSD brightness value is black. When the
display cannot achieve the desired brightness, the numerical brightness value on the OSD will blink.
NOTE: For low brightness settings, the display will automatically compensate by adjusting the screen contrast to
achieve the desired brightness. This will result in a reduced contrast ratio and the OSD indicator will change
to magenta.
NOTE: For high brightness settings, the display will automatically compensate by turning down uniformity
compensation in order to achieve the desired brightness. The OSD indicator will change to magenta and this
may result in decreased uniformity.
CONTRAST (Analog input only)*
Adjusts the overall image and background screen brightness by input signal level.
NOTE: It is recommended to use BRIGHTNESS to adjust screen brightness for lower power consumption and
improved image quality.
ECO MODE (not recommeded for Medical Environment)
Decreases the amount of power consumed by reducing the brightness level.
OFF: No function.
MODE1: Decreases the brightness range up to about 160 cd/m
Decreases the brightness range up to about 200 cd/m2 (MDview 241/271).
MODE2: Decreases the brightness range up to about 100 cd/m
1
2
(MDview 232).
2
.
BLACK
Adjusts the black luminance.
When low settings are selected that cannot be displayed, the indicator on the OSD will turn magenta.
Auto Adjust (Analog input only)*
1
AUTO ADJUST
Automatically adjusts the Image Position and H. Size settings and Fine settings.
AUTO CONTRAST
Adjusts the image displayed for non-standard video inputs.
Image Controls
LEFT / RIGHT
Controls Horizontal Image Position within the display area of the LCD.
DOWN / UP
Controls Vertical Image Position within the display area of the LCD.
H.SIZE (V.SIZE) (Analog input only)*1
Adjusts the horizontal size by increasing or decreasing this setting.

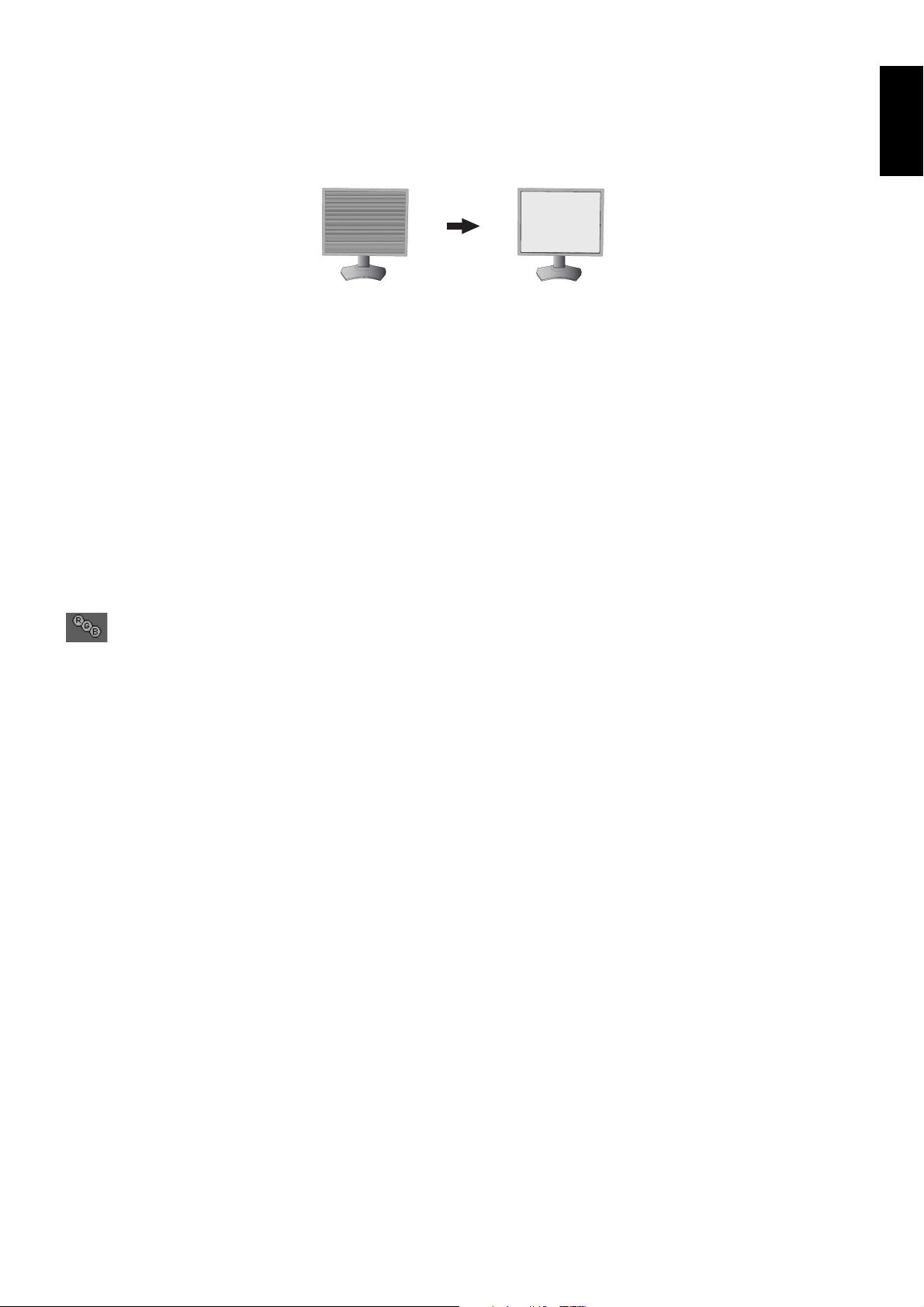

If the “AUTO Adjust function” do not give you a satisfactory picture setting, a further tuning can be performed using the
“H.Size (or V.Size)” function (dot clock). For this a Moiré test pattern could be used. This function may alter the width of
the picture. Use Left/Right Menu to center the image on the screen. If the H.Size (or V.Size) is wrongly calibrated, the
result would look like the left drawing. The image should be homogeneous.
*1 MDview 232/241 only.
When H.SIZE value is
wrong.
When H.SIZE value is
improved.
English-10
When H.SIZE value is
correct.
Loading...
